4. Outline:
What Are Interrupts?
Why Interrupts?
Instruction Cycle And Interrupts
Classes Of Interrupts
Types Of Interrupts
Difference b/w Interrupts and Exceptions
How They Are Handled?

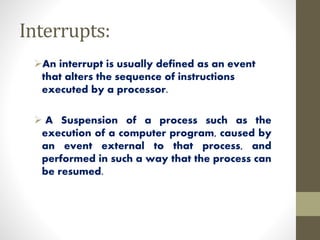

5. Interrupts:
An interrupt is usually defined as an event
that alters the sequence of instructions
executed by a processor.
A Suspension of a process such as the
execution of a computer program, caused by
an event external to that process, and
performed in such a way that the process can
be resumed.
6. Need For Interrupts?
The OS is a reactive program
When you give some input
It will perform computations
Produces output BUT
Meanwhile you can interact with the system by
interrupting the running process or
You can stop and start another process.
This reactive ness is due to interrupts
Modern Operating Systems Are Interrupt
driven
7. Instruction Cycle And Interrupts
Without Interrupts
Two steps ( cycles)
Instruction Fetch
Instruction Execute
Start
Fetch
Instruction
Execute
Instruction
Halt
8. Instruction Cycle And Interrupts
With Interrupts
Three steps ( cycles)
Instruction Fetch
Instruction Execute
Check Interrupt
Start Fetch
Instruction
Execute
Instruction
Check For
Interrupt
Halt
9. Classes Of Interrupts
Program
Generated by some condition that occurs as a result
of an instruction execution, such as arithmetic
overflow, division by zero, attempt to execute an
illegal machine instruction etc.
Timer
Generated by a timer within the processor. This allows the
operating system to perform certain functions on a regular
basis.
I/O
Generated by an I/O controller, to signal normal
completion of an operation or to signal a variety of error
conditions.
Hardware failure
Generated by a failure, such as power failure
or memory parity error.

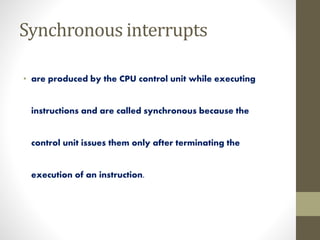

11. • are produced by the CPU control unit while executing
instructions and are called synchronous because the
control unit issues them only after terminating the
execution of an instruction.
Synchronous interrupts
12. Asynchronous interrupts
• are generated by other hardware devices at arbitrary
times with respect to the CPU clock signals.
13. Differenceb/w Interruptsand Exceptions
Exceptions are caused by software executing
instructions
a page fault, or an attempted write to a read- only page
an expected exception is a “trap”, unexpected is a “fault”
Interrupts are caused by hardware devices
device finishes I/O
timer fires
14. How Interrupts Are Handled?
Different routines handle different interrupts – called
Interrupt Service Routines (ISR).
When CPU is interrupted
It stops what it was doing, and context is saved.
A generic routine called Interrupt Handling Routine (IHR) is
run which
Examines the nature of interrupt
Calls the corresponding Interrupt Service Routine (ISR) -- stored in
lower part of memory.
After servicing the interrupt, the saved address is loaded
again to PC to resume the process again.
