1. HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008 Interface Model Elicitation from Textual Scenarios Christophe Lemaigre, Josefina Guerrero, Jean Vanderdonckt Université catholique de Louvain (UCL) Louvain School of Management (LSM) Information Systems Unit (ISYS) Place des Doyens, 1 – B-1348 Louvain-la-Neuve (Belgium) http://www.isys.ucl.ac.be/

2. Introduction and motivations Model Elicitation Consists of The identification of model elements From Textual scenario First step of a model-driven engineering process Selection of several models : user, task, domain, organization, resource and job Characterizing the concepts used in the development life cycle of user interfaces for Worfklow Information Systems HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

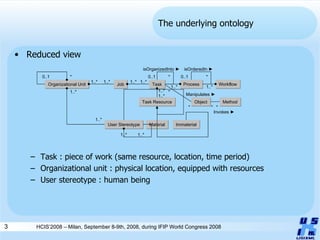

3. The underlying ontology Reduced view Task : piece of work (same resource, location, time period) Organizational unit : physical location, equipped with resources User stereotype : human being HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008 Organizational Unit Job Task 1..* 1..* 1..* 1..* Task Resource User Stereotype Material Immaterial Process Workflow 1..* 1..* * 0..1 0..1 * 0..1 * 1..* 1..* 1..* 1..* isOrganizedInto ► isOrderedIn ► 1..* 1..* Object Method Manipulates ► Invokes ► * * * *

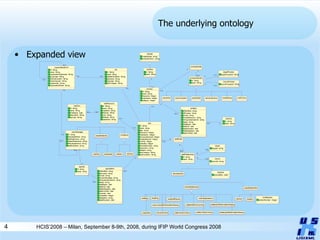

4. The underlying ontology Expanded view HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

5. Related work Some other tools use model elicitation at some level U-Tel, ConcurTaskTress, T2T, Garland et al. Brasser & vanderLinden Shortcomings : Focused on a single model No attribute elicitation Result that can hardly be exploited HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

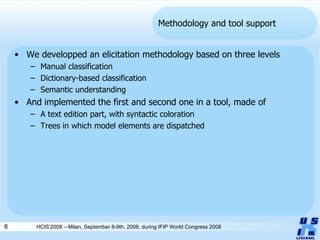

6. Methodology and tool support We developped an elicitation methodology based on three levels Manual classification Dictionary-based classification Semantic understanding And implemented the first and second one in a tool, made of A text edition part, with syntactic coloration Trees in which model elements are dispatched HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

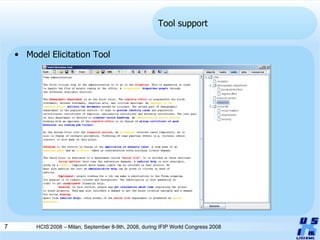

7. Tool support Model Elicitation Tool HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

8. Level 1: manual classification Definition : Program user does the elicitation job Without the help of an automated process Method : Selection of a piece of text from the scenario Choose the appropriate model and object type HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

9. Level 1: manual classification Tool : elicitation of a task HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008 1 2 3

10. Level 1: manual classification Advantages : Accurate result Easier to implement than automated elicitation No need of classification datas Inconvenients : Fastidious for the user Time costly HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

11. Level 2: dictionary-based classification Definition : Underlies on a set of predefined terms that will be automatically extracted and identified as model objects Two kinds of dictionaries : Generic dictionary, which is domain-independant Specific dictionary, linked with a definite domain Method : Improved pattern-matching process : Based on the recognition of phrases That are associated with their model definition Plural forms and conjugation are taken into account (e.g. to provide // providing) HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

12. Level 2: dictionary-based classification Tool : elicitation of jobs using a dictionary HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

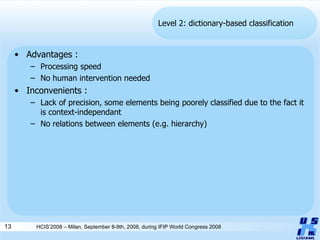

13. Level 2: dictionary-based classification Advantages : Processing speed No human intervention needed Inconvenients : Lack of precision, some elements being poorely classified due to the fact it is context-independant No relations between elements (e.g. hierarchy) HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

14. Level 3: toward semantic understanding Definition : Try to approximate natural language understanding Method : Using syntactic tagging, semantic tagging and chunk parsing. Detection of Concepts such as task types or attribute types Relationships between model elements No tool support currently HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

15. Level 3: toward semantic understanding Concrete example “ An accountant receives taxes complaints, but he is also in charge of receipts perception” Model elements : Task : receive taxes complaints Task : charge of receipts perception Job : accountant Relation “performed by” between those tasks an the job Temporal operator : concurrency for the tasks, used by default HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

16. Level 3: toward semantic understanding Advantages : Expressivity, being able to deduce relationships between model elements Automatic treatement Inconvenients : Difficult to implement Natural language understanding is a field of informatics research that needs a lot of work and improvement HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

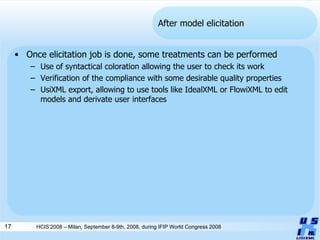

17. After model elicitation Once elicitation job is done, some treatments can be performed Use of syntactical coloration allowing the user to check its work Verification of the compliance with some desirable quality properties UsiXML export, allowing to use tools like IdealXML or FlowiXML to edit models and derivate user interfaces HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008

18. Conclusion and future work Methodology and tool support Combination of three complementary methods Allowing elicitation of elements from several models and relations between those elements Oriented towards user-interfaces generation for workflow information systems Implemented in a tool, using Usi-XML standard to export its result Future works : Advanced visualisation (e.g carrousel) Take into account inter-model relationships Refine the third level towards a more natural language understanding HCIS’2008 – Milan, September 8-9th, 2008, during IFIP World Congress 2008
