Engineering the Transition of Interactive Collaborative Software from Cloud Computing to Edge Computing
- 1. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) Engineering the Transition of Interactive Collaborative Software from Cloud Computing to Edge Computing Guillaume Ortegat, Donatien Grolaux, Etienne Rivière, Jean Vanderdonckt

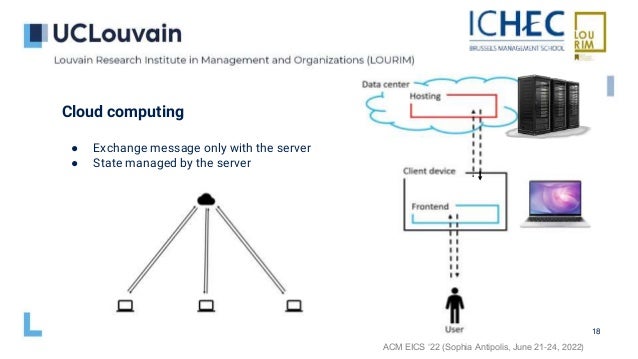

- 2. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Cloud computing ● Exchange message only with the server ● State managed by the server

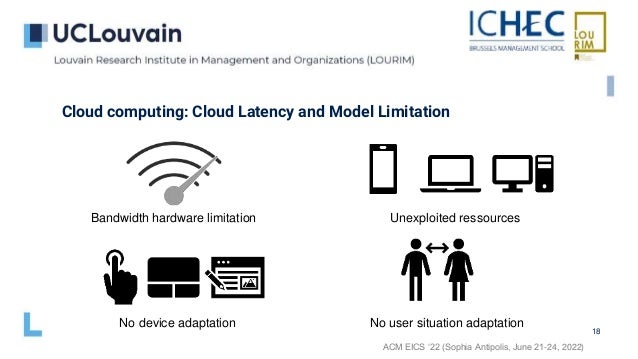

- 3. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Cloud computing: Cloud Latency and Model Limitation Bandwidth hardware limitation Unexploited ressources No device adaptation No user situation adaptation

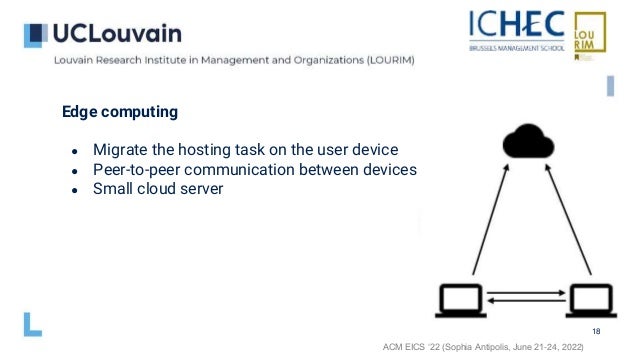

- 4. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Edge computing ● Migrate the hosting task on the user device ● Peer-to-peer communication between devices ● Small cloud server

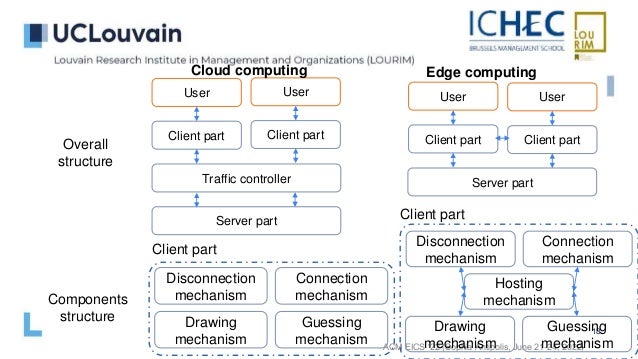

- 5. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Traffic controller Server part User Client part User Client part Disconnection mechanism Drawing mechanism Connection mechanism Guessing mechanism Client part Cloud computing Overall structure Components structure Edge computing User Client part Server part User Client part Drawing mechanism Hosting mechanism Guessing mechanism Disconnection mechanism Connection mechanism Client part

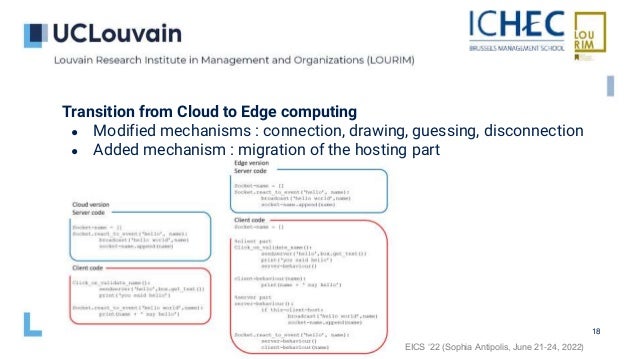

- 6. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Transition from Cloud to Edge computing ● Modified mechanisms : connection, drawing, guessing, disconnection ● Added mechanism : migration of the hosting part

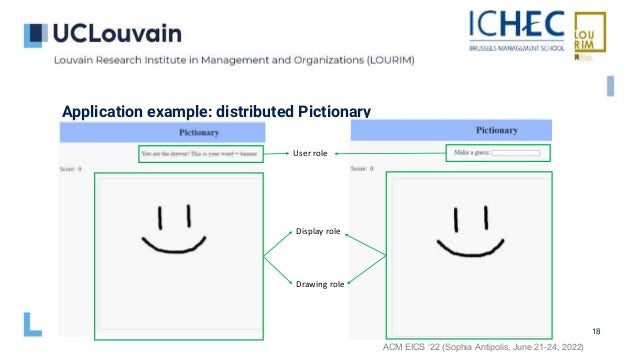

- 7. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Application example: distributed Pictionary User role Display role Drawing role

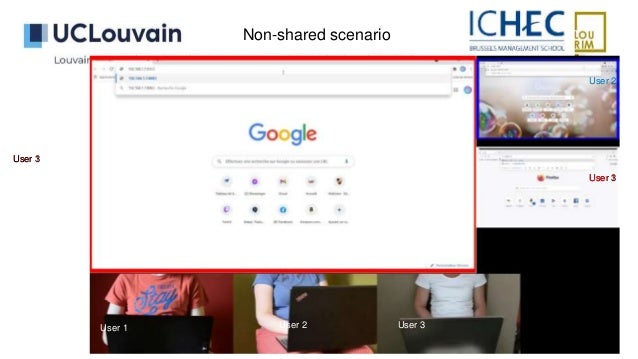

- 8. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) User 1 User 2 User 3 User 1 User 2 User 3 User 1 User 3 Non-shared scenario

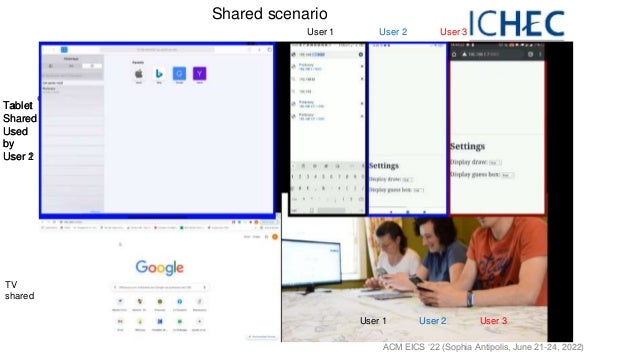

- 9. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) ● Vidéo scénario séparé Tablet Shared Used by User 2 TV shared User 1 User 2 User 3 Tablet Shared Used by User 1 User 1 User 2 User 3 Shared scenario
- 10. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Evaluation 2 groups of 5 people Game configurations 8 2 30.3 years Daily All except one Cloud 0 ms Cloud 80 ms Cloud 300 ms Edge Shared scenario S0 S80 S300 SE Non-shared scenario N0 N80 N300 NE Protocol 1. Consent form 2. Acclimatation 3. Playing all the configurations 4. Answer questions after each game

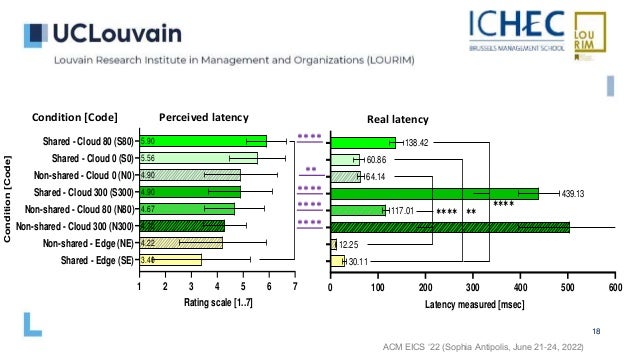

- 11. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 0 100 200 300 400 500 600 Shared - Edge (SE) Non-shared - Edge (NE) Non-shared - Cloud 300 (N300) Non-shared - Cloud 80 (N80) Shared - Cloud 300 (S300) Non-shared - Cloud 0 (N0) Shared - Cloud 0 (S0) Shared - Cloud 80 (S80) 138.42 60.86 64.14 439.13 117.01 12.25 30.11 Latency measured [msec] Real latency ✱✱✱✱ ✱✱ ✱✱✱✱ 1 2 3 4 5 6 7 Shared - Edge (SE) Non-shared - Edge (NE) Non-shared - Cloud 300 (N300) Non-shared - Cloud 80 (N80) Shared - Cloud 300 (S300) Non-shared - Cloud 0 (N0) Shared - Cloud 0 (S0) Shared - Cloud 80 (S80) 5.90 5.56 4.90 4.90 4.67 4.30 4.22 3.40 Rating scale [1..7] Condition [Code] ✱ Perceived latency Condition [Code] Perceived latency Real latency **** ** **** **** ****

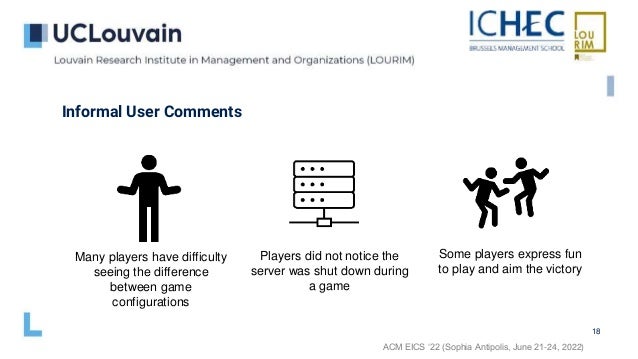

- 12. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Informal User Comments Many players have difficulty seeing the difference between game configurations Players did not notice the server was shut down during a game Some players express fun to play and aim the victory

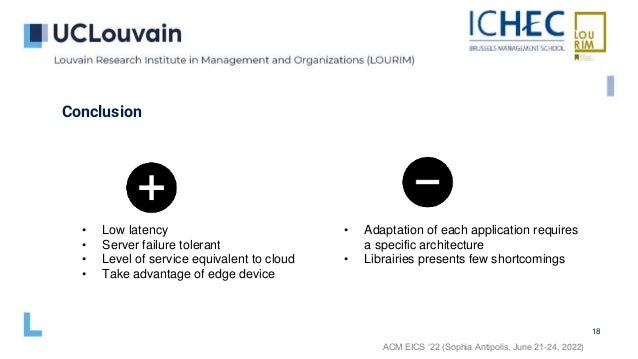

- 13. ACM EICS ‘22 (Sophia Antipolis, June 21-24, 2022) 18 Conclusion • Low latency • Server failure tolerant • Level of service equivalent to cloud • Take advantage of edge device • Adaptation of each application requires a specific architecture • Librairies presents few shortcomings
