Intelligent systems and learning centred design

The document discusses the design of intelligent technology-enhanced learning (TEL) systems, emphasizing user-centered design to support learners' experiences effectively. It highlights the 'Terence' project, which developed an adaptive learning system aimed at improving reading comprehension in children diagnosed as poor comprehenders, showcasing the importance of user characteristics and educators' perspectives. Various methodologies and evaluations are explored to ensure the usability and pedagogical effectiveness of TEL products.

Embed presentation

Download as PDF, PPTX
LEARNER CENTRED DESIGN INTELLIGENT SYSTEMS and Rosella Gennari http://www.inf.unibz.it/~gennari Distinguished Speakers Oxford Women in CS

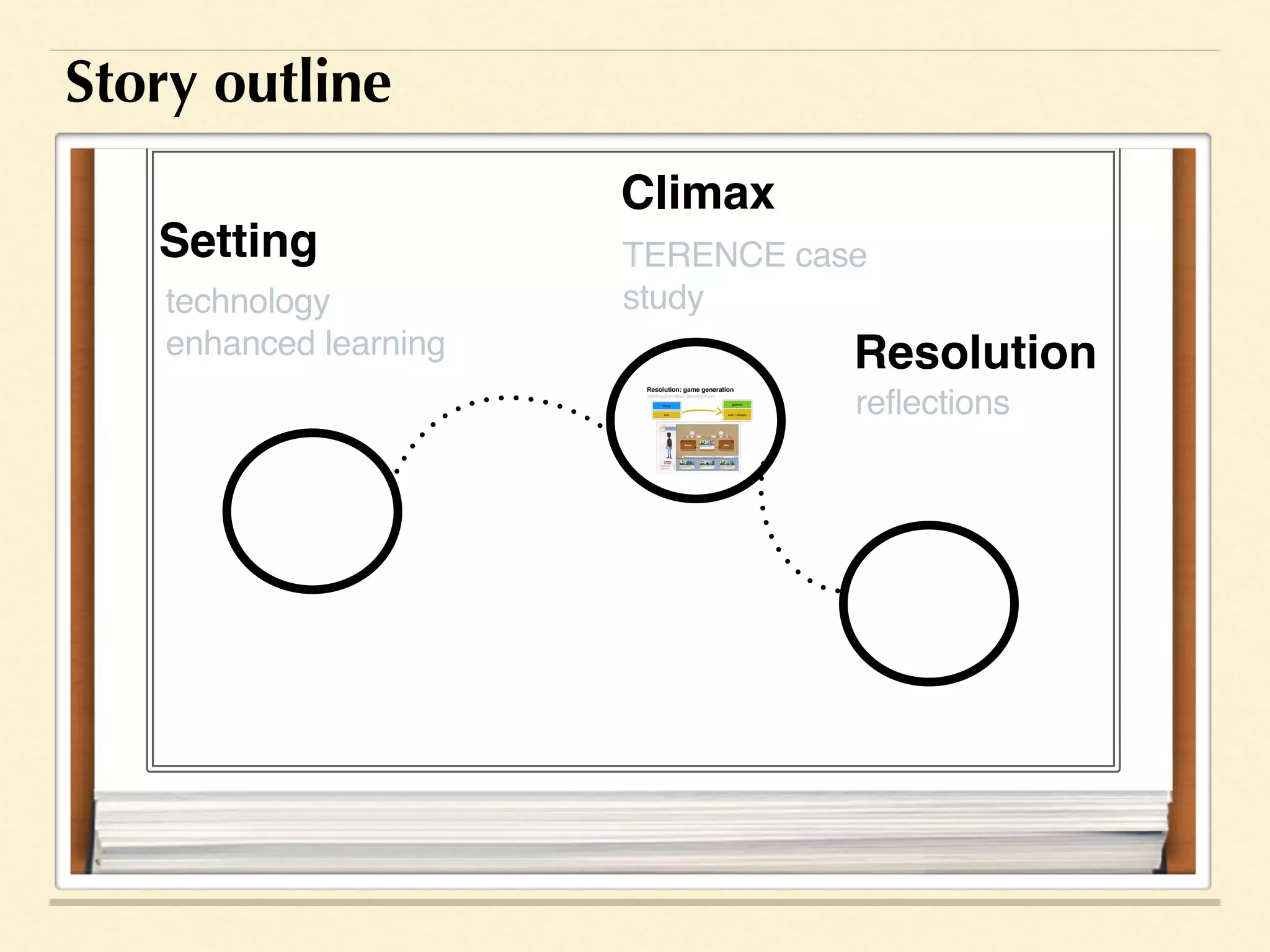

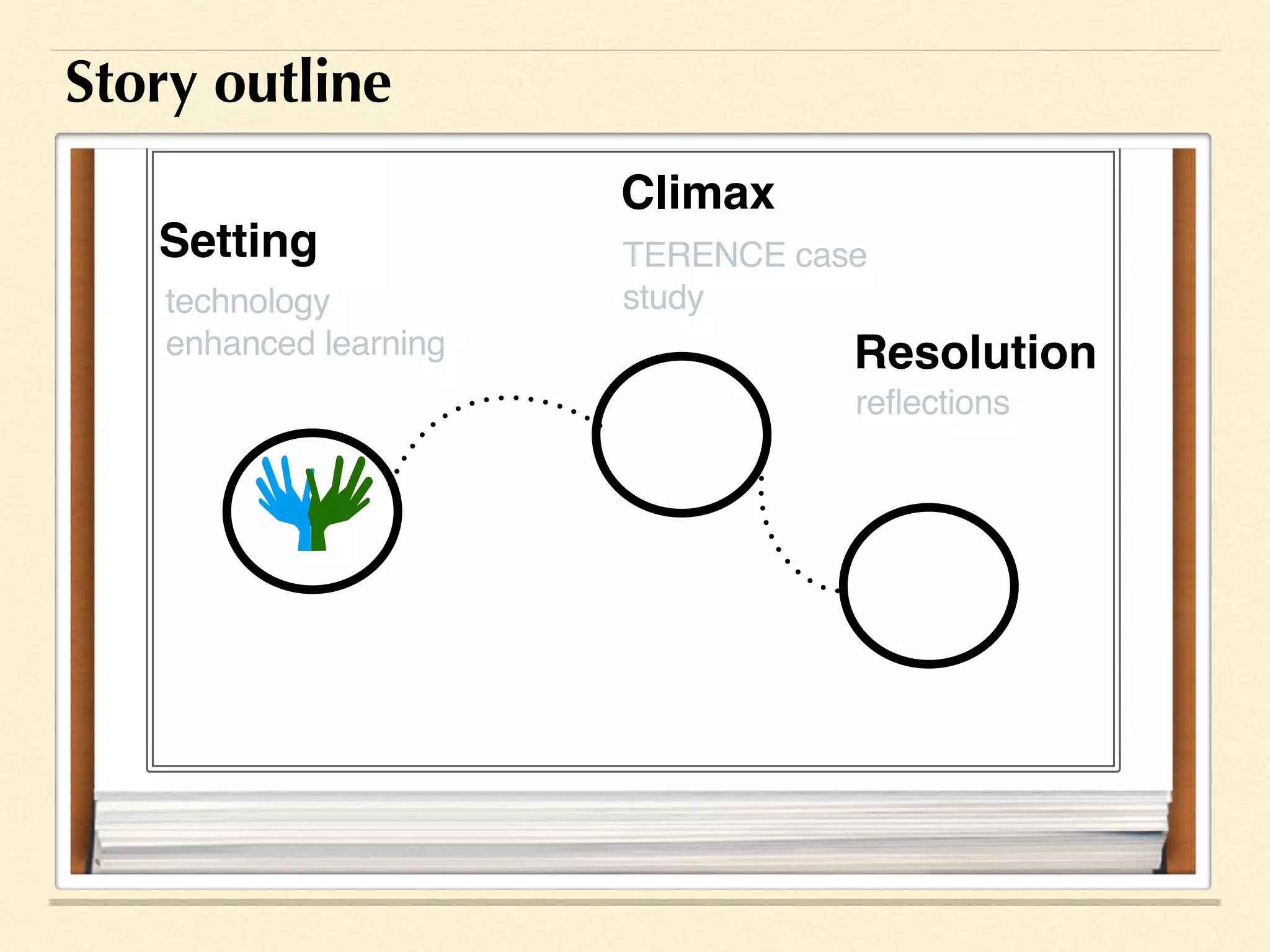

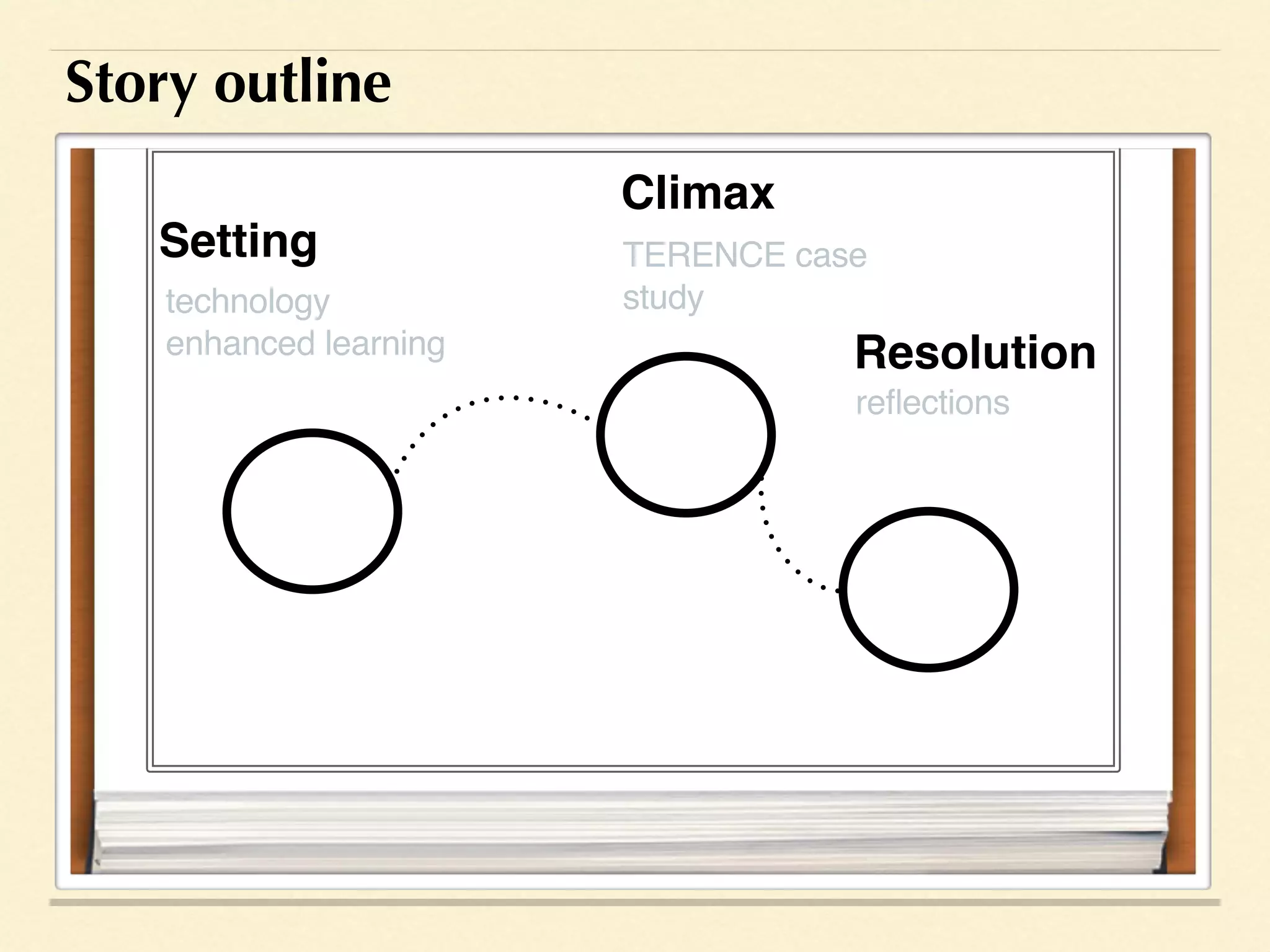

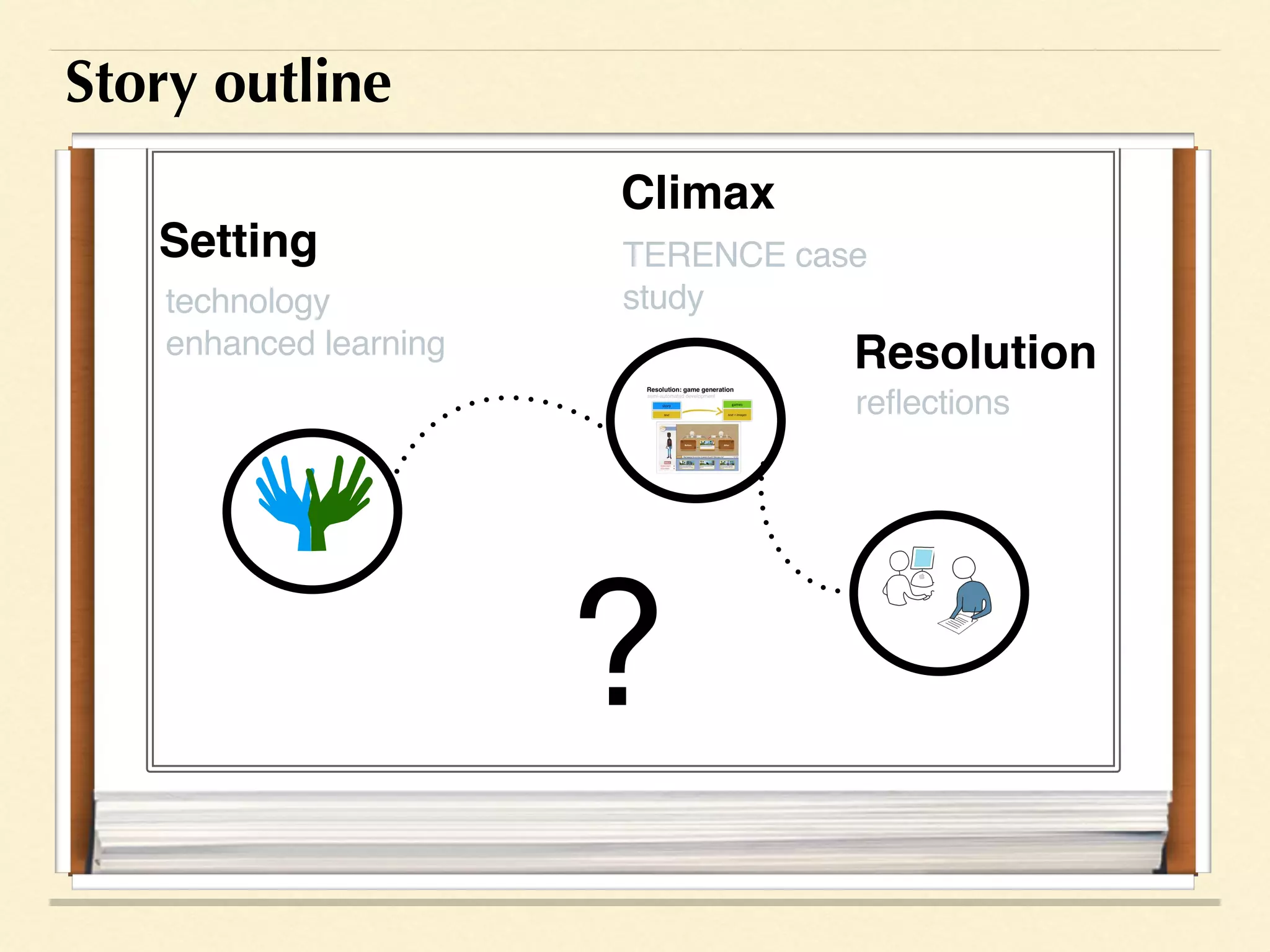

Setting technology enhanced learning Climax TERENCE case study Resolution reflections Story outline
Setting technology enhanced learning Climax TERENCE case study Resolution reflections Story outline
TECHNOLOGY ENHANCED LEARNING Technology Enhanced Learning (TEL) is the usage of technology for supporting a learning experience Herby we take a narrow view: intelligent TEL = Artificial Intelligence (AI) technology based products for supporting a learning experience
TEL 4 LEARNING EXPERIENCE How can we design technological products that supports their users’ learning experience?
LET'S SEE EDUCATORS' VIEWPOINT... Maria Montessori (1870-1952) Paraphrasing her words, adequate tasks that come in a prepared environment, designed on top of the learner characteristics can effectively support the learner’s learning was the first Italian woman physician and educator, best known for Montessori pedagogy
ousability of technology learning products opedagogical effectiveness of technology learning products TEL 4 LEARNING EXPERIENCE Adequate tasks that come in a prepared environment designed on top of the learner characteristics can effectively support learning

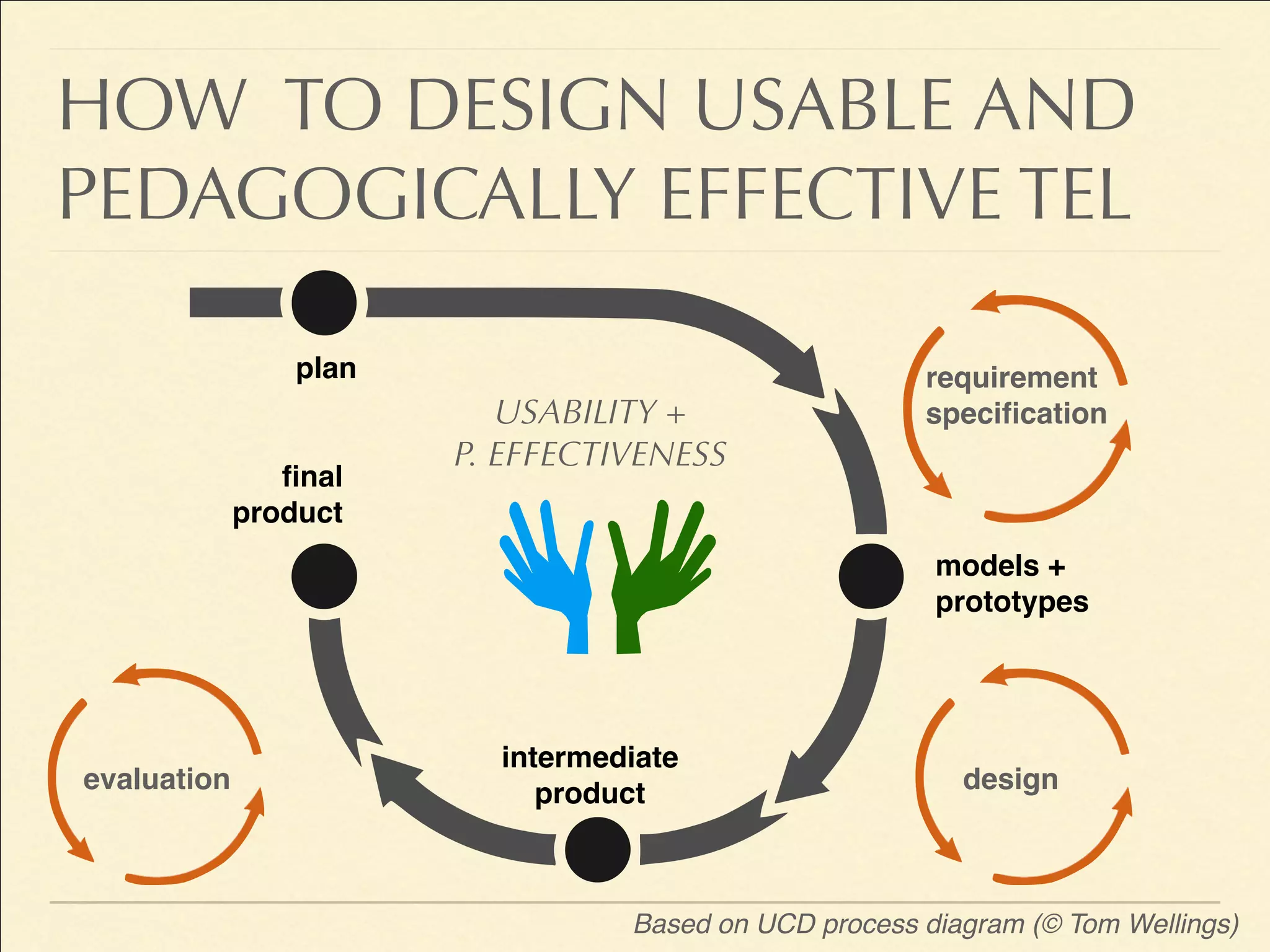

HOW TO DESIGN USABLE AND PEDAGOGICALLY EFFECTIVE TEL
Based on UCD process diagram (© Tom Wellings) requirement specification designevaluation plan models + prototypes intermediate product final product HOW TO DESIGN USABLE AND PEDAGOGICALLY EFFECTIVE TEL USABILITY + P. EFFECTIVENESS
Setting technology enhanced learning Climax TERENCE case study Resolution reflections Story outline

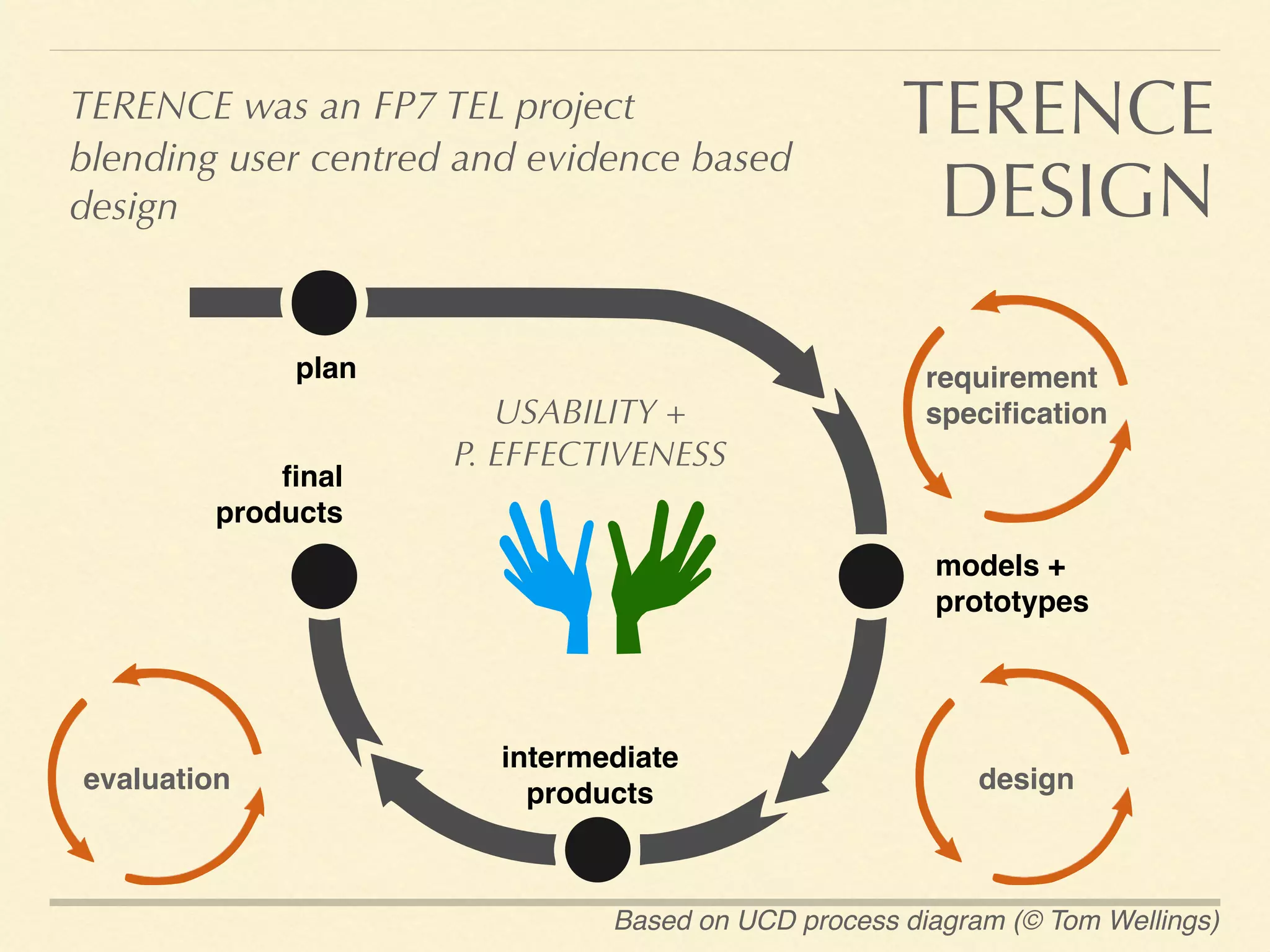

TERENCE DESIGN Based on UCD process diagram (© Tom Wellings) requirement specification designevaluation plan models + prototypes intermediate products final products TERENCE was an FP7 TEL project blending user centred and evidence based design USABILITY + P. EFFECTIVENESS

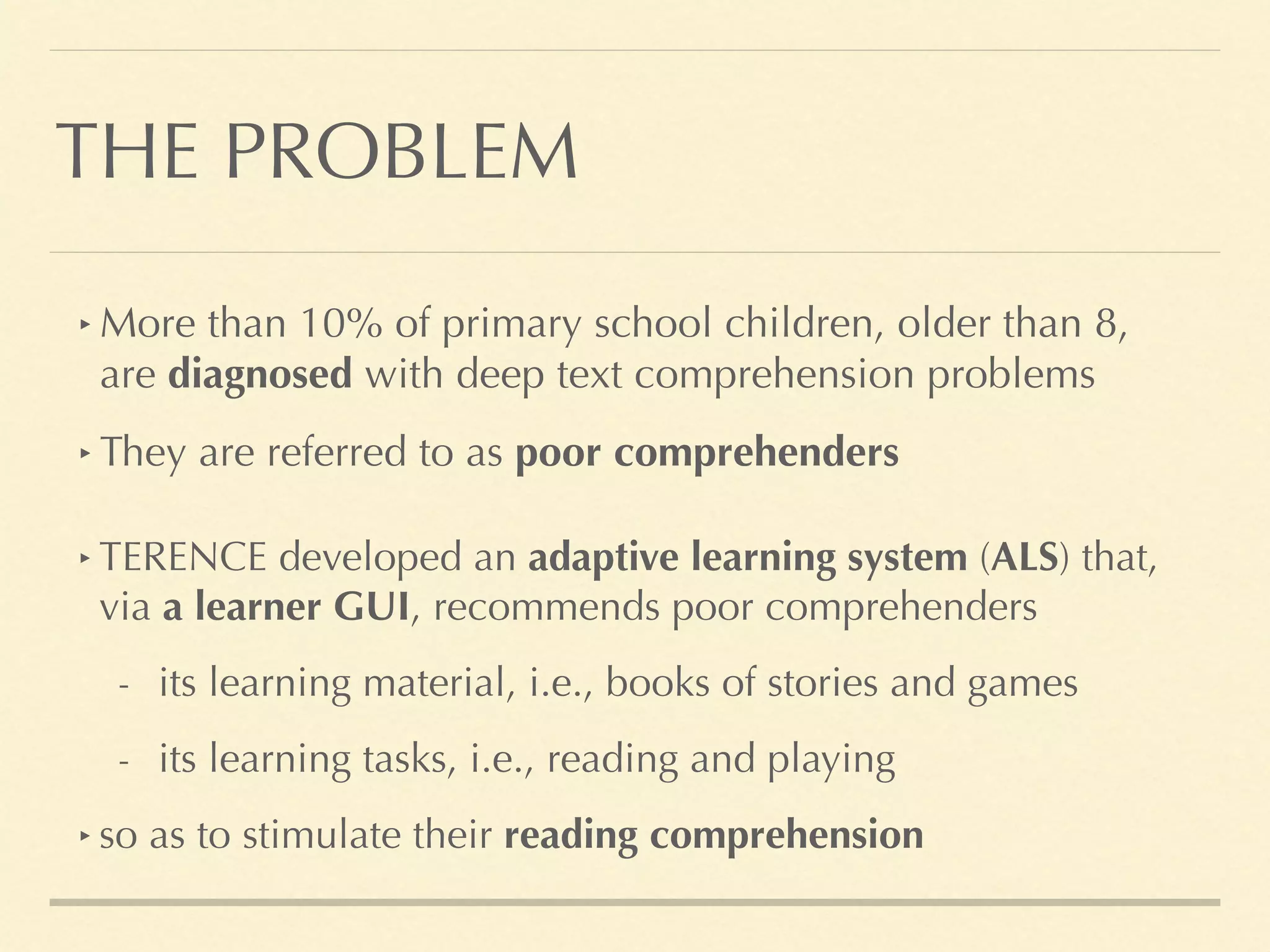

THE PROBLEM ‣ TERENCE developed an adaptive learning system (ALS) that, via a learner GUI, recommends poor comprehenders - its learning material, i.e., books of stories and games - its learning tasks, i.e., reading and playing ‣ so as to stimulate their reading comprehension ‣ More than 10% of primary school children, older than 8, are diagnosed with deep text comprehension problems ‣ They are referred to as poor comprehenders

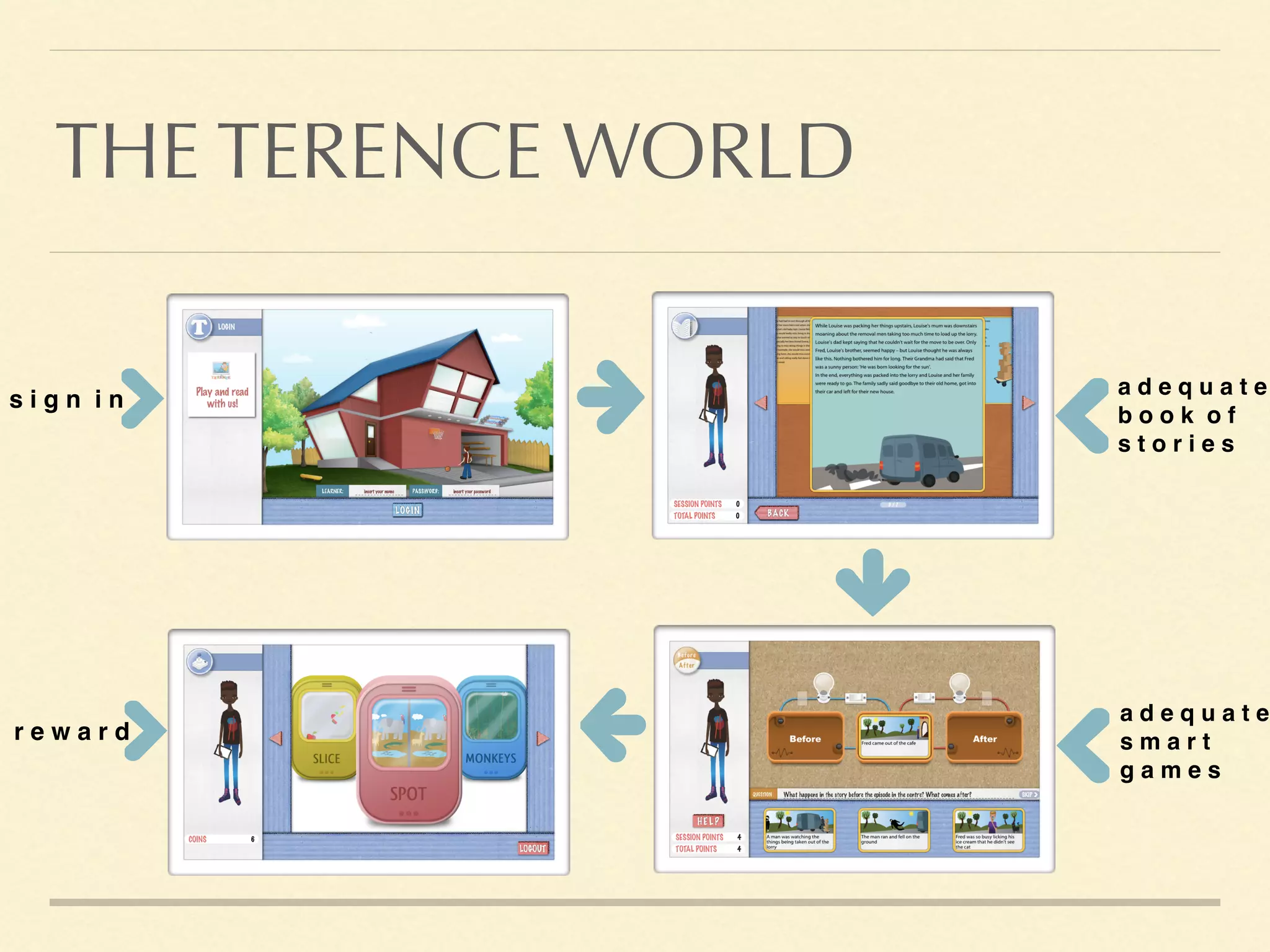

THE TERENCE WORLD a d e q u a t e b o o k o f s t o r i e s s i g n i n a d e q u a t e s m a r t g a m e s r e w a r d

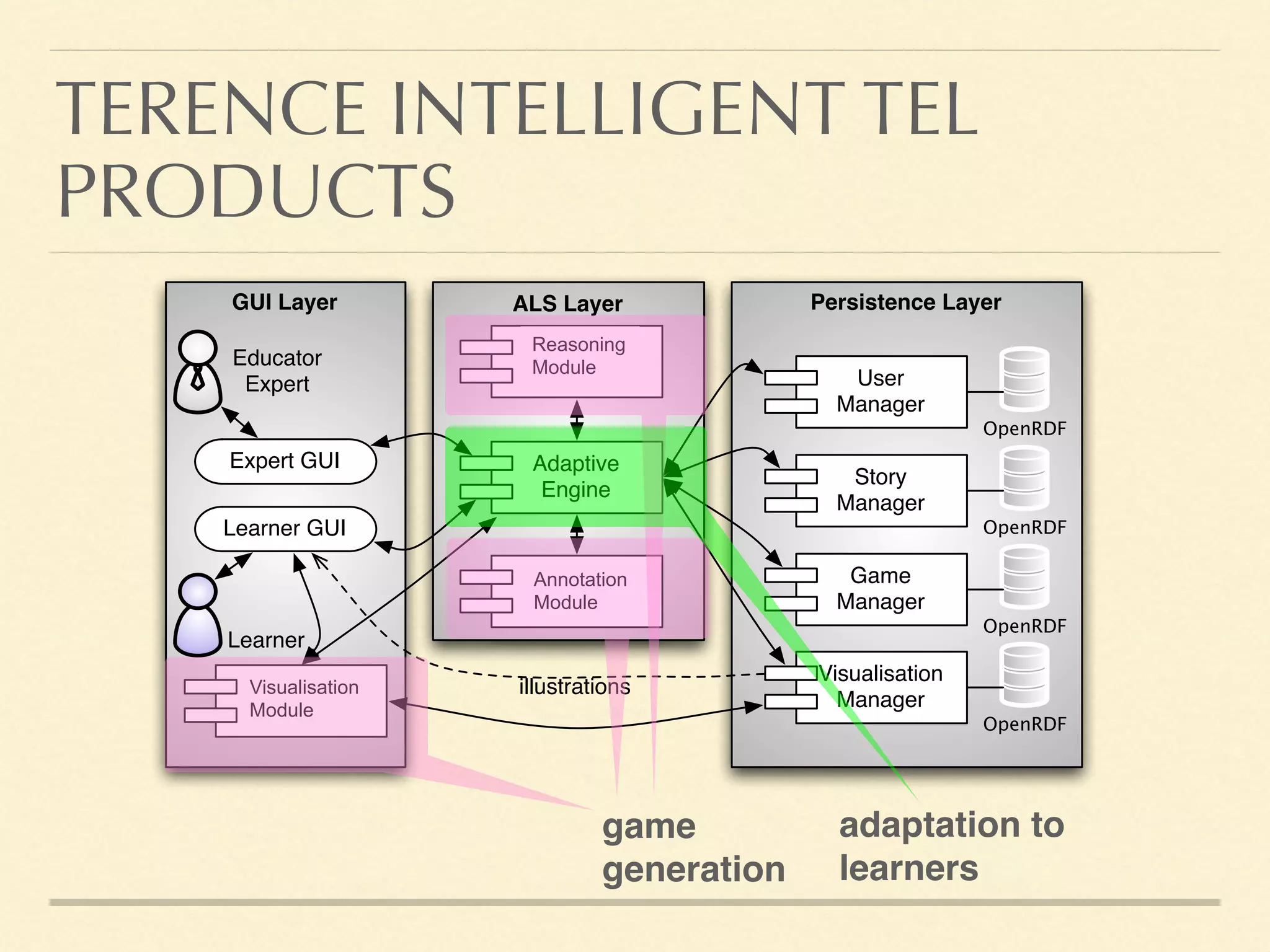

TERENCE INTELLIGENT TEL PRODUCTS ALS LayerGUI Layer Learner Educator Expert Learner GUI Expert GUI Persistence Layer OpenRDF User Manager OpenRDF Story Manager OpenRDF Game Manager OpenRDF Visualisation Manager illustrations NPL Reasoner Adaptive Engine Visualisation Reasoning Module Annotation Module Visualisation Module game generation adaptation to learners

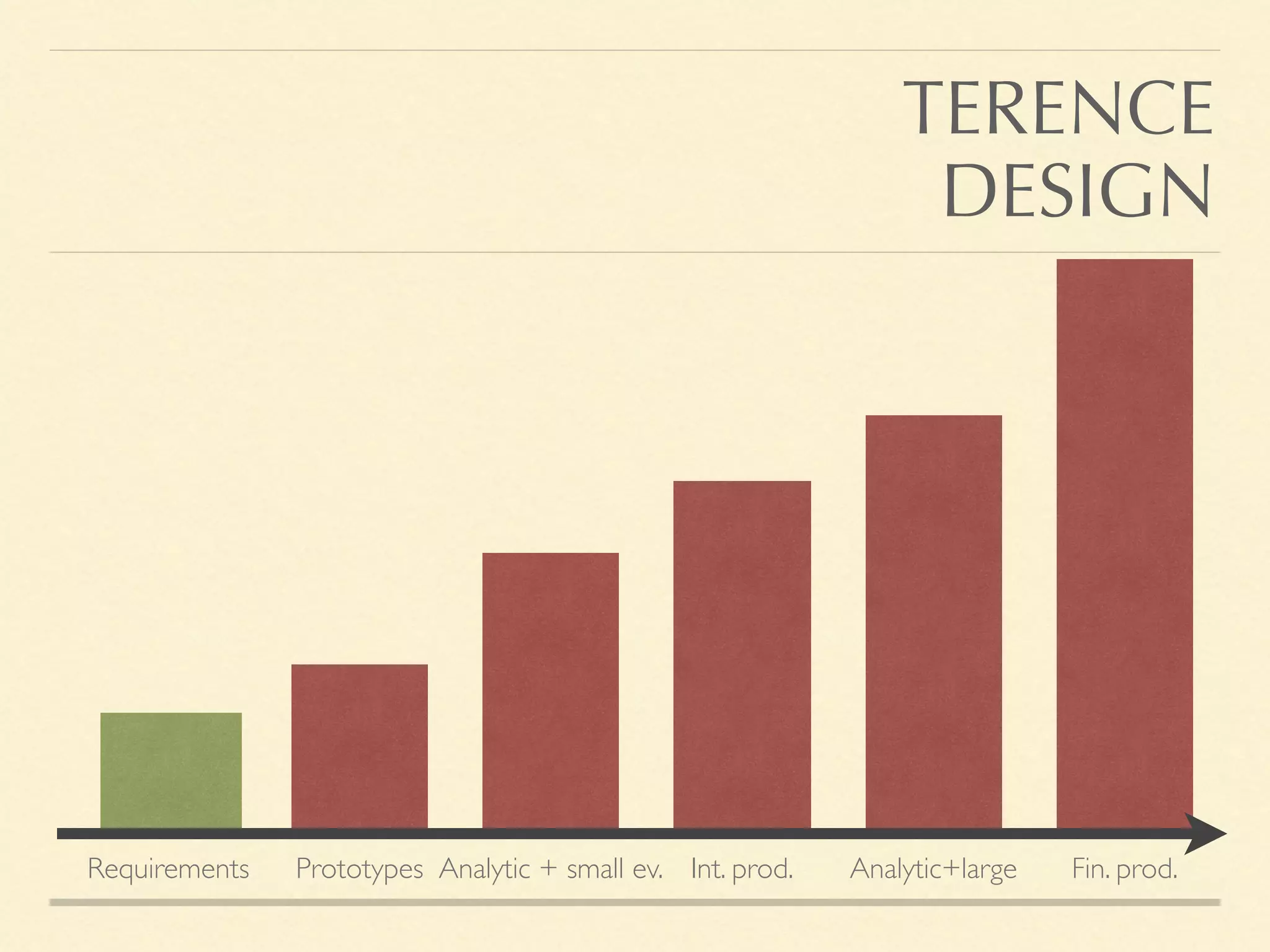

Requirements Prototypes Analytic + small ev. Int. prod. Analytic+large Fin. prod. TERENCE DESIGN

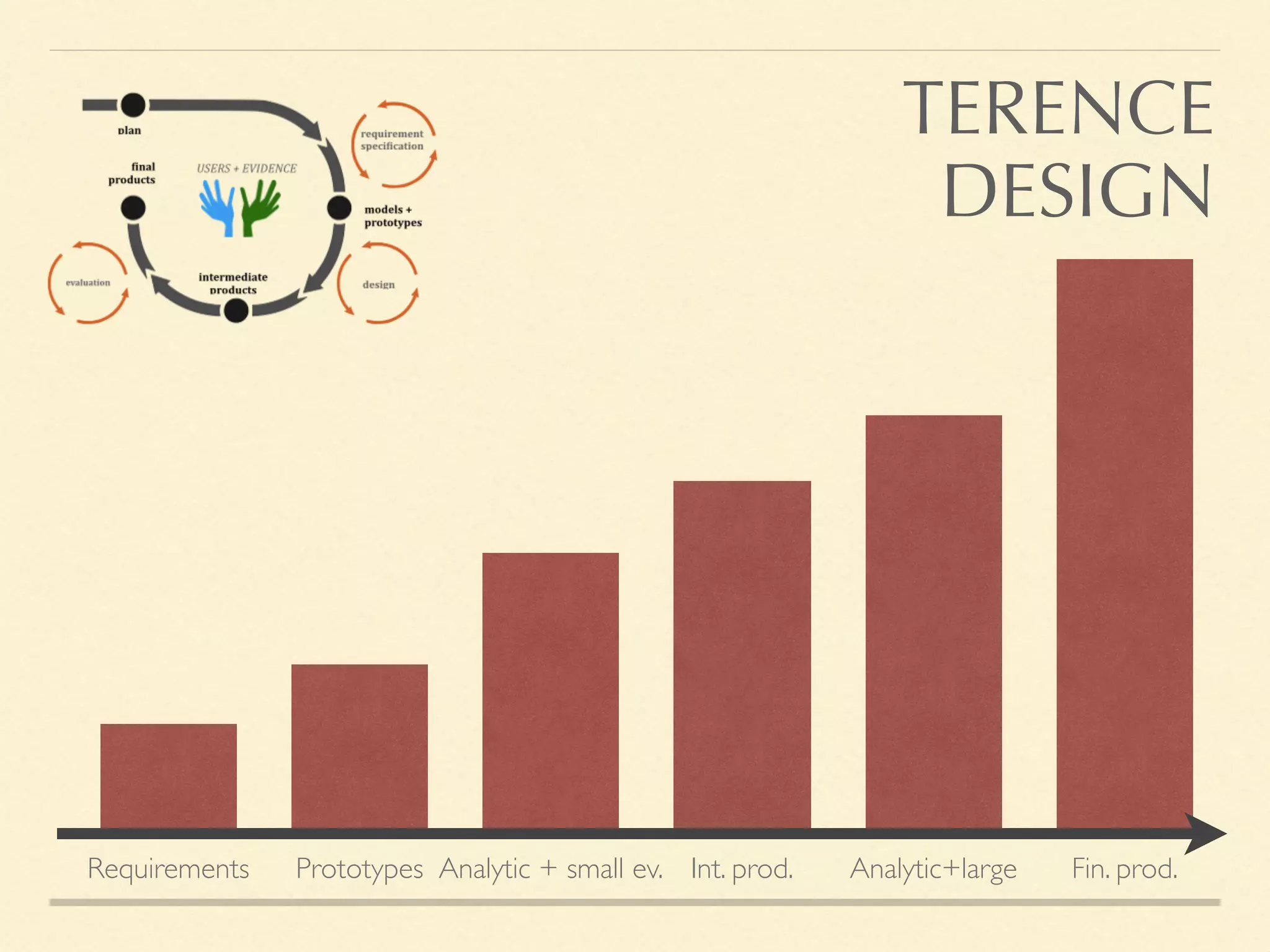

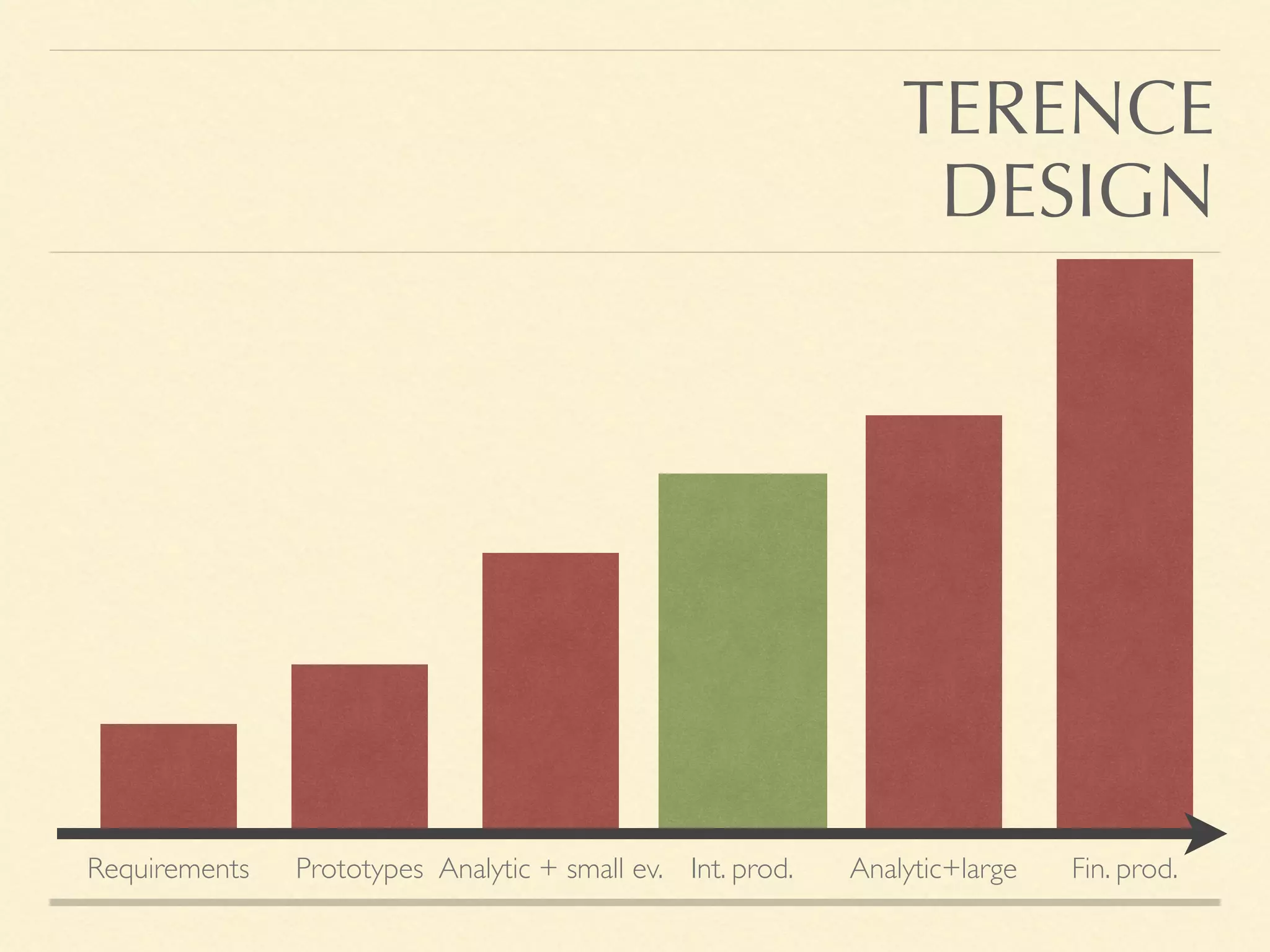

TERENCE DESIGN Requirements Prototypes Analytic + small ev. Int. prod. Analytic+large Fin. prod.
DATA GATHERING METHODS ‣ Data for designing the learning material and tasks were from - contextual inquiries with ‣ IT & UK diagnosis ‣ as well as IT & USA evidence- based medicine therapy experts - field studies with educators and primary school children 4510 ~ 500

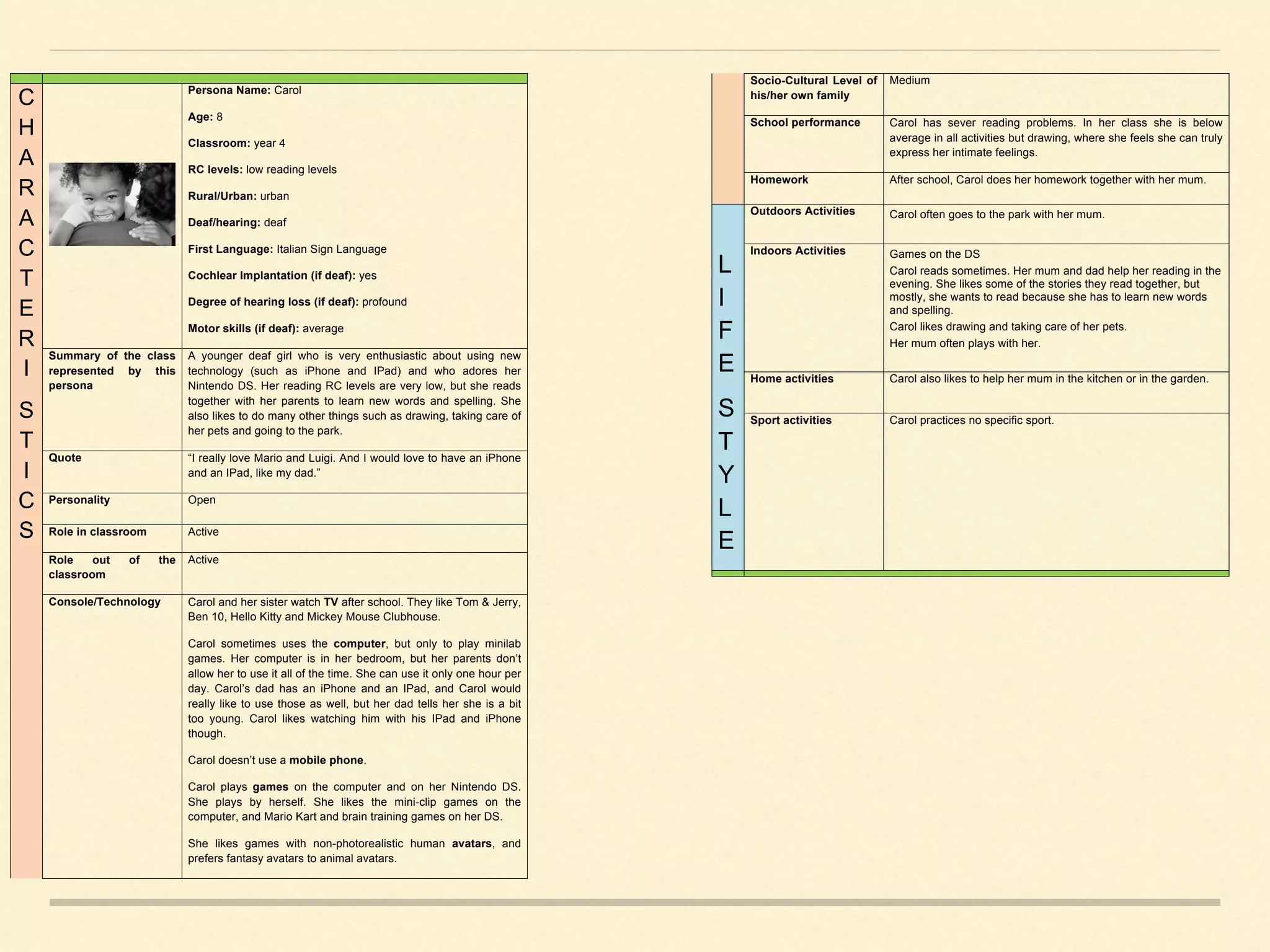

C H A R A C T E R I S T I C S Persona Name: Carol Age: 8 Classroom: year 4 RC levels: low reading levels Rural/Urban: urban Deaf/hearing: deaf First Language: Italian Sign Language Cochlear Implantation (if deaf): yes Degree of hearing loss (if deaf): profound Motor skills (if deaf): average Summary of the class represented by this persona A younger deaf girl who is very enthusiastic about using new technology (such as iPhone and IPad) and who adores her Nintendo DS. Her reading RC levels are very low, but she reads together with her parents to learn new words and spelling. She also likes to do many other things such as drawing, taking care of her pets and going to the park. Quote “I really love Mario and Luigi. And I would love to have an iPhone and an IPad, like my dad.” Personality Open Role in classroom Active Role out of the classroom Active Console/Technology Carol and her sister watch TV after school. They like Tom & Jerry, Ben 10, Hello Kitty and Mickey Mouse Clubhouse. Carol sometimes uses the computer, but only to play minilab games. Her computer is in her bedroom, but her parents don’t allow her to use it all of the time. She can use it only one hour per day. Carol’s dad has an iPhone and an IPad, and Carol would really like to use those as well, but her dad tells her she is a bit too young. Carol likes watching him with his IPad and iPhone though. Carol doesn’t use a mobile phone. Carol plays games on the computer and on her Nintendo DS. She plays by herself. She likes the mini-clip games on the computer, and Mario Kart and brain training games on her DS. She likes games with non-photorealistic human avatars, and prefers fantasy avatars to animal avatars. Socio-Cultural Level of his/her own family Medium School performance Carol has sever reading problems. In her class she is below average in all activities but drawing, where she feels she can truly express her intimate feelings. Homework After school, Carol does her homework together with her mum. L I F E S T Y L E Outdoors Activities Carol often goes to the park with her mum. Indoors Activities Games on the DS Carol reads sometimes. Her mum and dad help her reading in the evening. She likes some of the stories they read together, but mostly, she wants to read because she has to learn new words and spelling. Carol likes drawing and taking care of her pets. Her mum often plays with her. Home activities Carol also likes to help her mum in the kitchen or in the garden. Sport activities Carol practices no specific sport. .

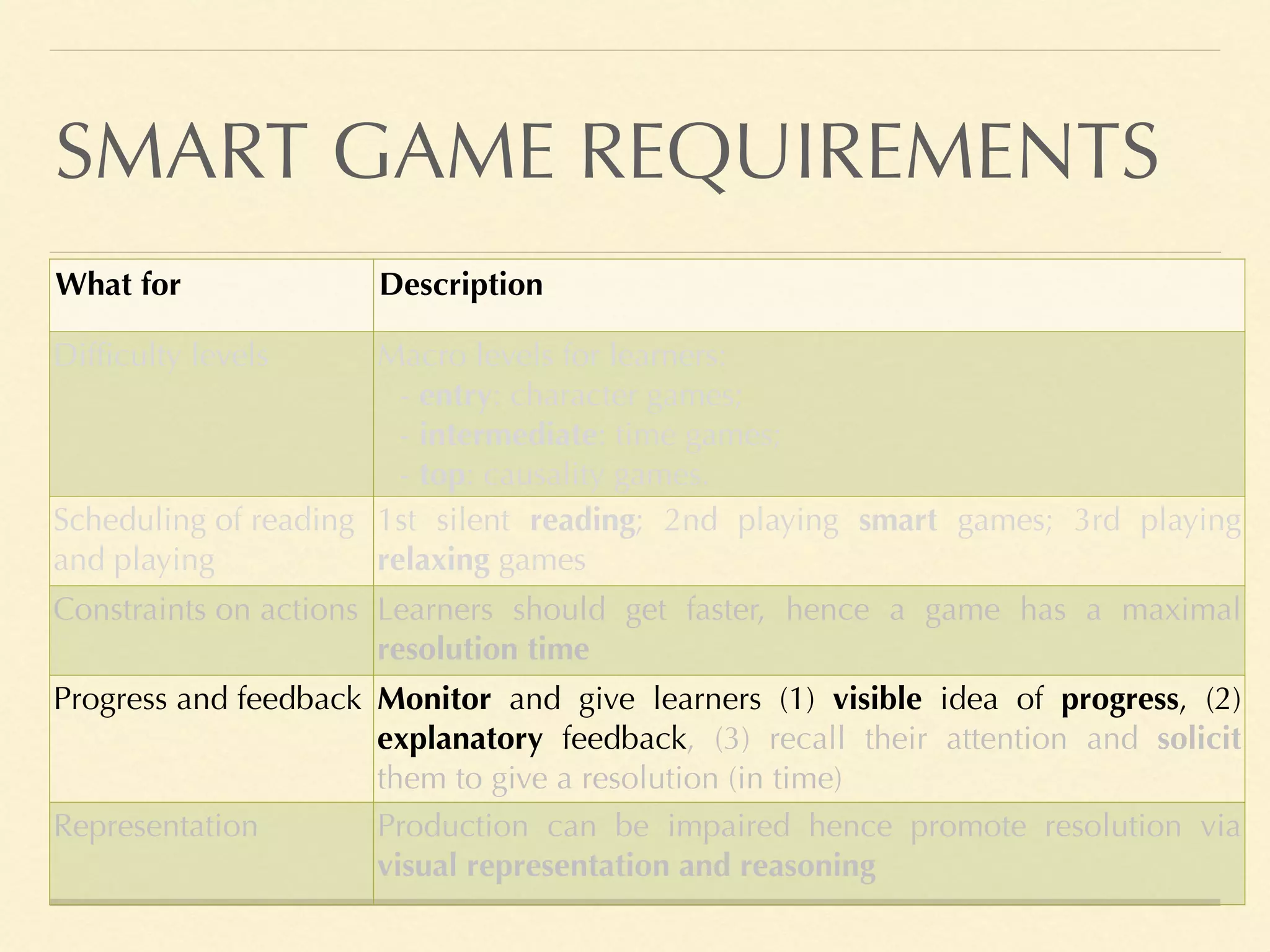

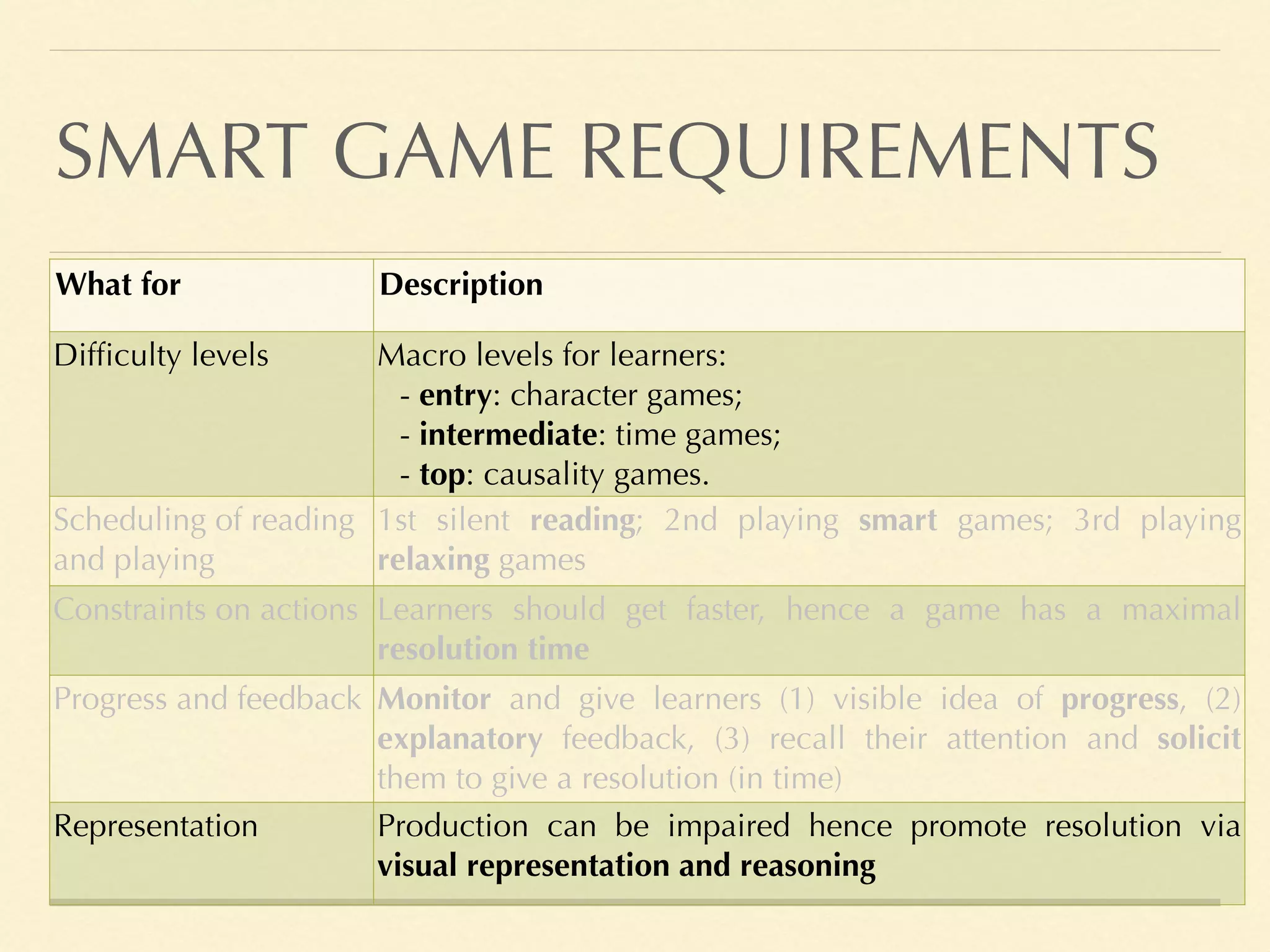

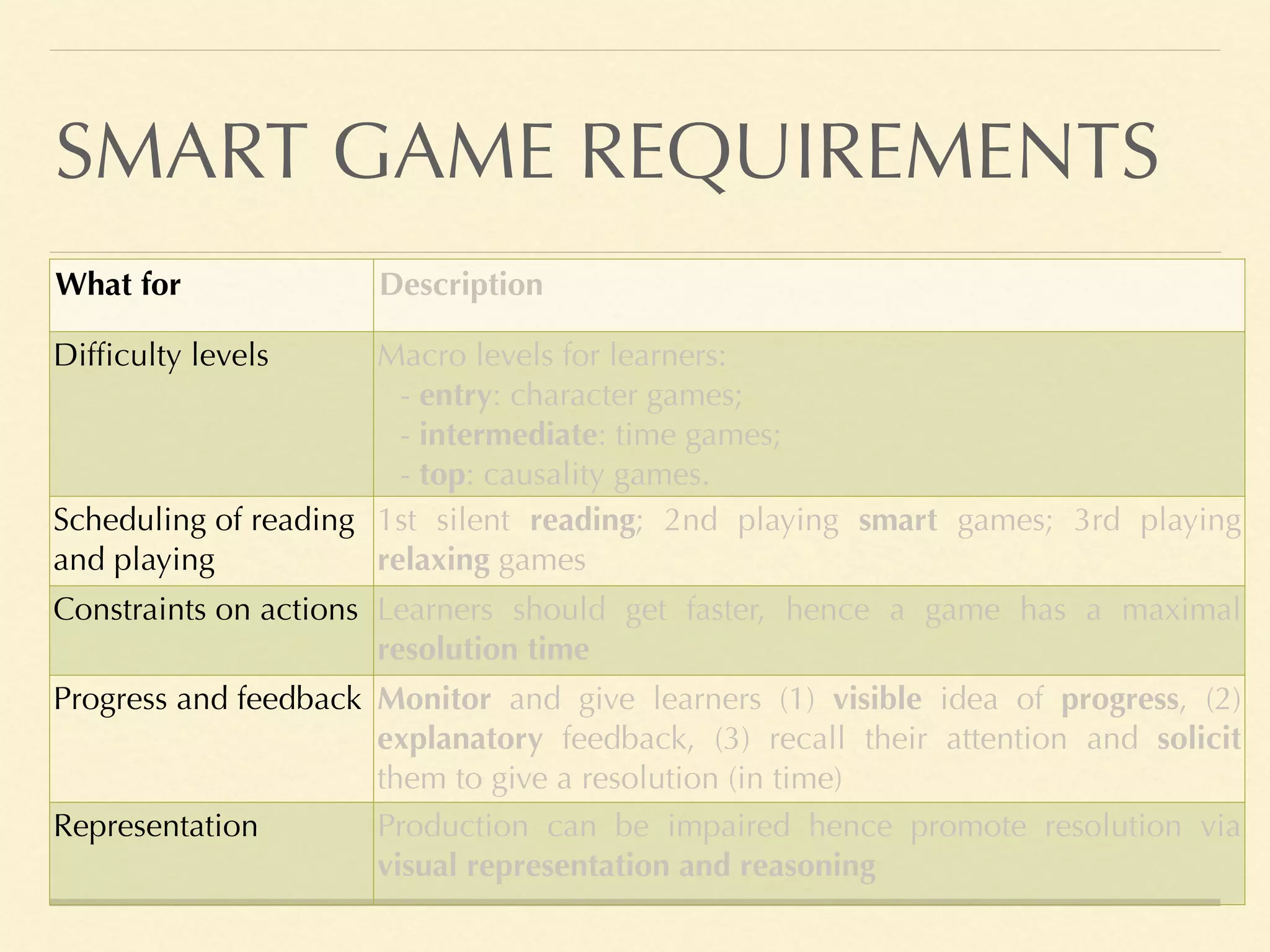

SMART GAME REQUIREMENTS What for Description Difficulty levels Macro levels for learners: - entry: character games; - intermediate: time games; - top: causality games. Scheduling of reading and playing 1st silent reading; 2nd playing smart games; 3rd playing relaxing games Constraints on actions Learners should get faster, hence a game has a maximal resolution time Progress and feedback Monitor and give learners (1) visible idea of progress, (2) explanatory feedback, (3) recall their attention and solicit them to give a resolution (in time) Representation Production can be impaired hence promote resolution via visual representation and reasoning

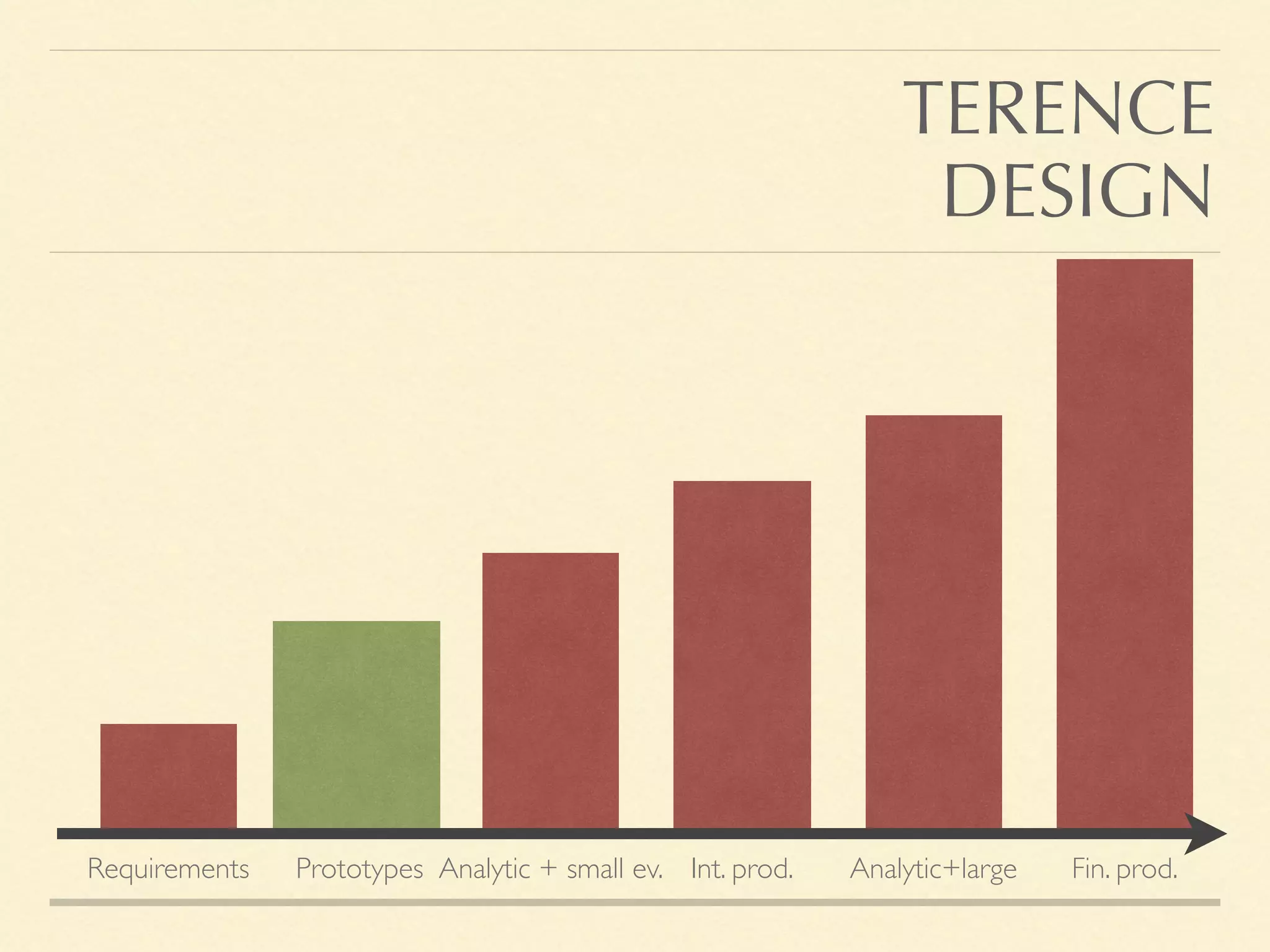

Requirements Prototypes Analytic + small ev. Int. prod. Analytic+large Fin. prod. TERENCE DESIGN
SMART GAME REQUIREMENTS What for Description Difficulty levels Macro levels for learners: - entry: character games; - intermediate: time games; - top: causality games. Scheduling of reading and playing 1st silent reading; 2nd playing smart games; 3rd playing relaxing games Constraints on actions Learners should get faster, hence a game has a maximal resolution time Progress and feedback Monitor and give learners (1) visible idea of progress, (2) explanatory feedback, (3) recall their attention and solicit them to give a resolution (in time) Representation Production can be impaired hence promote resolution via visual representation and reasoning

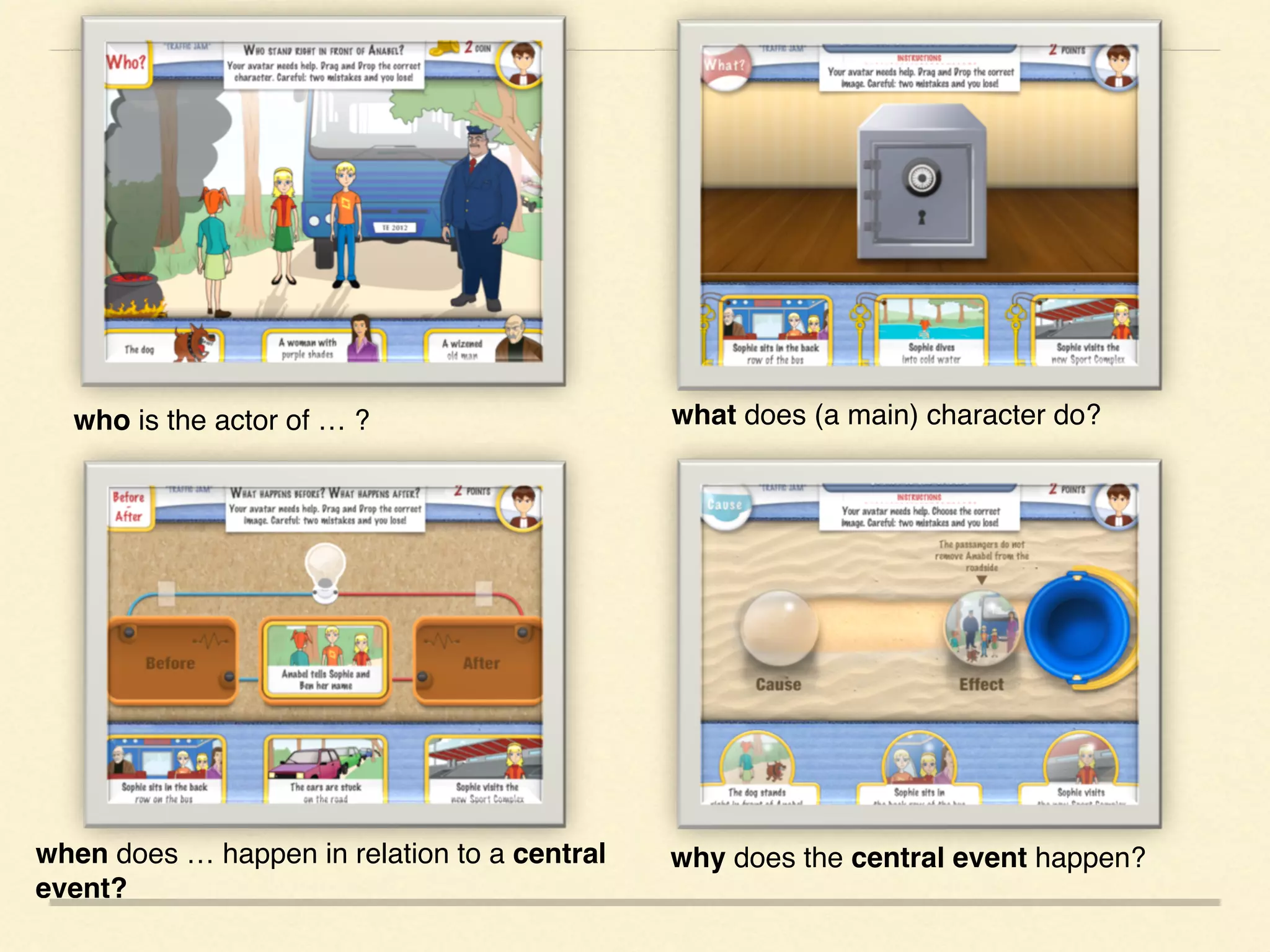

who is the actor of … ? what does (a main) character do? when does … happen in relation to a central event? why does the central event happen?
SMART GAME REQUIREMENTS What for Description Difficulty levels Macro levels for learners: - entry: character games; - intermediate: time games; - top: causality games. Scheduling of reading and playing 1st silent reading; 2nd playing smart games; 3rd playing relaxing games Constraints on actions Learners should get faster, hence a game has a maximal resolution time Progress and feedback Monitor and give learners (1) visible idea of progress, (2) explanatory feedback, (3) recall their attention and solicit them to give a resolution (in time) Representation Production can be impaired hence promote resolution via visual representation and reasoning

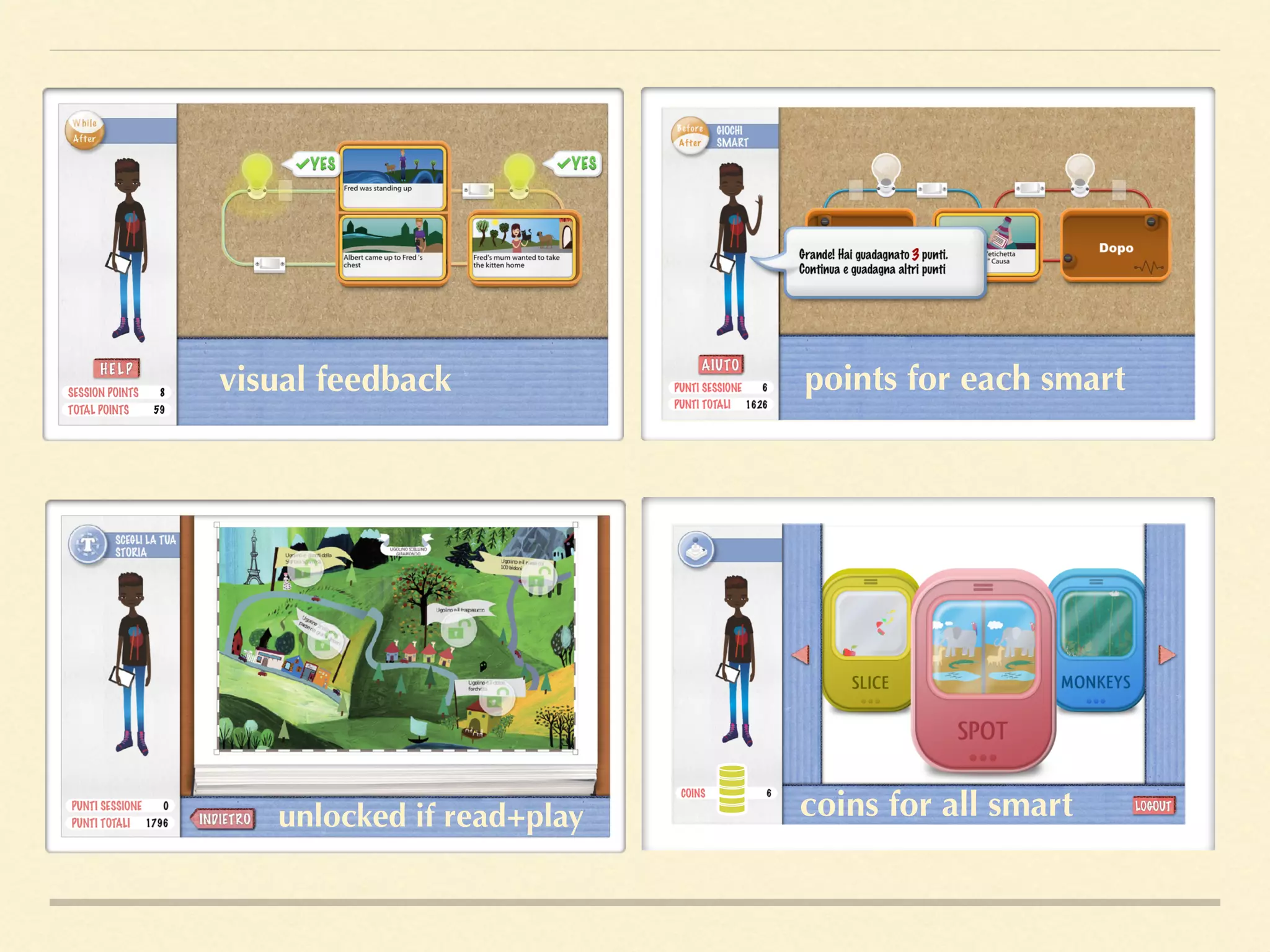

points for each smart coins for all smartunlocked if read+play visual feedback

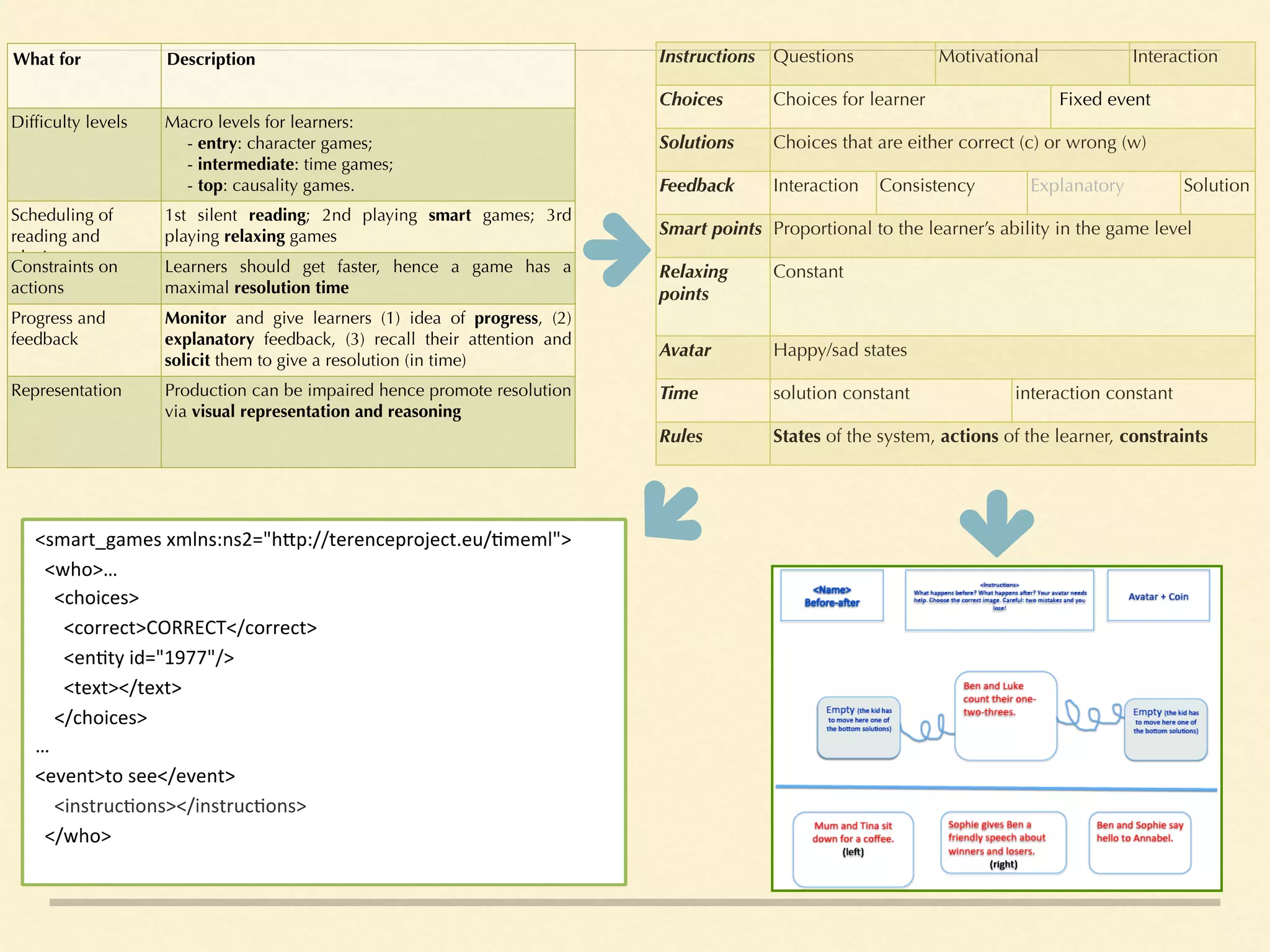

Instructions Questions Motivational Interaction Choices Choices for learner Fixed event Solutions Choices that are either correct (c) or wrong (w) Feedback Interaction Consistency Explanatory Solution Smart points Proportional to the learner’s ability in the game level Relaxing points Constant Avatar Happy/sad states Time solution constant interaction constant Rules States of the system, actions of the learner, constraints What for Description Difficulty levels Macro levels for learners: - entry: character games; - intermediate: time games; - top: causality games. Scheduling of reading and playing 1st silent reading; 2nd playing smart games; 3rd playing relaxing games Constraints on actions Learners should get faster, hence a game has a maximal resolution time Progress and feedback Monitor and give learners (1) idea of progress, (2) explanatory feedback, (3) recall their attention and solicit them to give a resolution (in time) Representation Production can be impaired hence promote resolution via visual representation and reasoning

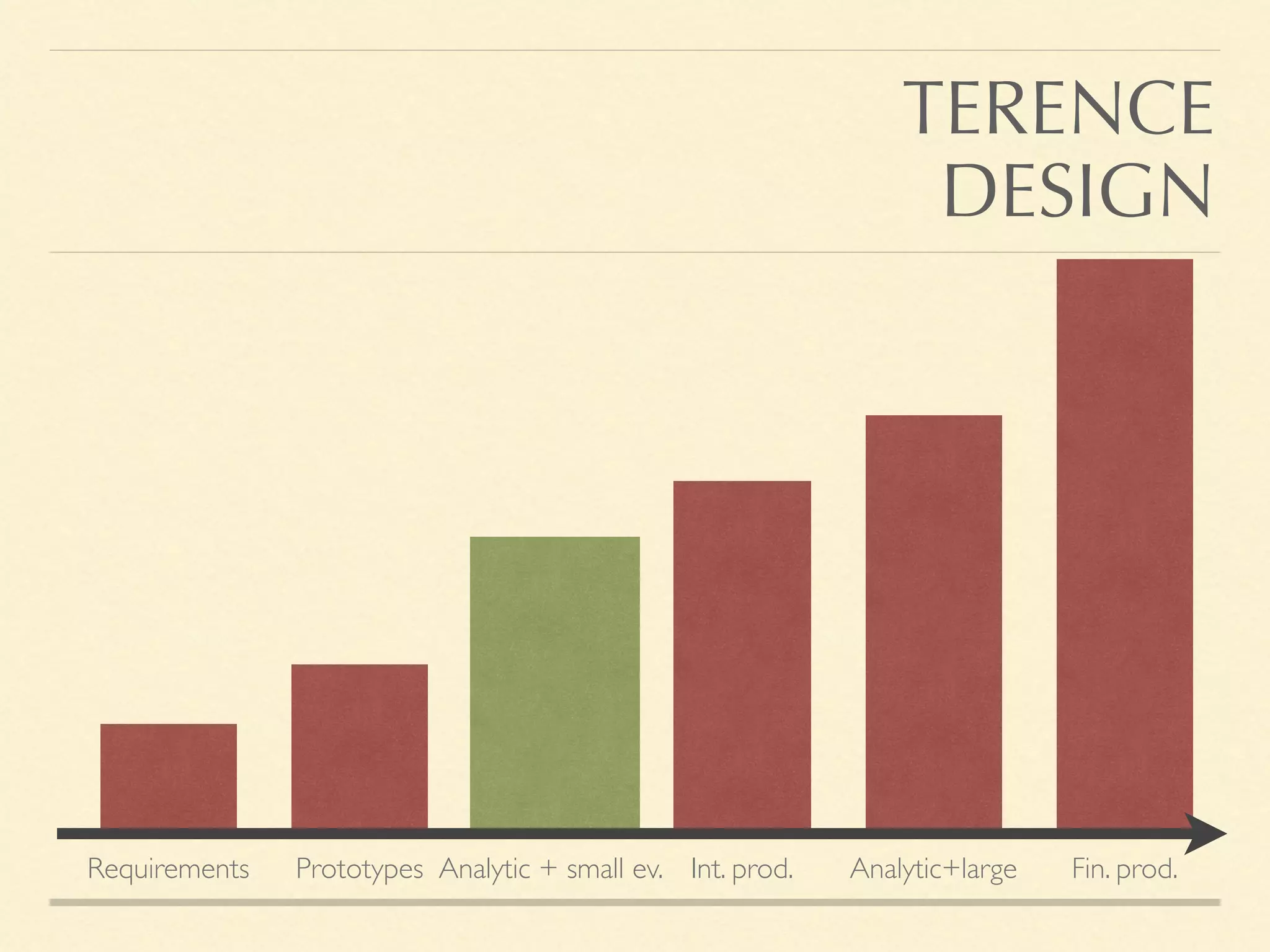

Requirements Prototypes Analytic + small ev. Int. prod. Analytic+large Fin. prod. TERENCE DESIGN

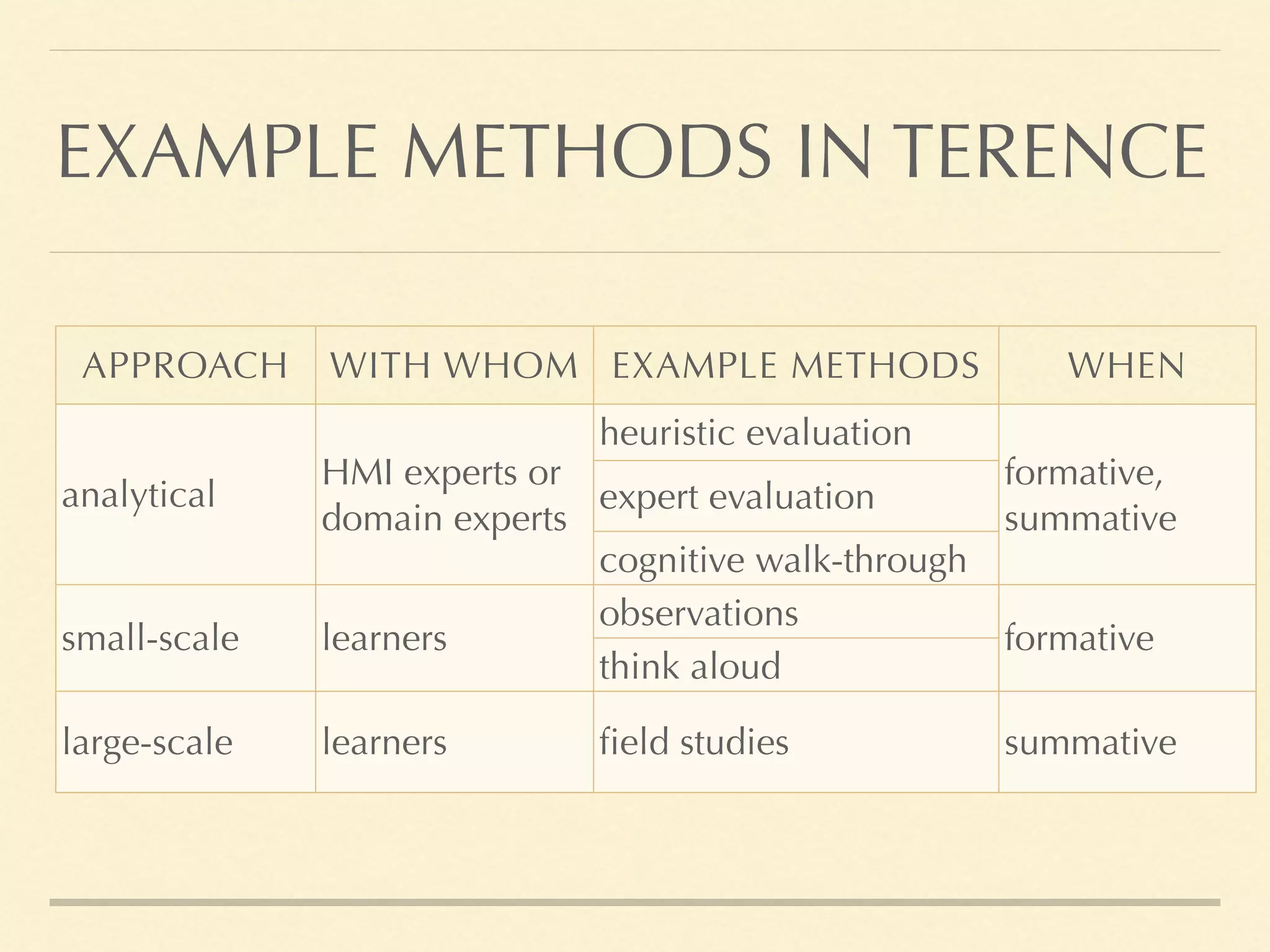

EXAMPLE METHODS IN TERENCE APPROACH WITH WHOM EXAMPLE METHODS WHEN analytical HMI experts or domain experts heuristic evaluation formative, summative expert evaluation cognitive walk-through small-scale learners observations formative think aloud large-scale learners field studies summative
EXAMPLE METHODS IN TERENCE APPROACH WITH WHOM EXAMPLE METHODS HOW analytical HMI experts or domain experts heuristic evaluation formative, summative expert evaluation cognitive walk-through small-scale learners observations formative think aloud large-scale learners field studies summative

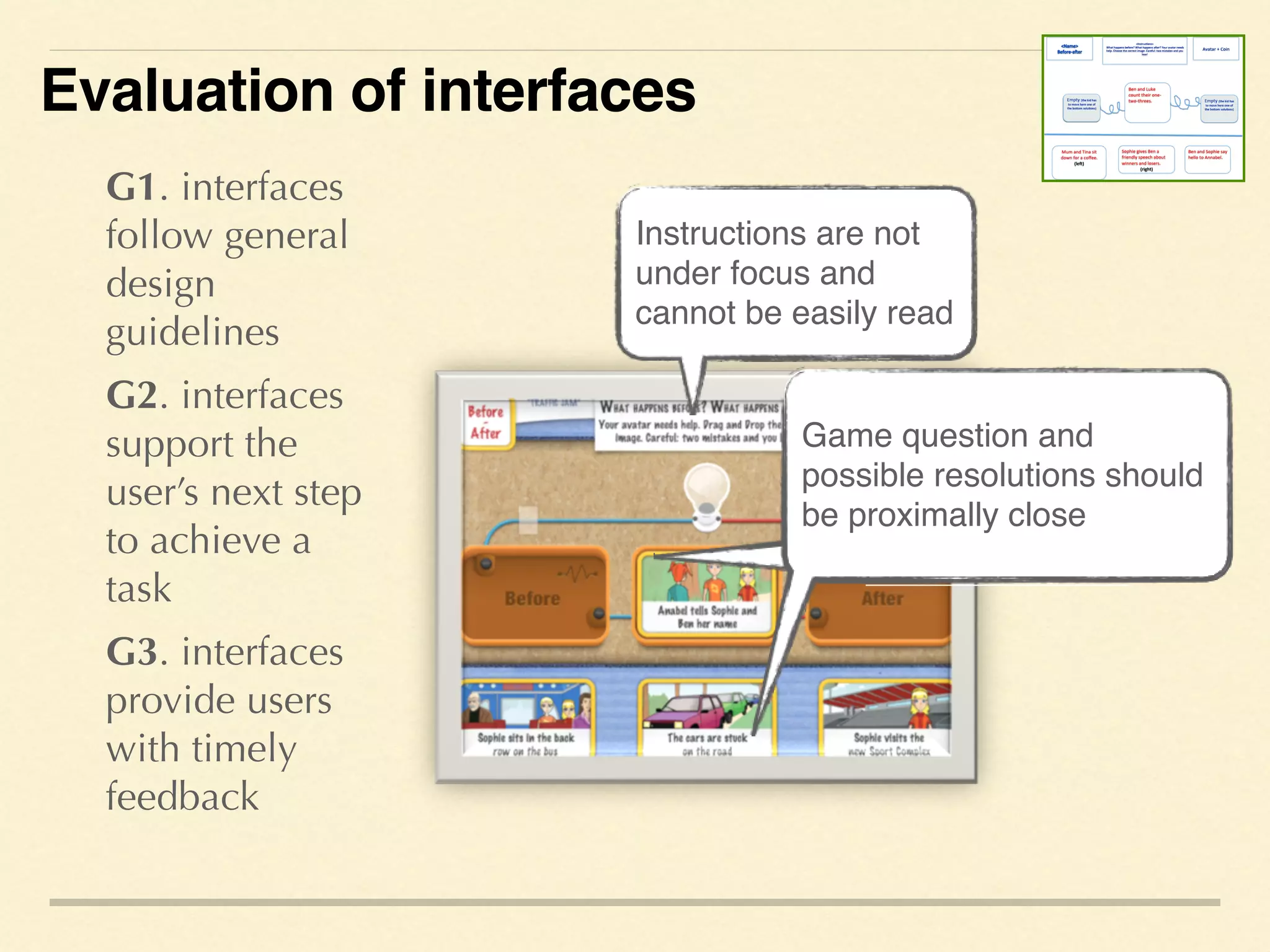

G1. interfaces follow general design guidelines G2. interfaces support the user’s next step to achieve a task G3. interfaces provide users with timely feedback Instructions are not under focus and cannot be easily read Game question and possible resolutions should be proximally close Game question and possible resolutions should be proximally close Evaluation of interfaces
Requirements Prototypes Analytic + small ev. Int. prod. Analytic+large Fin. prod. TERENCE DESIGN

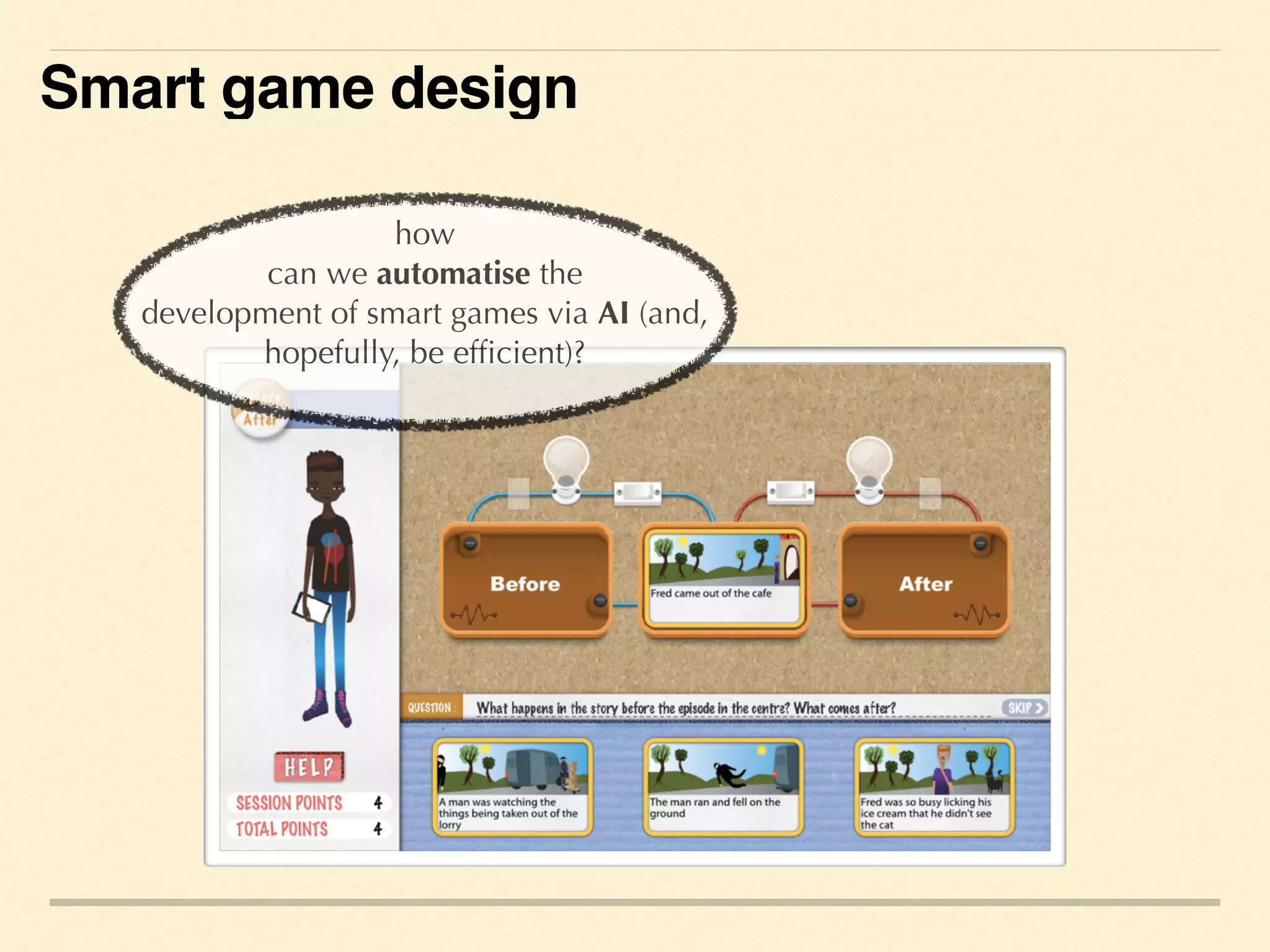

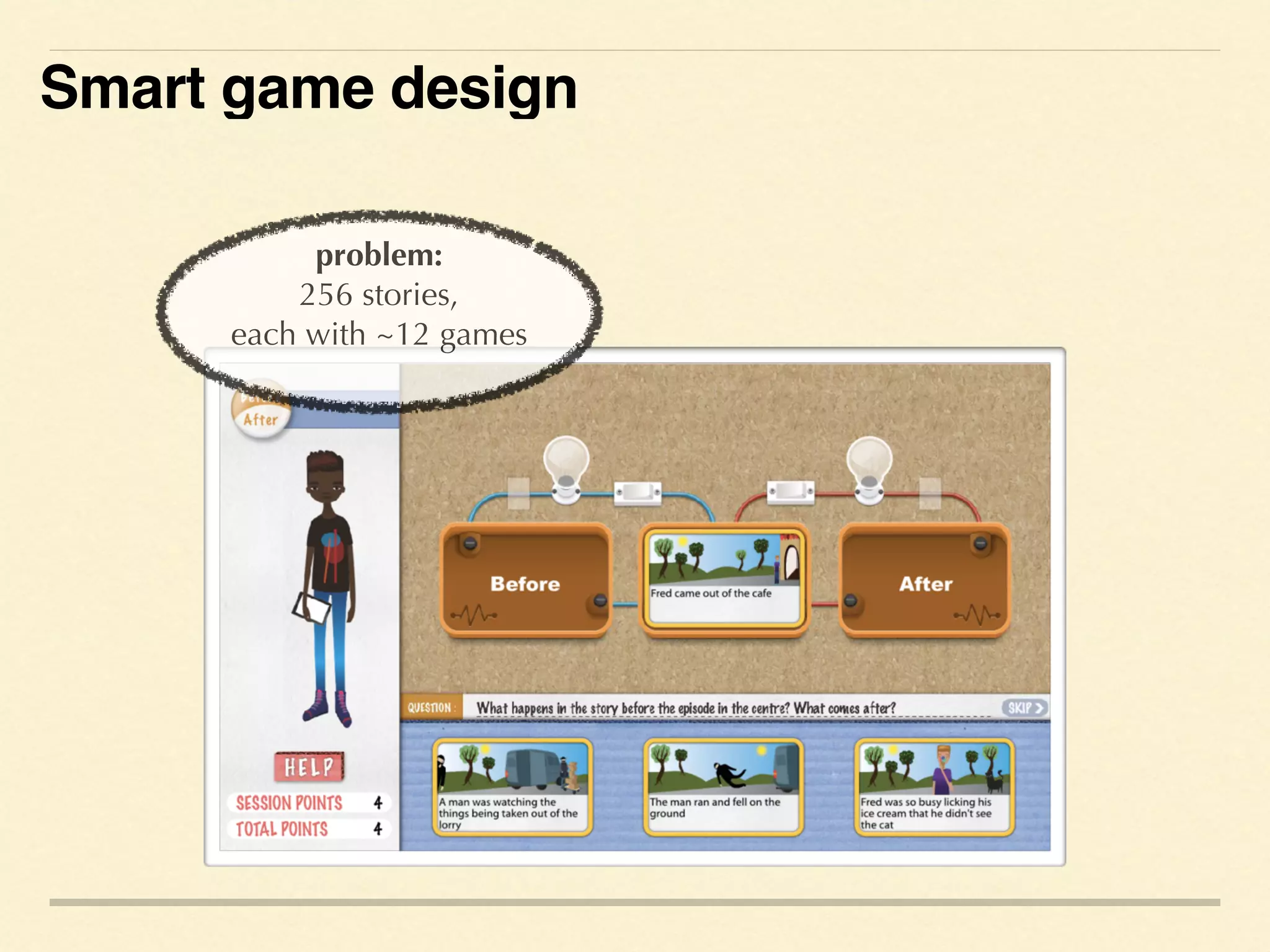

problem: 256 stories, each with ~12 games Smart game design
how can we automatise the development of smart games via AI (and, hopefully, be efficient)? Smart game design

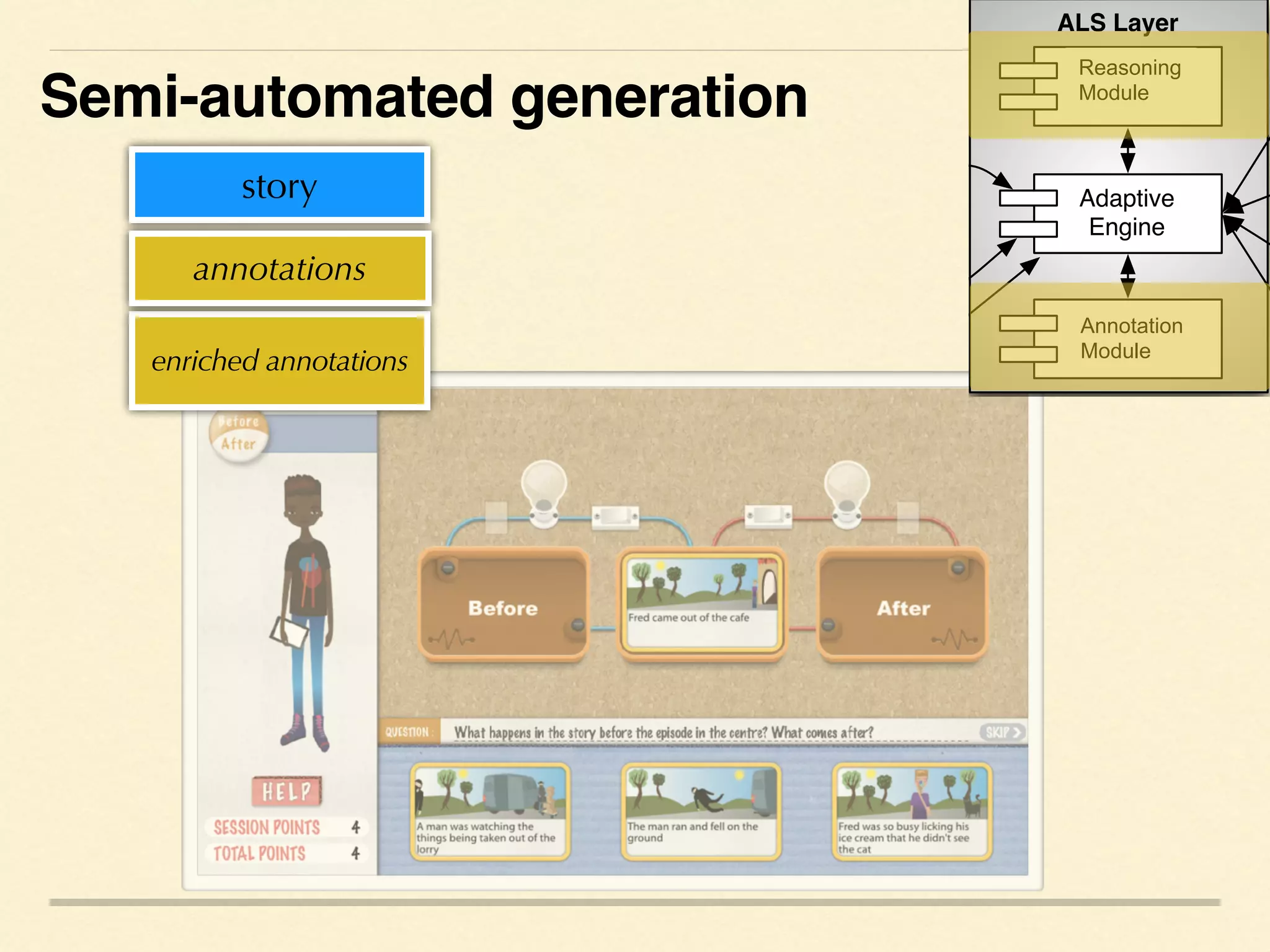

enriched annotations story annotations ALS LayerGUI Layer Learner Educator Expert Learner GUI Expert GUI illustrations NPL Reasoner Adaptive Engine Visualisation Reasoning Module Annotation Module Visualisation Module Semi-automated generation

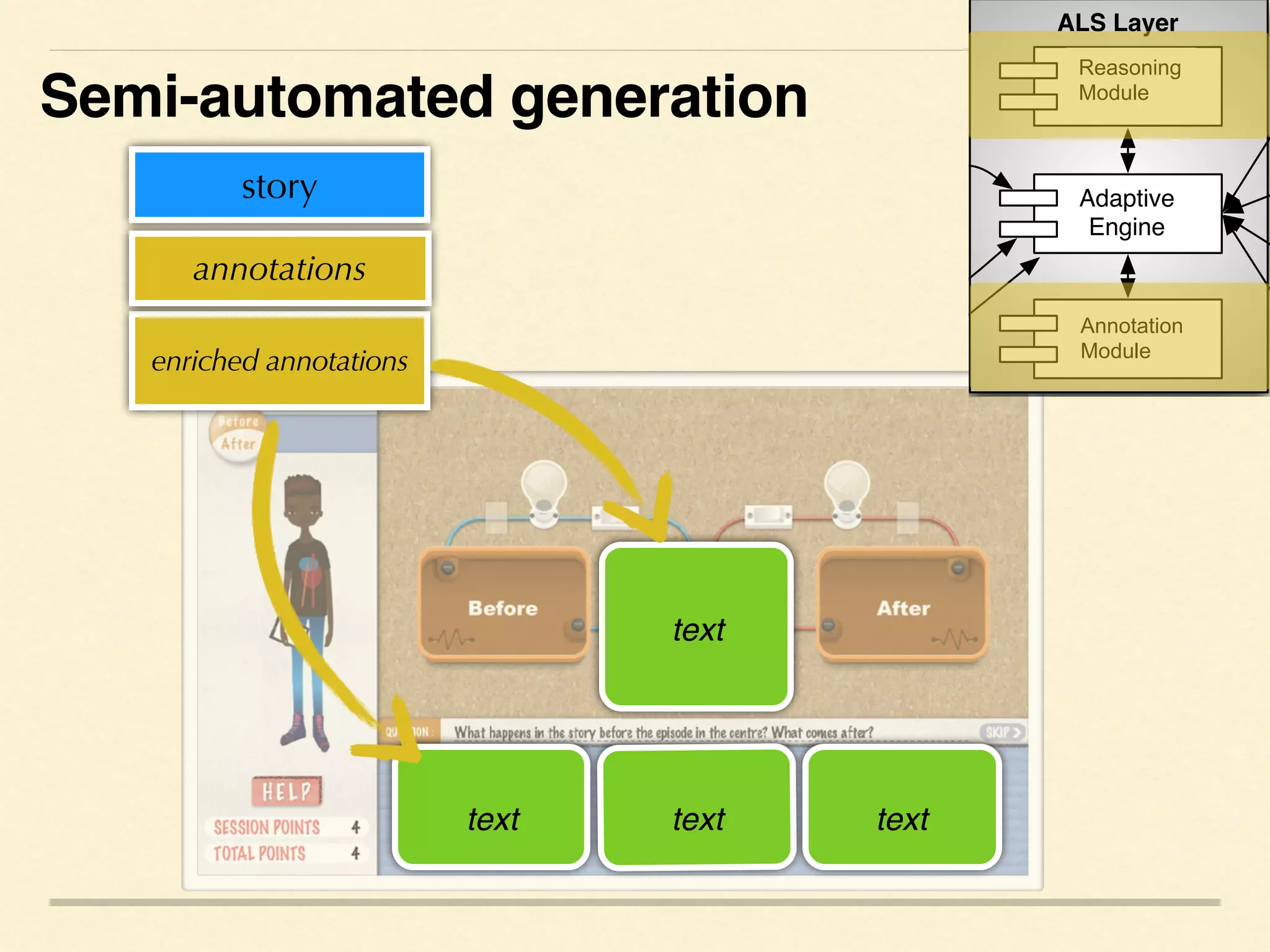

enriched annotations story text text text text annotations Semi-automated generation ALS LayerGUI Layer Learner Educator Expert Learner GUI Expert GUI illustrations NPL Reasoner Adaptive Engine Visualisation Reasoning Module Annotation Module Visualisation Module

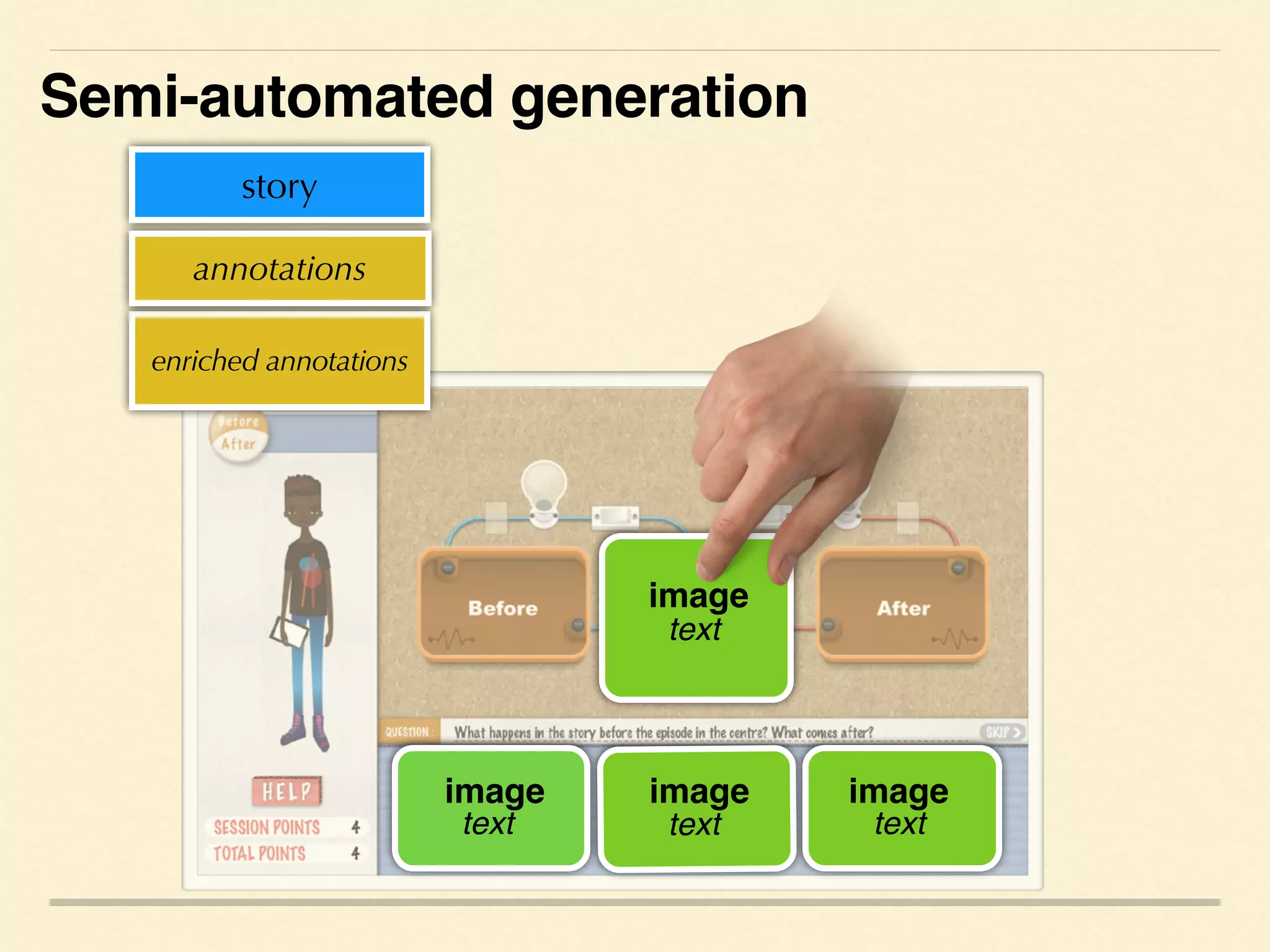

text text text text image image image image enriched annotations story annotations Semi-automated generation

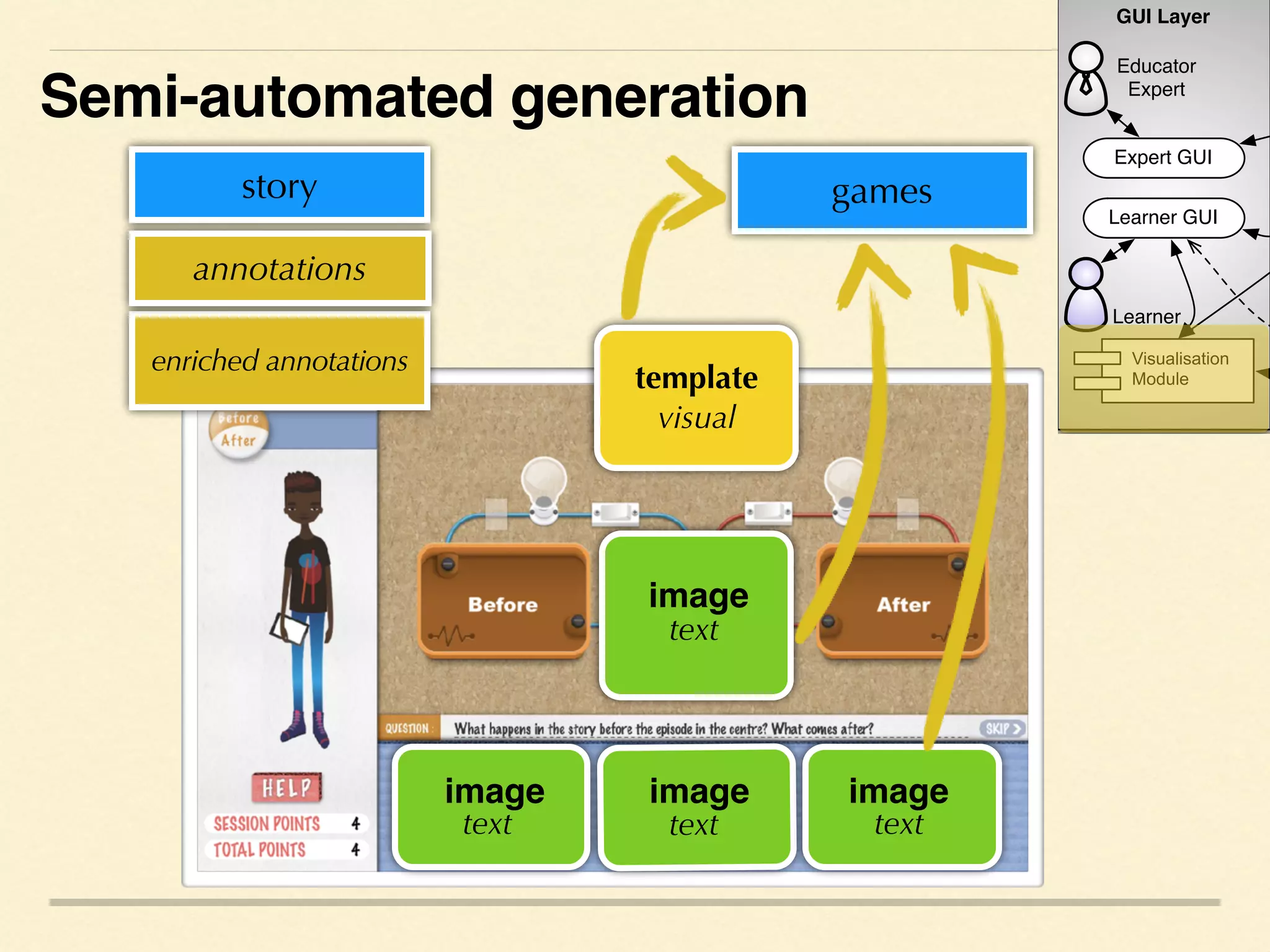

games template visual text text text text image image image image enriched annotations story annotations Semi-automated generation GUI Layer Learner Educator Expert Learner GUI Expert GUI Visualisation Visualisation Module

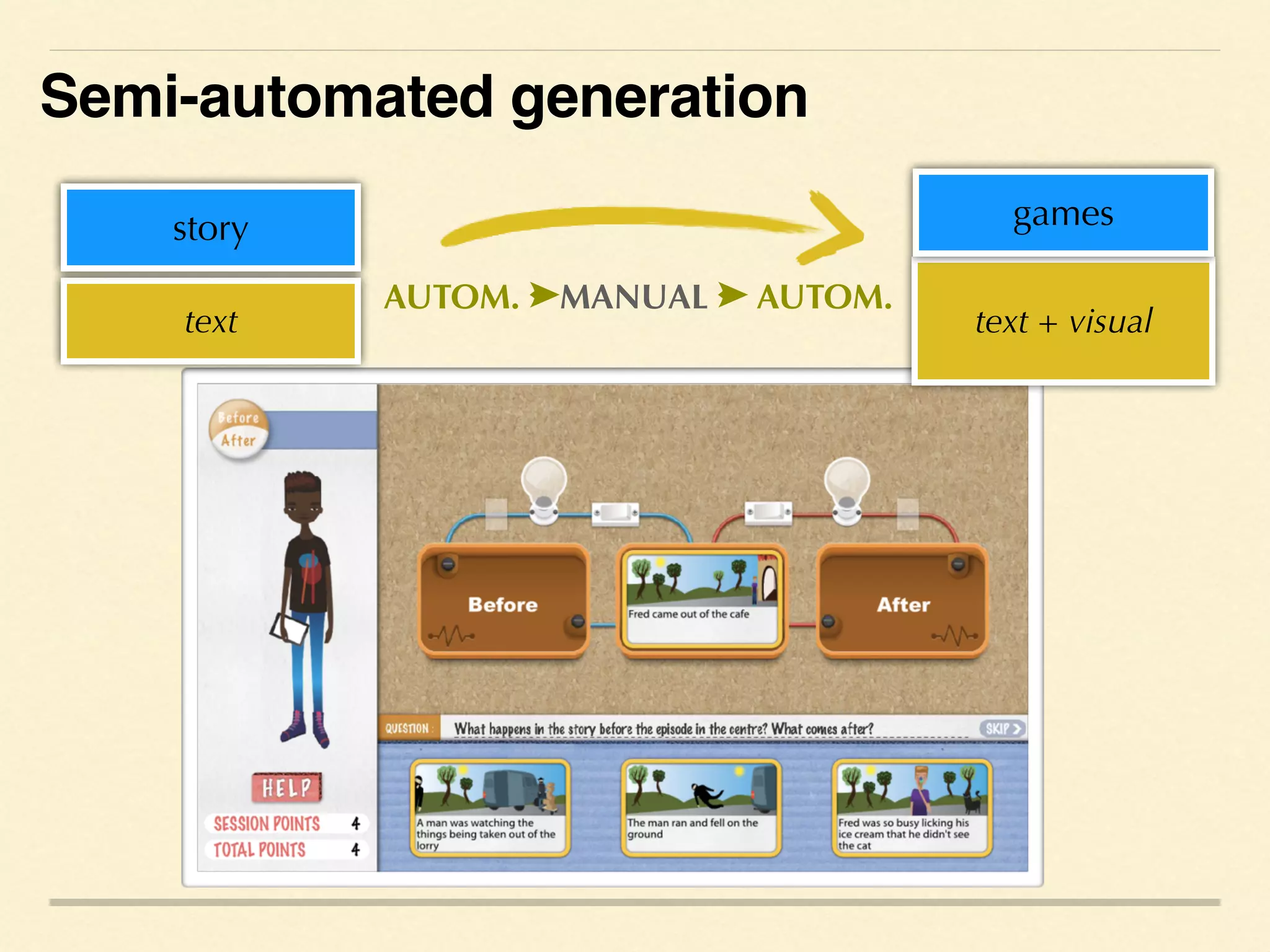

text story text + visual games AUTOM. MANUAL AUTOM. Semi-automated generation

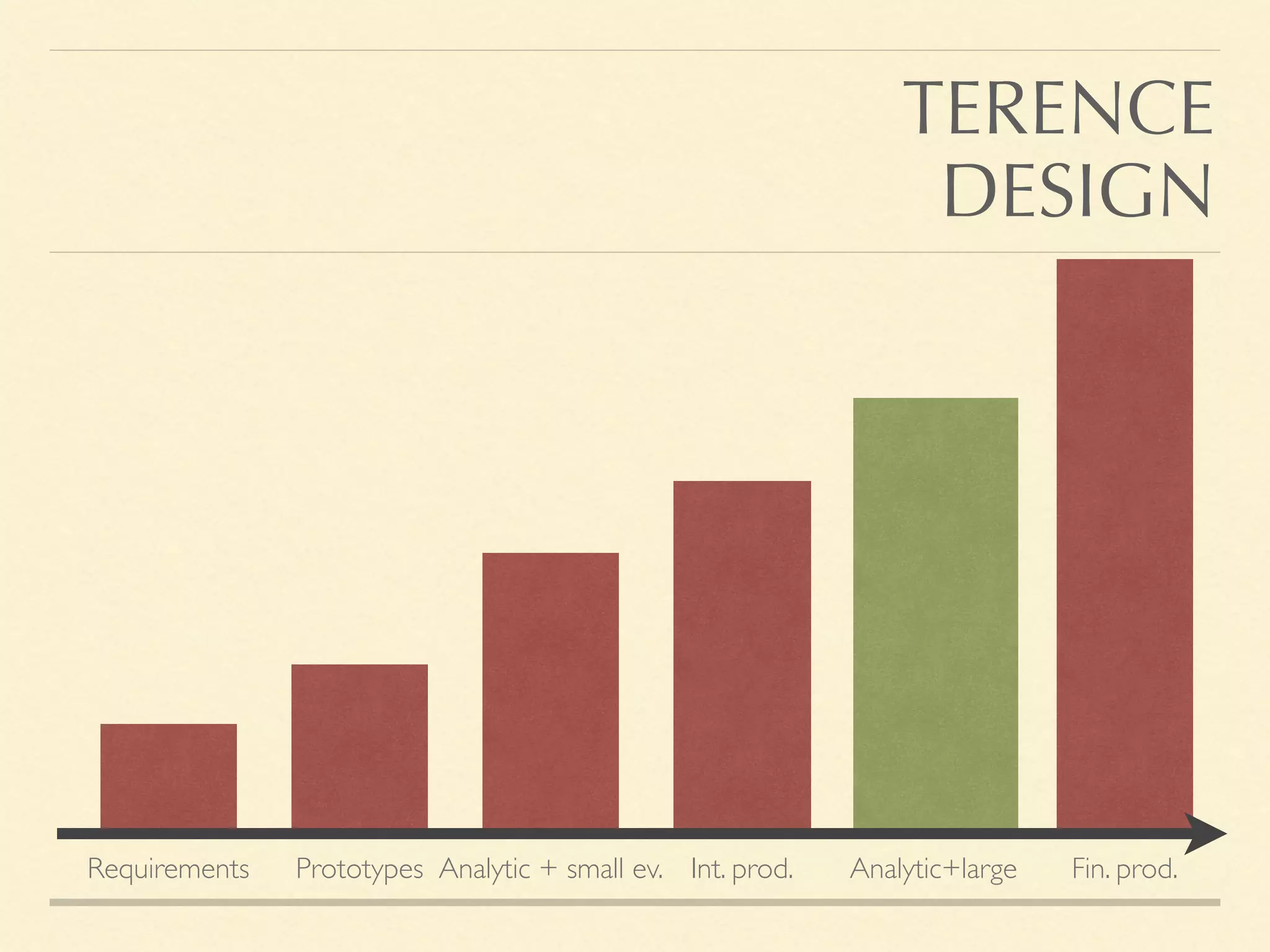

Requirements Prototypes Analytic + small ev. Int. prod. Analytic+large Fin. prod. TERENCE DESIGN

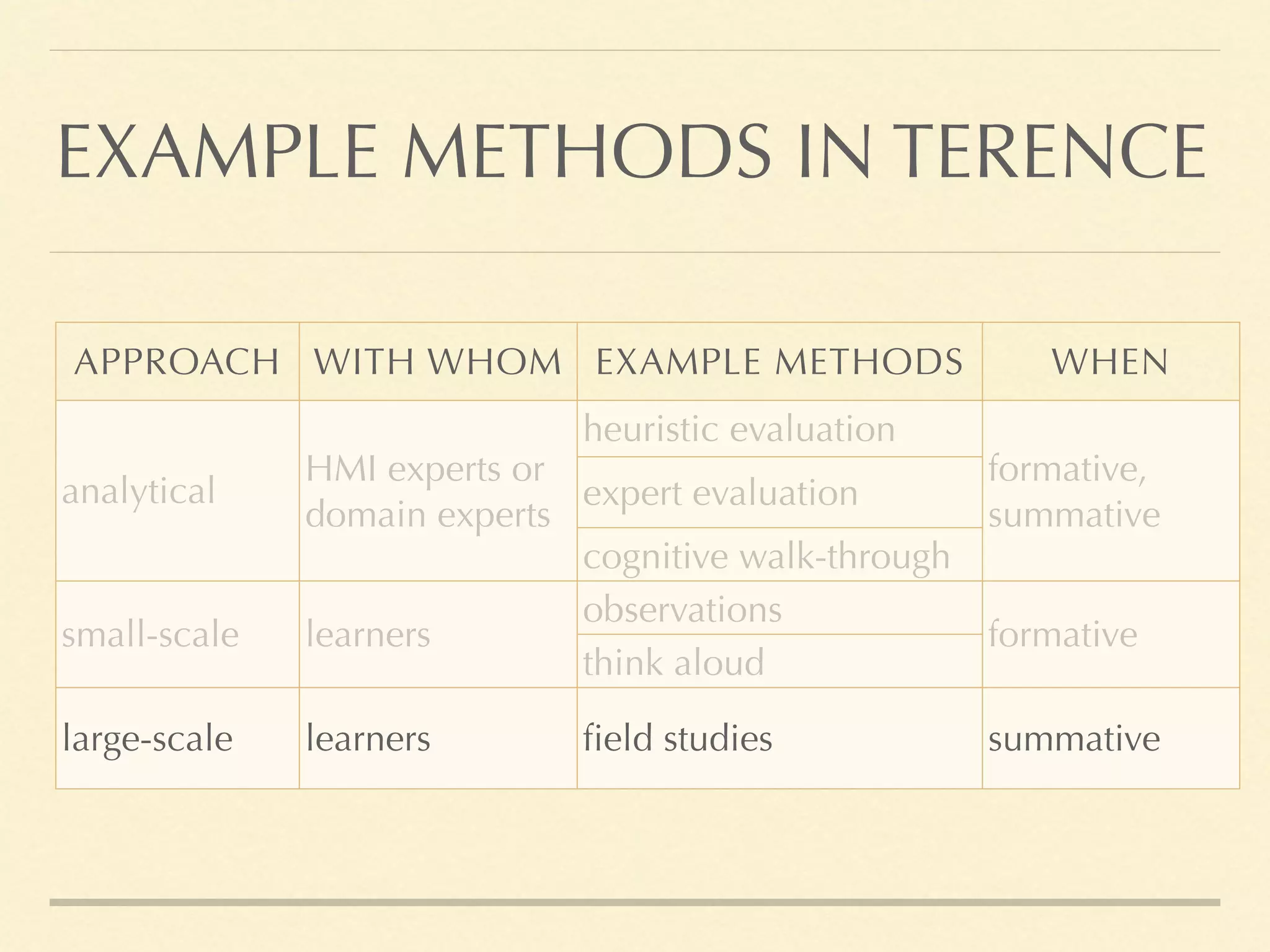

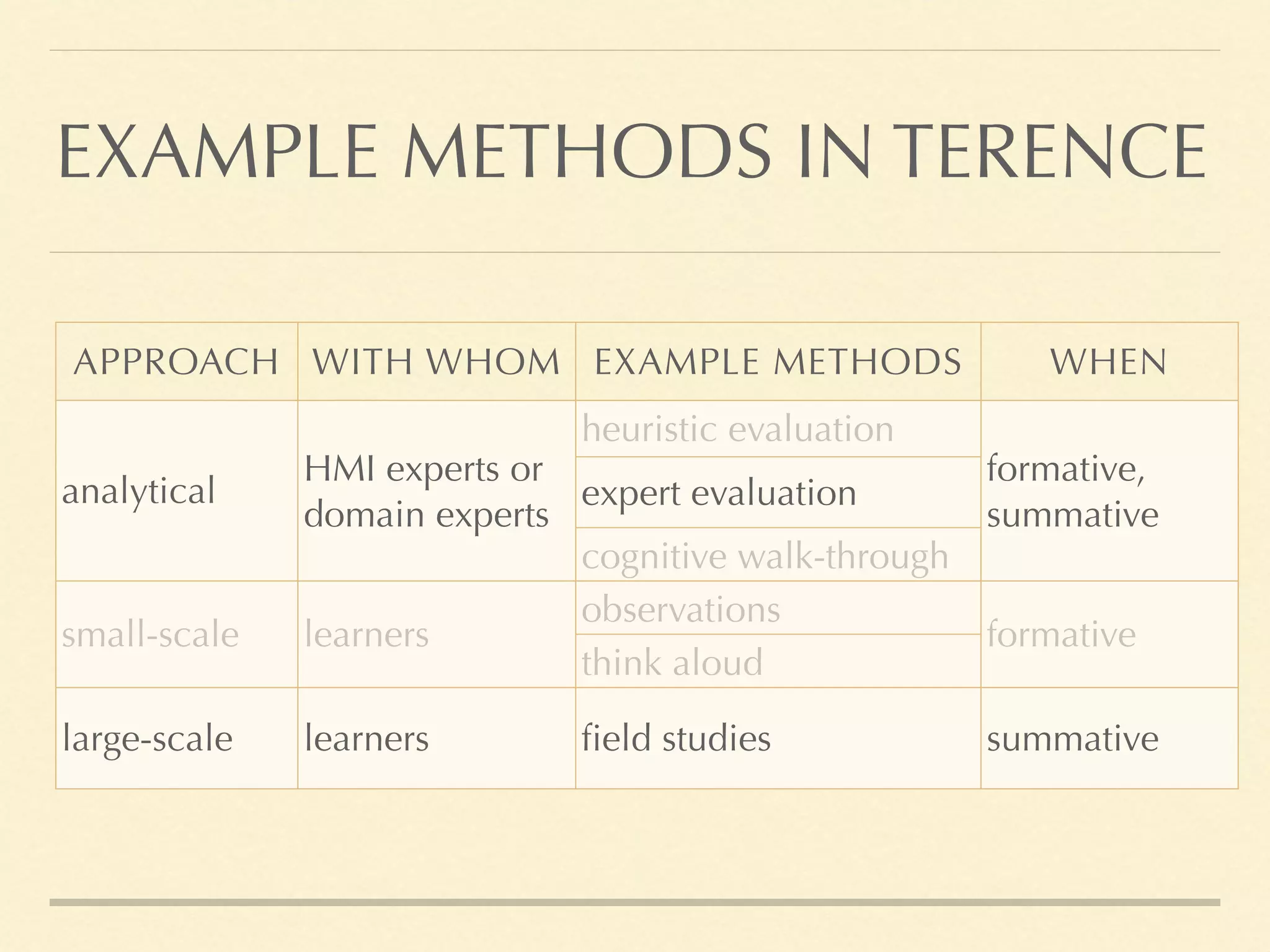

APPROACH WITH WHOM EXAMPLE METHODS WHEN analytical HMI experts or domain experts heuristic evaluation formative, summative expert evaluation cognitive walk-through small-scale learners observations formative think aloud large-scale learners field studies summative EXAMPLE METHODS IN TERENCE
APPROACH WITH WHOM EXAMPLE METHODS WHEN analytical HMI experts or domain experts heuristic evaluation formative, summative expert evaluation cognitive walk-through small-scale learners observations formative think aloud large-scale learners field studies summative EXAMPLE METHODS IN TERENCE

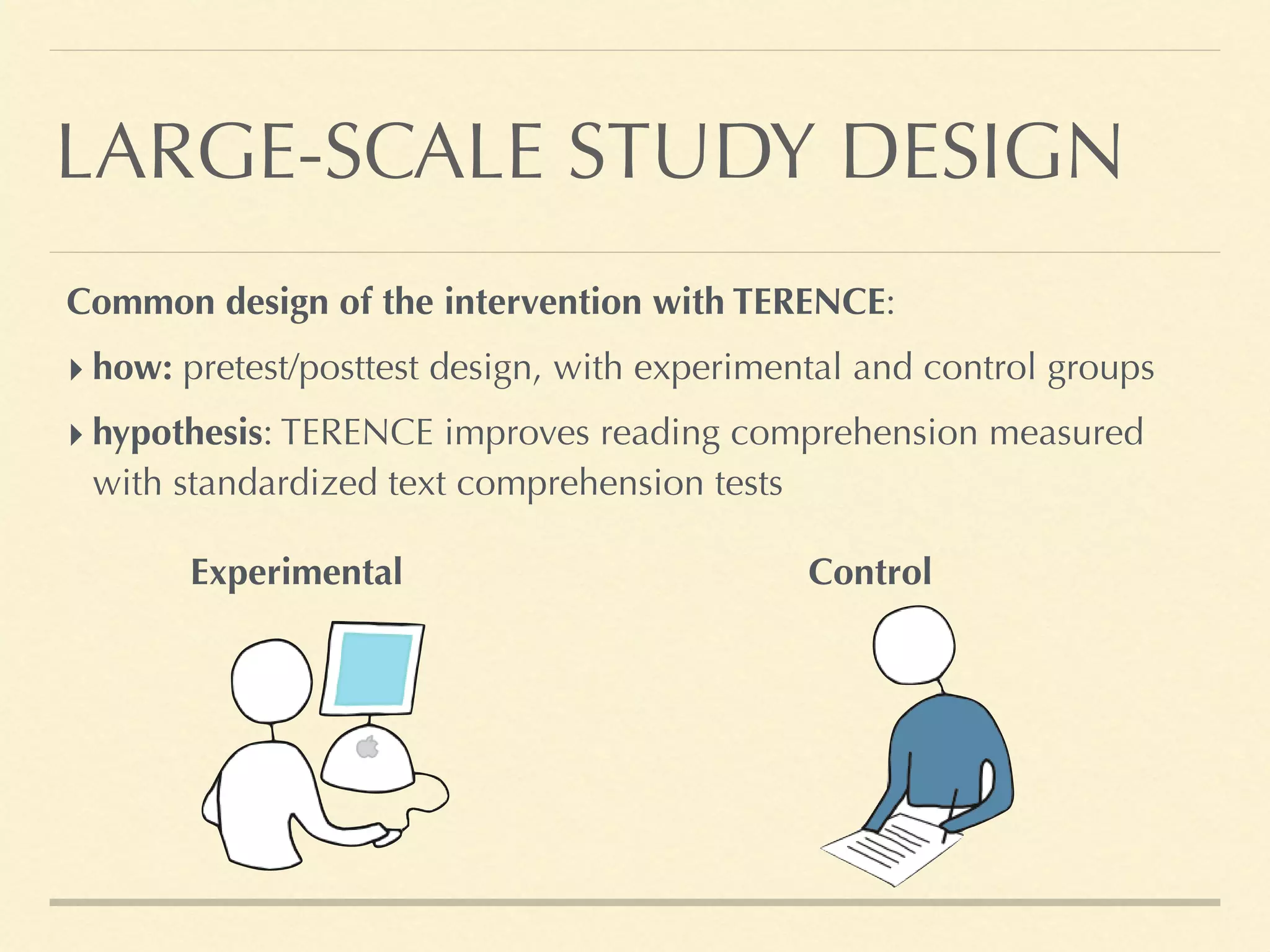

LARGE-SCALE STUDY DESIGN Common design of the intervention with TERENCE: ‣how: pretest/posttest design, with experimental and control groups ‣hypothesis: TERENCE improves reading comprehension measured with standardized text comprehension tests ControlExperimental

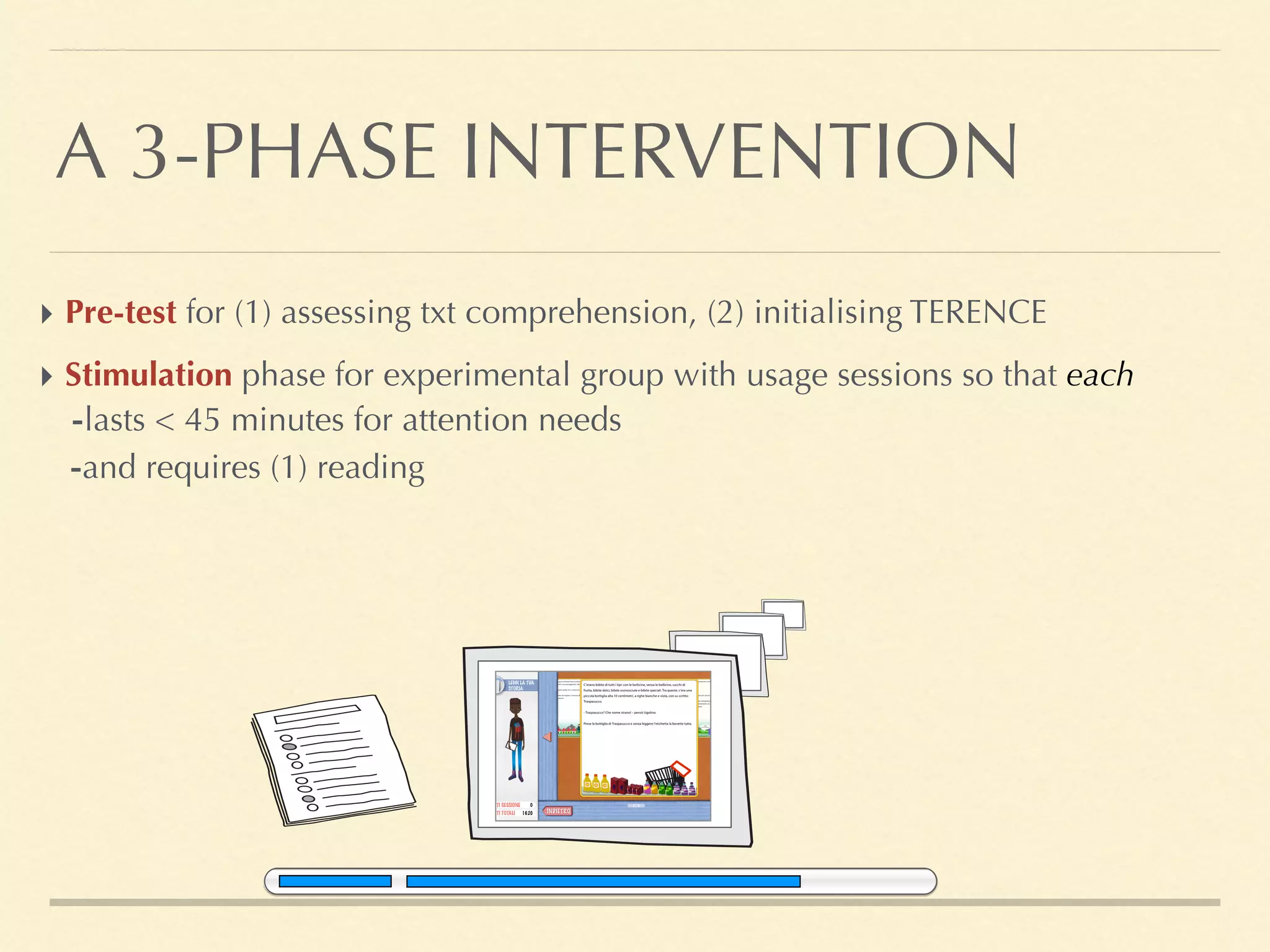

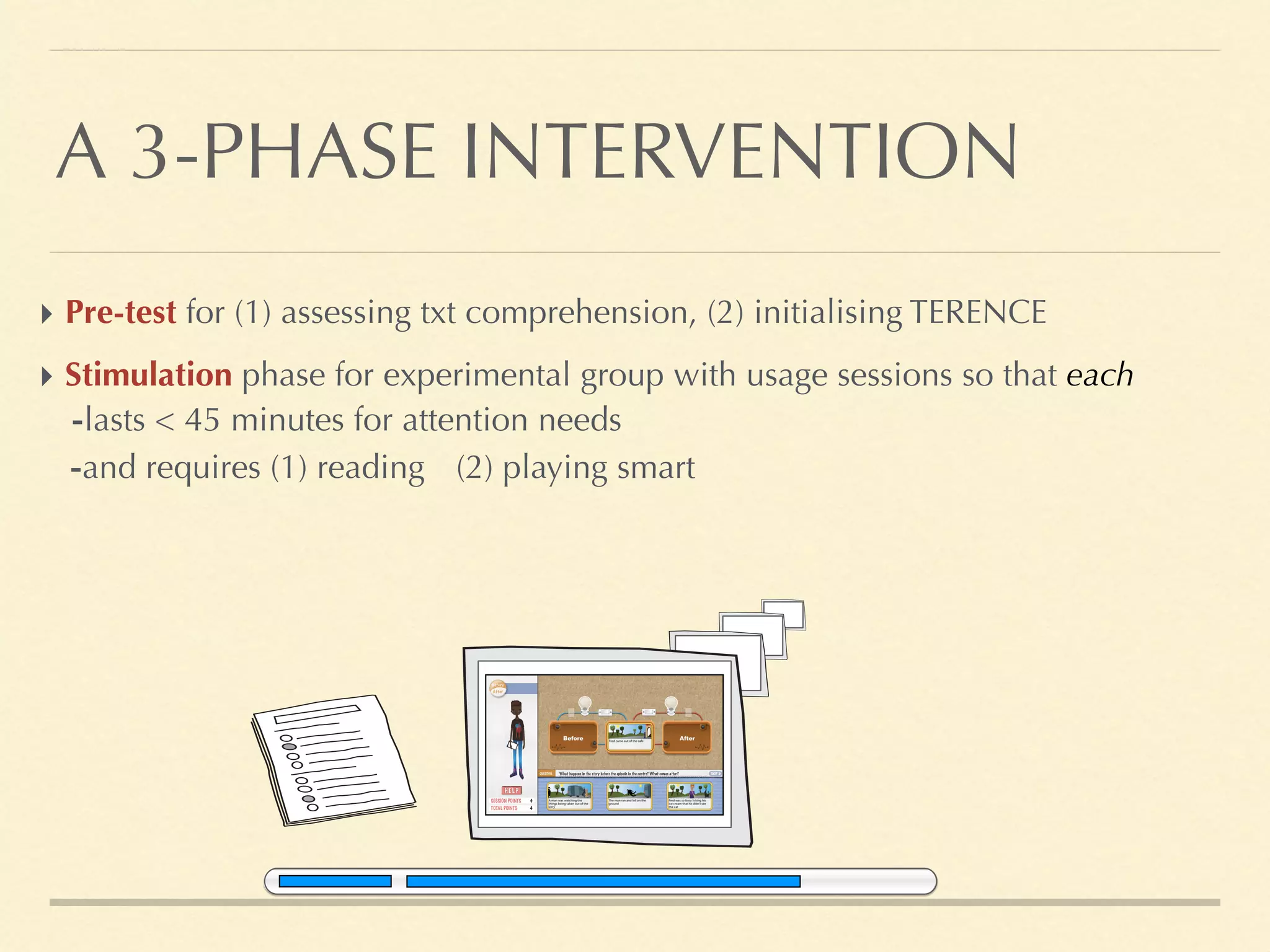

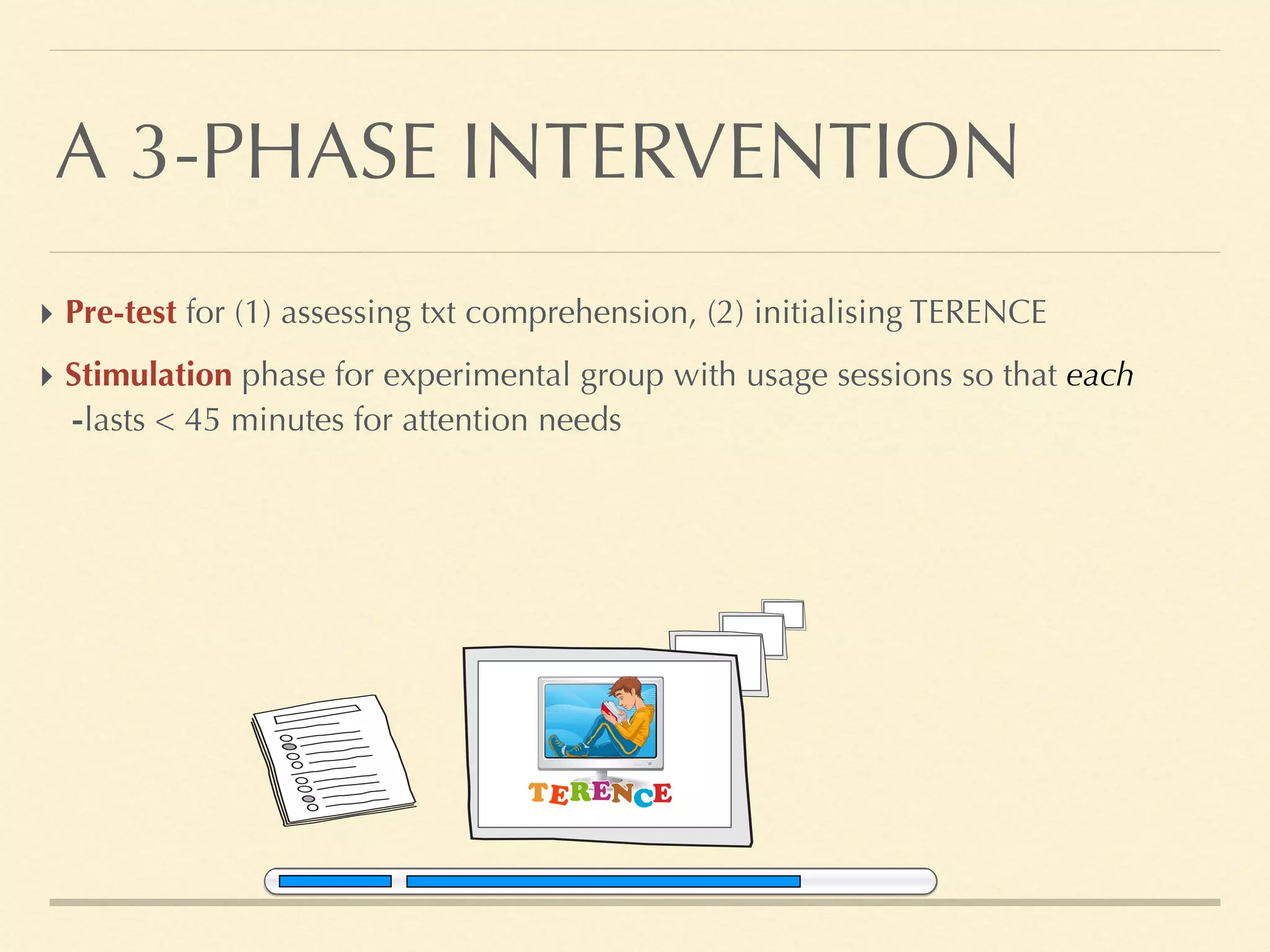

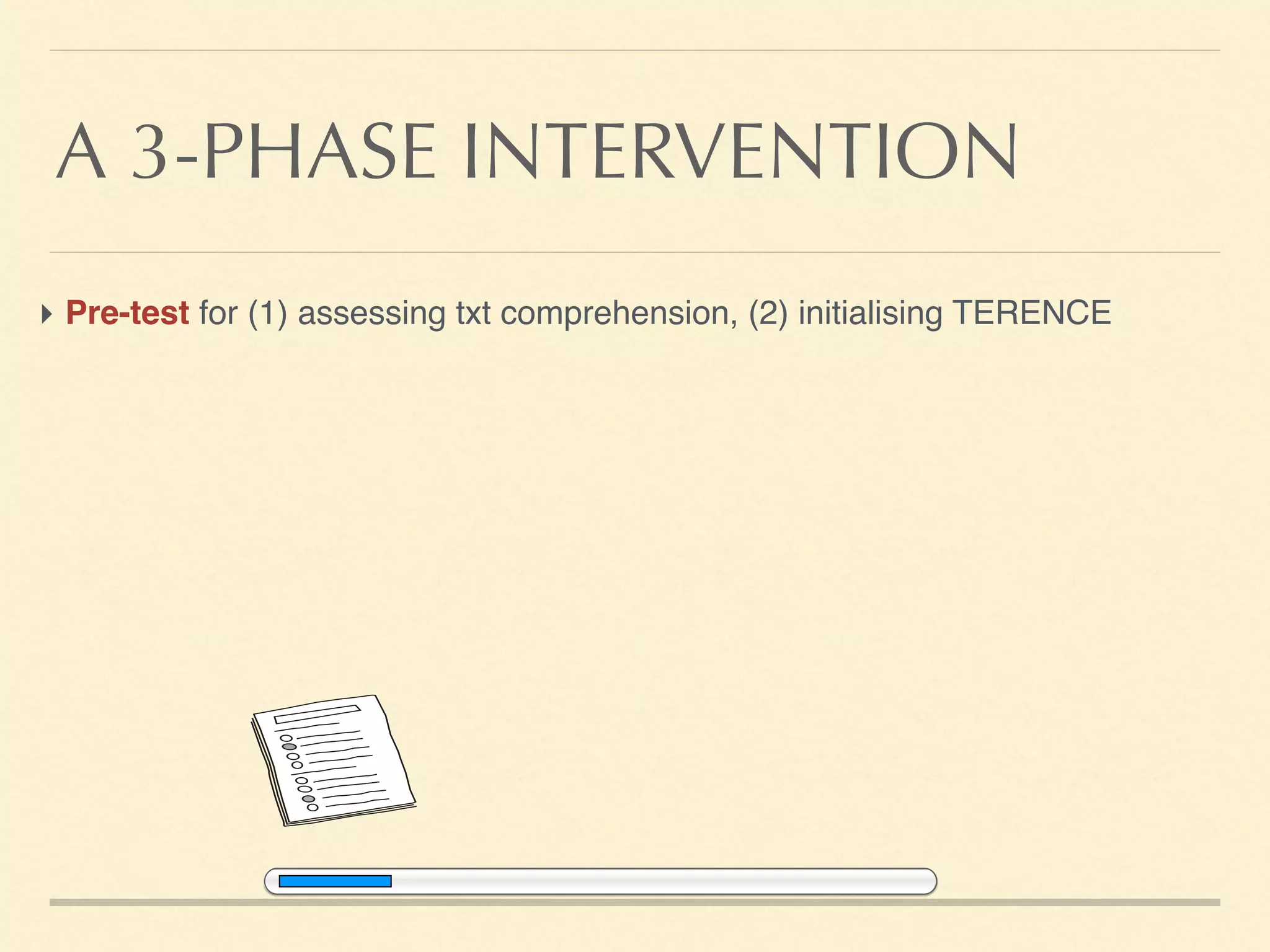

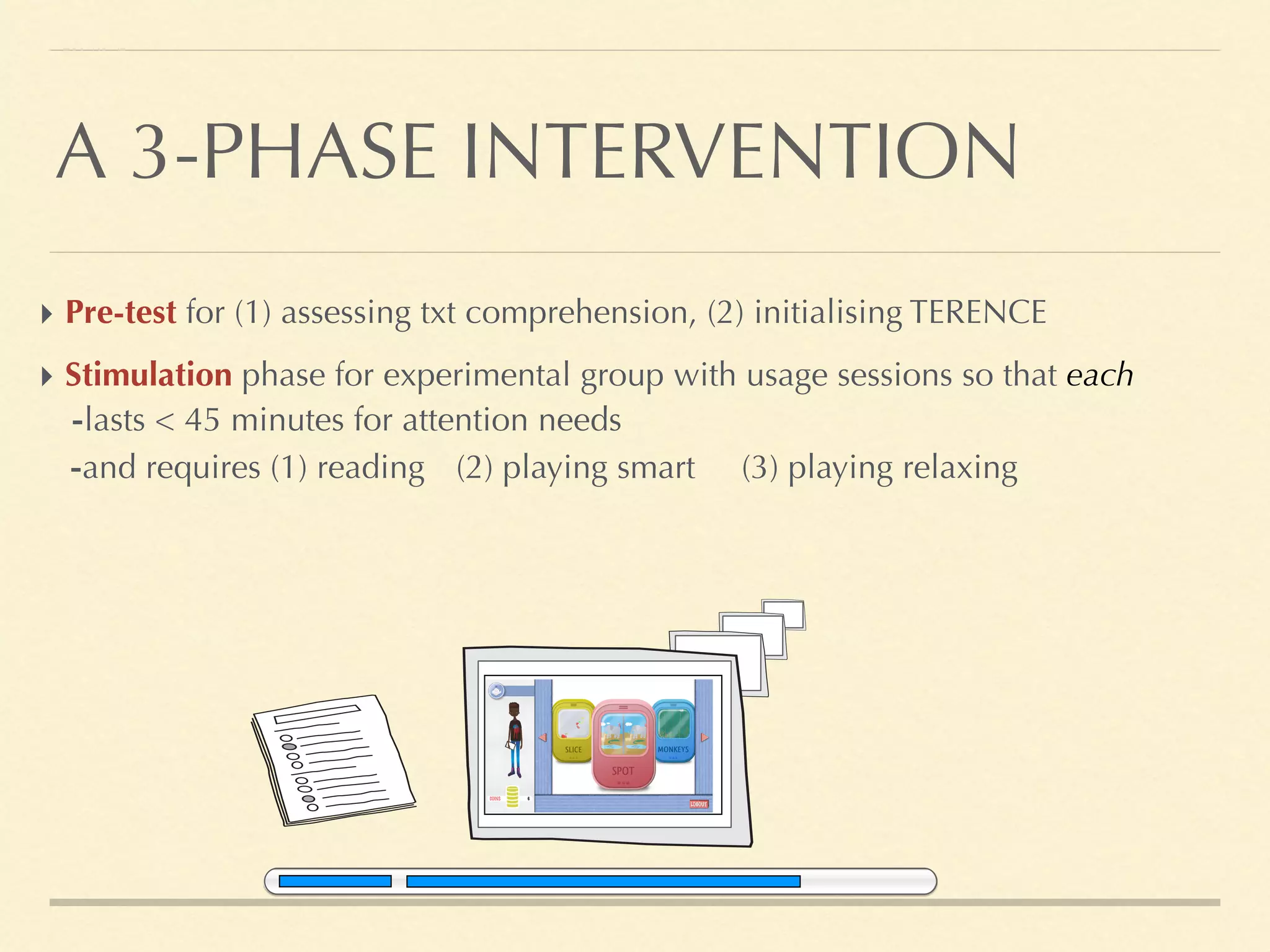

A 3-PHASE INTERVENTION ‣ Pre-test for (1) assessing txt comprehension, (2) initialising TERENCE
A 3-PHASE INTERVENTION ‣ Pre-test for (1) assessing txt comprehension, (2) initialising TERENCE ‣ Stimulation phase for experimental group with usage sessions so that each -lasts < 45 minutes for attention needs
A 3-PHASE INTERVENTION ‣ Pre-test for (1) assessing txt comprehension, (2) initialising TERENCE ‣ Stimulation phase for experimental group with usage sessions so that each -lasts < 45 minutes for attention needs -and requires (1) reading
A 3-PHASE INTERVENTION ‣ Pre-test for (1) assessing txt comprehension, (2) initialising TERENCE ‣ Stimulation phase for experimental group with usage sessions so that each -lasts < 45 minutes for attention needs -and requires (1) reading (2) playing smart

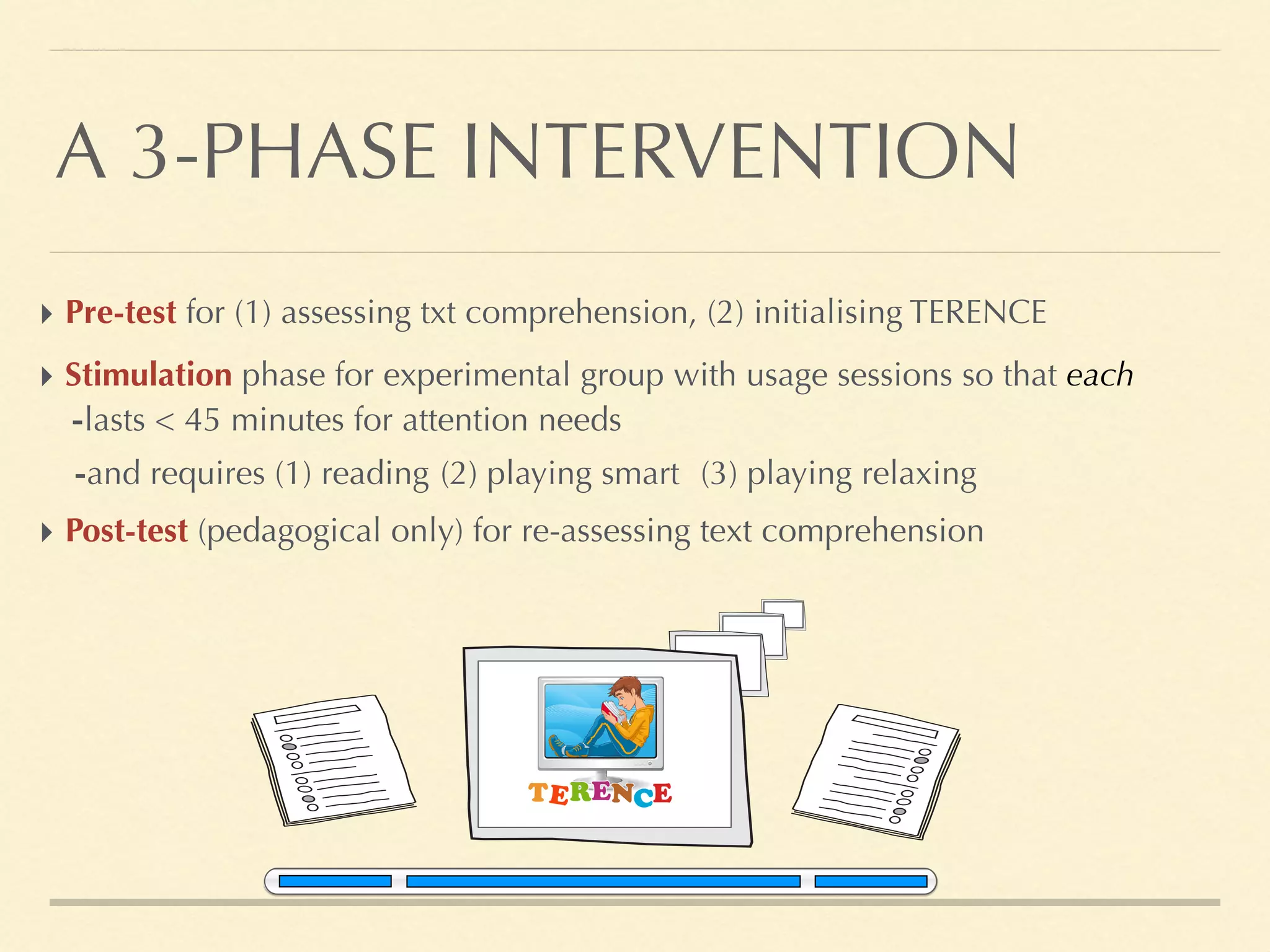

‣ Pre-test for (1) assessing txt comprehension, (2) initialising TERENCE ‣ Stimulation phase for experimental group with usage sessions so that each -lasts < 45 minutes for attention needs -and requires (1) reading (3) playing relaxing(2) playing smart A 3-PHASE INTERVENTION
‣ Post-test (pedagogical only) for re-assessing text comprehension ‣ Pre-test for (1) assessing txt comprehension, (2) initialising TERENCE ‣ Stimulation phase for experimental group with usage sessions so that each -lasts < 45 minutes for attention needs -and requires (1) reading (3) playing relaxing(2) playing smart A 3-PHASE INTERVENTION
The experimental group is of 344 learners: ‣ Avezzano: 270 learners: - 7-9 years old: 118 - 9-11 years old: 152 ‣ Pescina: 74 learners: - 7-9 years old: 37 - 9-11 years old: 37 ‣ They were tested (January-February), stimulated (March-May), and re-tested (may-June) EXPERIMENTAL GROUP IN IT
Pre-post performances for text comprehension (dependent variable) were as follows: ‣ Pescina: - pre: 14 poor comprehenders (20.59%) - post: 6 poor comprehenders (8.82%) ‣ Avezzano: - pre: 15 poor comprehenders (5.95%) - post: 2 poor comprehenders (0.79%) MAIN RESULTS IN IT Pre Pescina Avezzano 5,95% 20,59% ‣ Wilcoxon signed-rank test supports that differences are statistically significant - Pescina: z=-4.904, p<0.0001 - Avezzano: z=-2.266, p=0.0234

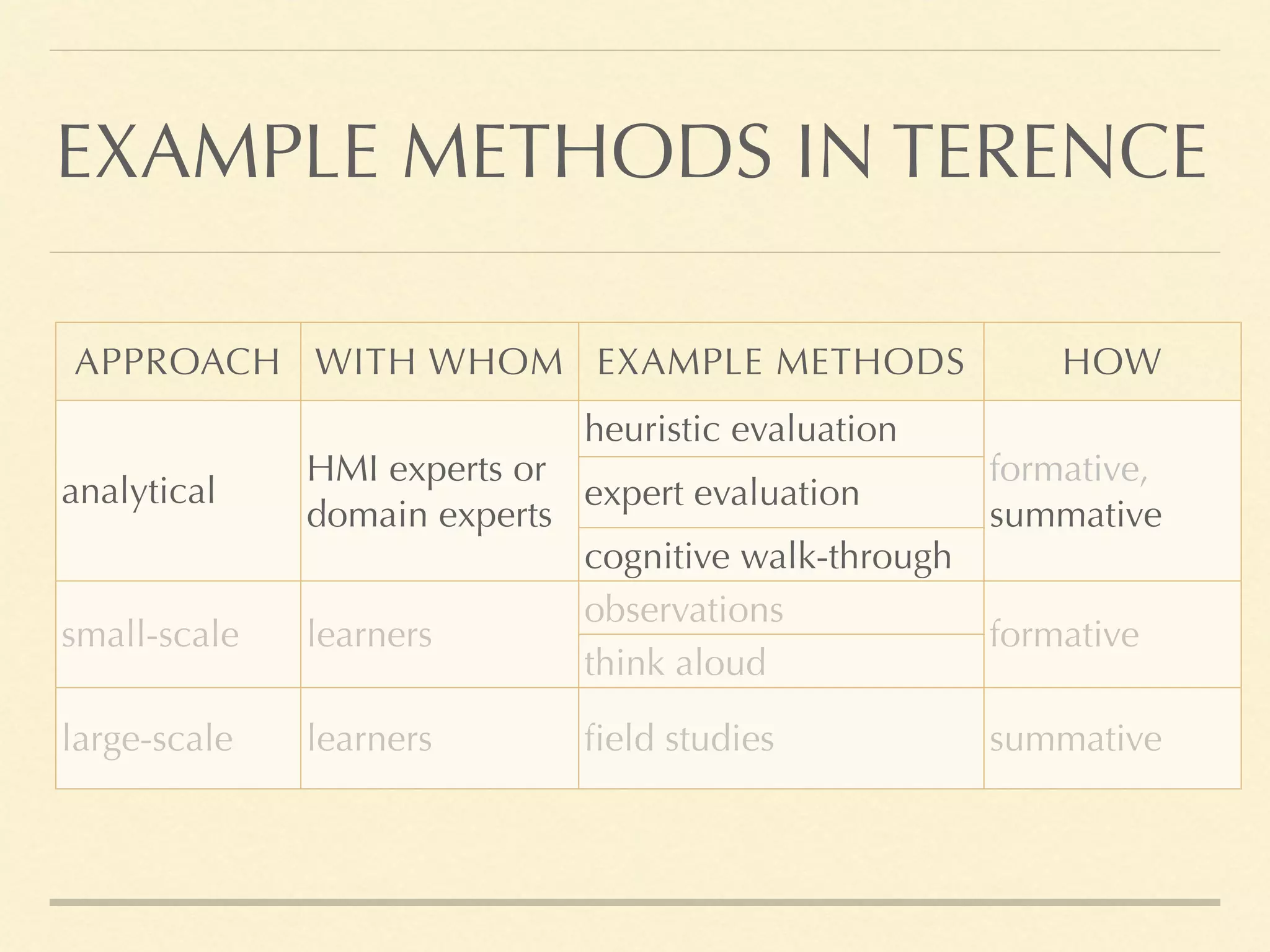

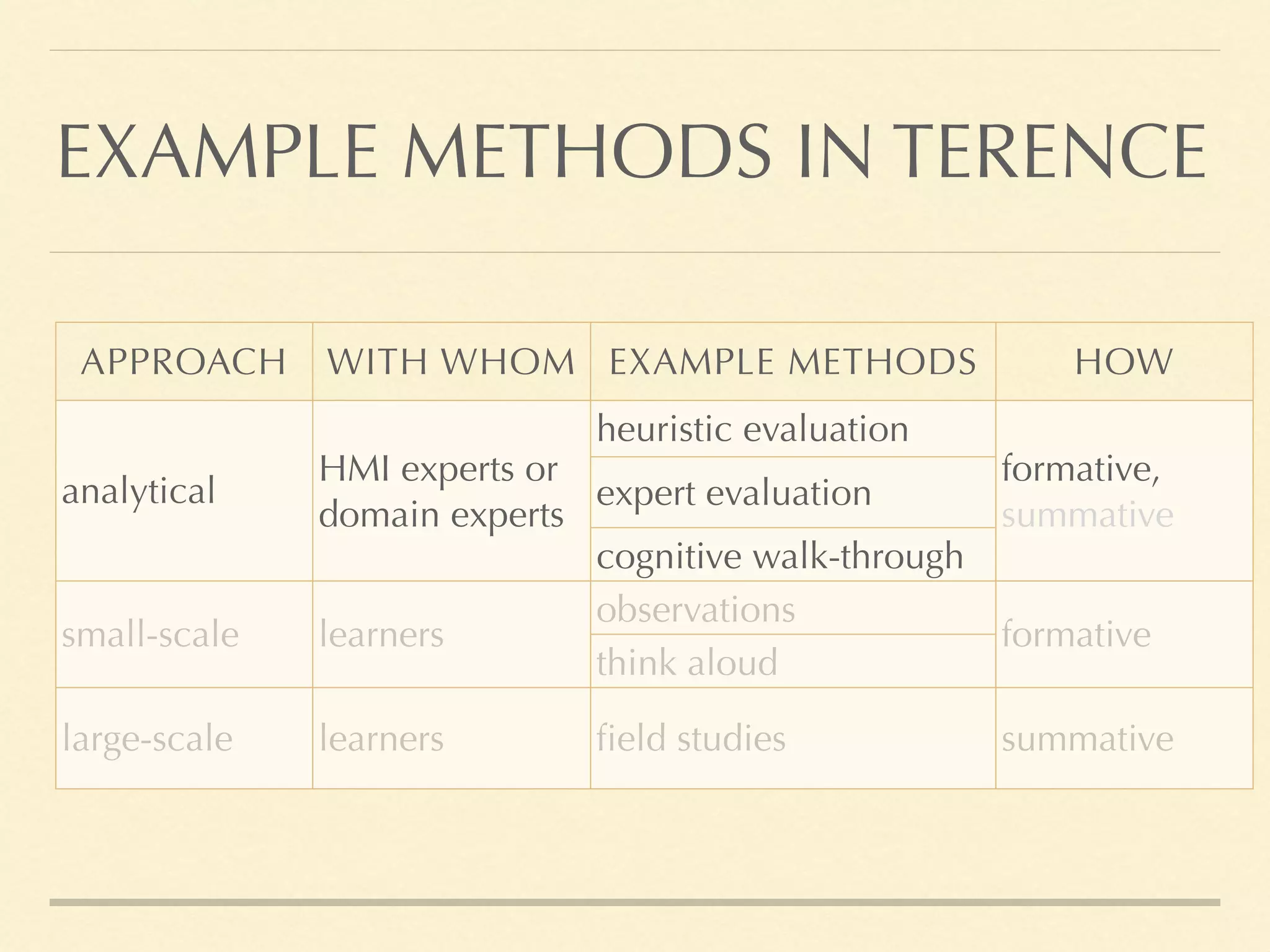

EXAMPLE METHODS IN TERENCE APPROACH WITH WHOM EXAMPLE METHODS HOW analytical HMI experts or domain experts heuristic evaluation formative, summative expert evaluation cognitive walk-through small-scale learners observations formative think aloud large-scale learners field studies summative

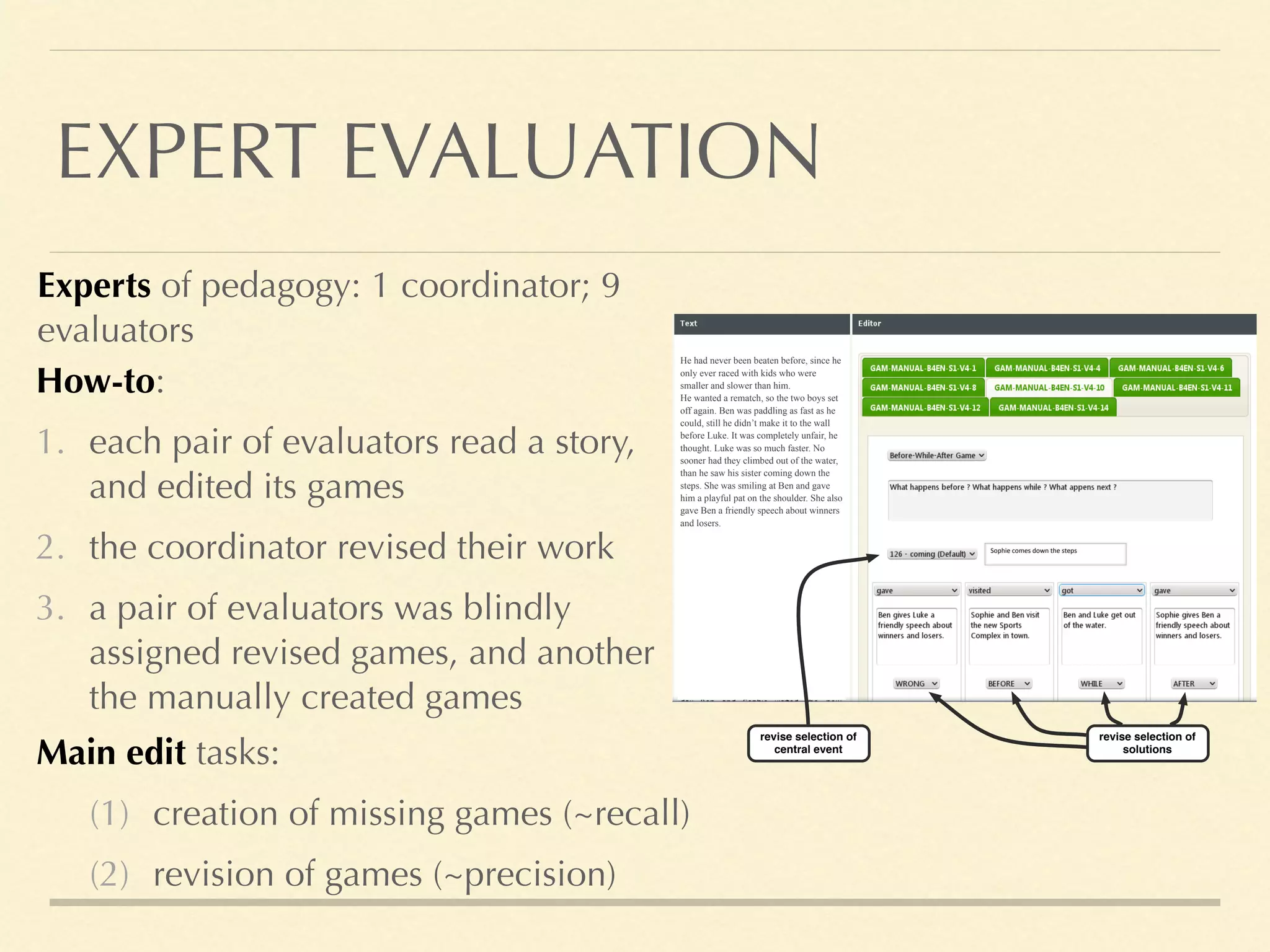

EXPERT EVALUATION Experts of pedagogy: 1 coordinator; 9 evaluators Sophie'comes'down'the'steps He had never been beaten before, since he only ever raced with kids who were smaller and slower than him. He wanted a rematch, so the two boys set off again. Ben was paddling as fast as he could, still he didn’t make it to the wall before Luke. It was completely unfair, he thought. Luke was so much faster. No sooner had they climbed out of the water, than he saw his sister coming down the steps. She was smiling at Ben and gave him a playful pat on the shoulder. She also gave Ben a friendly speech about winners and losers. revise selection of solutions revise selection of central event How-to: 1. each pair of evaluators read a story, and edited its games 2. the coordinator revised their work 3. a pair of evaluators was blindly assigned revised games, and another the manually created games Main edit tasks: (1) creation of missing games (~recall) (2) revision of games (~precision)
From D4.2 and D4.3 technical annex overall assessment of generation text story text + visual games revision of Automated Reasoning (AR) selection of central events and solutions revision of Natural Language Processing (NLP) of text text text text text Edit tasks in details

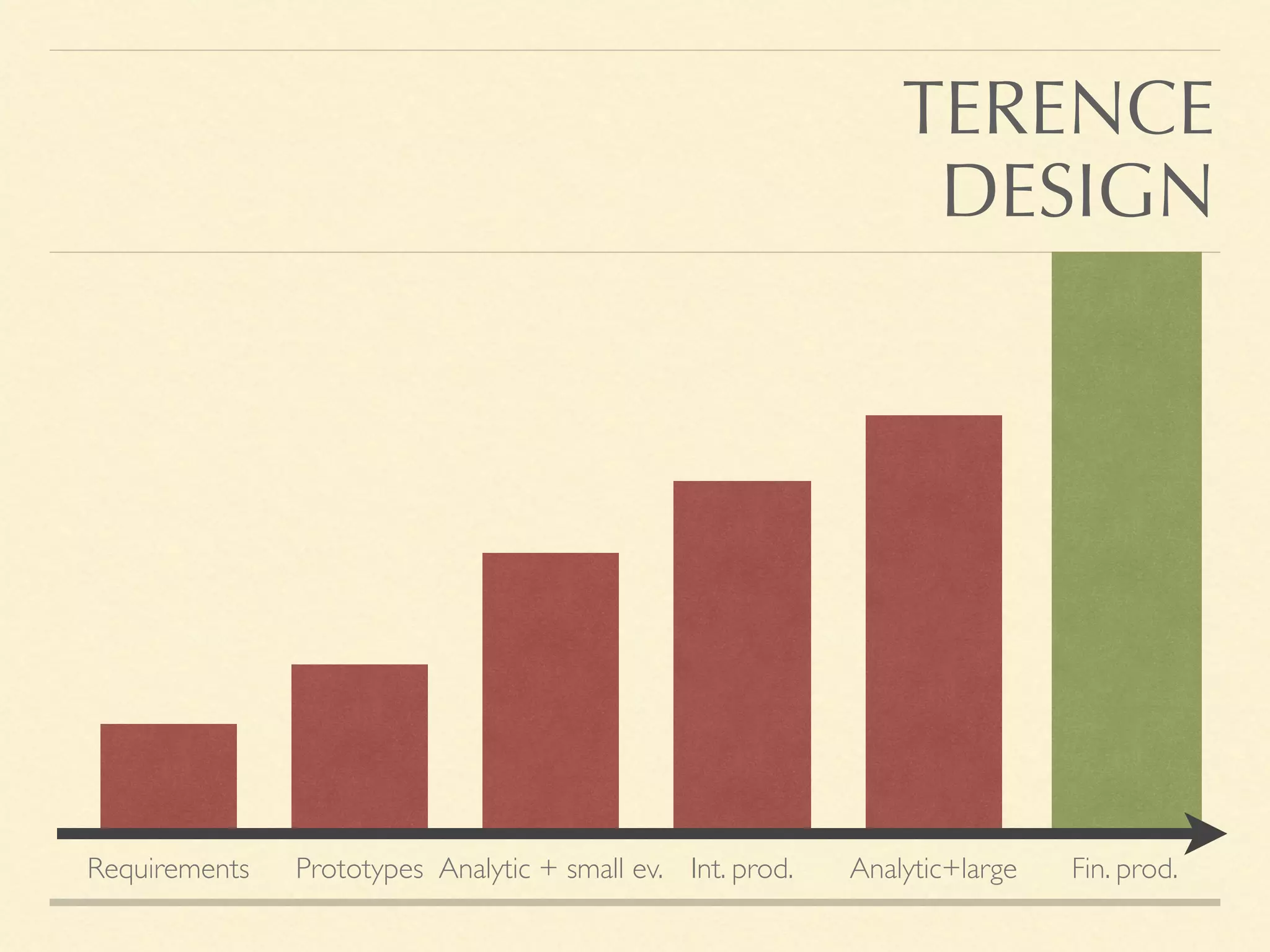

Requirements Prototypes Analytic + small ev. Int. prod. Analytic+large Fin. prod. TERENCE DESIGN

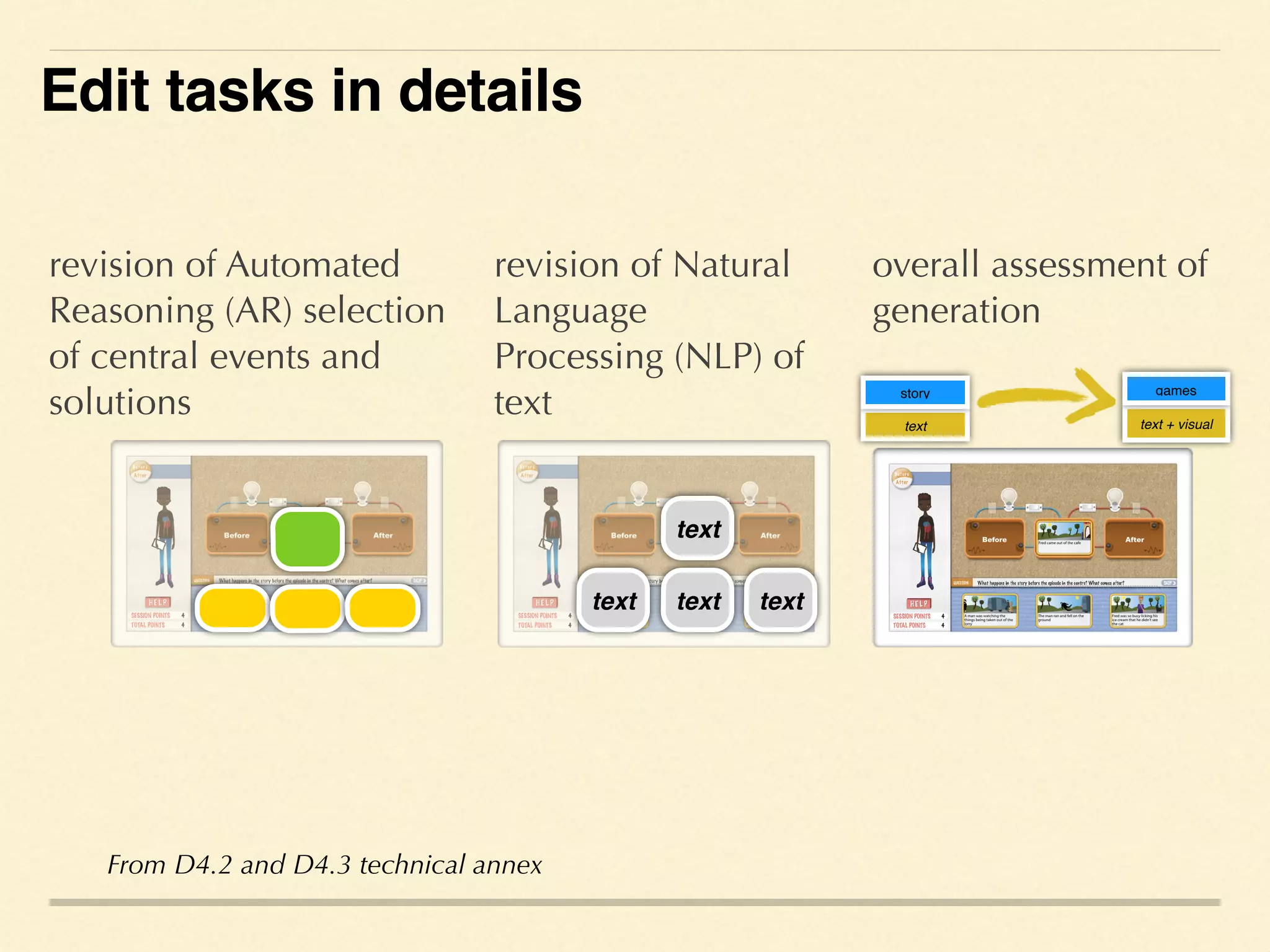

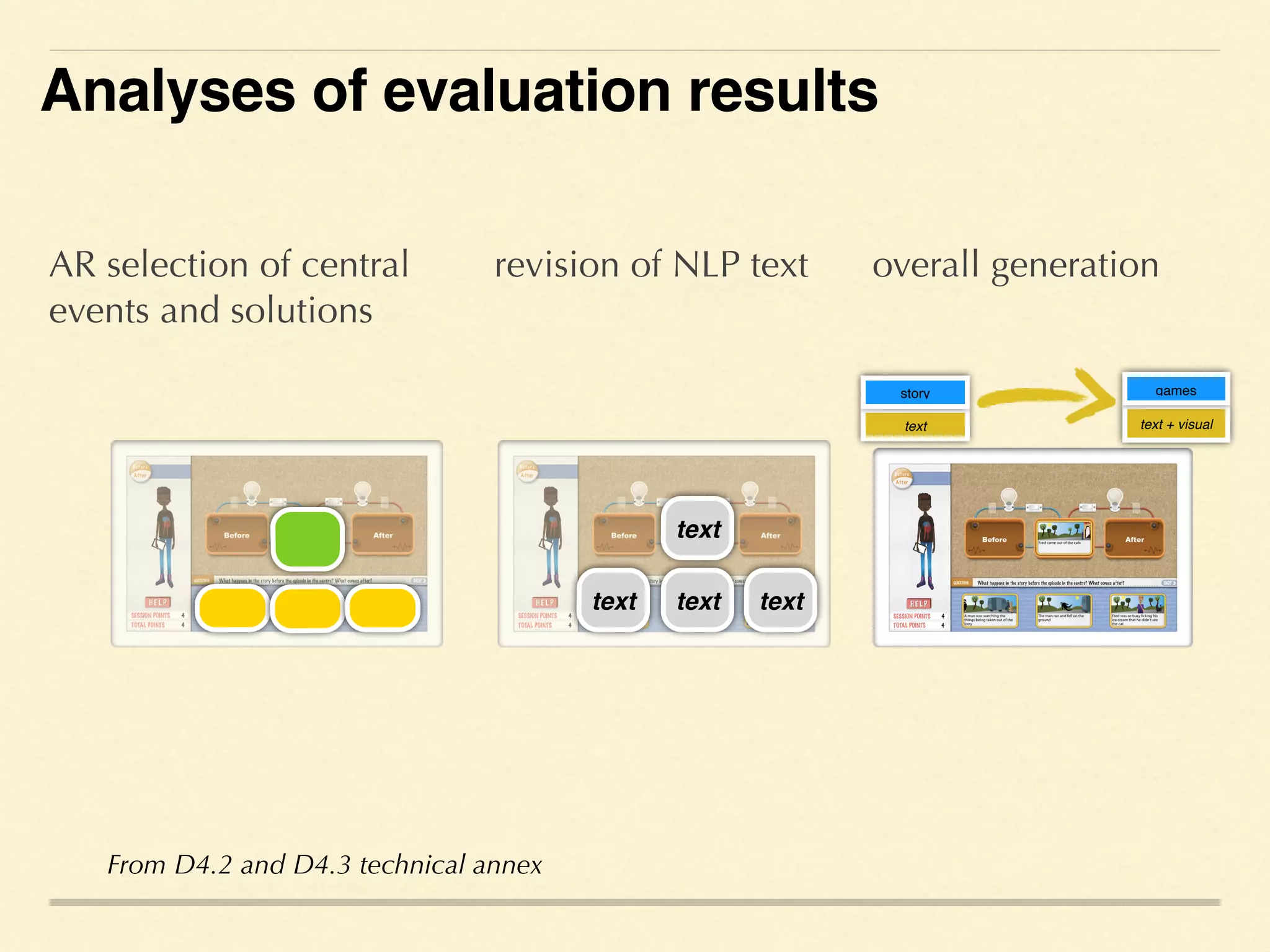

From D4.2 and D4.3 technical annex overall generation text story text + visual games AR selection of central events and solutions revision of NLP text text text text text Analyses of evaluation results

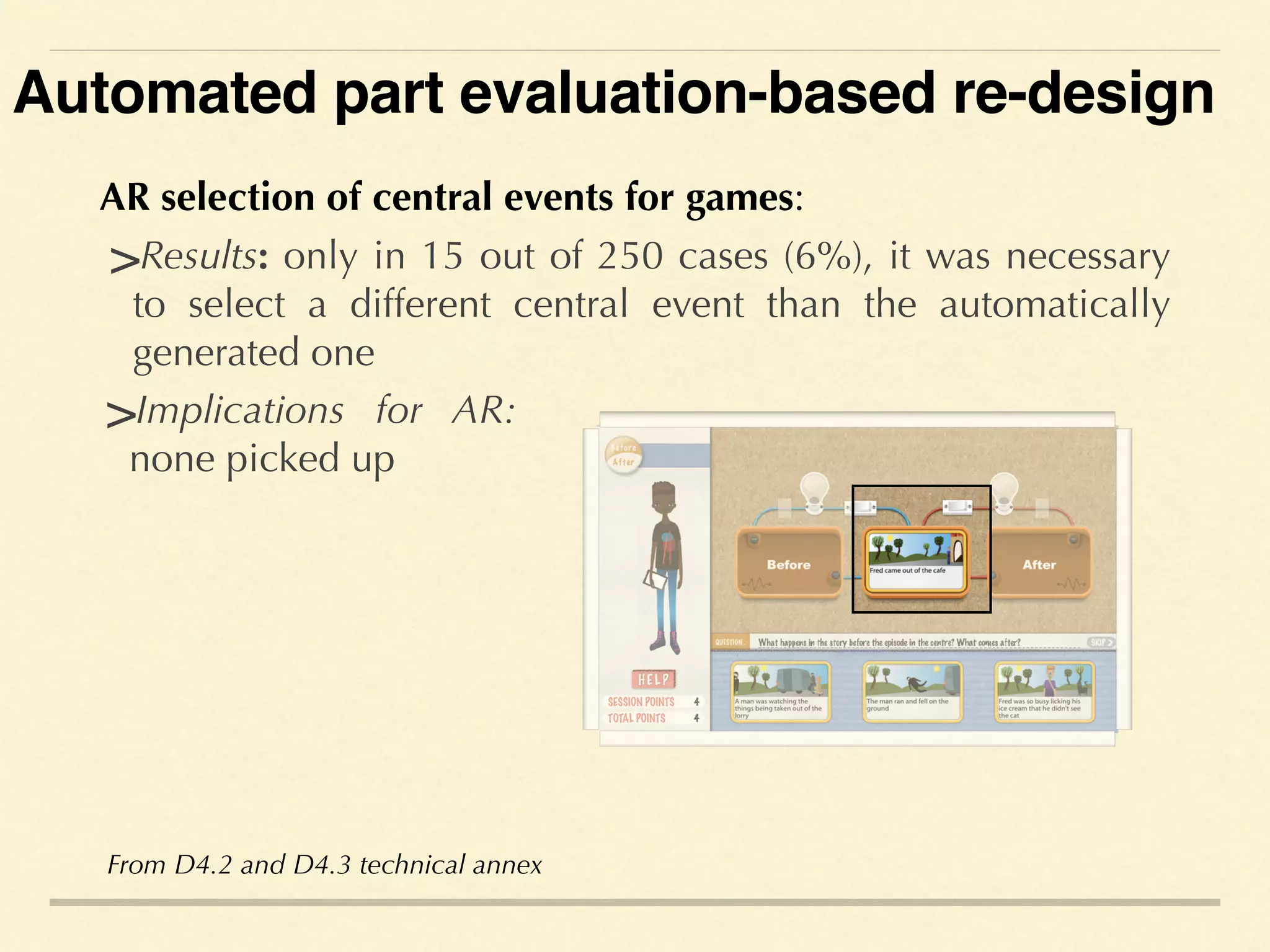

AR selection of central events for games: >Results: only in 15 out of 250 cases (6%), it was necessary to select a different central event than the automatically generated one From D4.2 and D4.3 technical annex >Implications for AR: none picked up Automated part evaluation-based re-design

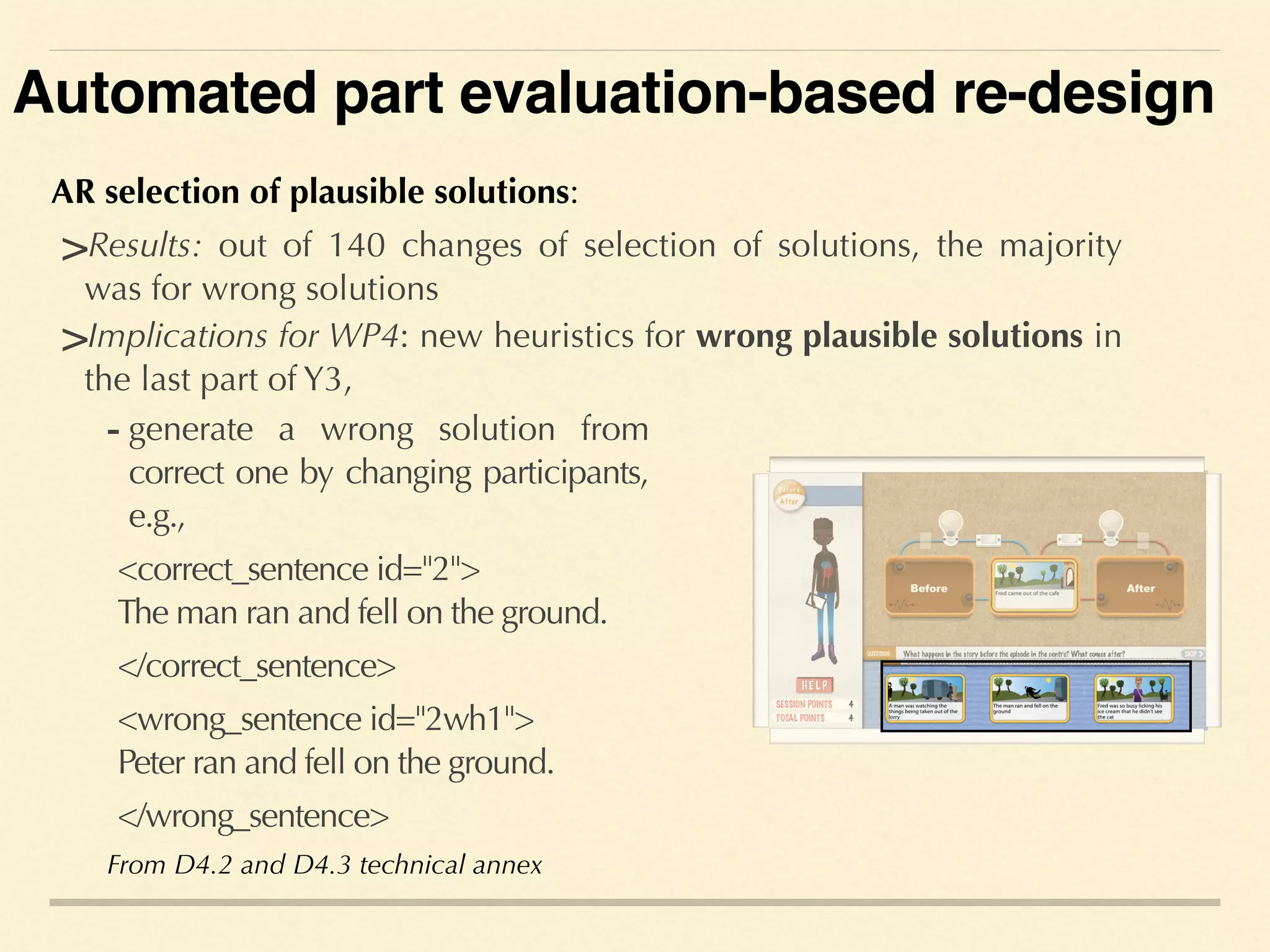

AR selection of plausible solutions: >Results: out of 140 changes of selection of solutions, the majority was for wrong solutions - generate a wrong solution from correct one by changing participants, e.g., <correct_sentence id="2">
 The man ran and fell on the ground. </correct_sentence> <wrong_sentence id="2wh1">
 Peter ran and fell on the ground. </wrong_sentence> >Implications for WP4: new heuristics for wrong plausible solutions in the last part of Y3, From D4.2 and D4.3 technical annex Automated part evaluation-based re-design

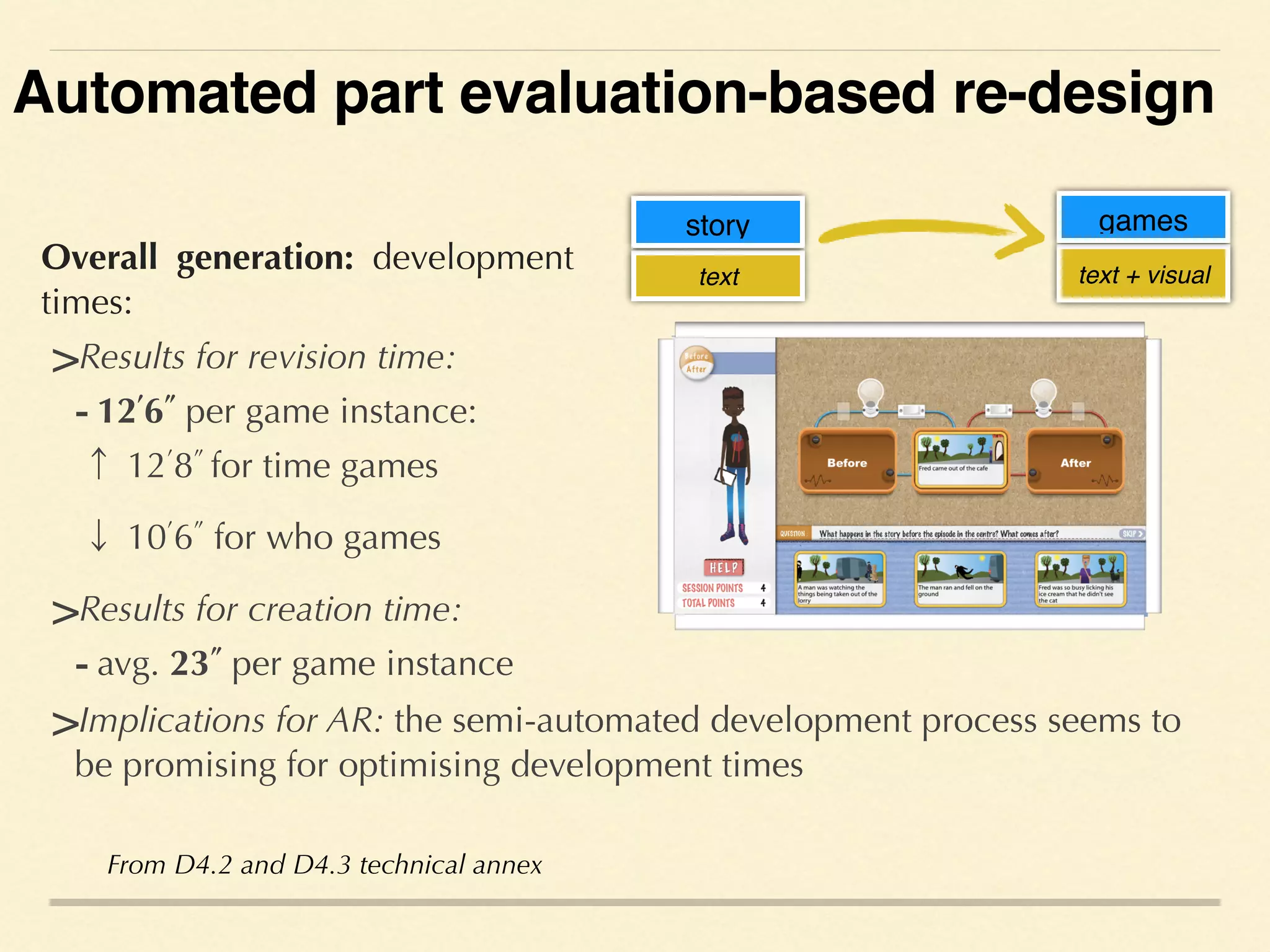

Overall generation: development times: >Results for revision time: - 12’6” per game instance: ↑ 12’8” for time games ↓ 10’6” for who games >Results for creation time: - avg. 23” per game instance text story text + visual games From D4.2 and D4.3 technical annex >Implications for AR: the semi-automated development process seems to be promising for optimising development times Automated part evaluation-based re-design

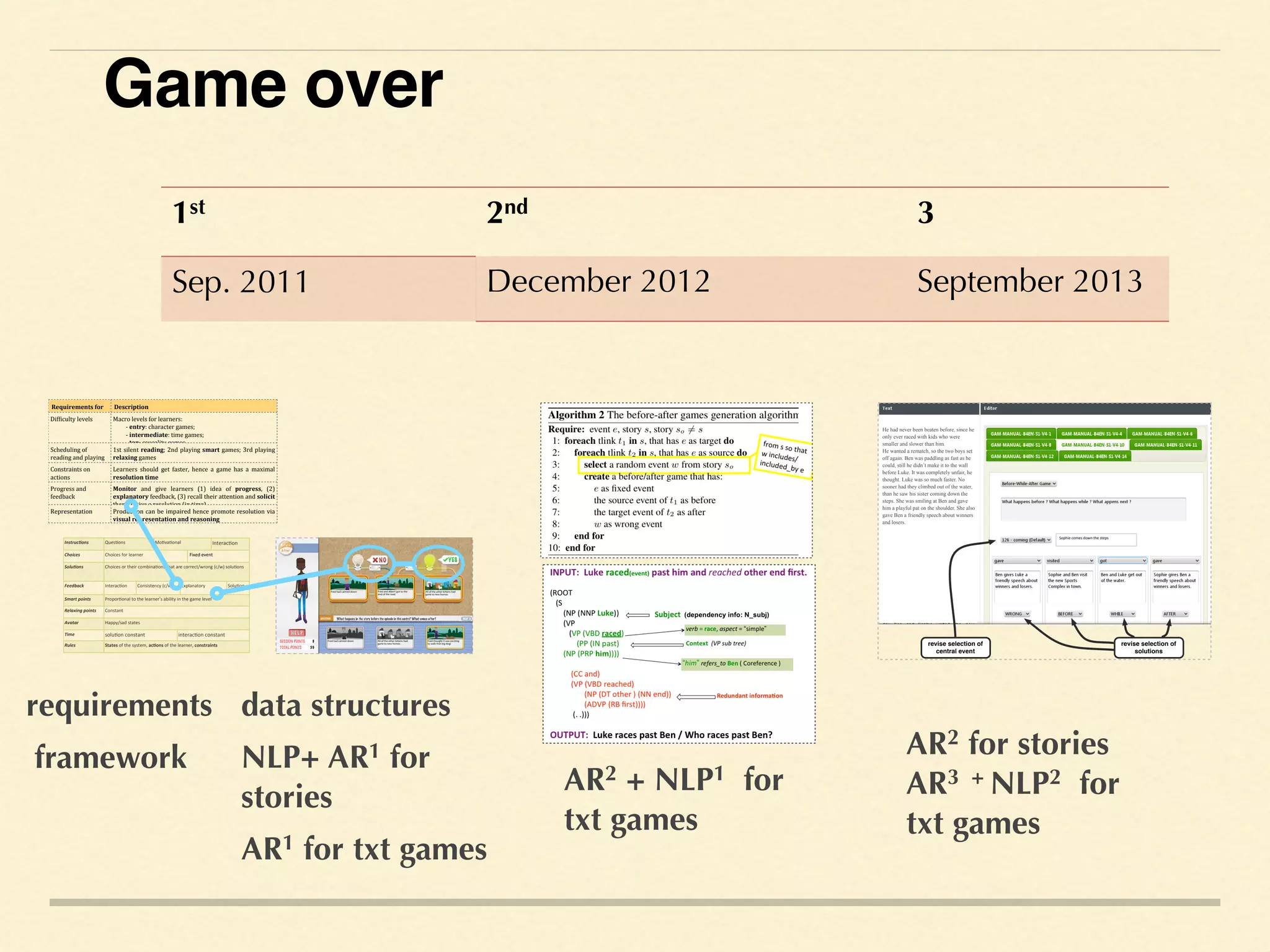

Game over 1st 2nd 3 Sep. 2011 December 2012 September 2013 Sophie'comes'down'the'steps He had never been beaten before, since he only ever raced with kids who were smaller and slower than him. He wanted a rematch, so the two boys set off again. Ben was paddling as fast as he could, still he didn’t make it to the wall before Luke. It was completely unfair, he thought. Luke was so much faster. No sooner had they climbed out of the water, than he saw his sister coming down the steps. She was smiling at Ben and gave him a playful pat on the shoulder. She also gave Ben a friendly speech about winners and losers. revise selection of solutions revise selection of central event Requirements+for Description Dif$iculty*levels Macro*levels*for*learners: 4*entry:*character*games; 4*intermediate:*time*games; 4*top:*causality*games.* Scheduling*of* reading*and*playing 1st*silent*reading;* 2nd* playing* smart*games;*3rd*playing* relaxing*games Constraints*on* actions Learners* should* get*faster,* hence* a* game* has* a* maximal* resolution+time Progress*and* feedback Monitor* and* give* learners* (1)* idea* of* progress,* (2)* explanatory*feedback,*(3)*recall*their*attention*and*solicit+ them*to*give*a*resolution*(in*time) Representation Production*can*be* impaired*hence*promote*resolution*via* visual*representation+and+reasoning Instruc(ons Ques%onsQues%ons Mo%va%onalMo%va%onalMo%va%onalMo%va%onal Interac%onInterac%on Choices Choices3for3learnerChoices3for3learnerChoices3for3learnerChoices3for3learnerChoices3for3learner 3Fixed3event3Fixed3event3Fixed3event Solu(ons Choices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%onsChoices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%onsChoices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%onsChoices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%onsChoices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%onsChoices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%onsChoices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%onsChoices3or3their3combina%ons3that3are3correct/wrong3(c/w)3solu%ons Feedback Interac%on Consistency3(c/w)Consistency3(c/w)Consistency3(c/w) ExplanatoryExplanatoryExplanatory Solu%on Smart6points Propor%onal3to3the3learner’s3ability3in3the3game3levelPropor%onal3to3the3learner’s3ability3in3the3game3levelPropor%onal3to3the3learner’s3ability3in3the3game3levelPropor%onal3to3the3learner’s3ability3in3the3game3levelPropor%onal3to3the3learner’s3ability3in3the3game3levelPropor%onal3to3the3learner’s3ability3in3the3game3levelPropor%onal3to3the3learner’s3ability3in3the3game3levelPropor%onal3to3the3learner’s3ability3in3the3game3level Relaxing6points ConstantConstantConstantConstantConstantConstantConstantConstant Avatar Happy/sad3statesHappy/sad3statesHappy/sad3statesHappy/sad3statesHappy/sad3statesHappy/sad3statesHappy/sad3statesHappy/sad3states Time solu%on3constantsolu%on3constantsolu%on3constant interac%on3constantinterac%on3constantinterac%on3constantinterac%on3constantinterac%on3constant Rules States3of3the3system,3ac'ons3of3the3learner,3constraintsStates3of3the3system,3ac'ons3of3the3learner,3constraintsStates3of3the3system,3ac'ons3of3the3learner,3constraintsStates3of3the3system,3ac'ons3of3the3learner,3constraintsStates3of3the3system,3ac'ons3of3the3learner,3constraintsStates3of3the3system,3ac'ons3of3the3learner,3constraintsStates3of3the3system,3ac'ons3of3the3learner,3constraintsStates3of3the3system,3ac'ons3of3the3learner,3constraints data structures NLP+ AR1 for stories AR1 for txt games framework AR2 + NLP1 for txt games AR2 for stories AR3 + NLP2 for txt games requirements

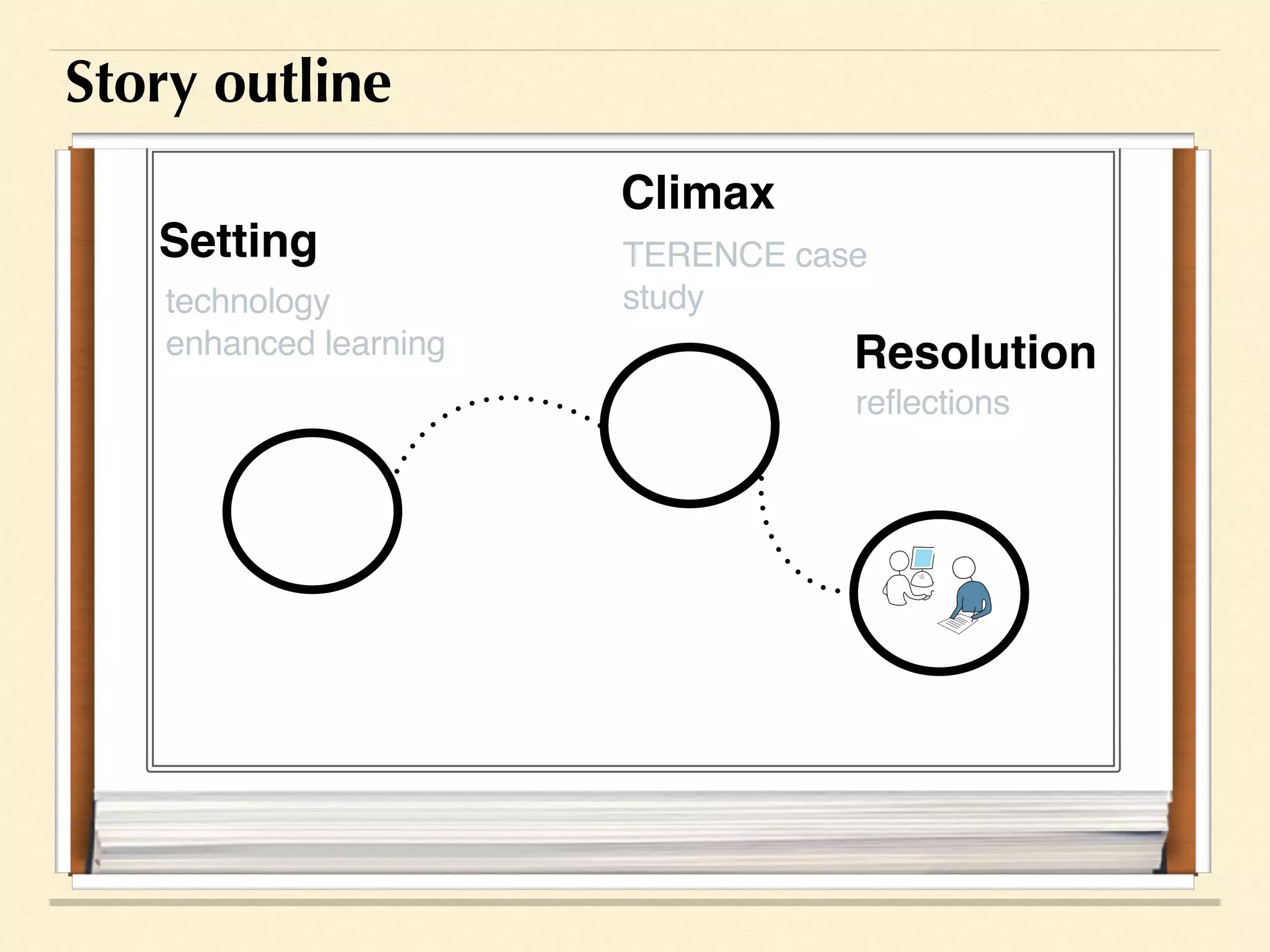

Setting technology enhanced learning Climax TERENCE case study Resolution reflections Story outline

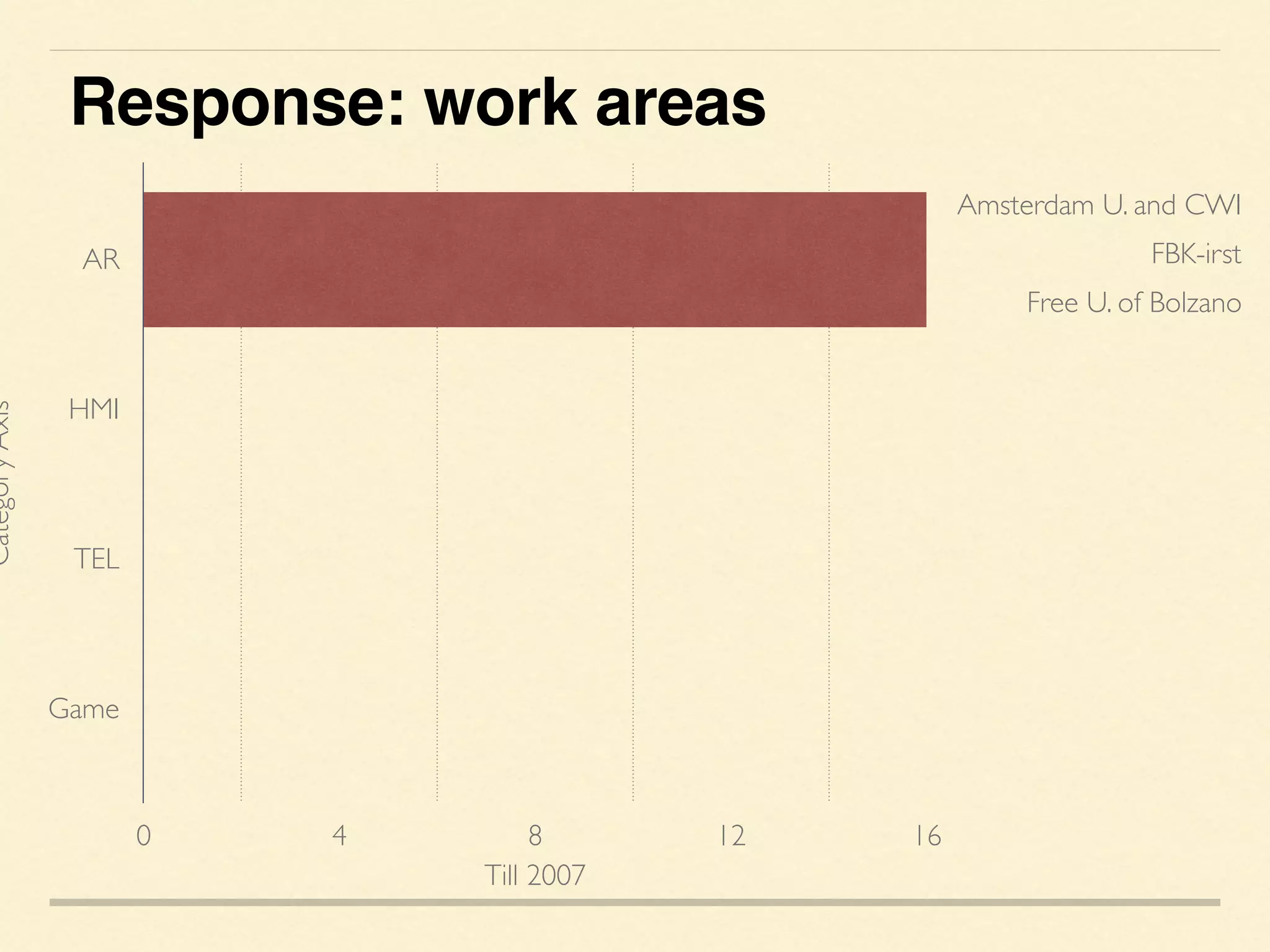

Till 2007 CategoryAxis AR HMI TEL Game 0 4 8 12 16 Response: work areas Amsterdam U. and CWI FBK-irst Free U. of Bolzano

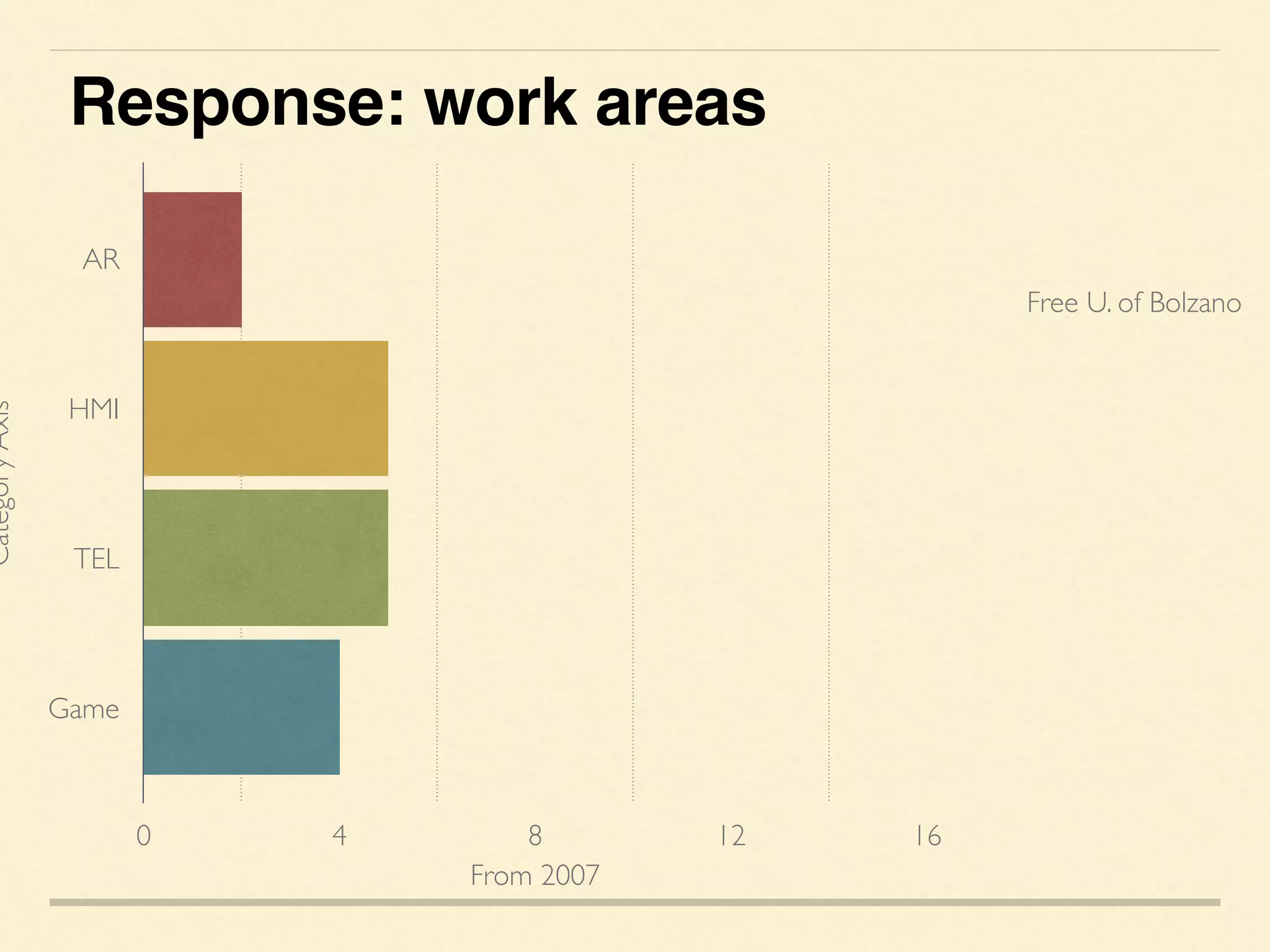

From 2007 CategoryAxis AR HMI TEL Game 0 4 8 12 16 Response: work areas Free U. of Bolzano
Possible explanation?

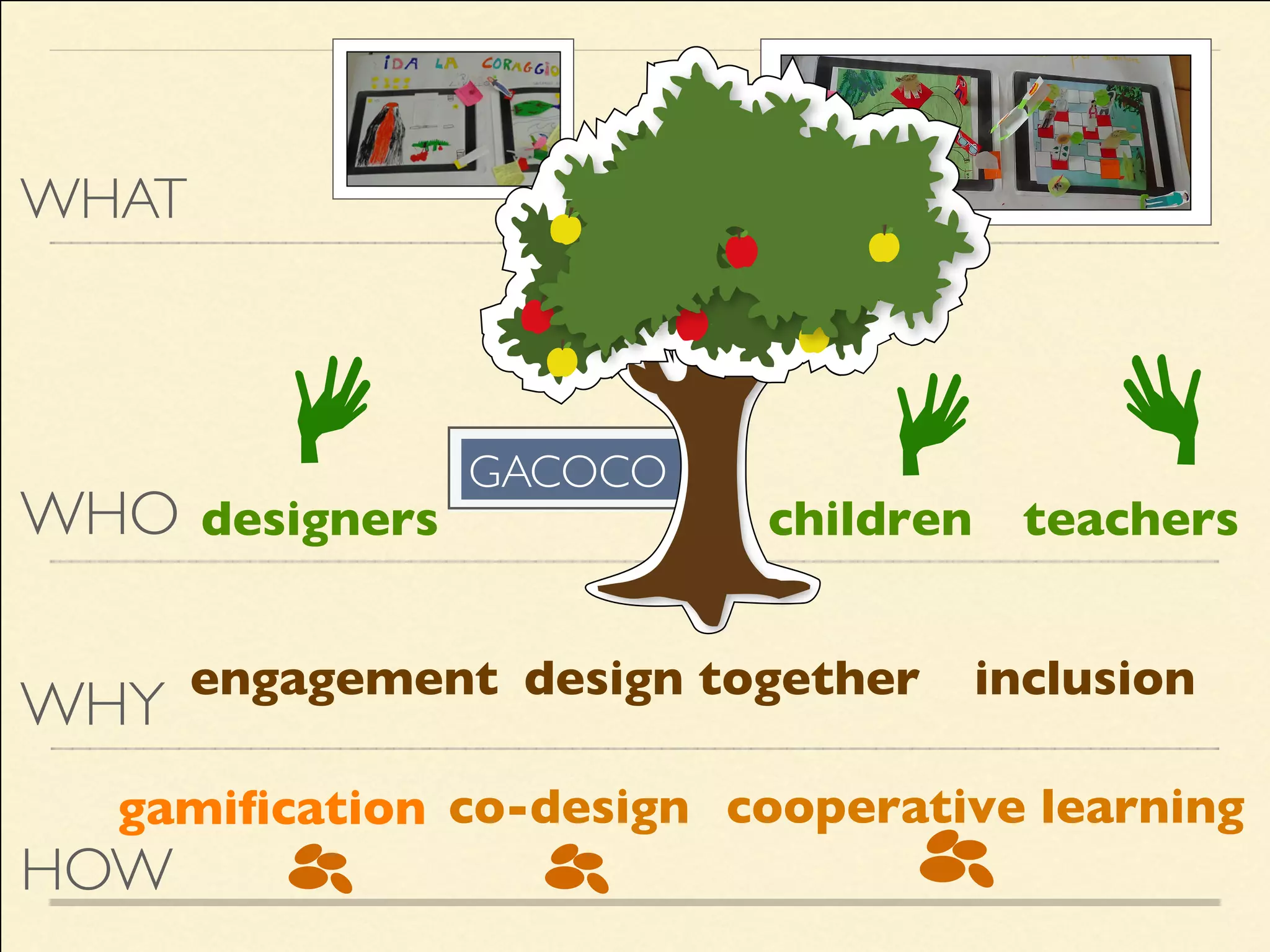

co-designgamification cooperative learning HOW WHY engagement design together inclusion childrendesigners teachersWHO WHAT GACOCO trees tree puzzle

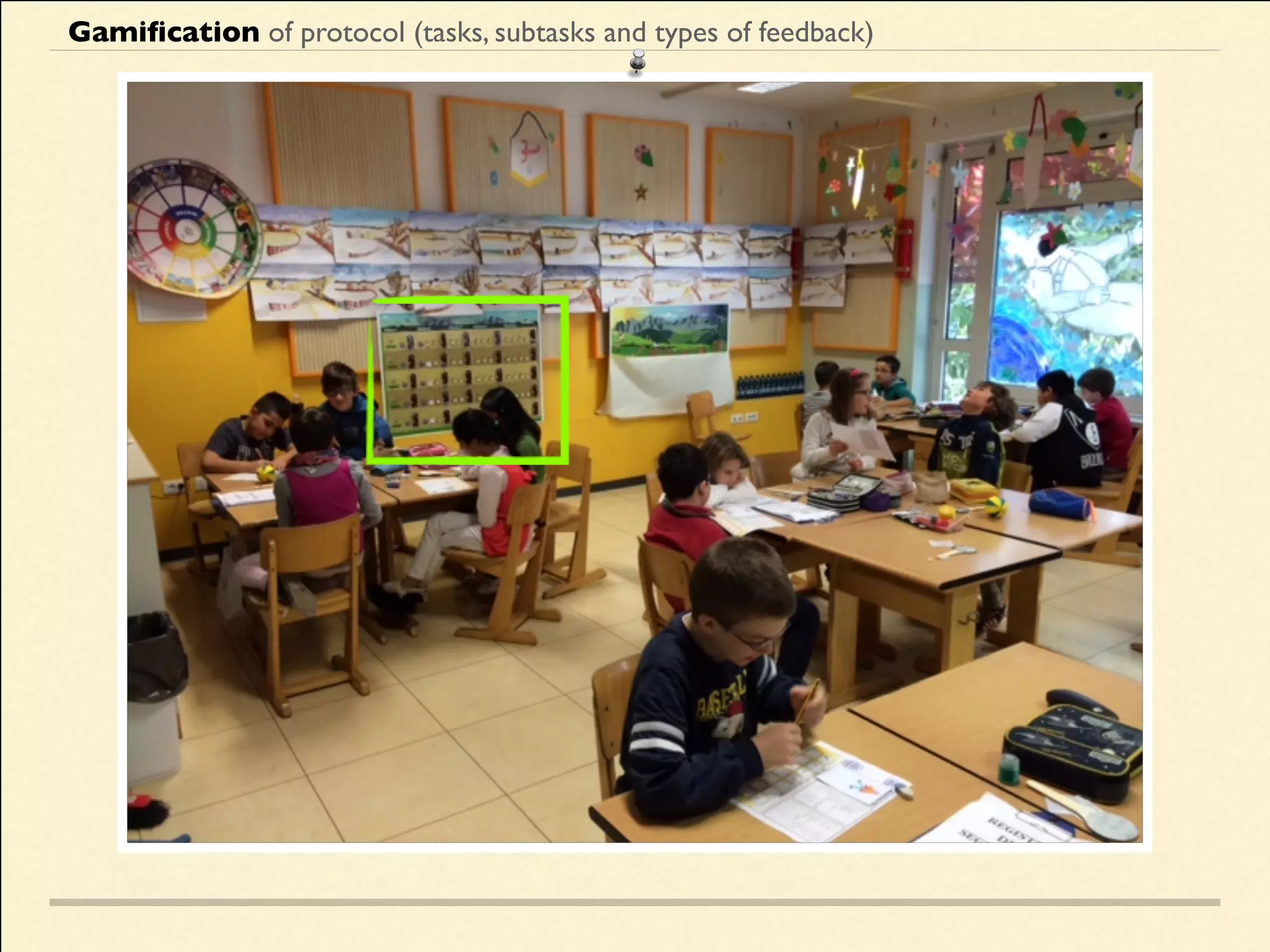

Gamification of protocol (tasks, subtasks and types of feedback)

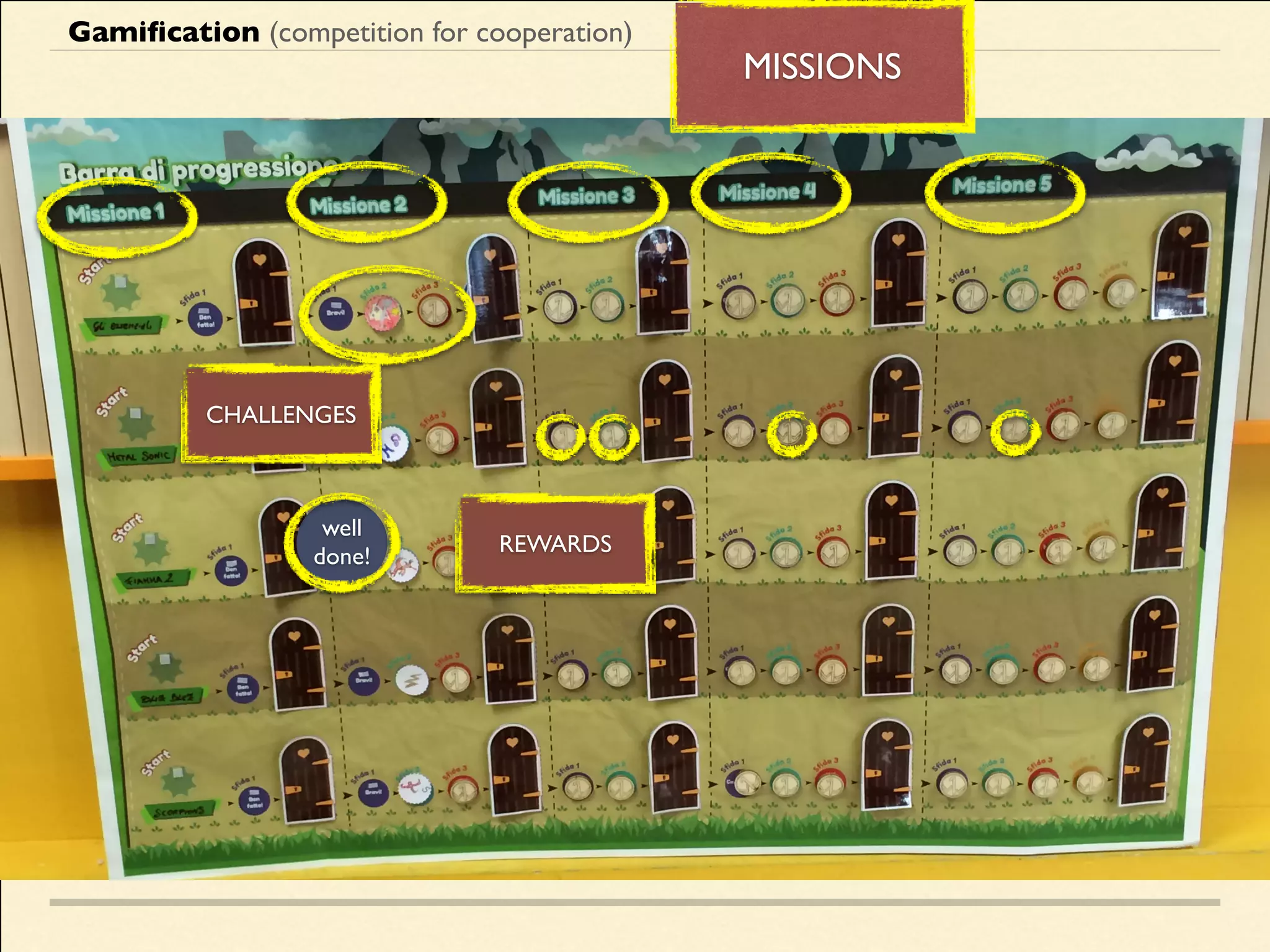

Gamification (competition for cooperation) MISSIONS CHALLENGES REWARDS well done!
Acknowledgments to TERENCE colleagues and schools Current colleagues and schools DIARY FOR PRESENT THE TERENCE BOOK
Setting technology enhanced learning Climax TERENCE case study Resolution reflections Story outline ?
