Inside HDFS APPEND
Yue Chen
http://linkedin.com/in/yuechen2
http://dataera.wordpress.com

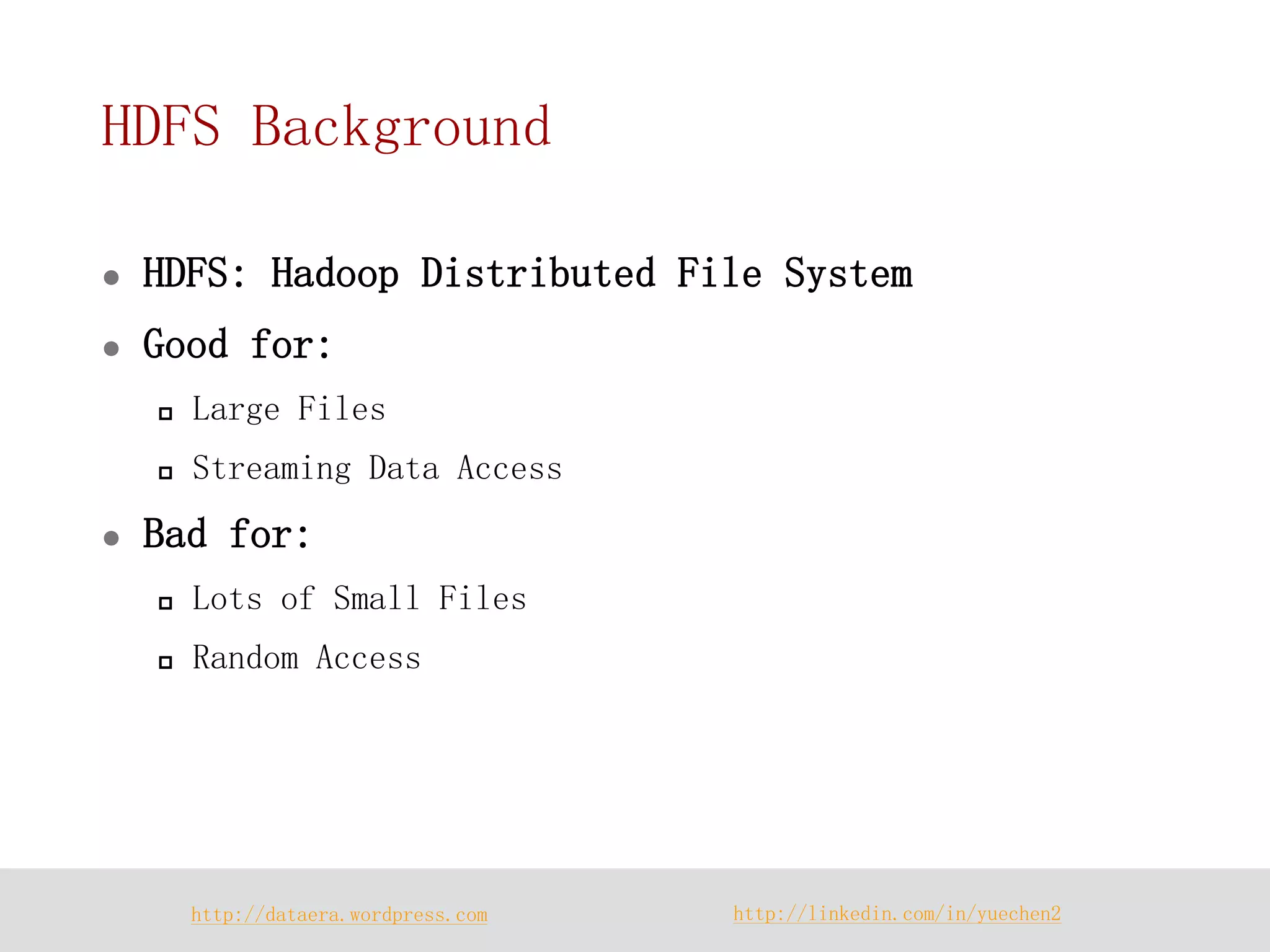

HDFS Background
HDFS: Hadoop Distributed File System
Good for:
Large Files
Streaming Data Access
Bad for:
Lots of Small Files
Random Access

HDFS Architecture

HDFS Write

Before the birth of append, once a file is closed, it is immutable.
For database operations, it is expensive.
Solution:
Append Background

Before the birth of append, once a file is closed, it is immutable.
For database operations, it is expensive.
Solution:
Append Background
APPEND

Key for Designing Append
How to guarantee the consistency when something is wrong?

Key for Designing Append
How to guarantee the consistency when something is wrong?
Use more states!

States
Finalized:
Everything is done!

States
RBW (ReplicaBeingWritten):
In write’s pipeline, visible to read

States
RUR (ReplicaUnderRecovery):
Lease is expired, replica is under recovery

States
RWR (ReplicaWaitingToBeRecovered):
If one DN is down, all RBW becomes RWR

States
Temporary:
Replicas are transmitted between DN’s

Lease
What is a lease?
Write lock for file modification, Avoids concurrent write on the same file
No lease for reading files

Lease Expiration
Soft Limit
No renewing for 1 minute
Other client compete for the lease
Hard Limit
No renewing for 60 minutes
No competition for the lease

State
Name Node (NN) block, 4 types of states:
complete
under_construction
under_recovery
committed
Data Node (DN) replica, 5 types of states:
Finalized
RBW (ReplicaBeingWritten, in write’s pipeline, visible to read)
RUR (ReplicaUnderRecovery, lease is expired)
RWR (ReplicaWaitingToBeRecovered, if one DN is down, all RBW becomes RWR)
Temporary (being transmitted between DN’s)

Overview (Hadoop 1.0.0)

Overall Procedure
From the perspective of Client, append operation firstly calls append of DistributedFileSystem, this operation would return a stream object FSDataOutputStream out. If Client needs to append data to this file, it could calls out.write to write, and calls out.close to close.

write/append
1)Normal close
DFSOutputStream.close()->FSNamesystem.completeFile()- >commitOrCompleteLastBlock()
State of file in NN (Name Node) is INode, not INodeUnderConstruction.
2)Abnormal close
The state is INodeUnderConstruction. The lease (write lock) on the file is not released.
Lease recovery
Block recovery

Lease Recovery
When file is not normally closed, the last block’s 3 replicas may be in different states (size and generation stamp (version of the block)).
The recovery procedure includes checking if the previous lease holder renews the lease, and if the lease exceeds the softLimit (exceeds the time limit); if so, calls internalReleaseLease().

Block Recovery
Sent with DN’s heartbeat to NN.
Find the best state of all replicas, and recover the remaining to this state.
State Ranking: Finalized > RBW > RWR > RUR > Temporary
When finishing recovery, continues executing (append, write, etc.)

Reference
http://yanbohappy.sinaapp.com/?p=175
http://blog.csdn.net/chenpingbupt/article/details/7972589
http://hdfs-hadoop.blogspot.com/
http://blog.csdn.net/nexus/article/details/7321150
