1. Hadoop 2.7.2 Introduction
and Installation
-Santosh G. Nage

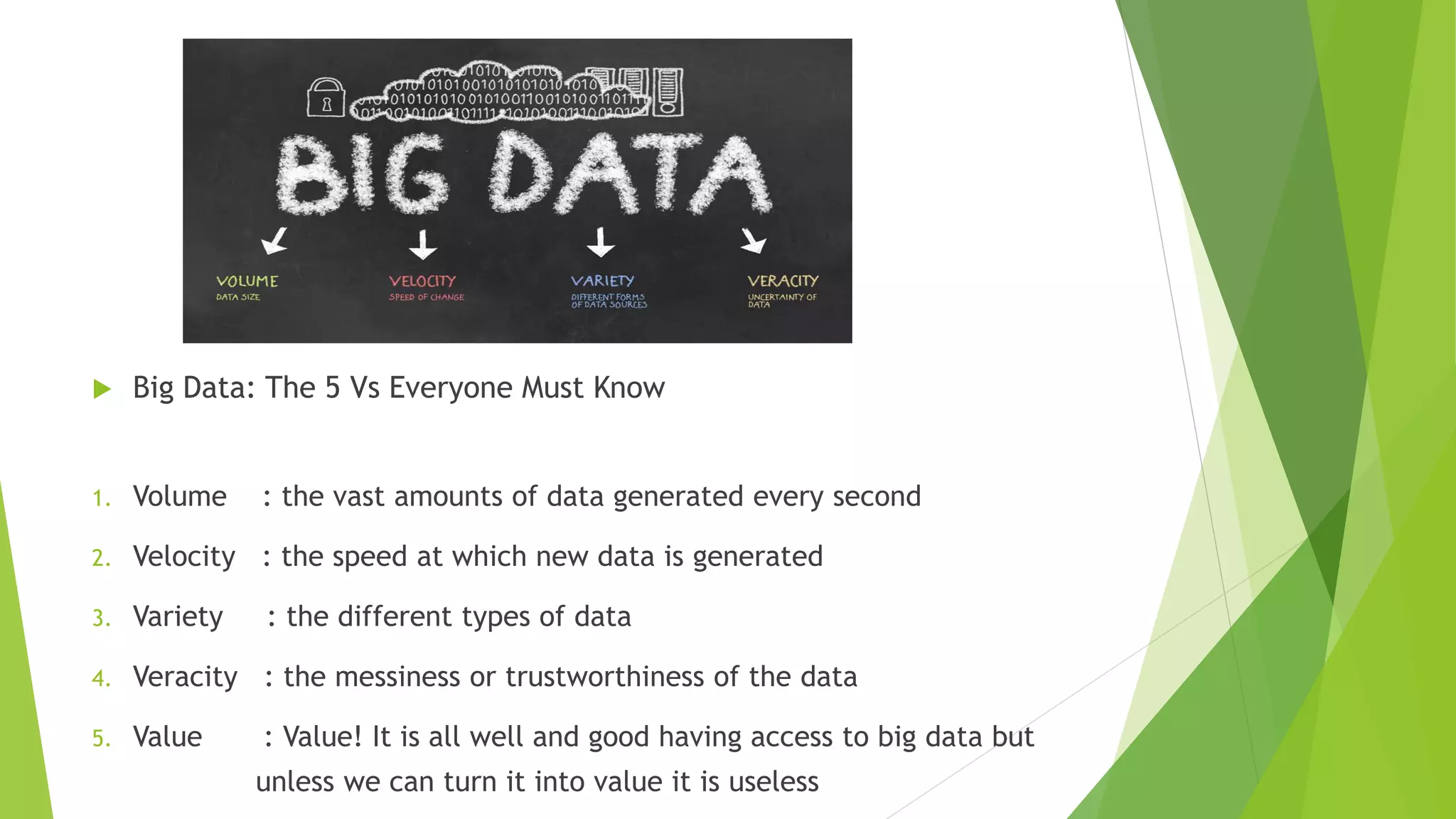

2.  Big Data: The 5 Vs Everyone Must Know
1. Volume : the vast amounts of data generated every second
2. Velocity : the speed at which new data is generated
3. Variety : the different types of data
4. Veracity : the messiness or trustworthiness of the data
5. Value : Value! It is all well and good having access to big data but
unless we can turn it into value it is useless

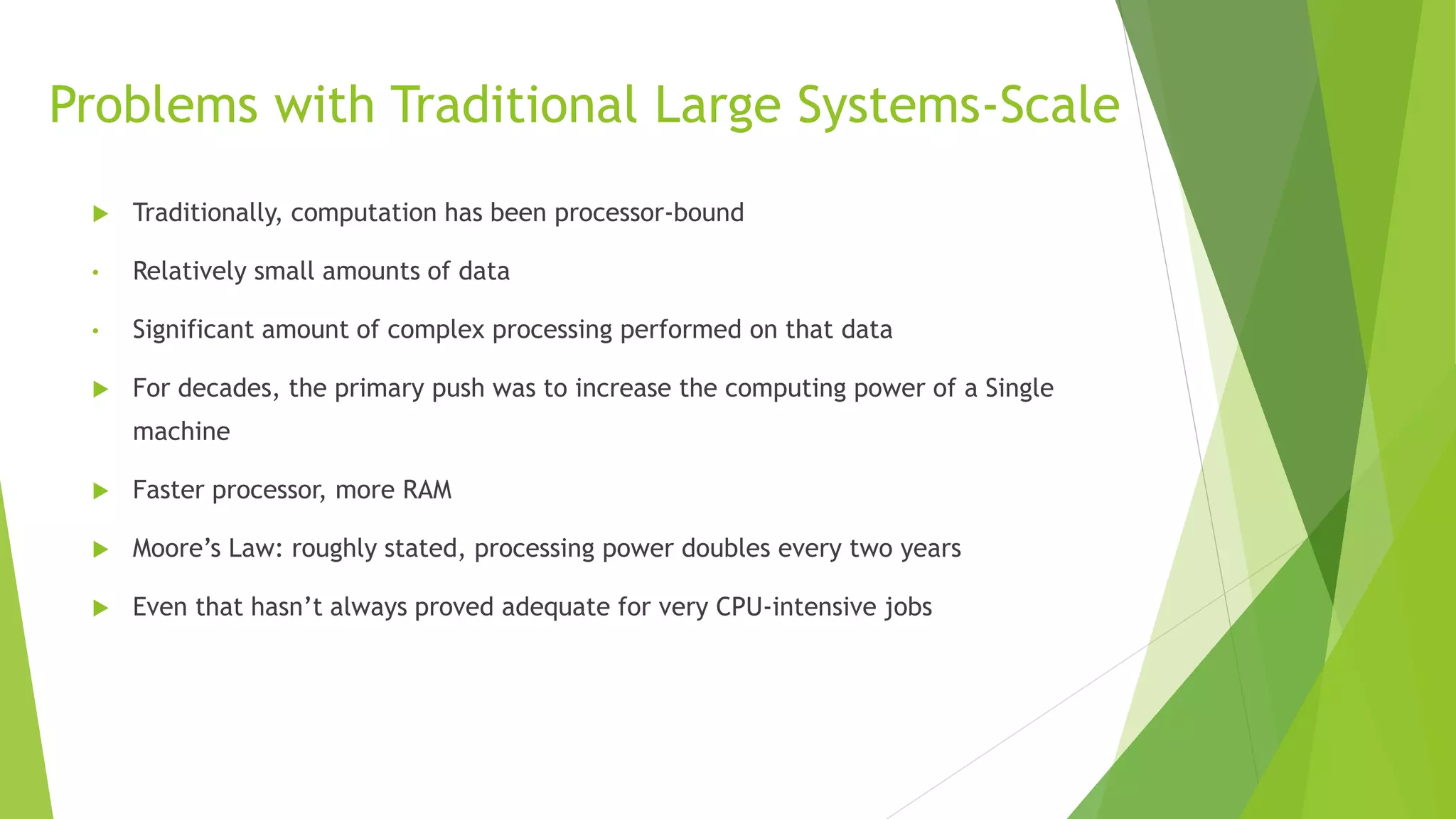

3. Problems with Traditional Large Systems-Scale
 Traditionally, computation has been processor-bound
• Relatively small amounts of data
• Significant amount of complex processing performed on that data
 For decades, the primary push was to increase the computing power of a Single
machine
 Faster processor, more RAM
 Moore’s Law: roughly stated, processing power doubles every two years
 Even that hasn’t always proved adequate for very CPU-intensive jobs

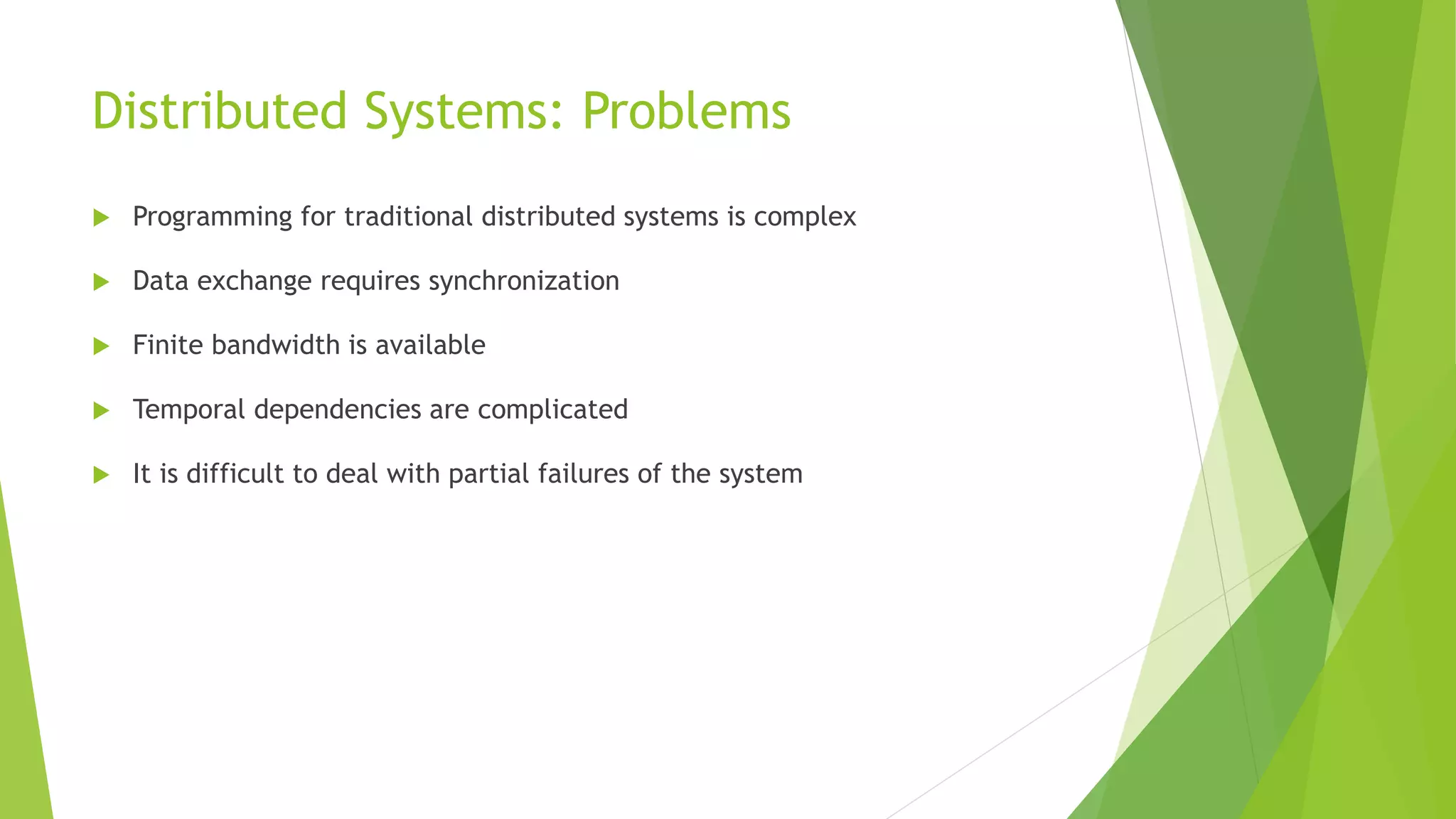

4. Distributed Systems: Problems
 Programming for traditional distributed systems is complex
 Data exchange requires synchronization
 Finite bandwidth is available
 Temporal dependencies are complicated
 It is difficult to deal with partial failures of the system

5. Distributed Systems: Data Storage
 Typically, data for a distributed system is stored on a SAN
 At compute time, data is copied to the compute nodes
 Fine for relatively limited amounts of data

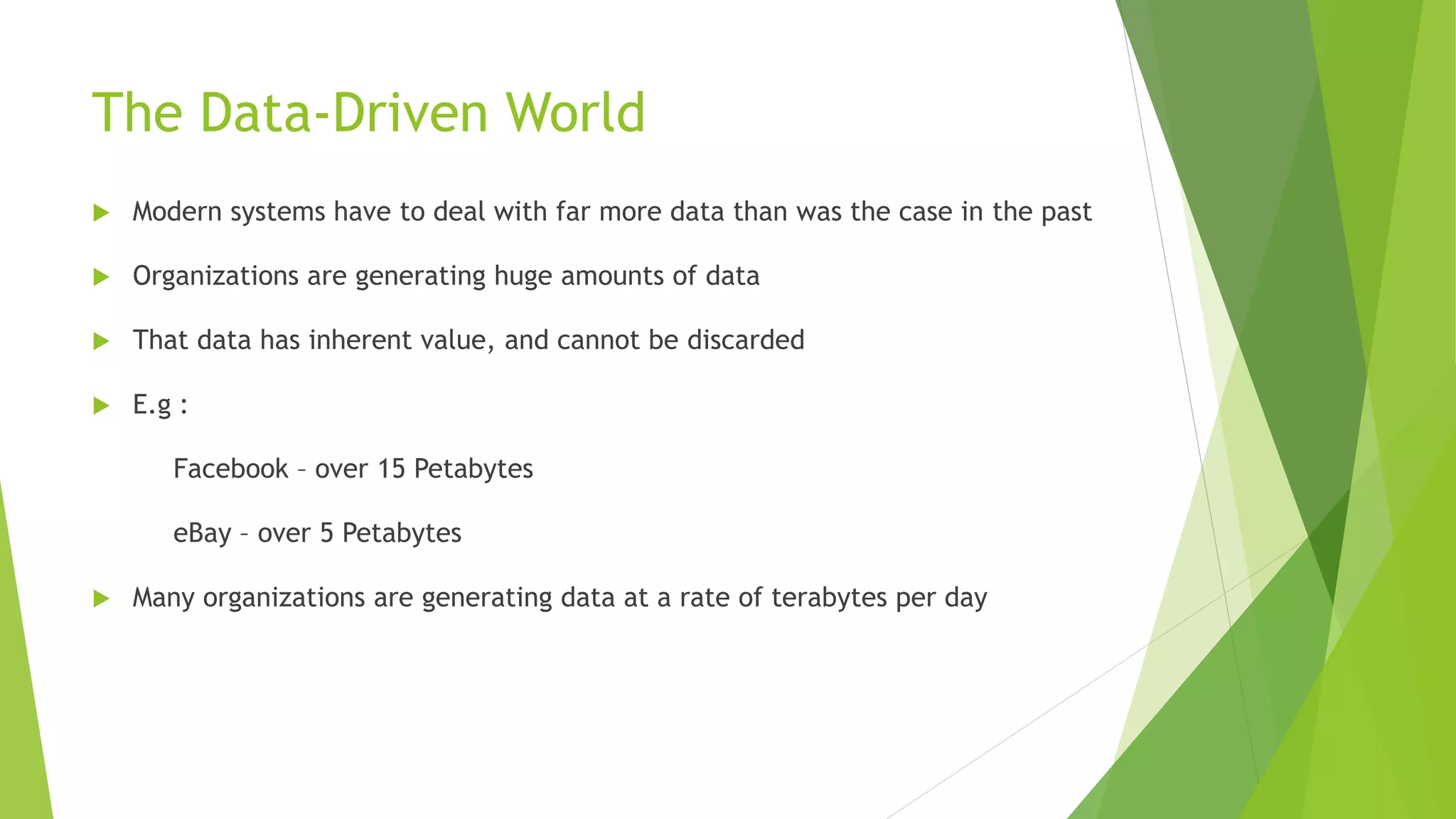

6. The Data-Driven World
 Modern systems have to deal with far more data than was the case in the past
 Organizations are generating huge amounts of data
 That data has inherent value, and cannot be discarded
 E.g :
Facebook – over 15 Petabytes
eBay – over 5 Petabytes
 Many organizations are generating data at a rate of terabytes per day

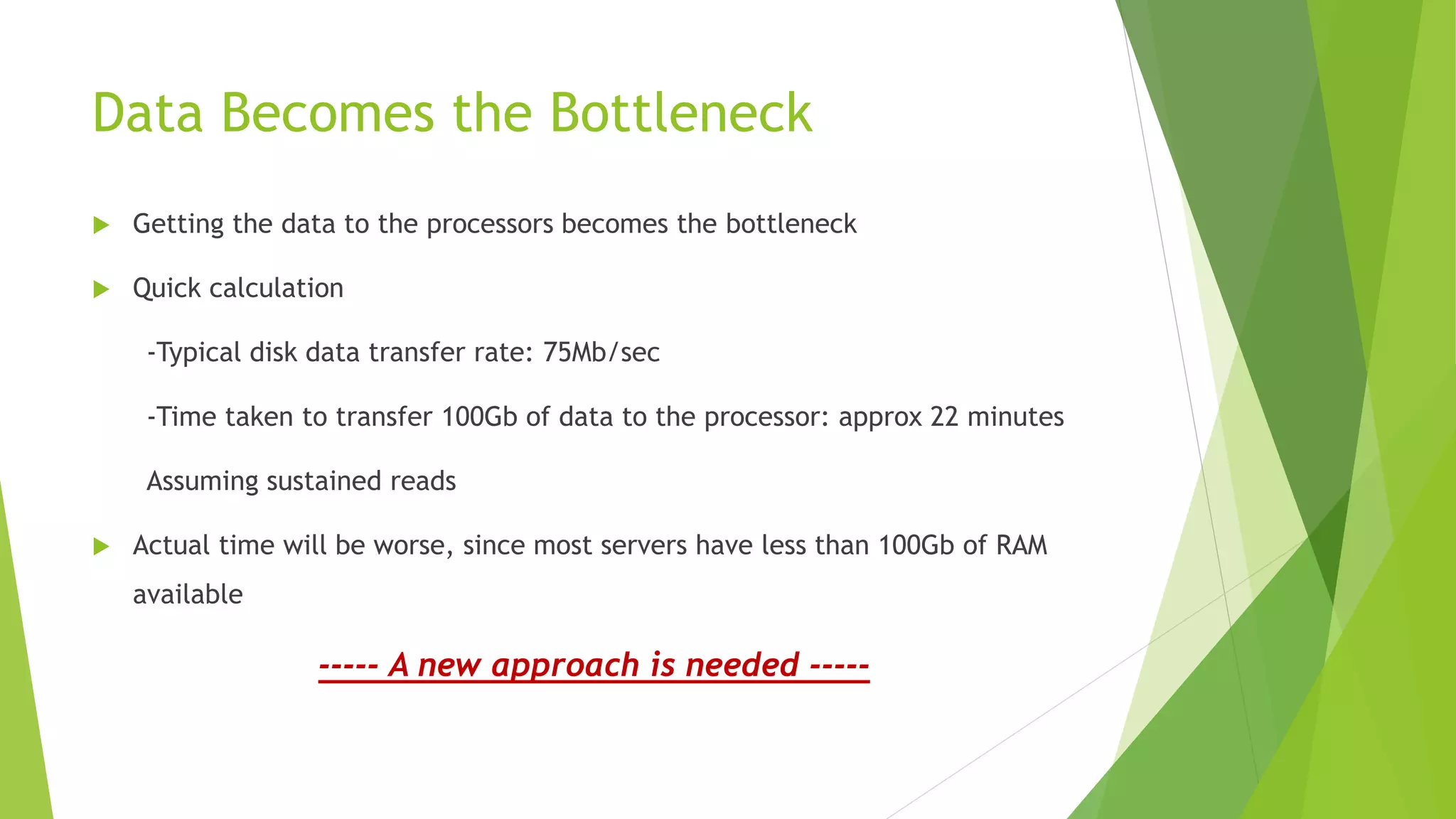

7. Data Becomes the Bottleneck
 Getting the data to the processors becomes the bottleneck
 Quick calculation
-Typical disk data transfer rate: 75Mb/sec
-Time taken to transfer 100Gb of data to the processor: approx 22 minutes
Assuming sustained reads
 Actual time will be worse, since most servers have less than 100Gb of RAM
available
----- A new approach is needed -----

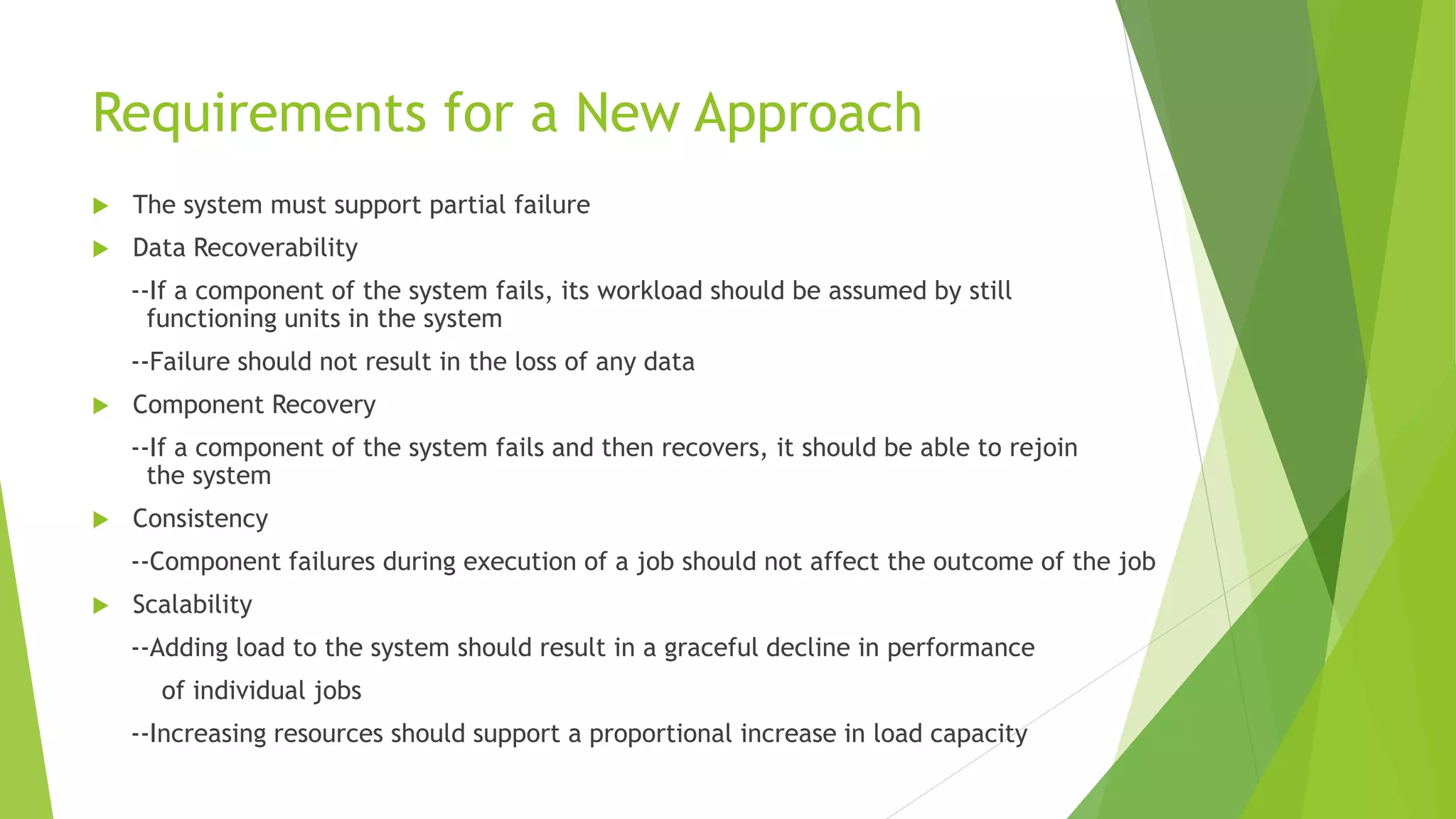

8. Requirements for a New Approach
 The system must support partial failure
 Data Recoverability
--If a component of the system fails, its workload should be assumed by still
functioning units in the system
--Failure should not result in the loss of any data
 Component Recovery
--If a component of the system fails and then recovers, it should be able to rejoin
the system
 Consistency
--Component failures during execution of a job should not affect the outcome of the job
 Scalability
--Adding load to the system should result in a graceful decline in performance
of individual jobs
--Increasing resources should support a proportional increase in load capacity

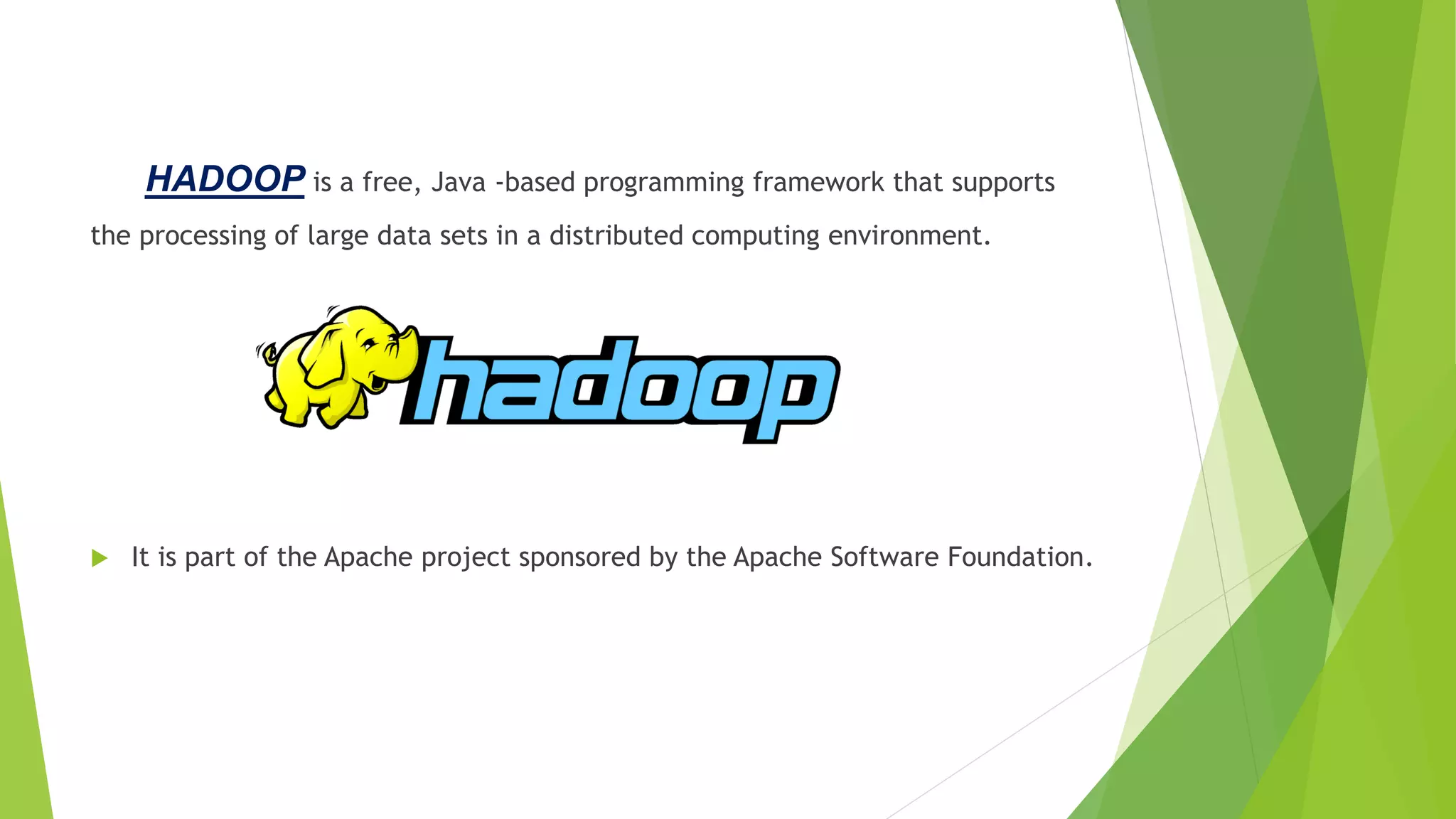

9. HADOOP is a free, Java -based programming framework that supports
the processing of large data sets in a distributed computing environment.
 It is part of the Apache project sponsored by the Apache Software Foundation.

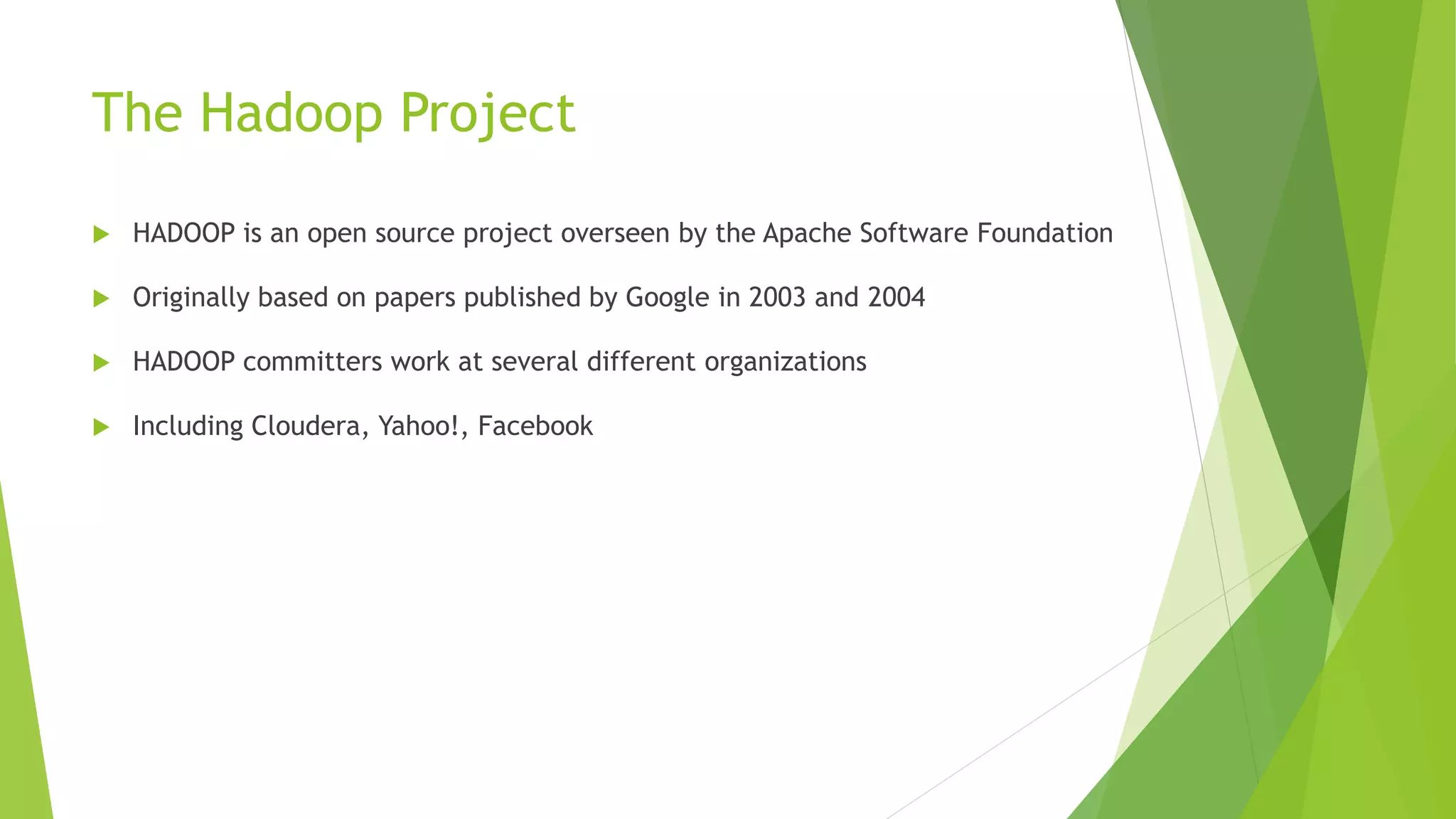

10. The Hadoop Project
 HADOOP is an open source project overseen by the Apache Software Foundation
 Originally based on papers published by Google in 2003 and 2004
 HADOOP committers work at several different organizations
 Including Cloudera, Yahoo!, Facebook

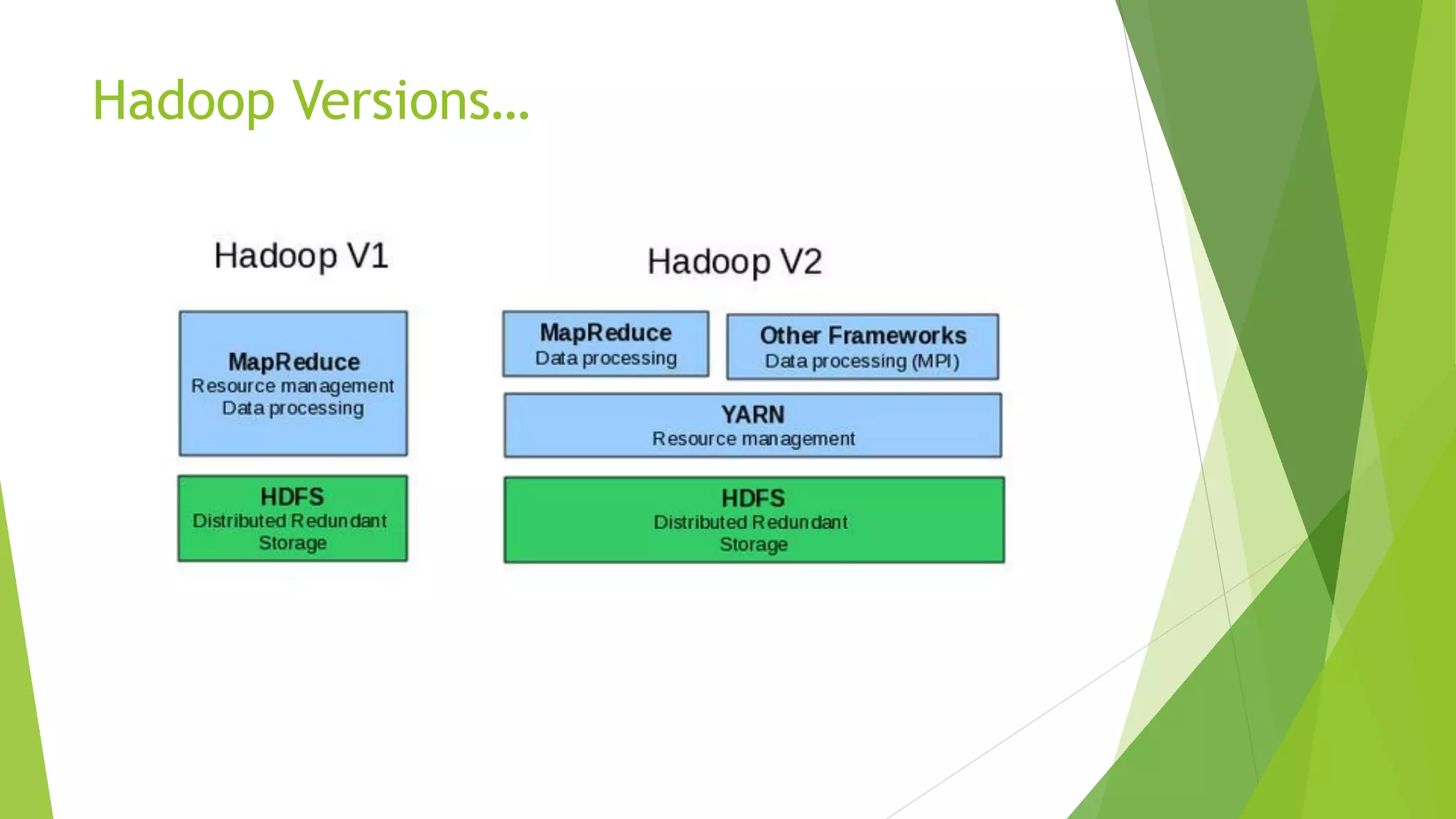

12. Hadoop Versions…

13. Hadoop Distributions(providers)

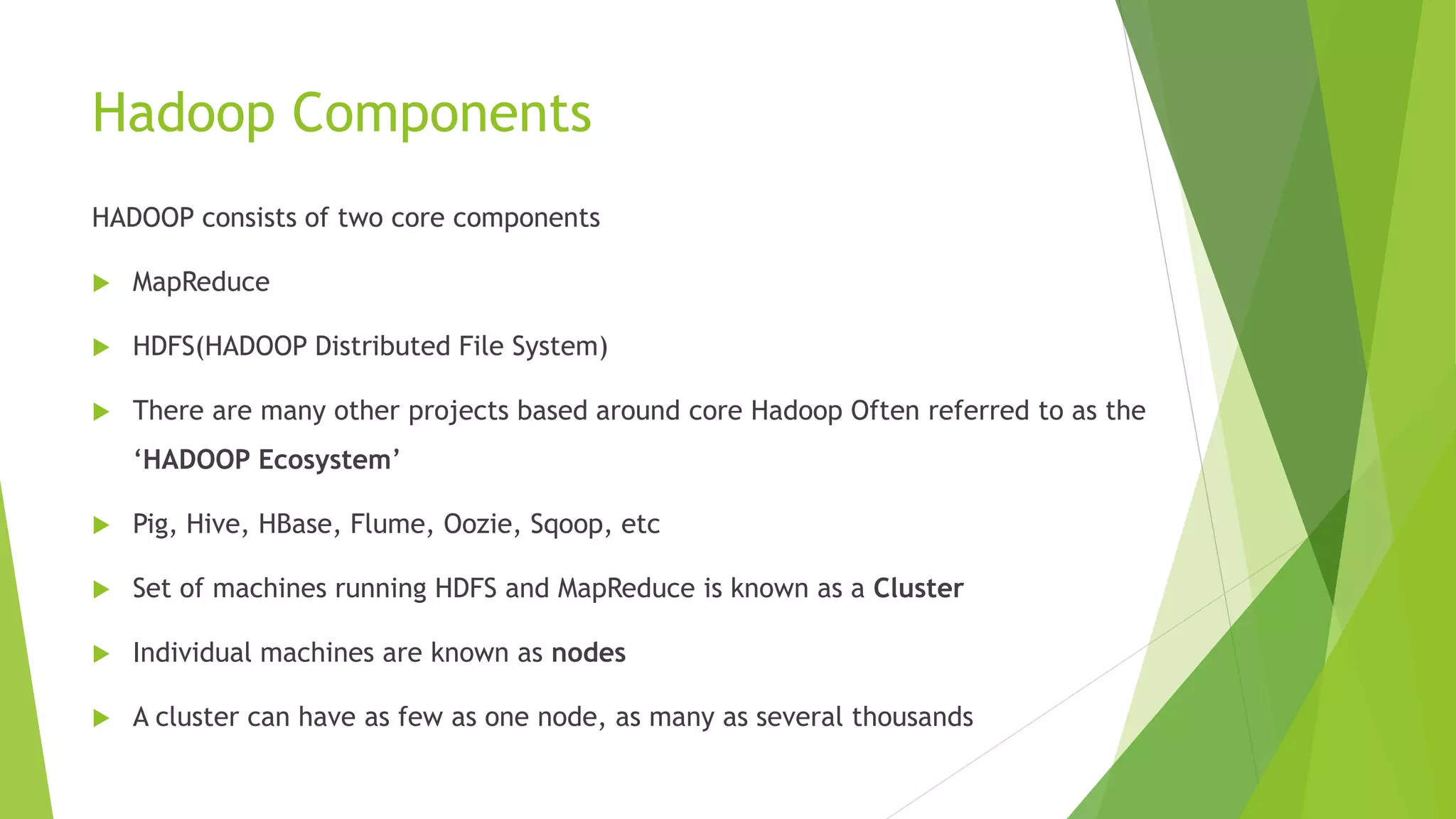

14. Hadoop Components
HADOOP consists of two core components
 MapReduce
 HDFS(HADOOP Distributed File System)
 There are many other projects based around core Hadoop Often referred to as the
‘HADOOP Ecosystem’
 Pig, Hive, HBase, Flume, Oozie, Sqoop, etc
 Set of machines running HDFS and MapReduce is known as a Cluster
 Individual machines are known as nodes
 A cluster can have as few as one node, as many as several thousands

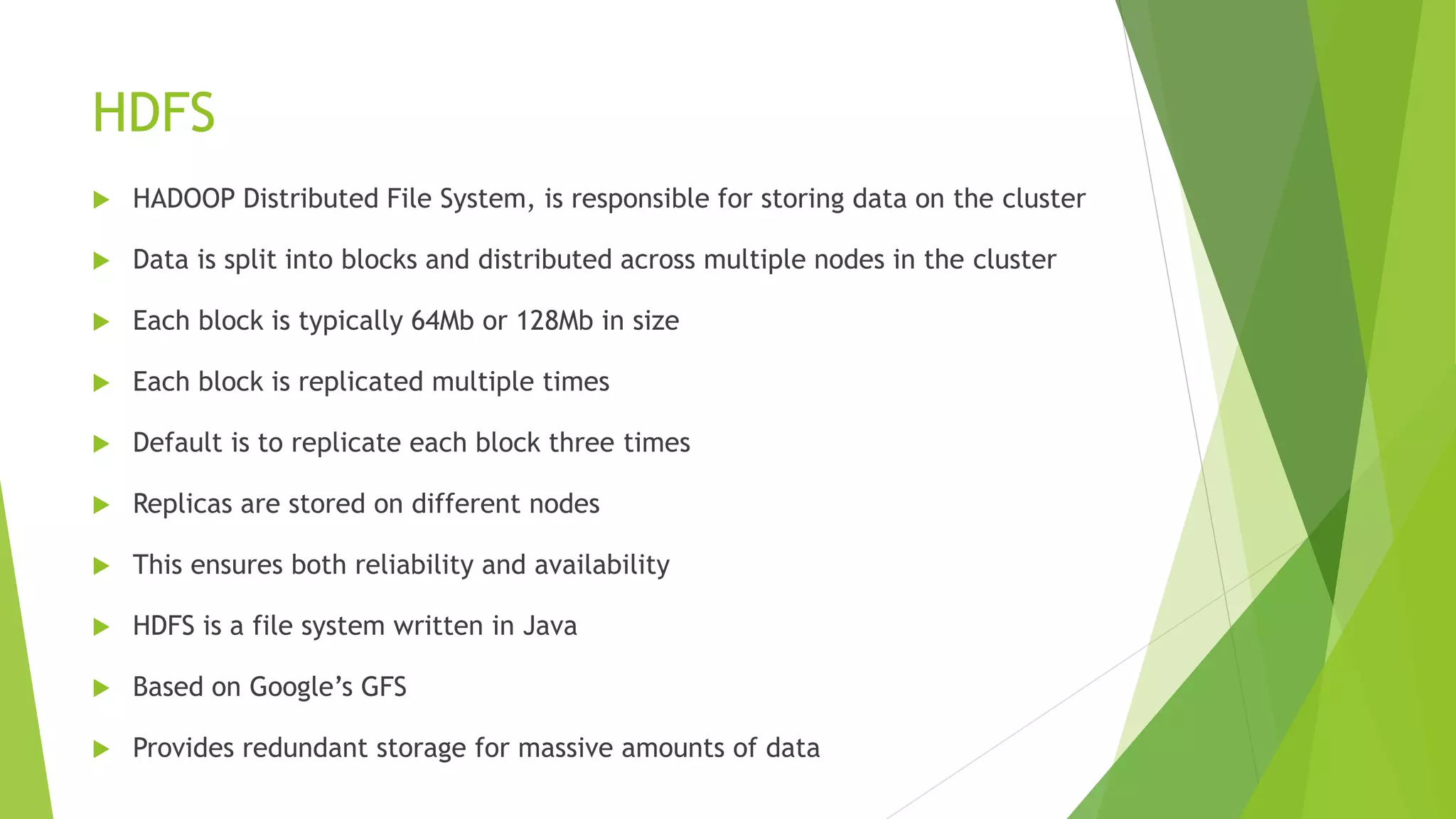

15. HDFS
 HADOOP Distributed File System, is responsible for storing data on the cluster
 Data is split into blocks and distributed across multiple nodes in the cluster
 Each block is typically 64Mb or 128Mb in size
 Each block is replicated multiple times
 Default is to replicate each block three times
 Replicas are stored on different nodes
 This ensures both reliability and availability
 HDFS is a file system written in Java
 Based on Google’s GFS
 Provides redundant storage for massive amounts of data

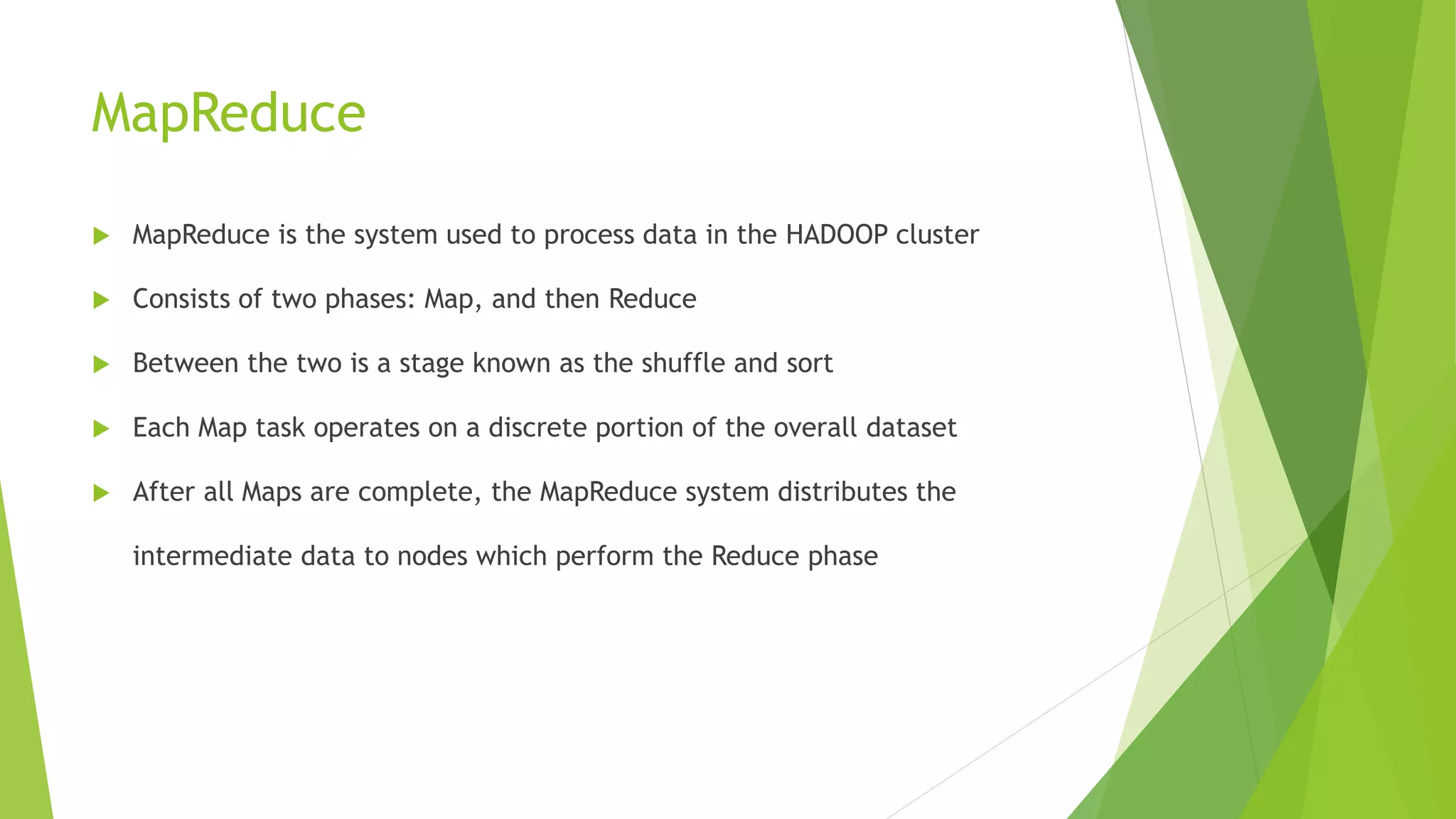

16. MapReduce
 MapReduce is the system used to process data in the HADOOP cluster
 Consists of two phases: Map, and then Reduce
 Between the two is a stage known as the shuffle and sort
 Each Map task operates on a discrete portion of the overall dataset
 After all Maps are complete, the MapReduce system distributes the
intermediate data to nodes which perform the Reduce phase

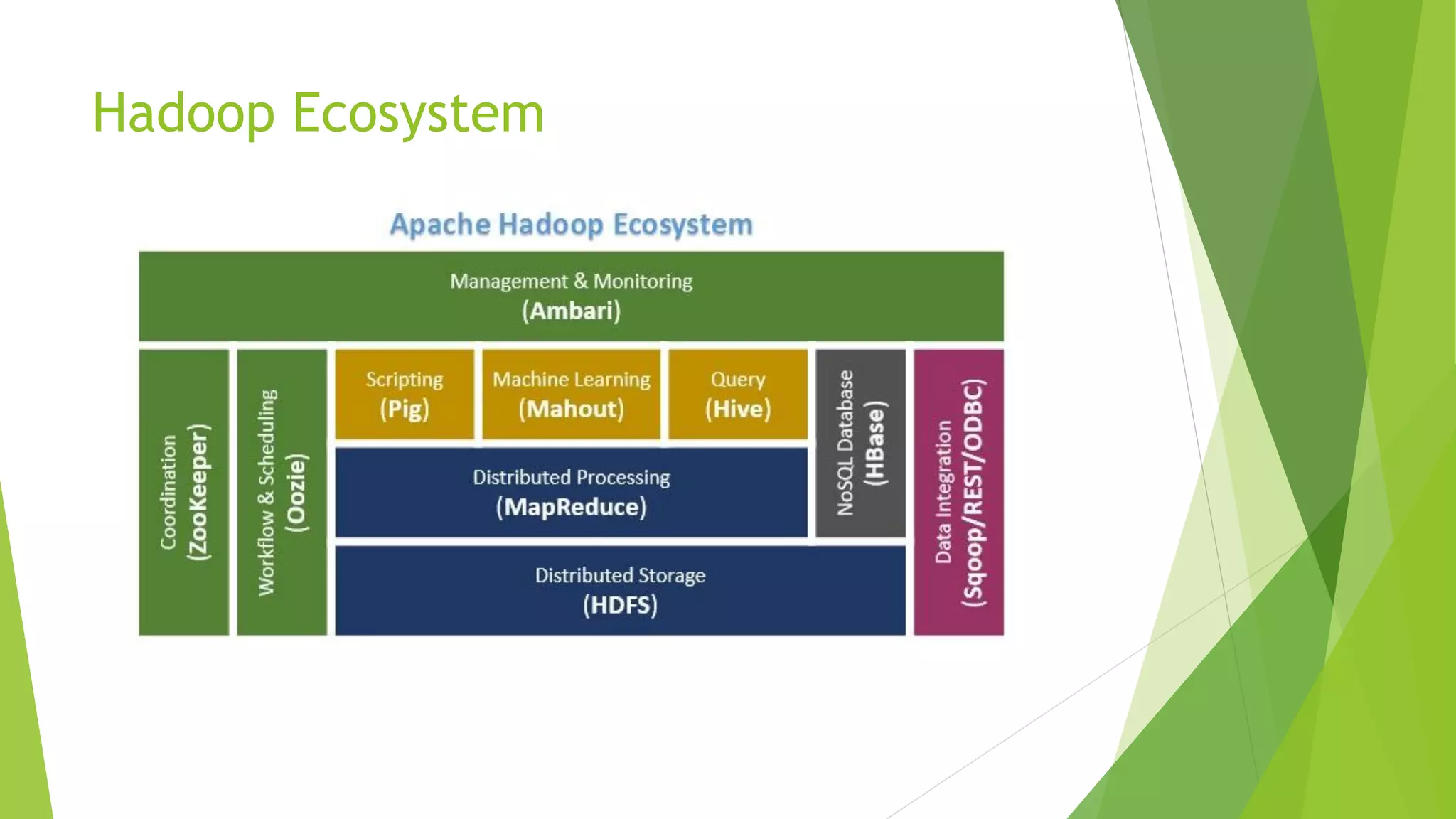

17. Hadoop Ecosystem

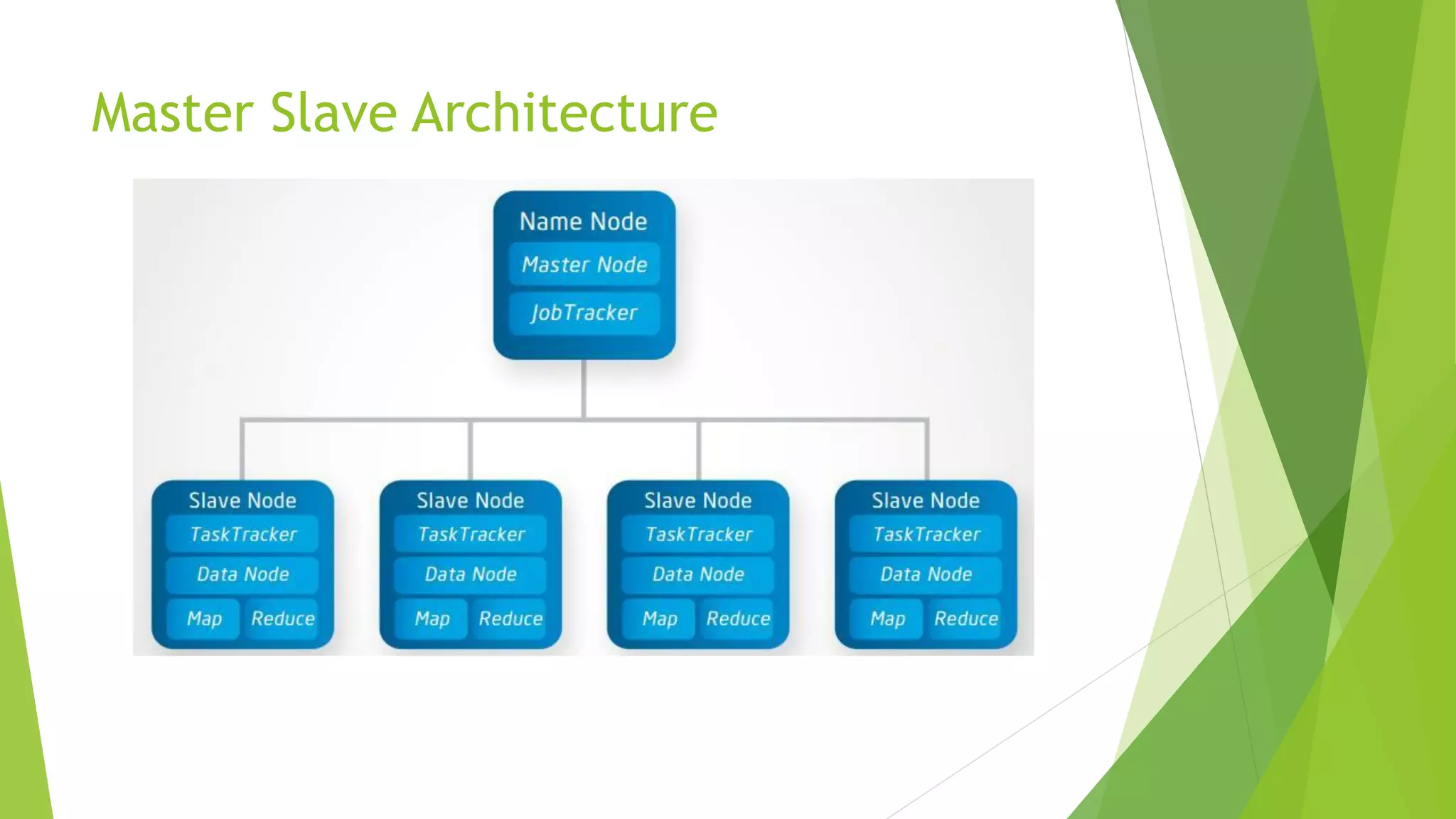

18. Master Slave Architecture

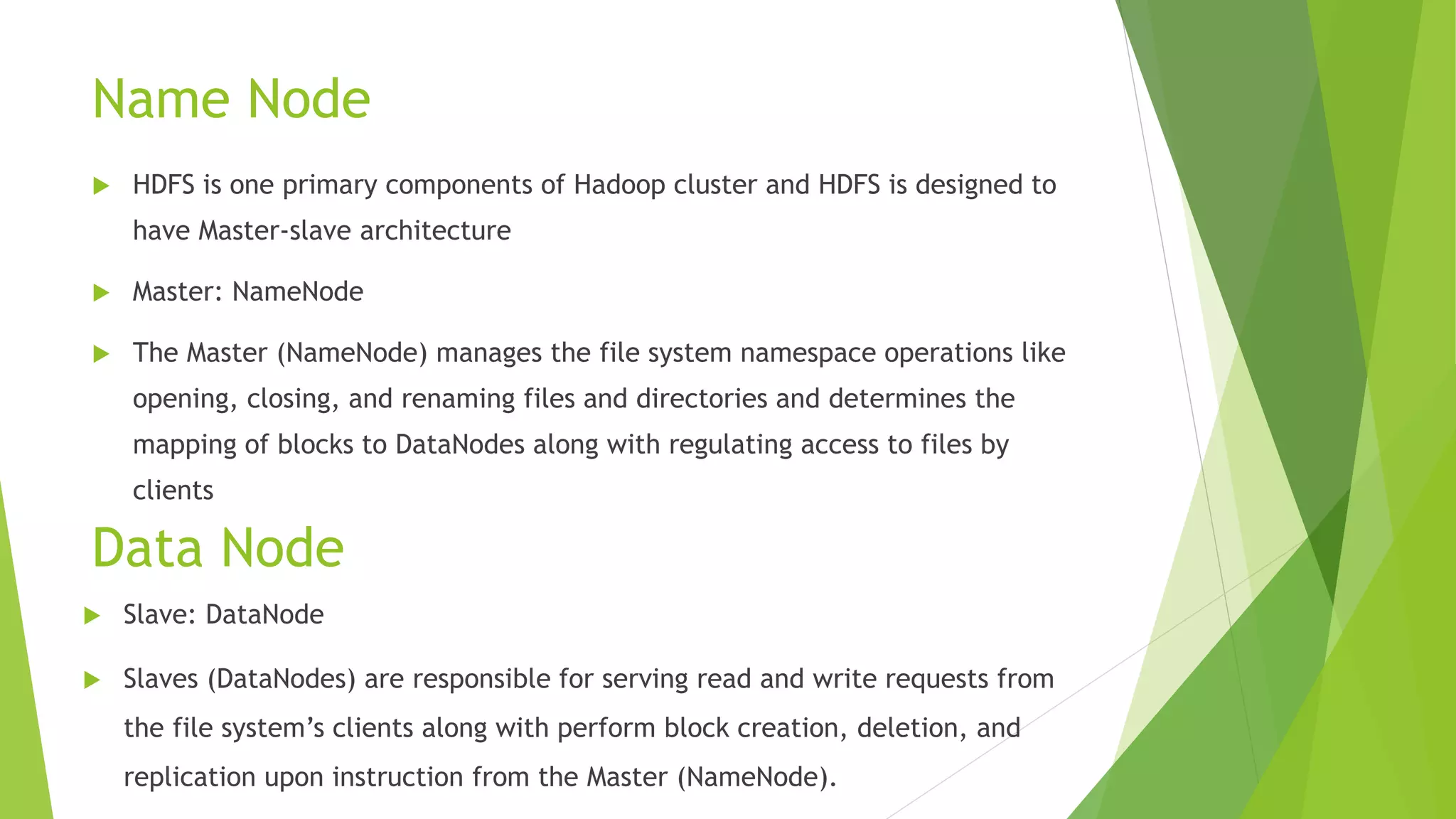

19. Name Node
 HDFS is one primary components of Hadoop cluster and HDFS is designed to
have Master-slave architecture
 Master: NameNode
 The Master (NameNode) manages the file system namespace operations like
opening, closing, and renaming files and directories and determines the
mapping of blocks to DataNodes along with regulating access to files by
clients
Data Node
 Slave: DataNode
 Slaves (DataNodes) are responsible for serving read and write requests from
the file system’s clients along with perform block creation, deletion, and
replication upon instruction from the Master (NameNode).

20. Task Tracker
 Map/Reduce is also primary component of Hadoop and it also have Master-slave
architecture
 Master: JobTracker
 Jobtracker is the point of interaction between users and the map/reduce framework.
When a map/reduce job is submitted, Jobtracker puts it in a queue of pending jobs
and executes them on a first-come/first-served basis and then manages the
assignment of map and reduce tasks to the tasktrackers.
Job Tracker
 Slaves tasktracker execute tasks upon instruction from the Jobtracker and
also handle data motion between the map and reduce phases.

21.  Apache Hadoop YARN (Yet Another Resource Negotiator) is a cluster management
technology.
 YARN allows multiple access engines to use Hadoop as the common standard for
batch, interactive and real-time engines that can simultaneously access the same
data set.
 YARN’s ResourceManager focuses exclusively on scheduling and keeps pace as
clusters expand to thousands of nodes managing petabytes of data.
YARN

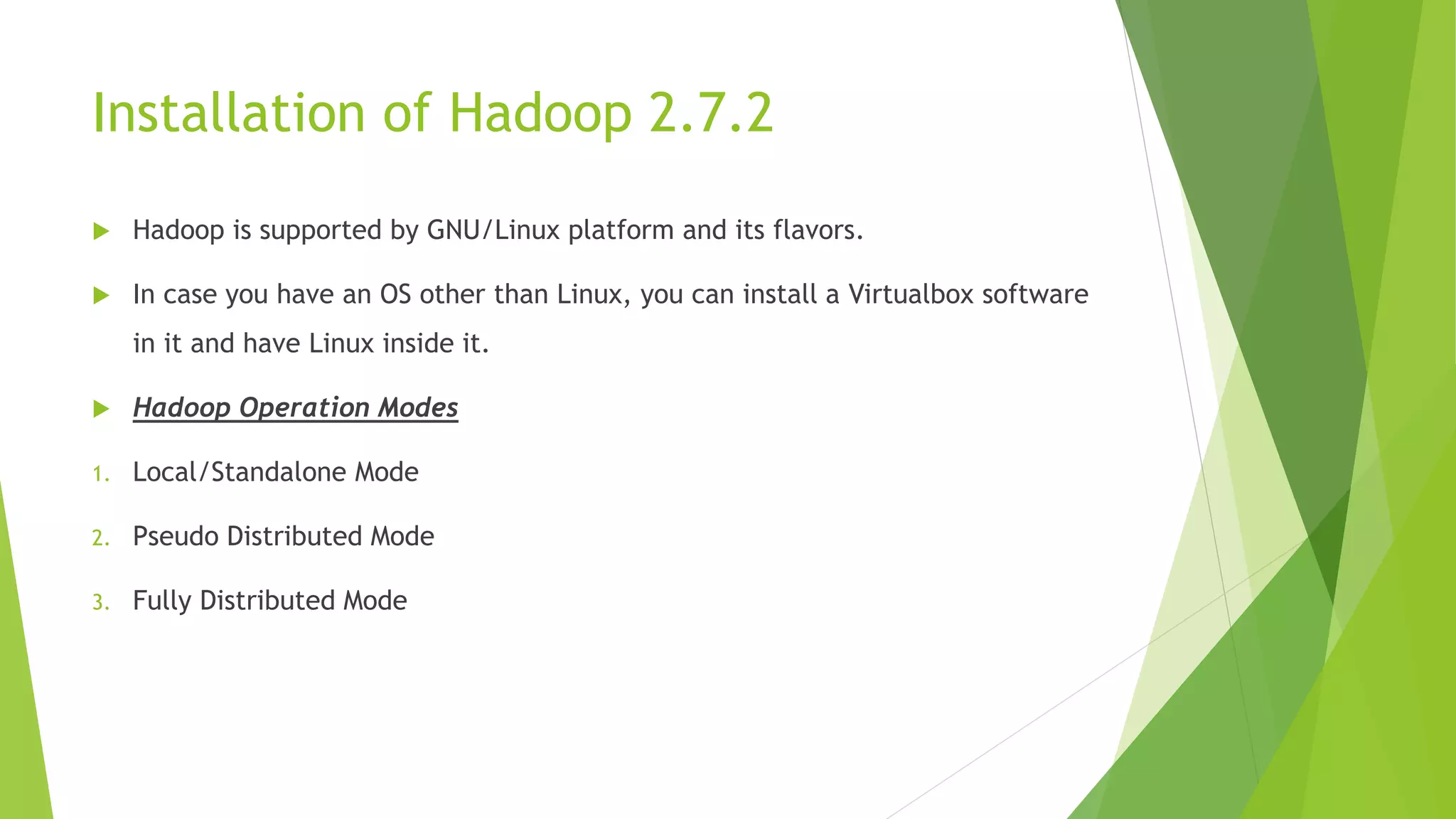

22. Installation of Hadoop 2.7.2
 Hadoop is supported by GNU/Linux platform and its flavors.
 In case you have an OS other than Linux, you can install a Virtualbox software
in it and have Linux inside it.
 Hadoop Operation Modes
1. Local/Standalone Mode
2. Pseudo Distributed Mode
3. Fully Distributed Mode

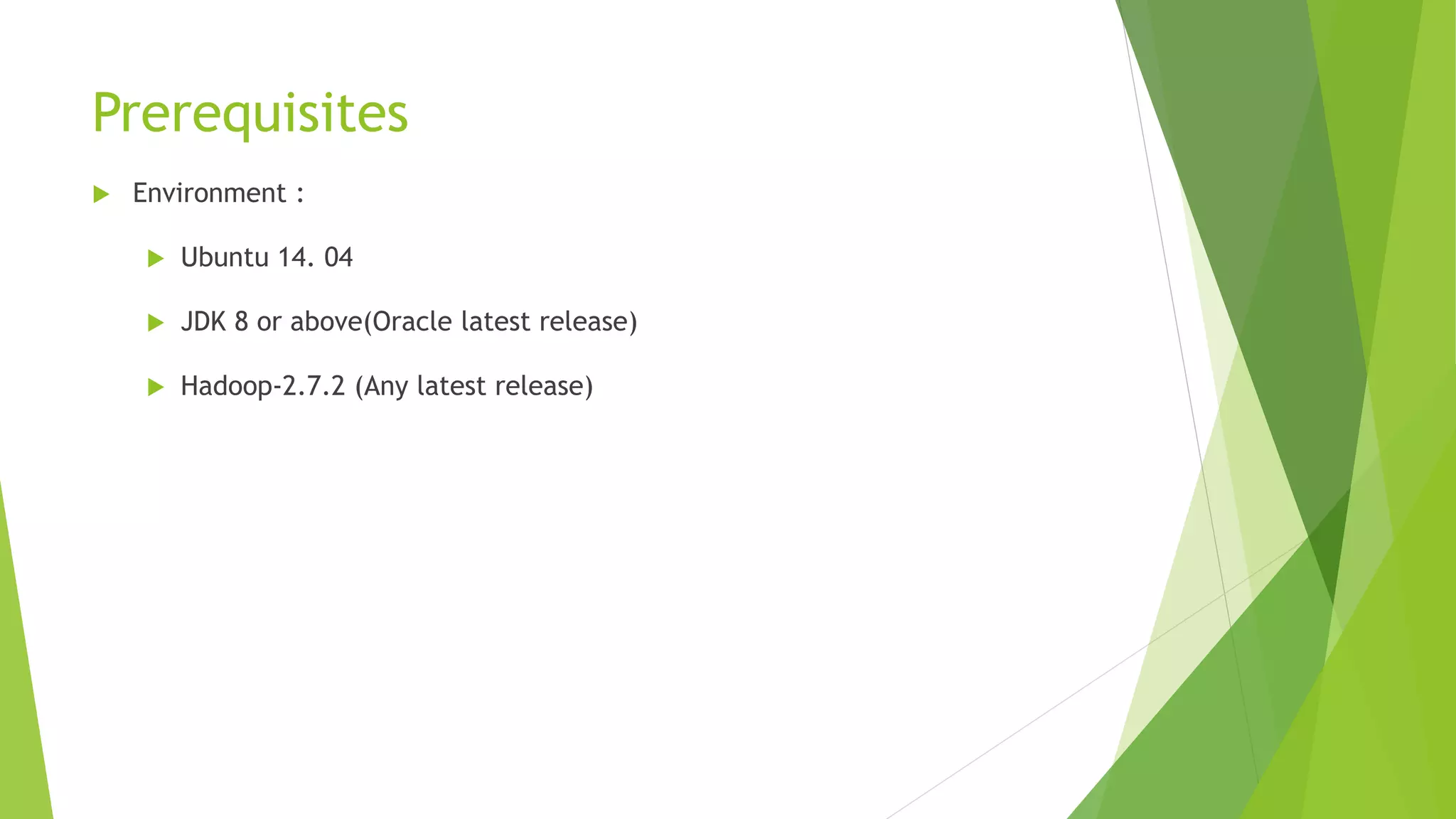

23. Prerequisites
 Environment :
 Ubuntu 14. 04
 JDK 8 or above(Oracle latest release)
 Hadoop-2.7.2 (Any latest release)

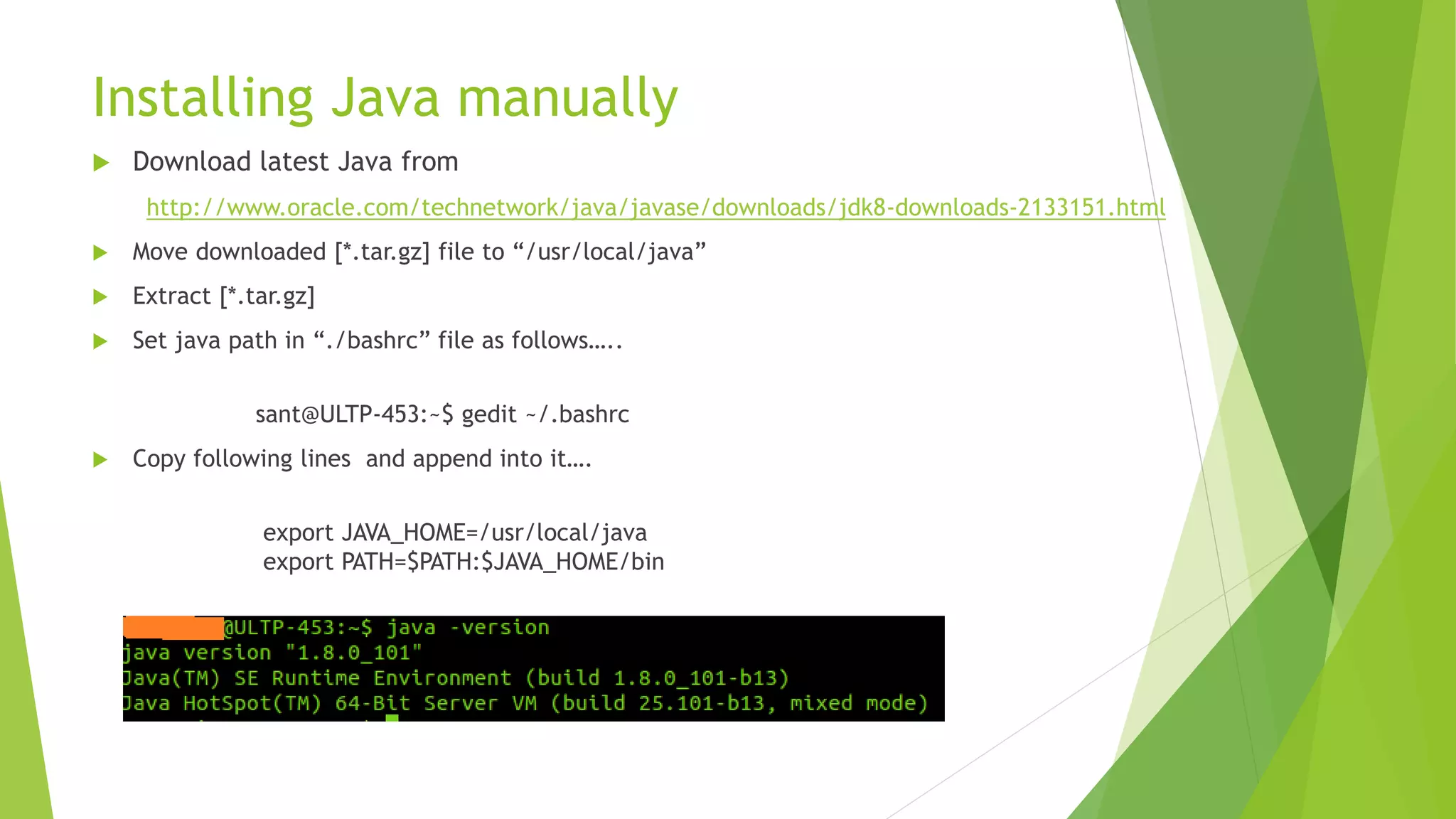

24. Installing Java manually
 Download latest Java from
http://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html
 Move downloaded [*.tar.gz] file to “/usr/local/java”
 Extract [*.tar.gz]
 Set java path in “./bashrc” file as follows…..
sant@ULTP-453:~$ gedit ~/.bashrc
 Copy following lines and append into it….
export JAVA_HOME=/usr/local/java
export PATH=$PATH:$JAVA_HOME/bin

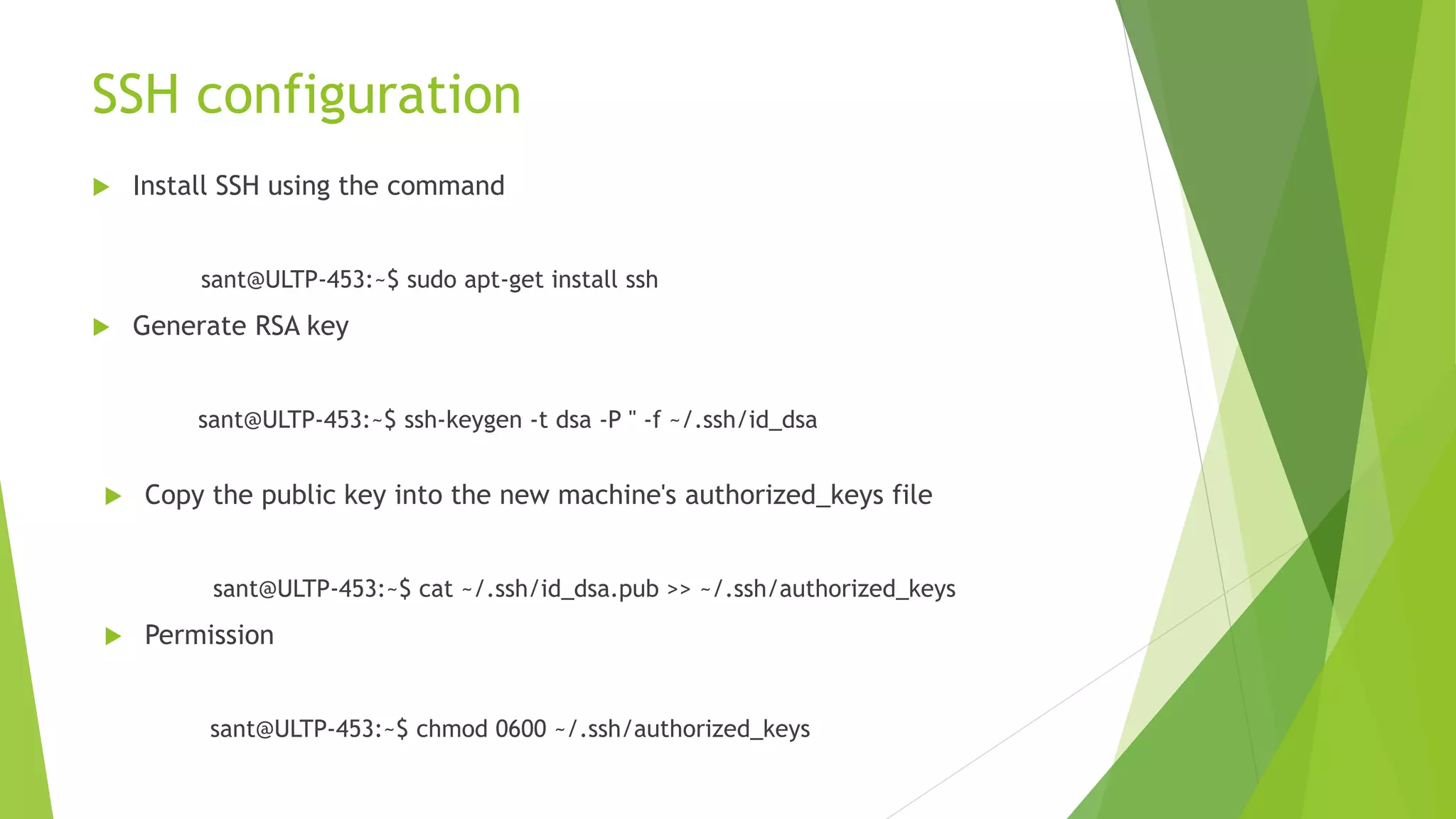

25. SSH configuration
 Install SSH using the command
sant@ULTP-453:~$ sudo apt-get install ssh
 Generate RSA key
sant@ULTP-453:~$ ssh-keygen -t dsa -P '' -f ~/.ssh/id_dsa
 Copy the public key into the new machine's authorized_keys file
sant@ULTP-453:~$ cat ~/.ssh/id_dsa.pub >> ~/.ssh/authorized_keys
 Permission
sant@ULTP-453:~$ chmod 0600 ~/.ssh/authorized_keys

26.  Download latest hadoop from
https://archive.apache.org/dist/hadoop/common/
 Move downloaded [*.tar.gz] file to “/usr/local/hadoop”
 Extract [*.tar.gz]
 Change permission of hadoop directory as
sant@ULTP-453:~$ chmod –R 777 /usr/local/hadoop
 Open ‘hadoop-env.sh’ located in ‘/usr/local/hadoop/etc/hadoop/’ to set JAVA path
export JAVA_HOME=/usr/local/java
Installing hadoop 2.7.2

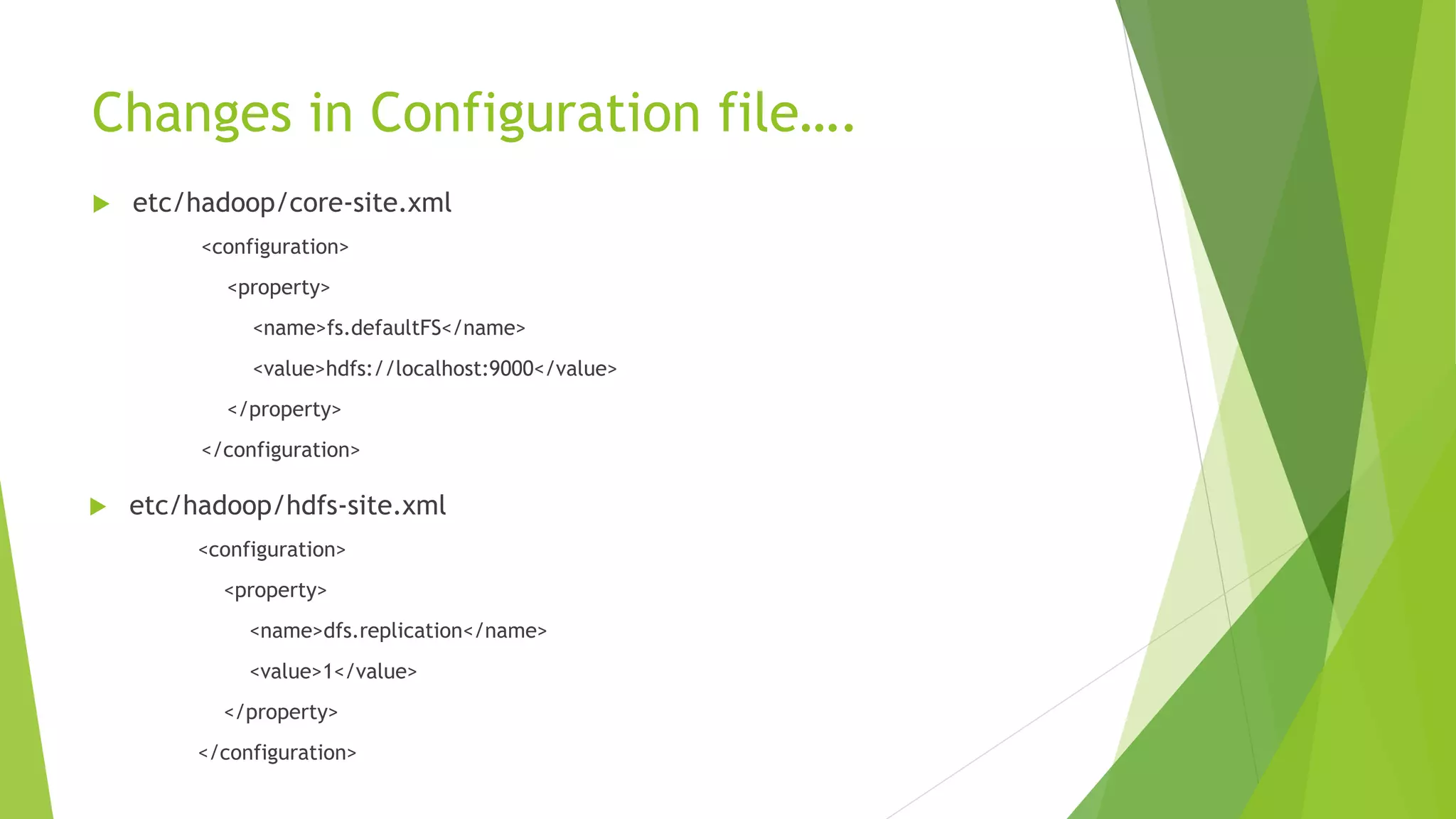

27. Changes in Configuration file….
 etc/hadoop/core-site.xml
<configuration>
<property>
<name>fs.defaultFS</name>
<value>hdfs://localhost:9000</value>
</property>
</configuration>
 etc/hadoop/hdfs-site.xml
<configuration>
<property>
<name>dfs.replication</name>
<value>1</value>
</property>
</configuration>

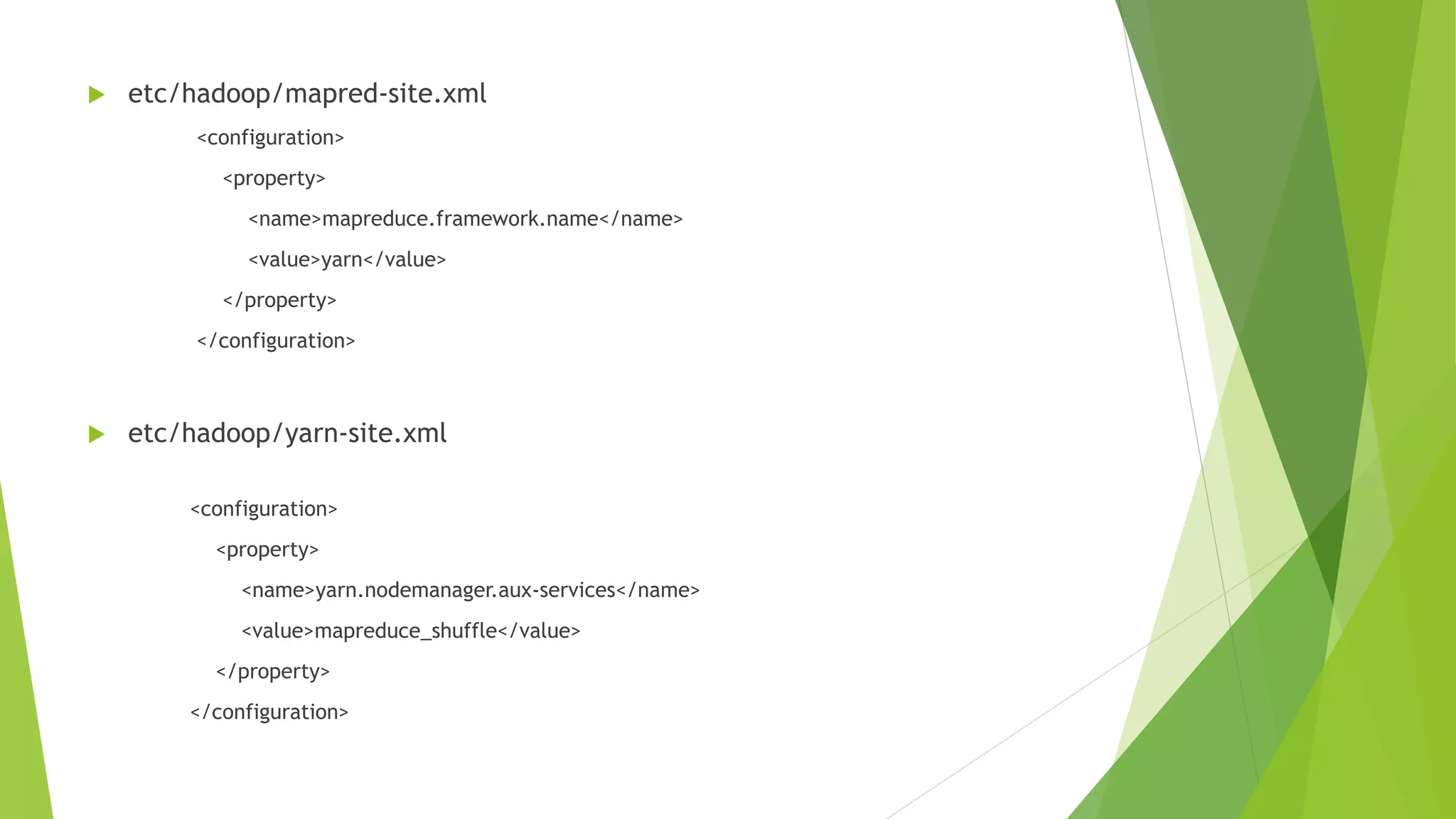

28.  etc/hadoop/mapred-site.xml
<configuration>
<property>
<name>mapreduce.framework.name</name>
<value>yarn</value>
</property>
</configuration>
 etc/hadoop/yarn-site.xml
<configuration>
<property>
<name>yarn.nodemanager.aux-services</name>
<value>mapreduce_shuffle</value>
</property>
</configuration>

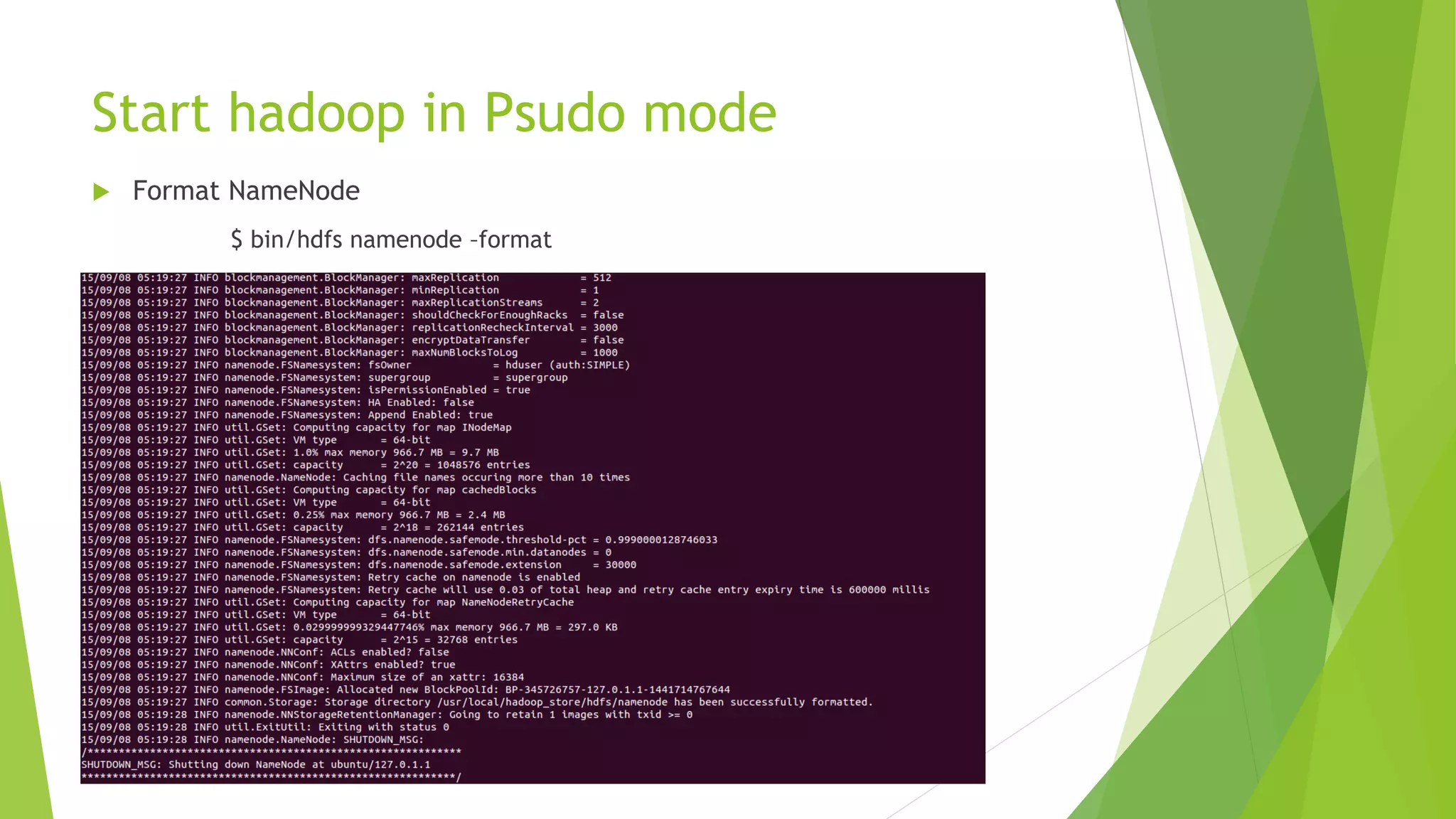

29. Start hadoop in Psudo mode
 Format NameNode
$ bin/hdfs namenode –format

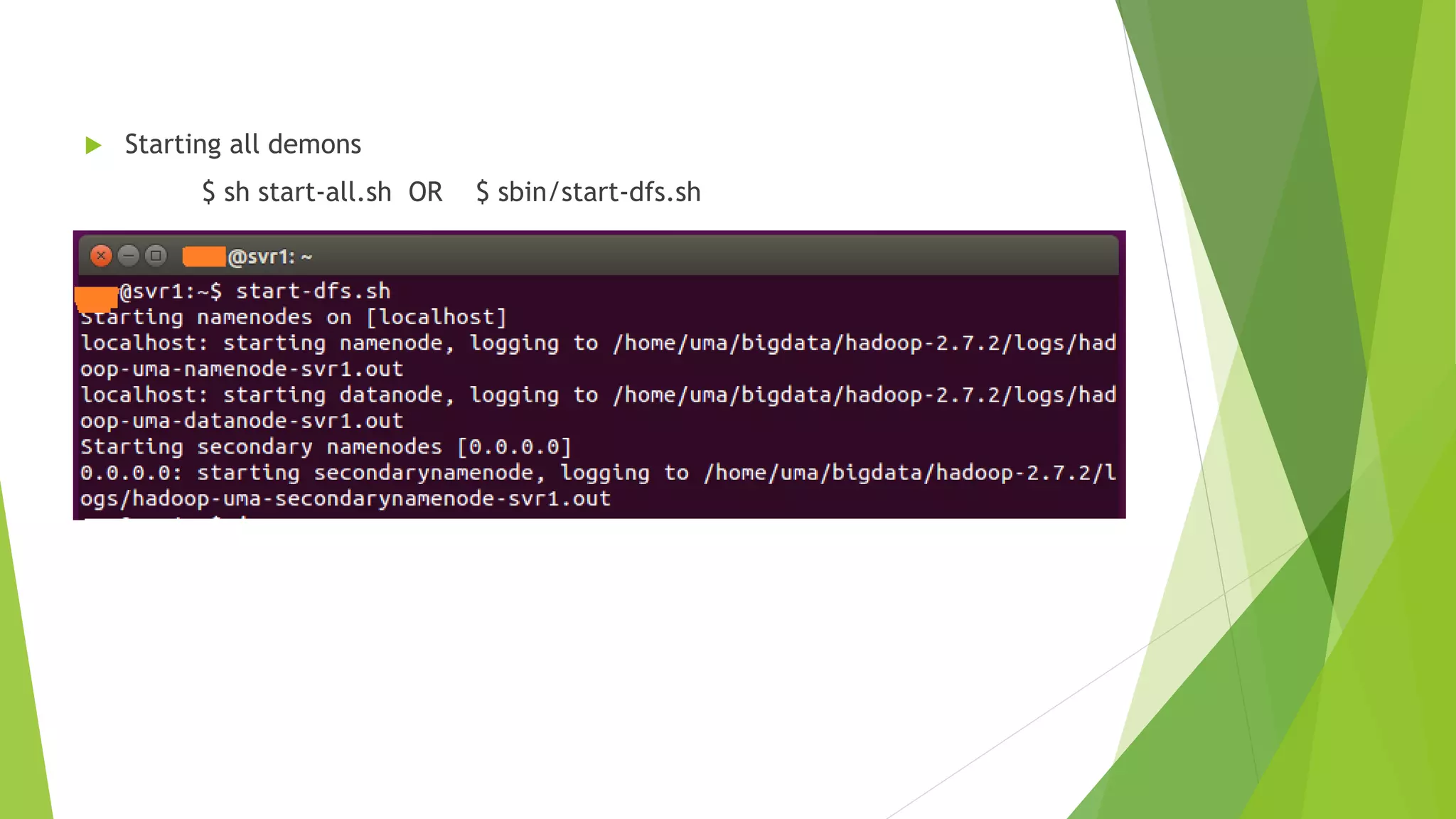

30.  Starting all demons
$ sh start-all.sh OR $ sbin/start-dfs.sh

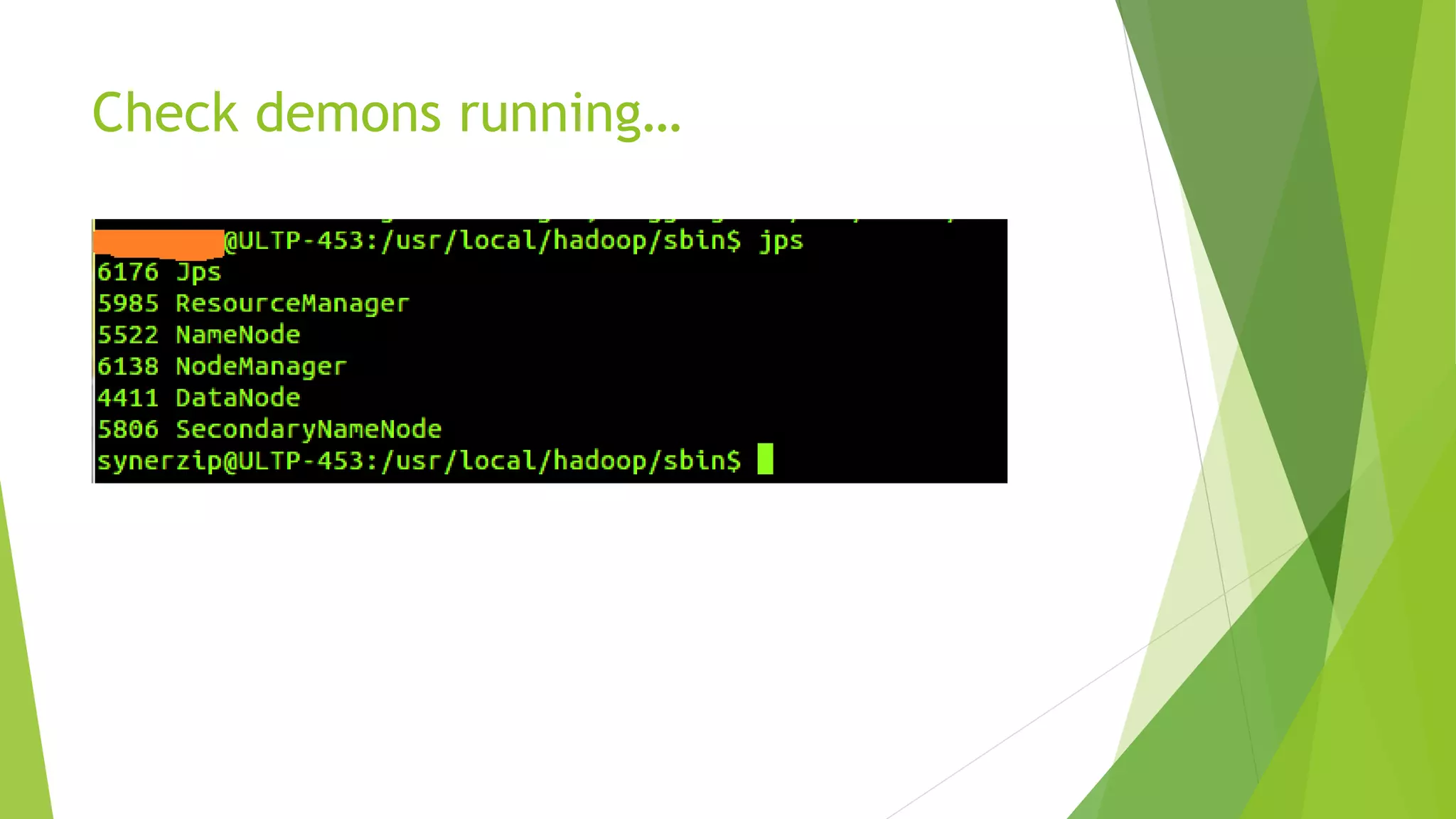

31. Check demons running…

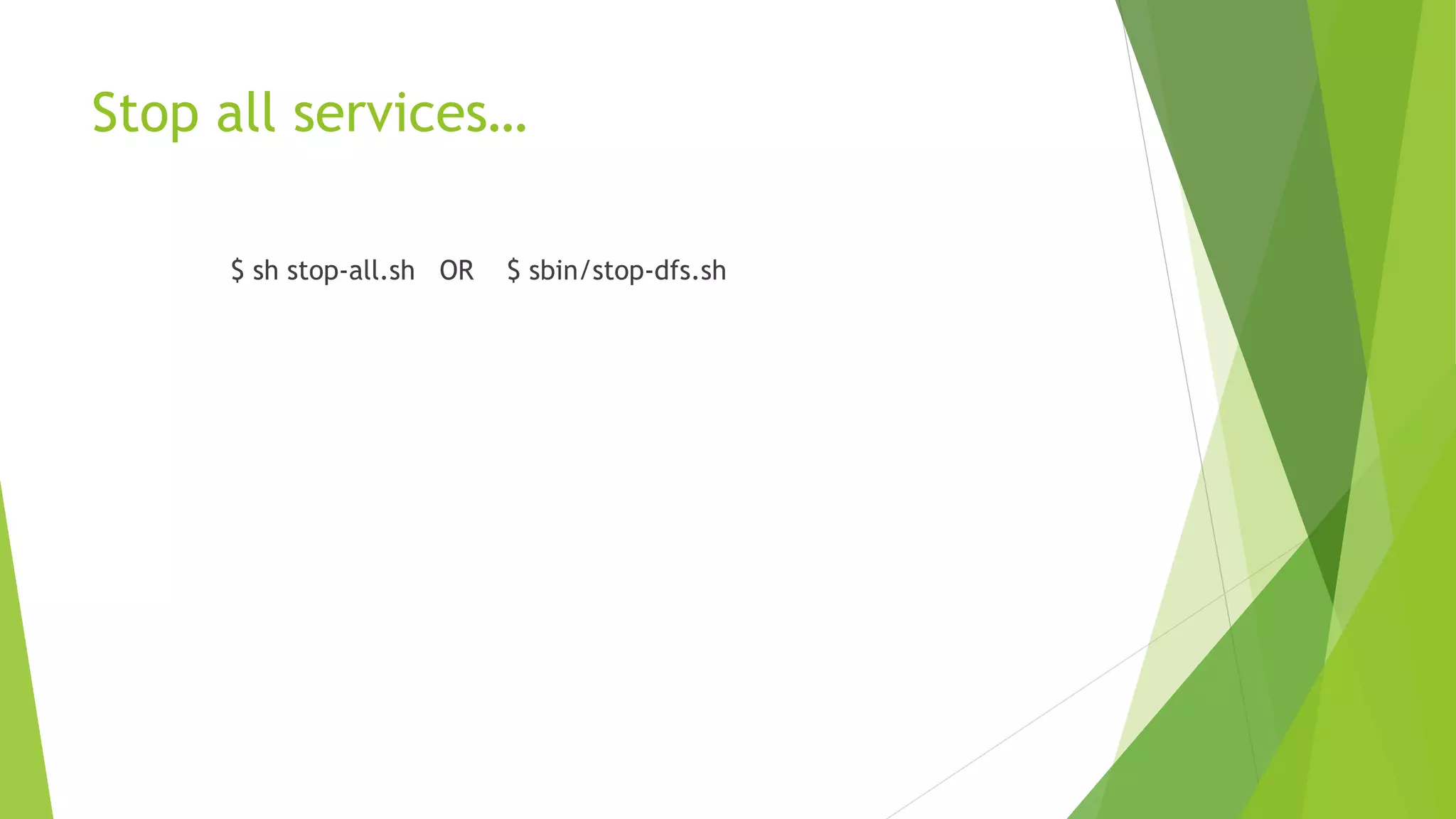

32. Stop all services…
$ sh stop-all.sh OR $ sbin/stop-dfs.sh
