1. ARCHITECTING SECURE WEB SYSTEMS
By Josh Sokol

2. A Matrix Moment
I imagine that right now, you’re feeling a bit like Alice. Hmm? Tumbling down the rabbit hole?

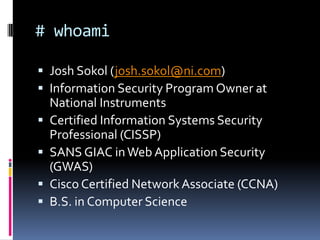

3. # whoami
 Josh Sokol (josh.sokol@ni.com)
 Information Security Program Owner at
National Instruments
 Certified Information Systems Security
Professional (CISSP)
 SANS GIAC in Web Application Security
(GWAS)
 Cisco Certified Network Associate (CCNA)
 B.S. in Computer Science

4. Who are you?
 Auditors?
 Systems Administrators?
 Network Administrators?
 Database Administrators?
 Security-focused role?

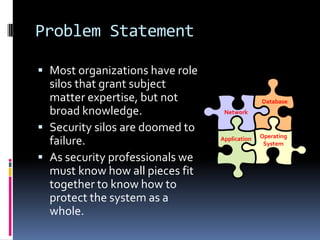

5. Problem Statement
 Most organizations have role
silos that grant subject
matter expertise, but not Database
broad knowledge. Network
 Security silos are doomed to
Operating
failure. Application
System
 As security professionals we
must know how all pieces fit
together to know how to
protect the system as a
whole.

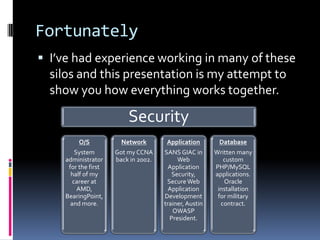

6. Fortunately
 I’ve had experience working in many of these
silos and this presentation is my attempt to
show you how everything works together.
Security
O/S Network Application Database
System Got my CCNA SANS GIAC in Written many
administrator back in 2002. Web custom
for the first Application PHP/MySQL
half of my Security, applications.
career at Secure Web Oracle
AMD, Application installation
BearingPoint, Development for military
and more. trainer, Austin contract.
OWASP
President.

7. What We’re Talking About
 Most presentations are going to talk about
securing one of those silos.
 The key to a secure web application is
building it on top of a secure foundation
 A comprehensive approach to web
application security
 Throw in what PCI has to say about things
where applicable

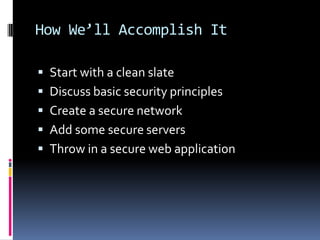

8. How We’ll Accomplish It
 Start with a clean slate
 Discuss basic security principles
 Create a secure network
 Add some secure servers
 Throw in a secure web application

9. Clean Slate

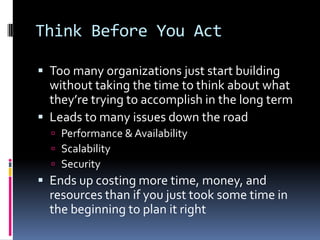

10. Think Before You Act
 Too many organizations just start building
without taking the time to think about what
they’re trying to accomplish in the long term
 Leads to many issues down the road
 Performance & Availability
 Scalability
 Security
 Ends up costing more time, money, and
resources than if you just took some time in
the beginning to plan it right

11. BASIC SECURITY PRINCIPLES

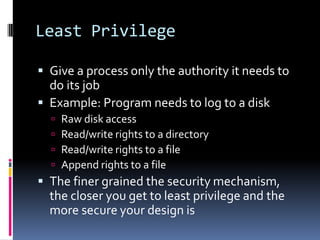

12. Least Privilege
 Give a process only the authority it needs to
do its job
 Example: Program needs to log to a disk
 Raw disk access
 Read/write rights to a directory
 Read/write rights to a file
 Append rights to a file
 The finer grained the security mechanism,
the closer you get to least privilege and the
more secure your design is

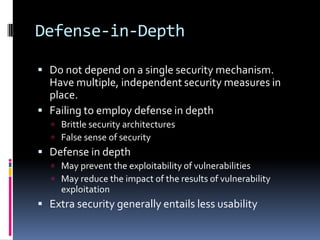

13. Defense-in-Depth
 Do not depend on a single security mechanism.
Have multiple, independent security measures in
place.
 Failing to employ defense in depth
 Brittle security architectures
 False sense of security
 Defense in depth
 May prevent the exploitability of vulnerabilities
 May reduce the impact of the results of vulnerability
exploitation
 Extra security generally entails less usability

14. Fail Open / Fail Closed
 Fail closed systems block access when they
run into errors
 Fail open systems allow access when they run
into errors
 Choosing which behavior should be done
explicitly and with care

15. Example 1
 Nuclear missile launch software
 Fail closed may be an appropriate choice in this case

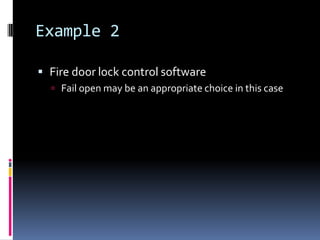

16. Example 2
 Fire door lock control software
 Fail open may be an appropriate choice in this case

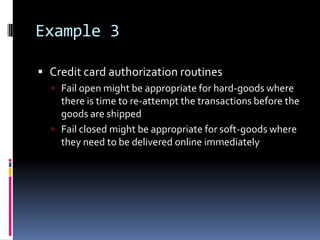

17. Example 3
 Credit card authorization routines
 Fail open might be appropriate for hard-goods where
there is time to re-attempt the transactions before the
goods are shipped
 Fail closed might be appropriate for soft-goods where
they need to be delivered online immediately

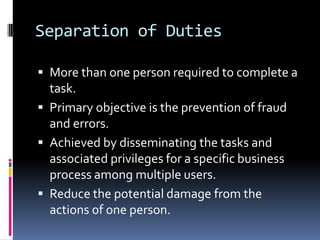

18. Separation of Duties
 More than one person required to complete a
task.
 Primary objective is the prevention of fraud
and errors.
 Achieved by disseminating the tasks and
associated privileges for a specific business
process among multiple users.
 Reduce the potential damage from the
actions of one person.

19. BUILDING A SECURE NETWORK

20. Establish an Internet Connection
Intended Traffic
Unintended Traffic
 ISP
 Public IP Addresses
 Edge router
 Switch
INTERNET INTRANET

21. Establish an Internet Connection
 Router and Switch Configurations (NOT A COMPLETE LIST)
 Disable IP directed broadcasts
 SMURF Attack (ICMP Echo)
 “no ip directed-broadcast”
 Disabled by default after Cisco IOS 12.0
 Disable TCP Small Services (Echo, Chargen, Discard, Daytime)
 “no service tcp-small-servers”
 Disabled by default after Cisco IOS 11.3
 Disable UDP Small Services (Echo, Chargen, Discard)
 “no service tcp-small-servers”
 Disabled by default after Cisco IOS 11.3
 IP Options Selective Drop
 Can alter the path traffic takes through the network and elevate CPU load
 “ip options drop”
 Command added to Cisco IOS 12.3(4)T, 12.0(22)S, and 12.2(25)S
 Disable IP source routing
 Enables source of the IP datagram to specify the network path a packet takes
 “no ip source-route”
 Enabled by default in all Cisco IOS Software Releases
 Incoming packets sourced with invalid addresses
 All web services running on router

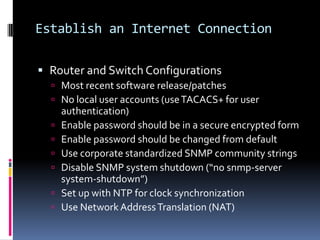

22. Establish an Internet Connection
 Router and Switch Configurations
 Most recent software release/patches
 No local user accounts (use TACACS+ for user
authentication)
 Enable password should be in a secure encrypted form
 Enable password should be changed from default
 Use corporate standardized SNMP community strings
 Disable SNMP system shutdown (“no snmp-server
system-shutdown”)
 Set up with NTP for clock synchronization
 Use Network Address Translation (NAT)

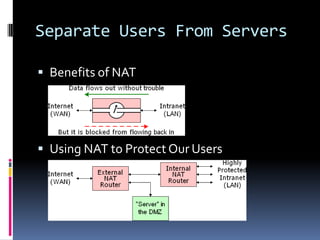

23. Separate Users From Servers
 Benefits of NAT
 Using NAT to Protect Our Users

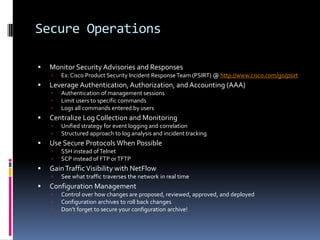

24. Secure Operations
 Monitor Security Advisories and Responses
 Ex: Cisco Product Security Incident Response Team (PSIRT) @ http://www.cisco.com/go/psirt
 Leverage Authentication, Authorization, and Accounting (AAA)
 Authentication of management sessions
 Limit users to specific commands
 Logs all commands entered by users
 Centralize Log Collection and Monitoring
 Unified strategy for event logging and correlation
 Structured approach to log analysis and incident tracking
 Use Secure Protocols When Possible
 SSH instead of Telnet
 SCP instead of FTP or TFTP
 Gain Traffic Visibility with NetFlow
 See what traffic traverses the network in real time
 Configuration Management
 Control over how changes are proposed, reviewed, approved, and deployed
 Configuration archives to roll back changes
 Don’t forget to secure your configuration archive!

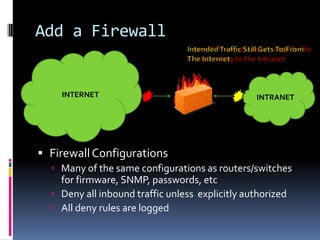

25. Add a Firewall
INTERNET INTRANET
 Firewall Configurations
 Many of the same configurations as routers/switches
for firmware, SNMP, passwords, etc
 Deny all inbound traffic unless explicitly authorized
 All deny rules are logged

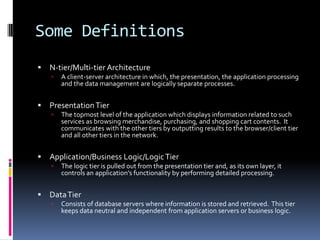

26. Some Definitions
 N-tier/Multi-tier Architecture
 A client-server architecture in which, the presentation, the application processing
and the data management are logically separate processes.
 Presentation Tier
 The topmost level of the application which displays information related to such
services as browsing merchandise, purchasing, and shopping cart contents. It
communicates with the other tiers by outputting results to the browser/client tier
and all other tiers in the network.
 Application/Business Logic/Logic Tier
 The logic tier is pulled out from the presentation tier and, as its own layer, it
controls an application’s functionality by performing detailed processing.
 Data Tier
 Consists of database servers where information is stored and retrieved. This tier
keeps data neutral and independent from application servers or business logic.

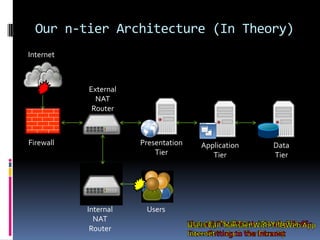

27. Our n-tier Architecture (In Theory)
Internet
External
NAT
Router
Firewall Presentation Application Data
Tier Tier Tier
Internal Users
NAT
Router

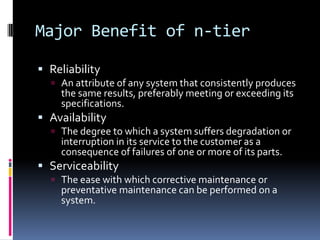

28. Major Benefit of n-tier
 Reliability
 An attribute of any system that consistently produces
the same results, preferably meeting or exceeding its
specifications.
 Availability
 The degree to which a system suffers degradation or
interruption in its service to the customer as a
consequence of failures of one or more of its parts.
 Serviceability
 The ease with which corrective maintenance or
preventative maintenance can be performed on a
system.

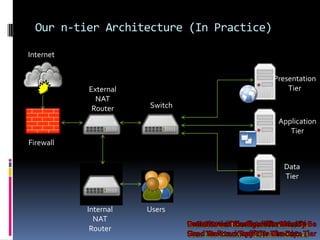

29. Our n-tier Architecture (In Practice)
Internet
Presentation
External Tier
NAT
Router Switch
Application
Tier
Firewall
Data
Tier
Internal Users
NAT
Router

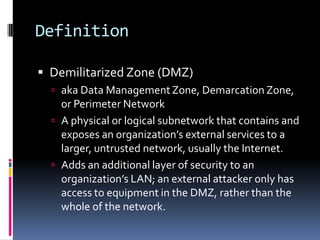

30. Definition
 Demilitarized Zone (DMZ)
 aka Data Management Zone, Demarcation Zone,
or Perimeter Network
 A physical or logical subnetwork that contains and
exposes an organization’s external services to a
larger, untrusted network, usually the Internet.
 Adds an additional layer of security to an
organization’s LAN; an external attacker only has
access to equipment in the DMZ, rather than the
whole of the network.

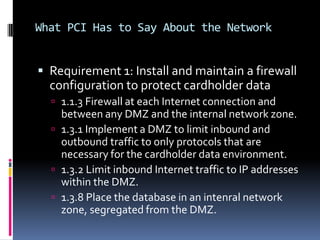

31. What PCI Has to Say About the Network
 Requirement 1: Install and maintain a firewall
configuration to protect cardholder data
 1.1.3 Firewall at each Internet connection and
between any DMZ and the internal network zone.
 1.3.1 Implement a DMZ to limit inbound and
outbound traffic to only protocols that are
necessary for the cardholder data environment.
 1.3.2 Limit inbound Internet traffic to IP addresses
within the DMZ.
 1.3.8 Place the database in an intenral network
zone, segregated from the DMZ.

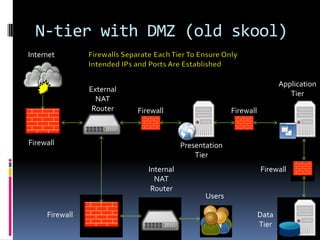

32. N-tier with DMZ (old skool)
Internet
Application
External
Tier
NAT
Router Firewall Firewall
Firewall Presentation
Tier
Internal Firewall
NAT
Router
Users
Firewall Data
Tier

33. N-tier with DMZ (new skool)
Firewall
Presentation
Tier
Core
Router
Application
Tier
Internet
Internal Data
NAT Tier
Router
Users

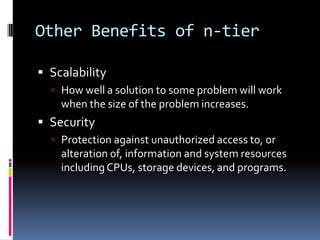

34. Other Benefits of n-tier
 Scalability
 How well a solution to some problem will work
when the size of the problem increases.
 Security
 Protection against unauthorized access to, or
alteration of, information and system resources
including CPUs, storage devices, and programs.

35. BUILDING A SECURE SERVER

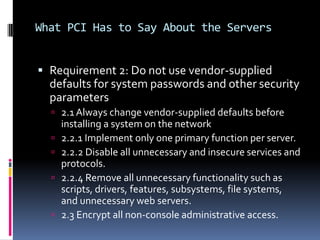

36. What PCI Has to Say About the Servers
 Requirement 2: Do not use vendor-supplied
defaults for system passwords and other security
parameters
 2.1 Always change vendor-supplied defaults before
installing a system on the network
 2.2.1 Implement only one primary function per server.
 2.2.2 Disable all unnecessary and insecure services and
protocols.
 2.2.4 Remove all unnecessary functionality such as
scripts, drivers, features, subsystems, file systems,
and unnecessary web servers.
 2.3 Encrypt all non-console administrative access.

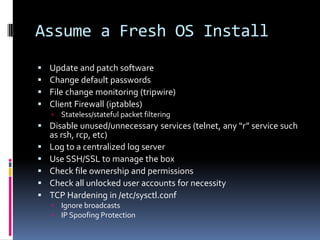

37. Assume a Fresh OS Install
 Update and patch software
 Change default passwords
 File change monitoring (tripwire)
 Client Firewall (iptables)
 Stateless/stateful packet filtering
 Disable unused/unnecessary services (telnet, any “r” service such
as rsh, rcp, etc)
 Log to a centralized log server
 Use SSH/SSL to manage the box
 Check file ownership and permissions
 Check all unlocked user accounts for necessity
 TCP Hardening in /etc/sysctl.conf
 Ignore broadcasts
 IP Spoofing Protection

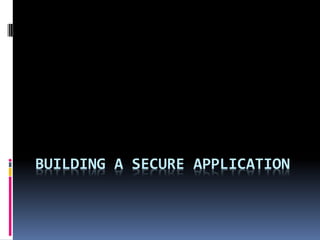

38. BUILDING A SECURE APPLICATION

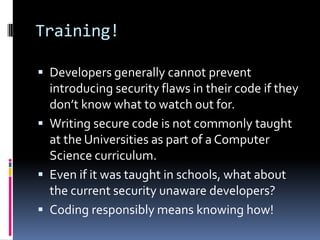

39. Training!
 Developers generally cannot prevent
introducing security flaws in their code if they
don’t know what to watch out for.
 Writing secure code is not commonly taught
at the Universities as part of a Computer
Science curriculum.
 Even if it was taught in schools, what about
the current security unaware developers?
 Coding responsibly means knowing how!

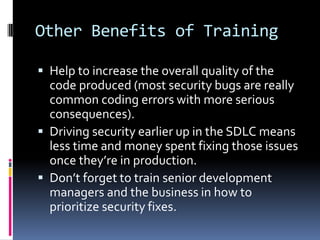

40. Other Benefits of Training
 Help to increase the overall quality of the
code produced (most security bugs are really
common coding errors with more serious
consequences).
 Driving security earlier up in the SDLC means
less time and money spent fixing those issues
once they’re in production.
 Don’t forget to train senior development
managers and the business in how to
prioritize security fixes.

41. Threat Modeling
 Should be done early in the development
lifecycle
 Can find security defects before and code is
actually created

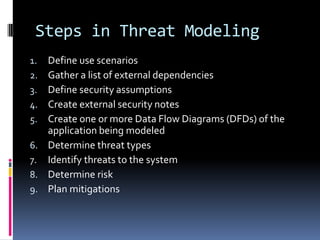

42. Steps in Threat Modeling
1. Define use scenarios
2. Gather a list of external dependencies
3. Define security assumptions
4. Create external security notes
5. Create one or more Data Flow Diagrams (DFDs) of the
application being modeled
6. Determine threat types
7. Identify threats to the system
8. Determine risk
9. Plan mitigations

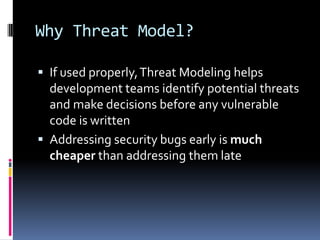

43. Why Threat Model?
 If used properly, Threat Modeling helps
development teams identify potential threats
and make decisions before any vulnerable
code is written
 Addressing security bugs early is much
cheaper than addressing them late

44. Input Validation
 Most important thing you can do to make your code
more secure
 Never trust anything that has crossed a trust boundary.
 In web applications, this means:
 GET parameters
 POST parameters
 HTTP headers
 Especially cookies
 Referer
 Anything in an HTTP request is completely under
the control of an attacker

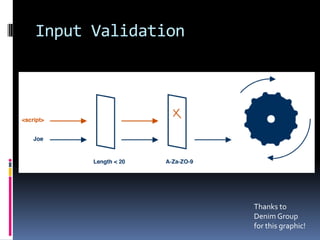

45. Input Validation
Thanks to
Denim Group
for this graphic!

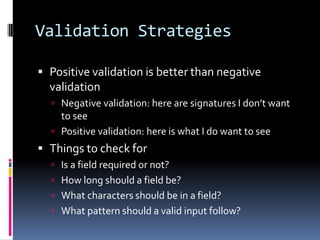

46. Validation Strategies
 Positive validation is better than negative
validation
 Negative validation: here are signatures I don’t want
to see
 Positive validation: here is what I do want to see
 Things to check for
 Is a field required or not?
 How long should a field be?
 What characters should be in a field?
 What pattern should a valid input follow?

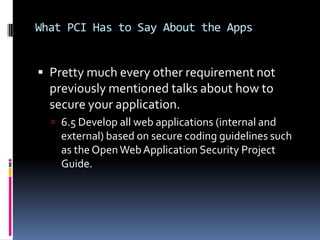

47. What PCI Has to Say About the Apps
 Pretty much every other requirement not
previously mentioned talks about how to
secure your application.
 6.5 Develop all web applications (internal and
external) based on secure coding guidelines such
as the Open Web Application Security Project
Guide.

48. The OWASP Guide
 Policy Frameworks
 Secure Coding Principles
 Threat Risk Modeling
 Handling E-Commerce Payments
 Phishing
 Web Services
 Authentication
 Authorization
 Session Management
 Data Validation
 Interpreter Injection
 Canonicalization, Locale, and Unicode
 Error Handling, Auditing, and Logging
 …
 The list goes on…and on…and on

49. DEFENSE-IN-DEPTH ADD-ONS

50. Defense-in-Depth
 Defend a system against any particular attack
using several, varying methods.
 Layering tactic, conceived by the NSA as a
comprehensive approach to information and
electronic security.

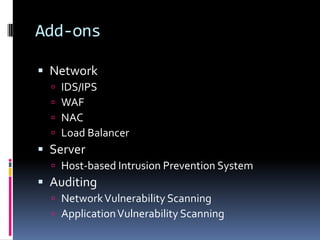

51. Add-ons
 Network
 IDS/IPS
 WAF
 NAC
 Load Balancer
 Server
 Host-based Intrusion Prevention System
 Auditing
 Network Vulnerability Scanning
 Application Vulnerability Scanning

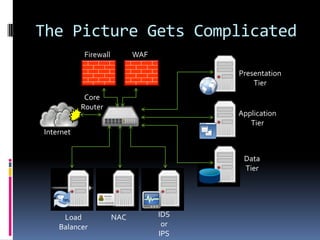

52. The Picture Gets Complicated
Firewall WAF
Presentation
Tier
Core
Router
Application
Tier
Internet
Data
Tier
Load NAC IDS
Balancer or
IPS

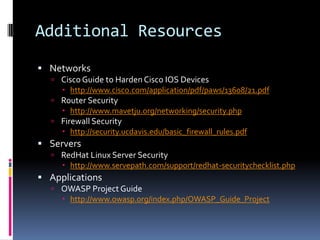

53. Additional Resources
 Networks
 Cisco Guide to Harden Cisco IOS Devices
 http://www.cisco.com/application/pdf/paws/13608/21.pdf
 Router Security
 http://www.mavetju.org/networking/security.php
 Firewall Security
 http://security.ucdavis.edu/basic_firewall_rules.pdf
 Servers
 RedHat Linux Server Security
 http://www.servepath.com/support/redhat-securitychecklist.php
 Applications
 OWASP Project Guide
 http://www.owasp.org/index.php/OWASP_Guide_Project

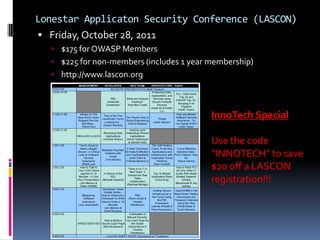

54. Lonestar Applicaton Security Conference (LASCON)
 Friday, October 28, 2011
 $175 for OWASP Members
 $225 for non-members (includes 1 year membership)
 http://www.lascon.org
InnoTech Special
Use the code
“INNOTECH” to save
$20 off a LASCON
registration!!!
