2. Modeling Infrastructure With Chef

3. Charles Johnson
• Product Engineer, Chef
• Career Sysadmin (~20 years)
• Opscode Chef Employee since 2012
• @chipadeedoodah
• charles@chef.io

4. Where Does Configuration Live?
Layers of Policy

5. Typical Boring Infrastructure
• Datacenter
(US-EAST)
Datacenter

6. Datacenter
Zone
Zone

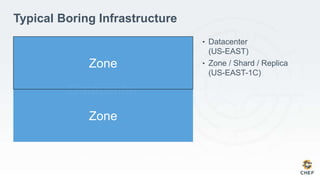

Typical Boring Infrastructure
• Datacenter
(US-EAST)
• Zone / Shard / Replica
(US-EAST-1C)

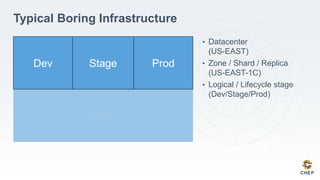

7. Datacenter
Zone
Zone
Typical Boring Infrastructure
• Datacenter
(US-EAST)
• Zone / Shard / Replica
(US-EAST-1C)
• Logical / Lifecycle stage
(Dev/Stage/Prod)
Dev Stage Prod

8. Datacenter
Zone
Zone

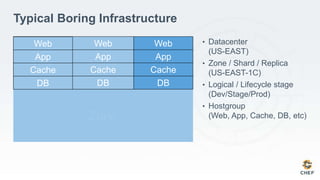

Typical Boring Infrastructure
• Datacenter
(US-EAST)
• Zone / Shard / Replica
(US-EAST-1C)
• Logical / Lifecycle stage
(Dev/Stage/Prod)
• Hostgroup
(Web, App, Cache, DB, etc)
Dev Stage Prod
Web
App
Cache
DB
Web
App
Cache
DB
Web
App
Cache
DB

9. Datacenter
Zone
Zone

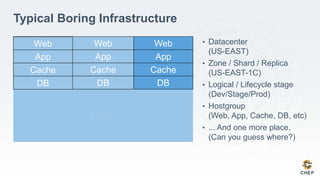

Typical Boring Infrastructure
• Datacenter
(US-EAST)
• Zone / Shard / Replica
(US-EAST-1C)
• Logical / Lifecycle stage
(Dev/Stage/Prod)
• Hostgroup
(Web, App, Cache, DB, etc)
• ... And one more place.
(Can you guess where?)
Dev Stage Prod
Web
App
Cache
DB
Web
App
Cache
DB
Web
App
Cache
DB

10. THE HOST?

11. THE “NO SNOWFLAKES” RULE
• Rule #1 of modeling infrastructure with
Chef: There Shall Be No Host-Specific
Configuration.
• That one server in the corner that
nobody touches because the person
who built it is long-gone and if that
server dies you’re all screwed? No
longer allowed.
• So where, then?

12. Datacenter
• Example Configuration / Policy:
• “All hosts in the US-EAST Datacenter must
be built from the US-EAST-RHEL image set.”
• “At least two independent failure domains
must be established inside the US-EAST
Datacenter.”
• All hosts in the US-EAST Datacenter must
have an active MTA. No MTA other than
Postfix will be allowed.”
• “All hosts in the US-EAST Datacenter must
deny remote-root logins via SSH.”
https://www.flickr.com/photos/photoblog0001/2219131561

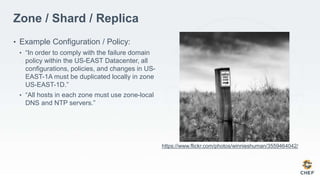

13. Zone / Shard / Replica
• Example Configuration / Policy:
• “In order to comply with the failure domain
policy within the US-EAST Datacenter, all
configurations, policies, and changes in US-
EAST-1A must be duplicated locally in zone
US-EAST-1D.”
• “All hosts in each zone must use zone-local
DNS and NTP servers.”
https://www.flickr.com/photos/winnieshuman/3559464042/

14. Logical Stage
• Example Configuration / Policy:
• “All Development servers must route
outbound mail to /dev/null.”
• “All staging servers cannot run in debug log-
level for more than 6h.”
• “All Production servers must route outbound
mail through a specific named relay.”
https://www.flickr.com/photos/srkkiran/6096554915

15. Hostgroup
• Example Configuration / Policy:
• “All Web Servers must run NGINX.”
• “All Web Servers should have a specific SSL
certificate.”
• “All Web servers should listen on TCP ports
443 and 80.”
• “All Database servers should run
PostgreSQL.”
• “All monitoring servers must run Sensu.”
https://www.flickr.com/photos/mr_t_in_dc/4800819674

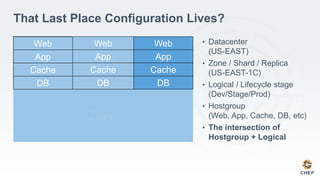

16. Datacenter
Zone
Zone
That Last Place Configuration Lives?
• Datacenter
(US-EAST)
• Zone / Shard / Replica
(US-EAST-1C)
• Logical / Lifecycle stage
(Dev/Stage/Prod)
• Hostgroup
(Web, App, Cache, DB, etc)
• The intersection of
Hostgroup + Logical
Dev Stage Prod
Web
App
Cache
DB
Web
App
Cache
DB
Web
App
Cache
DB

17. The Intersection of Hostgroup and Logical Stage
• Example Configuration / Policy:
• “All staging application servers must only
communicate with staging database
servers.”
• “No cross-stage communication may be
allowed.”
• Exceptions! “Development database servers
should be refreshed with replicated data
from production database servers every 72
hours.”
https://www.flickr.com/photos/collylogic/12620887894

18. Infrastructure Modeling With Chef
Available Primitives

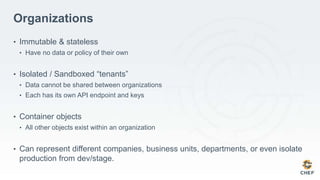

19. Organizations
• Immutable & stateless
• Have no data or policy of their own
• Isolated / Sandboxed “tenants”
• Data cannot be shared between organizations
• Each has its own API endpoint and keys
• Container objects
• All other objects exist within an organization
• Can represent different companies, business units, departments, or even isolate
production from dev/stage.

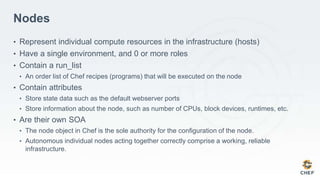

20. Nodes
• Represent individual compute resources in the infrastructure (hosts)
• Have a single environment, and 0 or more roles
• Contain a run_list
• An order list of Chef recipes (programs) that will be executed on the node
• Contain attributes
• Store state data such as the default webserver ports
• Store information about the node, such as number of CPUs, block devices, runtimes, etc.
• Are their own SOA
• The node object in Chef is the sole authority for the configuration of the node.
• Autonomous individual nodes acting together correctly comprise a working, reliable
infrastructure.

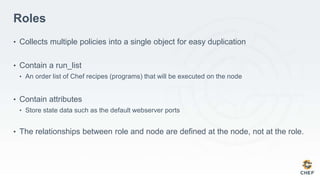

21. Roles
• Collects multiple policies into a single object for easy duplication
• Contain a run_list
• An order list of Chef recipes (programs) that will be executed on the node
• Contain attributes
• Store state data such as the default webserver ports
• The relationships between role and node are defined at the node, not at the role.

22. Environments
• Have no run_list
• Contain attributes
• Store blanket policies such as “all nodes in this environment must behave in a particular way.”
• Can be used to version cookbook releases and model application lifecycle for
Chef code.
• The relationship between environment and node is defined at the node, not at
the environment.

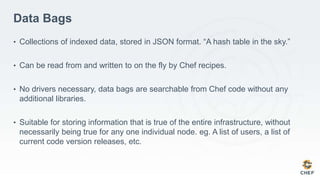

23. Data Bags
• Collections of indexed data, stored in JSON format. “A hash table in the sky.”
• Can be read from and written to on the fly by Chef recipes.
• No drivers necessary, data bags are searchable from Chef code without any
additional libraries.
• Suitable for storing information that is true of the entire infrastructure, without
necessarily being true for any one individual node. eg. A list of users, a list of
current code version releases, etc.

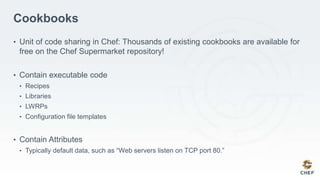

24. Cookbooks
• Unit of code sharing in Chef: Thousands of existing cookbooks are available for
free on the Chef Supermarket repository!
• Contain executable code
• Recipes
• Libraries
• LWRPs
• Configuration file templates
• Contain Attributes
• Typically default data, such as “Web servers listen on TCP port 80.”

25. Example policies, modeled in Chef
Disclaimer: With Chef, there is almost always more than one way to do
anything. These are examples, not dogma.

26. All hosts must deny remote-root logins via SSH.
• Upload the OpenSSH cookbook from the Chef Supermarket to the Chef Server
• Create a “base” role that will be applied to all hosts as a default set of
configuration, regardless of environment
• Include “recipe[‘openssh::default’] in the role run_list
• Add an attribute to the role that sets the OpenSSH permitRootLogin value to ‘no’
• Modify the node object so that role[‘base’] is the first item in the run_list.
• Execute chef-client on the node.

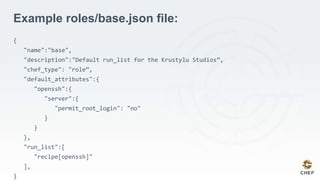

27. Example roles/base.json file:
{
"name":"base",
"description":"Default run_list for the Krustylu Studios”,
"chef_type": "role”,
"default_attributes":{
"openssh":{
"server":{
"permit_root_login": "no"
}
}
},
"run_list":[
"recipe[openssh]"
],
}

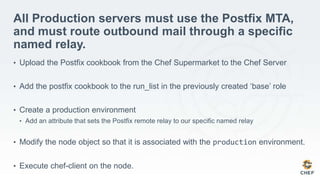

28. All Production servers must use the Postfix MTA,
and must route outbound mail through a specific
named relay.
• Upload the Postfix cookbook from the Chef Supermarket to the Chef Server
• Add the postfix cookbook to the run_list in the previously created ‘base’ role
• Create a production environment
• Add an attribute that sets the Postfix remote relay to our specific named relay
• Modify the node object so that it is associated with the production environment.
• Execute chef-client on the node.

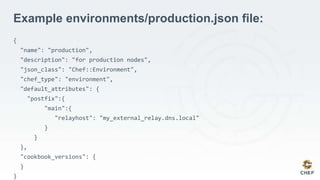

29. Example environments/production.json file:
{
"name": "production",
"description": "for production nodes",
"json_class": "Chef::Environment",
"chef_type": "environment",
"default_attributes": {
"postfix":{
"main":{
"relayhost": "my_external_relay.dns.local"
}
}
},
"cookbook_versions": {
}
}

30. Benefits

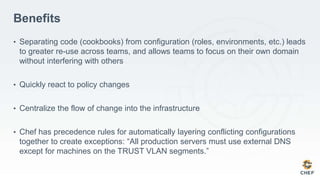

• Separating code (cookbooks) from configuration (roles, environments, etc.) leads
to greater re-use across teams, and allows teams to focus on their own domain
without interfering with others
• Quickly react to policy changes
• Centralize the flow of change into the infrastructure
• Chef has precedence rules for automatically layering conflicting configurations
together to create exceptions: “All production servers must use external DNS
except for machines on the TRUST VLAN segments.”

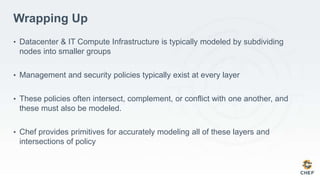

31. Wrapping Up
• Datacenter & IT Compute Infrastructure is typically modeled by subdividing
nodes into smaller groups
• Management and security policies typically exist at every layer
• These policies often intersect, complement, or conflict with one another, and
these must also be modeled.
• Chef provides primitives for accurately modeling all of these layers and
intersections of policy
