This document provides an overview of Git and common Git workflows. It defines Git as an open source distributed version control system. It explains basic Git commands like init, add, commit, status, branch, merge, checkout, push and pull. It introduces different Git workflows like the solo workflow for small teams, feature branches for multiple developers, and Gitflow which is a popular branching model with development, feature, release and hotfix branches. Finally, it encourages selecting or customizing a workflow that fits your needs.

1. Improving your
workflow with GIT

2. GIT basics

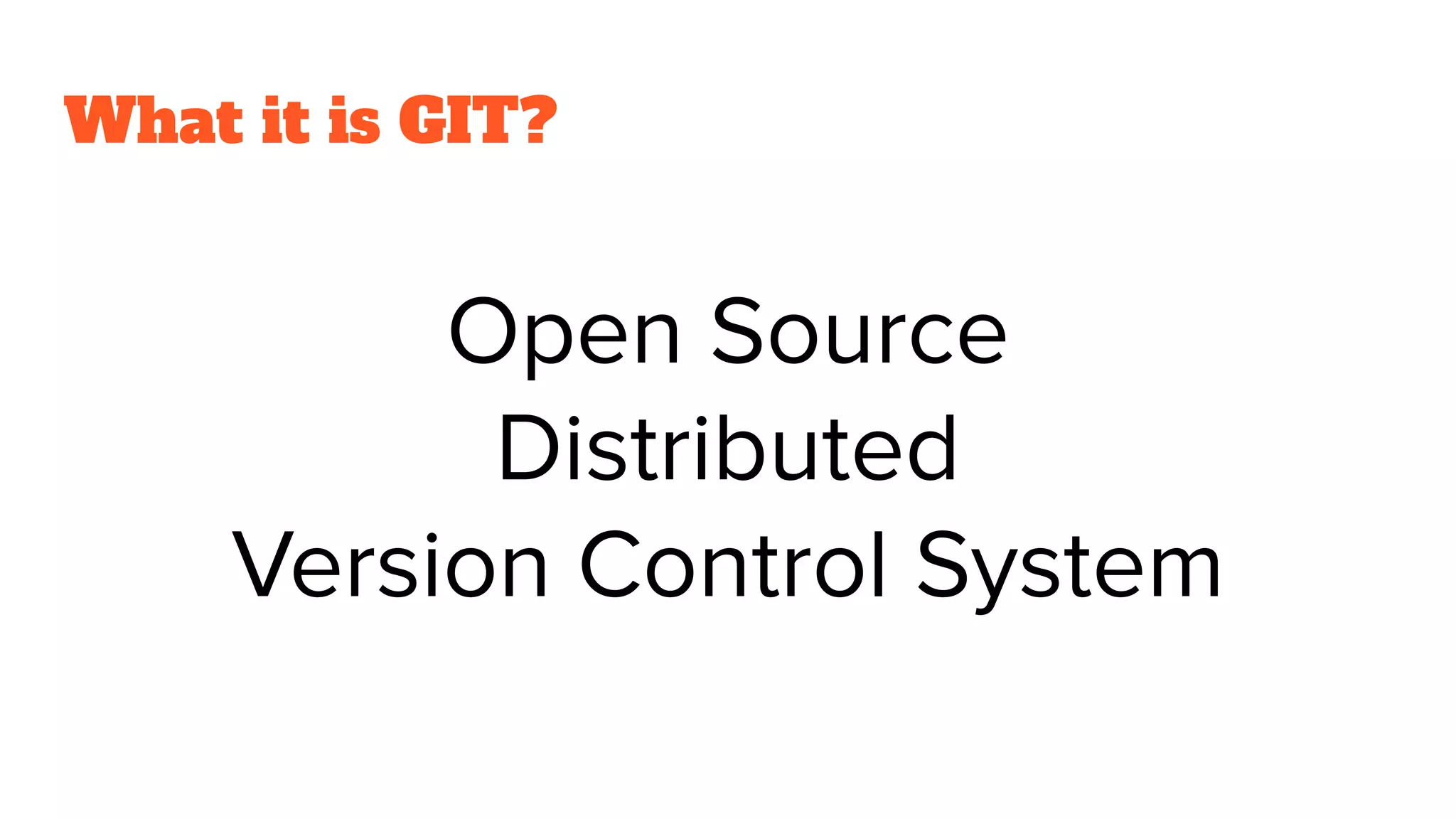

3. What it is GIT?
Open Source
Distributed
Version Control System

4. What it is GIT?
Open Source Distributed Version Control System

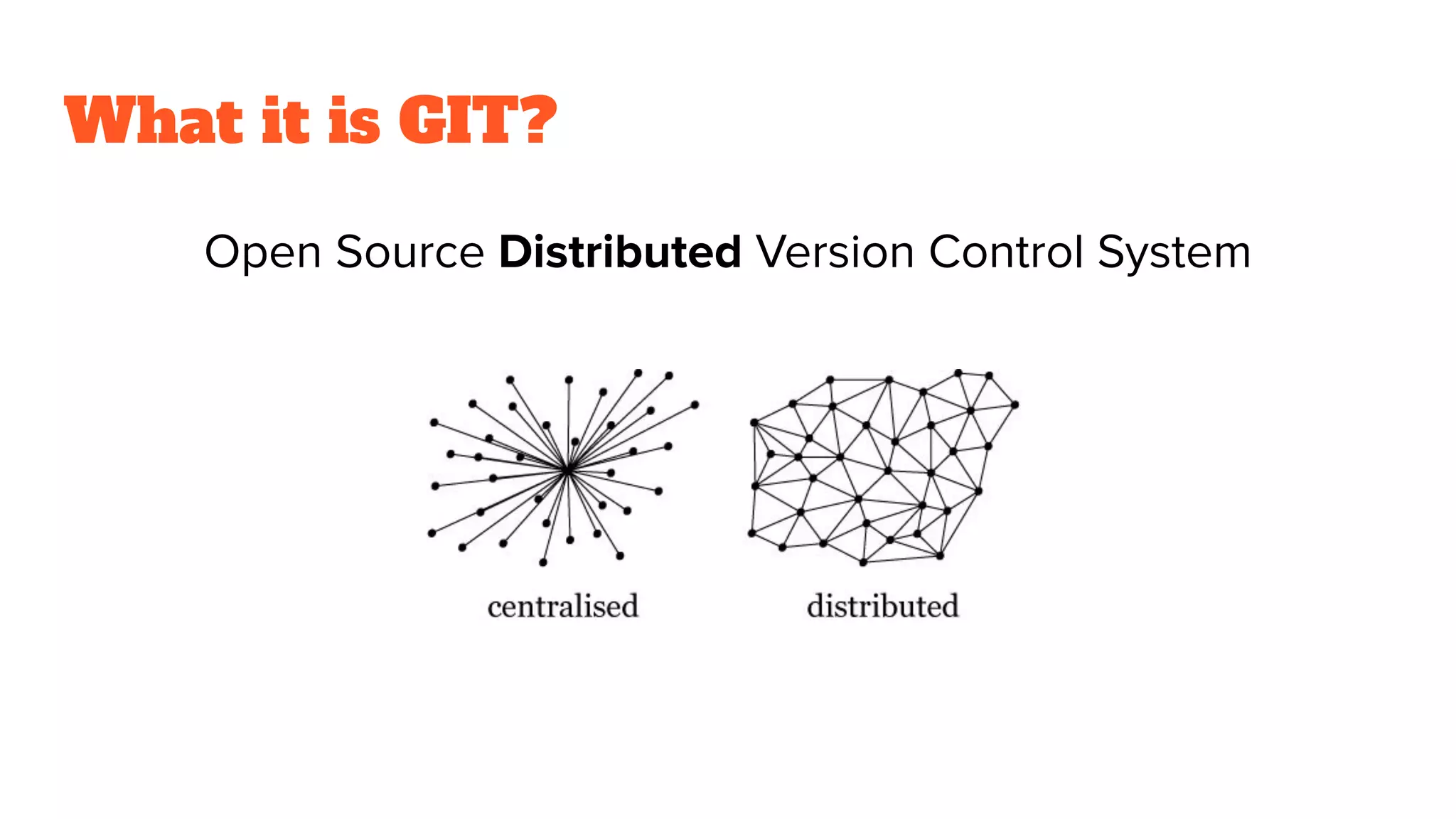

5. What it is GIT?
Open Source Distributed Version Control System

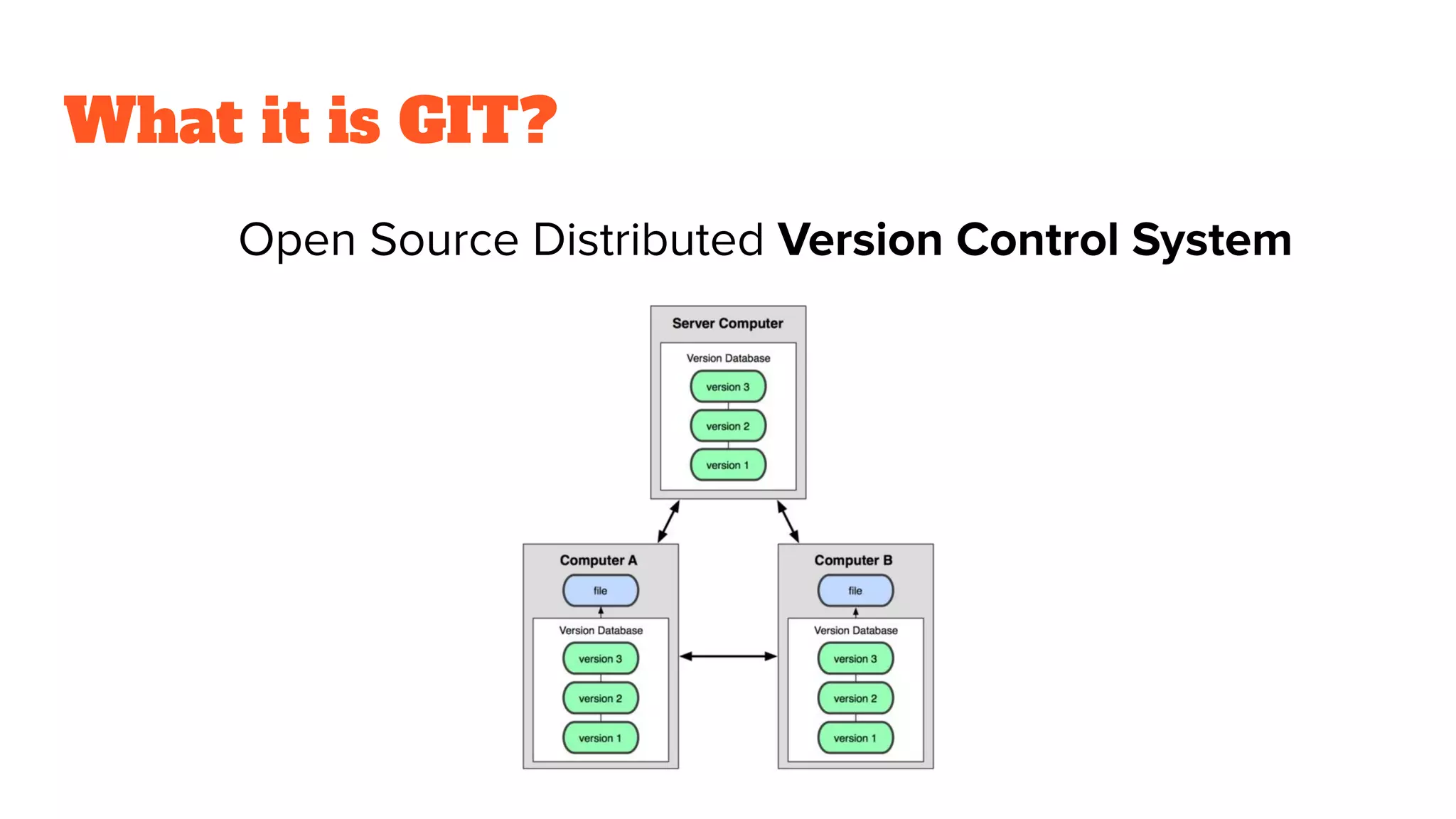

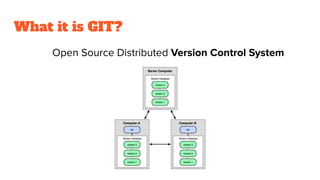

6. What it is GIT?
Open Source Distributed Version Control System

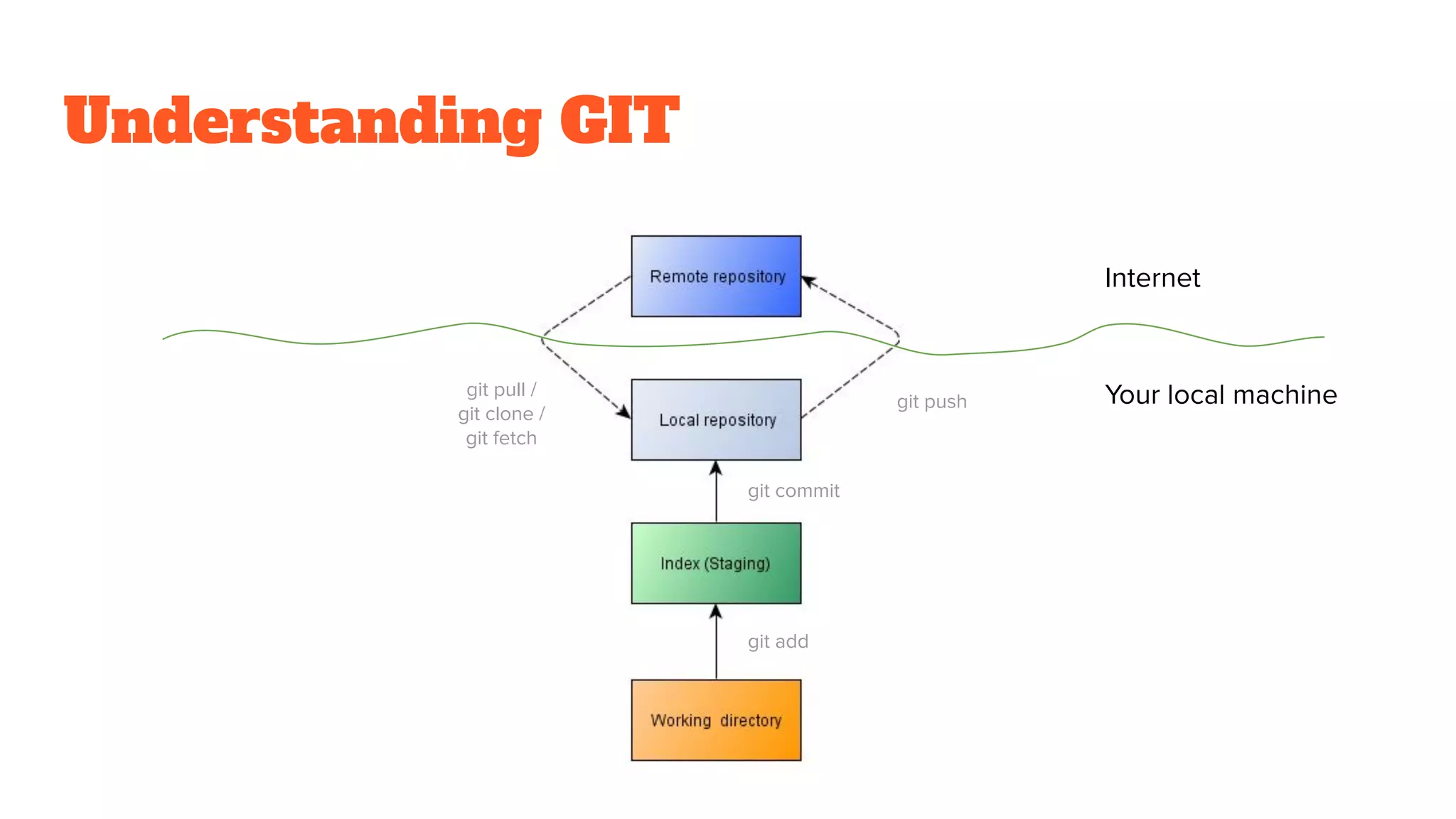

7. Understanding GIT
Internet
Your local machinegit push
git pull /
git clone /
git fetch
git add
git commit

8. Don’t be afraid of the GIT
command line
GIT commands

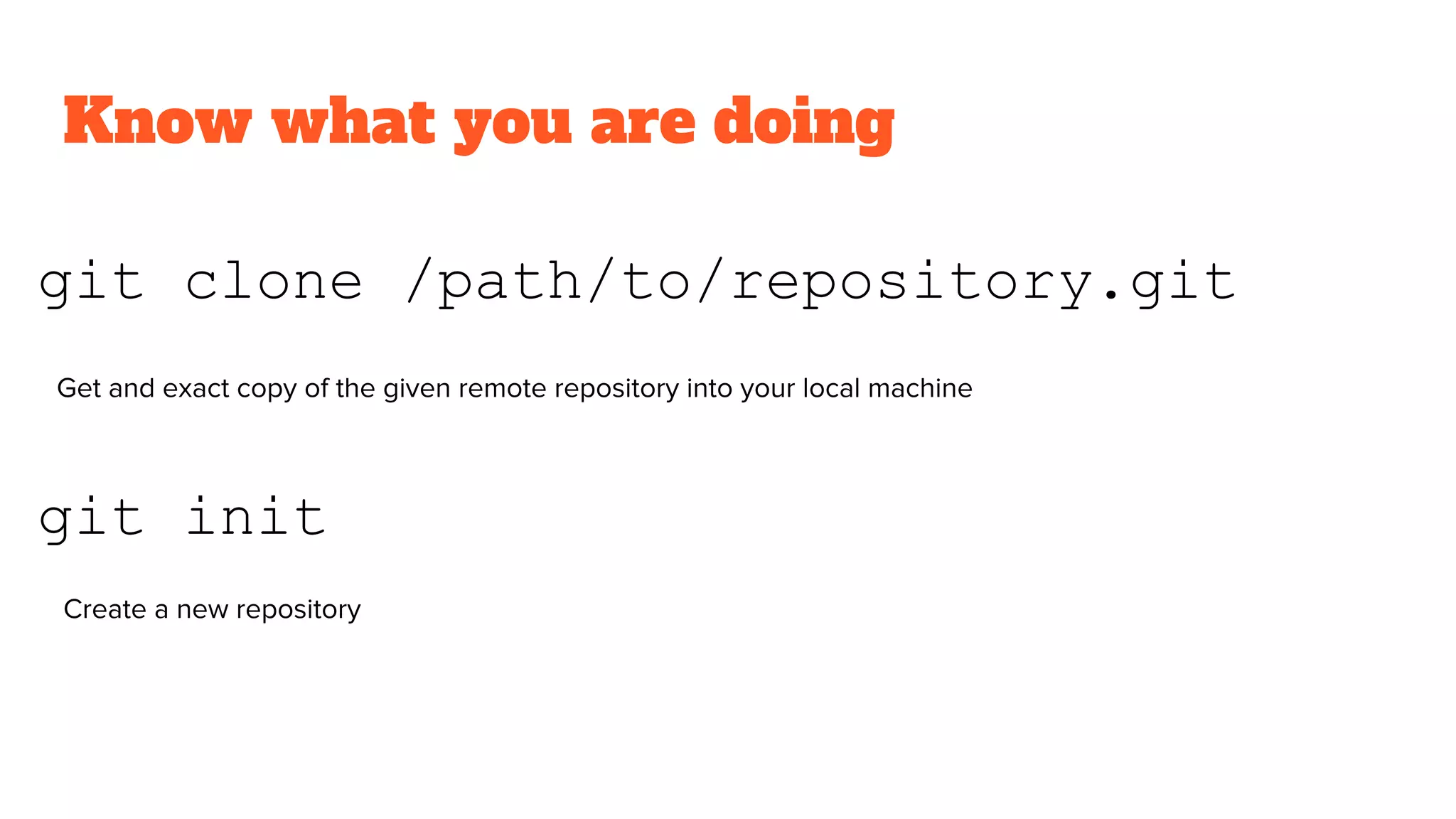

9. Know what you are doing
git init
git clone /path/to/repository.git
Get and exact copy of the given remote repository into your local machine
Create a new repository

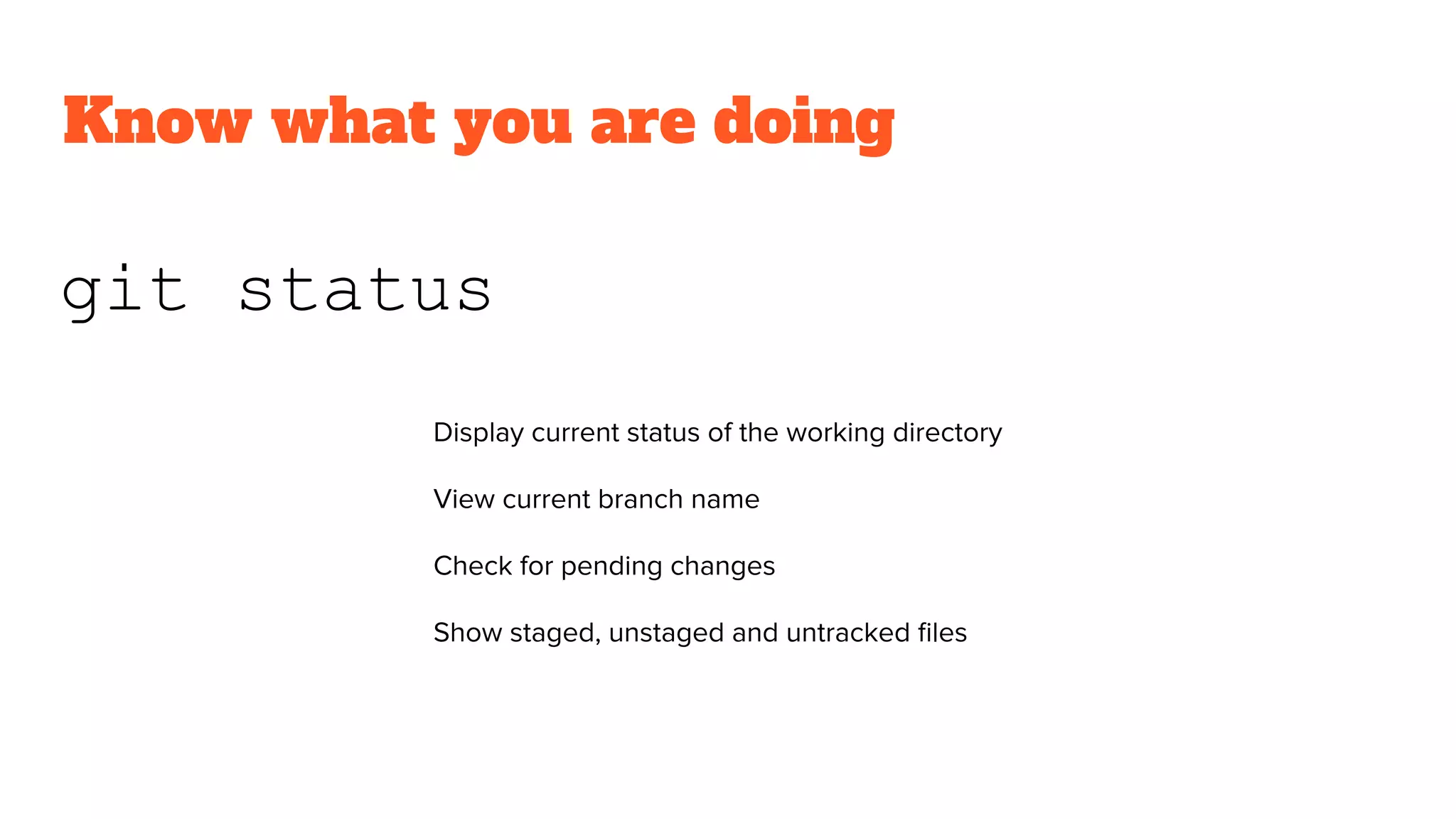

10. Know what you are doing
git status
Display current status of the working directory
View current branch name
Check for pending changes
Show staged, unstaged and untracked files

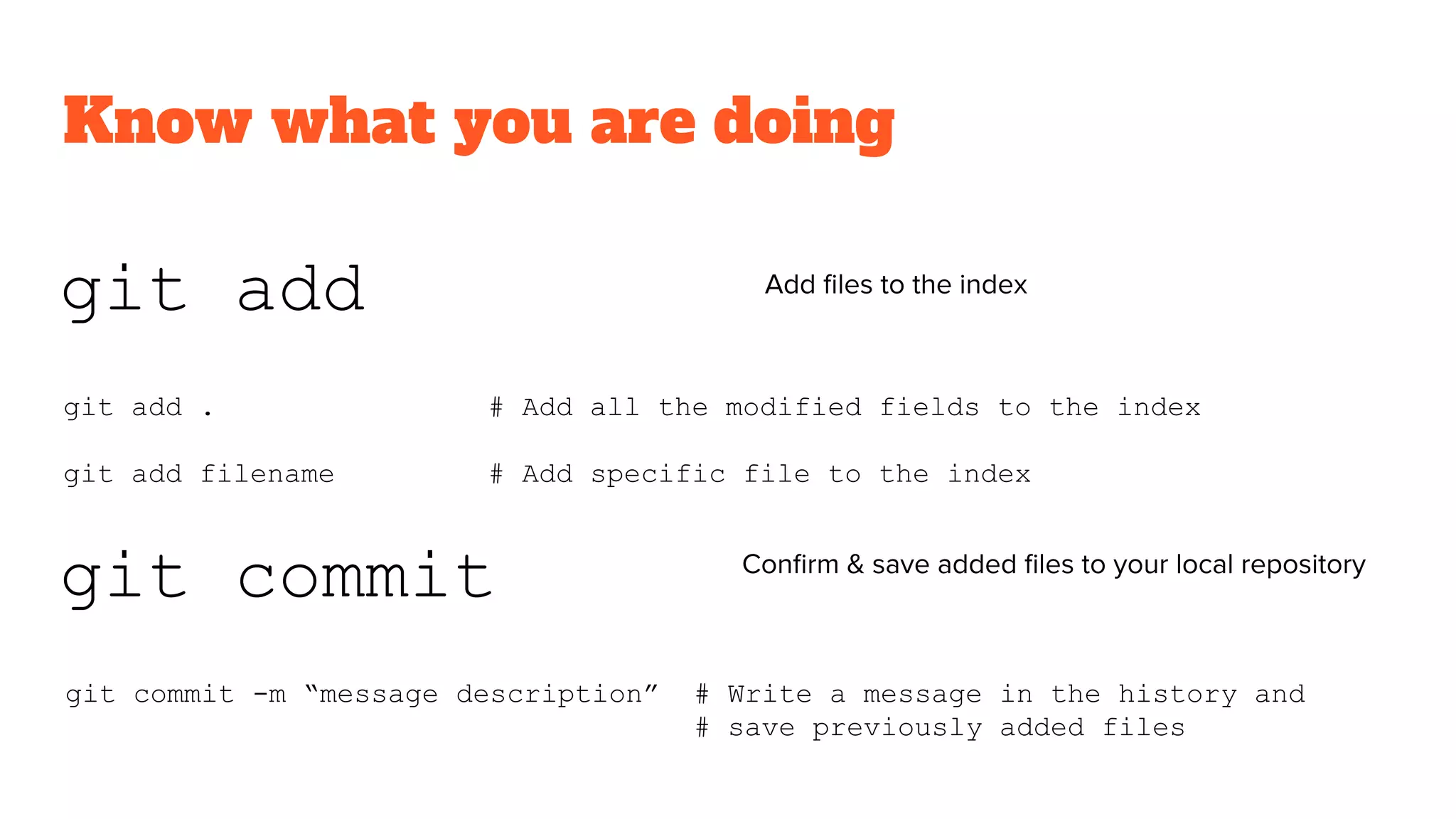

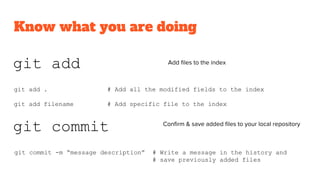

11. Know what you are doing
git add Add files to the index
git add . # Add all the modified fields to the index
git add filename # Add specific file to the index
git commit Confirm & save added files to your local repository
git commit -m “message description” # Write a message in the history and
# save previously added files

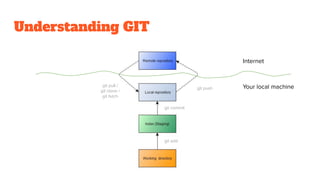

12. Understanding GIT
Internet
Your local machinegit push
git pull /
git clone /
git fetch
git add
git commit

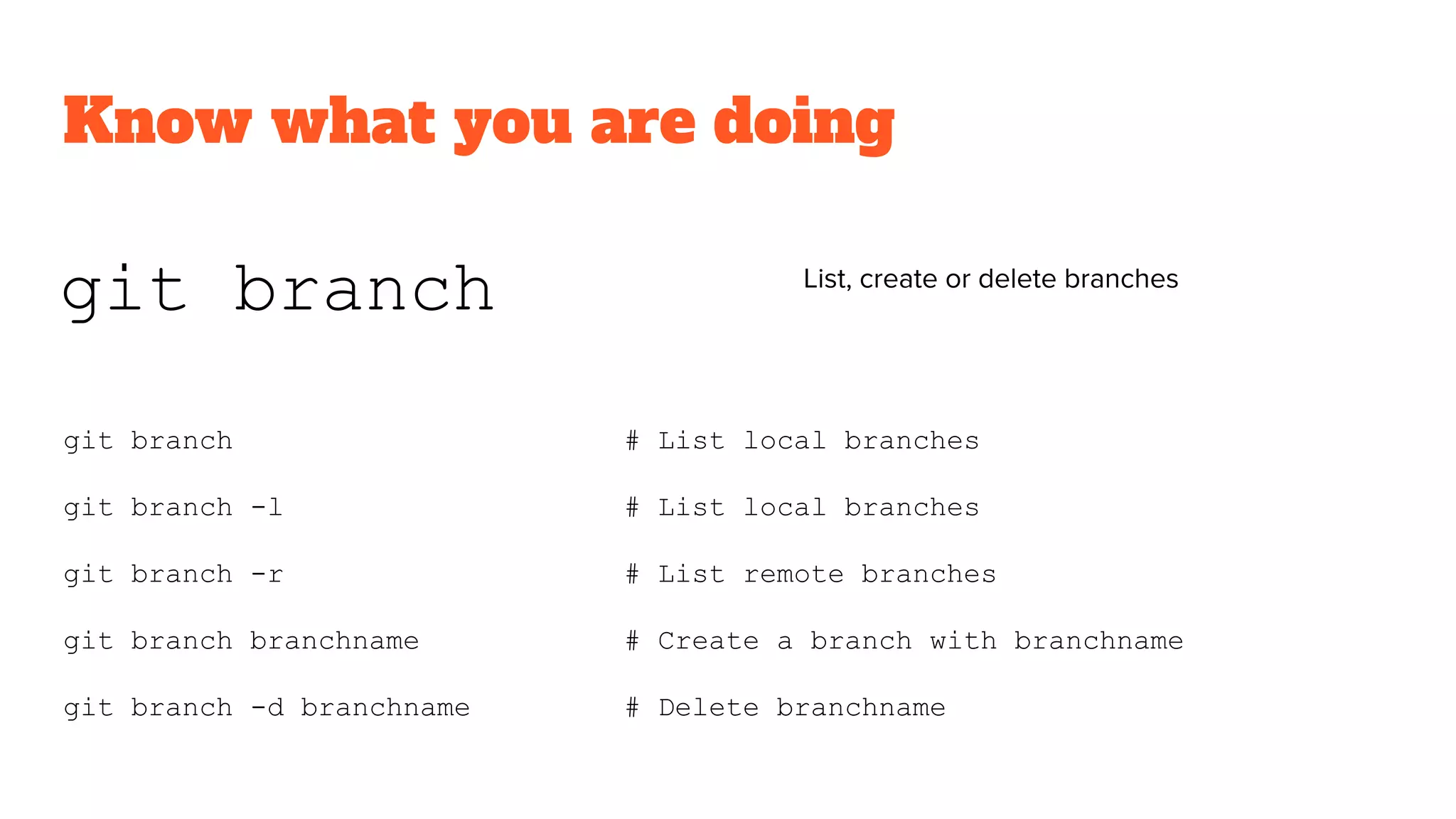

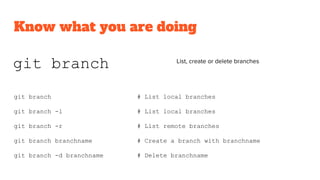

13. Know what you are doing
git branch List, create or delete branches
git branch # List local branches
git branch -l # List local branches
git branch -r # List remote branches
git branch branchname # Create a branch with branchname
git branch -d branchname # Delete branchname

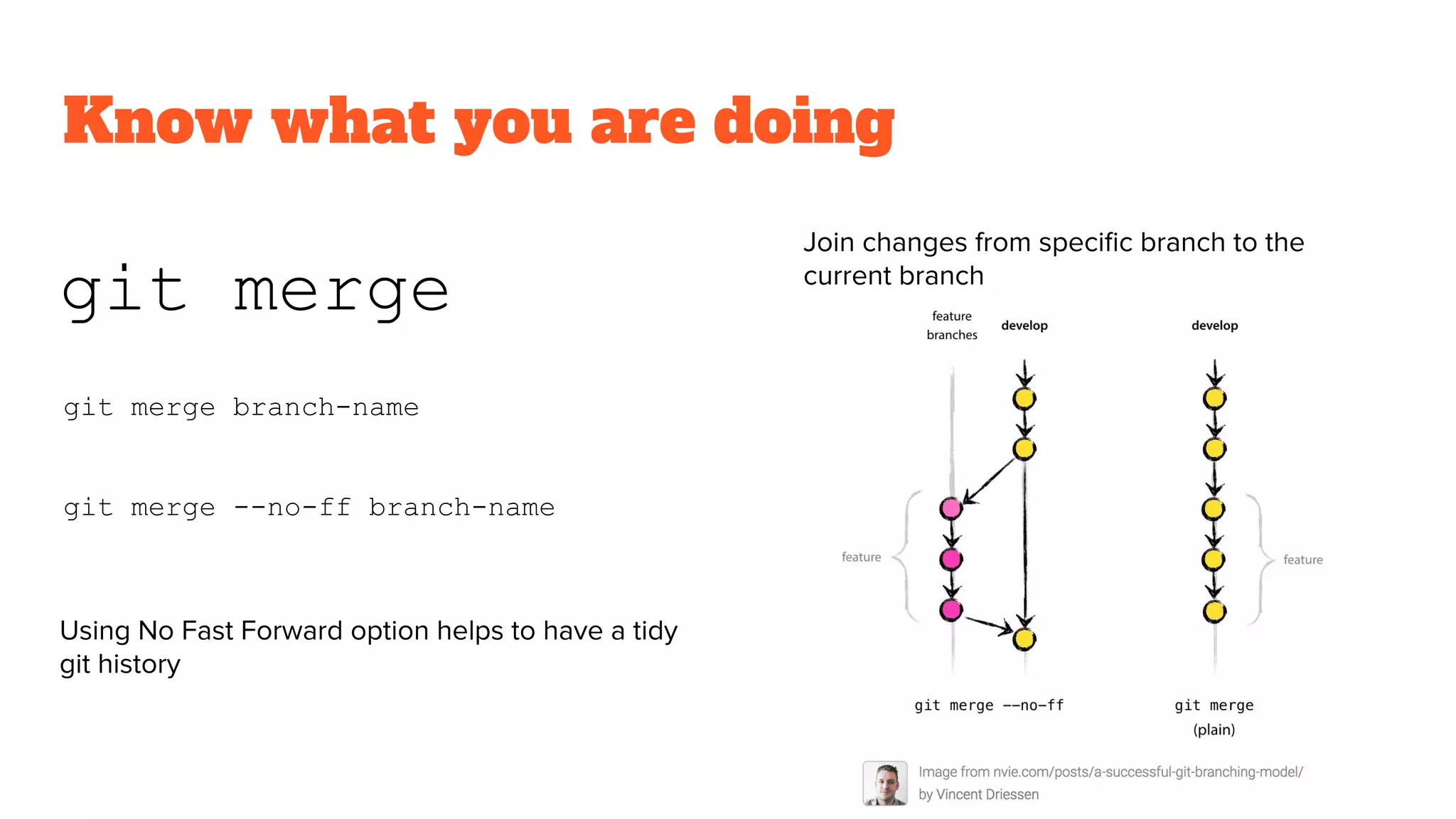

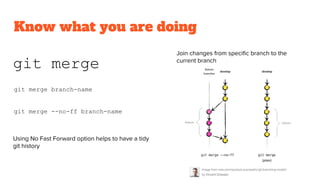

14. Know what you are doing
git merge
Join changes from specific branch to the
current branch
git merge branch-name
git merge --no-ff branch-name
Using No Fast Forward option helps to have a tidy
git history

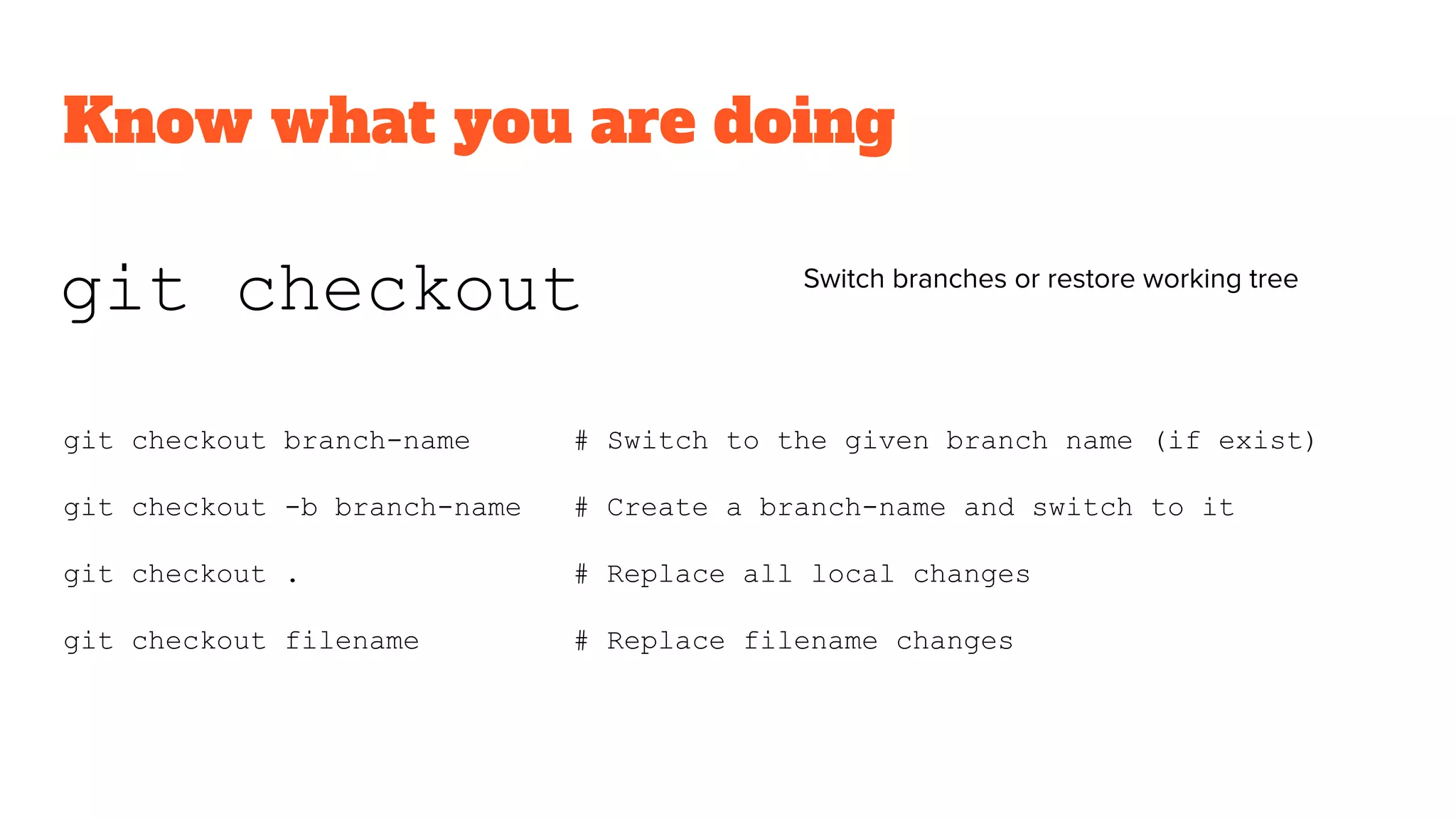

15. Know what you are doing
git checkout Switch branches or restore working tree
git checkout branch-name # Switch to the given branch name (if exist)
git checkout -b branch-name # Create a branch-name and switch to it
git checkout . # Replace all local changes
git checkout filename # Replace filename changes

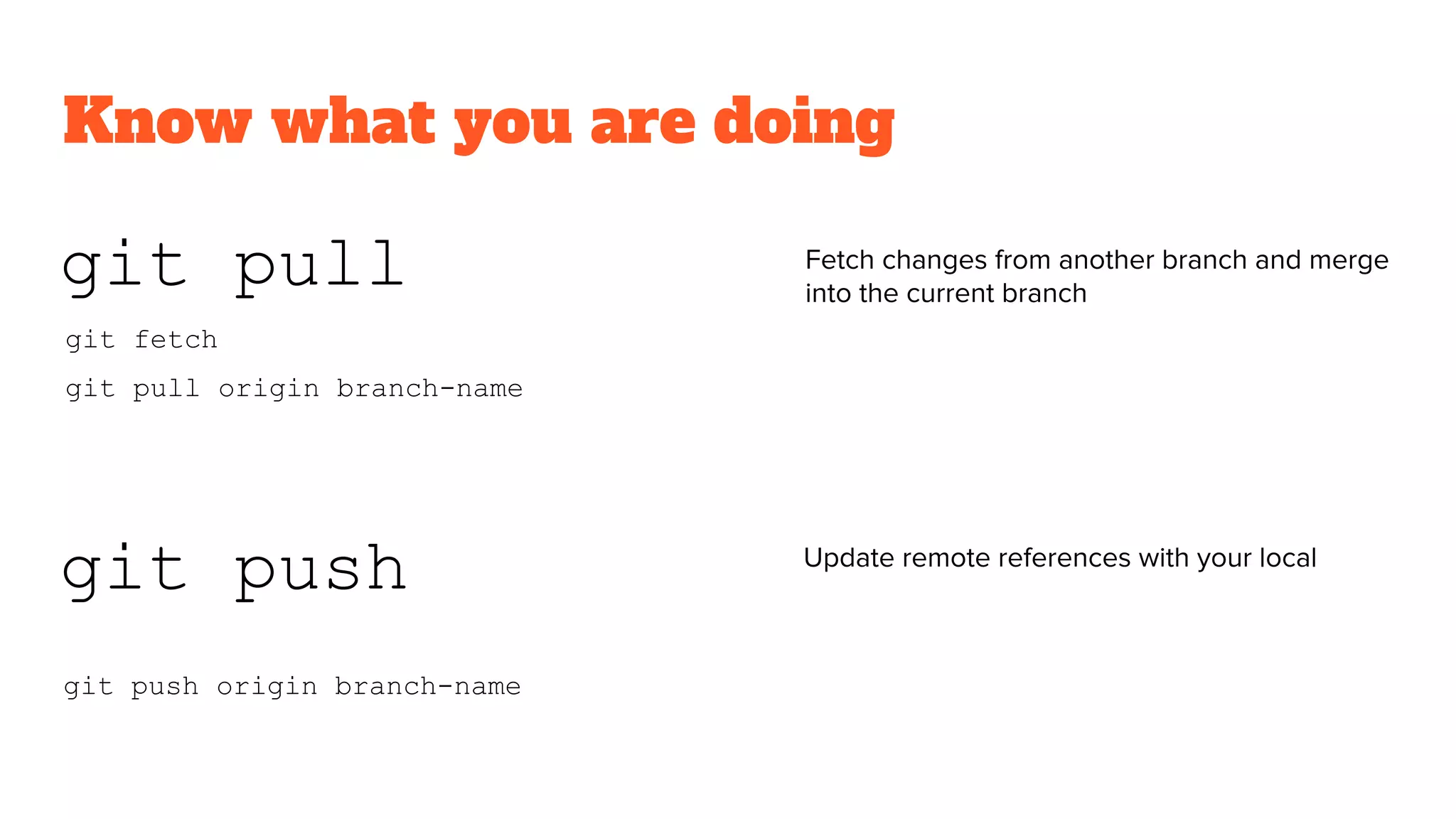

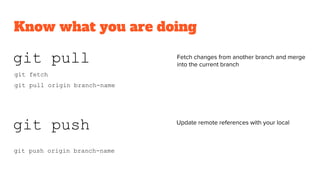

16. Know what you are doing
git push Update remote references with your local
git push origin branch-name
git pull Fetch changes from another branch and merge
into the current branch
git pull origin branch-name
git fetch

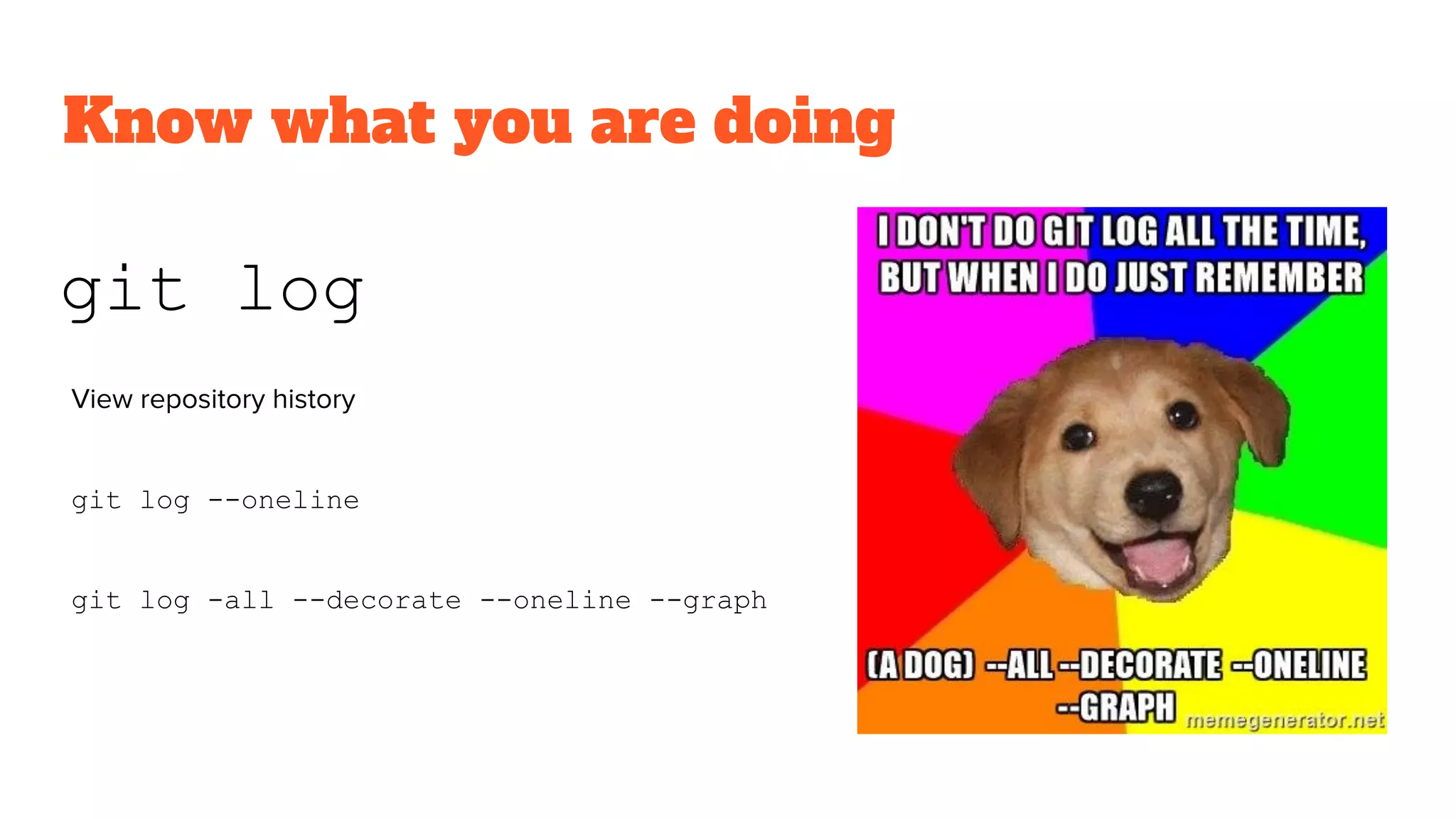

17. Know what you are doing
git log
View repository history
git log --oneline
git log -all --decorate --oneline --graph

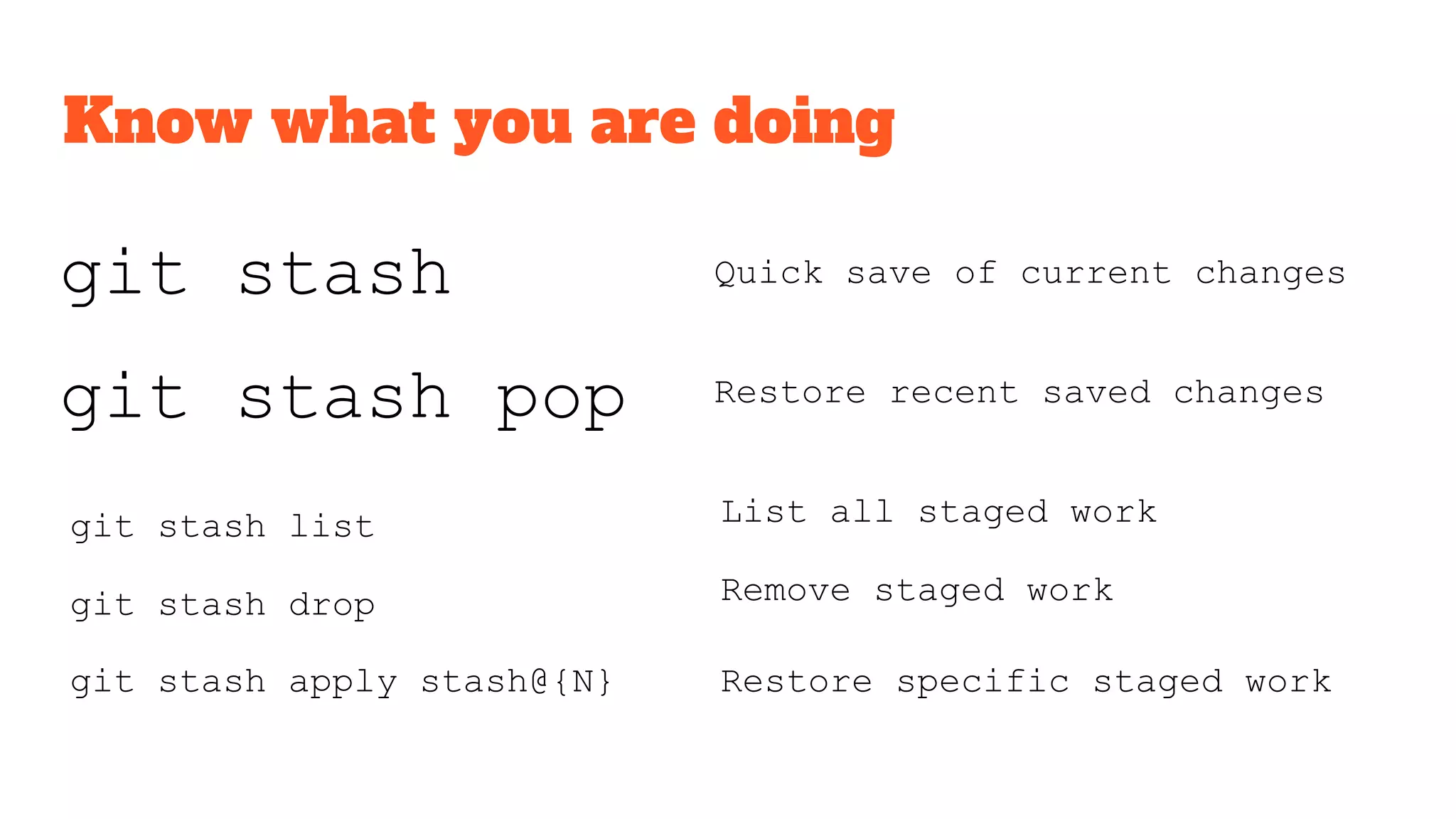

18. Know what you are doing
git stash
git stash pop
git stash drop
git stash list
git stash apply stash@{N}
Quick save of current changes
Restore recent saved changes
List all staged work
Remove staged work
Restore specific staged work

19. Git GUIs

20. Your IDE

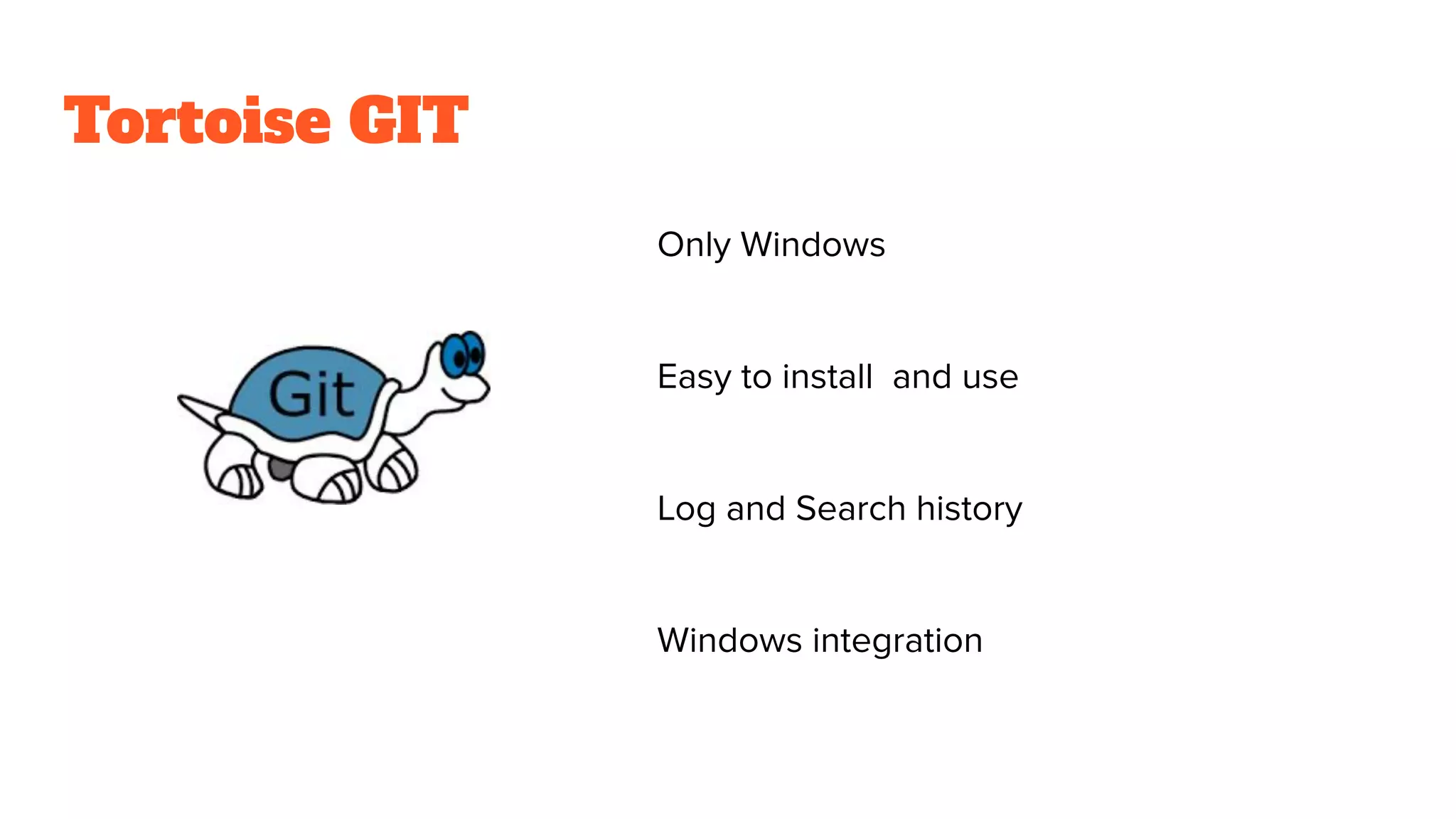

21. Tortoise GIT
Only Windows
Easy to install and use
Log and Search history
Windows integration

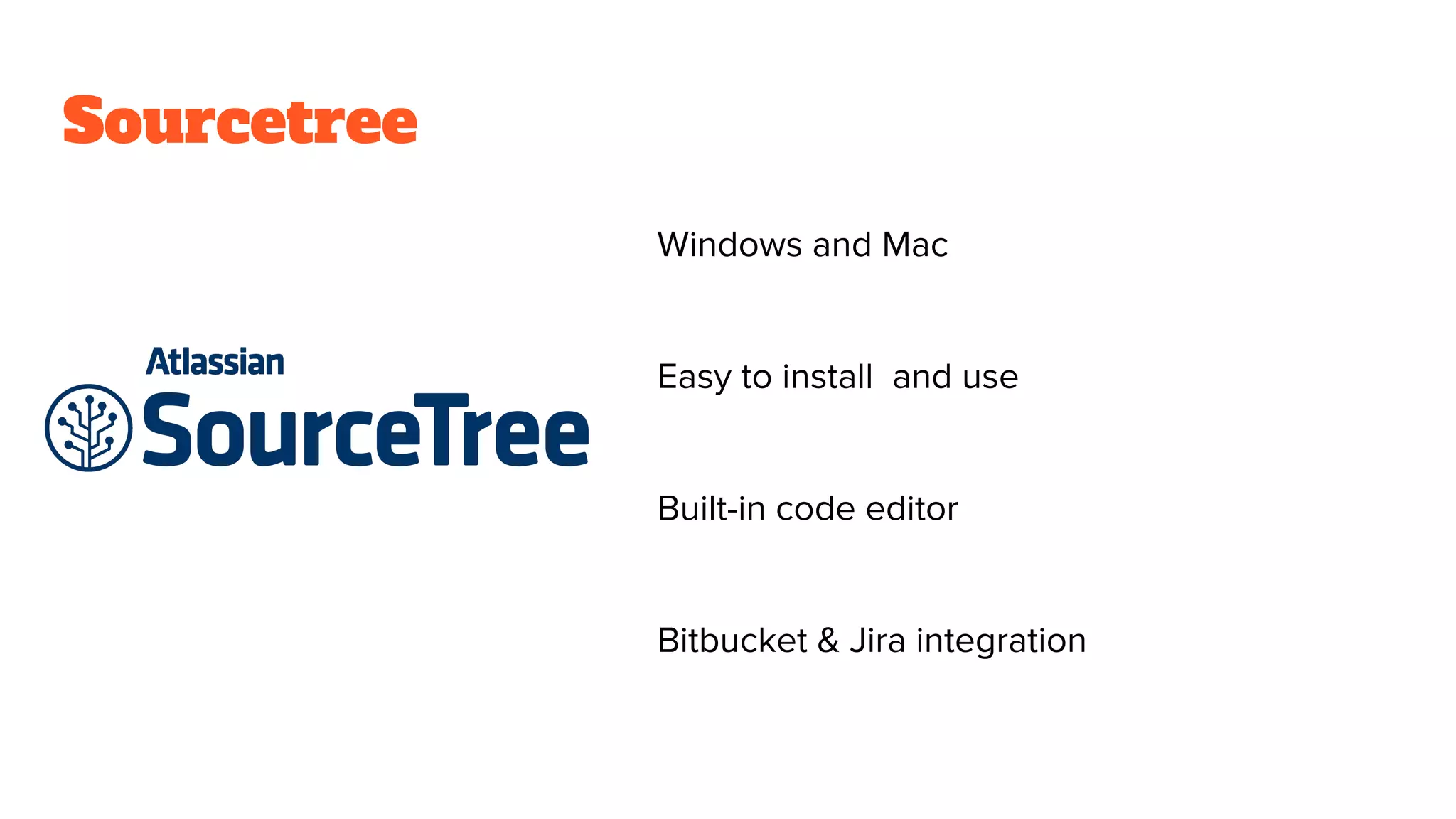

22. Sourcetree
Windows and Mac
Easy to install and use
Built-in code editor
Bitbucket & Jira integration

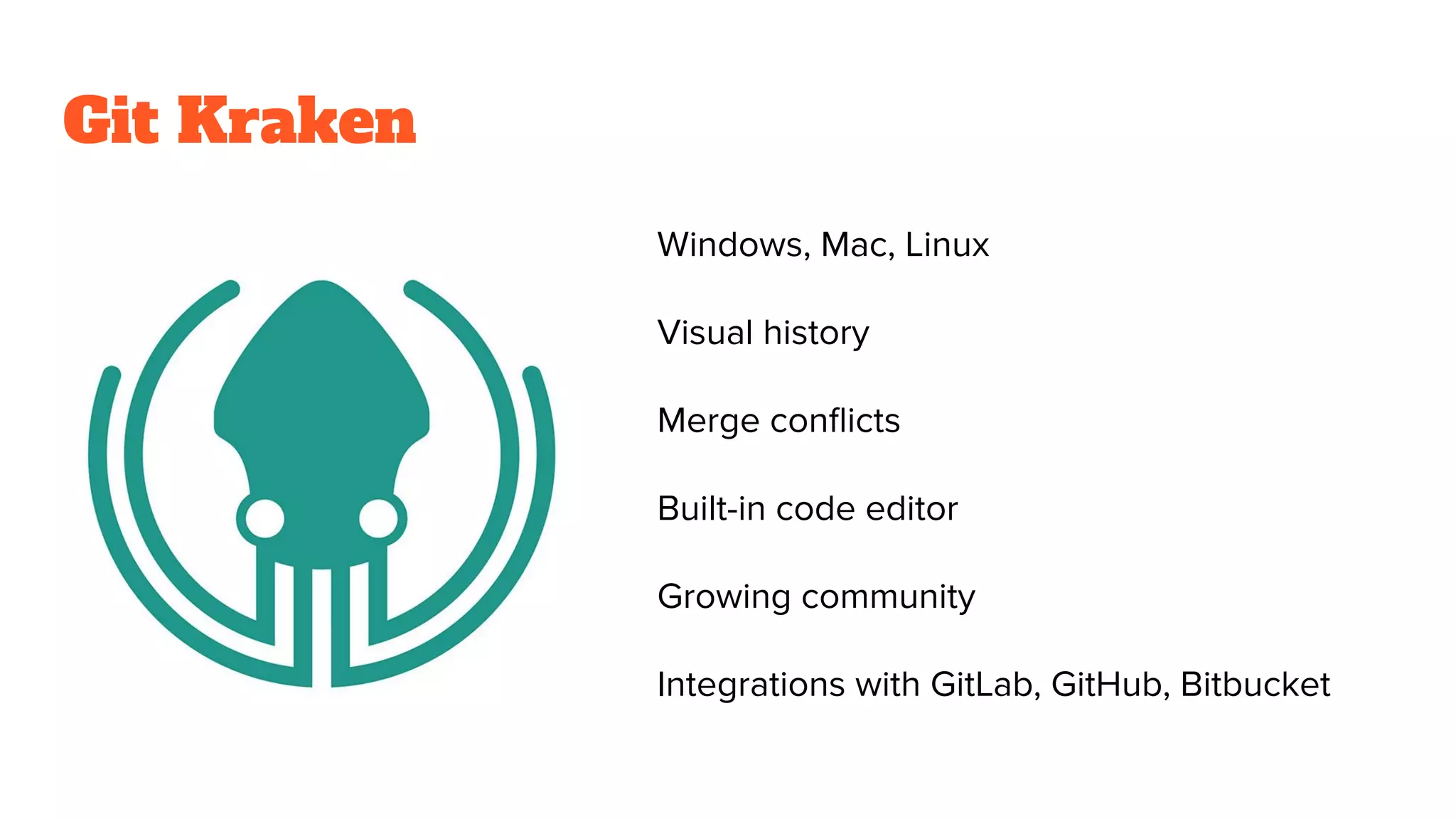

23. Git Kraken
Windows, Mac, Linux
Visual history
Merge conflicts
Built-in code editor
Growing community
Integrations with GitLab, GitHub, Bitbucket

24. Others

25. GIT
workflows

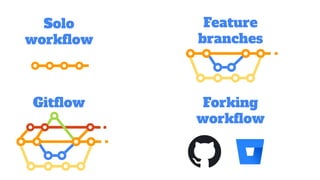

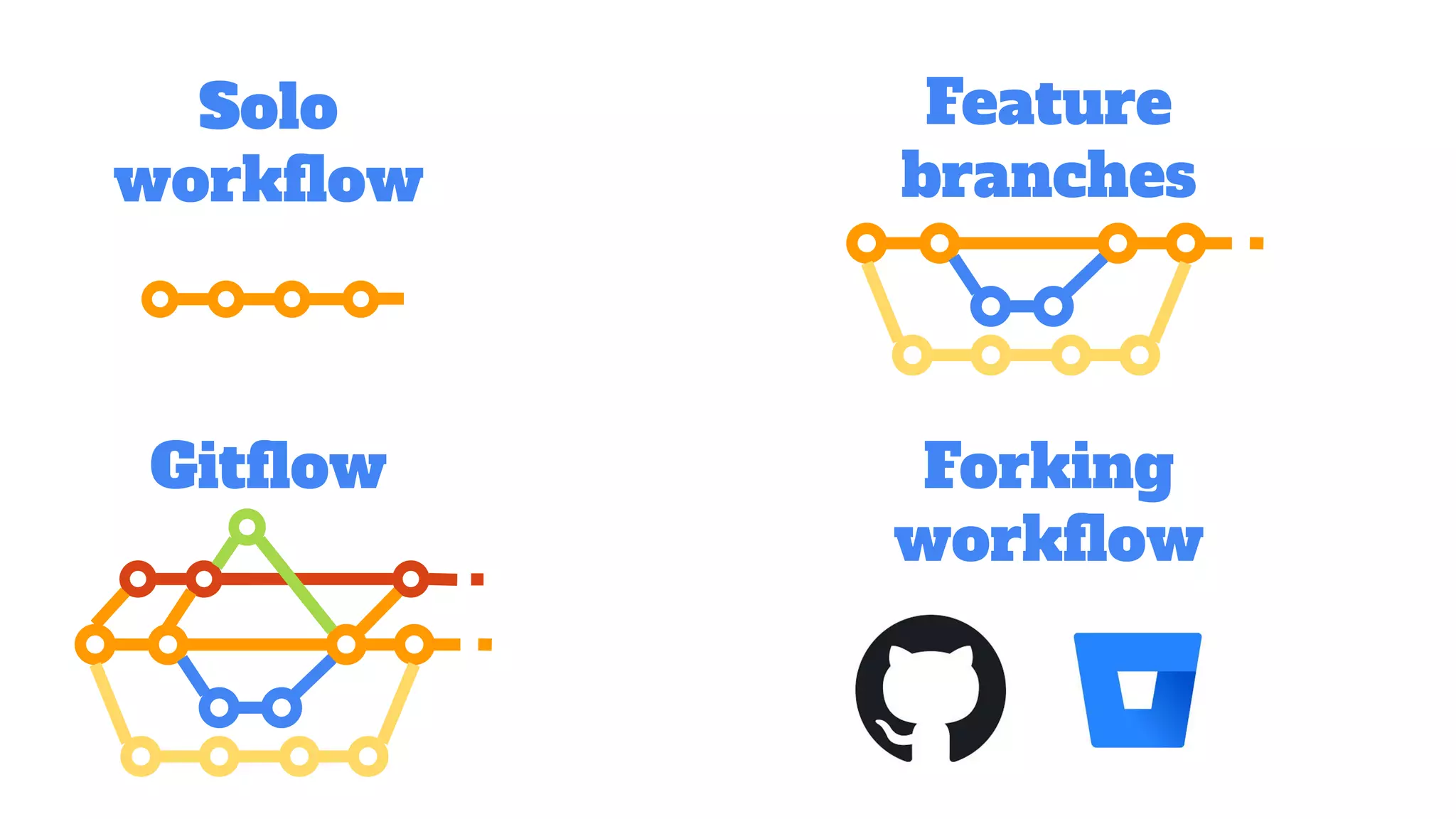

26. Feature
branches
Solo
workflow
Gitflow Forking
workflow

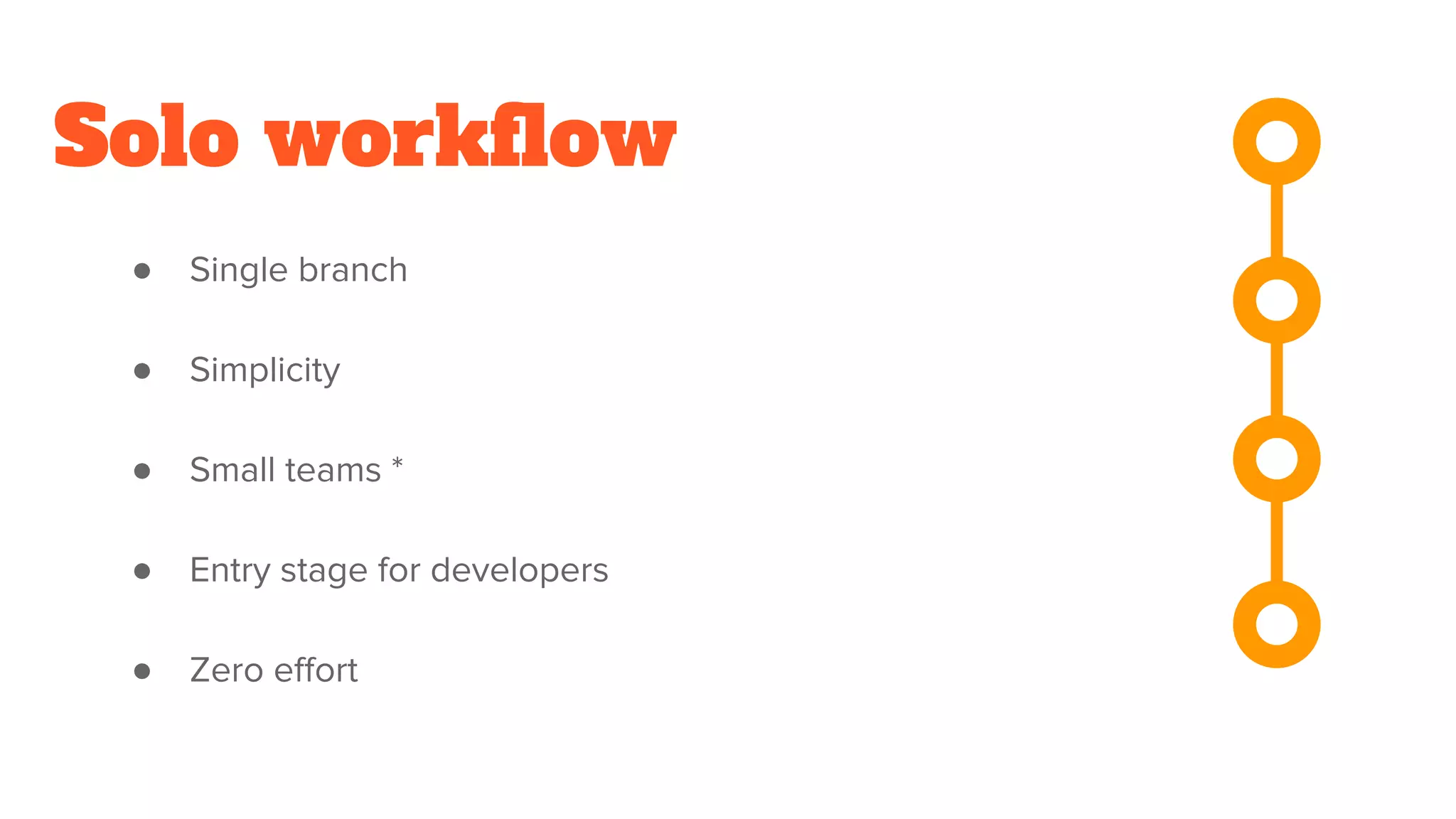

27. Solo workflow
● Single branch
● Simplicity
● Small teams *
● Entry stage for developers
● Zero effort

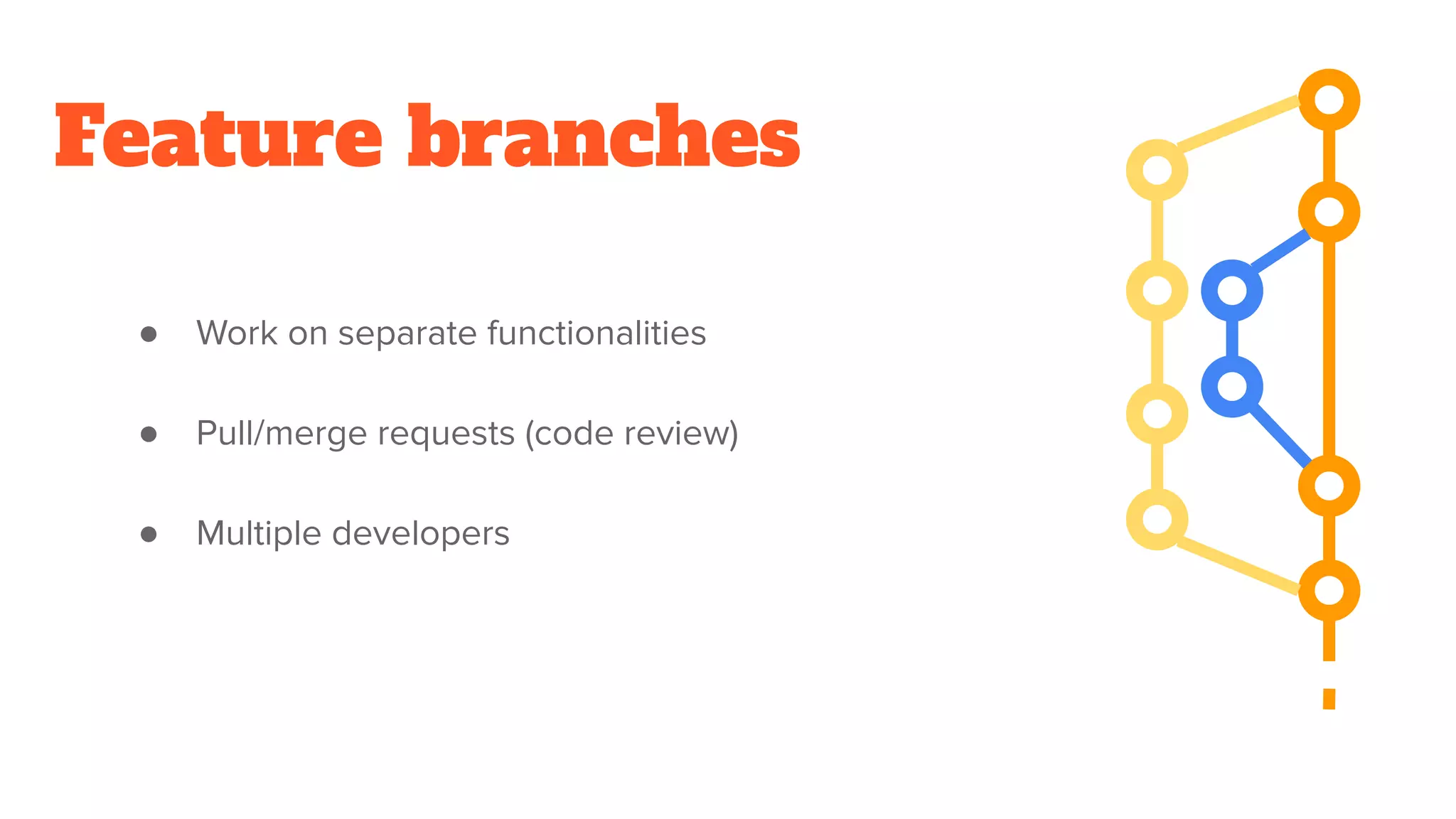

28. Feature branches
● Work on separate functionalities
● Pull/merge requests (code review)
● Multiple developers

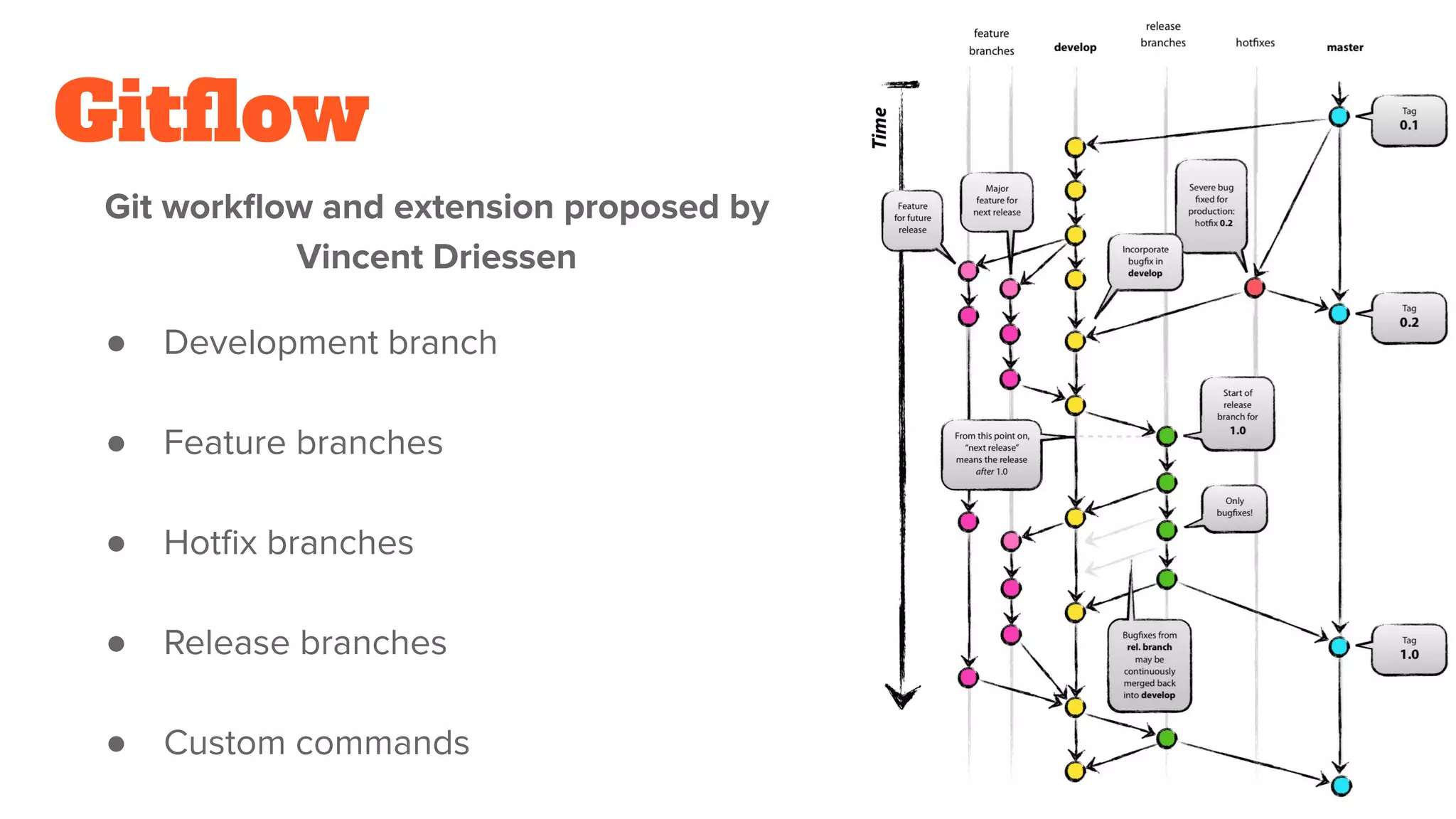

29. Gitflow
Git workflow and extension proposed by
Vincent Driessen
● Development branch
● Feature branches
● Hotfix branches
● Release branches
● Custom commands

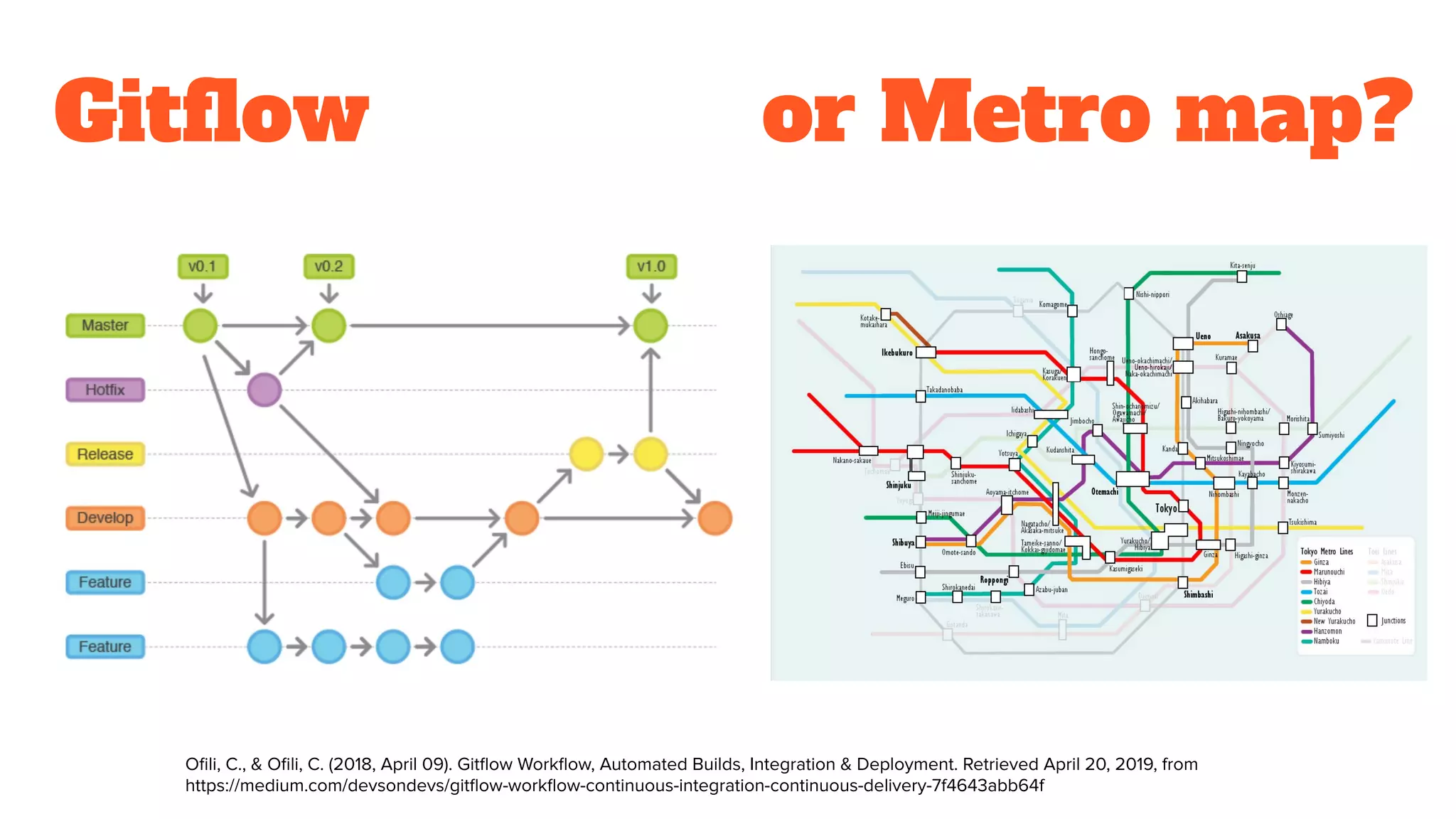

30. Gitflow
Ofili, C., & Ofili, C. (2018, April 09). Gitflow Workflow, Automated Builds, Integration & Deployment. Retrieved April 20, 2019, from
https://medium.com/devsondevs/gitflow-workflow-continuous-integration-continuous-delivery-7f4643abb64f
or Metro map?

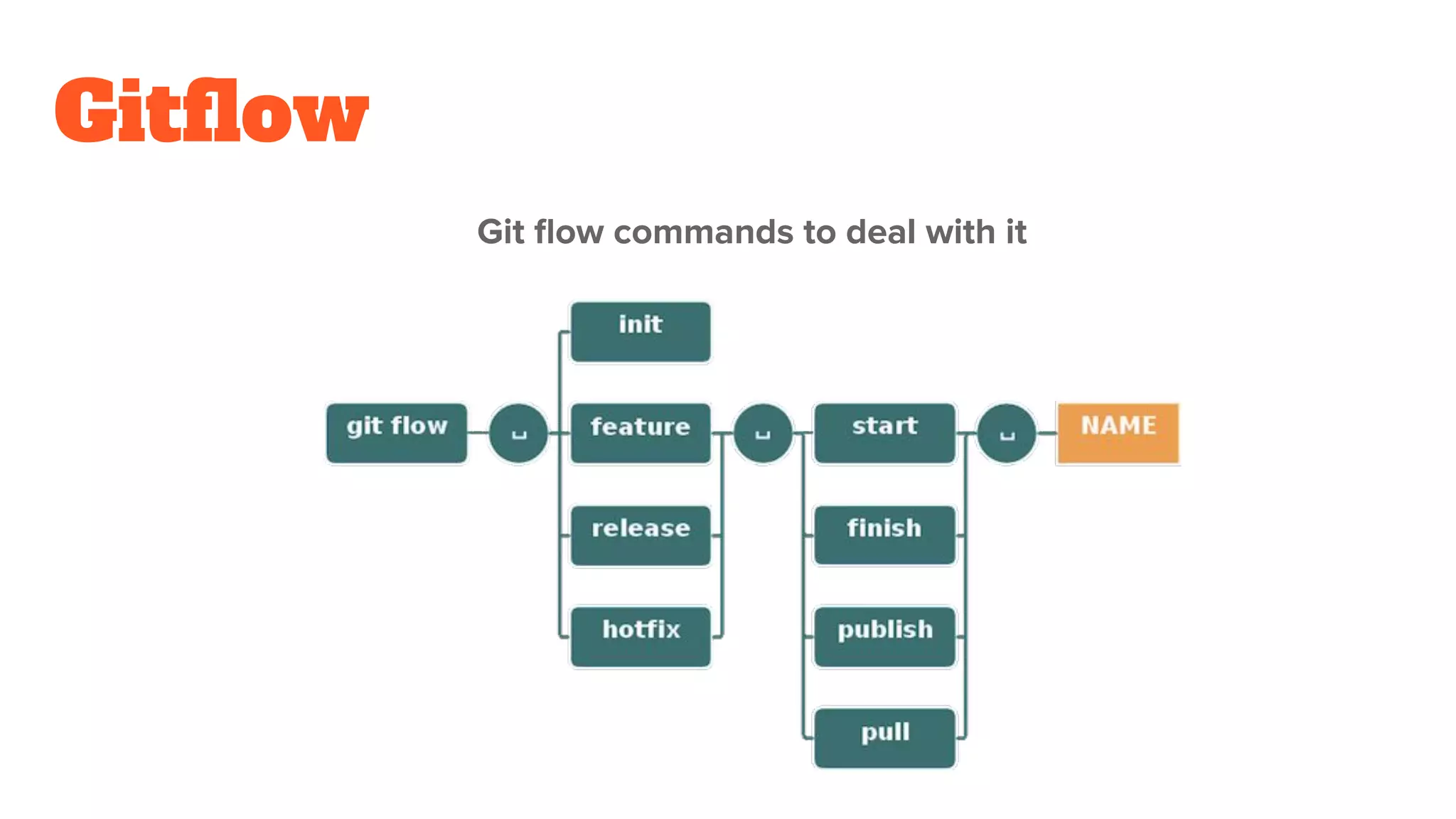

31. Gitflow
Git flow commands to deal with it

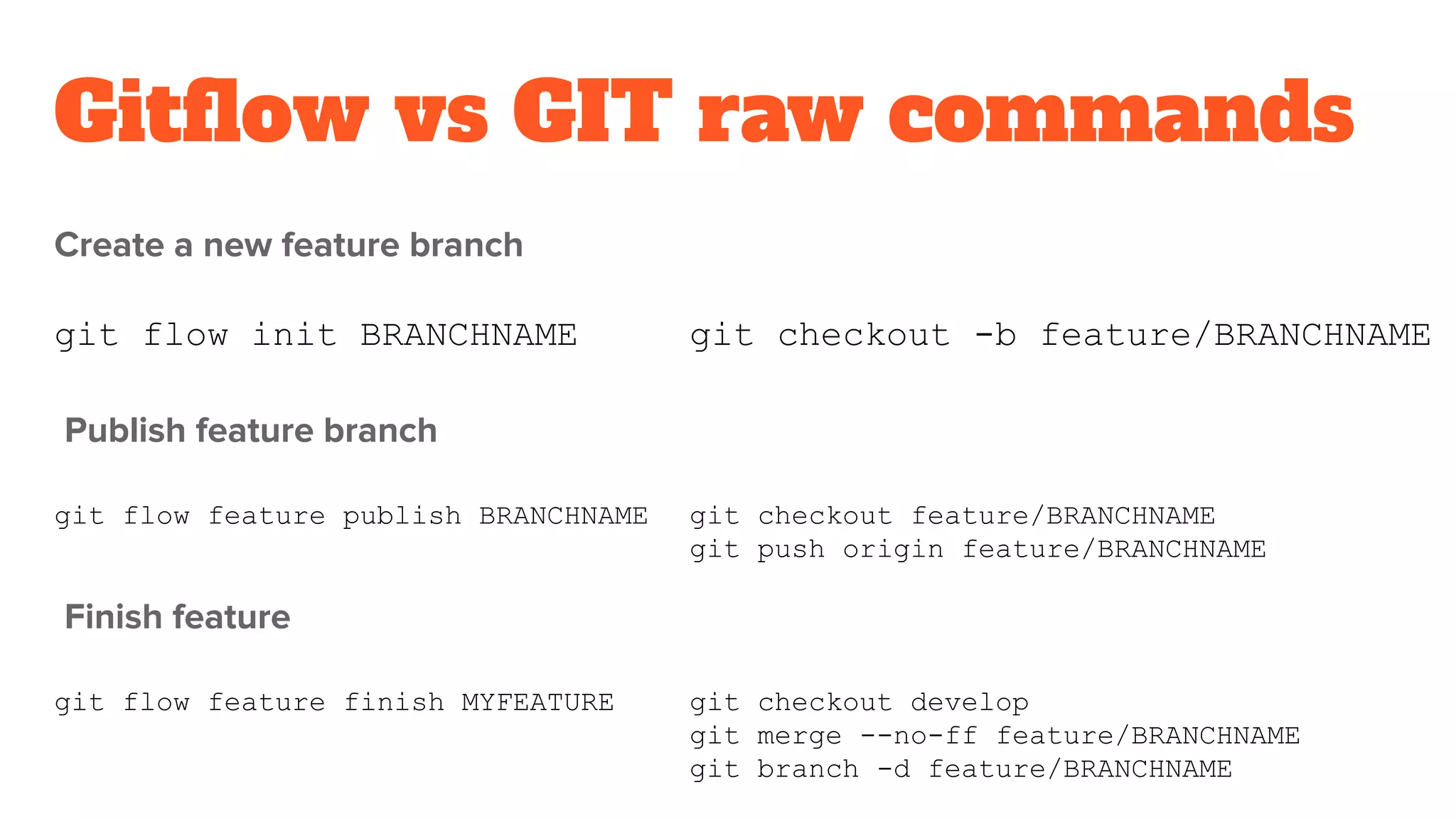

32. Gitflow vs GIT raw commands
Create a new feature branch
git flow init BRANCHNAME git checkout -b feature/BRANCHNAME
Publish feature branch
git flow feature publish BRANCHNAME git checkout feature/BRANCHNAME
git push origin feature/BRANCHNAME
Finish feature
git flow feature finish MYFEATURE git checkout develop
git merge --no-ff feature/BRANCHNAME
git branch -d feature/BRANCHNAME

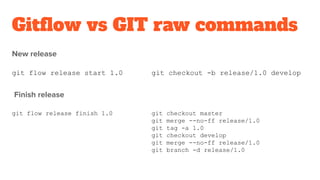

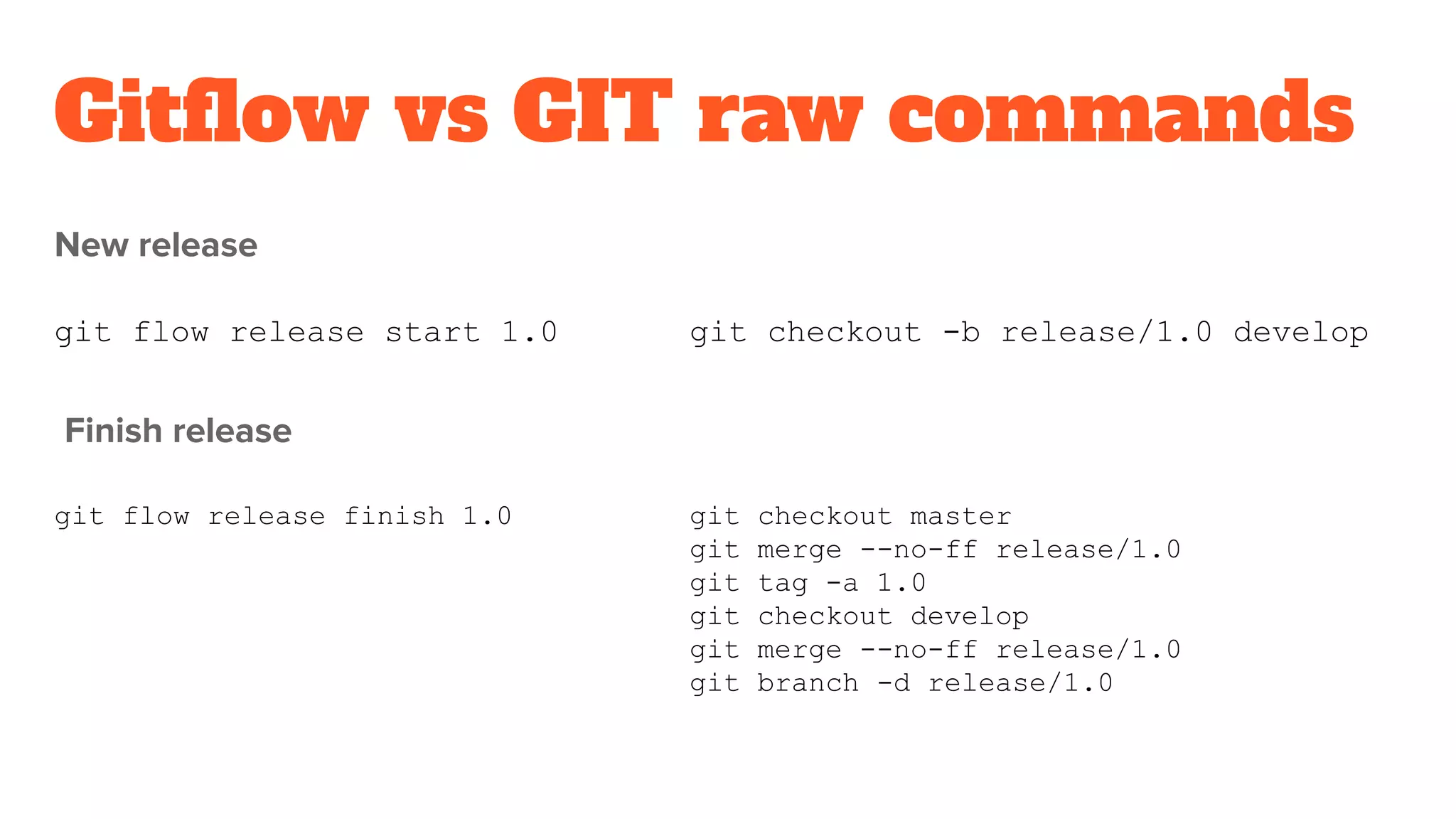

33. Gitflow vs GIT raw commands
New release
git flow release start 1.0 git checkout -b release/1.0 develop
Finish release
git flow release finish 1.0 git checkout master
git merge --no-ff release/1.0
git tag -a 1.0
git checkout develop
git merge --no-ff release/1.0
git branch -d release/1.0

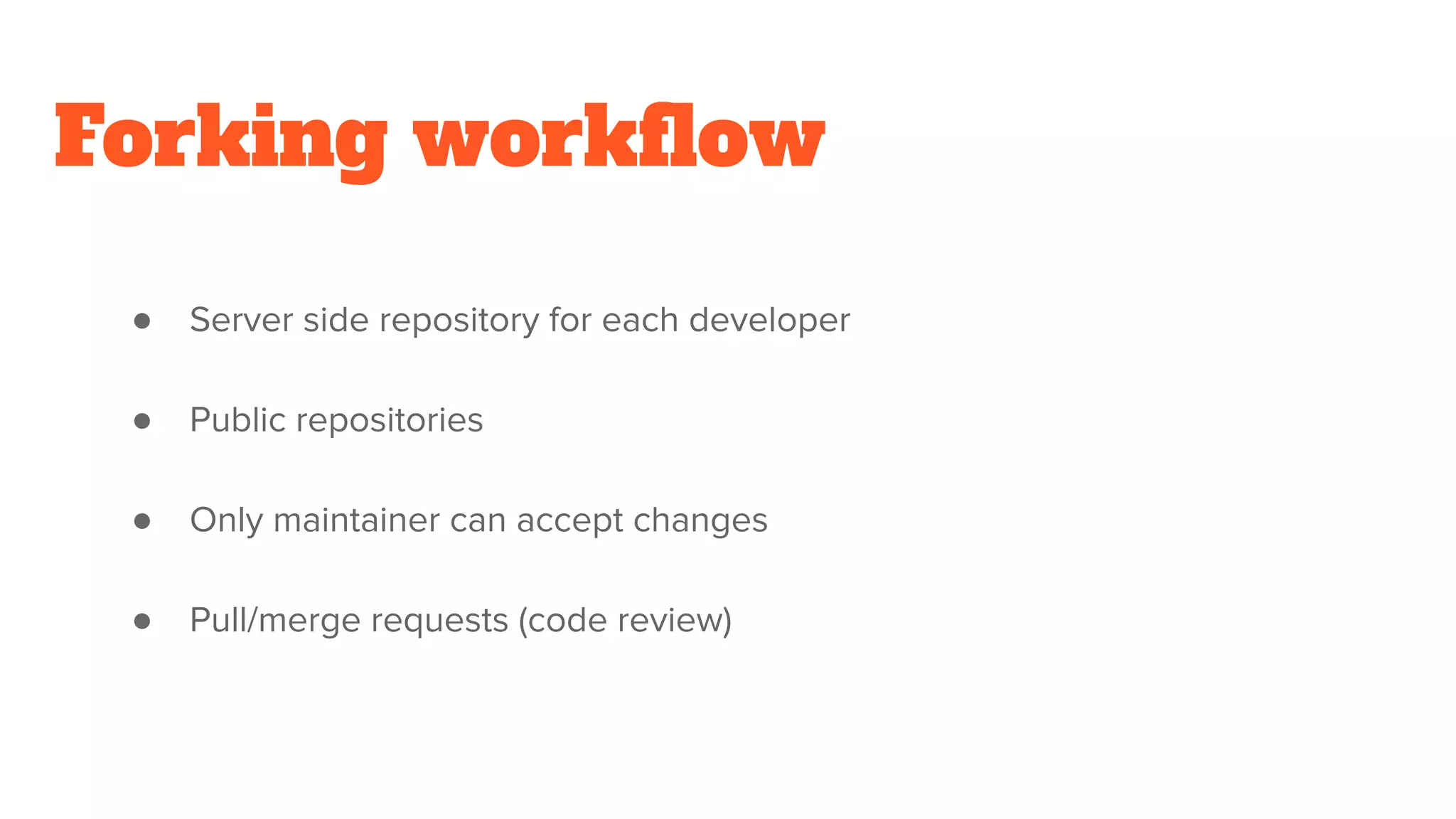

34. Forking workflow
● Server side repository for each developer
● Public repositories
● Only maintainer can accept changes
● Pull/merge requests (code review)

35. YOUR GIT
WORKFLOW
create & adapt
to your needs

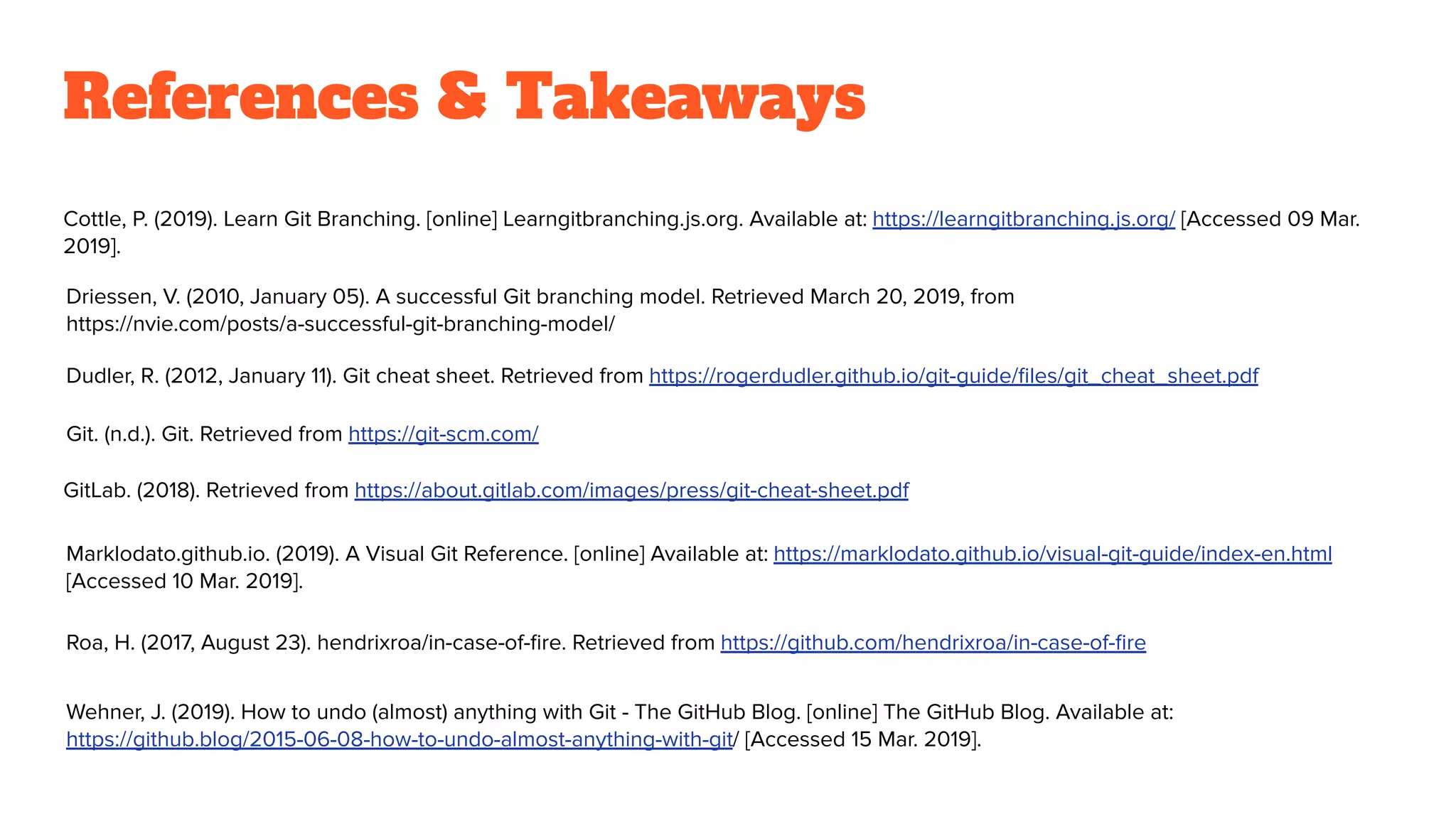

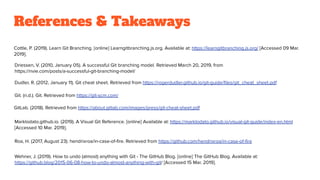

37. GitLab. (2018). Retrieved from https://about.gitlab.com/images/press/git-cheat-sheet.pdf
Git. (n.d.). Git. Retrieved from https://git-scm.com/
References & Takeaways
Dudler, R. (2012, January 11). Git cheat sheet. Retrieved from https://rogerdudler.github.io/git-guide/files/git_cheat_sheet.pdf
Marklodato.github.io. (2019). A Visual Git Reference. [online] Available at: https://marklodato.github.io/visual-git-guide/index-en.html
[Accessed 10 Mar. 2019].
Cottle, P. (2019). Learn Git Branching. [online] Learngitbranching.js.org. Available at: https://learngitbranching.js.org/ [Accessed 09 Mar.
2019].
Roa, H. (2017, August 23). hendrixroa/in-case-of-fire. Retrieved from https://github.com/hendrixroa/in-case-of-fire
Wehner, J. (2019). How to undo (almost) anything with Git - The GitHub Blog. [online] The GitHub Blog. Available at:
https://github.blog/2015-06-08-how-to-undo-almost-anything-with-git/ [Accessed 15 Mar. 2019].
Driessen, V. (2010, January 05). A successful Git branching model. Retrieved March 20, 2019, from
https://nvie.com/posts/a-successful-git-branching-model/
