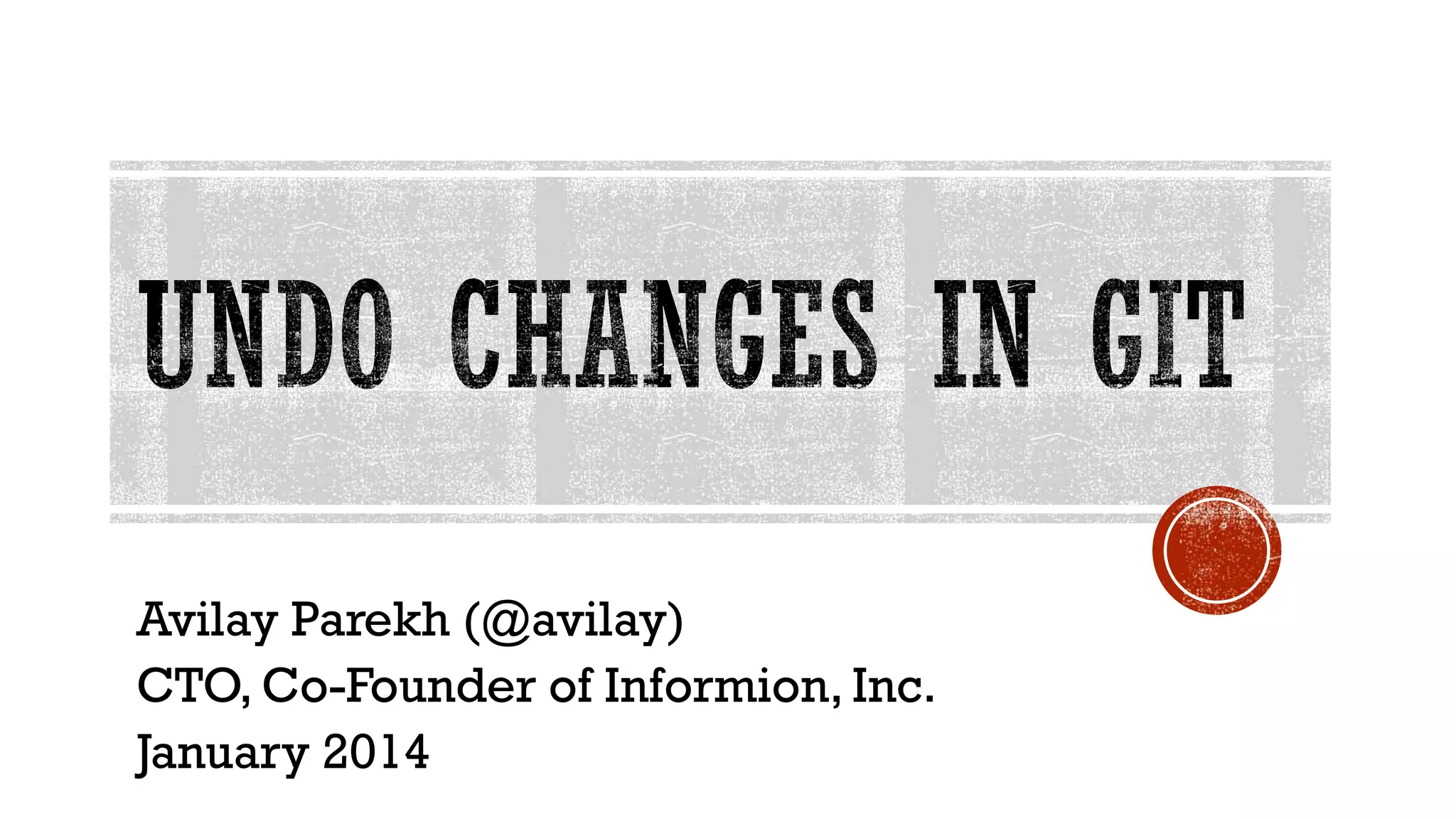

A detailed look at how to undo changes in git using git-checkout, git-reset, git-revert, and git-clean

1. Avilay Parekh (@avilay)
CTO, Co-Founder of Informion, Inc.
January 2014

2. Learn how to use git-checkout, git-reset,
git-revert, and git-clean
Walk through typical undo scenarios using
these commands

3. Kevin Skoglund’s excellent git tutorial on
Lynda.com
Pro Git Book
(http://www.amazon.com/Pro-Experts-Voice-Software-
Development/dp/1430218339/)

4. You know the 3-tree architecture used in git.
You are familiar with the terms repo, staged
index, working directory, and HEAD.
You are familiar with basic git commands like
git add, git status, git log, git commit.

5. git checkout [changeset] -- <file>
git reset [option] [changeset]
git revert <changeset>
git clean [-n] [-f]

6. git checkout [changeset] -- <file>
git reset [option] [changeset]
git revert <changeset>
git clean [-n] [-f]
Can be used in a
number of
different
scenarios
A bit difficult to
understand at a
conceptual level

7. git checkout [changeset] -- <file>
git reset [option] [changeset]
git revert <changeset>
git clean [-n] [-f]
Does a single task
really well
Easy to
conceptually
understand what
is going on

8. A way to undo any uncommitted changes in the
staging index or the working directory
repo is left untouched

9. Undo un-staged changes to a particular file in my
working directory.
1
repo
Staging
index
Working
directory
git checkout --
repo
Staging
index
Working
directory
Initial State Final State

10. Initial State
The repo has 3 commits.
Staging index has some
uncommitted changes.
hello.py in the working
directory has some changes
that have not been staged
yet.
1
a1b2c3 fff999 5d6ef1
HEAD
repo
staging index working
directory
git checkout --
hello.py has
un-added
changes
hello.py has
some
uncommitted
changes

11. Git Checkout --
The two dashes -- are telling git not to
switch branches; something git
checkout command will do otherwise.
We are telling git to undo all current
changes to hello.py and go back to the
version in the staging index.
To undo changes to all files in the
working directory say –
git checkout -- .
1
git checkout -- hello.py
git checkout --

12. Final State
Staging index remains
unchanged.
hello.py in the working
directory is overwritten by
the version in the staging
index.
1
a1b2c3 fff999 5d6ef1
HEAD
repo
staging index working
directory
git checkout --
hello.py is
same as
staging
index
No changes
in the
staging
index

13. With a bunch of files in staged or unstaged
states, undo changes to a particular file and
revert it to a version 2 commits ago.
2
repo
Staging
index
Working
directory
git checkout --
repo
Staging
index
Working
directory
Initial State Final State

14. Initial State
The repo has 3 commits.
There are a bunch of
staged, but uncommitted
files shown in green.
There are a bunch of
unstaged changes to files in
the working directory
shown in red.
2 git checkout --
a1b2c3 fff999 5d6ef1
HEAD
repo
Added (but
uncommitted
changes)
New changes
not added to
stage
staging index working
directory

15. Git Checkout --
Note, the changeset fff999 is
parent of HEAD.
We are telling git to undo all
current changes to a single file
“hello.py” and go back to the
version in the changeset fff999.
Unlike Scenario 1, the staging
index will also change
2 git checkout --
git checkout fff999 -- hello.py

16. Final State
First hello.py in the staging
index is overwritten by the
version in commit fff999.
Then hello.py in the working
directory is overwritten by the
version in the staging index.
All other staged and unstaged
files are left alone.
2 git checkout --
a1b2c3 fff999 5d6ef1
HEAD
repo
staging index working
directory
hello.py is
changed to
the version
2 commits
ago
hello.py is
changed to
the staging
version

17. A way to move the HEAD pointer in the repo.
Staging index and working directory can also be
changed by using the right options

18. Undo the last commit in the repo, but keep all the
uncommitted and unstaged changes intact
3
repo
Staging
index
Working
directory
git reset --soft
repo
Staging
index
Working
directory
Initial State Final State

19. Initial State
The repo has 3 commits.
Staging index has some
uncommitted changes.
hello.py in the working
directory has some
unstaged changes.
3
a1b2c3 fff999 5d6ef1
HEAD
repo
staging index working
directory
git reset --soft
hello.py has
un-added
changes
hello.py has
some
uncommitted
changes

20. git reset --soft
We are telling git to move the HEAD
pointer to the specified commit ID
which is the parent of the current HEAD
The soft switch is telling git not to touch
the working directory or the staging
index
3
git reset --soft ff999
git reset --soft

21. Final State
HEAD pointer moves one
commit up. Any new
commits will be appended
to fff999 effectively losing
5d6ef1.
Staging index and working
directory remain untouched.
3
a1b2c3 fff999
repo
staging index working
directory
git reset --soft
No changes
to the
working
directory
No changes
in the
staging
index
HEAD

22. Undo the last commit in the repo, discard all
staged changes, but keep the working directory
intact
4
repo
Staging
index
Working
directory
git reset --mixed
repo
Staging
index
Working
directory
Initial State Final State

23. Initial State
The repo has 3 commits.
Staging index has some
uncommitted changes.
hello.py in the working
directory has some
unstaged changes.
4
a1b2c3 fff999 5d6ef1
HEAD
repo
staging index working
directory
git reset --mixed
hello.py has
un-added
changes
hello.py has
some
uncommitted
changes

24. git reset --mixed
We are telling git to move the HEAD
pointer to the specified commit ID
which is the parent of the current HEAD
The mixed switch is telling git to make
the staging index look like HEAD after
it has been moved
Mixed is the default switch if none is
provided
4
git reset --mixed ff999
git reset --mixed

25. Final State
HEAD pointer moves one
commit up. Any new
commits will be appended
to fff999 effectively losing
5d6ef1.
Staging index looks like
fff999
Working directory is left
unchanged
4
a1b2c3 fff999
repo
staging index working
directory
git reset --mixed
No changes
to the
working
directory
HEAD

26. Undo the last commit in the repo, discard all
staged and unstaged changes
5
repo
Staging
index
Working
directory
git reset --hard
repo
Staging
index
Working
directory
Initial State Final State

27. Initial State
The repo has 3 commits.
Staging index has some
uncommitted changes.
Working directory has
some unstaged changes.
5
a1b2c3 fff999 5d6ef1
HEAD
repo
staging index working
directory
git reset --hard
hello.py has
un-added
changes
hello.py has
some
uncommitted
changes

28. git reset --hard
We are telling git to move the HEAD
pointer to the specified commit ID
which is the parent of the current HEAD
The hard switch is telling git to make
the staging index look like HEAD after
it has been moved, and make the
working directory look like staging
after it has been changed
Effectively losing all work after fff999!
5
git reset --hard ff999
git reset --hard

29. Final State
HEAD pointer moves one
commit up. Any new
commits will be appended
to fff999 effectively losing
5d6ef1.
All changes to the staging
index and the working
directory after fff999 are
lost.
5
a1b2c3 fff999
repo
staging index working
directory
git reset --hard
HEAD

30. How can you undo all uncommitted changes (i.e.,
staged and unstaged changes) and go back to what
was last committed?
 git checkout HEAD -- .
 git reset --hard HEAD

31. How can you undo all uncommitted changes (i.e.,
staged and unstaged changes) and go back to what
was last committed?
 git checkout HEAD -- .
 git reset --hard HEAD

32. A way to discard changes made in a specific
commit
Always affects all 3 trees
Working directory has to be clean before a revert

33. Undo the last commit
6
repo
Staging
index
Working
directory
git revert
repo
Staging
index
Working
directory
Initial State Final State

34. Initial State
The repo has 3 commits.
Working directory is clean.
6
a1b2c3 fff999 5d6ef1
HEAD
repo
staging index working
directory
git revert

35. git revert
We are telling git to discard changes in
the specified commit, in this case
HEAD, which is the last commit
6
git revert HEAD
git reset --hard

36. Final State
What really happens is that
a new commit is made which
has the inverse of all
changes that were in 5d6ef1,
effectively making the
project look like fff999
In theory, reverting 333aaa
will “redo” the previous
“undo”
6
staging index working
directory
git reset --hard
a1b2c3 fff999 5d6ef1
HEADrepo
333aaa

37. The “only” way to discard untracked changes, i.e,
new files that have not been added yet
These files can always just be rm’ed
