1. S+SSPR Workshop 2024
Improving object
detection on low-quality
images
yohanes.nuwara@gsom.polimi.it
https://www.linkedin.com/in/
yohanesnuwara/
YOHANES NUWARA
(Politecnico di Milano, GSOM)
HUY-QUOC TRINH
(Spex GmbH)

2. WHO AM I
07.2024 – Present Prores AS (Norway)
10.2023 – 06.2024 Politecnico di Milano (Italy)
06.2024 – Present Chief AI @ Agrari (Indonesia)
02.2022 – 10.2023 Asia Pulp and Paper (Indonesia)
Computer vision researches and projects
2024: Automated rock property prediction from drilling
core photos (Prores)
2024: Improving object detection in agriculture (S+SSPR,
Venice)
2023: CitricNet, object detection for oranges
2022: DDP and AMP for improving satellite image
classification (ICMV, Rome)

3. LECTURE OUTLINES
S+SSPR 2024
Impact on object detection
Image quality issue
Does augmentation help?
Proposed method
Conclusion

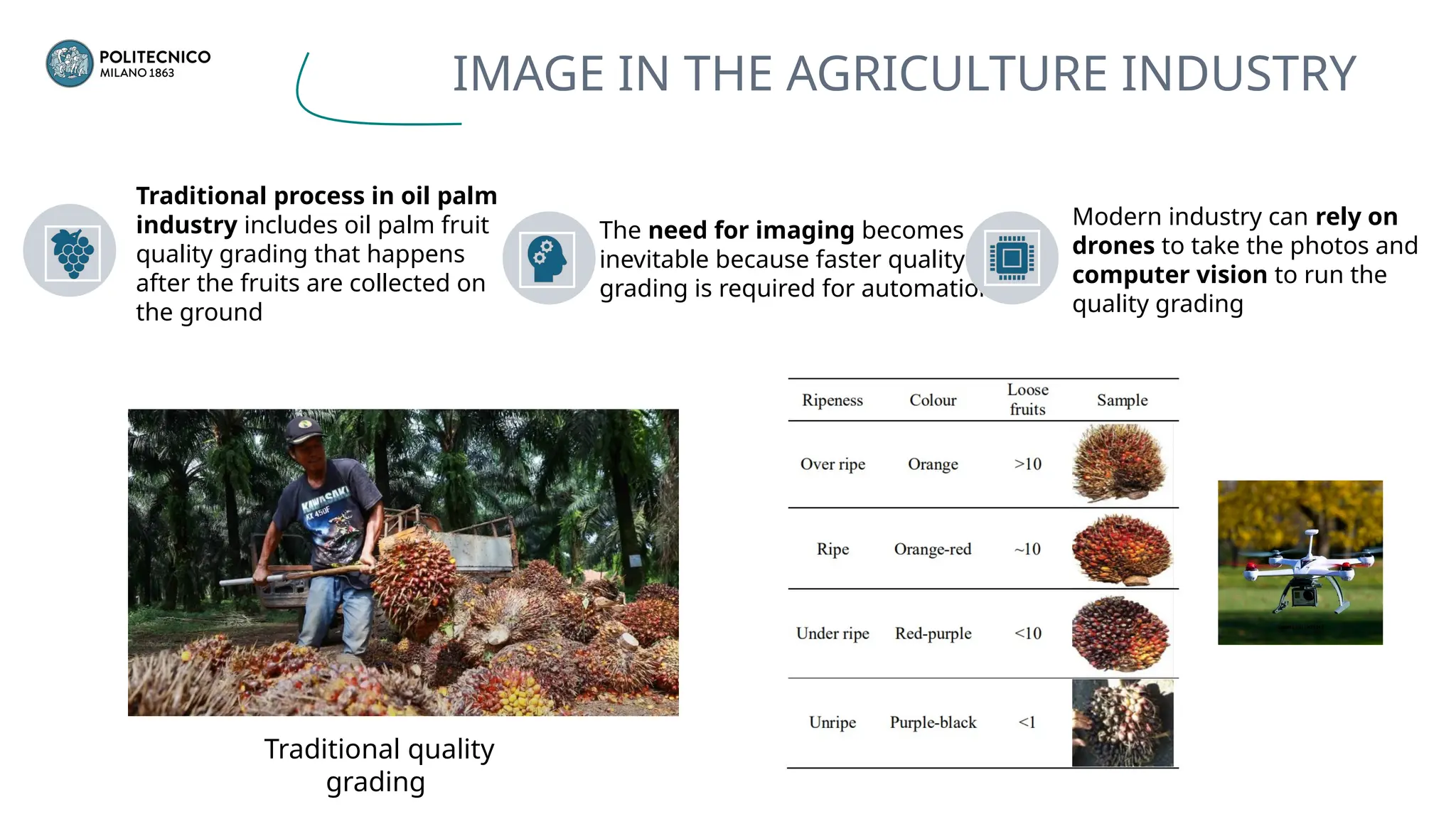

4. IMAGE IN THE AGRICULTURE INDUSTRY
Traditional quality
grading
Traditional process in oil palm
industry includes oil palm fruit
quality grading that happens
after the fruits are collected on
the ground
The need for imaging becomes
inevitable because faster quality
grading is required for automation
Modern industry can rely on
drones to take the photos and
computer vision to run the
quality grading

5. ISSUES REDUCING IMAGE QUALITY
• Timing not appropriate (taken in the
midday, strong sunlight)
• Nearby trees blocking the light creating
shadows
• Sudden camera movement can make the
image blurred
• Quality issue of image impacts the appearance of oil palm fruits
• It can change the natural colour of oil palm fruits, e.g. ripe against unripe fruits
• Colour shift and brightness change are common issues

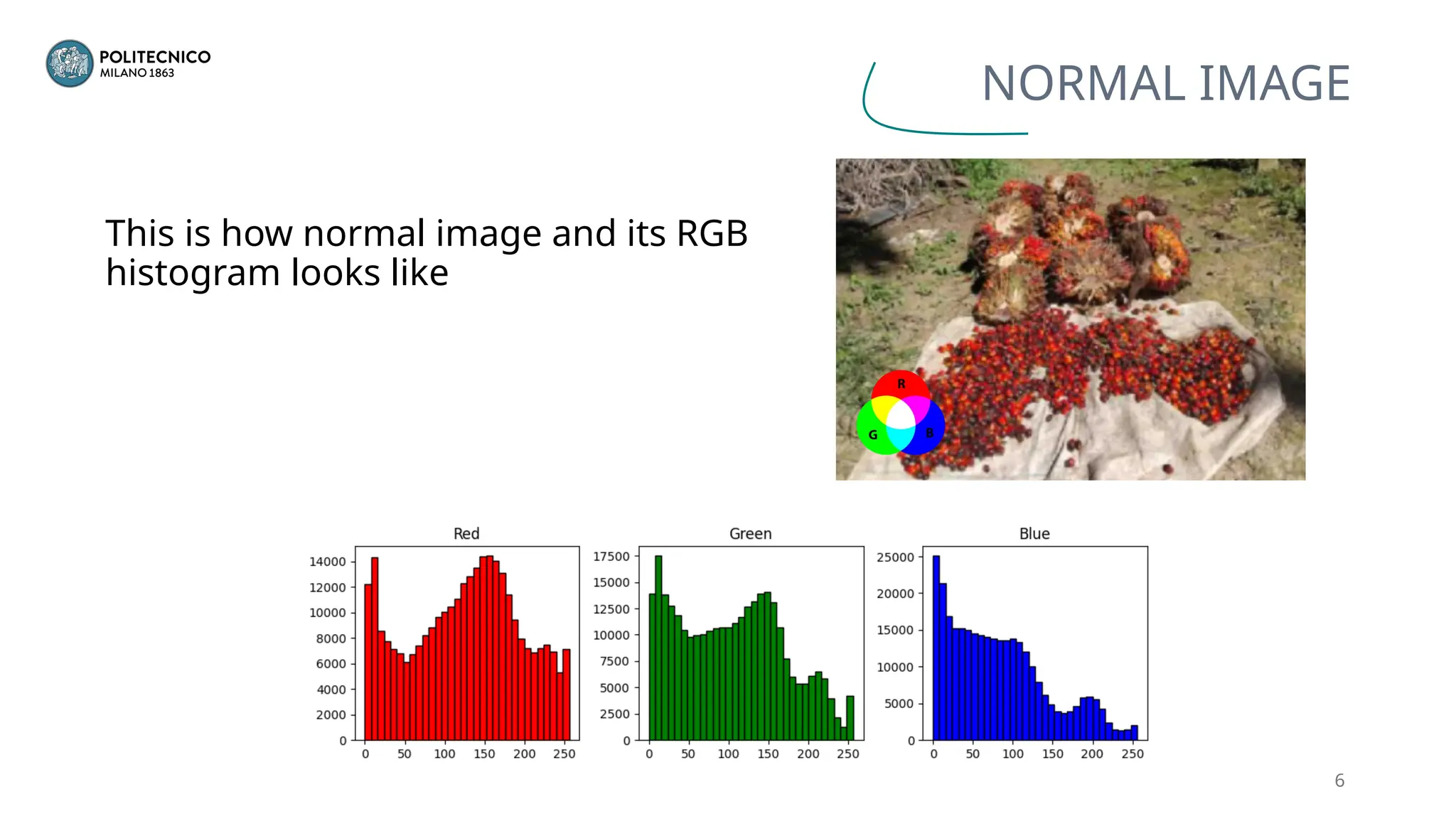

6. This is how normal image and its RGB
histogram looks like
6
NORMAL IMAGE

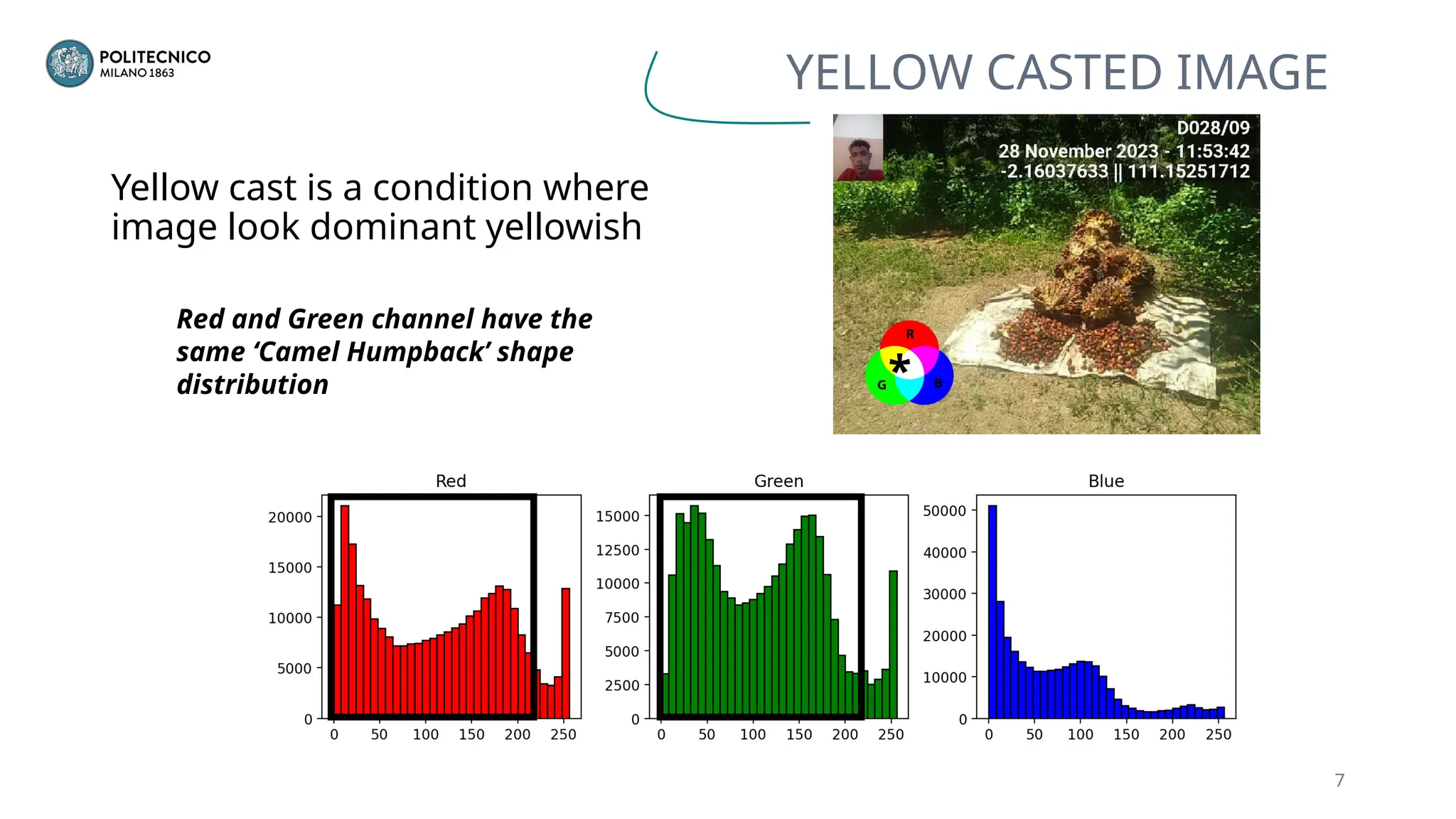

7. Yellow cast is a condition where
image look dominant yellowish
7
Red and Green channel have the
same ‘Camel Humpback’ shape
distribution *
YELLOW CASTED IMAGE

8. Overexposure is a condition where
image looks very bright because of
excessive lighting e.g. from the sun
8
All RGB channels have peak in the
high pixel intensity (200-256) *
OVEREXPOSED IMAGE

9. Shadowed is a condition where
image looks shadowed because of
object nearby blocking the light
9
All RGB channels have peak in the
low pixel intensity (10-50)
SHADOWED IMAGE

10. Object Detection

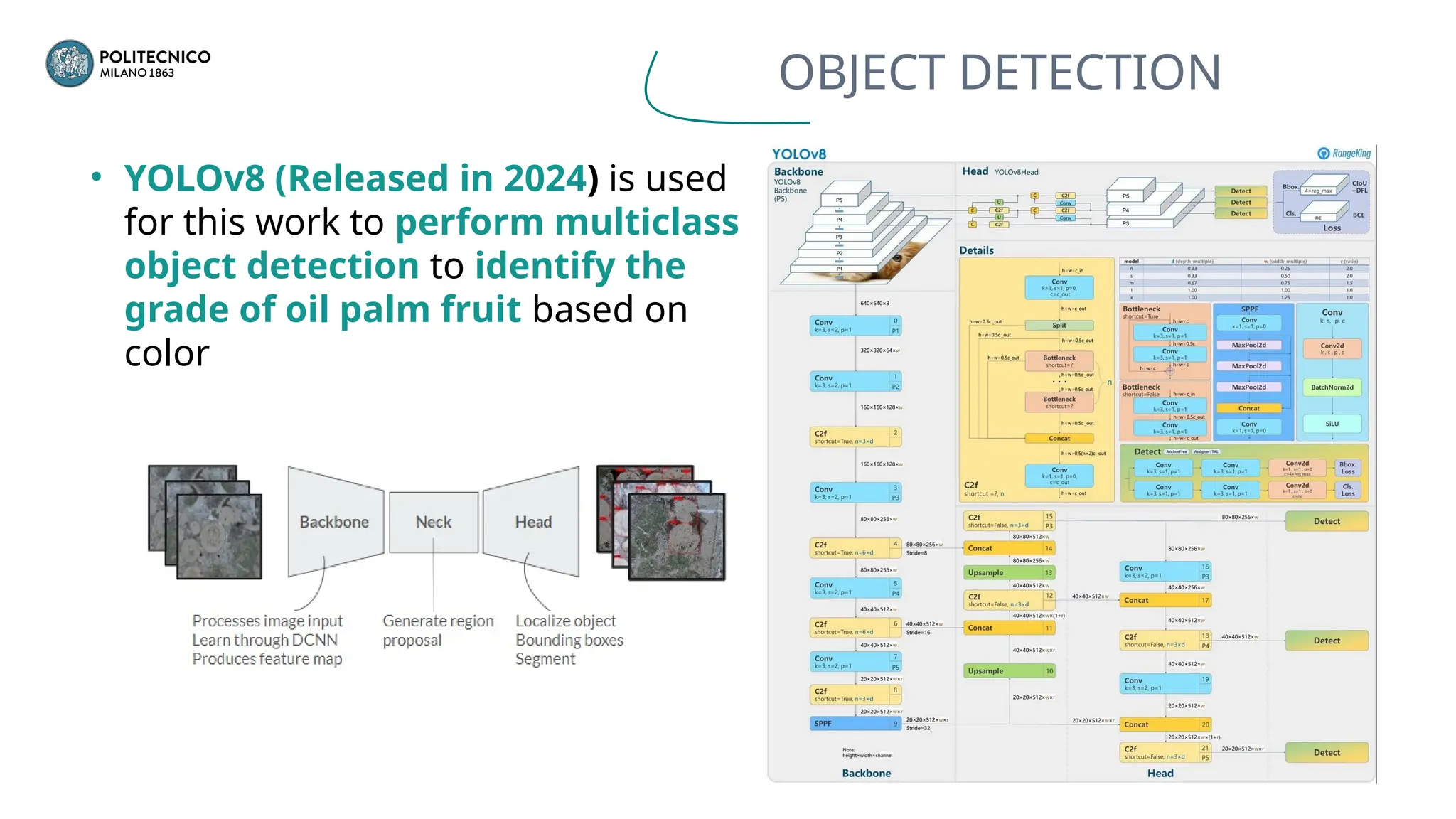

11. OBJECT DETECTION
• YOLOv8 (Released in 2024) is used
for this work to perform multiclass
object detection to identify the
grade of oil palm fruit based on
color

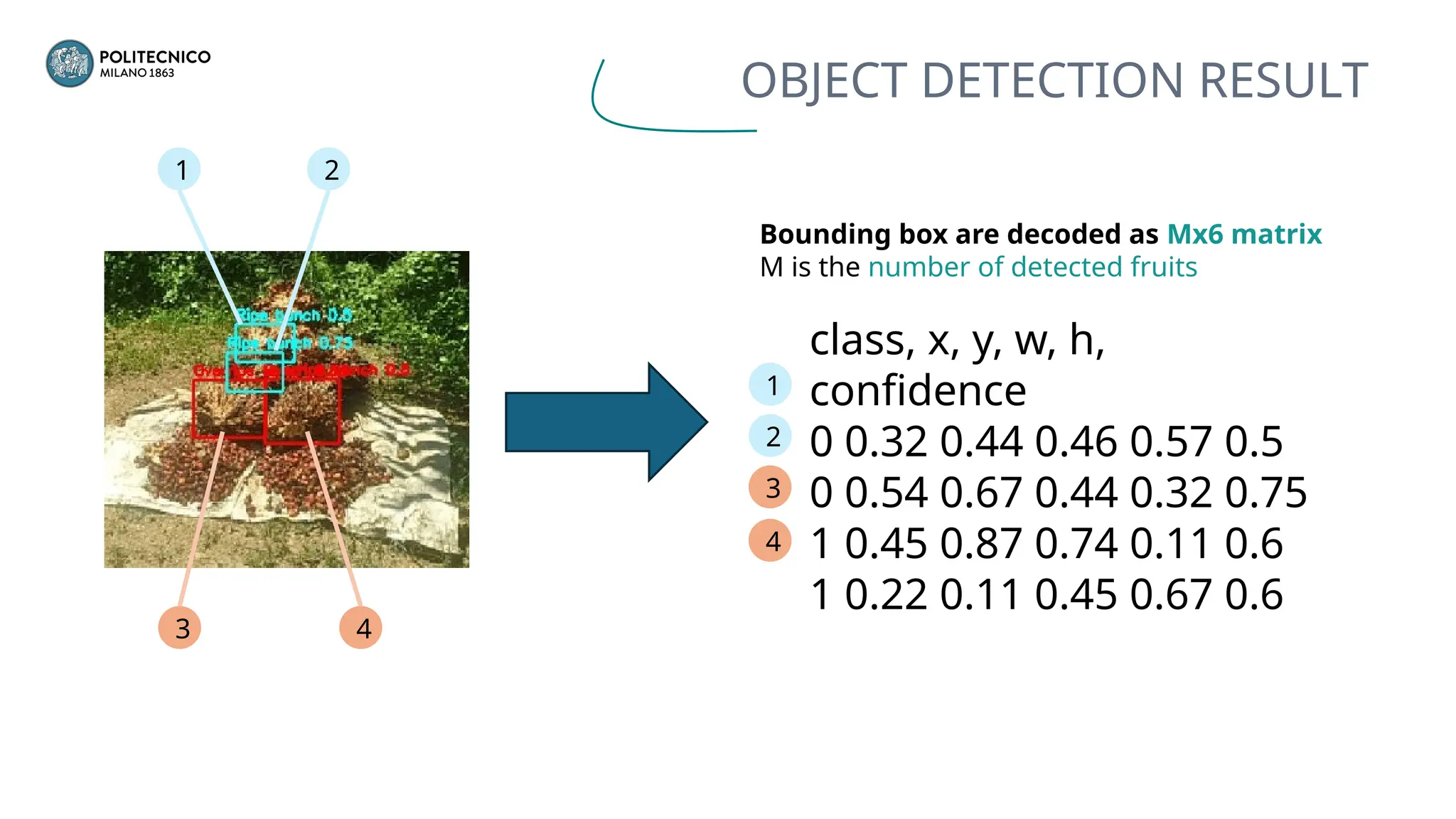

12. Bounding box are decoded as Mx6 matrix
M is the number of detected fruits
1 2
3 4
class, x, y, w, h,
confidence
0 0.32 0.44 0.46 0.57 0.5
0 0.54 0.67 0.44 0.32 0.75
1 0.45 0.87 0.74 0.11 0.6
1 0.22 0.11 0.45 0.67 0.6
1
2
3
4
OBJECT DETECTION RESULT

13. Does augmentation
help?

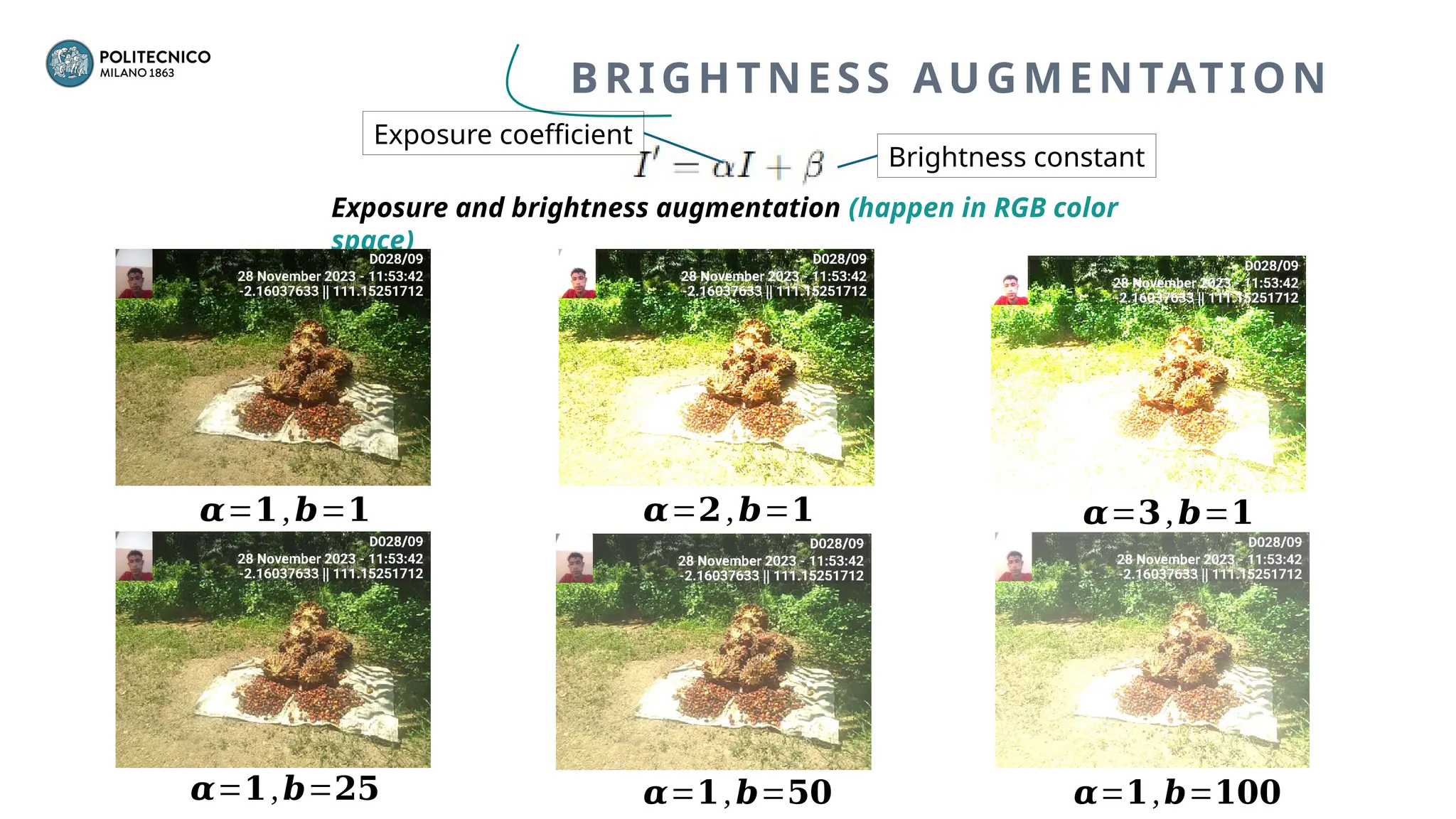

14. Exposure and brightness augmentation (happen in RGB color
space)
𝜶=𝟏,𝒃=𝟏 𝜶=𝟐,𝒃=𝟏 𝜶=𝟑,𝒃=𝟏
𝜶=𝟏,𝒃=𝟐𝟓 𝜶=𝟏,𝒃=𝟓𝟎 𝜶=𝟏,𝒃=𝟏𝟎𝟎
BRIGHTNESS AUGMENTATION
Brightness constant
Exposure coefficient

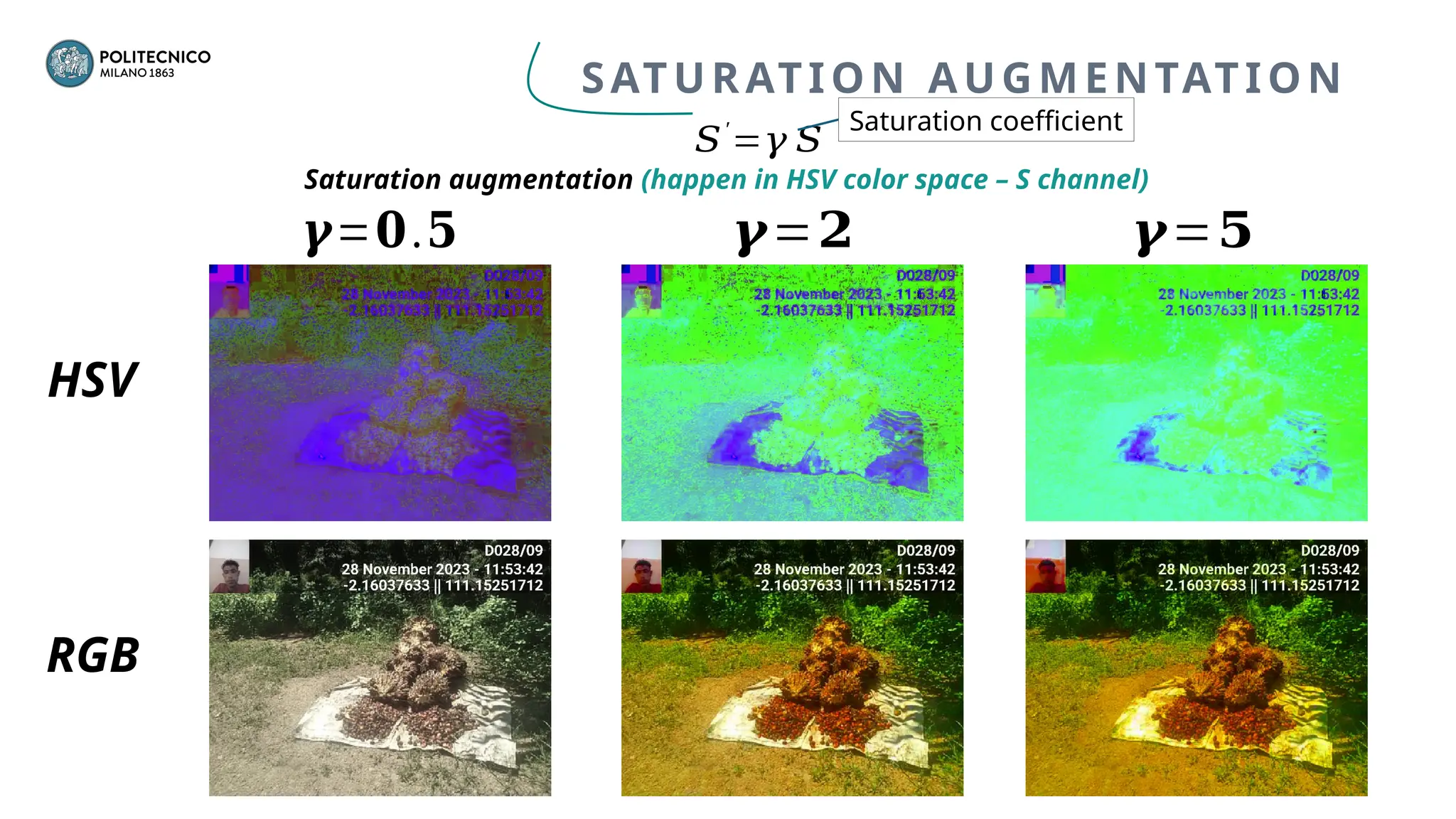

15. HSV
RGB
𝜸=𝟎.𝟓 𝜸=𝟐 𝜸=𝟓
Saturation augmentation (happen in HSV color space – S channel)
𝑆′
=𝛾 𝑆
SATURATION AUGMENTATION
Saturation coefficient

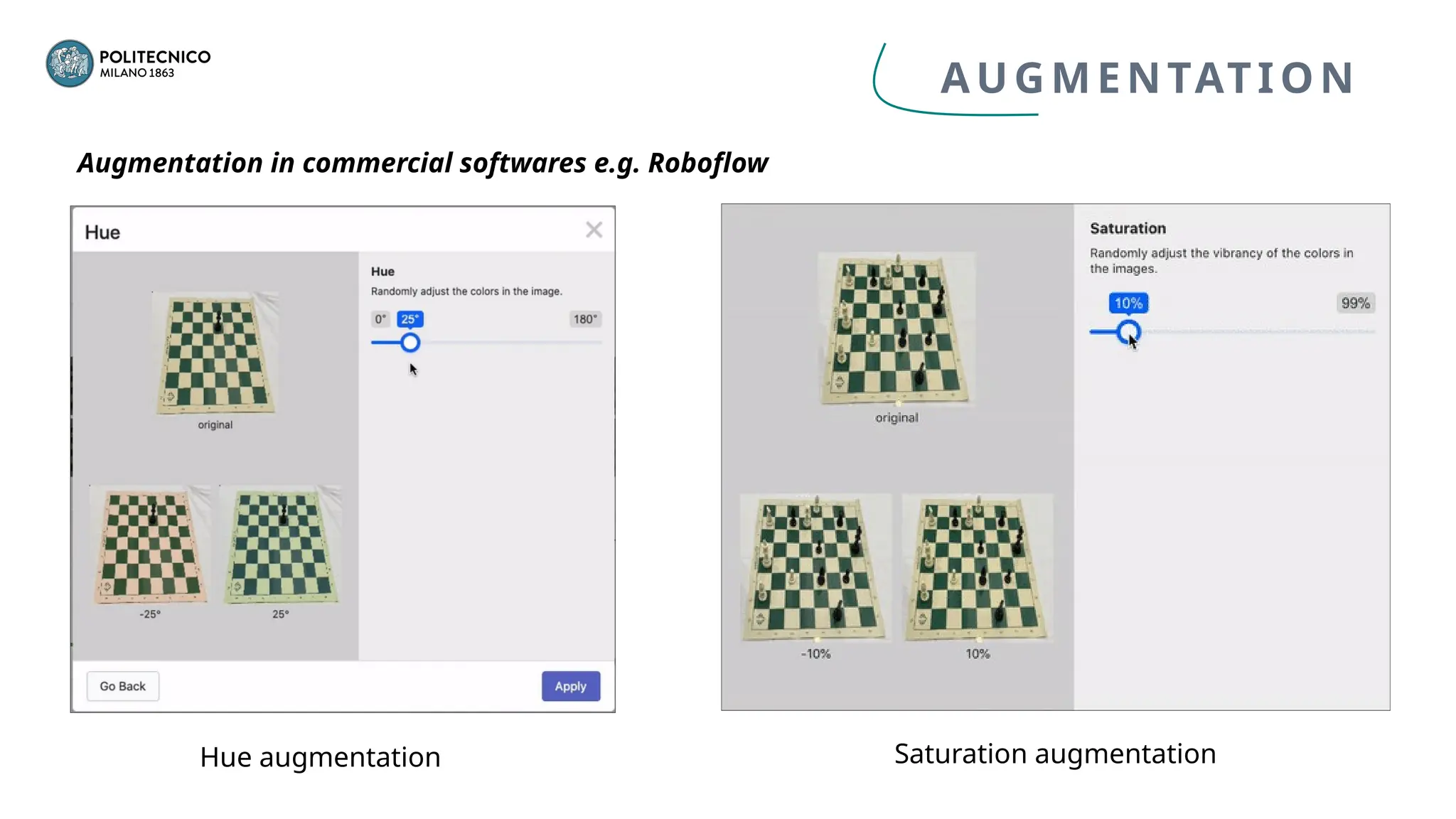

16. Hue augmentation Saturation augmentation
Augmentation in commercial softwares e.g. Roboflow
AUGMENTATION

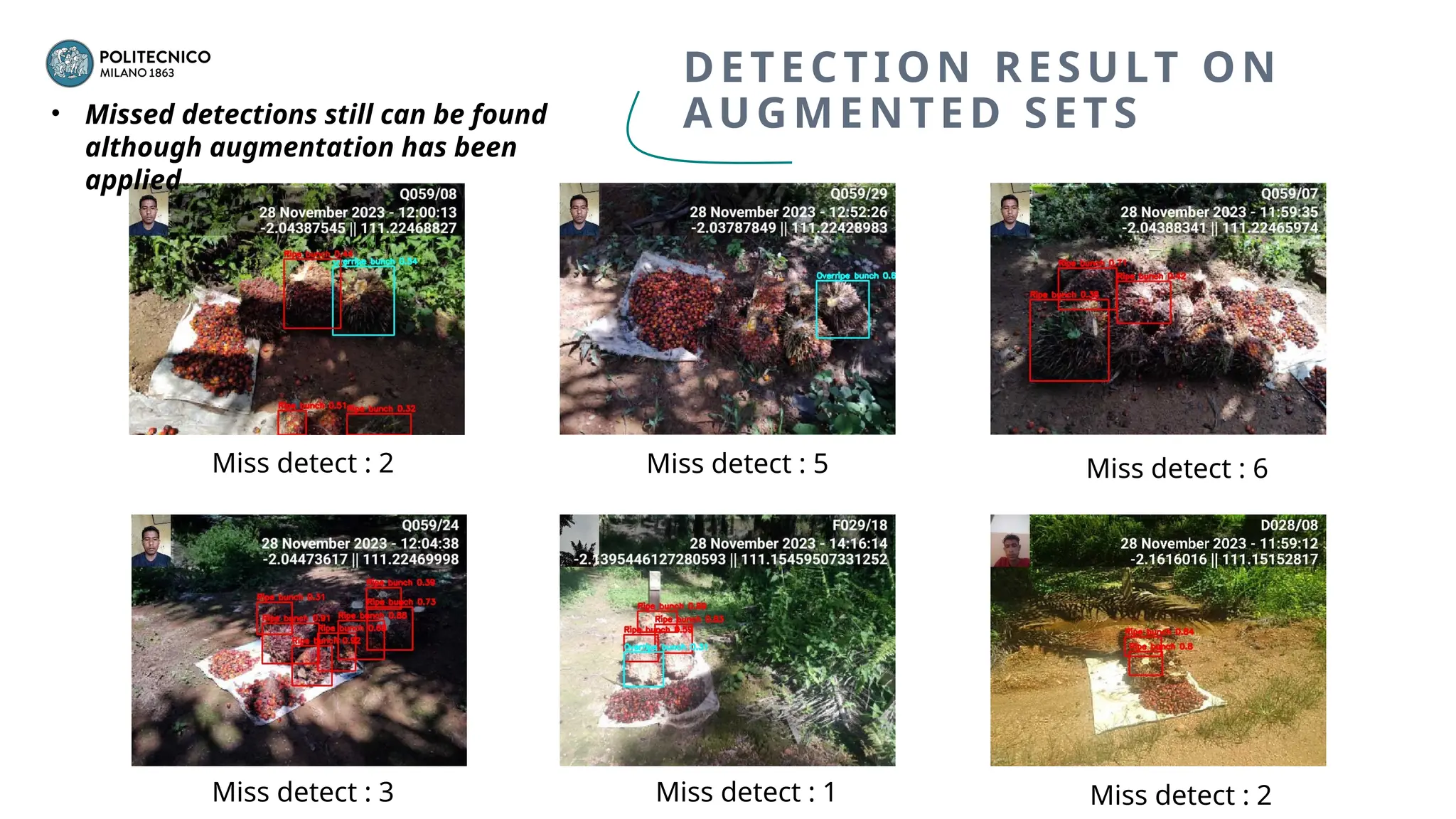

17. DETECTION RESULT ON
AUGMENTED SETS
Miss detect : 2 Miss detect : 5 Miss detect : 6
Miss detect : 3 Miss detect : 1 Miss detect : 2
• Missed detections still can be found
although augmentation has been
applied

18. The proposed method

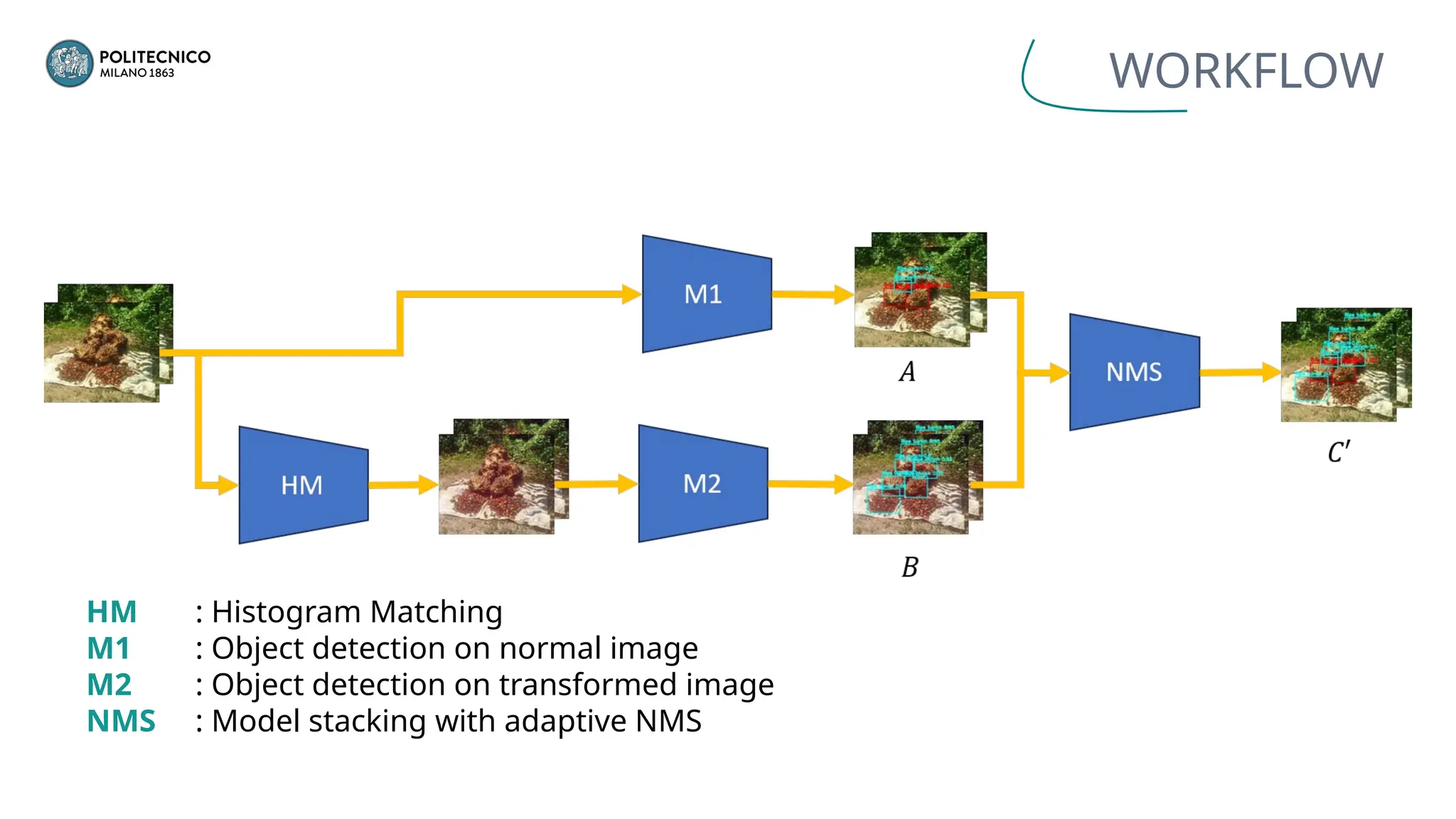

19. WORKFLOW
HM : Histogram Matching
M1 : Object detection on normal image
M2 : Object detection on transformed image
NMS : Model stacking with adaptive NMS

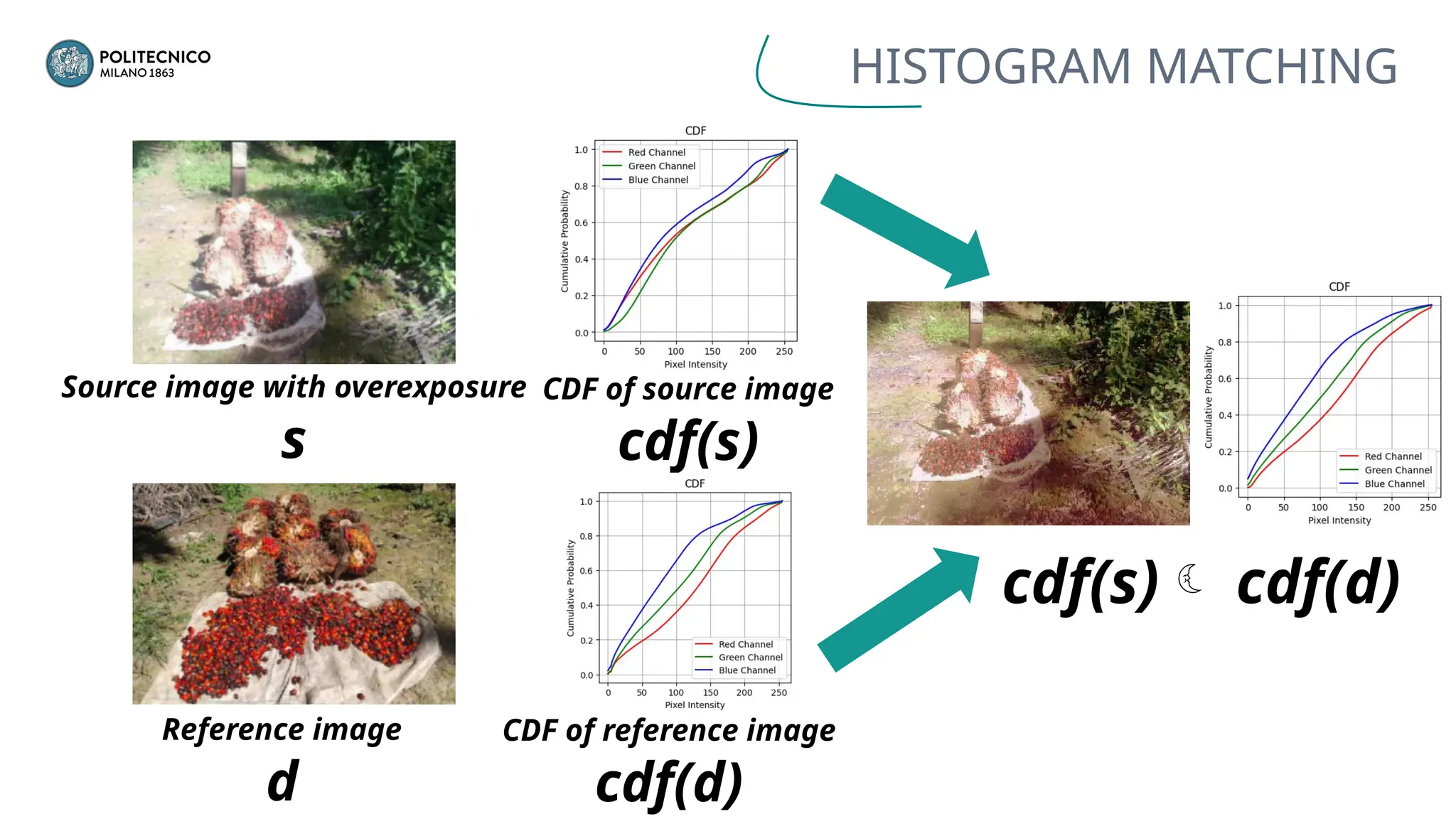

20. Source image with overexposure
s
Reference image
d
cdf(s) cdf(d)
CDF of source image
cdf(s)
CDF of reference image
cdf(d)
HISTOGRAM MATCHING

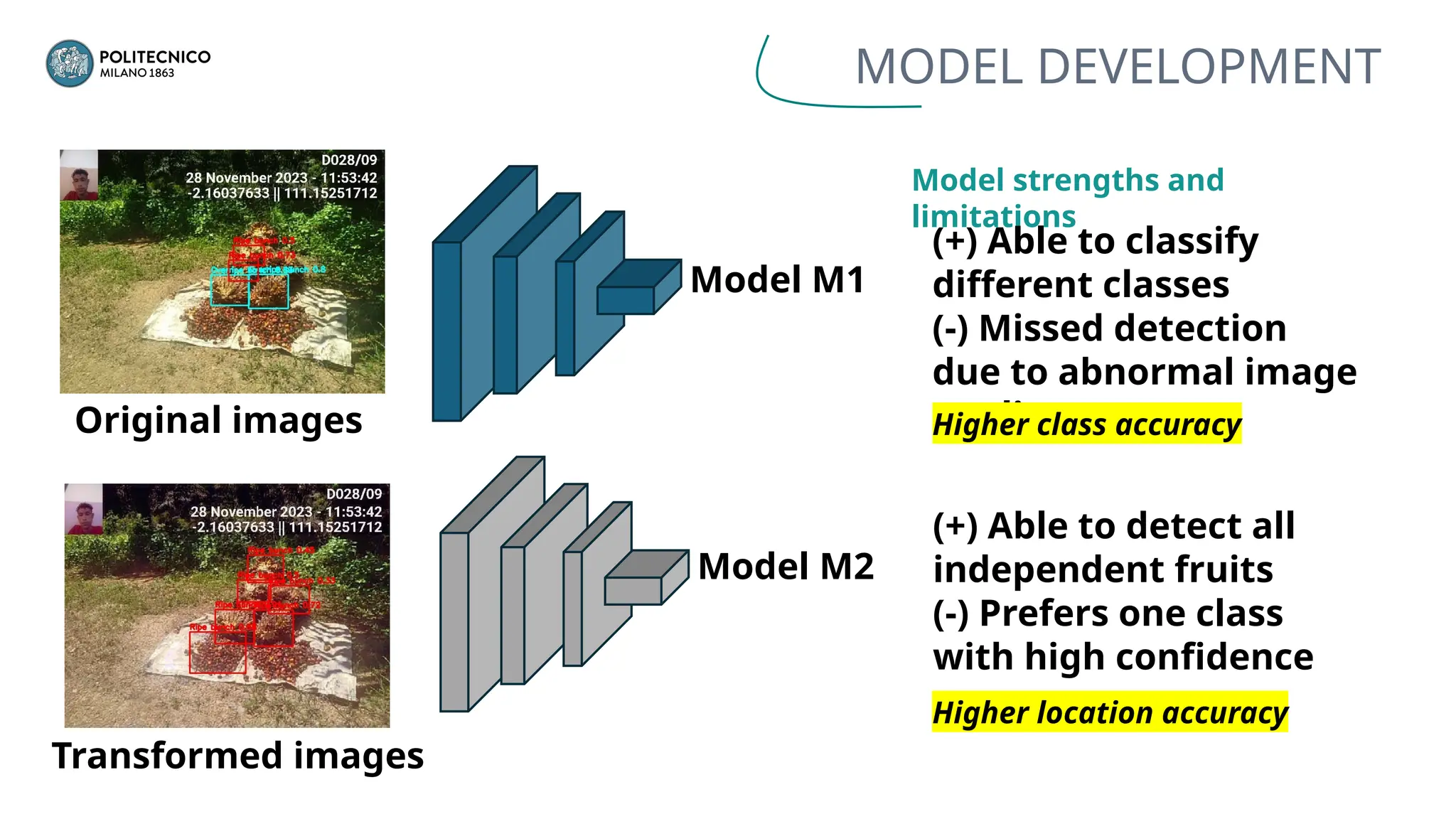

21. MODEL DEVELOPMENT
Original images
Transformed images
Model M1
Model M2
Model strengths and
limitations
(+) Able to classify
different classes
(-) Missed detection
due to abnormal image
quality
(+) Able to detect all
independent fruits
(-) Prefers one class
with high confidence
score
Higher class accuracy
Higher location accuracy

22. 0 0.32 0.44 0.46 0.57
0.5
0 0.54 0.67 0.44 0.32
0.4
1 0.45 0.87 0.74 0.11
0.5
1 0.22 0.11 0.45 0.67
0.6
0 0.32 0.44 0.46 0.87
0.9
0 0.54 0.67 0.44 0.92
0 0.32 0.44 0.46 0.57 0.9
0 0.54 0.67 0.44 0.32 0.8
0 0.56 0.11 0.34 0.11 0.8
0 0.12 0.45 0.38 0.60 0.9
0 0.66 0.77 0.32 0.55 0.7
0 0.58 0.19 0.38 0.32 0.8
0 0.32 0.44 0.46 0.57 0.5
0 0.54 0.67 0.44 0.32 0.4
1 0.45 0.87 0.74 0.11 0.5
1 0.22 0.11 0.45 0.67 0.6

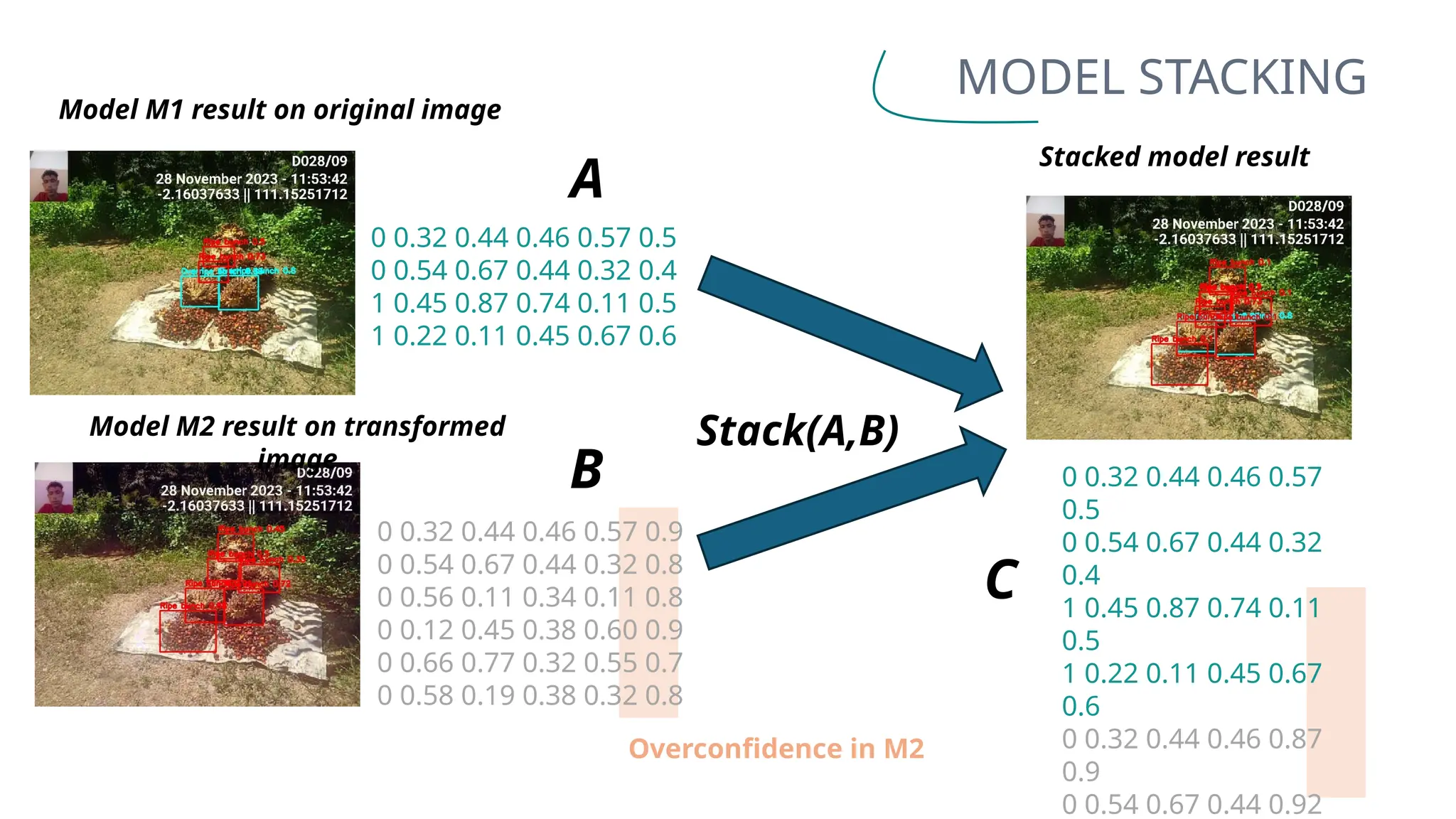

MODEL STACKING
Model M1 result on original image
Model M2 result on transformed
Stacked model result
A
B
Stack(A,B)
C
Overconfidence in M2

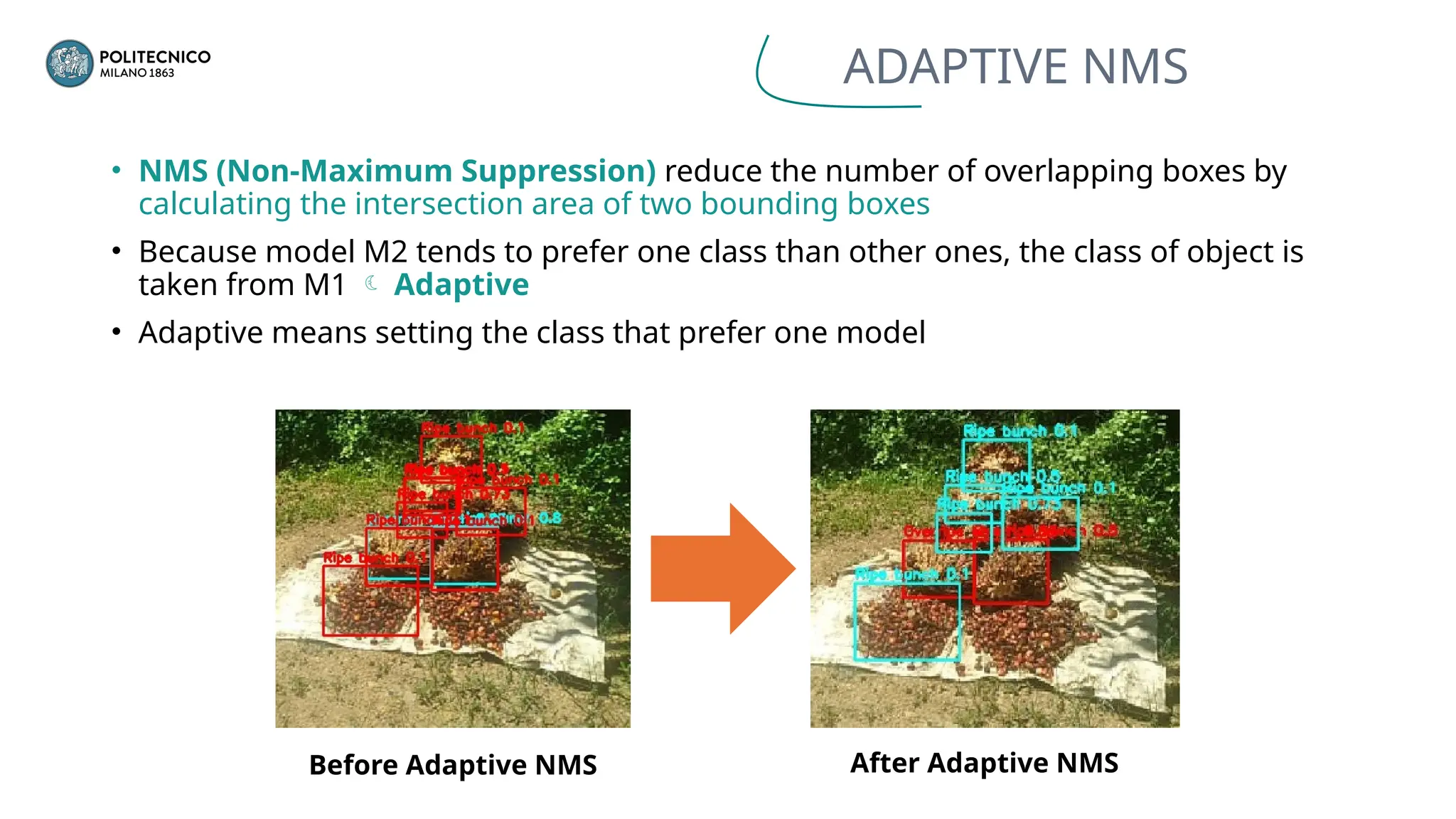

23. ADAPTIVE NMS
• NMS (Non-Maximum Suppression) reduce the number of overlapping boxes by
calculating the intersection area of two bounding boxes
• Because model M2 tends to prefer one class than other ones, the class of object is
taken from M1  Adaptive
• Adaptive means setting the class that prefer one model
Before Adaptive NMS After Adaptive NMS

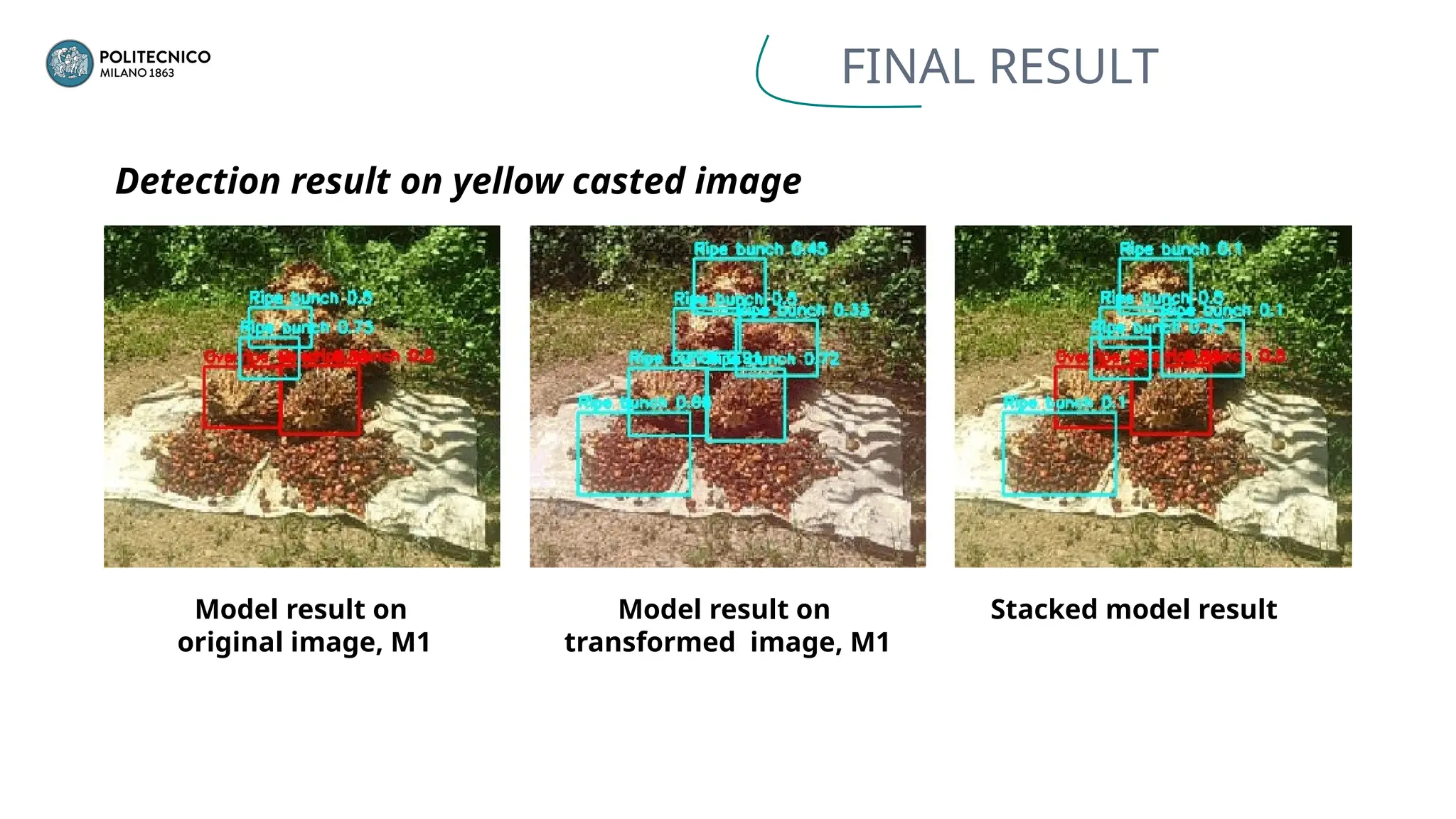

24. FINAL RESULT
Detection result on yellow casted image
Model result on
original image, M1
Model result on
transformed image, M1
Stacked model result

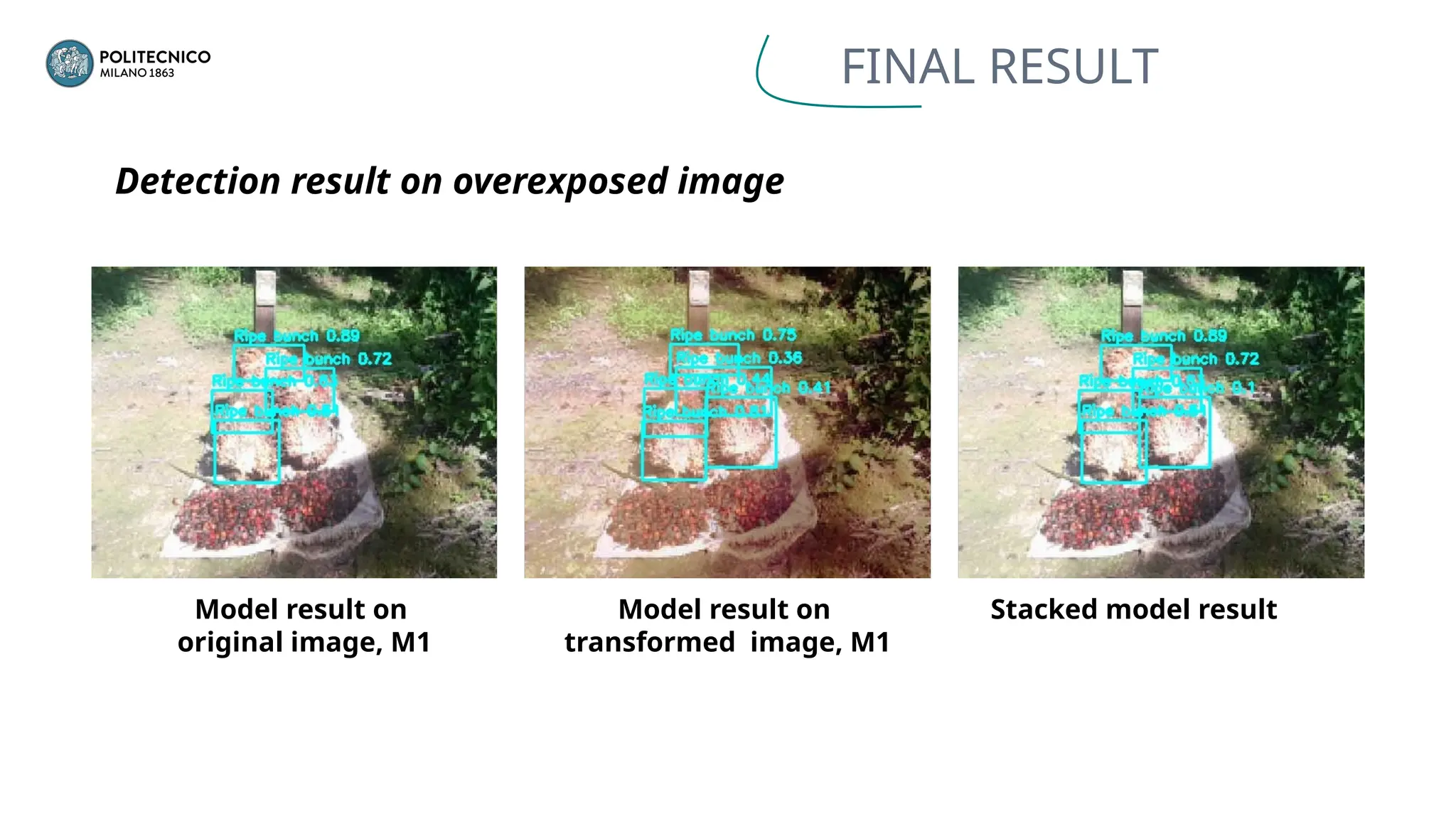

25. FINAL RESULT
Detection result on overexposed image
Model result on
original image, M1
Model result on
transformed image, M1
Stacked model result

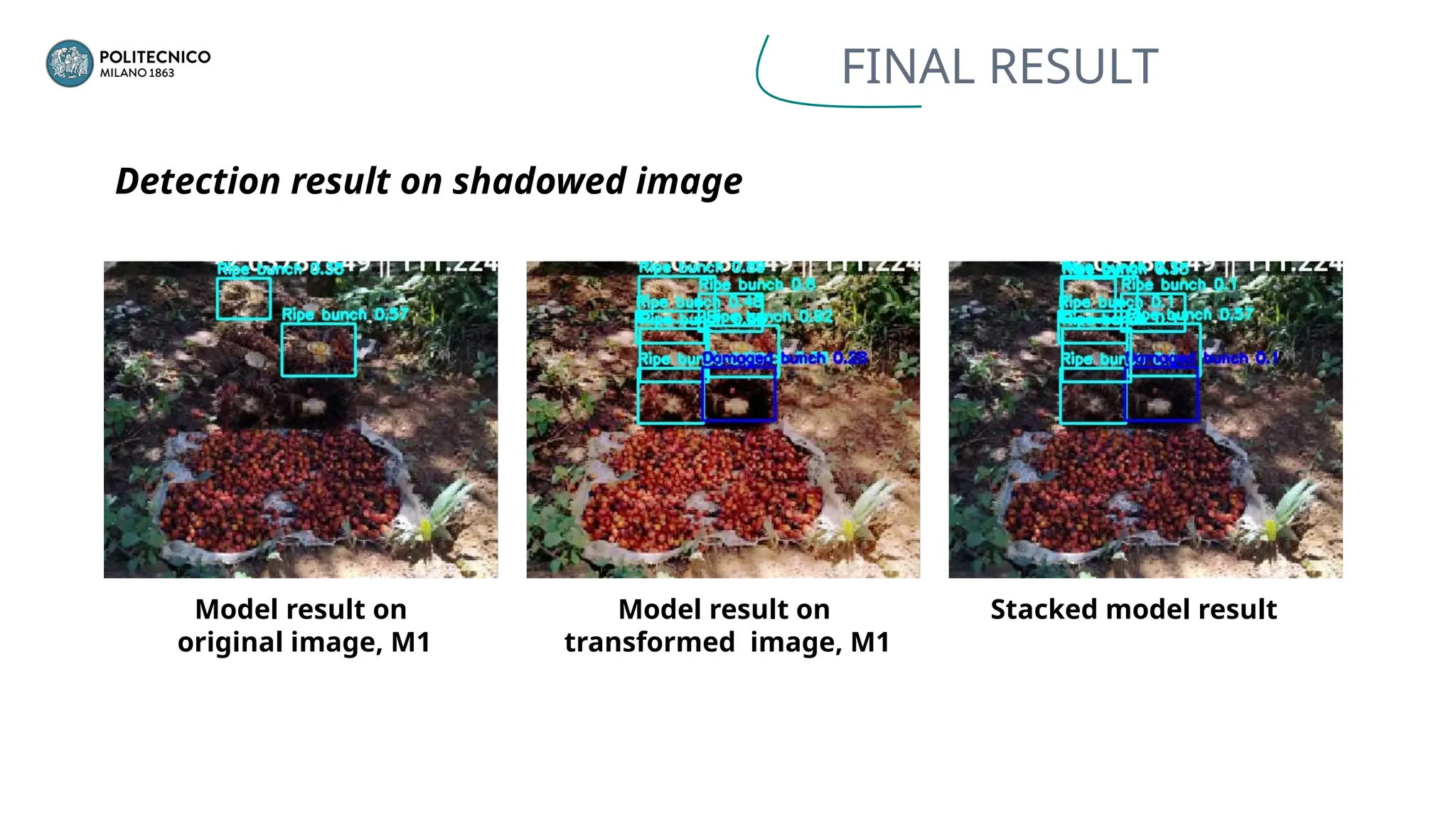

26. FINAL RESULT
Detection result on shadowed image
Model result on
original image, M1
Model result on
transformed image, M1
Stacked model result

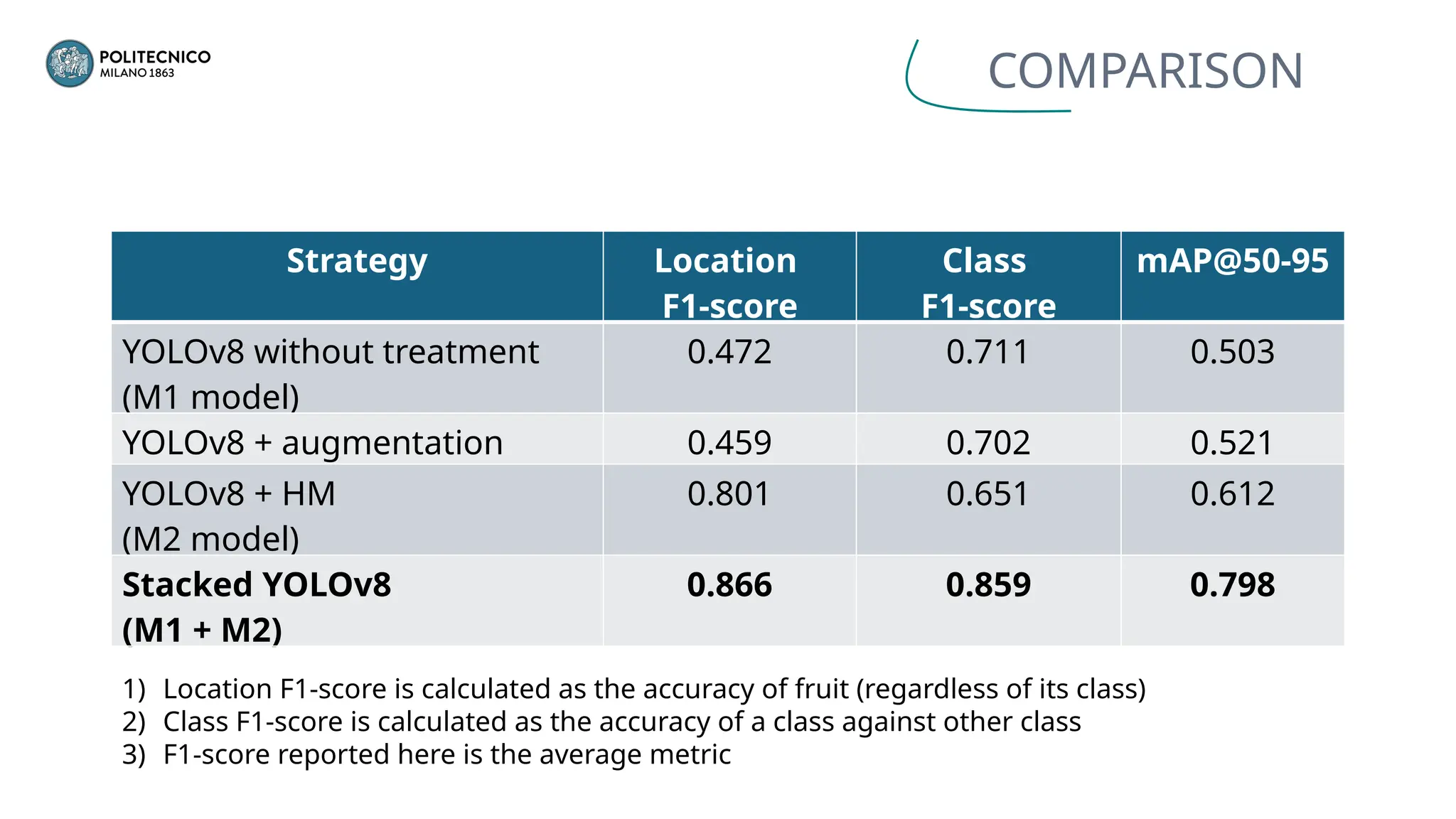

27. COMPARISON
Strategy Location
F1-score
Class
F1-score
mAP@50-95
YOLOv8 without treatment
(M1 model)
0.472 0.711 0.503
YOLOv8 + augmentation 0.459 0.702 0.521
YOLOv8 + HM
(M2 model)
0.801 0.651 0.612
Stacked YOLOv8
(M1 + M2)
0.866 0.859 0.798
1) Location F1-score is calculated as the accuracy of fruit (regardless of its class)
2) Class F1-score is calculated as the accuracy of a class against other class
3) F1-score reported here is the average metric

28. CONCLUSION
S+SSPR 2024
Applying augmentation on training
sets does not help improving the
performance of object detection model
Image quality issue such as color shift and
brightness change reduces object detection
result
Our proposed method
using Histogram Matching
and Model Stacking can
drastically improve object
detection model
