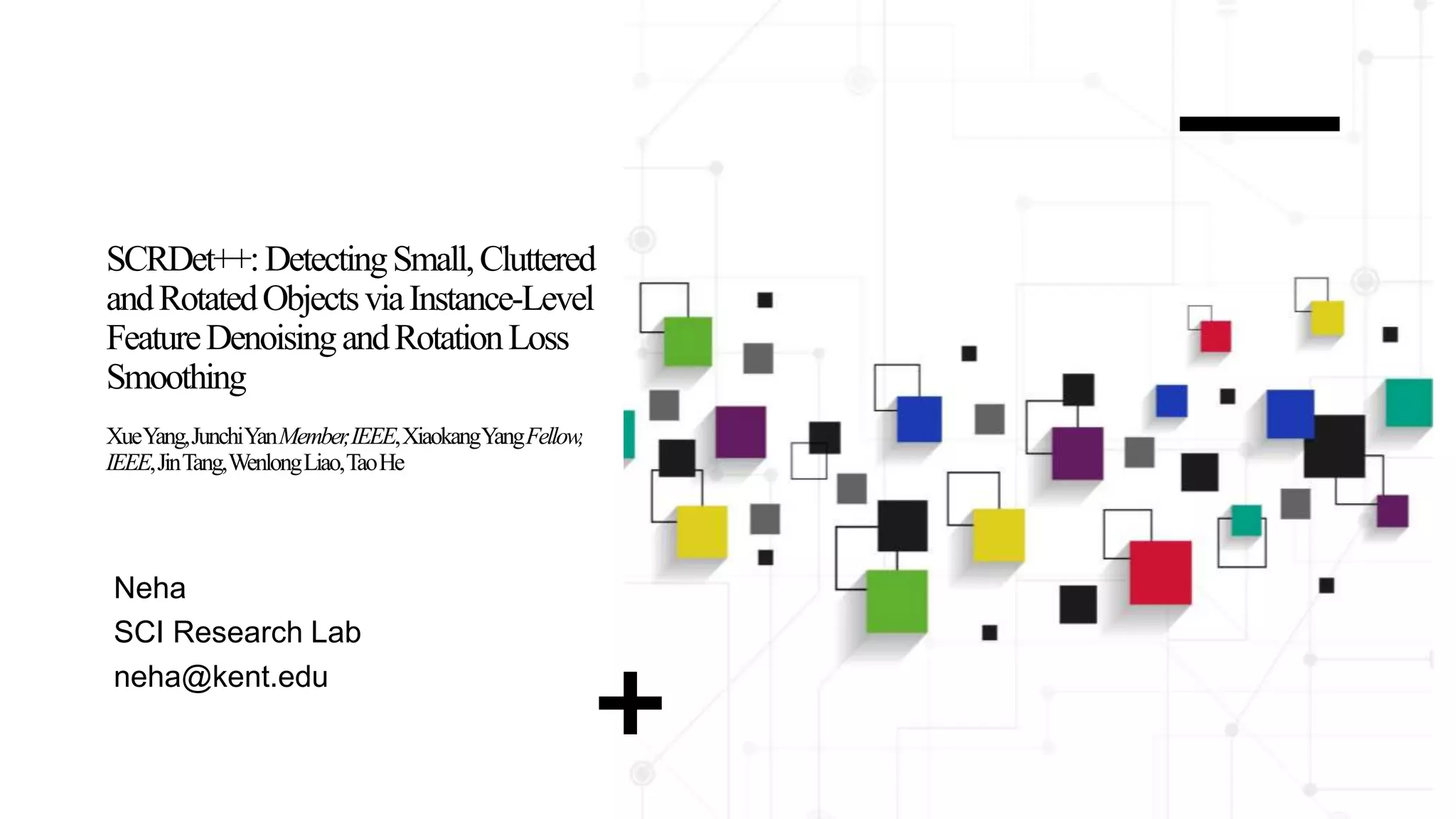

The document discusses an advanced framework called SCRDet++ for detecting small, cluttered, and rotated objects in images through instance-level feature denoising and improved rotation loss, addressing limitations of current detectors. It details a four-module architecture incorporating image-level and instance-level denoising to enhance detection performance, particularly for small and rotated objects, and summarizes experimental results demonstrating superior accuracy over existing methods. The study also compares various datasets and emphasizes the effectiveness of the proposed techniques in achieving state-of-the-art performance.

1. SCRDet++:DetectingSmall,Cluttered
andRotatedObjectsviaInstance-Level
FeatureDenoisingandRotationLoss
Smoothing
XueYang,JunchiYanMember
,IEEE,XiaokangYangFellow,
IEEE,JinTang,WenlongLiao,TaoHe
Neha
SCI Research Lab
neha@kent.edu

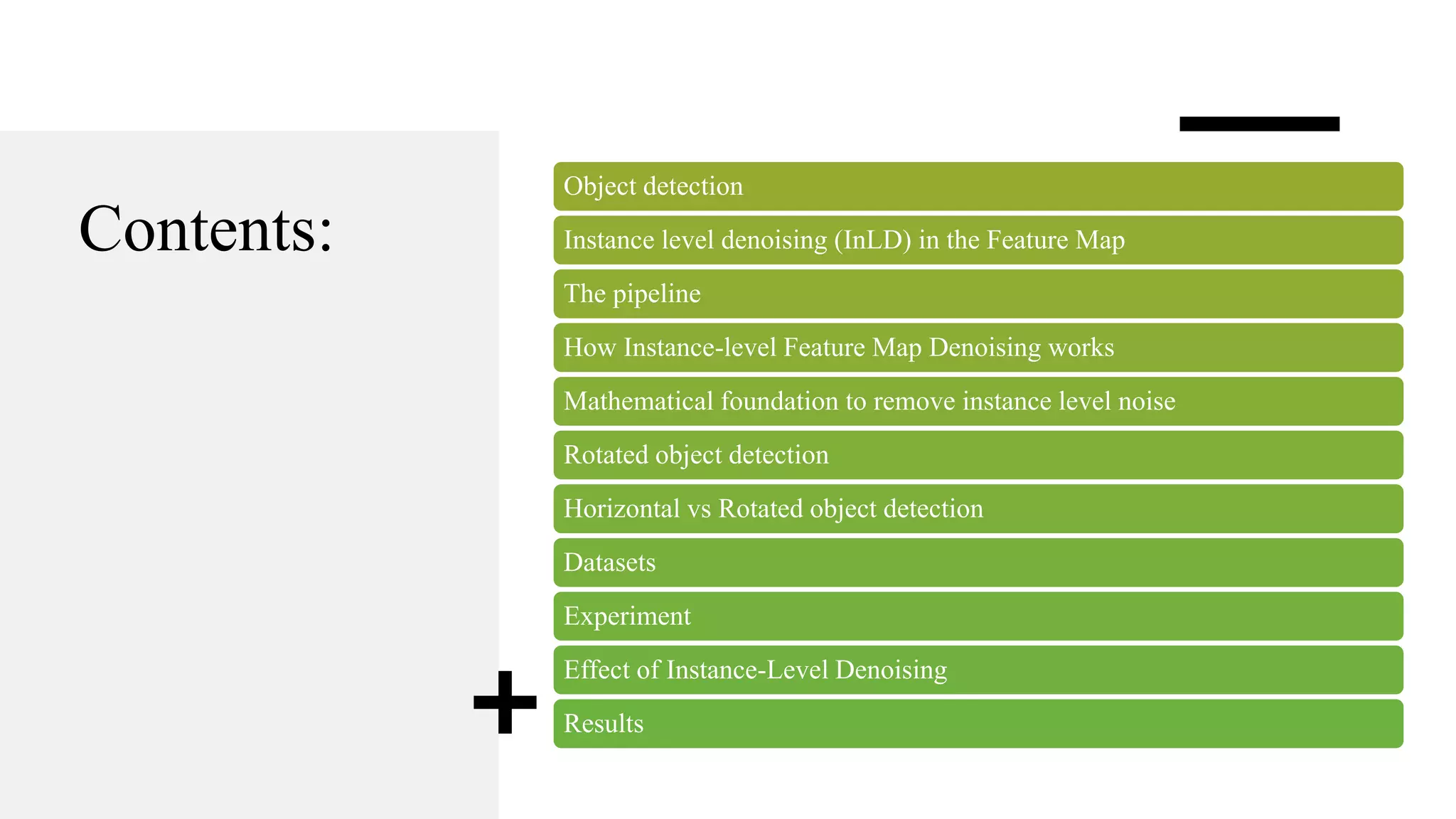

2. Contents:
Object detection
Instance level denoising (InLD) in the Feature Map
The pipeline
How Instance-level Feature Map Denoising works
Mathematical foundation to remove instance level noise
Rotated object detection
Horizontal vs Rotated object detection
Datasets
Experiment
Effect of Instance-Level Denoising
Results

3. Object detection
When humans look at images or video, they can recognize and
locate objects of interest within a matter of moments.
Similarly, Object detection is a computer vision technique for
locating instances of objects in images or videos and The goal of
object detection is to replicate this intelligence using a computer.
Limitations of Current detectors
- small size, cluttered arrangement, and arbitrary orientations

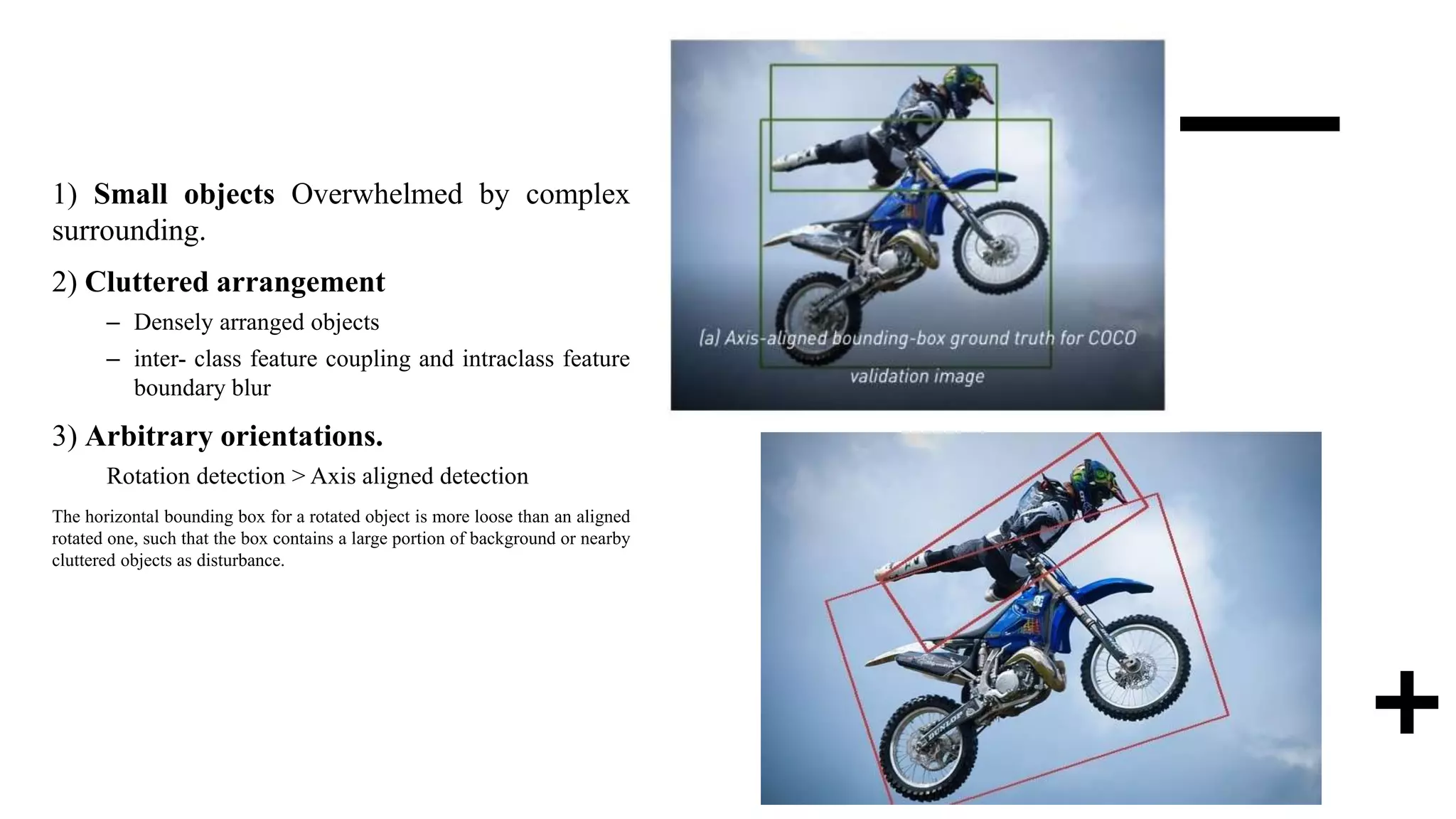

4. 1) Small objects Overwhelmed by complex
surrounding.
2) Cluttered arrangement
– Densely arranged objects
– inter- class feature coupling and intraclass feature
boundary blur
3) Arbitrary orientations.
Rotation detection > Axis aligned detection
The horizontal bounding box for a rotated object is more loose than an aligned
rotated one, such that the box contains a large portion of background or nearby
cluttered objects as disturbance.

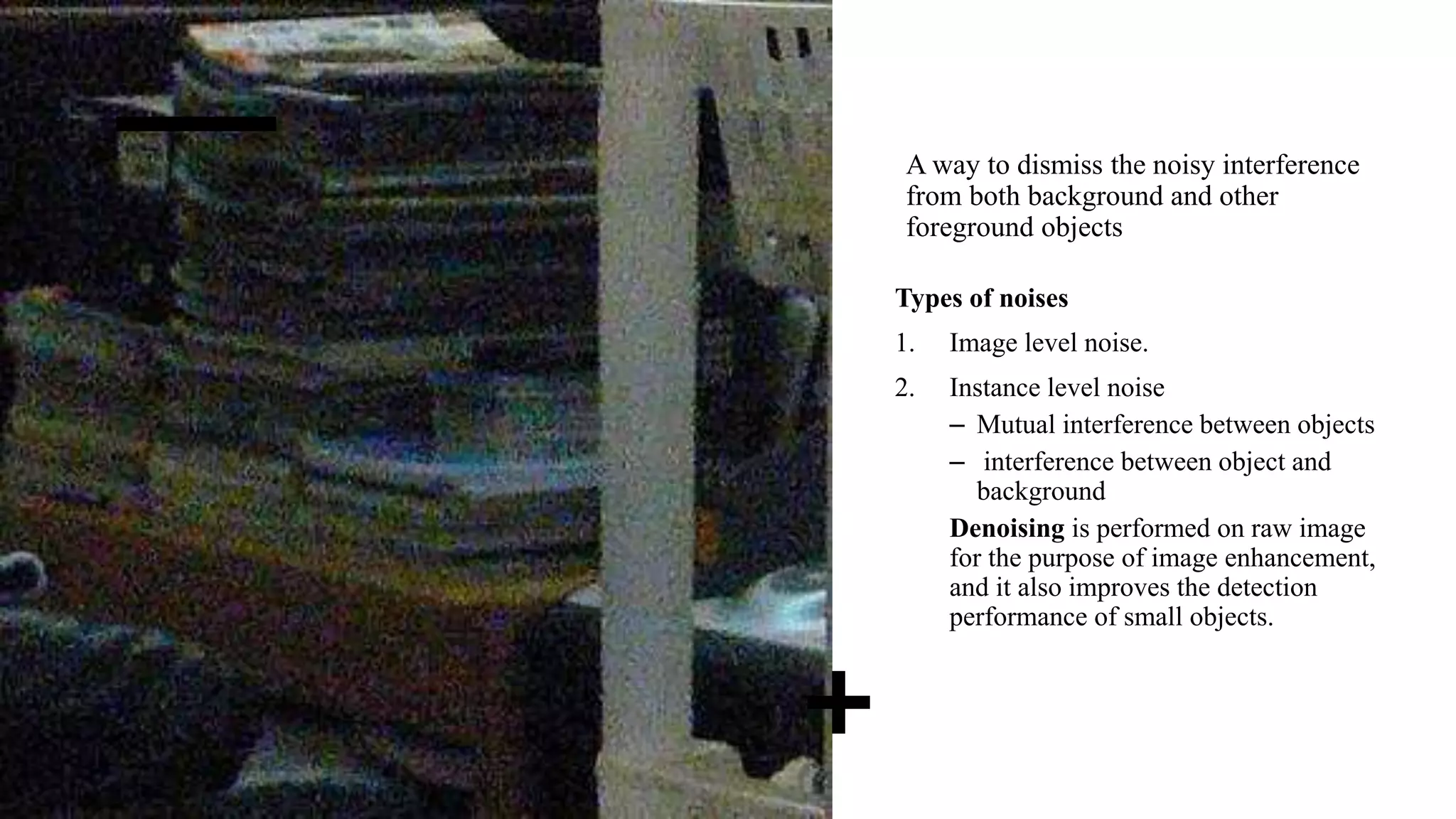

5. A way to dismiss the noisy interference
from both background and other
foreground objects
Types of noises
1. Image level noise.
2. Instance level noise
– Mutual interference between objects
– interference between object and
background
Denoising is performed on raw image
for the purpose of image enhancement,
and it also improves the detection
performance of small objects.

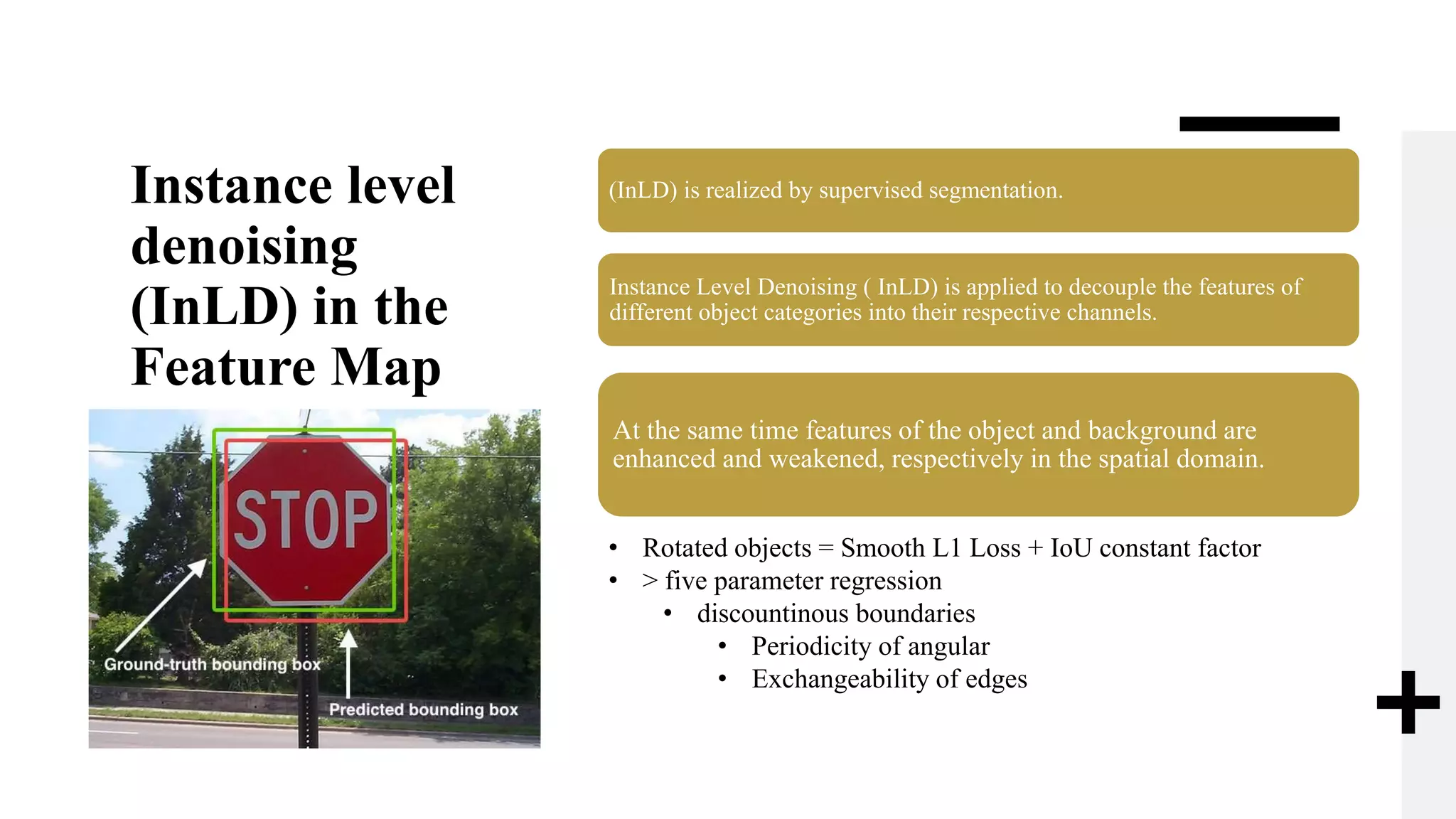

6. Instance level
denoising
(InLD) in the
Feature Map
(InLD) is realized by supervised segmentation.
Instance Level Denoising ( InLD) is applied to decouple the features of
different object categories into their respective channels.
At the same time features of the object and background are
enhanced and weakened, respectively in the spatial domain.
• Rotated objects = Smooth L1 Loss + IoU constant factor
• > five parameter regression
• discountinous boundaries
• Periodicity of angular
• Exchangeability of edges

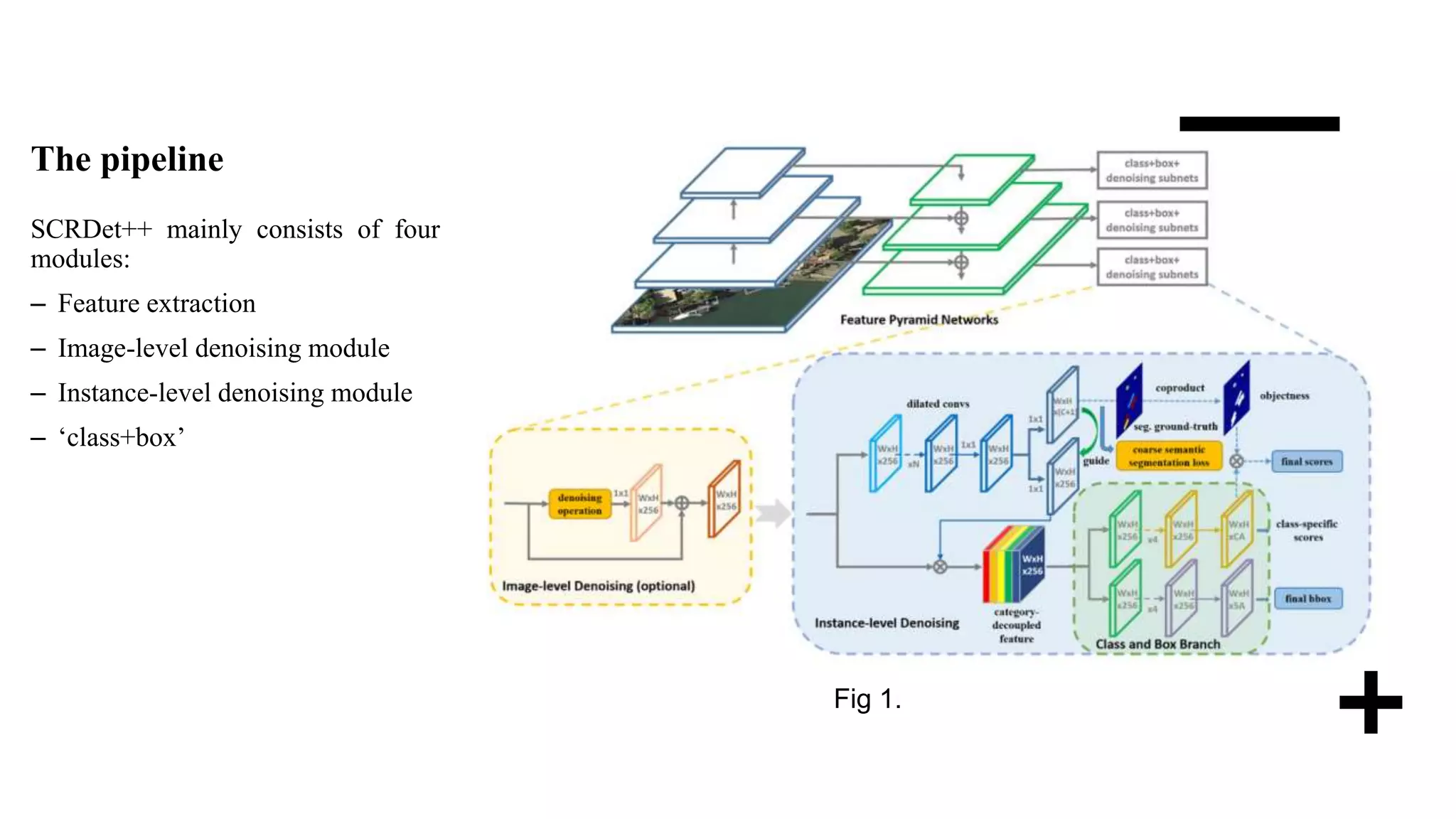

7. The pipeline
SCRDet++ mainly consists of four
modules:
– Feature extraction
– Image-level denoising module
– Instance-level denoising module
– ‘class+box’
Fig 1.

8. Instance-level Feature Map
Denoising
Instance-Level Noise has adversary effects on feature map.,
such as:
– The non-object with object-like shape has a higher
response in the feature map, especially for small
objects (see the top row of Fig. 2).
– Clutter objects that are densely arranged tend to
suffer the issue for inter-class feature coupling and
intra-class feature boundary blurring
– The response of object is not prominent enough
surrounded by the background

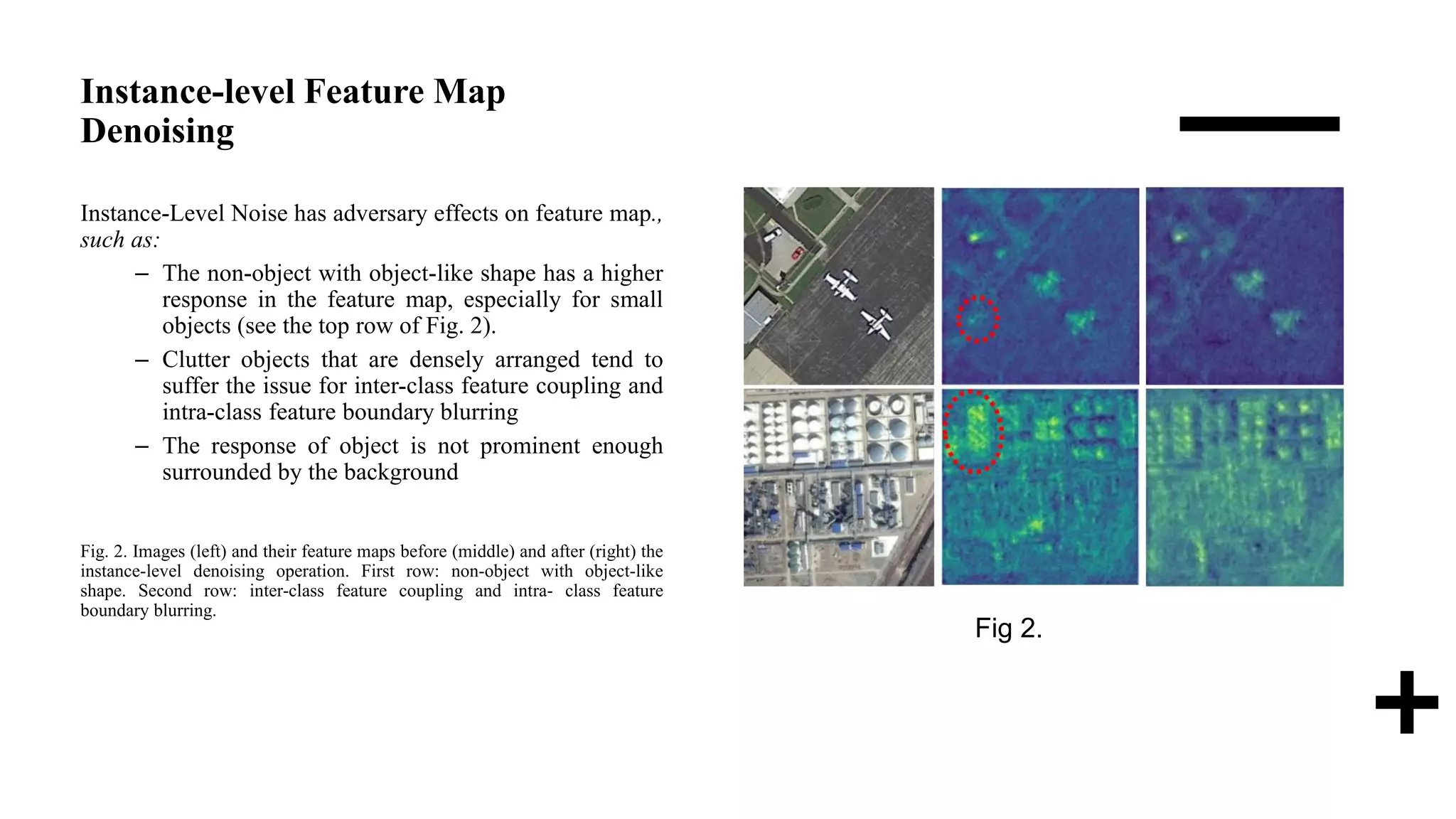

Fig. 2. Images (left) and their feature maps before (middle) and after (right) the
instance-level denoising operation. First row: non-object with object-like
shape. Second row: inter-class feature coupling and intra- class feature
boundary blurring.
Fig 2.

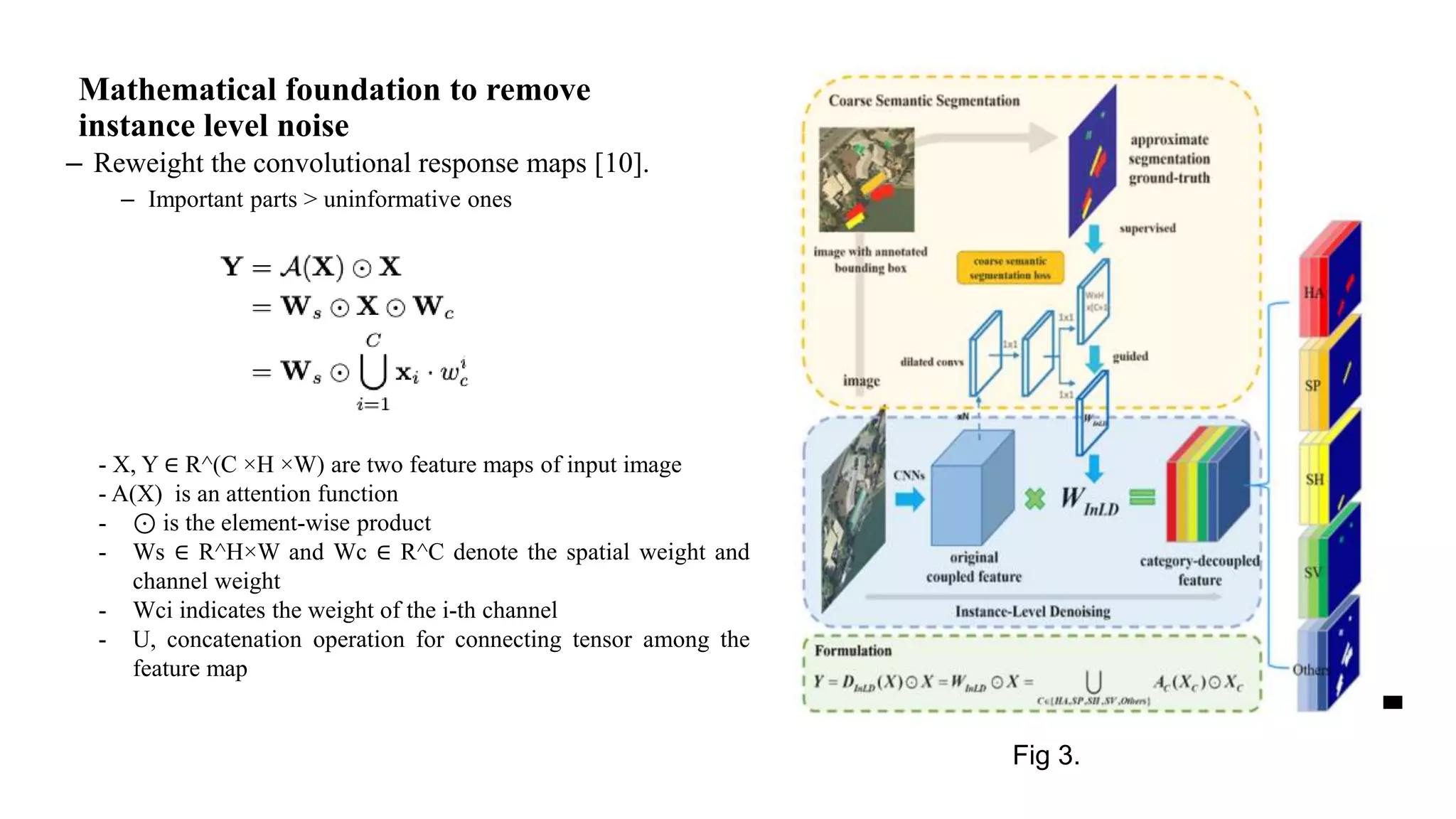

9. Mathematical foundation to remove
instance level noise
– Reweight the convolutional response maps [10].
– Important parts > uninformative ones
Fig 3.
- X, Y ∈ R^(C ×H ×W) are two feature maps of input image
- A(X) is an attention function
- ⊙ is the element-wise product
- Ws ∈ R^H×W and Wc ∈ R^C denote the spatial weight and
channel weight
- Wci indicates the weight of the i-th channel
- U, concatenation operation for connecting tensor among the
feature map

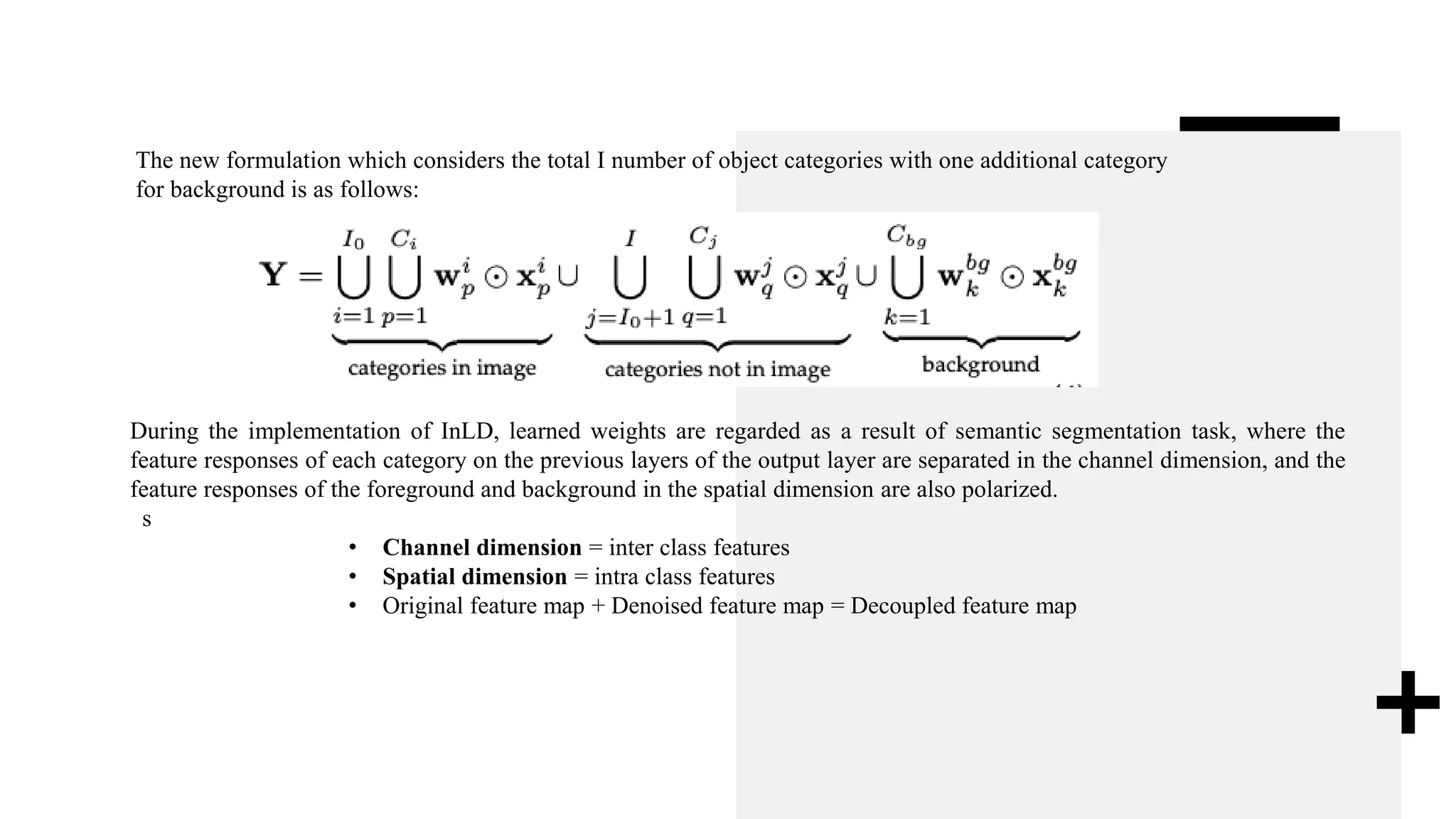

10. The new formulation which considers the total I number of object categories with one additional category
for background is as follows:
During the implementation of InLD, learned weights are regarded as a result of semantic segmentation task, where the
feature responses of each category on the previous layers of the output layer are separated in the channel dimension, and the
feature responses of the foreground and background in the spatial dimension are also polarized.
s
• Channel dimension = inter class features
• Spatial dimension = intra class features
• Original feature map + Denoised feature map = Decoupled feature map

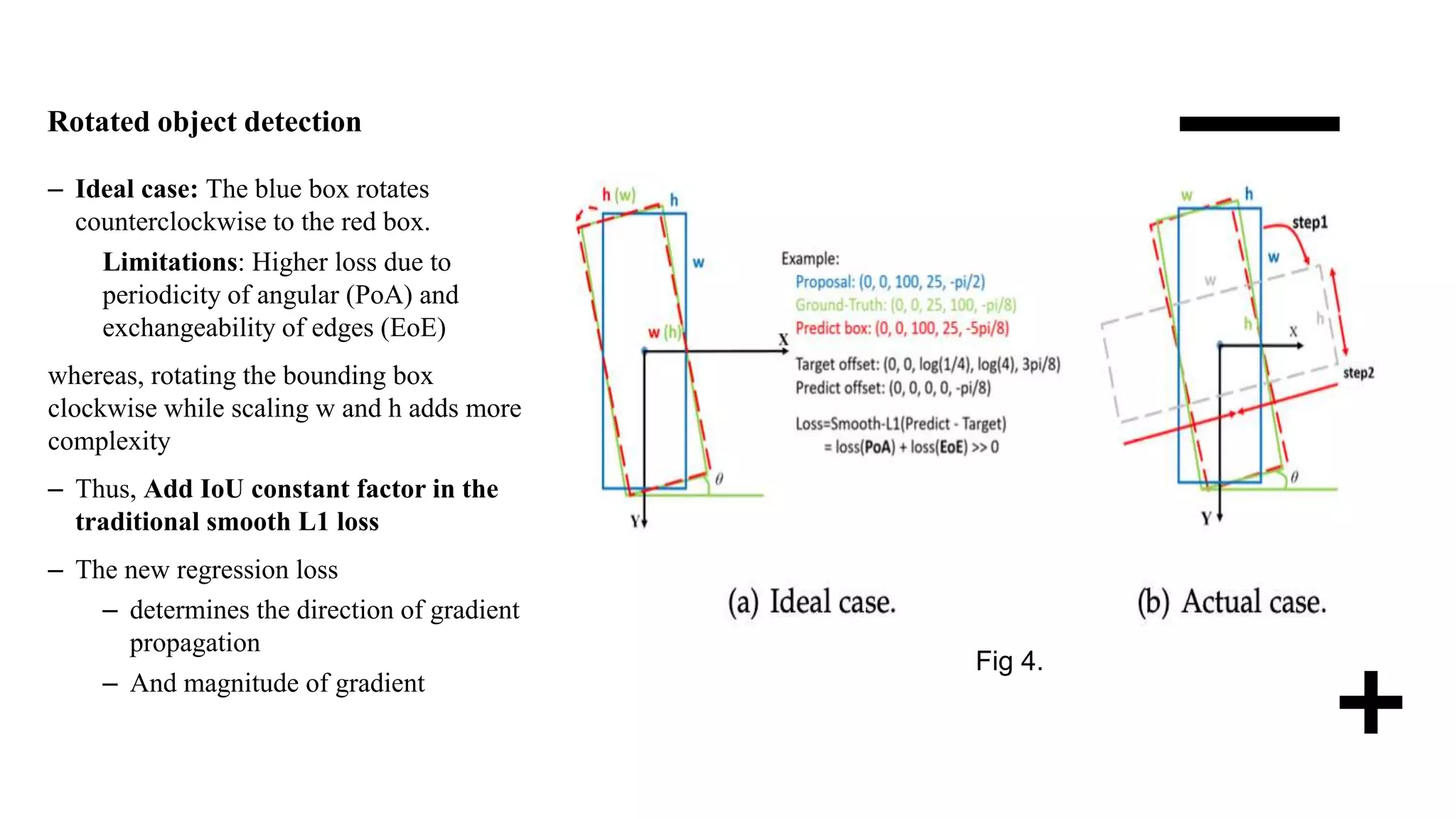

11. Rotated object detection
– Ideal case: The blue box rotates
counterclockwise to the red box.
Limitations: Higher loss due to
periodicity of angular (PoA) and
exchangeability of edges (EoE)
whereas, rotating the bounding box
clockwise while scaling w and h adds more
complexity
– Thus, Add IoU constant factor in the
traditional smooth L1 loss
– The new regression loss
– determines the direction of gradient
propagation
– And magnitude of gradient
Fig 4.

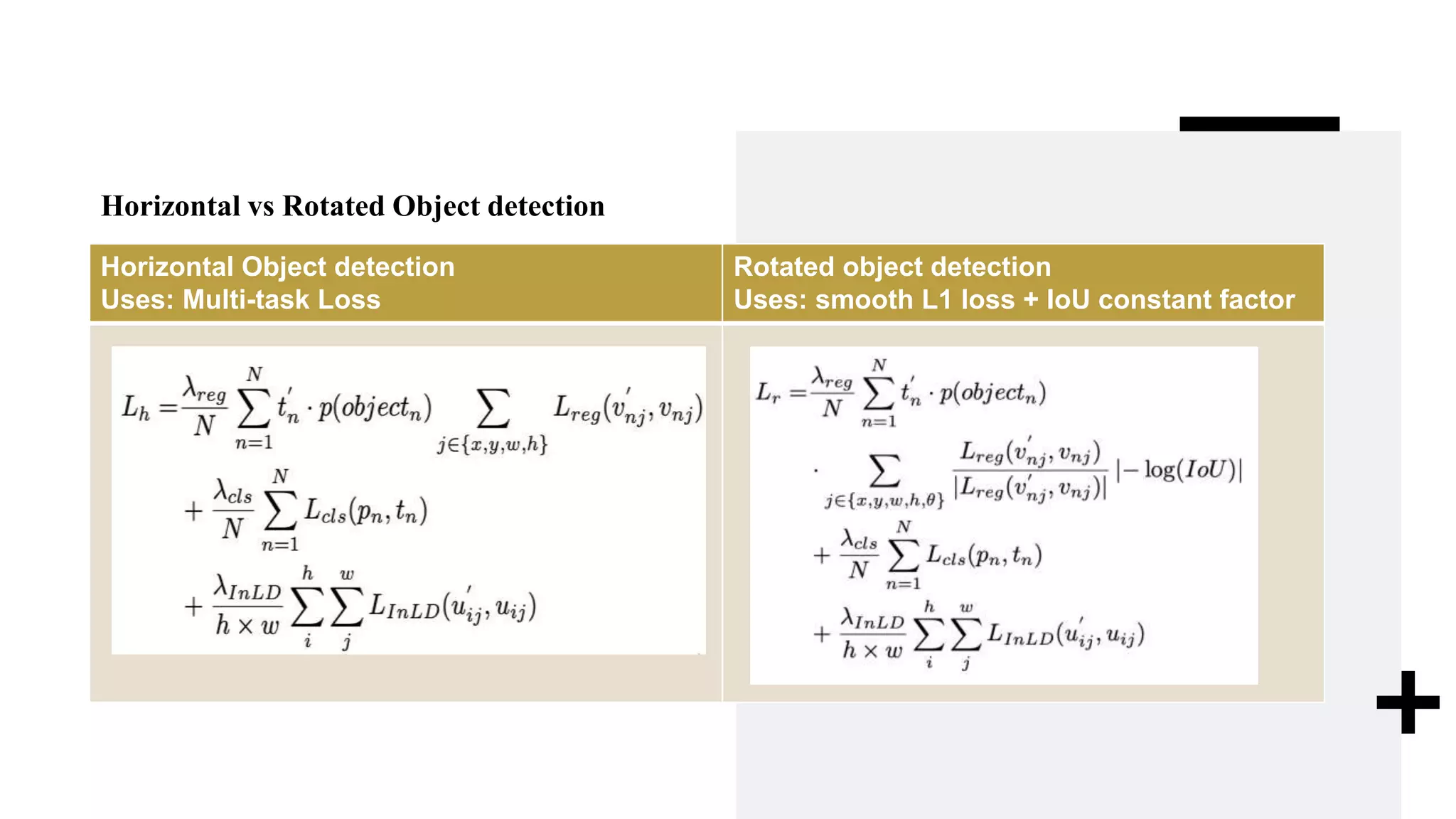

12. Horizontal vs Rotated Object detection
Horizontal Object detection
Uses: Multi-task Loss
Rotated object detection
Uses: smooth L1 loss + IoU constant factor

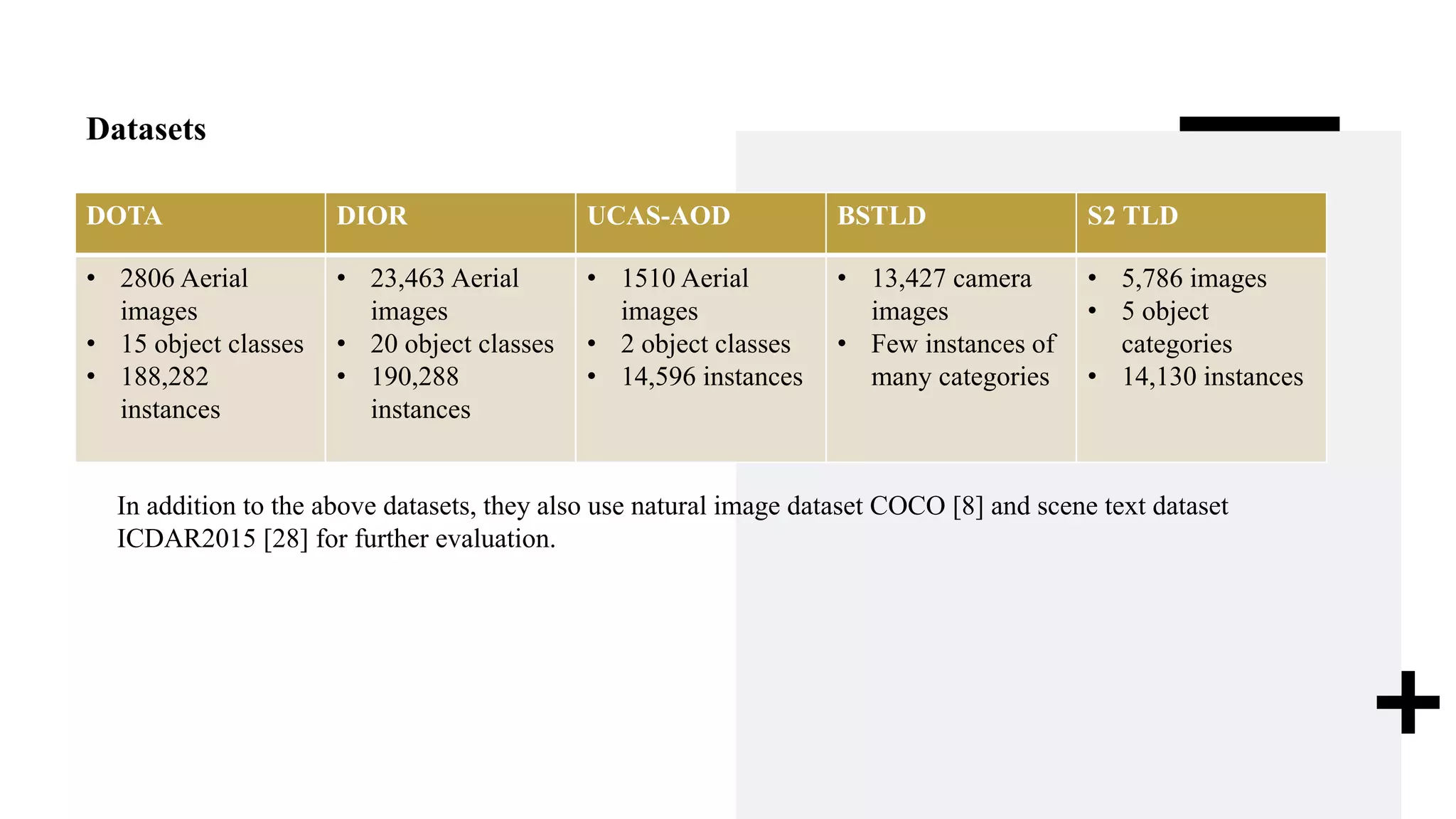

13. Datasets
DOTA DIOR UCAS-AOD BSTLD S2 TLD
• 2806 Aerial
images
• 15 object classes
• 188,282
instances
• 23,463 Aerial
images
• 20 object classes
• 190,288
instances
• 1510 Aerial
images
• 2 object classes
• 14,596 instances
• 13,427 camera
images
• Few instances of
many categories
• 5,786 images
• 5 object
categories
• 14,130 instances
In addition to the above datasets, they also use natural image dataset COCO [8] and scene text dataset
ICDAR2015 [28] for further evaluation.

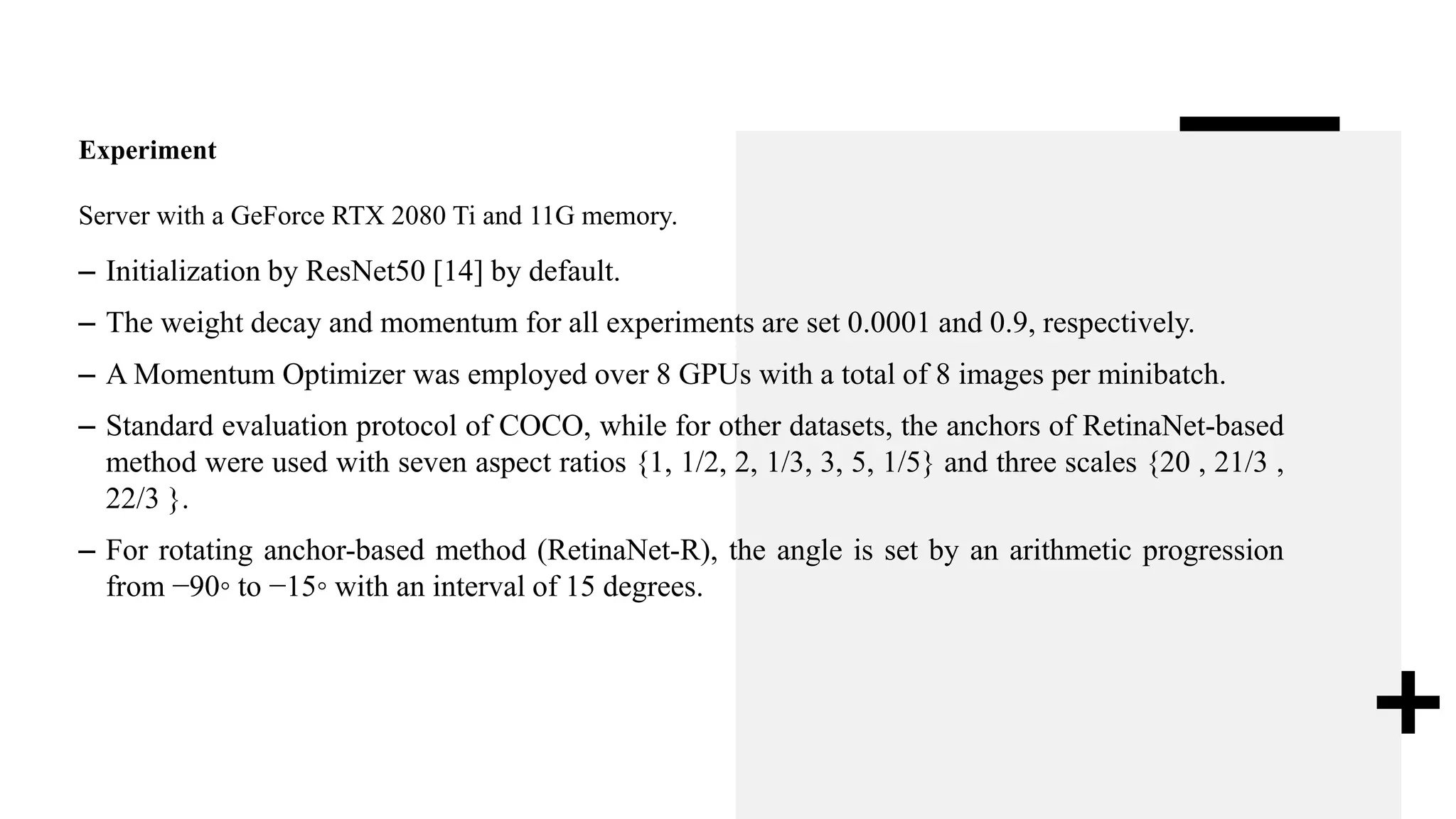

14. Experiment
Server with a GeForce RTX 2080 Ti and 11G memory.
– Initialization by ResNet50 [14] by default.
– The weight decay and momentum for all experiments are set 0.0001 and 0.9, respectively.
– A Momentum Optimizer was employed over 8 GPUs with a total of 8 images per minibatch.
– Standard evaluation protocol of COCO, while for other datasets, the anchors of RetinaNet-based
method were used with seven aspect ratios {1, 1/2, 2, 1/3, 3, 5, 1/5} and three scales {20 , 21/3 ,
22/3 }.
– For rotating anchor-based method (RetinaNet-R), the angle is set by an arithmetic progression
from −90◦ to −15◦ with an interval of 15 degrees.

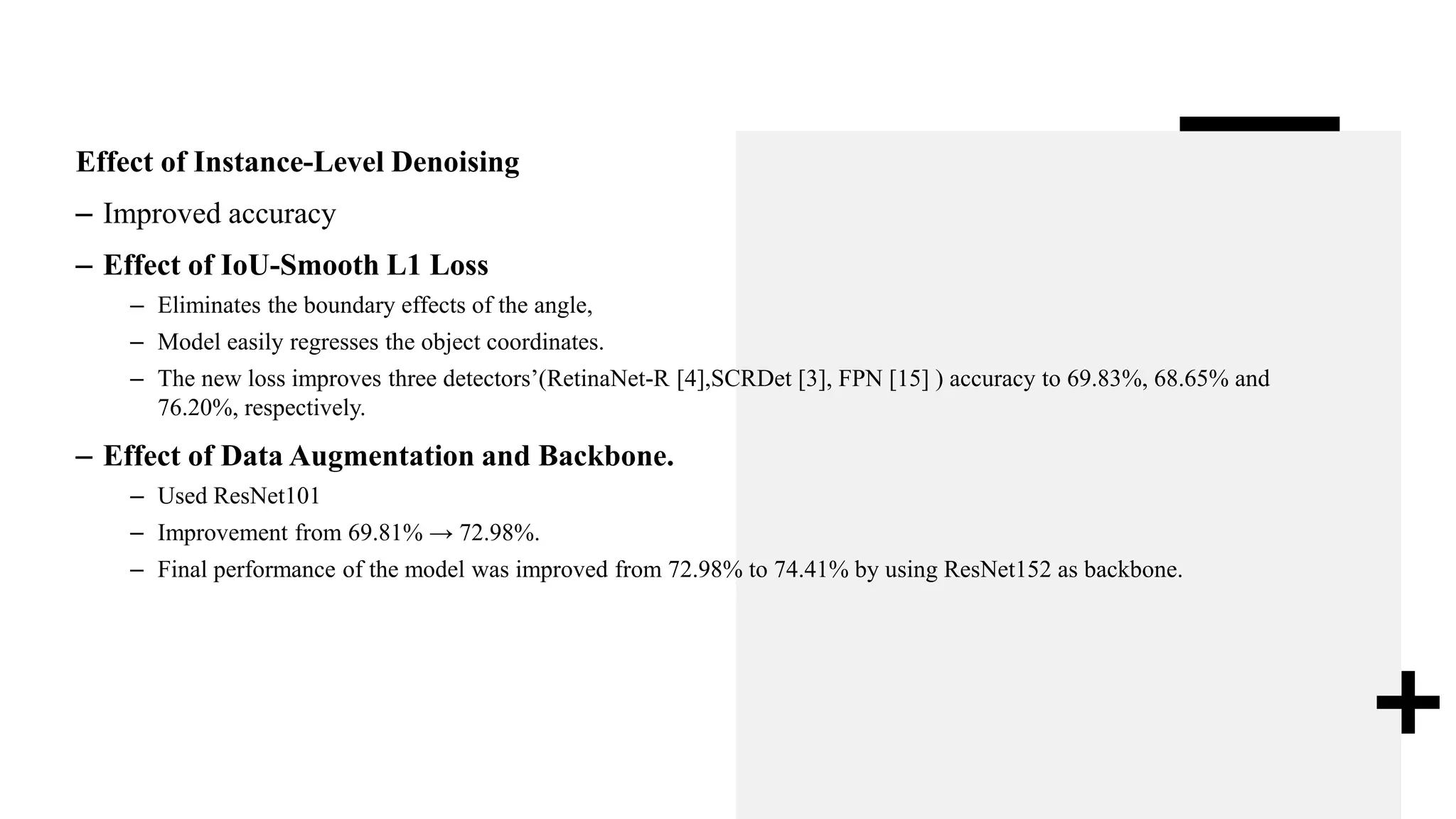

15. Effect of Instance-Level Denoising
– Improved accuracy
– Effect of IoU-Smooth L1 Loss
– Eliminates the boundary effects of the angle,
– Model easily regresses the object coordinates.
– The new loss improves three detectors’(RetinaNet-R [4],SCRDet [3], FPN [15] ) accuracy to 69.83%, 68.65% and
76.20%, respectively.
– Effect of Data Augmentation and Backbone.
– Used ResNet101
– Improvement from 69.81% → 72.98%.
– Final performance of the model was improved from 72.98% to 74.41% by using ResNet152 as backbone.

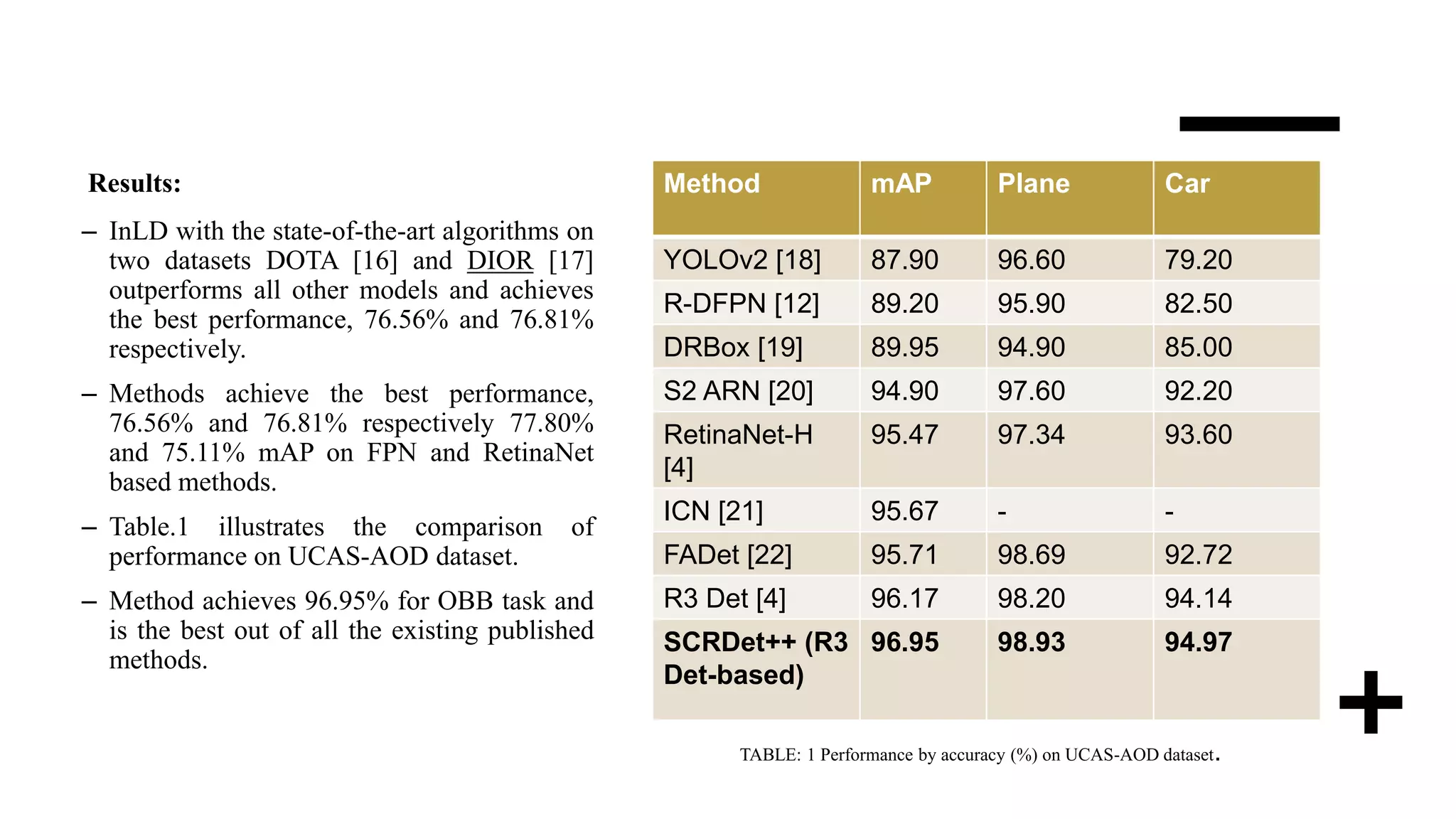

16. – InLD with the state-of-the-art algorithms on
two datasets DOTA [16] and DIOR [17]
outperforms all other models and achieves
the best performance, 76.56% and 76.81%
respectively.
– Methods achieve the best performance,
76.56% and 76.81% respectively 77.80%
and 75.11% mAP on FPN and RetinaNet
based methods.
– Table.1 illustrates the comparison of
performance on UCAS-AOD dataset.
– Method achieves 96.95% for OBB task and
is the best out of all the existing published
methods.
Method mAP Plane Car
YOLOv2 [18] 87.90 96.60 79.20
R-DFPN [12] 89.20 95.90 82.50
DRBox [19] 89.95 94.90 85.00
S2 ARN [20] 94.90 97.60 92.20
RetinaNet-H
[4]
95.47 97.34 93.60
ICN [21] 95.67 - -
FADet [22] 95.71 98.69 92.72
R3 Det [4] 96.17 98.20 94.14
SCRDet++ (R3
Det-based)
96.95 98.93 94.97
TABLE: 1 Performance by accuracy (%) on UCAS-AOD dataset.
Results:

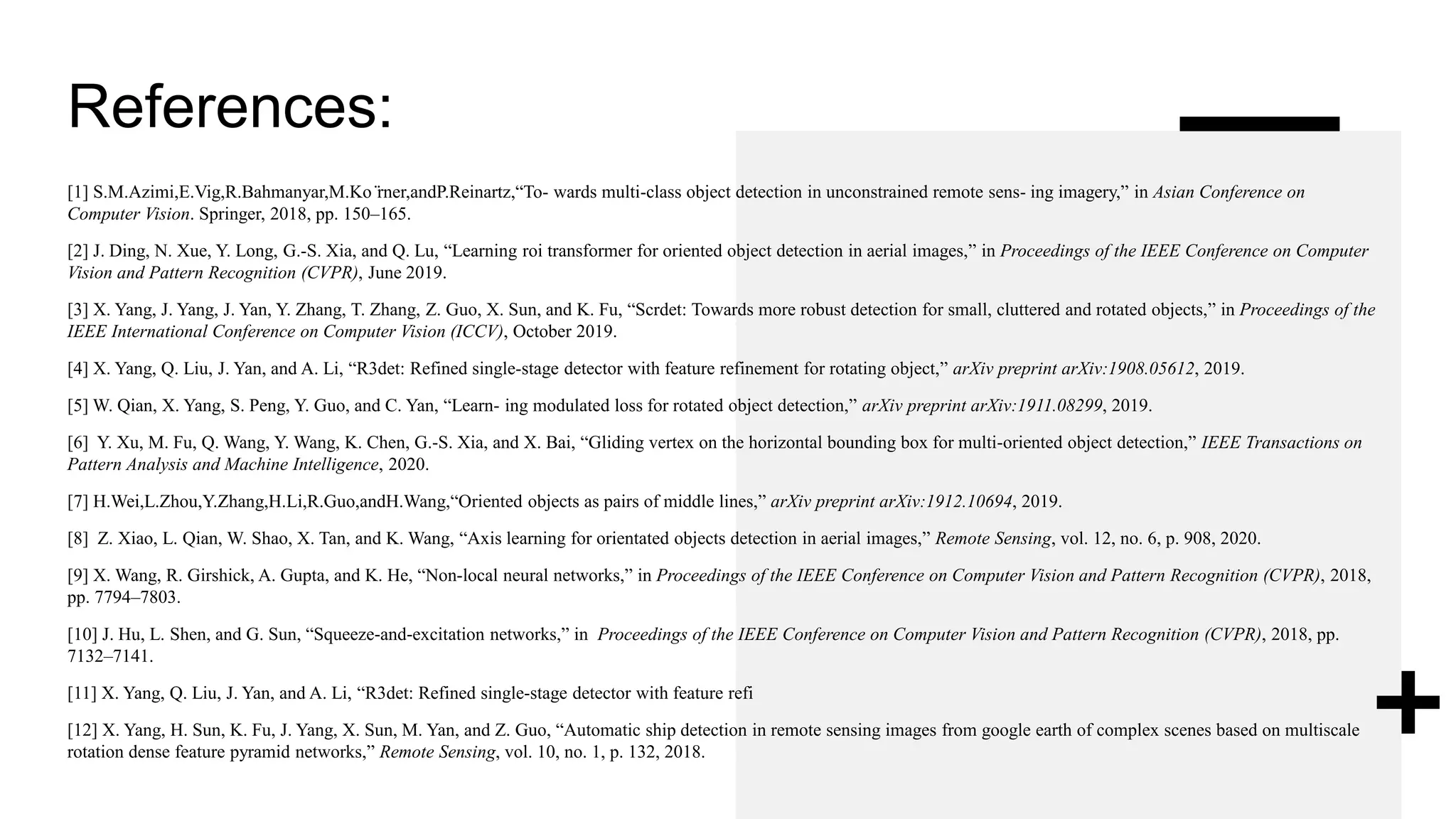

17. References:
