The document discusses the implementation of cloud-native databases on Kubernetes within the Dutch government, detailing the performance benchmarks and challenges faced. Key topics include database performance on Ceph, authentication methods, and the importance of leveraging client certificates for temporary access. It emphasizes the benefits of open-source technologies and provides recommendations for optimizing database performance in cloud-native environments.

1. Running Databases
on k8s
within the Dutch Government

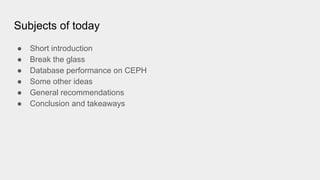

2. Subjects of today
● Short introduction
● Break the glass
● Database performance on CEPH
● Some other ideas
● General recommendations
● Conclusion and takeaways

3. Introduction
Who am I?

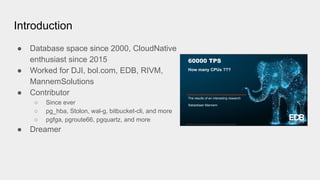

4. Introduction
● Database space since 2000, CloudNative
enthusiast since 2015
● Worked for DJI, bol.com, EDB, RIVM,
MannemSolutions
● Contributor
○ Since ever
○ pg_hba, Stolon, wal-g, bitbucket-cli, and more
○ pgfga, pgroute66, pgquartz, and more
● Dreamer

5. Mission (Mannem Solutions)
Enable organizations to be successful
with modern Open Source Data
Solutions.
Gov and Private 100% Open Source!!!
Early adopter
Specialized in Data

6. Challenges
Temporary access

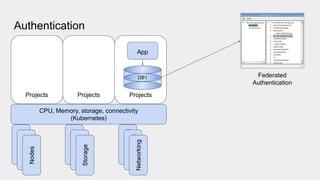

7. Authentication
CPU, Memory, storage, connectivity
(Kubernetes)
Nodes
Nodes
Nodes
Storage
Storage
Storage
Networking
Networking
Networking
Projects Projects
Projects
DB1
App
Federated
Authentication

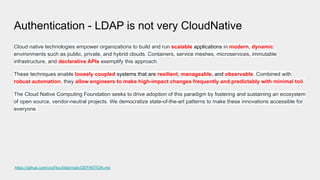

8. Authentication - LDAP is not very CloudNative
Cloud native technologies empower organizations to build and run scalable applications in modern, dynamic
environments such as public, private, and hybrid clouds. Containers, service meshes, microservices, immutable
infrastructure, and declarative APIs exemplify this approach.
These techniques enable loosely coupled systems that are resilient, manageable, and observable. Combined with
robust automation, they allow engineers to make high-impact changes frequently and predictably with minimal toil.
The Cloud Native Computing Foundation seeks to drive adoption of this paradigm by fostering and sustaining an ecosystem
of open source, vendor-neutral projects. We democratize state-of-the-art patterns to make these innovations accessible for
everyone.
https://github.com/cncf/toc/blob/main/DEFINITION.md

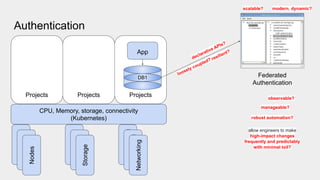

9. Authentication
CPU, Memory, storage, connectivity
(Kubernetes)
Nodes
Nodes
Nodes
Storage
Storage
Storage
Networking
Networking
Networking
Projects Projects
Projects
DB1
App
Federated
Authentication
scalable? modern, dynamic?
declarative APIs?
loosely coupled? resilient?
manageable?
observable?
robust automation?
allow engineers to make
high-impact changes
frequently and predictably
with minimal toil?

10. Authentication - Natural drift from CN
CPU, Memory, storage, connectivity
(Kubernetes)
Projects
DB1
App
Federated
Authentication
1: Normal operation:
Only app connects
3:Fix Issue:
New release of App!!!
2: Investigating issues:
Humans connect
Humans can always
connect
=
remove the need to fix
with App
Seems like too much
hassle for exception
resolution

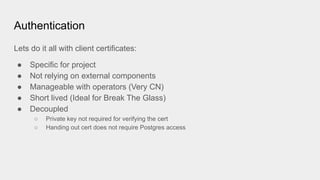

11. Authentication
Lets do it all with client certificates:
● Specific for project
● Not relying on external components
● Manageable with operators (Very CN)
● Short lived (Ideal for Break The Glass)
● Decoupled
○ Private key not required for verifying the cert
○ Handing out cert does not require Postgres access

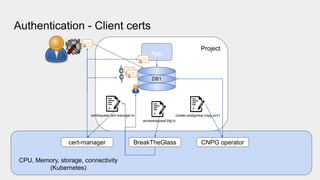

12. Authentication - Client certs
Project
DB1
App
CNPG operator
CPU, Memory, storage, connectivity
(Kubernetes)
cert-manager BreakTheGlass
cluster.postgresql.cnpg.io/v1
certrequest.cert-manager.io
accessrequest.btg.io

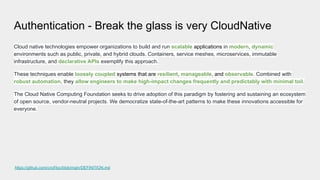

13. Authentication - Break the glass is very CloudNative
Cloud native technologies empower organizations to build and run scalable applications in modern, dynamic
environments such as public, private, and hybrid clouds. Containers, service meshes, microservices, immutable
infrastructure, and declarative APIs exemplify this approach.
These techniques enable loosely coupled systems that are resilient, manageable, and observable. Combined with
robust automation, they allow engineers to make high-impact changes frequently and predictably with minimal toil.
The Cloud Native Computing Foundation seeks to drive adoption of this paradigm by fostering and sustaining an ecosystem
of open source, vendor-neutral projects. We democratize state-of-the-art patterns to make these innovations accessible for
everyone.
https://github.com/cncf/toc/blob/main/DEFINITION.md

14. Break the glass - Let’s build it

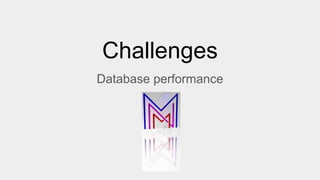

15. Challenges
Database performance

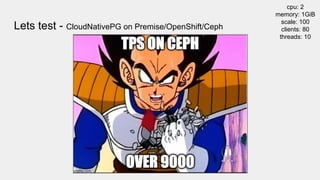

16. Lets test - CloudNativePG on Premise/OpenShift/Ceph
cpu: 2
memory: 1GiB
scale: 100
clients: 80
threads: 10

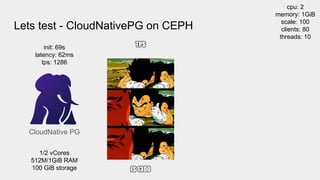

17. Lets test - CloudNativePG on CEPH
1/2 vCores
512M/1GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1286
CloudNative PG
cpu: 2
memory: 1GiB
scale: 100
clients: 80
threads: 10

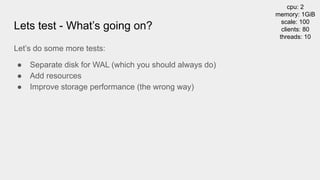

18. Lets test - What’s going on?
cpu: 2
memory: 1GiB
scale: 100
clients: 80
threads: 10
Let’s do some more tests:
● Separate disk for WAL (which you should always do)
● Add resources
● Improve storage performance (the wrong way)

19. Lets test - separate wal
1/2 vCores
512M/1GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1286
CloudNative PG
1/2 vCores
512MiB/1GiB RAM
10/10 GiB storage
init: 77s
latency: 61ms
tps: 1312
CloudNative PG
(Separate wal)
Hmmm…
Separating WAL
does not help
cpu: 2
memory: 1GiB
scale: 100
clients: 80
threads: 10

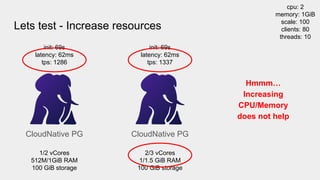

20. Lets test - Increase resources
1/2 vCores
512M/1GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1286
CloudNative PG
2/3 vCores
1/1.5 GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1337
CloudNative PG
Hmmm…
Increasing
CPU/Memory
does not help
cpu: 2
memory: 1GiB
scale: 100
clients: 80
threads: 10

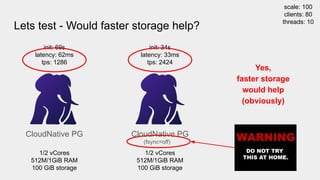

21. Lets test - Would faster storage help?
1/2 vCores
512M/1GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1286
CloudNative PG
1/2 vCores
512M/1GiB RAM
100 GiB storage
init: 34s
latency: 33ms
tps: 2424
CloudNative PG
(fsync=off)
Yes,
faster storage
would help
(obviously)
scale: 100
clients: 80
threads: 10

22. Database performance
Ok, let’s compare

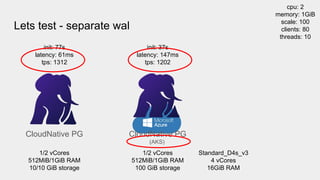

23. Lets test - separate wal
1/2 vCores
512MiB/1GiB RAM
10/10 GiB storage
init: 77s
latency: 61ms
tps: 1312
CloudNative PG
1/2 vCores
512MiB/1GiB RAM
100 GiB storage
init: 37s
latency: 147ms
tps: 1202
CloudNative PG
(AKS)
cpu: 2
memory: 1GiB
scale: 100
clients: 80
threads: 10
Standard_D4s_v3
4 vCores
16GiB RAM

24. Lets test - Increase resources
2/3 vCores
1/1.5 GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1337
CloudNative PG
2/3 vCores
1/1.5 GiB RAM
100 GiB storage
init: 32s
latency: 41ms
tps: 1929
CloudNative PG
cpu: 2
memory: 1GiB
scale: 100
clients: 80
threads: 10
(AKS)
Standard_D4s_v3
4 vCores
16GiB RAM

25. Lets test - Would faster storage help?
1/2 vCores
512M/1GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1286
CloudNative PG
1/2 vCores
512M/1GiB RAM
100 GiB storage
init: s
latency: ms
tps:
CloudNative PG
(fsync=off)
scale: 100
clients: 80
threads: 10
(AKS, fsync=off)

26. Compare to other storage

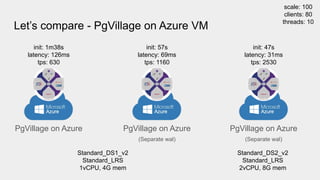

27. Let’s compare - PgVillage on Azure VM
PgVillage on Azure
init: 1m38s
latency: 126ms
tps: 630
Standard_DS1_v2
Standard_LRS
1vCPU, 4G mem
PgVillage on Azure
init: 57s
latency: 69ms
tps: 1160
(Separate wal)
Standard_DS2_v2
Standard_LRS
2vCPU, 8G mem
PgVillage on Azure
init: 47s
latency: 31ms
tps: 2530
(Separate wal)
scale: 100
clients: 80
threads: 10

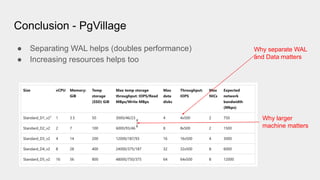

28. Conclusion - PgVillage
● Separating WAL helps (doubles performance)
● Increasing resources helps too
Why separate WAL
and Data matters
Why larger
machine matters

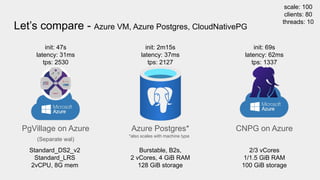

29. Let’s compare - Azure VM, Azure Postgres, CloudNativePG
Azure Postgres*
init: 2m15s
latency: 37ms
tps: 2127
Burstable, B2s,
2 vCores, 4 GiB RAM
128 GiB storage
Standard_DS2_v2
Standard_LRS
2vCPU, 8G mem
PgVillage on Azure
init: 47s
latency: 31ms
tps: 2530
(Separate wal)
2/3 vCores
1/1.5 GiB RAM
100 GiB storage
init: 69s
latency: 62ms
tps: 1337
CNPG on Azure
*also scales with machine type
scale: 100
clients: 80
threads: 10

30. Database performance
Why is On Premise not ‘over 9000’?

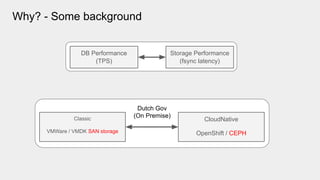

31. Dutch Gov
(On Premise)
Why? - Some background
Classic
VMWare / VMDK SAN storage
CloudNative
OpenShift / CEPH
DB Performance
(TPS)
Storage Performance
(fsync latency)

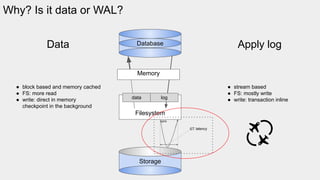

32. Filesystem
● stream based
● FS: mostly write
● write: transaction inline
● block based and memory cached
● FS: more read
● write: direct in memory
checkpoint in the background
Why? Is it data or WAL?
Database
data log
Storage
sync
ΔT: latency
Data Apply log
Memory

33. ● Mostly read
○ and ingest write
● In memory > checkpoint
(background process)
● Block based
● Mostly write
○ ingest write also in log
● Update is inline for TPS
● stream based
Data
Apply log
Storage performance (On premise)
Storage performance
distribution centre
Assembly line

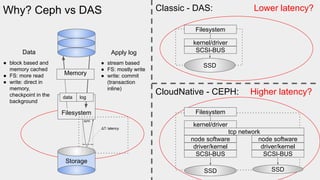

34. Filesystem
● stream based
● FS: mostly write
● write: commit
(transaction
inline)
● block based and
memory cached
● FS: more read
● write: direct in
memory,
checkpoint in the
background
Why? Ceph vs DAS
data log
Storage
sync
ΔT: latency
Data Apply log
Filesystem
SSD
SCSI-BUS
Filesystem
SSD
kernel/driver
kernel/driver
tcp network
node software
SCSI-BUS
driver/kernel
SSD
node software
SCSI-BUS
driver/kernel
Classic - DAS:
CloudNative - CEPH:
Memory
Lower latency?
Higher latency?

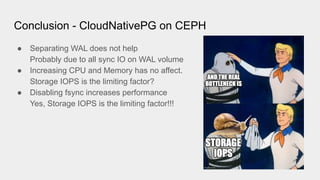

35. Conclusion - CloudNativePG on CEPH
● Separating WAL does not help
Probably due to all sync IO on WAL volume
● Increasing CPU and Memory has no affect.
Storage IOPS is the limiting factor?
● Disabling fsync increases performance
Yes, Storage IOPS is the limiting factor!!!

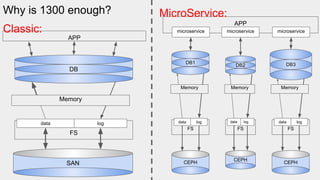

36. APP
Why is 1300 enough?
FS
DB
data log
SAN
Memory
FS
DB1
data log
CEPH
Memory
APP
microservice
FS
DB2
data log
CEPH
Memory
microservice
FS
DB3
data log
CEPH
Memory
microservice
Classic:
MicroService:

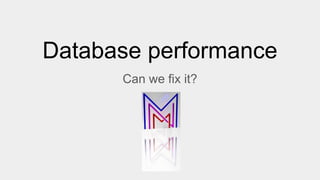

37. Database performance
Can we fix it?

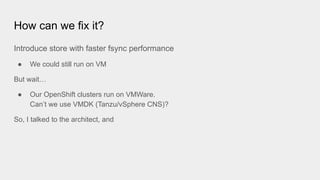

38. How can we fix it?
Introduce store with faster fsync performance
● We could still run on VM
But wait…
● Our OpenShift clusters run on VMWare.
Can’t we use VMDK (Tanzu/vSphere CNS)?
So, I talked to the architect, and

39. 1300 TPS is enough

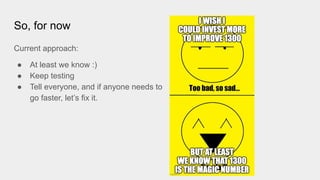

40. So, for now
Current approach:
● At least we know :)
● Keep testing
● Tell everyone, and if anyone needs to
go faster, let’s fix it.

41. Database performance
But wait, there is more…

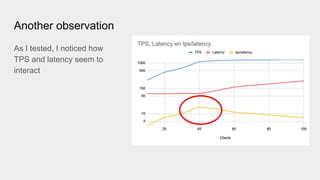

42. Another observation
As I tested, I noticed how
TPS and latency seem to
interact

43. So let’s build a tool
● How many CPU presentation
○ rust (and go), multithreaded
○ only tps, #clients was fixed, no ssl
○ just getting started to program in rust
● pg_tps_optimizer
○ rust, multithreaded
○ tps and latency
○ #clients increase (fibonacci)
○ ssl and client certs support
○ still just getting started to program in
rust, but neovim / primeagen
○ Work in progress, but not there yet :(
https://www.postgresql.eu/events/pgconfeu2019/sessions/session/2797/slides/199/2019%20How%20much%20CPU%2060.000%20TPS%20(PGCONF).pdf
https://github.com/MannemSolutions/pg_tps_optimizer

44. Some other issues and
solutions
Issues we ran into and how we fix them

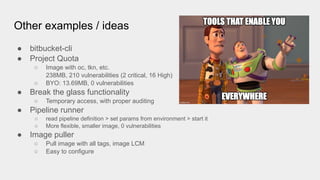

45. Other examples / ideas
● bitbucket-cli
● Project Quota
○ Image with oc, tkn, etc.
238MB, 210 vulnerabilities (2 critical, 16 High)
○ BYO: 13.69MB, 0 vulnerabilities
● Break the glass functionality
○ Temporary access, with proper auditing
● Pipeline runner
○ read pipeline definition > set params from environment > start it
○ More flexible, smaller image, 0 vulnerabilities
● Image puller
○ Pull image with all tags, image LCM
○ Easy to configure

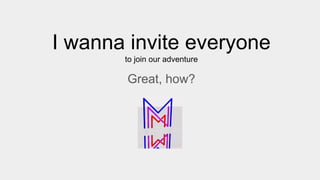

46. I wanna invite everyone
to join our adventure
Great, how?

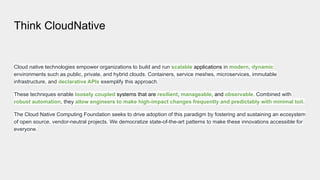

47. Think CloudNative
Cloud native technologies empower organizations to build and run scalable applications in modern, dynamic
environments such as public, private, and hybrid clouds. Containers, service meshes, microservices, immutable
infrastructure, and declarative APIs exemplify this approach.
These techniques enable loosely coupled systems that are resilient, manageable, and observable. Combined with
robust automation, they allow engineers to make high-impact changes frequently and predictably with minimal toil.
The Cloud Native Computing Foundation seeks to drive adoption of this paradigm by fostering and sustaining an ecosystem
of open source, vendor-neutral projects. We democratize state-of-the-art patterns to make these innovations accessible for
everyone.

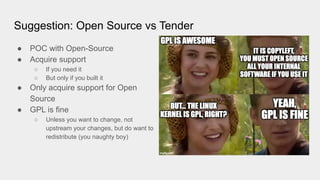

48. Suggestion: Open Source vs Tender
● POC with Open-Source
● Acquire support
○ If you need it
○ But only if you built it
● Only acquire support for Open
Source
● GPL is fine
○ Unless you want to change, not
upstream your changes, but do want to
redistribute (you naughty boy)

49. DYI vs Support
1. Make it work
○ Use Open Source
○ Investigate multiple options
2. Make it right
○ Do you need support?
○ Request support for your solution,
instead of a solution with support
3. Make it perform
○ Don’t overdo
■ aim for similar performance
■ Only as required (production=yes,
cicd=no, be smart)
○ Microservice architecture helps big time
○ Use the same storage as on original
architecture

50. Takeaways
The one slide you wanna take home

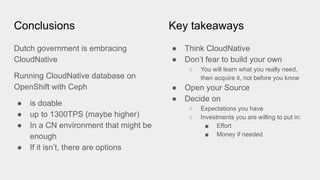

51. Conclusions
Dutch government is embracing
CloudNative
Running CloudNative database on
OpenShift with Ceph
● is doable
● up to 1300TPS (maybe higher)
● In a CN environment that might be
enough
● If it isn’t, there are options
Key takeaways
● Think CloudNative
● Don’t fear to build your own
○ You will learn what you really need,
then acquire it, not before you know
● Open your Source
● Decide on
○ Expectations you have
○ Investments you are willing to put in:
■ Effort
■ Money if needed

52. FIN
FIN

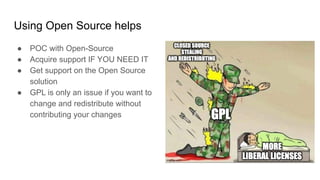

53. Using Open Source helps
● POC with Open-Source
● Acquire support IF YOU NEED IT
● Get support on the Open Source
solution
● GPL is only an issue if you want to
change and redistribute without
contributing your changes

54. CMDB

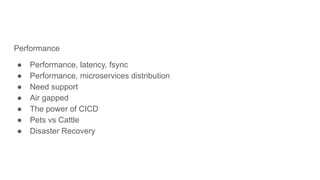

55. Performance
● Performance, latency, fsync
● Performance, microservices distribution
● Need support
● Air gapped
● The power of CICD
● Pets vs Cattle
● Disaster Recovery

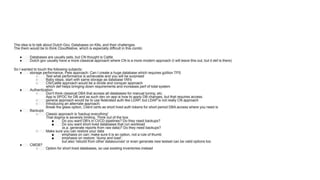

56. The idea is to talk about Dutch Gov, Databases on K8s, and their challenges.
The them would be to think CloudNative, which is especially difficult in this combi:
● Databases are usually pets, but CN thought is Cattle
● Dutch gov usually have a more classical approach where CN is a more modern approach (I will leave this out, but it def is there)
So I wanted to touch the following subjects:
● storage performance, Pets approach: Can I create a huge database which requires gzillion TPS
○ Test what performance is achievable and you will be surprised
○ Baby steps, start with same storage as database VM's
○ CN/Cattle approach would be a divide and conquer approach
which def helps bringing down requirements and increases perf of total system
● Authentication
○ Don't think classical DBA that access all databases for manual tuning, etc.
App is SPOC for DB and as such dev on app is how to apply DB changes, but that requires access.
○ general approach would be to use federated auth like LDAP, but LDAP is not really CN approach
○ Introducing an alternate approach:
Break the glass option, Client certs as short lived auth tokens for short period DBA access where you need is
● Backups
○ Classic approach is 'backup everything'
That dogma is severely limiting. Think out of the box
■ Do you want DB's in CI/CD pipelines? Do they need backups?
■ Do you want short lived databases that run workload
(e.a. generate reports from raw data)? Do they need backups?
○ Make sure you can restore your data
■ emphasis on can: make sure it is an option, not a rule of thumb
■ emphasis on restore: 'dump and load',
but also 'rebuild from other datasources' or even generate new testset can be valid options too
● CMDB?
○ Option for short lived databases, so use existing inventories instead

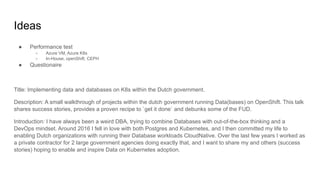

57. Ideas
● Performance test
○ Azure VM, Azure K8s
○ In-House, openShift, CEPH
● Questionaire
Title: Implementing data and databases on K8s within the Dutch government.
Description: A small walkthrough of projects within the dutch government running Data(bases) on OpenShift. This talk
shares success stories, provides a proven recipe to `get it done` and debunks some of the FUD.
Introduction: I have always been a weird DBA, trying to combine Databases with out-of-the-box thinking and a
DevOps mindset. Around 2016 I fell in love with both Postgres and Kubernetes, and I then committed my life to
enabling Dutch organizations with running their Database workloads CloudNative. Over the last few years I worked as
a private contractor for 2 large government agencies doing exactly that, and I want to share my and others (success
stories) hoping to enable and inspire Data on Kubernetes adoption.

58. ● Why am I trying to get DoK adoption in Dutch Gov?
● Dutch government is adorable
○ Rogers: Laggards trying to become late majority
○ You are too late to have us approve your submission
○ Have we bought support?
○ Computable
● Data on Kubernetes Paradox
○ Data (stateful by nature)
○ On Kubernetes (Stateless by nature)
● Challenges
○ Multicluster

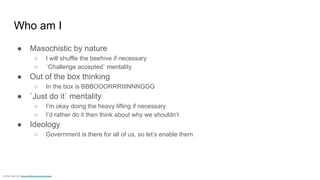

59. Who am I
● Masochistic by nature
○ I will shuffle the beehive if necessary
○ `Challenge accepted` mentality
● Out of the box thinking
○ In the box is BBBOOORRRIIINNNGGG
● `Just do it` mentality
○ I’m okay doing the heavy lifting if necessary
○ I’d rather do it then think about why we shouldn’t
● Ideology
○ Government is there for all of us, so let’s enable them
memes create with: https://imgflip.com/memegenerator

60. Who am I - Masochistic by nature
Shuffle the beehive if necessary
`Challenge accepted` mentality
memes create with: https://imgflip.com/memegenerator

61. Who am I - Out of the box thinker

62. Who am I - `Just do it` mentality
memes create with: https://imgflip.com/memegenerator

63. Data on Kubernetes - Why not?
●

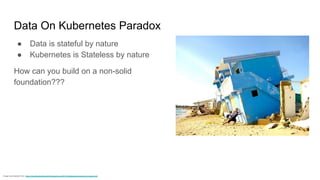

64. Data On Kubernetes Paradox
Image downloaded from: https://forgottenbytheworld.blogspot.com/2012/02/abandoned-leaning-house.html
● Data is stateful by nature
● Kubernetes is Stateless by nature
How can you build on a non-solid
foundation???

65. Rethink the problem
You only need to DoK.io every now and then

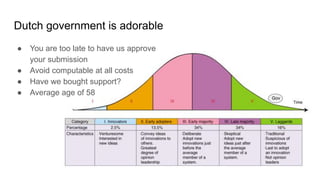

66. Dutch government is adorable
● You are too late to have us approve
your submission
● Avoid computable at all costs
● Have we bought support?
● Average age of 58
Gov

67. Storage - do’s and don’ts
● Databases love fsync’able storage
○ fsync should be fast (short roundtrip)
○ fsync should be trustworthy (when fsync says it is ok, it must be ok)
● Do’s
○ Use block storage
○ Use same storage as on VM
■ VMWare Tanzu to have vmdk on k8s
■ Or also use CEPH on VM(if you also use it on k8s)
● Dont’s
○ Don’t use NFS!!!
○ Don’t use

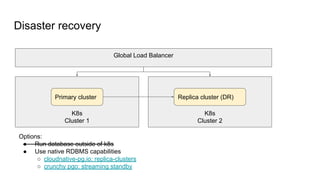

68. Disaster recovery
K8s
Cluster 1
K8s
Cluster 2
Global Load Balancer
Primary cluster Replica cluster (DR)
Options:
● Run database outside of k8s
● Use native RDBMS capabilities
○ cloudnative-pg.io: replica-clusters
○ crunchy pgo: streaming standby
