IGL Coatings ecocoat window introduction and test reports. This is a quick introduction of IGL hydrophobic coating for the glass surface. It is a durable coating that can last up to 1 year.

1. ECOCOAT WINDOW
by Ominent Sdn Bhd
“PremiumQuality
Trusted Worldwide”

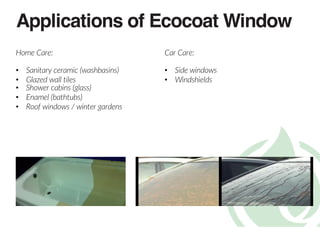

2. Applications of Ecocoat Window
Home Care:
• Sanitary ceramic (washbasins)
• Glazed wall tiles
• Shower cabins (glass)
• Enamel (bathtubs)
• Roof windows / winter gardens
Car Care:
• Side windows
• Windshields

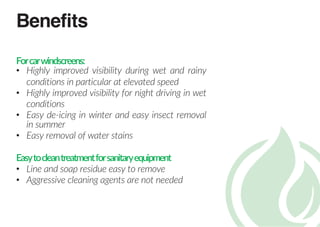

3. Benefits
Forcarwindscreens:
• Highly improved visibility during wet and rainy
conditions in particular at elevated speed
• Highly improved visibility for night driving in wet
conditions
• Easy de-icing in winter and easy insect removal
in summer
• Easy removal of water stains
Easytocleantreatmentforsanitaryequipment
• Line and soap residue easy to remove
• Aggressive cleaning agents are not needed

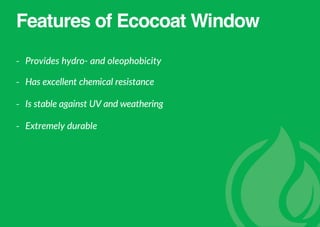

4. Features of Ecocoat Window
- Provides hydro- and oleophobicity
- Has excellent chemical resistance
- Is stable against UV and weathering
- Extremely durable

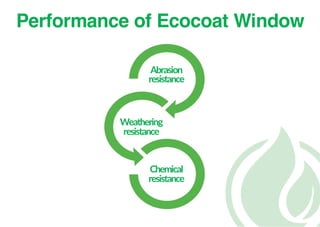

5. Performance of Ecocoat Window
Abrasion
resistance
Weathering
resistance
Chemical
resistance

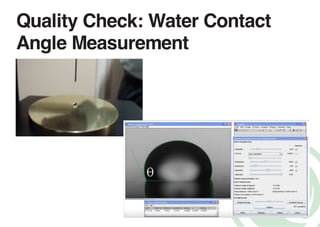

6. Quality Check: Water Contact
Angle Measurement

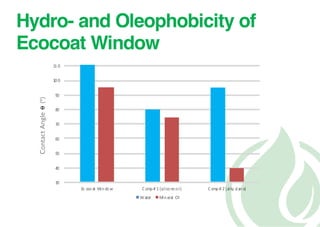

7. Hydro- and Oleophobicity of
Ecocoat Window
30
40
50
60
70
80
90
10 0
11 0
Ec ocoat Window Comp# 1 (silicone oil) Comp# 2 (alky silane)
Water Mineral Oil
ContactAngle⍬(º)

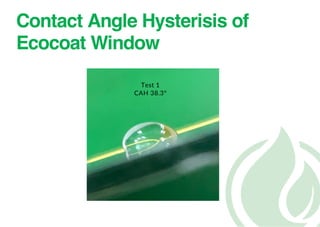

8. Contact Angle Hysterisis of
Ecocoat Window
Test 1
CAH 38.3º

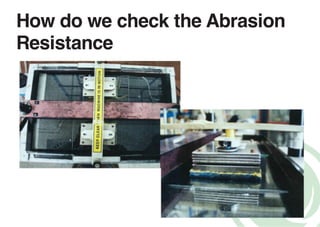

9. How do we check the Abrasion
Resistance

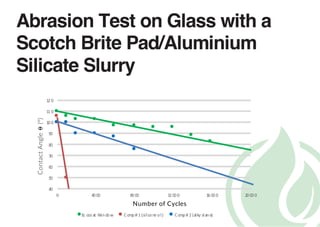

10. Abrasion Test on Glass with a
Scotch Brite Pad/Aluminium
Silicate Slurry
40
50
60
70
80
90
10 0
11 0
12 0
0 40 00 80 00 12 00 0 16 00 0 20 00 0
Ec ocoat Window Comp# 1 (silicone oil) Comp# 2 (alky silane)
Number of Cycles
ContactAngle⍬(º)

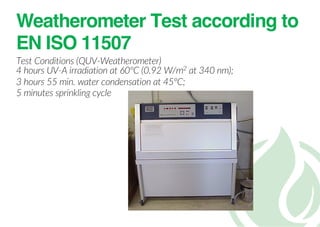

11. Weatherometer Test according to
EN ISO 11507
Test Conditions (QUV-Weatherometer)
4 hours UV-A irradiation at 60ºC (0.92 W/m2 at 340 nm);
3 hours 55 min. water condensation at 45ºC;
5 minutes sprinkling cycle

12. Weatherometer Test
60
70
80
90
10 0
11 0
0 50 0 10 00 15 00 20 00 25 00 30 00
Ec ocoat Window Comp# 1 (silicone oil) Comp# 2 (alky silane)
Time (hours)
ContactAngle⍬(º)

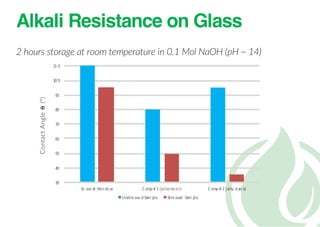

13. Alkali Resistance on Glass
2 hours storage at room temperature in 0.1 Mol NaOH (pH ~ 14)
30
40
50
60
70
80
90
10 0
11 0
Ec ocoat Window Comp# 1 (silicone oil) Comp# 2 (alky silane)
Unstre sse dSam ple Stre ssed Sam ple
ContactAngle⍬(º)

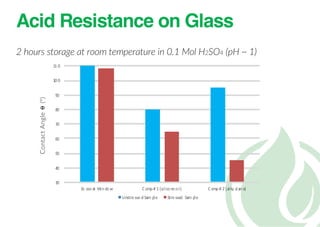

14. Acid Resistance on Glass
2 hours storage at room temperature in 0.1 Mol H2SO4 (pH ~ 1)
30
40
50
60
70
80
90
10 0
11 0
Ec ocoat Window Comp# 1 (silicone oil) Comp# 2 (alky silane)
Unstre sse dSam ple Stre ssed Sam ple
ContactAngle⍬(º)

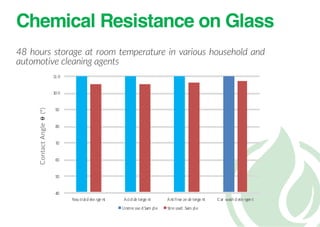

15. Chemical Resistance on Glass
48 hours storage at room temperature in various household and
automotive cleaning agents
40
50
60
70
80
90
10 0
11 0
Neutraldete rge nt Acidde terge nt Antifree ze de terge nt Car washdete rgent
Unstre sse dSam ple Stre ssed Sam ple
ContactAngle⍬(º)

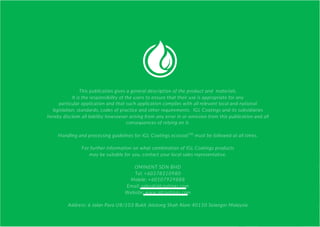

16. This publication gives a general description of the product and materials.
It is the responsibility of the users to ensure that their use is appropriate for any
particular application and that such application complies with all relevant local and national
legislation, standards, codes of practice and other requirements. IGL Coatings and its subsidiaries
hereby disclaim all liability howsoever arising from any error in or omission from this publication and all
consequences of relying on it.
Handling and processing guidelines for IGL Coatings ecocoatTM
must be followed at all times.
For further information on what combination of IGL Coatings products
may be suitable for you, contact your local sales representative.
