1. RCP3 ROBO Cylinder

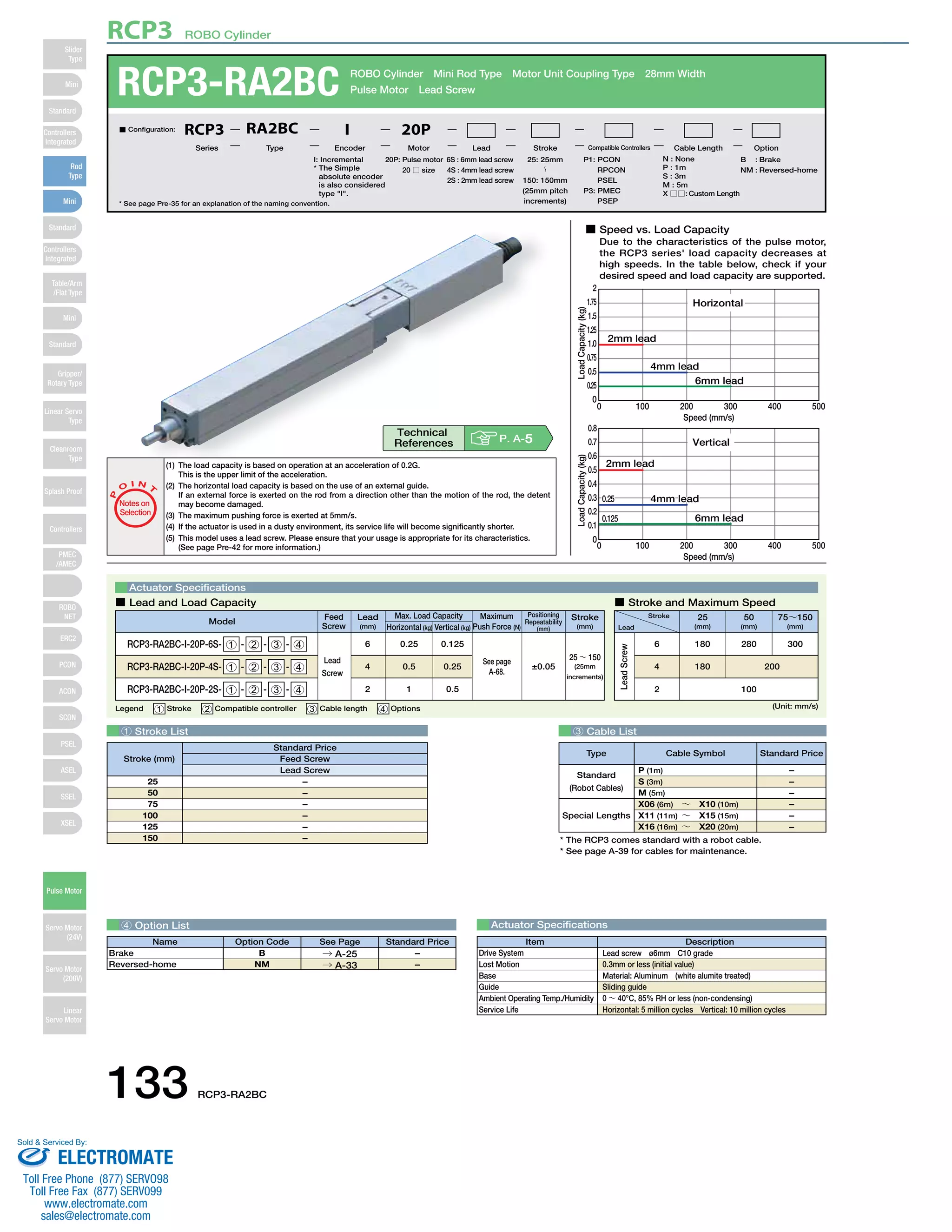

RCP3-RA2BC ROBO Cylinder Mini Rod Type Motor Unit Coupling Type 28mm Width
O I N
P
T
Notes on
Selection
(1) The load capacity is based on operation at an acceleration of 0.2G.
This is the upper limit of the acceleration.
(2) The horizontal load capacity is based on the use of an external guide.
If an external force is exerted on the rod from a direction other than the motion of the rod, the detent
may become damaged.
(3) The maximum pushing force is exerted at 5mm/s.
(4) If the actuator is used in a dusty environment, its service life will become significantly shorter.
(5) This model uses a lead screw. Please ensure that your usage is appropriate for its characteristics.
(See page Pre-42 for more information.)
■ Lead and Load Capacity ■ Stroke and Maximum Speed
Feed
Lead
Screw (mm)
Horizontal (kg) Vertical (kg)
Max. Load Capacity Positioning
Repeatability
(mm)
Maximum
Push Force (N)
2
1.75
1.5
1.25
1.0
0.75
0.5
0.25
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
Actuator Specifications
Model Stroke
(mm)
RCP3-RA2BC-I-20P-6S- 1 - 2 - 3 - 4
RCP3-RA2BC-I-20P-4S- 1 - 2 - 3 - 4
RCP3-RA2BC-I-20P-2S- 1 - 2 - 3 - 4
Lead
Screw
6 0.25
4 0.5
2 1
0.125
0.25
0.5
See page
A-68.
00..2255
25 ～ 150
(25mm
increments)
±0.05
■ Speed vs. Load Capacity
Due to the characteristics of the pulse motor,
the RCP3 series' load capacity decreases at
high speeds. In the table below, check if your
desired speed and load capacity are supported.
0 100 200 300 400 500
Speed (mm/s)
0
Load Capacity (kg)
Horizontal
2mm lead
4mm lead
6mm lead
0
0
100 200 300 400 500
Speed (mm/s)
Load Capacity (kg)
Vertical
2mm lead
4mm lead
0.125 6mm lead
Legend 1 Stroke 2 Compatible controller 3 Cable length 4 Options
1 Stroke List 3 Cable List
Type Cable Symbol Standard Price
Standard
(Robot Cables)
Special Lengths
4 Option List Actuator Specifications
Stroke
Lead
25
(mm)
180
50
(mm)
280
75～150
(mm)
300
180 200
100
6
4
2
(Unit: mm/s)
P (1m)
S (3m)
M (5m)
X06 (6m) ～ X10 (10m)
X11 (11m) ～ X15 (15m)
X16 (16m) ～ X20 (20m)
* The RCP3 comes standard with a robot cable.
* See page A-39 for cables for maintenance.
–
–
–
–
–
–
–
–
–
–
–
–
25
50
75
100
125
150
Name Option Code See Page Standard Price
B
NM
→ A-25
→ A-33
Brake
Reversed-home
–
–
Item Description
Lead screw ø6mm C10 grade
0.3mm or less (initial value)
Material: Aluminum (white alumite treated)
Sliding guide
0 ～ 40°C, 85% RH or less (non-condensing)
Horizontal: 5 million cycles Vertical: 10 million cycles
Drive System
Lost Motion
Base
Guide
Ambient Operating Temp./Humidity
Service Life
Lead Screw
Technical
References P. A-5
Lead Screw
Stroke (mm)
Standard Price
Feed Screw
Pulse Motor Lead Screw
* See page Pre-35 for an explanation of the naming convention.
20P: Pulse motor
20 □ size
I: Incremental
* The Simple
absolute encoder
is also considered
type "I".
P1: PCON
RPCON
PSEL
P3: PMEC
PSEP
6S : 6mm lead screw
4S : 4mm lead screw
2S : 2mm lead screw
■ Configuration: RCP3 RA2BC I 20P
Series Type Encoder Motor Lead Stroke Compatible Controllers Cable Length Option
25: 25mm
〜
150: 150mm
(25mm pitch
increments)
B : Brake
NM : Reversed-home
N : None
P : 1m
S : 3m
M : 5m
X □□ : Custom Length
133 RCP3-RA2BC
Slider
Type
Mini
Standard
Controllers
Integrated
Rod
Type
Mini
Standard
Controllers
Integrated
Table/Arm
/Flat Type
Mini
Standard
Gripper/
Rotary Type
Linear Servo
Type
Cleanroom
Type
Splash Proof
Controllers
PMEC
/AMEC
ROBO
NET
ERC2
PCON
ACON
SCON
PSEL
ASEL
SSEL
XSEL
Pulse Motor
Servo Motor
(24V)
Servo Motor
(200V)
Linear
Servo Motor
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

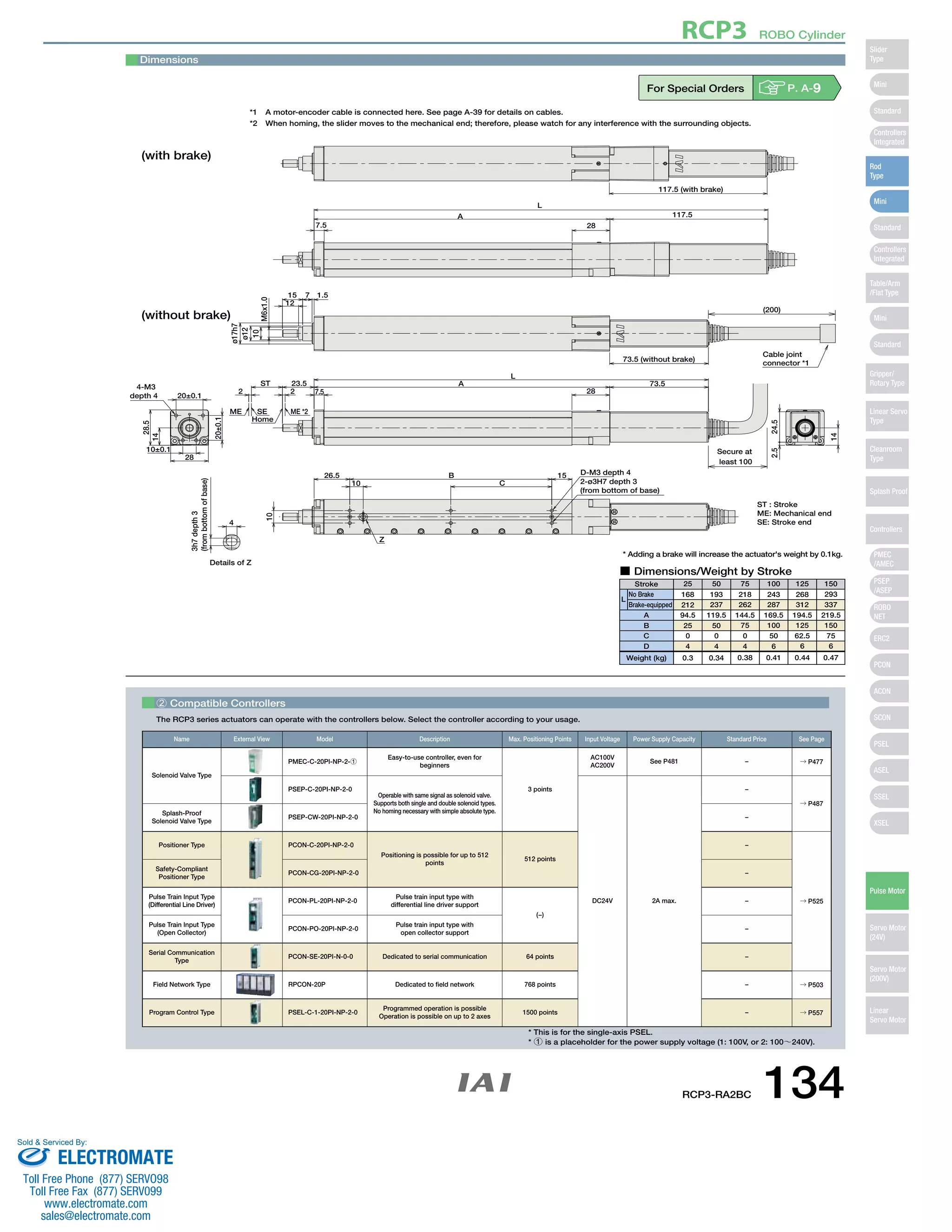

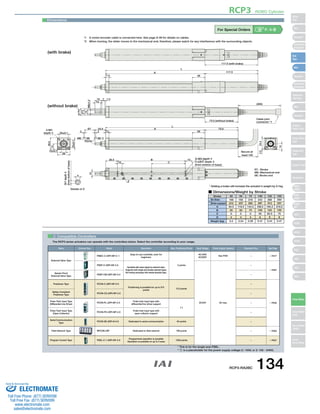

2. RCP3 ROBO Cylinder
For Special Orders P. A-9
117.5 (with brake)
73.5 (without brake)
73.5
(200)
2.5 24.5
14
* Adding a brake will increase the actuator's weight by 0.1kg.
28
L
7.5
ST 23.5
2
ME *2
ME SE
Home
2
4-M3
depth 4 20±0.1
28.5
14
10±0.1
28
20±0.1
4
Details of Z
3h7 depth 3
(from bottom of base)
26.5
10
Z
B
C
15 D-M3 depth 4
2-ø3H7 depth 3
(from bottom of base)
A
15 7 1.5
12
M6x1.0
ø17h7
ø12
10
Secure at
least 100
L
A
7.5
117.5
28
(with brake)
(without brake)
ST : Stroke
10
Cable joint
connector *1
ME: Mechanical end
SE: Stroke end
Dimensions
■ Dimensions/Weight by Stroke
L
Stroke
No Brake
Brake-equipped
A
B
C
D
Weight (kg)
25 50 75 100 125 150
168
212
94.5
25
0
4
0.3
193
237
119.5
50
0
4
0.34
218
262
144.5
75
0
4
0.38
243
287
169.5
100
50
6
0.41
268
312
194.5
125
62.5
6
0.44
293
337
219.5
150
75
6
0.47
*1 A motor-encoder cable is connected here. See page A-39 for details on cables.
*2 When homing, the slider moves to the mechanical end; therefore, please watch for any interference with the surrounding objects.
