This document provides specifications for the RCP2-RGS6C ROBO Cylinder actuator. It includes: 1) A graph showing how load capacity decreases at higher speeds due to the pulse motor characteristics. 2) Dimensions, weight, stroke length, maximum speed and load capacity specifications for the actuator. 3) Information on compatible controllers, cable options and accessories like brakes.

1. RCP2 ROBO Cylinder
RCP2-RGS6C ROBO Cylinder Rod Type with Single Guide 64mm Width Pulse Motor Straight Type
■ Speed vs. Load Capacity
Due to the characteristics of the pulse motor,
the RCP2 series' load capacity decreases at
high speeds. In the table below, check if your
desired speed and load capacity are supported.
70
60
50
40
30
20
10
Horizontal
16mm lead
4mm lead
55
8mm lead
35
0
0 100 200 300 400 500 600 700
Speed (mm/s)
Load Capacity (kg)
28
24
20
16
12
8
4
Vertical
4mm lead
8mm lead
16mm lead
0.5 1 0.5
00 100 200 300 400 500 600 700
Speed (mm/s)
Load Capacity (kg)
P. A-5 Technical
References
* See page Pre-35 for an explanation of the naming convention.
(1) When the stroke increases, the maximum speed will drop to prevent the ball screw from reaching the critical rotational speed.
Use the actuator specification table below to check the maximum speed at the stroke you desire.
(2) Since the RCP2 series use a pulse motor, the load capacity decreases at high speeds.
Check in the Speed vs. Load Capacity graph to see if your desired speed and load capacity are supported.
(3) The load capacity is based on operation at an acceleration of 0.2G.
0.2G is the upper limit of the acceleration.
In addition, the horizontal load capacity is based on the use of an external guide. See the technical resources (page A-82) for the allowable
weight using the supplied guide alone.
O I N
T
Notes on
Selection
Actuator Specifications
P
■ Lead and Load Capacity (Note 1) Please note that the maximum load capacity decreases as the speed increases. ■ Stroke and Maximum Speed
Max. Load Capacity (Note 1) Maximum Push
Legend: 1Stroke 2Compatible controller 3Cable length 4Options * The values enclosed in < > apply for vertical usage. (Unit: mm/s)
1 Stroke List 3 Cable List
Type Cable Symbol Standard Price
Standard
Special Lengths
Robot Cable
P (1m)
S (3m)
M (5m)
X06 (6m) ～ X10 (10m)
X11 (11m) ～ X15 (15m)
X16 (16m) ～ X20 (20m)
R01 (1m) ～ R03 (3m)
R04 (4m) ～ R05 (5m)
R06 (6m) ～ R10 (10m)
R11 (11m) ～ R15 (15m)
R16 (16m) ～ R20 (20m)
–
–
–
–
–
–
–
–
–
–
–
* See page A-39 for cables for maintenance.
4 Option List Actuator Specifications
Name Option Code See Page Standard Price
B
FT
NM
→ A-25
→ A-29
→ A-33
Brake
Foot bracket
Reversed-home
Stroke
Lead
50 ～ 300
(50mm increments)
450 <400>
210
130
16
8
4
Lead
(mm)
16
8
4
Horizontal (kg)
～ 40
～ 50
～ 55
Vertical (kg)
Force (N)(Note 2)
Model
～ 4
～ 16
～ 24
240
470
800
Stroke
(mm
RCP2-RGS6C-I-56P-16- 1 - 2 - 3 - 4
RCP2-RGS6C-I-56P-8- 1 - 2 - 3 - 4
RCP2-RGS6C-I-56P-4- 1 - 2 - 3 - 4
50 ～ 300
(50mm
increments)
Item Description
Ball screw ø12mm C10 grade
±0.02mm
0.1mm or less
Single guide Guide rod diameter ø12mm Ball bush type
ø30mm
±0.05 deg
0 ～ 40°C, 85% RH or less (non-condensing)
Drive System
Positioning Repeatability
Lost Motion
Guide
Rod Diameter
Non-rotating accuracy of rod
Ambient Operating Temp./Humidity
–
–
–
–
–
–
50
100
150
200
250
300
(Note 2) See page A-69 for the pushing force graphs.
–
–
–
Stroke (mm) Standard Price
56P: Pulse motor
56 □ size
I: Incremental
* The Simple
absolute encoder
is also considered
type "I".
P1: PCON
RPCON
PSEL
P3: PMEC
PSEP
16 : 16mm
8 : 8mm
4 : 4mm
■ Configuration: RCP2 RGS6C I 56P
Series Type Encoder Motor Lead Stroke Compatible Controllers Cable Length Option
50: 50mm
〜
300: 300mm
(50mm pitch
increments)
B : Brake
FT : Foot bracket
NM : Reversed-home
N : None
P : 1m
S : 3m
M : 5m
X □□ : Custom
R □□ : Robot cable
153 RCP2-RGS6C
Slider
Type
Mini
Standard
Controllers
Integrated
Rod
Type
Mini
Standard
Controllers
Integrated
Table/Arm
/Flat Type
Mini
Standard
Gripper/
Rotary Type
Linear Servo
Type
Cleanroom
Type
Splash Proof
Controllers
PMEC
/AMEC
PSEP
/ASEP
ROBO
NET
ERC2
PCON
ACON
SCON
PSEL
ASEL
SSEL
XSEL
Pulse Motor
Servo Motor
(24V)
Servo Motor
(200V)
Linear
Servo Motor
Sold & Serviced By:
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com

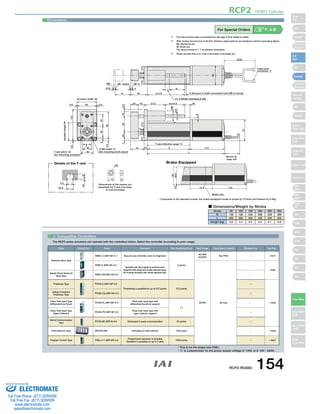

2. Brake unit
st+14.5 16
44 10 112
0.5 63.5
64
RCP2 ROBO Cylinder
72.5 112
Brake-Equipped
st+72
14. 5 (Shaft overhang at SE)
ME SE Home ME *2
4 (Amount of shaft movement from ME to home)
0.5
6-M6 depth 15
(for mounting work piece)
Actuator width: 64
0.5 63
Actuator height: 64
0.5 110
6.5 95
5 40 40
30
40
T-slot pitch: 25
(for mounting actuator)
75
(4.8) 4
st 54
st
ø12
ø36
6
25 19 67.5
7 25 55 15 8.5
Secure at
least 100
L
Details of the T-slot
6.5
10.5
2.6 8
68
(240)
Cable joint
connector *1
T-slot effective range *3
Dimensions of the square nut
(supplied) for T-slot mounting
(4 nuts provided)
* Compared to the standard model, the brake-equipped model is longer by 72.5mm and heavier by 0.9kg.
2 Compatible Controllers
The RCP2 series actuators can operate with the controllers below. Select the controller according to your usage.
For Special Orders P. A-9
Dimensions
*1. The motor-encoder cable is connected here. See page A-39 for details on cables.
*2 When homing, the rod moves to the M.E.; therefore, please watch for any interference with the surrounding objects.
ME: Mechanical end
SE: Stroke end
The values enclosed in "( )" are reference dimensions.
*3. Please note that there is no T-slot on the bottom of the brake unit.
Stroke 50 100 150 200 250 300
R
L
Weight (kg)
138
250
3.6
188
300
4.4
238
350
5.0
288
400
5.5
338
450
6.1
388
500
6.6
■ Dimensions/Weight by Stroke
Name External View Model Description Max. Positioning Points Input Voltage Power Supply Capacity Standard Price See Page
Solenoid Valve Type
PMEC-C-56PI-NP-2-1 Easy-to-use controller, even for beginners
3 points
AC100V
AC200V
See P481 – → P477
PSEP-C-56PI-NP-2-0
Operable with same signal as solenoid valve.
Supports both single and double solenoid types.
No homing necessary with simple absolute type.
DC24V 2A max.
–
→ P487
Splash-Proof Solenoid
Valve Type
PSEP-CW-56PI-NP-2-0 –
Positioner Type PCON-C-56PI-NP-2-0
Positioning is possible for up to 512 points 512 points
–
→ P525
Safety-Compliant
Positioner Type
PCON-CG-56PI-NP-2-0 –
Pulse Train Input Type
(Differential Line Driver)
PCON-PL-56PI-NP-2-0
Pulse train input type with
differential line driver support
(−)
–
Pulse Train Input Type
(Open Collector)
PCON-PO-56PI-NP-2-0
Pulse train input type with
open collector support
–
Serial Communication
Type
PCON-SE-56PI-N-0-0 Dedicated to serial communication 64 points –
Field Network Type RPCON-56P Dedicated to field network 768 points – → P503
Program Control Type PSEL-C-1-56PI-NP-2-0
Programmed operation is possible
Operation is possible on up to 2 axes
1500 points – → P557
* This is for the single-axis PSEL.
* 1 is a placeholder for the power supply voltage (1: 100V, or 2: 100～240V).
RCP2-RGS6C 154
