This document contains a presentation on servlets and HTTP basics. It includes slides on: - The structure of an HTTP request and response - HTTP methods like GET, POST, PUT, DELETE - What servlets are and how they work within a servlet container like Tomcat - An overview of the javax.servlet package, including interfaces like Servlet and classes like GenericServlet and HttpServlet - The servlet lifecycle methods like init, service, destroy - How to set up and use Tomcat as a servlet container In summary, it provides an introduction to key concepts of HTTP and the servlet programming model in Java web applications.

1. Prepared using
Unit 2
HTTP Basics
Servlet Basics
Presentation by
AshishSingh T Bhatia
Lecturer, CTI
ast.bhatia@gmail.com

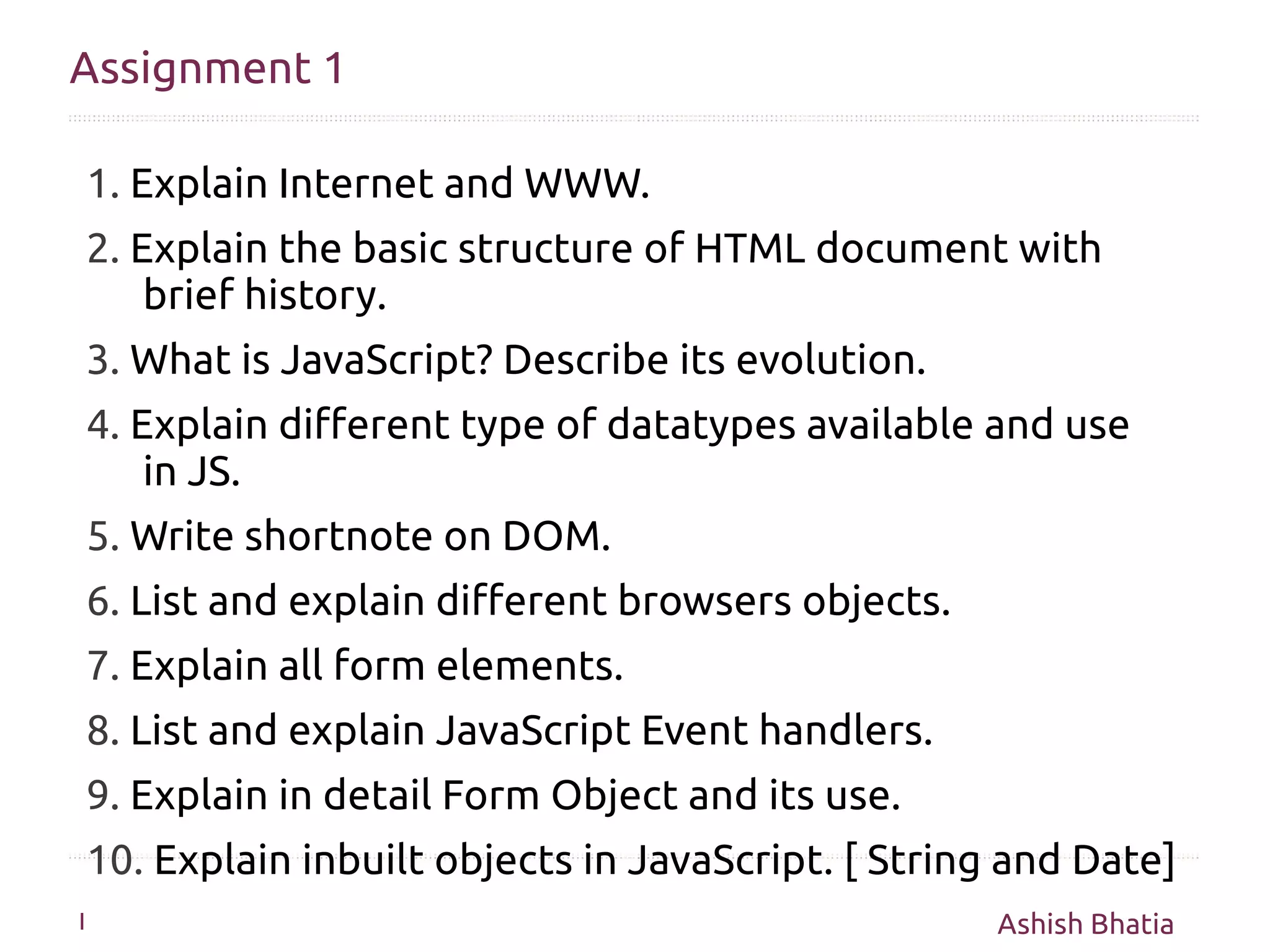

2. Assignment 1
1. Explain Internet and WWW.
2. Explain the basic structure of HTML document with
brief history.
3. What is JavaScript? Describe its evolution.
4. Explain different type of datatypes available and use
in JS.
5. Write shortnote on DOM.
6. List and explain different browsers objects.
7. Explain all form elements.
8. List and explain JavaScript Event handlers.
9. Explain in detail Form Object and its use.
10. Explain inbuilt objects in JavaScript. [ String and Date]
I Ashish Bhatia

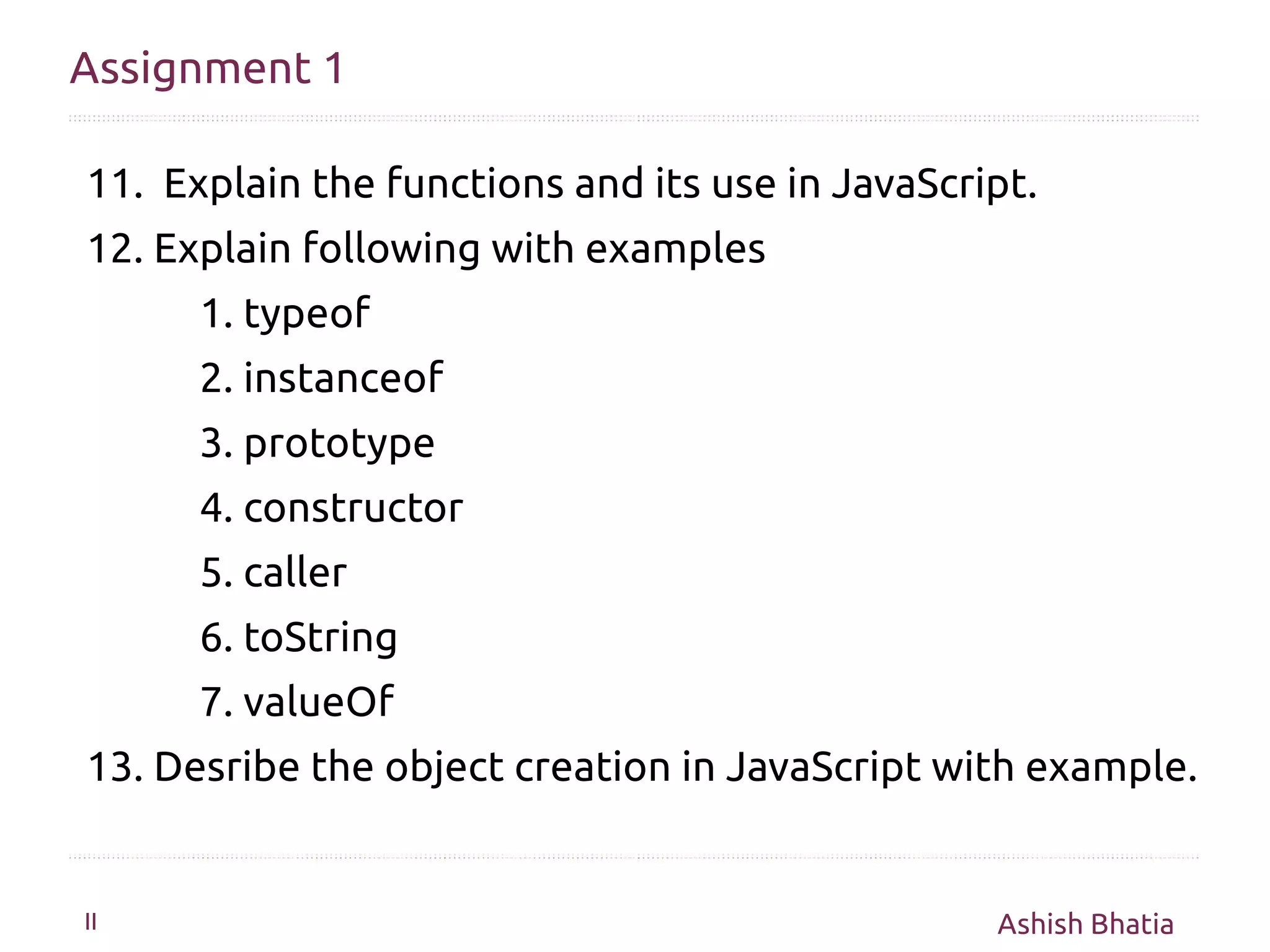

3. Assignment 1
11. Explain the functions and its use in JavaScript.
12. Explain following with examples
1. typeof
2. instanceof
3. prototype
4. constructor
5. caller
6. toString
7. valueOf
13. Desribe the object creation in JavaScript with example.
II Ashish Bhatia

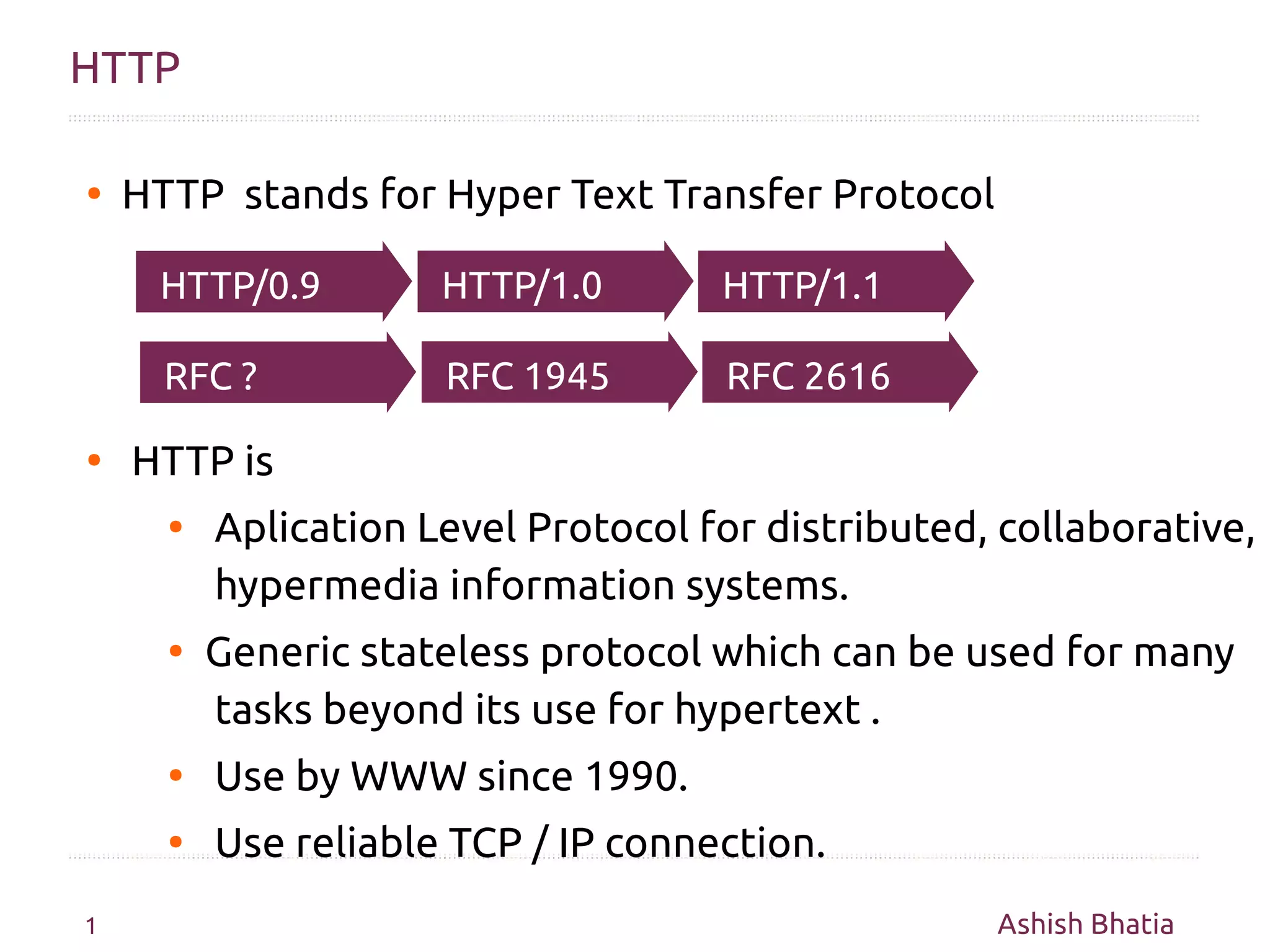

4. HTTP
● HTTP stands for Hyper Text Transfer Protocol
HTTP/0.9 HTTP/1.0 HTTP/1.1
RFC ? RFC 1945 RFC 2616
● HTTP is
● Aplication Level Protocol for distributed, collaborative,
hypermedia information systems.
● Generic stateless protocol which can be used for many
tasks beyond its use for hypertext .
● Use by WWW since 1990.
● Use reliable TCP / IP connection.
1 Ashish Bhatia

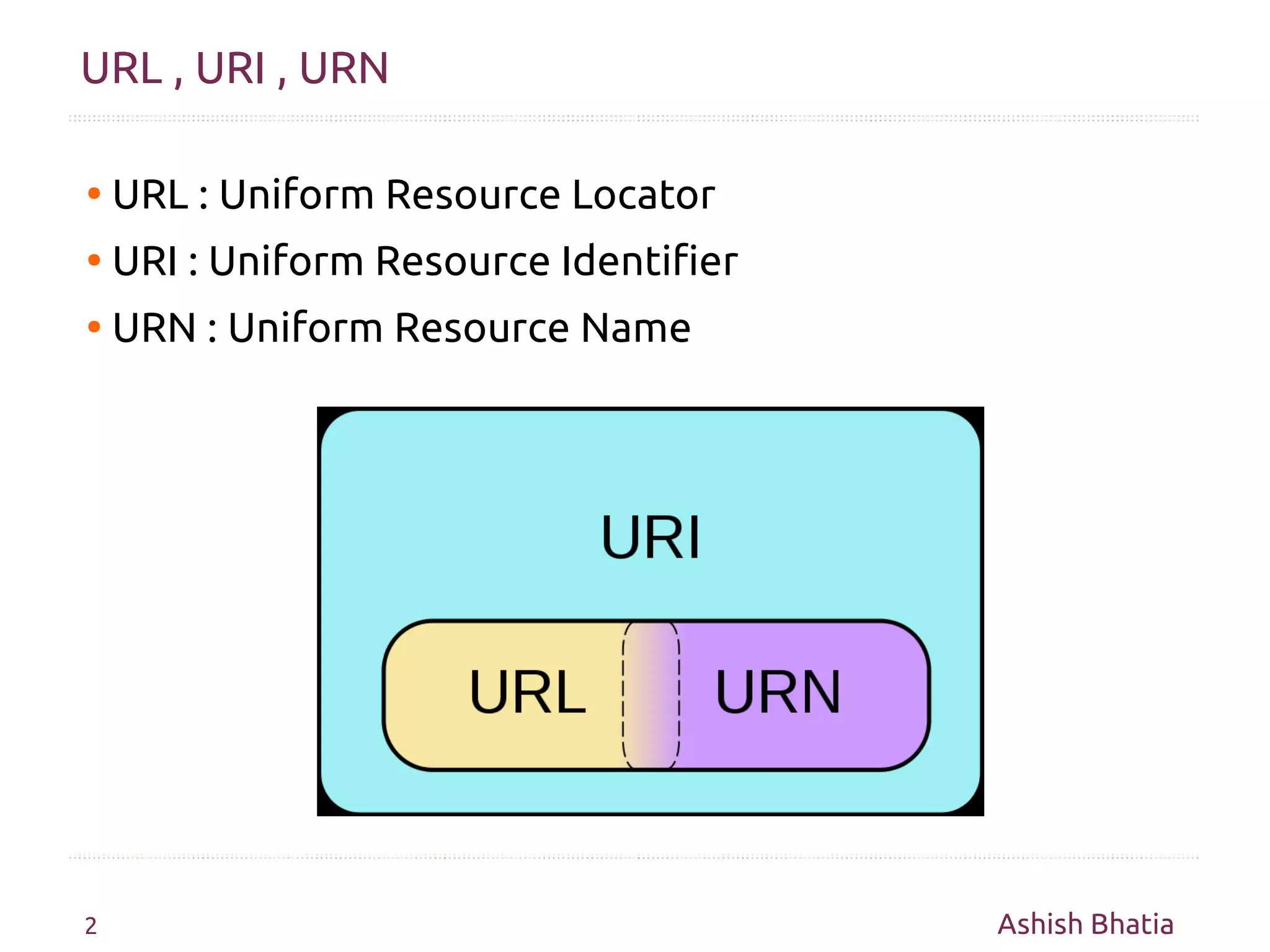

5. URL , URI , URN
● URL : Uniform Resource Locator
● URI : Uniform Resource Identifier
● URN : Uniform Resource Name
2 Ashish Bhatia

6. URL , URI , URN
● Web Identifiers
● Classical View
● [ URI ] Identifier might specify
● location of resource ==> URL
● http://
● identifies a resource via a representation of its
primary access mechanism
(e.g., its network "location"),
● Its name independent of location ==> URN
● urn:isbn :n-nn-nnnnnn-n
3 Ashish Bhatia

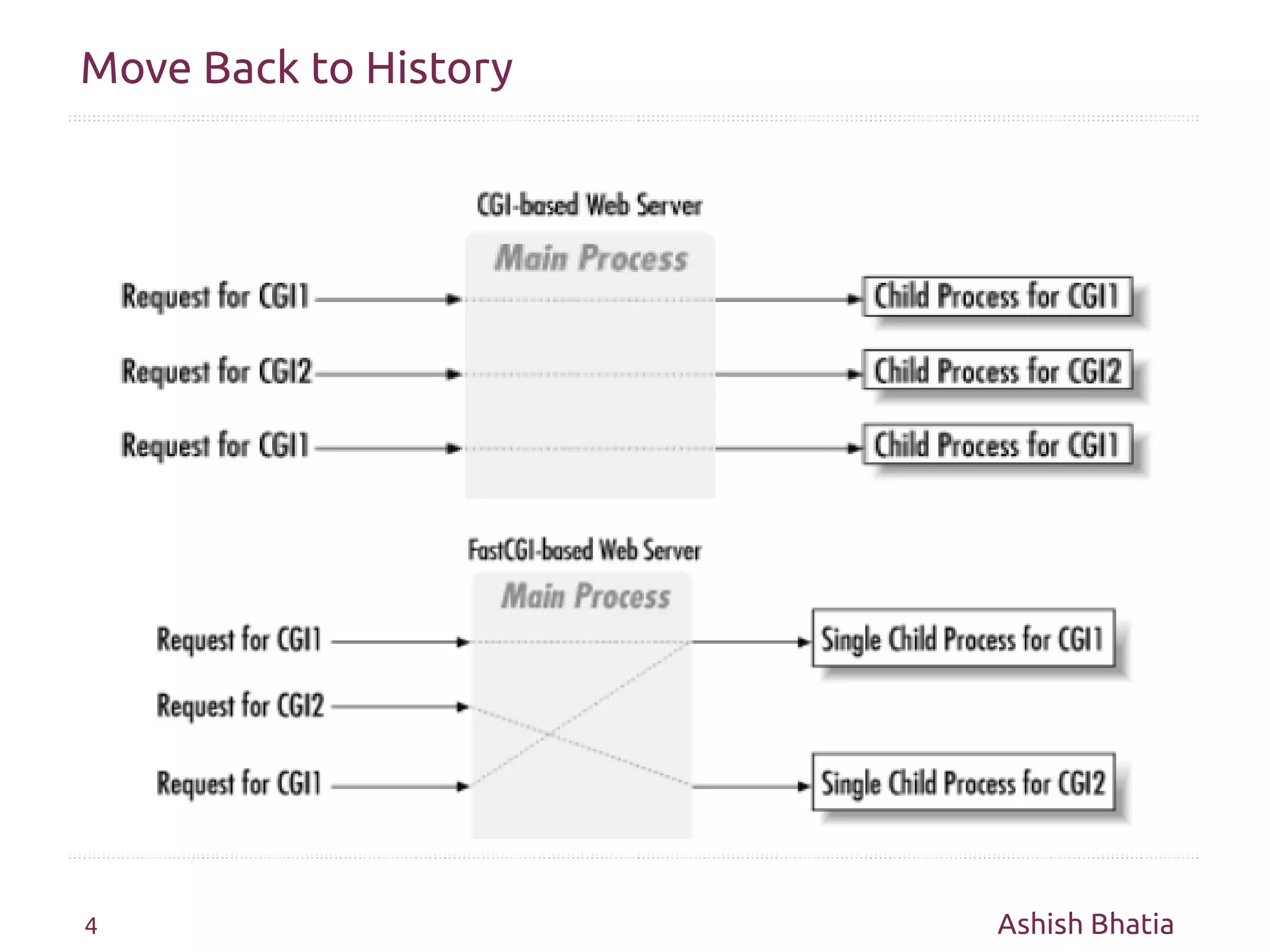

7. Move Back to History
4 Ashish Bhatia

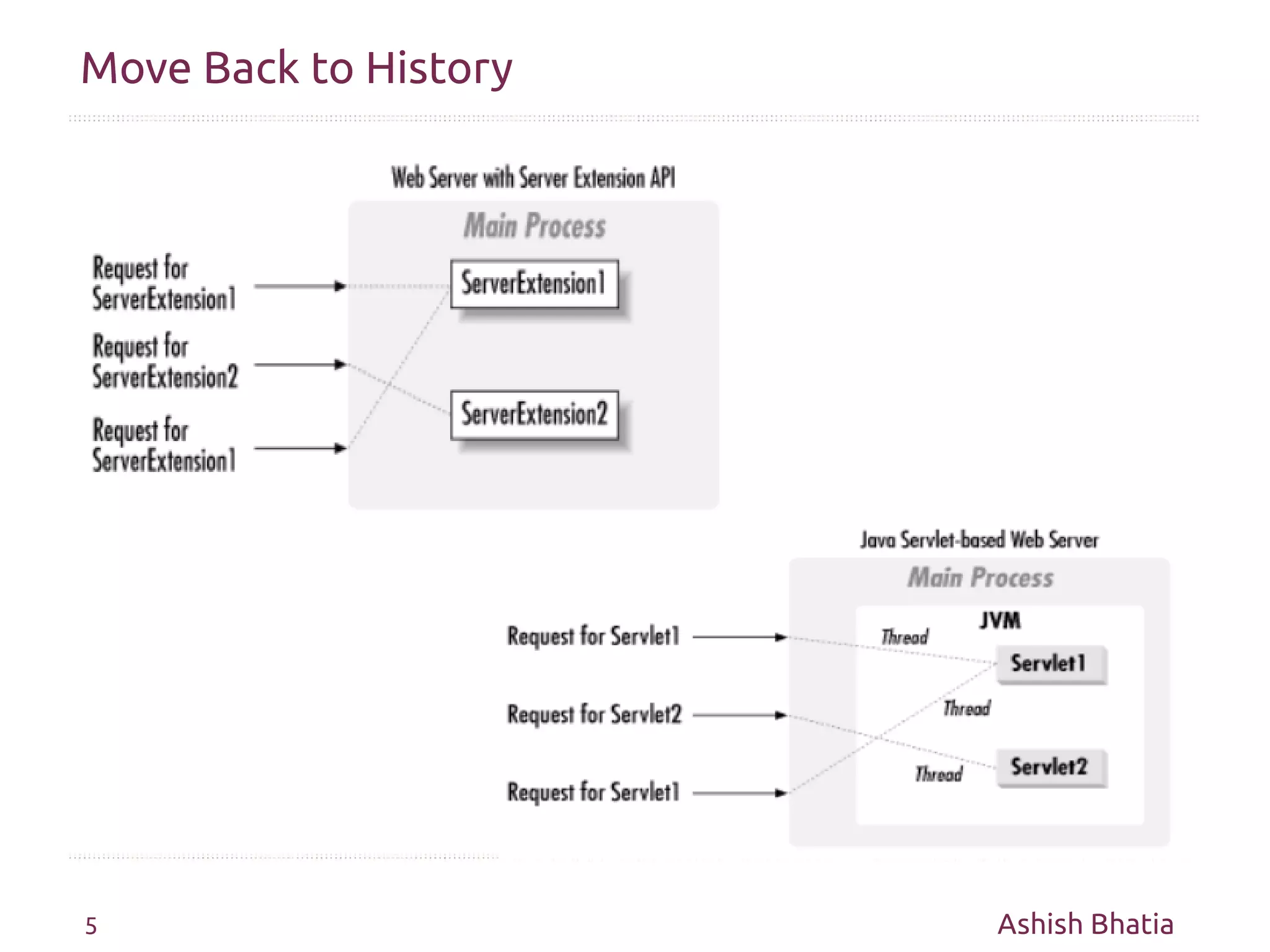

8. Move Back to History
5 Ashish Bhatia

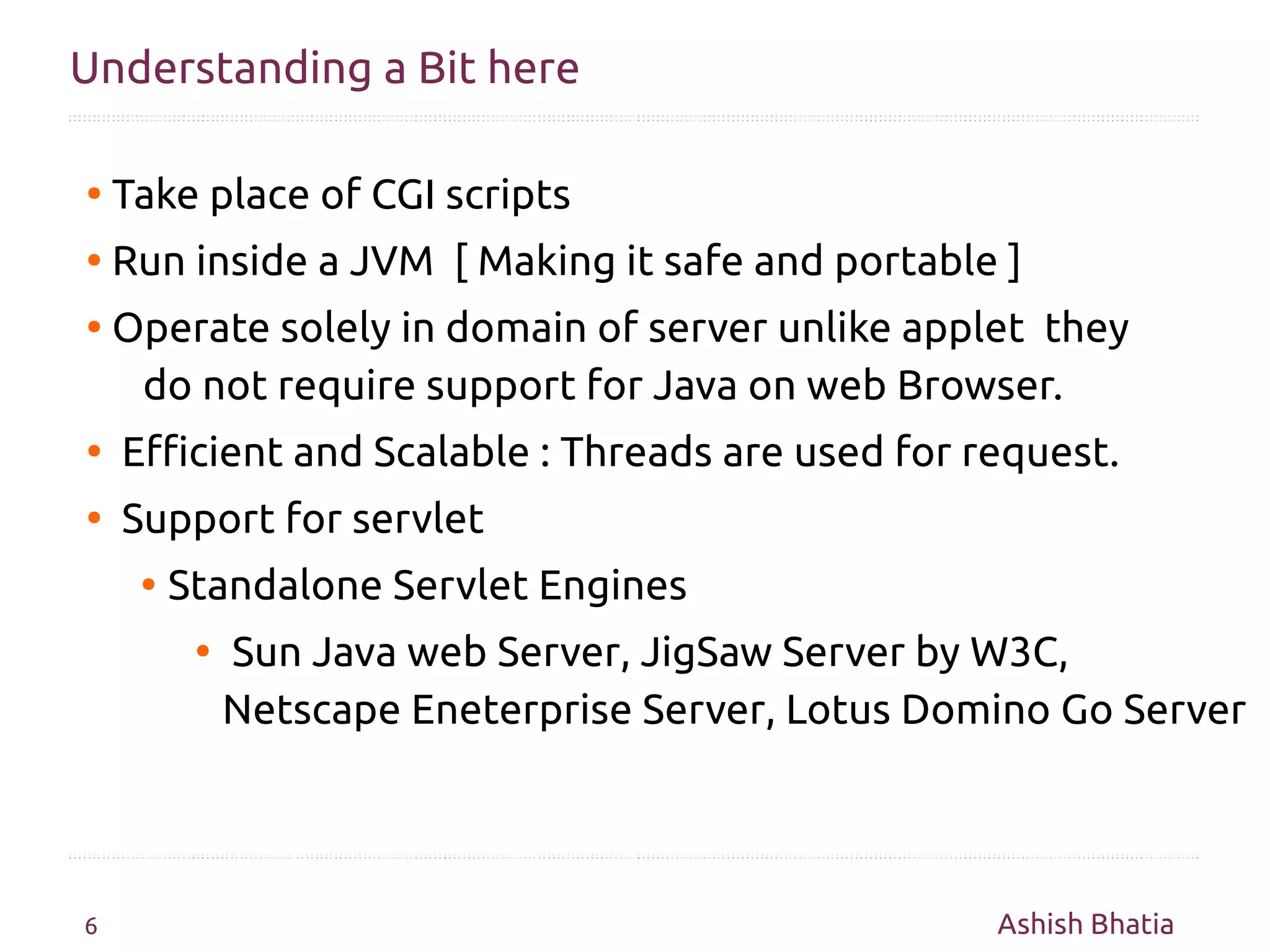

9. Understanding a Bit here
● Take place of CGI scripts
● Run inside a JVM [ Making it safe and portable ]
● Operate solely in domain of server unlike applet they
do not require support for Java on web Browser.
● Efficient and Scalable : Threads are used for request.
● Support for servlet
● Standalone Servlet Engines
● Sun Java web Server, JigSaw Server by W3C,
Netscape Eneterprise Server, Lotus Domino Go Server
6 Ashish Bhatia

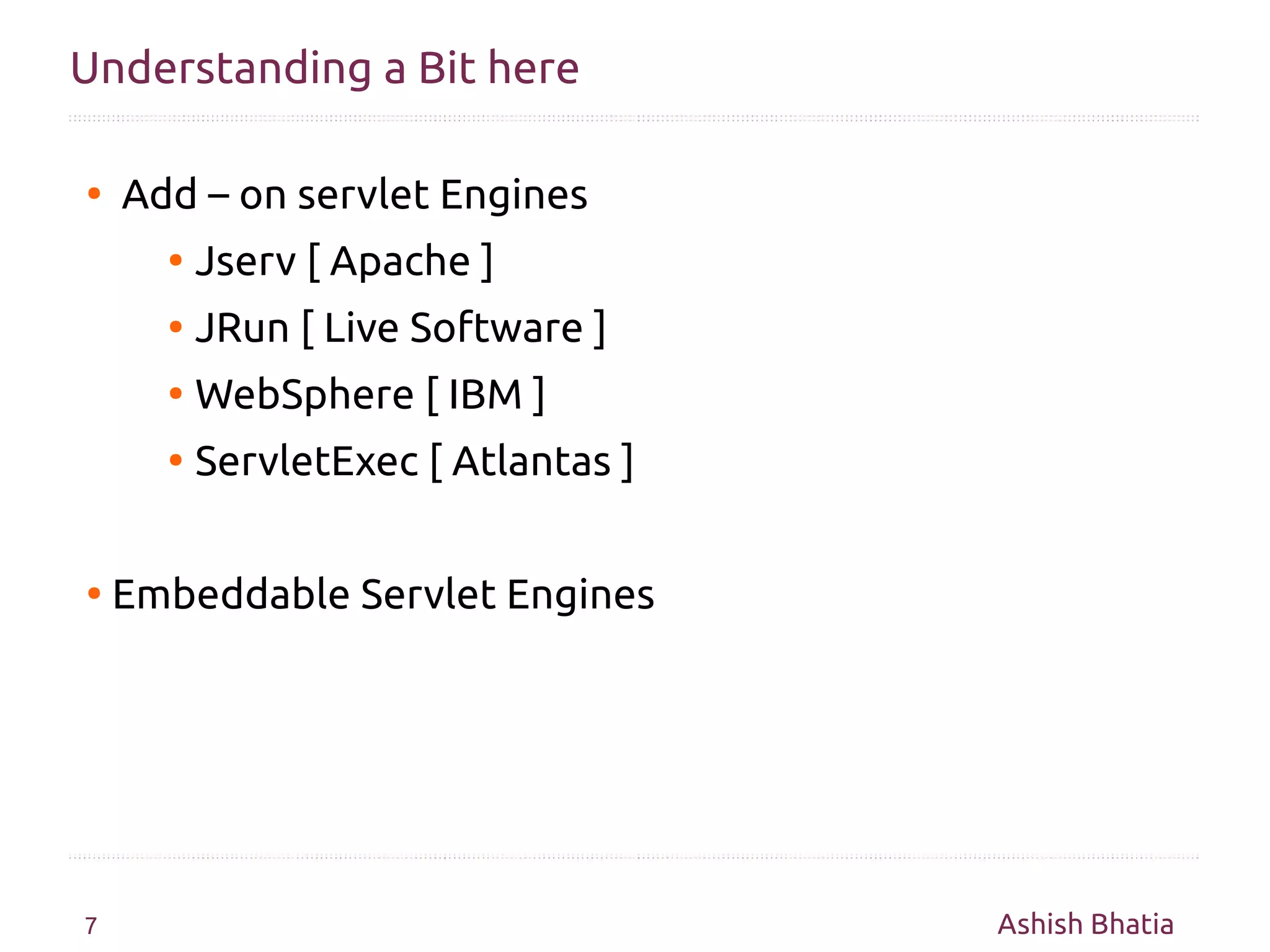

10. Understanding a Bit here
● Add – on servlet Engines
● Jserv [ Apache ]
● JRun [ Live Software ]
● WebSphere [ IBM ]
● ServletExec [ Atlantas ]
● Embeddable Servlet Engines
7 Ashish Bhatia

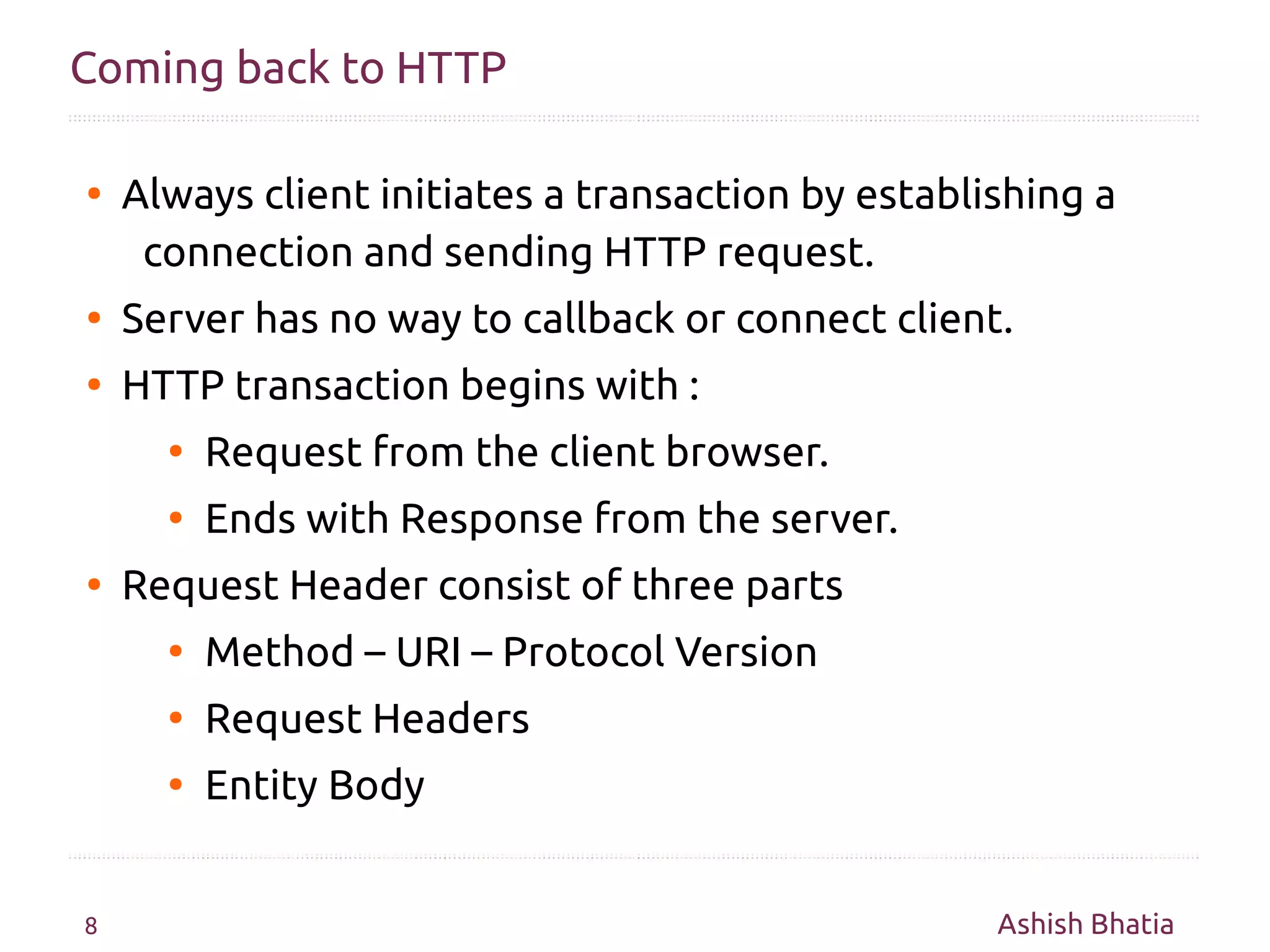

11. Coming back to HTTP
● Always client initiates a transaction by establishing a
connection and sending HTTP request.
● Server has no way to callback or connect client.
● HTTP transaction begins with :
● Request from the client browser.
● Ends with Response from the server.
● Request Header consist of three parts
● Method – URI – Protocol Version
● Request Headers
● Entity Body
8 Ashish Bhatia

12. Coming back to HTTP
9 Ashish Bhatia

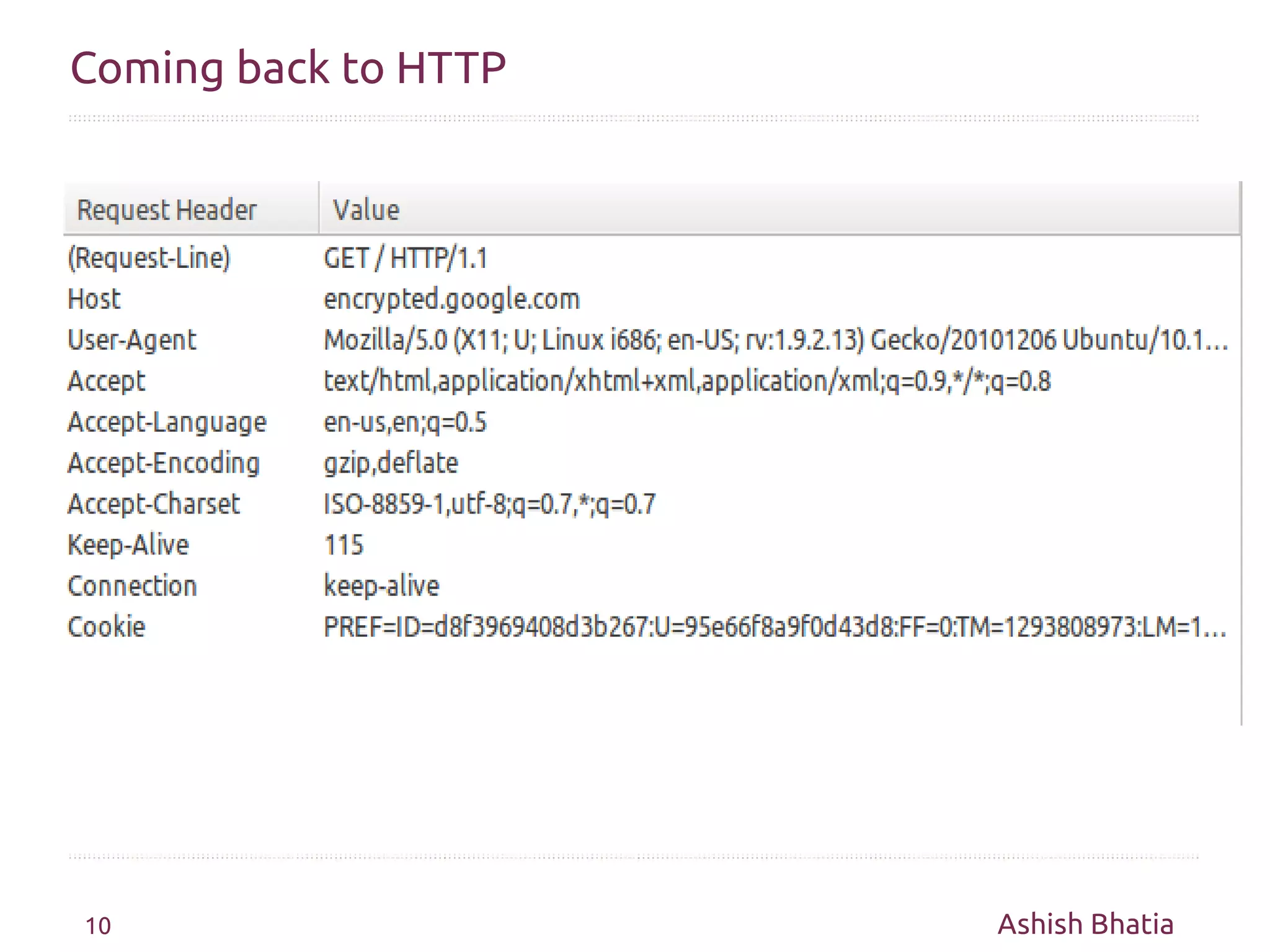

13. Coming back to HTTP
10 Ashish Bhatia

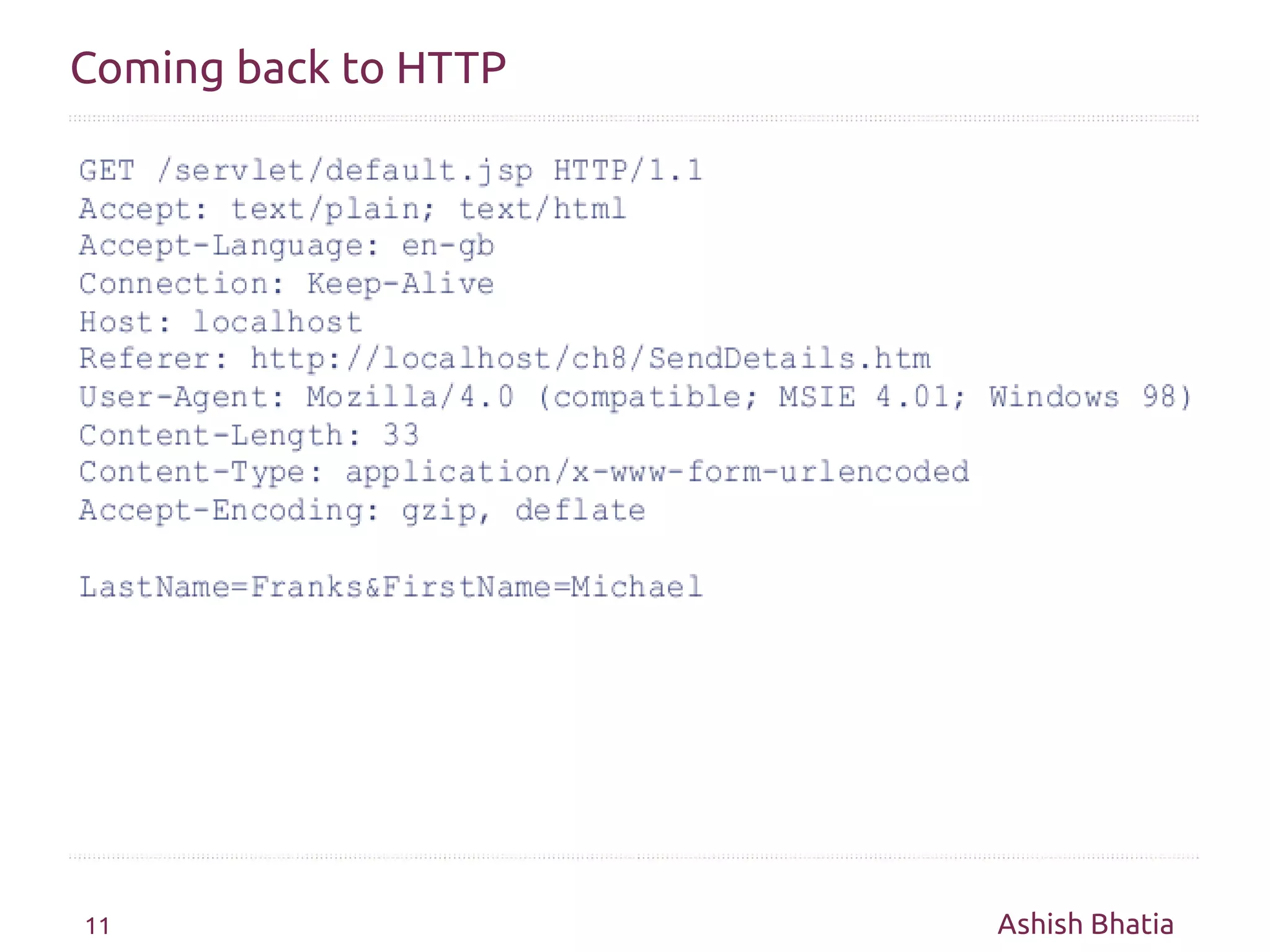

14. Coming back to HTTP
11 Ashish Bhatia

15. Coming back to HTTP
12 Ashish Bhatia

16. Coming back to HTTP
● Server process the request and send the response to
the client.
● HTTP/1.0 200 OK
13 Ashish Bhatia

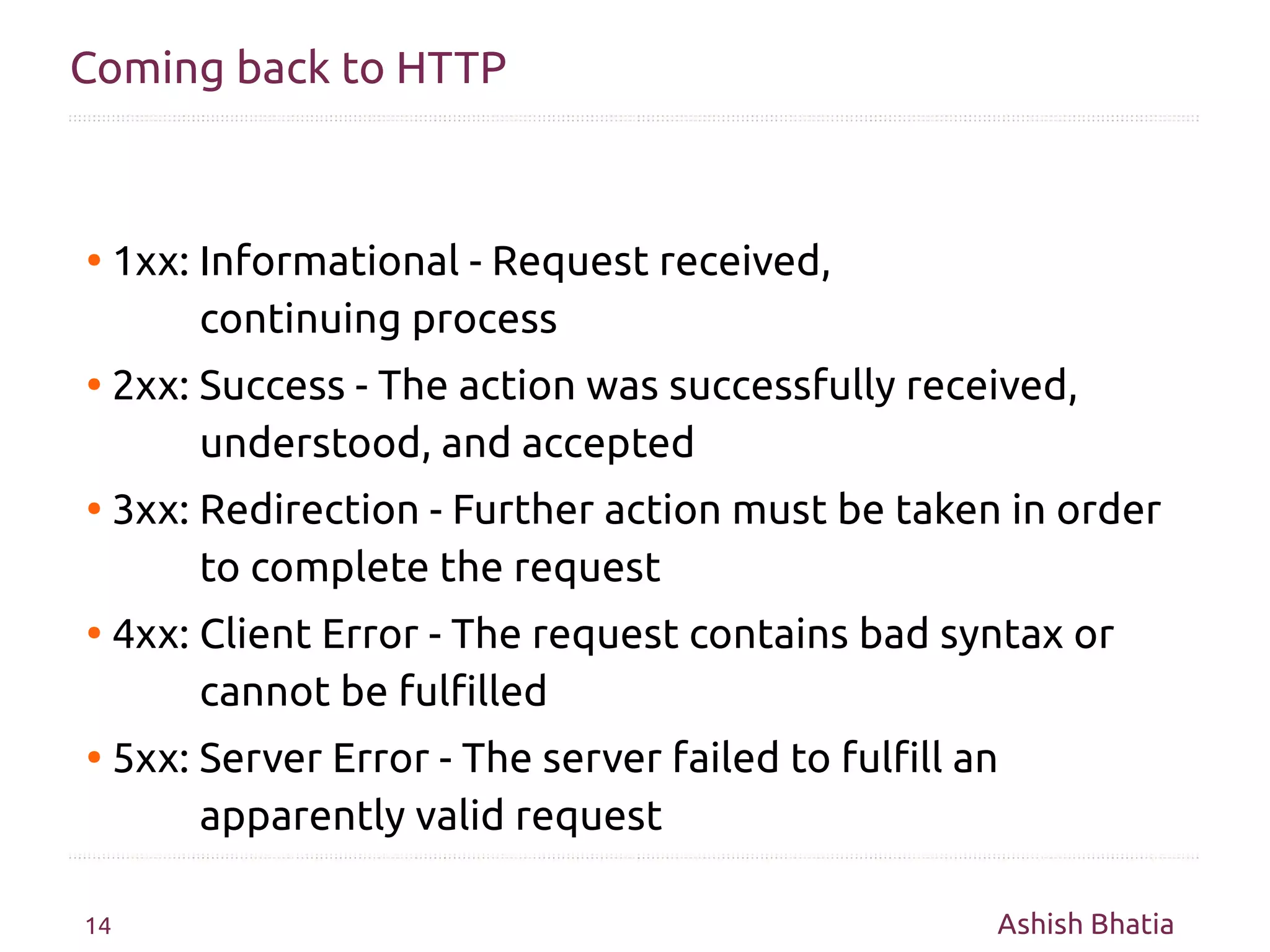

17. Coming back to HTTP
● 1xx: Informational - Request received,
continuing process
● 2xx: Success - The action was successfully received,
understood, and accepted
● 3xx: Redirection - Further action must be taken in order
to complete the request
● 4xx: Client Error - The request contains bad syntax or
cannot be fulfilled
● 5xx: Server Error - The server failed to fulfill an
apparently valid request
14 Ashish Bhatia

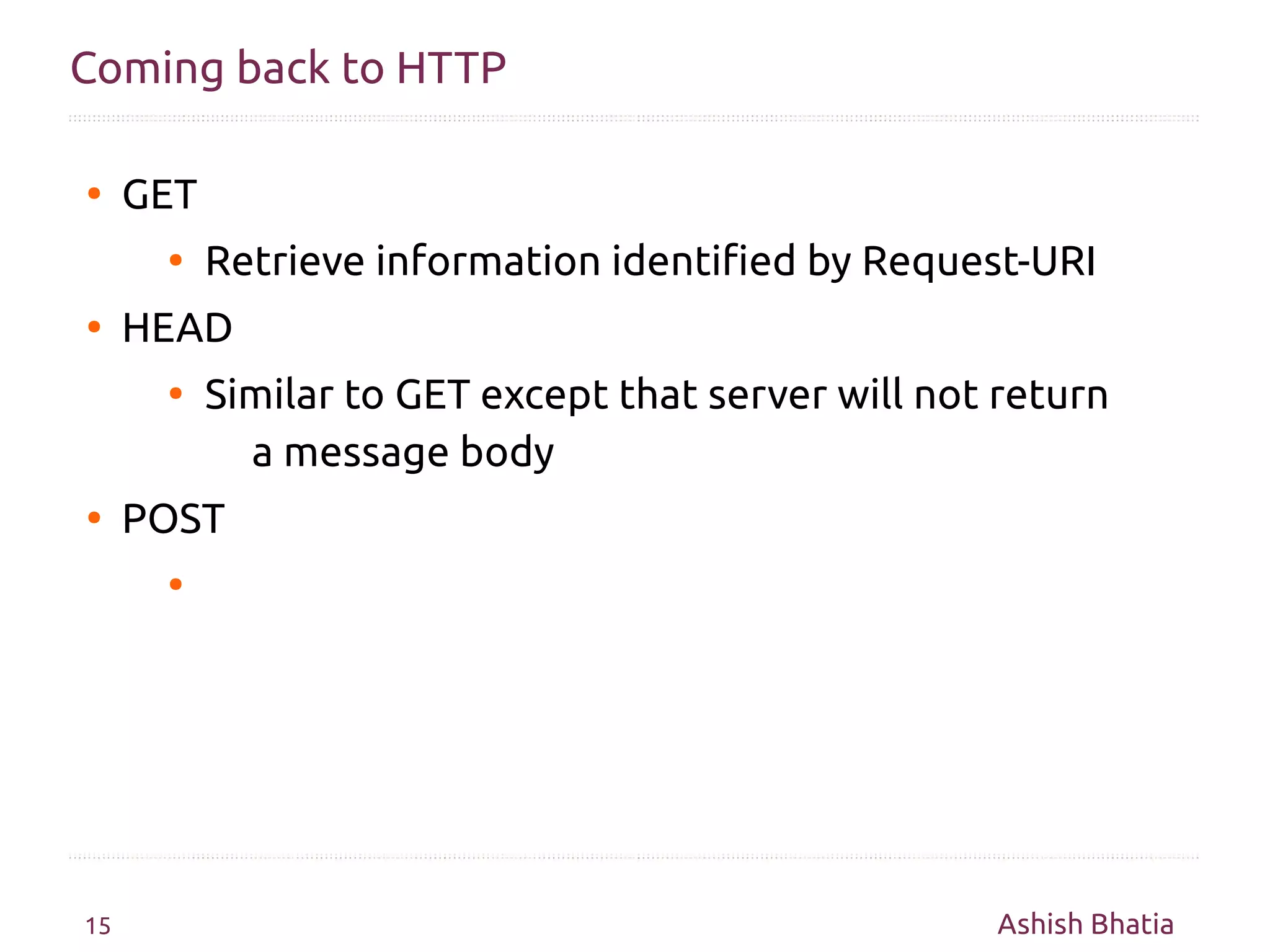

18. Coming back to HTTP
● GET
● Retrieve information identified by Request-URI
● HEAD
● Similar to GET except that server will not return
a message body
● POST
●
15 Ashish Bhatia

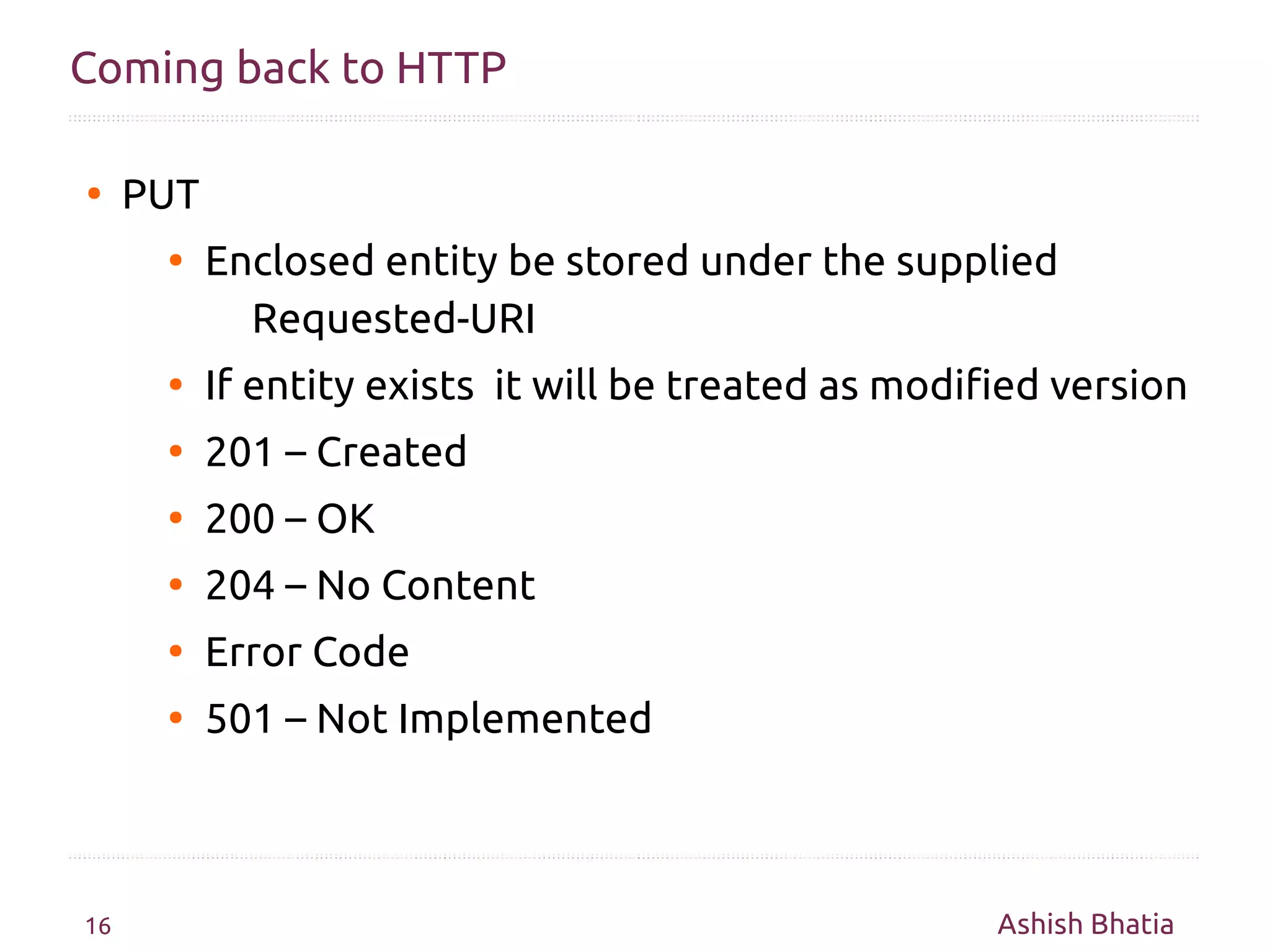

19. Coming back to HTTP
● PUT
● Enclosed entity be stored under the supplied
Requested-URI
● If entity exists it will be treated as modified version
● 201 – Created
● 200 – OK
● 204 – No Content
● Error Code
● 501 – Not Implemented
16 Ashish Bhatia

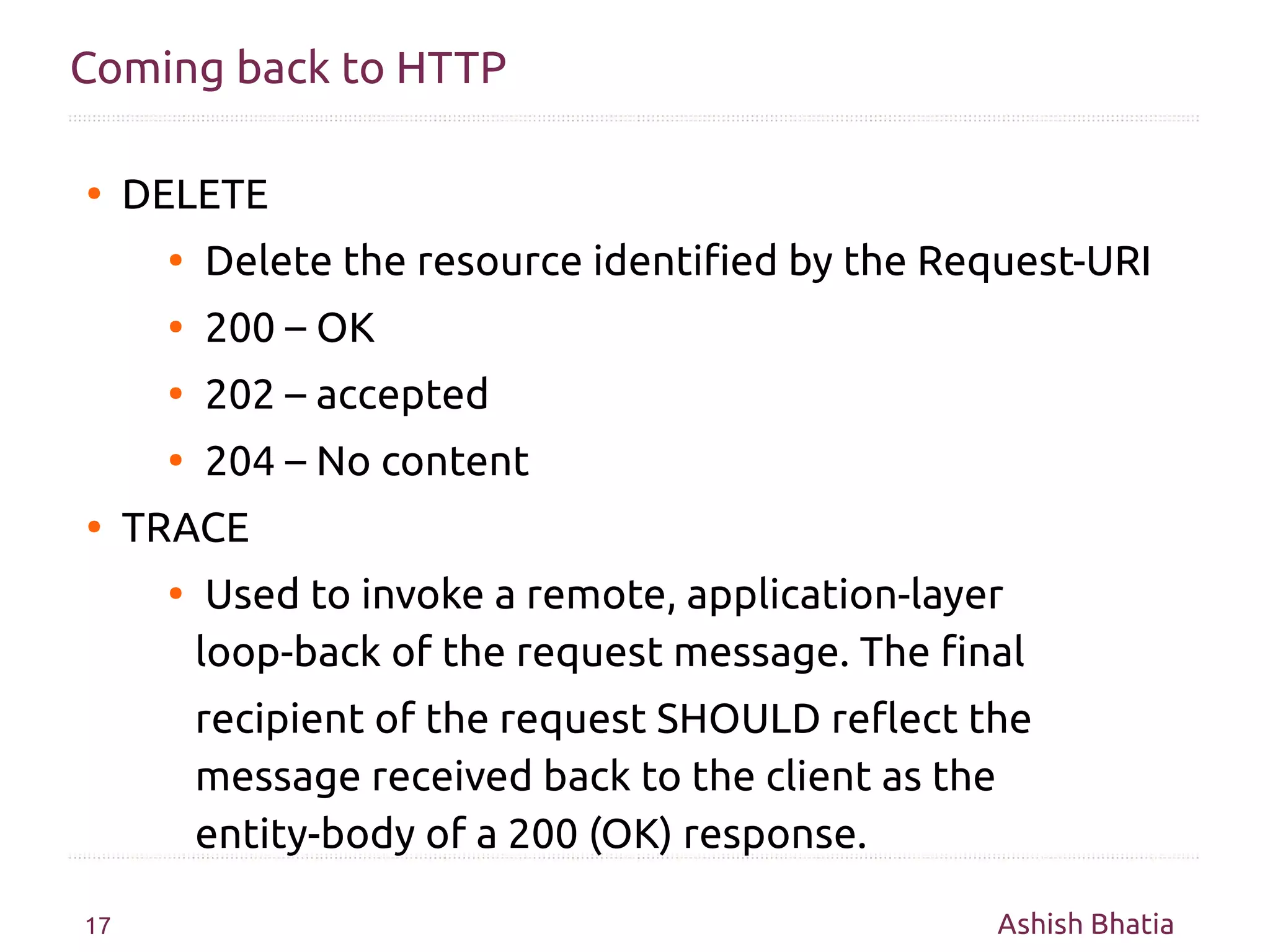

20. Coming back to HTTP
● DELETE
● Delete the resource identified by the Request-URI
● 200 – OK
● 202 – accepted
● 204 – No content
● TRACE
● Used to invoke a remote, application-layer
loop-back of the request message. The final
recipient of the request SHOULD reflect the
message received back to the client as the
entity-body of a 200 (OK) response.
17 Ashish Bhatia

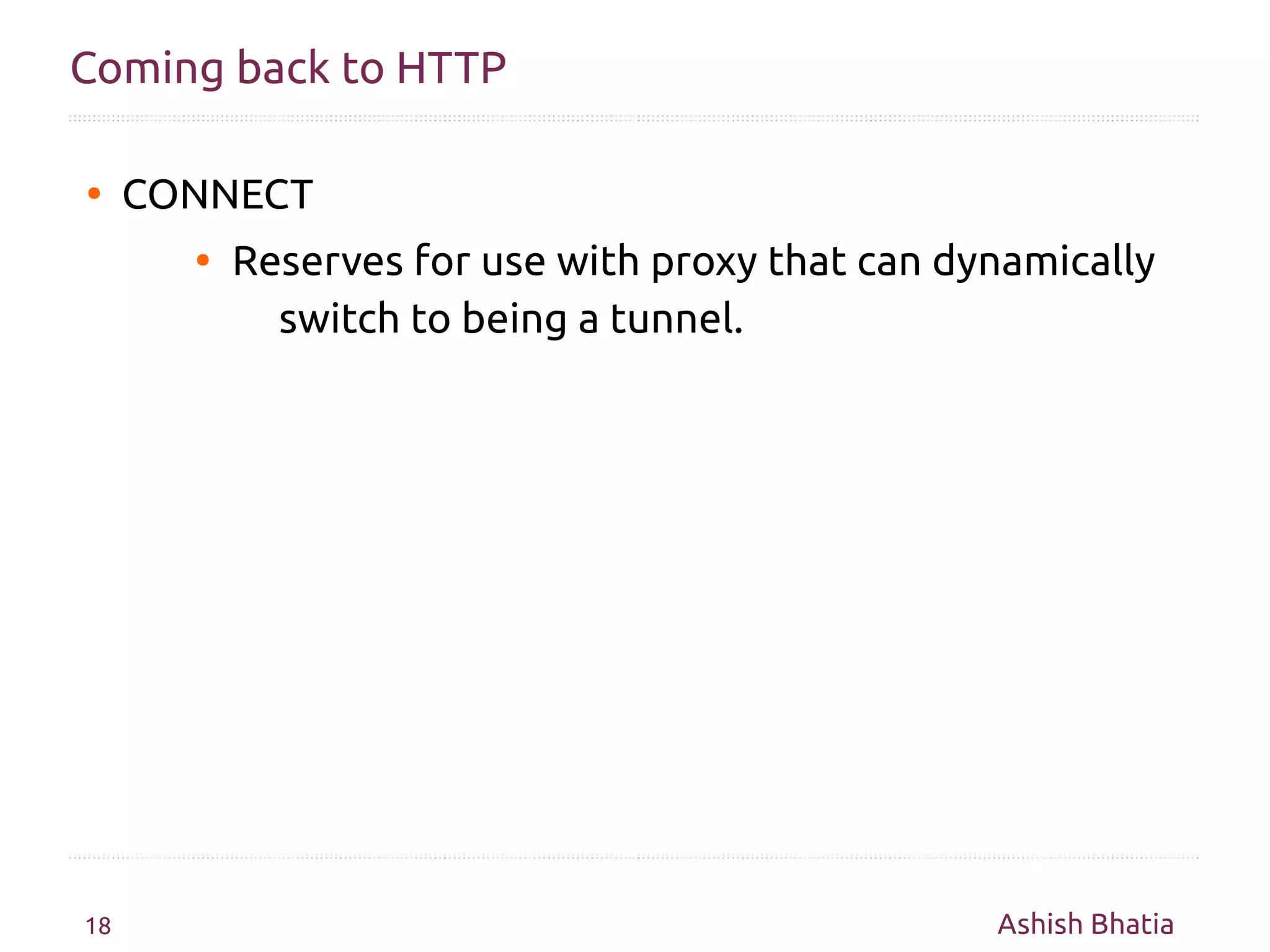

21. Coming back to HTTP
● CONNECT
● Reserves for use with proxy that can dynamically
switch to being a tunnel.
18 Ashish Bhatia

22. Prepared using
Are You Attentive ?
How many methods we studied ?
How request header looks ?
How response header looks ?
Lets move to Servlet Basics
19 Ashish Bhatia

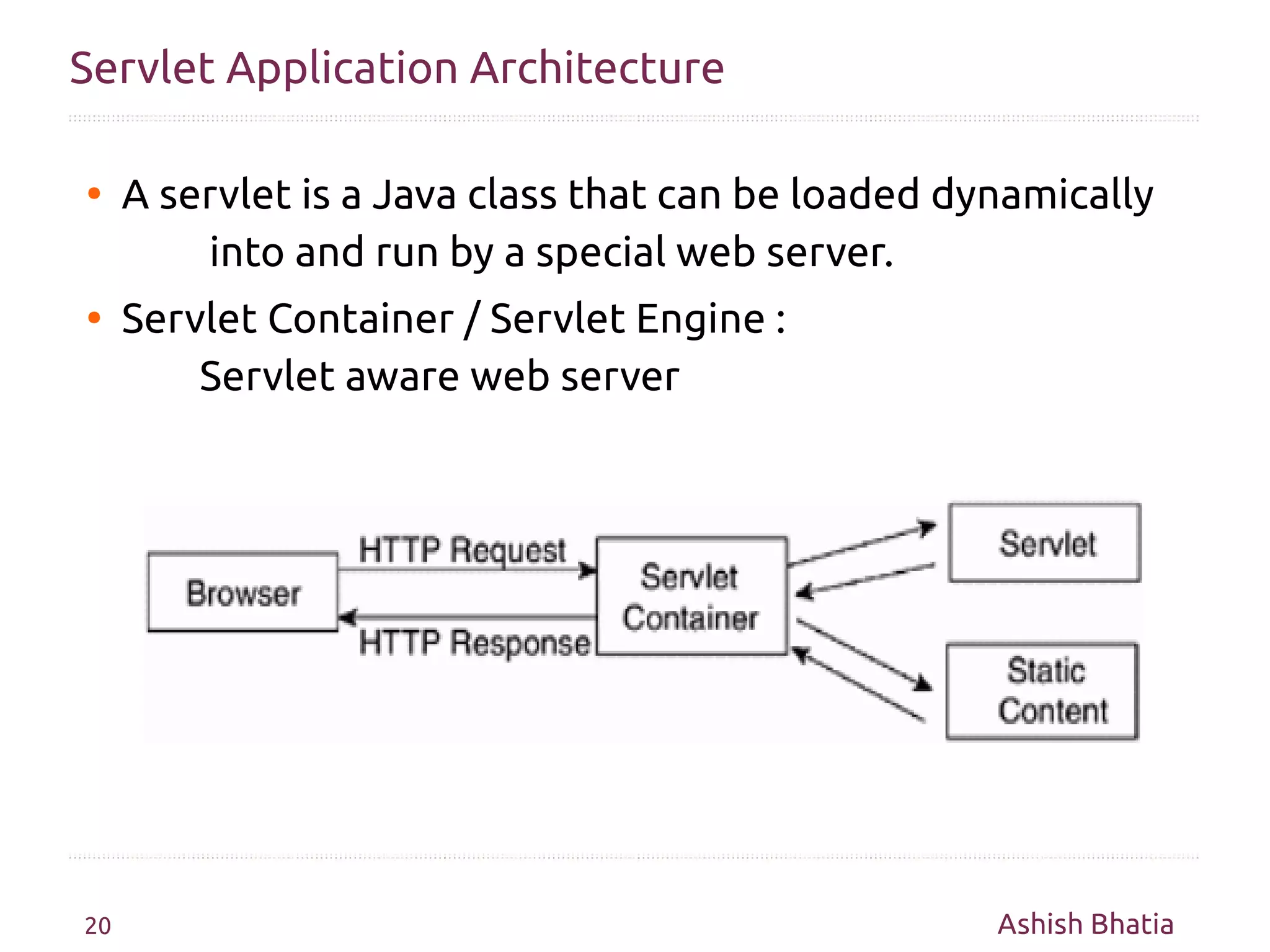

23. Servlet Application Architecture
● A servlet is a Java class that can be loaded dynamically
into and run by a special web server.
● Servlet Container / Servlet Engine :
Servlet aware web server
20 Ashish Bhatia

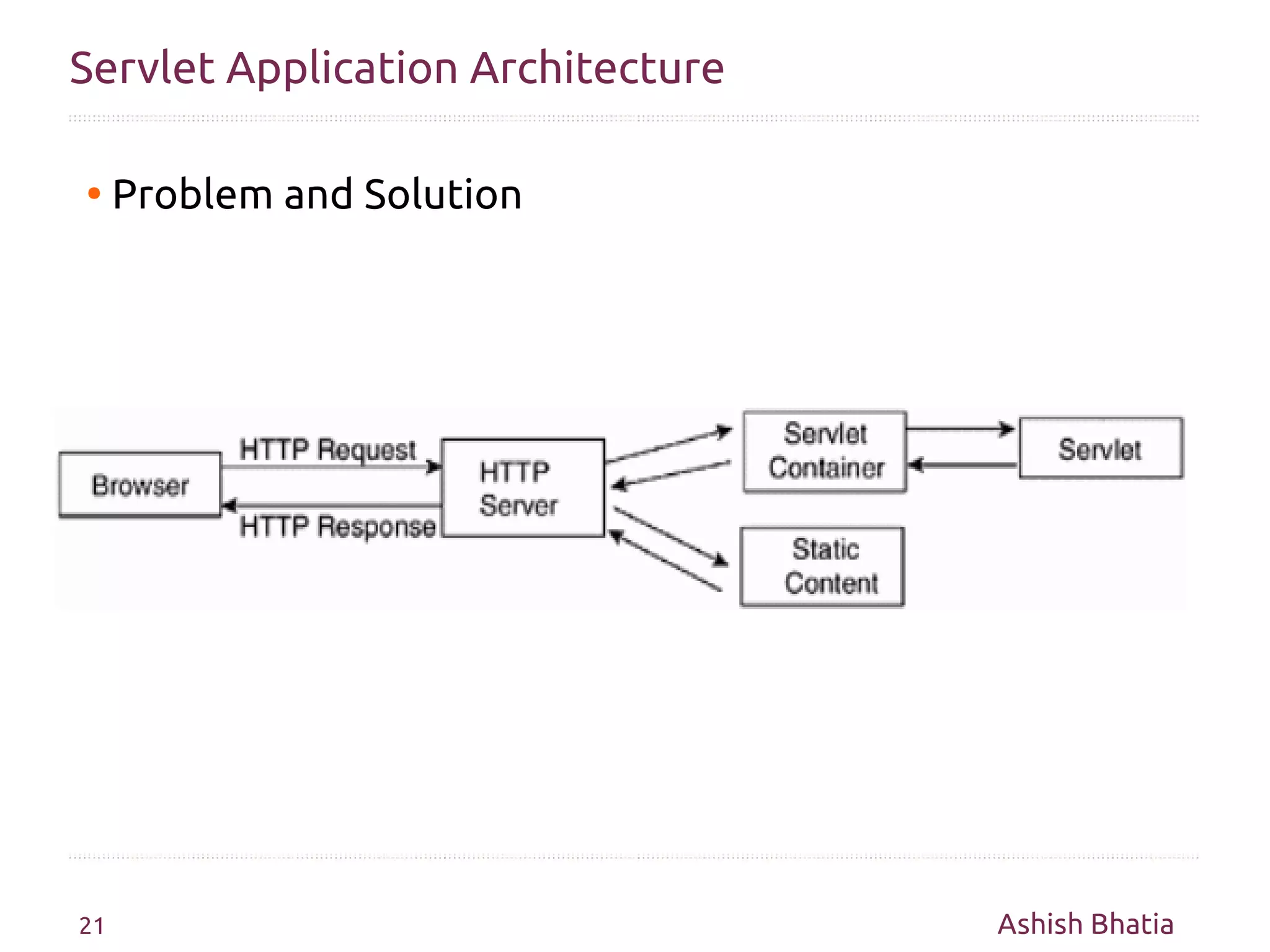

24. Servlet Application Architecture
● Problem and Solution
21 Ashish Bhatia

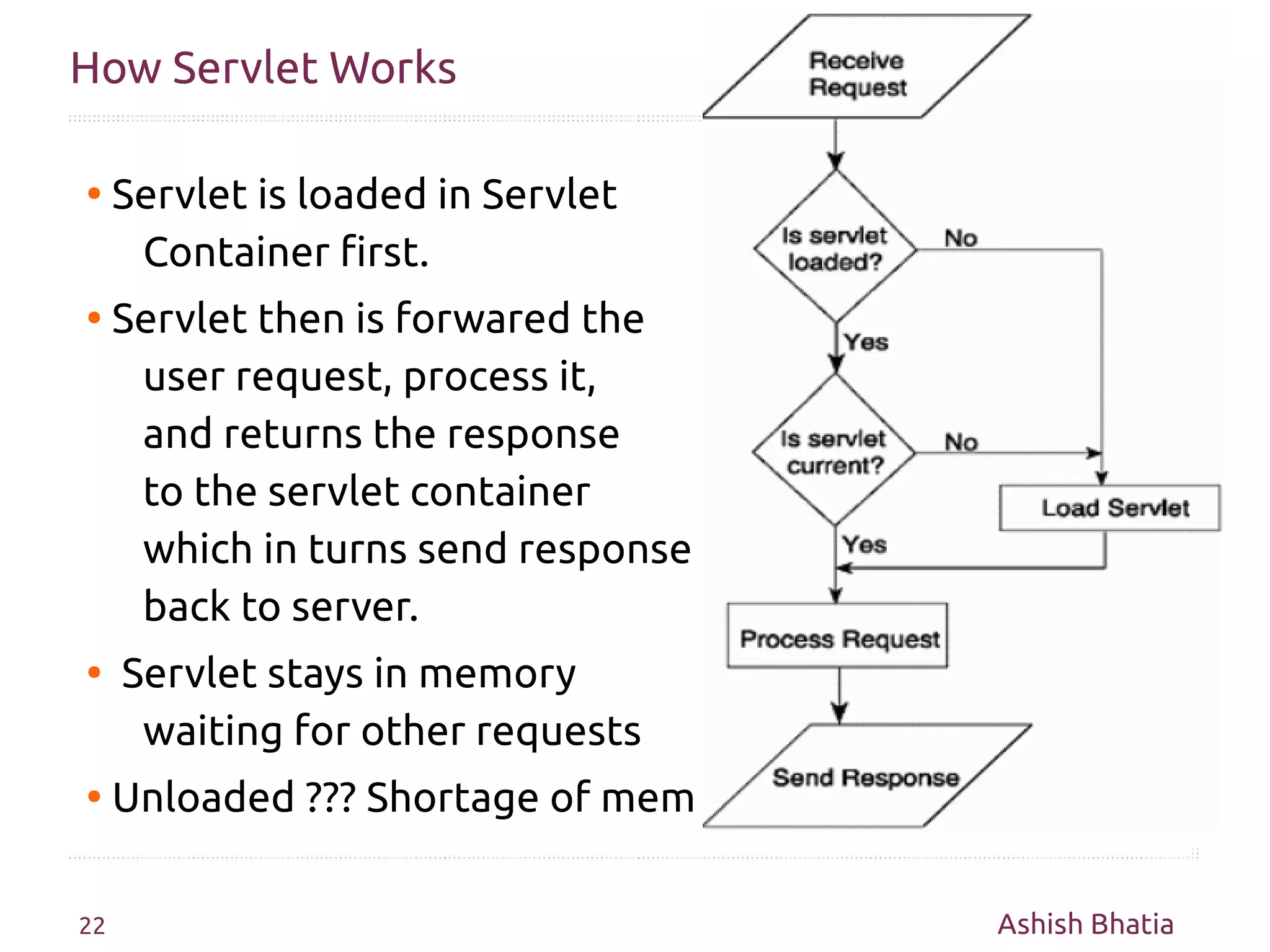

25. How Servlet Works
● Servlet is loaded in Servlet
Container first.
● Servlet then is forwared the
user request, process it,
and returns the response
to the servlet container
which in turns send response
back to server.
● Servlet stays in memory
waiting for other requests
● Unloaded ??? Shortage of mem
22 Ashish Bhatia

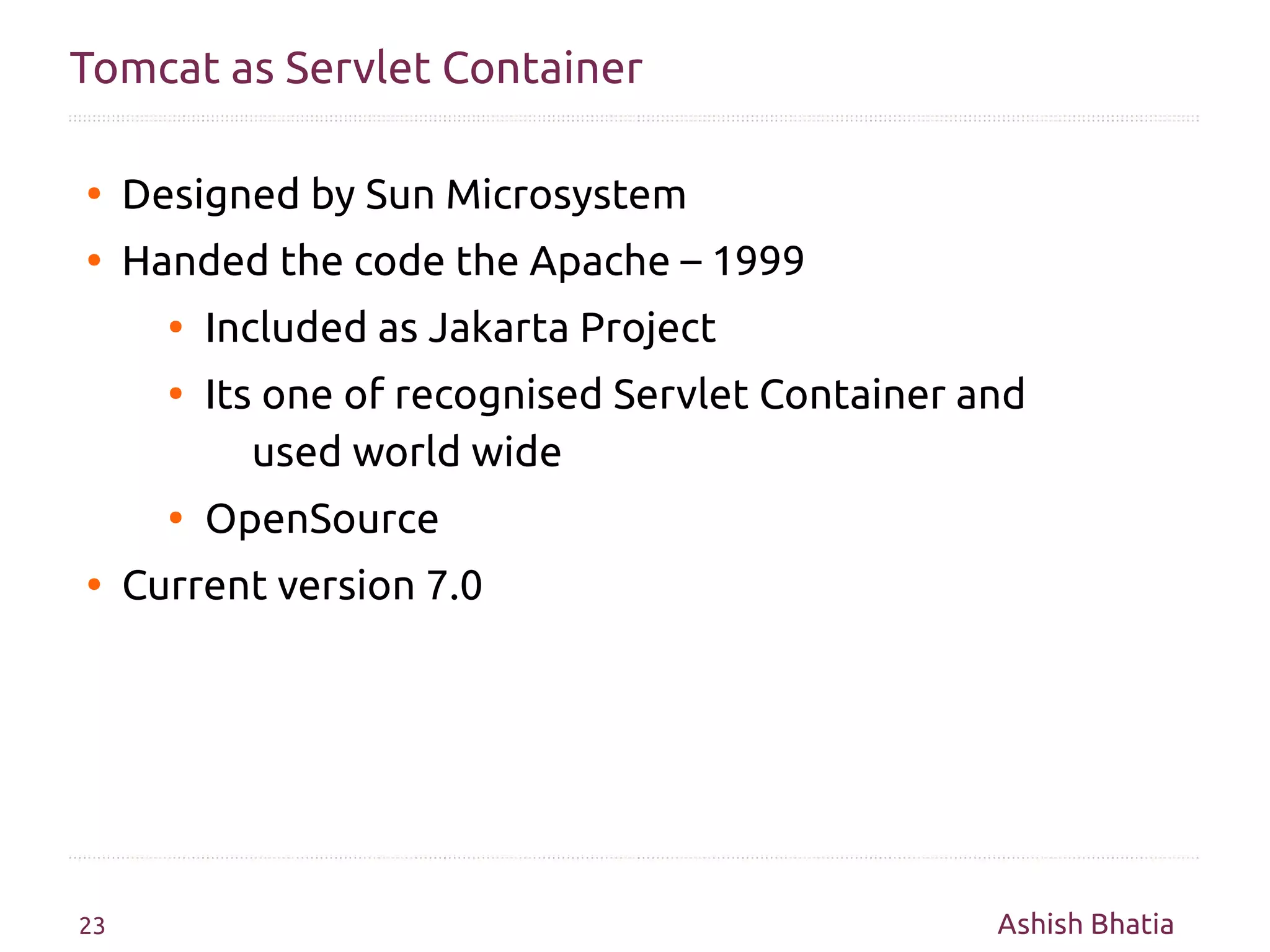

26. Tomcat as Servlet Container
● Designed by Sun Microsystem
● Handed the code the Apache – 1999
● Included as Jakarta Project
● Its one of recognised Servlet Container and
used world wide
● OpenSource
● Current version 7.0
23 Ashish Bhatia

27. Getting up with Tomcat
● Genreally two options available for
tomcat installation
● Liked by many .exe
● Zip folder
● Where to get Tomcat ?
● http://tomcat.apache.org/
● http://tomcat.apache.org/download-70.cgi
●
24 Ashish Bhatia

28. Getting up with Tomcat
25 Ashish Bhatia

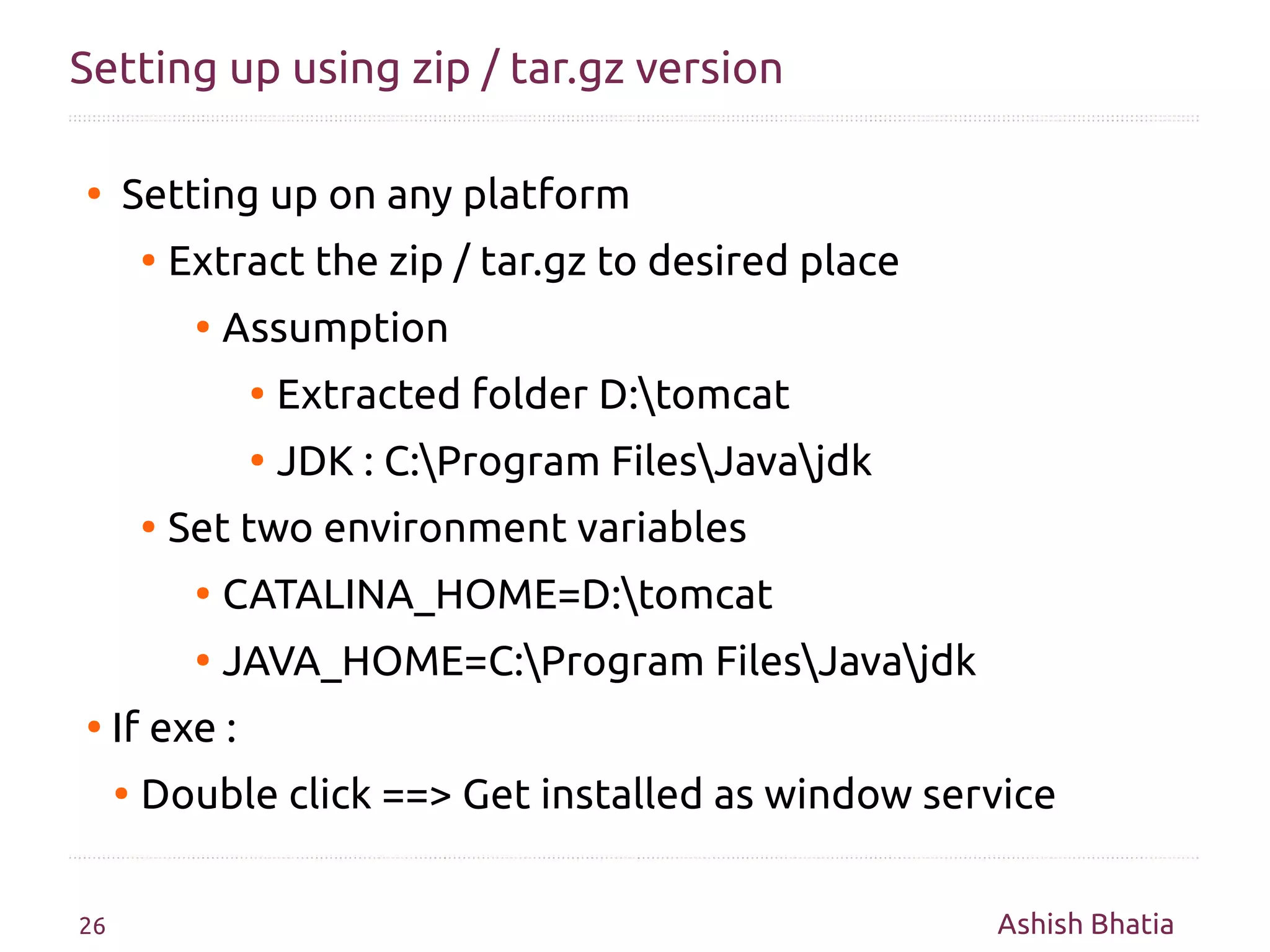

29. Setting up using zip / tar.gz version
● Setting up on any platform
● Extract the zip / tar.gz to desired place
● Assumption
● Extracted folder D:tomcat
● JDK : C:Program FilesJavajdk
● Set two environment variables
● CATALINA_HOME=D:tomcat
● JAVA_HOME=C:Program FilesJavajdk
● If exe :
● Double click ==> Get installed as window service
26 Ashish Bhatia

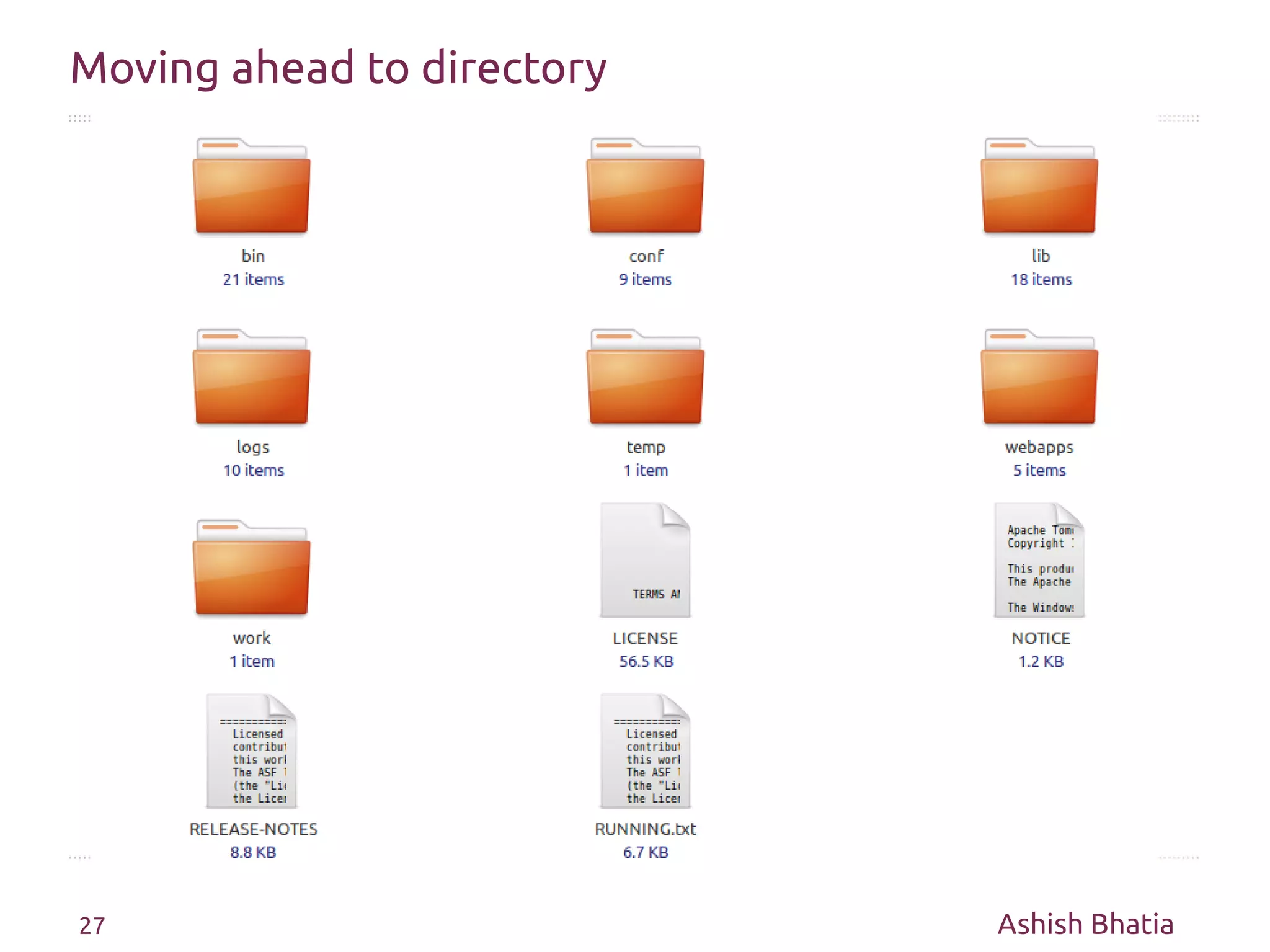

30. Moving ahead to directory
27 Ashish Bhatia

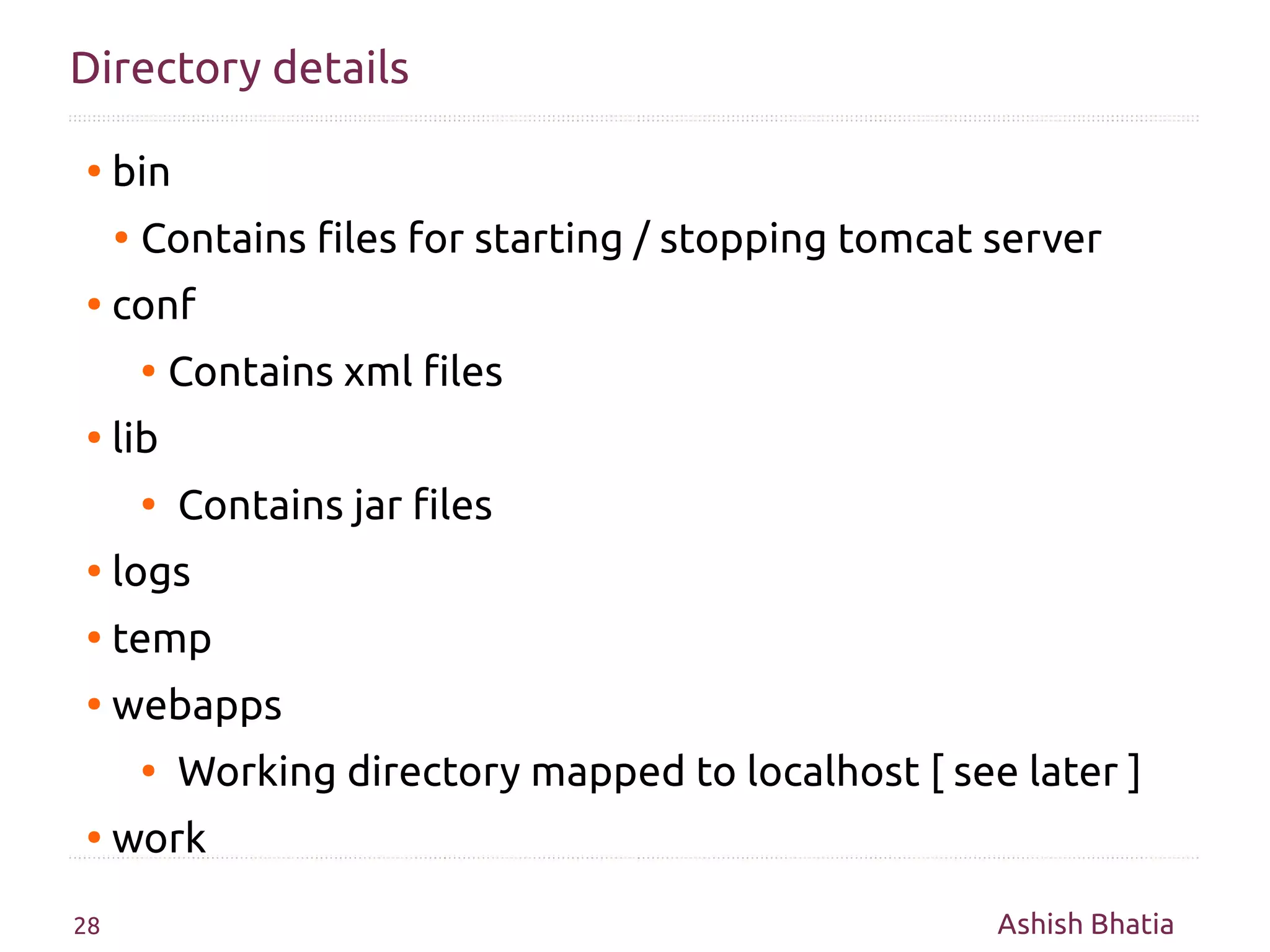

31. Directory details
● bin
● Contains files for starting / stopping tomcat server
● conf
● Contains xml files
● lib
● Contains jar files
● logs
● temp
● webapps
● Working directory mapped to localhost [ see later ]
● work
28 Ashish Bhatia

32. Program Structure
Project
JSP pages,
WEB-INF static html pages,
applet classes
classes lib tags
web.xml .class files Library archives . tag files
29 Ashish Bhatia

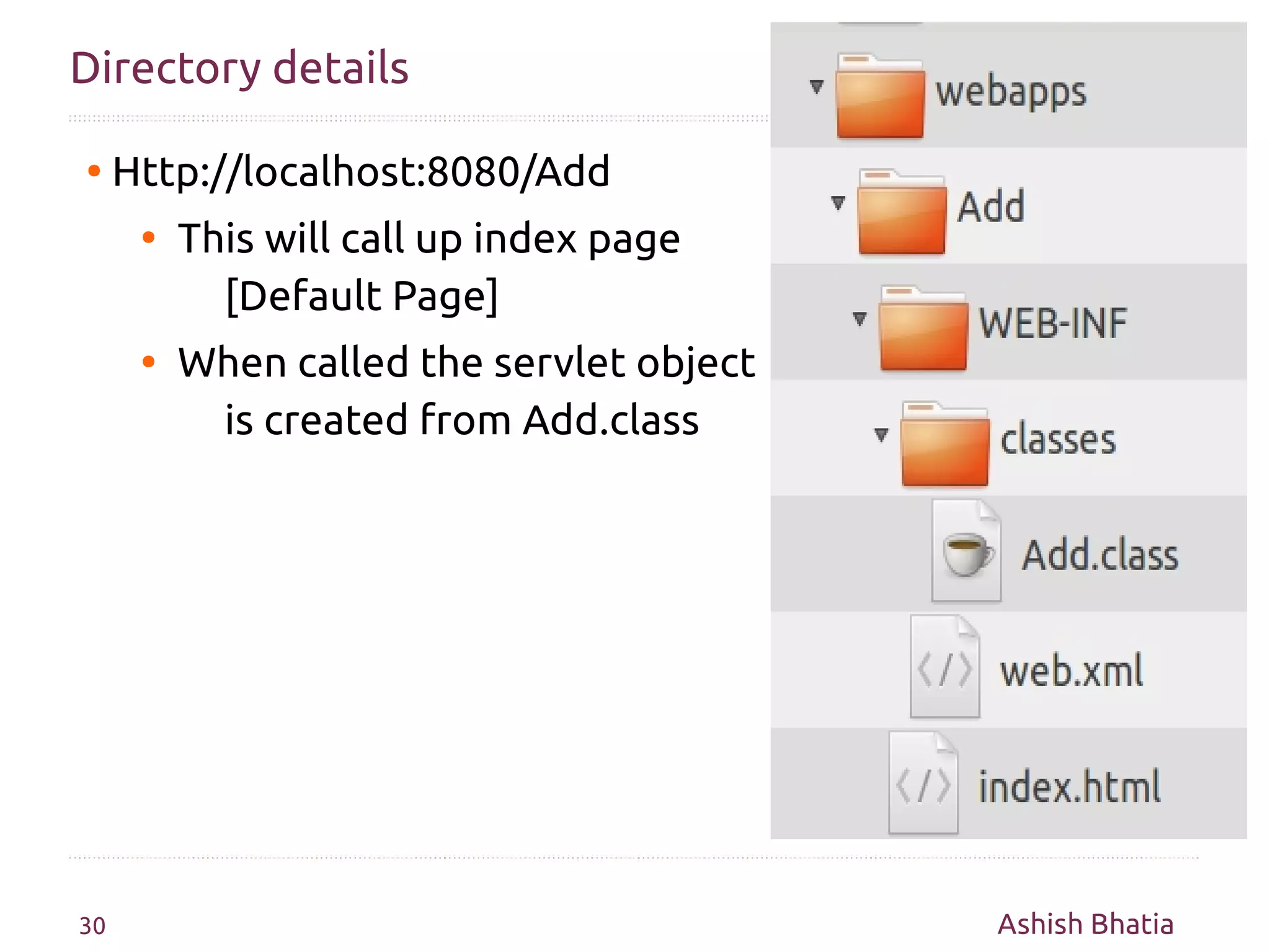

33. Directory details
● Http://localhost:8080/Add
● This will call up index page
[Default Page]
● When called the servlet object
is created from Add.class
30 Ashish Bhatia

34. Understanding the javax.servlet
31 Ashish Bhatia

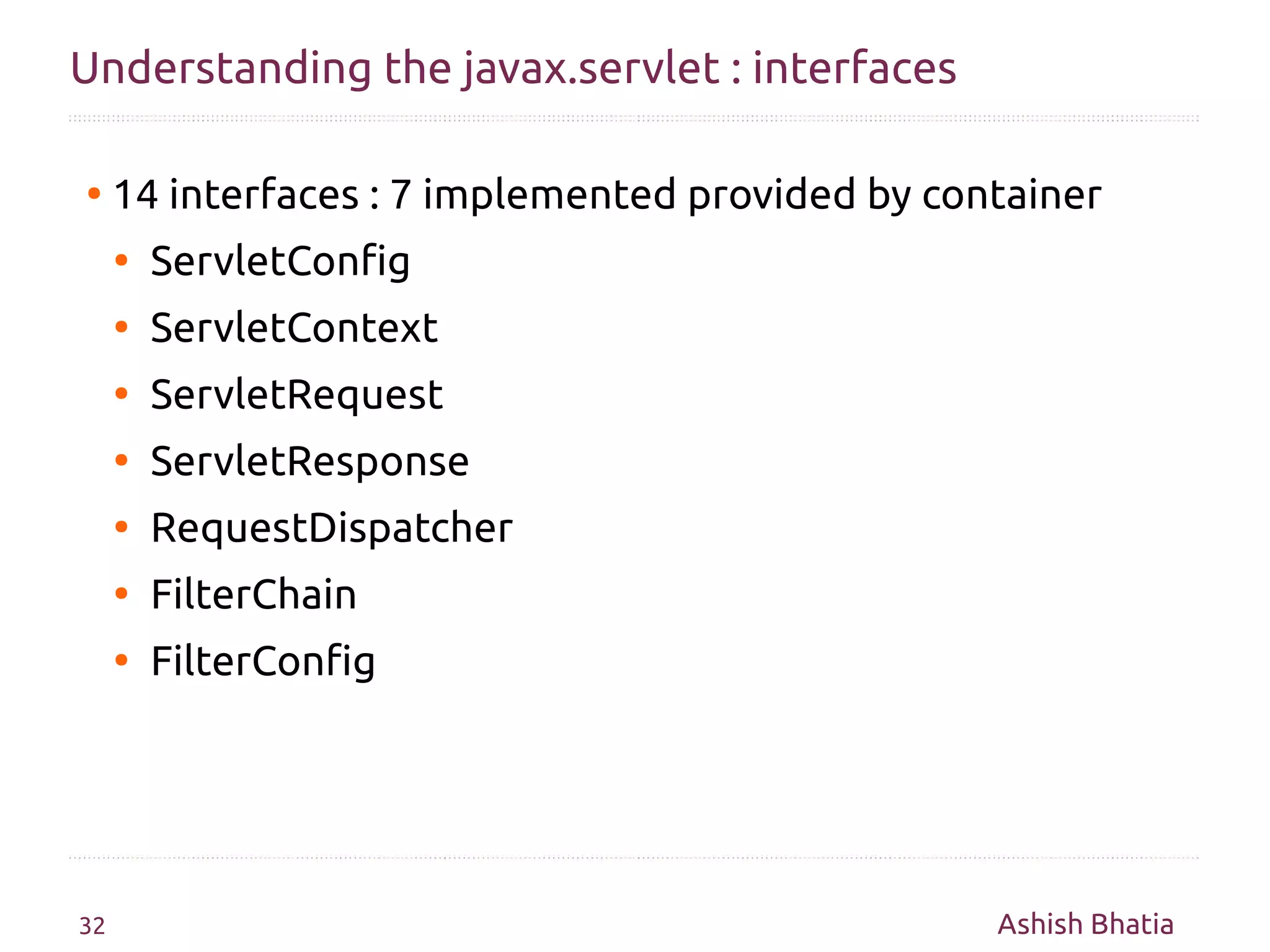

35. Understanding the javax.servlet : interfaces
● 14 interfaces : 7 implemented provided by container
● ServletConfig
● ServletContext
● ServletRequest
● ServletResponse
● RequestDispatcher
● FilterChain
● FilterConfig
32 Ashish Bhatia

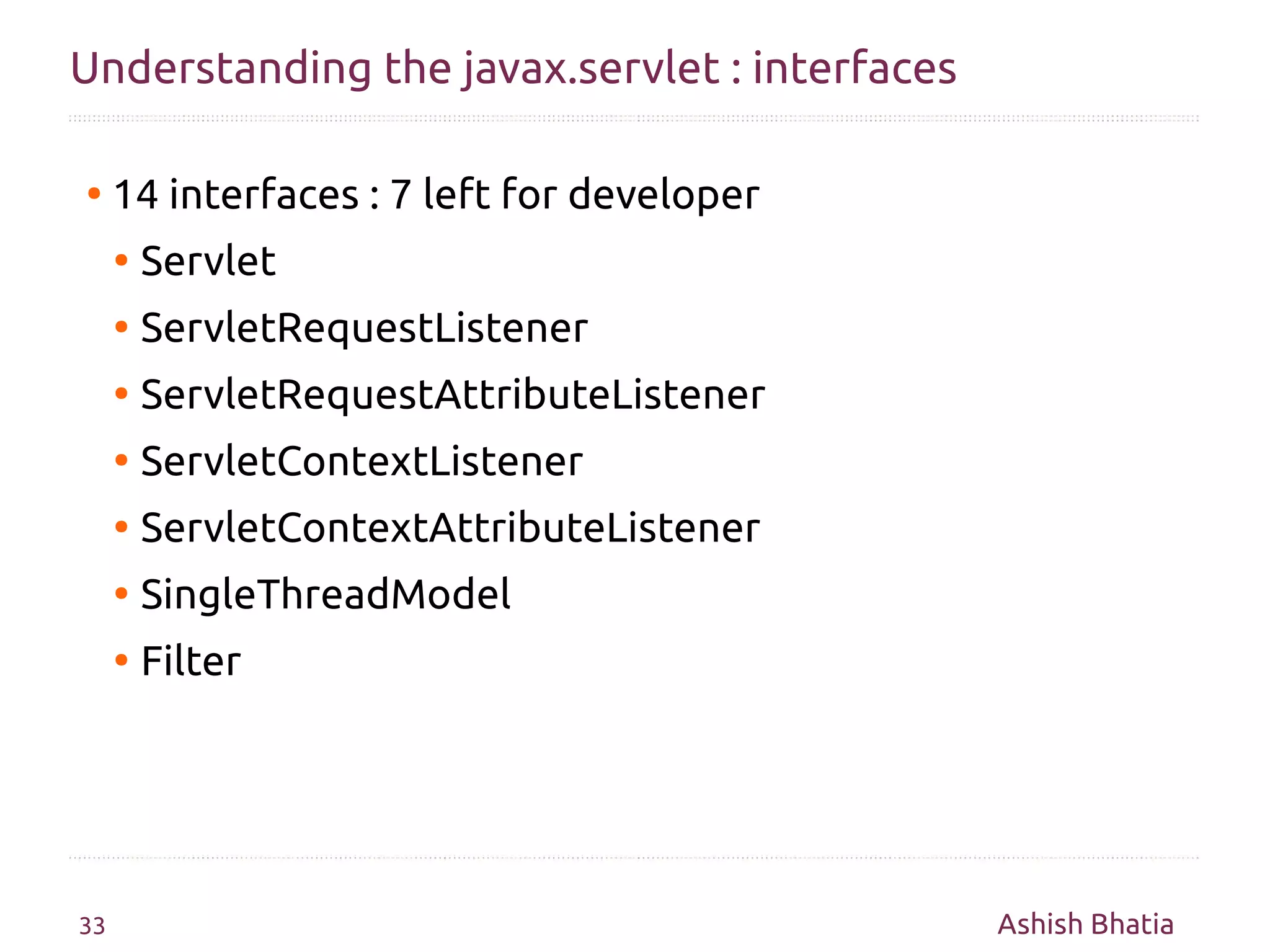

36. Understanding the javax.servlet : interfaces
● 14 interfaces : 7 left for developer
● Servlet
● ServletRequestListener
● ServletRequestAttributeListener
● ServletContextListener
● ServletContextAttributeListener
● SingleThreadModel
● Filter
33 Ashish Bhatia

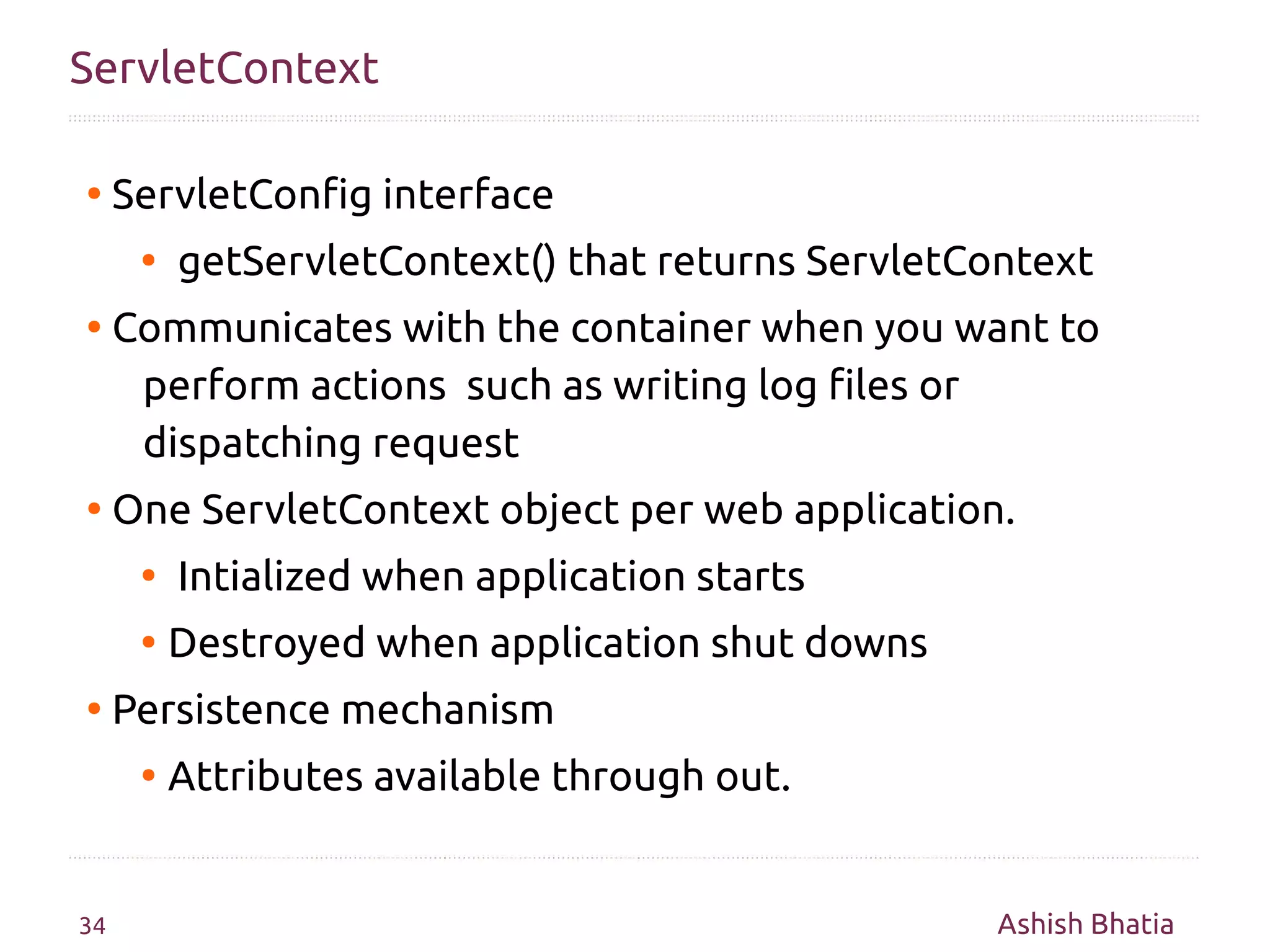

37. ServletContext
● ServletConfig interface
● getServletContext() that returns ServletContext
● Communicates with the container when you want to
perform actions such as writing log files or
dispatching request
● One ServletContext object per web application.
● Intialized when application starts
● Destroyed when application shut downs
● Persistence mechanism
● Attributes available through out.
34 Ashish Bhatia

38. Other interfaces brief introduction
● ServletRequest and ServletResponse
● Provide the client request information and object
used to send the reponse to the client.
● RequestDispatcher
● Object that manages client request by directing them
to appropriate resources to the server.
● Filter, FilterChain, FilterConfig
● Use for filtering
35 Ashish Bhatia

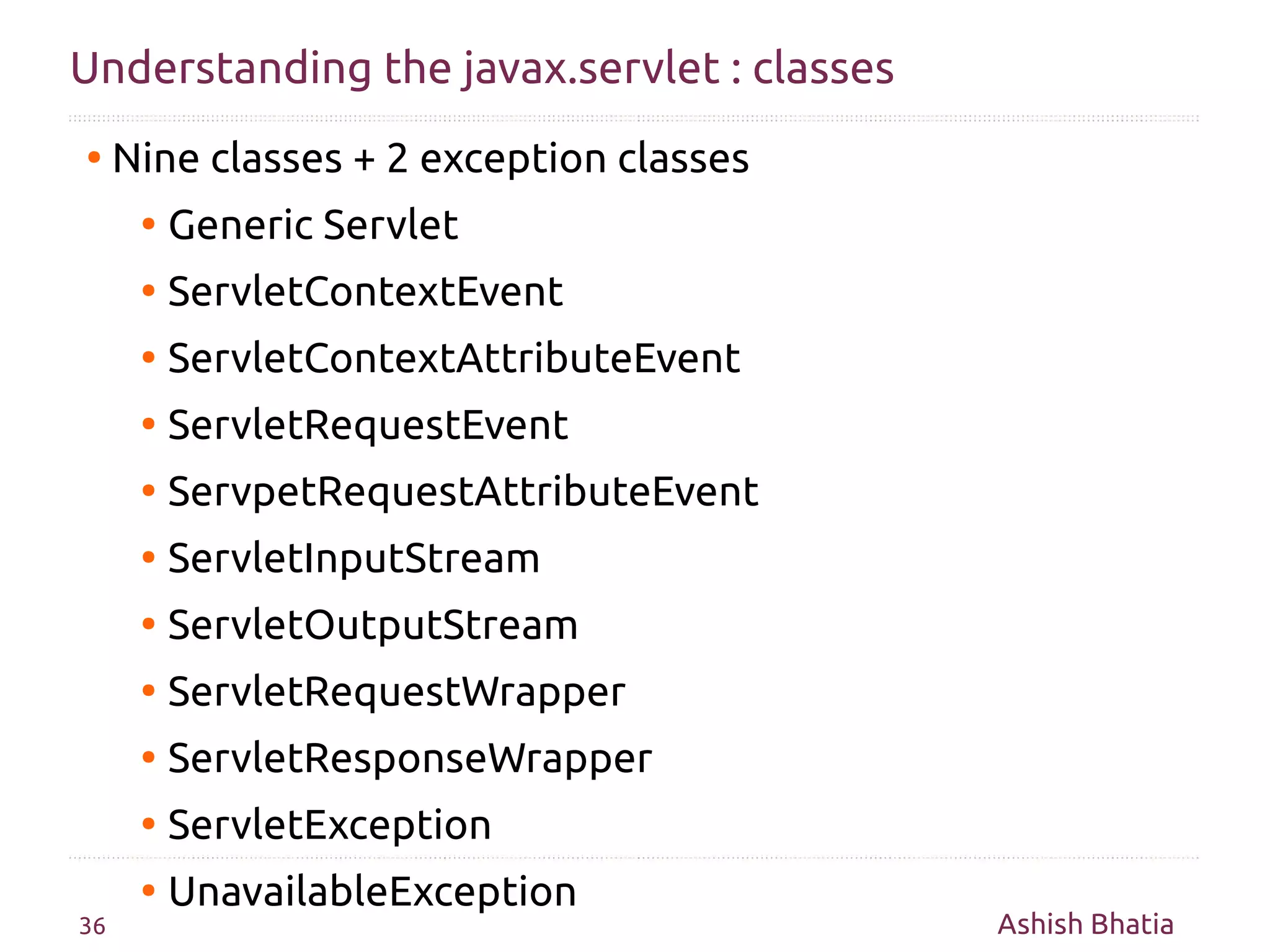

39. Understanding the javax.servlet : classes
● Nine classes + 2 exception classes
● Generic Servlet
● ServletContextEvent
● ServletContextAttributeEvent
● ServletRequestEvent
● ServpetRequestAttributeEvent
● ServletInputStream
● ServletOutputStream
● ServletRequestWrapper
● ServletResponseWrapper
● ServletException
● UnavailableException
36 Ashish Bhatia

40. Understanding the javax.servlet : classes
37 Ashish Bhatia

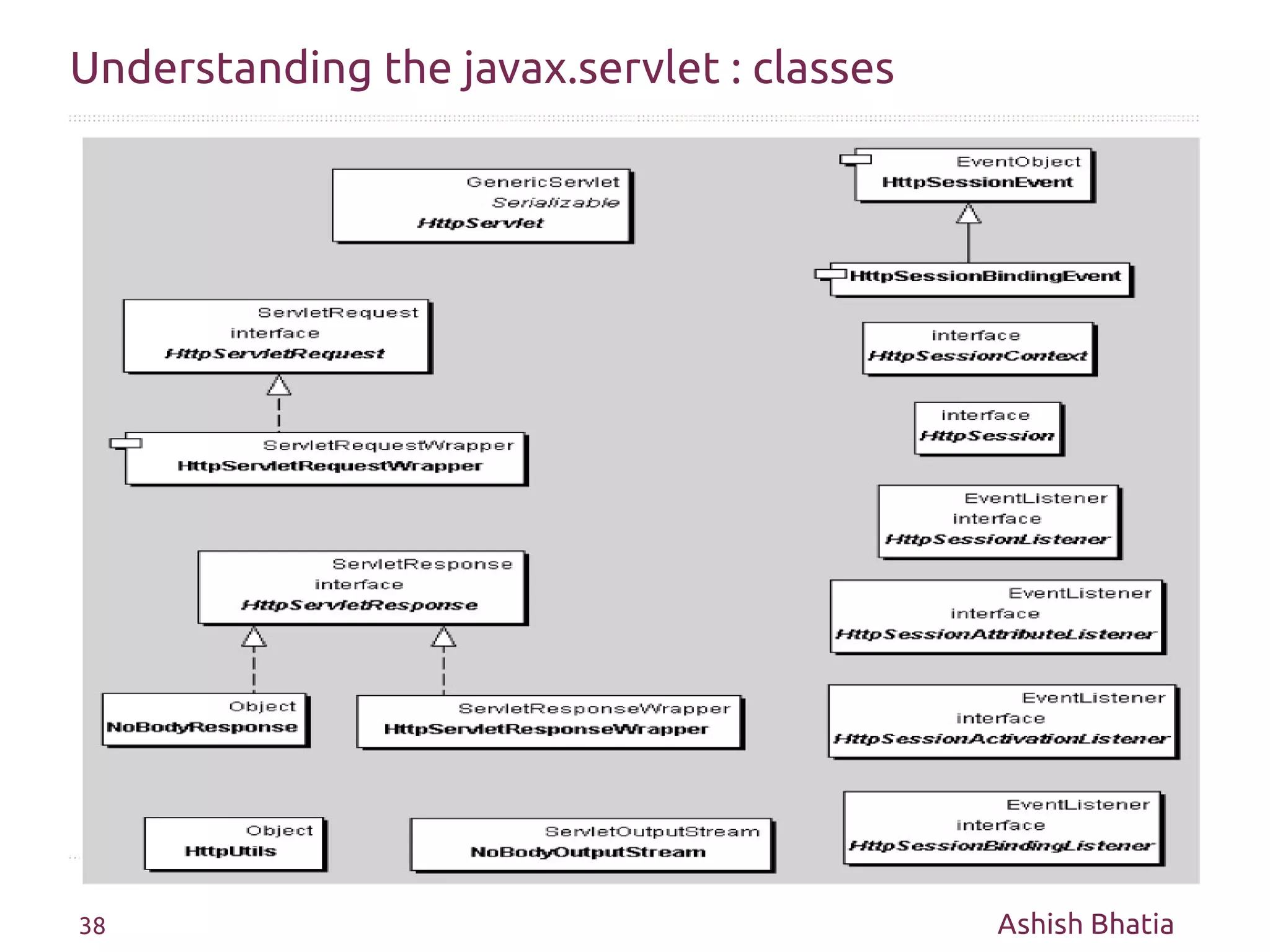

41. Understanding the javax.servlet : classes
38 Ashish Bhatia

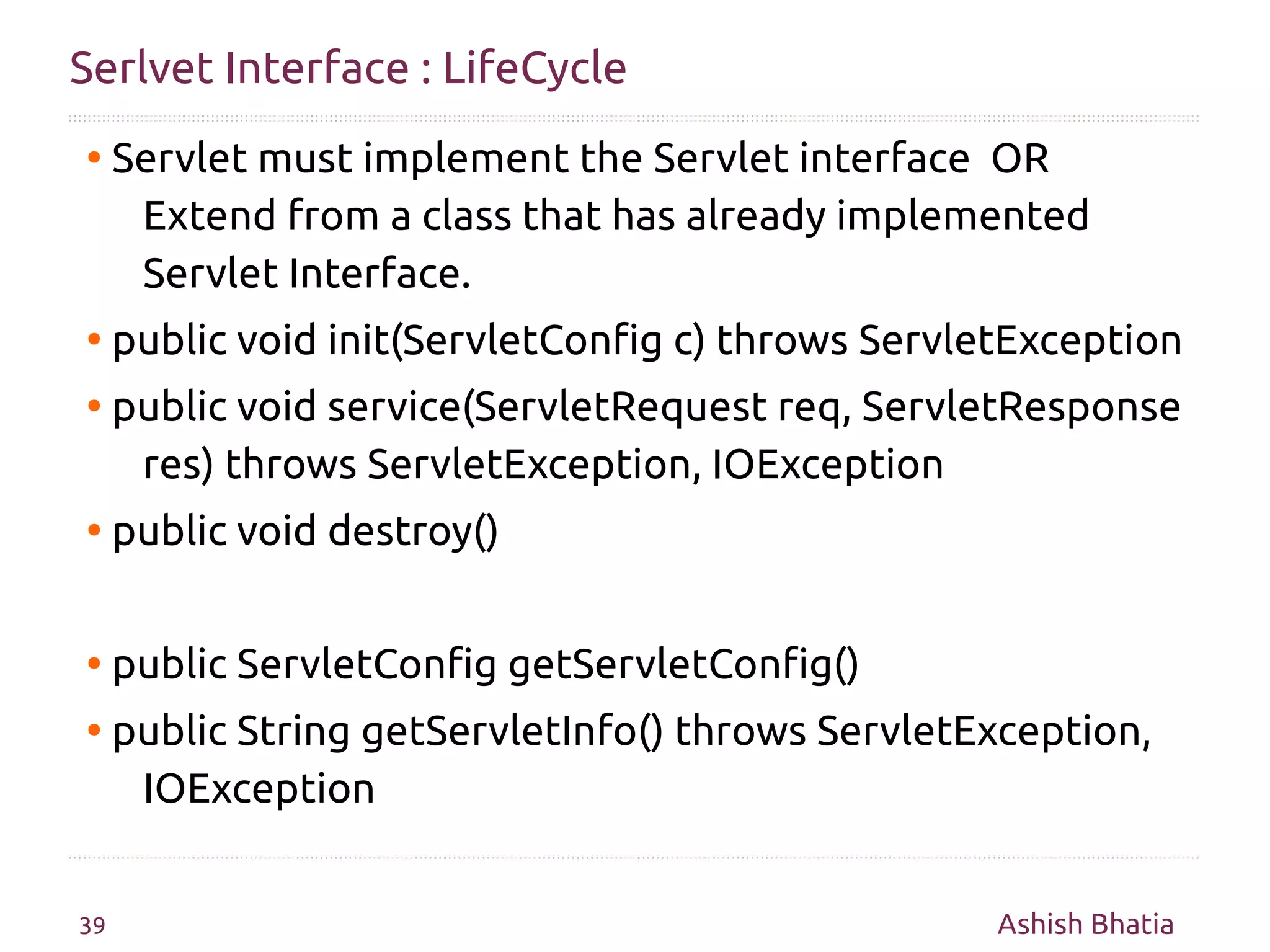

42. Serlvet Interface : LifeCycle
● Servlet must implement the Servlet interface OR
Extend from a class that has already implemented
Servlet Interface.
● public void init(ServletConfig c) throws ServletException
● public void service(ServletRequest req, ServletResponse
res) throws ServletException, IOException
● public void destroy()
● public ServletConfig getServletConfig()
● public String getServletInfo() throws ServletException,
IOException
39 Ashish Bhatia

43. GenericServlet Class
● Abstract class implmenting Servlet Interface.
● public void init(ServletConfig config)
● public void init()
● public abstract void service(ServletRequest req,
ServletResponse res)
● public void destroy()
● public ServletContext getServletContext()
● public java.util.Enumeration getInitParameterNames()
● public String getInitParameter(String name)
● public String getServletName()
● public void log(String msg)
● public void log(String message, java.lang.Throwable t)
40 Ashish Bhatia

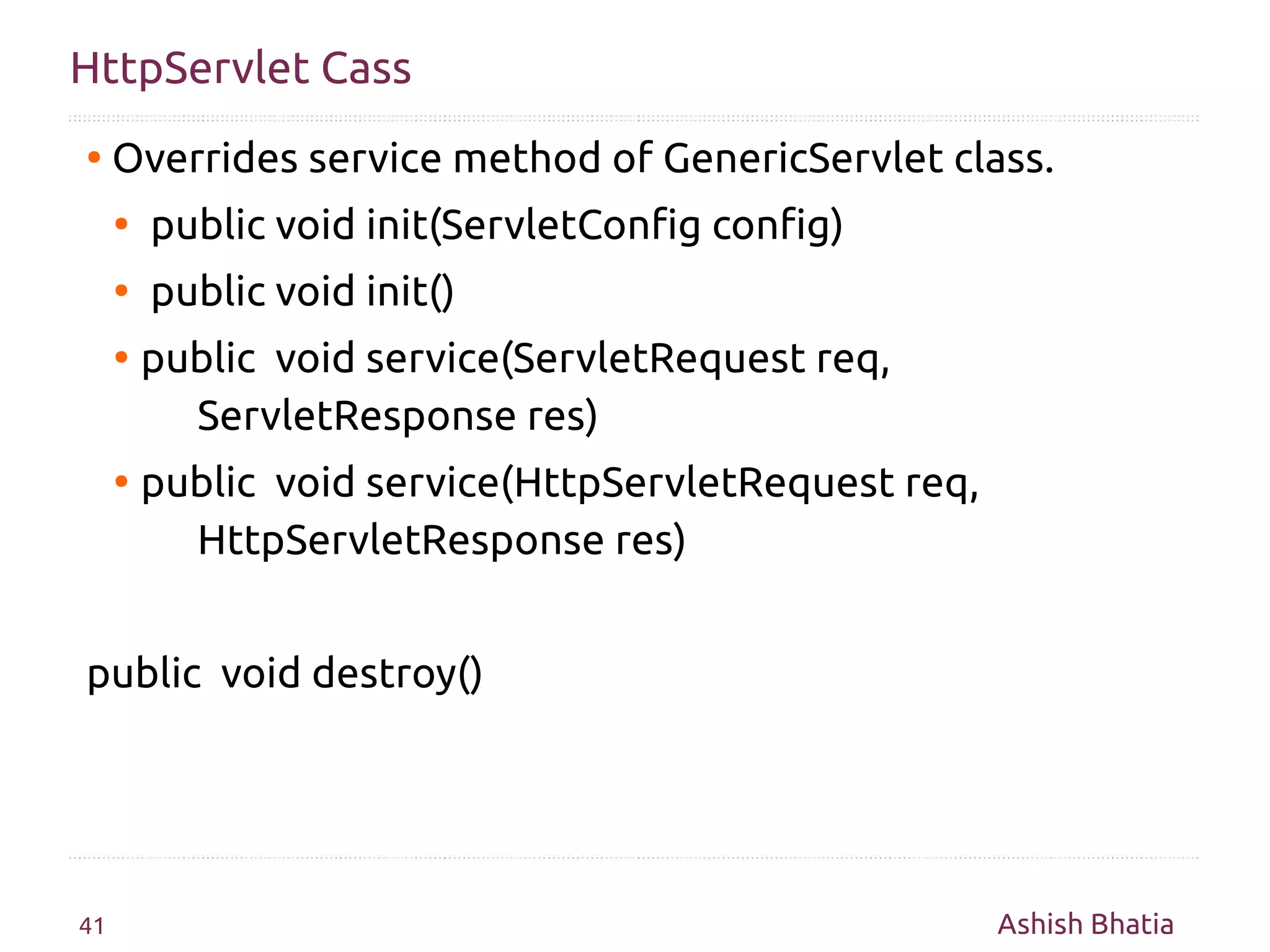

44. HttpServlet Cass
● Overrides service method of GenericServlet class.
● public void init(ServletConfig config)
● public void init()
● public void service(ServletRequest req,
ServletResponse res)
● public void service(HttpServletRequest req,
HttpServletResponse res)
public void destroy()
41 Ashish Bhatia

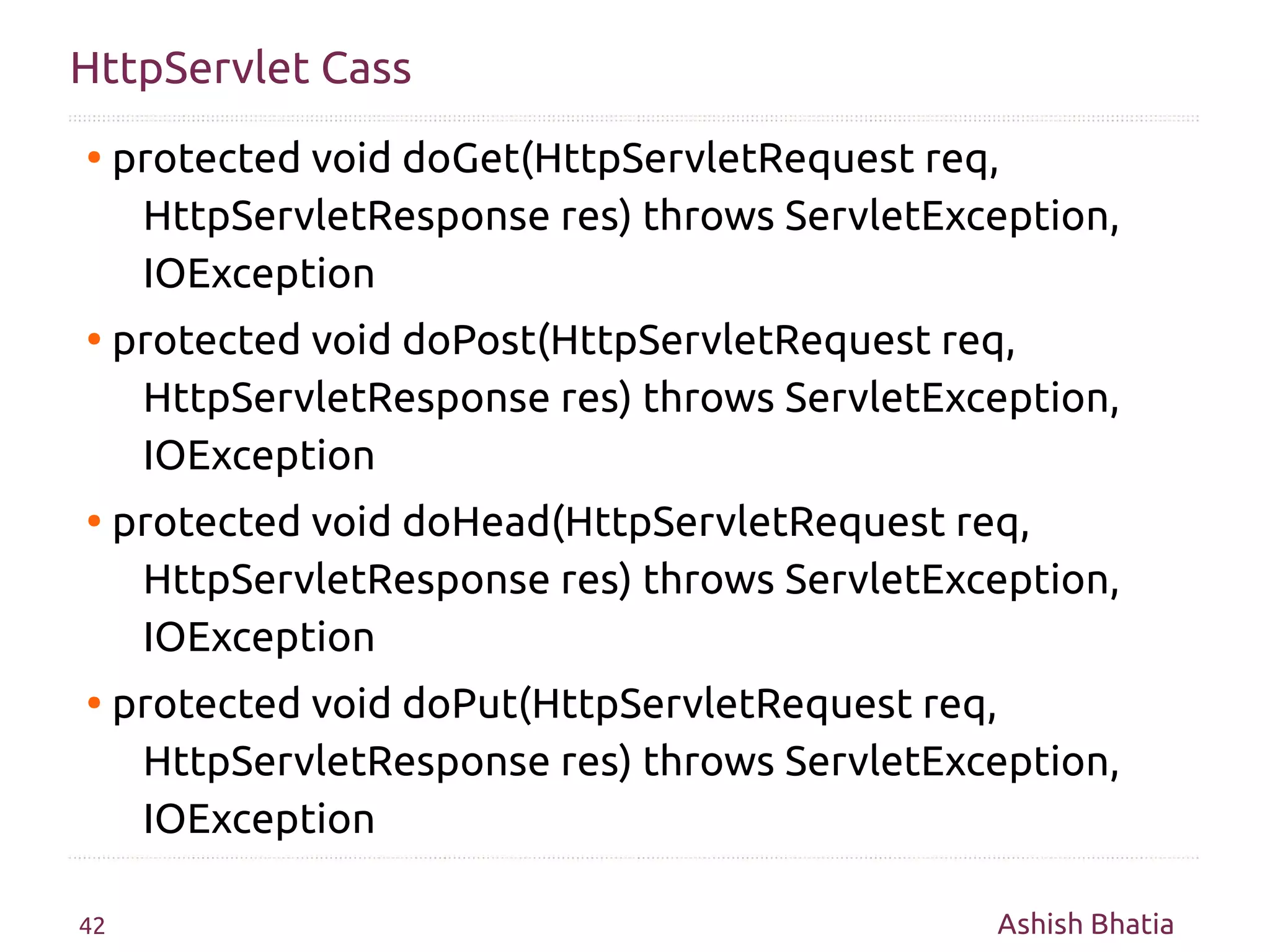

45. HttpServlet Cass
● protected void doGet(HttpServletRequest req,
HttpServletResponse res) throws ServletException,
IOException
● protected void doPost(HttpServletRequest req,
HttpServletResponse res) throws ServletException,
IOException
● protected void doHead(HttpServletRequest req,
HttpServletResponse res) throws ServletException,
IOException
● protected void doPut(HttpServletRequest req,
HttpServletResponse res) throws ServletException,
IOException
42 Ashish Bhatia

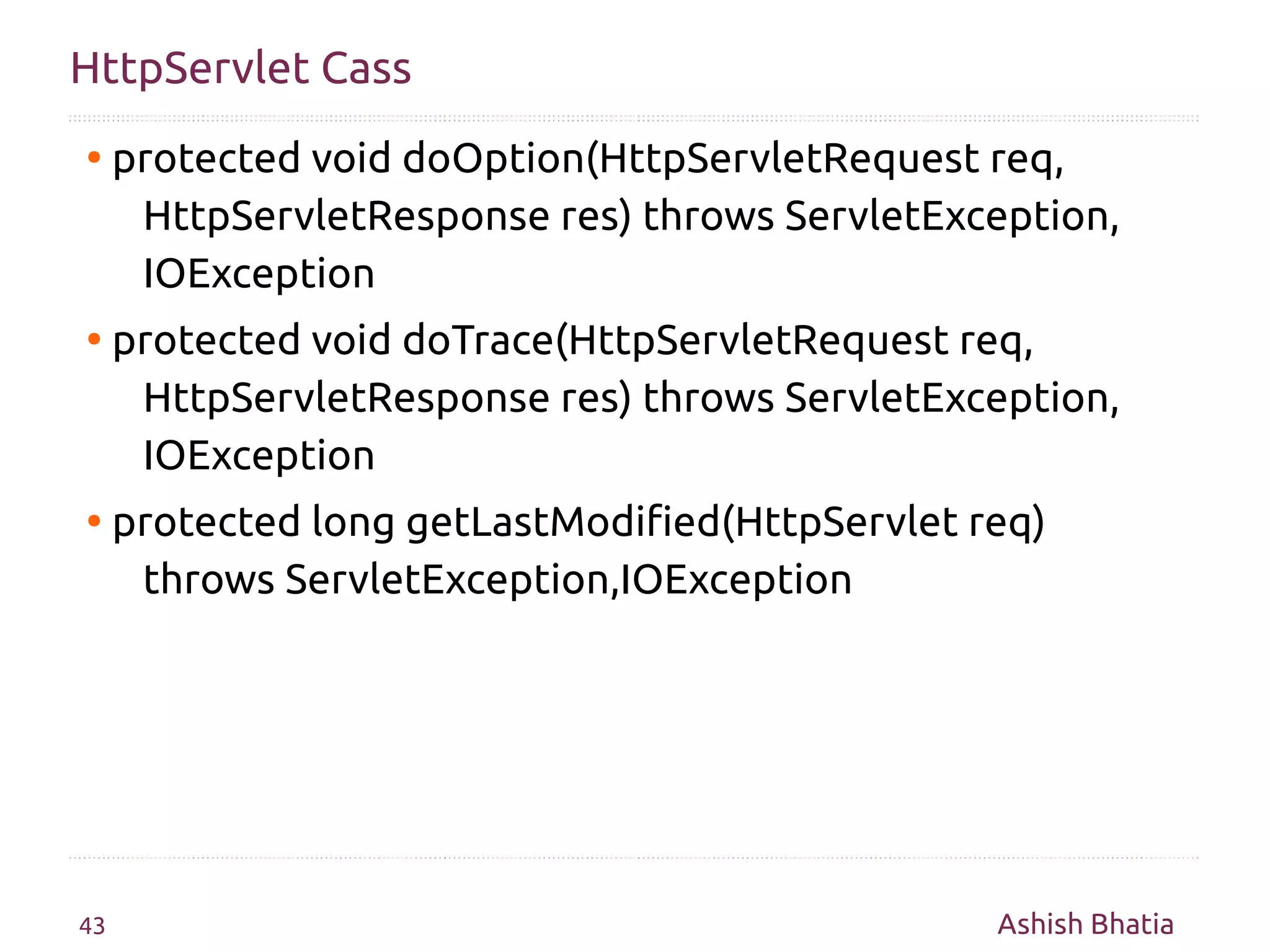

46. HttpServlet Cass
● protected void doOption(HttpServletRequest req,
HttpServletResponse res) throws ServletException,
IOException
● protected void doTrace(HttpServletRequest req,
HttpServletResponse res) throws ServletException,
IOException
● protected long getLastModified(HttpServlet req)
throws ServletException,IOException
43 Ashish Bhatia

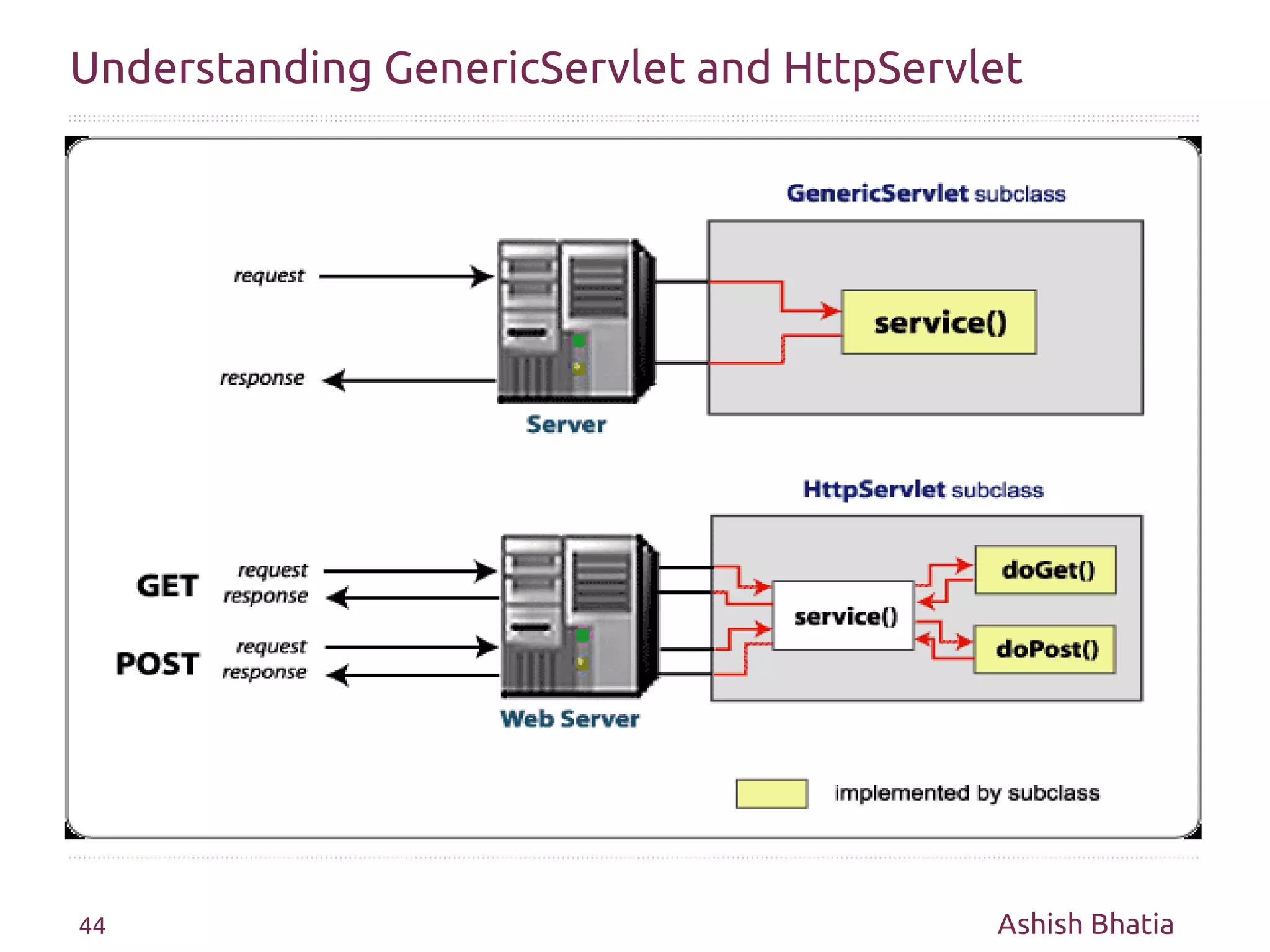

47. Understanding GenericServlet and HttpServlet
44 Ashish Bhatia

48. Program Structure
HelloWorld
index.html
WEB-INF
classes lib
web.xml HelloWorld.class
29 Ashish Bhatia

49. Prepared using
End of Session for today
