Html frames
Frames allow dividing a web page into separate sections or windows. Some key advantages are keeping one section static while changing others and loading multiple pages in the same browser without reloading the entire page. However, frames make printing content across frames difficult and do not allow bookmarking individual frame pages. The <frameset> tag is used to define the layout of frames on a page through attributes like rows and cols. The <frame> tag embeds pages within the layout. An example uses <frameset> to create sections for a header, navigation bar, content, and footer across frames.
More Related Content
Html frames

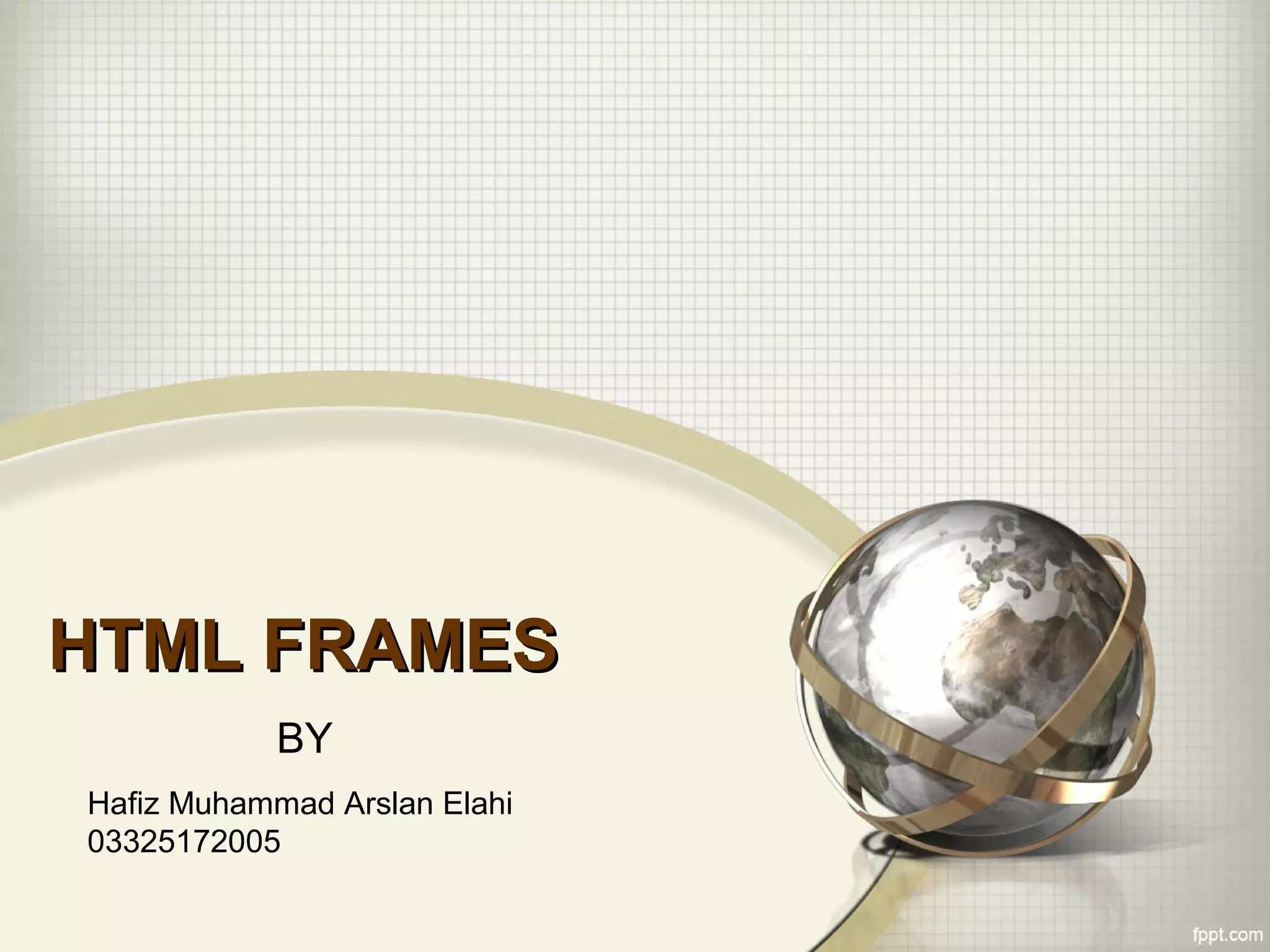

- 1. HTML FRAMES BY Hafiz Muhammad Arslan Elahi 03325172005

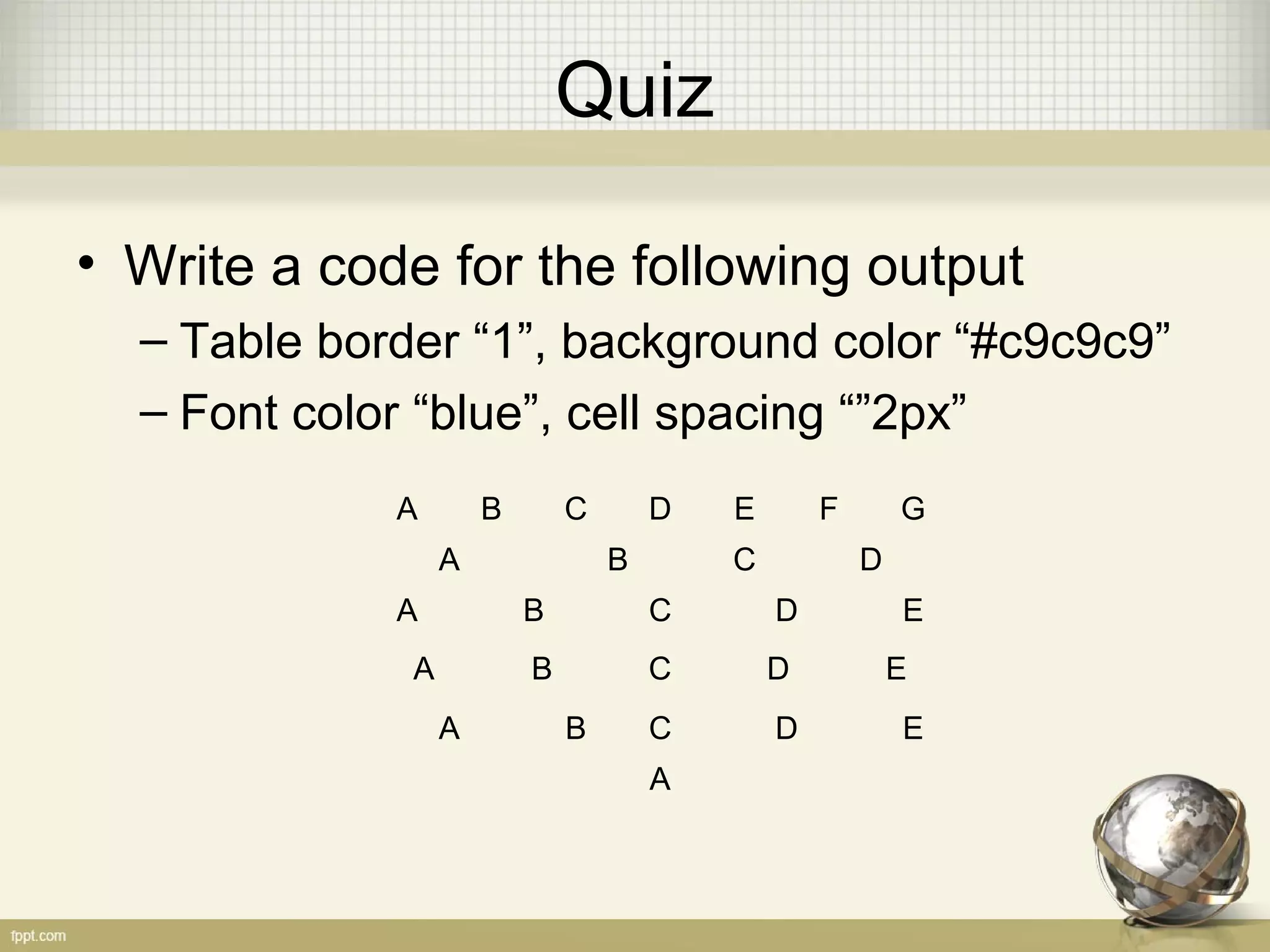

- 2. Quiz • Write acode for the following output – Table border “1”, background color “#c9c9c9” – Font color “blue”, cell spacing “”2px” A B C D E F G A B C D A B C D E A B C D E A B C D E A
- 3. Definition • Frame isa container window that can display a web page • Many web pages can display • Break the page into different sections – Title – Navigational – Contents – Footer
- 4. Advantages • Keep onepart static and change other parts • Multiple pages in the same browser • Reduce load on the server – All pages not reloaded
- 5. Disadvantages • Difficult toprint the content of all frames as compared to a normal web page • Most browsers do no allow to bookmark an individual frame page.
- 6. Tags <frameset> •Define the styleand no. of frames •Nested <frameset> also allowed Attributes Description Rows Pixel, %age, * indicate remaining space Cols As above Border Width of border Framespacing Space b/w the frames
- 7. Tags contd… <frame> •Nested inframeset tag Attributes Description SRC Page displayed in the frame Marginheight Space to be left at the top and left side of frame Marginwidth Space to be left along the sides of frames Name Name of frame Noresize Frame un-sizeable Scrolling Yes, no , auto Vertical , horizontal scrollbars Border Width of frames
- 8. Tags contd…. • TargetFrame Value Description _parent Page loaded containing the current frame _top Load into the whole browser window _blank New browser window _self Loaded in the same window Default target
- 9. Example <frameset rows="20%, 70%,*"> <frame src="header.html" name="header"> <FRAMESET COLS="25%,*"> “frame.html” <FRAME SRC="NAVIGATION.HTML" NAME="NAVIGATION"> <frame src="content.html" name="content"> </FRAMESET> <FRAME SRC="FOOTER.HTML" NAME="footer"> </frameset>
- 10. Example <html> <body> “header.html” <BR/><BR/><BR/> <a href="content.html" target="content"> Content1</a> <a href="content2.html" target="content"> Content2</a> <a href="content3.html" target="content"> Content3</a> <a href="content4.html" target="content"> Content4</a> <a href="content5.html" target="content"> Content5</a> </body> </html>
- 11. Example <html> “navigation.html” <body> <a href="content.html" target="content"> Home</a><br/> <a href="content2.html" target="content"> Services</a><br/> <a href="content3.html" target="content"> Contact Us</a><br/> <a href="content4.html" target="content"> About Us</a><br/> <a href="content5.html" target="content"> FeedBack</a><br/> </body> </html>
- 12. Example <html> <body> “footer.html” <center> <a href="content.html" target="content"> Content1</a> <a href="content2.html" target="content"> Content2</a> <a href="content3.html" target="content"> Content3</a> <a href="content4.html" target="content"> Content4</a> <a href="content5.html" target="content"> Content5</a> <p>© 2012,All Rights Reserved</p> </center> </body> </html>
- 13.
