1. How To Use Selenium,
Successfully
by Dave Haeffner, @TourDeDave

2. http://www.wpclipart.com/geography/features/chasm.png.html

3. http://en.wikipedia.org/wiki/Optimal_solutions_for_Rubik's_Cube

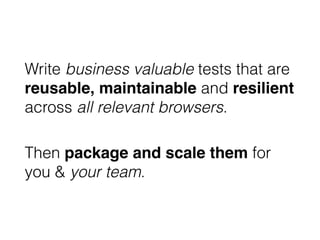

4. Write business valuable tests that are
reusable, maintainable and resilient
across all relevant browsers.
Then package and scale them for
you & your team.

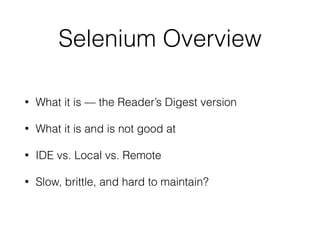

5. Selenium Overview
• What it is — the Reader’s Digest version
• What it is and is not good at
• IDE vs. Local vs. Remote
• Slow, brittle, and hard to maintain?

6. Support
68% 15% 11% 5% 1%

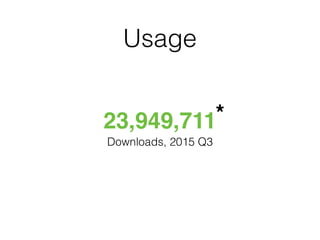

7. Usage
23,949,711
Downloads, 2015 Q3
*

8. What’s Happening?
Support
3

10. Step 1
Define a Test Strategy

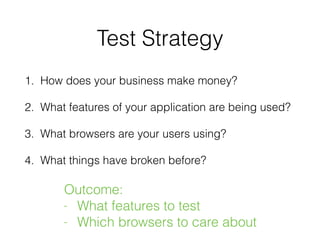

11. Test Strategy
1. How does your business make money?
2. What features of your application are being used?
3. What browsers are your users using?
4. What things have broken before?
Outcome:
- What features to test
- Which browsers to care about

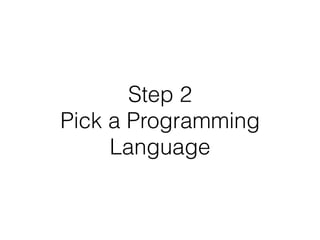

12. Step 2
Pick a Programming
Language

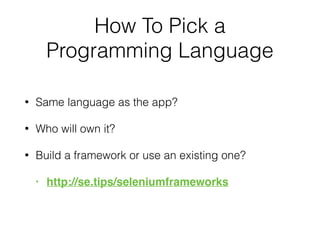

13. How To Pick a
Programming Language
• Same language as the app?
• Who will own it?
• Build a framework or use an existing one?
• http://se.tips/seleniumframeworks

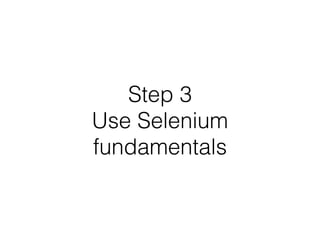

14. Step 3
Use Selenium
fundamentals

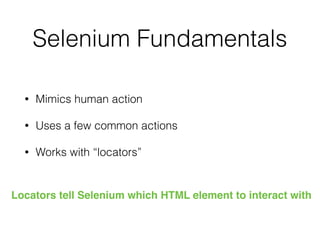

15. Selenium Fundamentals
• Mimics human action
• Uses a few common actions
• Works with “locators”
Locators tell Selenium which HTML element to interact with

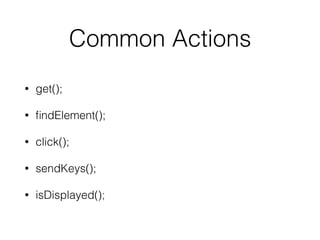

16. Common Actions
• get();
• findElement();
• click();
• sendKeys();
• isDisplayed();

17. Locator Strategies
• Class
• CSS selectors
• ID
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out

18. Locator Strategies
• Class
• CSS selectors
• ID
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out

19. Locator Strategies
• Class
• CSS selectors
• ID
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out
Start with IDs and Classes

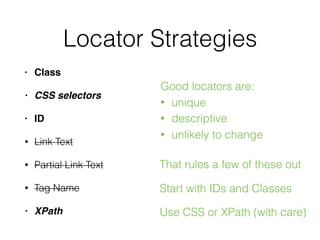

20. Locator Strategies
• Class
• CSS selectors
• ID
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out
Start with IDs and Classes
Use CSS or XPath (with care)

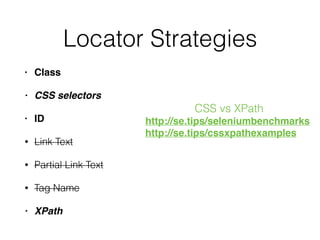

21. Locator Strategies
• Class
• CSS selectors
• ID
• Link Text
• Partial Link Text
• Tag Name
• XPath
CSS vs XPath
http://se.tips/seleniumbenchmarks
http://se.tips/cssxpathexamples

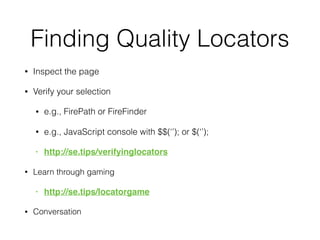

22. Finding Quality Locators
• Inspect the page
• Verify your selection
• e.g., FirePath or FireFinder
• e.g., JavaScript console with $$(‘’); or $(‘’);
• http://se.tips/verifyinglocators

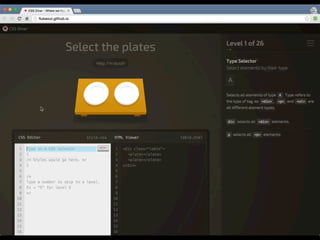

• Learn through gaming
• http://se.tips/locatorgame
• Conversation

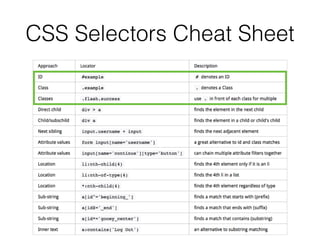

24. CSS Selectors Cheat Sheet

27. Step 4
Write good tests

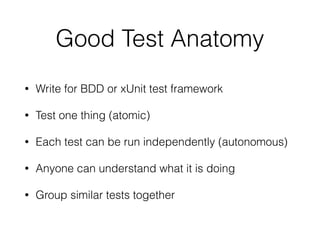

28. Good Test Anatomy
• Write for BDD or xUnit test framework
• Test one thing (atomic)
• Each test can be run independently (autonomous)
• Anyone can understand what it is doing
• Group similar tests together

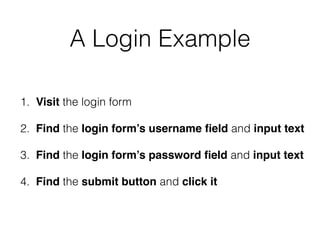

29. A Login Example
1. Visit the login form
2. Find the login form’s username field and input text
3. Find the login form’s password field and input text
4. Find the submit button and click it

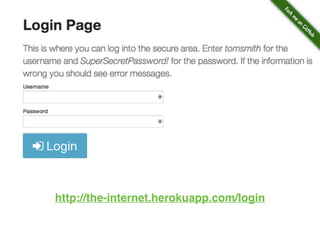

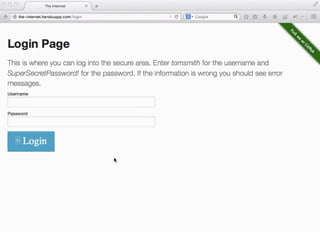

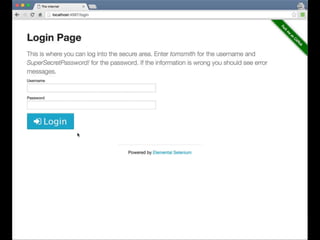

30. http://the-internet.herokuapp.com/login

33. Now to find an assertion
1. Login
2. Inspect the page
3. Find a locator
4. Verify it
5. Add it to the test

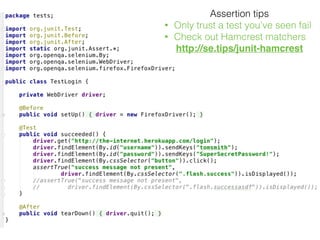

35. Assertion tips
• Only trust a test you’ve seen fail
• Check out Hamcrest matchers
http://se.tips/junit-hamcrest

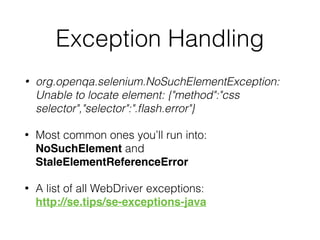

36. Exception Handling
• org.openqa.selenium.NoSuchElementException:
Unable to locate element: {"method":"css
selector","selector":".flash.error"}
• Most common ones you’ll run into:
NoSuchElement and
StaleElementReferenceError
• A list of all WebDriver exceptions:
http://se.tips/se-exceptions-java

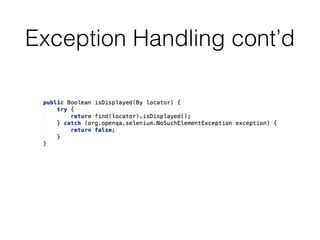

37. Exception Handling cont’d

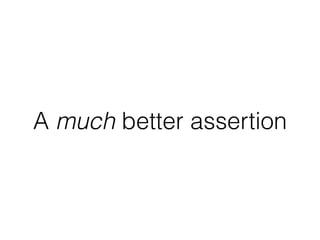

38. A much better assertion

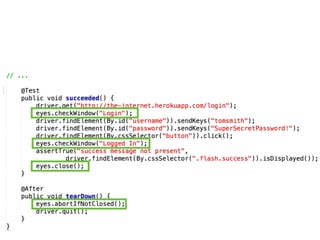

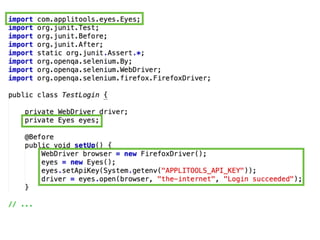

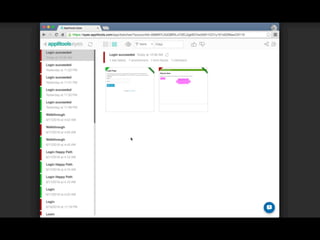

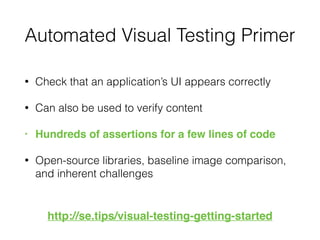

39. Automated Visual Testing Primer
• Check that an application’s UI appears correctly
• Can also be used to verify content
• Hundreds of assertions for a few lines of code
• Open-source libraries, baseline image comparison,
and inherent challenges
http://se.tips/visual-testing-getting-started

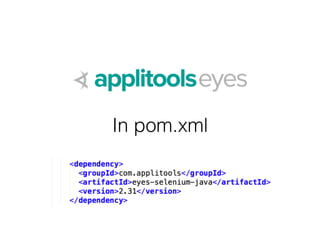

40. In pom.xml

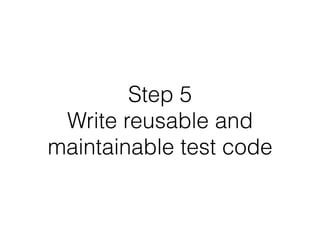

45. Step 5
Write reusable and
maintainable test code

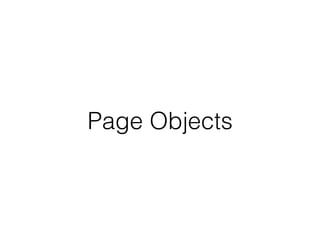

46. Page Objects

47. Application Under Test
Test 1 Test 2 Test 3 Test 4 Test 5Test 1 Test 2 Test 3 Test 4 Test 5
Need to update EVERY test :-(

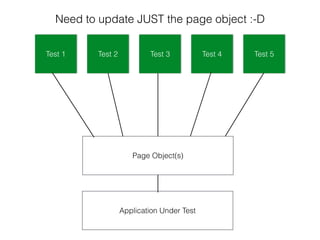

48. Page Object(s)
Application Under Test
Test 1 Test 2 Test 3 Test 4 Test 5
Need to update JUST the page object :-D

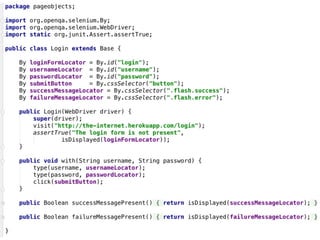

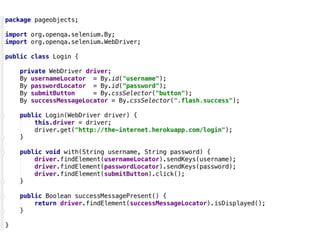

49. Let’s look at a page
object for login

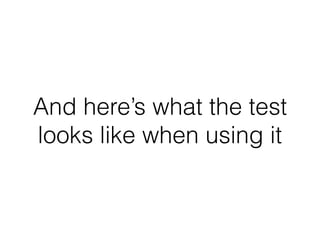

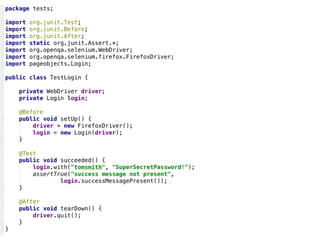

51. And here’s what the test
looks like when using it

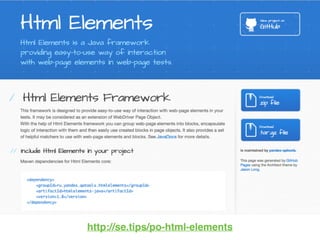

53. • homepage of project sites; split screen
http://se.tips/po-html-elements

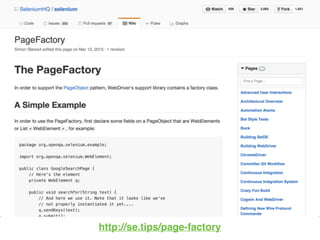

54. http://se.tips/page-factory

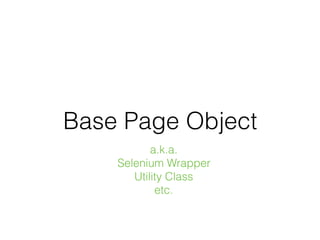

55. Base Page Object
a.k.a.
Selenium Wrapper
Utility Class
etc.

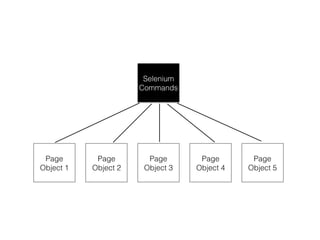

56. Selenium
Commands
Page
Object 1
Page
Object 2
Page
Object 3
Page
Object 4
Page
Object 5

57. Base Page
Object
Page
Object 1
Page
Object 2
Page
Object 3
Page
Object 4
Page
Object 5
Selenium
Commands
• Global reuse
• More readable
• Insulates you from
Selenium API changes
http://se.tips/se-upgrade

58. Let’s take a look at a
Base Page Object

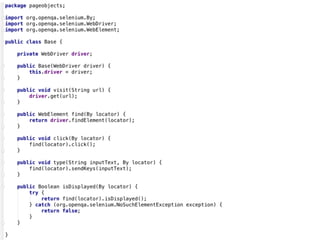

60. And here it is
implemented

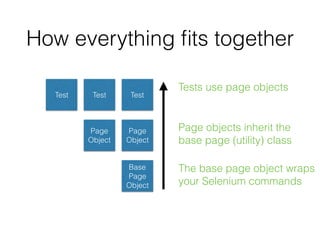

62. How everything fits together
Test TestTest
Page
Object
Page
Object
Base
Page
Object
Tests use page objects
Page objects inherit the
base page (utility) class
The base page object wraps
your Selenium commands

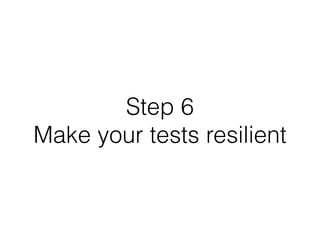

63. Step 6
Make your tests resilient

64. Waiting

65. Thread.Sleep();
Implicit wait
Explicit waits

66. Thread.Sleep();
Implicit wait
Explicit waits

67. Waiting in Selenium
Implicit
• Specify an amount of time during test setup
• *Every* Selenium action will be retried until:
• The action can be completed, or
• The amount of time specified has been reached
(and throw an exception)

68. Waiting in Selenium
Explicit
• Specify an amount of time and an action (only
when you need it)
• Selenium will try *that* action repeatedly until:
• The action can be completed, or
• The amount of time specified has been reached
(and throw a Timeout exception)

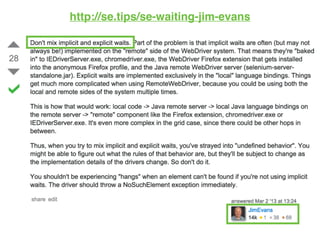

69. http://se.tips/se-waiting-jim-evans

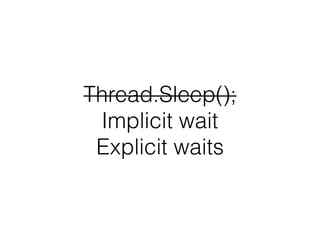

70. Thread.Sleep();
Implicit wait
Explicit waits

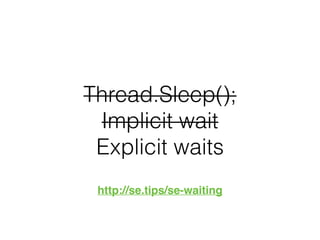

71. Thread.Sleep();
Implicit wait
Explicit waits
http://se.tips/se-waiting

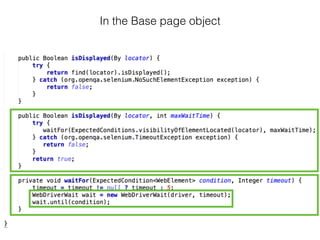

73. In the Base page object

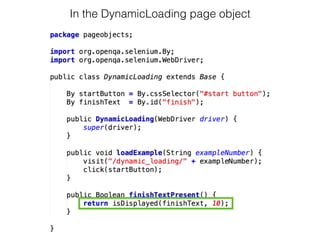

74. In the DynamicLoading page object

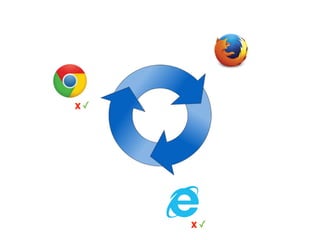

76. Cross-browser Timing

77. x
x
✓
✓

78. Step 7
Prep for use

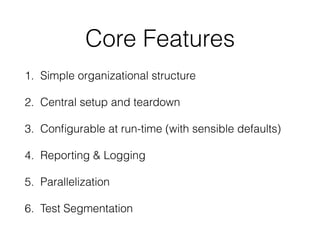

79. Core Features
1. Simple organizational structure
2. Central setup and teardown
3. Configurable at run-time (with sensible defaults)
4. Reporting & Logging
5. Parallelization
6. Test Segmentation

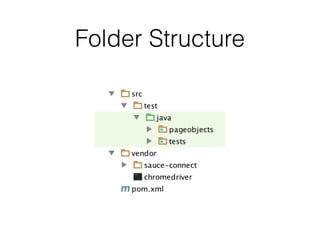

80. Folder Structure

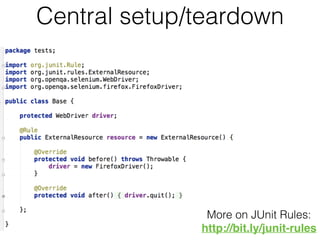

81. Central setup/teardown
More on JUnit Rules:
http://bit.ly/junit-rules

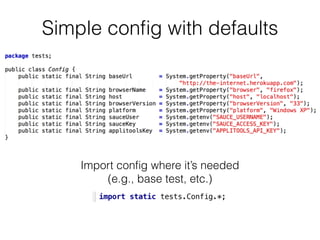

82. Simple config with defaults
Import config where it’s needed
(e.g., base test, etc.)

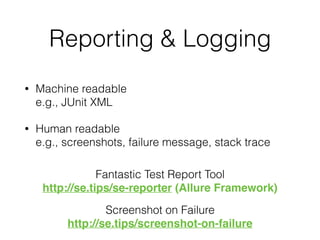

84. Reporting & Logging
• Machine readable
e.g., JUnit XML
• Human readable
e.g., screenshots, failure message, stack trace
Fantastic Test Report Tool
http://se.tips/se-reporter (Allure Framework)
Screenshot on Failure
http://se.tips/screenshot-on-failure

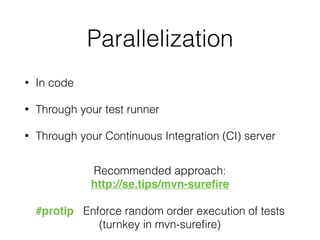

85. Parallelization
• In code
• Through your test runner
• Through your Continuous Integration (CI) server
#protip Enforce random order execution of tests
(turnkey in mvn-surefire)
Recommended approach:
http://se.tips/mvn-surefire

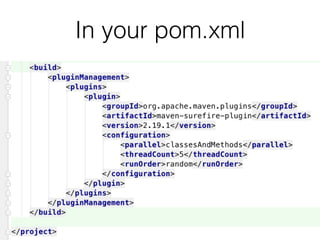

86. In your pom.xml

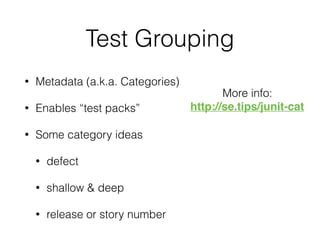

87. Test Grouping
• Metadata (a.k.a. Categories)
• Enables “test packs”
• Some category ideas
• defect
• shallow & deep
• release or story number
More info:
http://se.tips/junit-cat

90. Running Categories

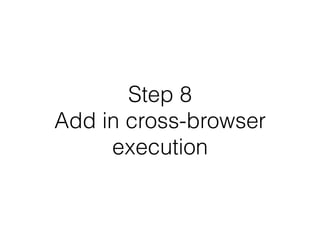

91. Step 8
Add in cross-browser
execution

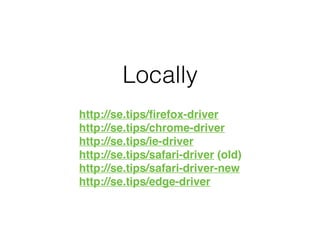

92. Locally
http://se.tips/firefox-driver
http://se.tips/chrome-driver
http://se.tips/ie-driver
http://se.tips/safari-driver (old)
http://se.tips/safari-driver-new
http://se.tips/edge-driver

93. Chrome

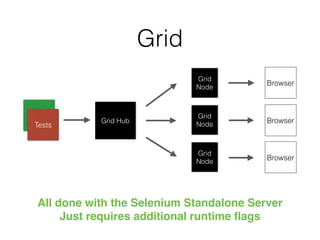

94. Grid
Grid Hub
Browser
Tests
All done with the Selenium Standalone Server
Just requires additional runtime flags
Grid
Node
Grid
Node
Grid
Node
Browser
Browser

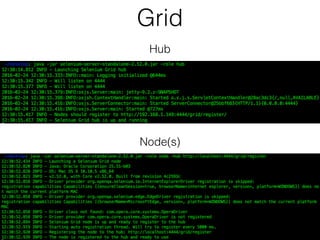

95. Grid
Hub
Node(s)

96. Grid
• http://se.tips/grid-getting-started
• http://se.tips/se-grid-extras
• http://se.tips/se-grid-scaler

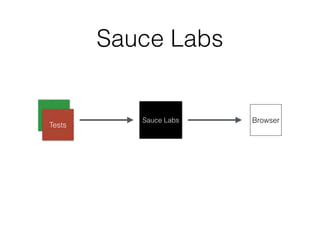

97. Sauce Labs
Sauce Labs Browser
Tests

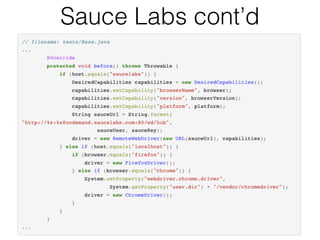

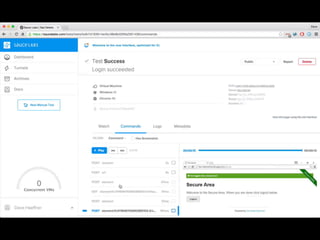

98. Sauce Labs cont’d

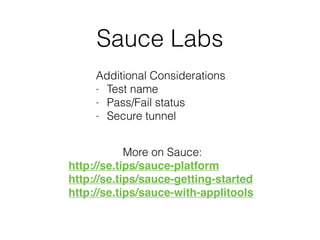

99. Sauce Labs
Additional Considerations
- Test name
- Pass/Fail status
- Secure tunnel
More on Sauce:
http://se.tips/sauce-platform
http://se.tips/sauce-getting-started
http://se.tips/sauce-with-applitools

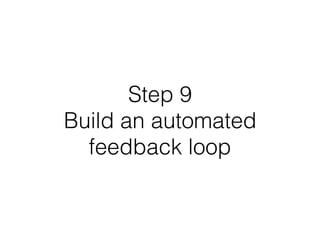

101. Step 9
Build an automated
feedback loop

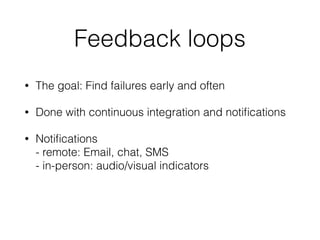

102. Feedback loops
• The goal: Find failures early and often
• Done with continuous integration and notifications
• Notifications
- remote: Email, chat, SMS
- in-person: audio/visual indicators

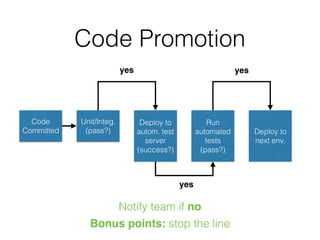

103. Code
Committed
Unit/Integ.
(pass?)
Deploy to
autom. test
server
(success?)
Run
automated
tests
(pass?)
Deploy to
next env.
yes
yes
yes
Notify team if no
Code Promotion
Bonus points: stop the line

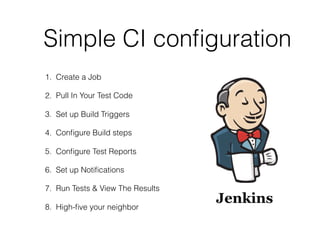

104. Simple CI configuration
1. Create a Job
2. Pull In Your Test Code
3. Set up Build Triggers
4. Configure Build steps
5. Configure Test Reports
6. Set up Notifications
7. Run Tests & View The Results
8. High-five your neighbor

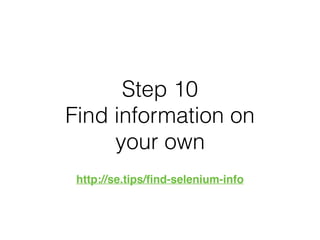

106. Step 10
Find information on
your own
http://se.tips/find-selenium-info

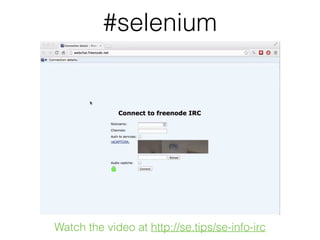

107. #selenium
Watch the video at http://se.tips/se-info-irc

108. Steps to solve the puzzle
1. Define a Test Strategy
2. Pick a programming language
3. Use Selenium Fundamentals
4. Write good tests
5. Write re-usable & maintainable code
6. Make your tests resilient with waits
7. Package your tests into a framework
8. Add in cross-browser execution
9. Build an automated feedback loop
10. Find information on your own

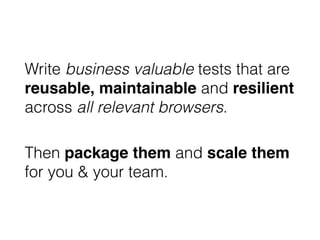

109. Write business valuable tests that are
reusable, maintainable and resilient
across all relevant browsers.
Then package them and scale them
for you & your team.

110. –Dave Haeffner
“You may think your puzzle is unique. But really, everyone is
trying to solve the same puzzle. Yours is just configured
differently — and it’s solvable”
