How to Manage Scale-Out Environments with MariaDB MaxScale
MariaDB MaxScale is a database proxy that provides scalability, security, and high availability for MariaDB deployments. It supports load balancing, connection routing, and replication to scale database environments without application impact. MaxScale includes features like query caching, read/write splitting, multi-tenant routing, and binlog replication to optimize performance. It can also stream change data capture to big data platforms and provides tools to help manage operations.
More Related Content
![[pgday.Seoul 2022] PostgreSQL with Google Cloud](https://cdn.slidesharecdn.com/ss_thumbnails/pgday-postgresqlwithgooglecloud-221114013605-5def484f-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to How to Manage Scale-Out Environments with MariaDB MaxScale
How to Manage Scale-Out Environments with MariaDB MaxScale
- 1. MariaDB MaxScale Maria LuisaRaviol Senior Sales Engineer- MariaDB

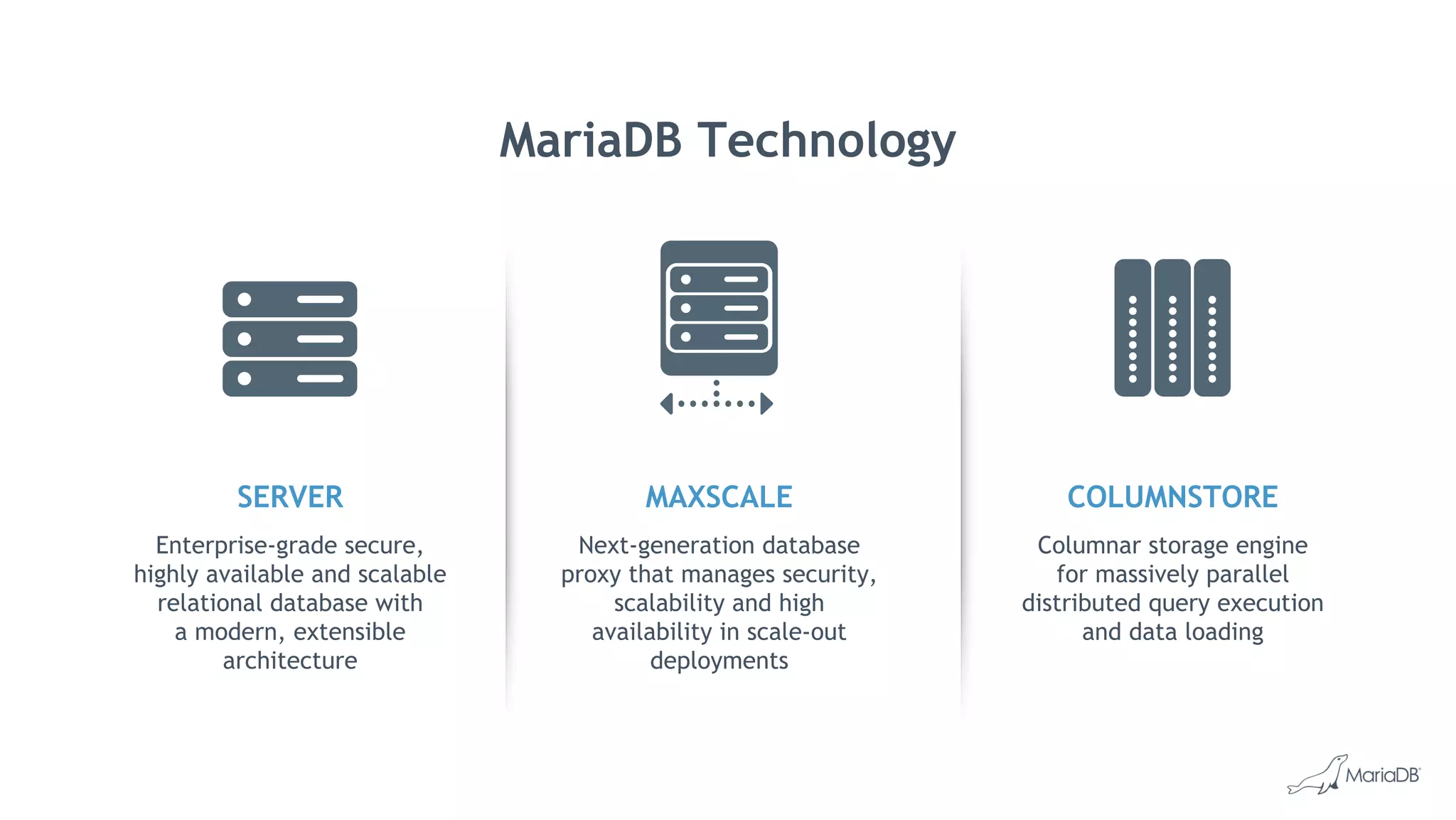

- 2. SERVER Enterprise-grade secure, highly availableand scalable relational database with a modern, extensible architecture MAXSCALE COLUMNSTORE Next-generation database proxy that manages security, scalability and high availability in scale-out deployments Columnar storage engine for massively parallel distributed query execution and data loading MariaDB Technology

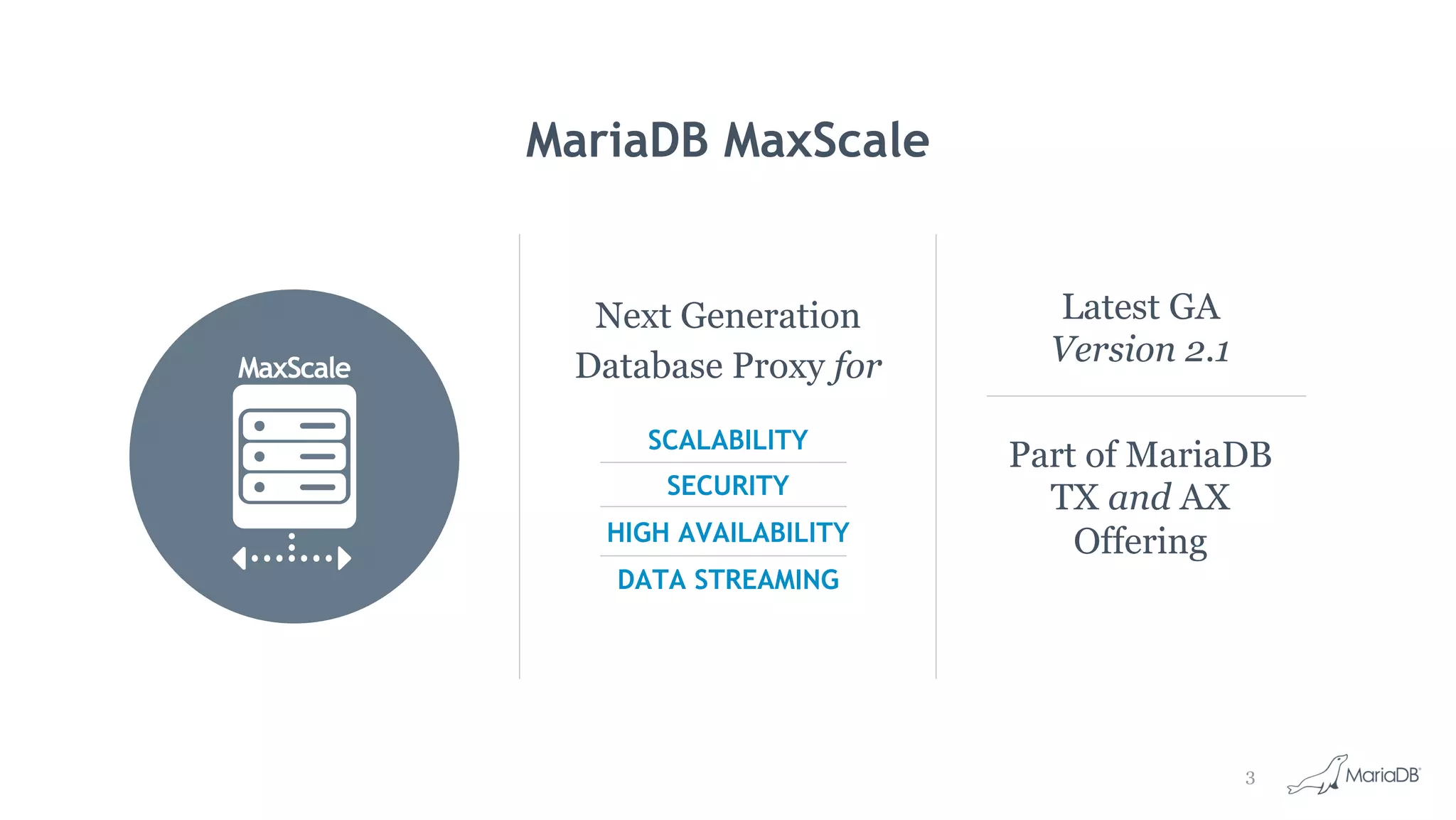

- 3. 3 MariaDB MaxScale Latest GA Version2.1 Part of MariaDB TX and AX Offering Next Generation Database Proxy for SCALABILITY SECURITY HIGH AVAILABILITY DATA STREAMING
- 4. MariaDB MaxScale Concept DATABASE SERVERS MASTER SLAVES BinlogCache Insulates client applications from the complexities of backend database cluster Simplify replication from database to other databases CLIENT PROTOCOL SUPPORT AUTHENTICATION DATABASE MONITORING LOAD BALANCING & ROUTING QUERY TRANSFORMATION & LOGGING Flexible, easy to write plug-ins for Generic Core MULTI-THREADED E-POLL BASED STATELESS SHARES THE THREAD POOL

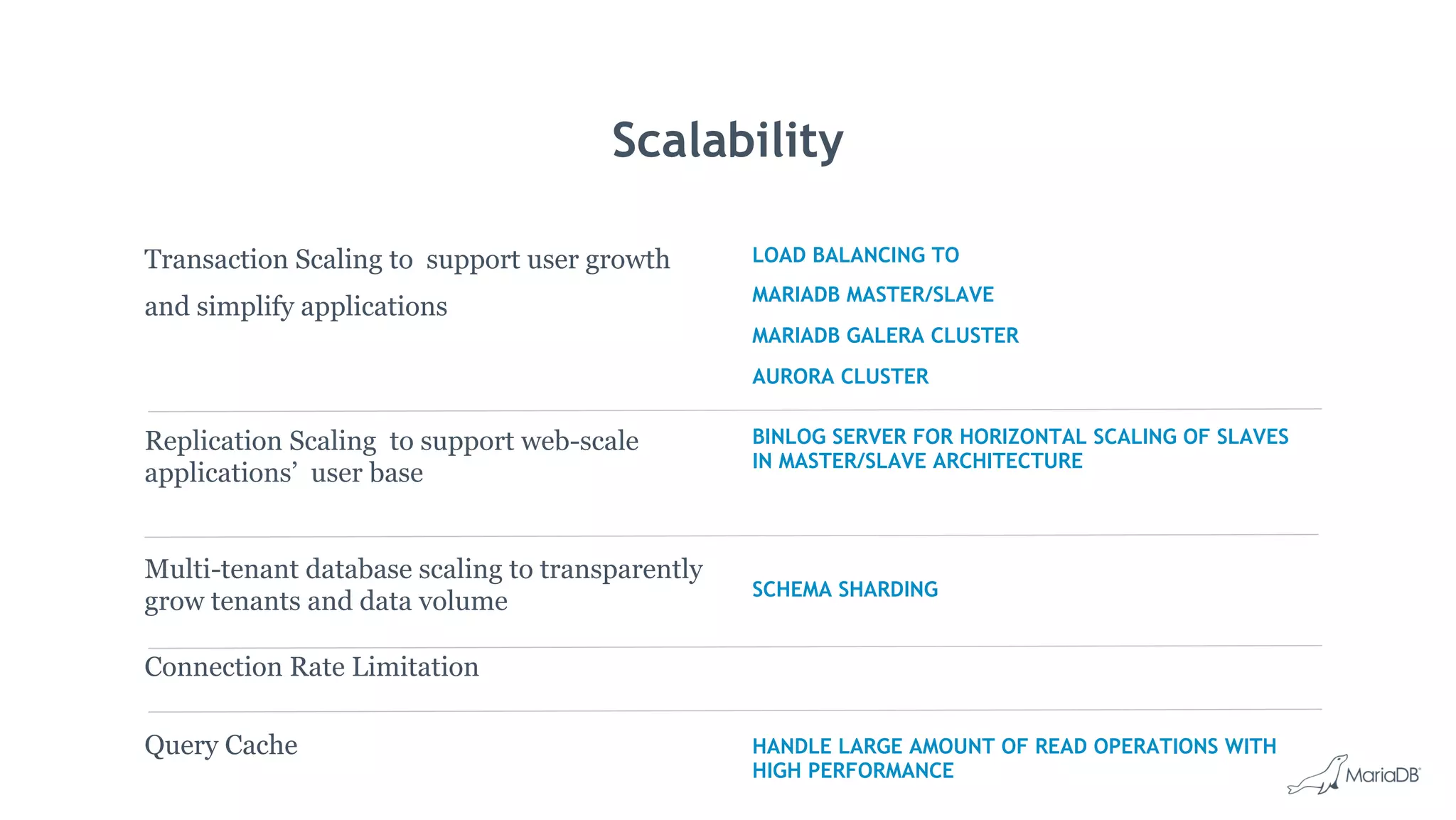

- 5. Scalability Transaction Scaling tosupport user growth and simplify applications Connection Rate Limitation Query Cache LOAD BALANCING TO MARIADB MASTER/SLAVE MARIADB GALERA CLUSTER AURORA CLUSTER Replication Scaling to support web-scale applications’ user base BINLOG SERVER FOR HORIZONTAL SCALING OF SLAVES IN MASTER/SLAVE ARCHITECTURE Multi-tenant database scaling to transparently grow tenants and data volume SCHEMA SHARDING HANDLE LARGE AMOUNT OF READ OPERATIONS WITH HIGH PERFORMANCE

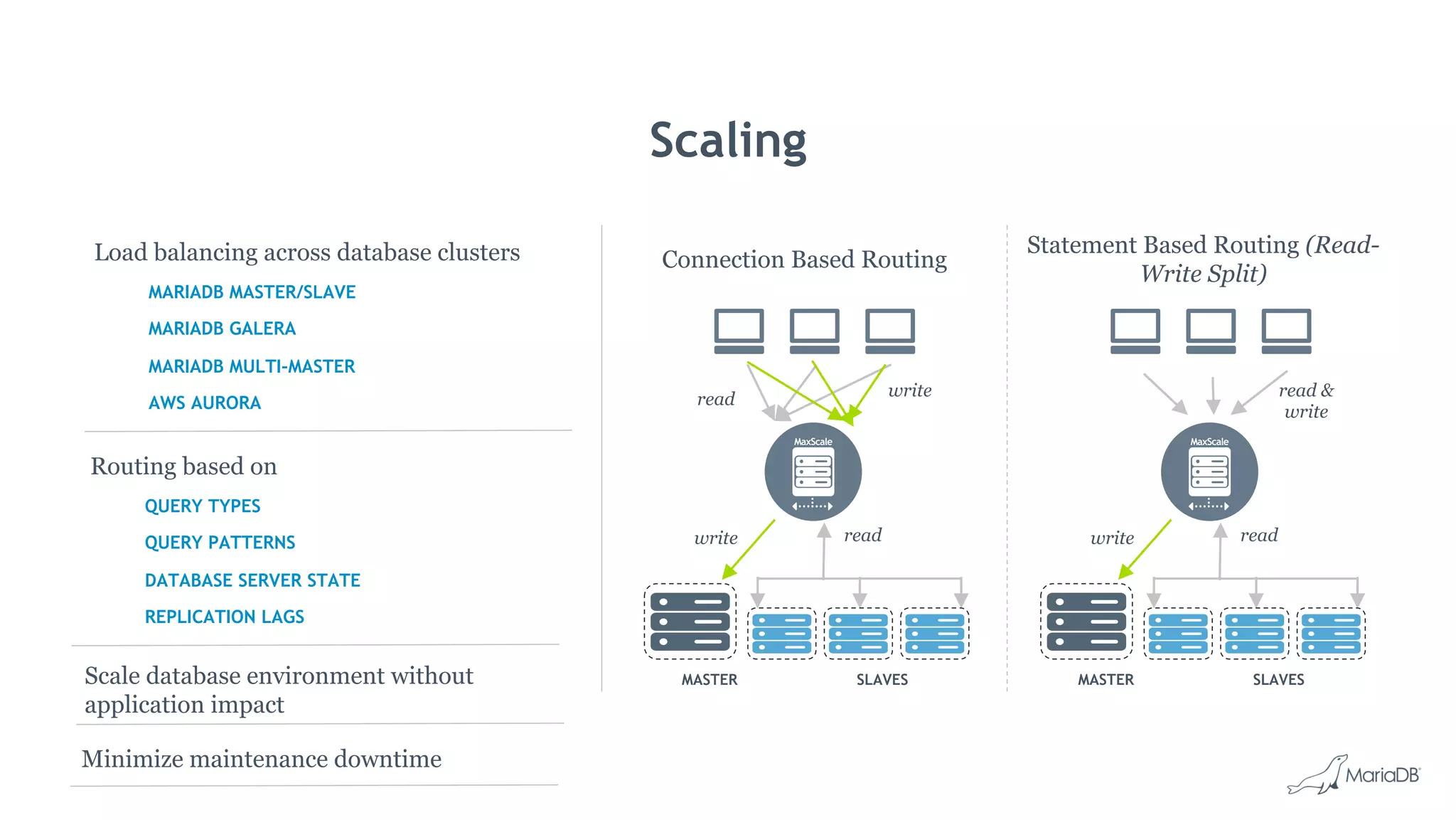

- 6. Routing based on QUERYTYPES QUERY PATTERNS DATABASE SERVER STATE REPLICATION LAGS Load balancing across database clusters MARIADB MASTER/SLAVE MARIADB GALERA MARIADB MULTI-MASTER AWS AURORA Scaling Scale database environment without application impact Minimize maintenance downtime Connection Based Routing readwrite MASTER SLAVES read write Statement Based Routing (Read- Write Split) readwrite MASTER SLAVES read & write

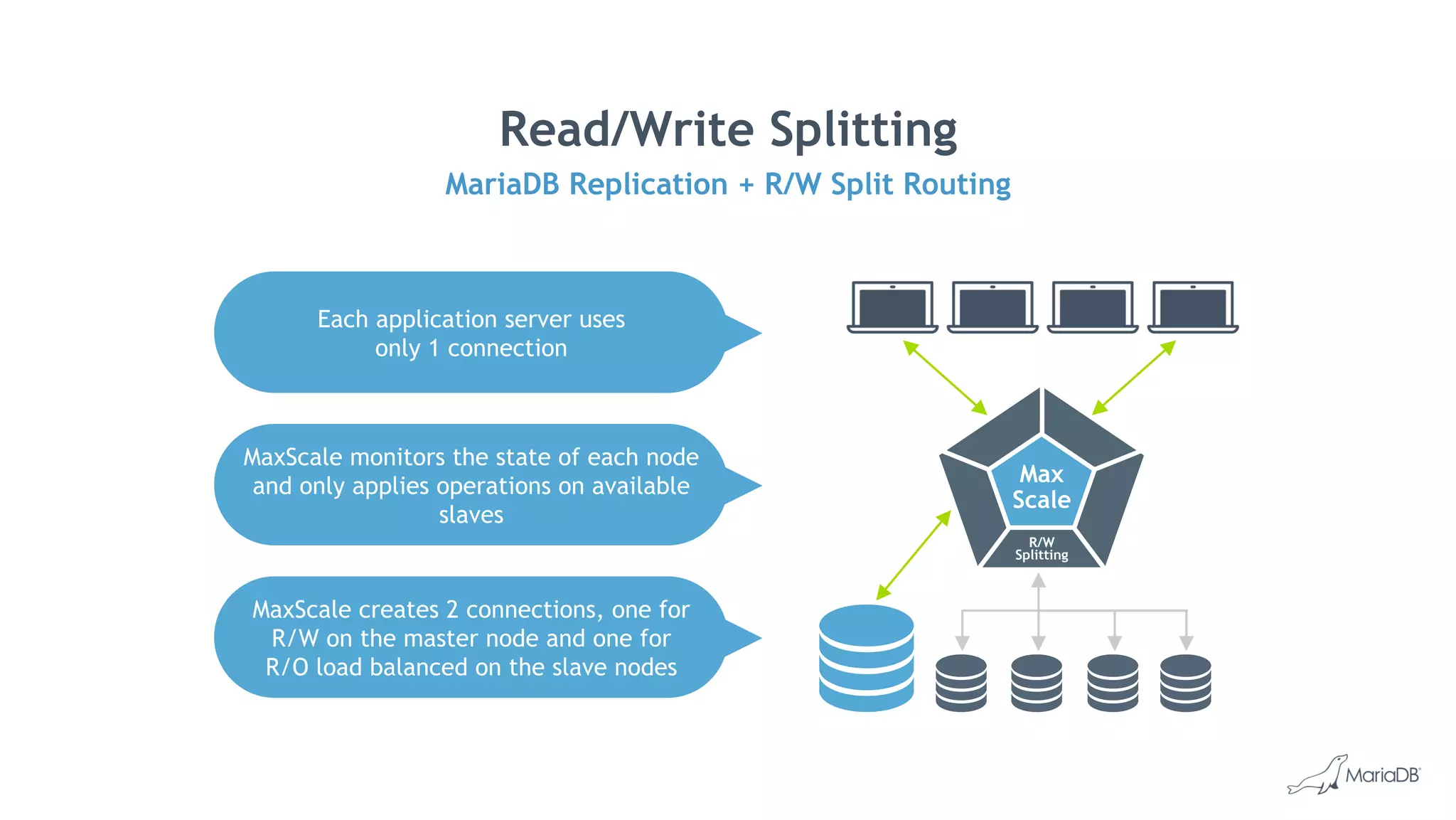

- 7. Read/Write Splitting MariaDB Replication+ R/W Split Routing Each application server uses only 1 connection MaxScale monitors the state of each node and only applies operations on available slaves MaxScale creates 2 connections, one for R/W on the master node and one for R/O load balanced on the slave nodes Max Scale R/W Splitting

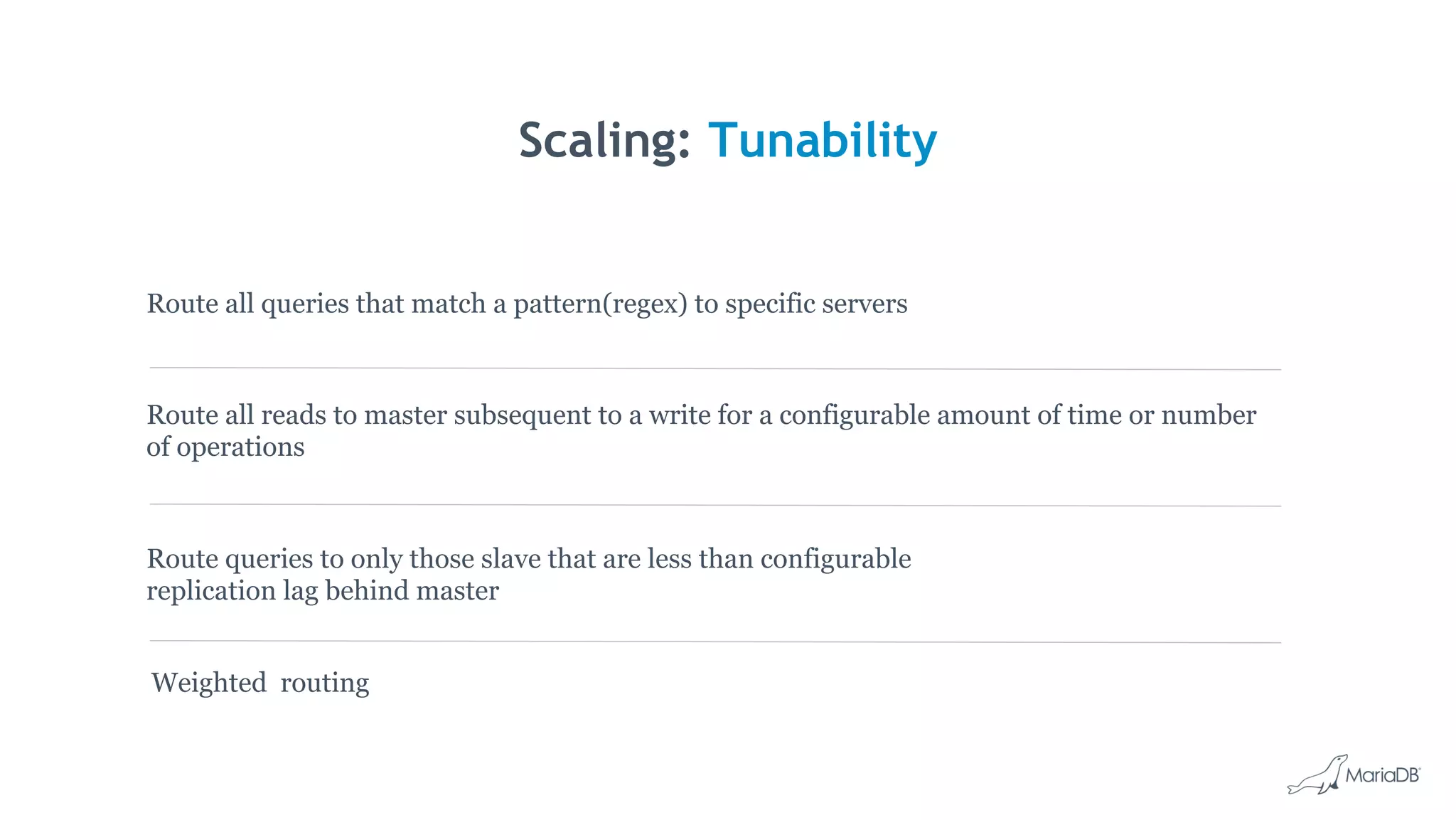

- 8. Scaling: Tunability Route allreads to master subsequent to a write for a configurable amount of time or number of operations Route queries to only those slave that are less than configurable replication lag behind master Route all queries that match a pattern(regex) to specific servers Weighted routing

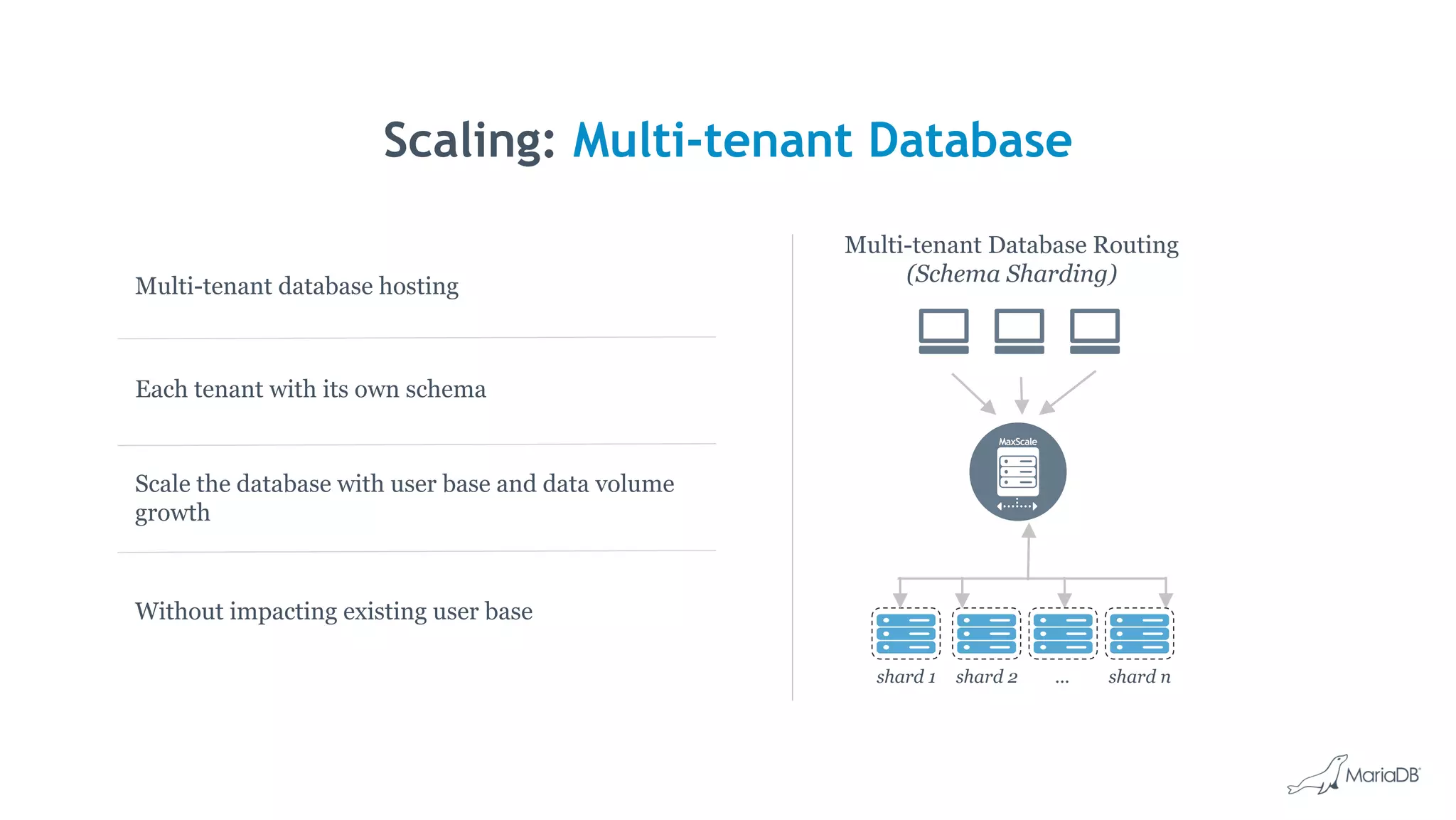

- 9. Scaling: Multi-tenant Database Eachtenant with its own schema Multi-tenant database hosting Without impacting existing user base Scale the database with user base and data volume growth Multi-tenant Database Routing (Schema Sharding) shard n...shard 2shard 1

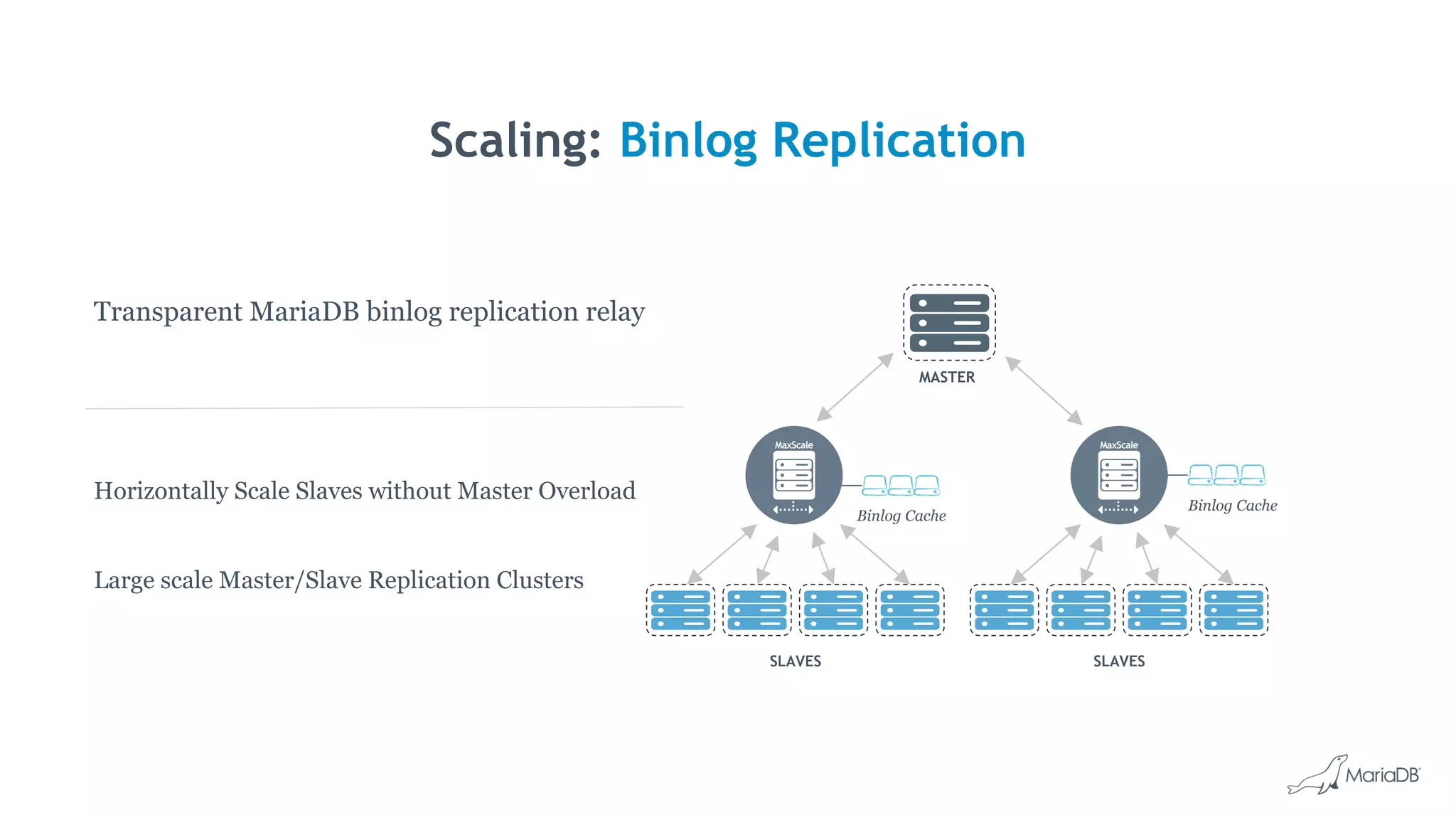

- 10. Scaling: Binlog Replication Largescale Master/Slave Replication Clusters Transparent MariaDB binlog replication relay Horizontally Scale Slaves without Master Overload SLAVES MASTER SLAVES Binlog Cache Binlog Cache

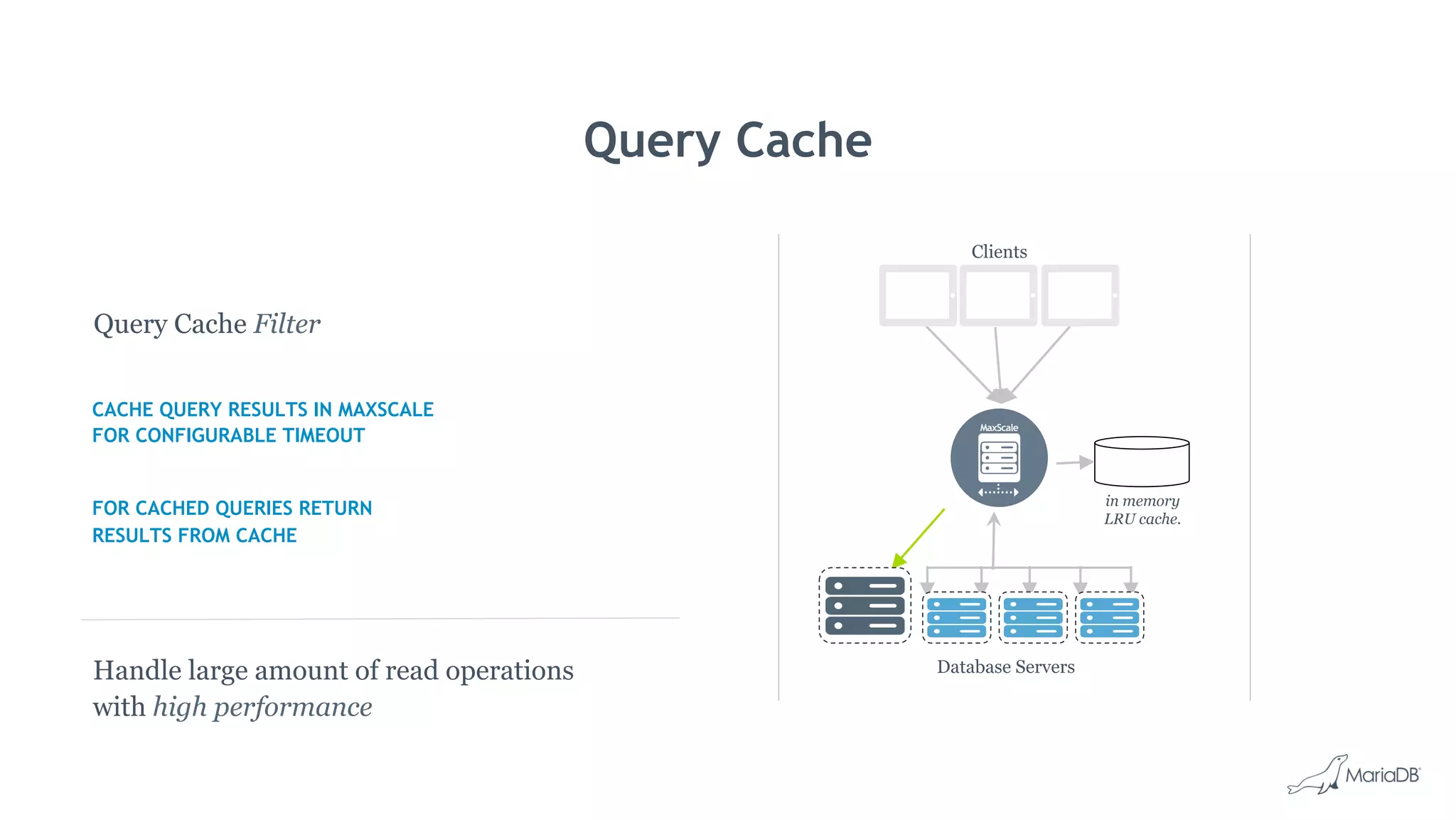

- 11. Query Cache in memory LRUcache. Clients Database Servers Query Cache Filter CACHE QUERY RESULTS IN MAXSCALE FOR CONFIGURABLE TIMEOUT FOR CACHED QUERIES RETURN RESULTS FROM CACHE Handle large amount of read operations with high performance

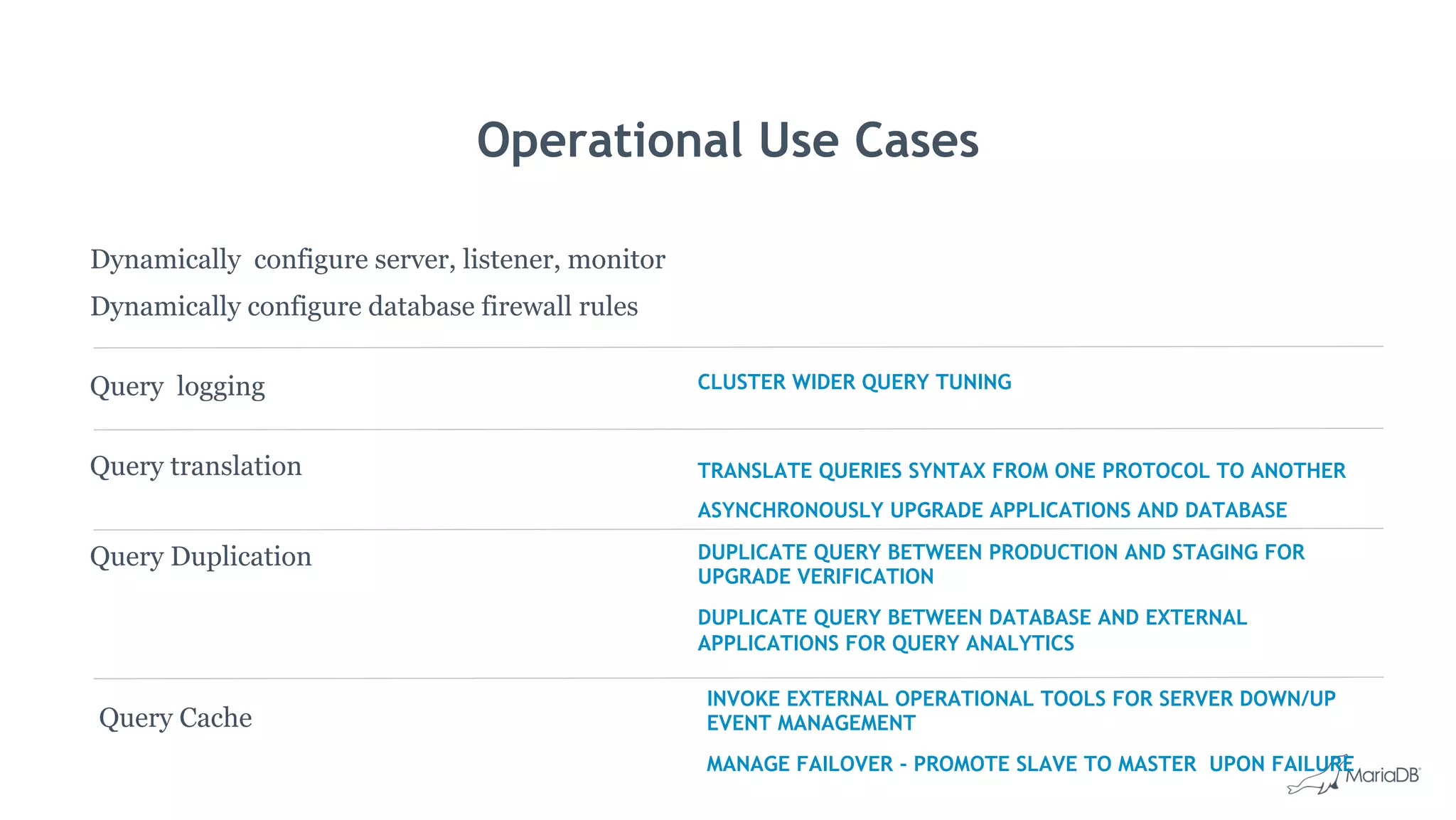

- 12. Operational Use Cases Dynamicallyconfigure server, listener, monitor Dynamically configure database firewall rules Query Duplication Query Cache DUPLICATE QUERY BETWEEN PRODUCTION AND STAGING FOR UPGRADE VERIFICATION DUPLICATE QUERY BETWEEN DATABASE AND EXTERNAL APPLICATIONS FOR QUERY ANALYTICS Query logging CLUSTER WIDER QUERY TUNING Query translation TRANSLATE QUERIES SYNTAX FROM ONE PROTOCOL TO ANOTHER ASYNCHRONOUSLY UPGRADE APPLICATIONS AND DATABASE INVOKE EXTERNAL OPERATIONAL TOOLS FOR SERVER DOWN/UP EVENT MANAGEMENT MANAGE FAILOVER - PROMOTE SLAVE TO MASTER UPON FAILURE

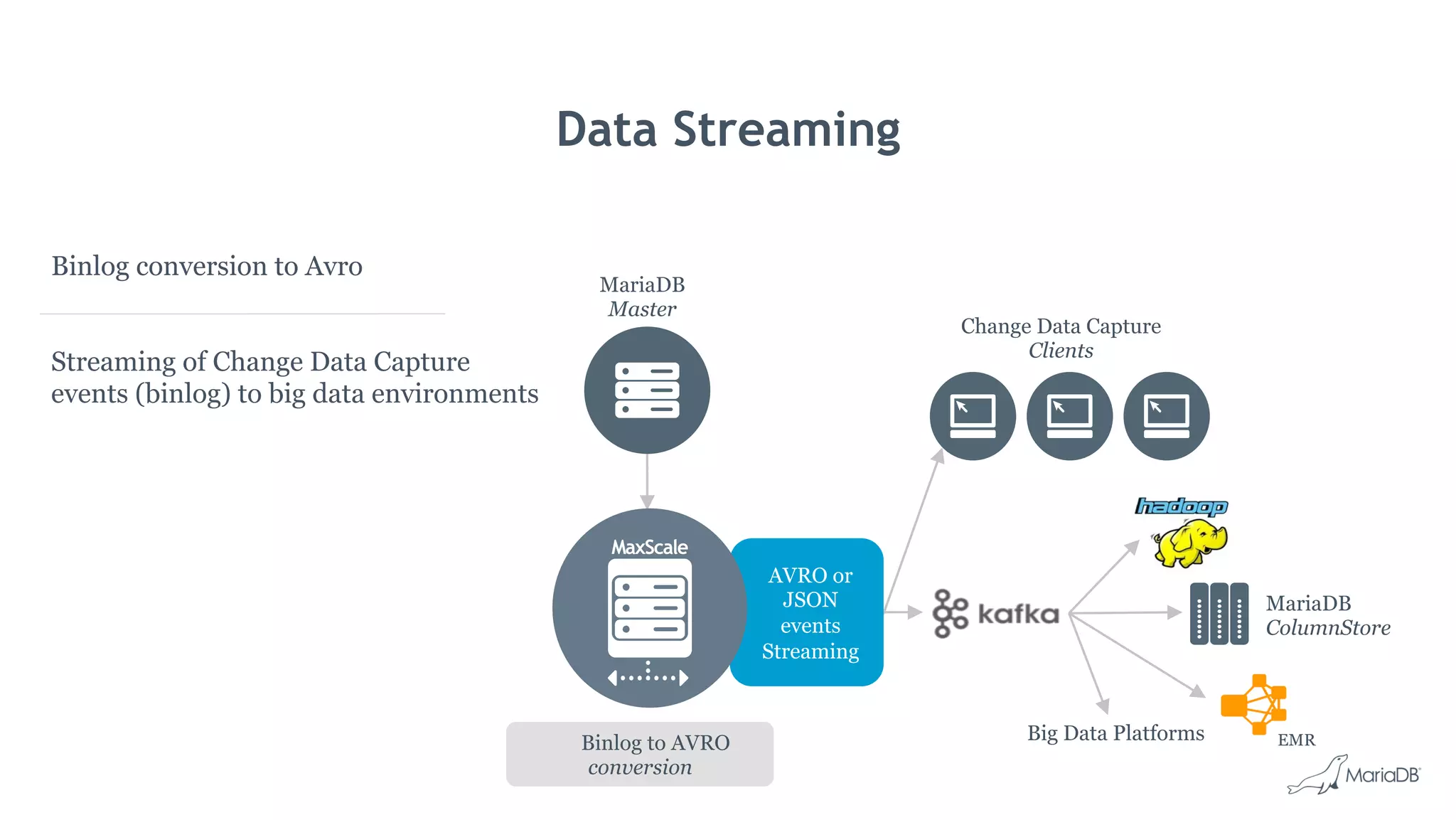

- 13. Binlog conversion toAvro Streaming of Change Data Capture events (binlog) to big data environments Data Streaming Change Data Capture Clients EMR MariaDB ColumnStore Big Data Platforms AVRO or JSON events Streaming MariaDB Master Binlog to AVRO conversion

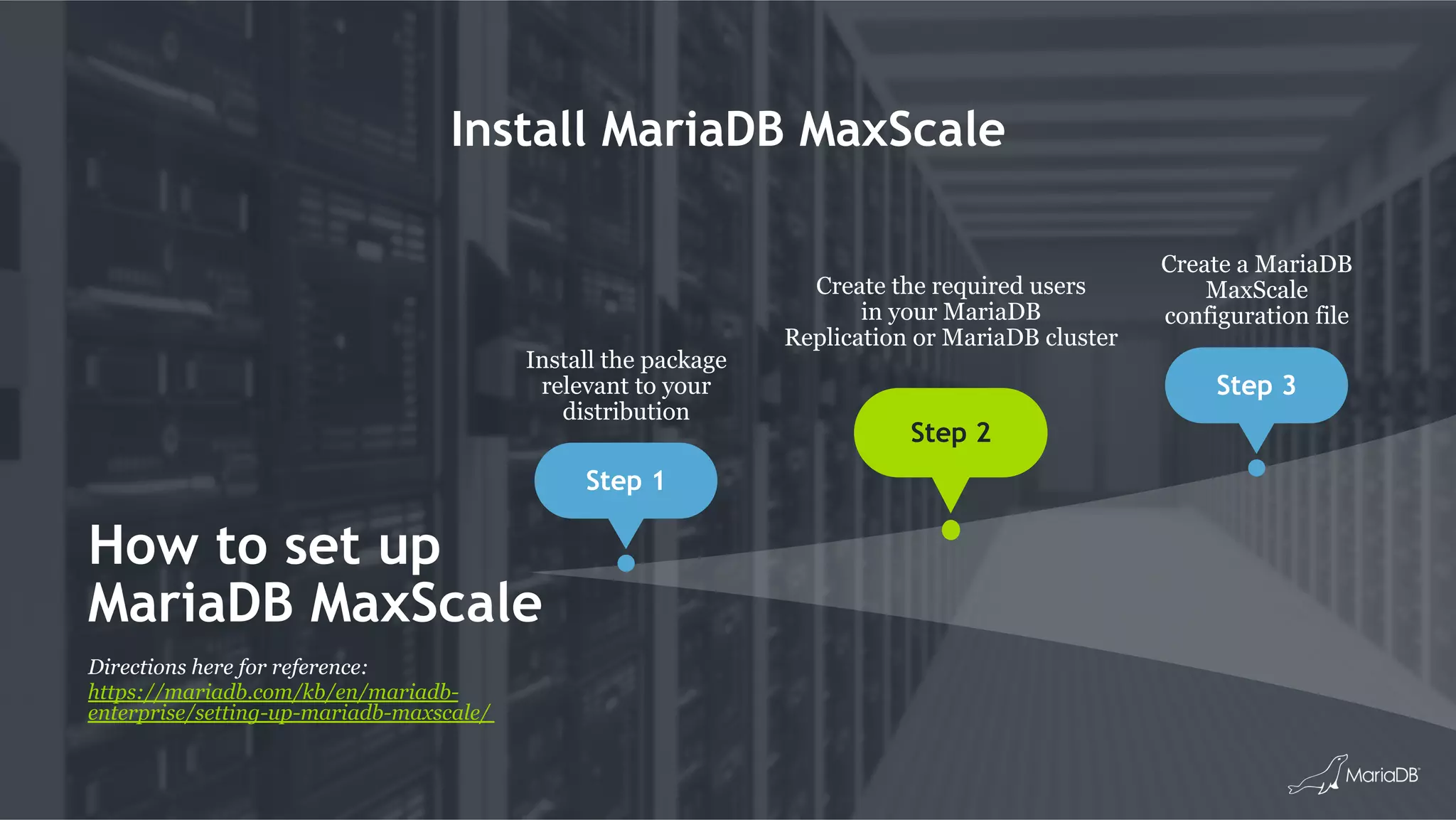

- 14. Install MariaDB MaxScale Howto set up MariaDB MaxScale Directions here for reference: https://mariadb.com/kb/en/mariadb- enterprise/setting-up-mariadb-maxscale/ Install the package relevant to your distribution Step 1 Create the required users in your MariaDB Replication or MariaDB cluster Step 2 Create a MariaDB MaxScale configuration file Step 3

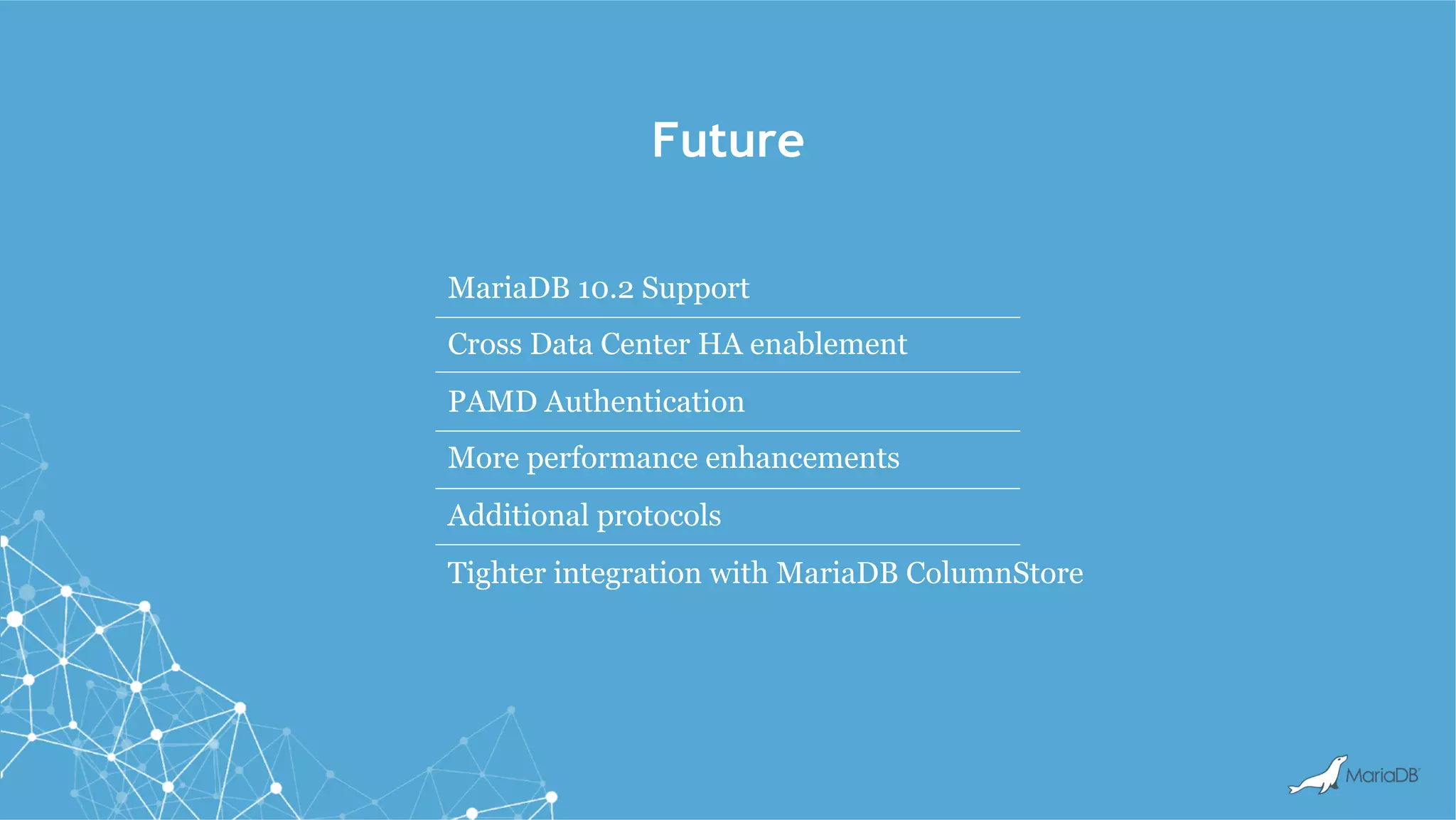

- 15. Future MariaDB 10.2 Support CrossData Center HA enablement PAMD Authentication More performance enhancements Additional protocols Tighter integration with MariaDB ColumnStore
- 16.
- 17.
