1. How To Build A Stable And
Robust Base
For a “Cloud”
Doctor Cheng Liang
Pengyun Network Technology

2. Historical Background and Cloud Trends
• Overturn of traditional business
models
• The transactional businesses based
on the Internet or mobile terminals
have grown exponentially
• The requirements for user
experience are higher
– Available at anytime
– Smooth accesses
– Comprehensive functions
– Safe and Reliable

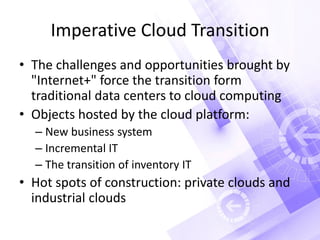

3. Imperative Cloud Transition
• The challenges and opportunities brought by
"Internet+" force the transition form
traditional data centers to cloud computing
• Objects hosted by the cloud platform:
– New business system
– Incremental IT
– The transition of inventory IT
• Hot spots of construction: private clouds and
industrial clouds

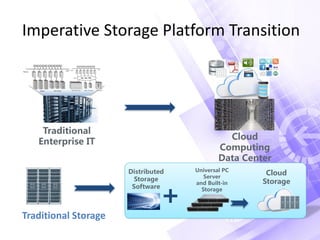

4. Imperative Storage Platform Transition
Cloud
Computing
Data Center
Traditional
Enterprise IT
Cloud
Storage
Distributed
Storage
Software
Universal PC
Server
and Built-in
Storage
+
Traditional Storage

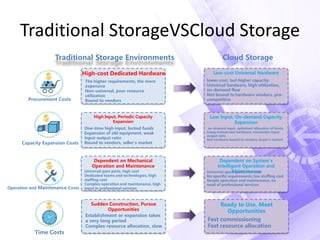

5. Traditional StorageVSCloud Storage
Procurement Costs
High-cost Dedicated Hardware Low-cost Universal Hardware
The higher requirements, the more
expensive
Non-universal, poor resource
utilization
Bound to vendors
lower cost, but higher capacity
Universal hardware, high utilization,
on-demand flow
Not bound to hardware vendors, pro-
competitive
Capacity Expansion Costs
High Input, Periodic Capacity
Expansion
Low Input, On-demand Capacity
Expansion
One-time high input, locked funds
Expansion of old equipment, weak
input-output ratio
Bound to vendors, seller's market
on-demand input, optimized allocation of funds
Using mainstream hardware, reasonable input-
output ratio
Not hardware bound to vendors, buyer's market
Operation and Maintenance Costs
Dependent on Mechanical
Operation and Maintenance
Dependent on System's
Intelligent Operation and
MaintenanceUniversal pare parts, high cost
Dedicated teams and technologies, high
staffing cost
Complex operation and maintenance, high
input in professional services
Universal spare parts, low cost
No specific requirements, low staffing cost
Simple operation and maintenance, no
need of professional services
Time Costs
Sudden Construction, Pursue
Opportunities
Ready to Use, Meet
Opportunities
Establishment or expansion takes
a very long period
Complex resource allocation, slow
Fast commissioning
Fast resource allocation
Traditional Storage Environments Cloud Storage

6. Cloud Storage is the Cloud Infrastructure
• Data storage of video surveillance system

7. Cloud Storage is the Cloud Infrastructure
• It stores the pictures and video in billions of
mobile devices (mobile phones)

8. Cloud
Storage

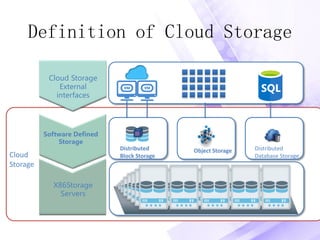

Definition of Cloud Storage
应用实例
Software Defined
Storage
X86Storage
Servers
Cloud Storage
External
interfaces
Distributed
Block Storage
Distributed
Database Storage
Object Storage

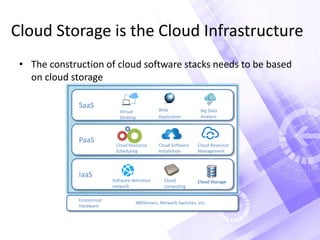

9. Cloud Storage is the Cloud Infrastructure
• The construction of cloud software stacks needs to be based
on cloud storage
IaaS
Cloud StorageCloud
computing
Software definition
network
PaaS
Cloud Resource
Scheduling
Cloud Software
Installation
Cloud Resource
Management
SaaS
Virtual
Desktop
Web
Application
Big Data
Analysis
Economical
Hardware
X86Servers, Network Switches, etc.

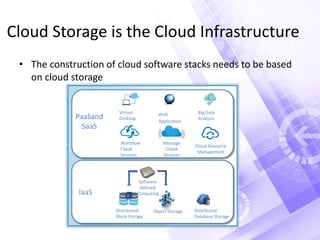

10. Cloud Storage is the Cloud Infrastructure
• The construction of cloud software stacks needs to be based
on cloud storage
IaaS
PaaSand
SaaS
Workflow
Cloud
Services
Message
Cloud
Services
Cloud Resource
Management
Virtual
Desktop
Web
Application
Big Data
Analysis
Software
Defined
Computing
Distributed
Block Storage
Distributed
Database Storage
Object Storage

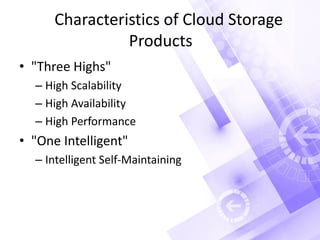

11. Characteristics of Cloud Storage
Products
• "Three Highs"
– High Scalability
– High Availability
– High Performance
• "One Intelligent"
– Intelligent Self-Maintaining

12. Pengyun
Reliable Intelligent Storage
Distributed
Block
Storage
Distributed
File Storage
Distributed
Object
Storage
Distributed
Database
We are not
porters
We don't take
"shortcuts"
Based on
Surpassing
Starting
from the
Bottom
We are
engineers
Project
Formation

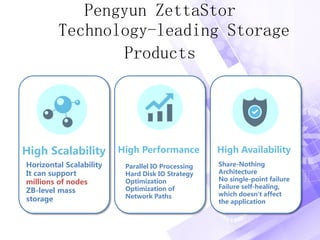

13. Pengyun ZettaStor
Technology-leading Storage
Products
High Scalability
Horizontal Scalability
It can support
millions of nodes
ZB-level mass
storage
High Performance
Parallel IO Processing
Hard Disk IO Strategy
Optimization
Optimization of
Network Paths
High Availability
Share-Nothing
Architecture
No single-point failure
Failure self-healing,
which doesn't affect
the application

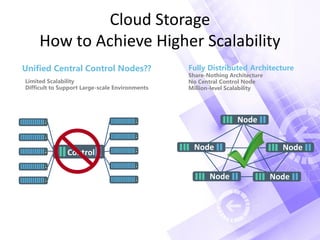

14. Cloud Storage
How to Achieve Higher Scalability
Fully Distributed Architecture
Share-Nothing Architecture
No Central Control Node
Million-level Scalability
Control
Node
Node Node
Node Node
Limited Scalability
Difficult to Support Large-scale Environments
Unified Central Control Nodes??

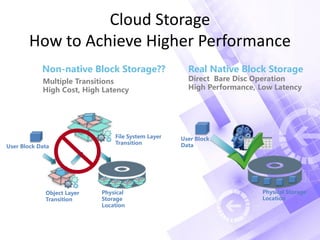

15. Cloud Storage
How to Achieve Higher Performance
User Block Data
Object Layer
Transition
File System Layer
Transition
Physical
Storage
Location
Multiple Transitions
High Cost, High Latency
Non-native Block Storage??
User Block
Data
Physical Storage
Location
Real Native Block Storage
Direct Bare Disc Operation
High Performance, Low Latency

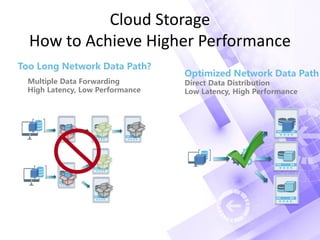

16. Cloud Storage
How to Achieve Higher Performance
Multiple Data Forwarding
High Latency, Low Performance
Too Long Network Data Path?
Optimized Network Data Path
Direct Data Distribution
Low Latency, High Performance

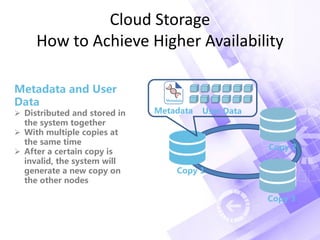

17. Cloud Storage
How to Achieve Higher Availability
Metadata User Data
Copy 1
Copy 2
Copy 3
Metadata and User
Data
 Distributed and stored in
the system together
 With multiple copies at
the same time
 After a certain copy is
invalid, the system will
generate a new copy on
the other nodes

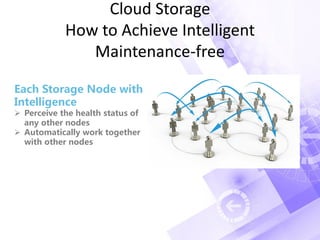

18. Cloud Storage
How to Achieve Intelligent
Maintenance-free
Each Storage Node with
Intelligence
 Perceive the health status of
any other nodes
 Automatically work together
with other nodes

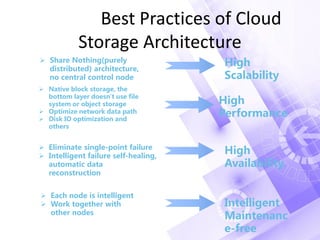

19. Best Practices of Cloud
Storage Architecture
 Share Nothing(purely
distributed) architecture,
no central control node
High
Scalability
 Native block storage, the
bottom layer doesn't use file
system or object storage
 Optimize network data path
 Disk IO optimization and
others
High
Performance
 Eliminate single-point failure
 Intelligent failure self-healing,
automatic data
reconstruction
High
Availability.
 Each node is intelligent
 Work together with
other nodes
Intelligent
Maintenanc
e-free

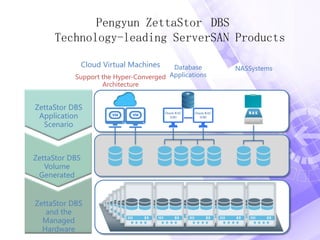

20. 应用实例
Cloud Virtual Machines Database
Applications
NASSystems
ZettaStor DBS
Volume
Generated
ZettaStor DBS
and the
Managed
Hardware
ZettaStor DBS
Application
Scenario
Support the Hyper-Converged
Architecture
Pengyun ZettaStor DBS
Technology-leading ServerSAN Products

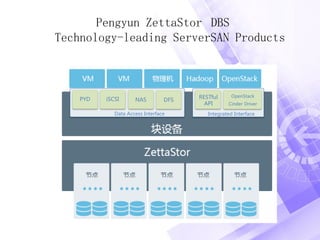

21. Pengyun ZettaStor DBS
Technology-leading ServerSAN Products
NAS
Data Access Interface Integrated Interface
RESTful
API
OpenStack
Cinder Driver
DFSiSCSIPYD

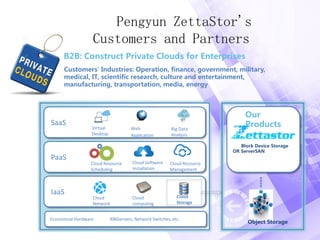

22. Pengyun ZettaStor's
Customers and Partners
B2B: Construct Private Clouds for Enterprises
Customers' Industries: Operation, finance, government, military,
medical, IT, scientific research, culture and entertainment,
manufacturing, transportation, media, energy
IaaS Cloud
Storage
Cloud
computing
Cloud
Network
PaaS
Cloud Resource
Scheduling
Cloud Software
Installation
Cloud Resource
Management
SaaS
Web
Application
Virtual
Desktop
Big Data
Analysis
Economical Hardware X86Servers, Network Switches, etc.
·
Our
Products
Block Device Storage
OR ServerSAN
Object Storage

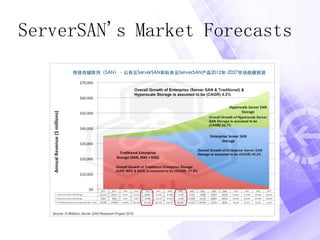

23. ServerSAN's Market Forecasts

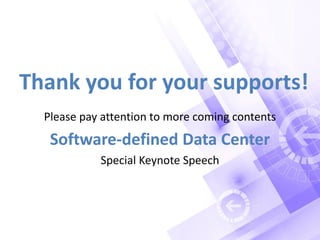

24. Thank you for your supports!
