- 1. Mark Church Product Manager,Docker Use Cases and Practical Solutions for Docker Container Storage on Swarm and Kubernetes Don Stewart Solutions Architect, Docker
- 2.
- 3. We understand ContainerStorage is a topic in the forefront of many of your minds. In this talk we want to address some specific areas that you have asked us about. Whats import to you

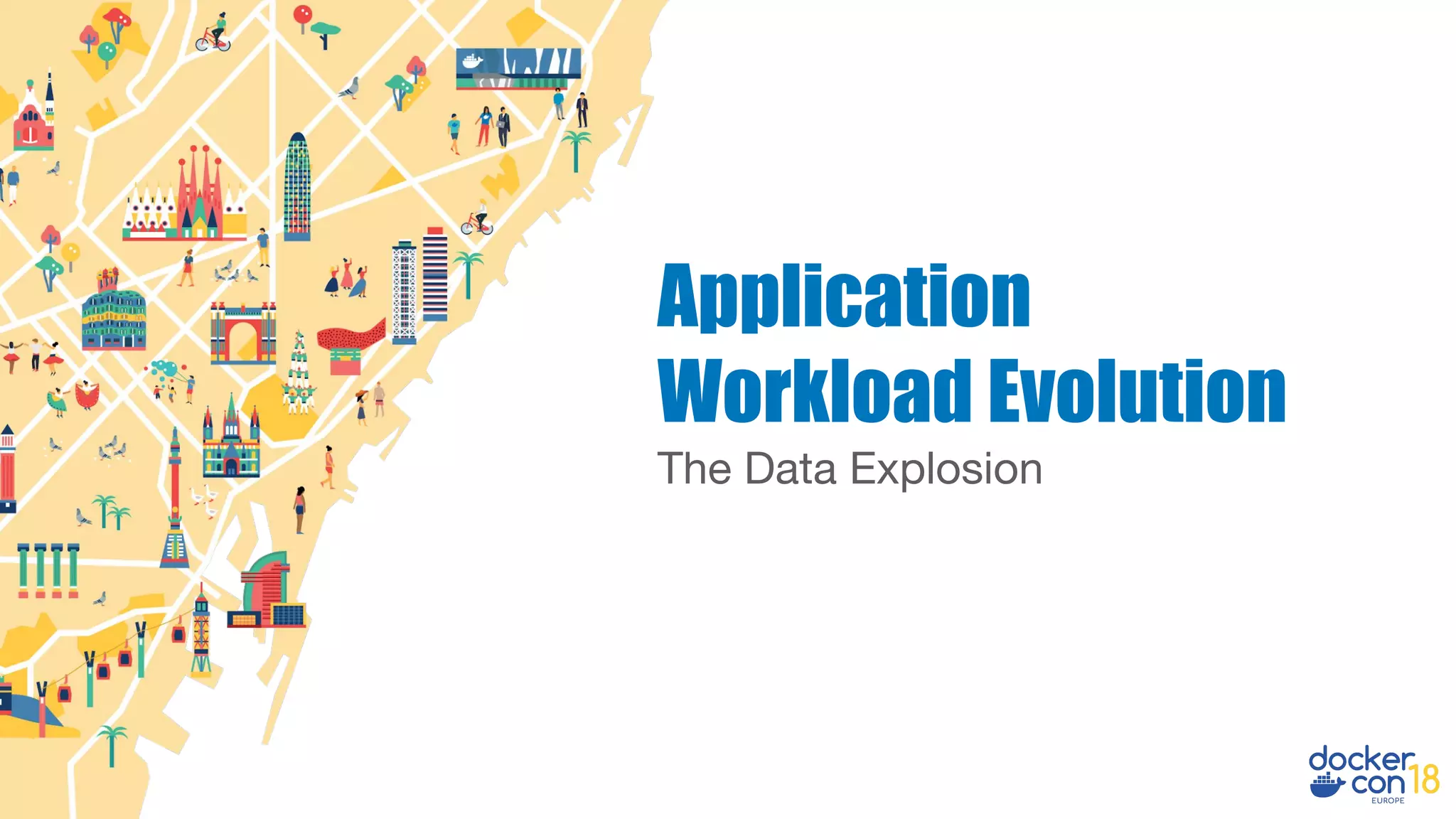

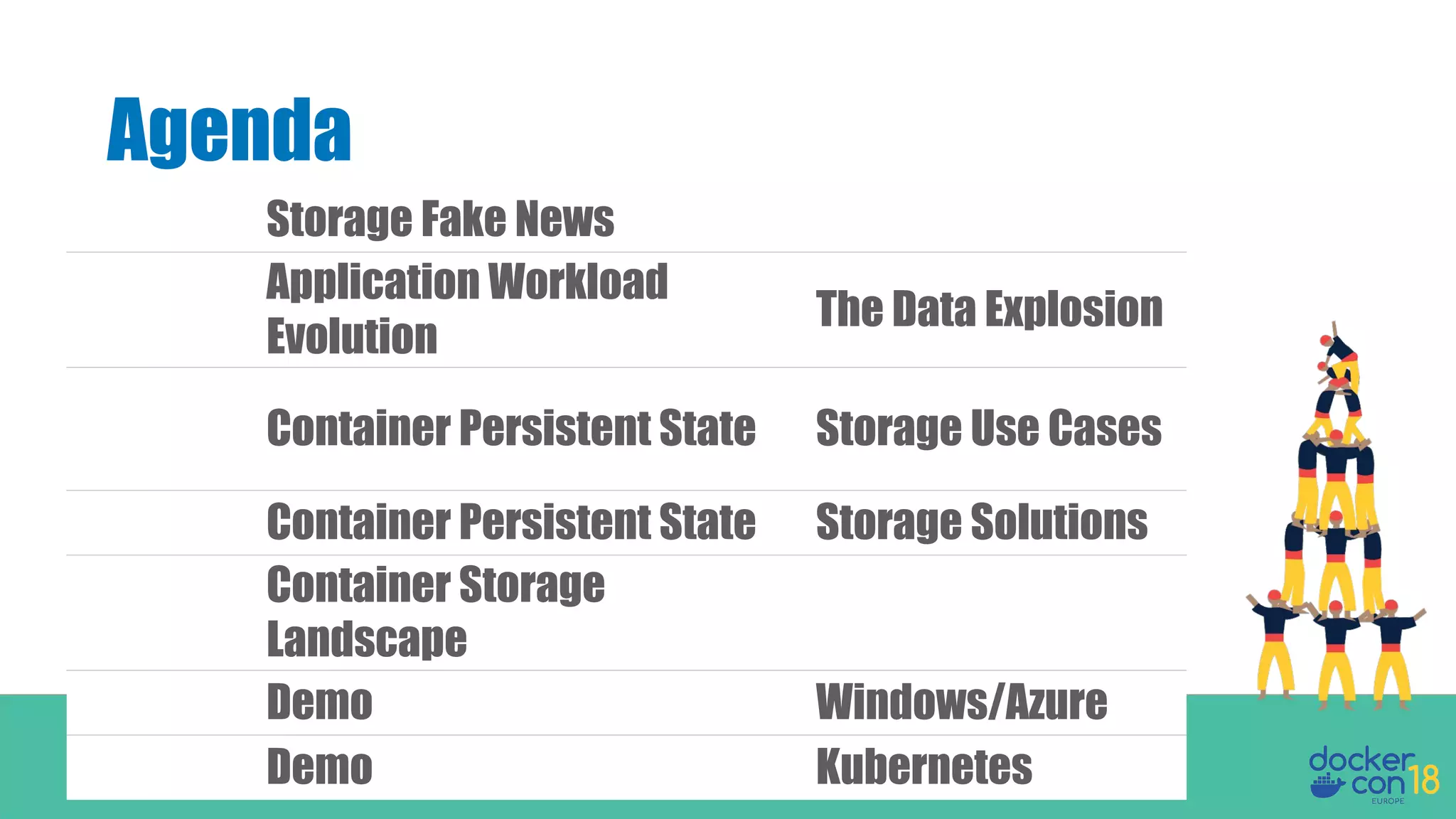

- 4. Agenda Storage Fake News ApplicationWorkload Evolution The Data Explosion Container Persistent State Storage Use Cases Container Persistent State Storage Solutions Container Storage Landscape Demo Windows/Azure Demo Kubernetes
- 5.
- 6. Persistent applications shouldnot be run in containers. Containers are for stateless microservices. Myth #1

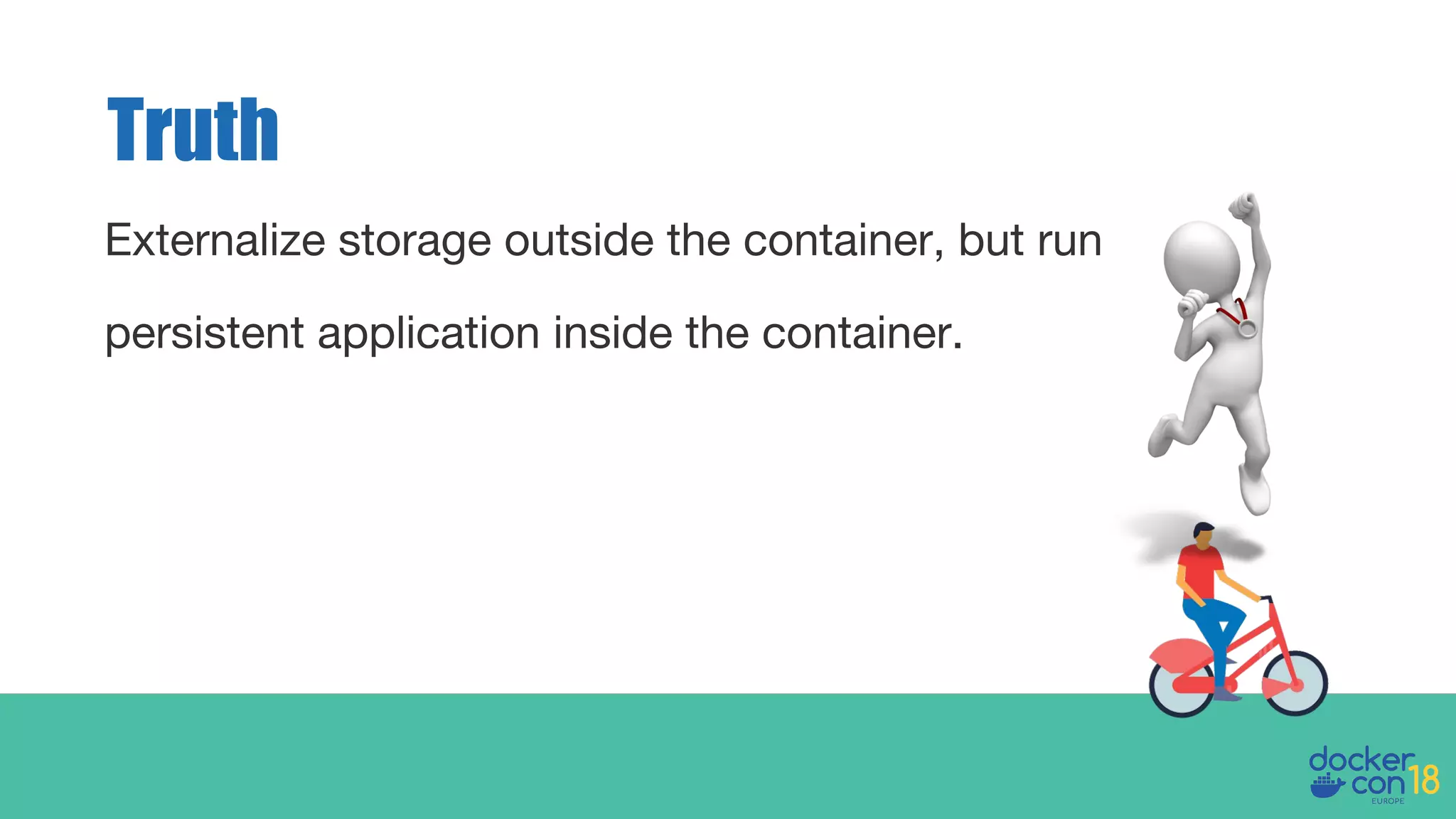

- 8. Externalize storage outsidethe container, but run persistent application inside the container. Truth
- 9. Myth #2 Some persistentapps are okay, but never run structured databases on container platforms.

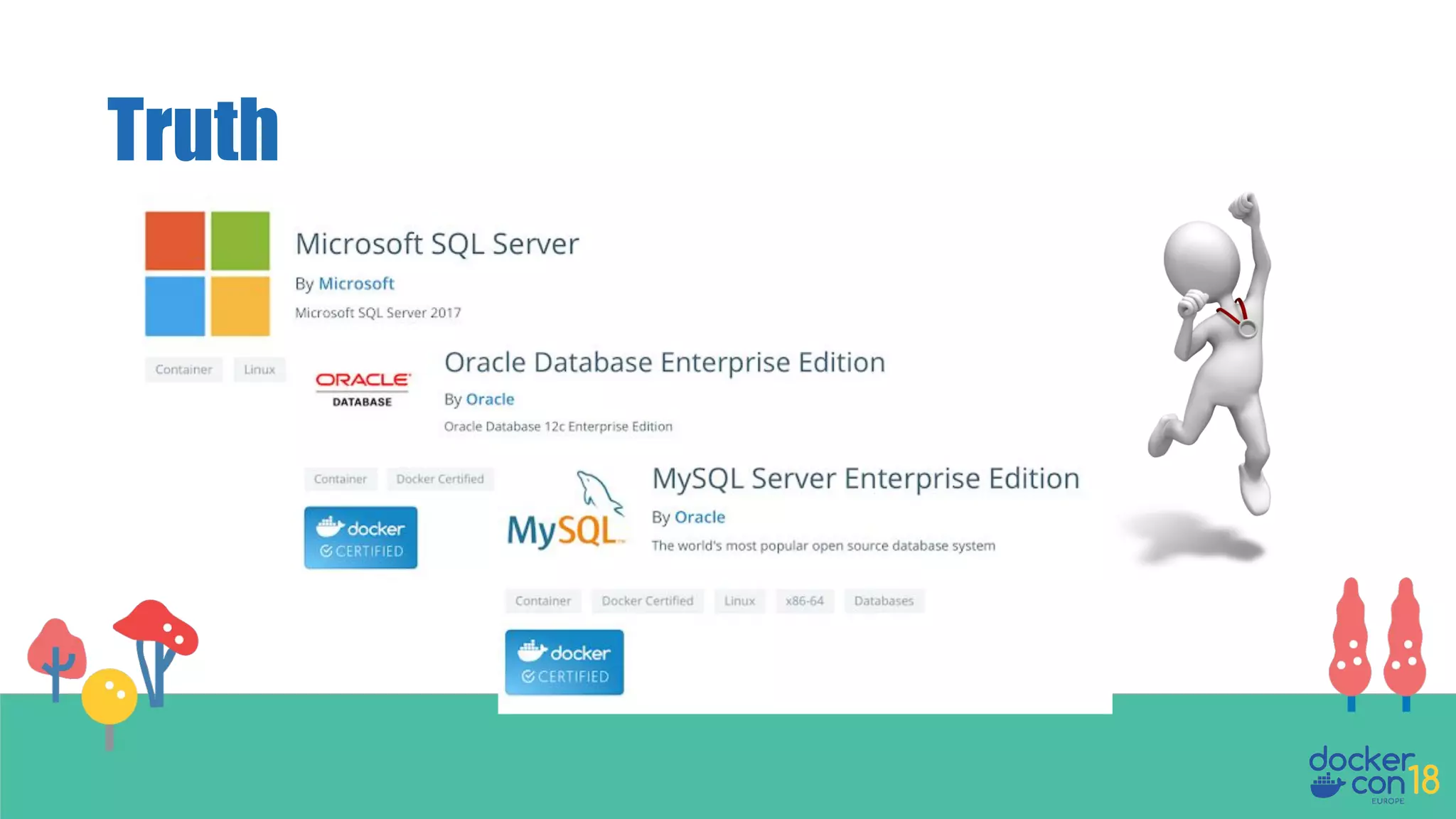

- 11.

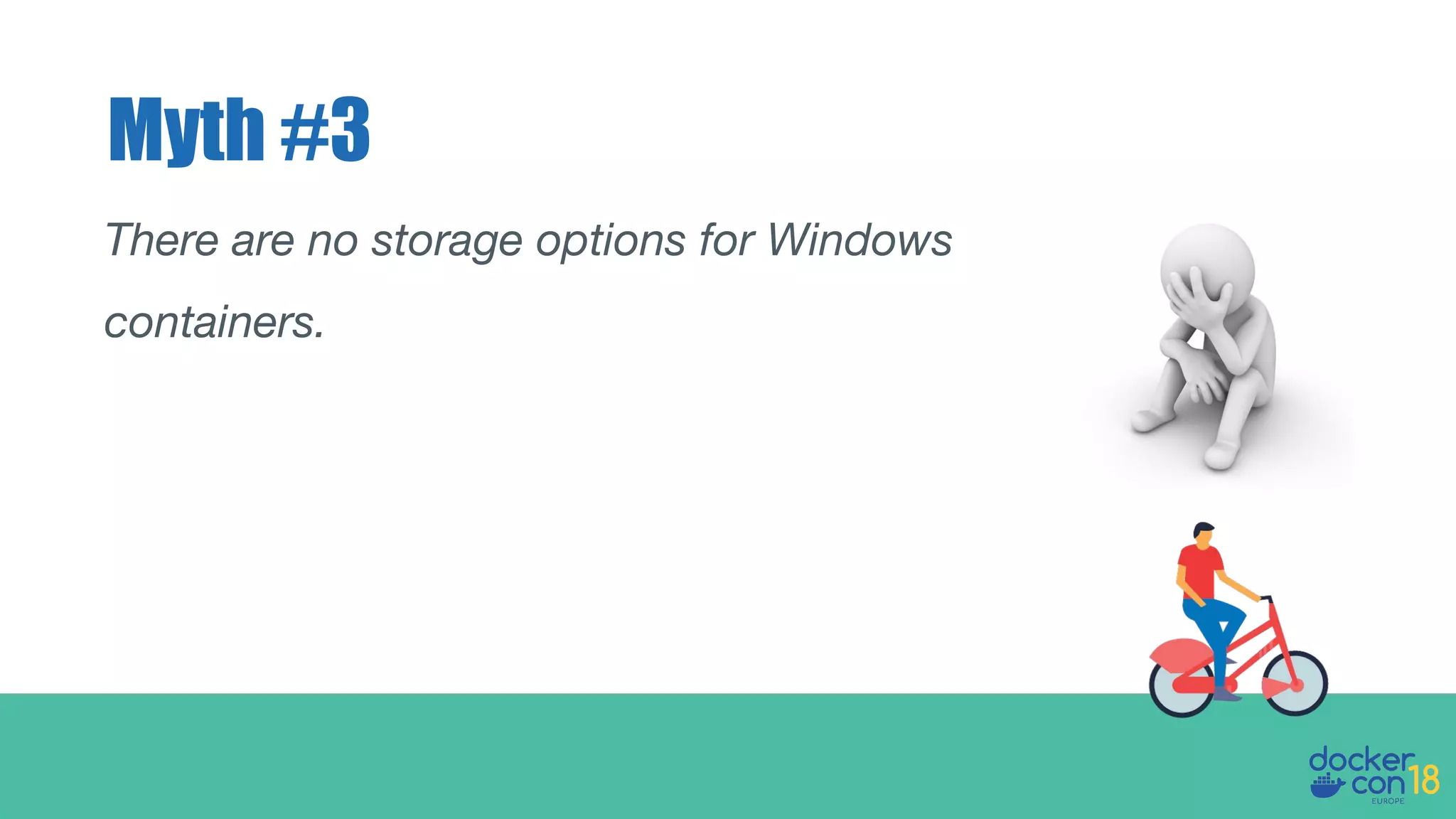

- 12. There are nostorage options for Windows containers. Myth #3

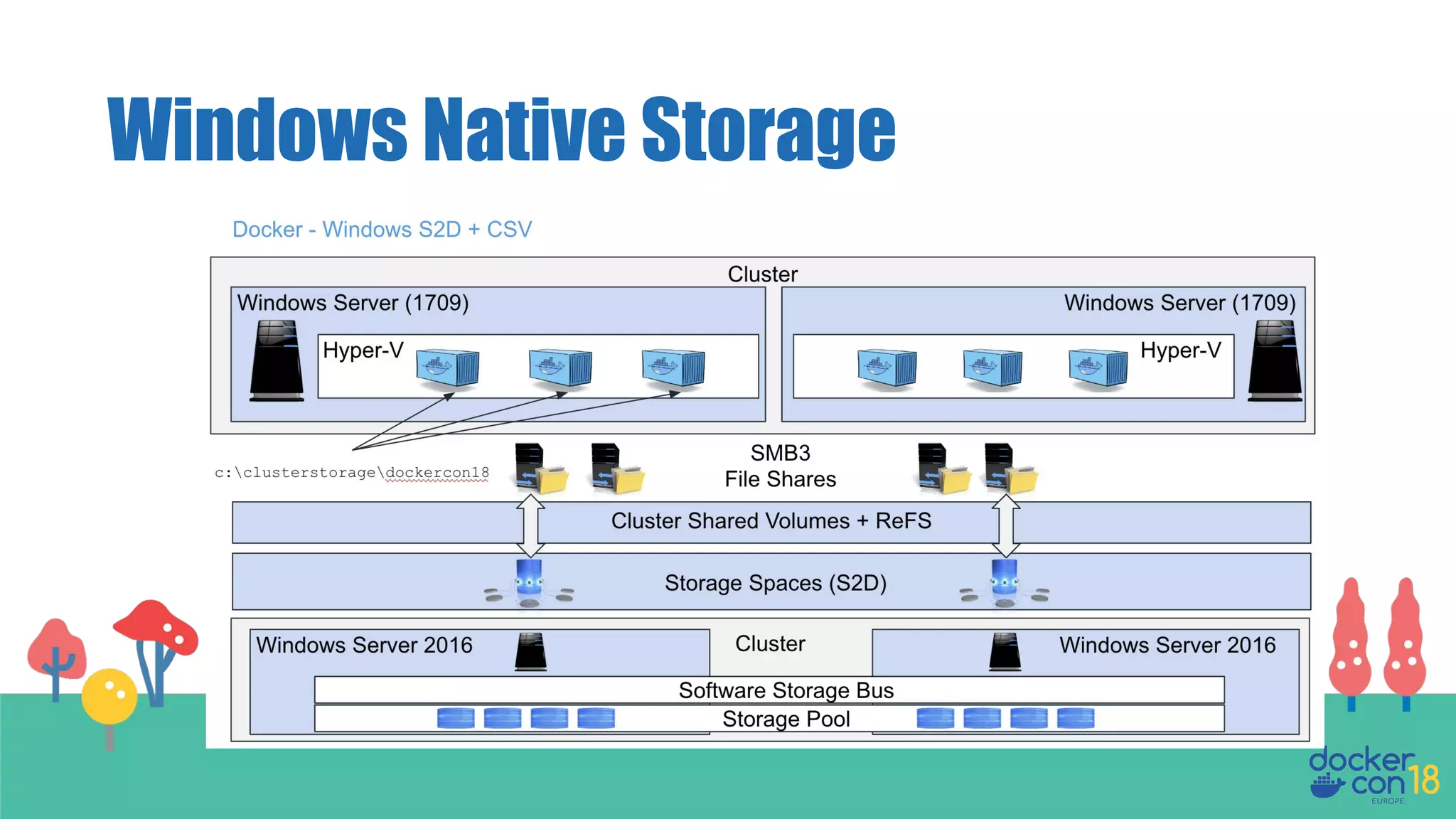

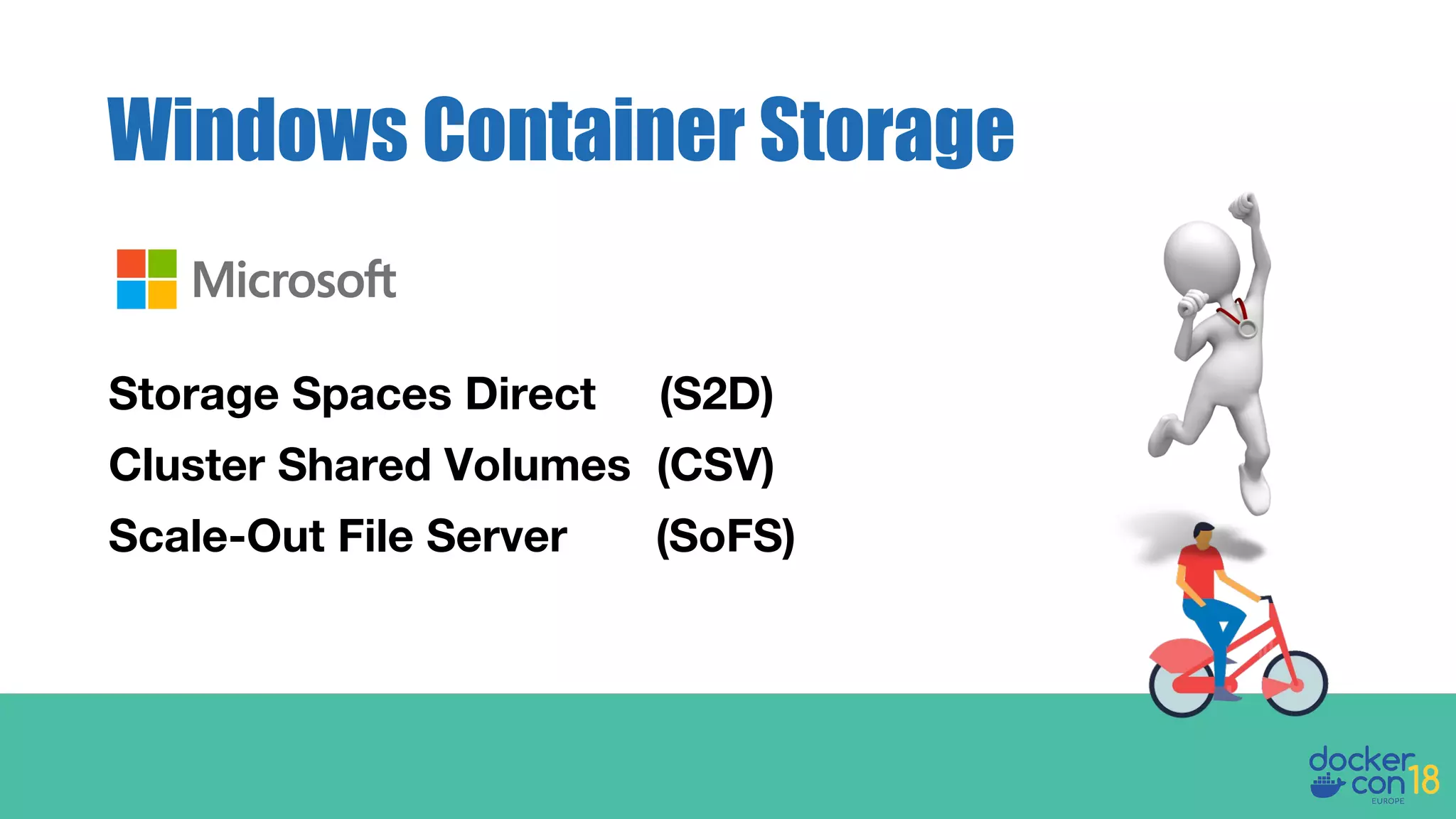

- 14. Windows Container Storage StorageSpaces Direct (S2D) Cluster Shared Volumes (CSV) Scale-Out File Server (SoFS)

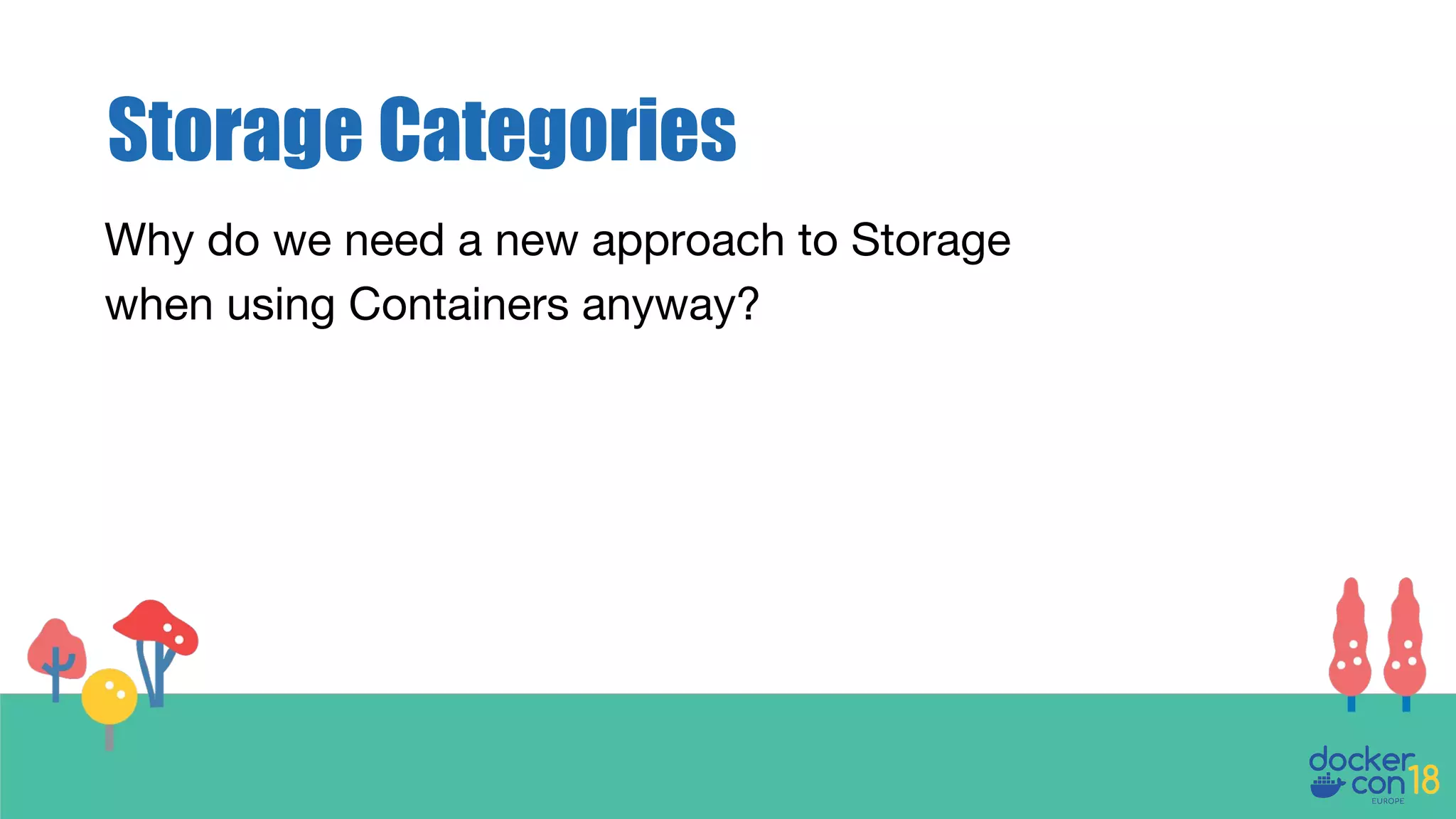

- 15. Storage Categories Why dowe need a new approach to Storage when using Containers anyway?
- 16. Historically storage provisioningand management was done by specialist infrastructure teams ahead of deployments. Today they need to be API driven and instantaneous, in order to support rapid container scale out. How it used to work
- 17.
- 18. Container Storage Evolution Whatare the Use Cases we need to consider when designing and implementing containers and storage?

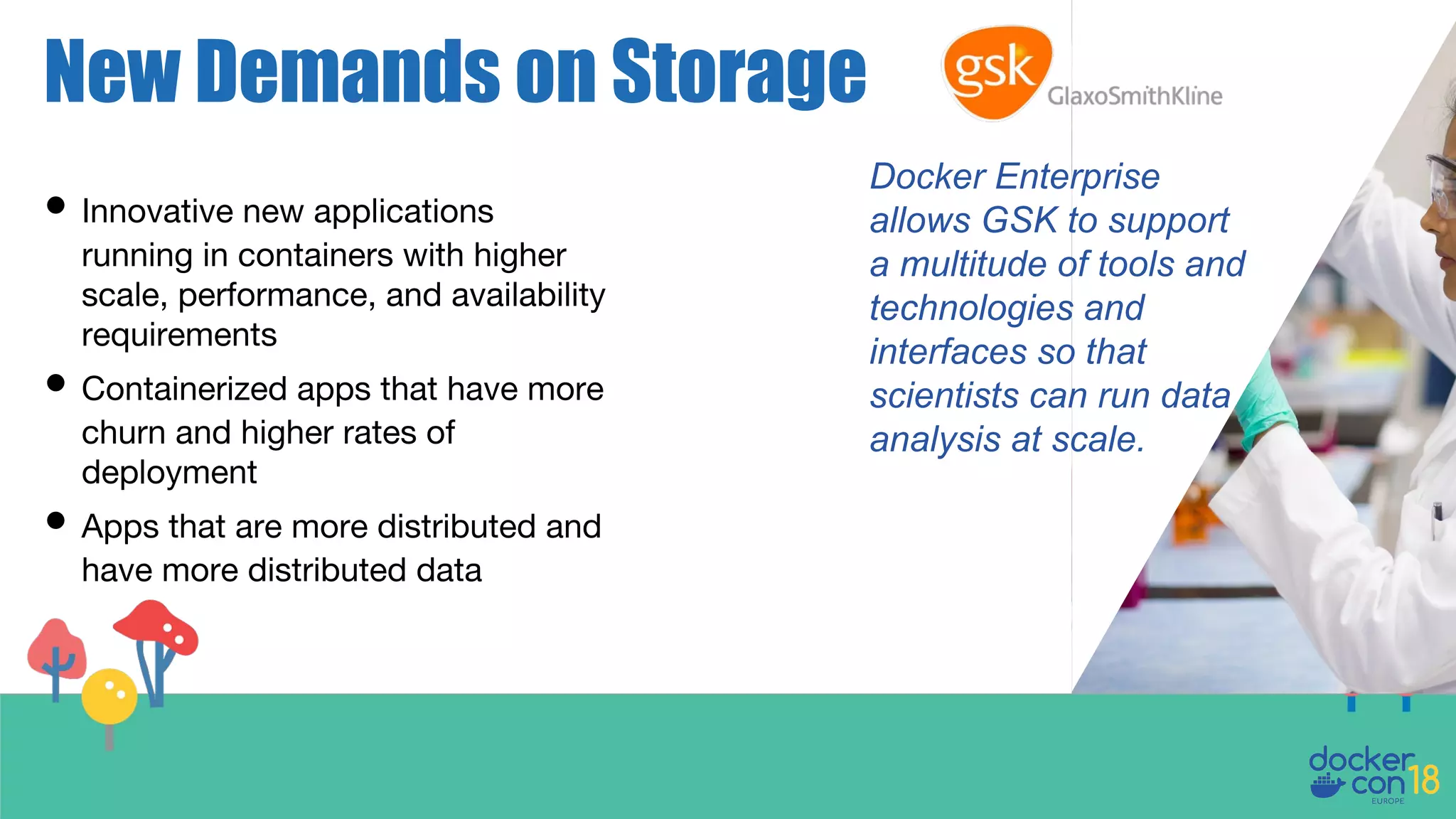

- 19. New Demands onStorage • Innovative new applications running in containers with higher scale, performance, and availability requirements • Containerized apps that have more churn and higher rates of deployment • Apps that are more distributed and have more distributed data Docker Enterprise allows GSK to support a multitude of tools and technologies and interfaces so that scientists can run data analysis at scale.

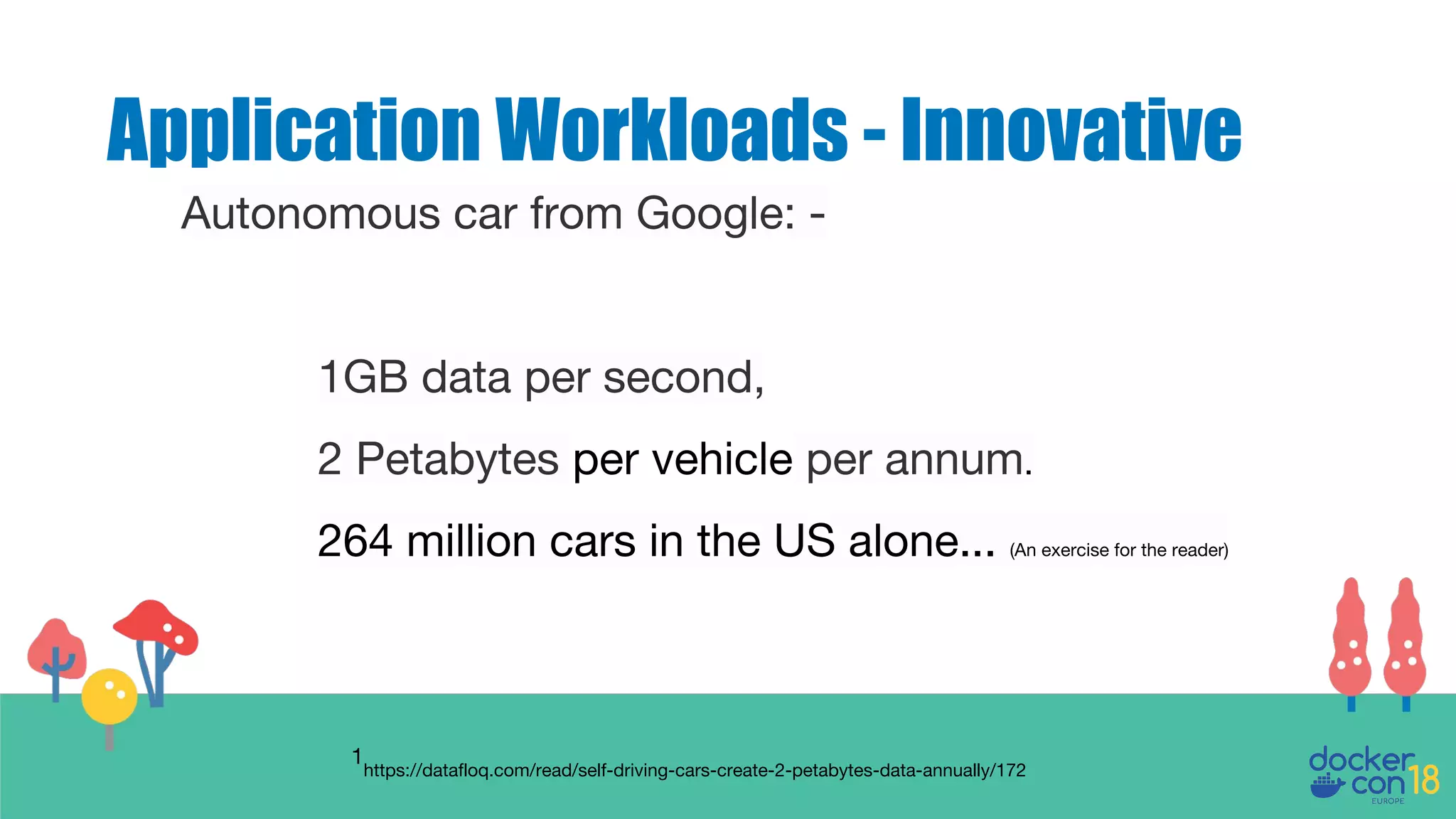

- 20. Application Workloads -Innovative Autonomous car from Google: - 1GB data per second, 2 Petabytes per vehicle per annum. 264 million cars in the US alone... (An exercise for the reader) 1 https://datafloq.com/read/self-driving-cars-create-2-petabytes-data-annually/172
- 21. Application Workloads -Innovative We are not storing that quantity of data directly in our application container! 1 https://datafloq.com/read/self-driving-cars-create-2-petabytes-data-annually/172
- 22. The Problem Space Nowwe have created a multi-layer ‘data cake’ https://www.flickr.com/photos/39551170@N02/15270339736/ ● Audit Data ● Logging Data ● Monitoring Data ● Event Data ● Backup Data ● Archive Data ● Application Data

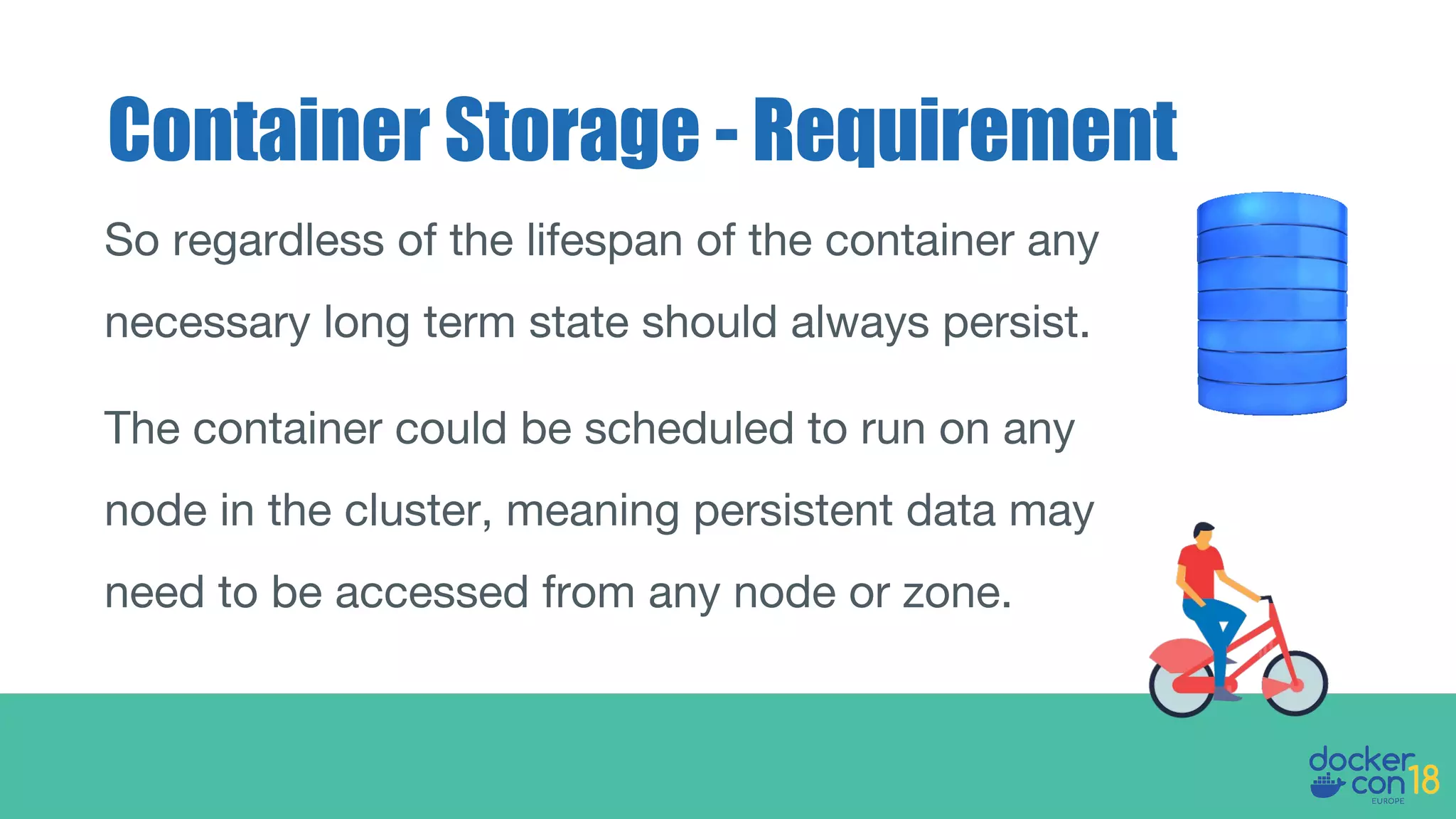

- 23. So regardless ofthe lifespan of the container any necessary long term state should always persist. The container could be scheduled to run on any node in the cluster, meaning persistent data may need to be accessed from any node or zone. Container Storage - Requirement
- 24. The Storage UseCases Container Persistent State

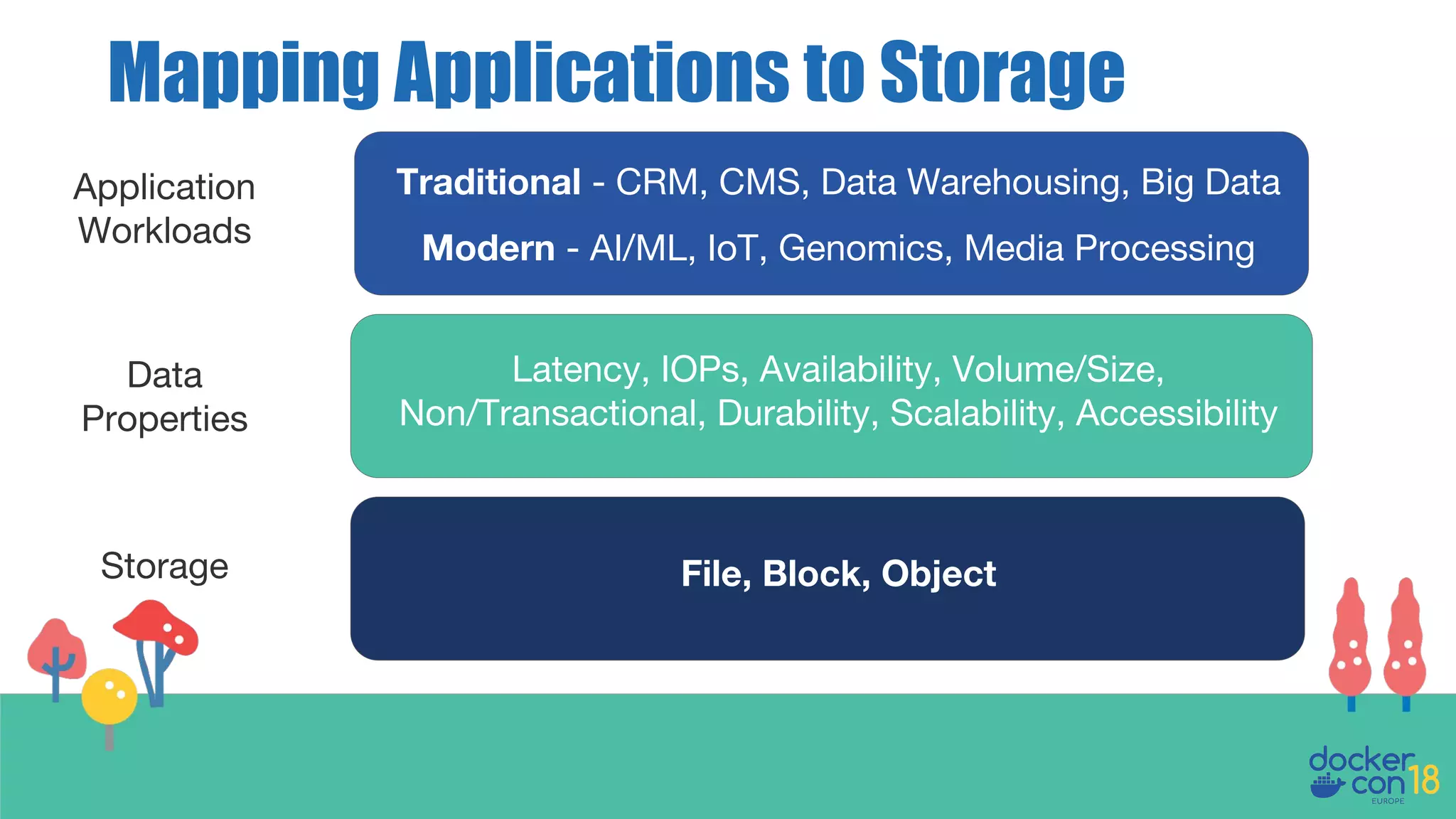

- 25. Mapping Applications toStorage Application Workloads Data Properties Storage Traditional - CRM, CMS, Data Warehousing, Big Data Modern - AI/ML, IoT, Genomics, Media Processing Latency, IOPs, Availability, Volume/Size, Non/Transactional, Durability, Scalability, Accessibility File, Block, Object

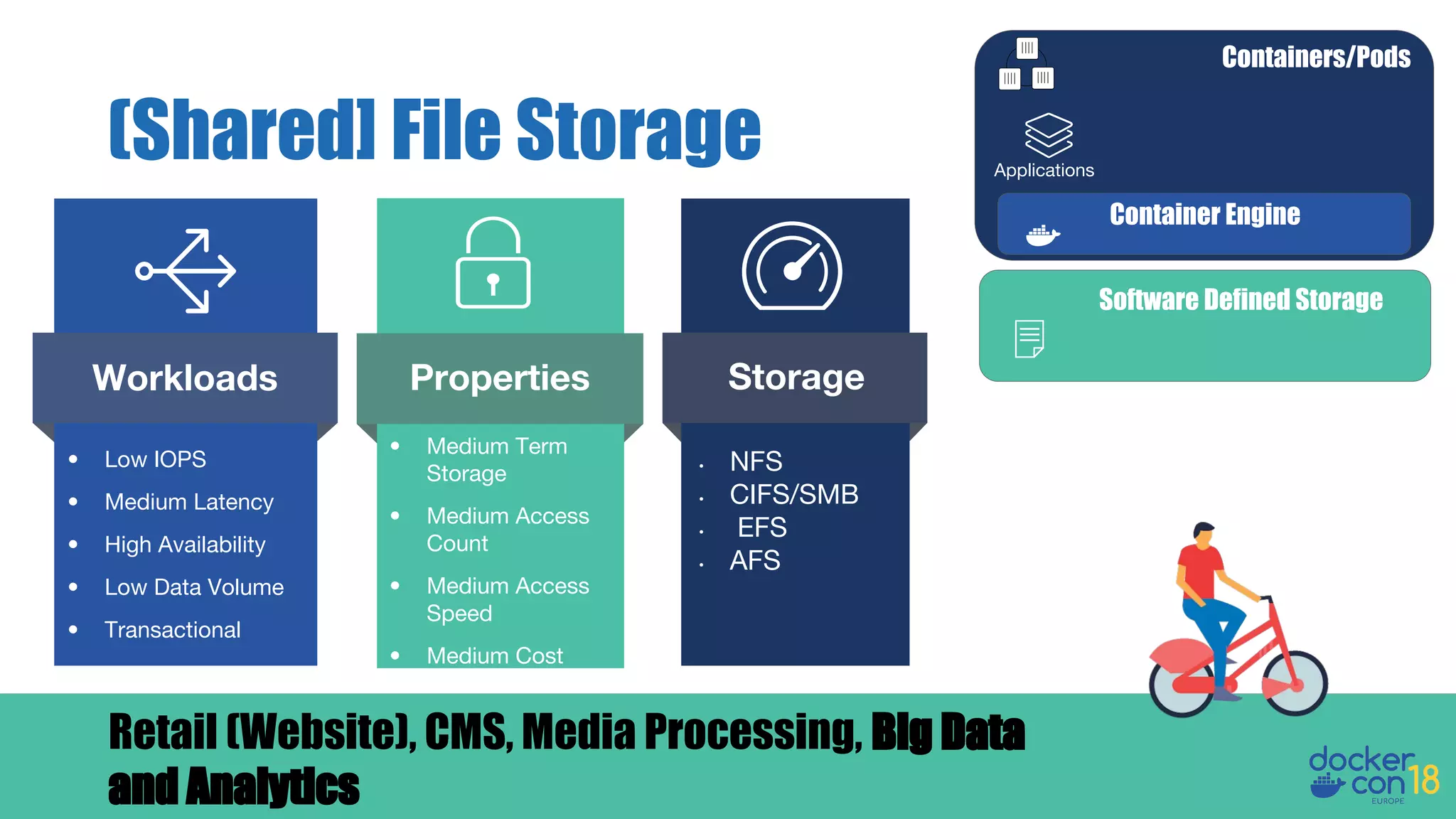

- 26. (Shared] File Storage Containers/Pods ContainerEngine Applications Software Defined Storage Retail (Website), CMS, Media Processing, Big Data and Analytics Workloads • Low IOPS • Medium Latency • High Availability • Low Data Volume • Transactional Properties • Medium Term Storage • Medium Access Count • Medium Access Speed • Medium Cost Storage • NFS • CIFS/SMB • EFS • AFS

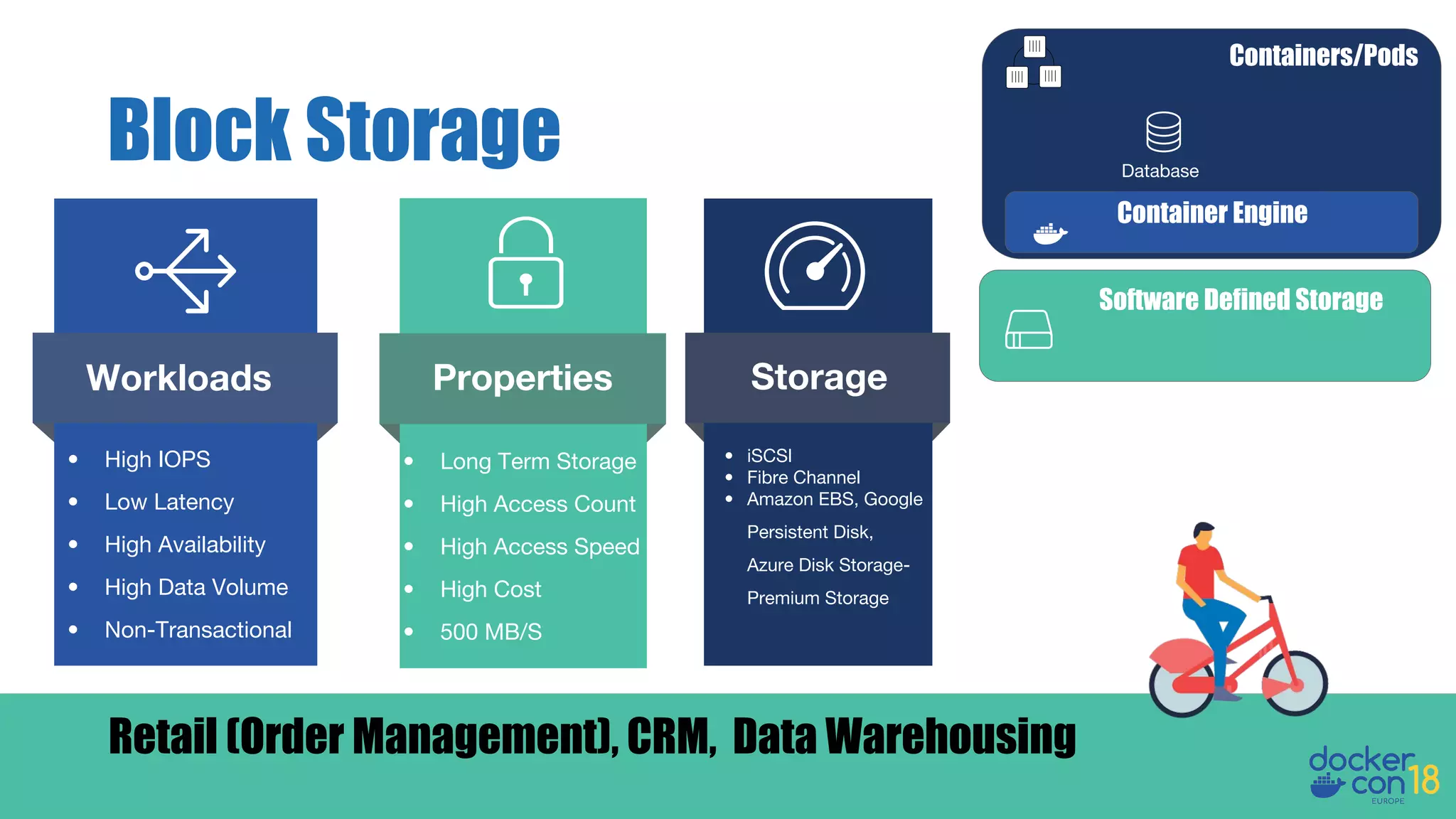

- 27. Block Storage Containers/Pods Database Container Engine SoftwareDefined Storage Retail (Order Management), CRM, Data Warehousing Workloads • High IOPS • Low Latency • High Availability • High Data Volume • Non-Transactional Properties • Long Term Storage • High Access Count • High Access Speed • High Cost • 500 MB/S Storage • iSCSI • Fibre Channel • Amazon EBS, Google Persistent Disk, Azure Disk Storage- Premium Storage

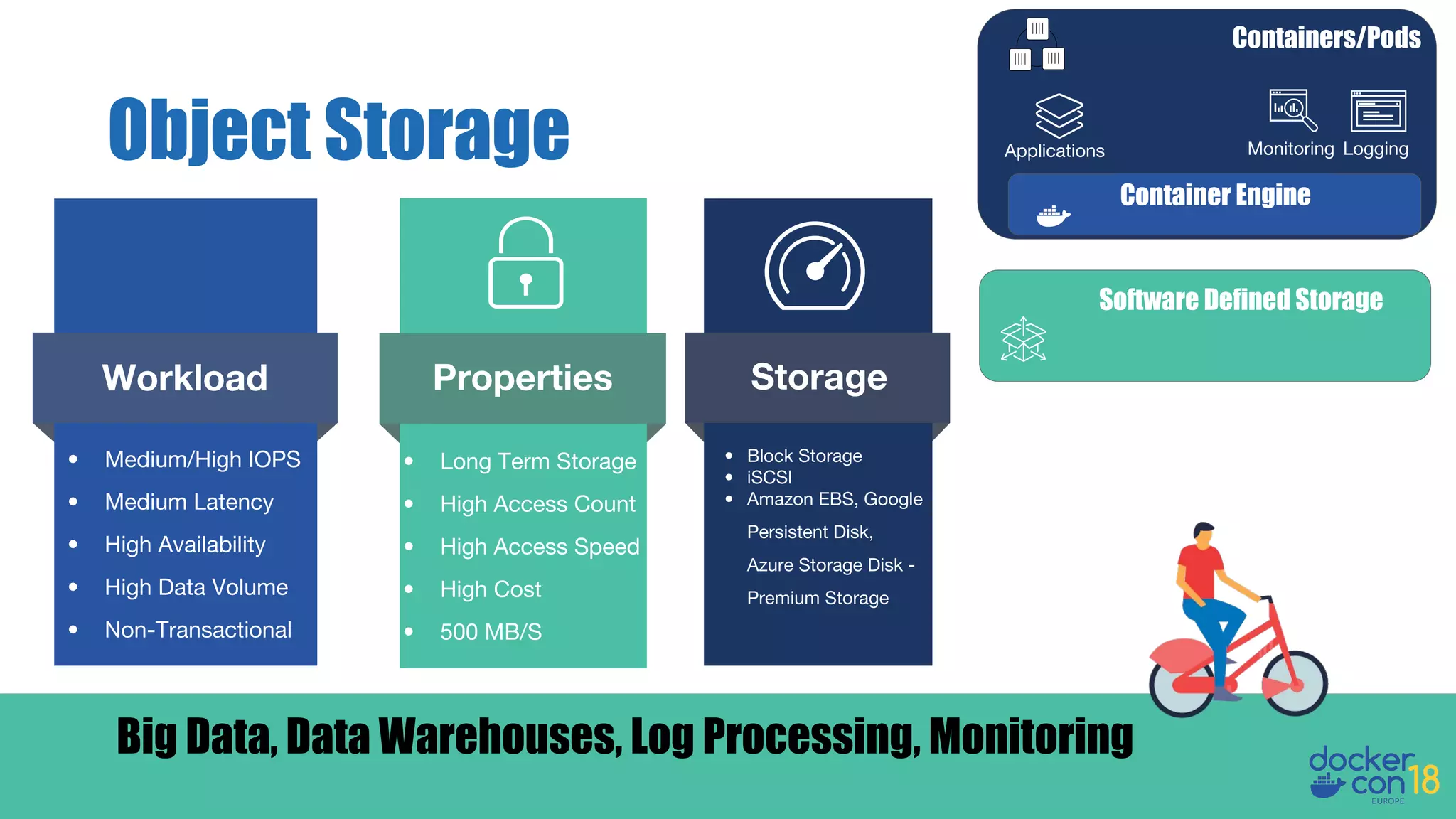

- 28. Object Storage Software DefinedStorage Big Data, Data Warehouses, Log Processing, Monitoring Properties • Long Term Storage • High Access Count • High Access Speed • High Cost • 500 MB/S Storage • Block Storage • iSCSI • Amazon EBS, Google Persistent Disk, Azure Storage Disk - Premium Storage Containers/Pods Container Engine Applications Monitoring Logging • Medium/High IOPS • Medium Latency • High Availability • High Data Volume • Non-Transactional Workload

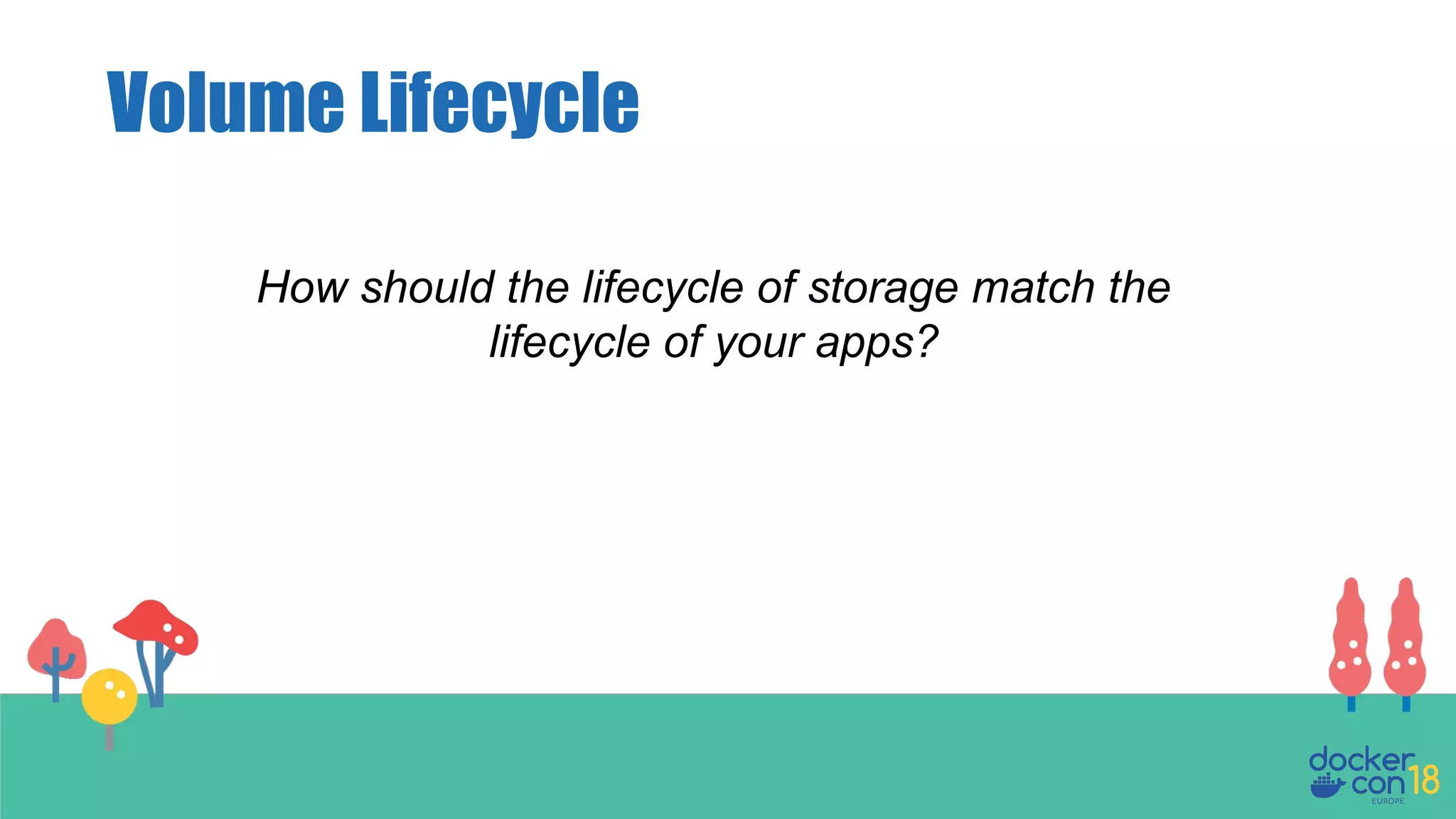

- 29. Volume Lifecycle How shouldthe lifecycle of storage match the lifecycle of your apps?

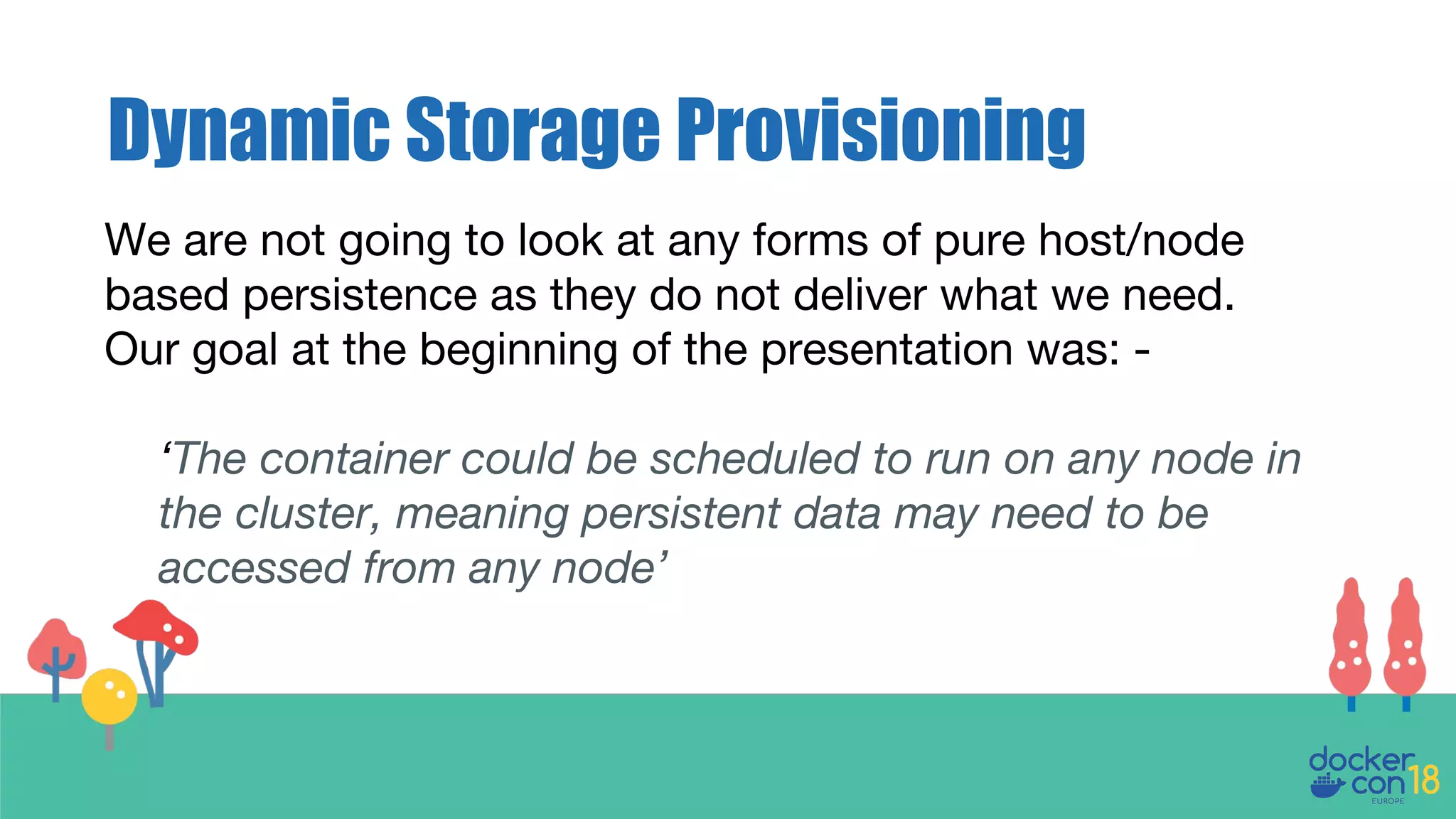

- 30. Dynamic Storage Provisioning Weare not going to look at any forms of pure host/node based persistence as they do not deliver what we need. Our goal at the beginning of the presentation was: - ‘The container could be scheduled to run on any node in the cluster, meaning persistent data may need to be accessed from any node’

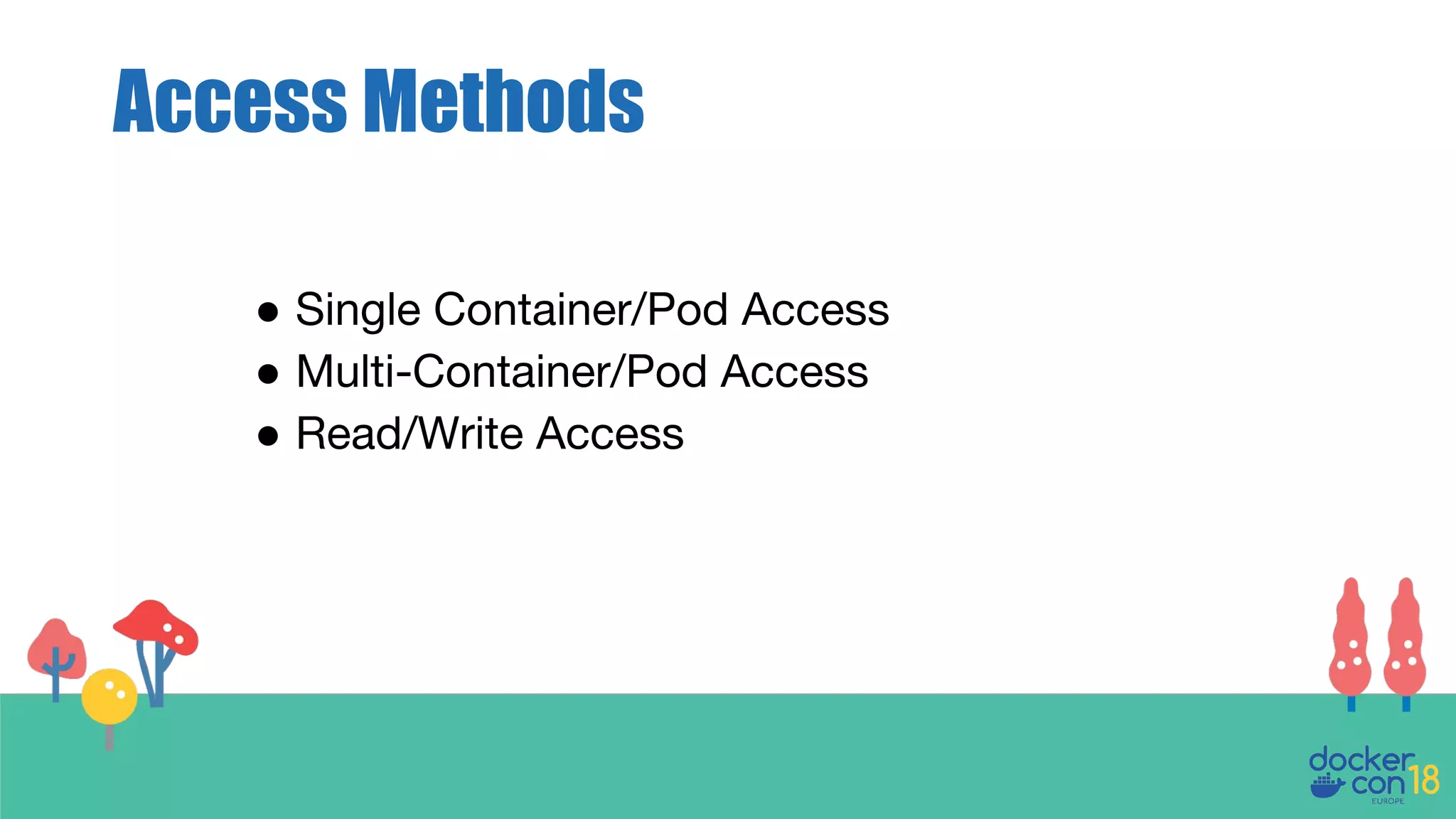

- 31. Access Methods ● SingleContainer/Pod Access ● Multi-Container/Pod Access ● Read/Write Access
- 32.

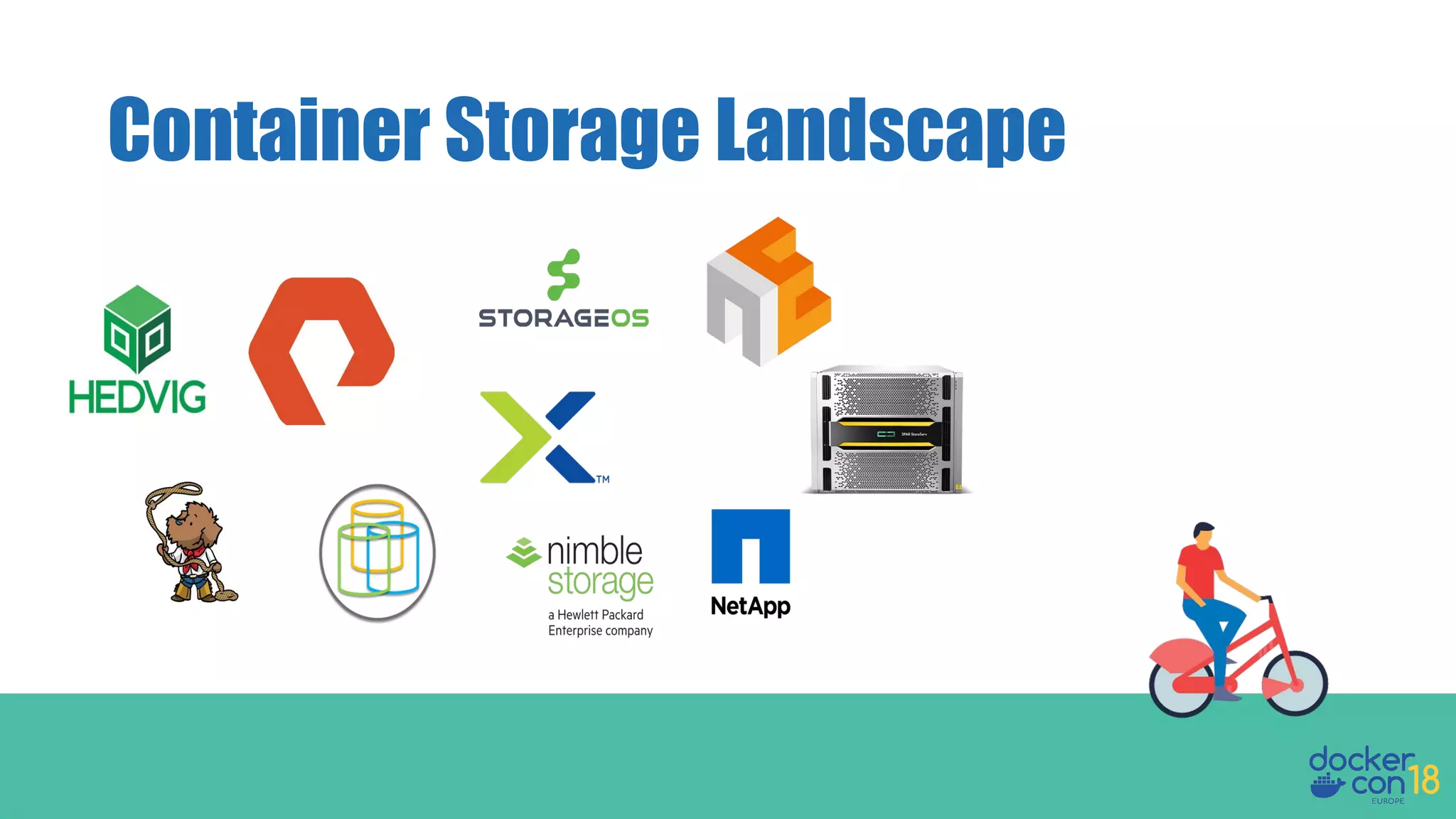

- 33.

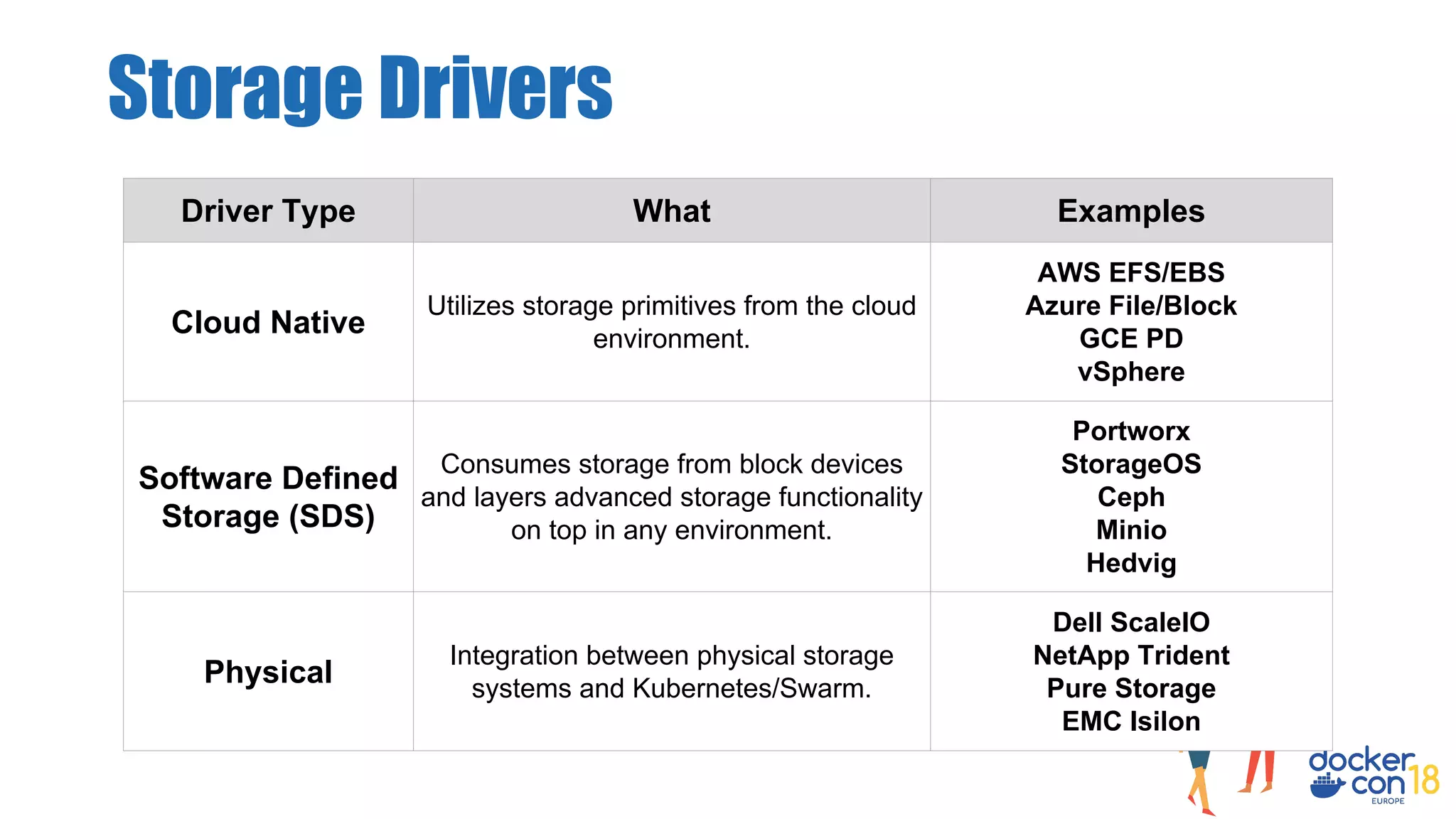

- 34. Storage Drivers Driver TypeWhat Examples Cloud Native Utilizes storage primitives from the cloud environment. AWS EFS/EBS Azure File/Block GCE PD vSphere Software Defined Storage (SDS) Consumes storage from block devices and layers advanced storage functionality on top in any environment. Portworx StorageOS Ceph Minio Hedvig Physical Integration between physical storage systems and Kubernetes/Swarm. Dell ScaleIO NetApp Trident Pure Storage EMC Isilon

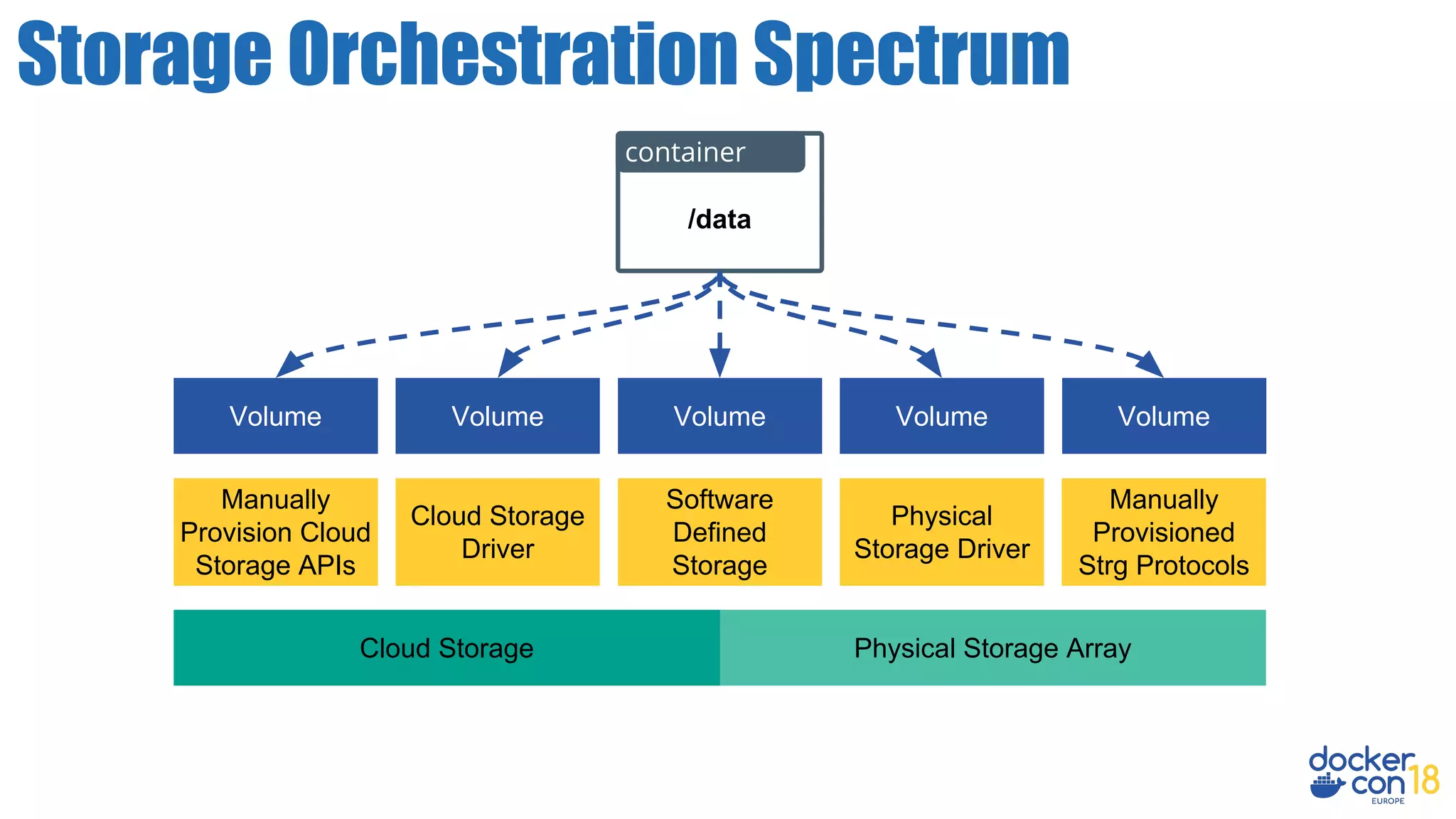

- 35. Storage Orchestration Spectrum PhysicalStorage Array Physical Storage Driver Volume Manually Provisioned Strg Protocols /data container Software Defined Storage Volume Volume Cloud Storage Cloud Storage Driver Manually Provision Cloud Storage APIs VolumeVolume

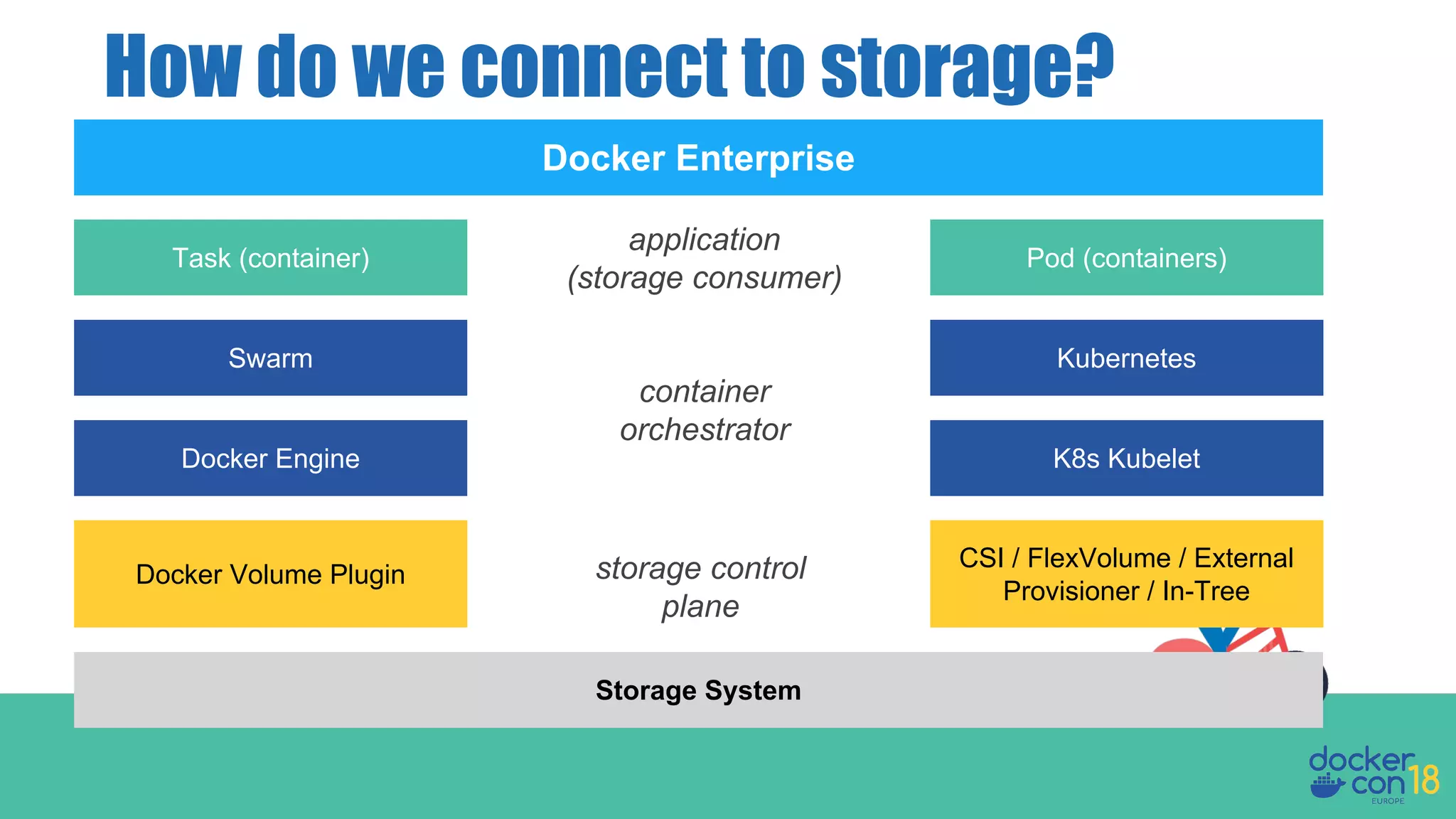

- 36. How do weconnect to storage? Storage System Docker Engine CSI / FlexVolume / External Provisioner / In-Tree Docker Volume Plugin K8s Kubelet Swarm Kubernetes Task (container) Pod (containers) Docker Enterprise storage control plane container orchestrator application (storage consumer)

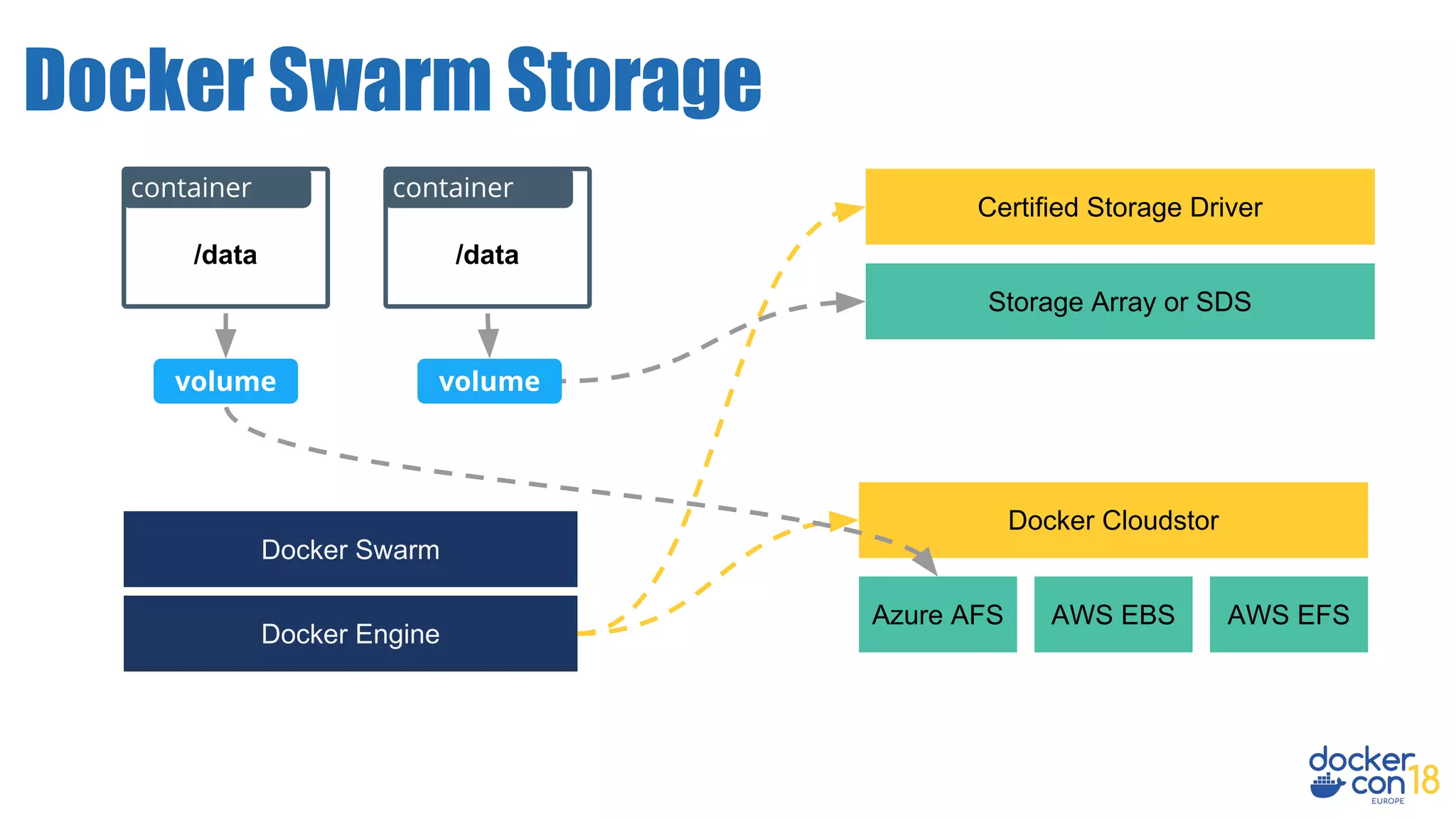

- 37. Docker Swarm Storage StorageArray or SDS /data container Certified Storage Driver Docker Engine volume Docker Cloudstor Azure AFS AWS EBS AWS EFS volume /data container Docker Swarm

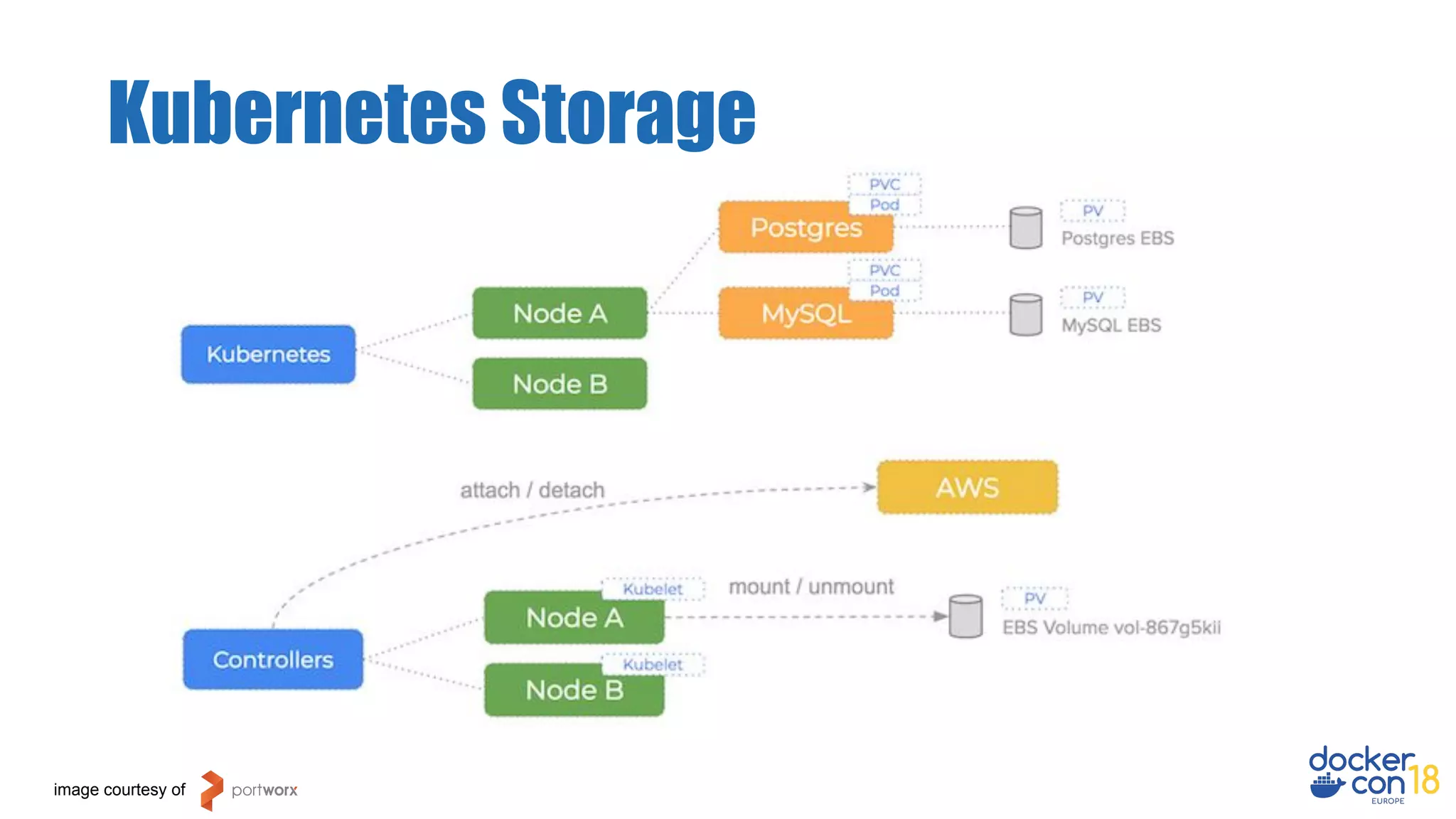

- 38.

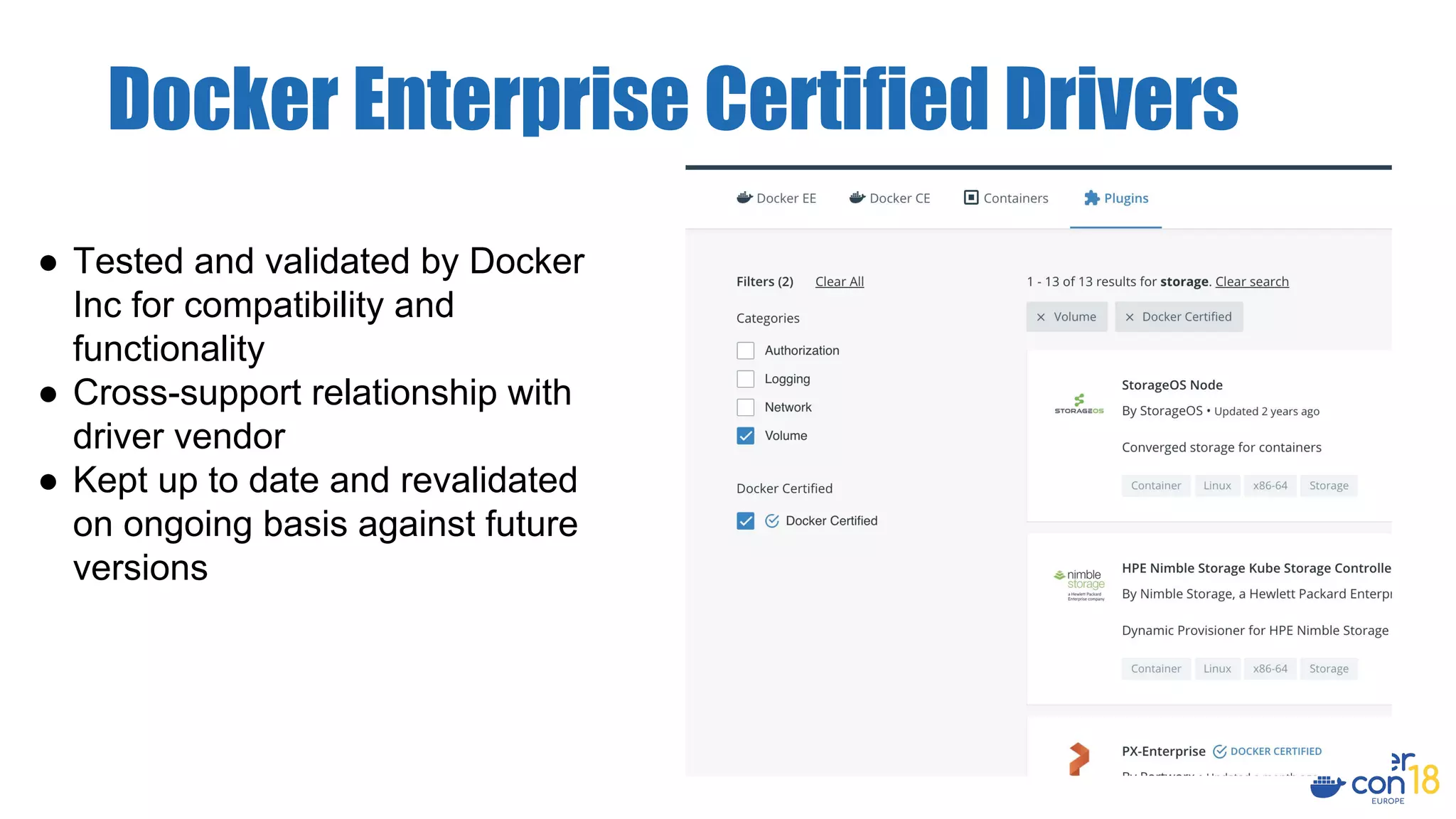

- 39. Docker Enterprise CertifiedDrivers ● Tested and validated by Docker Inc for compatibility and functionality ● Cross-support relationship with driver vendor ● Kept up to date and revalidated on ongoing basis against future versions
- 40.
- 41. ● Integrates withthe persistent data platforms offered by their cloud environment. ● Easy to use in the swarm created by the templates: ○ Be able to share data across tasks/nodes. ○ Have options for fast throughput/IOPs. Docker CloudStor

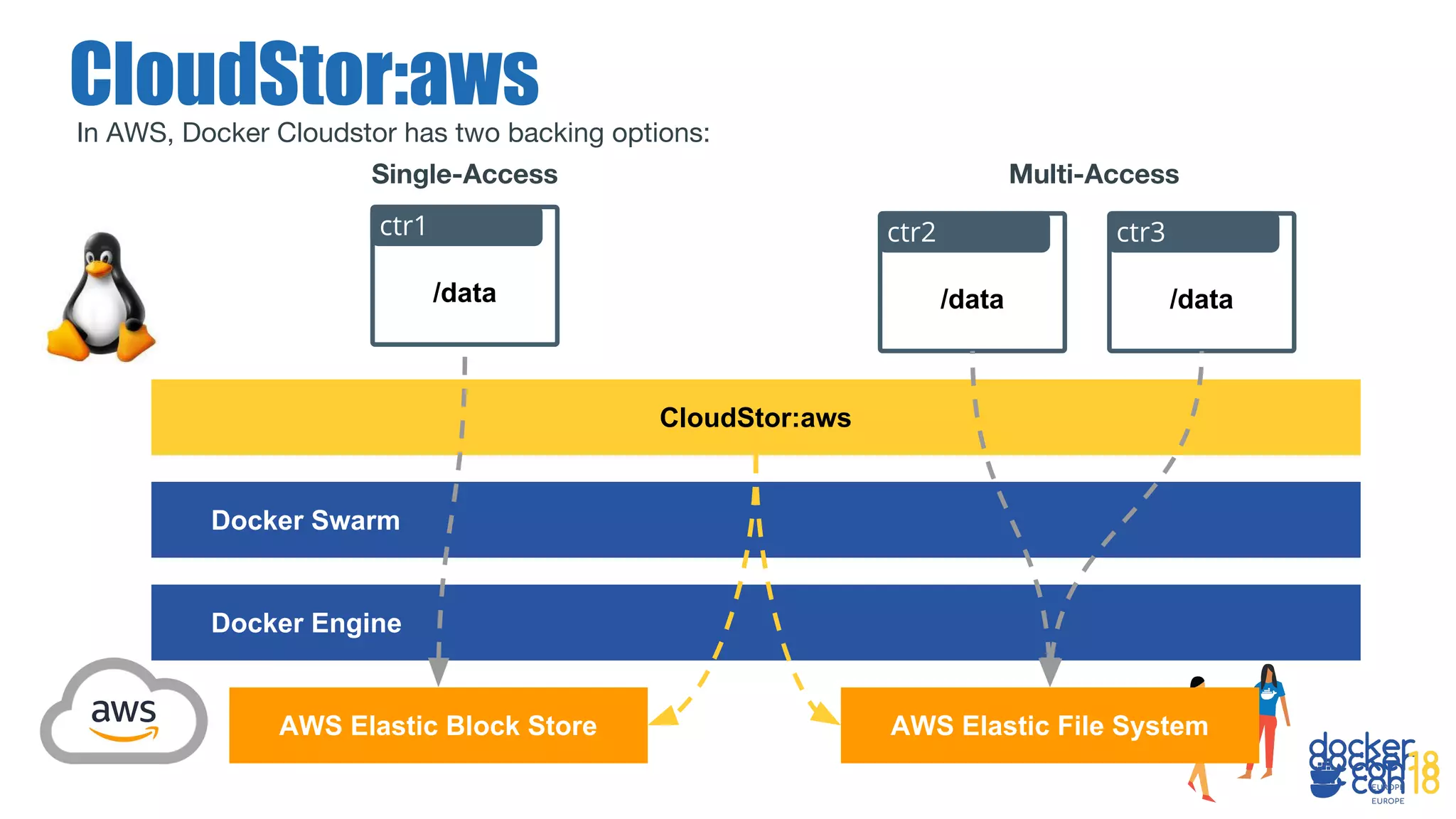

- 42. In AWS, DockerCloudstor has two backing options: CloudStor:aws AWS Elastic Block Store Docker Engine CloudStor:aws AWS Elastic File System Docker Swarm /data ctr3 /data ctr2 /data ctr1 Single-Access Multi-Access

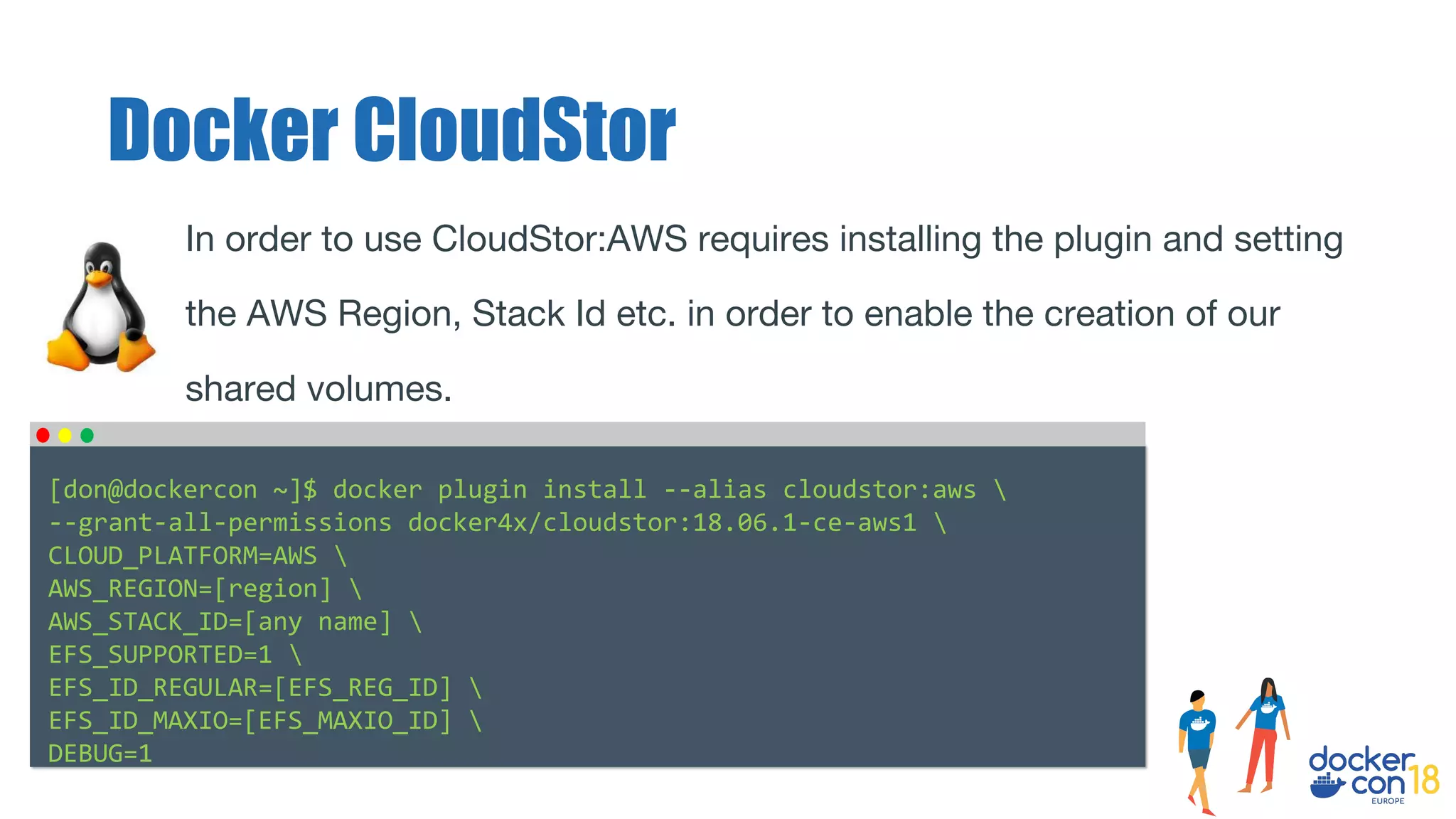

- 43. In order touse CloudStor:AWS requires installing the plugin and setting the AWS Region, Stack Id etc. in order to enable the creation of our shared volumes. Docker CloudStor [don@dockercon ~]$ docker plugin install --alias cloudstor:aws --grant-all-permissions docker4x/cloudstor:18.06.1-ce-aws1 CLOUD_PLATFORM=AWS AWS_REGION=[region] AWS_STACK_ID=[any name] EFS_SUPPORTED=1 EFS_ID_REGULAR=[EFS_REG_ID] EFS_ID_MAXIO=[EFS_MAXIO_ID] DEBUG=1

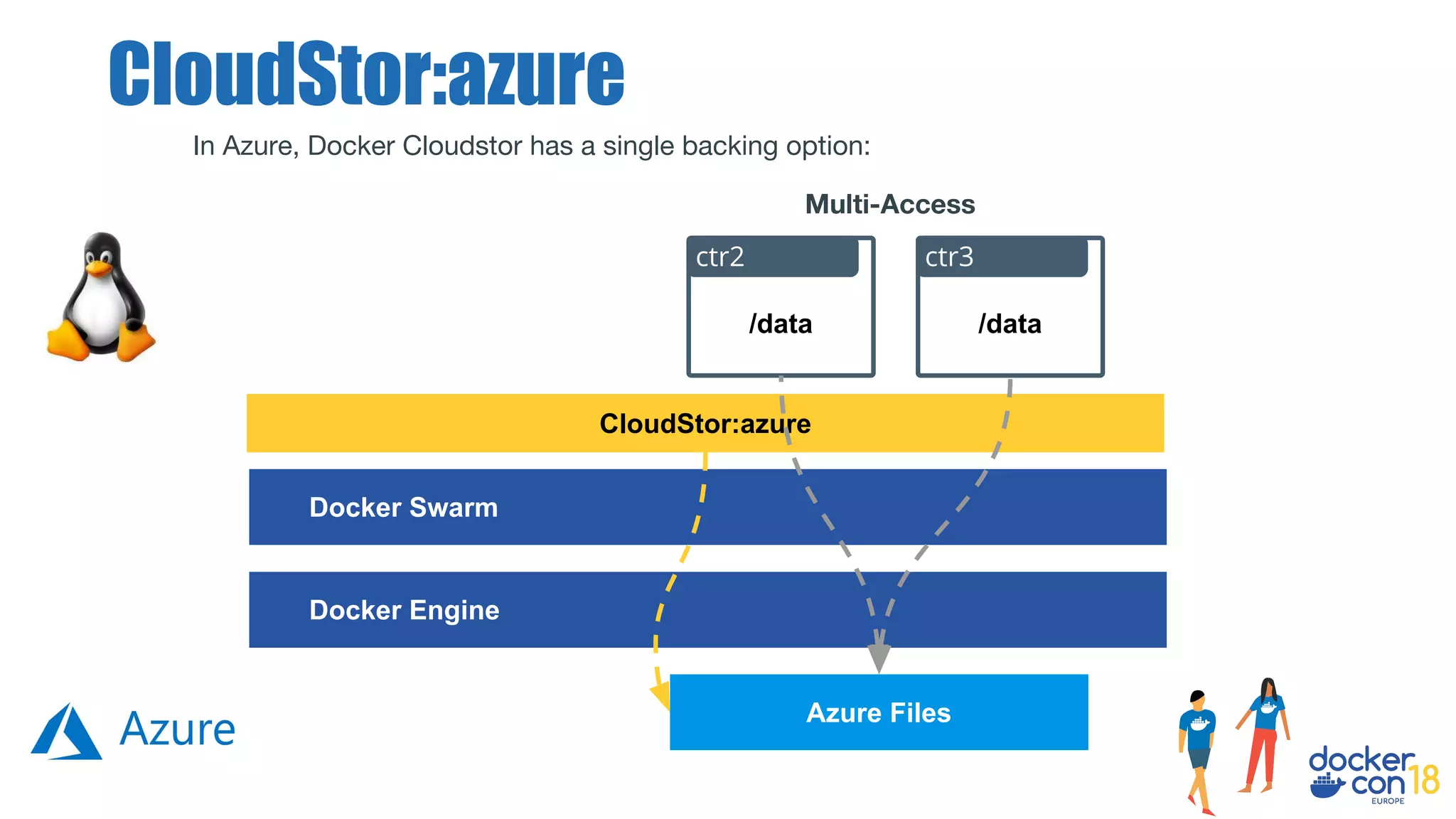

- 44. In Azure, DockerCloudstor has a single backing option: CloudStor:azure Docker Engine CloudStor:azure Azure Files Docker Swarm /data ctr3 /data ctr2 Multi-Access

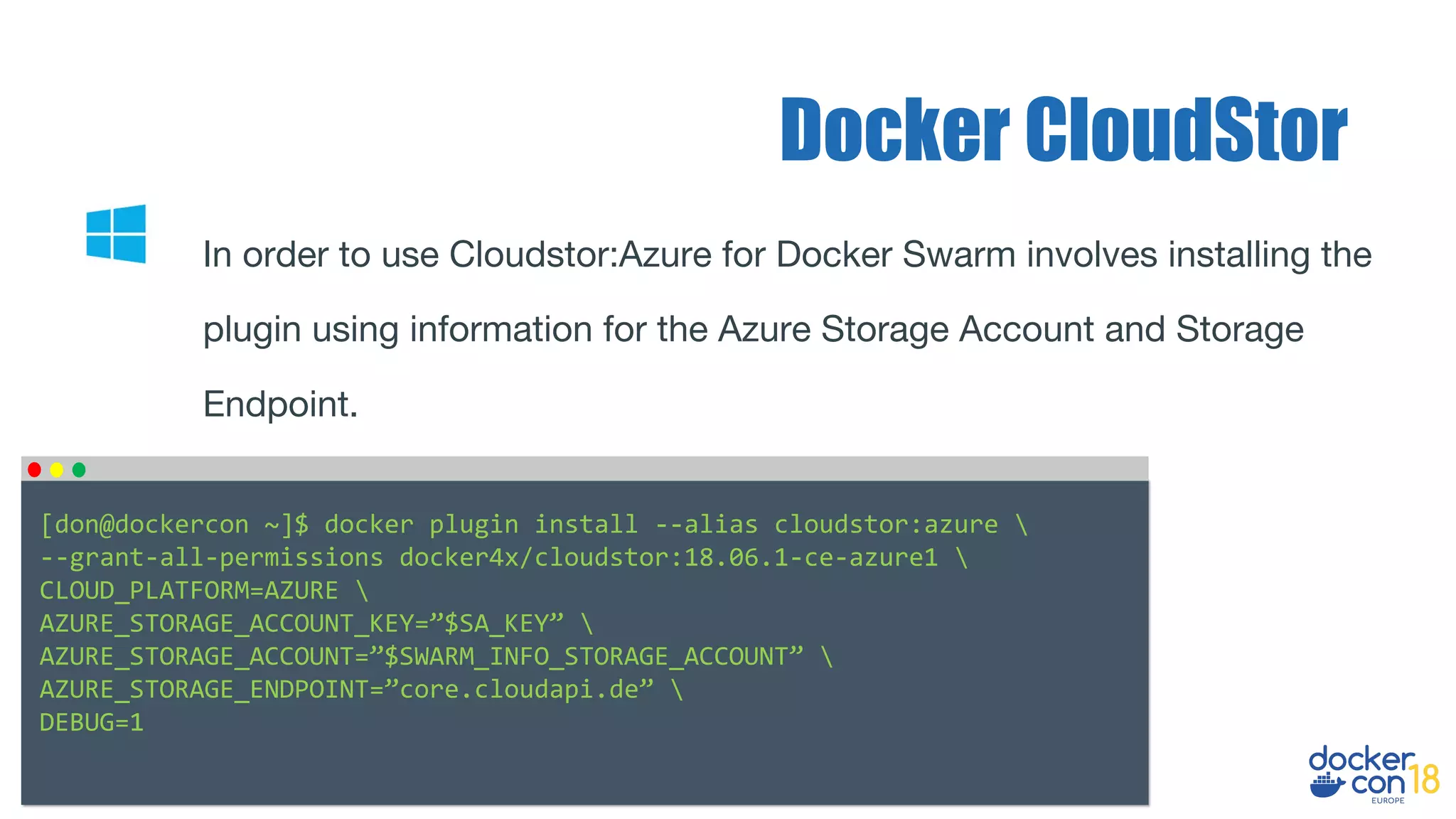

- 45. Docker CloudStor In orderto use Cloudstor:Azure for Docker Swarm involves installing the plugin using information for the Azure Storage Account and Storage Endpoint. [don@dockercon ~]$ docker plugin install --alias cloudstor:azure --grant-all-permissions docker4x/cloudstor:18.06.1-ce-azure1 CLOUD_PLATFORM=AZURE AZURE_STORAGE_ACCOUNT_KEY=”$SA_KEY” AZURE_STORAGE_ACCOUNT=”$SWARM_INFO_STORAGE_ACCOUNT” AZURE_STORAGE_ENDPOINT=”core.cloudapi.de” DEBUG=1
- 46. Swarm Storage onWindows
- 47.

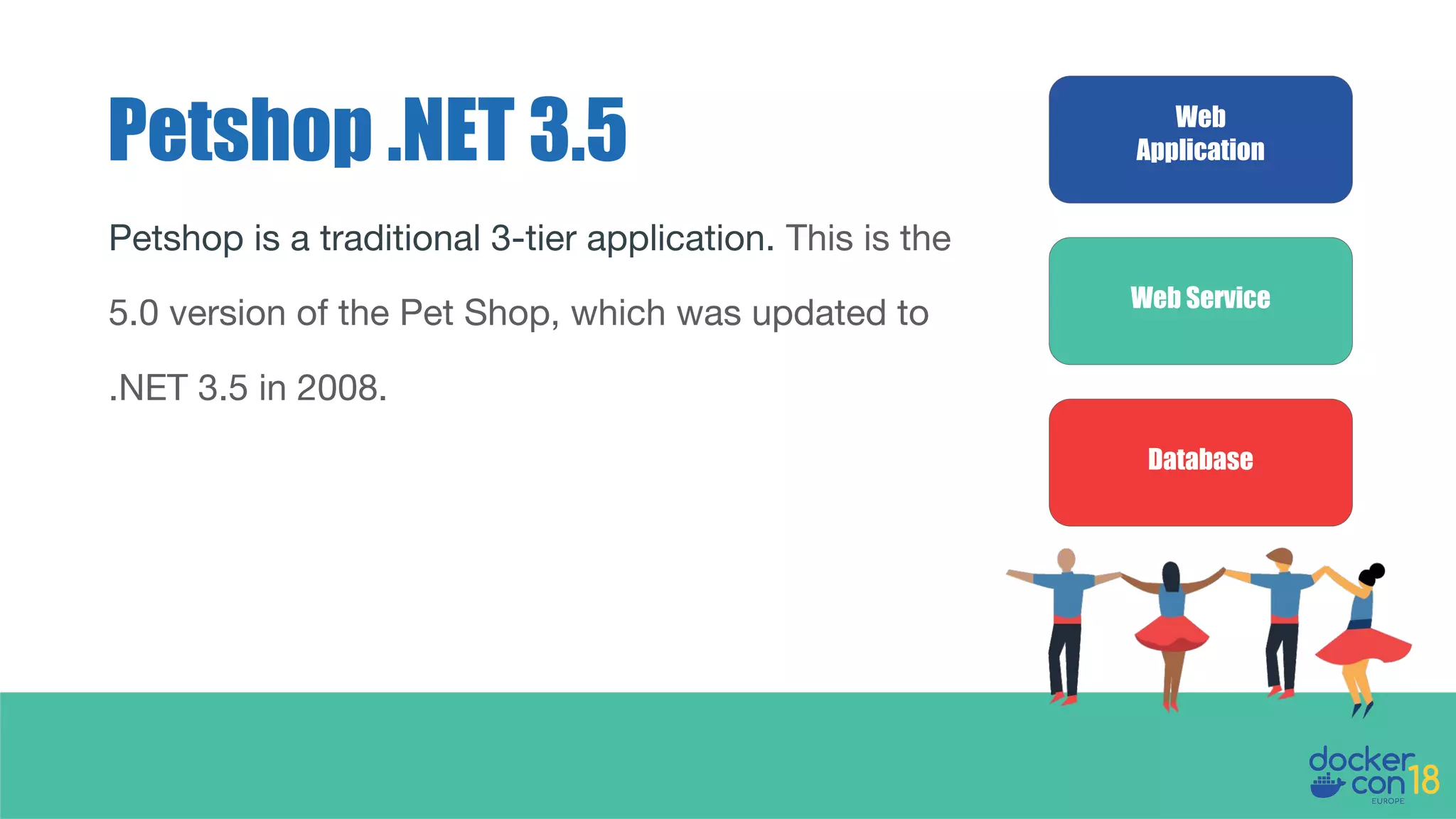

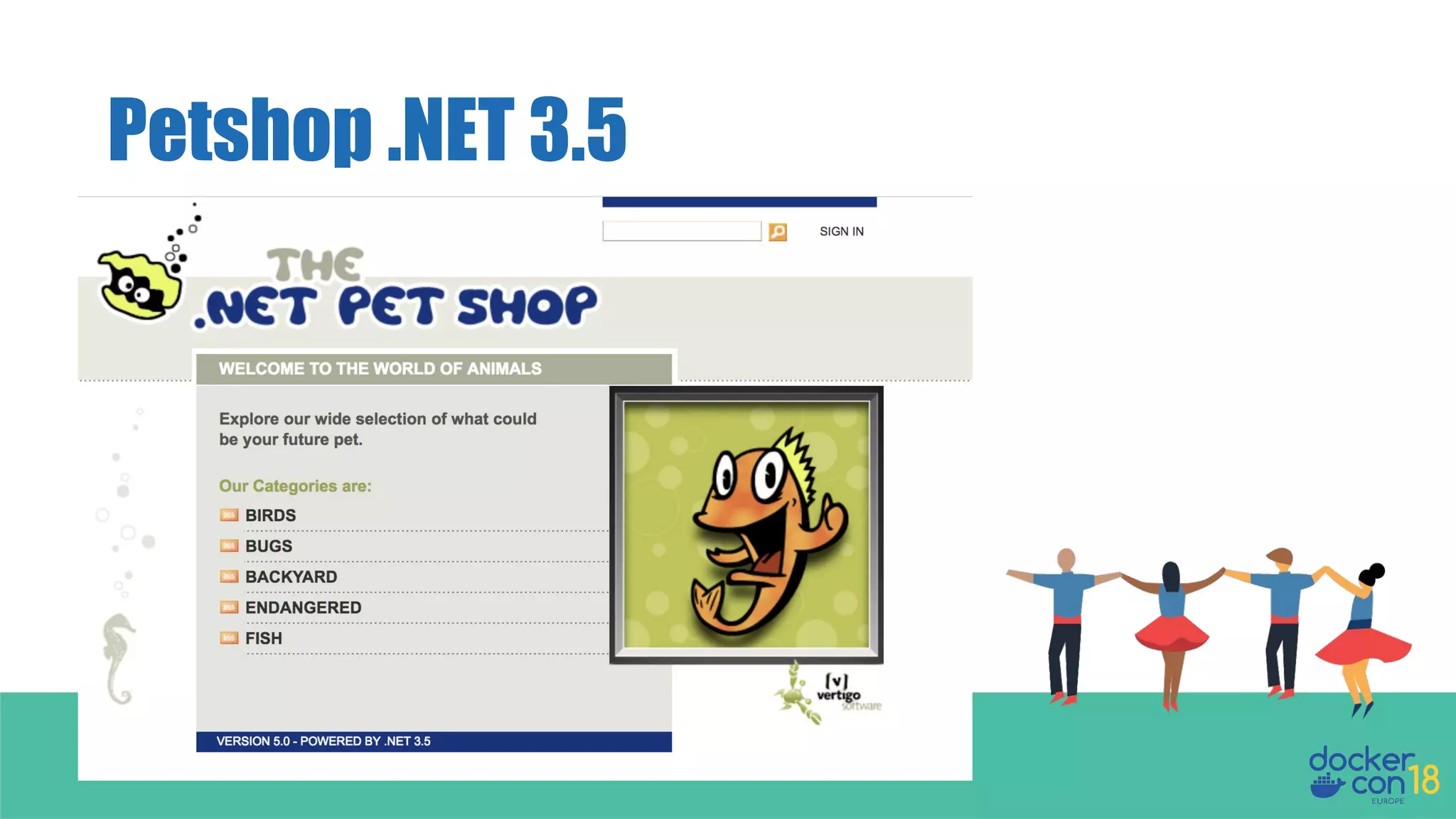

- 48. Petshop .NET 3.5Web Application Web Service Database Petshop is a traditional 3-tier application. This is the 5.0 version of the Pet Shop, which was updated to .NET 3.5 in 2008.

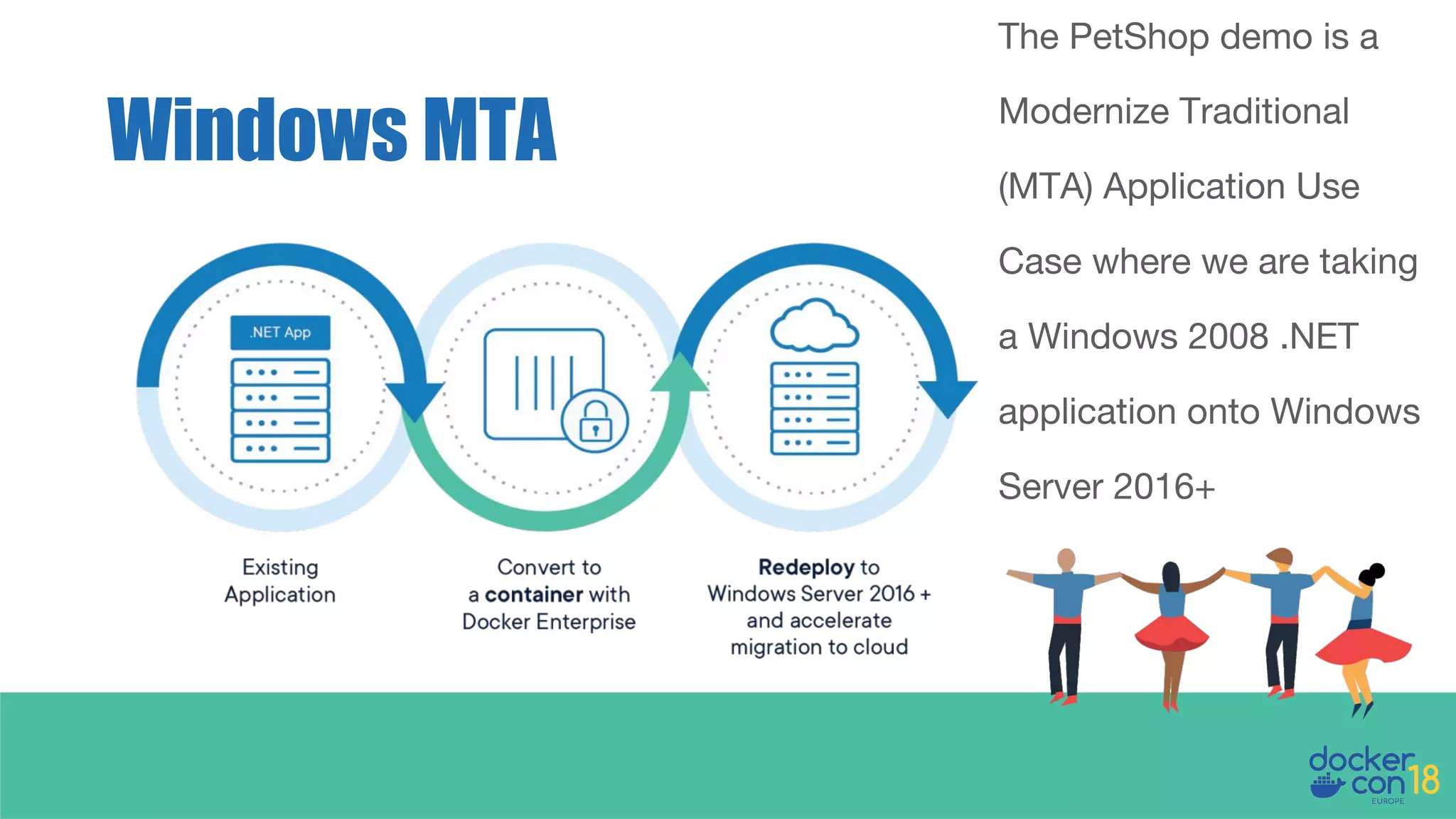

- 49. Windows MTA The PetShopdemo is a Modernize Traditional (MTA) Application Use Case where we are taking a Windows 2008 .NET application onto Windows Server 2016+

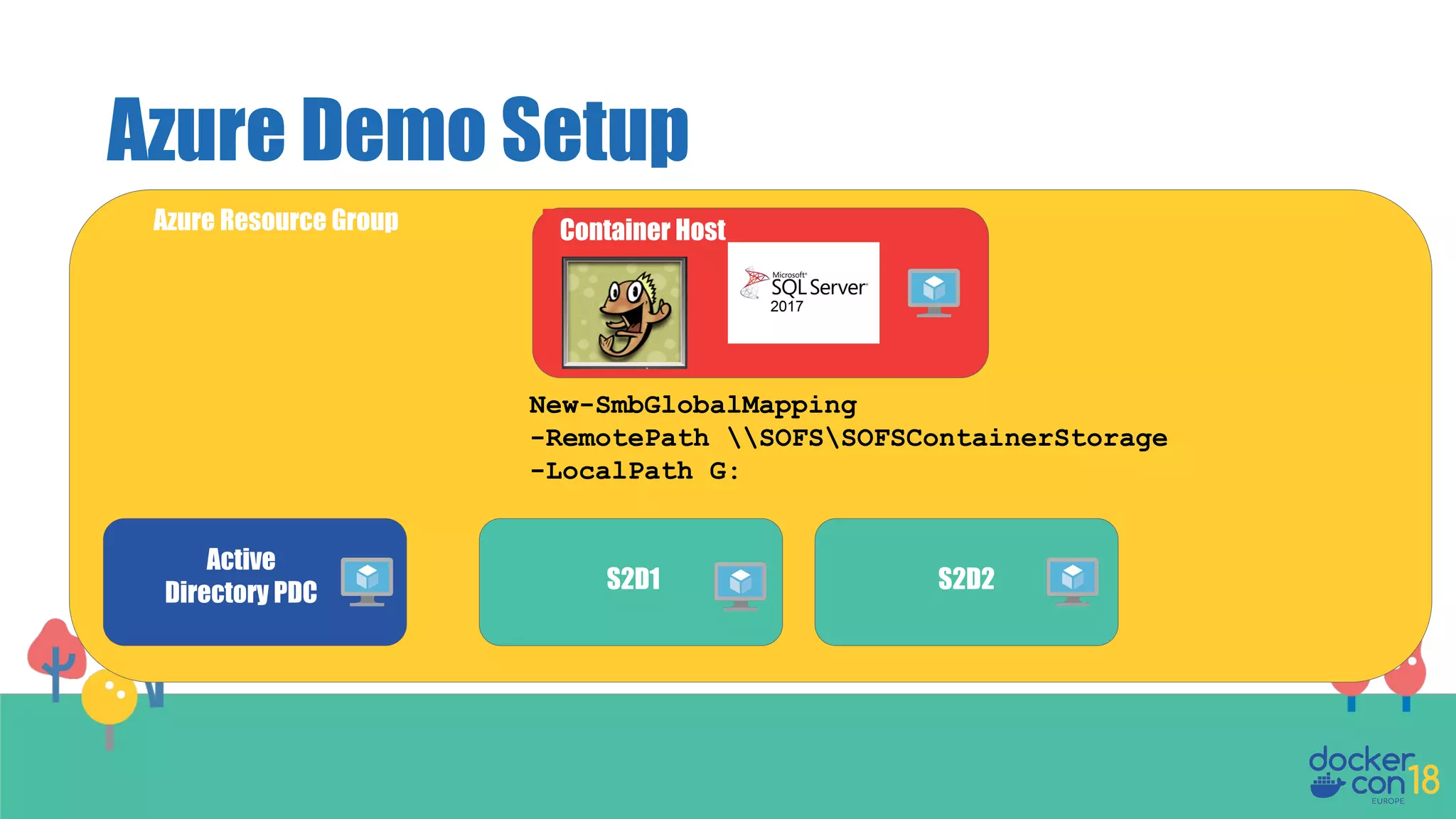

- 50. Azure Demo Setup Active DirectoryPDC S2D1 S2D2 Container Host New-SmbGlobalMapping -RemotePath SOFSSOFSContainerStorage -LocalPath G: Azure Resource Group
- 51.

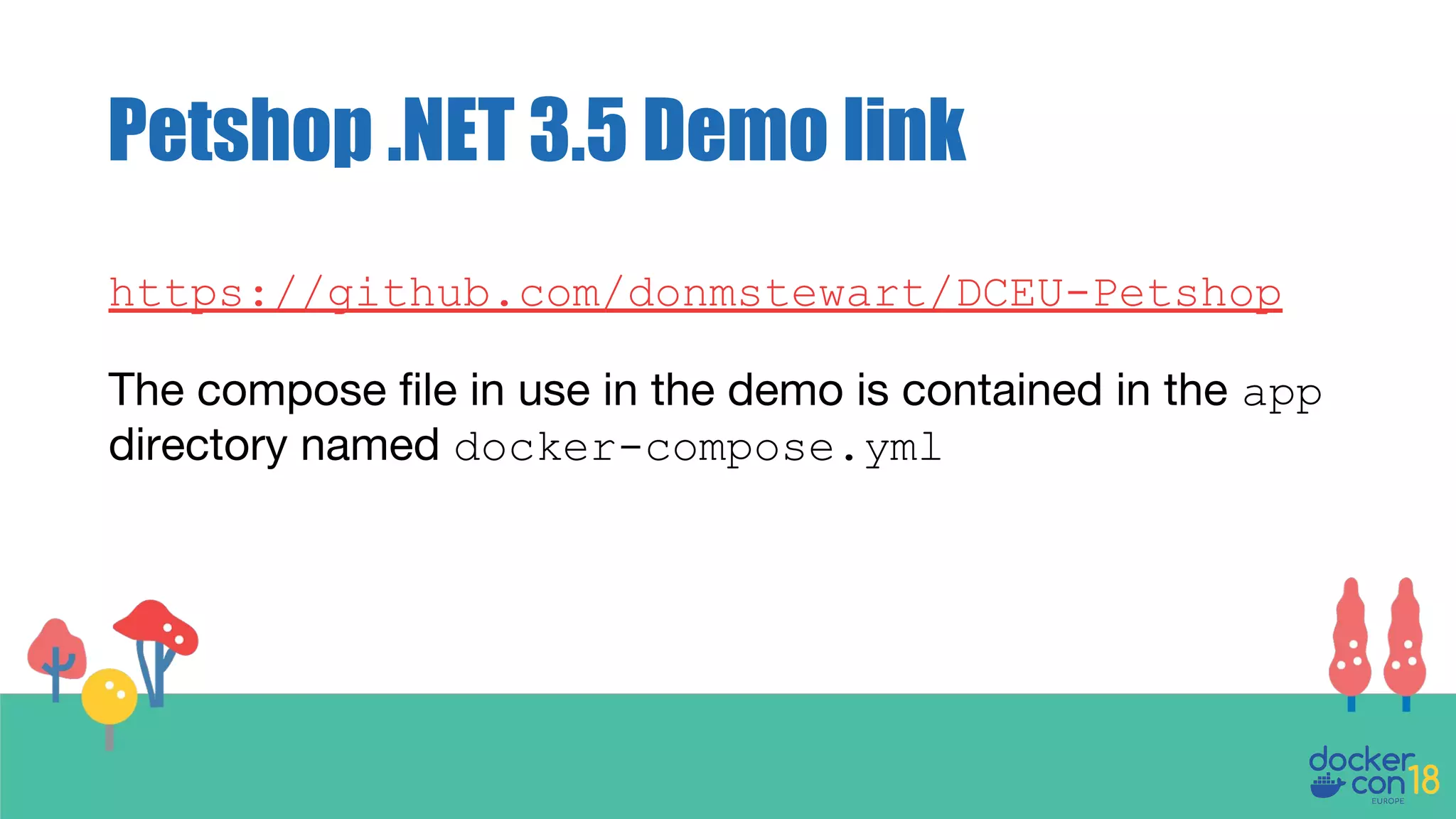

- 52. Petshop .NET 3.5Demo link https://github.com/donmstewart/DCEU-Petshop The compose file in use in the demo is contained in the app directory named docker-compose.yml
- 53.
- 54.

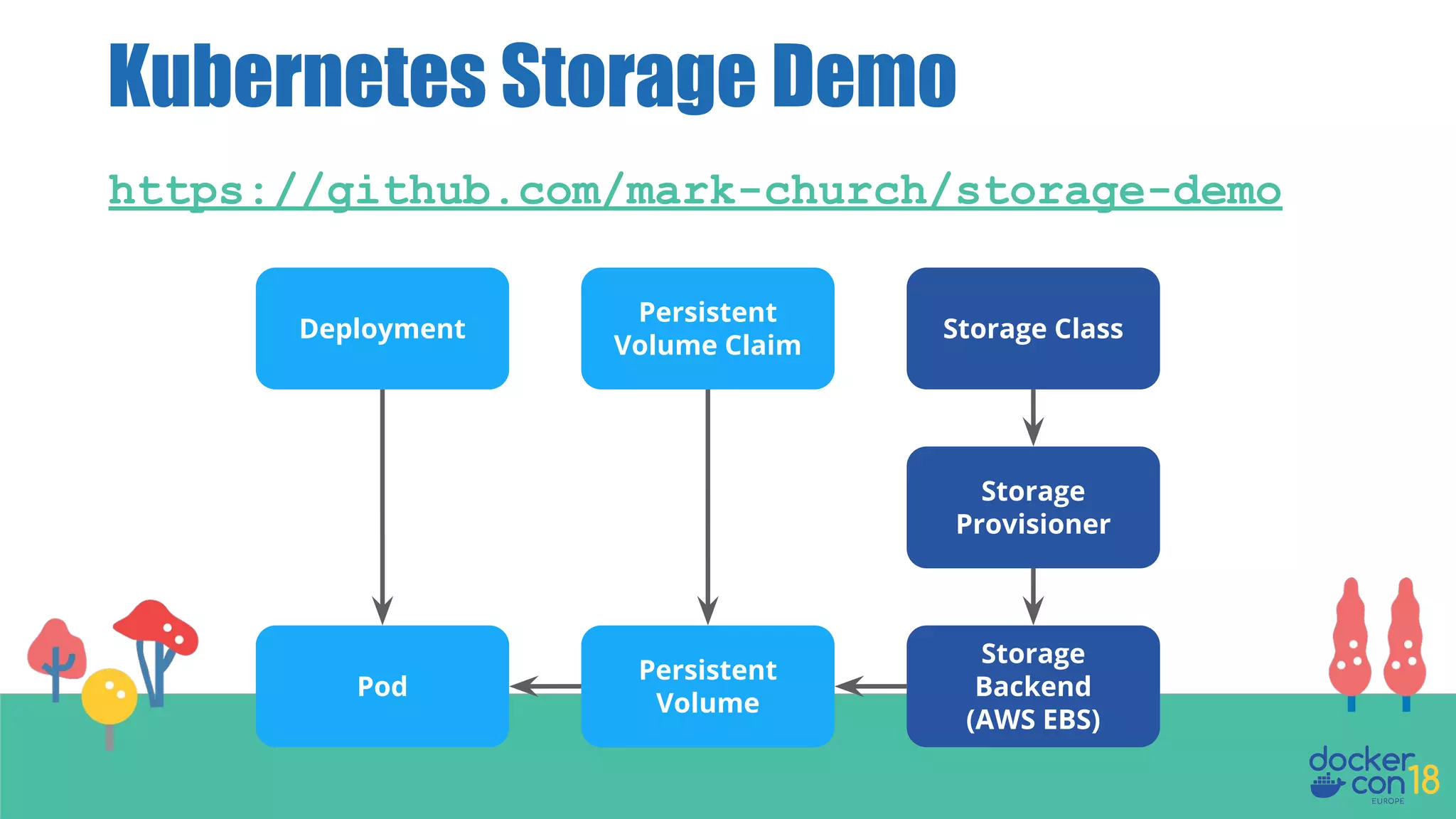

- 55. Kubernetes Storage Demo https://github.com/mark-church/storage-demo DeploymentStorage Class Storage Provisioner Storage Backend (AWS EBS) Persistent Volume Claim Persistent Volume Pod
- 56. ● Storage Workshop ○https://github.com/donmstewart/ docker-storage-workshop ● docs.docker.com Where to find more
