The document discusses DevOps toolchains which integrate development and operations tools to improve software delivery. It provides examples of toolchains for activities like continuous integration, deployment, testing, and monitoring. The key benefits are cited as increased efficiency, consistency, safety, and visibility across the development and operations processes. The document recommends auditing current practices, agreeing on a vision, and gradually adopting tools to achieve DevOps.

1. © 2013 IBM Corporation

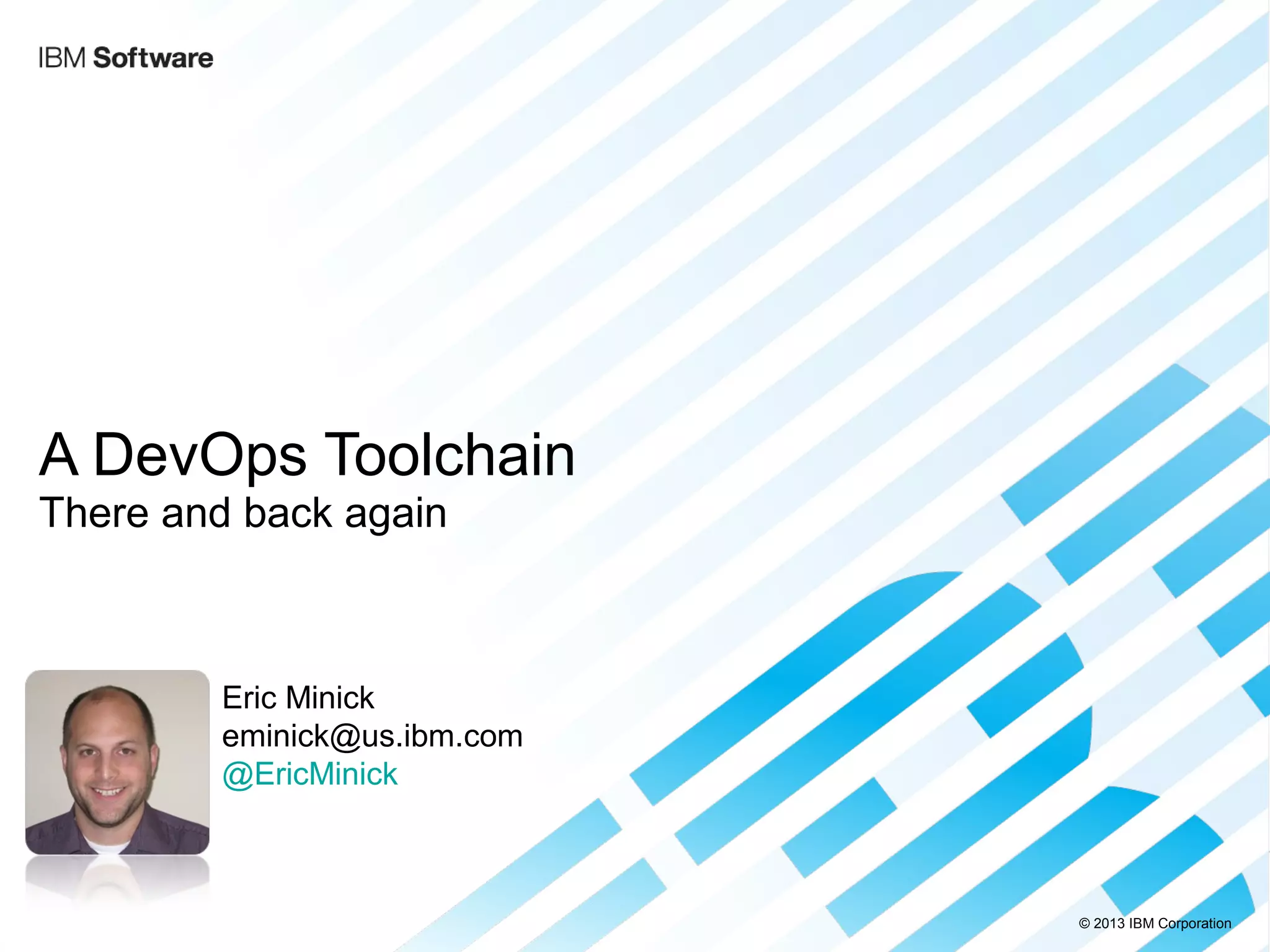

A DevOps Toolchain
There and back again
Eric Minick
eminick@us.ibm.com
@EricMinick

2. © 2013 IBM Corporation

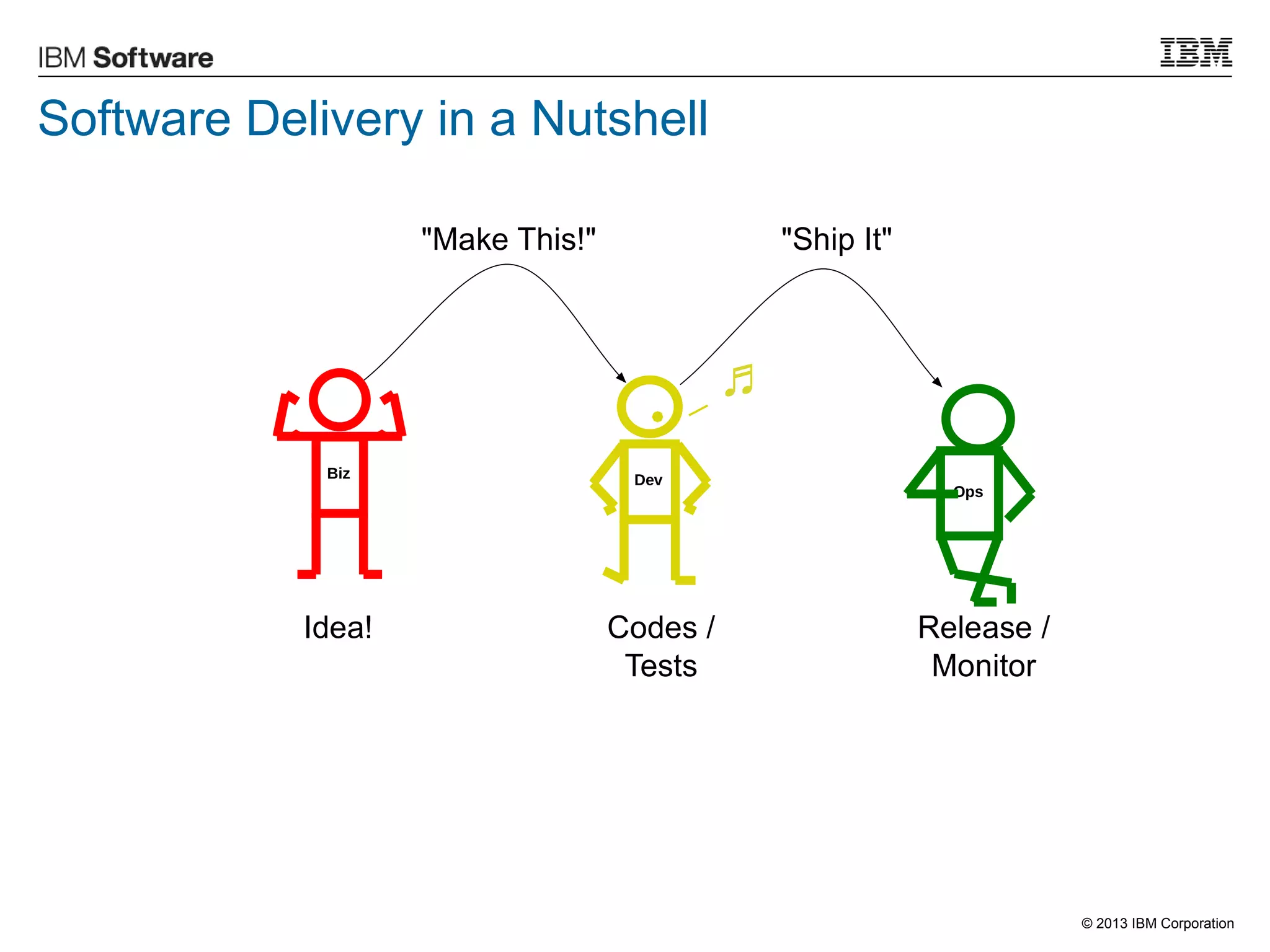

Software Delivery in a Nutshell
Biz
Idea!
Dev
♫
Codes /
Tests
"Make This!"
Ops
"Ship It"
Release /
Monitor

3. © 2013 IBM Corporation
Apps: More Important / More Complex
More frequent changes
 Lower tolerance for outages
More complex applications
More complex deployments
Biz
Idea!
Dev
♫
Codes /
Tests
"Make This!"
Ops
"Ship It"
Release /
Monitor

4. © 2013 IBM Corporation

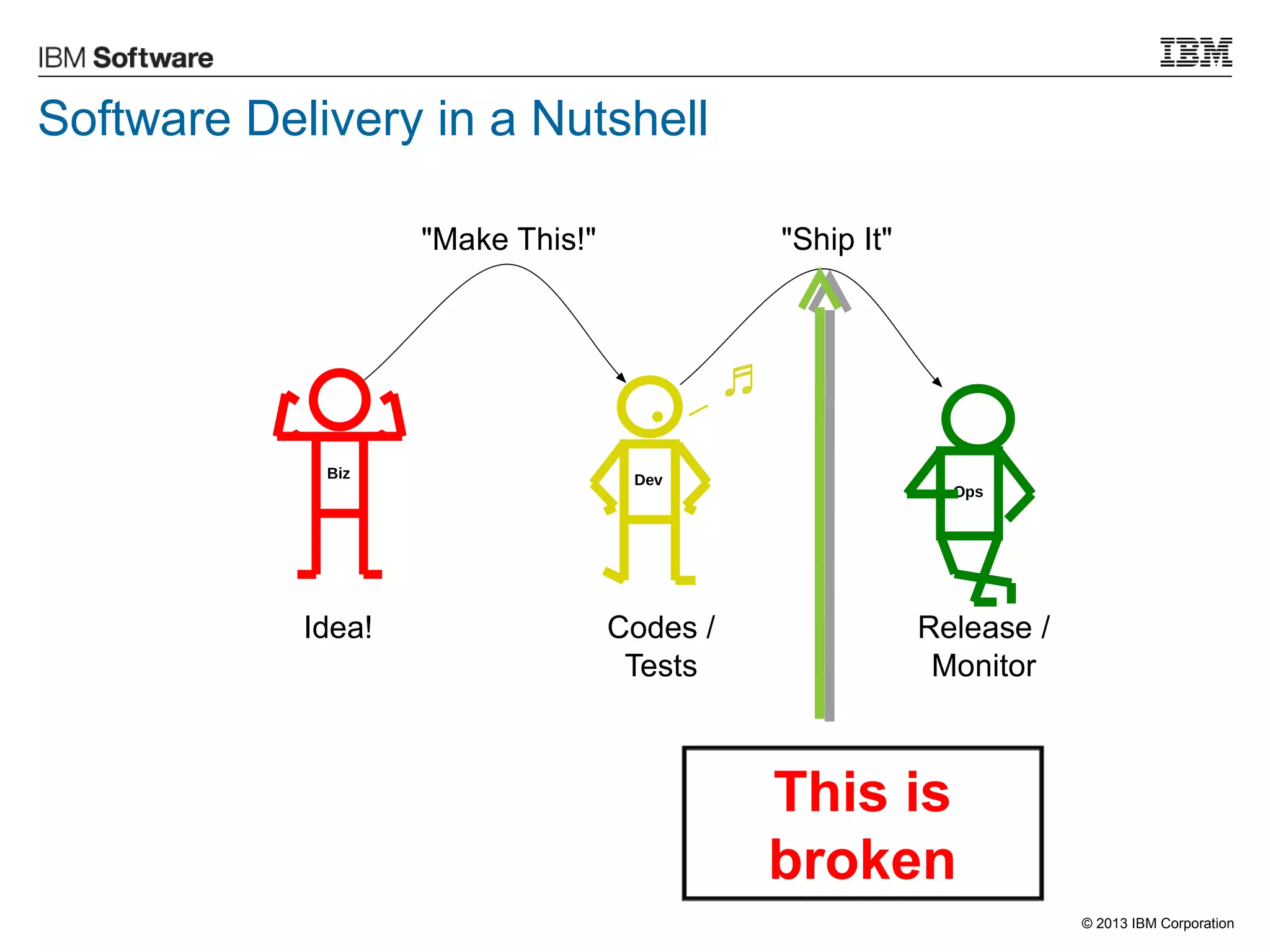

Software Delivery in a Nutshell
Biz
Idea!
Dev
♫
Codes /
Tests
"Make This!"
Ops
"Ship It"
Release /
Monitor
This is
broken

5. © 2013 IBM Corporation

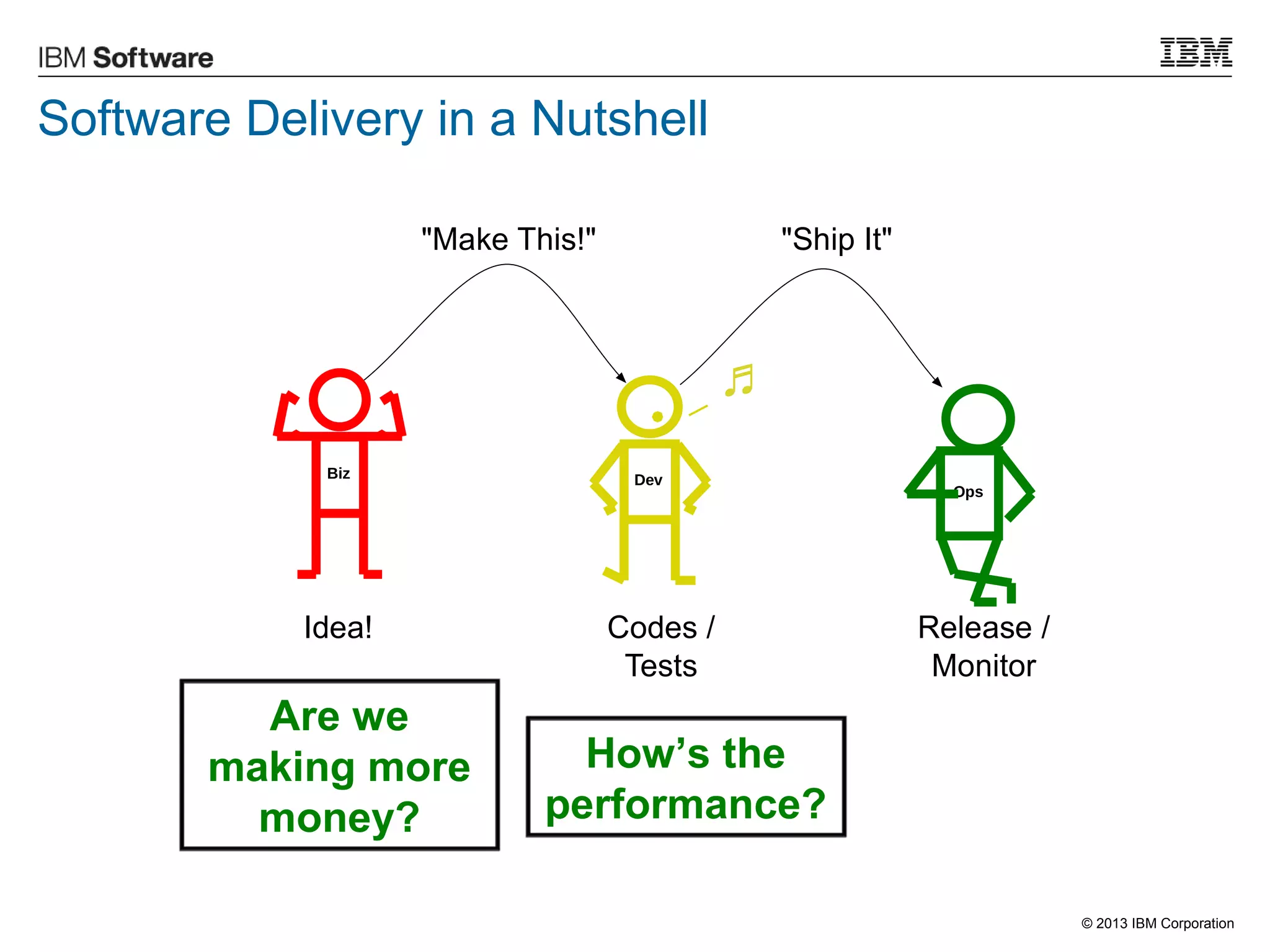

Software Delivery in a Nutshell
Biz
Idea!
Dev
♫
Codes /
Tests
"Make This!"
Ops
"Ship It"
Release /
Monitor
Are we
making more
money?
How’s the
performance?

6. © 2013 IBM Corporation

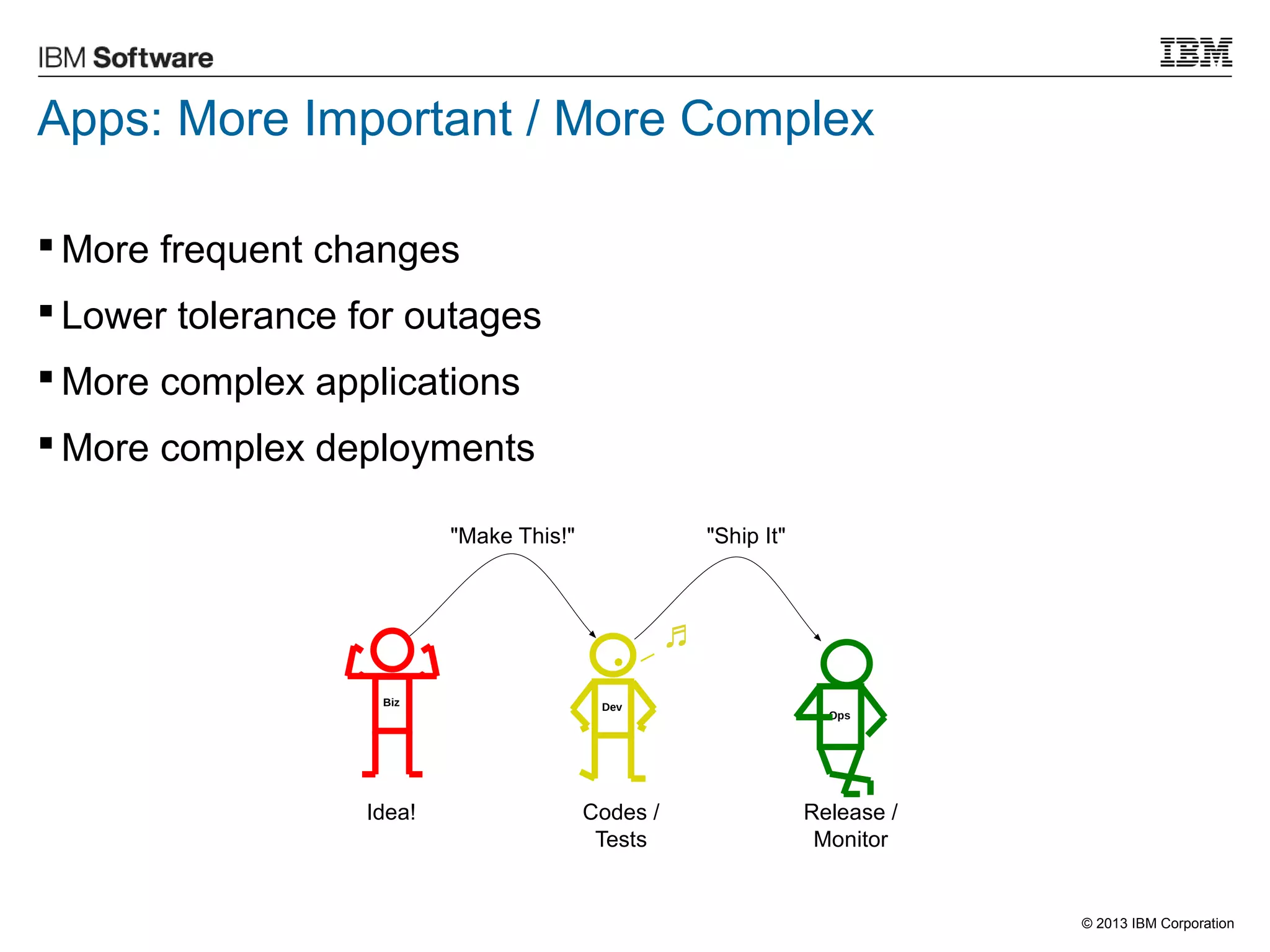

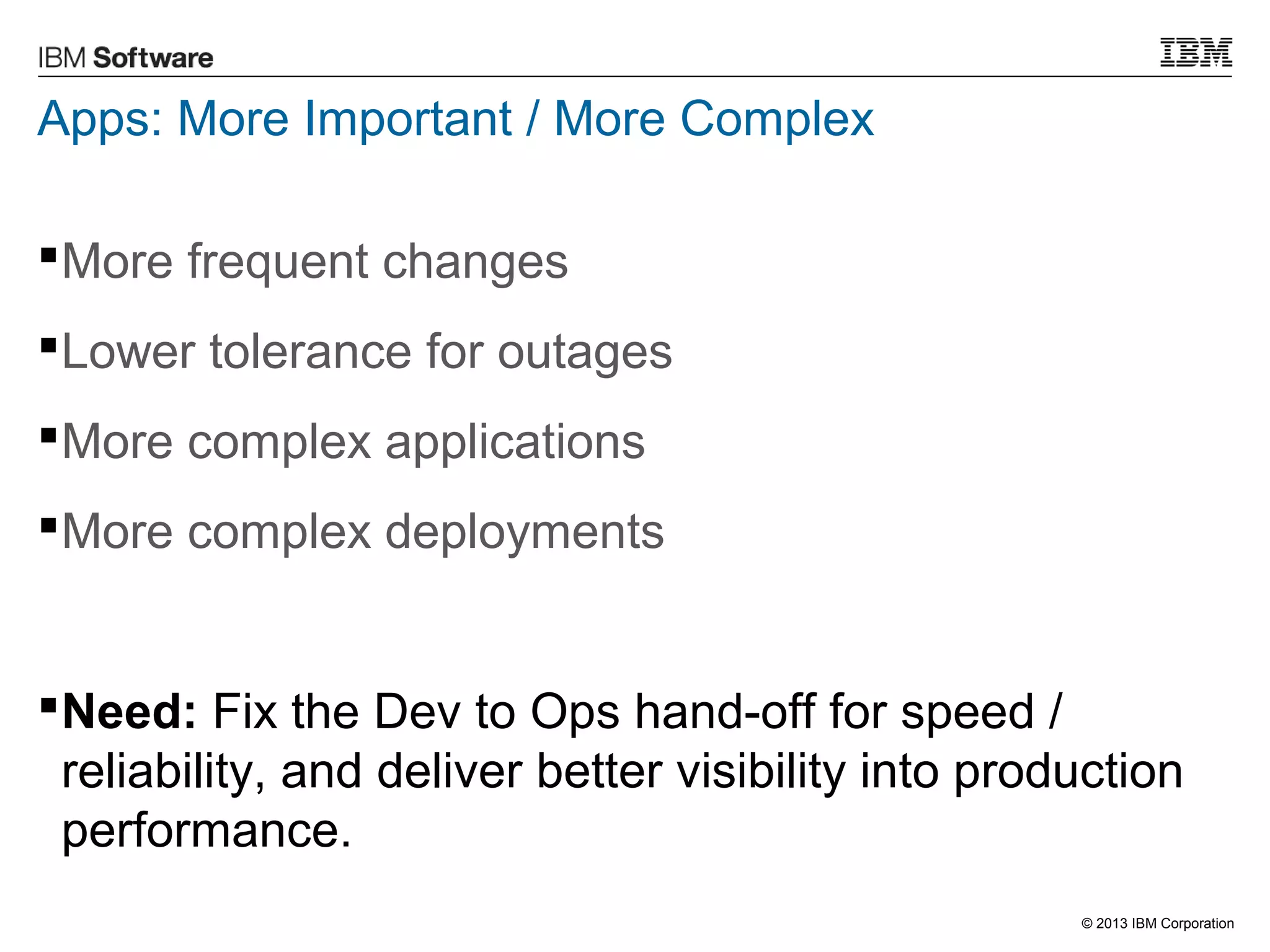

Apps: More Important / More Complex
More frequent changes
Lower tolerance for outages
More complex applications
More complex deployments
Need: Fix the Dev to Ops hand-off for speed /
reliability, and deliver better visibility into production
performance.

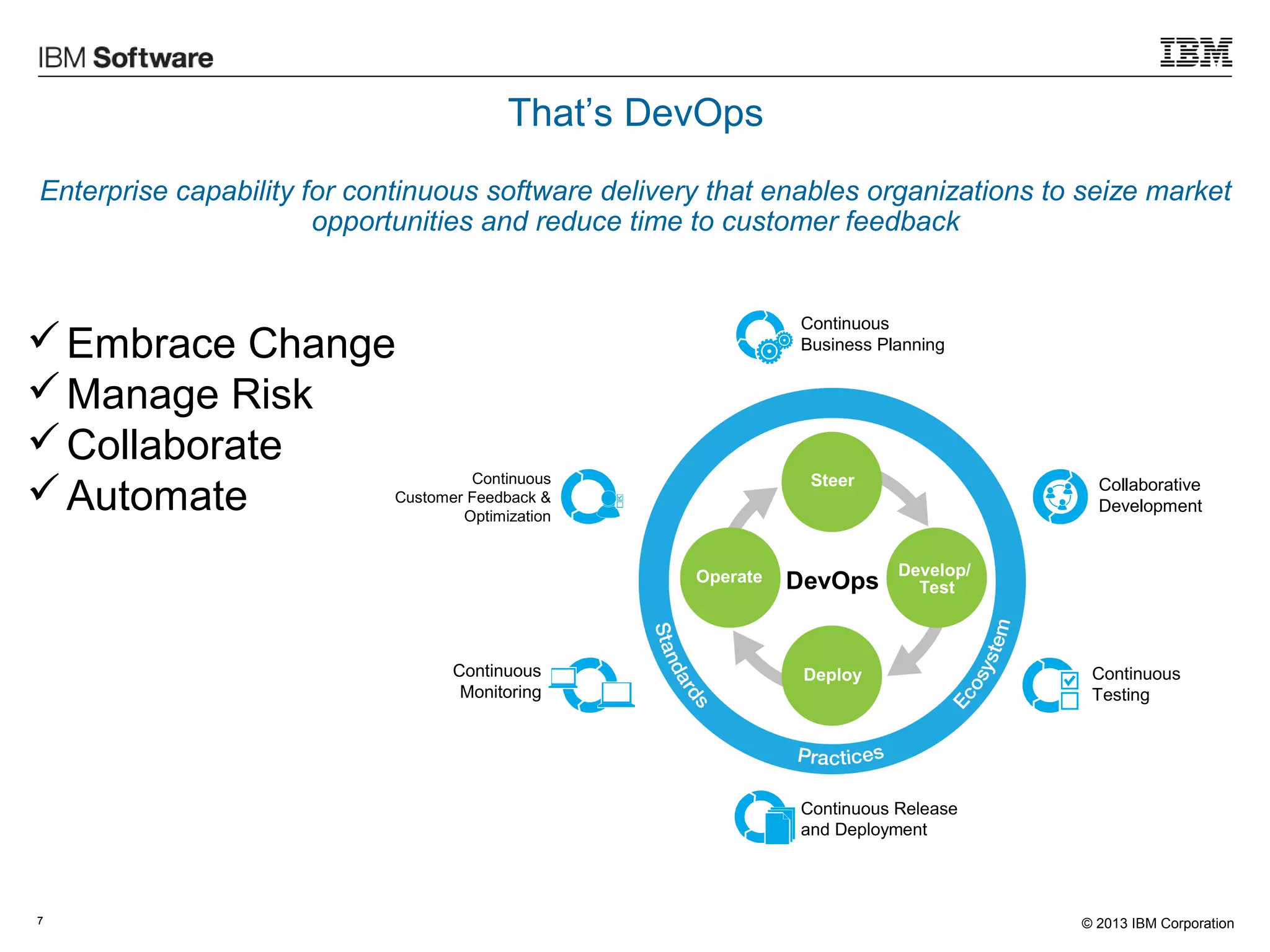

7. That’s DevOps
Enterprise capability for continuous software delivery that enables organizations to seize market
opportunities and reduce time to customer feedback
Continuous
Embrace Change
Manage Risk
Collaborate
Automate
Customer Feedback &
Optimization
Collaborative
Development
Continuous
Business Planning
Steer
Operate Develop/
Test
DevOps
Deploy
Continuous Release
and Deployment
Continuous
Monitoring
Continuous
Testing
© 2013 7 IBM Corporation

8. © 2013 IBM Corporation

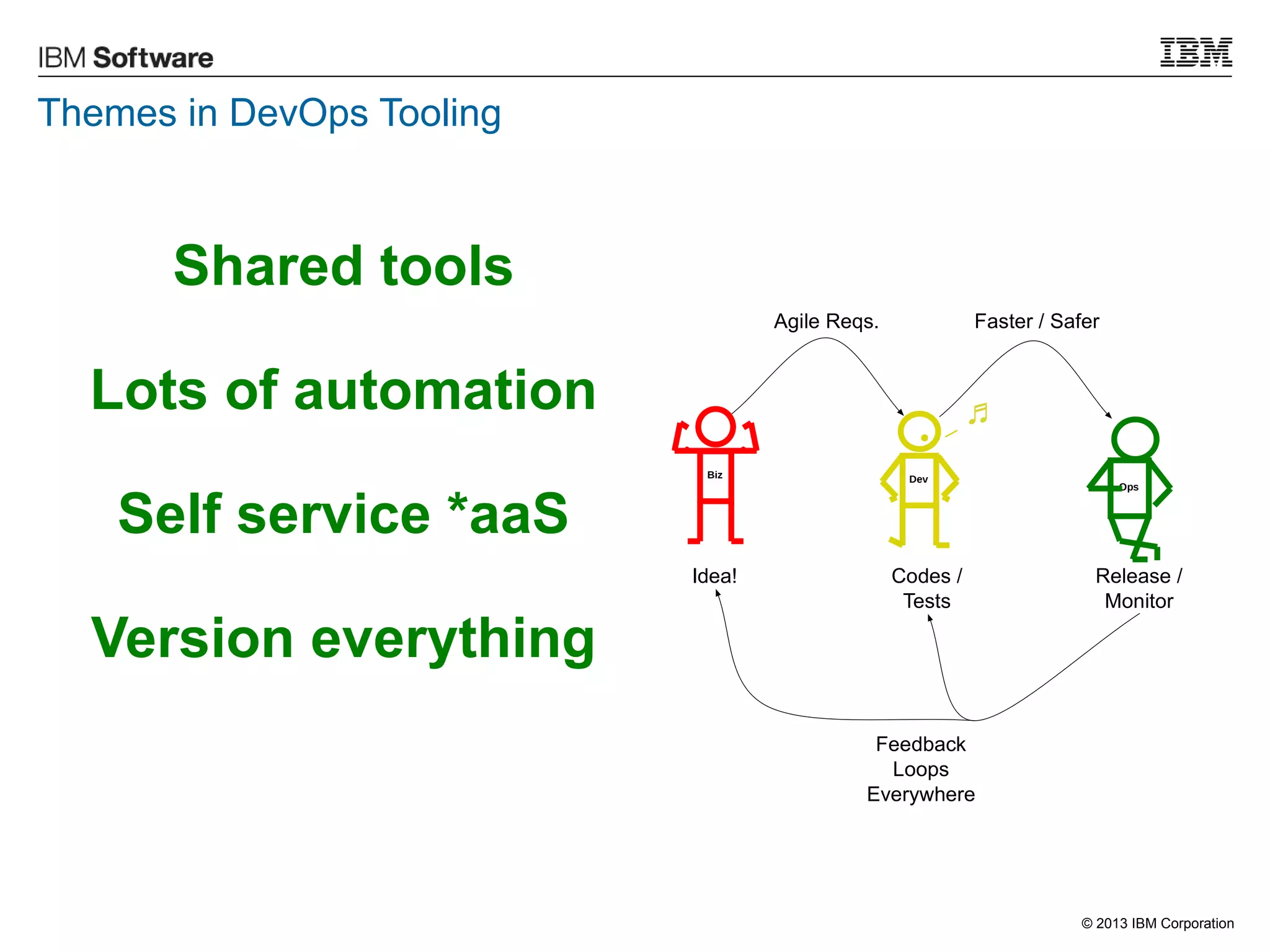

Themes in DevOps Tooling
Shared tools
Lots of automation
Self service *aaS
Version everything
Biz
Idea!
Dev
♫
Codes /
Tests
Agile Reqs.
Ops
Faster / Safer
Release /
Monitor
Feedback
Loops
Everywhere

9. © 2013 IBM Corporation

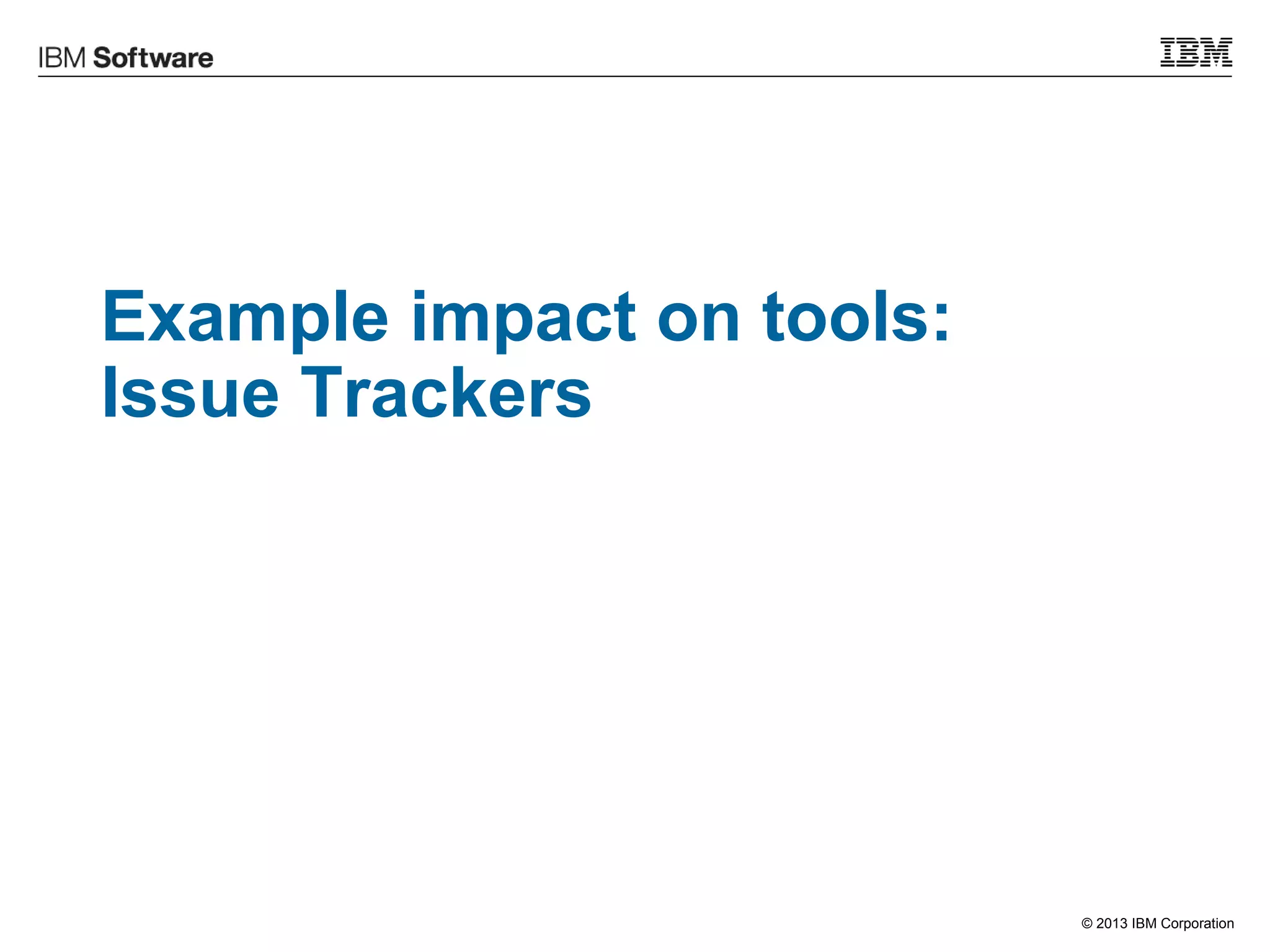

Example impact on tools:
Issue Trackers

10. © 2013 IBM Corporation

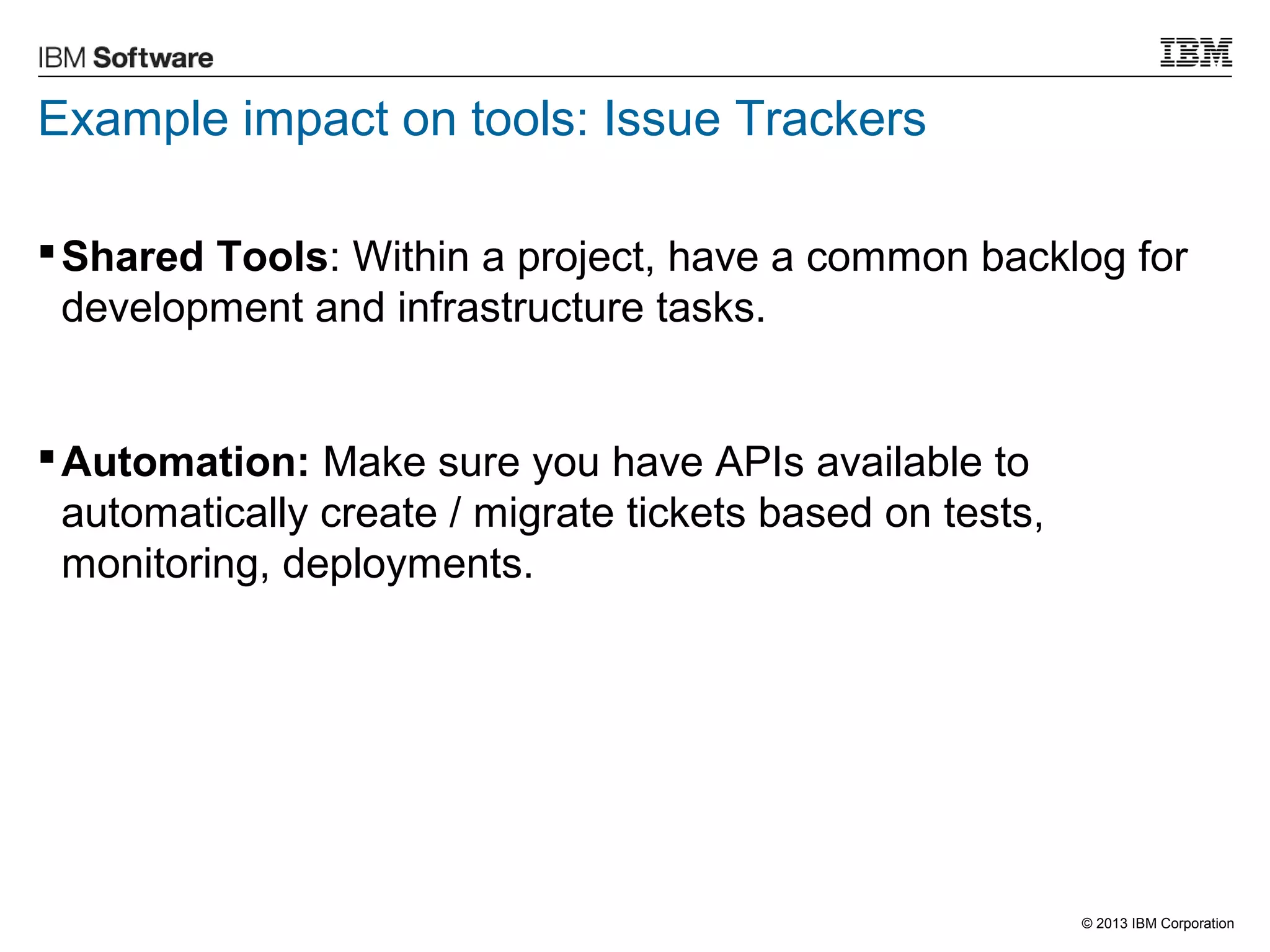

Example impact on tools: Issue Trackers
Shared Tools: Within a project, have a common backlog for
development and infrastructure tasks.
Automation: Make sure you have APIs available to
automatically create / migrate tickets based on tests,
monitoring, deployments.

11. Integrate a collection of a task tool-chains
© 2013 IBM Corporation
DevOps Toolchains
Span silos
DDeevv TTeesstt OOppss
Source http://www.geograph.org.uk/profile/19979

12. © 2013 IBM Corporation

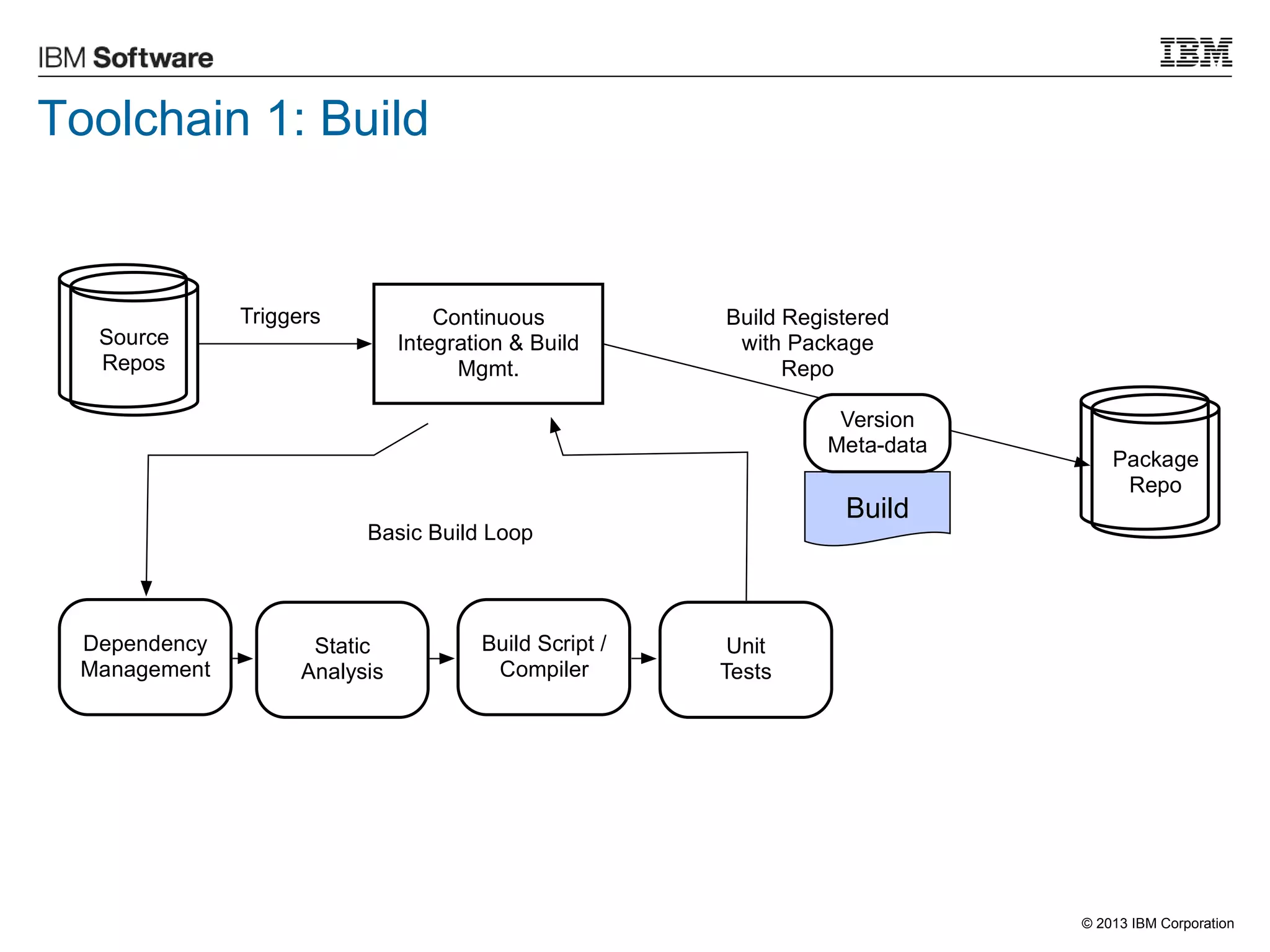

Toolchain 1: Build
Source
Repos
Continuous
Integration & Build
Mgmt.
Static
Analysis
Build Registered
with Package
Build
Package
Repo
Build Script /
Compiler
Dependency
Management
Unit
Tests
Repo
Triggers
Basic Build Loop
Version
Meta-data

13. © 2013 IBM Corporation

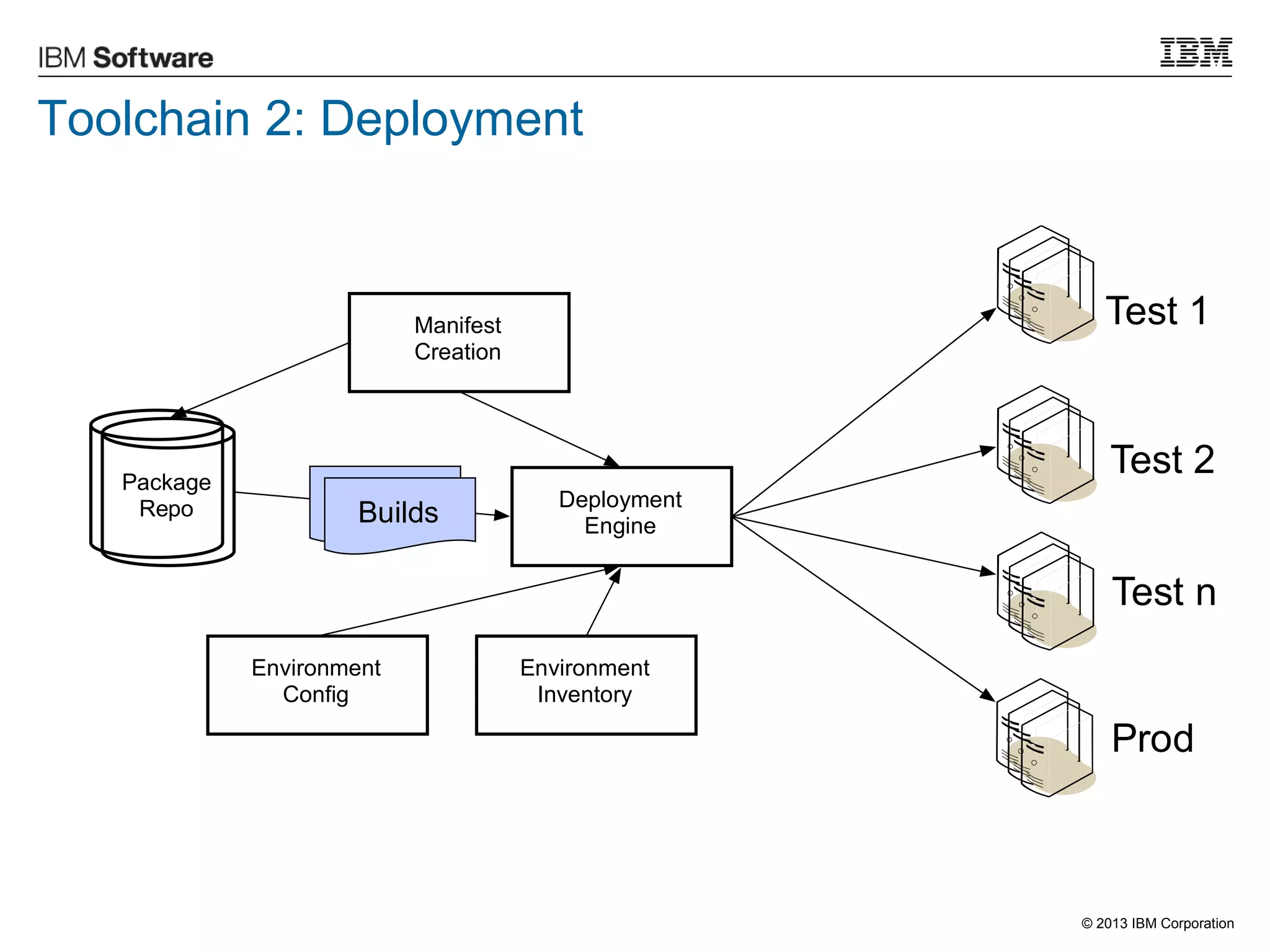

Toolchain 2: Deployment
Package
Repo Deployment
Engine
Manifest
Creation
Test 1
Test 2
Test n
Prod
Environment
Config
Environment
Inventory
Builds

14. © 2013 IBM Corporation

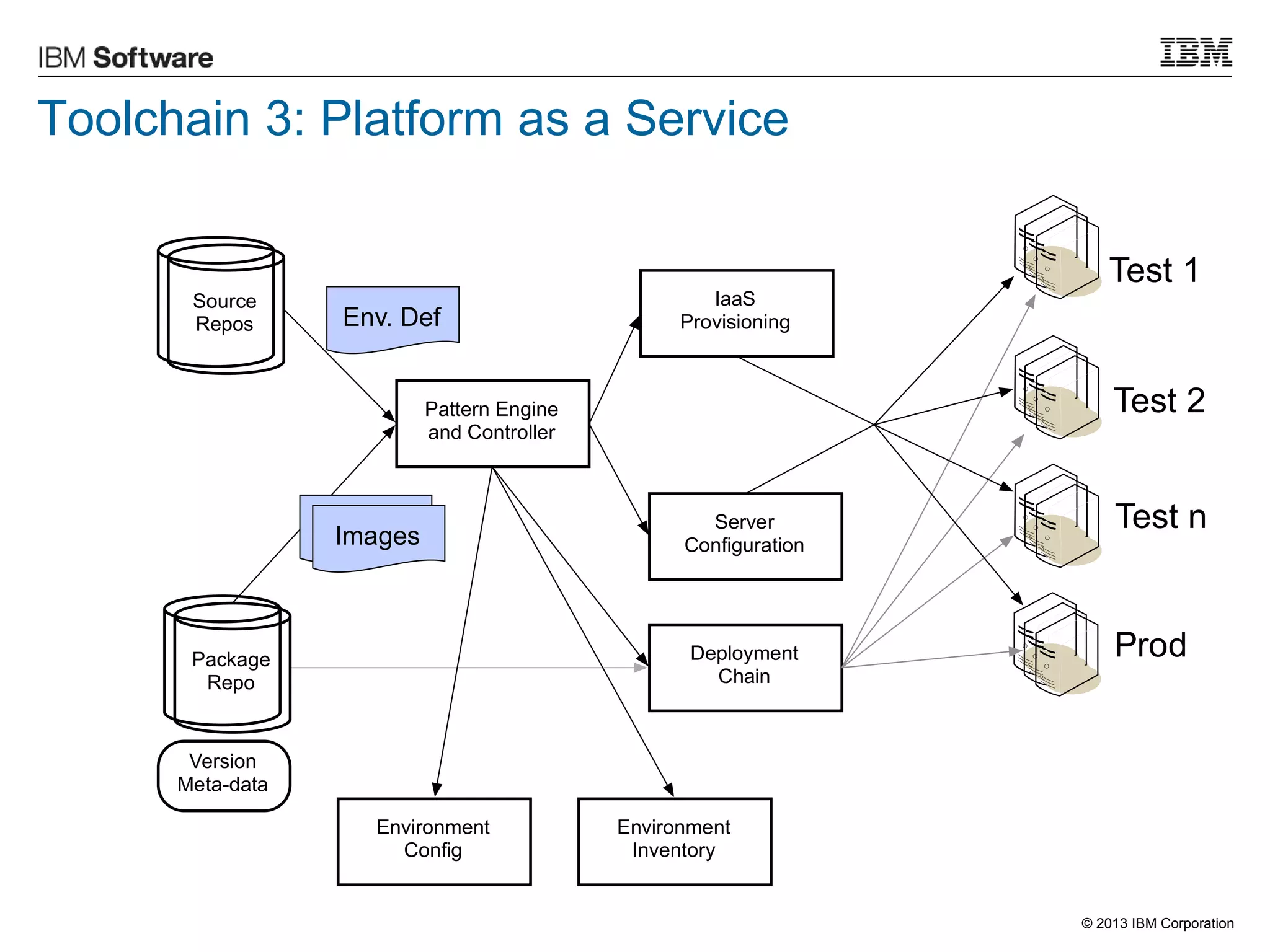

Toolchain 3: Platform as a Service
Source
Repos Env. Def
Package
Repo
Deployment
Chain
Test 1
Test 2
Test n
Prod
Version
Meta-data
Pattern Engine
and Controller
Images
IaaS
Provisioning
Server
Configuration
Environment
Config
Environment
Inventory

15. © 2013 IBM Corporation

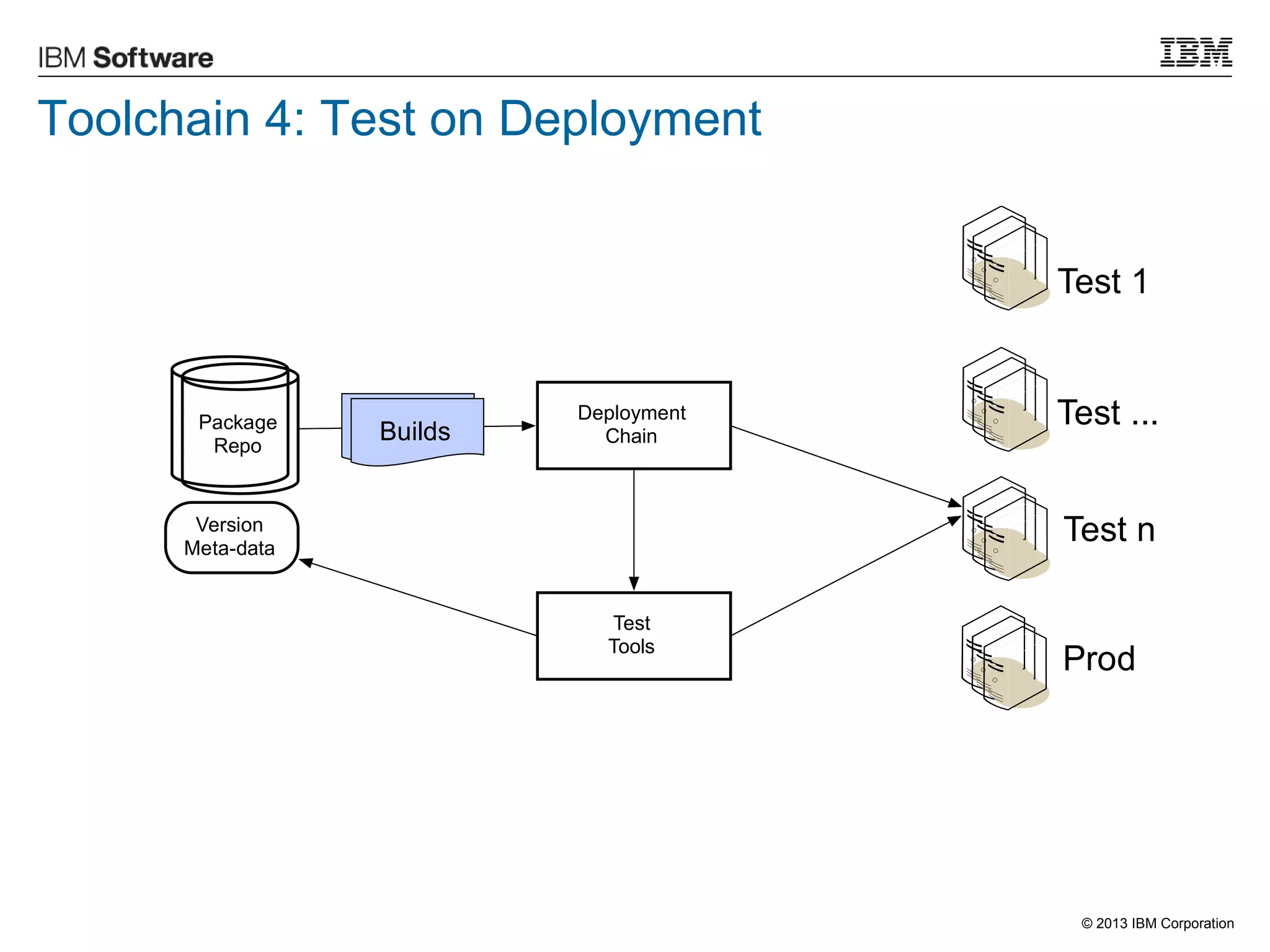

Toolchain 4: Test on Deployment
Package
Repo
Deployment
Chain
Test 1
Test ...
Test n
Prod
Test
Tools
Builds
Version
Meta-data

16. © 2013 IBM Corporation

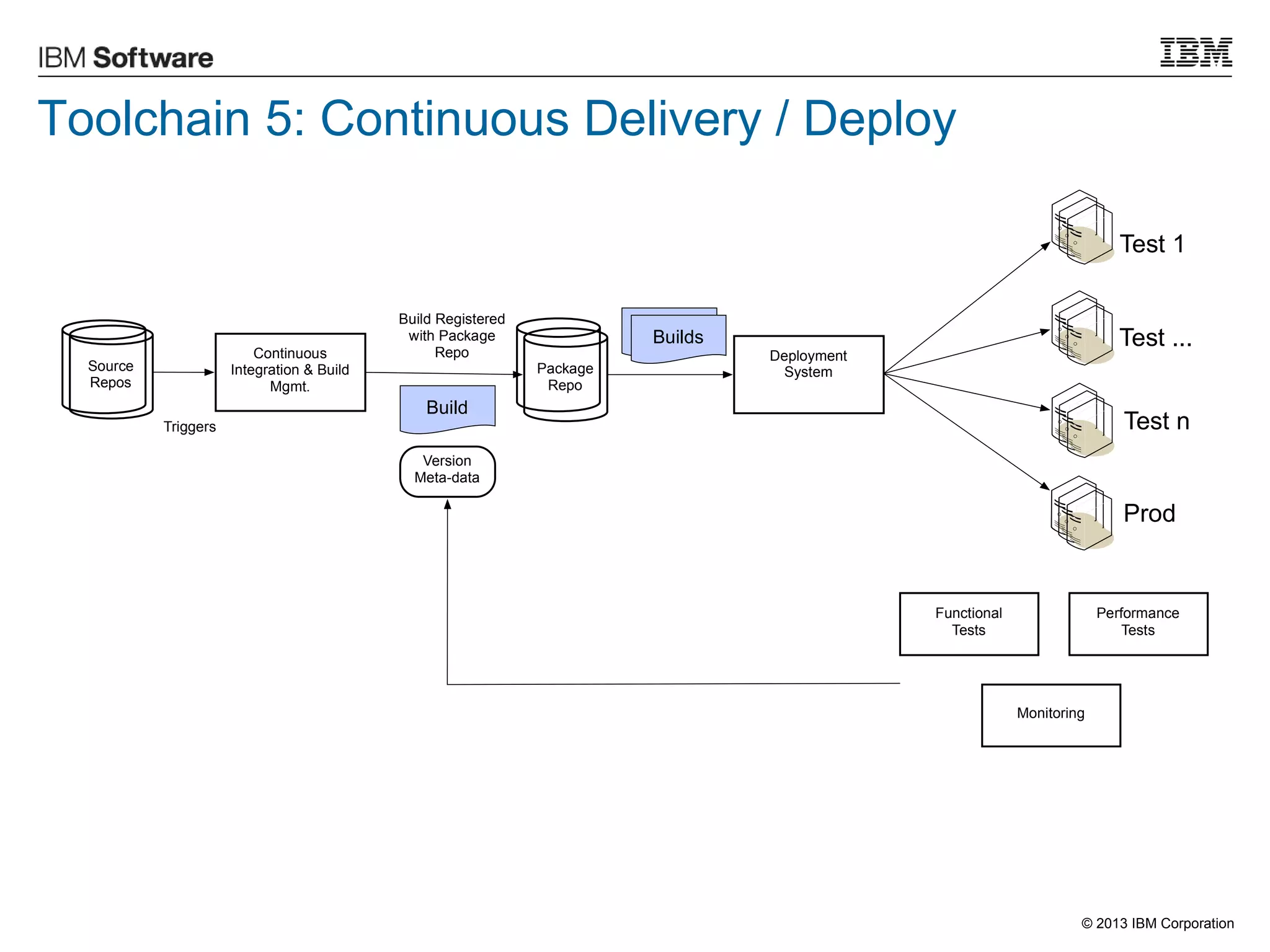

Toolchain 5: Continuous Delivery / Deploy
Source
Repos
Continuous
Integration & Build
Mgmt.
Build
Package
Repo
Build Registered
with Package
Repo
Triggers
Version
Meta-data
Deployment
System
Builds
Test 1
Test ...
Test n
Prod
Functional
Tests
Performance
Tests
Monitoring

17. © 2013 IBM Corporation

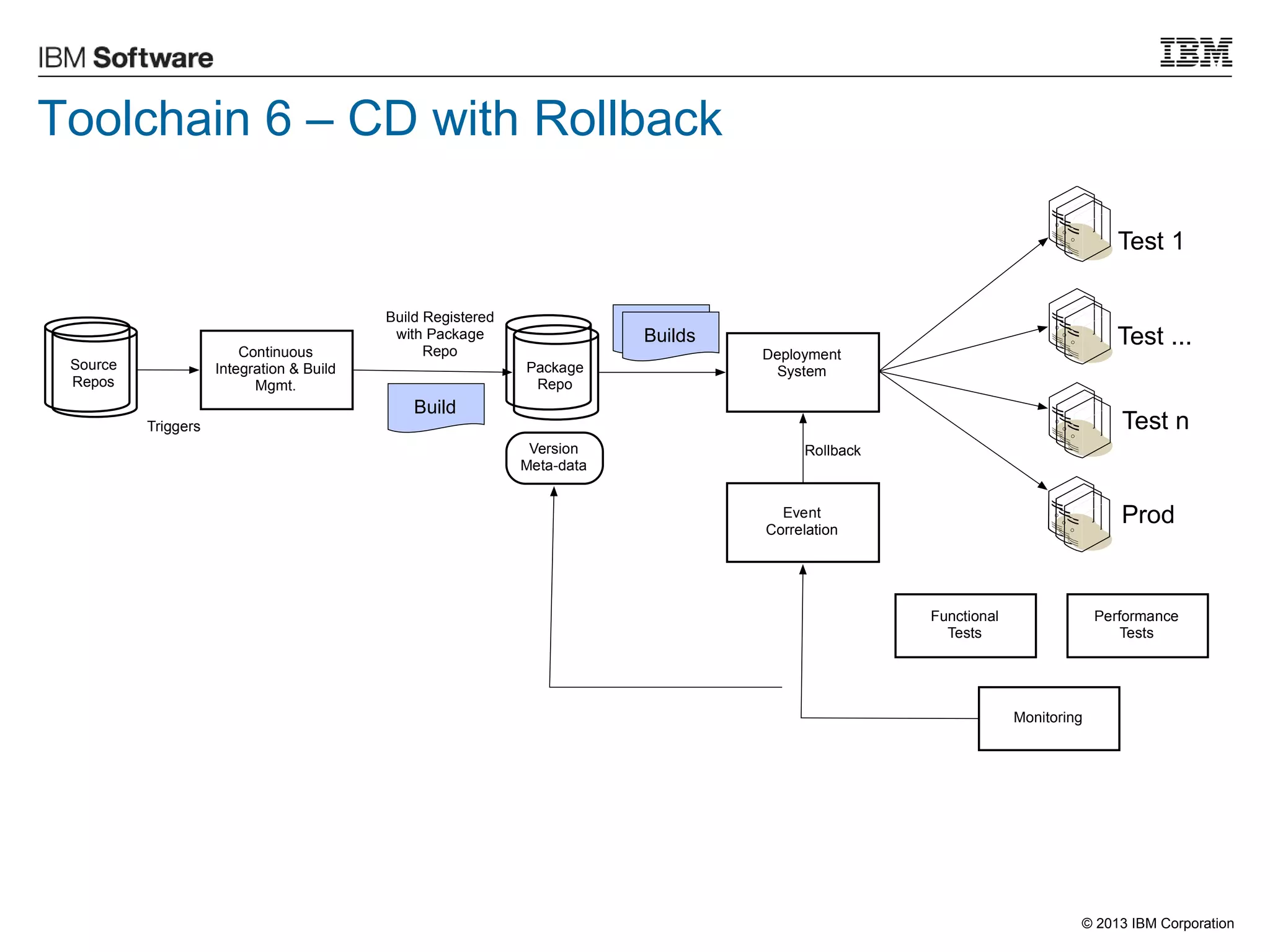

Toolchain 6 – CD with Rollback
Source
Repos
Continuous
Integration & Build
Mgmt.
Build
Package
Repo
Build Registered
with Package
Repo
Triggers
Version
Meta-data
Deployment
System
Builds
Test 1
Test ...
Test n
Prod
Functional
Tests
Performance
Tests
Monitoring
Rollback
Event
Correlation

18. © 2013 IBM Corporation

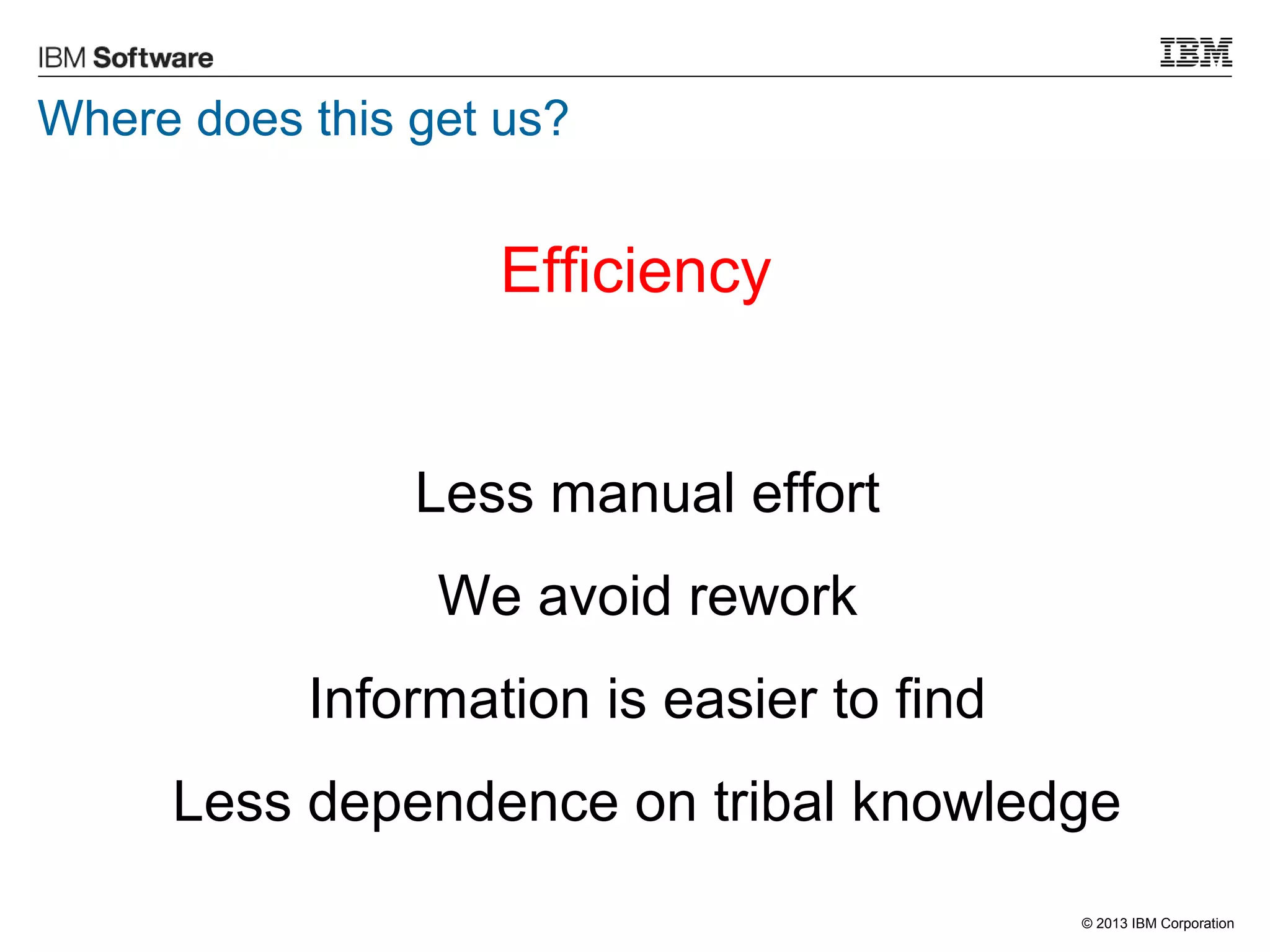

Where does this get us?
Efficiency
Less manual effort
We avoid rework
Information is easier to find
Less dependence on tribal knowledge

19. © 2013 IBM Corporation

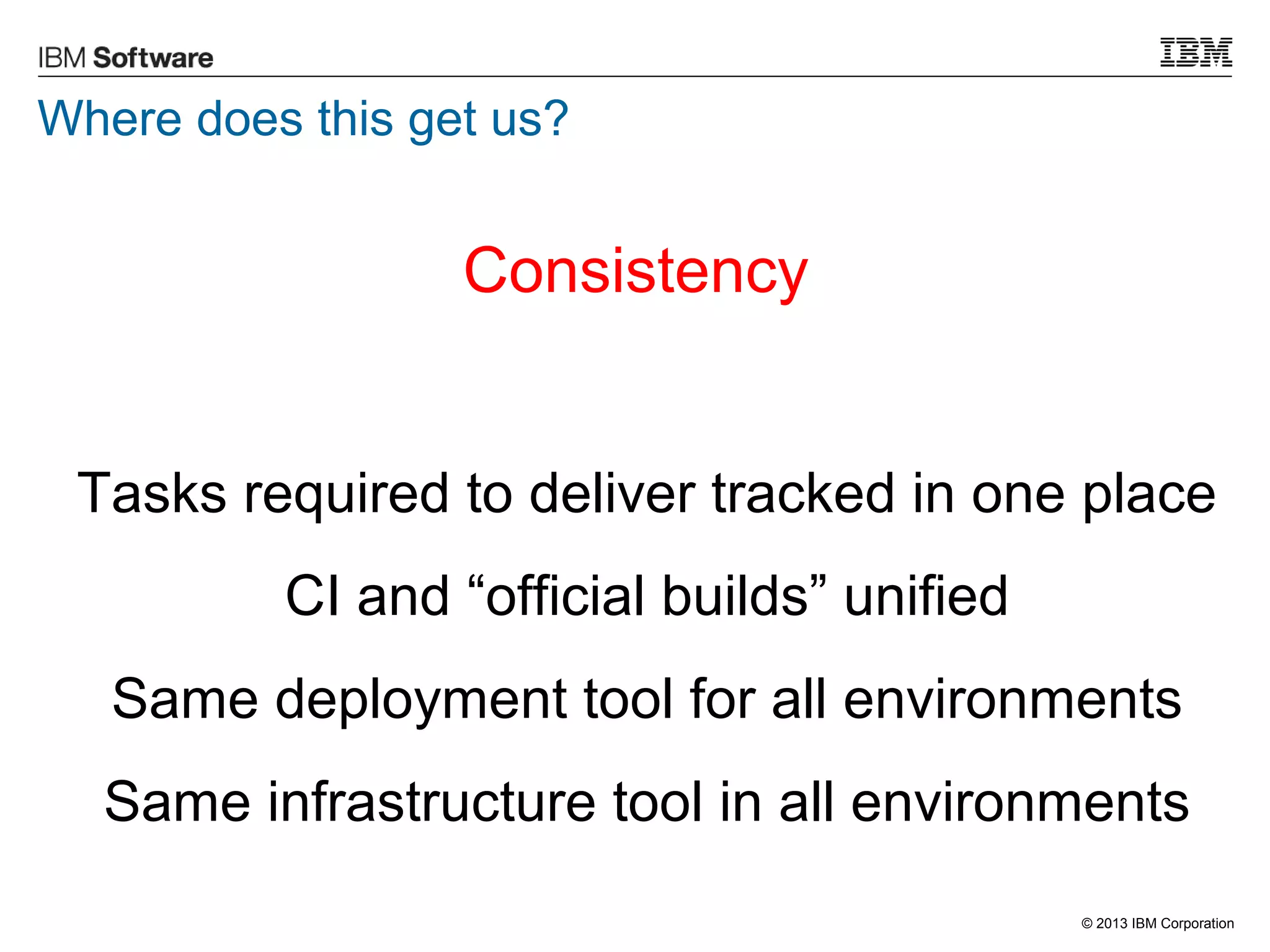

Where does this get us?
Consistency
Tasks required to deliver tracked in one place
CI and “official builds” unified
Same deployment tool for all environments
Same infrastructure tool in all environments

20. © 2013 IBM Corporation

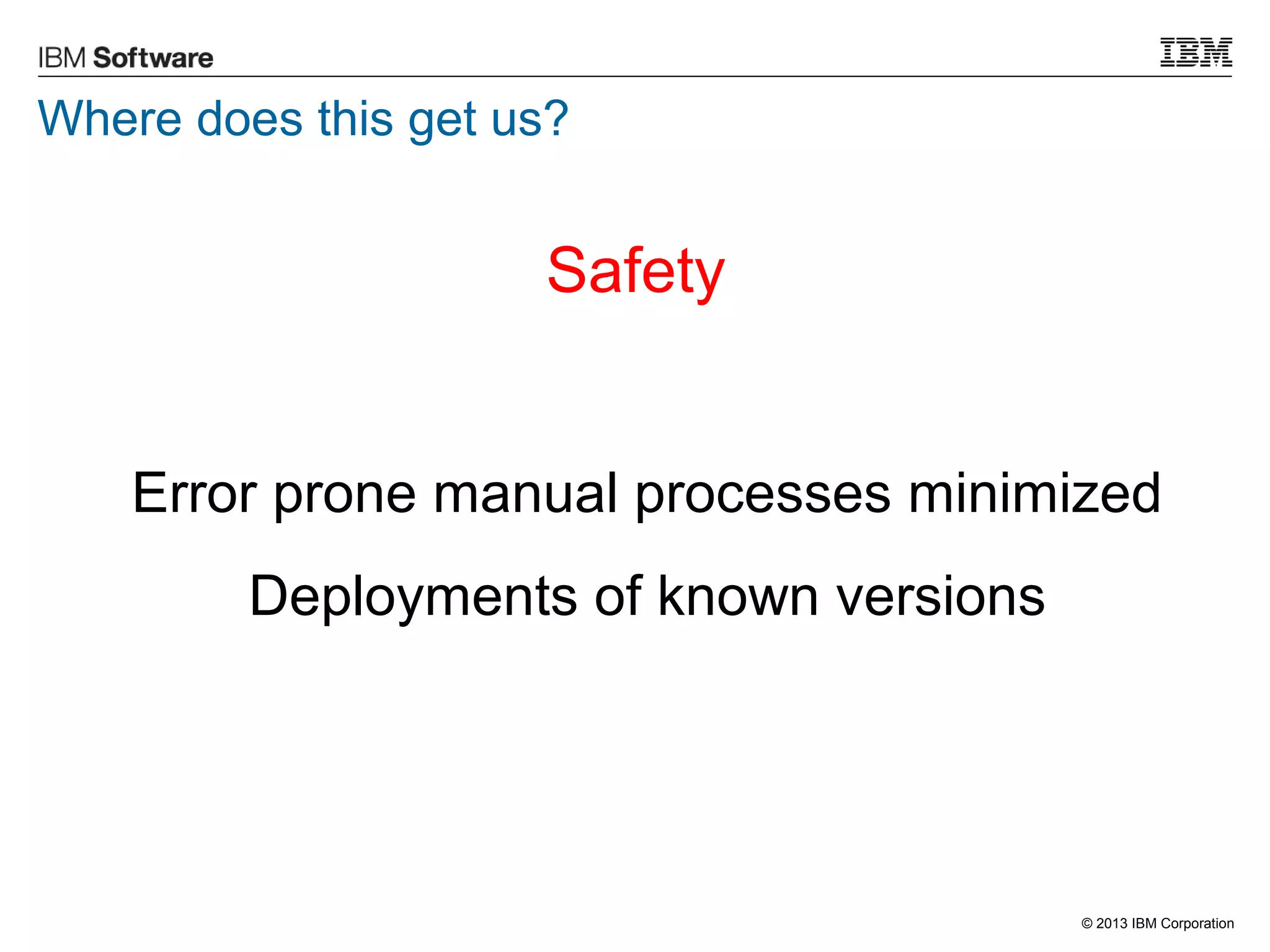

Where does this get us?
Safety
Error prone manual processes minimized
Deployments of known versions

21. © 2013 IBM Corporation

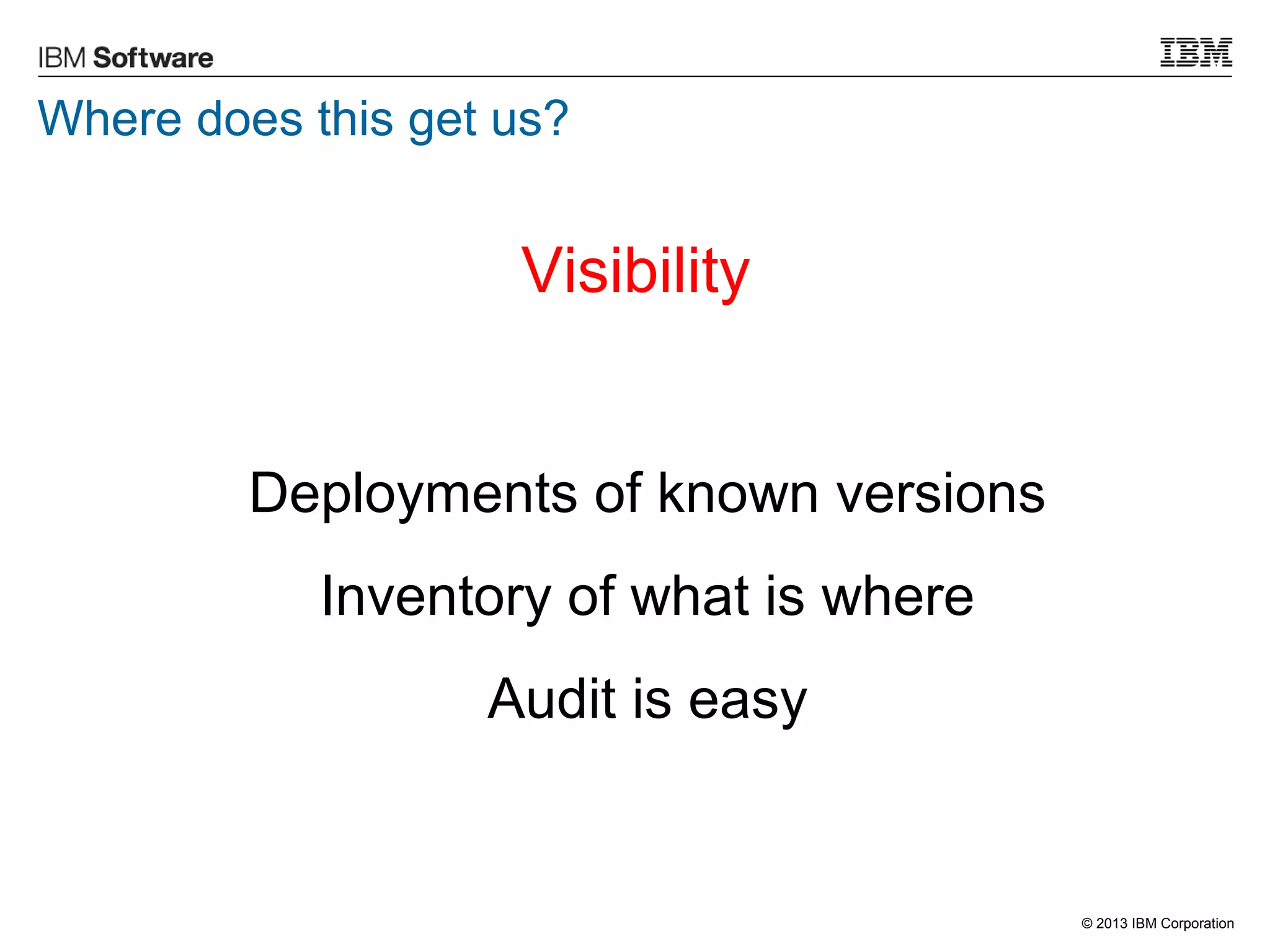

Where does this get us?
Visibility
Deployments of known versions
Inventory of what is where
Audit is easy

22. © 2013 IBM Corporation

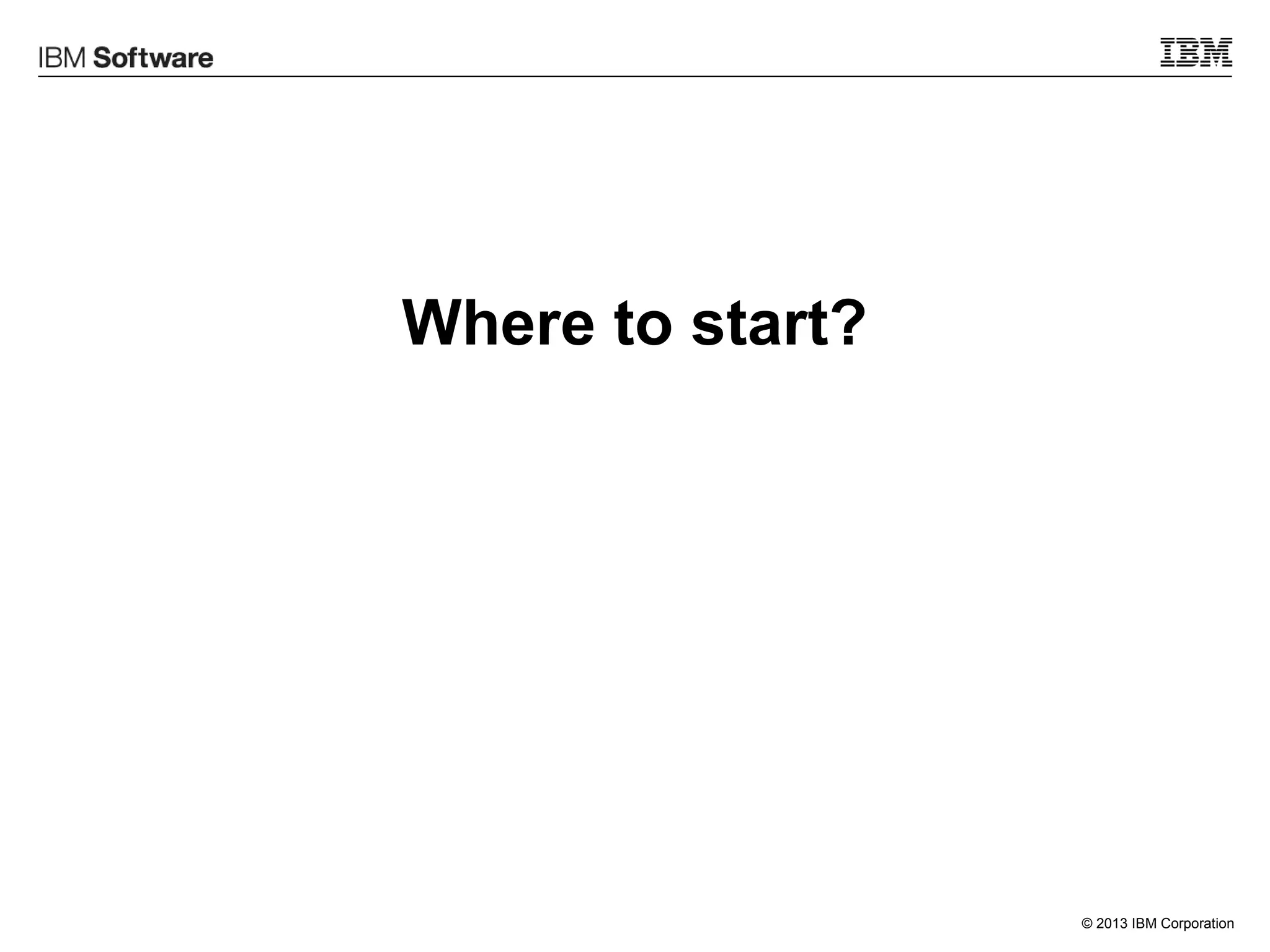

Where to start?

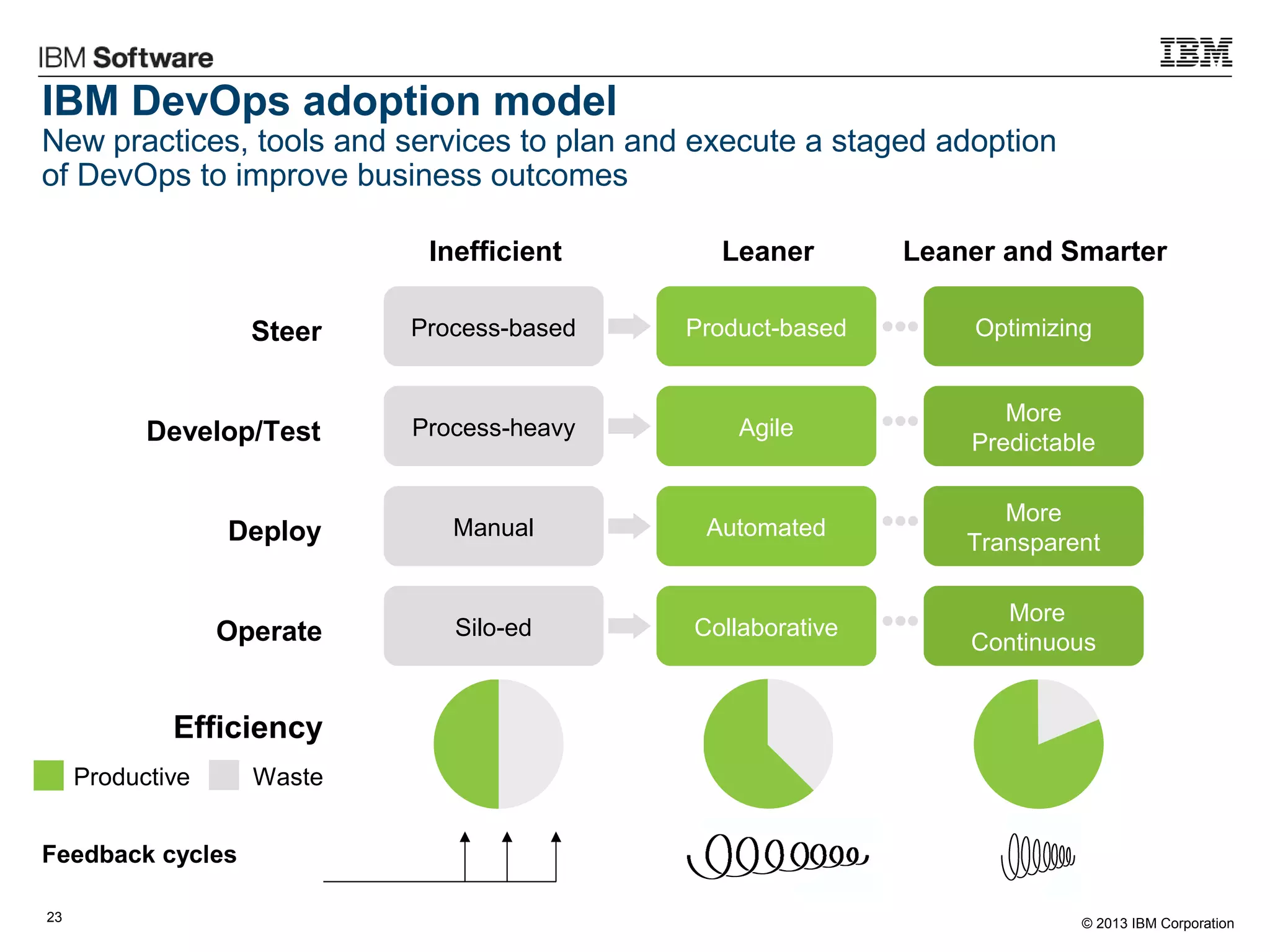

23. IBM DevOps adoption model
New practices, tools and services to plan and execute a staged adoption
of DevOps to improve business outcomes
Inefficient Leaner Leaner and Smarter
Steer Product-based
Develop/Test
Deploy
Operate
Efficiency
Productive Waste
Agile
Automated
Collaborative
Optimizing
More
Predictable
More
Transparent
More
Continuous
Process-based
Process-heavy
Manual
Silo-ed
Feedback cycles
© 2013 23 IBM Corporation

24. © 2013 IBM Corporation

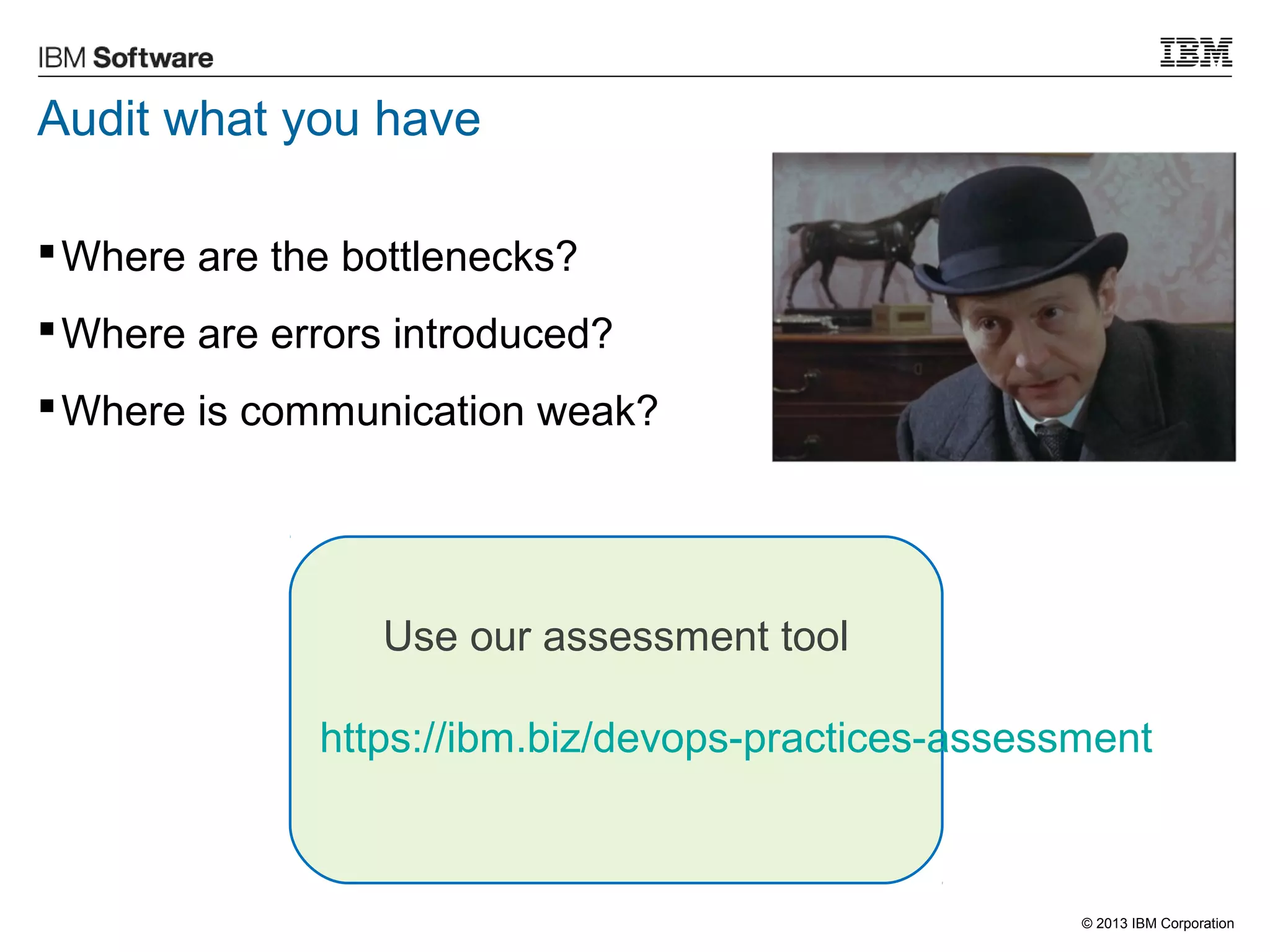

Audit what you have
Where are the bottlenecks?
Where are errors introduced?
Where is communication weak?
Use our assessment tool
https://ibm.biz/devops-practices-assessment

25. © 2013 IBM Corporation

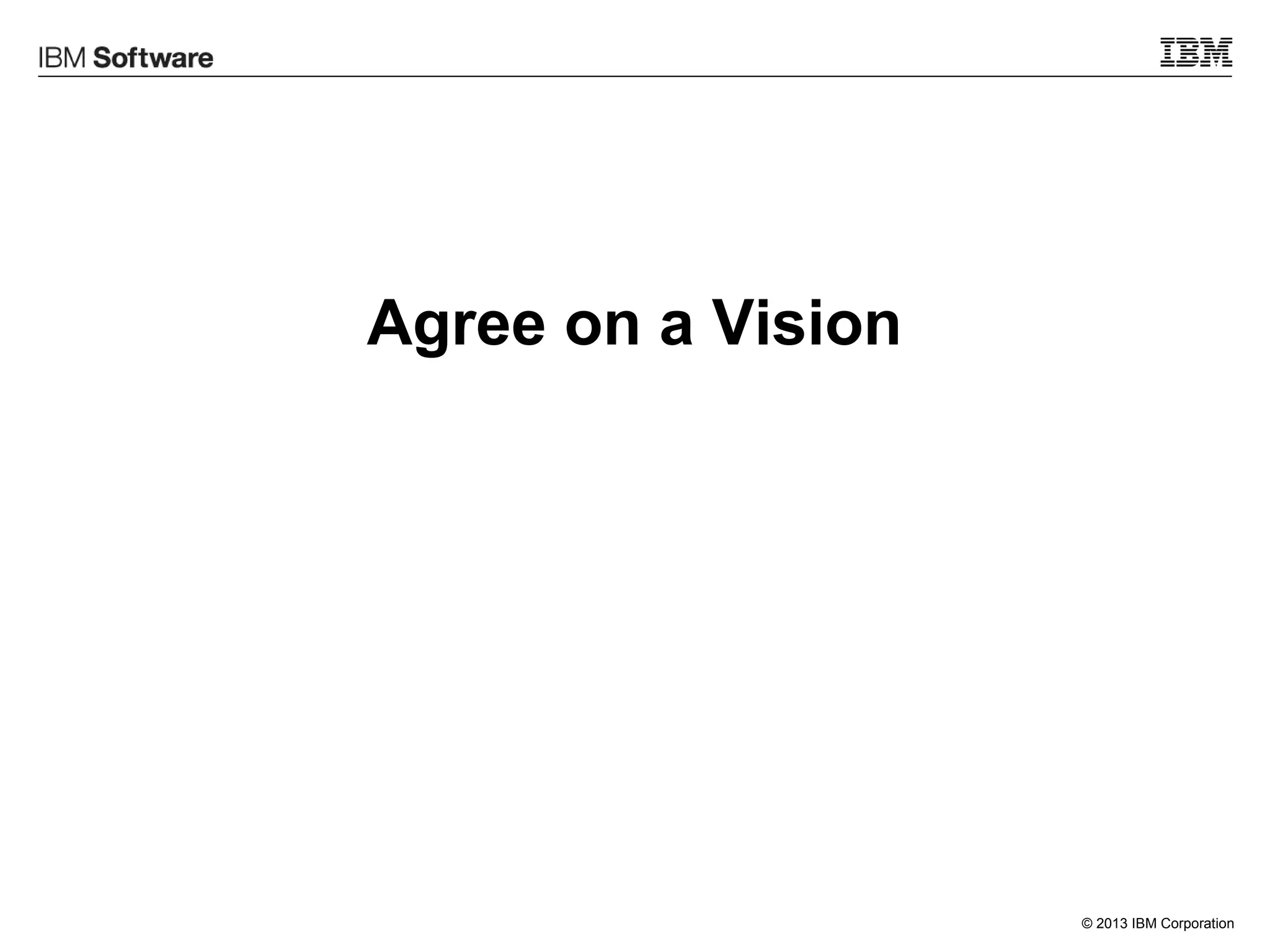

Agree on a Vision

26. © 2013 IBM Corporation

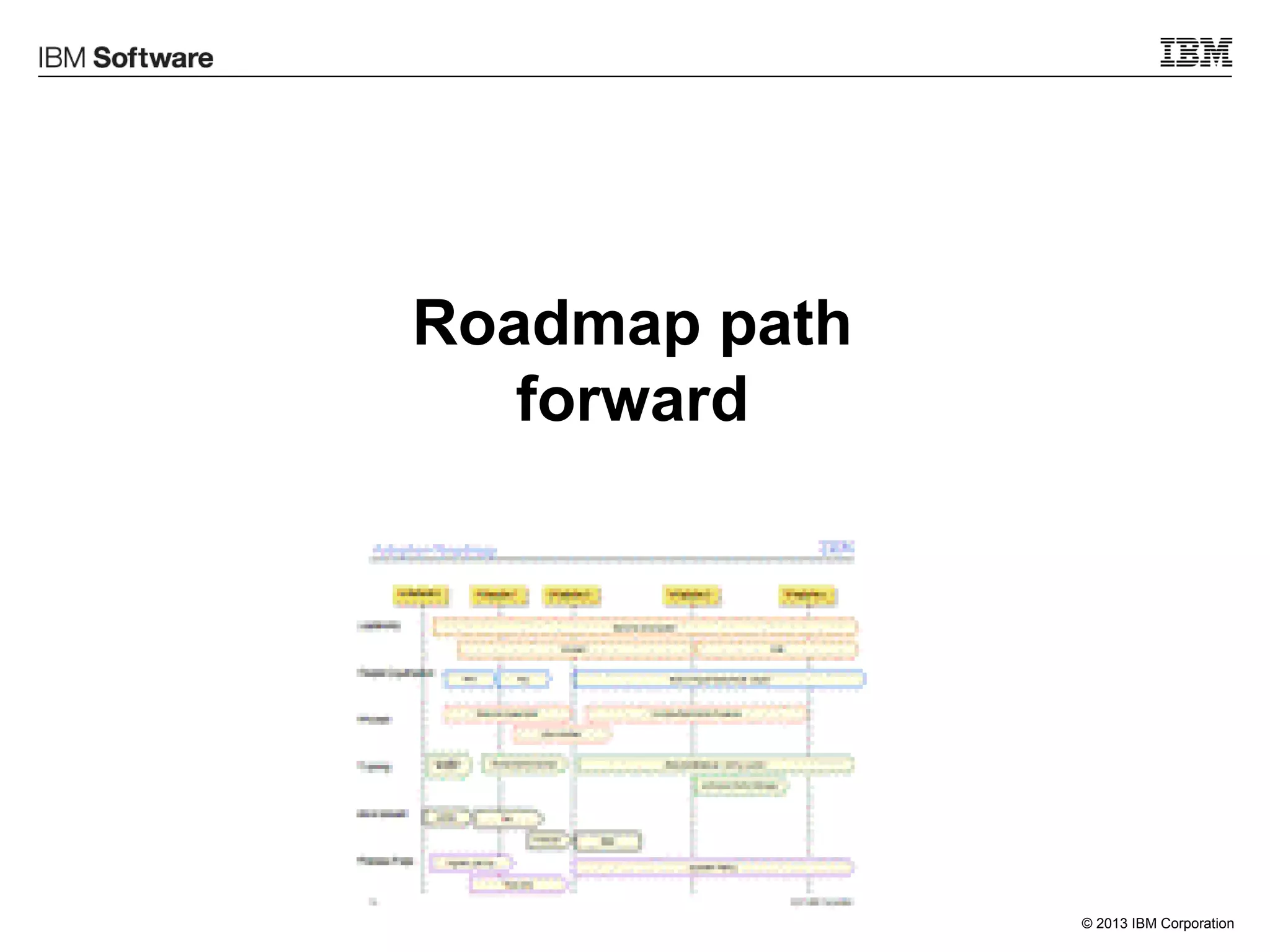

Roadmap path
forward

27. © 2013 IBM Corporation

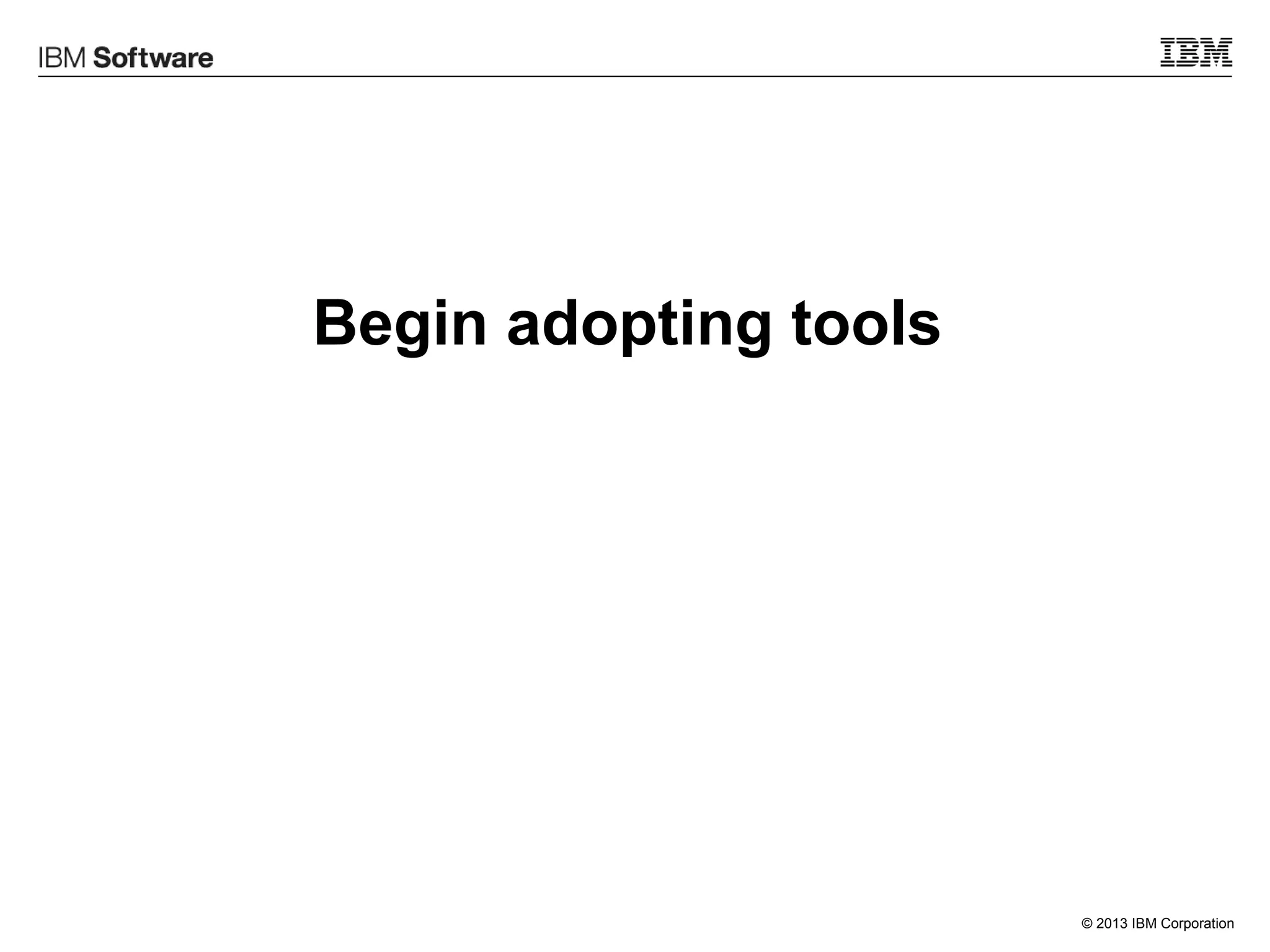

Begin adopting tools

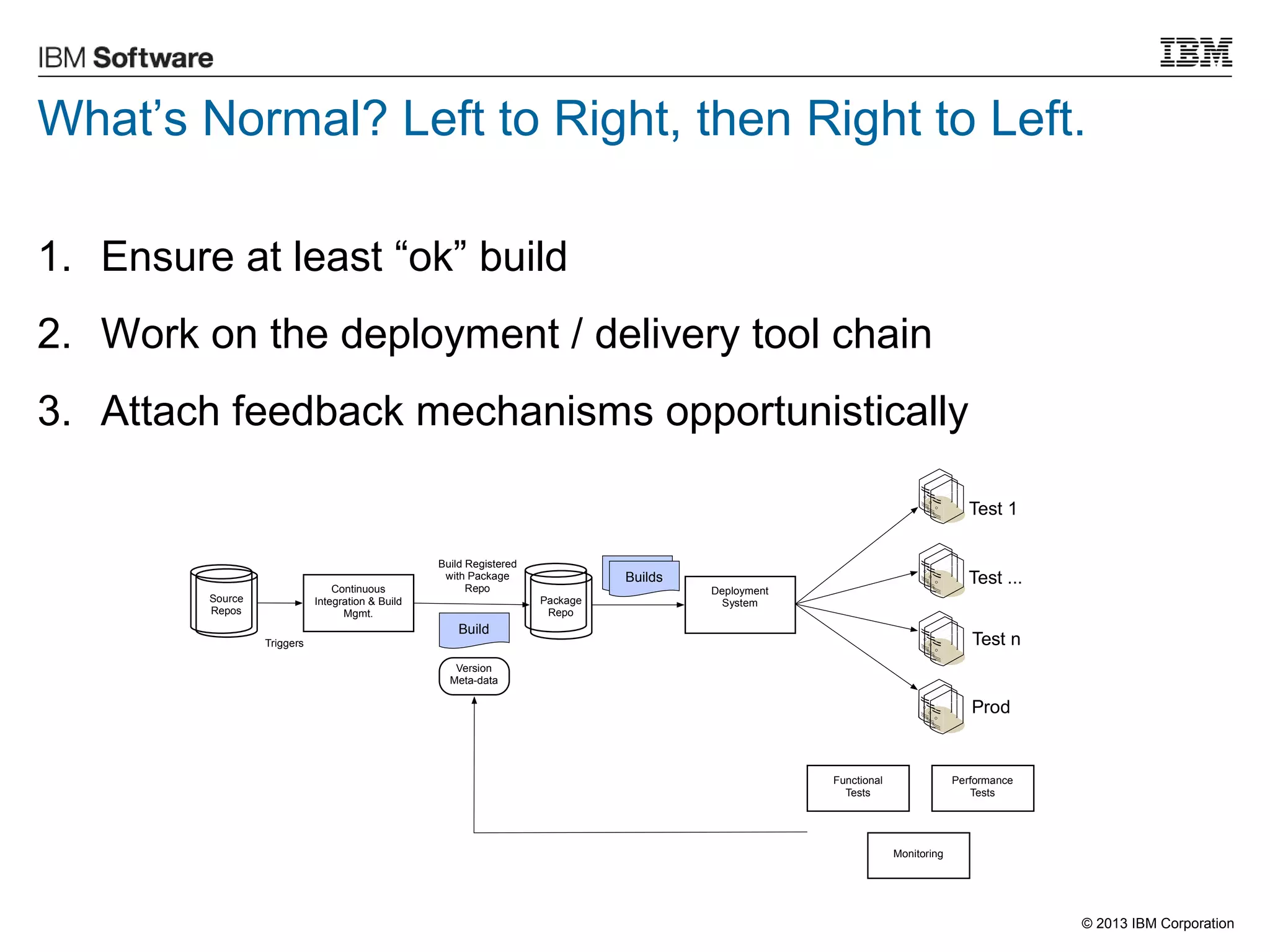

28. What’s Normal? Left to Right, then Right to Left.
© 2013 IBM Corporation
1. Ensure at least “ok” build
2. Work on the deployment / delivery tool chain
3. Attach feedback mechanisms opportunistically
Source
Repos
Continuous
Integration & Build
Mgmt.
Build
Package
Repo
Build Registered
with Package
Repo
Triggers
Version
Meta-data
Deployment
System
Builds
Test 1
Test ...
Test n
Prod
Functional
Tests
Performance
Tests
Monitoring

29. © 2013 IBM Corporation

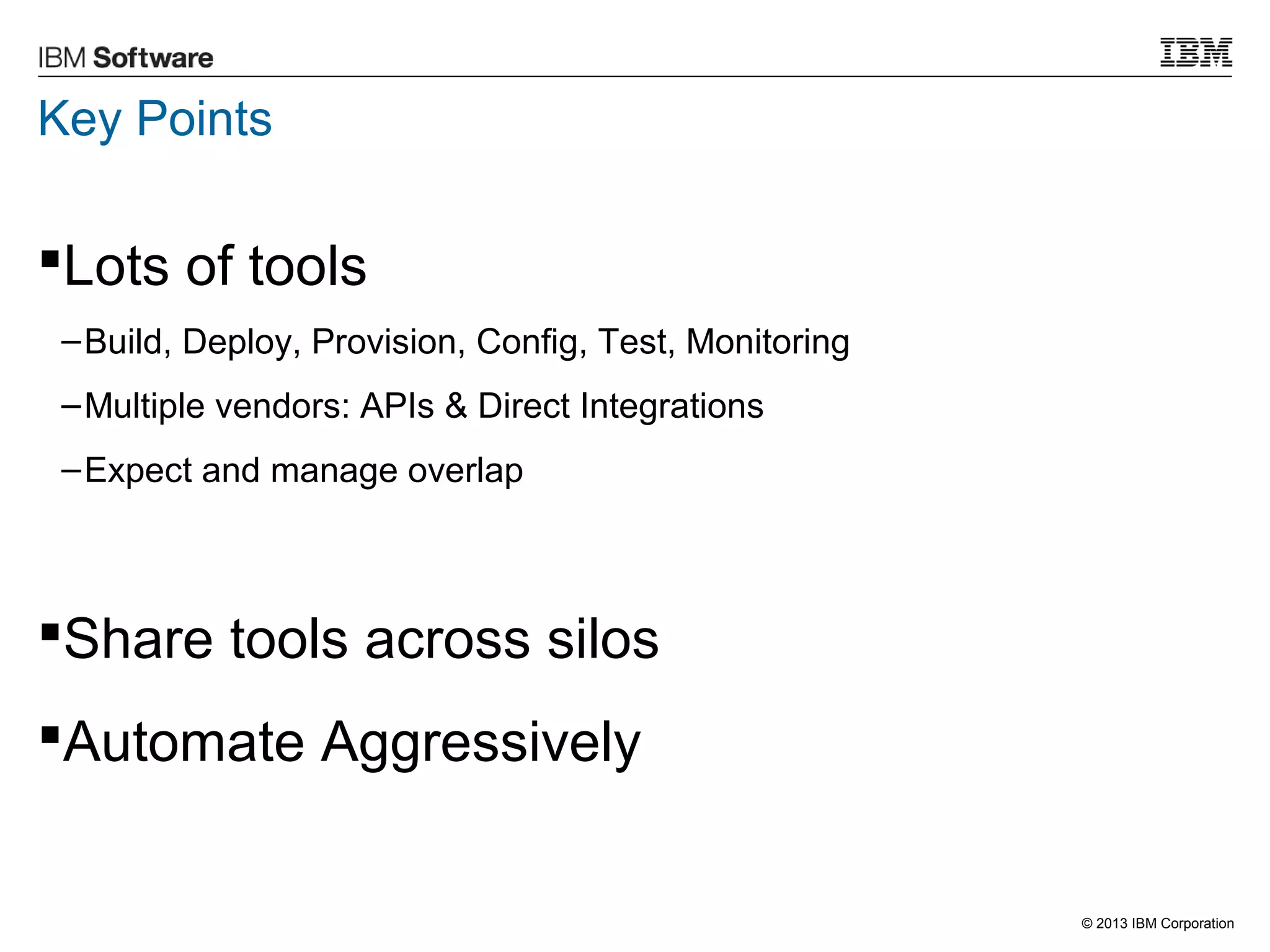

Key Points
Lots of tools
–Build, Deploy, Provision, Config, Test, Monitoring
–Multiple vendors: APIs & Direct Integrations
–Expect and manage overlap
Share tools across silos
Automate Aggressively

30. © 2013 IBM Corporation

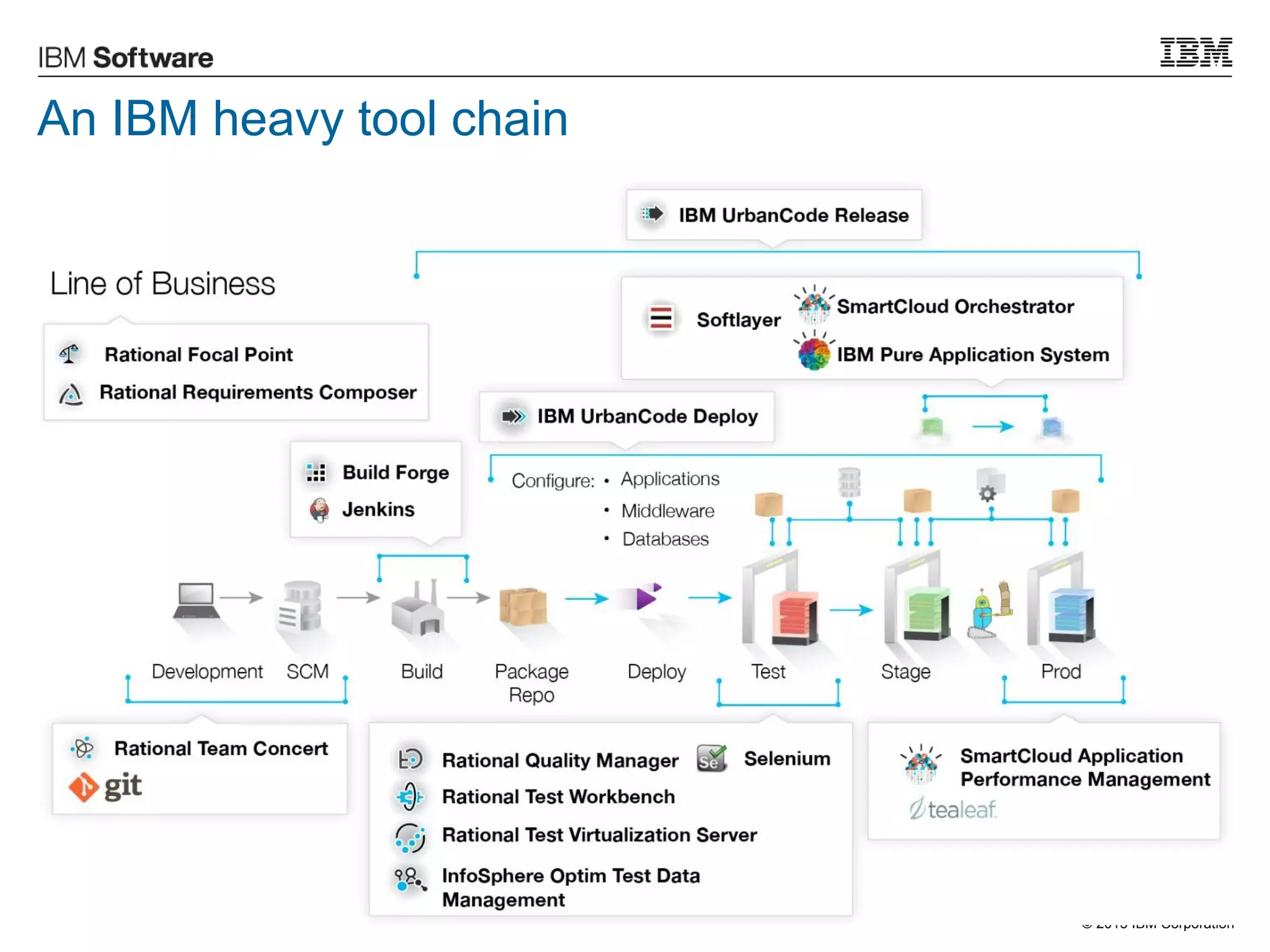

An IBM heavy tool chain

31. © 2013 IBM Corporation

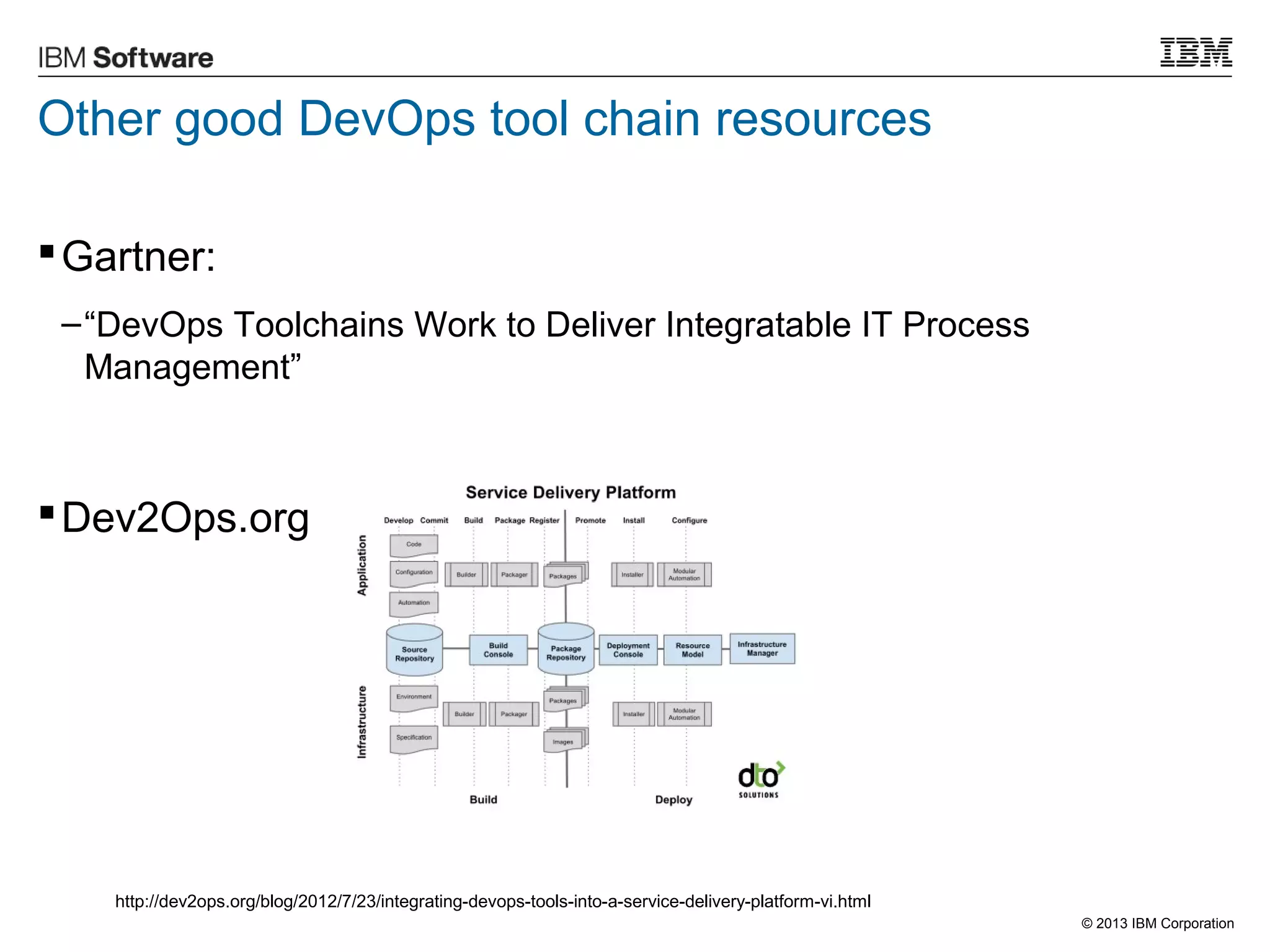

Other good DevOps tool chain resources
Gartner:
–“DevOps Toolchains Work to Deliver Integratable IT Process
Management”
Dev2Ops.org
http://dev2ops.org/blog/2012/7/23/integrating-devops-tools-into-a-service-delivery-platform-vi.html

32. © 2013 IBM Corporation

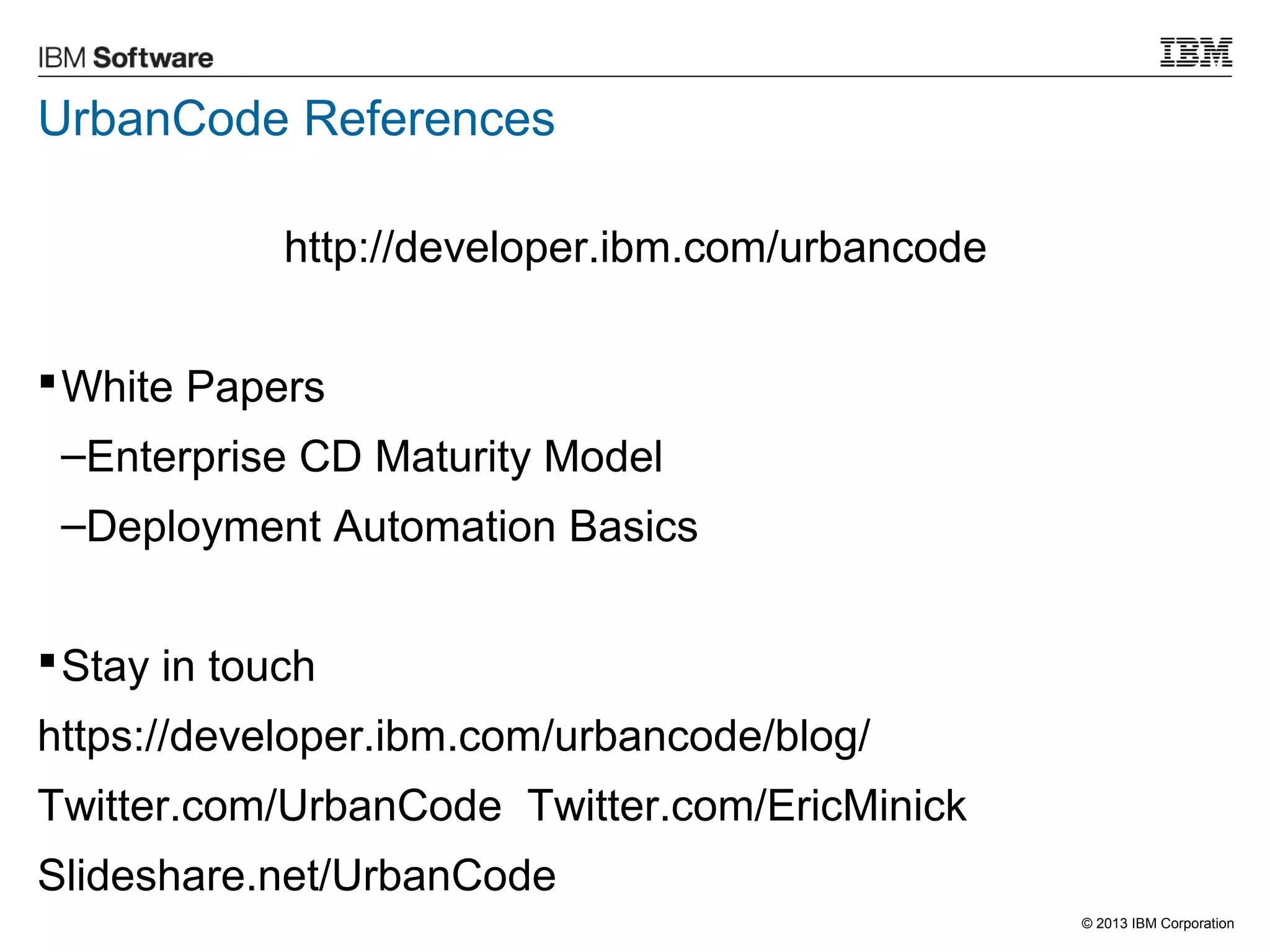

UrbanCode References
http://developer.ibm.com/urbancode
White Papers
–Enterprise CD Maturity Model
–Deployment Automation Basics
Stay in touch
https://developer.ibm.com/urbancode/blog/
Twitter.com/UrbanCode Twitter.com/EricMinick
Slideshare.net/UrbanCode

33. © 2013 IBM Corporation
Q&A
@UrbanCode
@EricMinick
Slideshare.net/urbancode
Developer.ibm.com/urbancode/
