1. How dose the solar
power
system work ?
الشمسية؟ الطاقة نظام يعمل كيف

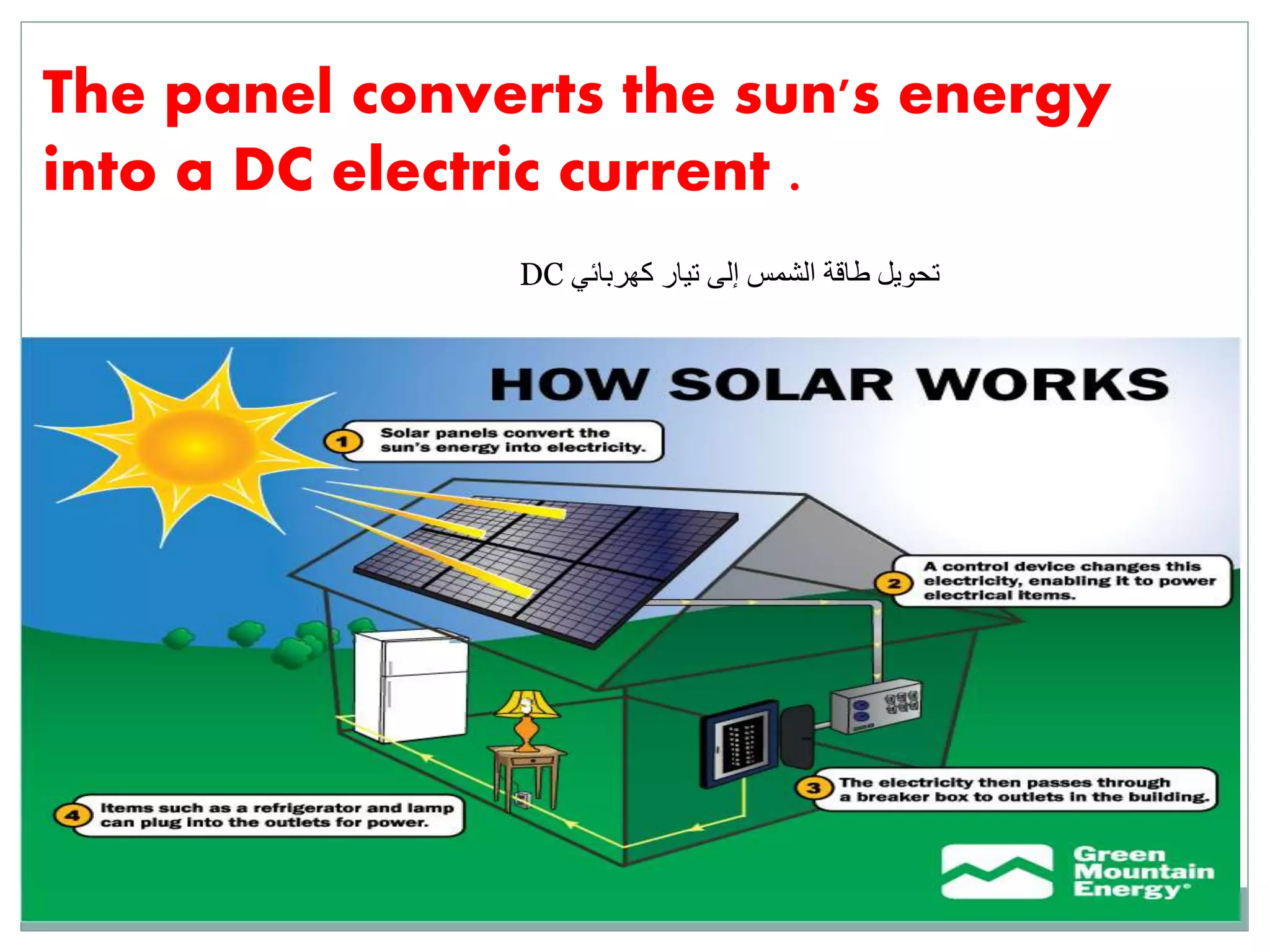

2. The panel converts the sun's energy
into a DC electric current .
كهربائي تيار إلى الشمس طاقة تحويلDC

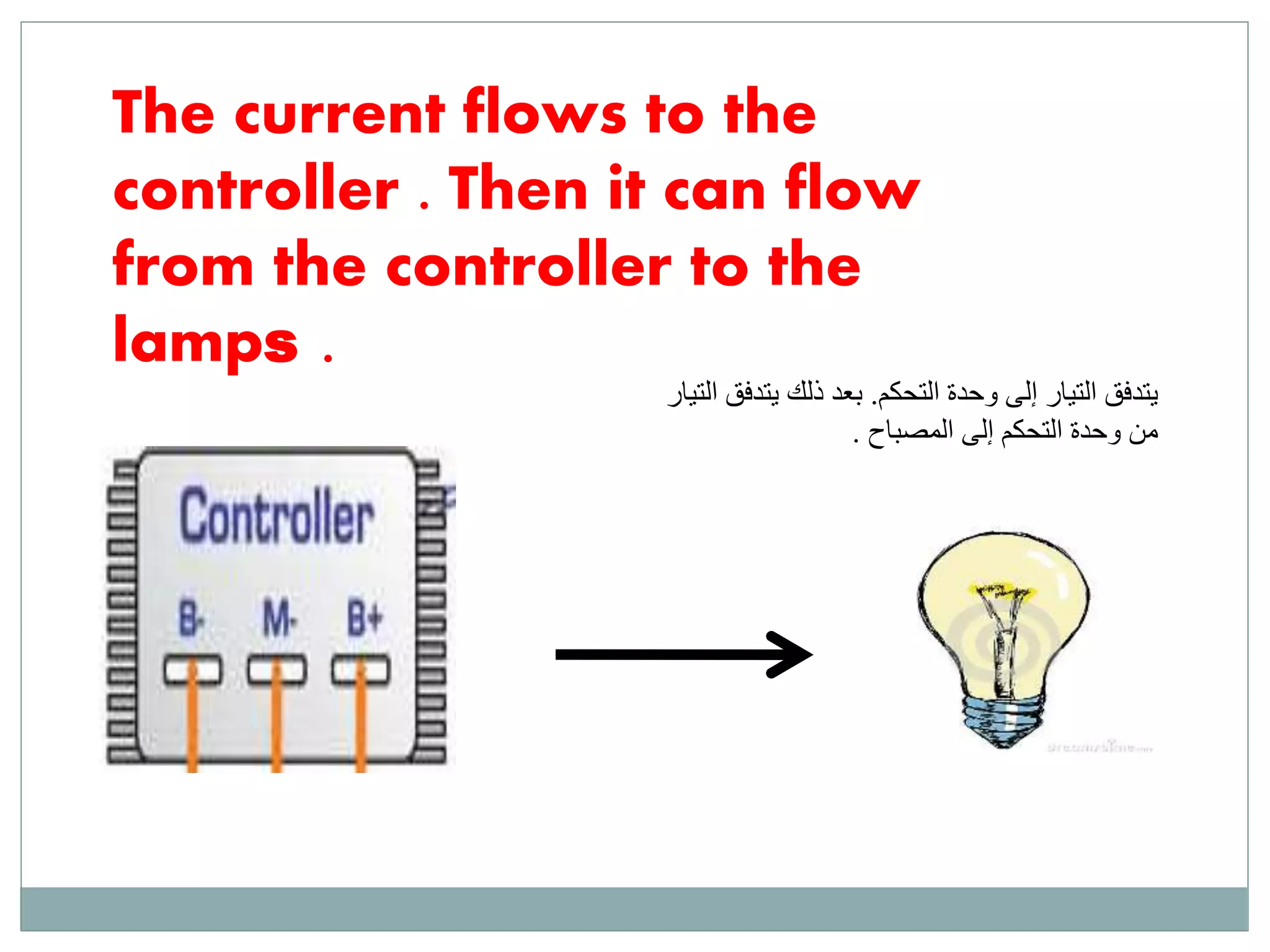

3. The current flows to the
controller . Then it can flow
from the controller to the
lamps
التحكم وحدة إلى التيار يتدفق.يتد ذلك بعدالتيار فق
المصباح إلى التحكم وحدة من.
.

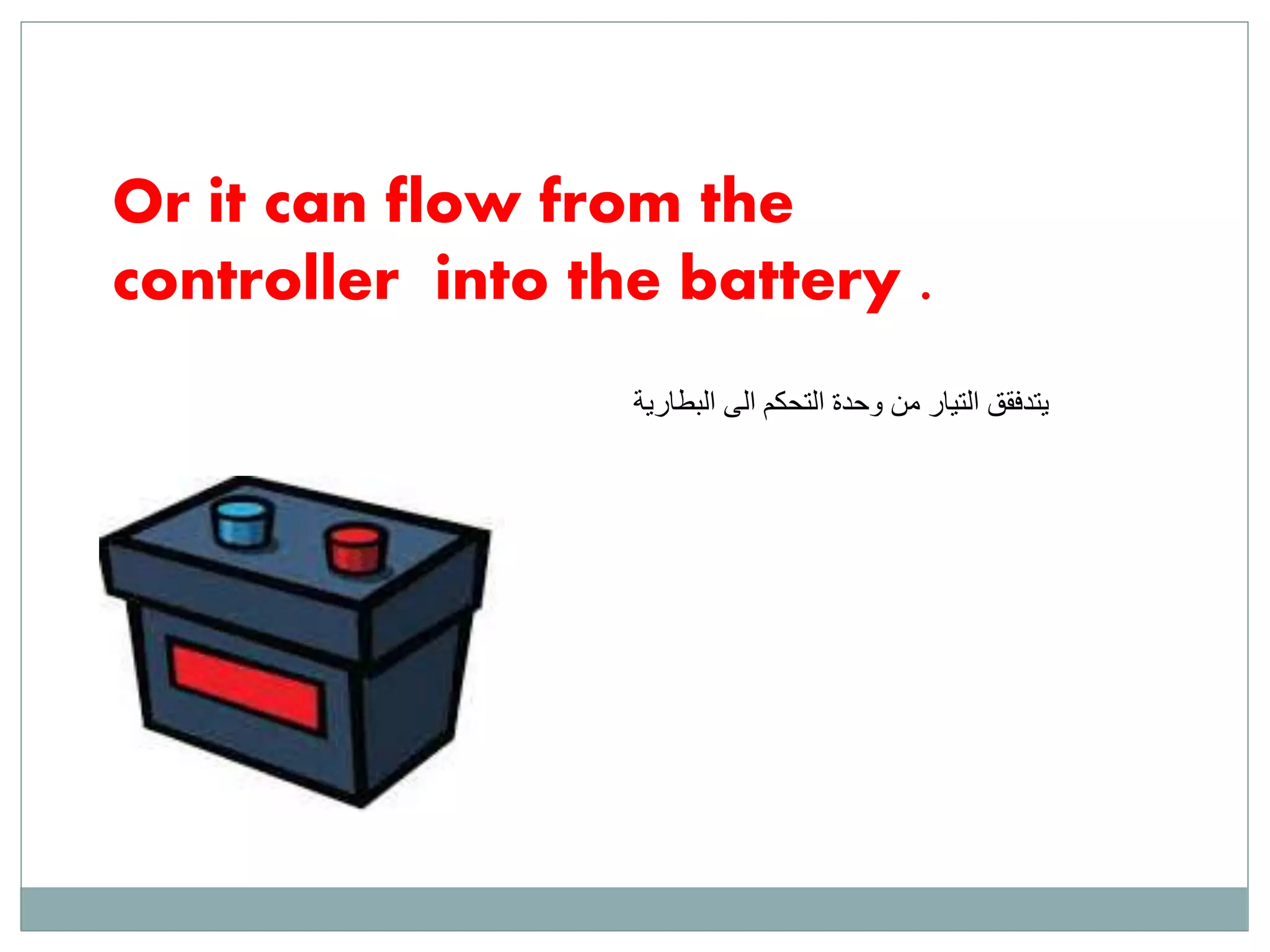

4. Or it can flow from the
controller into the battery .
يتدفققالتحكم وحدة من التيارالىالبطارية

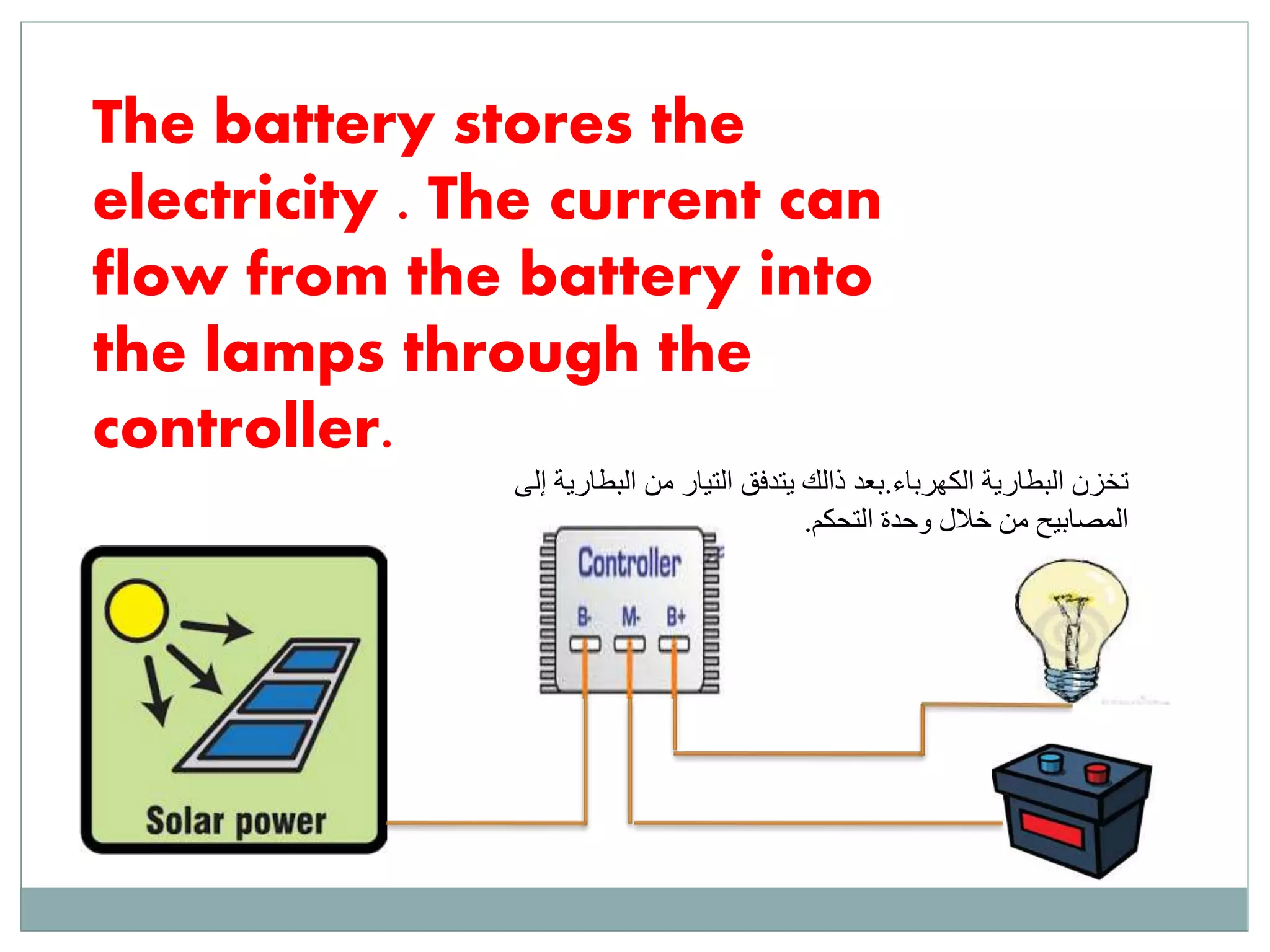

5. The battery stores the
electricity . The current can
flow from the battery into
the lamps through the
controller.
الكهرباء البطارية تخزن.الب من التيار يتدفق ذالك بعدإلى طارية
التحكم وحدة خالل من المصابيح.

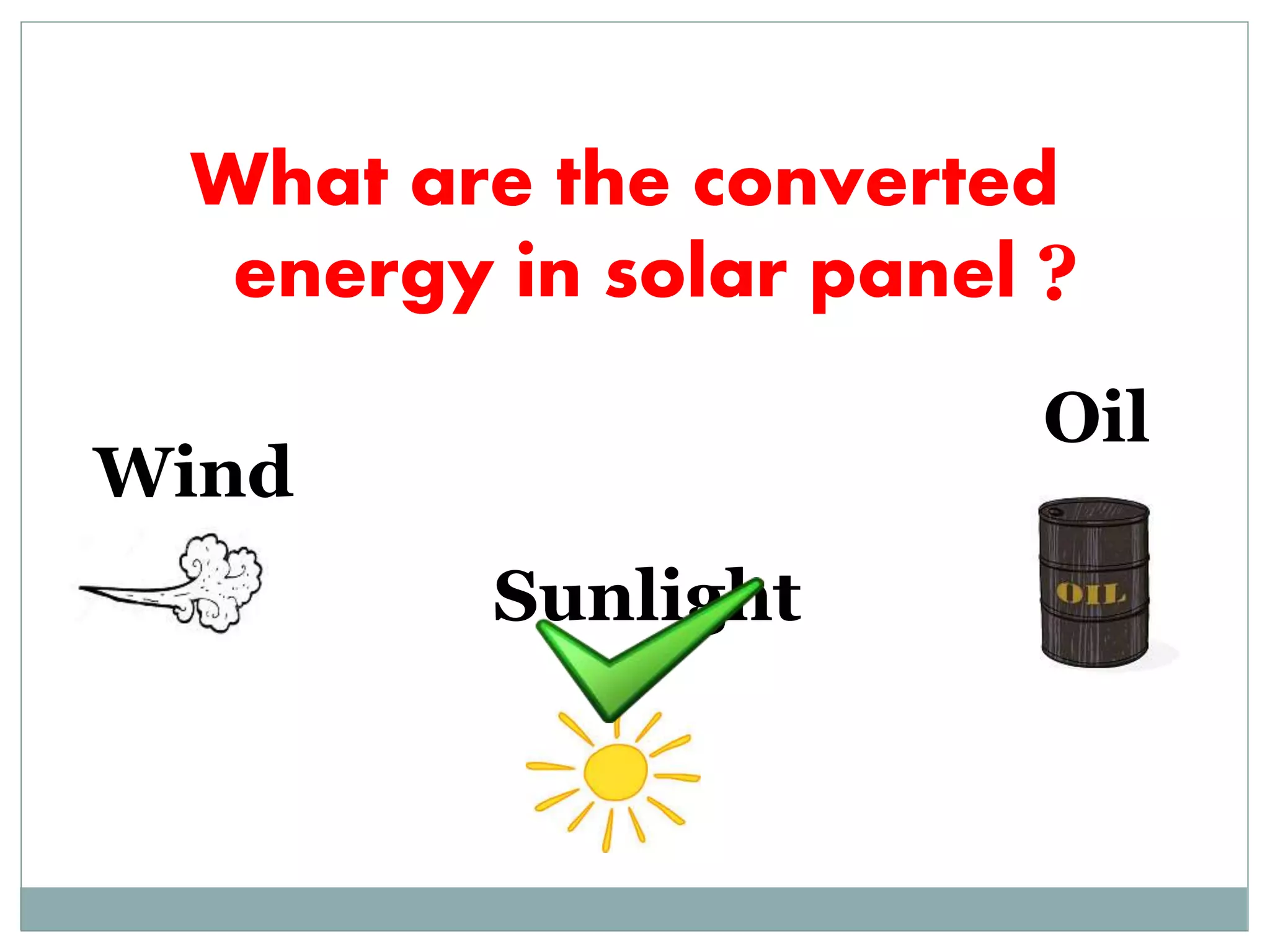

6. What are the converted
energy in solar panel
Sunlight
Oil
Wind
?

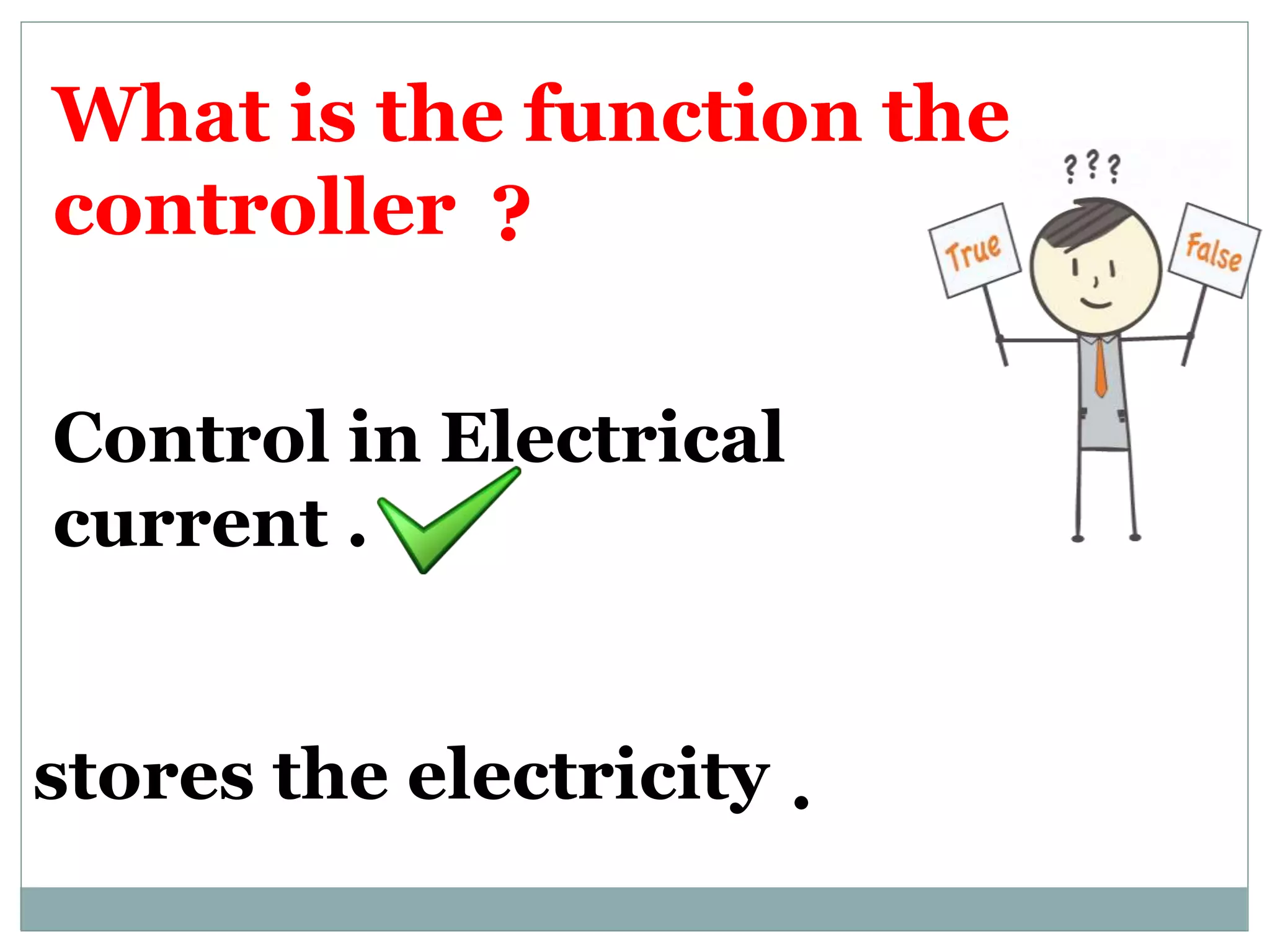

7. What is the function the
controller
Control in Electrical
current .
stores the electricity .
?

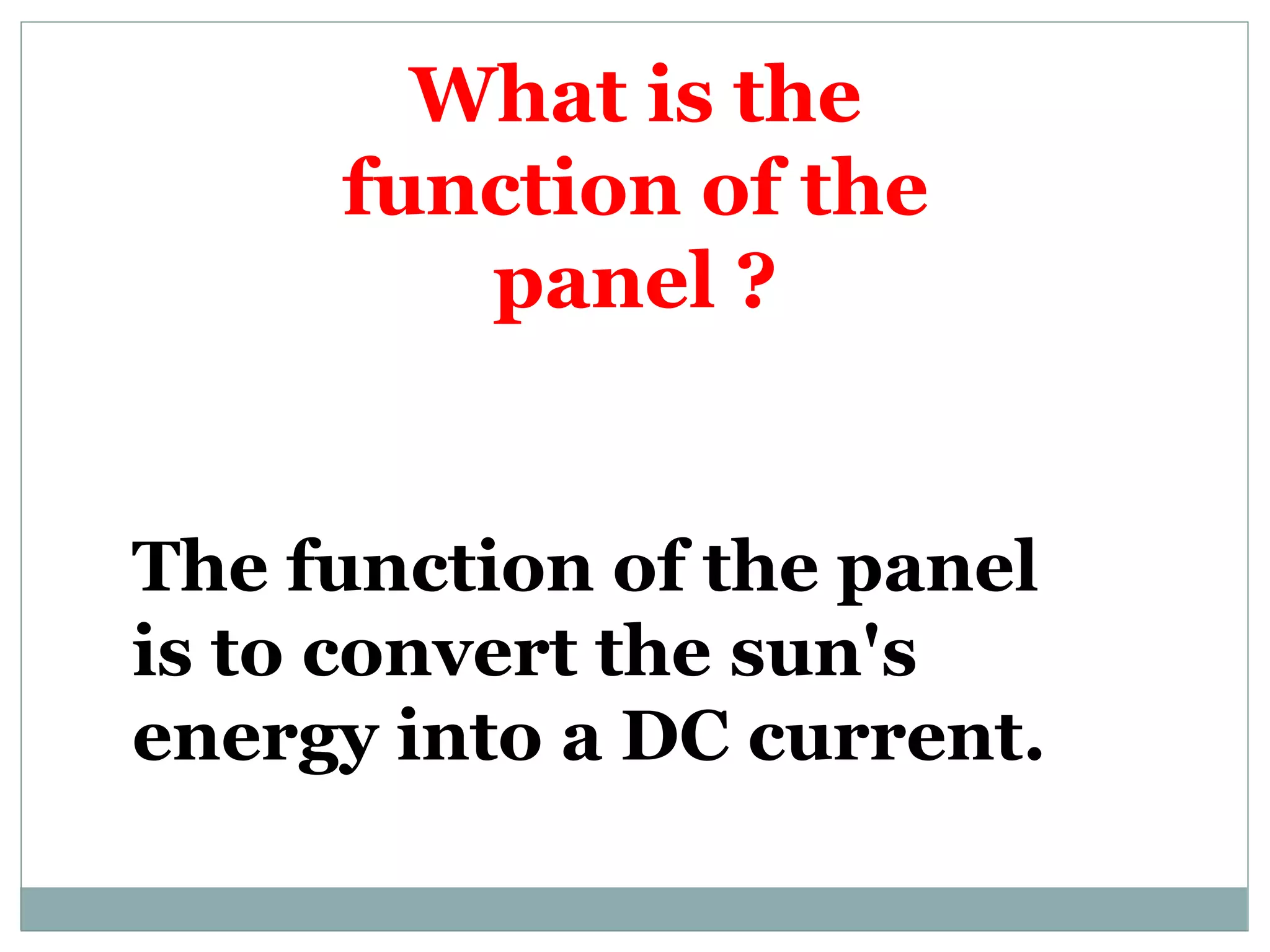

8. What is the
function of the
panel ?
The function of the panel
is to convert the sun's
energy into a DC current.
