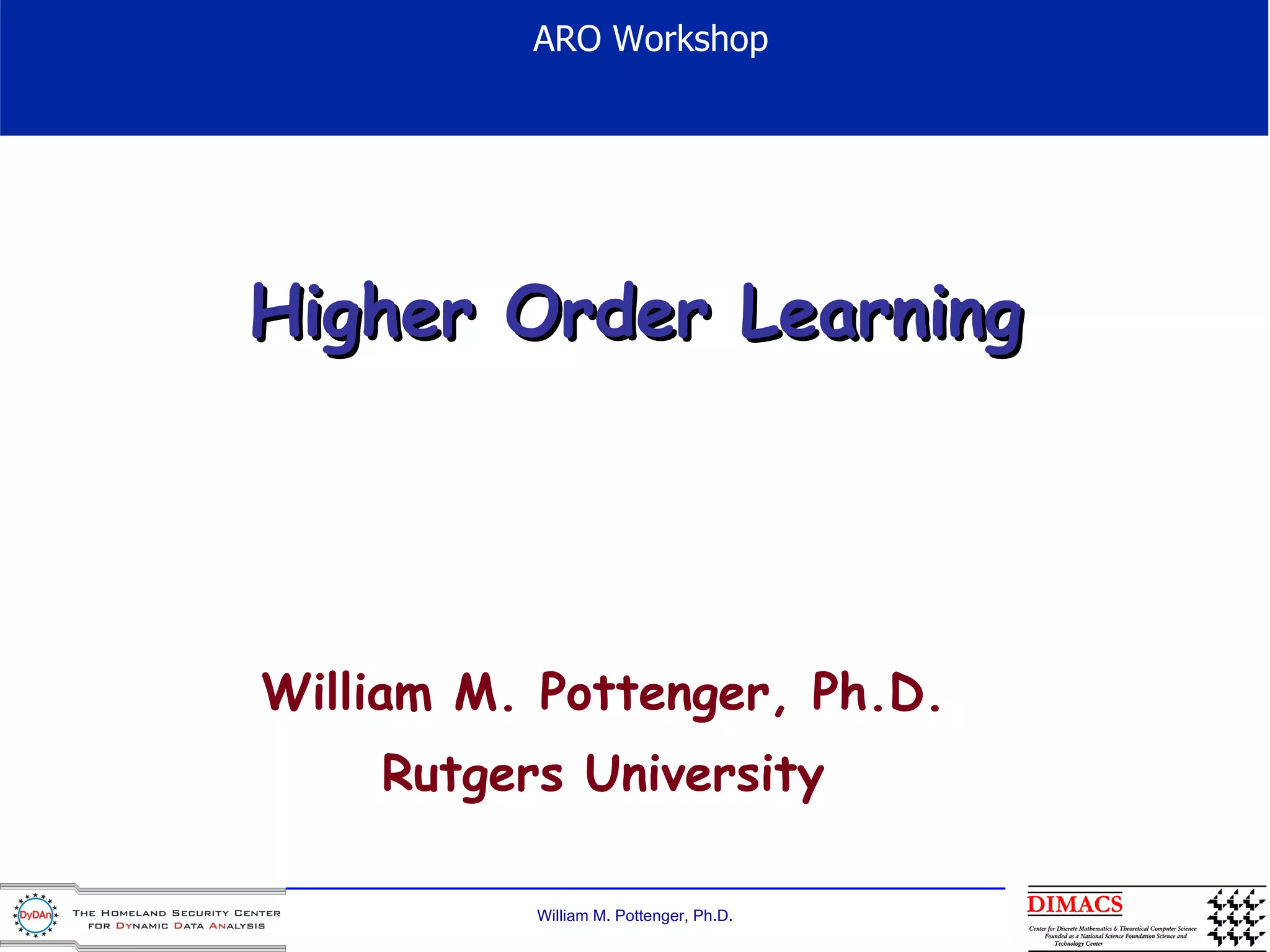

1. Higher Order Learning William M. Pottenger, Ph.D. Rutgers University ARO Workshop

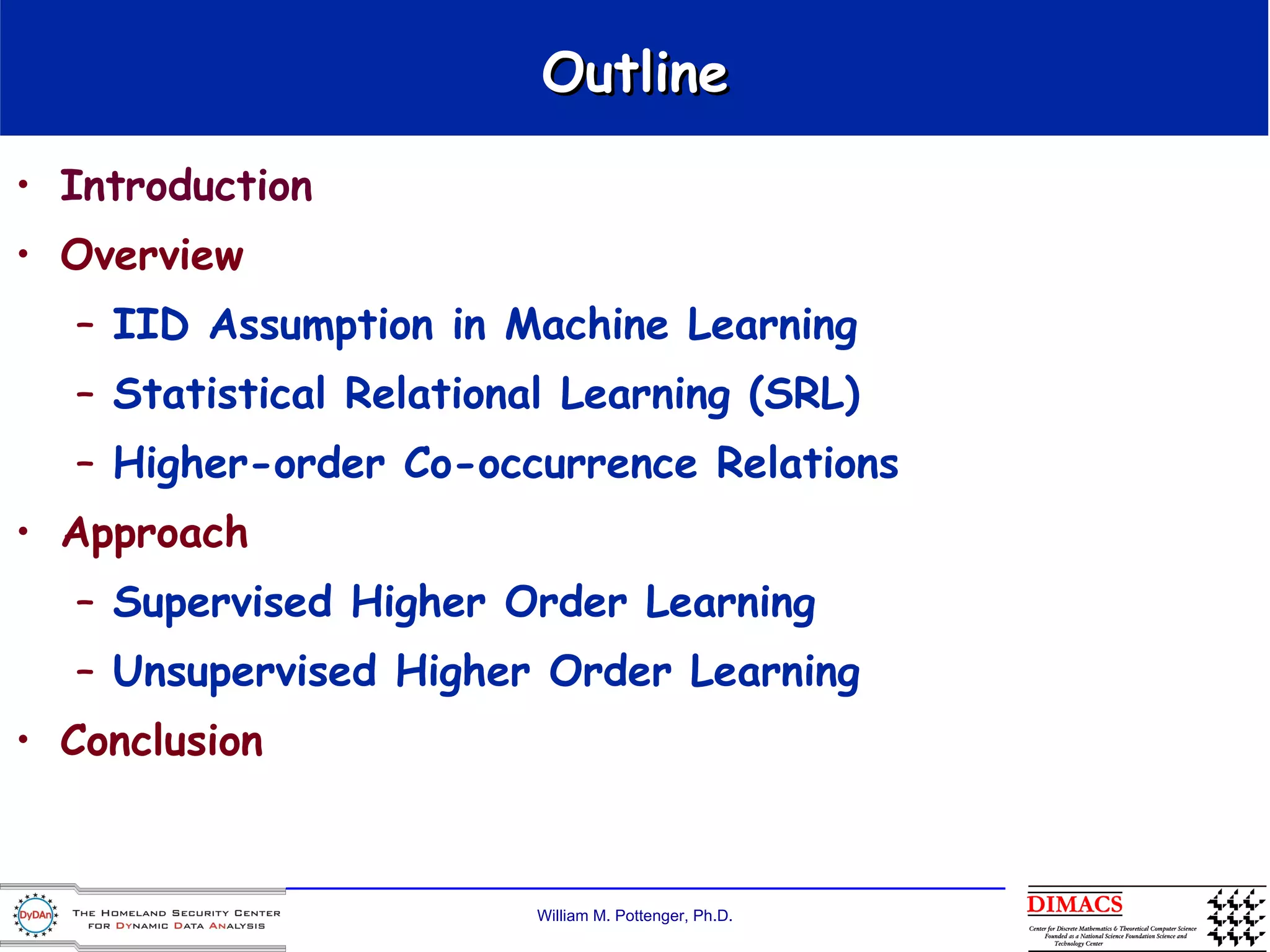

2. Introduction Overview IID Assumption in Machine Learning Statistical Relational Learning (SRL) Higher-order Co-occurrence Relations Approach Supervised Higher Order Learning Unsupervised Higher Order Learning Conclusion Outline

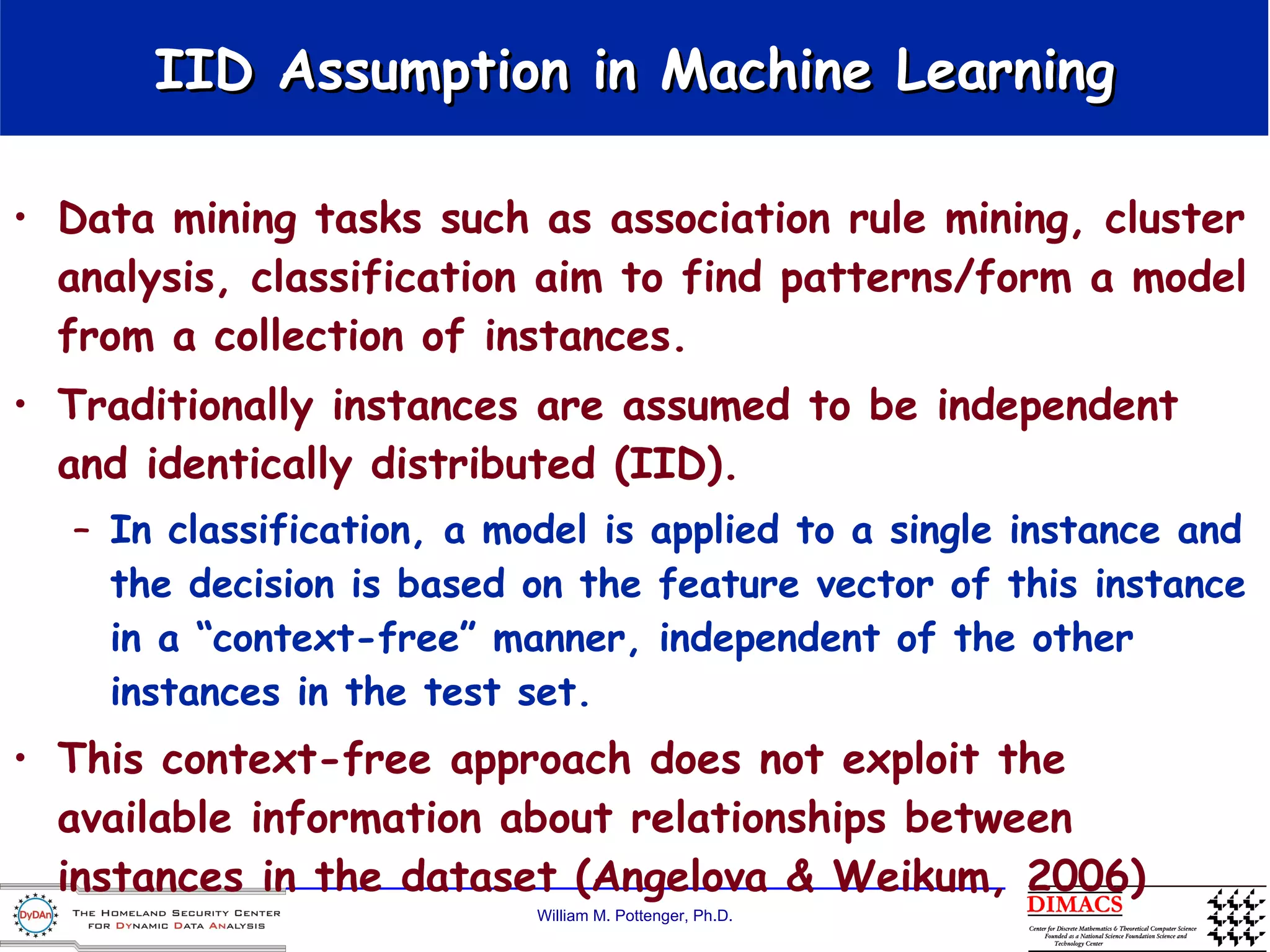

3. IID Assumption in Machine Learning Data mining tasks such as association rule mining, cluster analysis, classification aim to find patterns/form a model from a collection of instances. Traditionally instances are assumed to be independent and identically distributed (IID). In classification, a model is applied to a single instance and the decision is based on the feature vector of this instance in a “context-free” manner, independent of the other instances in the test set. This context-free approach does not exploit the available information about relationships between instances in the dataset (Angelova & Weikum, 2006)

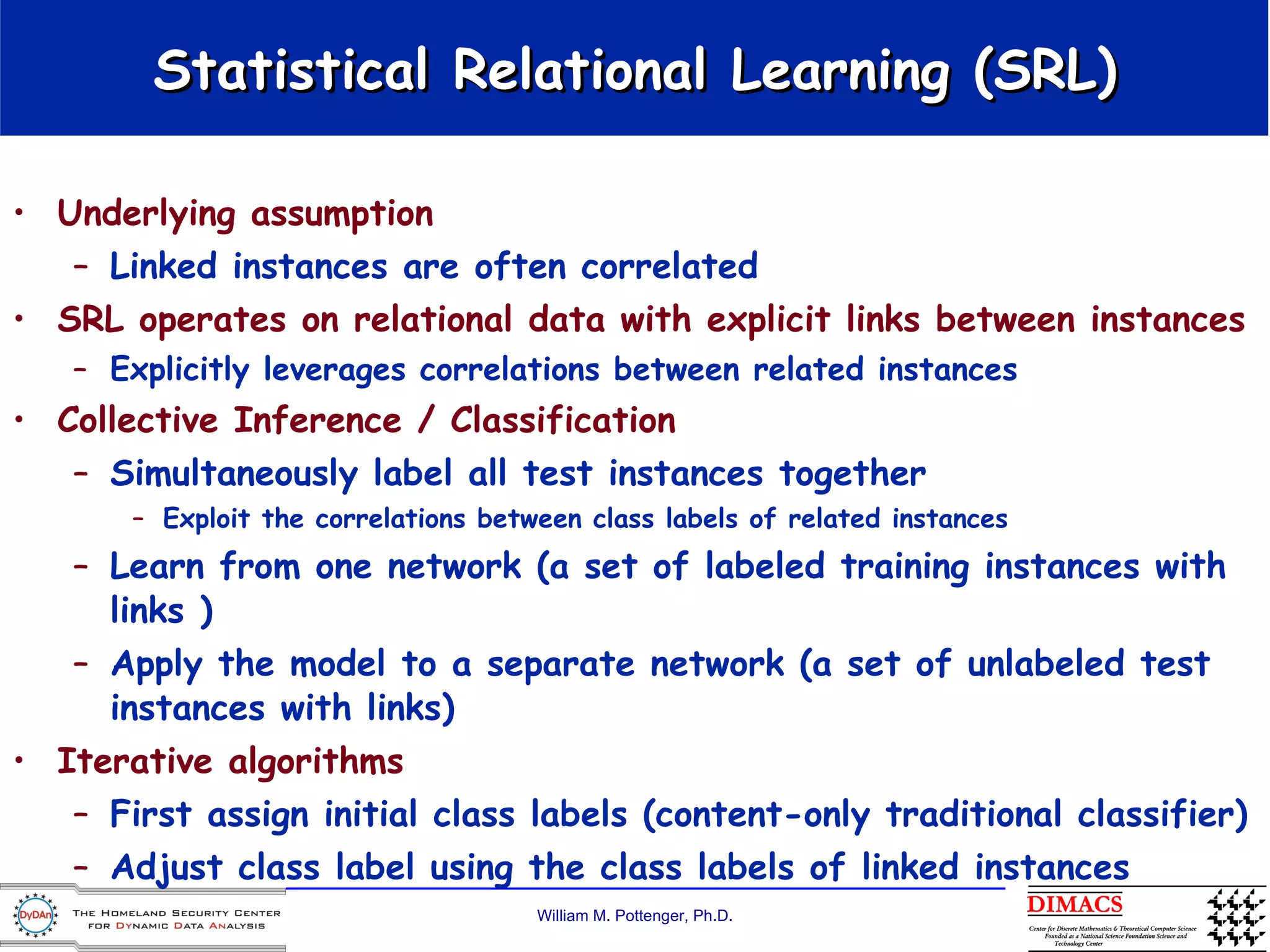

4. Statistical Relational Learning (SRL) Underlying assumption Linked instances are often correlated SRL operates on relational data with explicit links between instances Explicitly leverages correlations between related instances Collective Inference / Classification Simultaneously label all test instances together Exploit the correlations between class labels of related instances Learn from one network (a set of labeled training instances with links ) Apply the model to a separate network (a set of unlabeled test instances with links) Iterative algorithms First assign initial class labels (content-only traditional classifier) Adjust class label using the class labels of linked instances

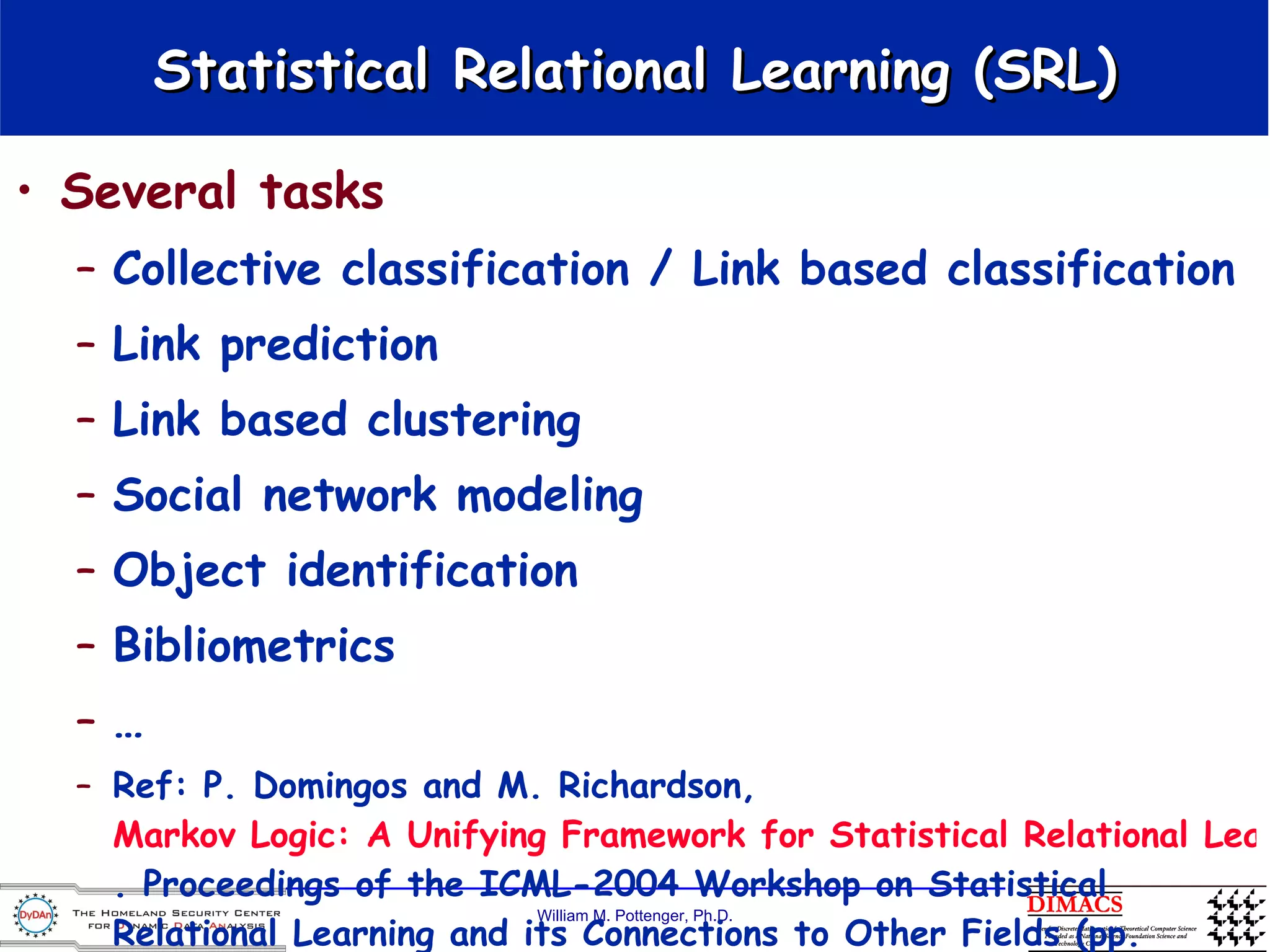

5. Statistical Relational Learning (SRL) Several tasks Collective classification / Link based classification Link prediction Link based clustering Social network modeling Object identification Bibliometrics … Ref: P. Domingos and M. Richardson, Markov Logic: A Unifying Framework for Statistical Relational Learning . Proceedings of the ICML-2004 Workshop on Statistical Relational Learning and its Connections to Other Fields (pp. 49-54), 2004. Banff, Canada: IMLS.

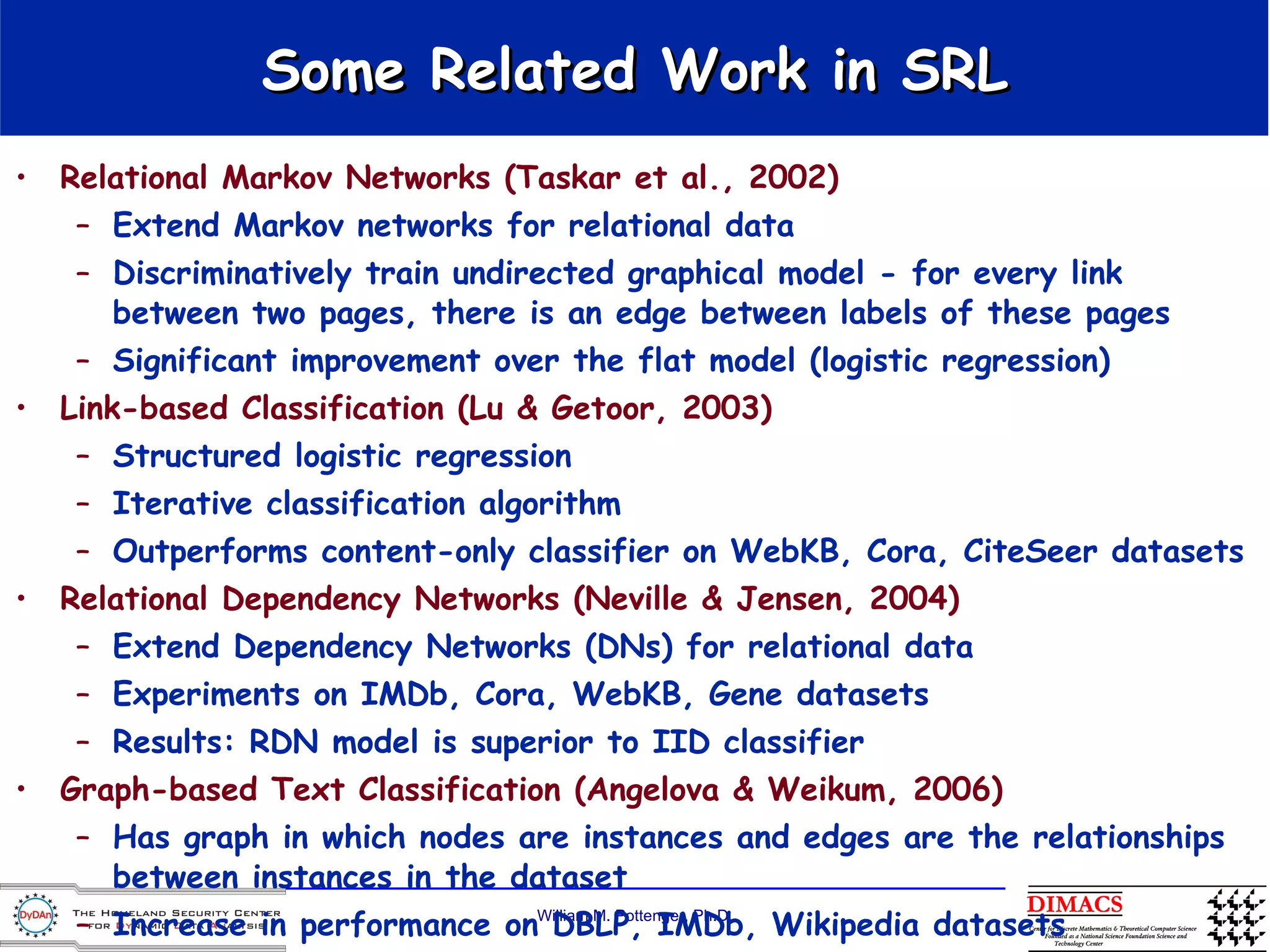

6. Some Related Work in SRL Relational Markov Networks (Taskar et al., 2002) Extend Markov networks for relational data Discriminatively train undirected graphical model - for every link between two pages, there is an edge between labels of these pages Significant improvement over the flat model (logistic regression) Link-based Classification (Lu & Getoor, 2003) Structured logistic regression Iterative classification algorithm Outperforms content-only classifier on WebKB, Cora, CiteSeer datasets Relational Dependency Networks (Neville & Jensen, 2004) Extend Dependency Networks (DNs) for relational data Experiments on IMDb, Cora, WebKB, Gene datasets Results: RDN model is superior to IID classifier Graph-based Text Classification (Angelova & Weikum, 2006) Has graph in which nodes are instances and edges are the relationships between instances in the dataset Increase in performance on DBLP, IMDb, Wikipedia datasets Interesting observation: gains are most prominent for small training sets

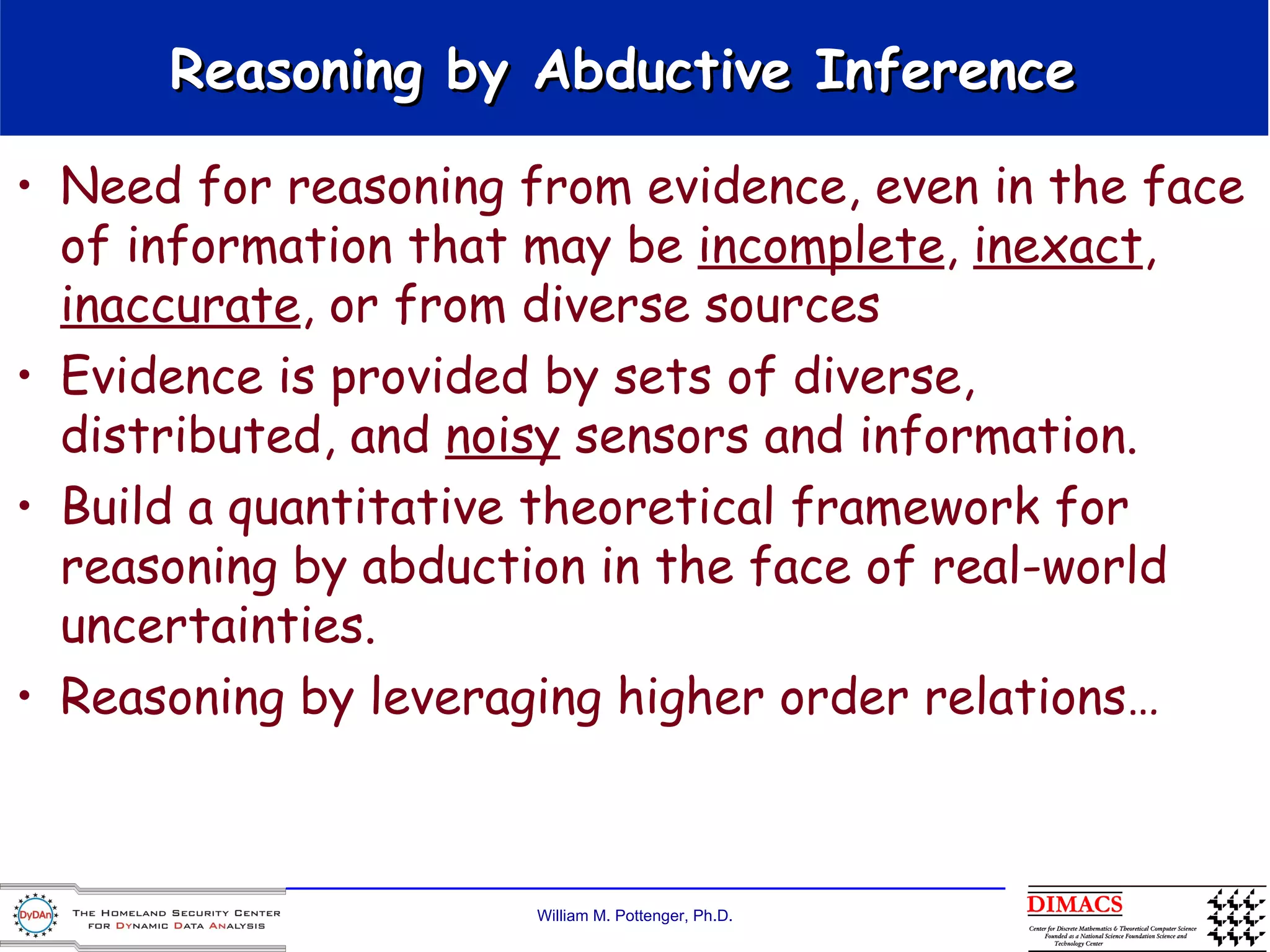

7. Reasoning by Abductive Inference Need for reasoning from evidence, even in the face of information that may be incomplete , inexact , inaccurate , or from diverse sources Evidence is provided by sets of diverse, distributed, and noisy sensors and information. Build a quantitative theoretical framework for reasoning by abduction in the face of real-world uncertainties. Reasoning by leveraging higher order relations…

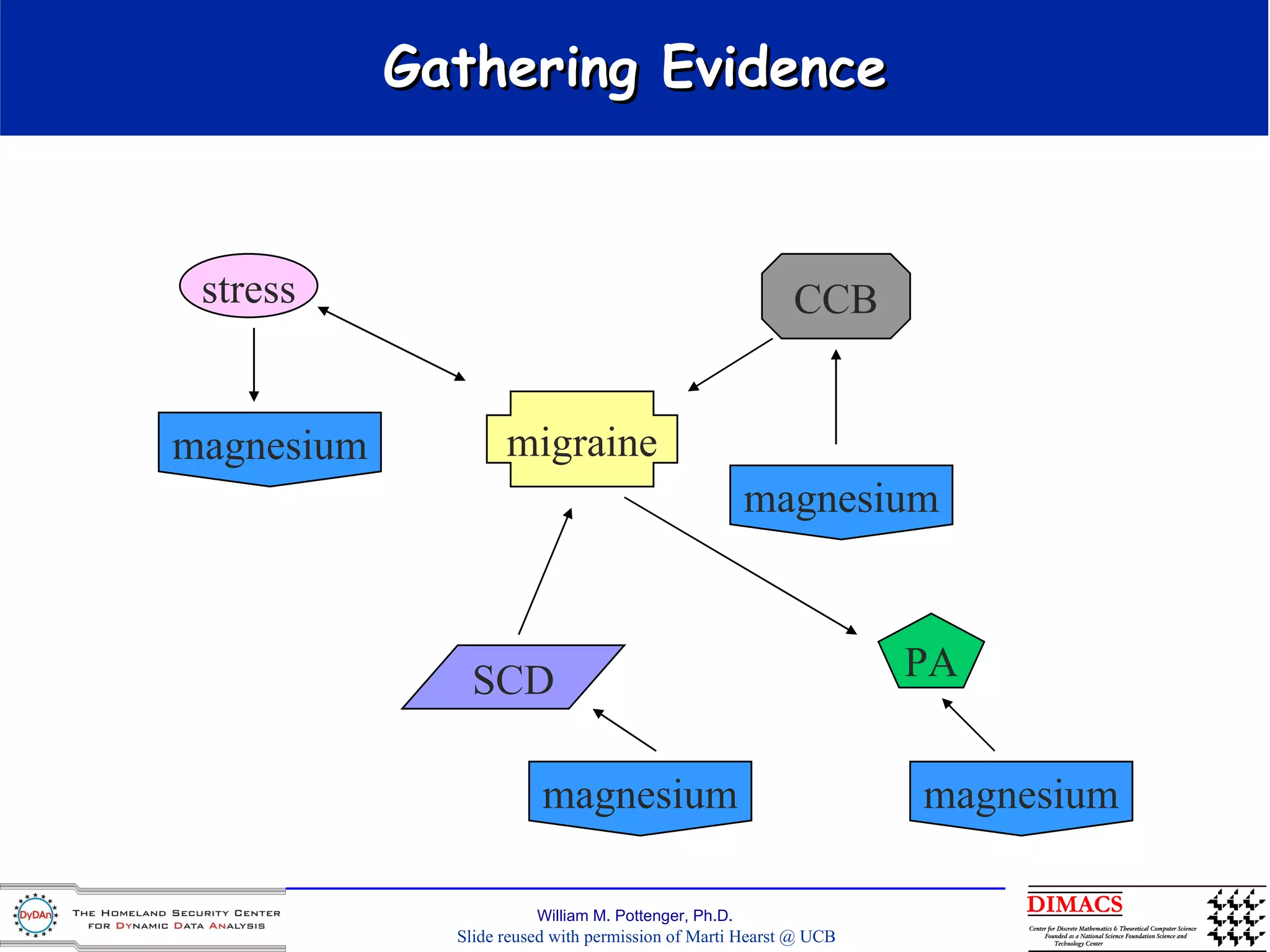

8. Gathering Evidence stress migraine CCB magnesium PA magnesium SCD magnesium magnesium Slide reused with permission of Marti Hearst @ UCB

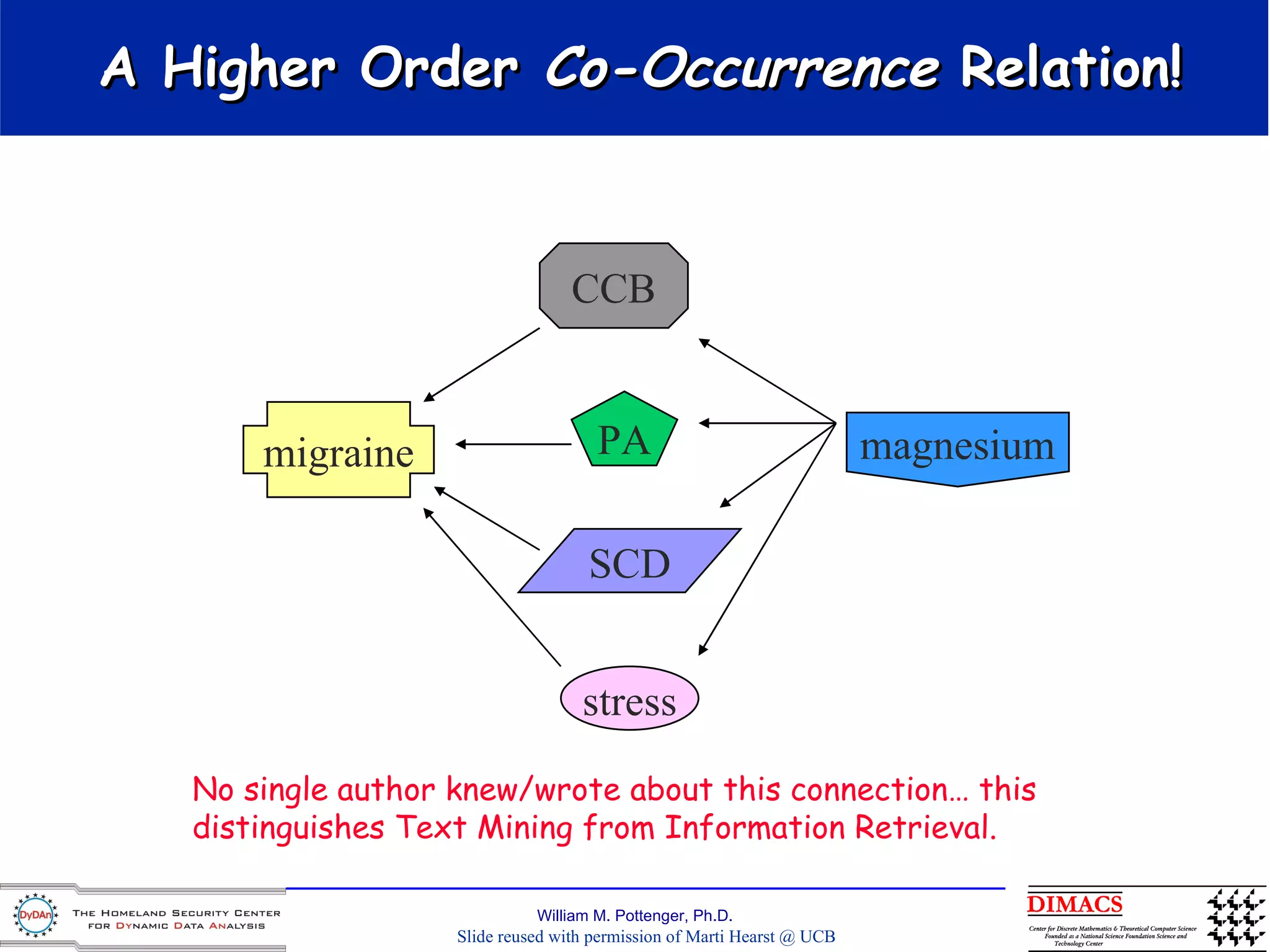

9. A Higher Order Co-Occurrence Relation! migraine magnesium Slide reused with permission of Marti Hearst @ UCB No single author knew/wrote about this connection… this distinguishes Text Mining from Information Retrieval. stress CCB PA SCD

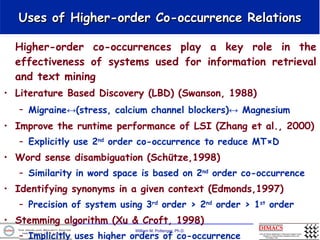

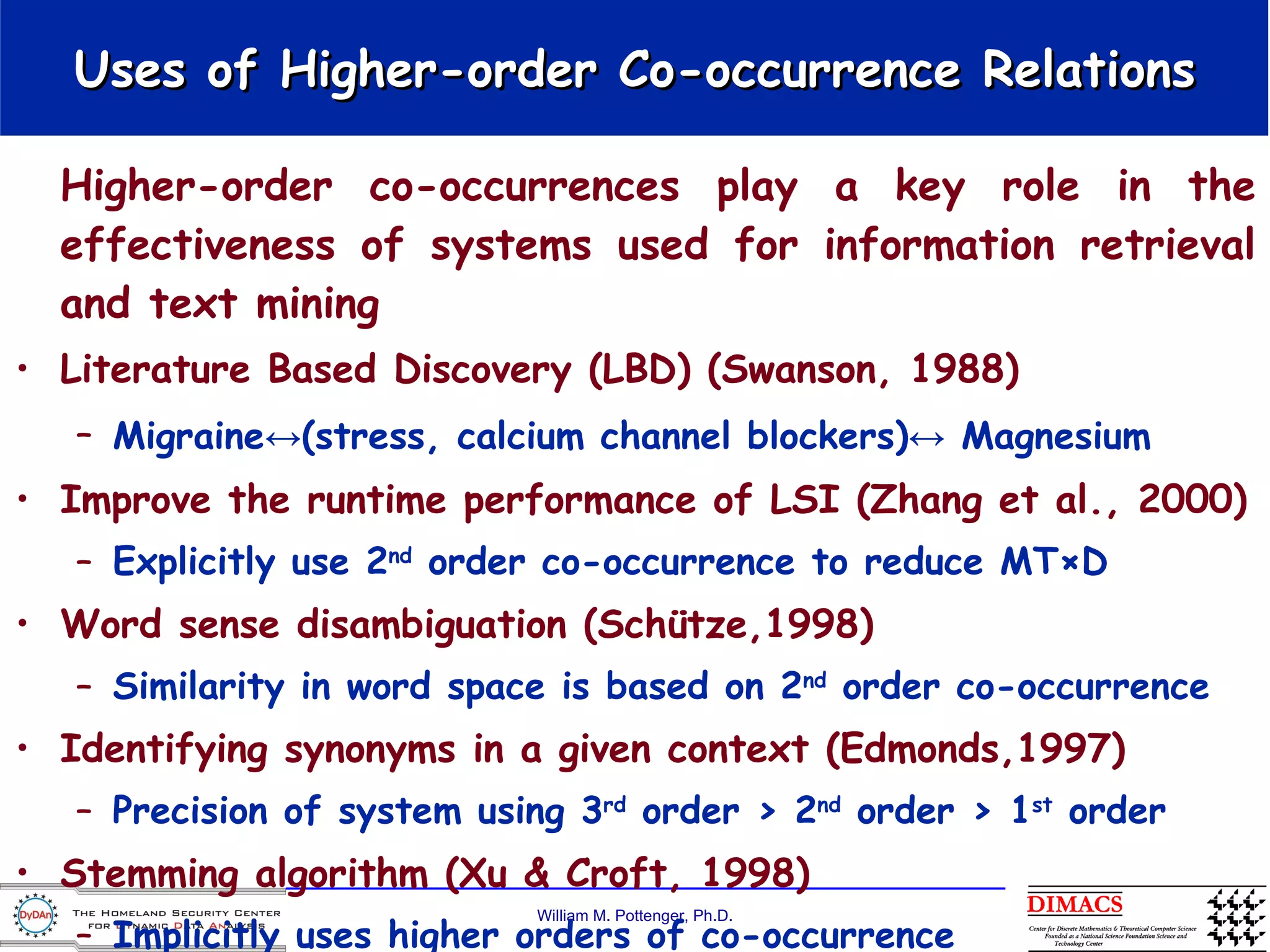

10. Uses of Higher-order Co-occurrence Relations Higher-order co-occurrences play a key role in the effectiveness of systems used for information retrieval and text mining Literature Based Discovery (LBD) (Swanson, 1988) Migraine↔(stress, calcium channel blockers)↔ Magnesium Improve the runtime performance of LSI (Zhang et al., 2000) Explicitly use 2 nd order co-occurrence to reduce MT×D Word sense disambiguation (Schütze,1998) Similarity in word space is based on 2 nd order co-occurrence Identifying synonyms in a given context (Edmonds,1997) Precision of system using 3 rd order > 2 nd order > 1 st order Stemming algorithm (Xu & Croft, 1998) Implicitly uses higher orders of co-occurrence

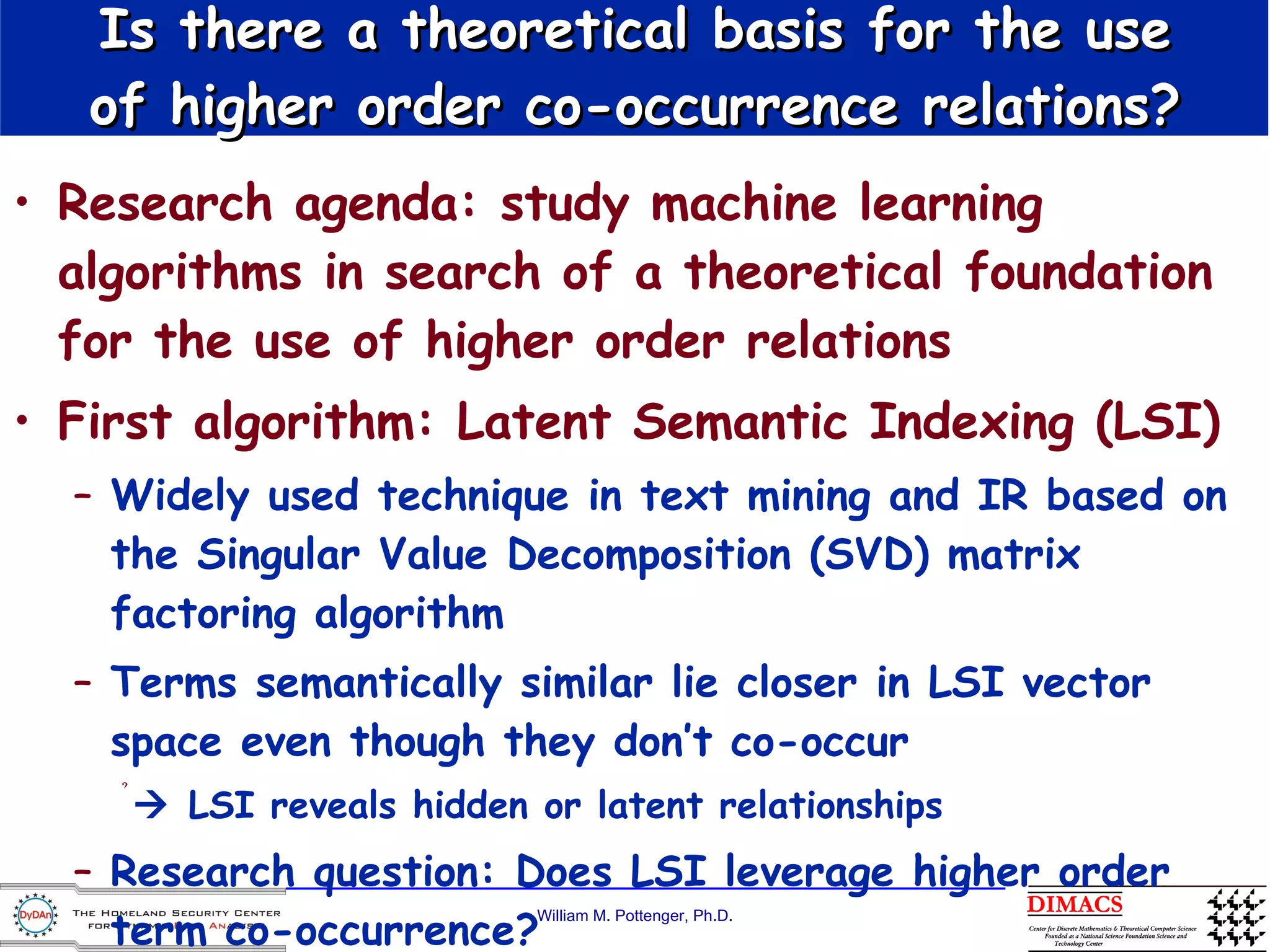

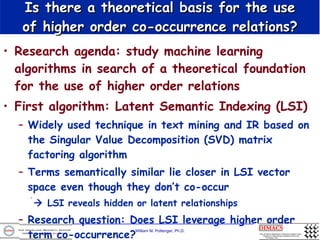

11. Is there a theoretical basis for the use of higher order co-occurrence relations? Research agenda: study machine learning algorithms in search of a theoretical foundation for the use of higher order relations First algorithm: Latent Semantic Indexing (LSI) Widely used technique in text mining and IR based on the Singular Value Decomposition (SVD) matrix factoring algorithm Terms semantically similar lie closer in LSI vector space even though they don’t co-occur  LSI reveals hidden or latent relationships Research question: Does LSI leverage higher order term co-occurrence?

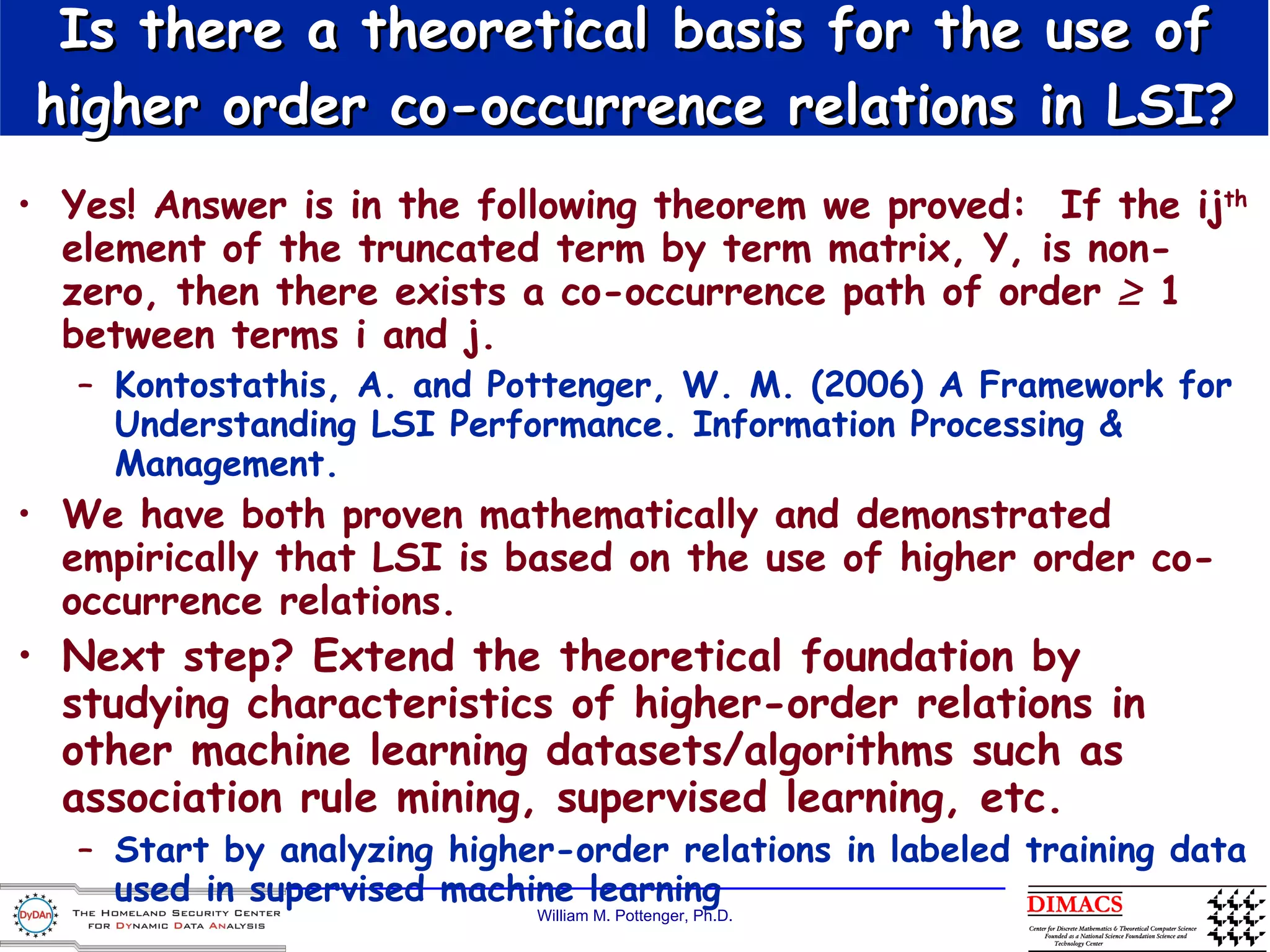

12. Yes! Answer is in the following theorem we proved: If the ij th element of the truncated term by term matrix, Y, is non-zero, then there exists a co-occurrence path of order  1 between terms i and j. Kontostathis, A. and Pottenger, W. M. (2006) A Framework for Understanding LSI Performance. Information Processing & Management. We have both proven mathematically and demonstrated empirically that LSI is based on the use of higher order co-occurrence relations. Next step? Extend the theoretical foundation by studying characteristics of higher-order relations in other machine learning datasets/algorithms such as association rule mining, supervised learning, etc. Start by analyzing higher-order relations in labeled training data used in supervised machine learning Is there a theoretical basis for the use of higher order co-occurrence relations in LSI?

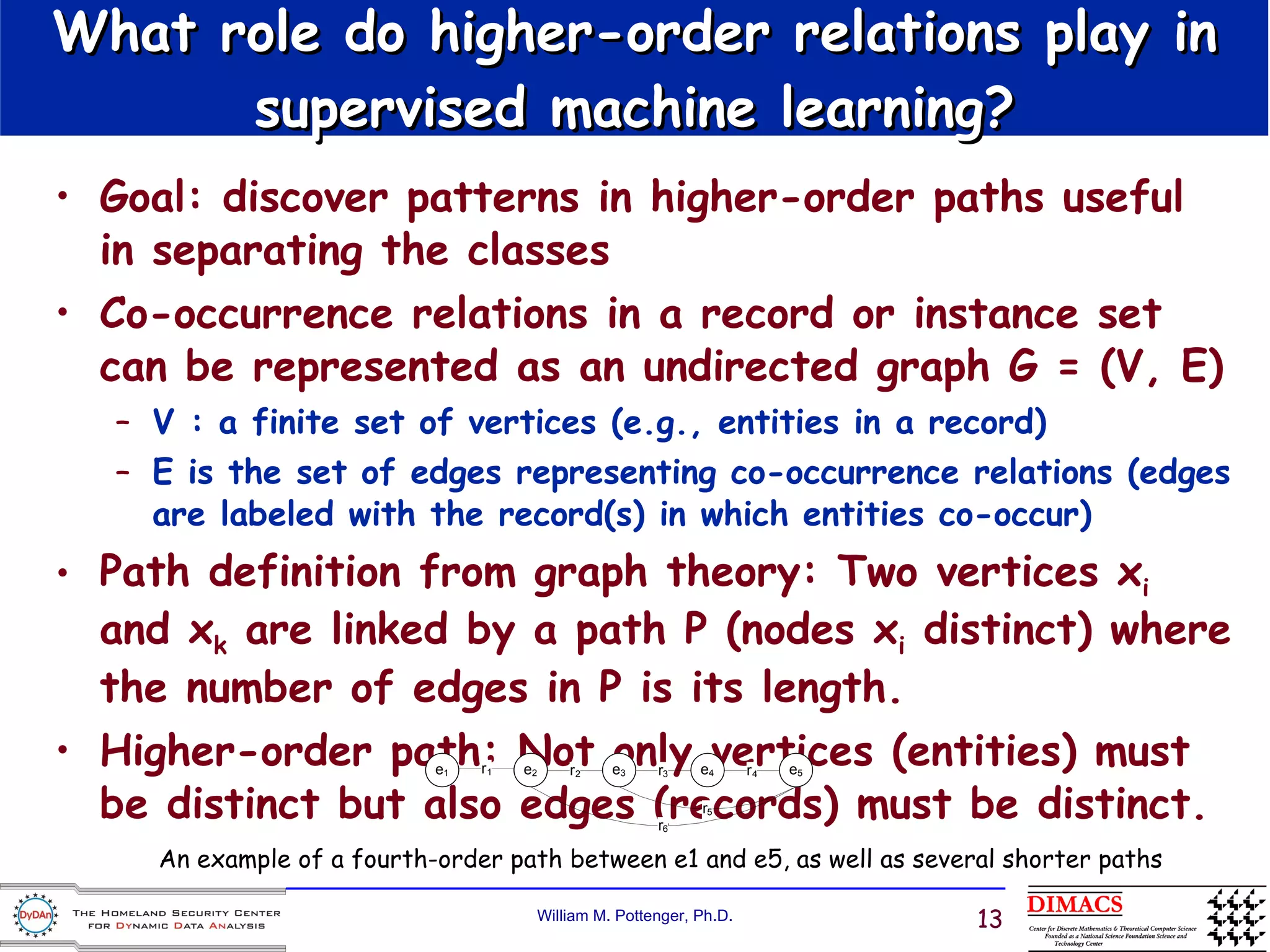

13. What role do higher-order relations play in supervised machine learning? Goal: discover patterns in higher-order paths useful in separating the classes Co-occurrence relations in a record or instance set can be represented as an undirected graph G = (V, E) V : a finite set of vertices (e.g., entities in a record) E is the set of edges representing co-occurrence relations (edges are labeled with the record(s) in which entities co-occur) Path definition from graph theory: Two vertices x i and x k are linked by a path P (nodes x i distinct) where the number of edges in P is its length. Higher-order path: Not only vertices (entities) must be distinct but also edges (records) must be distinct. An example of a fourth-order path between e1 and e5, as well as several shorter paths

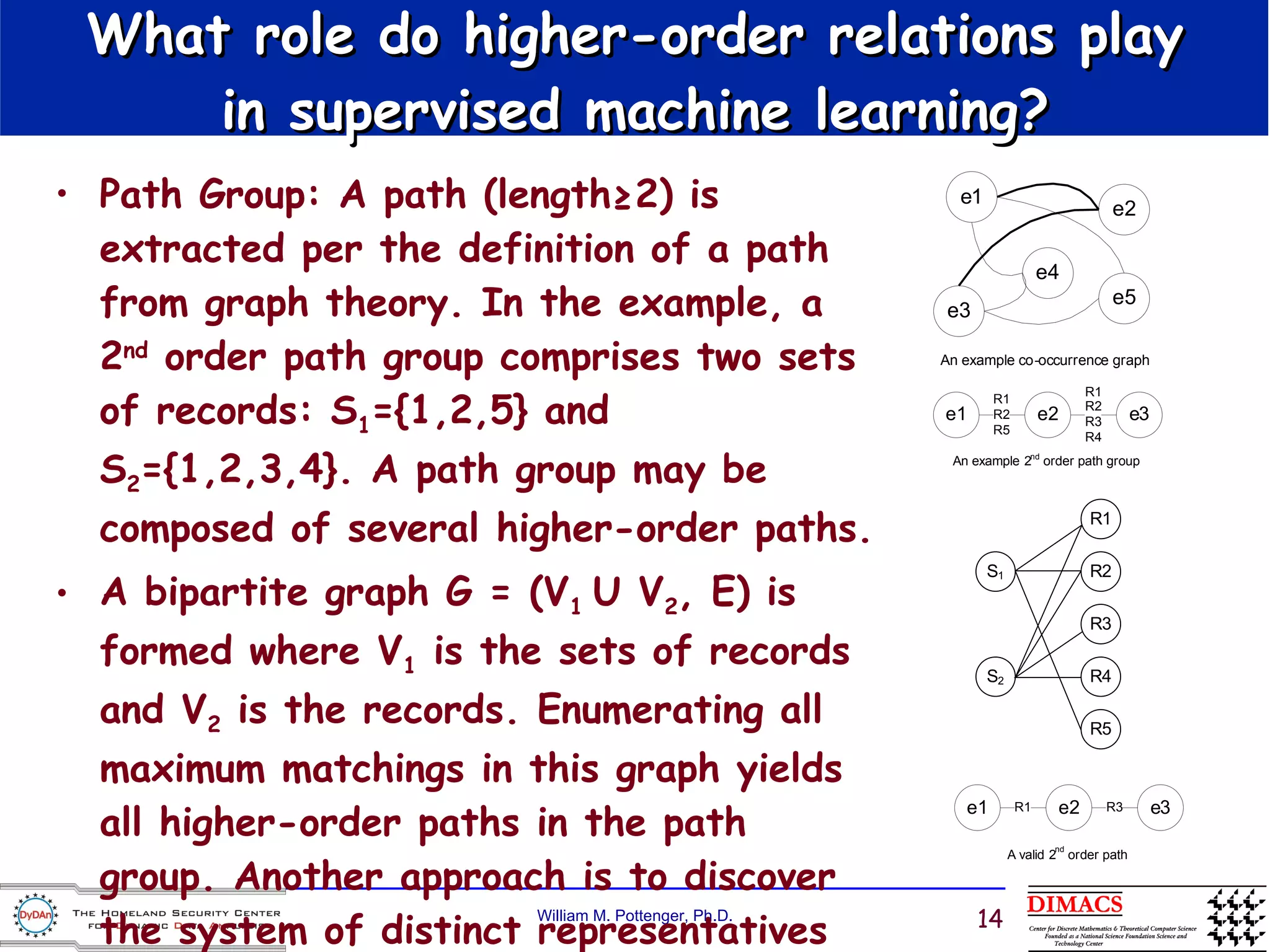

14. What role do higher-order relations play in supervised machine learning? Path Group: A path (length≥2) is extracted per the definition of a path from graph theory. In the example, a 2 nd order path group comprises two sets of records: S 1 ={1,2,5} and S 2 ={1,2,3,4}. A path group may be composed of several higher-order paths. A bipartite graph G = (V 1 U V 2 , E) is formed where V 1 is the sets of records and V 2 is the records. Enumerating all maximum matchings in this graph yields all higher-order paths in the path group. Another approach is to discover the system of distinct representatives (SDR) of these sets.

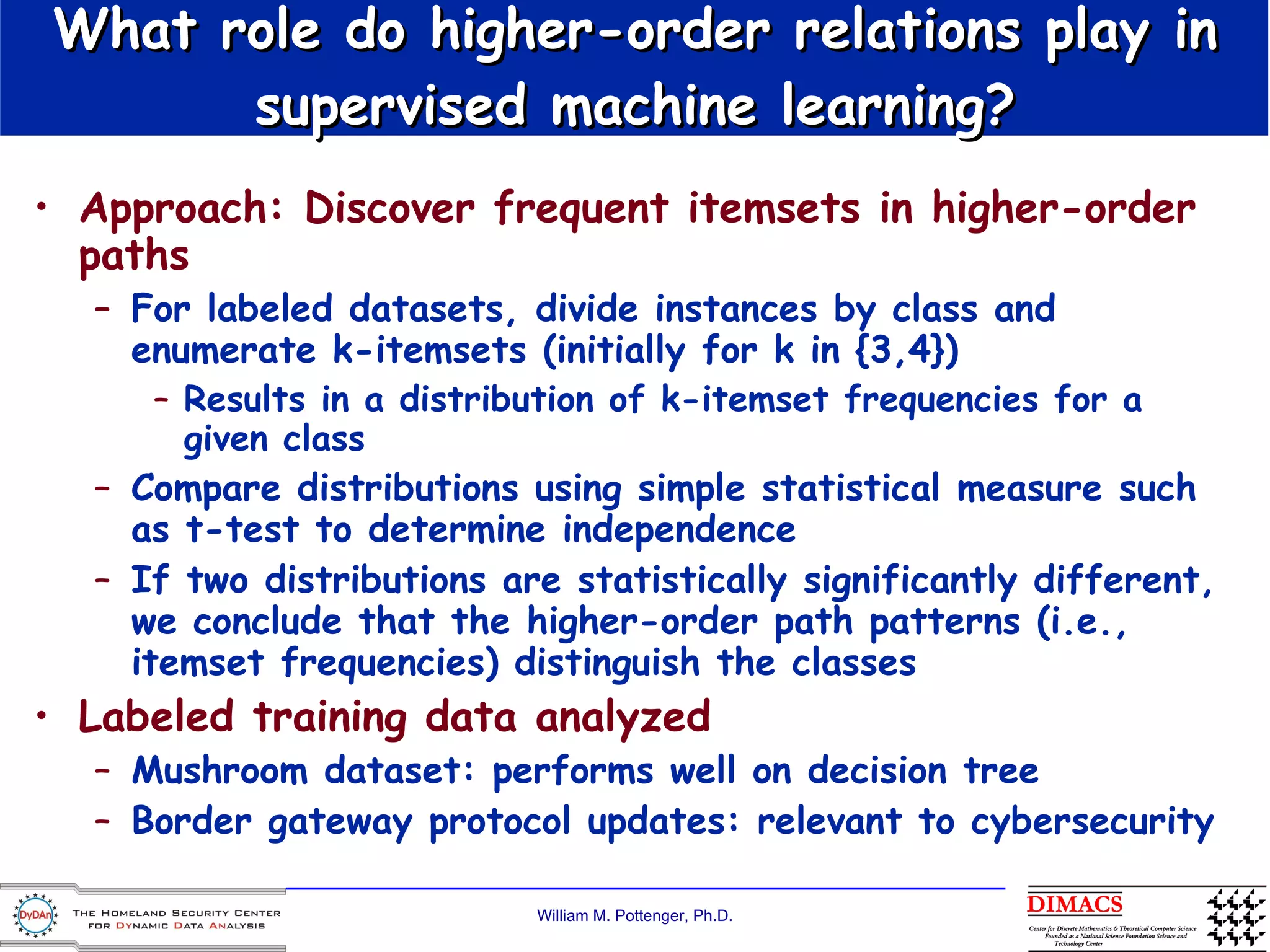

15. Approach: Discover frequent itemsets in higher-order paths For labeled datasets, divide instances by class and enumerate k-itemsets (initially for k in {3,4}) Results in a distribution of k-itemset frequencies for a given class Compare distributions using simple statistical measure such as t-test to determine independence If two distributions are statistically significantly different, we conclude that the higher-order path patterns (i.e., itemset frequencies) distinguish the classes Labeled training data analyzed Mushroom dataset: performs well on decision tree Border gateway protocol updates: relevant to cybersecurity What role do higher-order relations play in supervised machine learning?

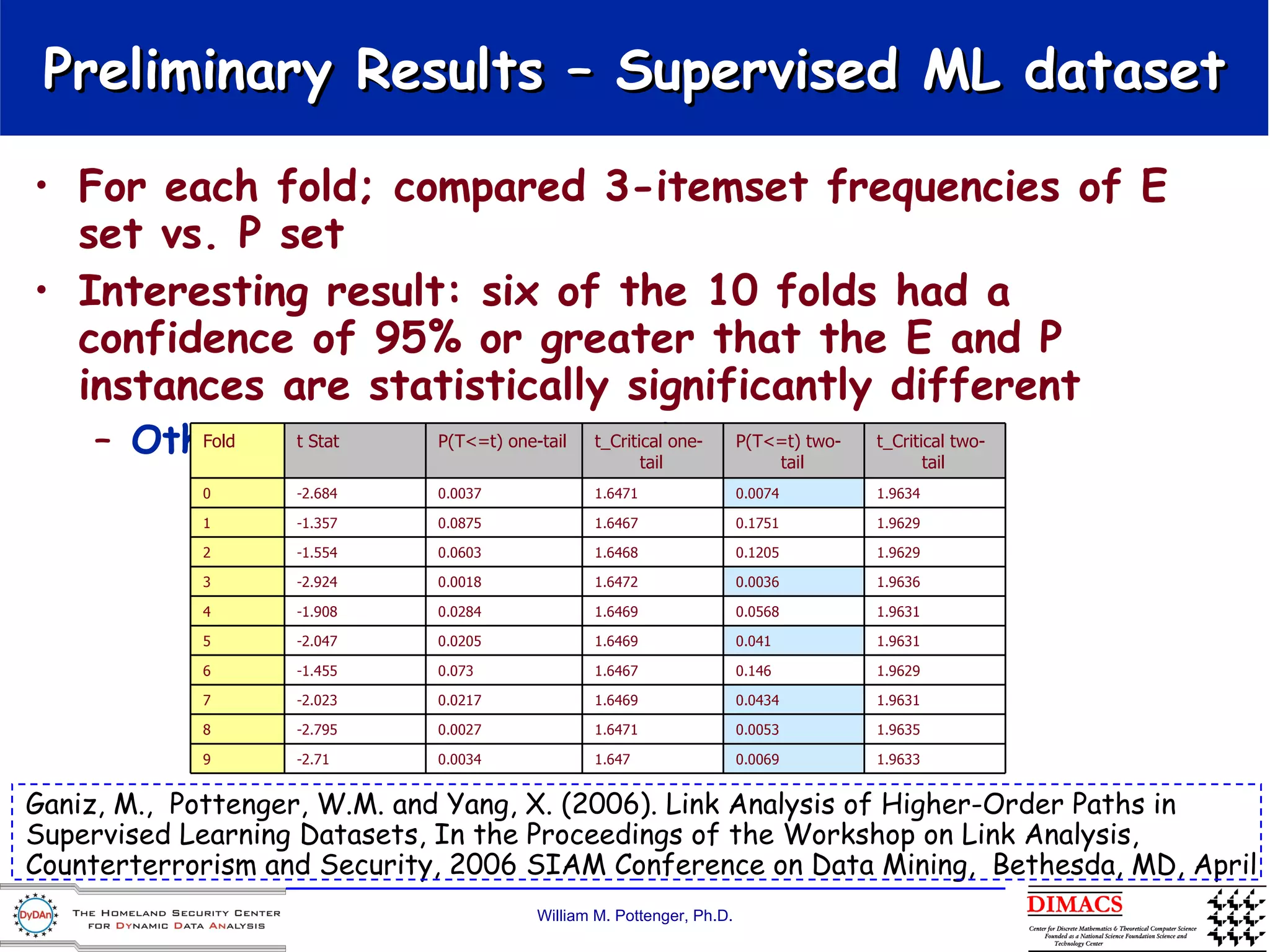

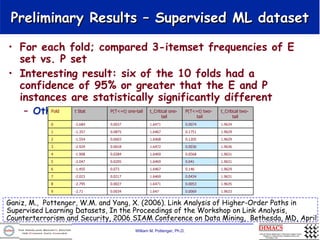

16. For each fold; compared 3-itemset frequencies of E set vs. P set Interesting result: six of the 10 folds had a confidence of 95% or greater that the E and P instances are statistically significantly different Other folds between 80-95% (see below) Preliminary Results – Supervised ML dataset Ganiz, M., Pottenger, W.M. and Yang, X. (2006). Link Analysis of Higher-Order Paths in Supervised Learning Datasets, In the Proceedings of the Workshop on Link Analysis, Counterterrorism and Security, 2006 SIAM Conference on Data Mining, Bethesda, MD, April Fold t Stat P(T<=t) one-tail t_Critical one-tail P(T<=t) two-tail t_Critical two-tail 0 -2.684 0.0037 1.6471 0.0074 1.9634 1 -1.357 0.0875 1.6467 0.1751 1.9629 2 -1.554 0.0603 1.6468 0.1205 1.9629 3 -2.924 0.0018 1.6472 0.0036 1.9636 4 -1.908 0.0284 1.6469 0.0568 1.9631 5 -2.047 0.0205 1.6469 0.041 1.9631 6 -1.455 0.073 1.6467 0.146 1.9629 7 -2.023 0.0217 1.6469 0.0434 1.9631 8 -2.795 0.0027 1.6471 0.0053 1.9635 9 -2.71 0.0034 1.647 0.0069 1.9633

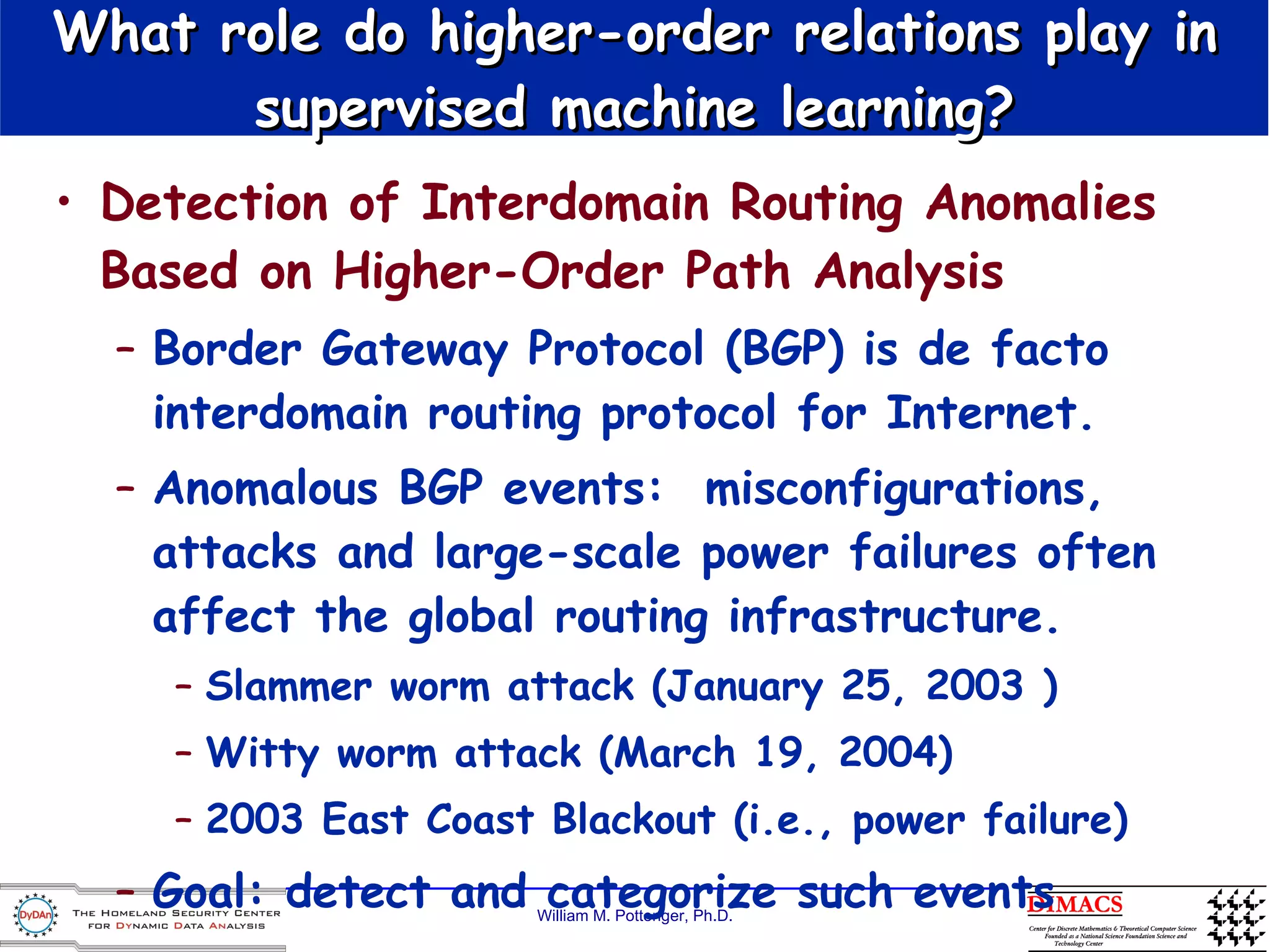

17. What role do higher-order relations play in supervised machine learning? Detection of Interdomain Routing Anomalies Based on Higher-Order Path Analysis Border Gateway Protocol (BGP) is de facto interdomain routing protocol for Internet. Anomalous BGP events: misconfigurations, attacks and large-scale power failures often affect the global routing infrastructure. Slammer worm attack (January 25, 2003 ) Witty worm attack (March 19, 2004) 2003 East Coast Blackout (i.e., power failure) Goal: detect and categorize such events

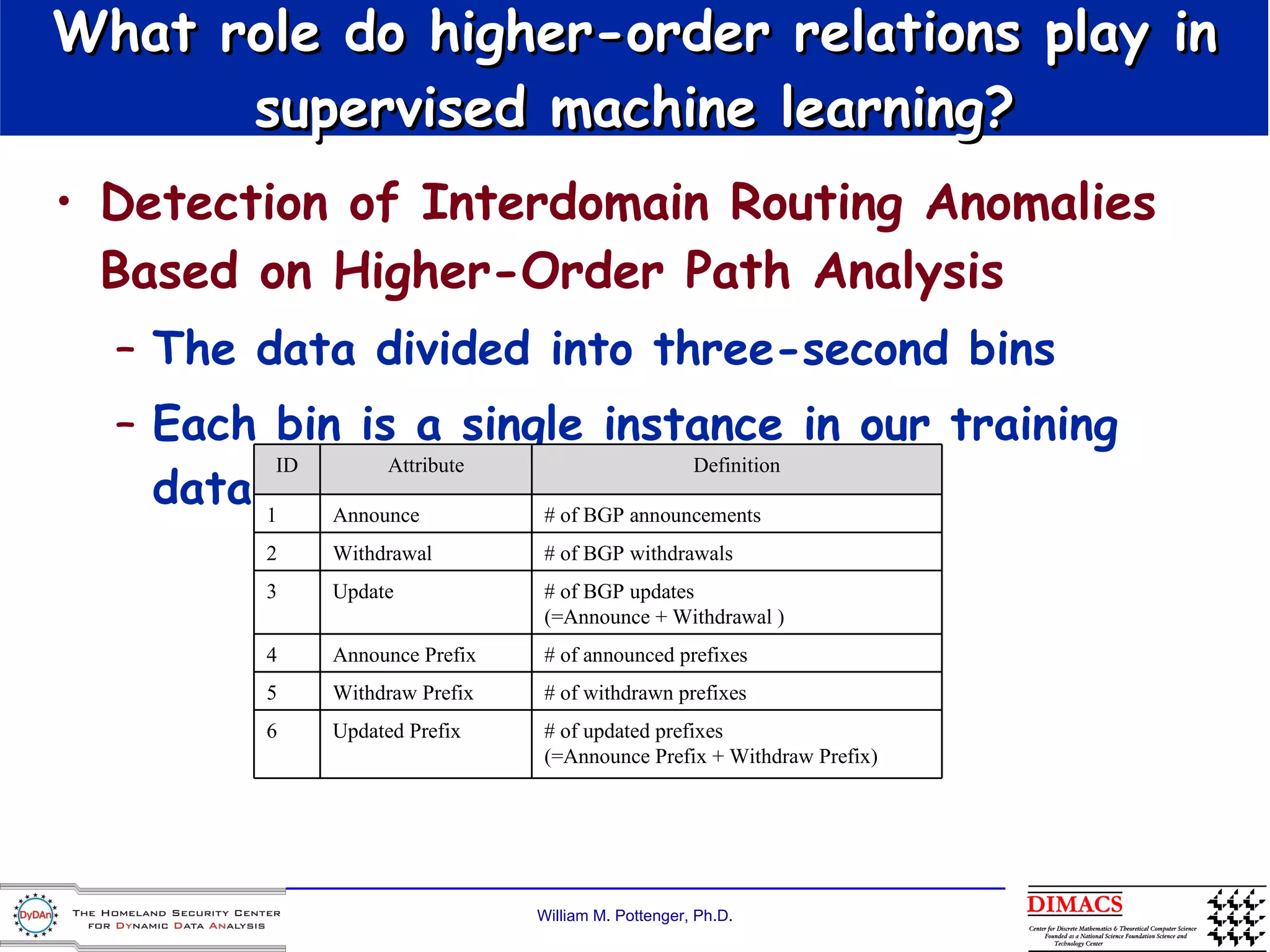

18. What role do higher-order relations play in supervised machine learning? Detection of Interdomain Routing Anomalies Based on Higher-Order Path Analysis The data divided into three-second bins Each bin is a single instance in our training data ID Attribute Definition 1 Announce # of BGP announcements 2 Withdrawal # of BGP withdrawals 3 Update # of BGP updates (=Announce + Withdrawal ) 4 Announce Prefix # of announced prefixes 5 Withdraw Prefix # of withdrawn prefixes 6 Updated Prefix # of updated prefixes (=Announce Prefix + Withdraw Prefix)

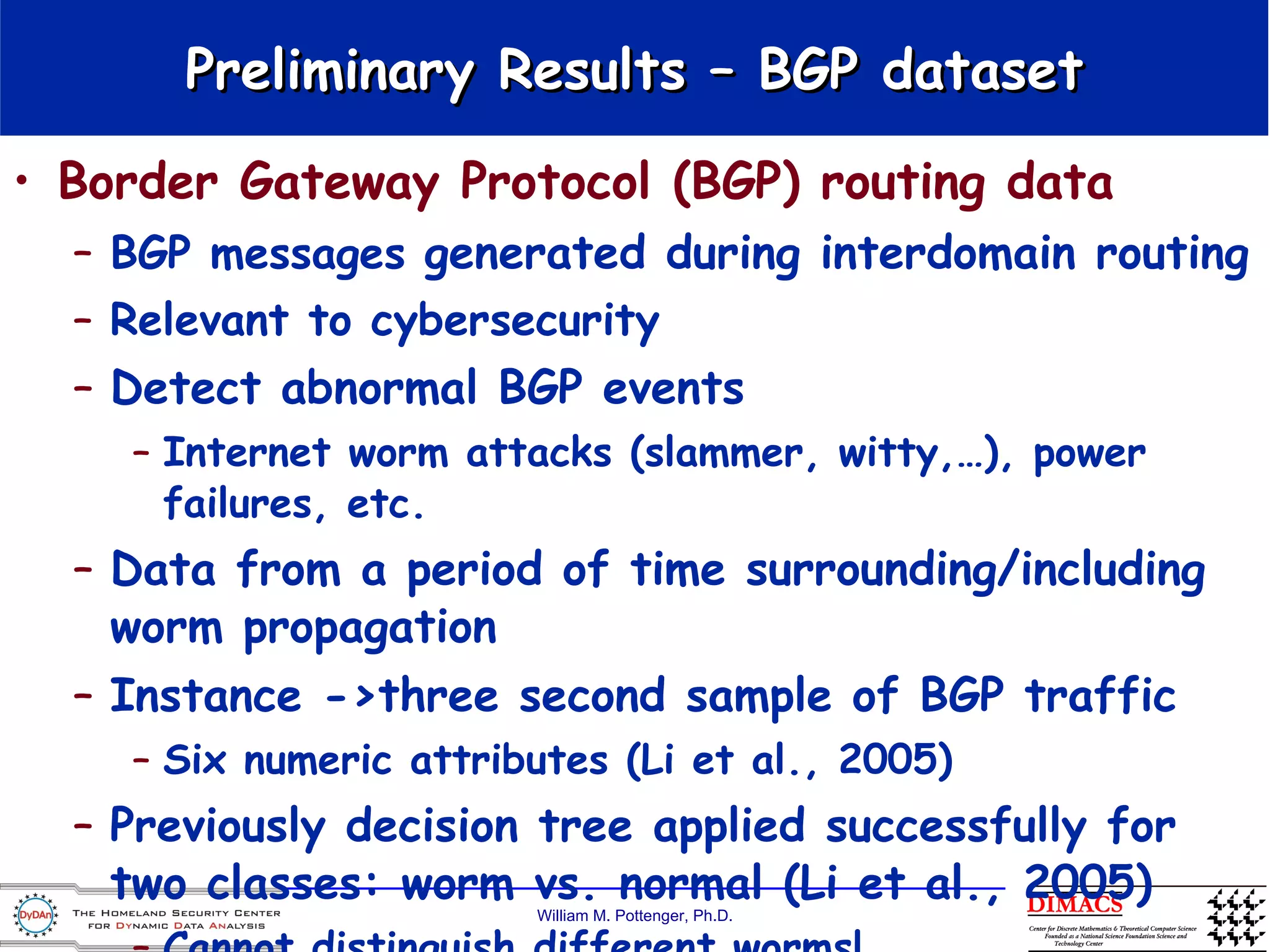

19. Border Gateway Protocol (BGP) routing data BGP messages generated during interdomain routing Relevant to cybersecurity Detect abnormal BGP events Internet worm attacks (slammer, witty,…), power failures, etc. Data from a period of time surrounding/including worm propagation Instance ->three second sample of BGP traffic Six numeric attributes (Li et al., 2005) Previously decision tree applied successfully for two classes: worm vs. normal (Li et al., 2005) Cannot distinguish different worms! Preliminary Results – BGP dataset

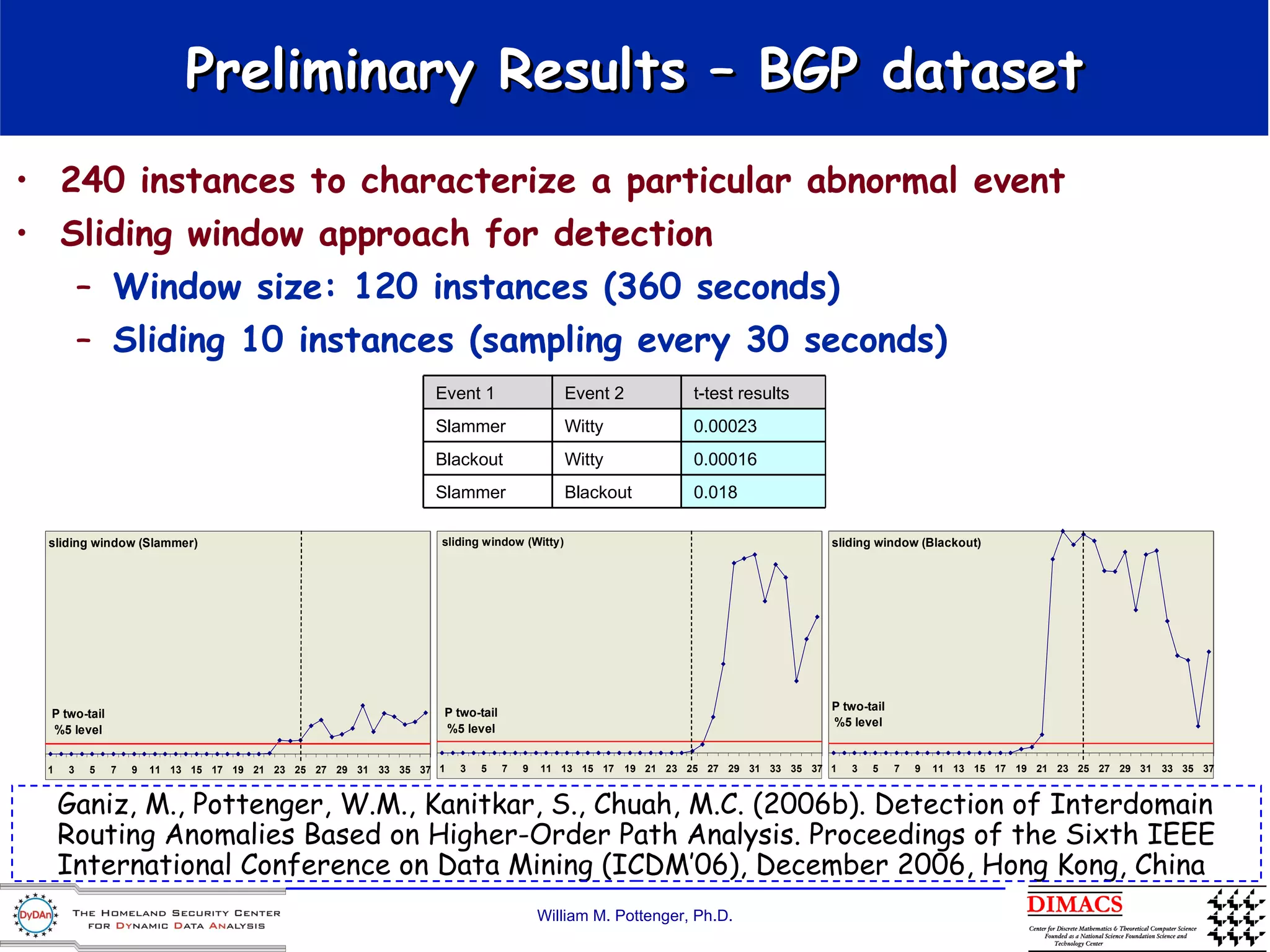

20. Preliminary Results – BGP dataset 240 instances to characterize a particular abnormal event Sliding window approach for detection Window size: 120 instances (360 seconds) Sliding 10 instances (sampling every 30 seconds) Ganiz, M., Pottenger, W.M., Kanitkar, S., Chuah, M.C. (2006b). Detection of Interdomain Routing Anomalies Based on Higher-Order Path Analysis. Proceedings of the Sixth IEEE International Conference on Data Mining (ICDM’06), December 2006, Hong Kong, China Event 1 Event 2 t-test results Slammer Witty 0.00023 Blackout Witty 0.00016 Slammer Blackout 0.018

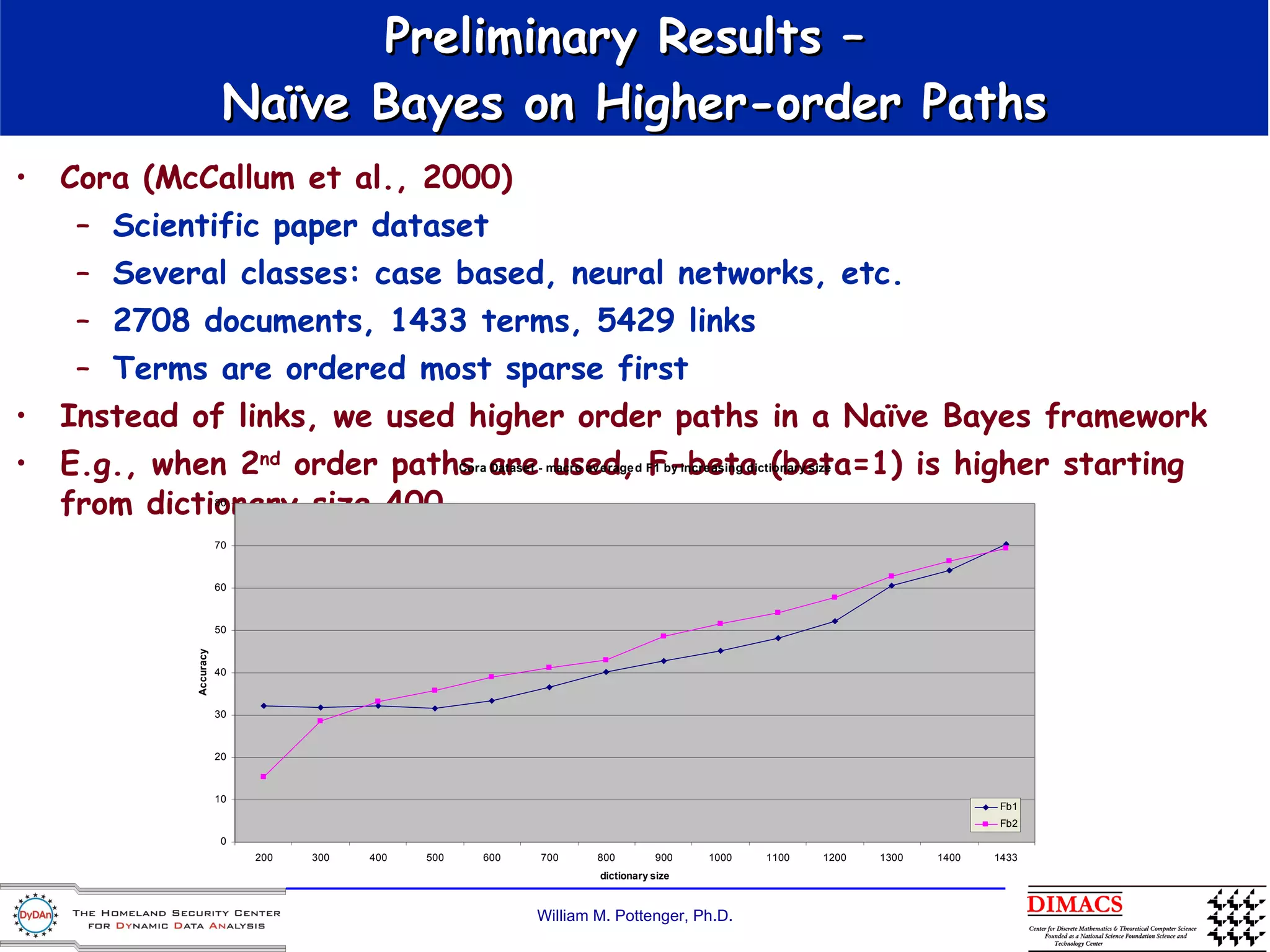

21. Preliminary Results – Naïve Bayes on Higher-order Paths Cora (McCallum et al., 2000) Scientific paper dataset Several classes: case based, neural networks, etc. 2708 documents, 1433 terms, 5429 links Terms are ordered most sparse first Instead of links, we used higher order paths in a Naïve Bayes framework E.g., when 2 nd order paths are used, F-beta (beta=1) is higher starting from dictionary size 400

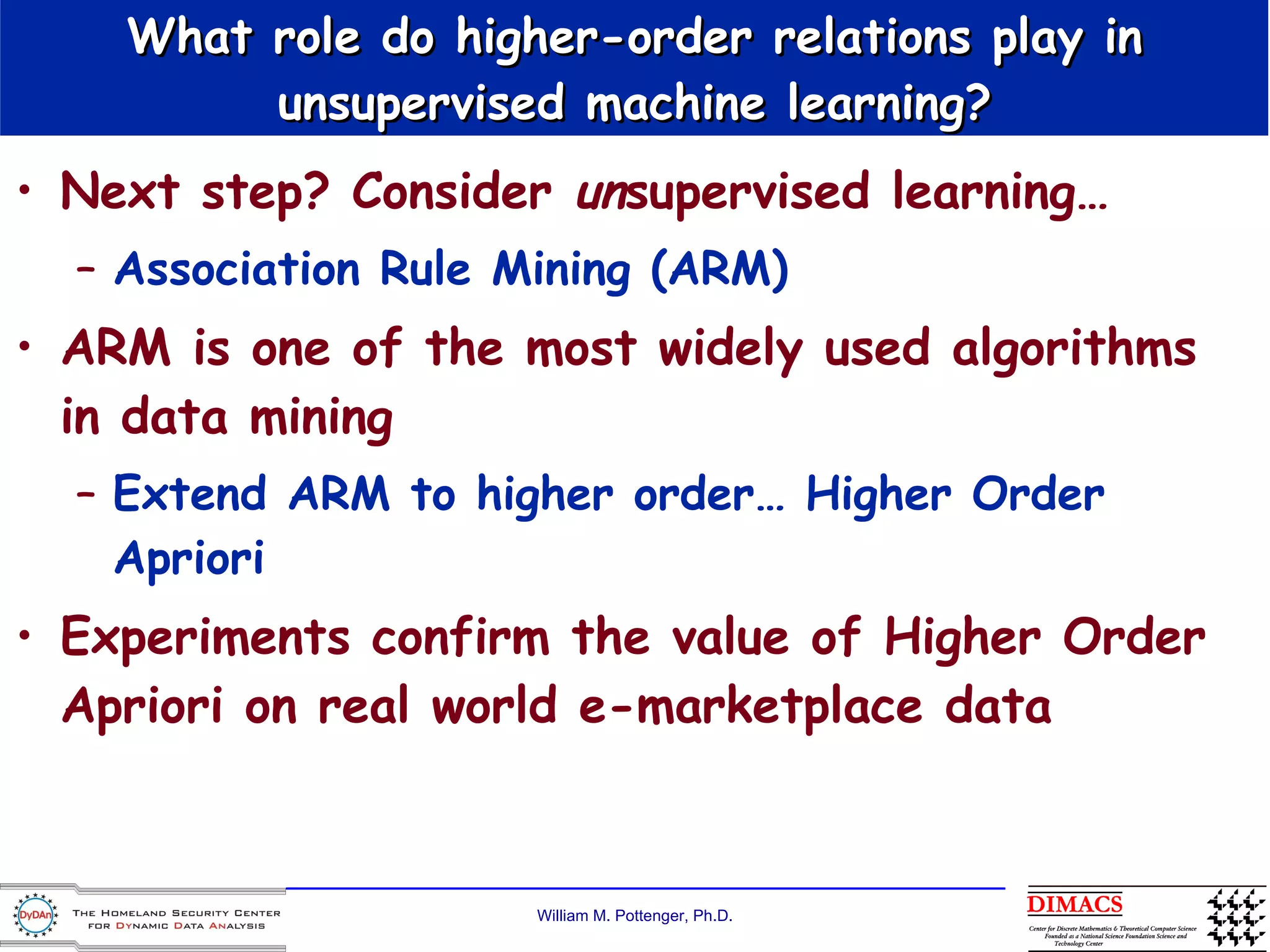

22. What role do higher-order relations play in unsupervised machine learning? Next step? Consider un supervised learning… Association Rule Mining (ARM) ARM is one of the most widely used algorithms in data mining Extend ARM to higher order… Higher Order Apriori Experiments confirm the value of Higher Order Apriori on real world e-marketplace data

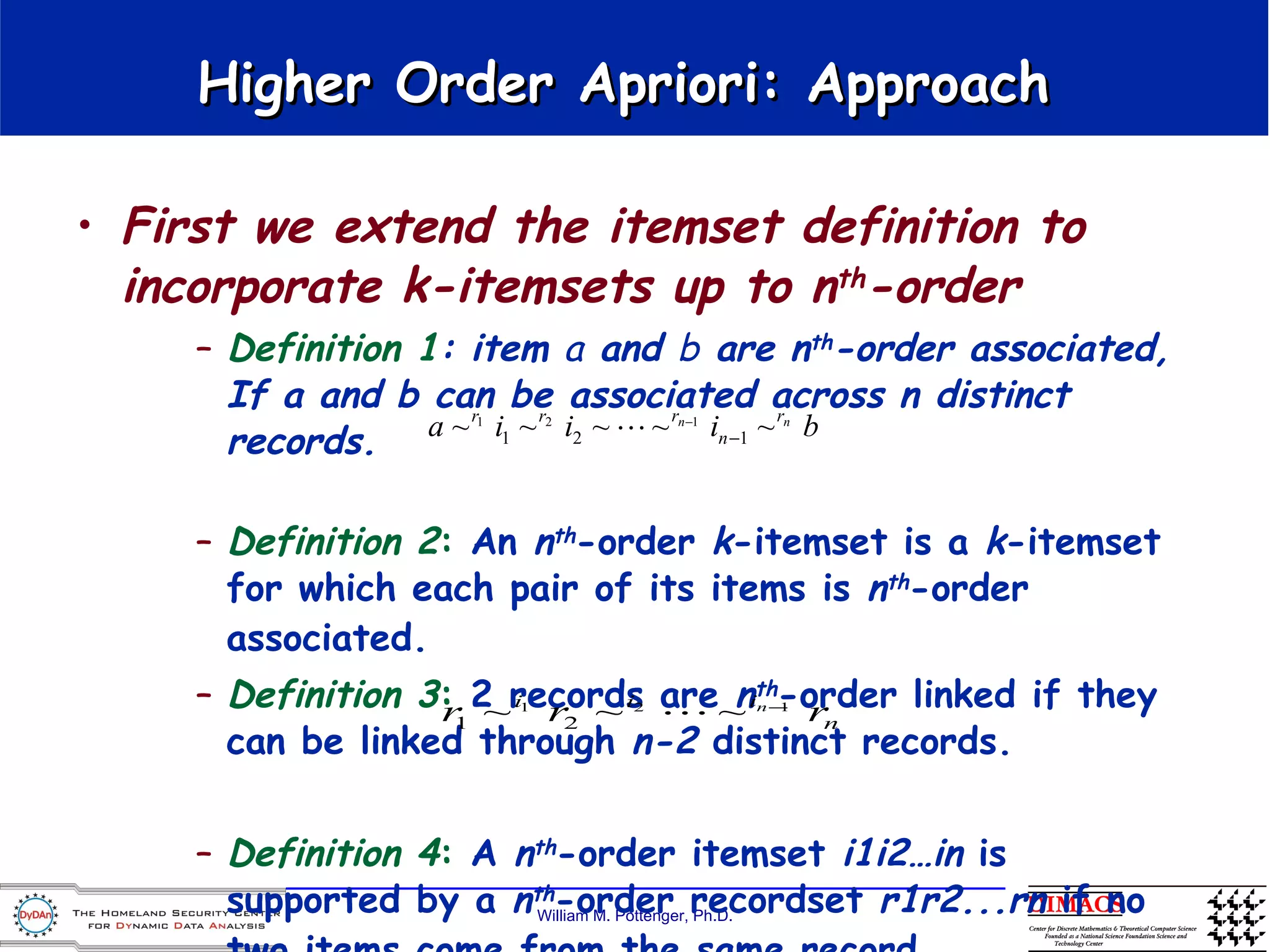

23. Higher Order Apriori: Approach First we extend the itemset definition to incorporate k-itemsets up to n th -order Definition 1 : item a and b are n th -order associated, If a and b can be associated across n distinct records. Definition 2 : An n th -order k -itemset is a k -itemset for which each pair of its items is n th -order associated. Definition 3 : 2 records are n th -order linked if they can be linked through n-2 distinct records. Definition 4 : A n th -order itemset i1i2…in is supported by a n th -order recordset r1r2...rn if no two items come from the same record.

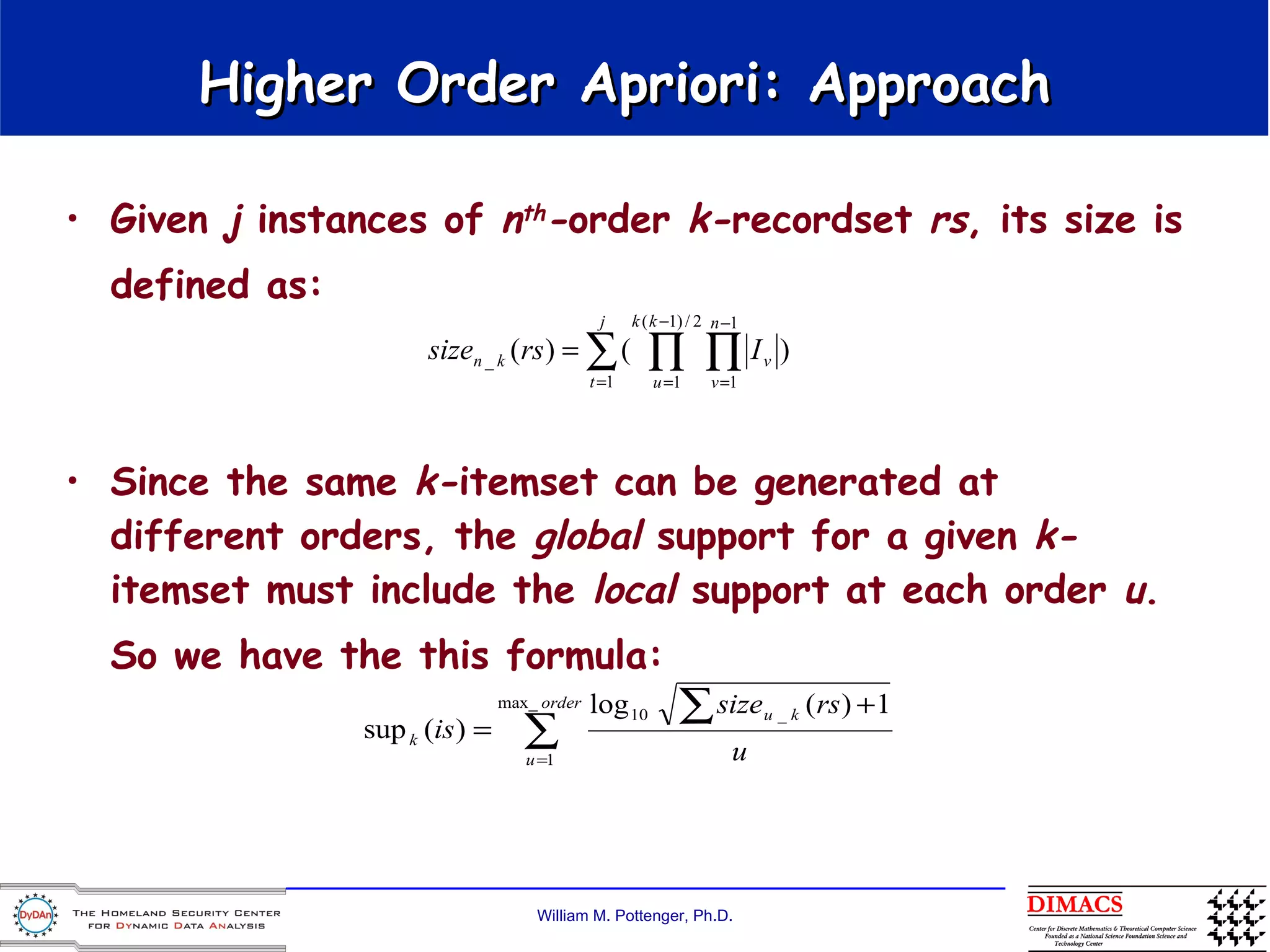

24. Higher Order Apriori: Approach Given j instances of n th - order k- recordset rs , its size is defined as: Since the same k- itemset can be generated at different orders, the global support for a given k- itemset must include the local support at each order u . So we have the this formula:

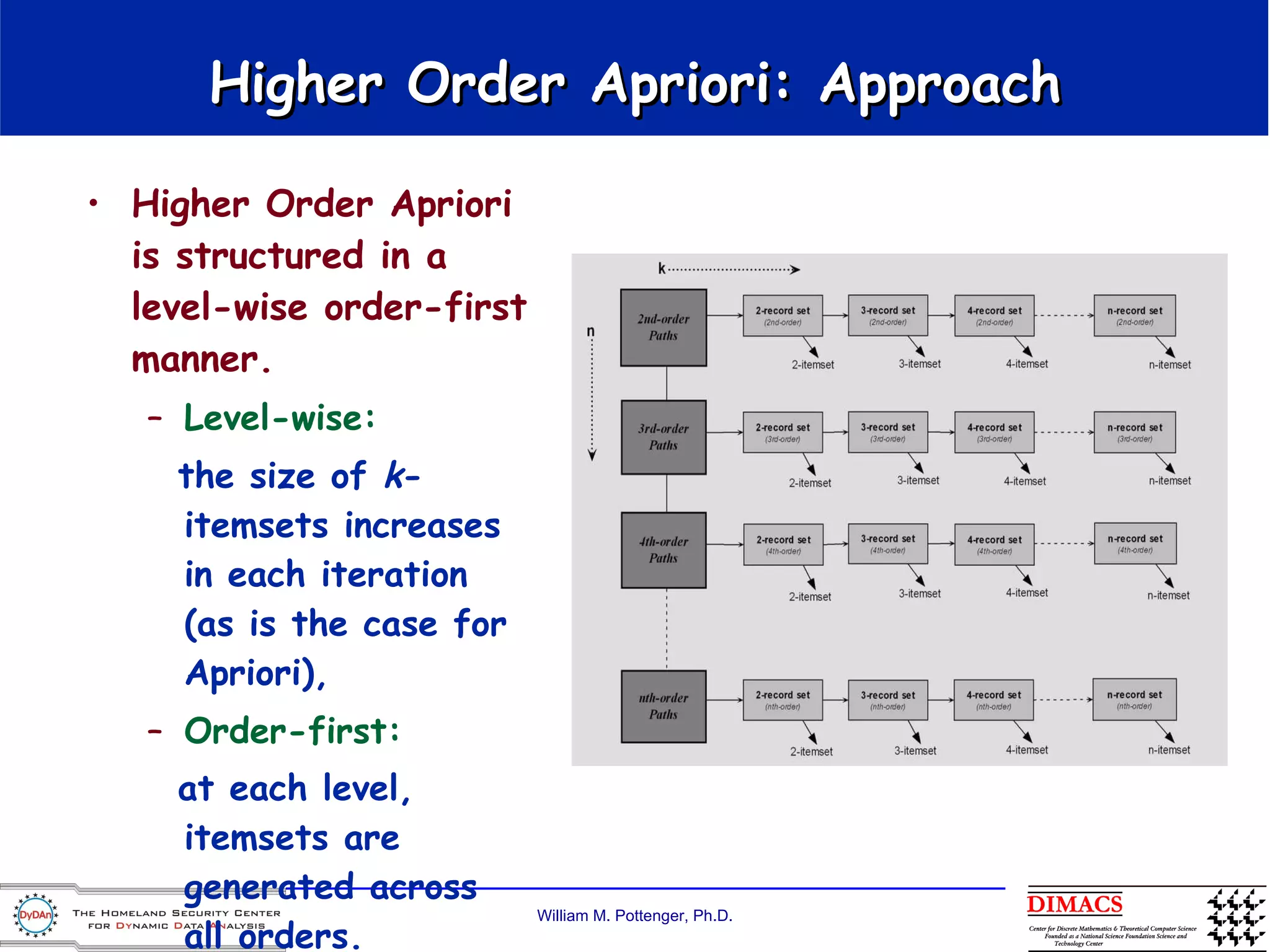

25. Higher Order Apriori: Approach Higher Order Apriori is structured in a level-wise order-first manner. Level-wise: the size of k -itemsets increases in each iteration (as is the case for Apriori), Order-first: at each level, itemsets are generated across all orders.

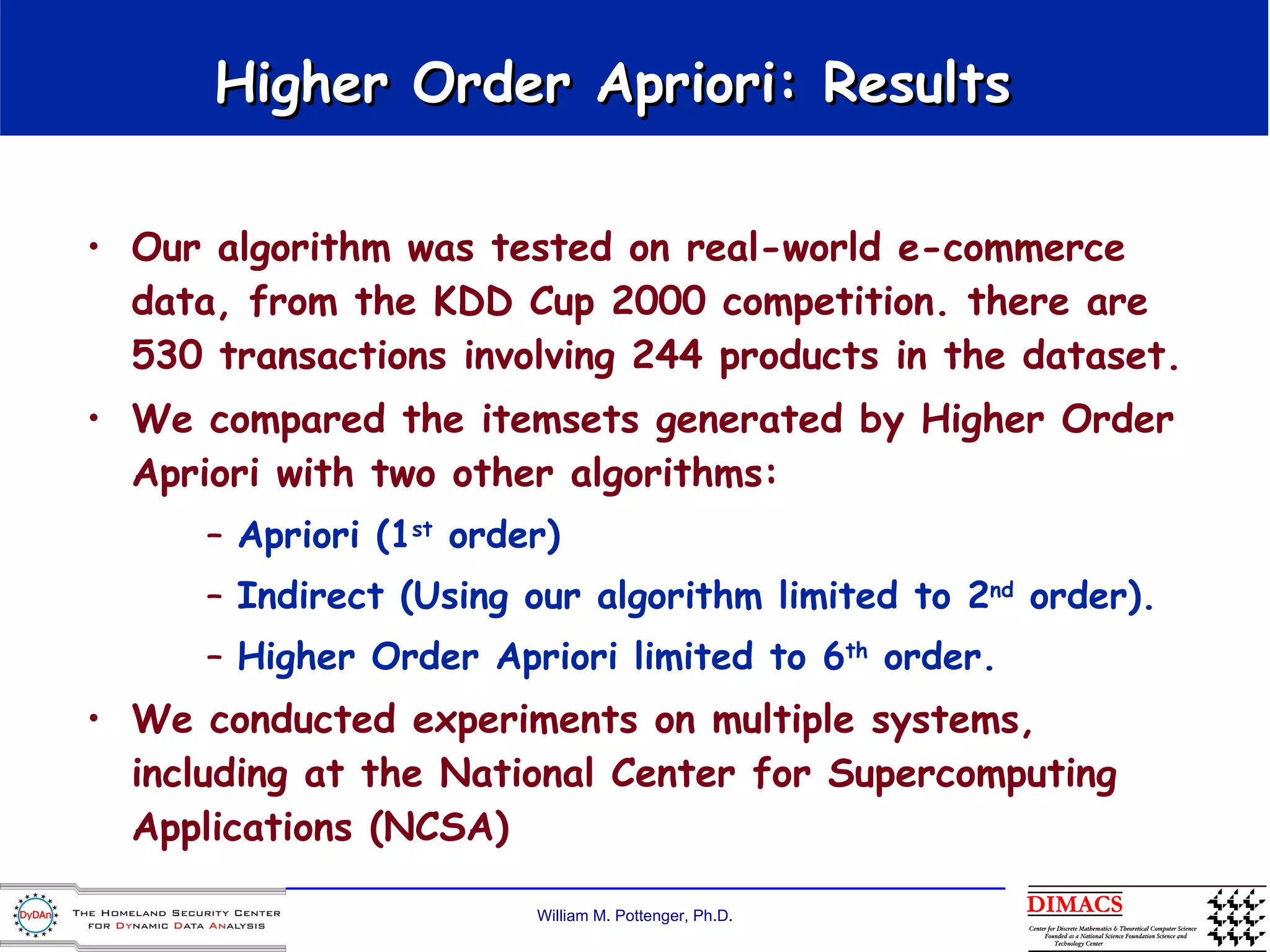

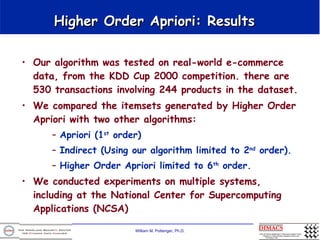

26. Higher Order Apriori: Results Our algorithm was tested on real-world e-commerce data, from the KDD Cup 2000 competition. there are 530 transactions involving 244 products in the dataset. We compared the itemsets generated by Higher Order Apriori with two other algorithms: Apriori (1 st order) Indirect (Using our algorithm limited to 2 nd order). Higher Order Apriori limited to 6 th order. We conducted experiments on multiple systems, including at the National Center for Supercomputing Applications (NCSA)

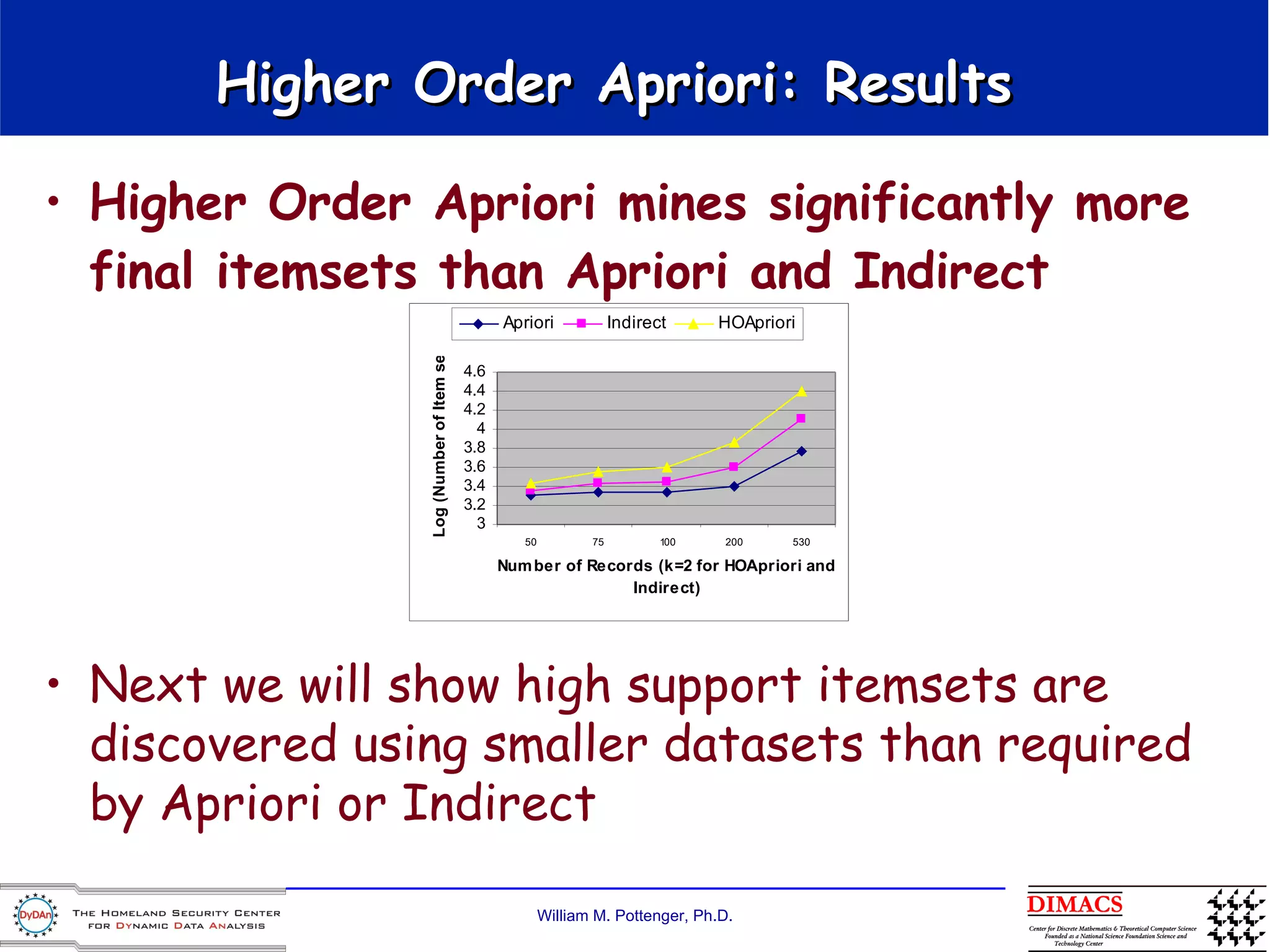

27. Higher Order Apriori: Results Higher Order Apriori mines significantly more final itemsets than Apriori and Indirect Next we will show high support itemsets are discovered using smaller datasets than required by Apriori or Indirect

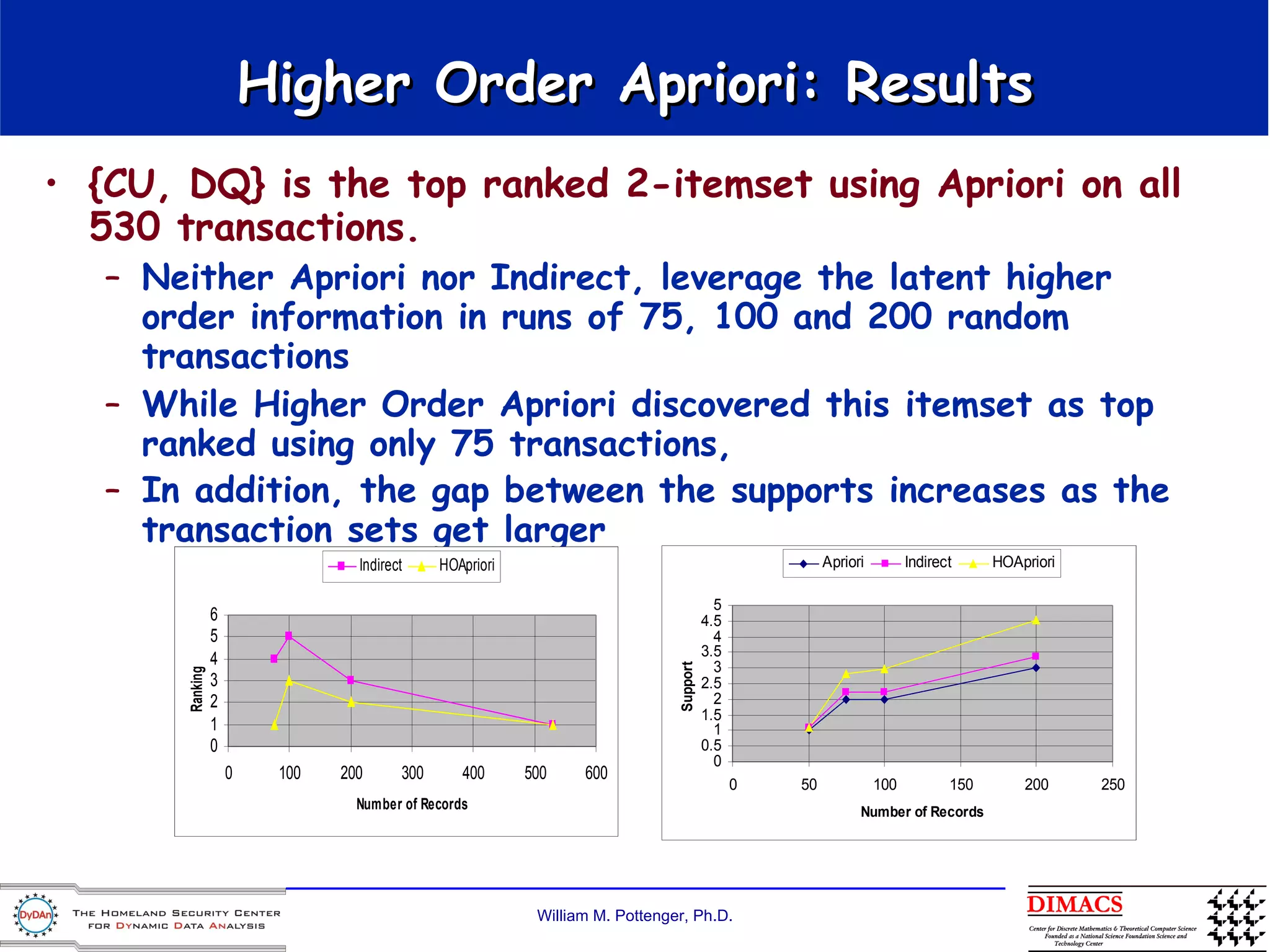

28. Higher Order Apriori: Results {CU, DQ} is the top ranked 2-itemset using Apriori on all 530 transactions. Neither Apriori nor Indirect, leverage the latent higher order information in runs of 75, 100 and 200 random transactions While Higher Order Apriori discovered this itemset as top ranked using only 75 transactions, In addition, the gap between the supports increases as the transaction sets get larger

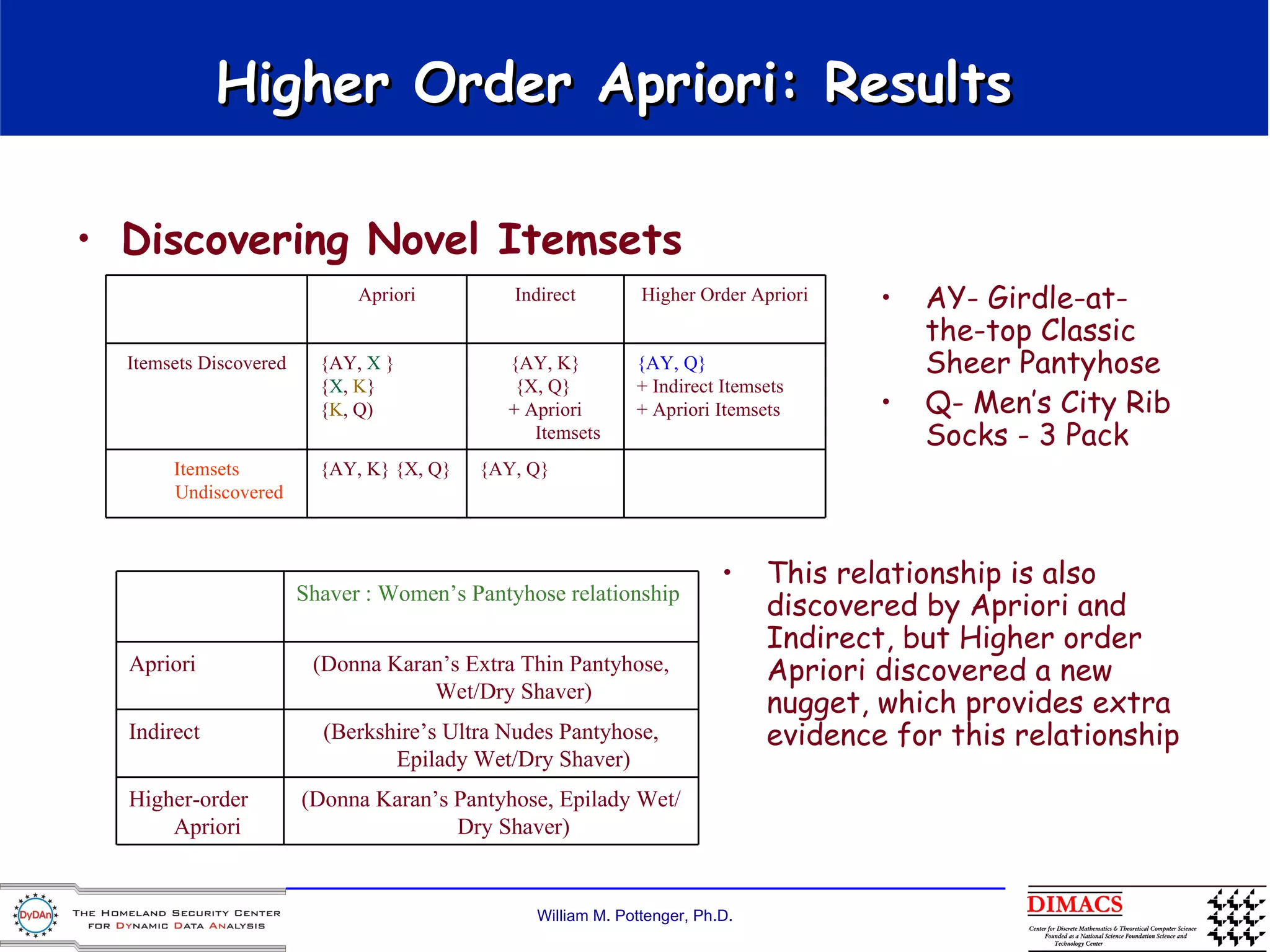

29. Higher Order Apriori: Results Discovering Novel Itemsets AY- Girdle-at-the-top Classic Sheer Pantyhose Q- Men’s City Rib Socks - 3 Pack This relationship is also discovered by Apriori and Indirect, but Higher order Apriori discovered a new nugget, which provides extra evidence for this relationship Apriori Indirect Higher Order Apriori Itemsets Discovered {AY, X } { X , K } { K , Q) {AY, K} {X, Q} + Apriori Itemsets {AY, Q} + Indirect Itemsets + Apriori Itemsets Itemsets Undiscovered {AY, K} {X, Q} {AY, Q} Shaver : Women’s Pantyhose relationship Apriori (Donna Karan’s Extra Thin Pantyhose, Wet/Dry Shaver) Indirect (Berkshire’s Ultra Nudes Pantyhose, Epilady Wet/Dry Shaver) Higher-order Apriori (Donna Karan’s Pantyhose, Epilady Wet/Dry Shaver)

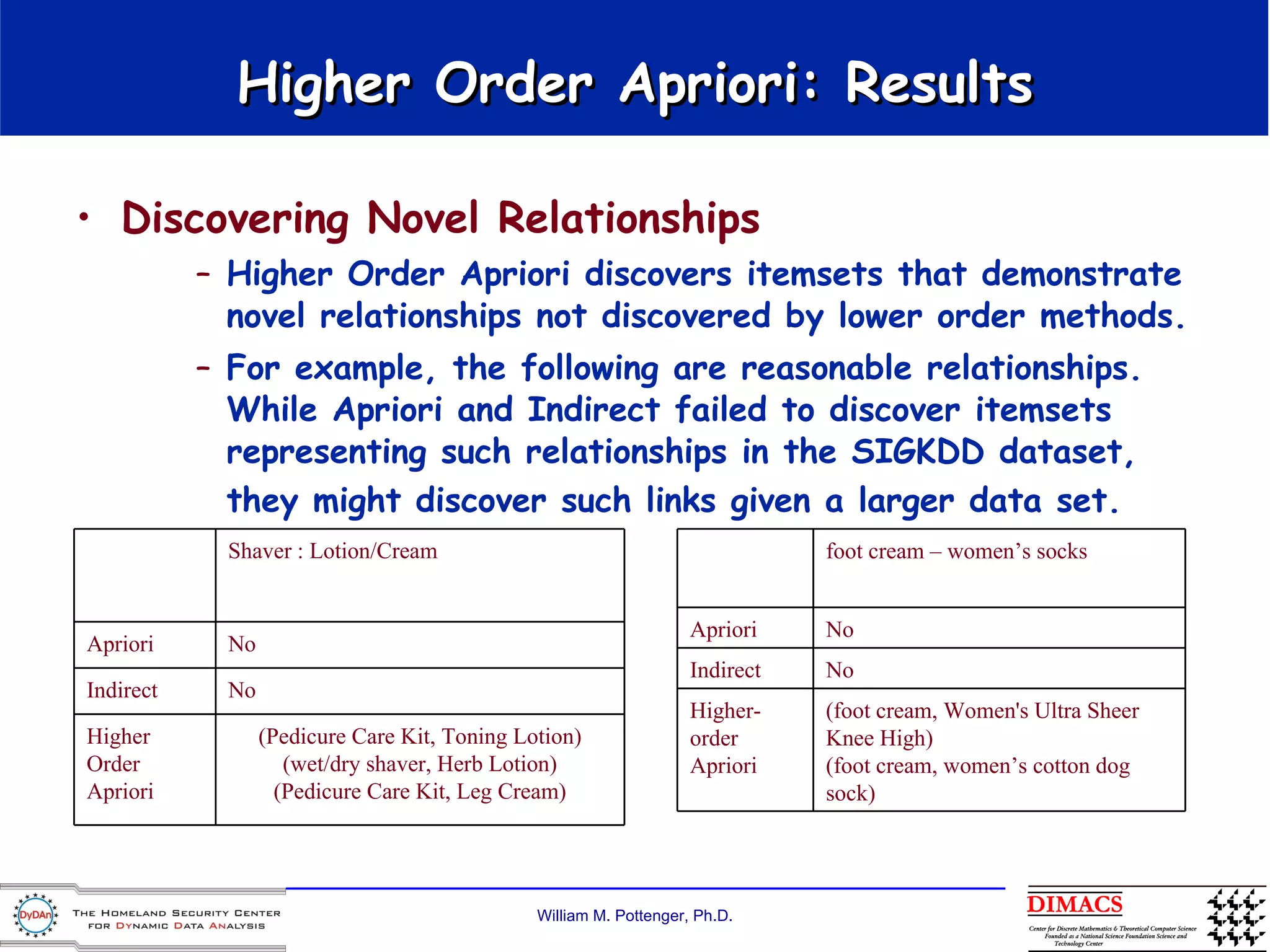

30. Higher Order Apriori: Results Discovering Novel Relationships Higher Order Apriori discovers itemsets that demonstrate novel relationships not discovered by lower order methods. For example, the following are reasonable relationships. While Apriori and Indirect failed to discover itemsets representing such relationships in the SIGKDD dataset, they might discover such links given a larger data set. Shaver : Lotion/Cream Apriori No Indirect No Higher Order Apriori (Pedicure Care Kit, Toning Lotion) (wet/dry shaver, Herb Lotion) (Pedicure Care Kit, Leg Cream) foot cream – women’s socks Apriori No Indirect No Higher-order Apriori (foot cream, Women's Ultra Sheer Knee High) (foot cream, women’s cotton dog sock)

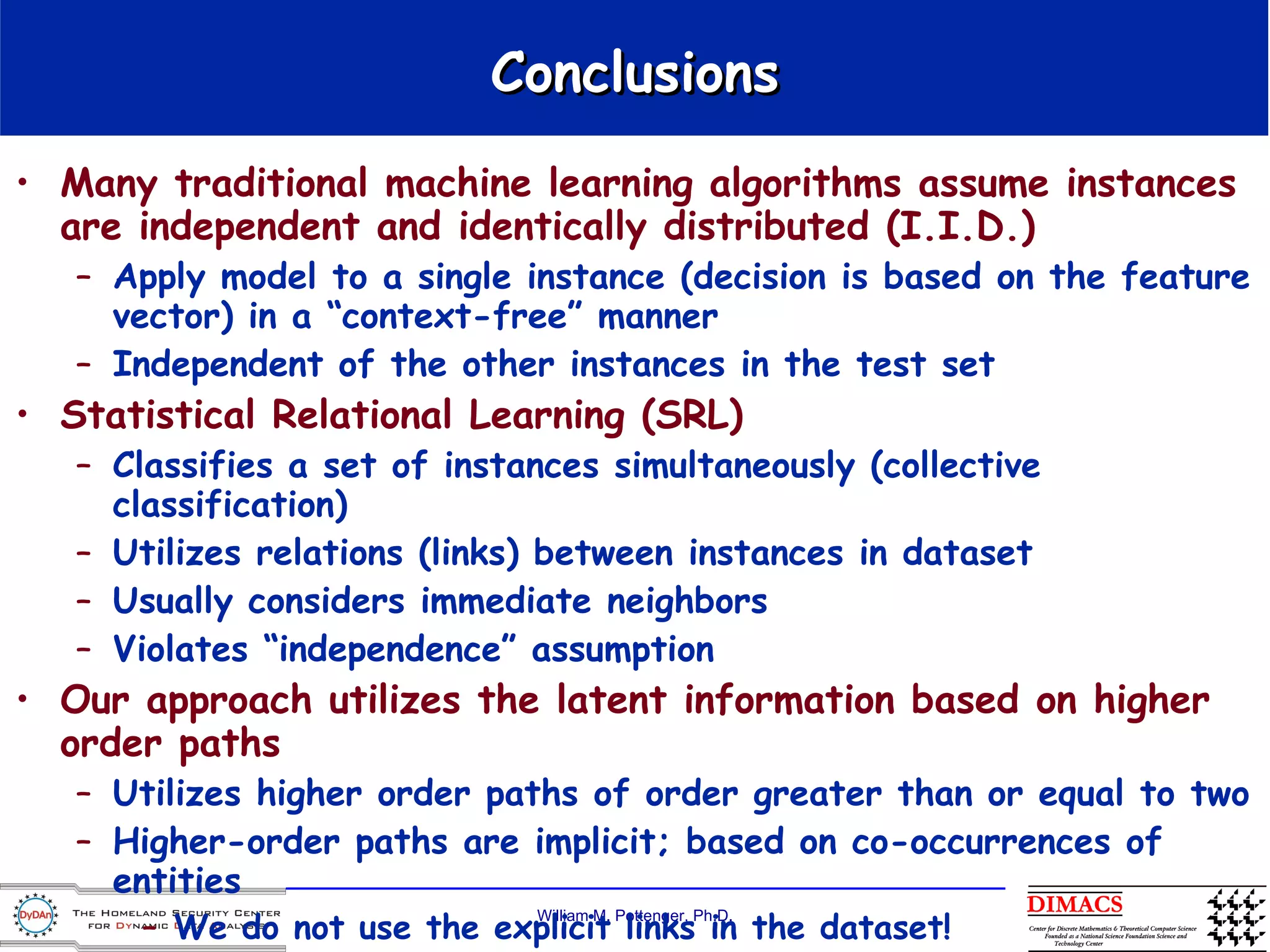

31. Conclusions Many traditional machine learning algorithms assume instances are independent and identically distributed (I.I.D.) Apply model to a single instance (decision is based on the feature vector) in a “context-free” manner Independent of the other instances in the test set Statistical Relational Learning (SRL) Classifies a set of instances simultaneously (collective classification) Utilizes relations (links) between instances in dataset Usually considers immediate neighbors Violates “independence” assumption Our approach utilizes the latent information based on higher order paths Utilizes higher order paths of order greater than or equal to two Higher-order paths are implicit; based on co-occurrences of entities We do not use the explicit links in the dataset! Captures “latent semantics” (aka Latent Semantic Indexing)

32. Thanks Q&A

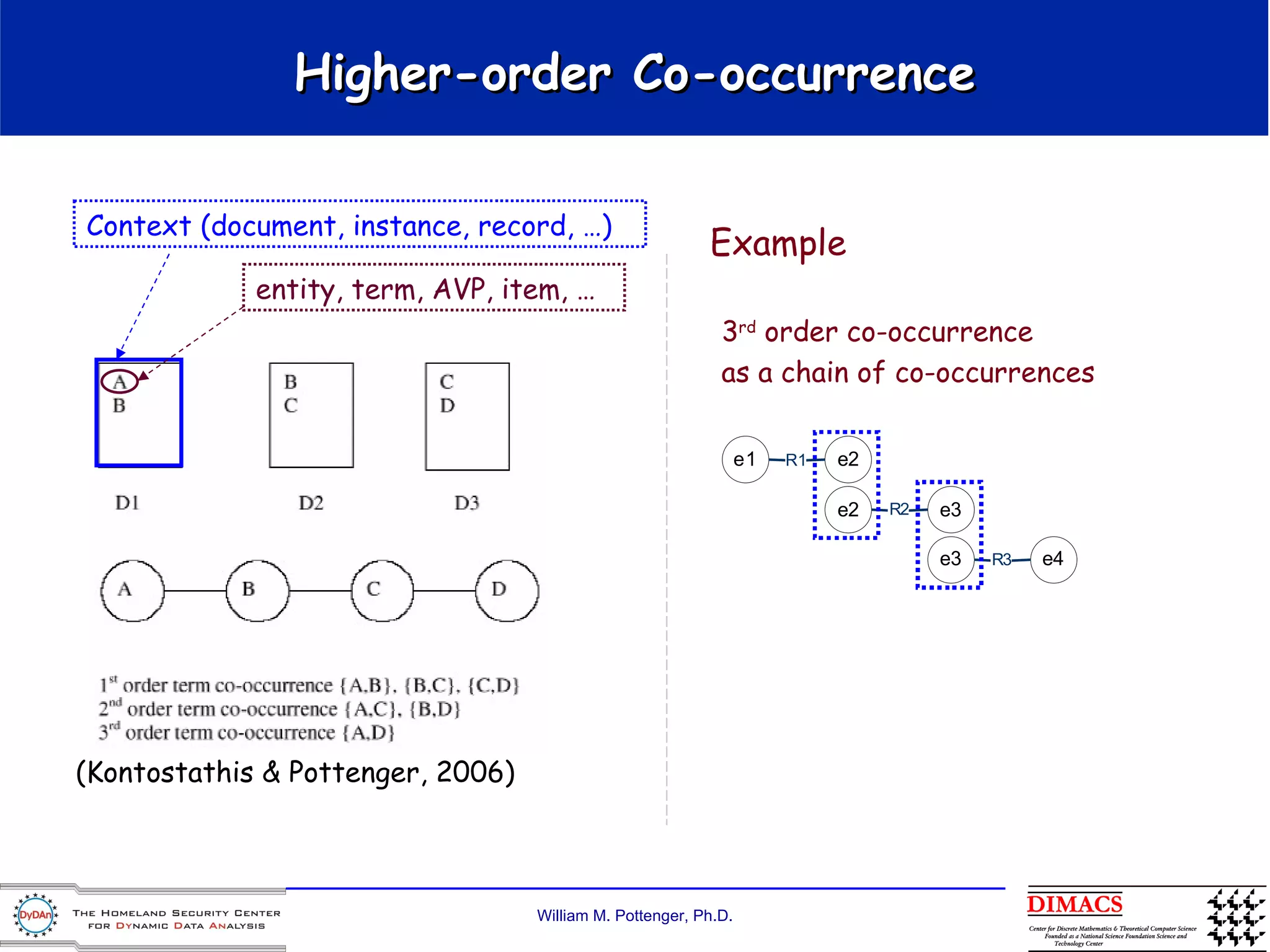

33. Higher-order Co-occurrence 3 rd order co-occurrence as a chain of co-occurrences (Kontostathis & Pottenger, 2006) Context (document, instance, record, …) entity, term, AVP, item, … Example
