1. WEBINAR
on
MySQL Group Replication
1st Feb 2017 between 5 -6 pm IST
Delhi, India

2. 2
EXPERIENCE
Systems of Engagement
DIGITIZATION
CUSTOMER
Propelling the enterprise into the new world
ENTERPRISE
EFFICIENCY
Systems of Records
MODERNIZATION
For a seamless tomorrow

3. 3 © OSSCUBE 2017. All Rights Reserved.33/28/2017

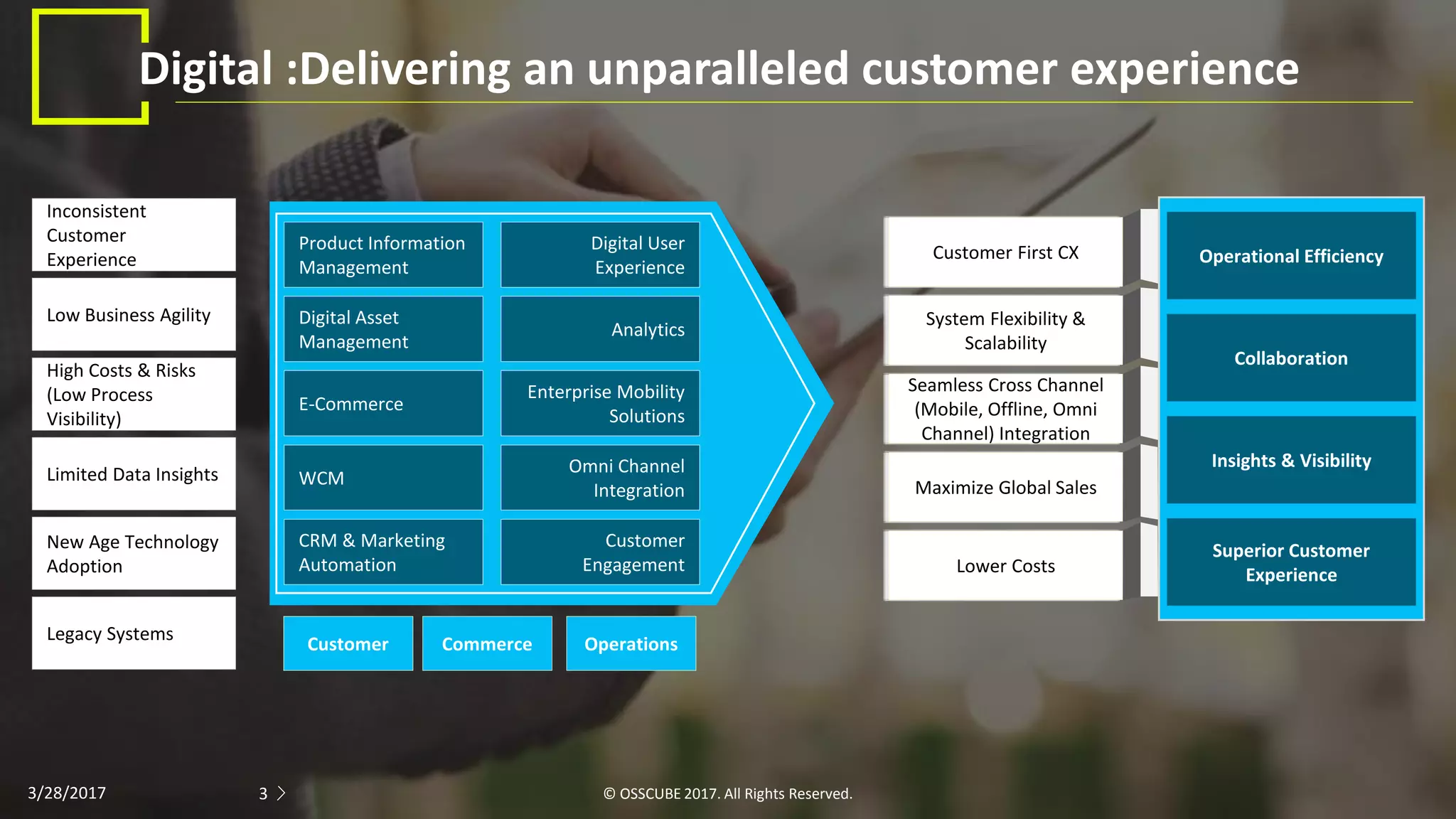

Digital :Delivering an unparalleled customer experience
Customer Commerce Operations
Operational Efficiency
Collaboration
Insights & Visibility
Superior Customer
Experience
Product Information
Management
Digital User
Experience
Digital Asset
Management
Analytics
E-Commerce
Enterprise Mobility
Solutions
WCM
Omni Channel
Integration
CRM & Marketing
Automation
Customer
Engagement
Limited Data Insights
High Costs & Risks
(Low Process
Visibility)
Low Business Agility
Inconsistent
Customer
Experience
Legacy Systems
New Age Technology
Adoption
Customer First CX
System Flexibility &
Scalability
Seamless Cross Channel
(Mobile, Offline, Omni
Channel) Integration
Maximize Global Sales
Lower Costs

4. 4

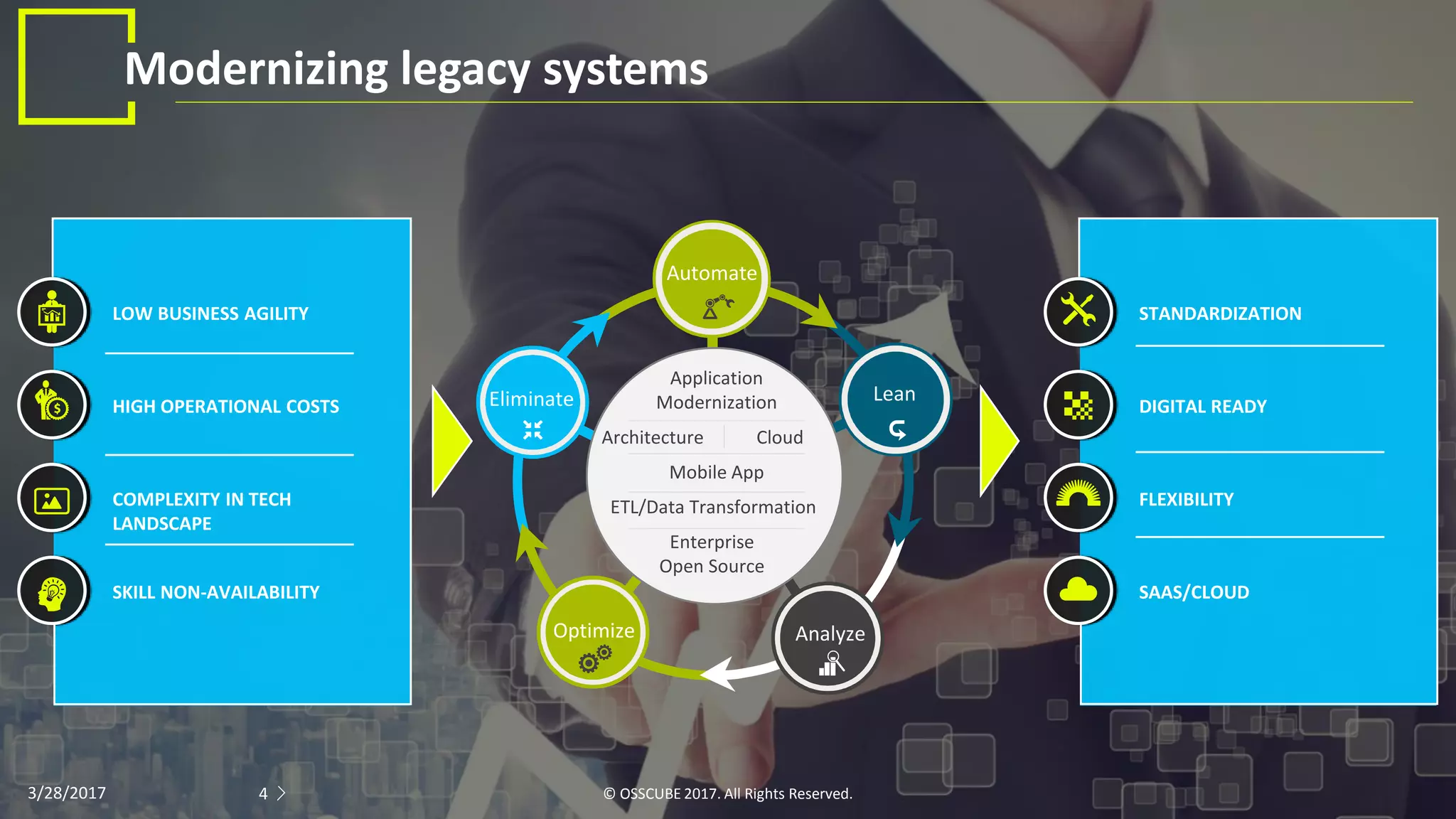

Modernizing legacy systems
Application
Modernization
Architecture Cloud
Mobile App
ETL/Data Transformation
Enterprise
Open Source
Eliminate
Automate
Lean
AnalyzeOptimize
STANDARDIZATION
DIGITAL READY
FLEXIBILITY
SAAS/CLOUD
LOW BUSINESS AGILITY
HIGH OPERATIONAL COSTS
COMPLEXITY IN TECH
LANDSCAPE
SKILL NON-AVAILABILITY
© OSSCUBE 2017. All Rights Reserved.43/28/2017

5. 28 March 2017 © OSSCube 2016. All Rights Reserved. 5

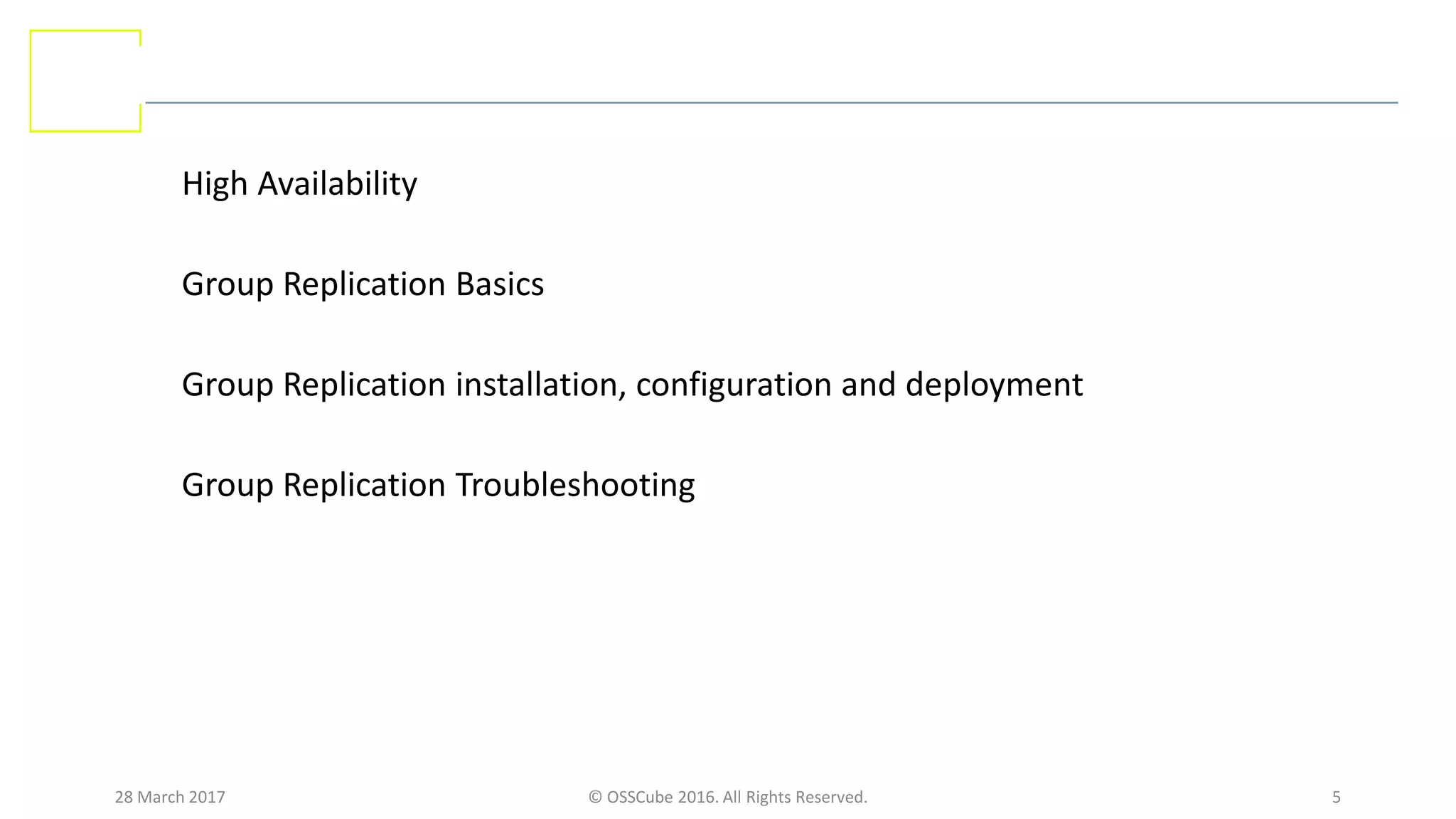

High Availability
Group Replication Basics
Group Replication installation, configuration and deployment
Group Replication Troubleshooting

6. 28 March 2017 © OSSCube 2016. All Rights Reserved. 6

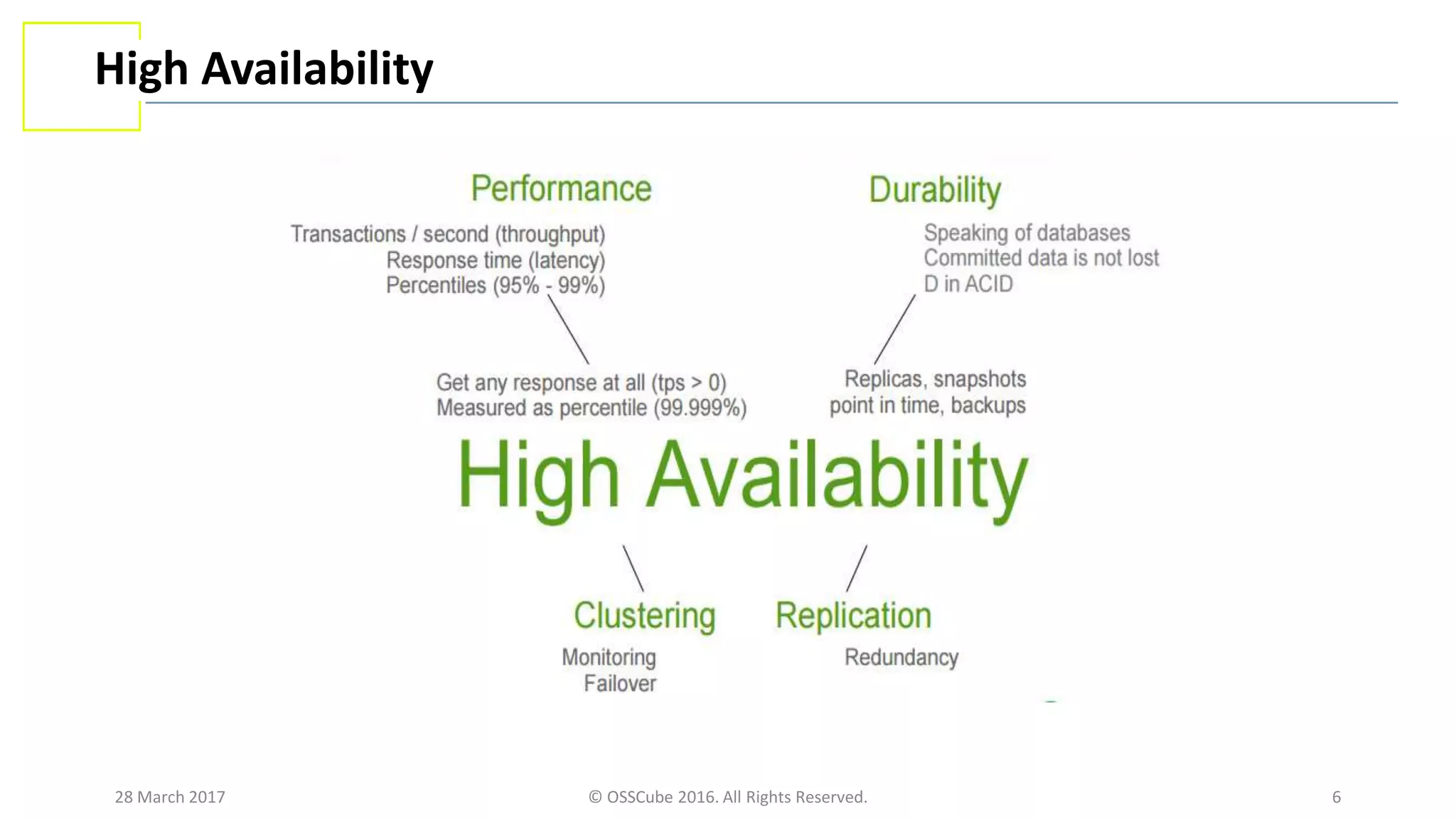

High Availability

7. 28 March 2017 © OSSCube 2016. All Rights Reserved. 7

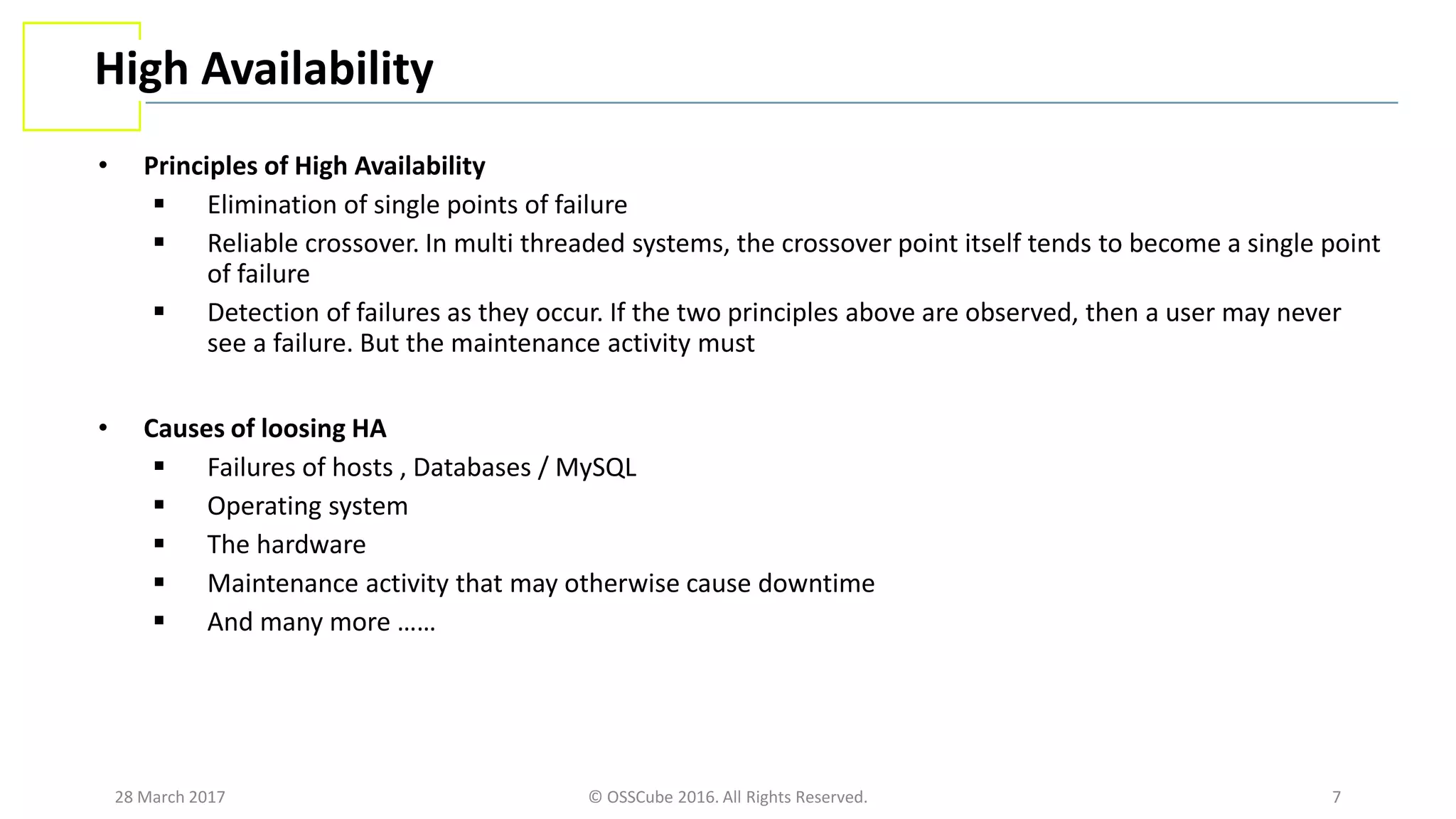

High Availability
• Principles of High Availability
 Elimination of single points of failure
 Reliable crossover. In multi threaded systems, the crossover point itself tends to become a single point
of failure
 Detection of failures as they occur. If the two principles above are observed, then a user may never
see a failure. But the maintenance activity must
• Causes of loosing HA
 Failures of hosts , Databases / MySQL
 Operating system
 The hardware
 Maintenance activity that may otherwise cause downtime
 And many more ……

8. 28 March 2017 © OSSCube 2017. All Rights Reserved. 8

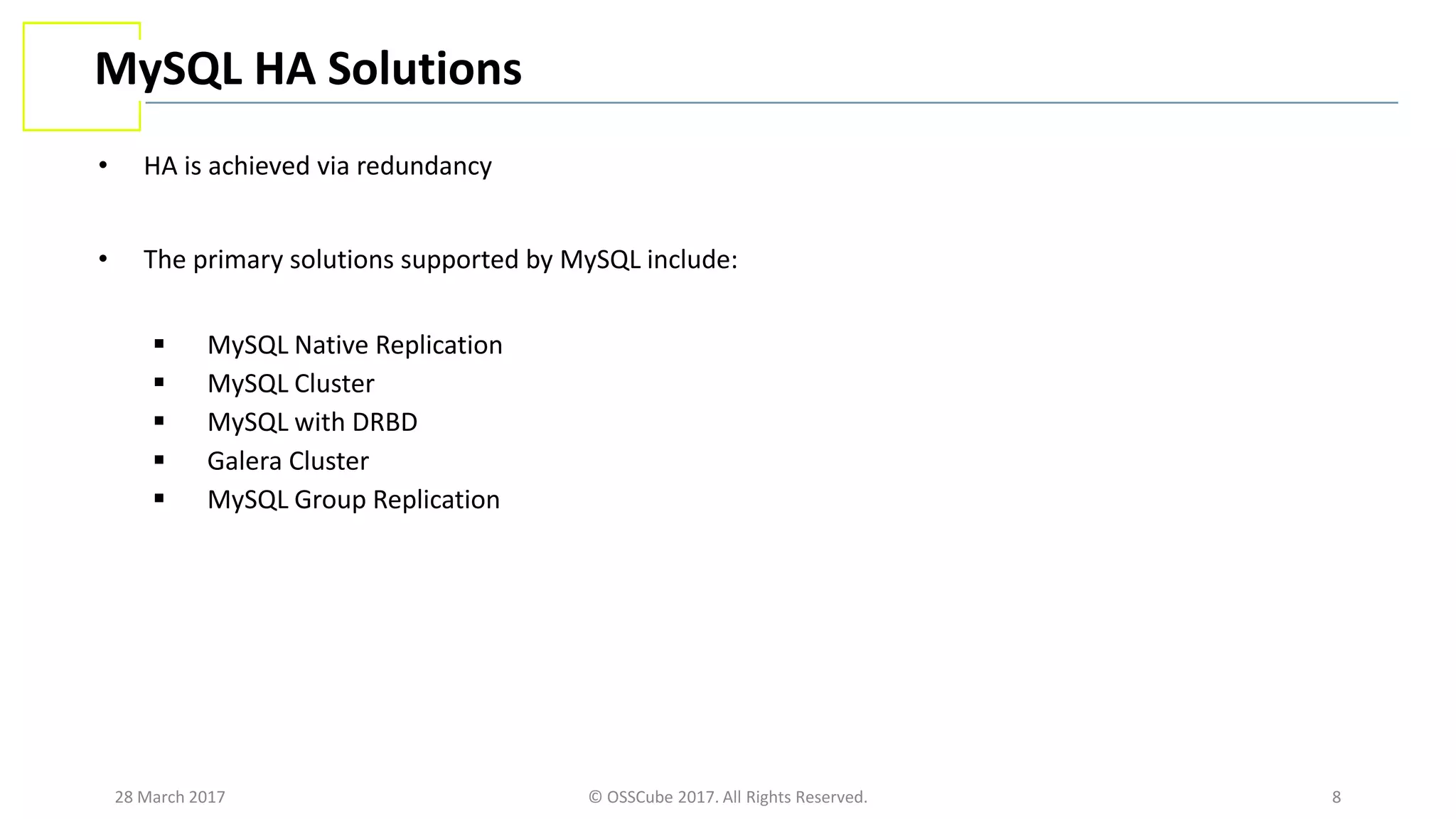

MySQL HA Solutions
• HA is achieved via redundancy
• The primary solutions supported by MySQL include:
 MySQL Native Replication
 MySQL Cluster
 MySQL with DRBD
 Galera Cluster
 MySQL Group Replication

9. 28 March 2017 © OSSCube 2017. All Rights Reserved. 9

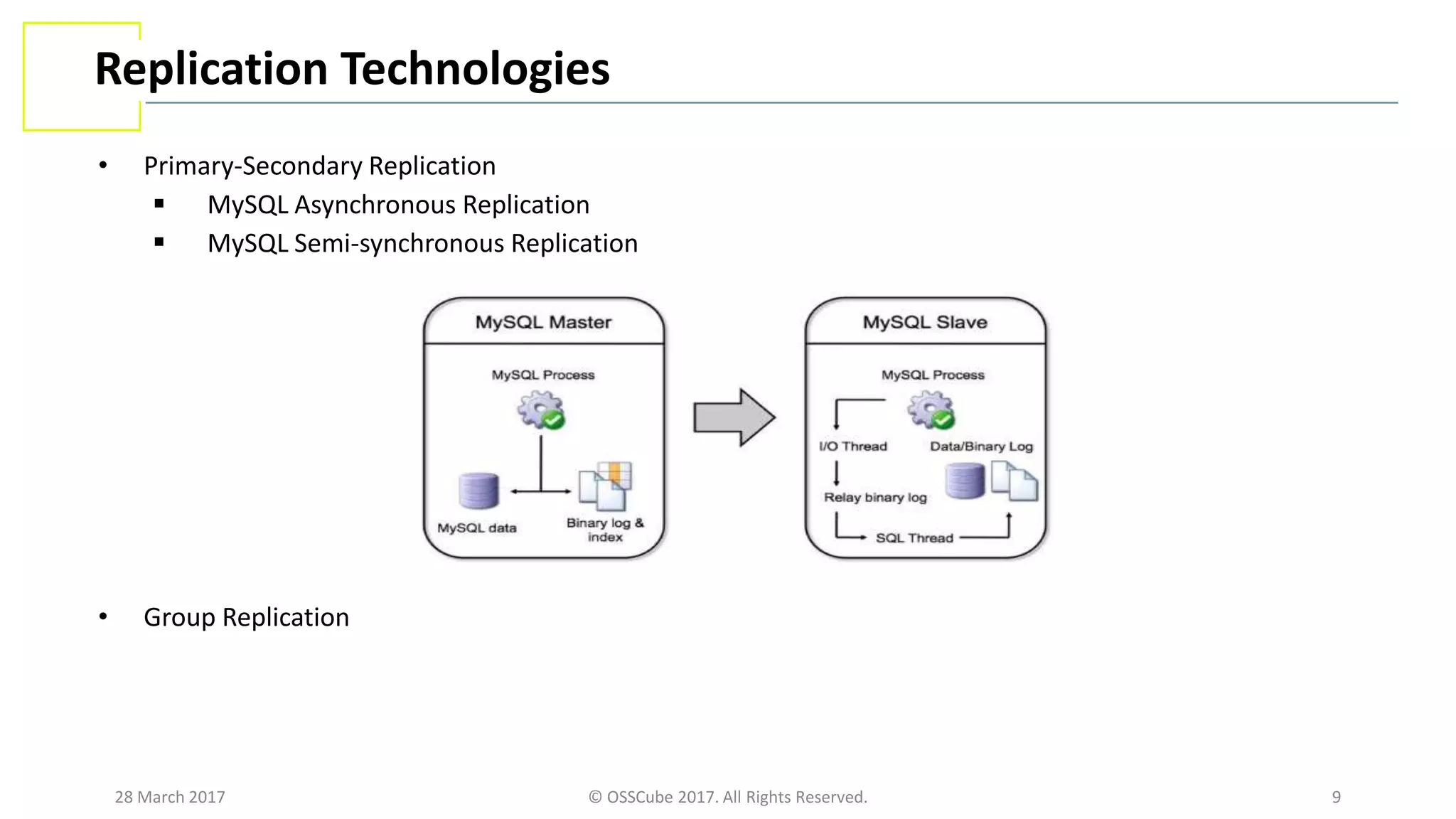

Replication Technologies
• Primary-Secondary Replication
 MySQL Asynchronous Replication
 MySQL Semi-synchronous Replication
• Group Replication

10. 28 March 2017 © OSSCube 2017. All Rights Reserved. 10

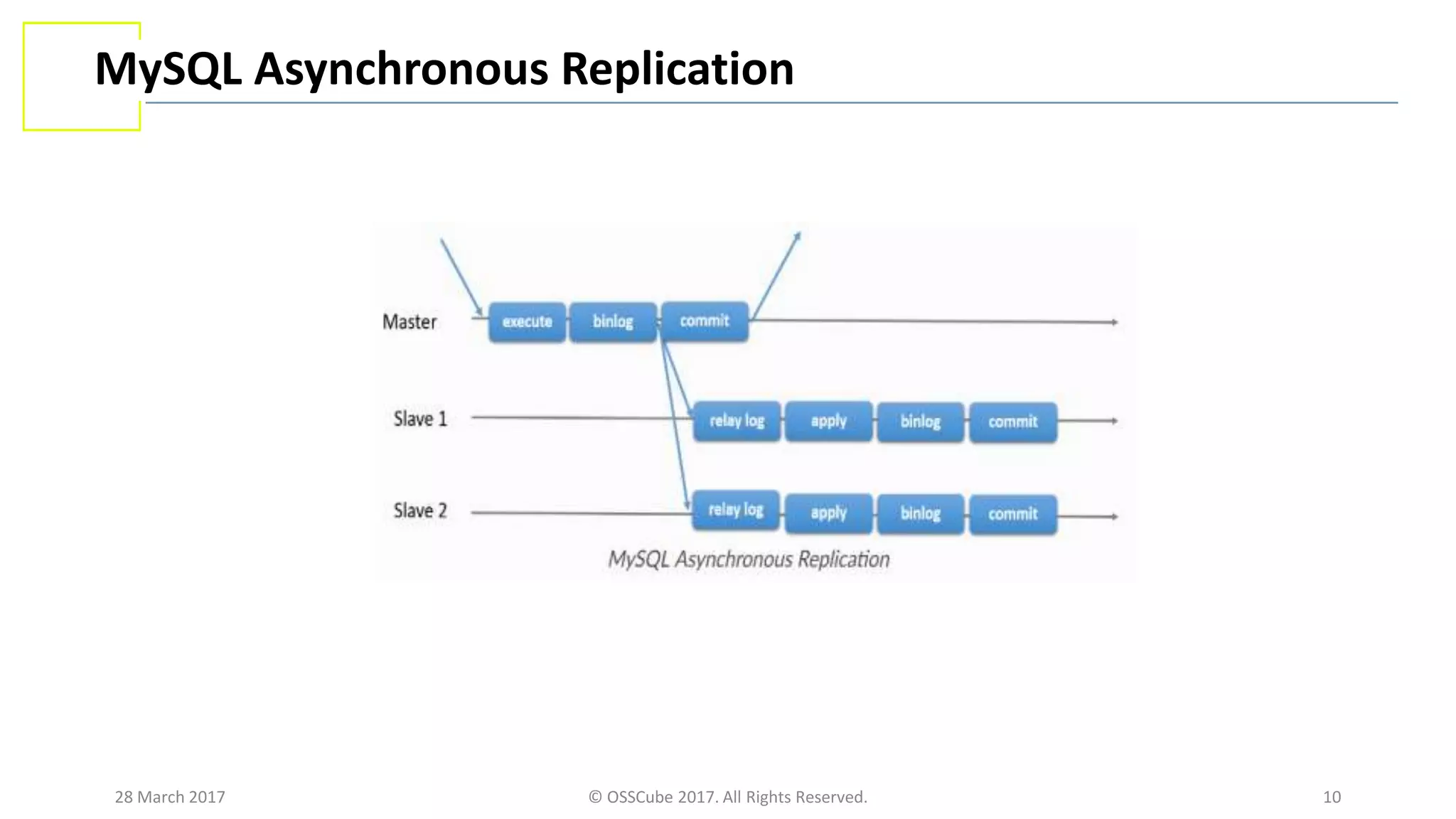

MySQL Asynchronous Replication

11. 28 March 2017 © OSSCube 2017. All Rights Reserved. 11

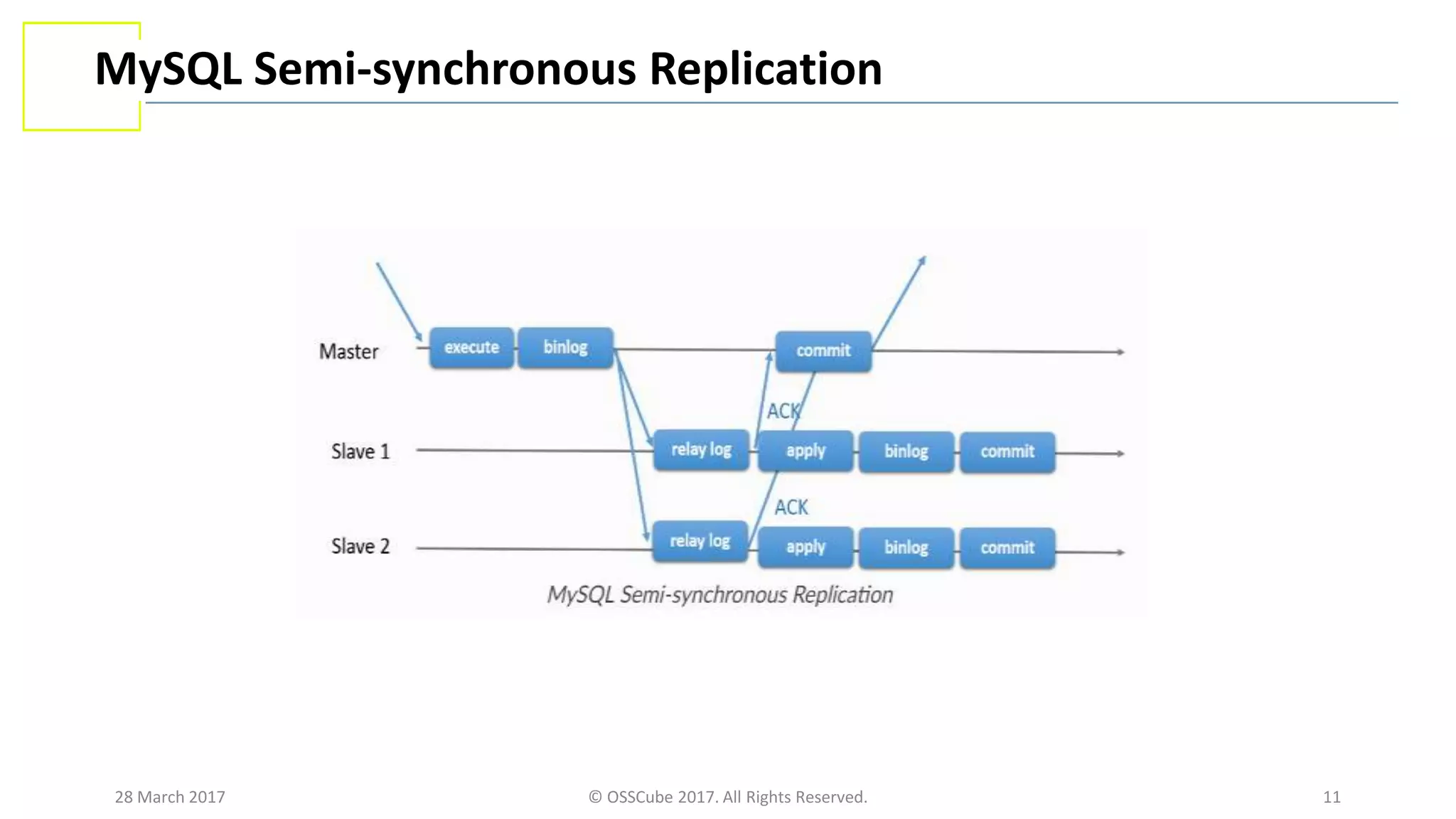

MySQL Semi-synchronous Replication

12. 28 March 2017 © OSSCube 2017. All Rights Reserved. 12

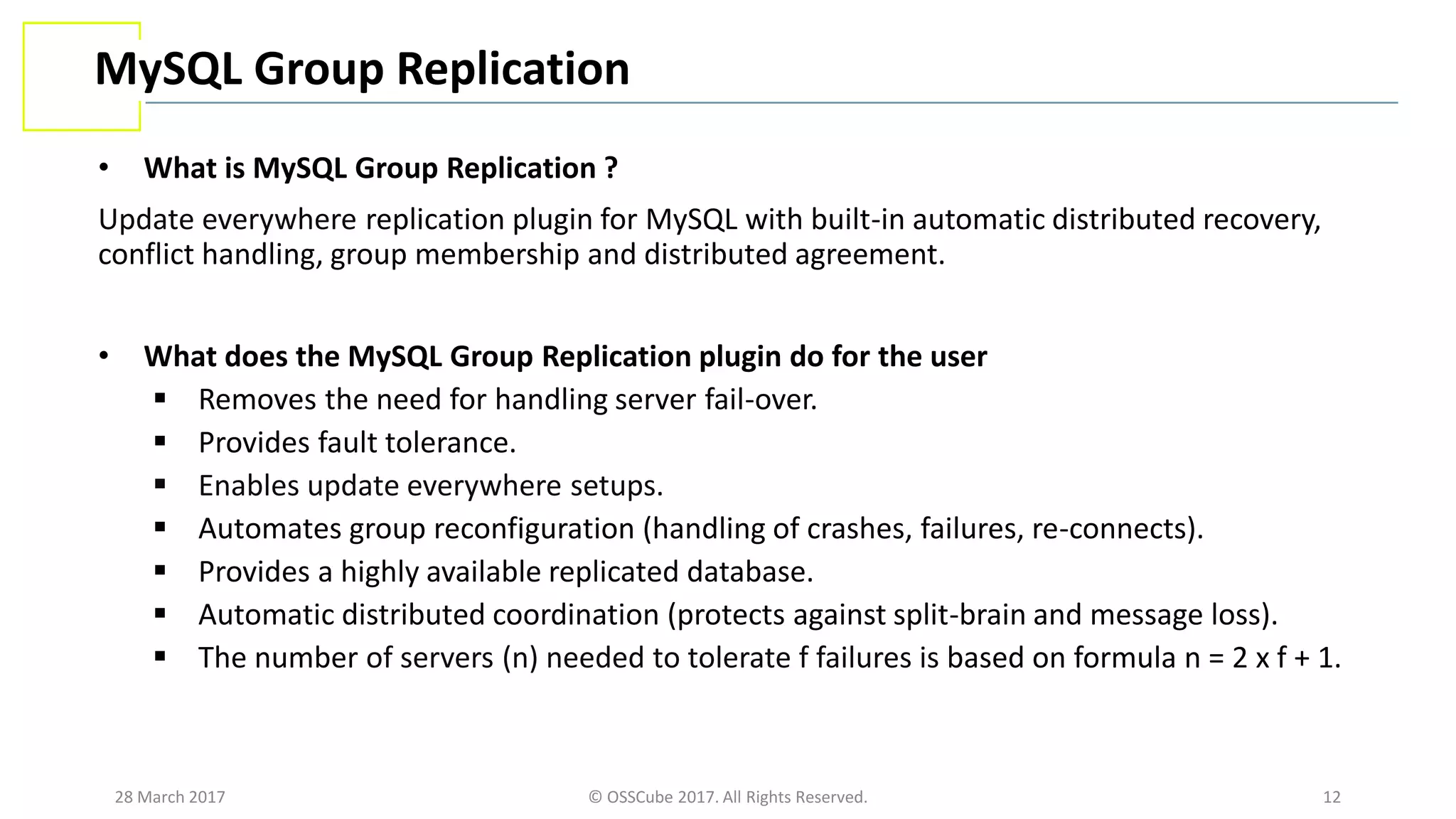

MySQL Group Replication
• What is MySQL Group Replication ?
Update everywhere replication plugin for MySQL with built-in automatic distributed recovery,
conflict handling, group membership and distributed agreement.
• What does the MySQL Group Replication plugin do for the user
 Removes the need for handling server fail-over.
 Provides fault tolerance.
 Enables update everywhere setups.
 Automates group reconfiguration (handling of crashes, failures, re-connects).
 Provides a highly available replicated database.
 Automatic distributed coordination (protects against split-brain and message loss).
 The number of servers (n) needed to tolerate f failures is based on formula n = 2 x f + 1.

13. 28 March 2017 © OSSCube 2017. All Rights Reserved. 13

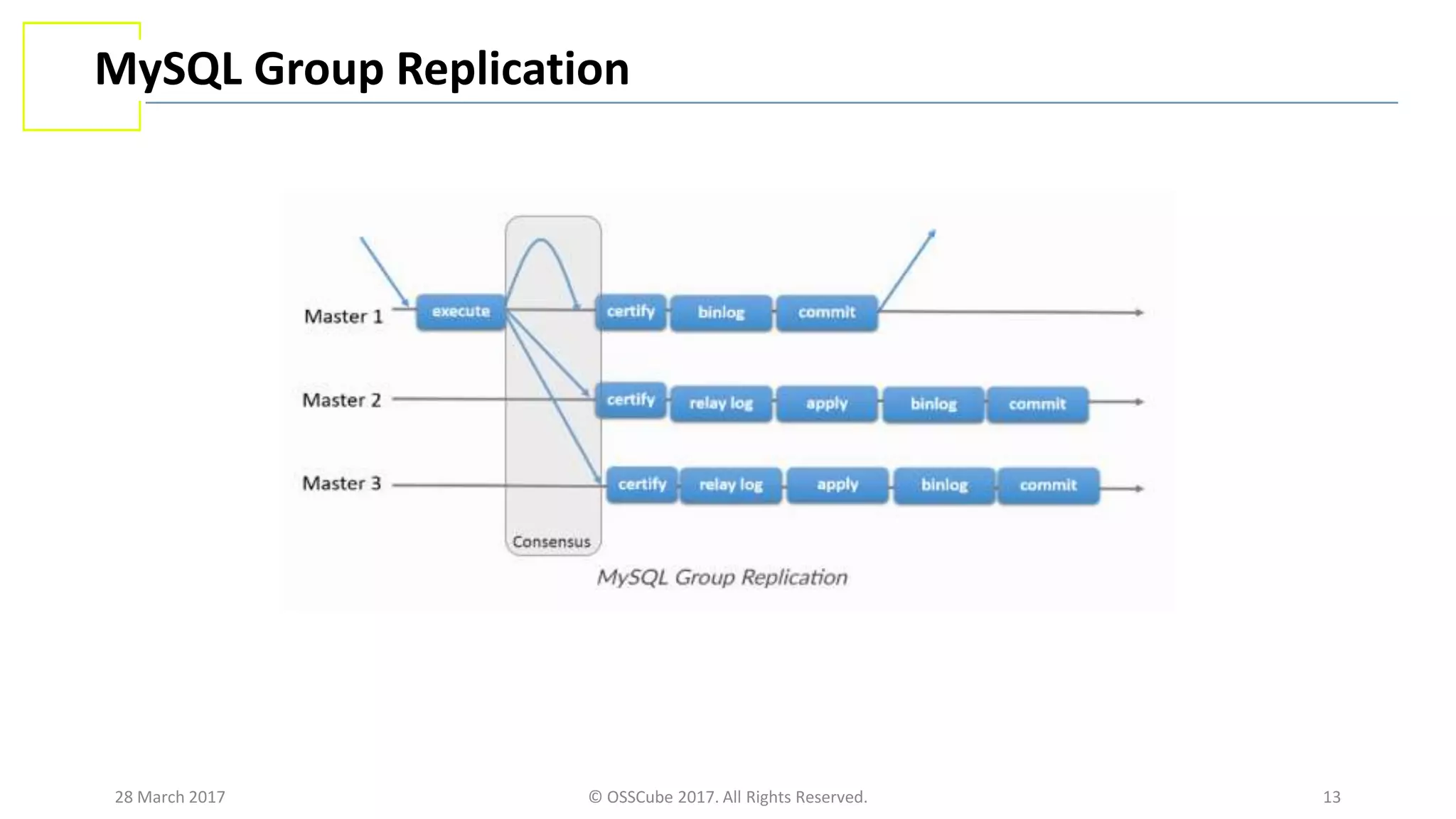

MySQL Group Replication

14. 28 March 2017 © OSSCube 2017. All Rights Reserved. 14

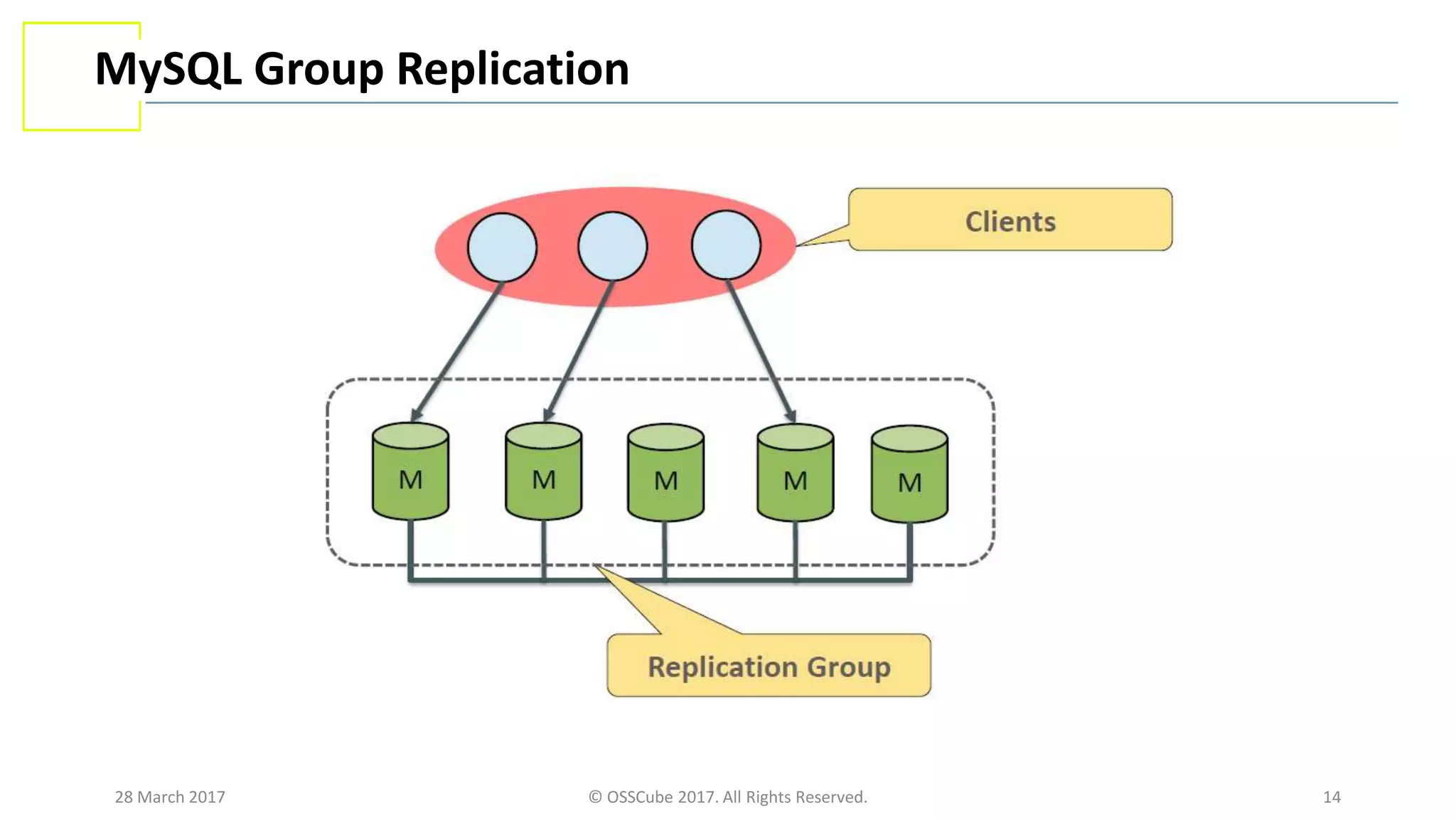

MySQL Group Replication

15. 28 March 2017 © OSSCube 2017. All Rights Reserved. 15

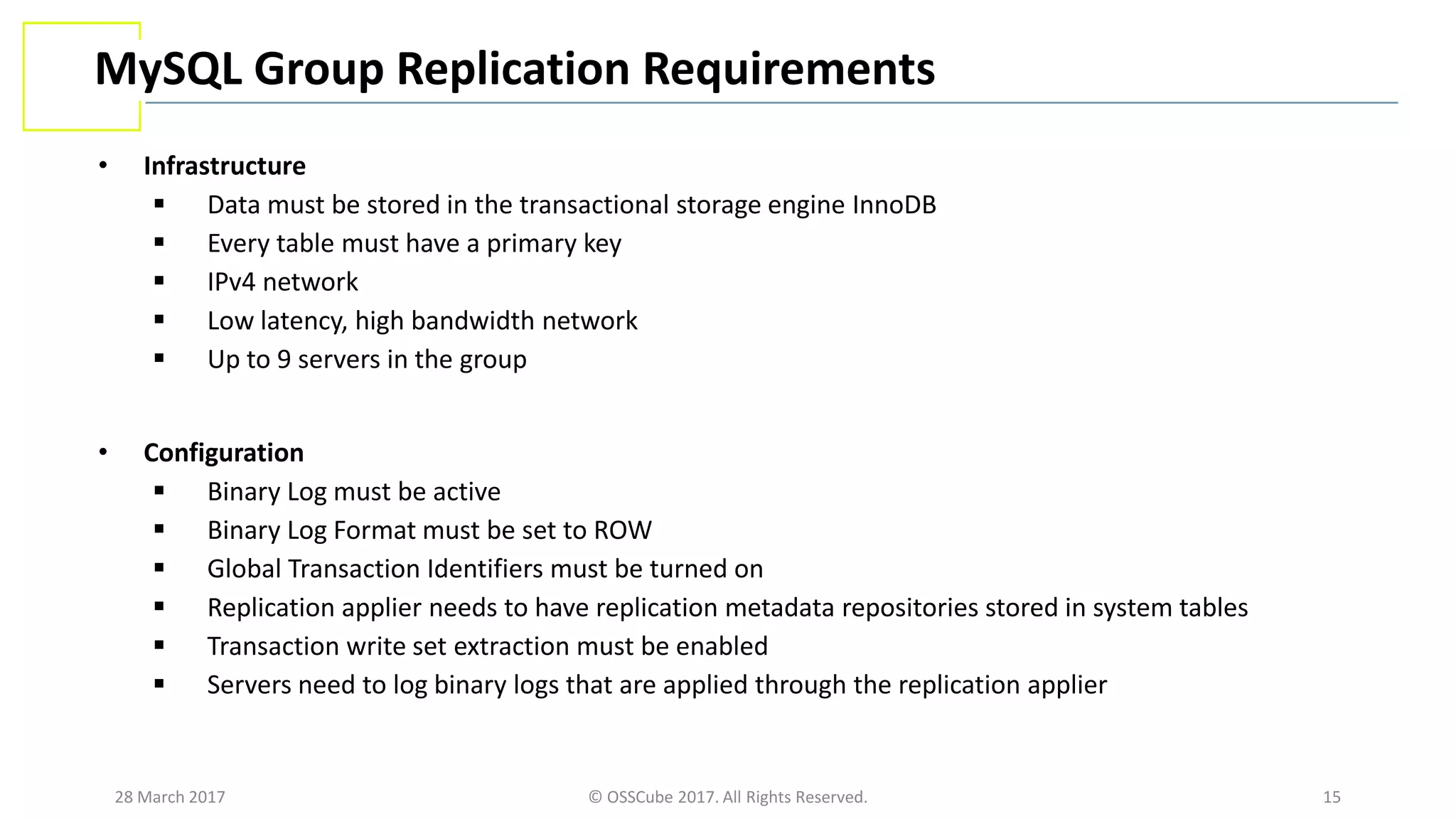

MySQL Group Replication Requirements
• Infrastructure
 Data must be stored in the transactional storage engine InnoDB
 Every table must have a primary key
 IPv4 network
 Low latency, high bandwidth network
 Up to 9 servers in the group
• Configuration
 Binary Log must be active
 Binary Log Format must be set to ROW
 Global Transaction Identifiers must be turned on
 Replication applier needs to have replication metadata repositories stored in system tables
 Transaction write set extraction must be enabled
 Servers need to log binary logs that are applied through the replication applier

16. 28 March 2017 © OSSCube 2017. All Rights Reserved. 16

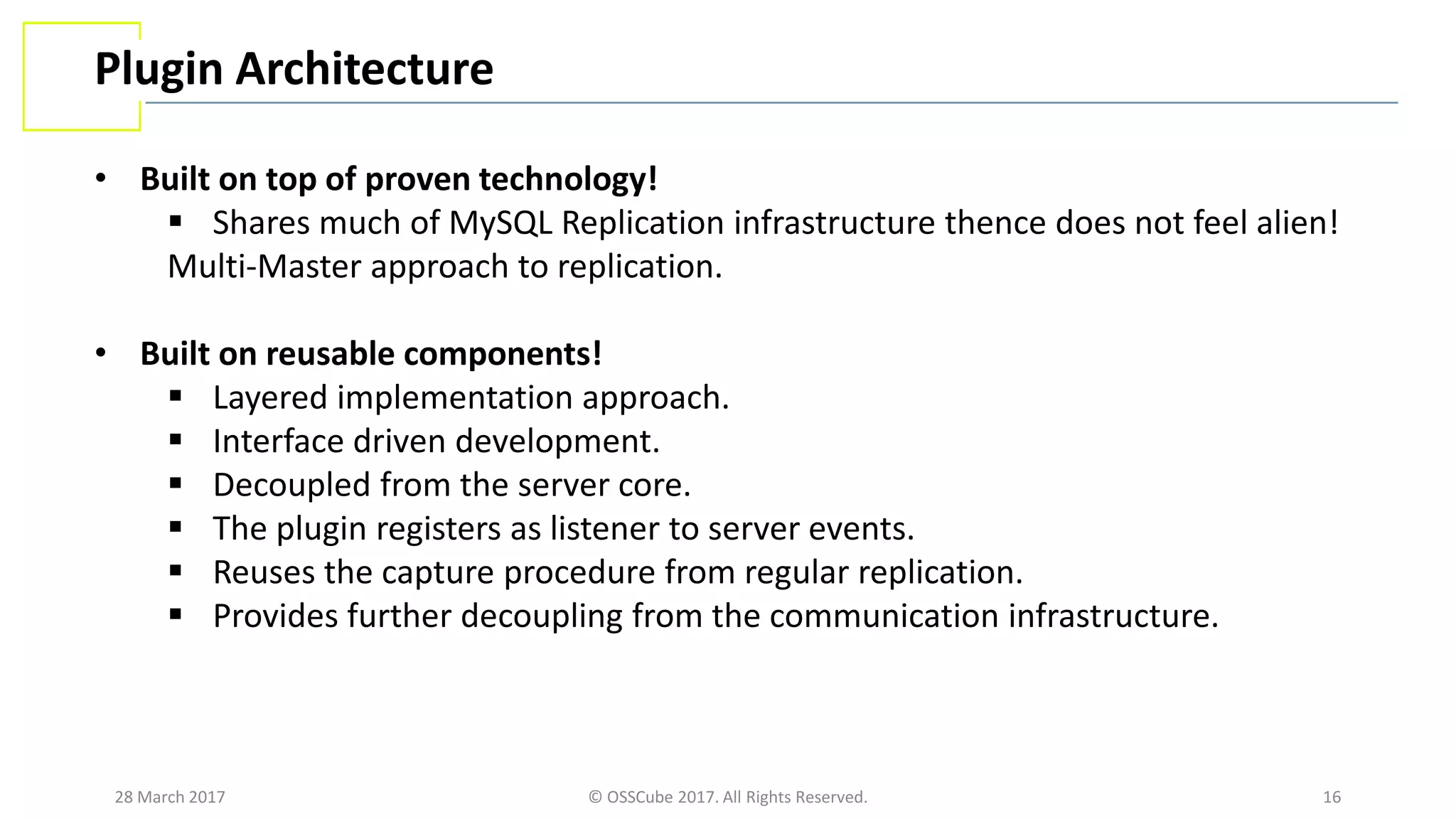

Plugin Architecture
• Built on top of proven technology!
 Shares much of MySQL Replication infrastructure thence does not feel alien!
Multi-Master approach to replication.
• Built on reusable components!
 Layered implementation approach.
 Interface driven development.
 Decoupled from the server core.
 The plugin registers as listener to server events.
 Reuses the capture procedure from regular replication.
 Provides further decoupling from the communication infrastructure.

17. 28 March 2017 © OSSCube 2017. All Rights Reserved. 17

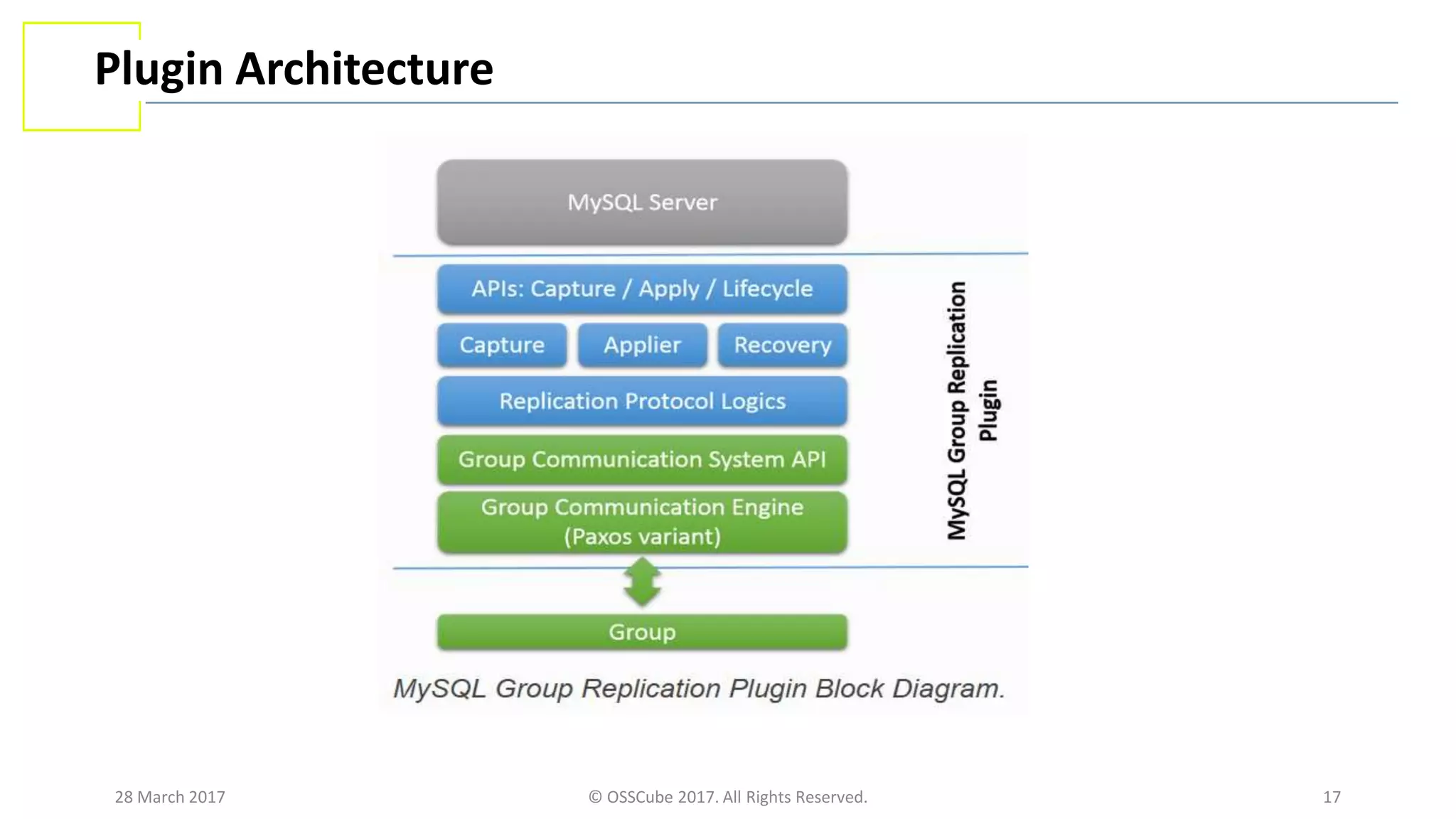

Plugin Architecture

18. 28 March 2017 © OSSCube 2017. All Rights Reserved. 18
DEMO
DEMO

19. 28 March 2017 © OSSCube 2017. All Rights Reserved. 19
Q&A
Q&A
