Slides from the talk I co-presented with Jeff Freund from Clickability at MySQL Sunday - Oracle Openworld 2010

1. <Insert Picture Here>
Efficient Performance Analysis and Tuning with MySQL Enterprise
Monitor
Mark Matthews, Principal Software Developer, Oracle
Jeff Freund, CEO and CTO, Clickability

2. The following is intended to outline our general
product direction. It is intended for information
purposes only, and may not be incorporated into any
contract. It is not a commitment to deliver any
material, code, or functionality, and should not be
relied upon in making purchasing decisions.
The development, release, and timing of any
features or functionality described for Oracle’s
products remains at the sole discretion of Oracle.
2

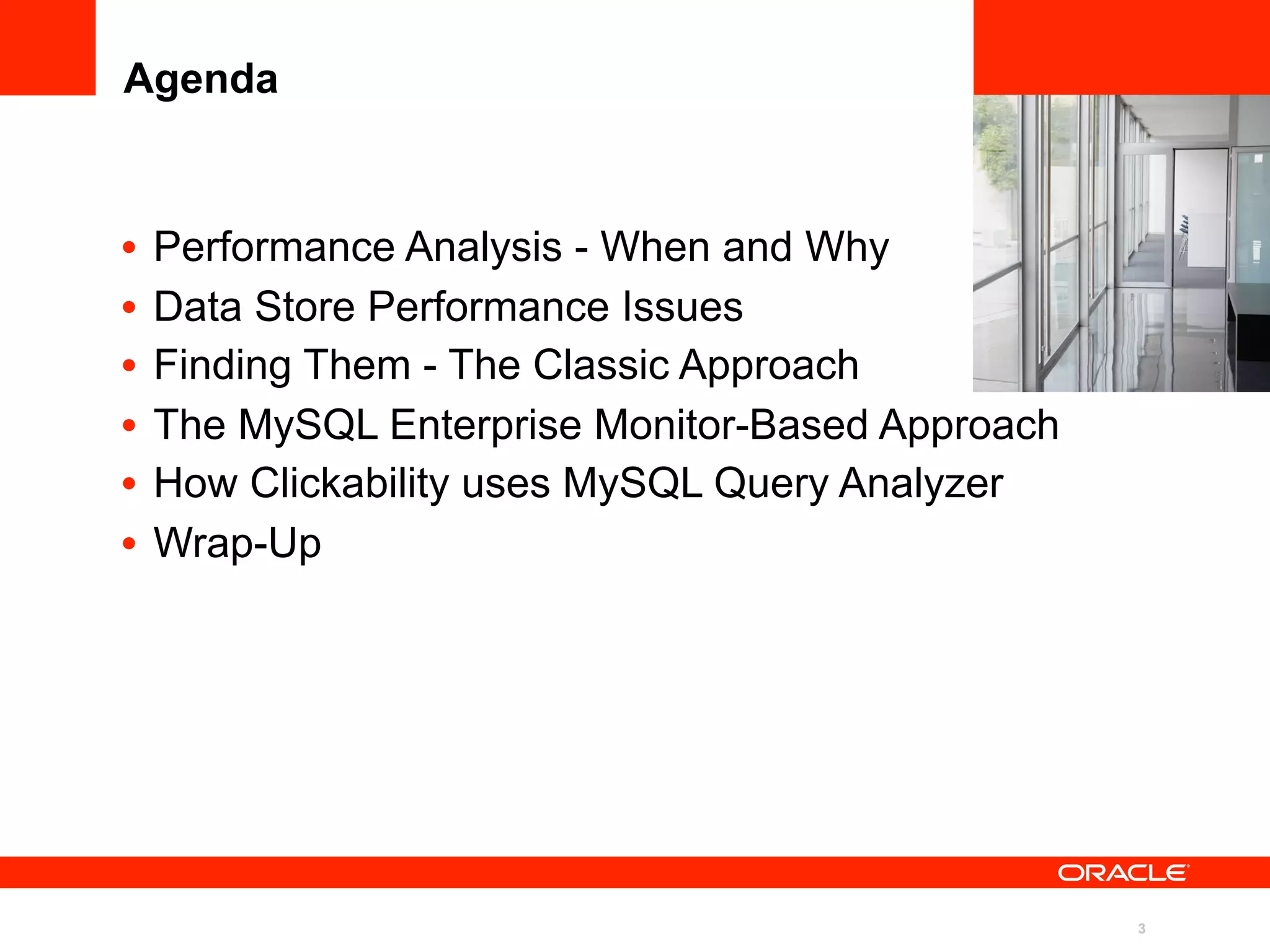

3. Agenda
• Performance Analysis - When and Why <Insert Picture Here>
• Data Store Performance Issues
• Finding Them - The Classic Approach
• The MySQL Enterprise Monitor-Based Approach
• How Clickability uses MySQL Query Analyzer
• Wrap-Up
3

4. Performance Analysis - When and Why
• Development
– Are we meeting performance requirements?
– Are we meeting design standards?
– Framework, stack surprises...
• Quality Assurance
– Diagnose performance problems under load
– Analyze new functionality’s performance impact
– Find errors, warnings before production
• Production
– Building a “pulse” of the deployed environment
– Fighting fires (outages, storms, errors)
4

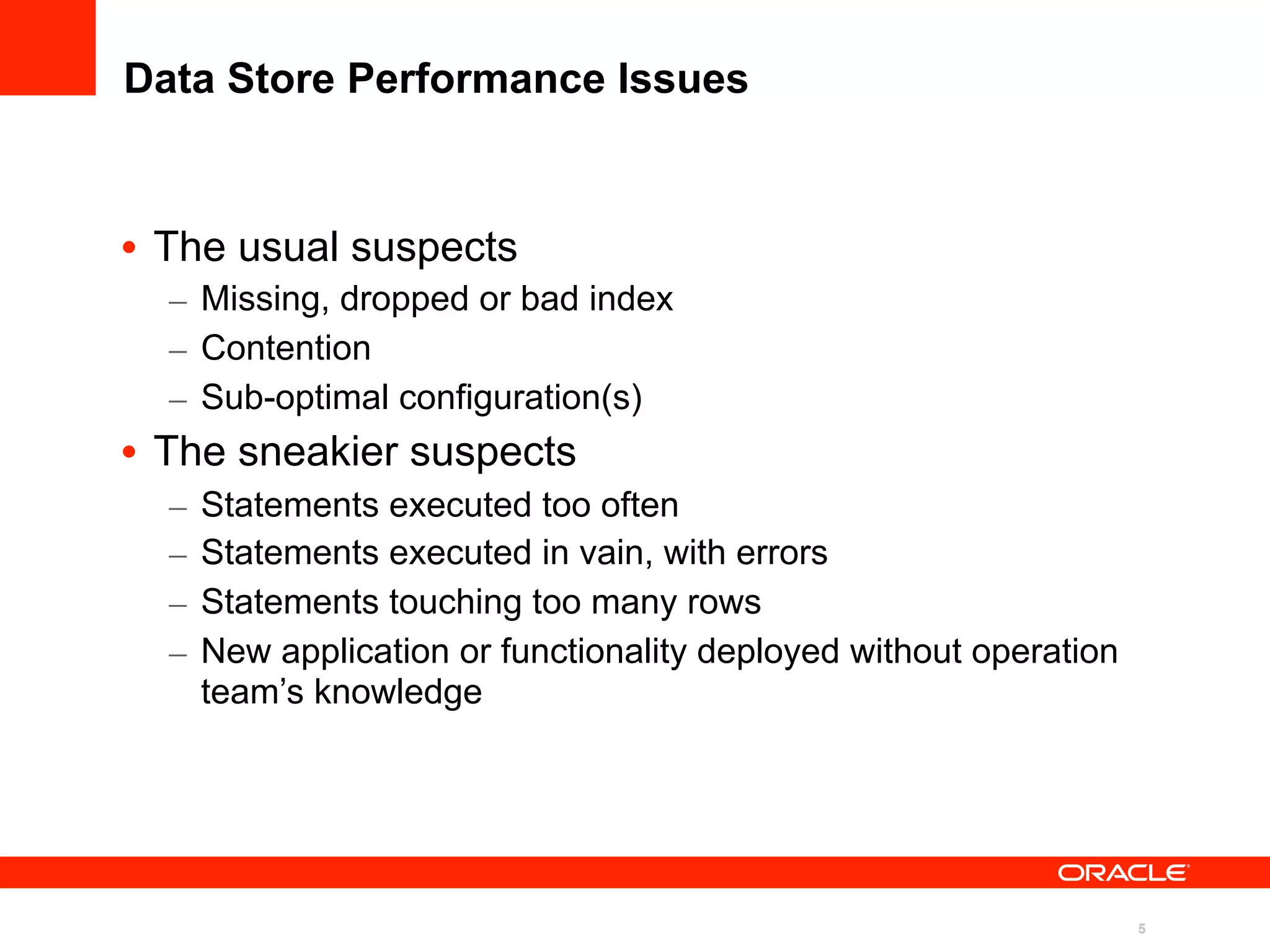

5. Data Store Performance Issues
• The usual suspects
– Missing, dropped or bad index
– Contention
– Sub-optimal configuration(s)
• The sneakier suspects
– Statements executed too often
– Statements executed in vain, with errors
– Statements touching too many rows
– New application or functionality deployed without operation
team’s knowledge
5

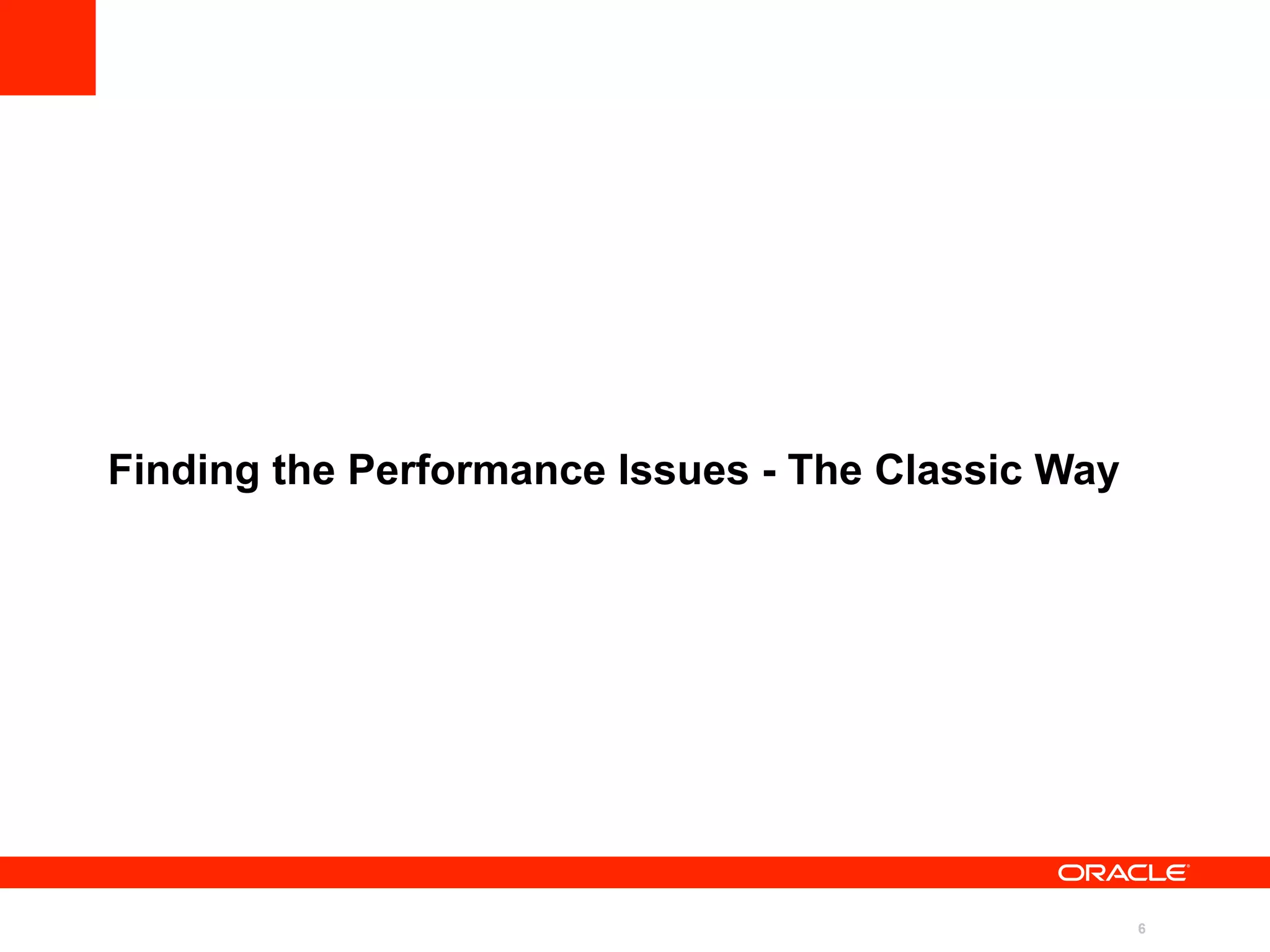

6. Finding the Performance Issues - The Classic Way
6

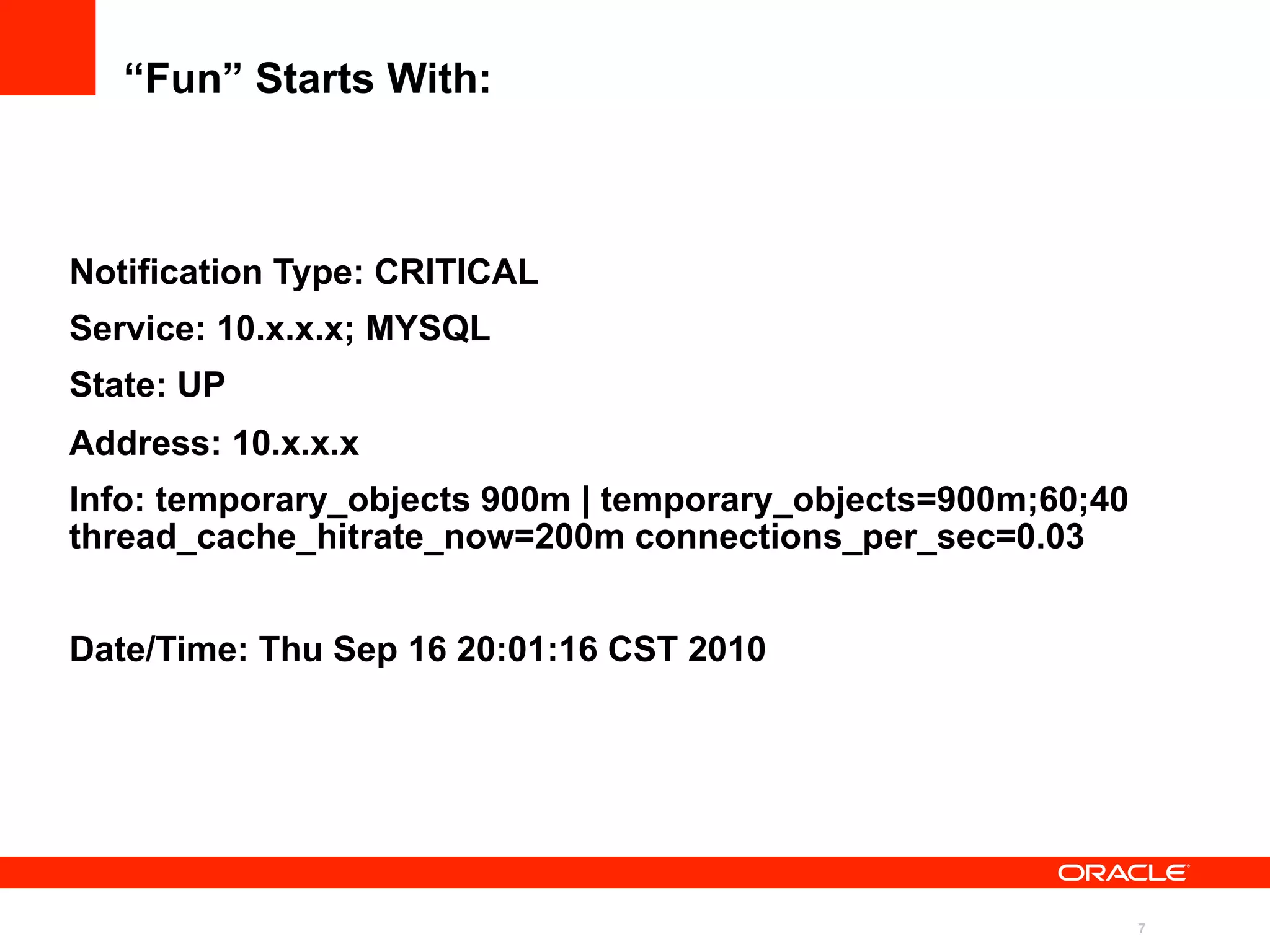

7. “Fun” Starts With:
Notification Type: CRITICAL
Service: 10.x.x.x; MYSQL
State: UP
Address: 10.x.x.x
Info: temporary_objects 900m | temporary_objects=900m;60;40
thread_cache_hitrate_now=200m connections_per_sec=0.03
Date/Time: Thu Sep 16 20:01:16 CST 2010
7

8. Leading To the “Trailhead”....
8

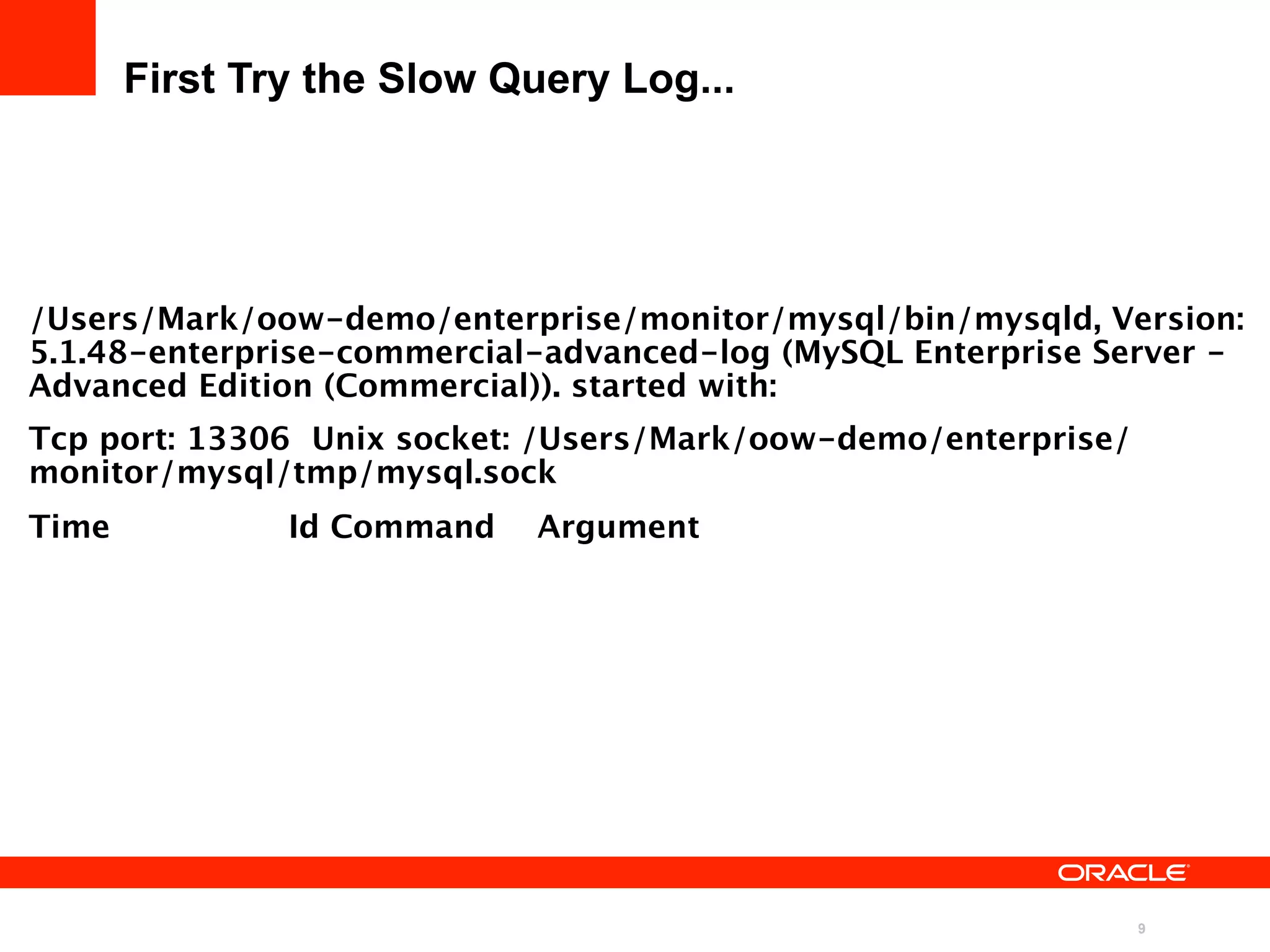

9. First Try the Slow Query Log...
/Users/Mark/oow-demo/enterprise/monitor/mysql/bin/mysqld, Version:
5.1.48-enterprise-commercial-advanced-log (MySQL Enterprise Server -
Advanced Edition (Commercial)). started with:
Tcp port: 13306 Unix socket: /Users/Mark/oow-demo/enterprise/
monitor/mysql/tmp/mysql.sock
Time Id Command Argument
9

10. If You’re “Lucky”, It’s In the General Log...
klinkerbrick:data Mark$ ls -l mysqld.log
-rw-rw---- 1 _mysql _mysql 112014183 Sep 17 10:01 mysqld.log
10

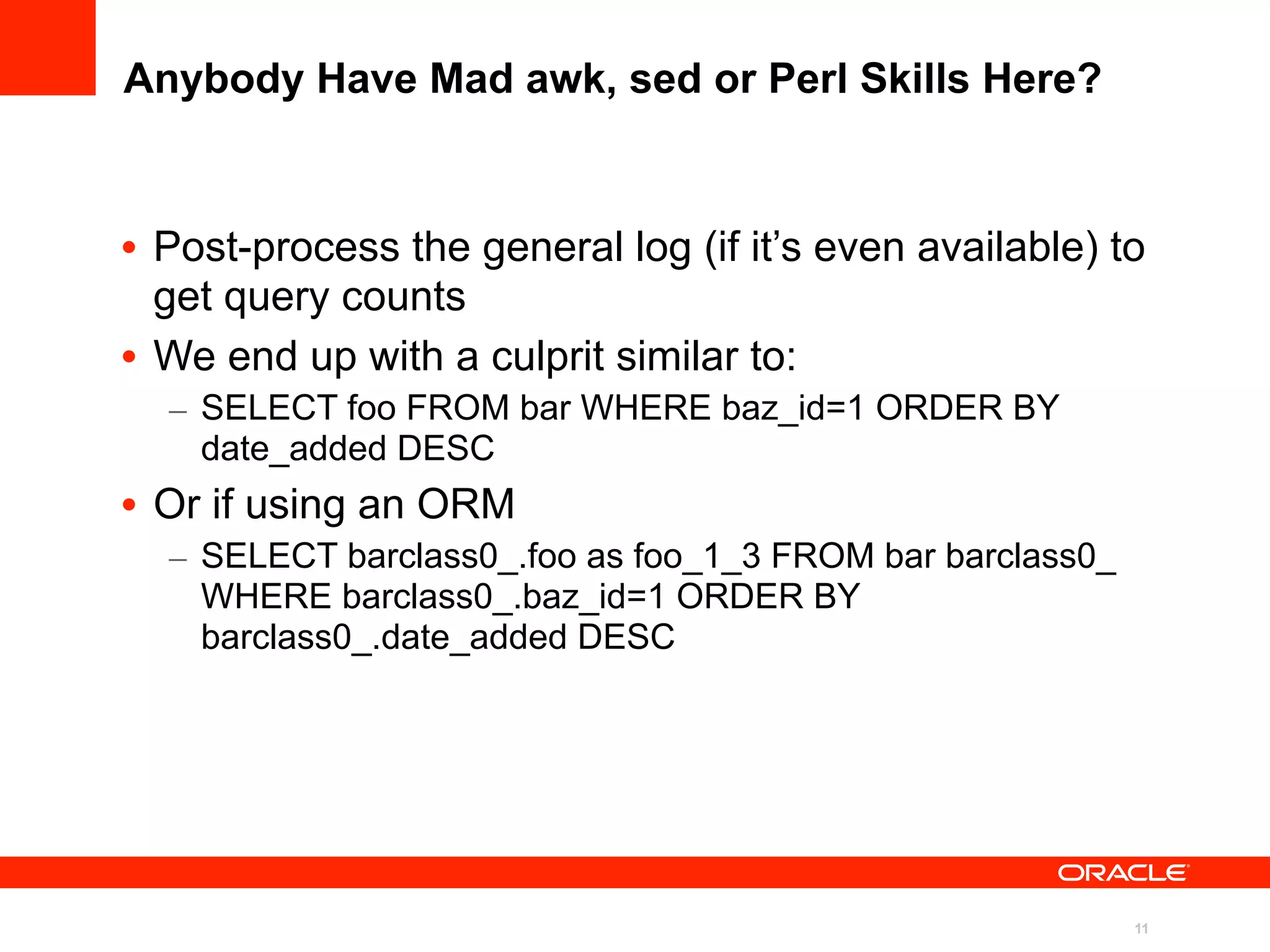

11. Anybody Have Mad awk, sed or Perl Skills Here?
• Post-process the general log (if it’s even available) to
get query counts
• We end up with a culprit similar to:
– SELECT foo FROM bar WHERE baz_id=1 ORDER BY
date_added DESC
• Or if using an ORM
– SELECT barclass0_.foo as foo_1_3 FROM bar barclass0_
WHERE barclass0_.baz_id=1 ORDER BY
barclass0_.date_added DESC
11

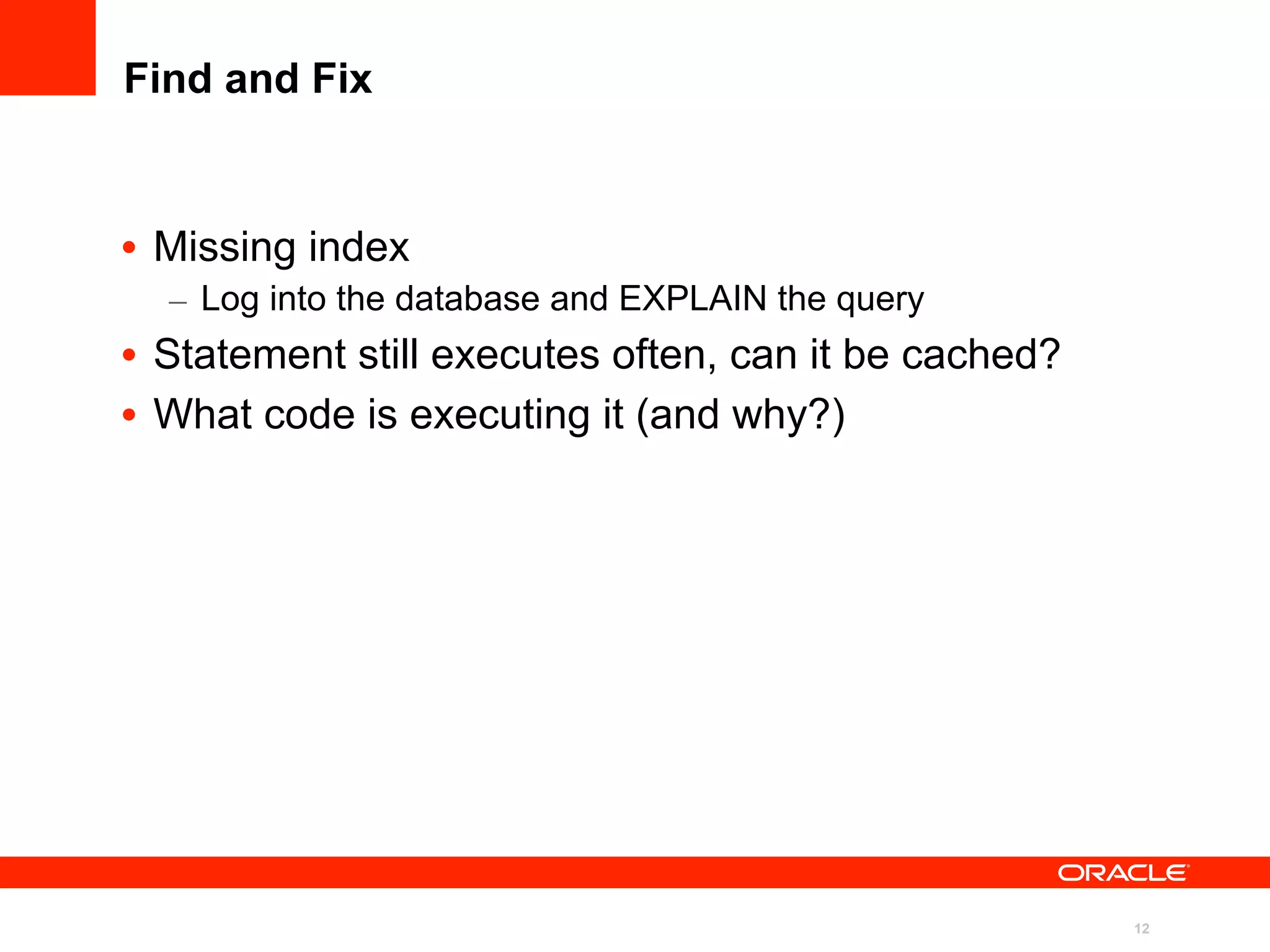

12. Find and Fix
• Missing index
– Log into the database and EXPLAIN the query
• Statement still executes often, can it be cached?
• What code is executing it (and why?)
12

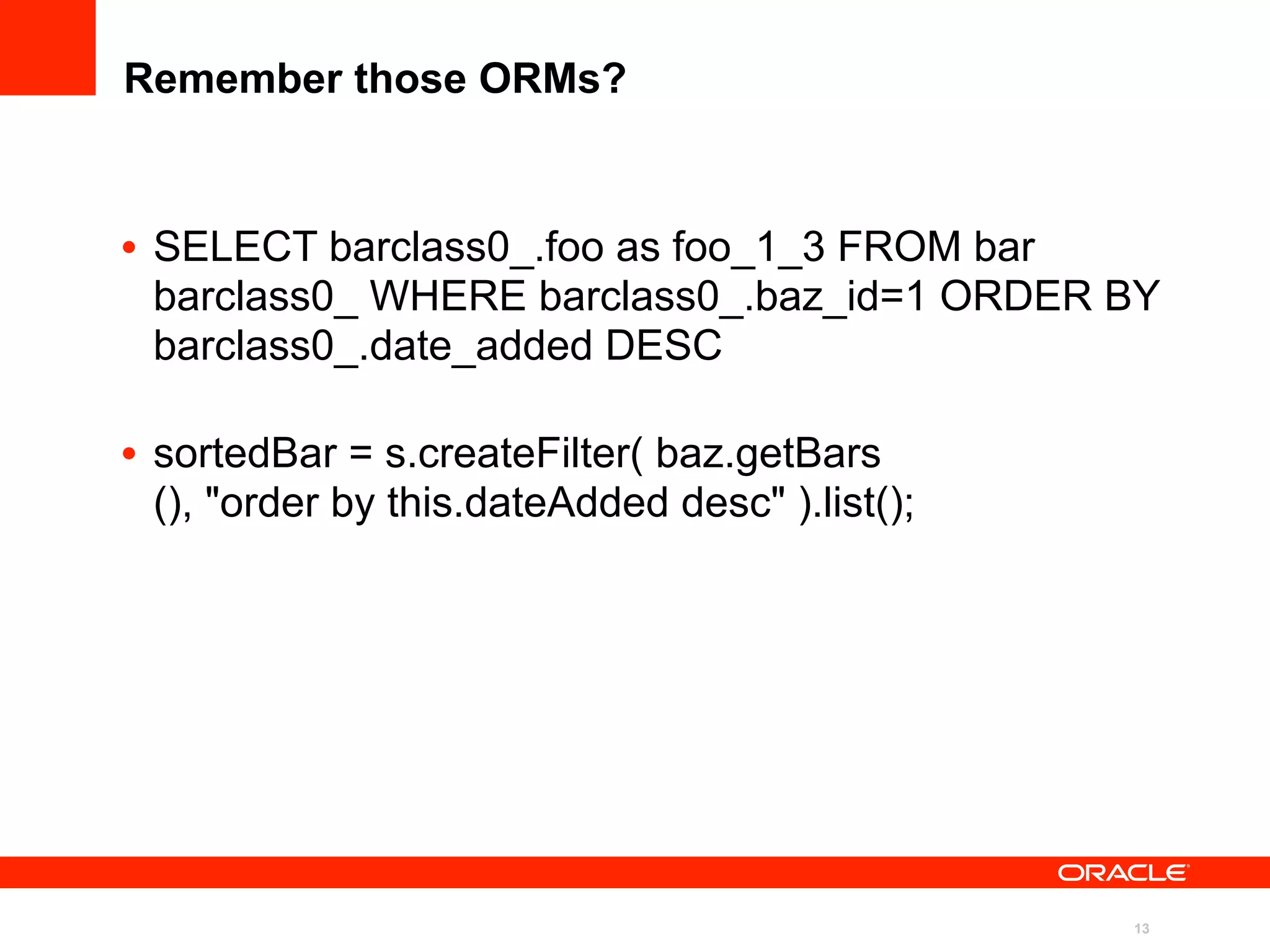

13. Remember those ORMs?
• SELECT barclass0_.foo as foo_1_3 FROM bar
barclass0_ WHERE barclass0_.baz_id=1 ORDER BY
barclass0_.date_added DESC
• sortedBar = s.createFilter( baz.getBars
(), "order by this.dateAdded desc" ).list();
13

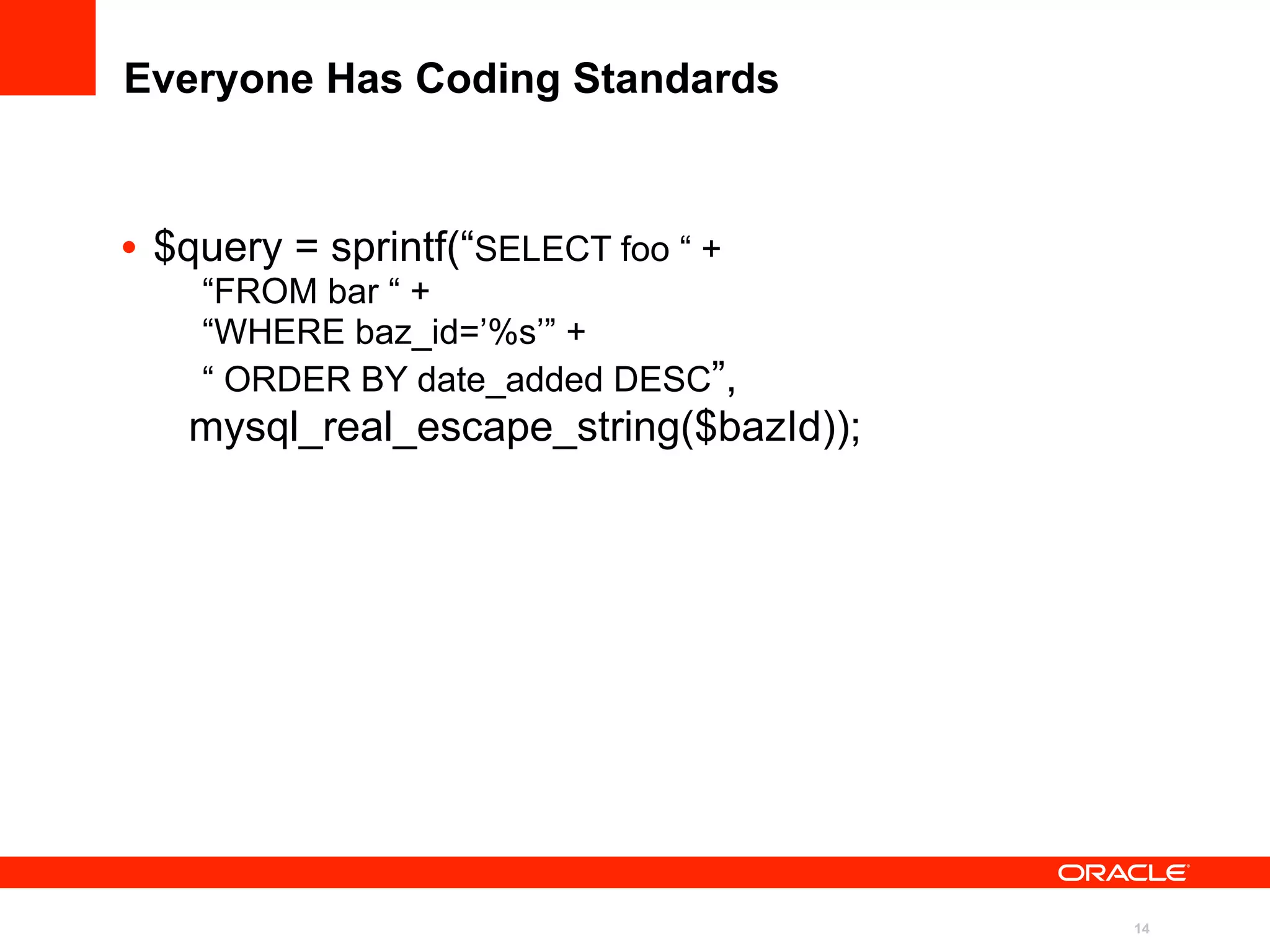

14. Everyone Has Coding Standards
• $query = sprintf(“SELECT foo “ +
“FROM bar “ +
“WHERE baz_id=’%s’” +
“ ORDER BY date_added DESC”,
mysql_real_escape_string($bazId));
14

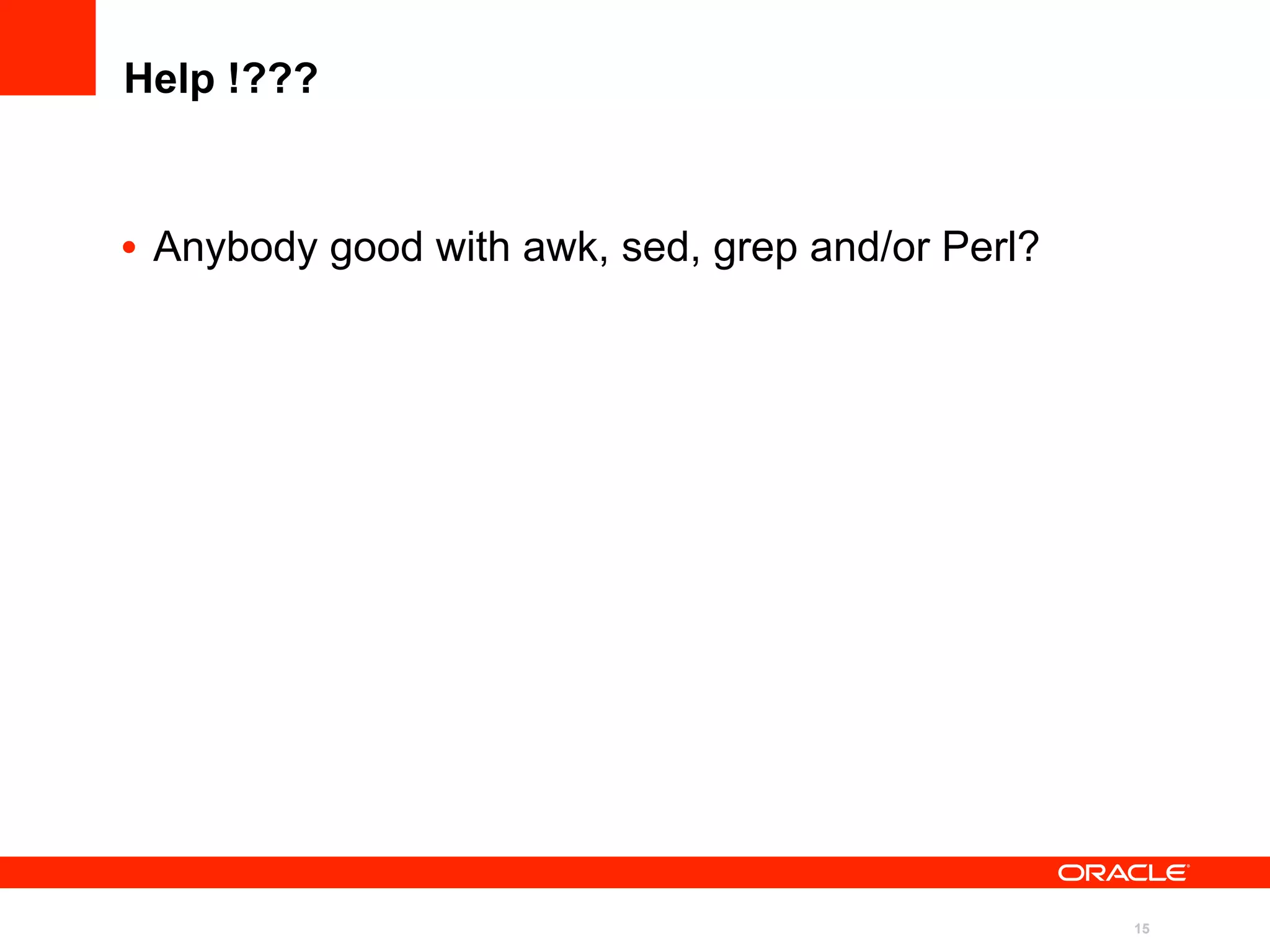

15. Help !???
• Anybody good with awk, sed, grep and/or Perl?
15

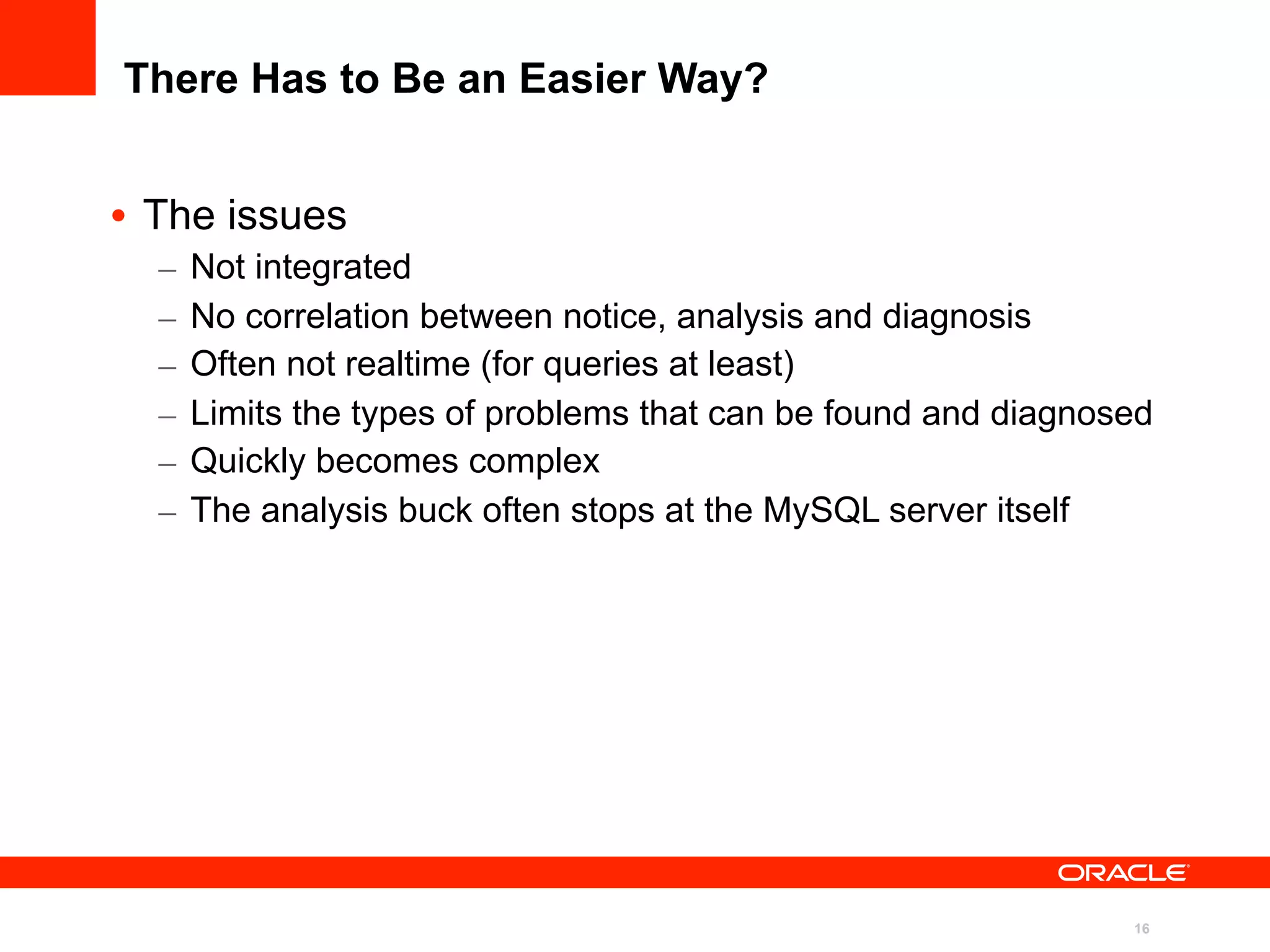

16. There Has to Be an Easier Way?
• The issues
– Not integrated
– No correlation between notice, analysis and diagnosis
– Often not realtime (for queries at least)
– Limits the types of problems that can be found and diagnosed
– Quickly becomes complex
– The analysis buck often stops at the MySQL server itself
16

17. Enterprise Monitor-
Based Approach
17

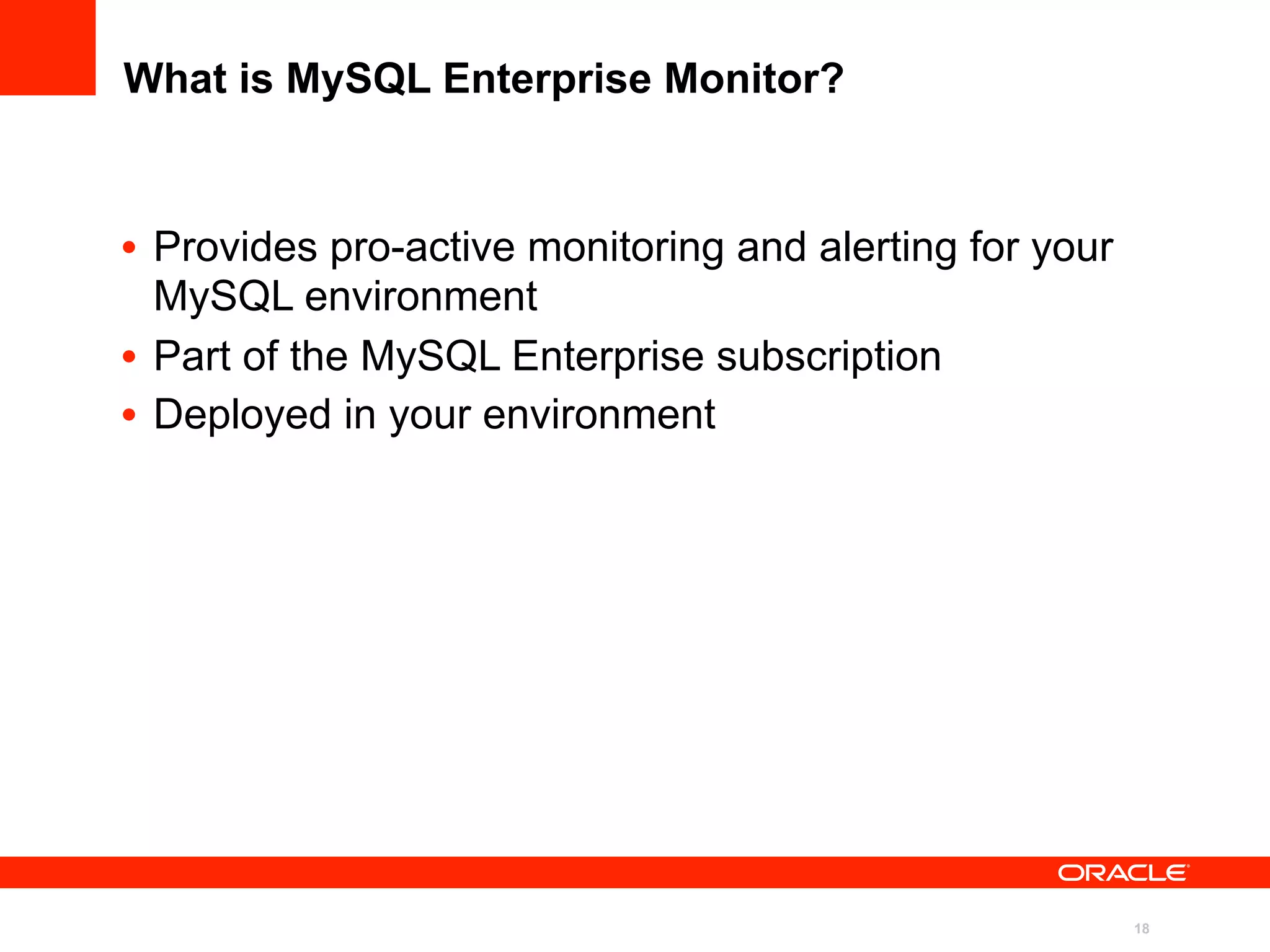

18. What is MySQL Enterprise Monitor?
• Provides pro-active monitoring and alerting for your
MySQL environment
• Part of the MySQL Enterprise subscription
• Deployed in your environment
18

19. Why MySQL Enterprise Monitor is More Efficient
• Combines performance analysis, alerting and
diagnosis
• Provides remedies to many common
misconfigurations through advisors
• Can find more types of data store performance killers
• Essentially a data warehouse of your MySQL servers’
health, performance and behavior over time
• Analysis, diagnosis available through more levels of
the stack
19

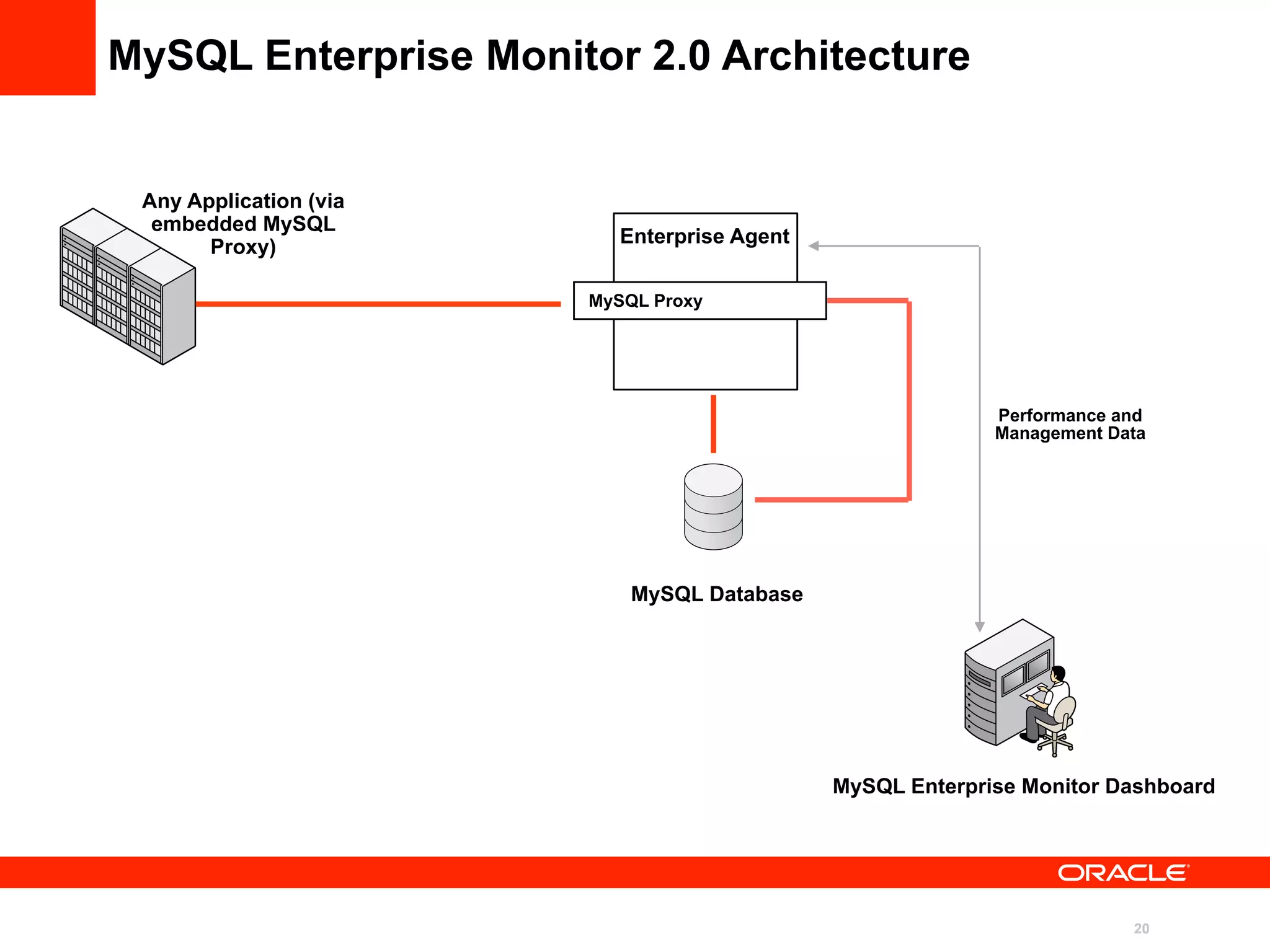

20. MySQL Enterprise Monitor 2.0 Architecture
Any Application (via
embedded MySQL
Enterprise Agent
Proxy)
MySQL Proxy
Performance and
Management Data
MySQL Database
MySQL Enterprise Monitor Dashboard
20

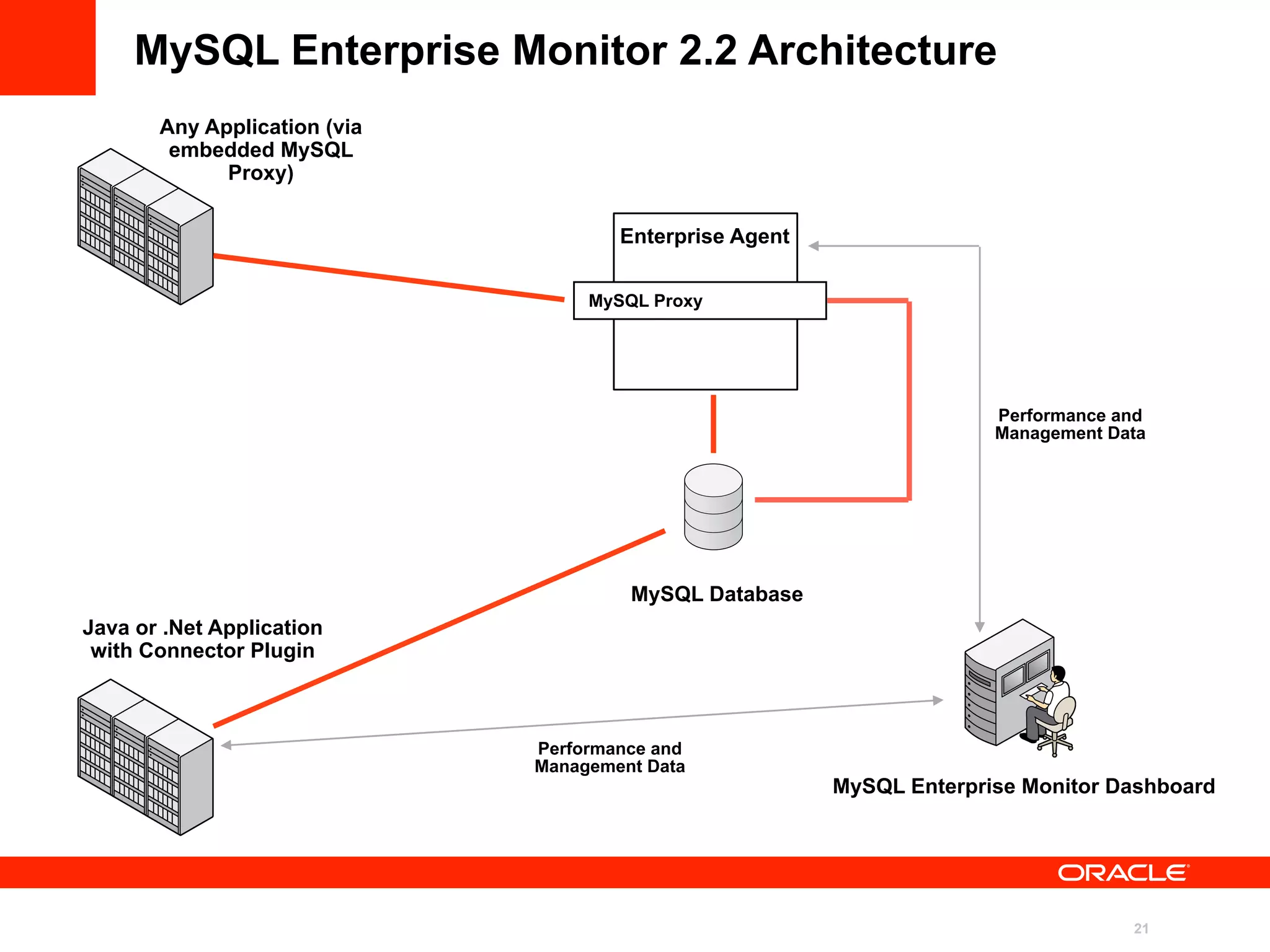

21. MySQL Enterprise Monitor 2.2 Architecture
Any Application (via
embedded MySQL
Proxy)
Enterprise Agent
MySQL Proxy
Performance and
Management Data
MySQL Database
Java or .Net Application
with Connector Plugin
Performance and
Management Data
MySQL Enterprise Monitor Dashboard
21

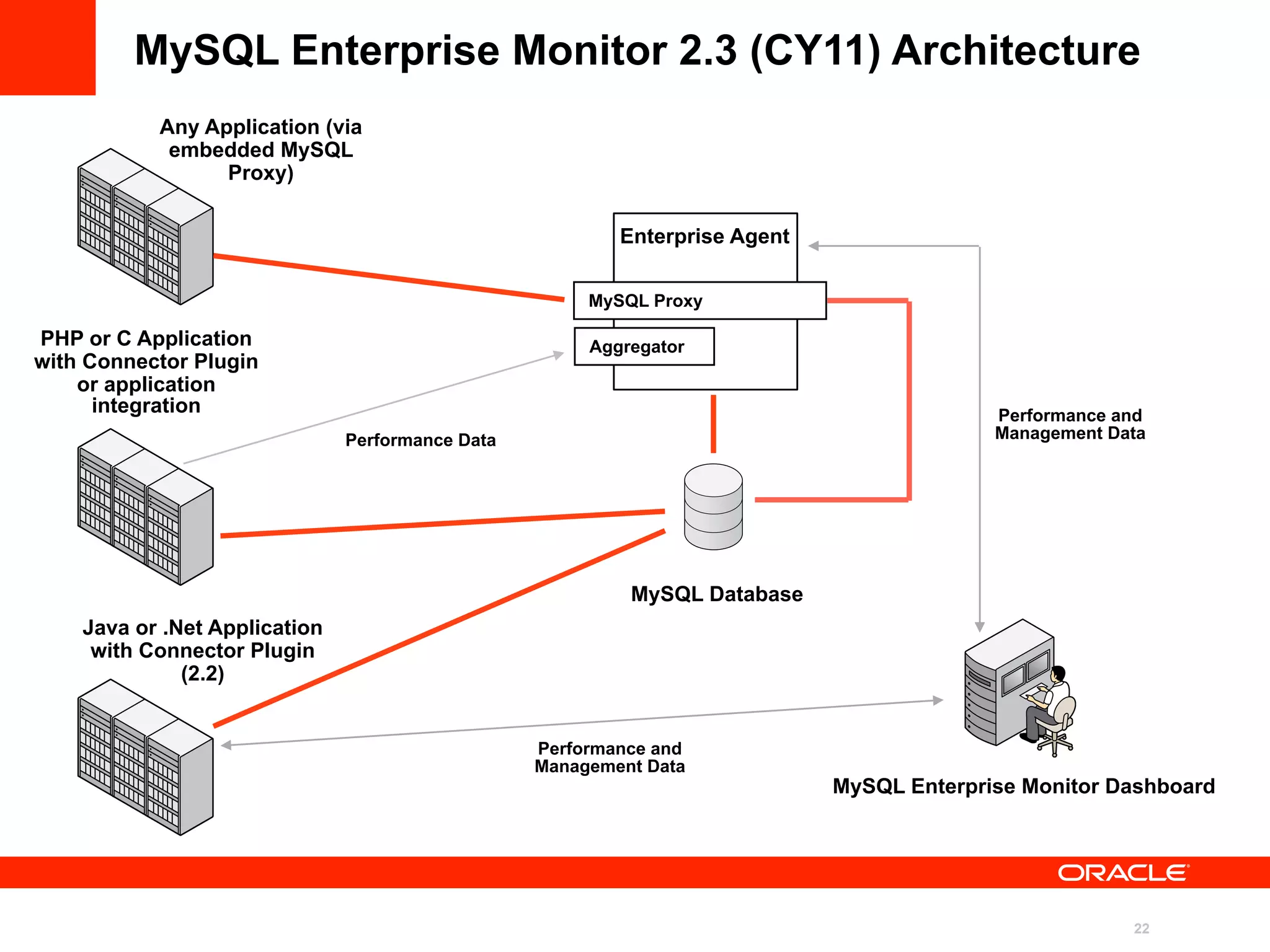

22. MySQL Enterprise Monitor 2.3 (CY11) Architecture
Any Application (via
embedded MySQL
Proxy)
Enterprise Agent
MySQL Proxy
PHP or C Application Aggregator
with Connector Plugin
or application
integration Performance and
Performance Data Management Data
MySQL Database
Java or .Net Application
with Connector Plugin
(2.2)
Performance and
Management Data
MySQL Enterprise Monitor Dashboard
22

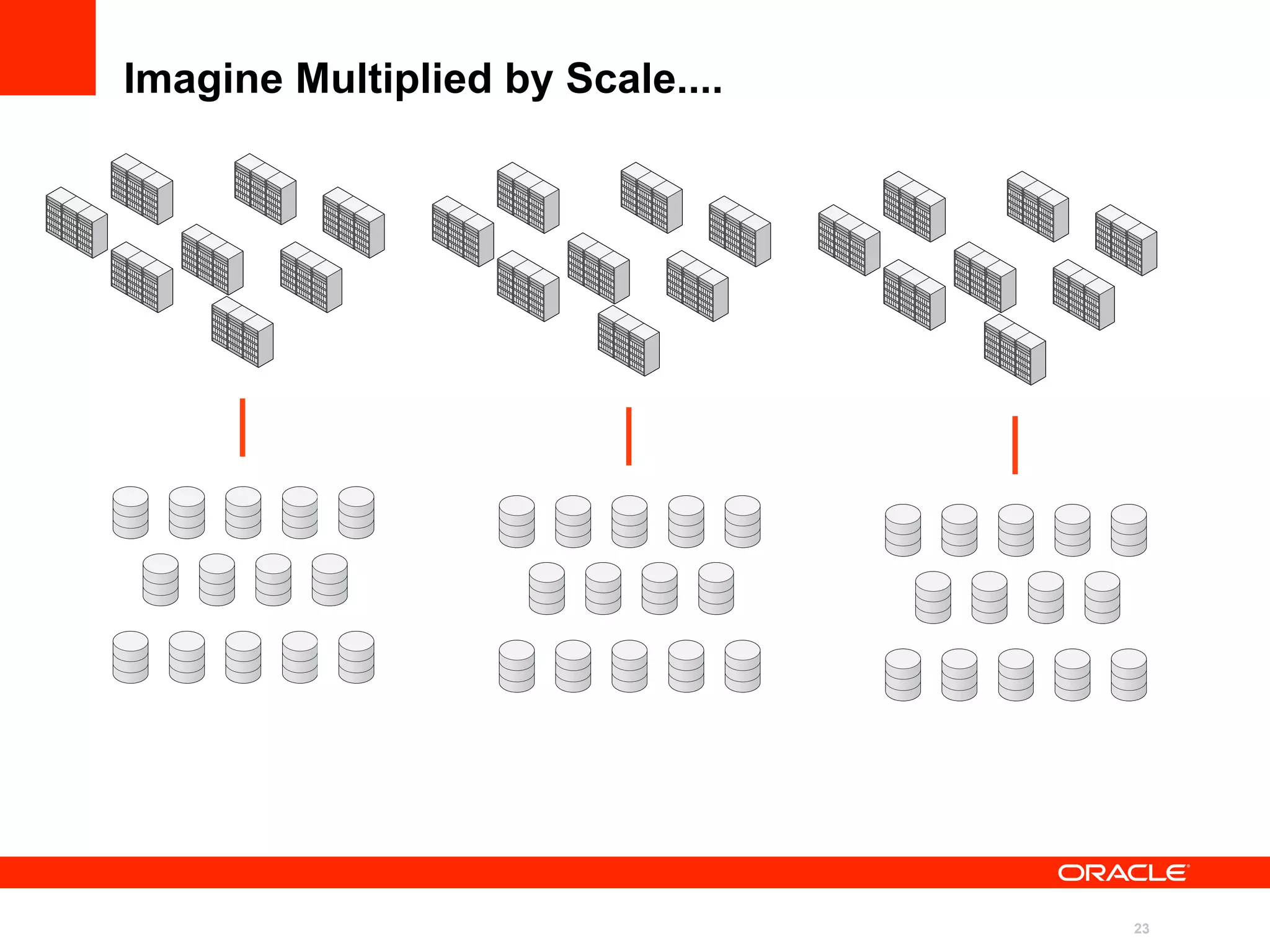

23. Imagine Multiplied by Scale....
23

24. The Real World
24

25. SaaS Web Content Management
and Delivery
Best Content Best Content
Management Solution Management Solution

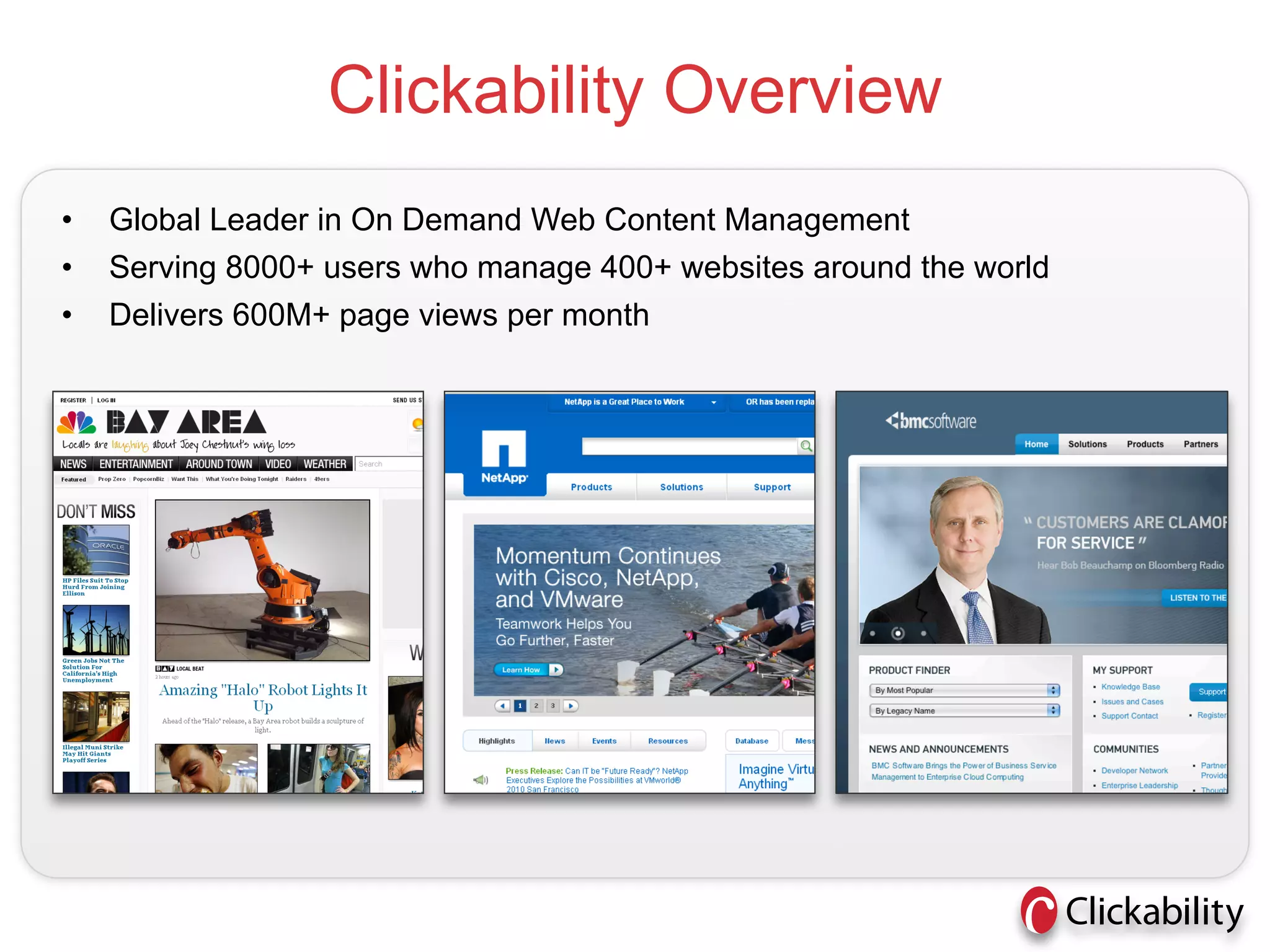

26. Clickability Overview
• Global Leader in On Demand Web Content Management
• Serving 8000+ users who manage 400+ websites around the world
• Delivers 600M+ page views per month

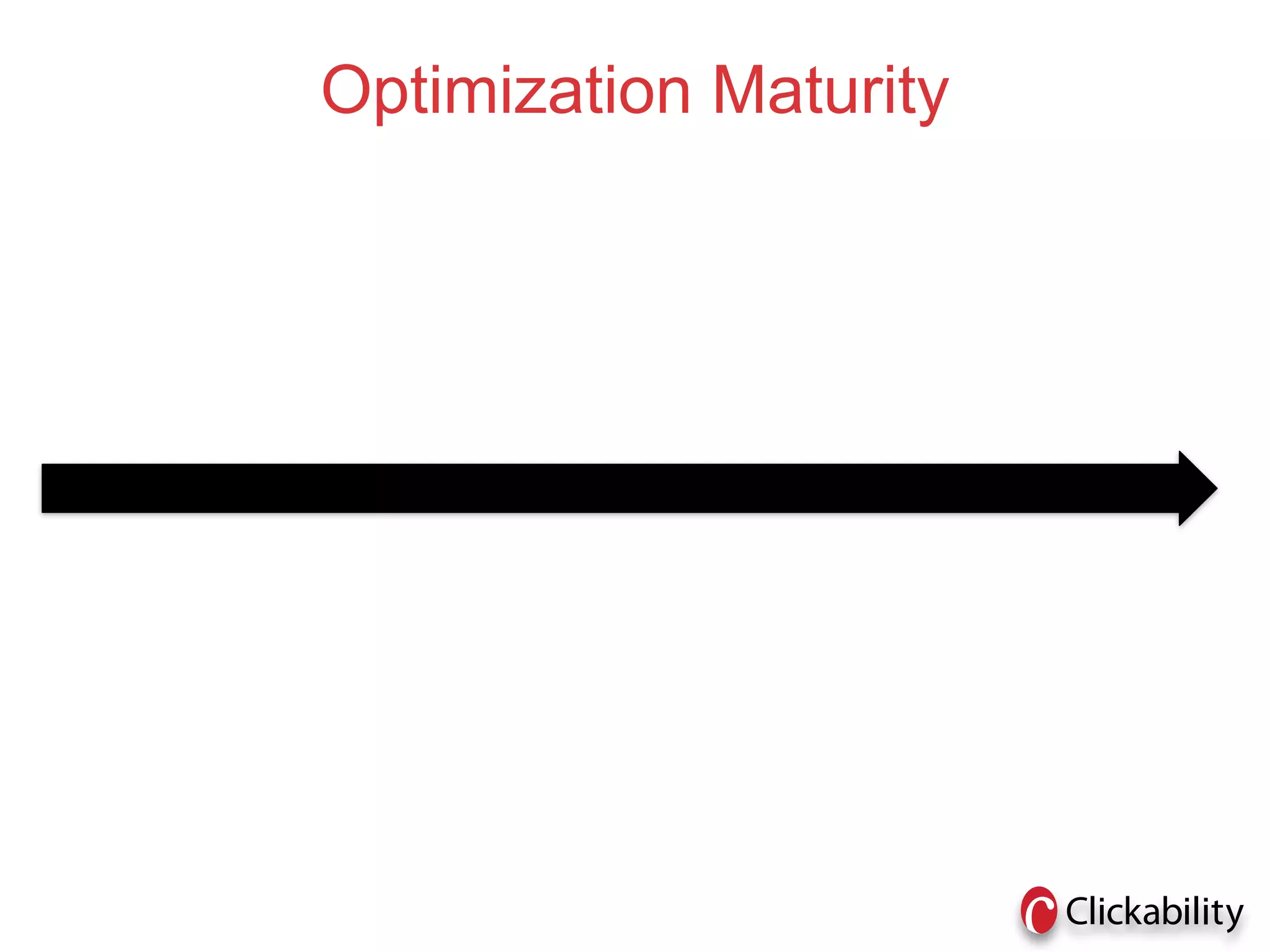

27. Optimization Maturity

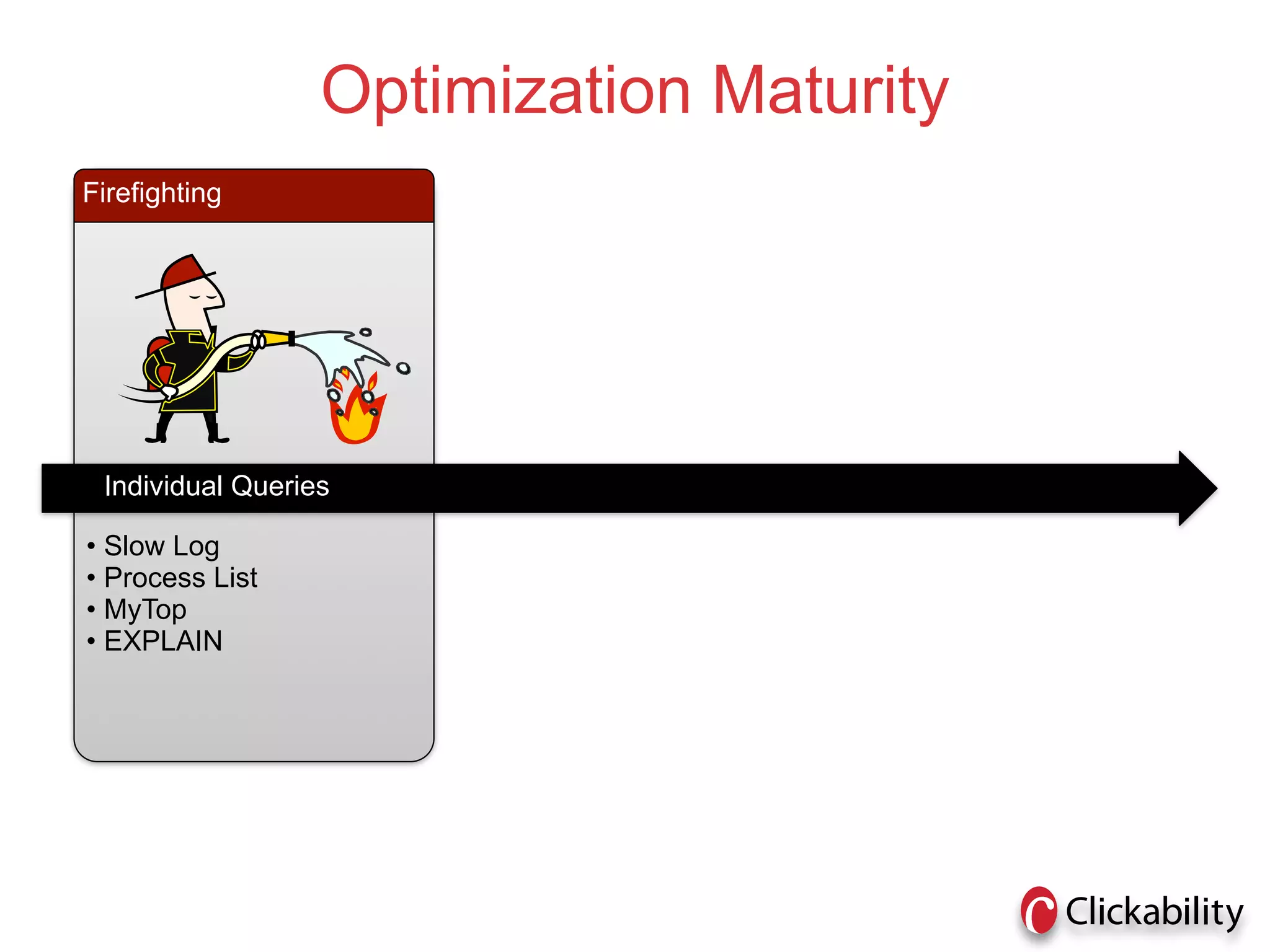

28. Optimization Maturity
Firefighting
Individual Queries
• Slow Log
• Process List
• MyTop
• EXPLAIN

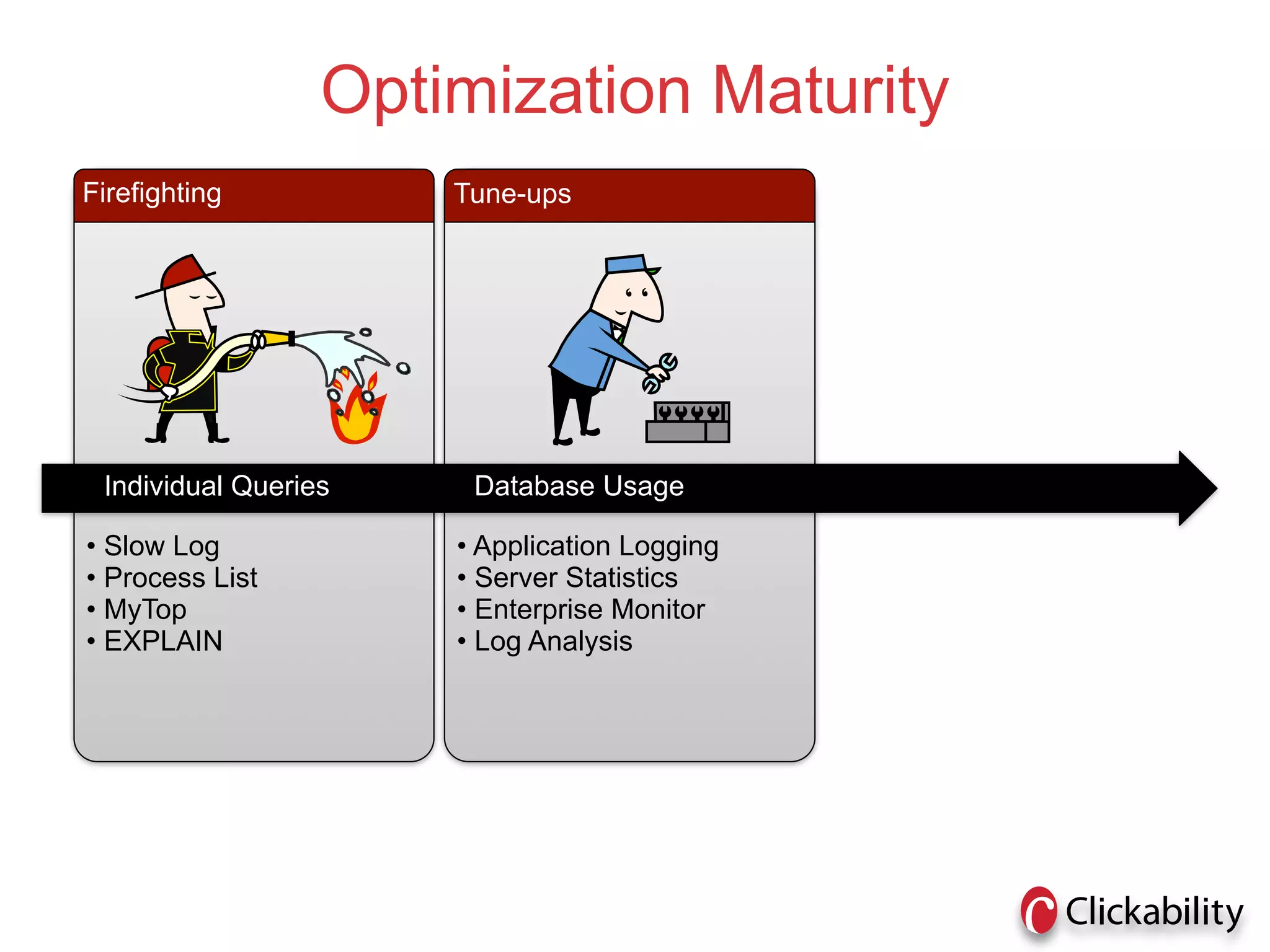

29. Optimization Maturity
Firefighting Tune-ups
Individual Queries Database Usage
• Slow Log • Application Logging
• Process List • Server Statistics
• MyTop • Enterprise Monitor
• EXPLAIN • Log Analysis

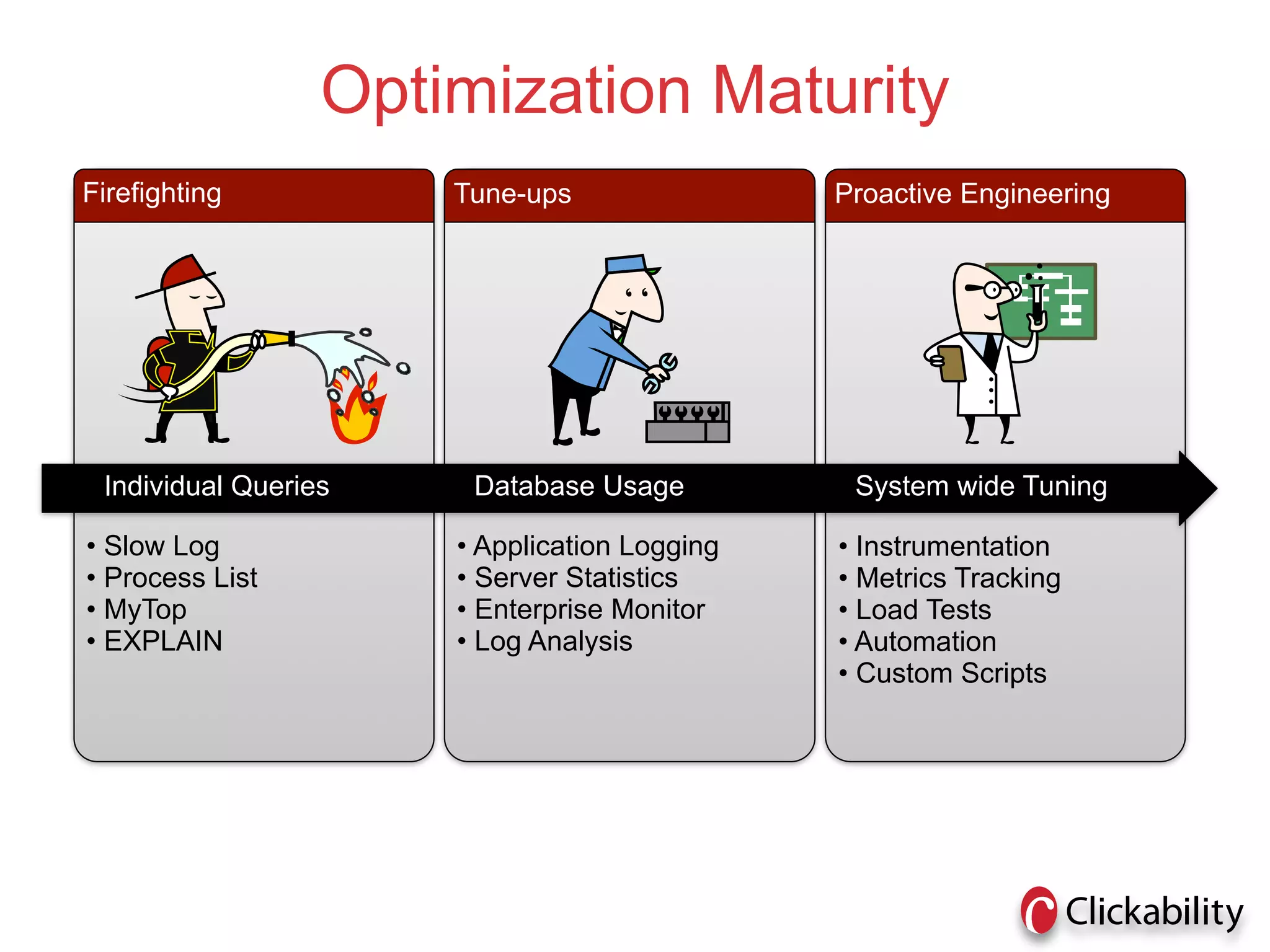

30. Optimization Maturity
Firefighting Tune-ups Proactive Engineering
Individual Queries Database Usage System wide Tuning
• Slow Log • Application Logging • Instrumentation
• Process List • Server Statistics • Metrics Tracking
• MyTop • Enterprise Monitor • Load Tests
• EXPLAIN • Log Analysis • Automation
• Custom Scripts

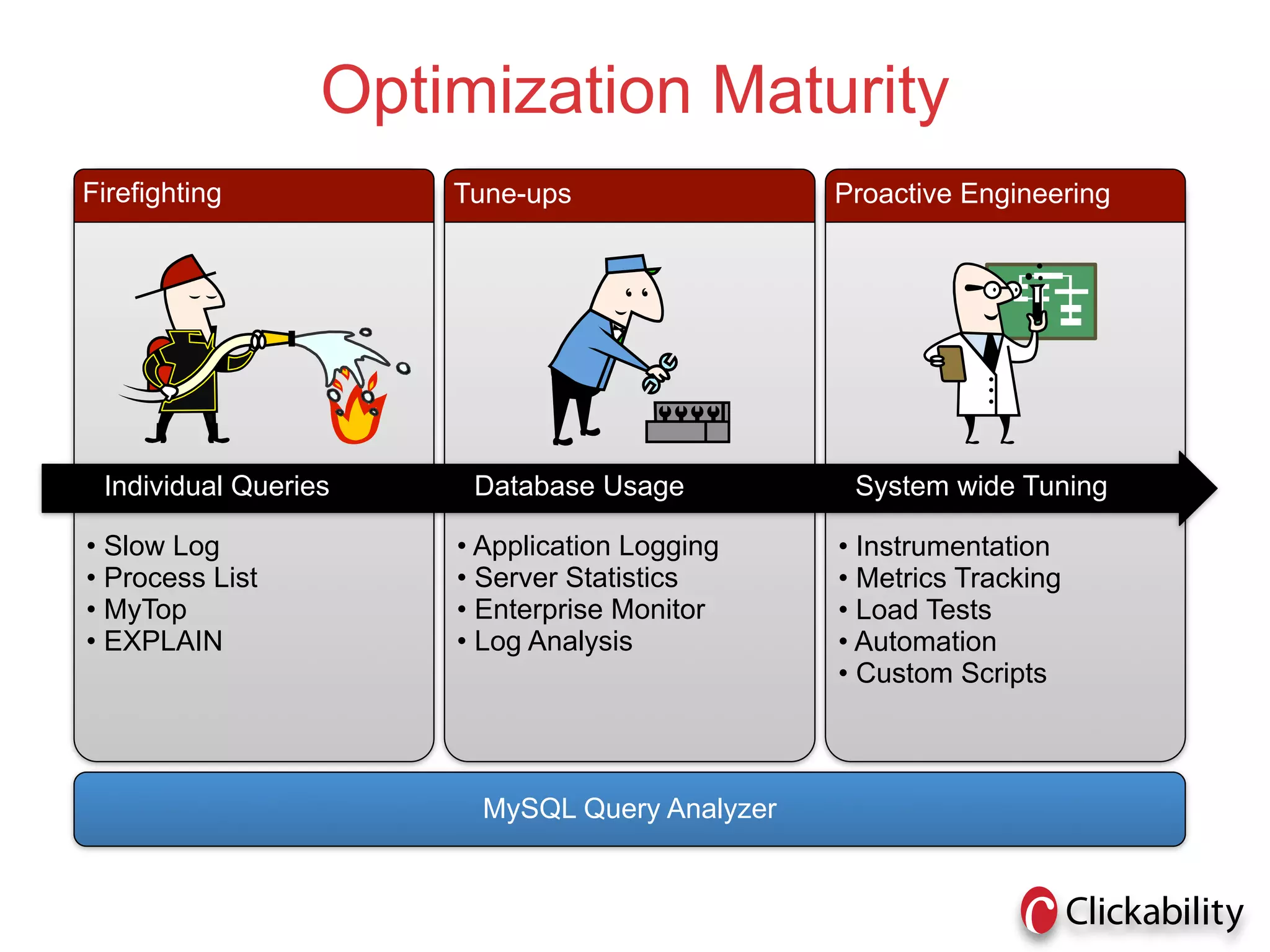

31. Optimization Maturity
Firefighting Tune-ups Proactive Engineering
Individual Queries Database Usage System wide Tuning
• Slow Log • Application Logging • Instrumentation
• Process List • Server Statistics • Metrics Tracking
• MyTop • Enterprise Monitor • Load Tests
• EXPLAIN • Log Analysis • Automation
• Custom Scripts
MySQL Query Analyzer

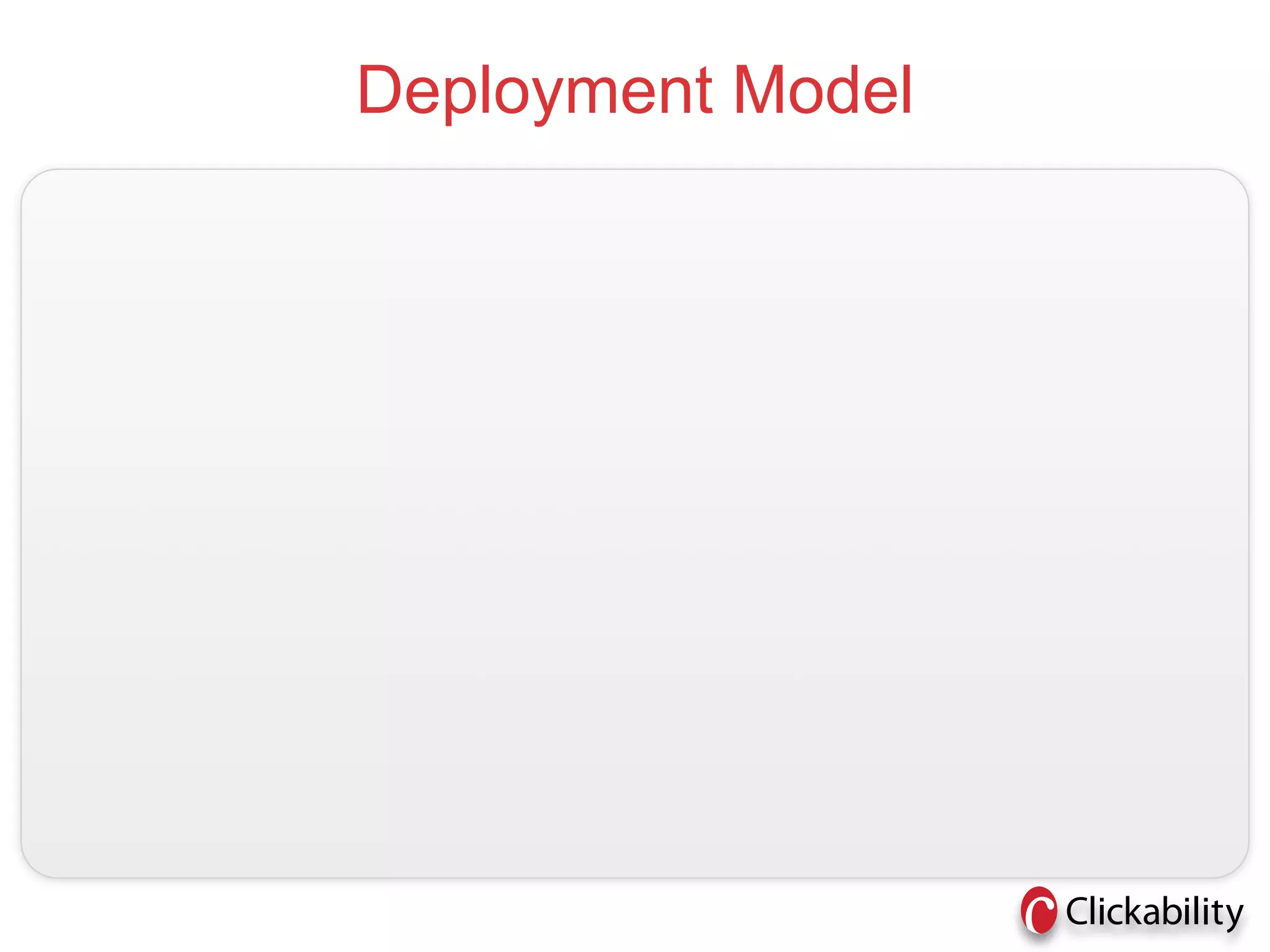

32. Deployment Model

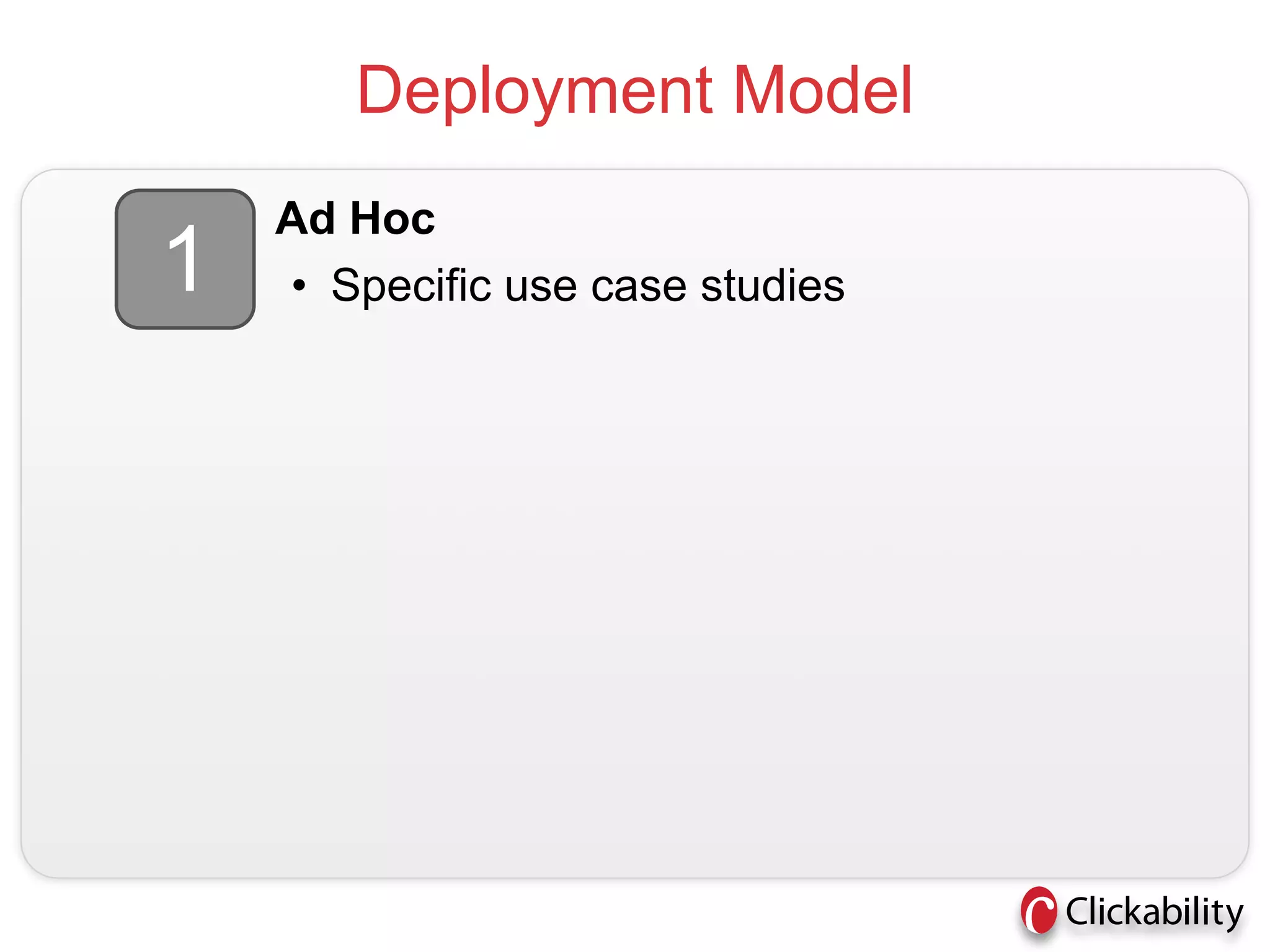

33. Deployment Model
• Ad Hoc
1 • Specific use case studies

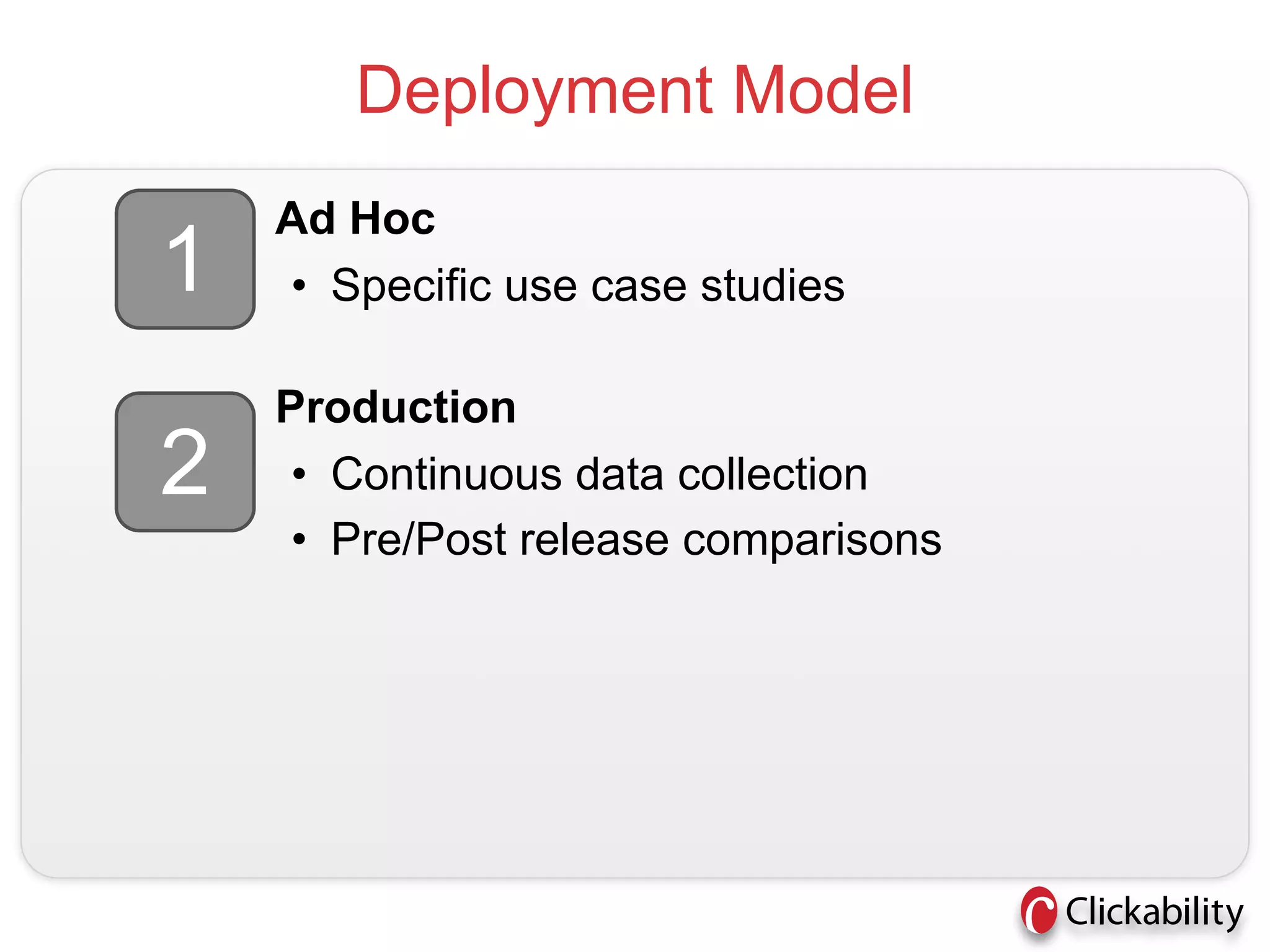

34. Deployment Model
• Ad Hoc
1 • Specific use case studies
• Production
2 • Continuous data collection
• Pre/Post release comparisons

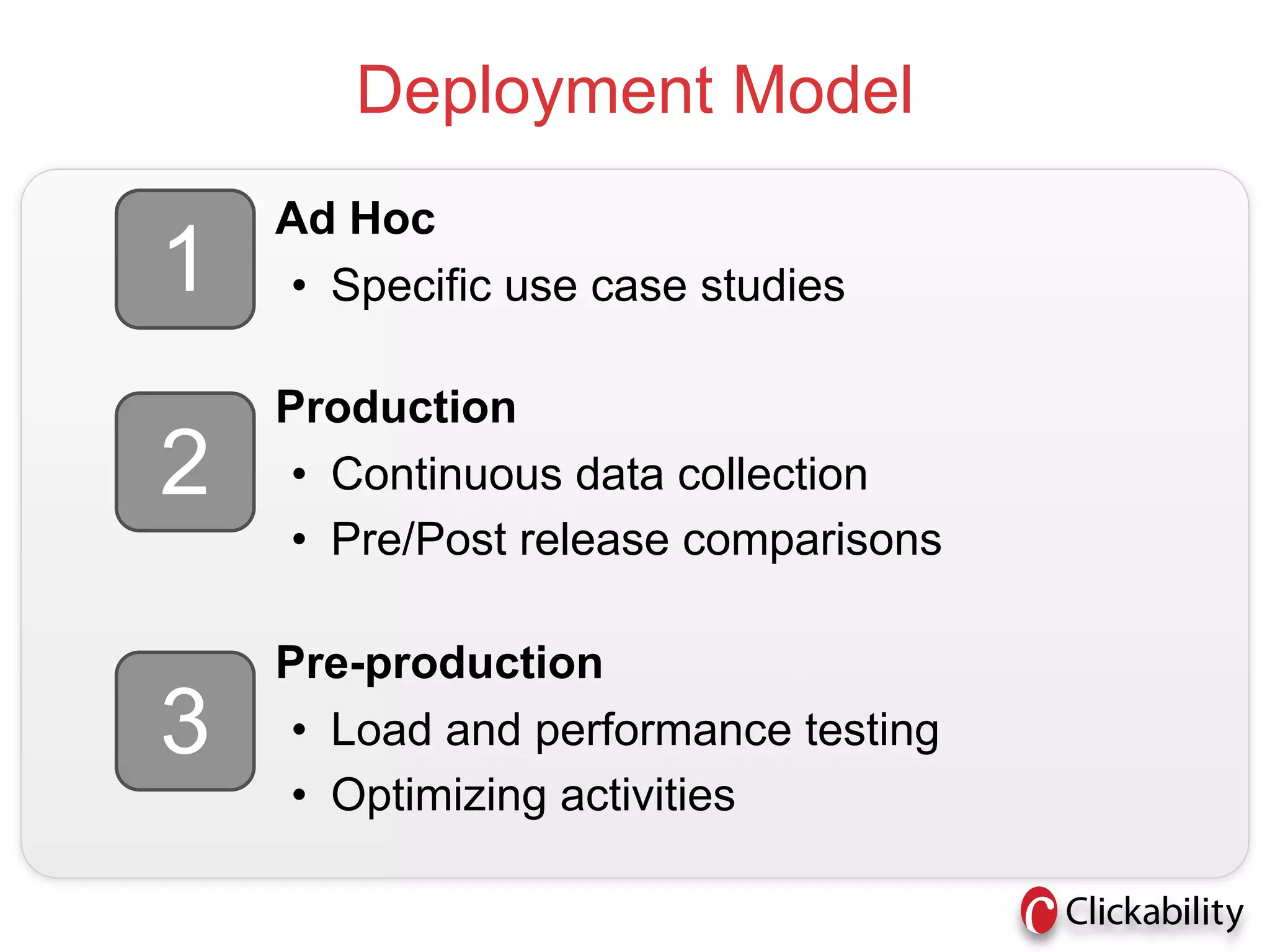

35. Deployment Model
• Ad Hoc
1 • Specific use case studies
• Production
2 • Continuous data collection
• Pre/Post release comparisons
• Pre-production
3 • Load and performance testing
• Optimizing activities

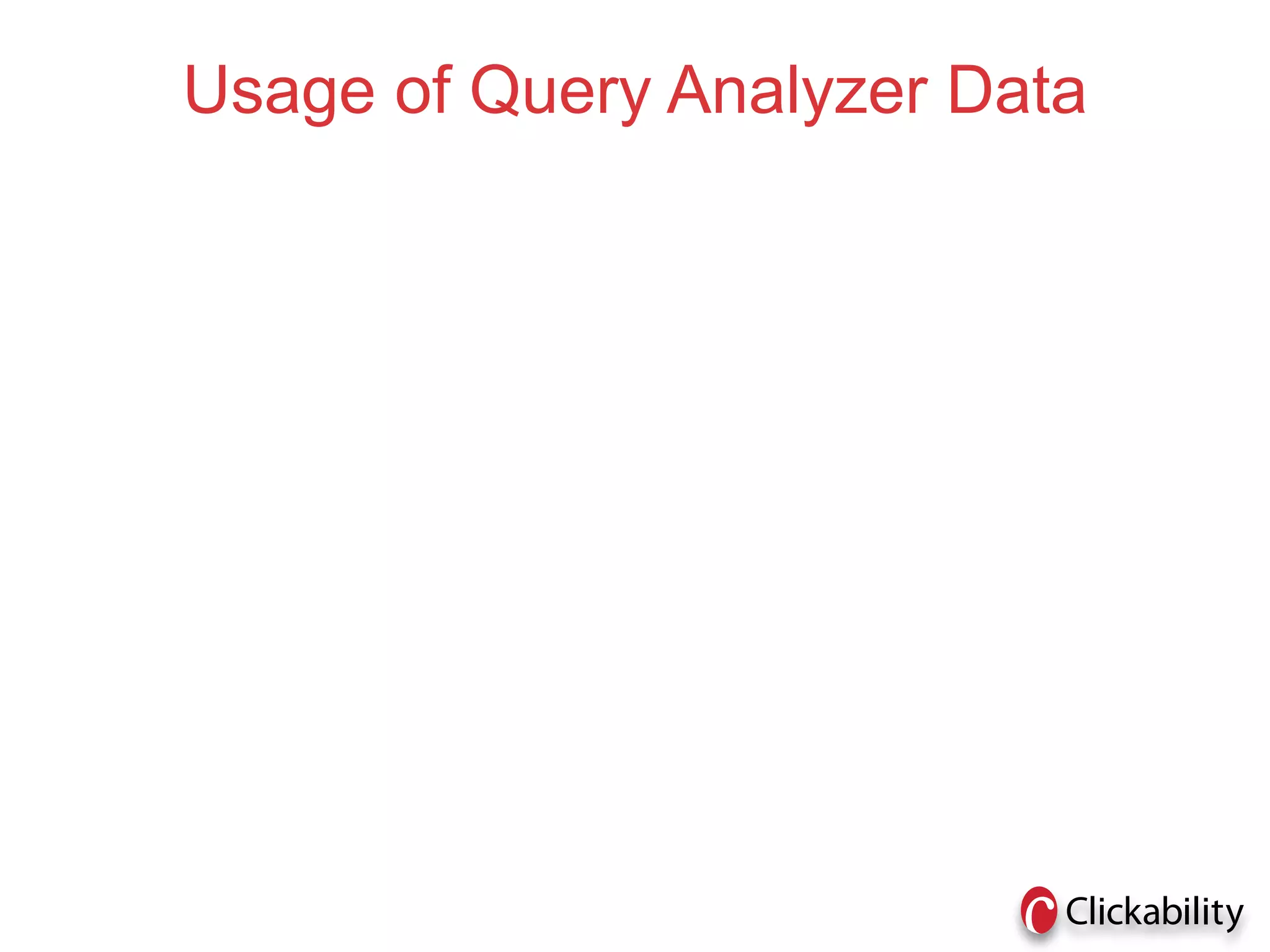

36. Usage of Query Analyzer Data

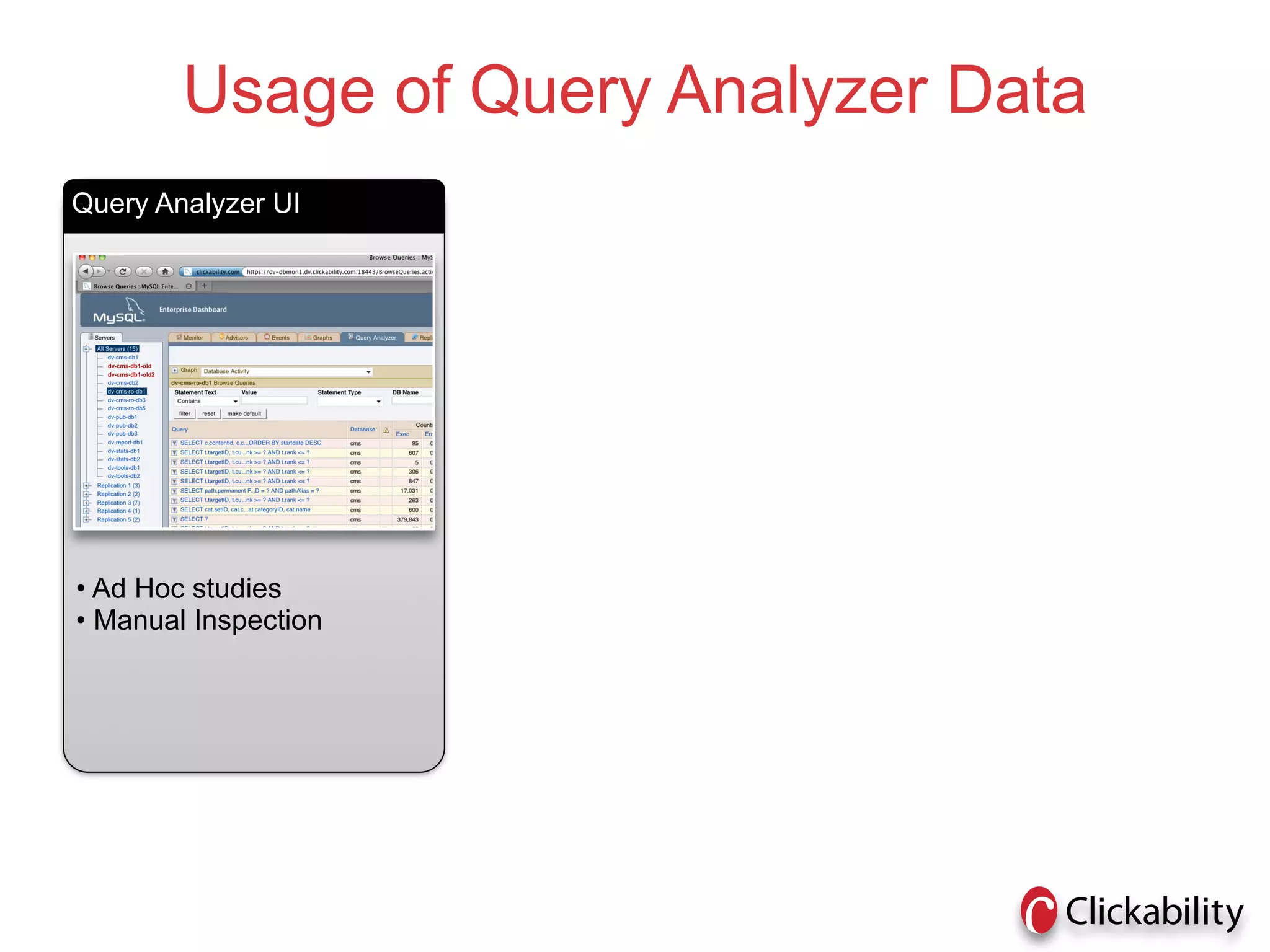

37. Usage of Query Analyzer Data
Query Analyzer UI
• Ad Hoc studies
• Manual Inspection

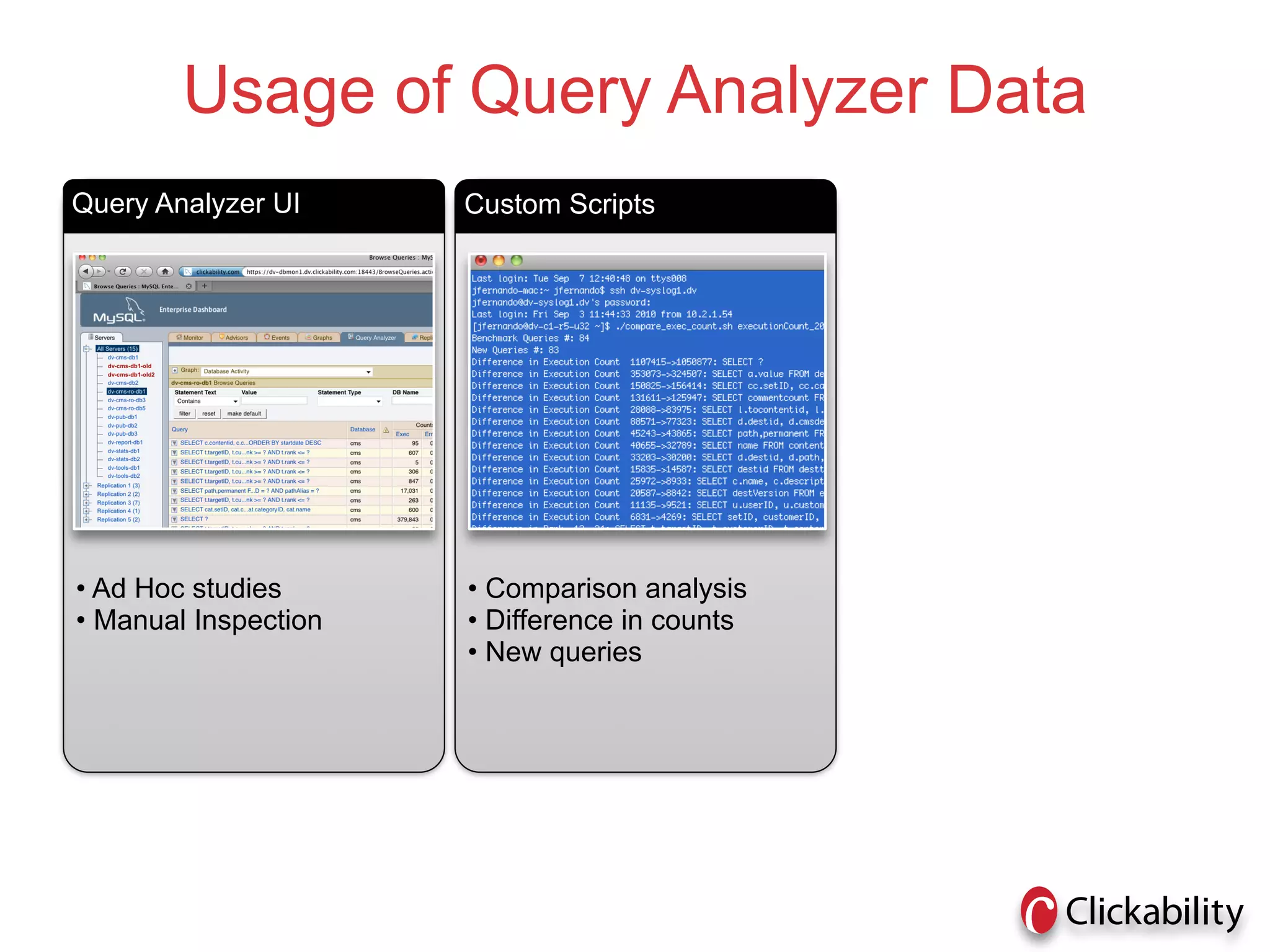

38. Usage of Query Analyzer Data
Query Analyzer UI Custom Scripts
• Ad Hoc studies • Comparison analysis
• Manual Inspection • Difference in counts
• New queries

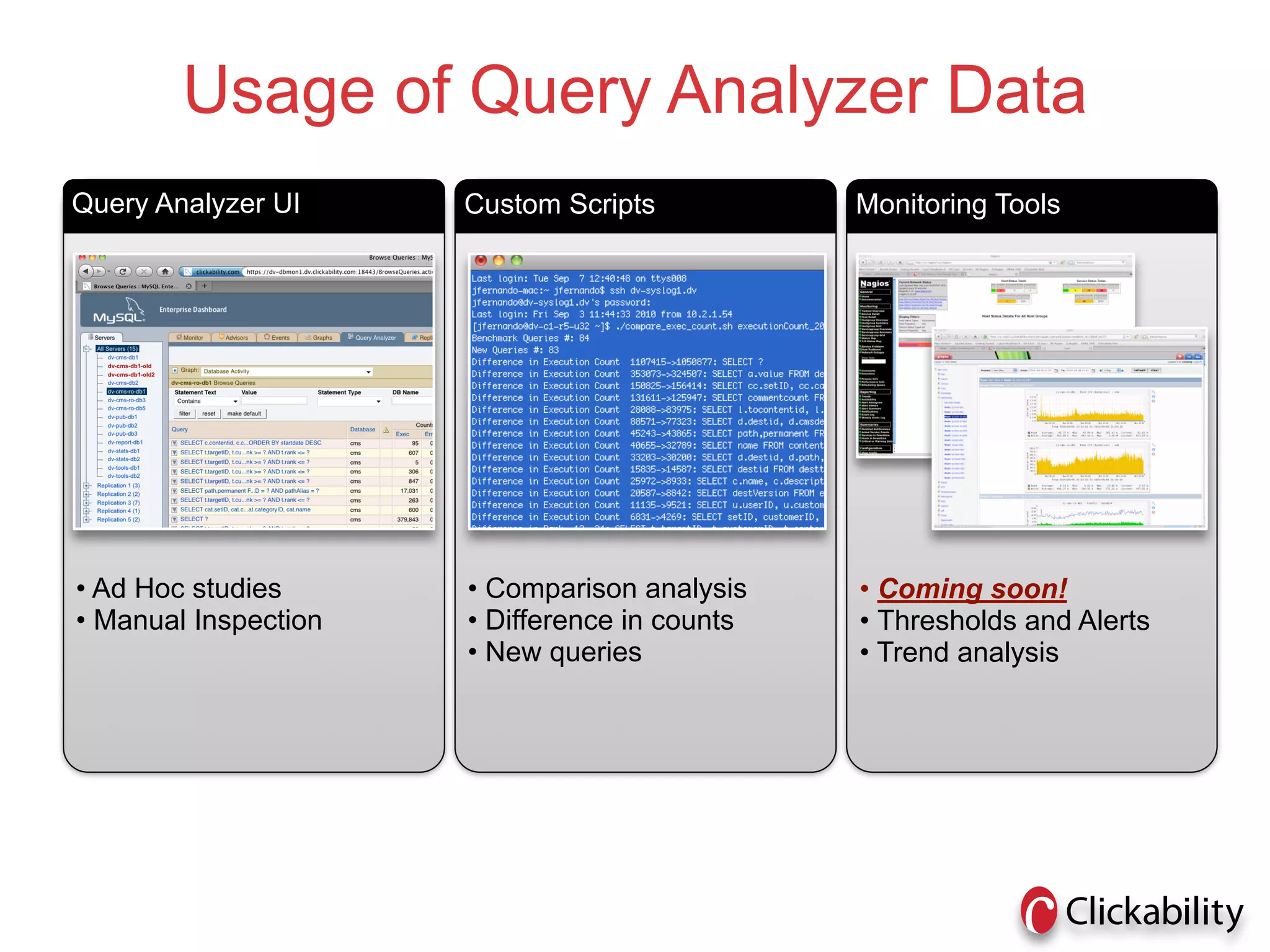

39. Usage of Query Analyzer Data
Query Analyzer UI Custom Scripts Monitoring Tools
• Ad Hoc studies • Comparison analysis • Coming soon!
• Manual Inspection • Difference in counts • Thresholds and Alerts
• New queries • Trend analysis

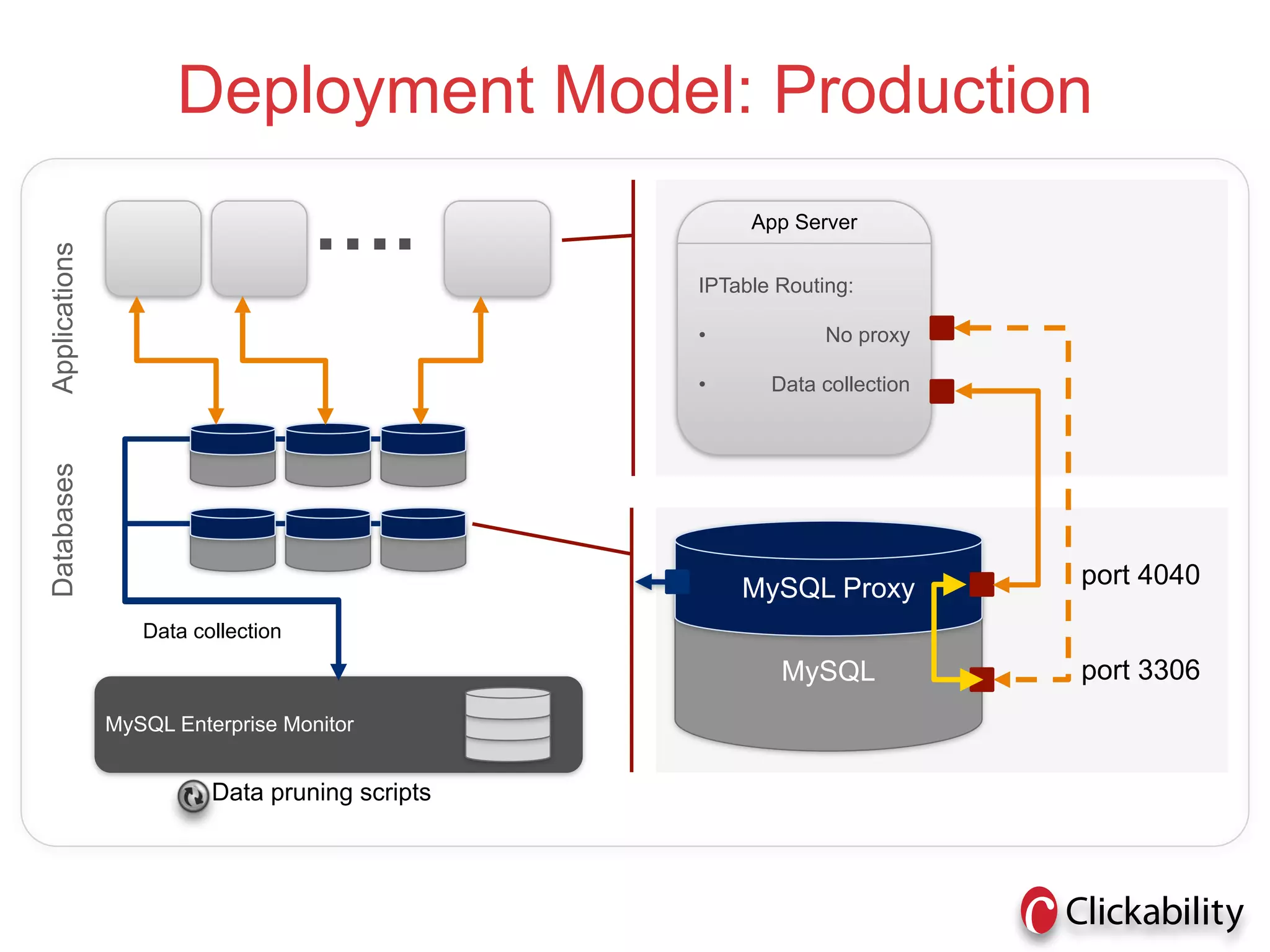

40. Deployment Model: Production
…. App Server
Applications
IPTable Routing:
• No proxy
• Data collection
Databases
MySQL Proxy port 4040
Data collection
MySQL port 3306
MySQL Enterprise Monitor
Data pruning scripts

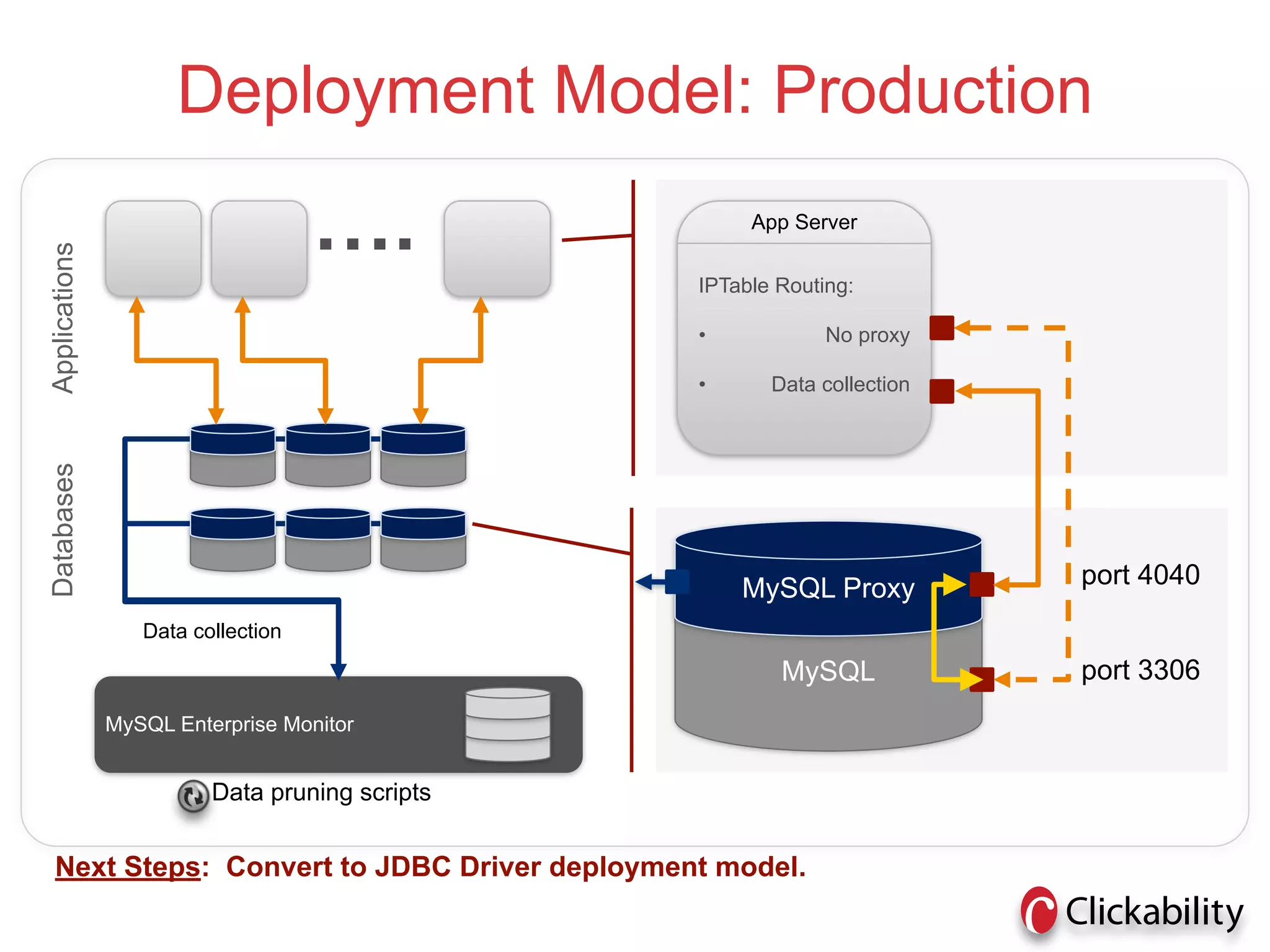

41. Deployment Model: Production
…. App Server
Applications
IPTable Routing:
• No proxy
• Data collection
Databases
MySQL Proxy port 4040
Data collection
MySQL port 3306
MySQL Enterprise Monitor
Data pruning scripts
Next Steps: Convert to JDBC Driver deployment model.

42. Deployment Model: Pre-Production
Load Test
Data Analysis
Scripts
App Server
JDBC Driver /
MySQL Enterprise Plugin
Data
Collection
via HTTP
MySQL
MySQL Enterprise Monitor
Data archiving/pruning scripts

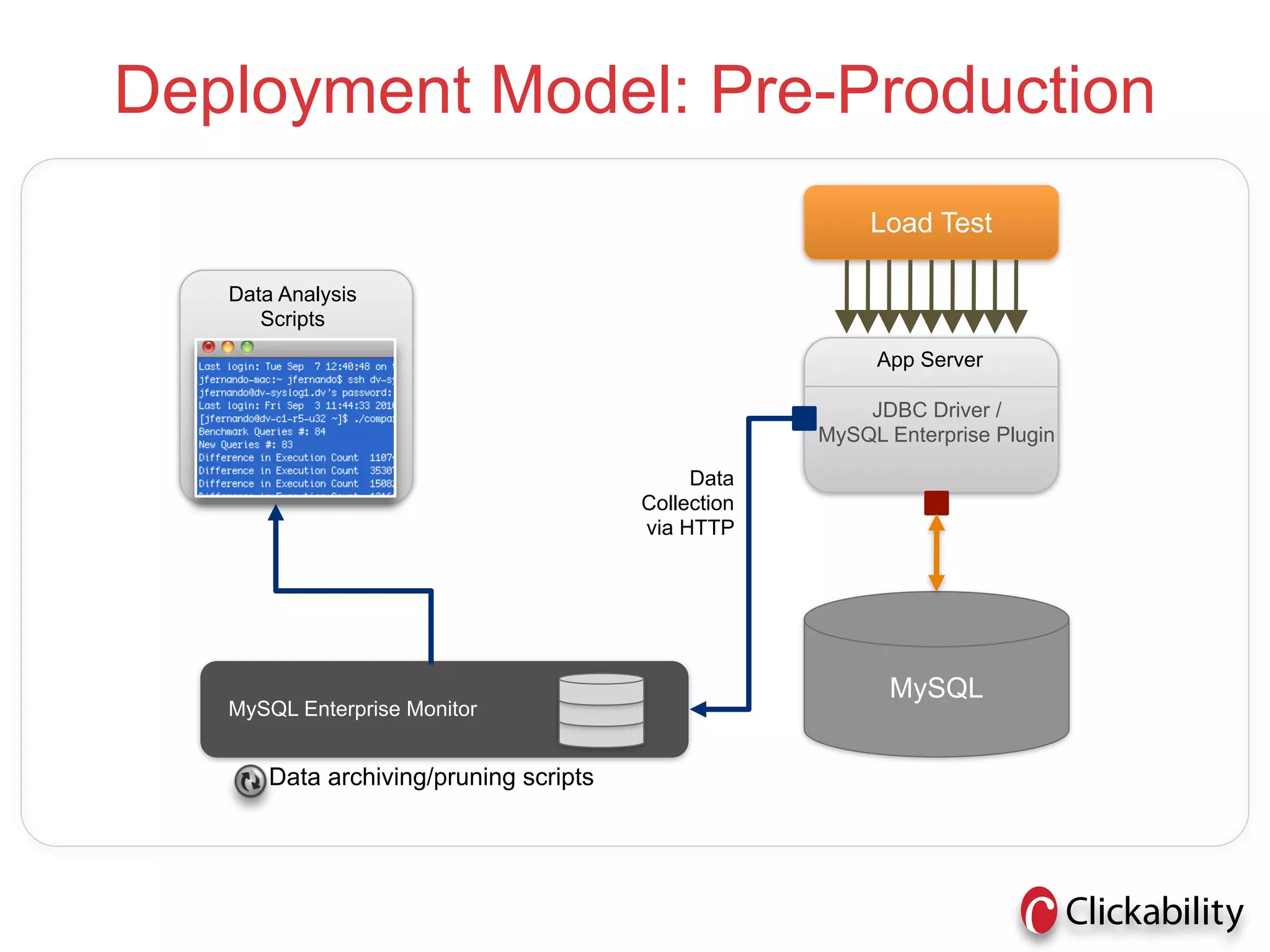

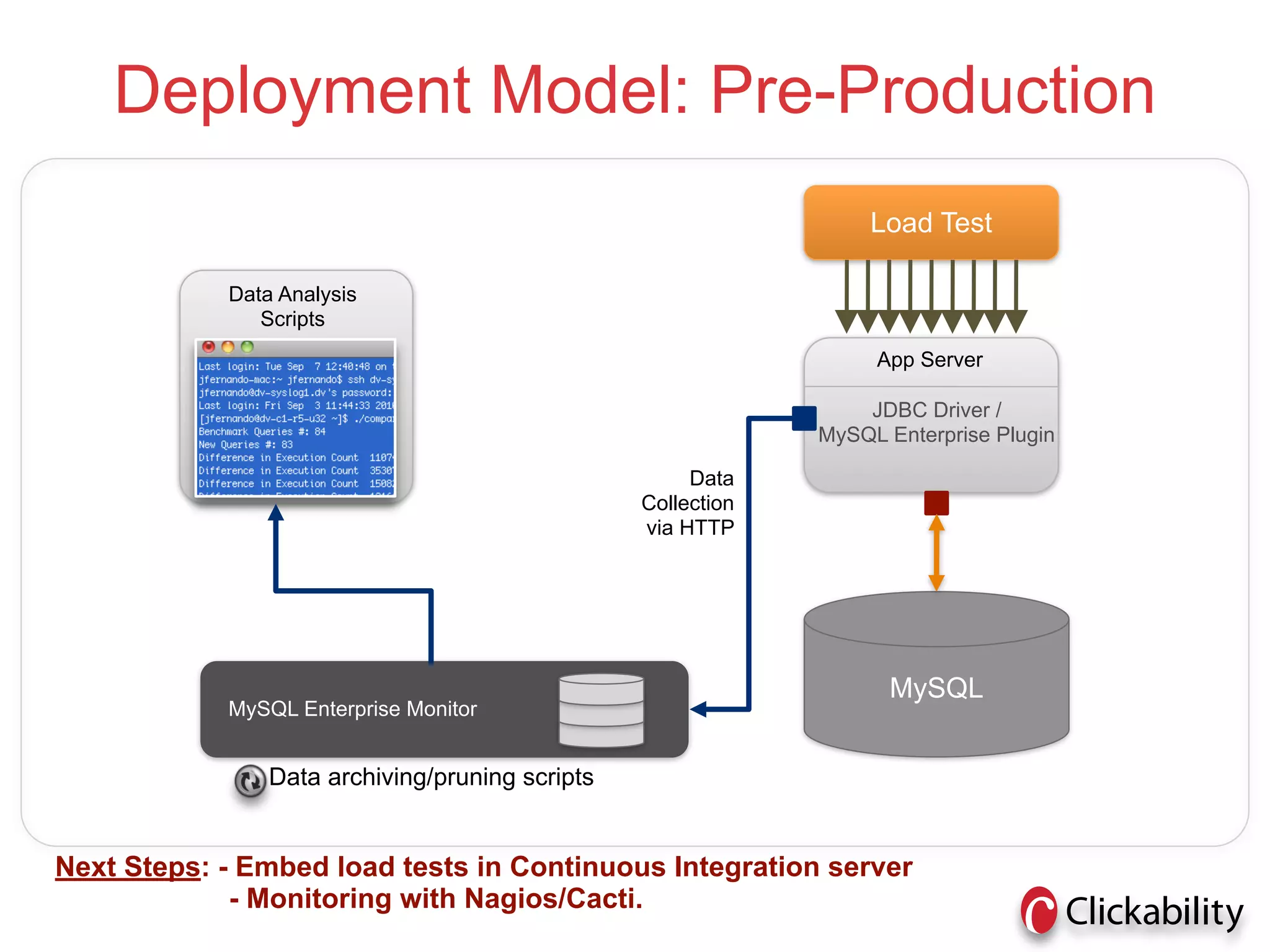

43. Deployment Model: Pre-Production
Load Test
Data Analysis
Scripts
App Server
JDBC Driver /
MySQL Enterprise Plugin
Data
Collection
via HTTP
MySQL
MySQL Enterprise Monitor
Data archiving/pruning scripts
Next Steps: - Embed load tests in Continuous Integration server
- Monitoring with Nagios/Cacti.

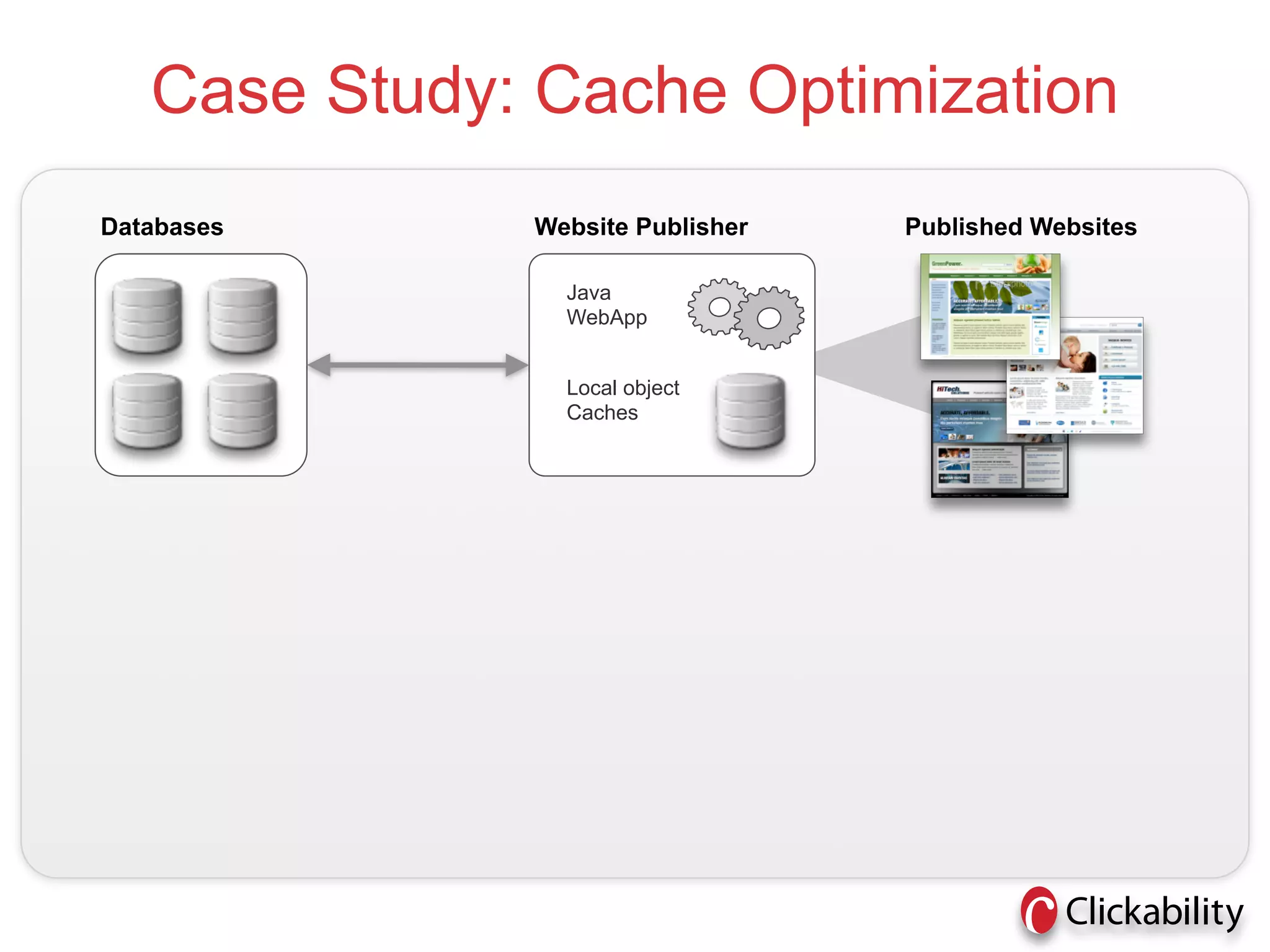

44. Case Study: Cache Optimization
Databases Website Publisher Published Websites
Java
WebApp
Local object
Caches

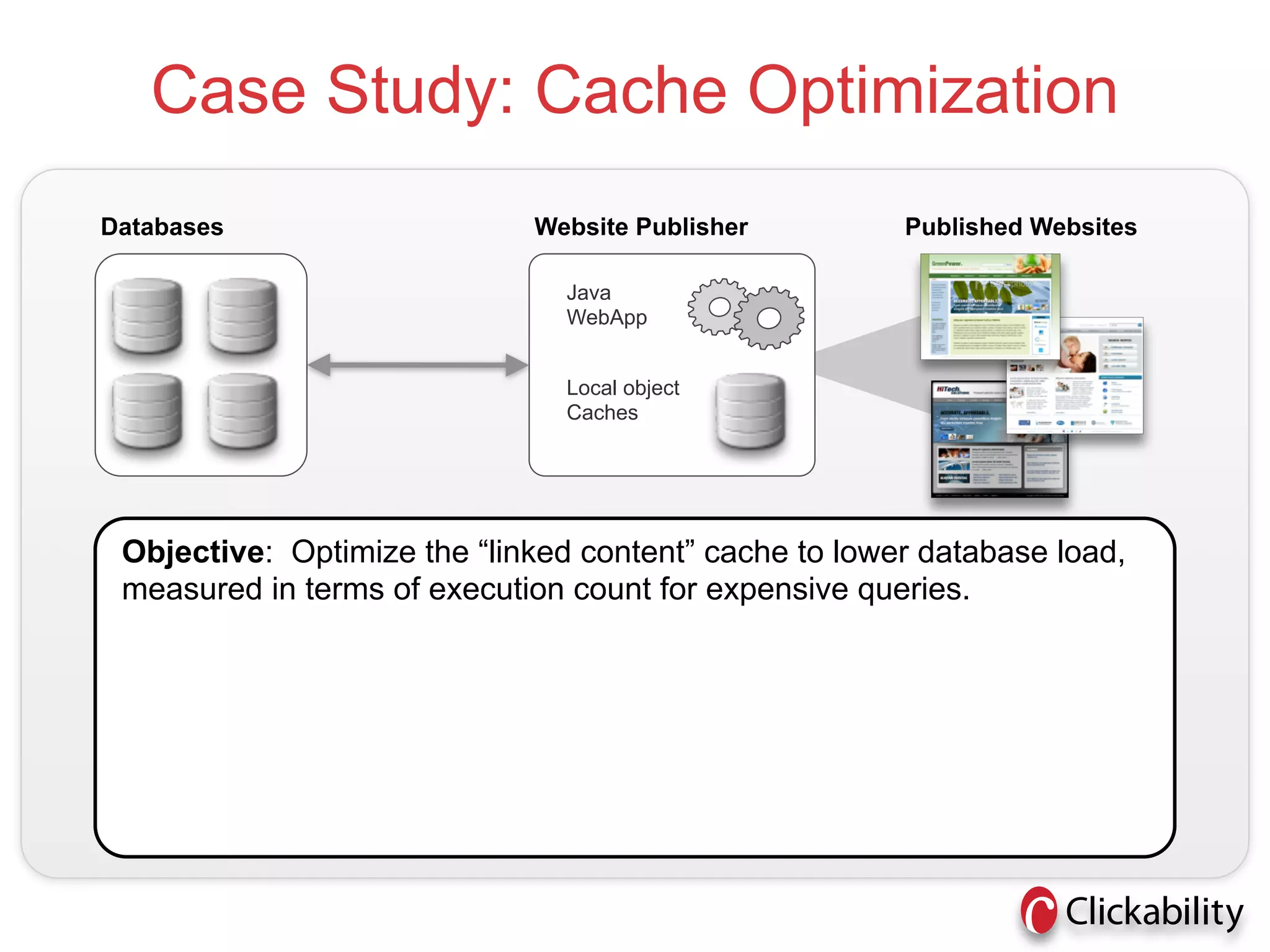

45. Case Study: Cache Optimization
Databases Website Publisher Published Websites
Java
WebApp
Local object
Caches
Objective: Optimize the “linked content” cache to lower database load,
measured in terms of execution count for expensive queries.

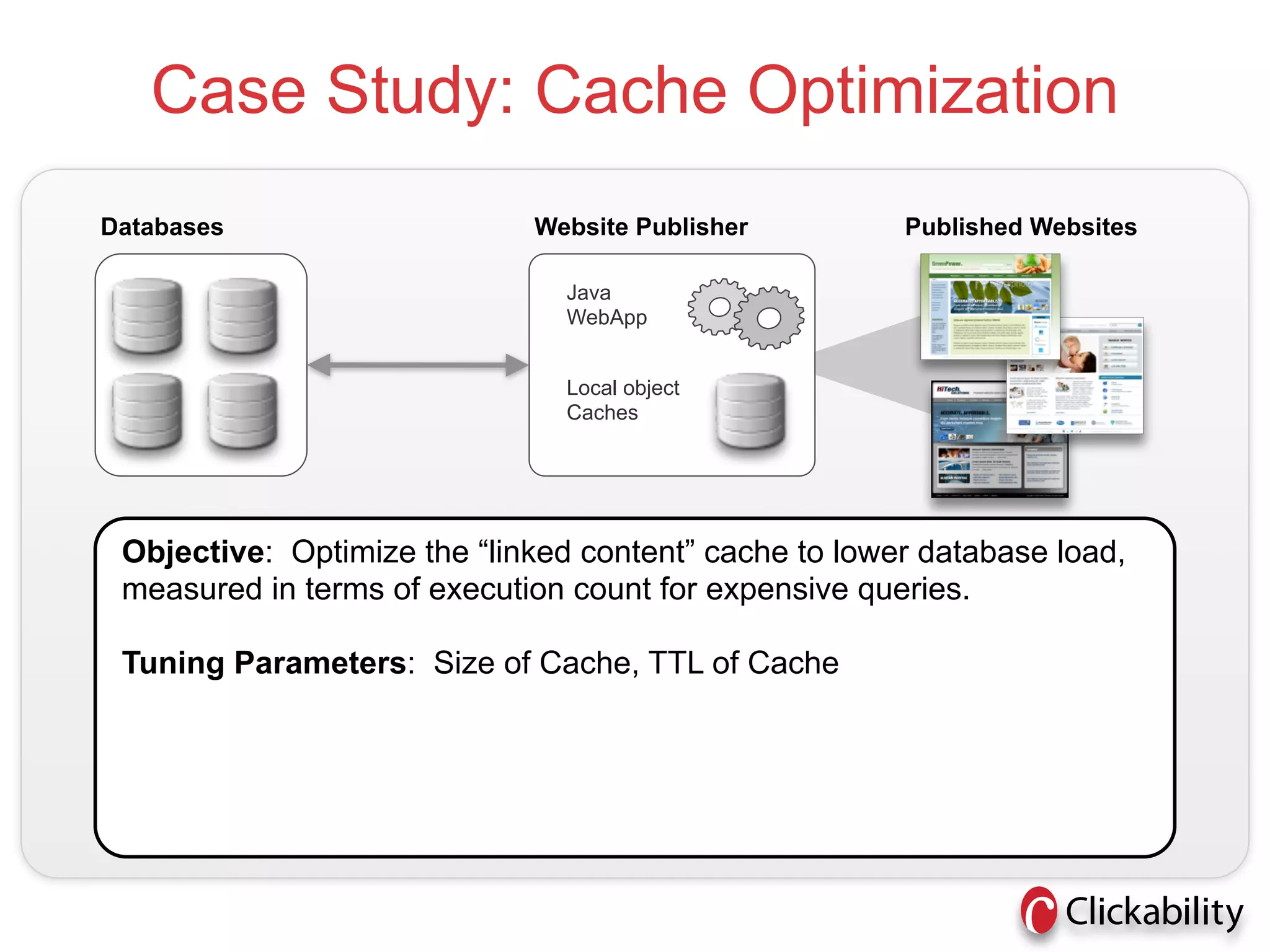

46. Case Study: Cache Optimization
Databases Website Publisher Published Websites
Java
WebApp
Local object
Caches
Objective: Optimize the “linked content” cache to lower database load,
measured in terms of execution count for expensive queries.
Tuning Parameters: Size of Cache, TTL of Cache

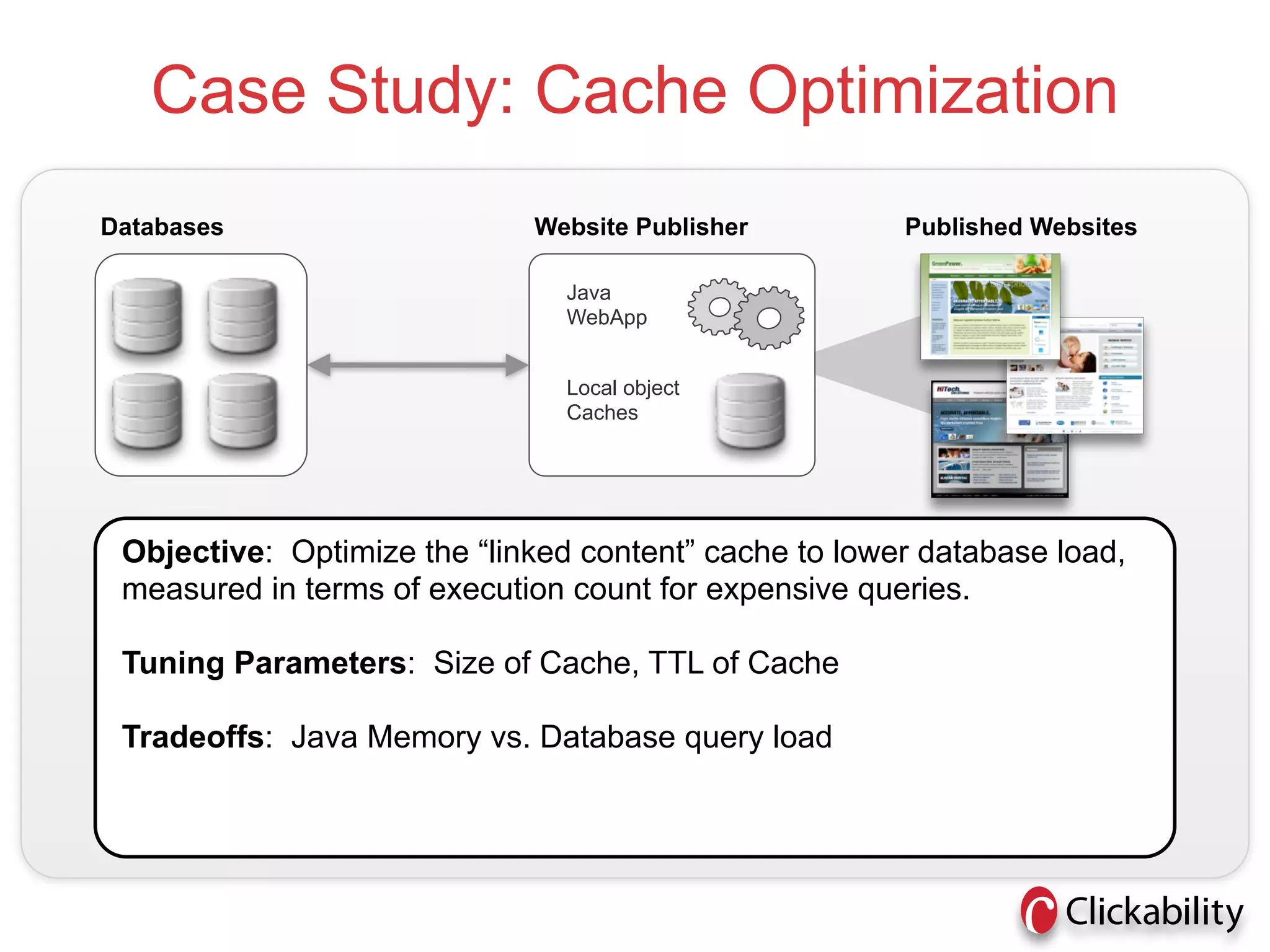

47. Case Study: Cache Optimization
Databases Website Publisher Published Websites
Java
WebApp
Local object
Caches
Objective: Optimize the “linked content” cache to lower database load,
measured in terms of execution count for expensive queries.
Tuning Parameters: Size of Cache, TTL of Cache
Tradeoffs: Java Memory vs. Database query load

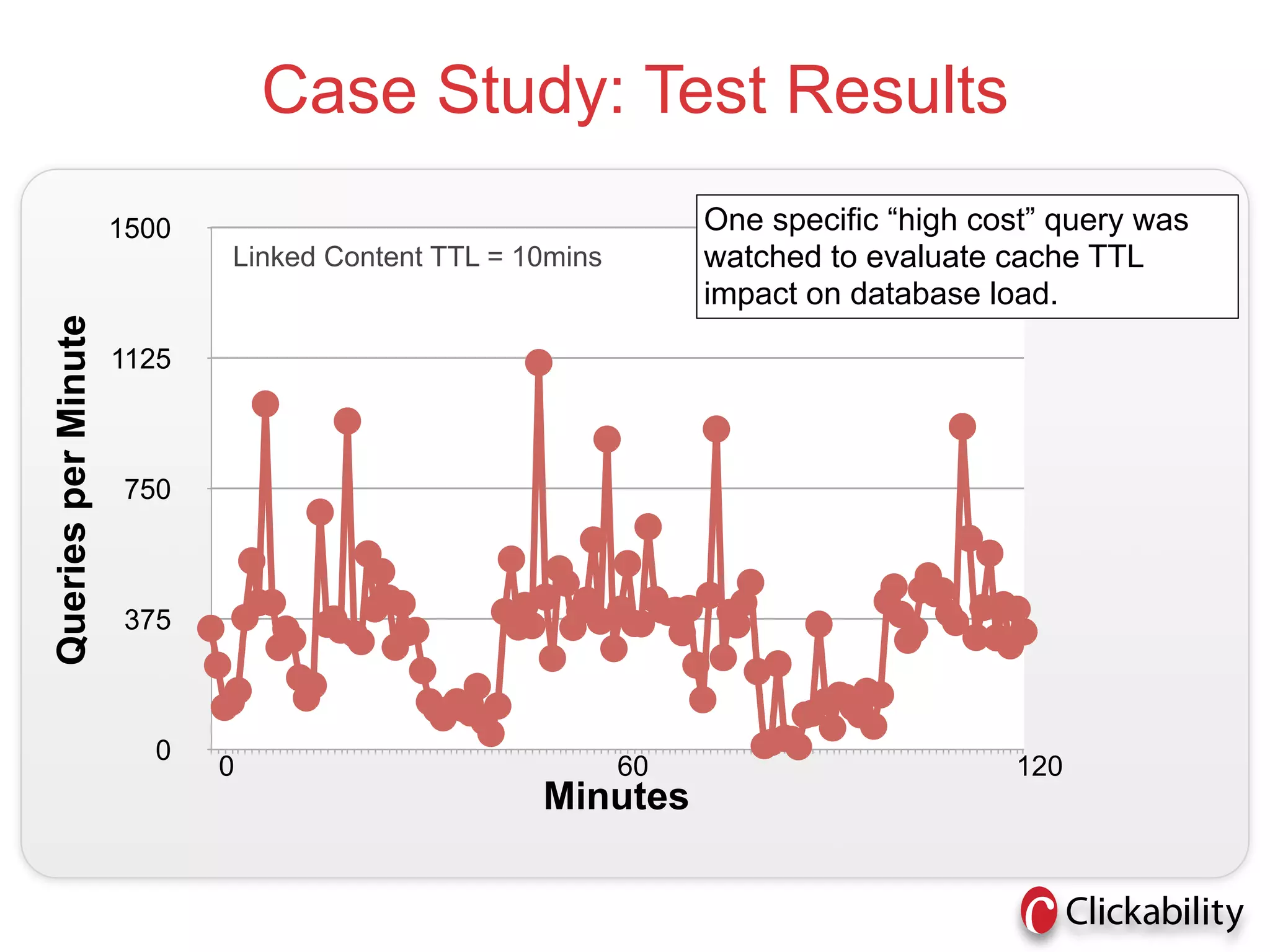

48. Case Study: Test Results
1500 One specific “high cost” query was
Linked Content TTL = 10mins watched to evaluate cache TTL
impact on database load.
Queries per Minute
1125
750
375
0
0 60 120
Minutes

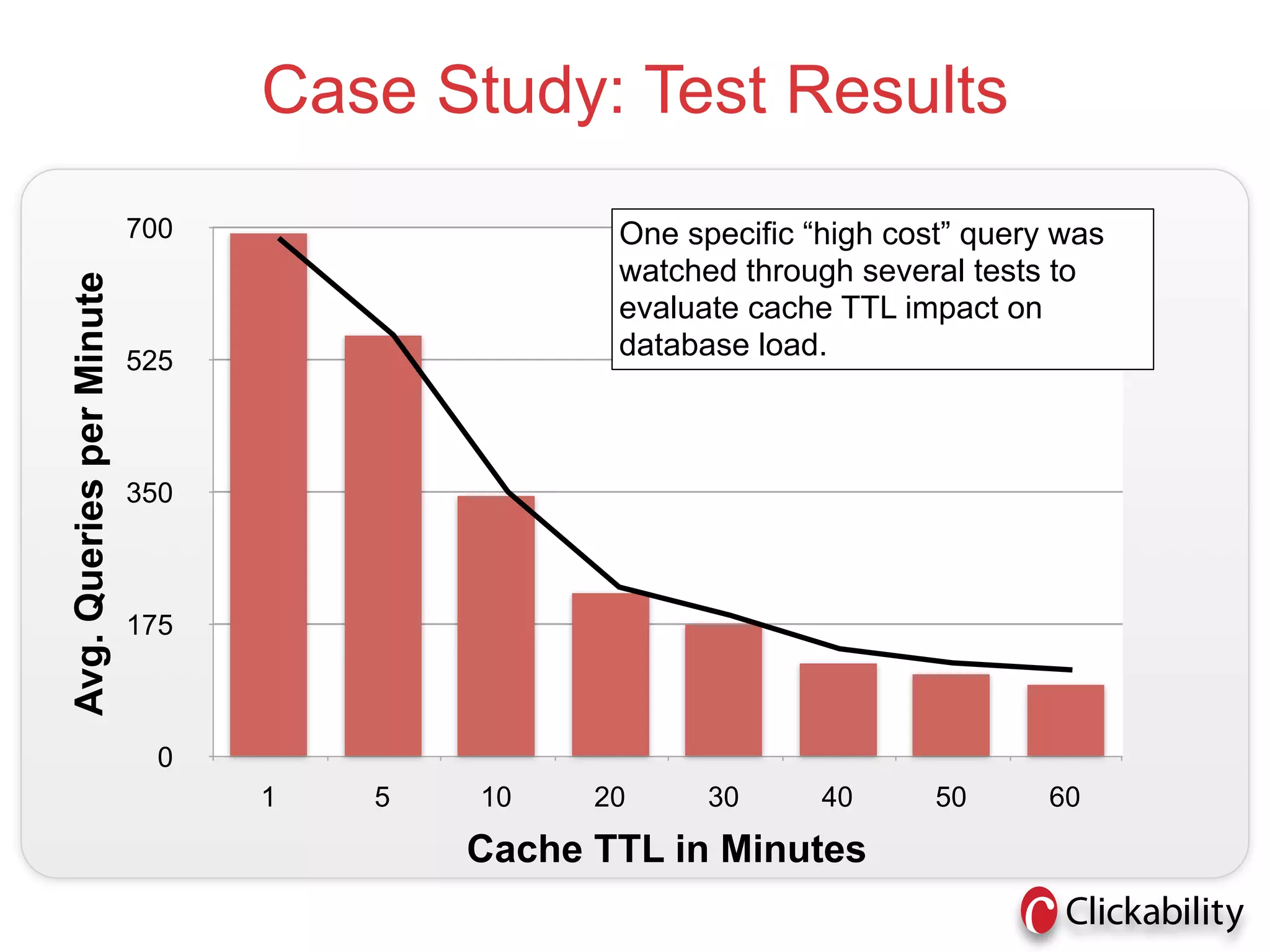

49. Case Study: Test Results
700 One specific “high cost” query was
watched through several tests to
Avg. Queries per Minute
evaluate cache TTL impact on
525
database load.
350
175
0
1 5 10 20 30 40 50 60
Cache TTL in Minutes

50. Wrap Up
35

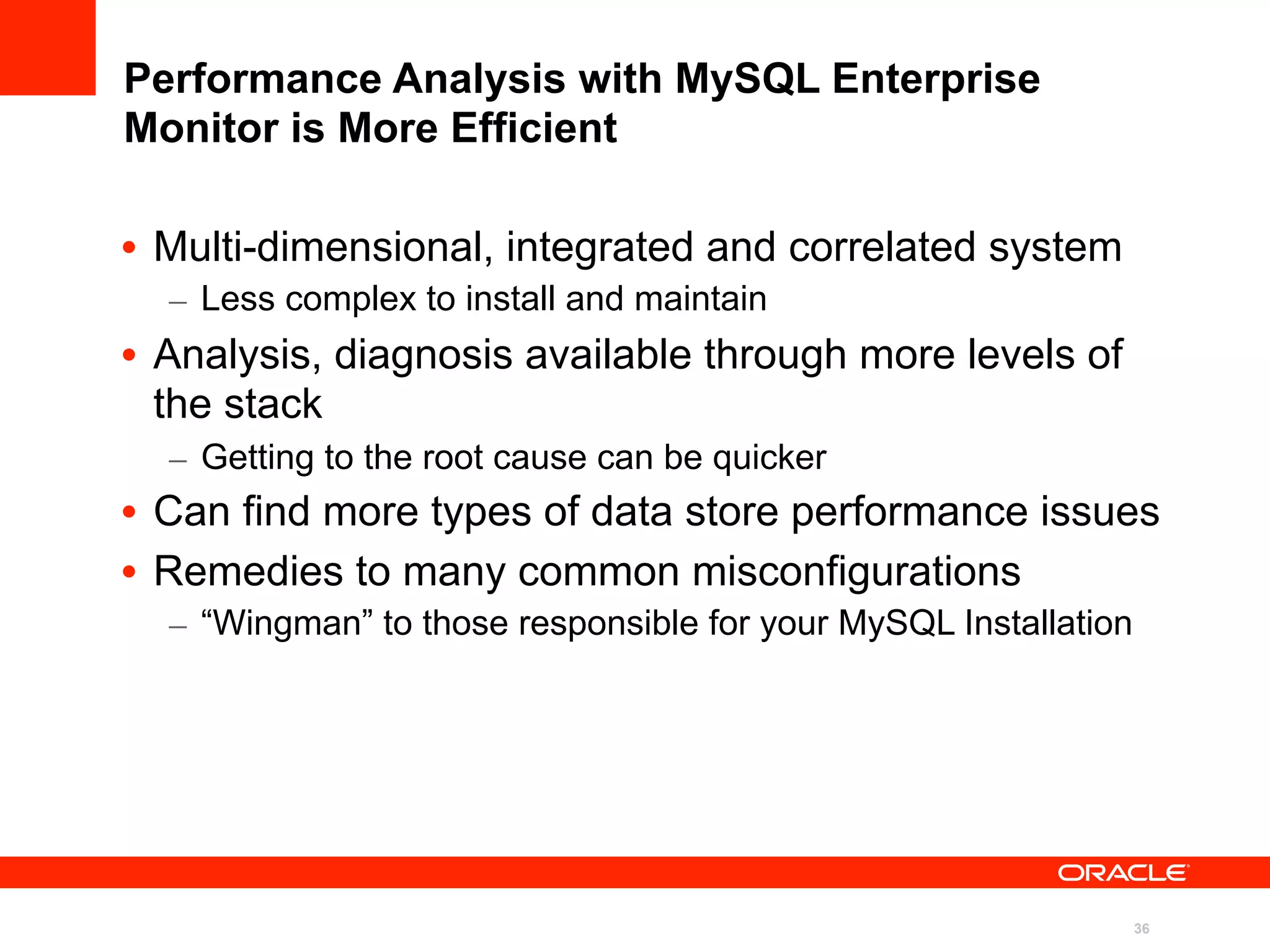

51. Performance Analysis with MySQL Enterprise
Monitor is More Efficient
• Multi-dimensional, integrated and correlated system
– Less complex to install and maintain
• Analysis, diagnosis available through more levels of
the stack
– Getting to the root cause can be quicker
• Can find more types of data store performance issues
• Remedies to many common misconfigurations
– “Wingman” to those responsible for your MySQL Installation
36

52. Questions?
37

53. 38

54. 39
