3. ROOUG, December 2017
Introduction to MySQL InnoDB Cluster
MySQL High Availability made easy
Frédéric Descamps - MySQL Community Manager - Oracle
3 / 148

4.

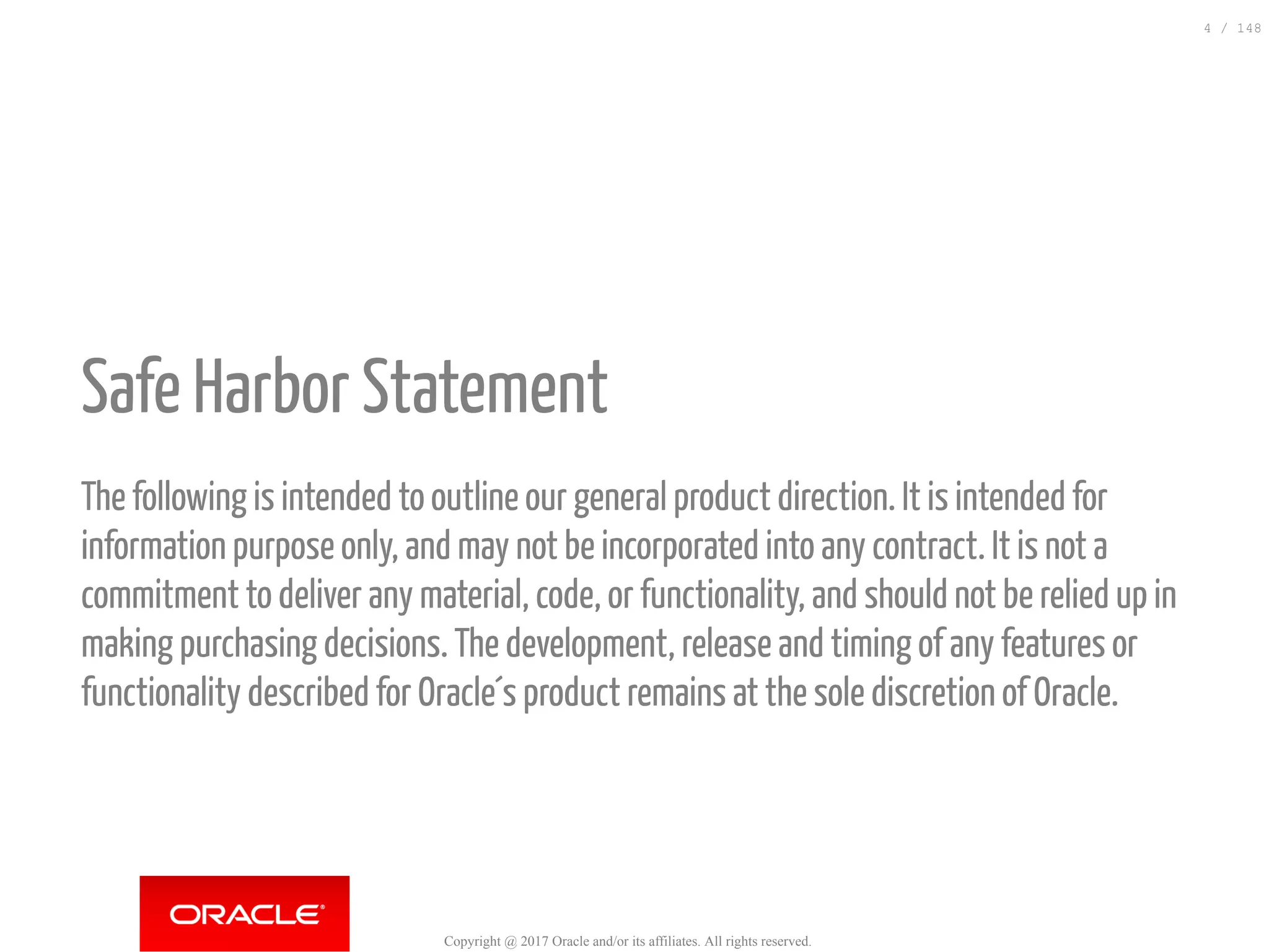

Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for
information purpose only, and may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality, and should not be relied up in
making purchasing decisions. The development, release and timing of any features or
functionality described for Oracle´s product remains at the sole discretion of Oracle.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
4 / 148

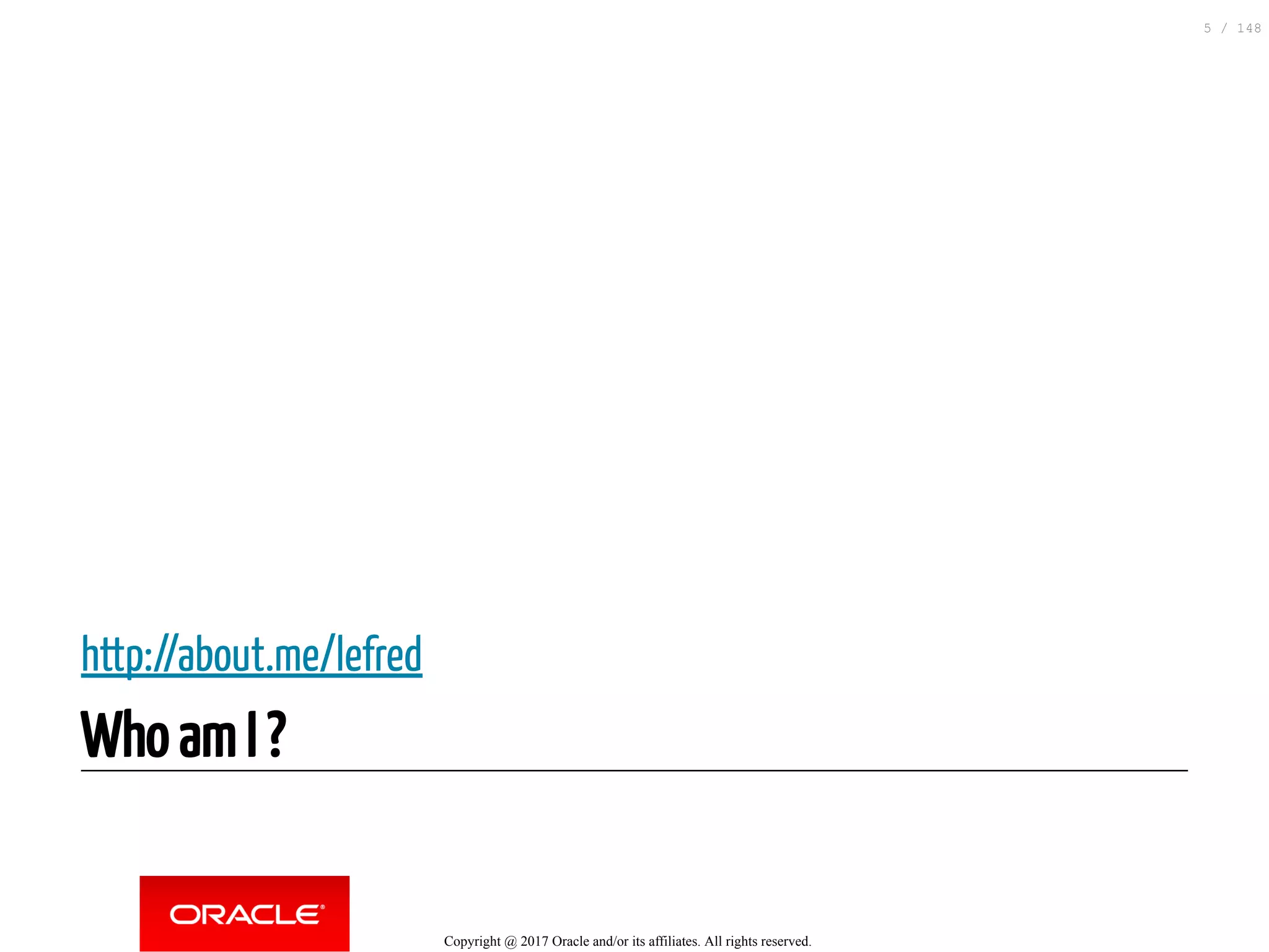

5. http://about.me/lefred
Who am I ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
5 / 148

6. Frédéric Descamps
@lefred
MySQL Evangelist
Hacking MySQL since 3.23
devops believer
MySQL Community Manager since May
2016
living in Belgium 🇧🇪
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
6 / 148

7. 7 / 148

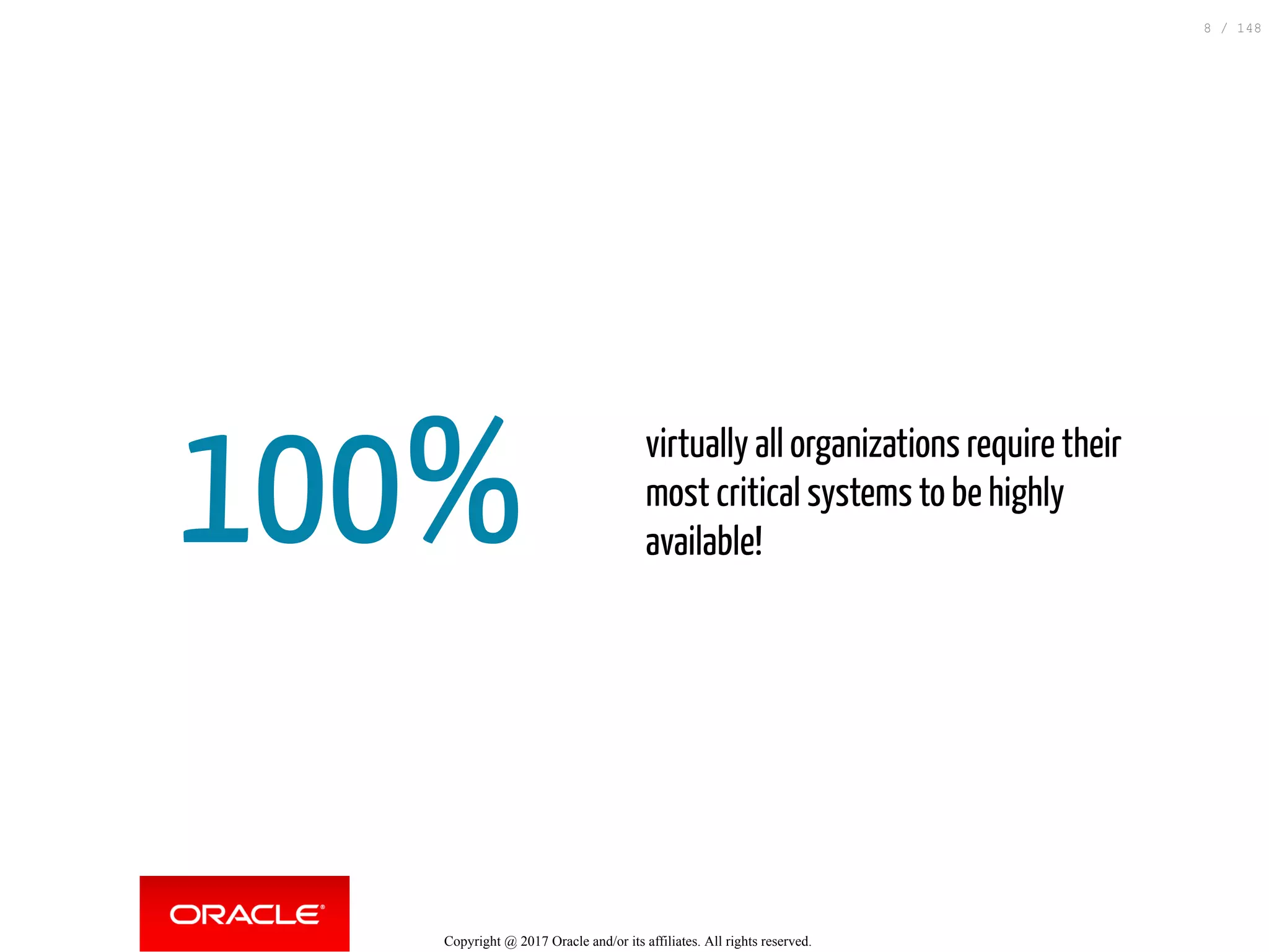

8. 100%
virtually all organizations require their
most critical systems to be highly
available!
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
8 / 148

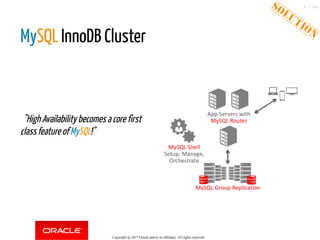

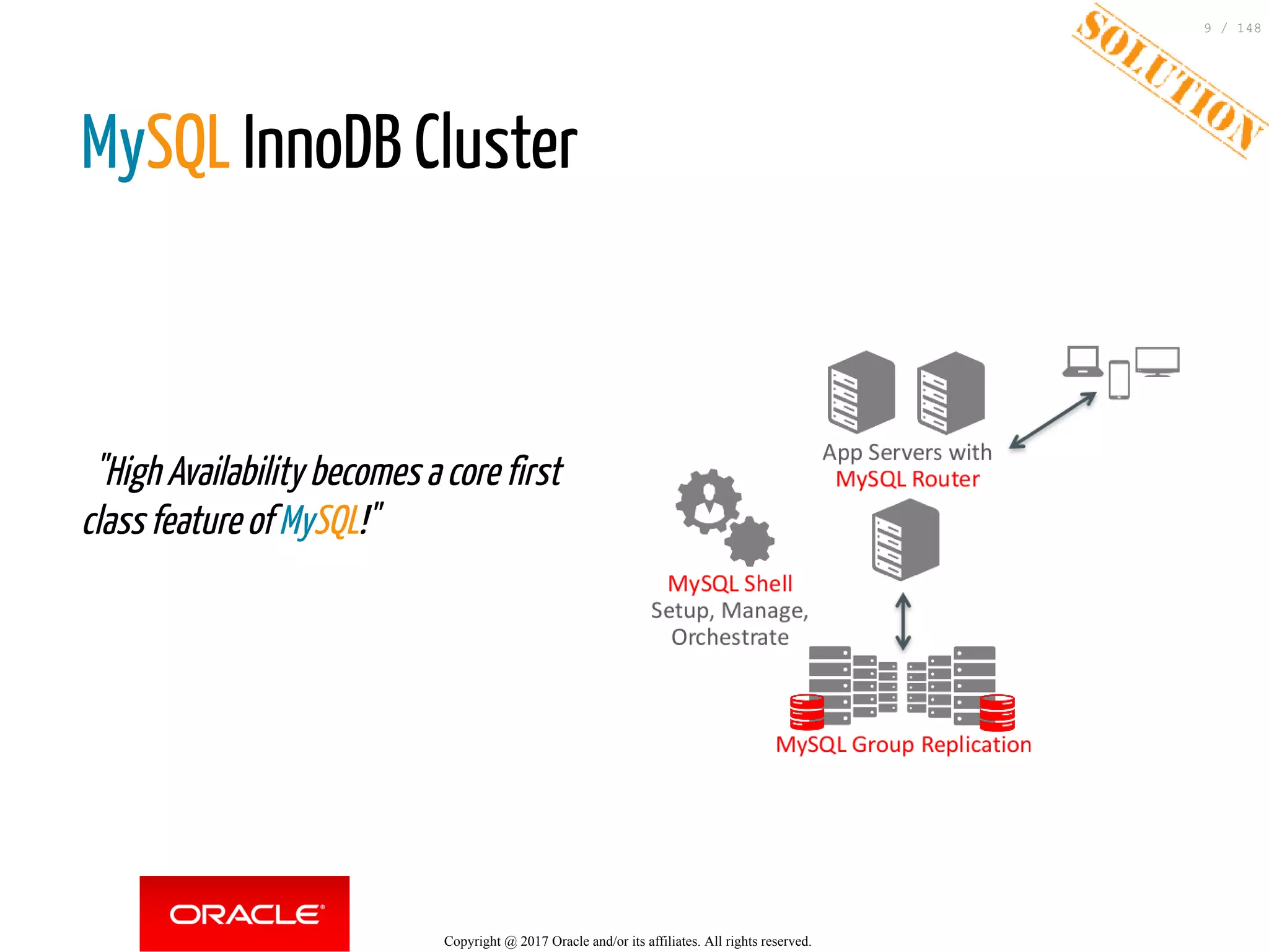

9.
"High Availability becomes a core first
class feature of MySQL!"
MySQL InnoDB Cluster
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
9 / 148

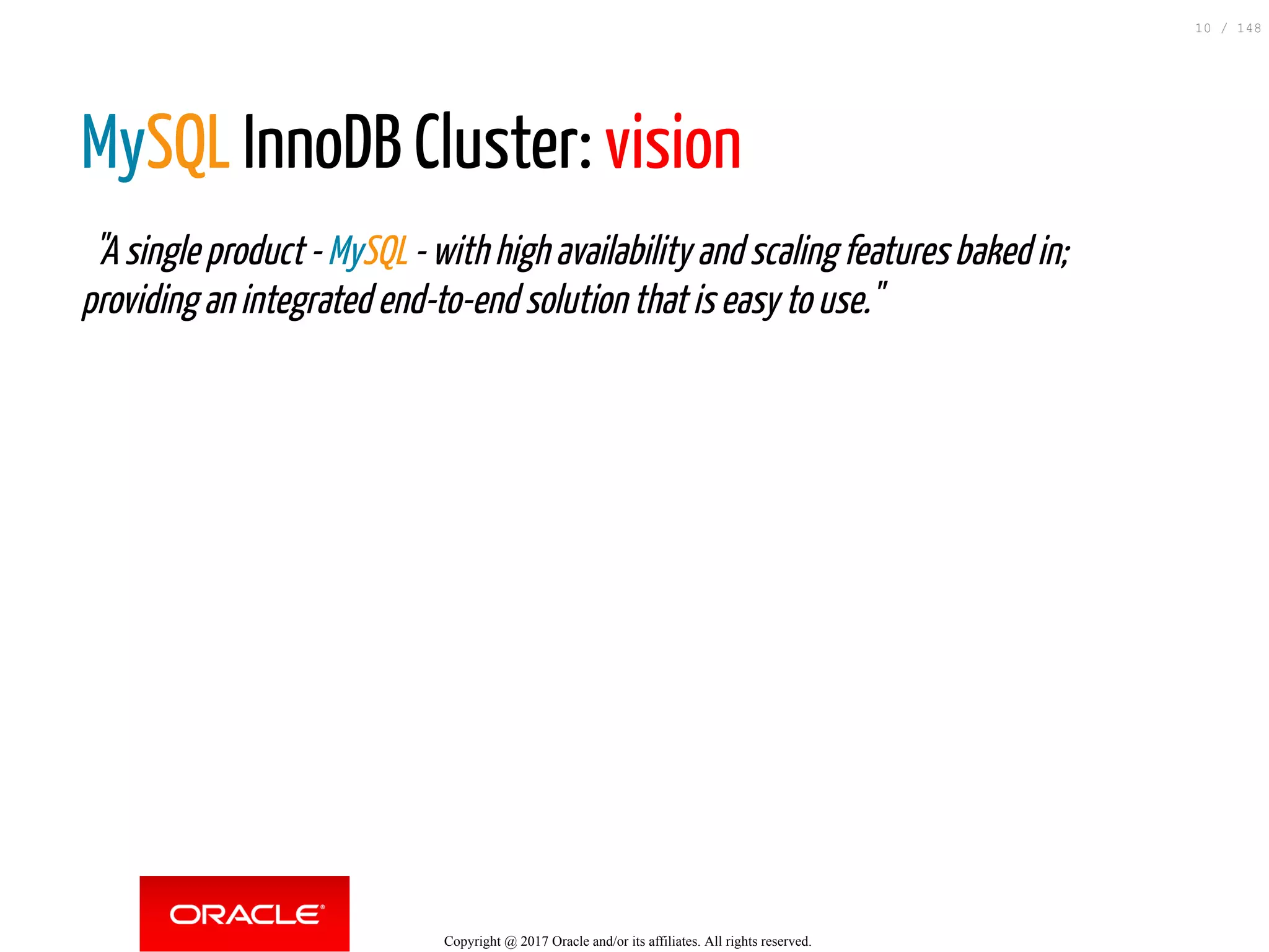

10. MySQL InnoDB Cluster: vision
"A single product - MySQL - with high availability and scaling features baked in;
providing an integrated end-to-end solution that is easy to use."
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
10 / 148

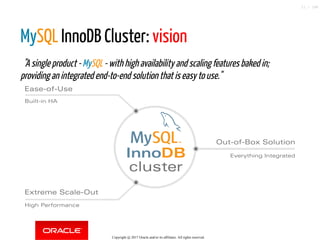

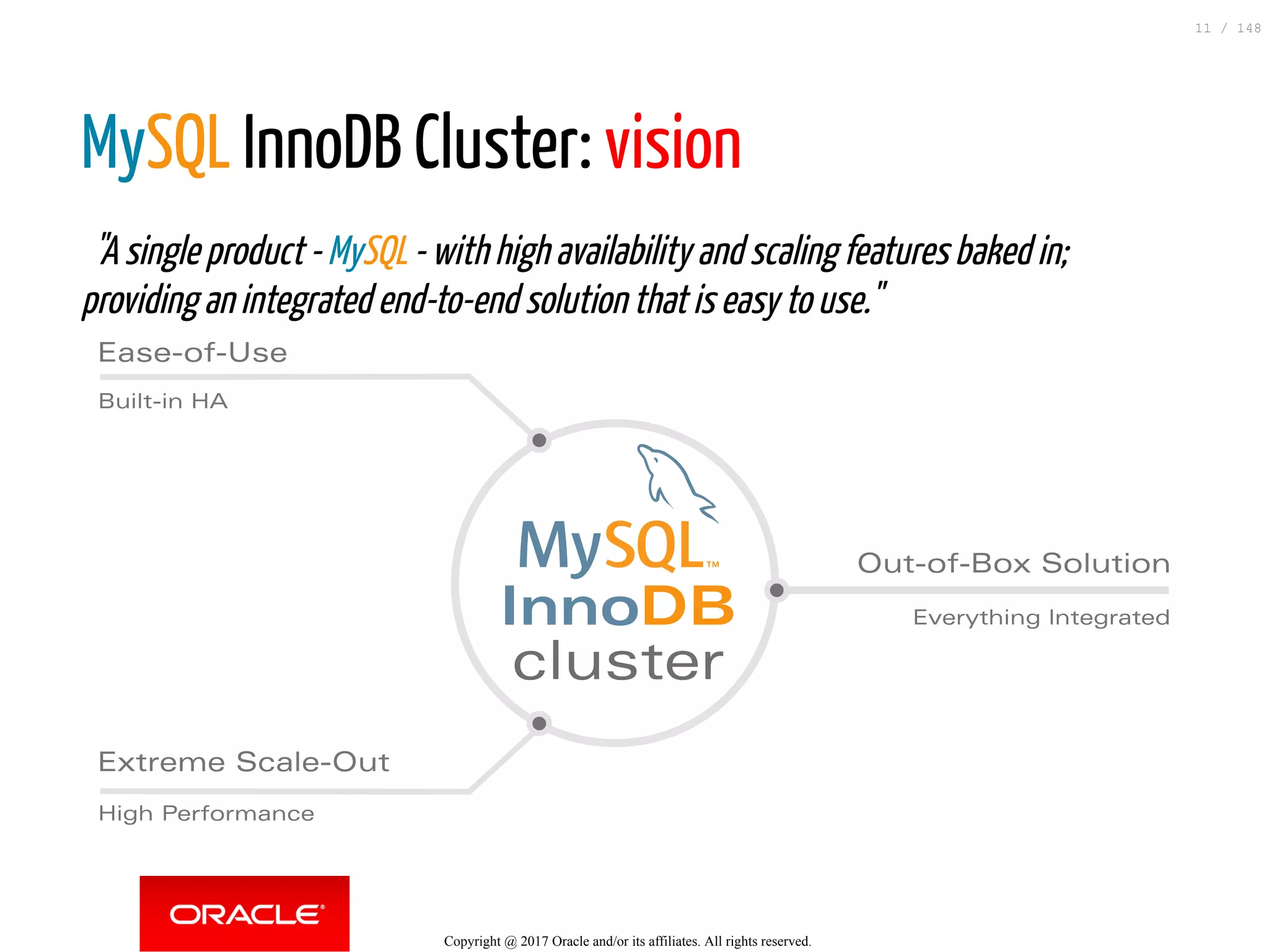

11. MySQL InnoDB Cluster: vision
"A single product - MySQL - with high availability and scaling features baked in;
providing an integrated end-to-end solution that is easy to use."
InnoDB
cluster
Ease-of-Use
Extreme Scale-Out
Out-of-Box Solution
Built-in HA
High Performance
Everything Integrated
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
11 / 148

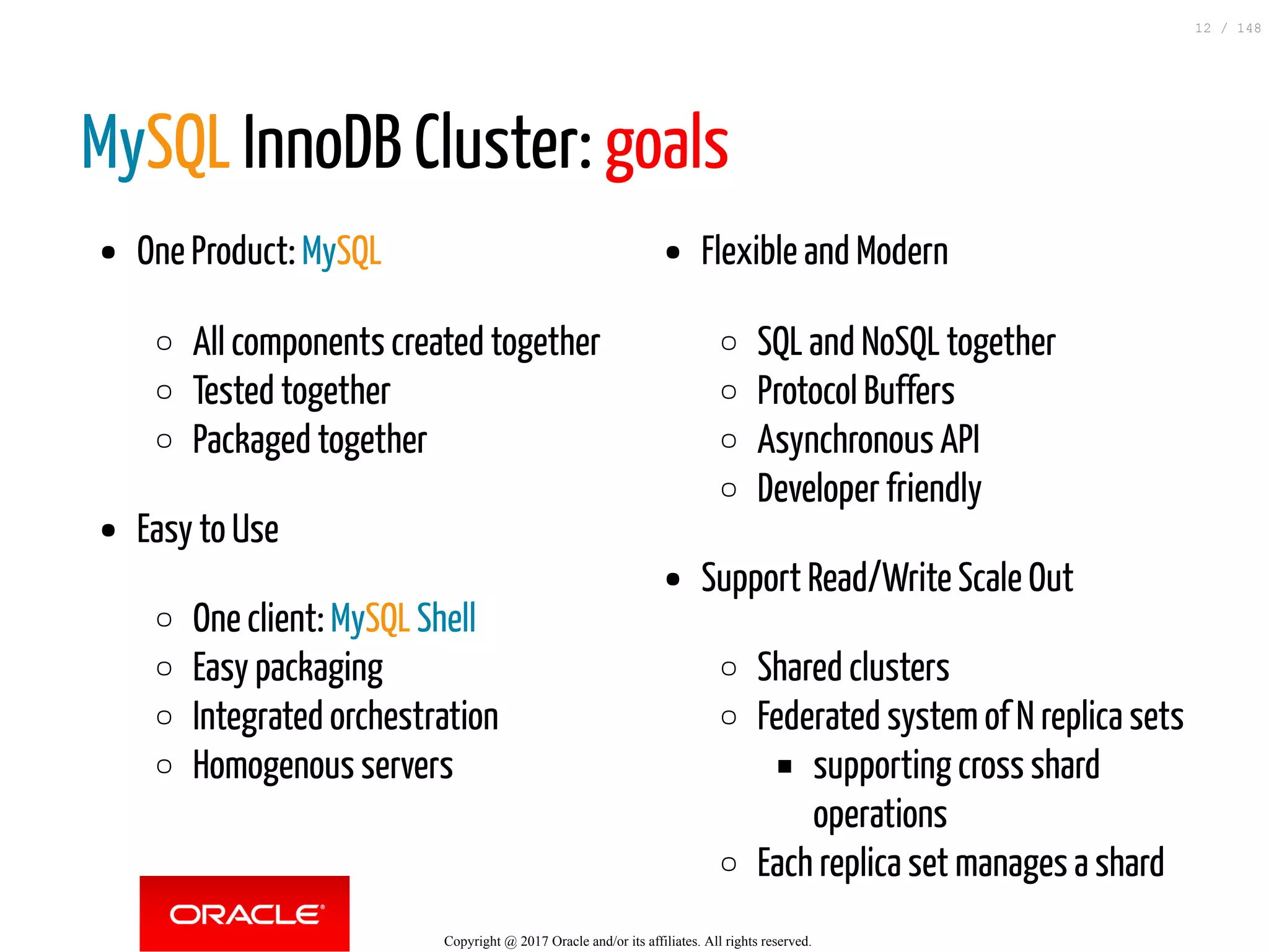

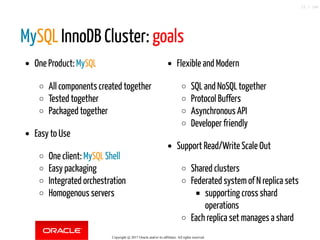

12. One Product: MySQL
All components created together
Tested together
Packaged together
Easy to Use
One client: MySQL Shell
Easy packaging
Integrated orchestration
Homogenous servers
Flexible and Modern
SQL and NoSQL together
Protocol Buffers
Asynchronous API
Developer friendly
Support Read/Write Scale Out
Shared clusters
Federated system of N replica sets
supporting cross shard
operations
Each replica set manages a shard
MySQL InnoDB Cluster: goals
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
12 / 148

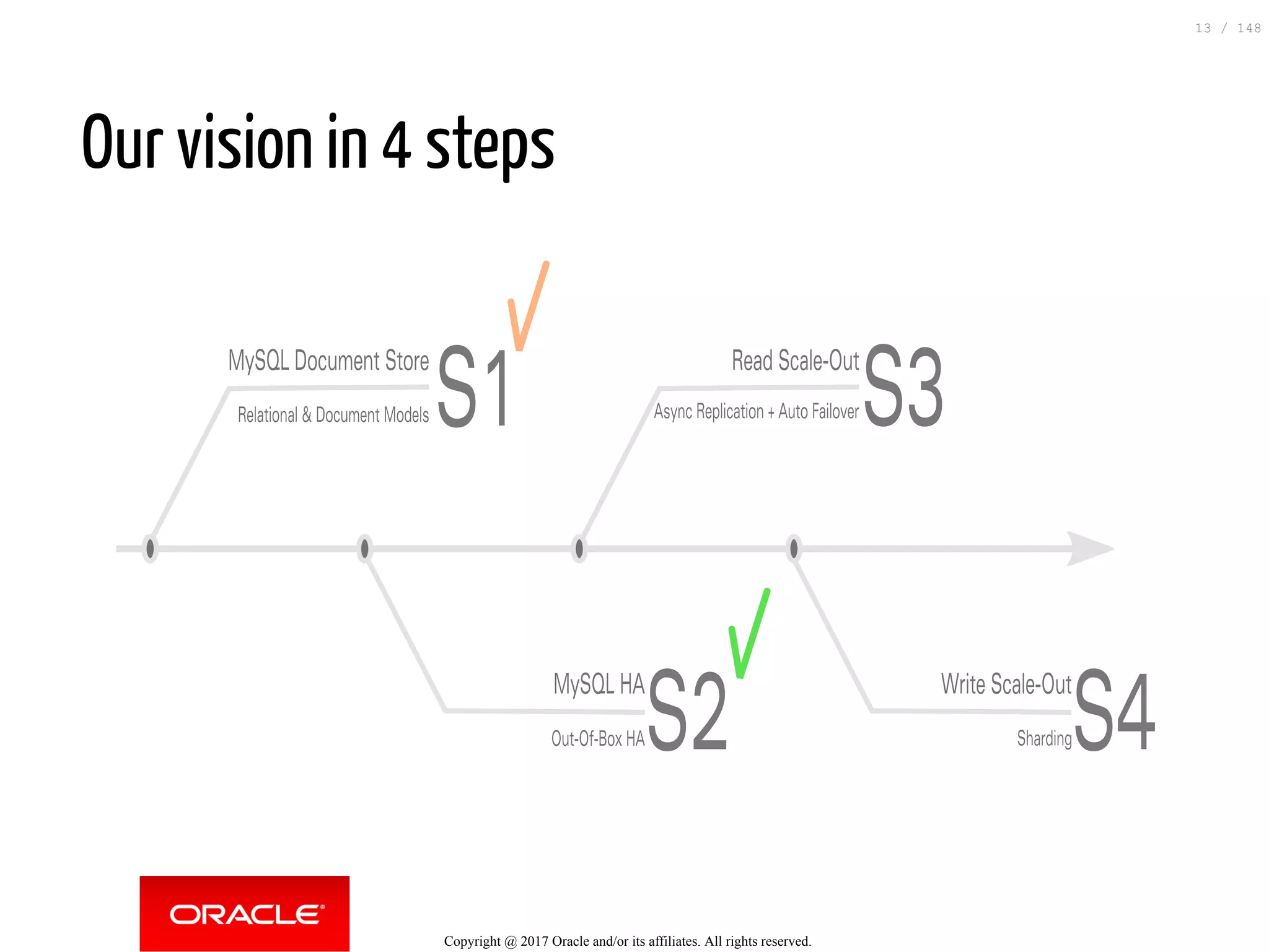

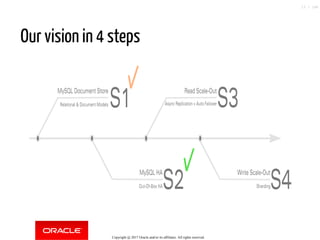

13. Our vision in 4 steps
MySQL Document Store
Relational & Document Models
MySQL HA
Out-Of-Box HA
Read Scale-Out
Async Replication + Auto Failover
Write Scale-Out
Sharding
S1 S3
S2 S4
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
13 / 148

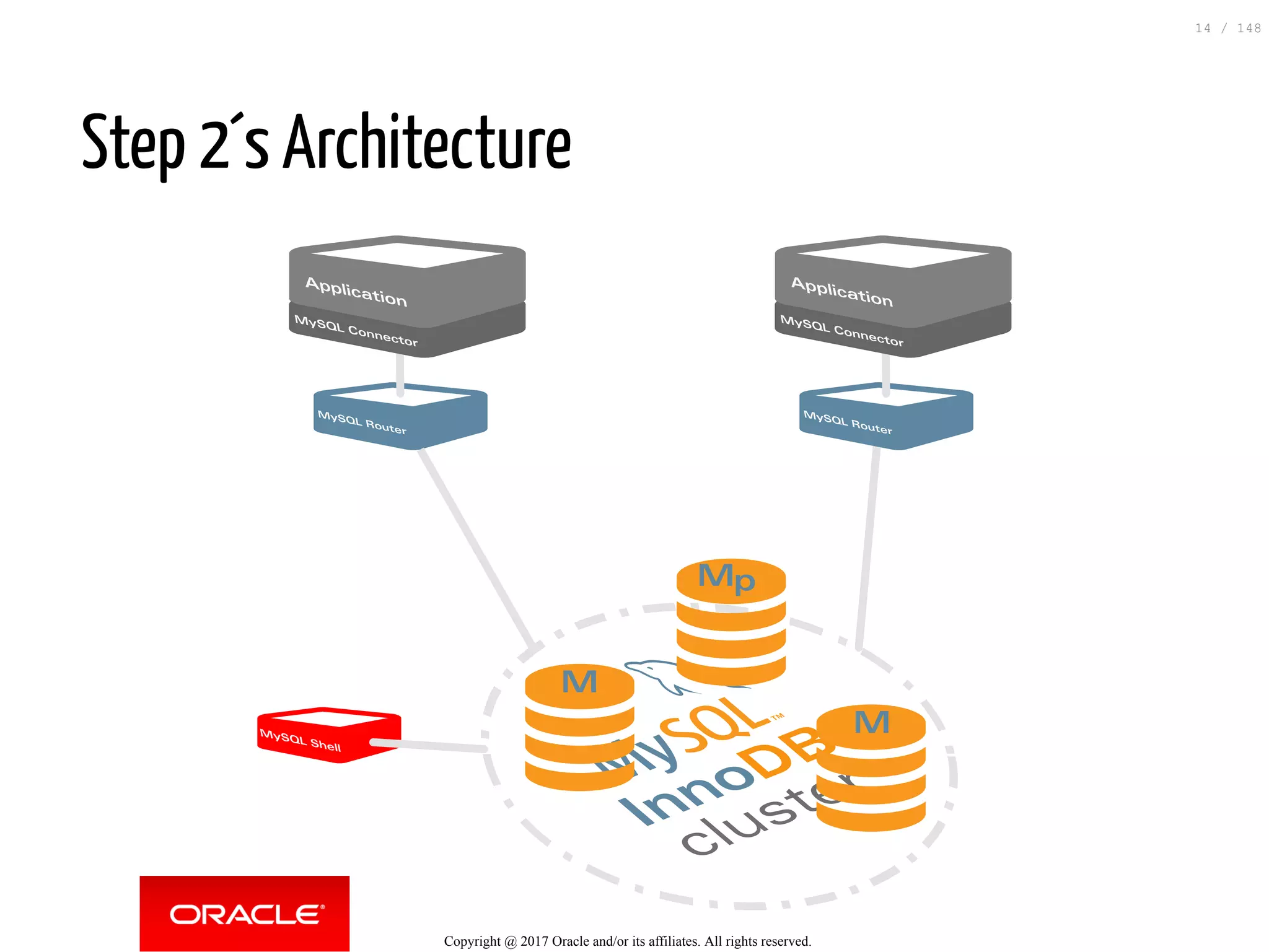

14. Step 2´s Architecture
Application
MySQL Connector
MySQL Router
MySQL Shell
InnoDB
cluster
Application
MySQL Connector
MySQL Router
Mp
M
M
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
14 / 148

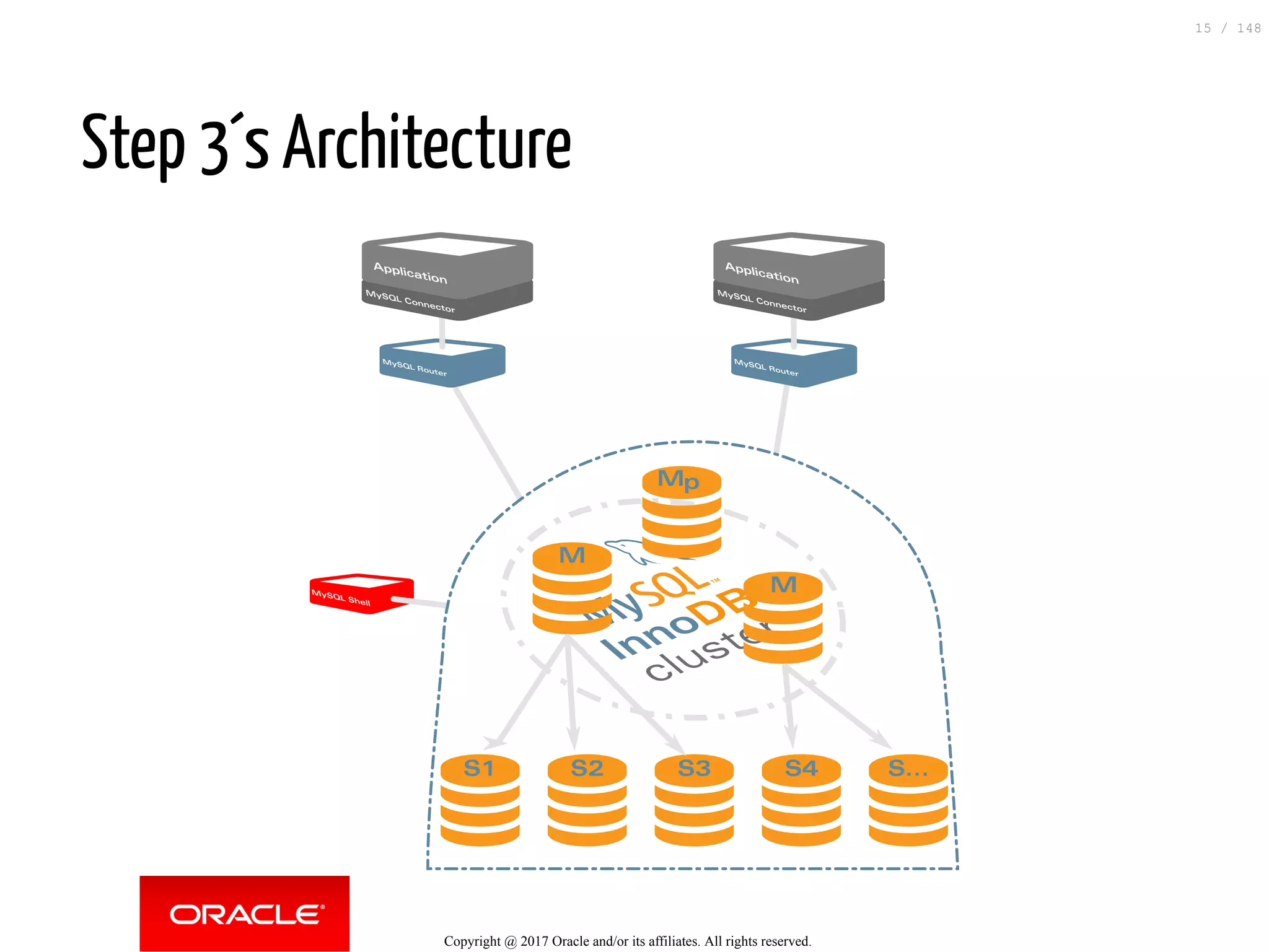

15. Step 3´s Architecture
Application
MySQL Connector
MySQL Router
MySQL Shell
InnoDB
cluster
Application
MySQL Connector
MySQL Router
Mp
M
M
S1 S2 S3 S4 S...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
15 / 148

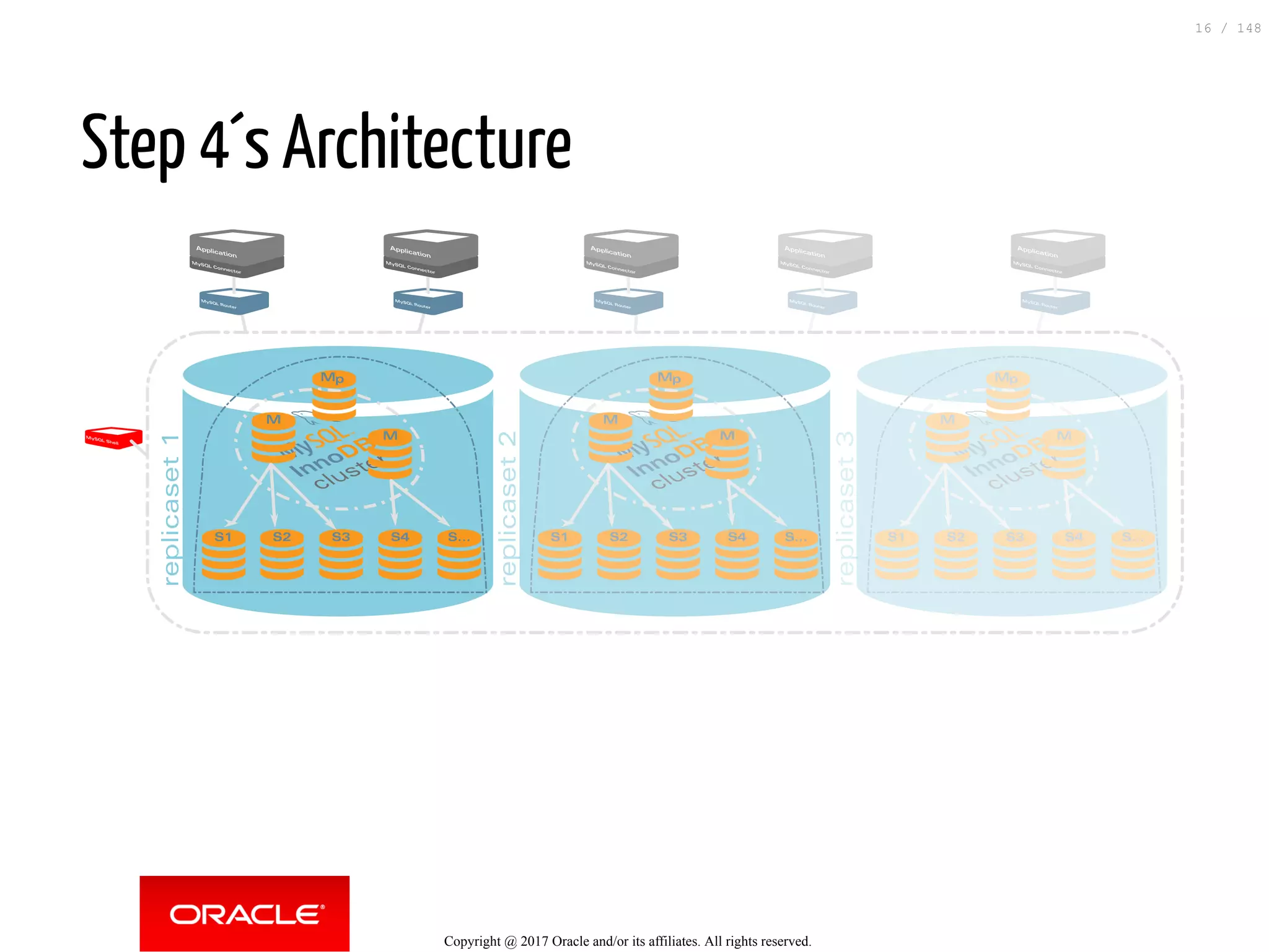

16. Step 4´s Architecture
Application
MySQL Connector
MySQL Router
MySQL Shell
Application
MySQL Connector
MySQL Router
InnoDB
cluster
Mp
M
M
S2 S3 S4 S...S1
InnoDB
cluster
Mp
M
M
S1 S2 S3 S4 S...
InnoDB
cluster
Mp
M
M
S1 S2 S3 S4 S...
Application
MySQL Connector
MySQL Router
Application
MySQL Connector
MySQL Router
Application
MySQL Connector
MySQL Router
replicaset1
replicaset2
replicaset3
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
16 / 148

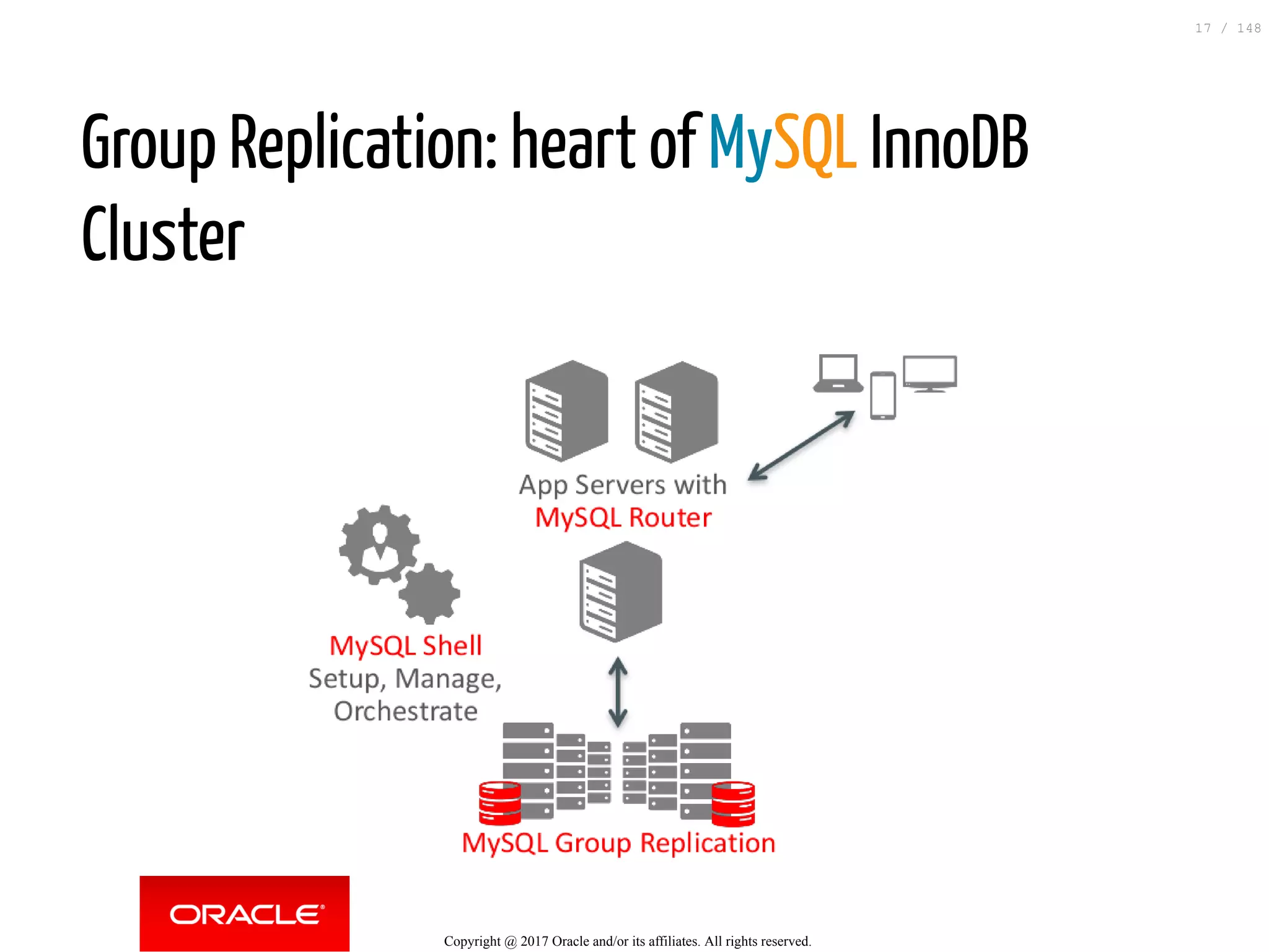

17. Group Replication: heart of MySQL InnoDB
Cluster
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
17 / 148

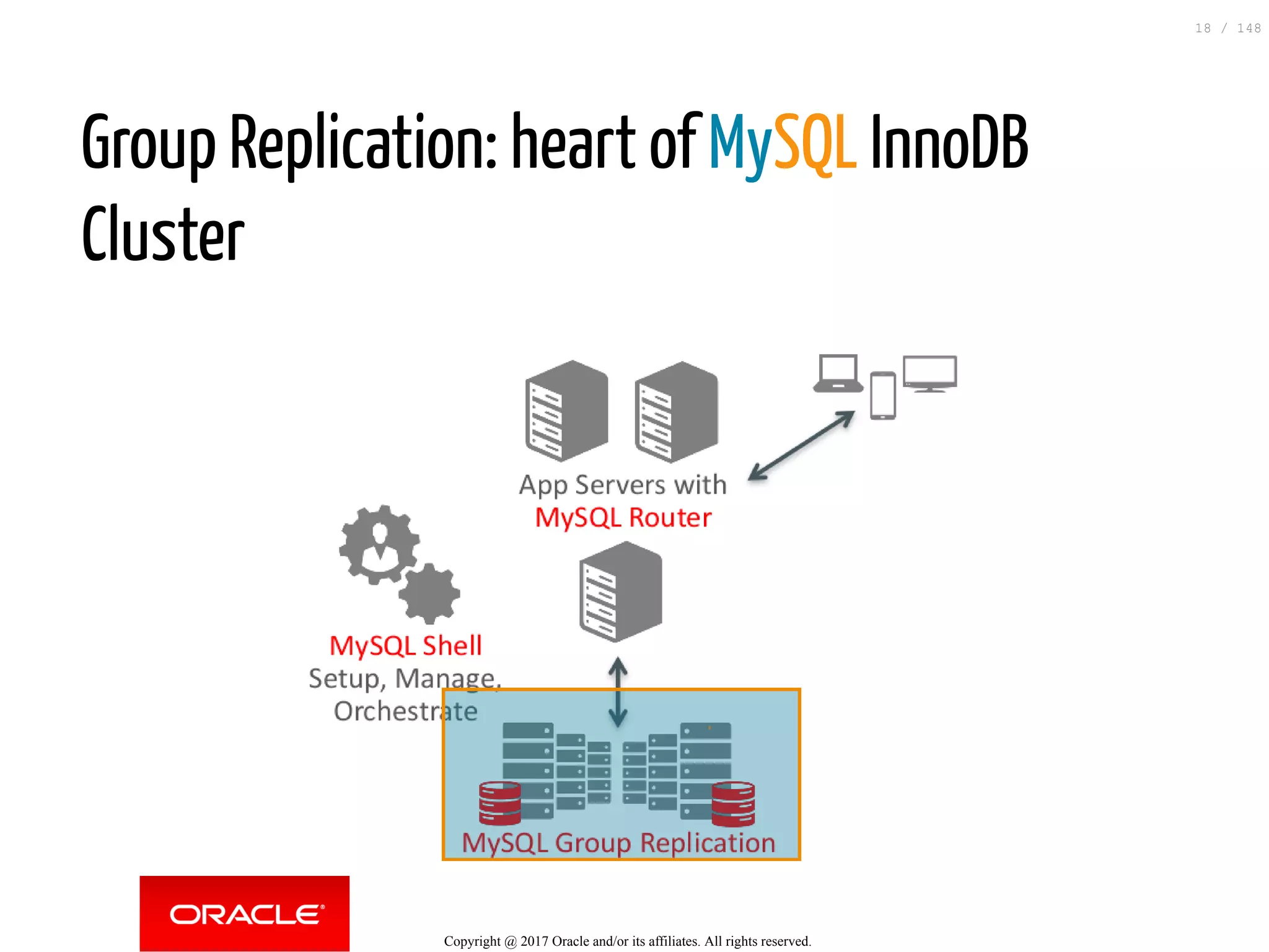

18. Group Replication: heart of MySQL InnoDB
Cluster
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
18 / 148

19. MySQL Group Replication
but what is it ?!?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
19 / 148

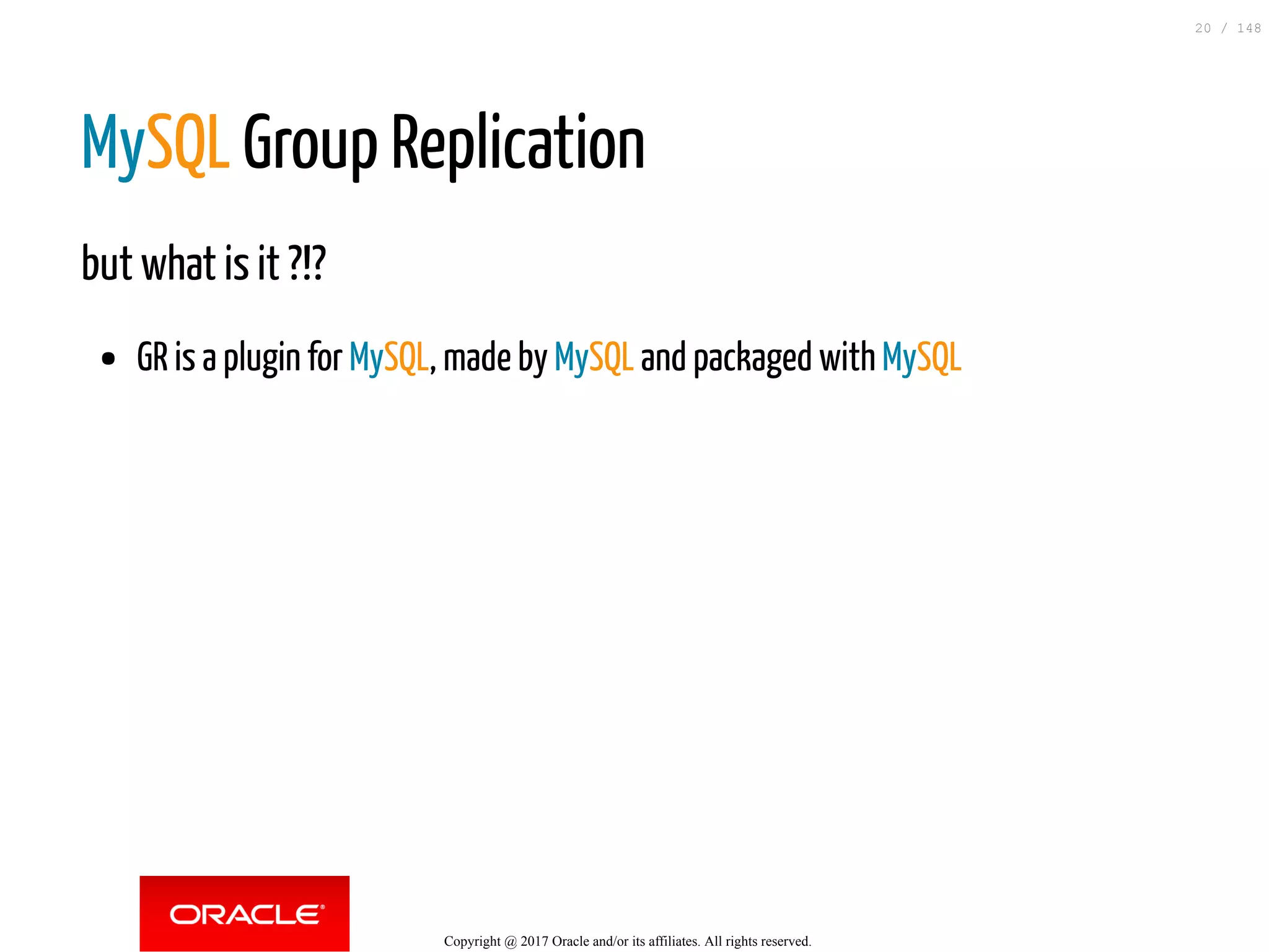

20. MySQL Group Replication
but what is it ?!?
GR is a plugin for MySQL, made by MySQL and packaged with MySQL
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
20 / 148

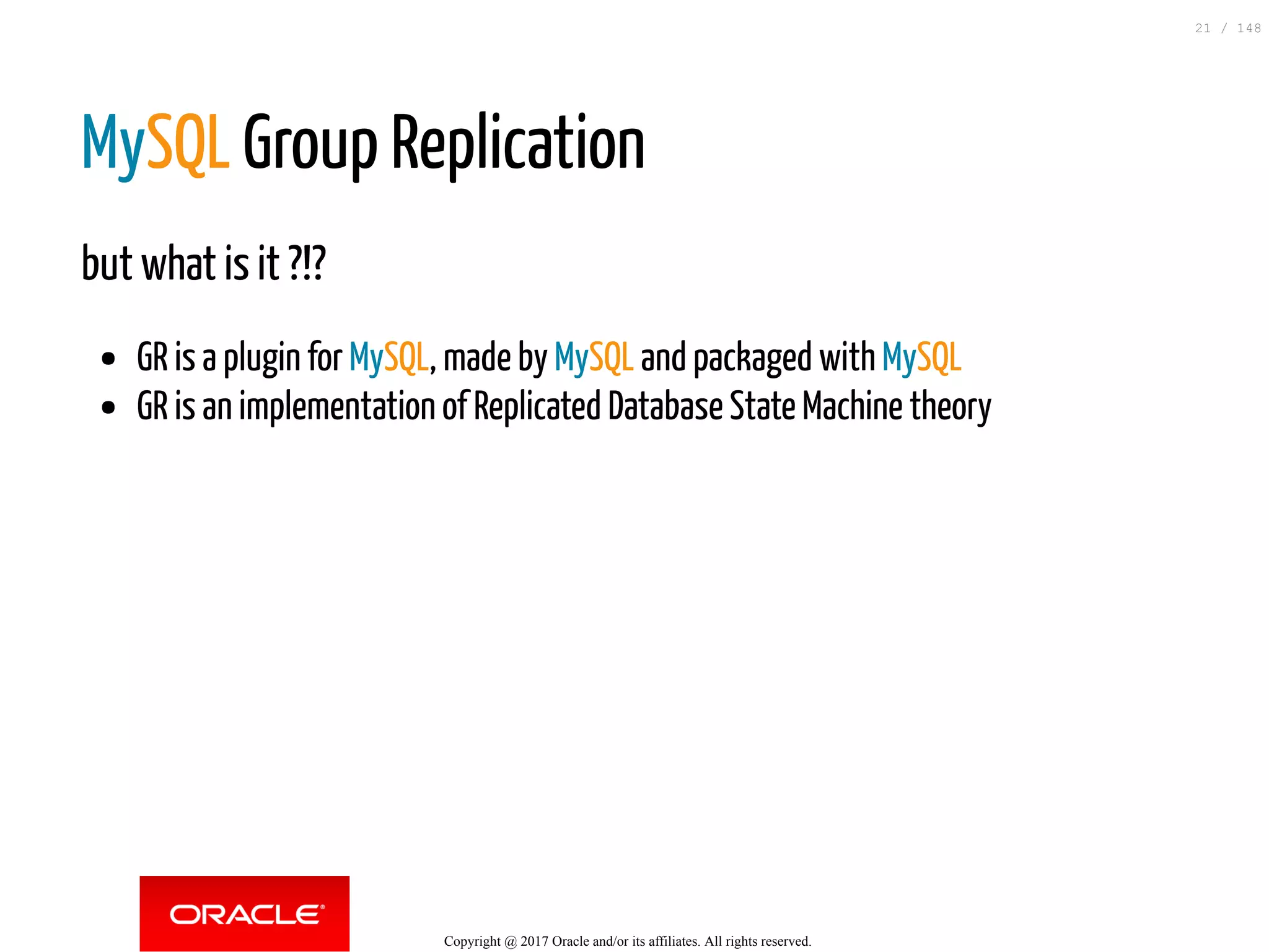

21. MySQL Group Replication
but what is it ?!?
GR is a plugin for MySQL, made by MySQL and packaged with MySQL
GR is an implementation of Replicated Database State Machine theory
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
21 / 148

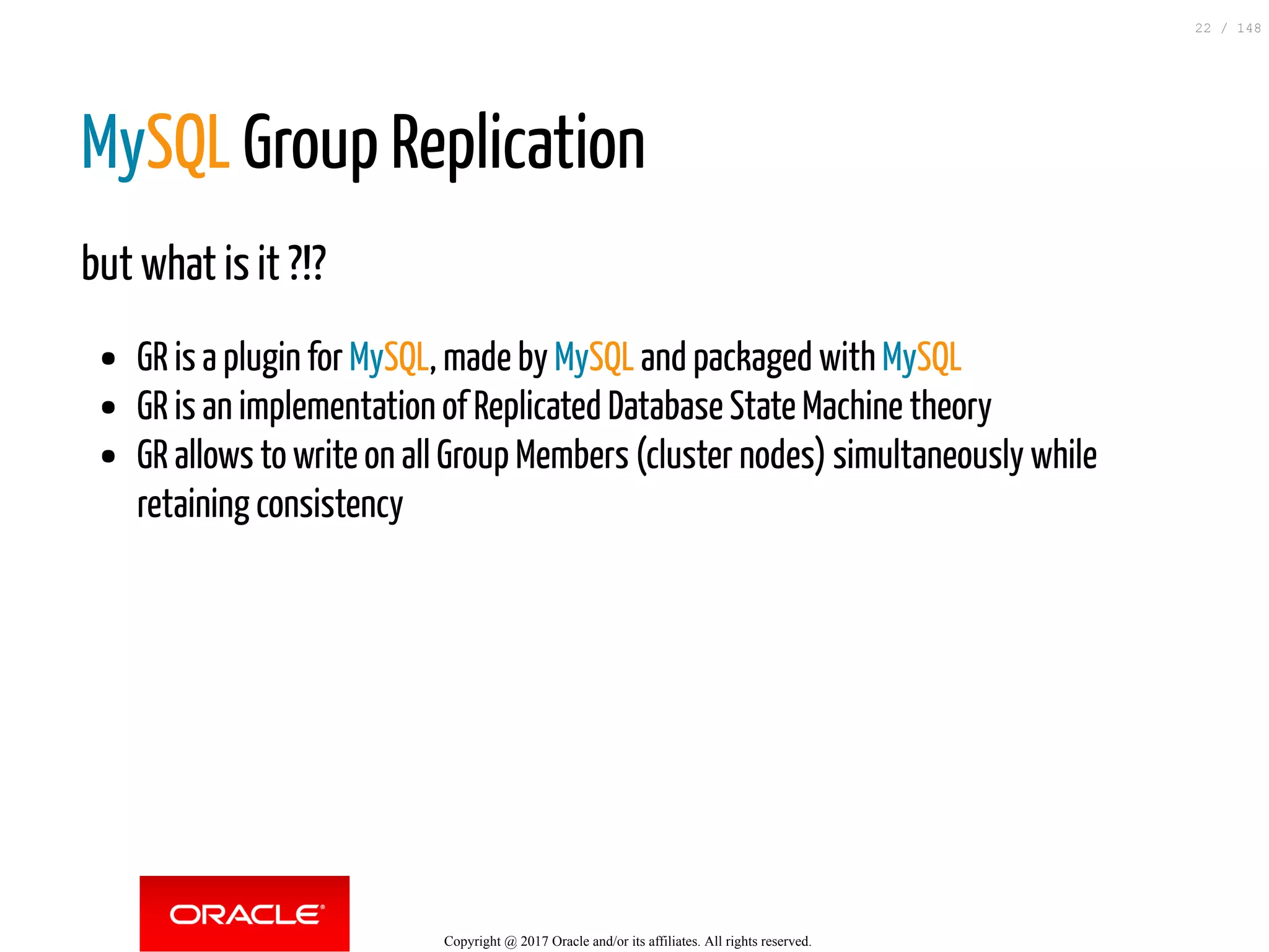

22. MySQL Group Replication
but what is it ?!?
GR is a plugin for MySQL, made by MySQL and packaged with MySQL
GR is an implementation of Replicated Database State Machine theory
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
22 / 148

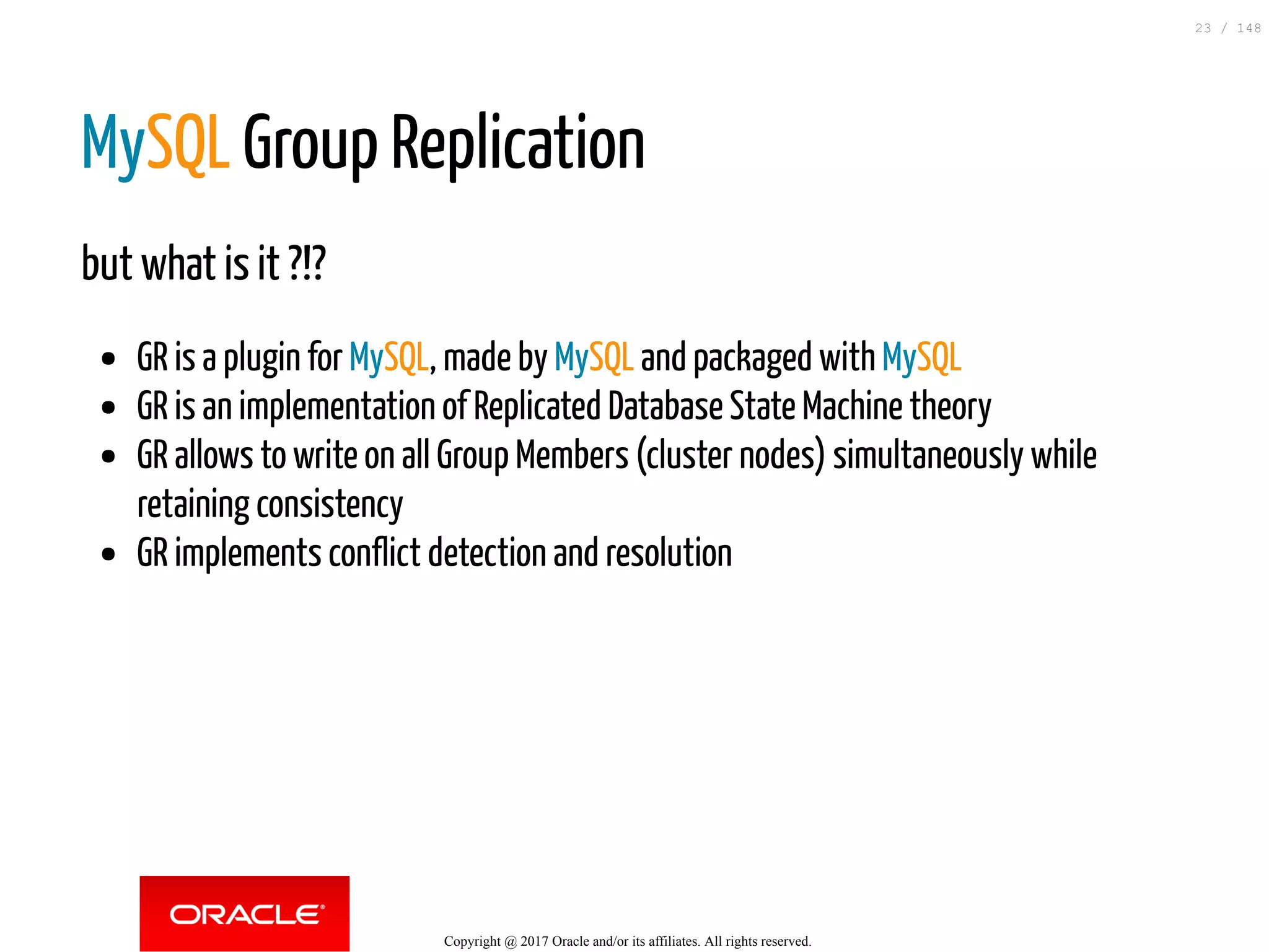

23. MySQL Group Replication
but what is it ?!?
GR is a plugin for MySQL, made by MySQL and packaged with MySQL
GR is an implementation of Replicated Database State Machine theory
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
GR implements conflict detection and resolution
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
23 / 148

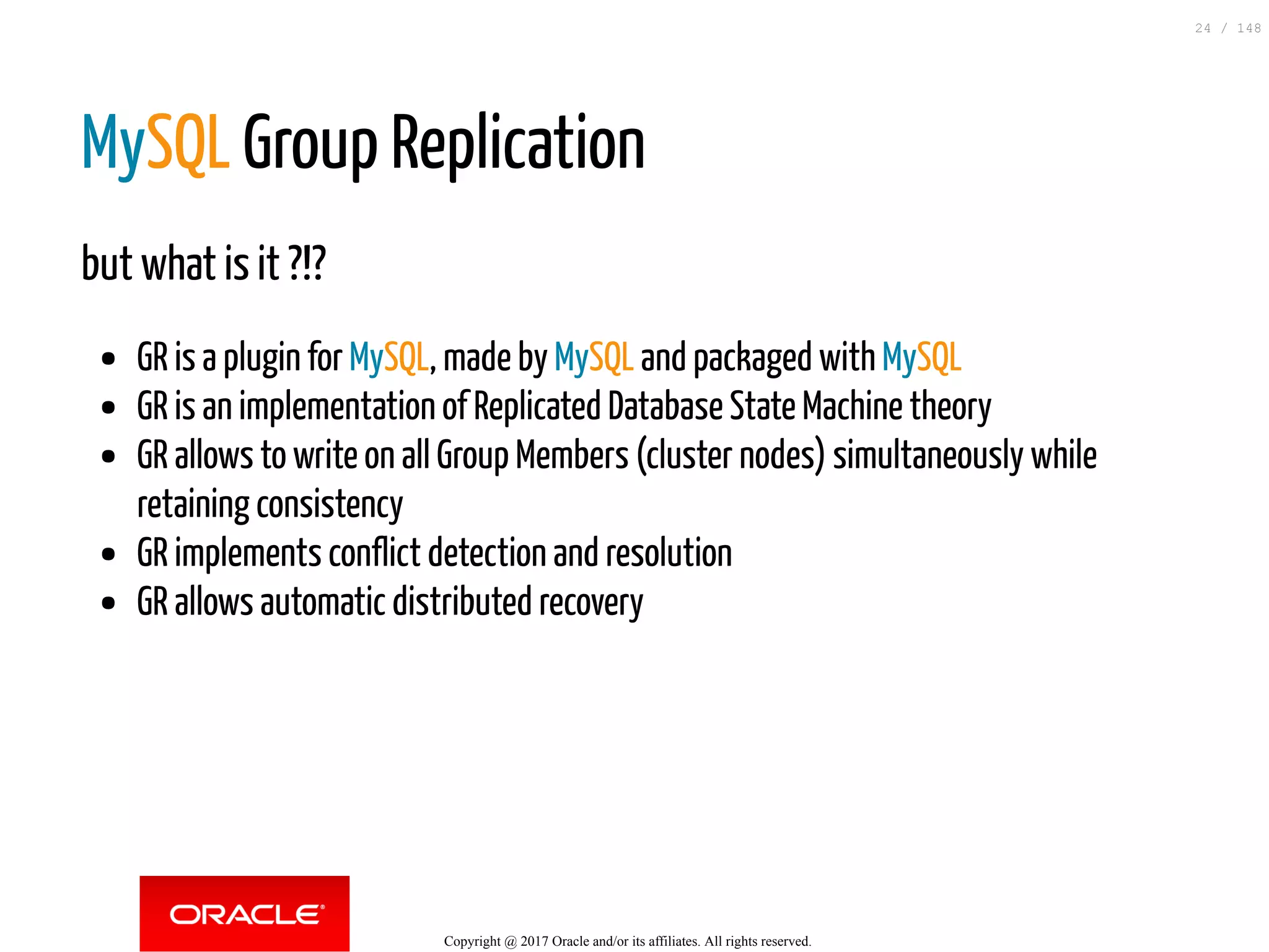

24. MySQL Group Replication
but what is it ?!?
GR is a plugin for MySQL, made by MySQL and packaged with MySQL
GR is an implementation of Replicated Database State Machine theory
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
GR implements conflict detection and resolution
GR allows automatic distributed recovery
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
24 / 148

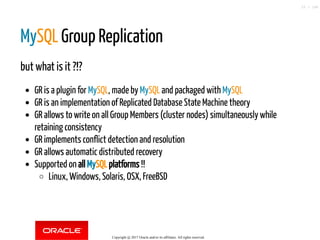

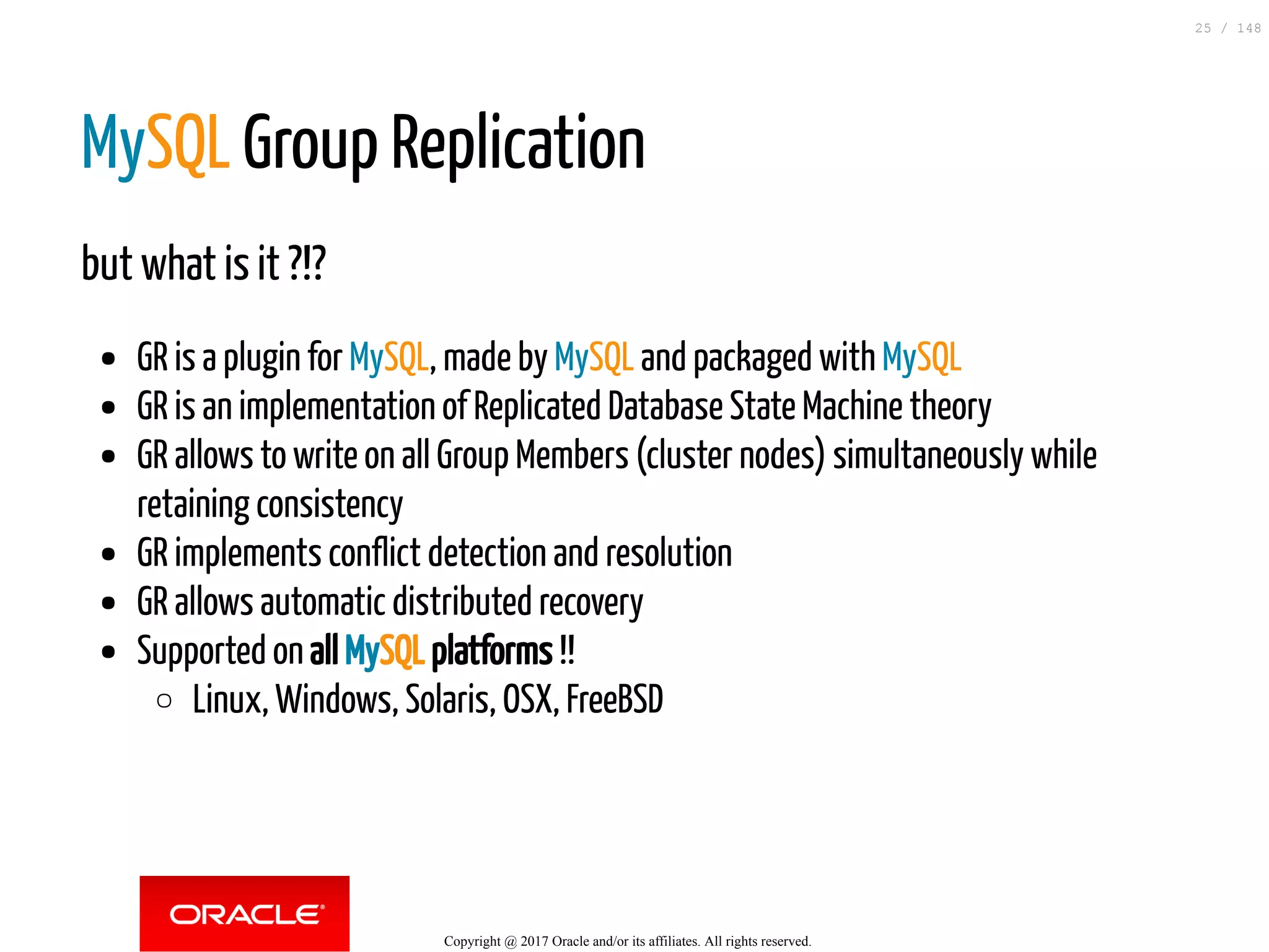

25. MySQL Group Replication
but what is it ?!?
GR is a plugin for MySQL, made by MySQL and packaged with MySQL
GR is an implementation of Replicated Database State Machine theory
GR allows to write on all Group Members (cluster nodes) simultaneously while
retaining consistency
GR implements conflict detection and resolution
GR allows automatic distributed recovery
Supported on all MySQL platforms !!
Linux, Windows, Solaris, OSX, FreeBSD
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
25 / 148

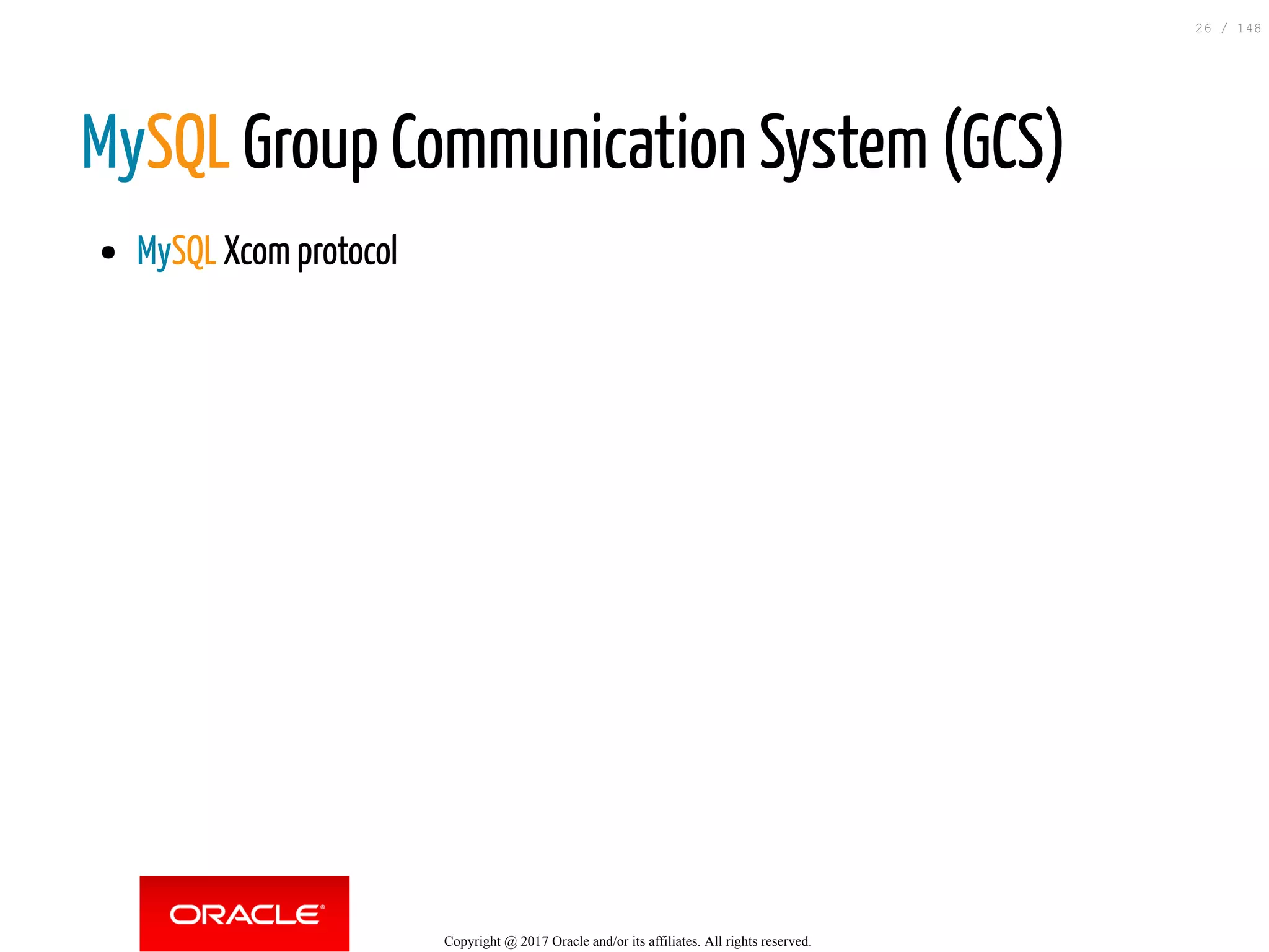

26. MySQL Group Communication System (GCS)
MySQL Xcom protocol
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
26 / 148

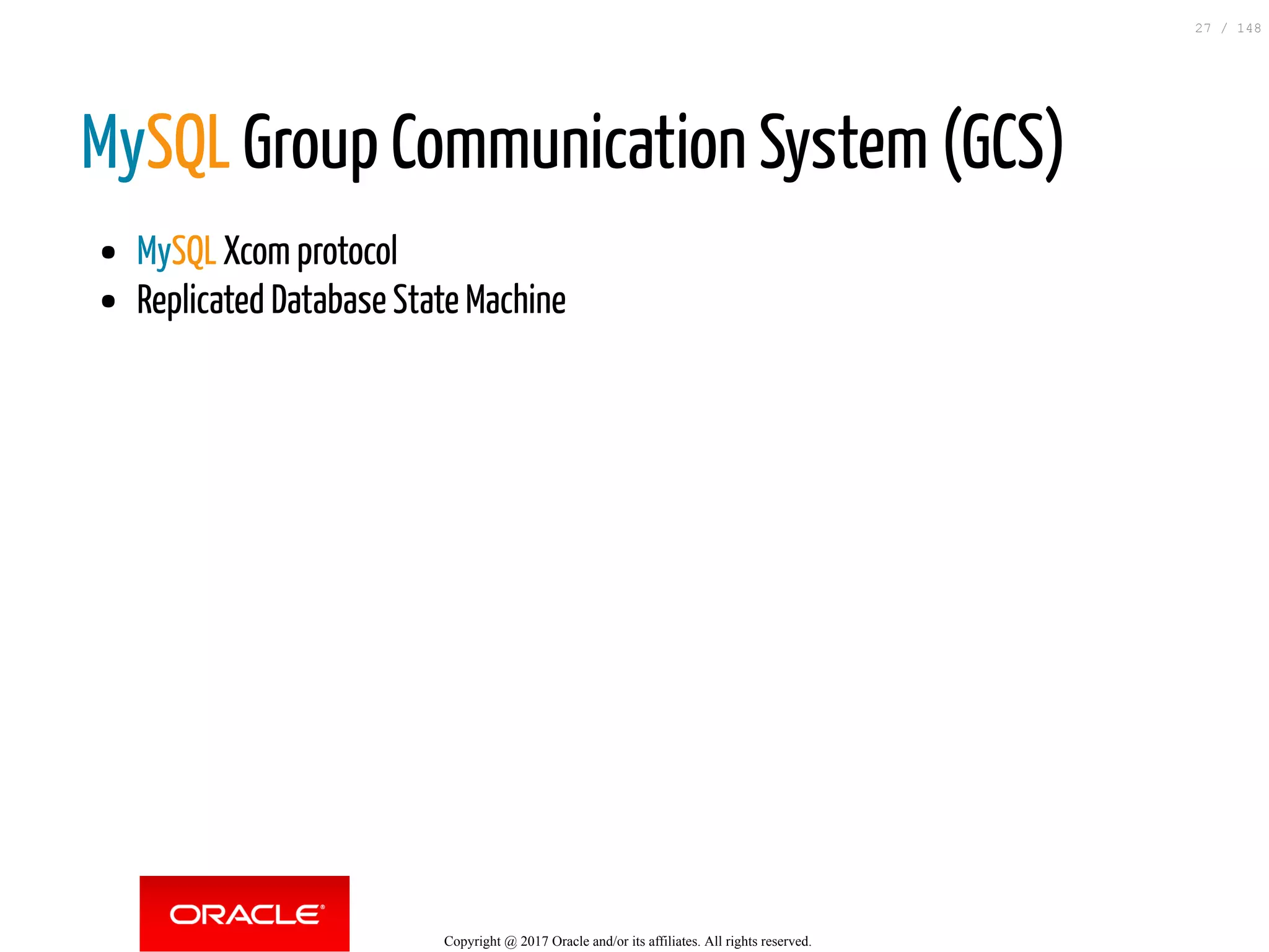

27. MySQL Group Communication System (GCS)
MySQL Xcom protocol
Replicated Database State Machine
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
27 / 148

28. MySQL Group Communication System (GCS)
MySQL Xcom protocol
Replicated Database State Machine
Paxos based protocol
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
28 / 148

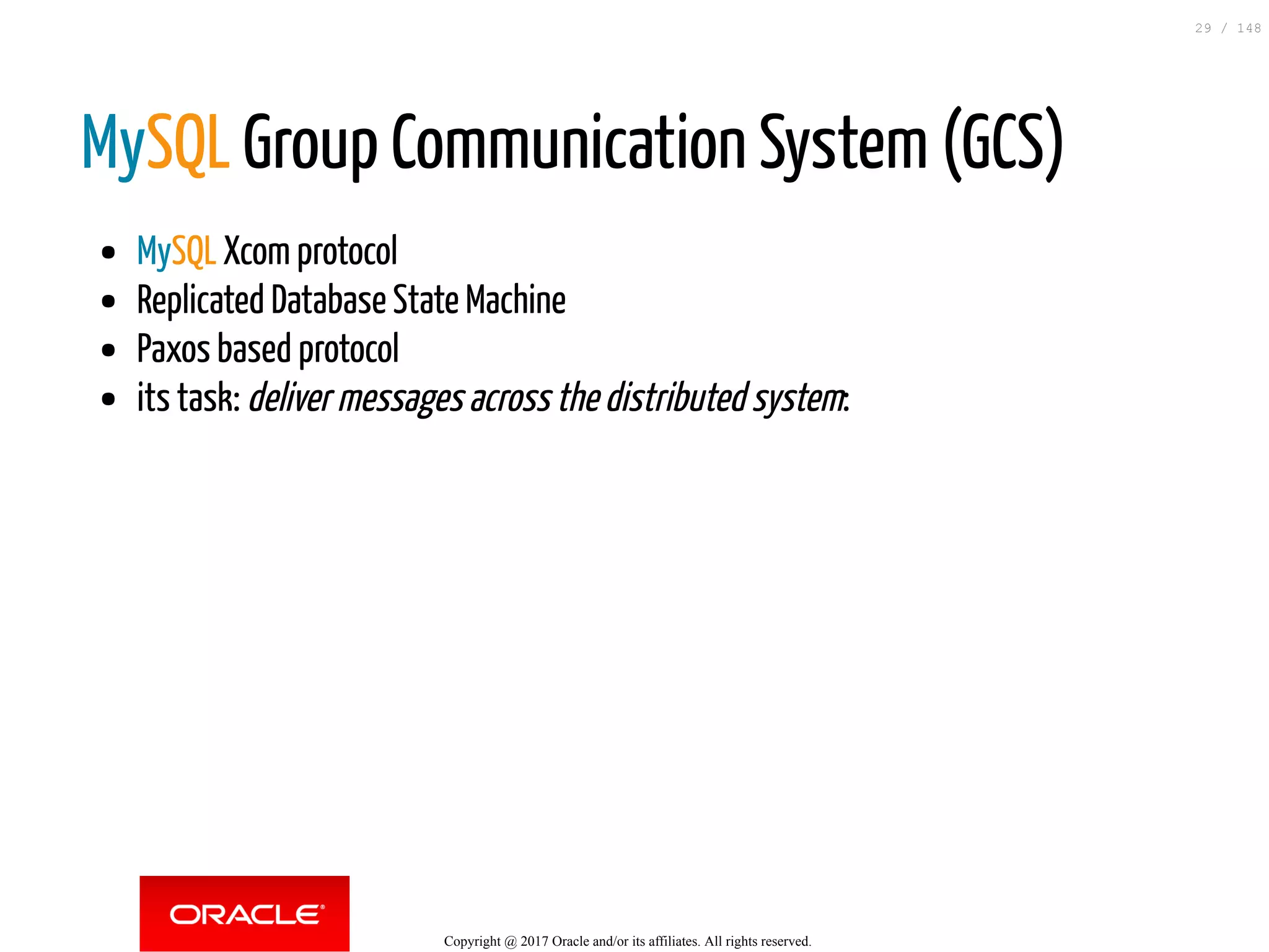

29. MySQL Group Communication System (GCS)
MySQL Xcom protocol
Replicated Database State Machine
Paxos based protocol
its task: deliver messages across the distributed system:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
29 / 148

30. MySQL Group Communication System (GCS)
MySQL Xcom protocol
Replicated Database State Machine
Paxos based protocol
its task: deliver messages across the distributed system:
atomically
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
30 / 148

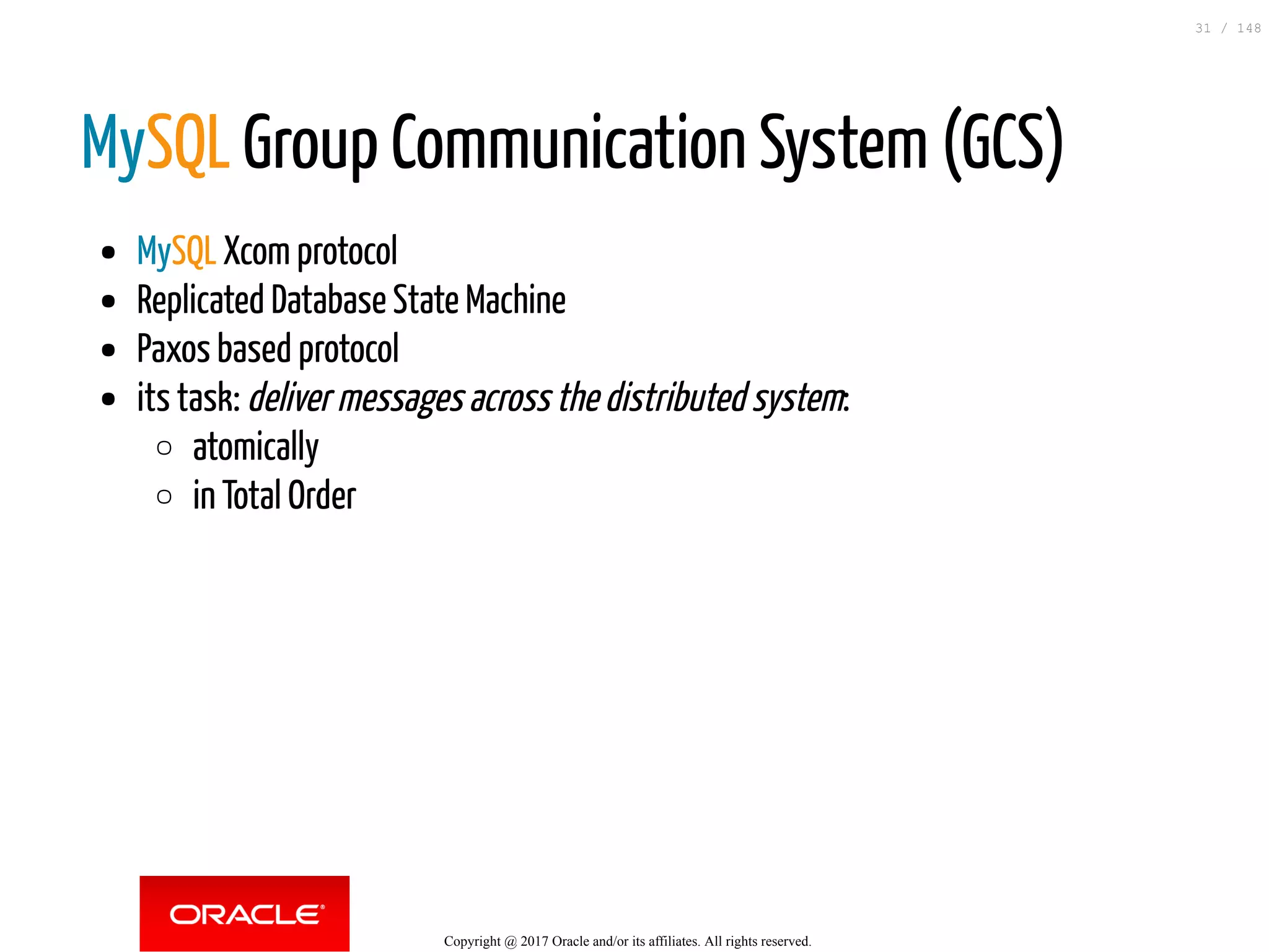

31. MySQL Group Communication System (GCS)
MySQL Xcom protocol
Replicated Database State Machine
Paxos based protocol
its task: deliver messages across the distributed system:
atomically
in Total Order
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
31 / 148

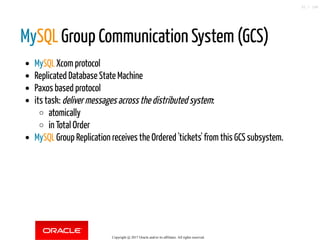

32. MySQL Group Communication System (GCS)
MySQL Xcom protocol
Replicated Database State Machine
Paxos based protocol
its task: deliver messages across the distributed system:
atomically
in Total Order
MySQL Group Replication receives the Ordered 'tickets' from this GCS subsystem.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
32 / 148

33. And for users ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
33 / 148

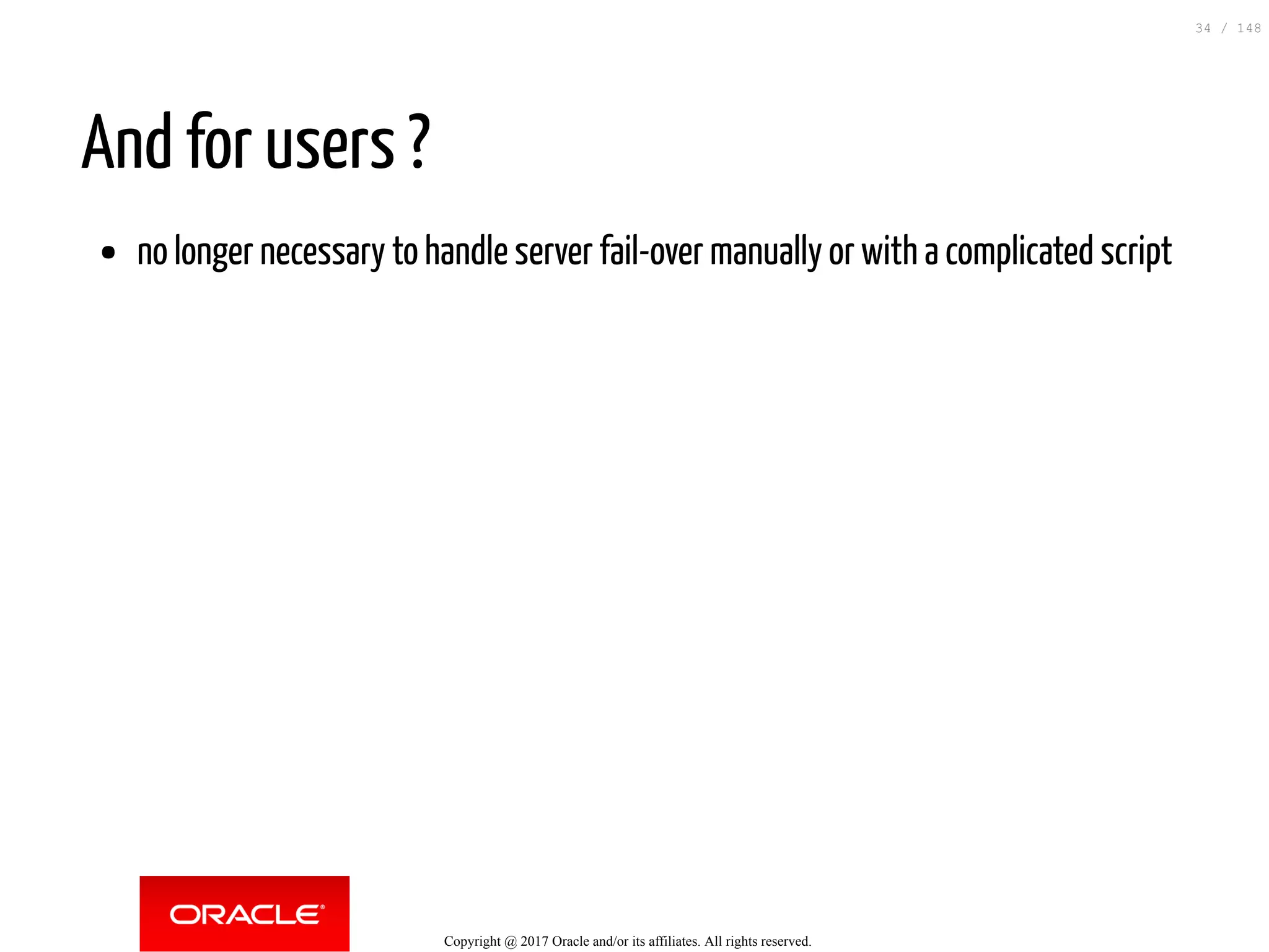

34. And for users ?
no longer necessary to handle server fail-over manually or with a complicated script
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
34 / 148

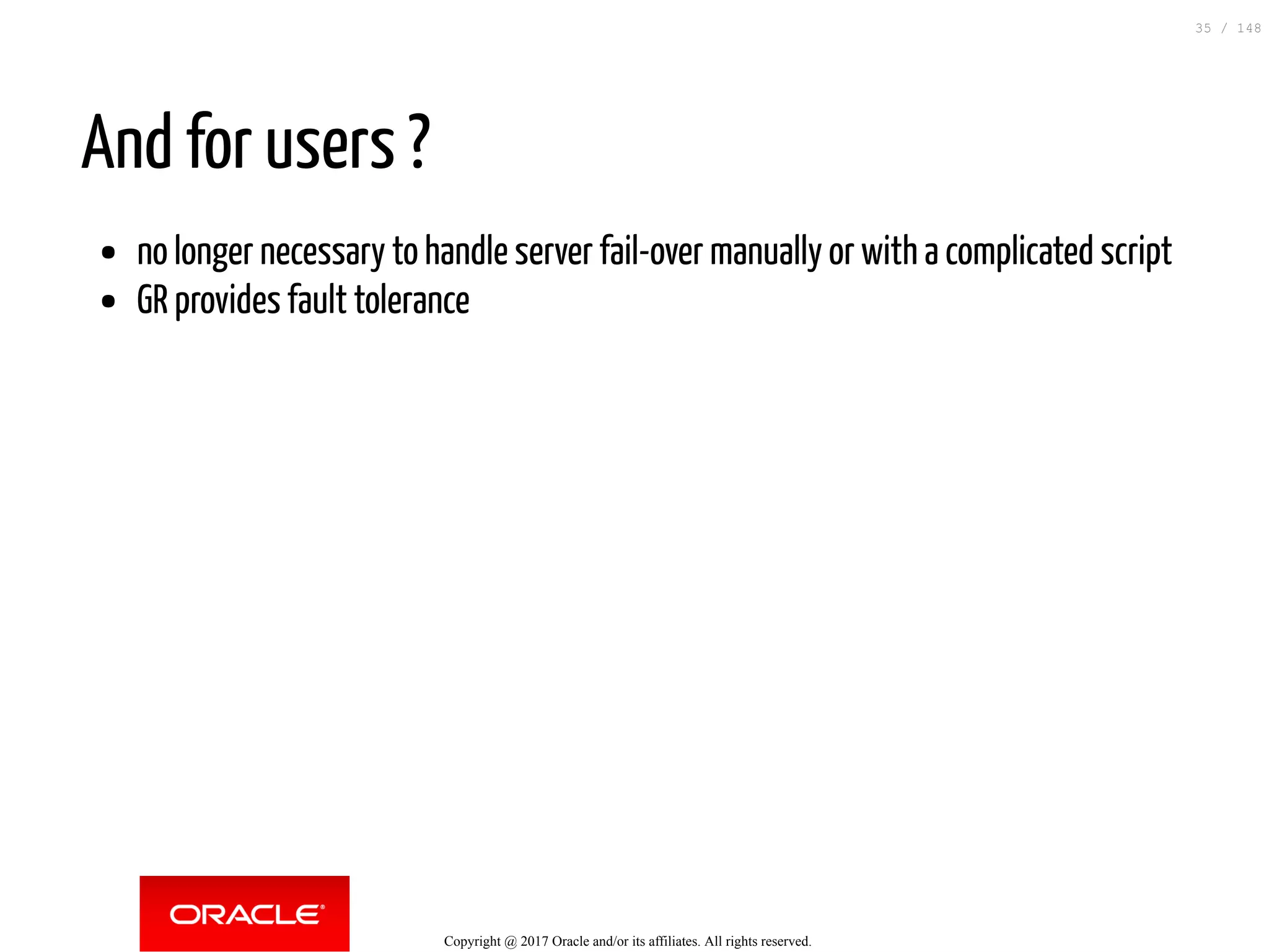

35. And for users ?
no longer necessary to handle server fail-over manually or with a complicated script
GR provides fault tolerance
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
35 / 148

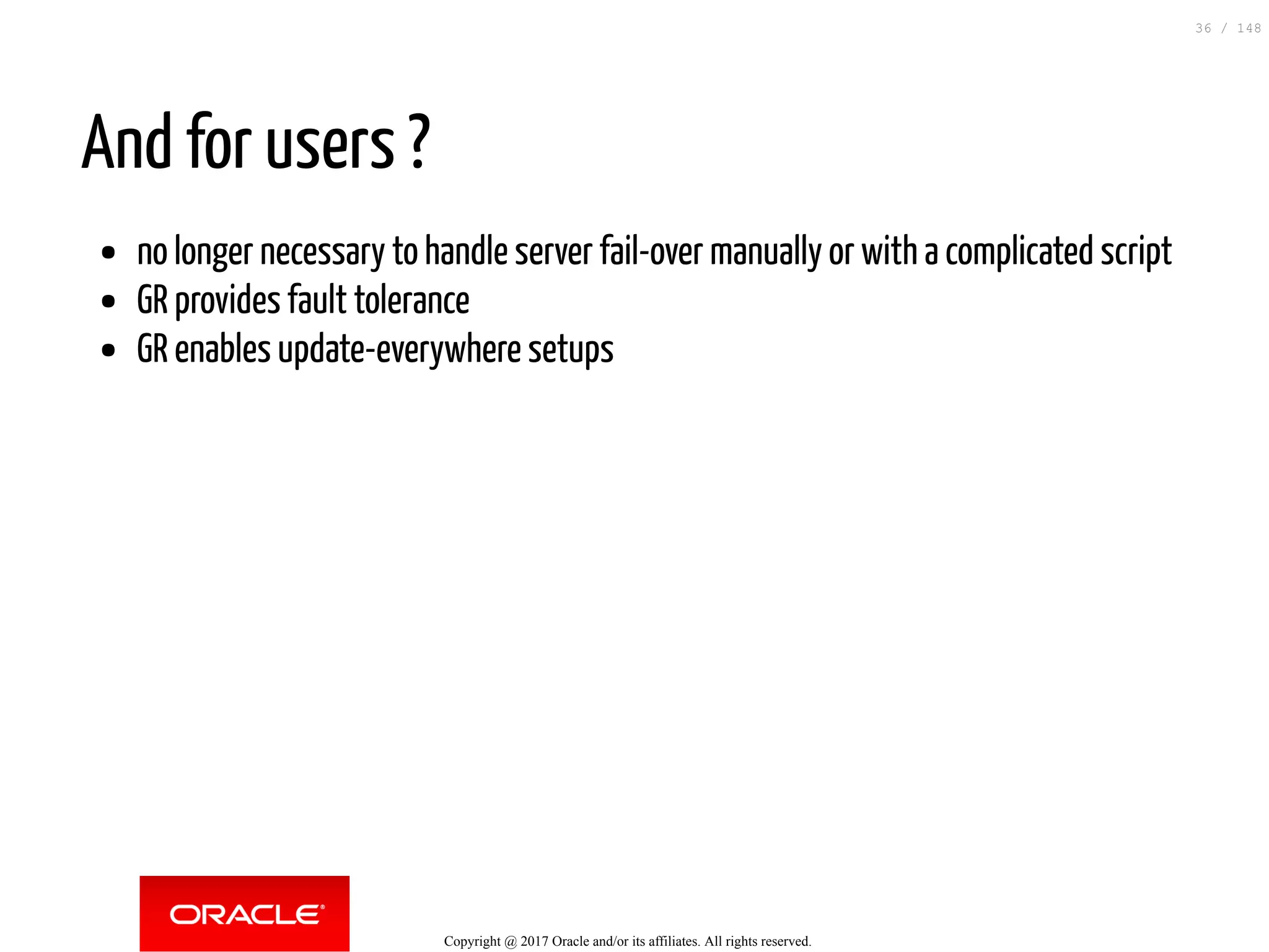

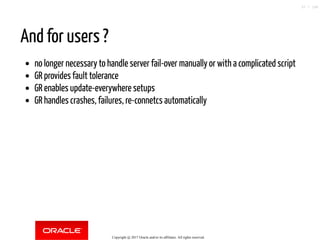

36. And for users ?
no longer necessary to handle server fail-over manually or with a complicated script
GR provides fault tolerance
GR enables update-everywhere setups
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
36 / 148

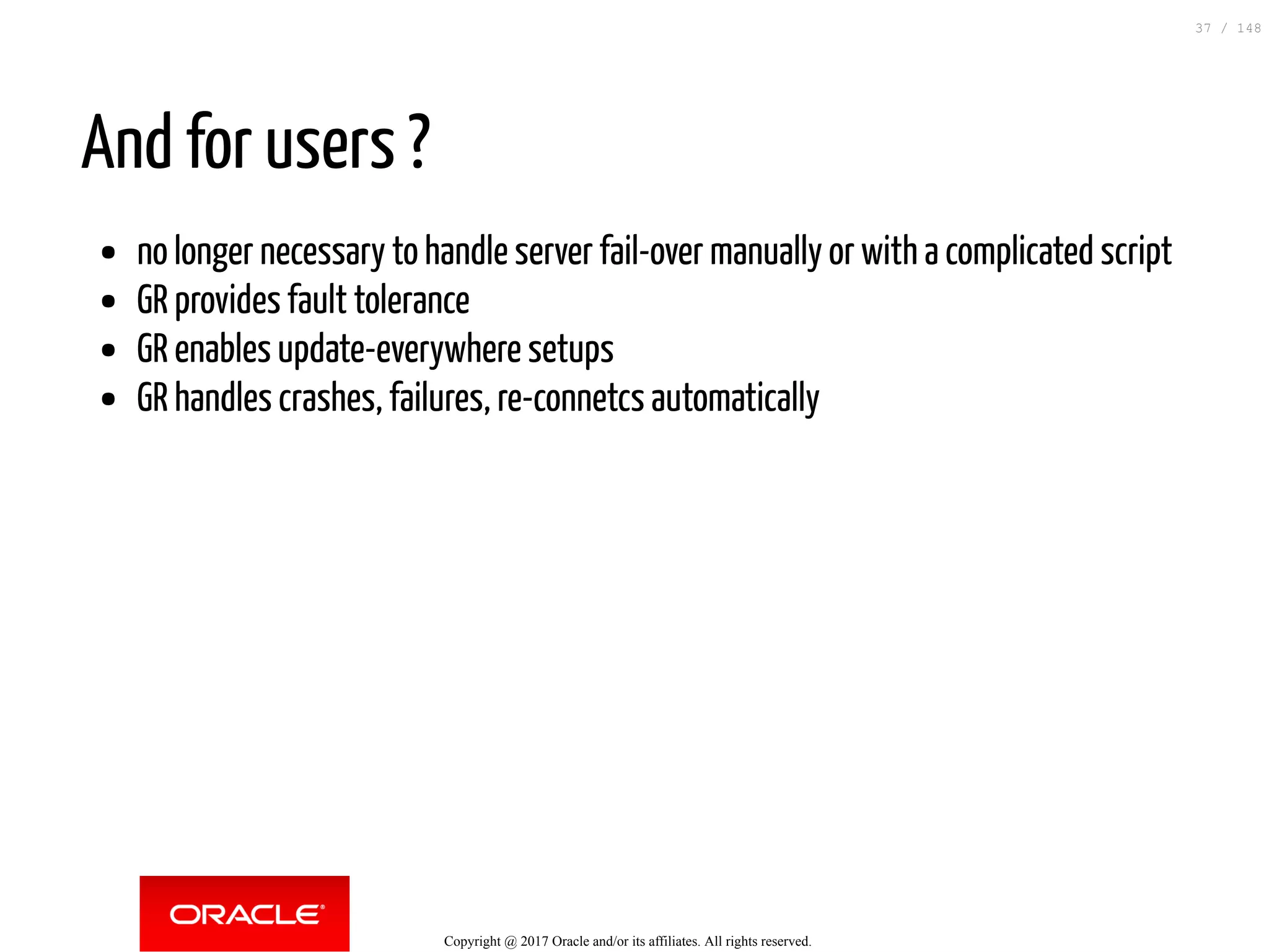

37. And for users ?
no longer necessary to handle server fail-over manually or with a complicated script
GR provides fault tolerance
GR enables update-everywhere setups
GR handles crashes, failures, re-connetcs automatically
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
37 / 148

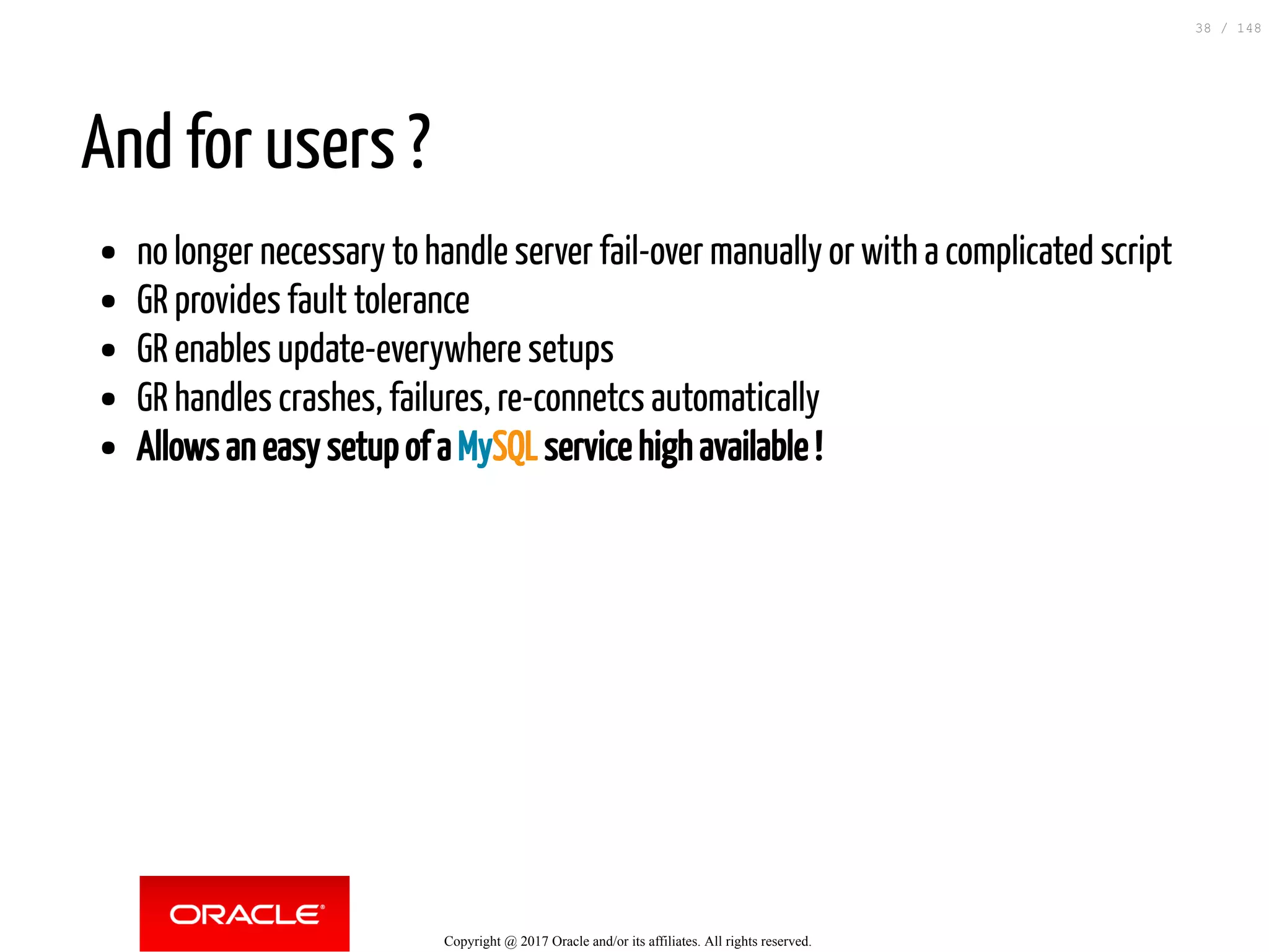

38. And for users ?
no longer necessary to handle server fail-over manually or with a complicated script
GR provides fault tolerance
GR enables update-everywhere setups
GR handles crashes, failures, re-connetcs automatically
Allows an easy setup of a MySQL service high available !
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
38 / 148

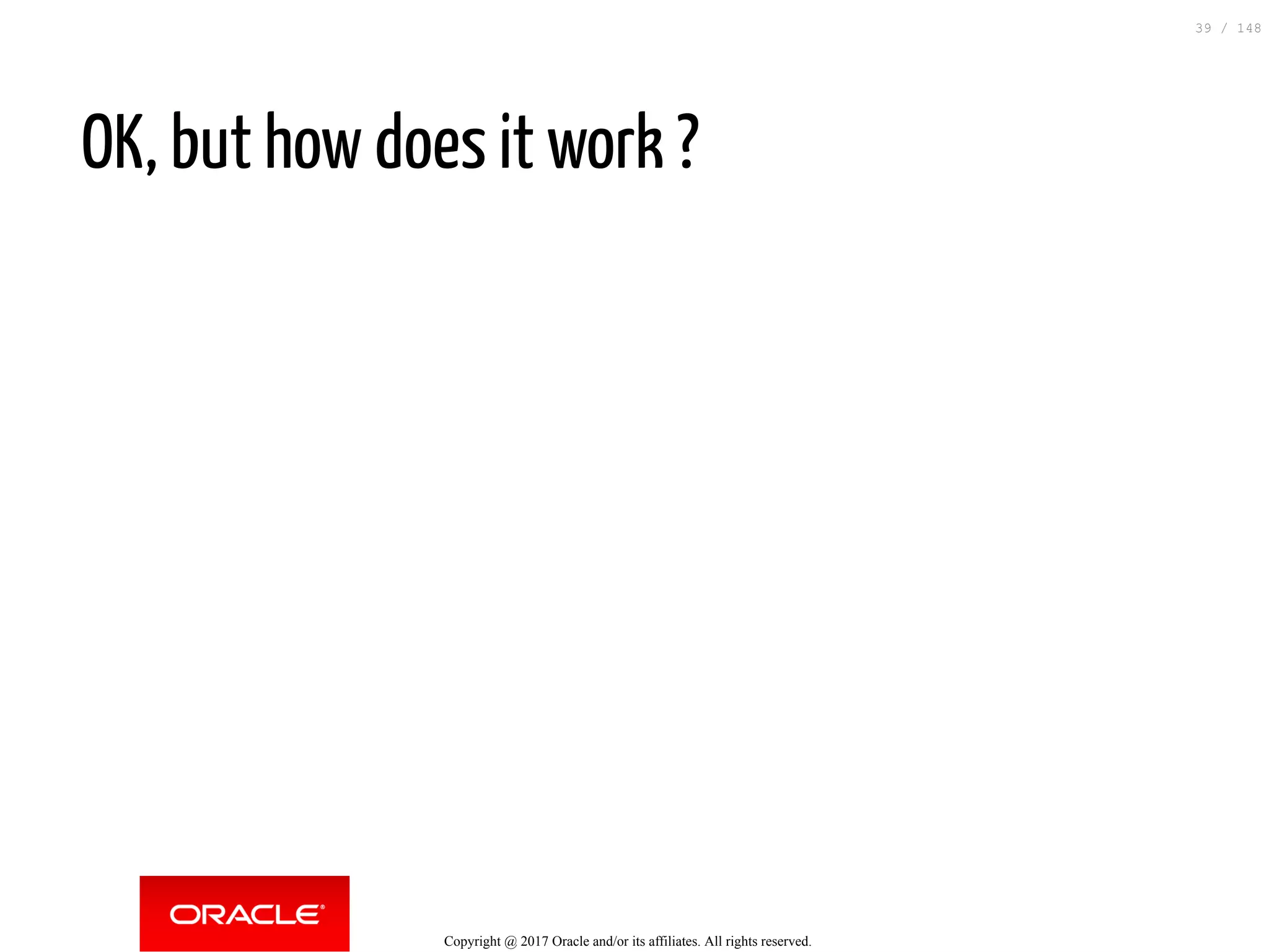

39. OK, but how does it work ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
39 / 148

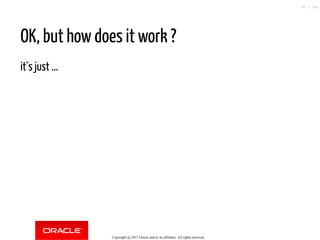

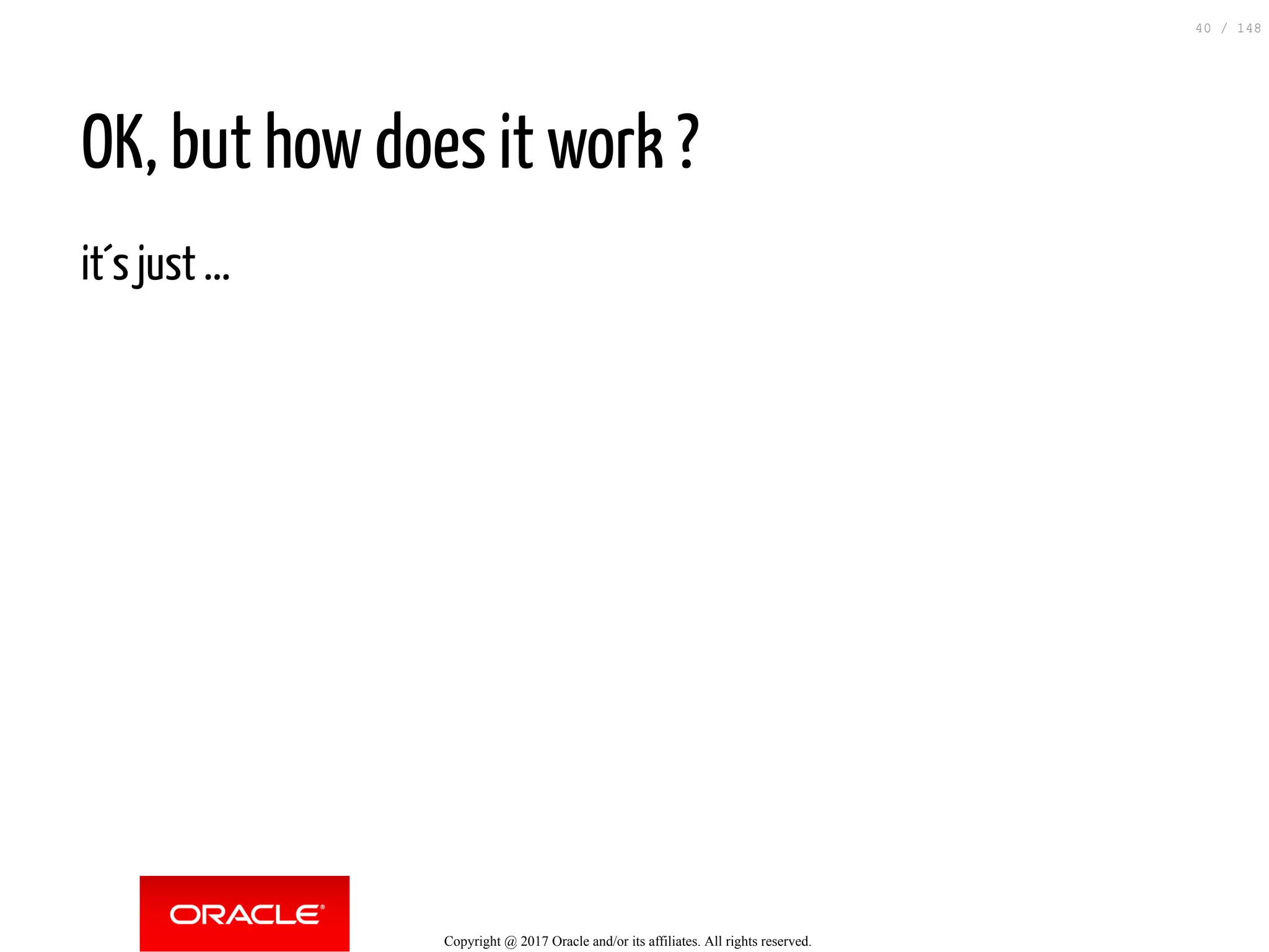

40. OK, but how does it work ?
it´s just ...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
40 / 148

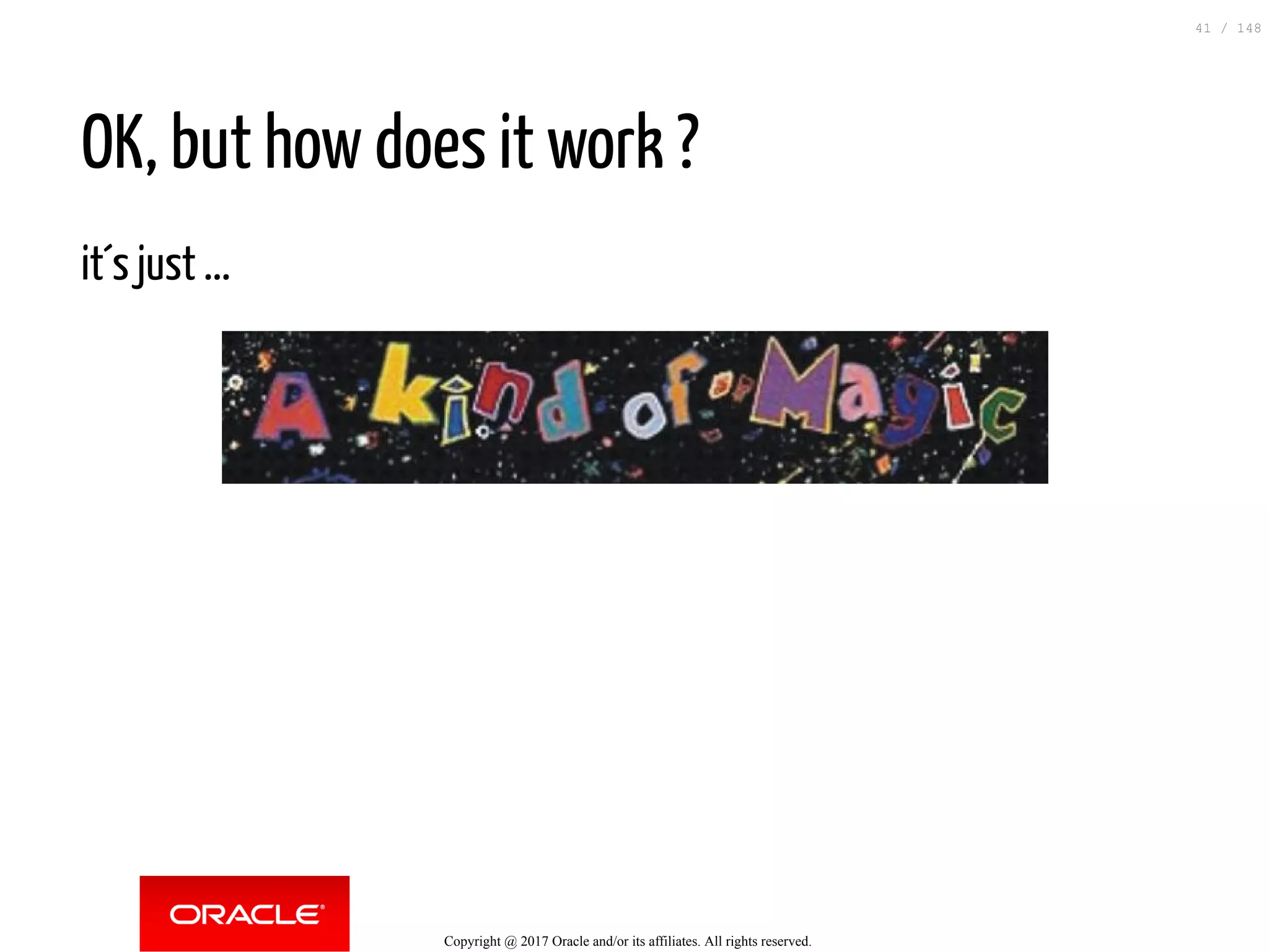

41. OK, but how does it work ?
it´s just ...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
41 / 148

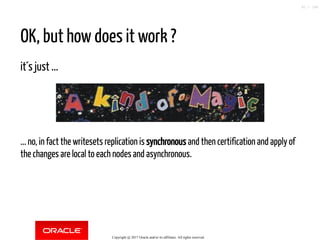

42. OK, but how does it work ?
it´s just ...
... no, in fact the writesets replication is synchronous and then certification and apply of
the changes are local to each nodes and asynchronous.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
42 / 148

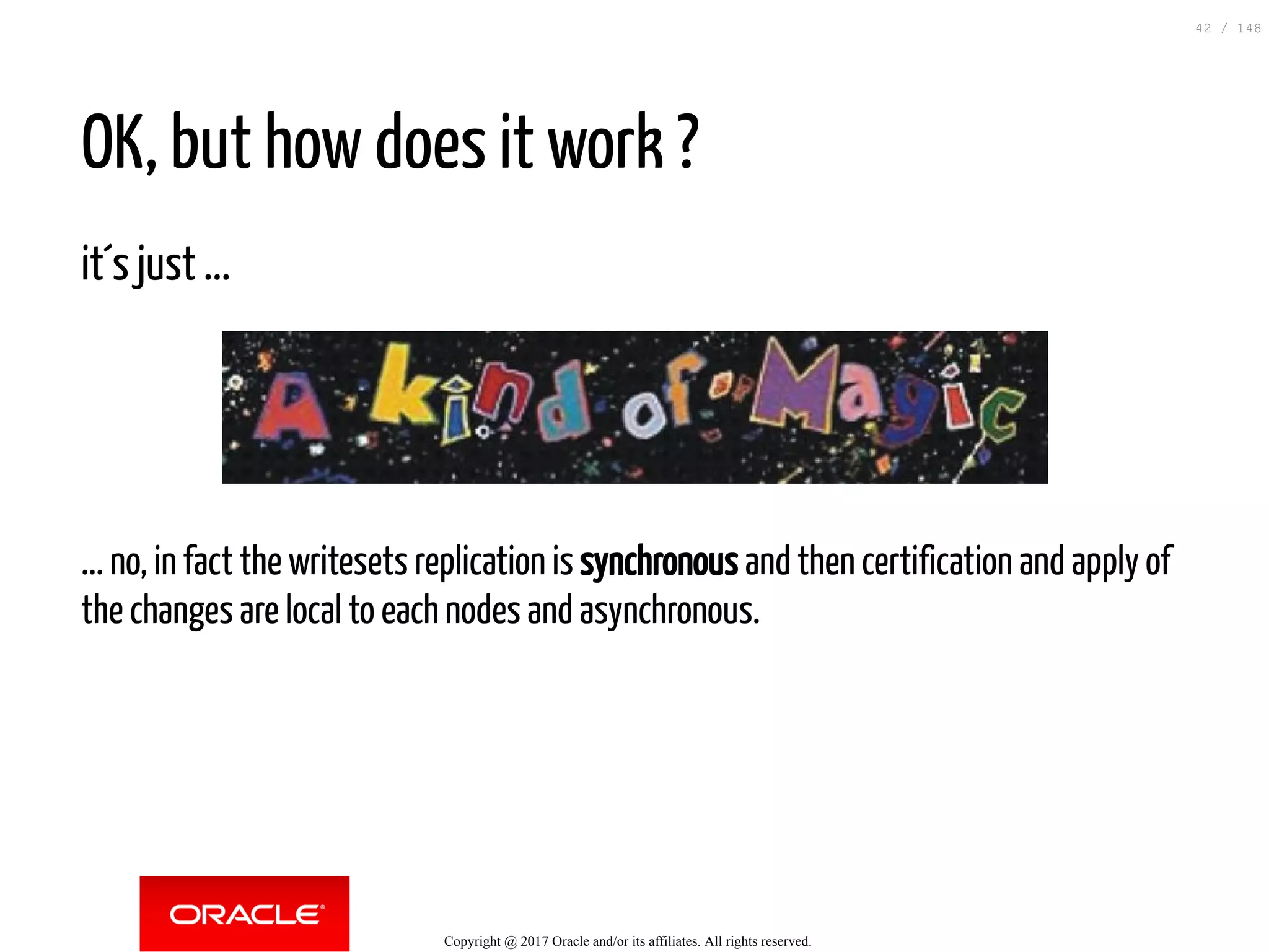

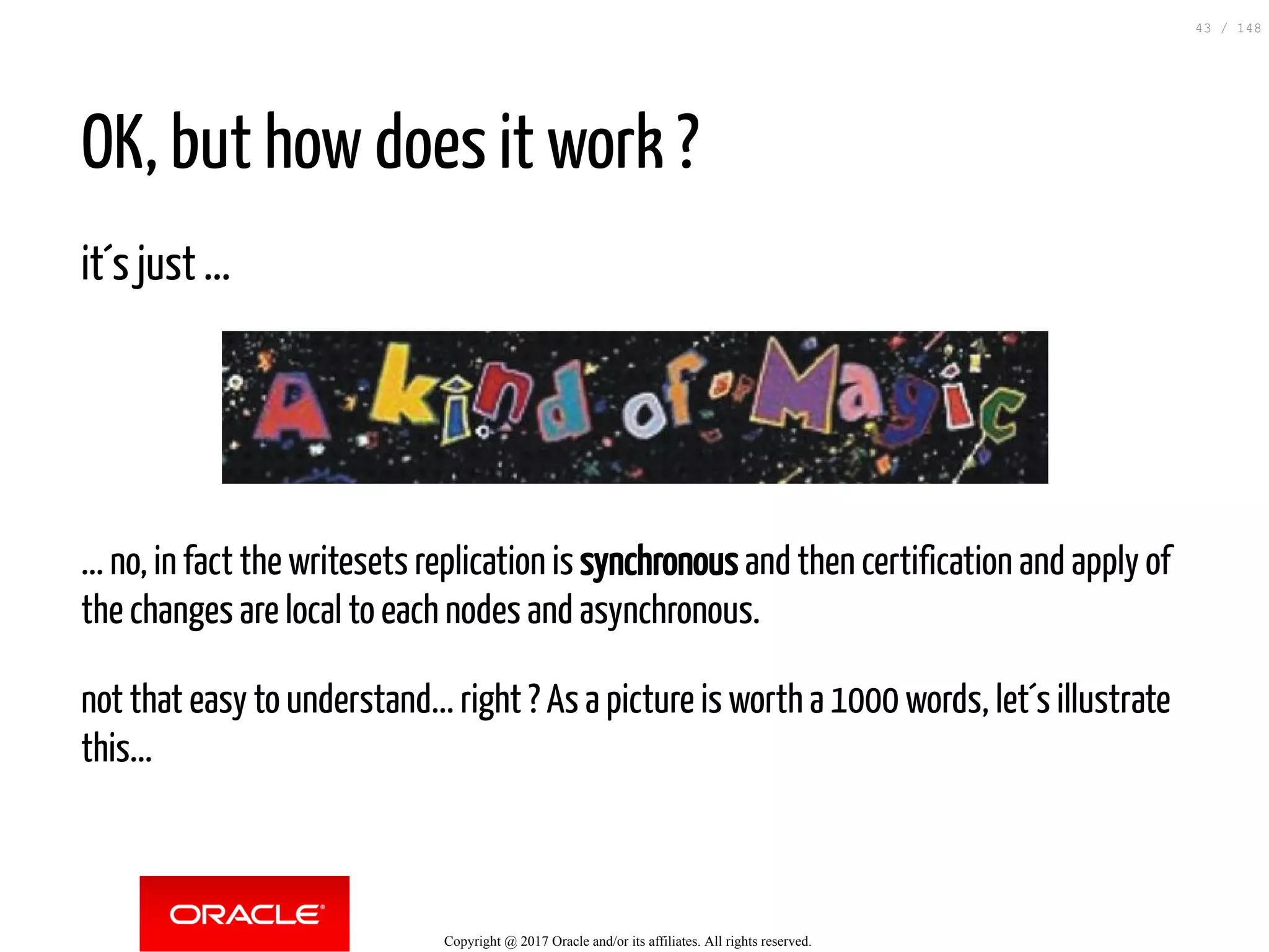

43. OK, but how does it work ?
it´s just ...
... no, in fact the writesets replication is synchronous and then certification and apply of
the changes are local to each nodes and asynchronous.
not that easy to understand... right ? As a picture is worth a 1000 words, let´s illustrate
this...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
43 / 148

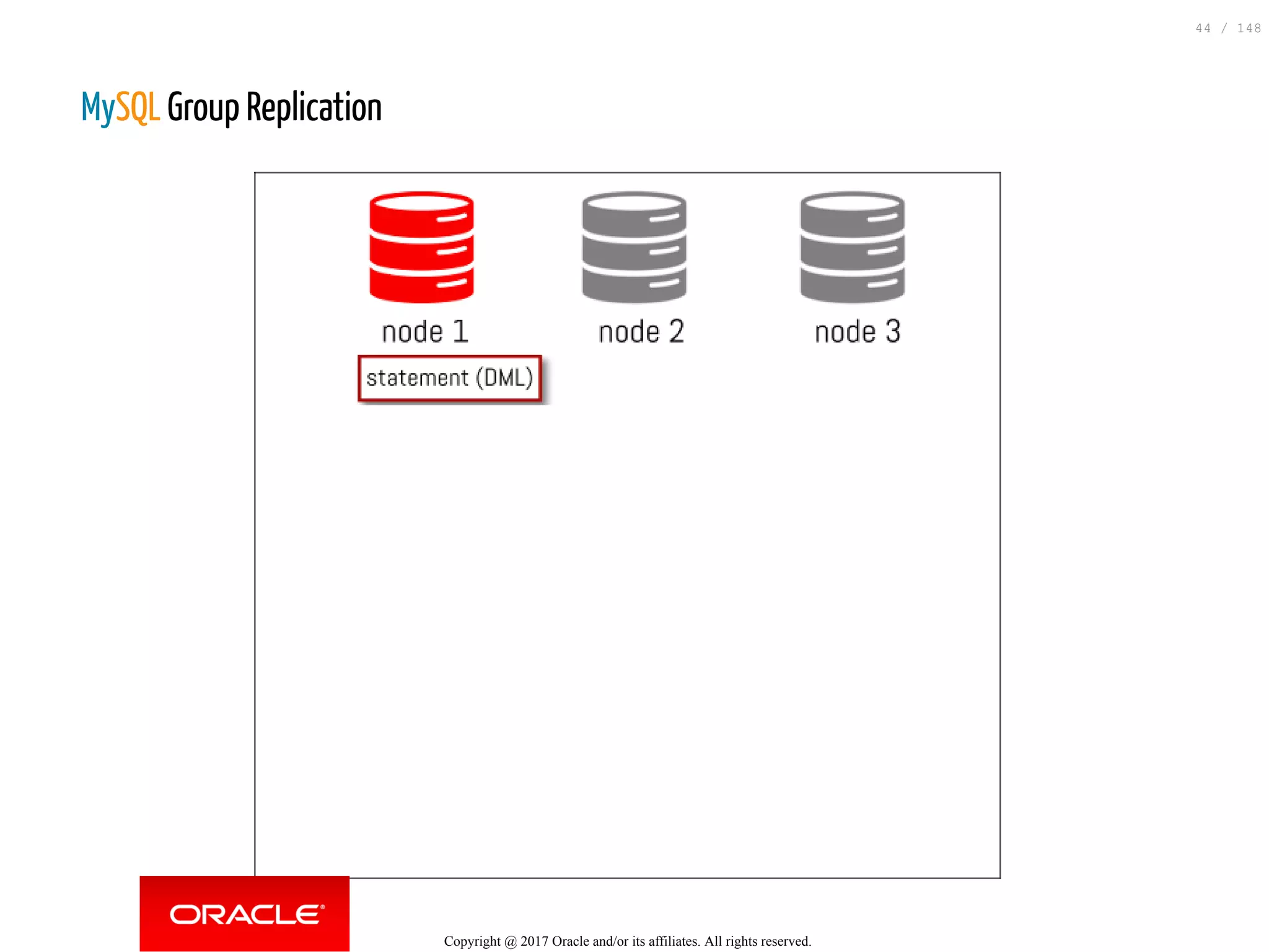

44. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
44 / 148

45. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
45 / 148

46. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
46 / 148

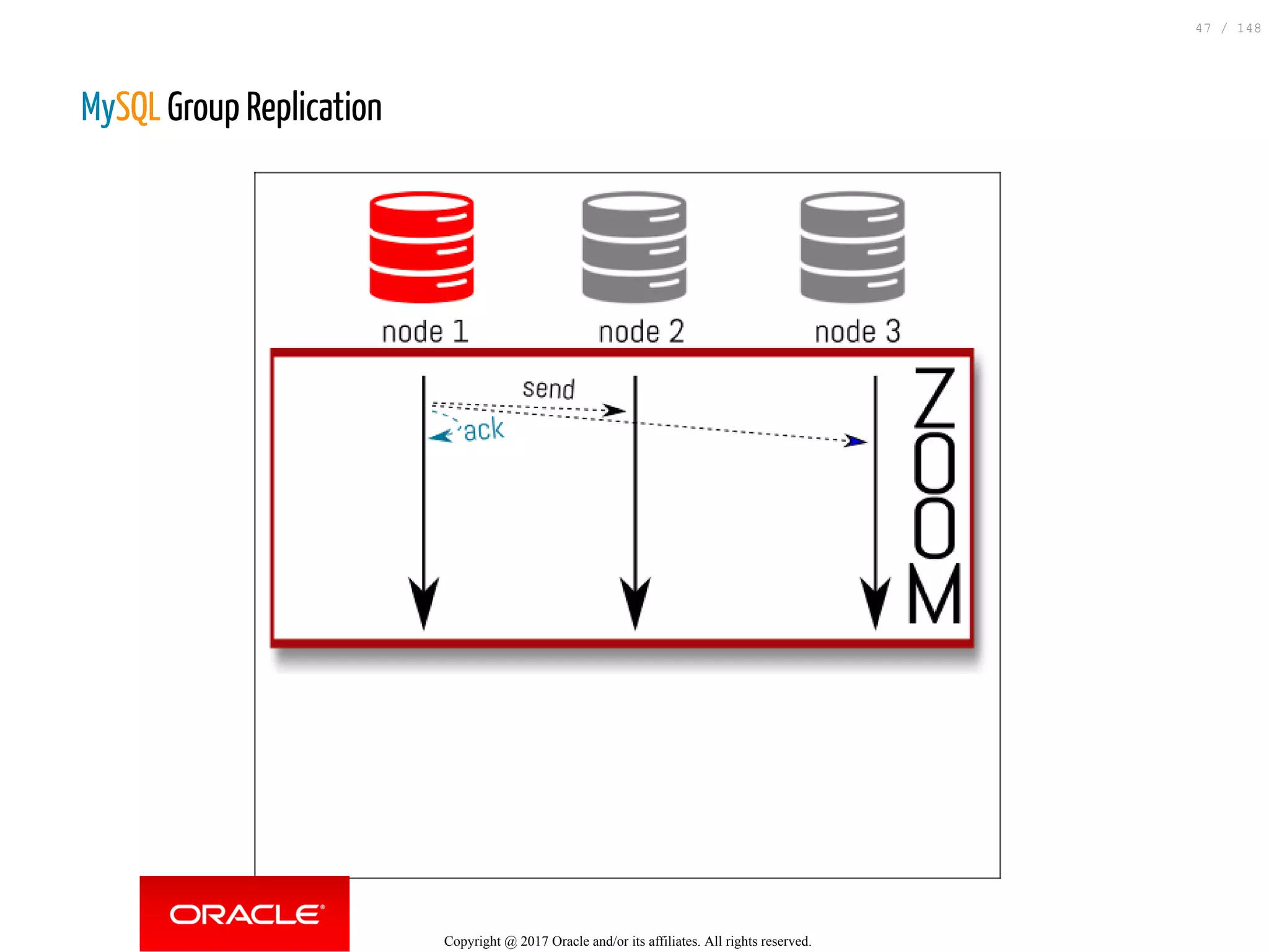

47. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
47 / 148

48. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
48 / 148

49. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
49 / 148

50. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
50 / 148

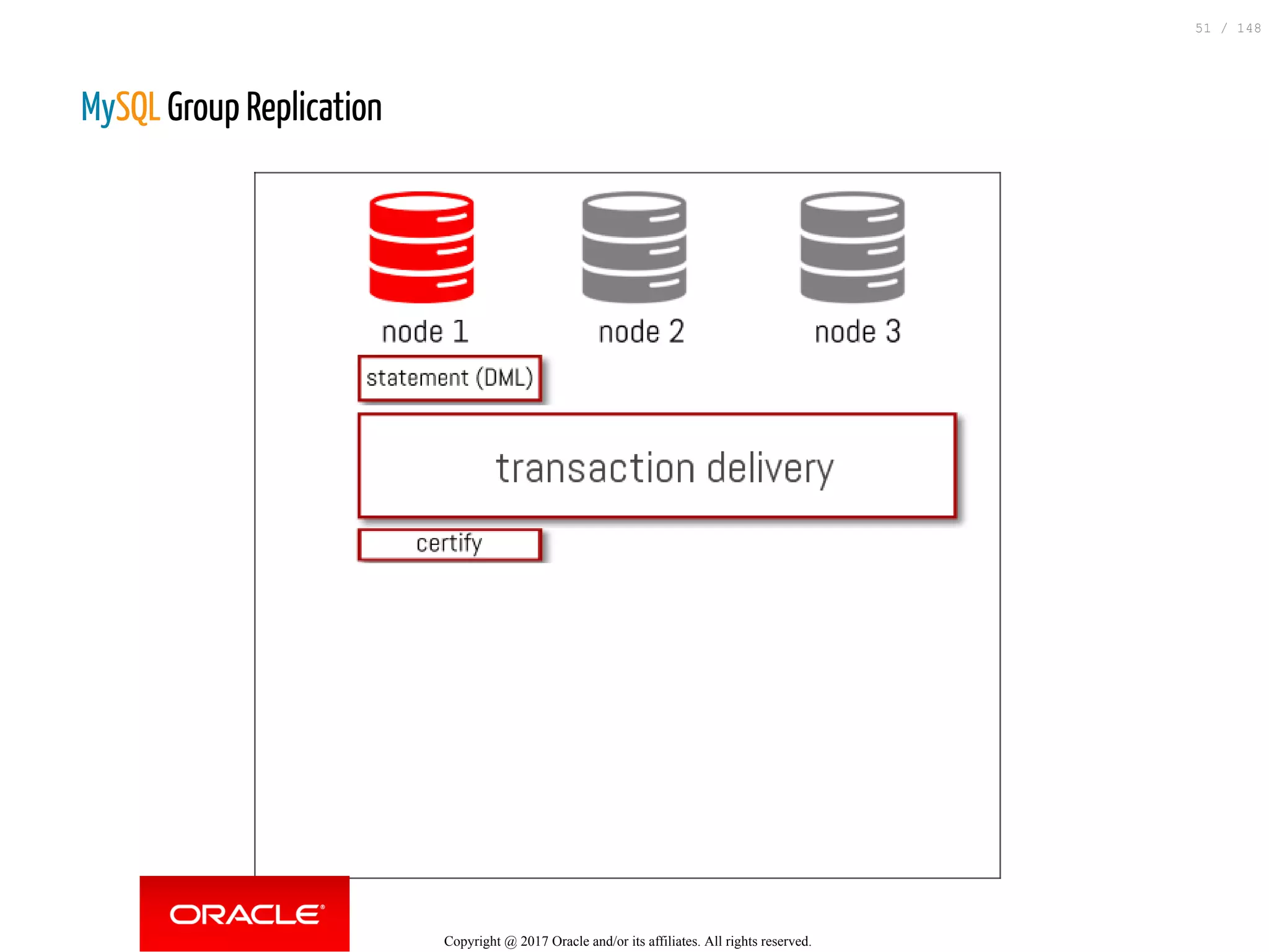

51. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
51 / 148

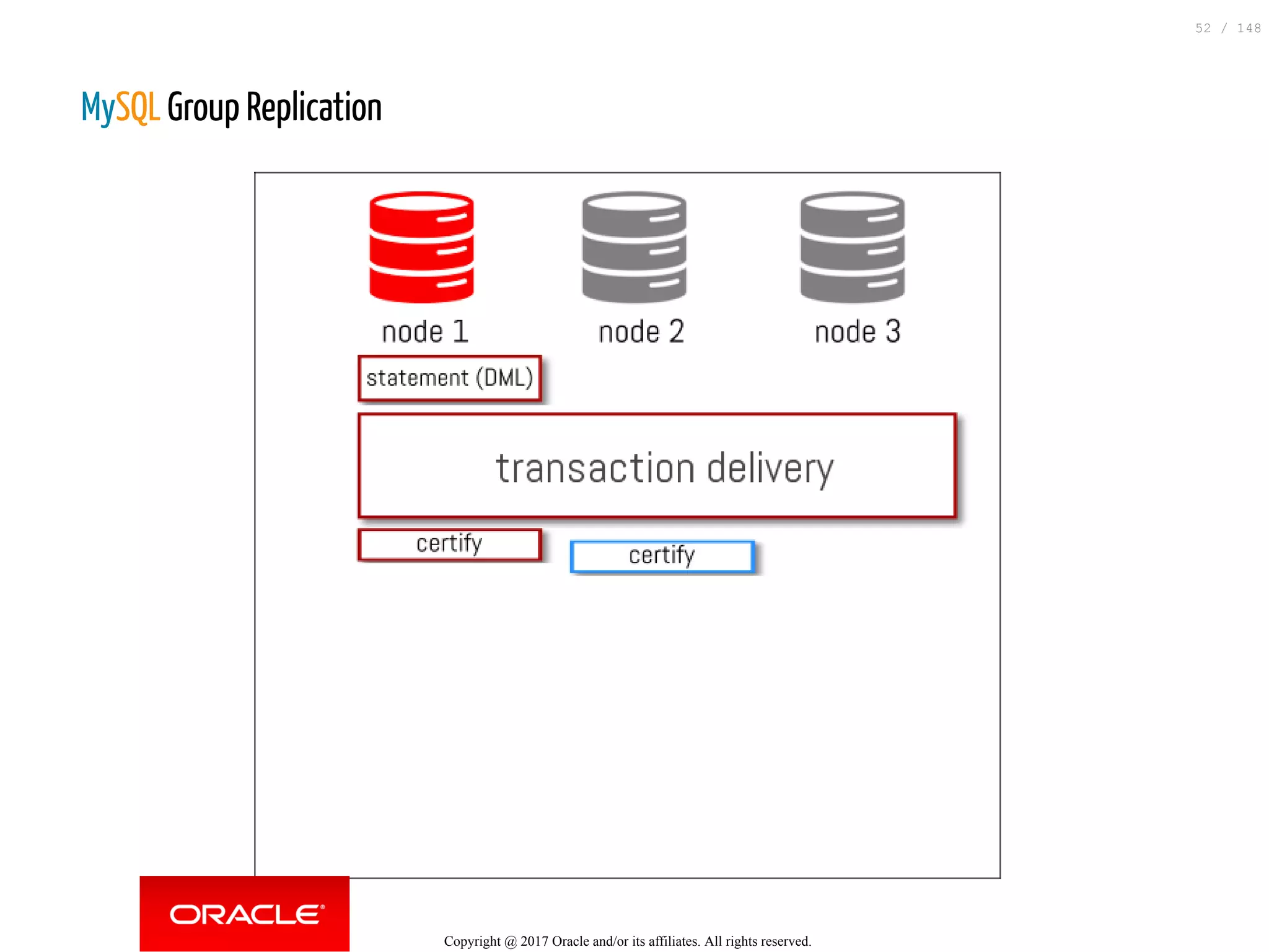

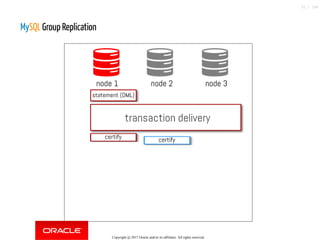

52. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
52 / 148

53. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
53 / 148

54. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
54 / 148

55. MySQL Group Replication
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
55 / 148

56. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
56 / 148

57. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
57 / 148

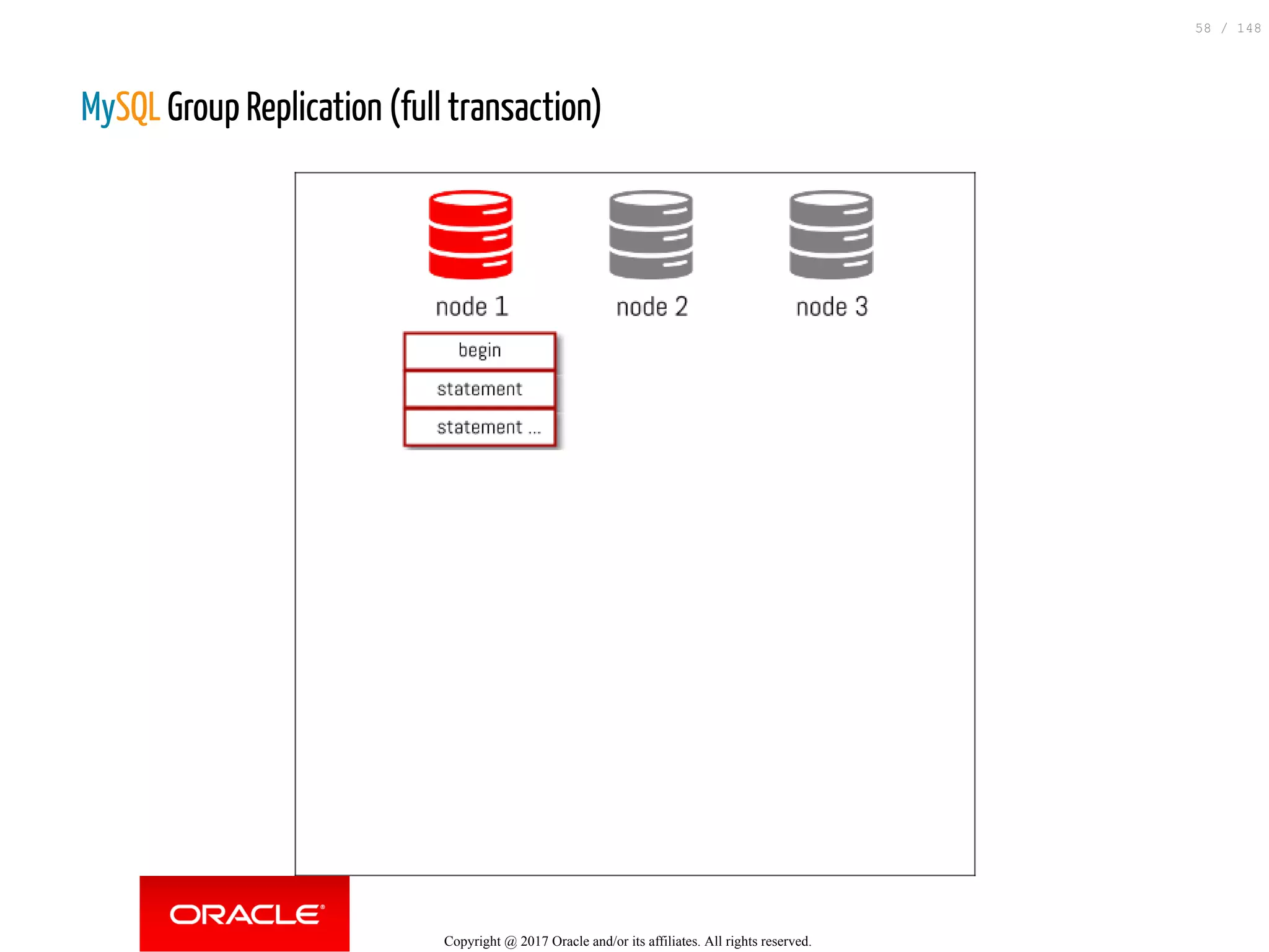

58. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
58 / 148

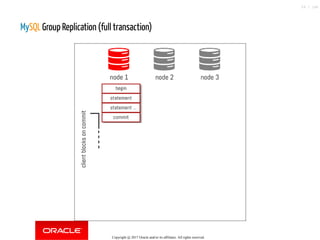

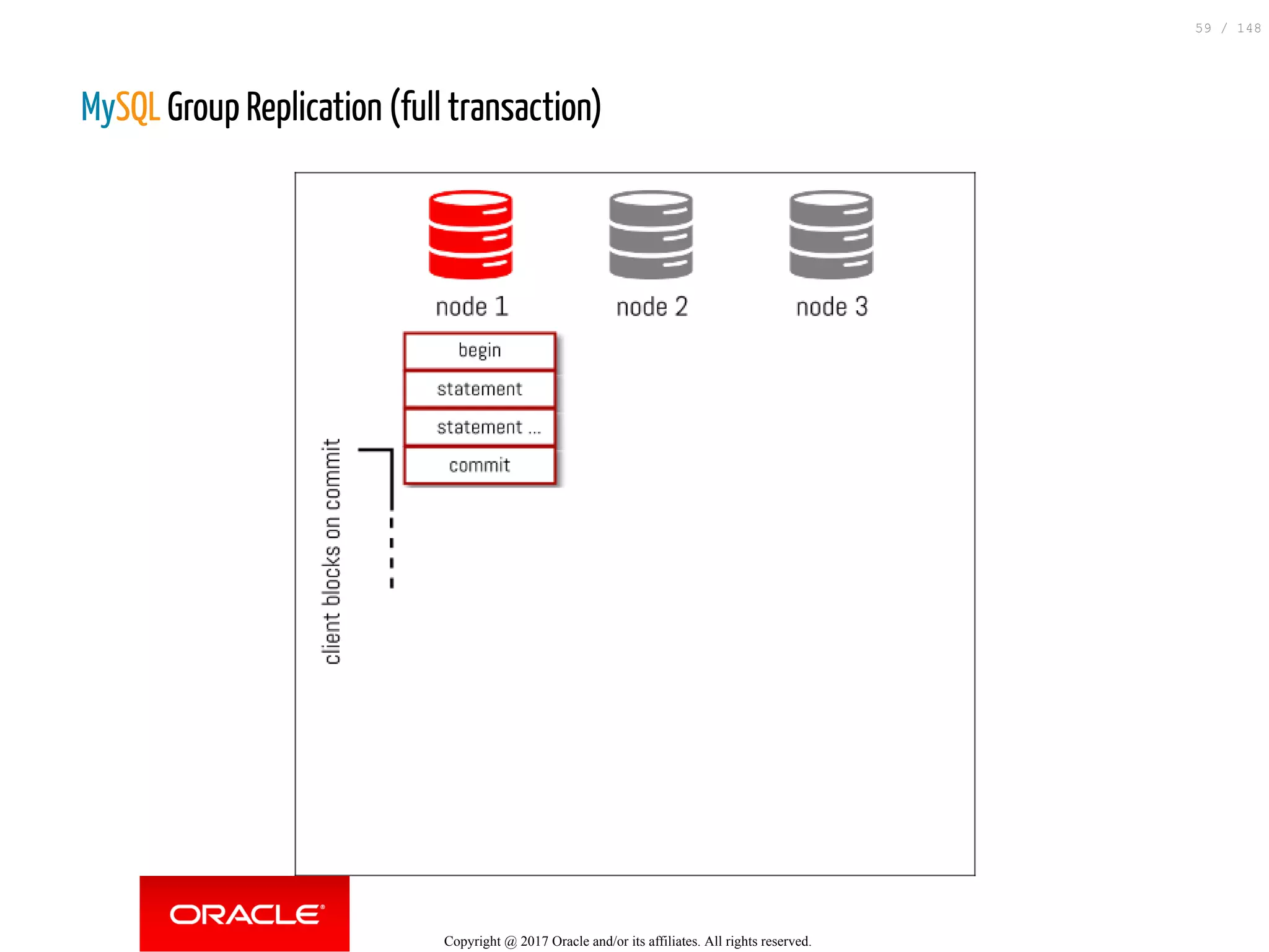

59. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
59 / 148

60. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
60 / 148

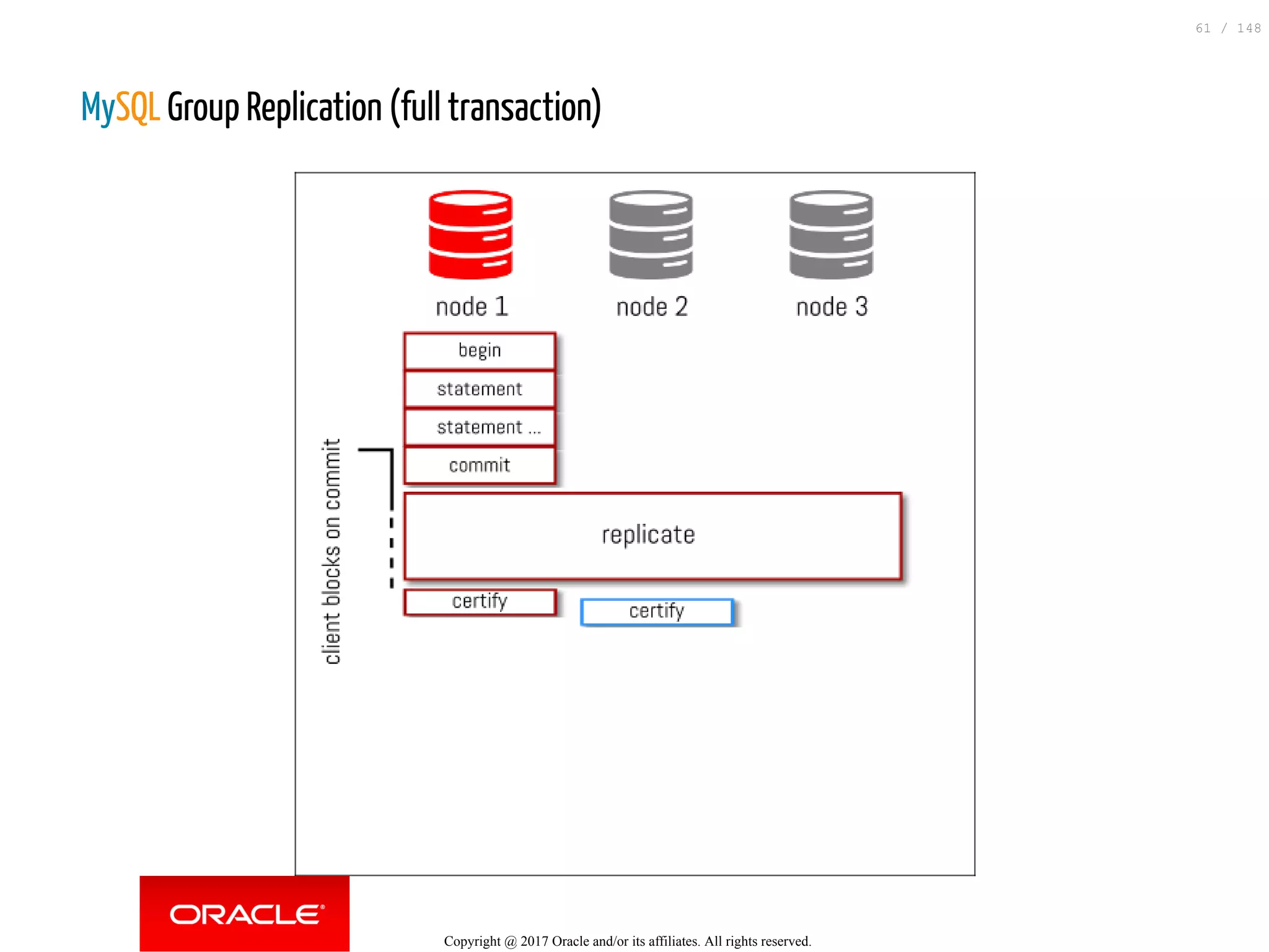

61. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
61 / 148

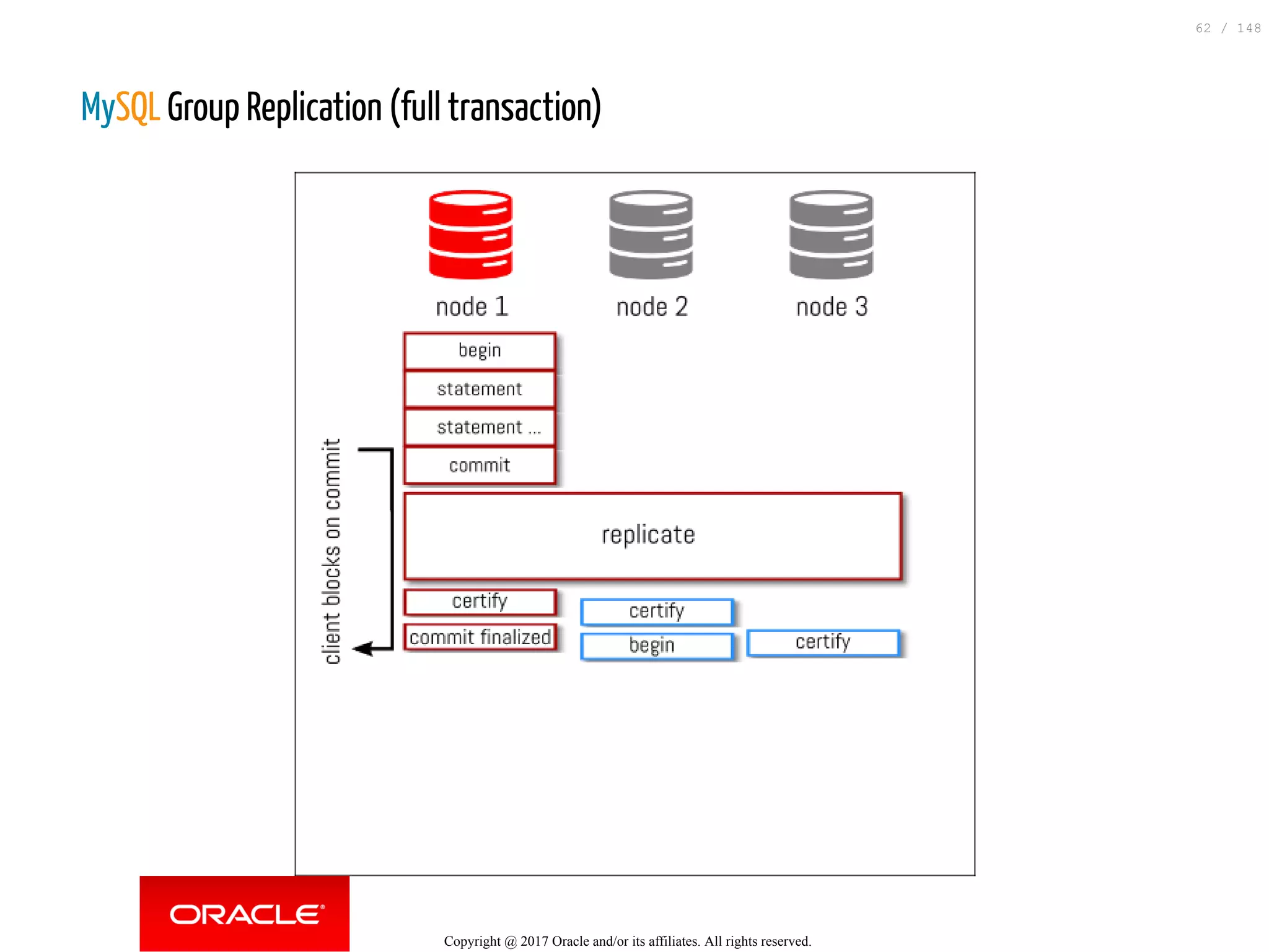

62. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
62 / 148

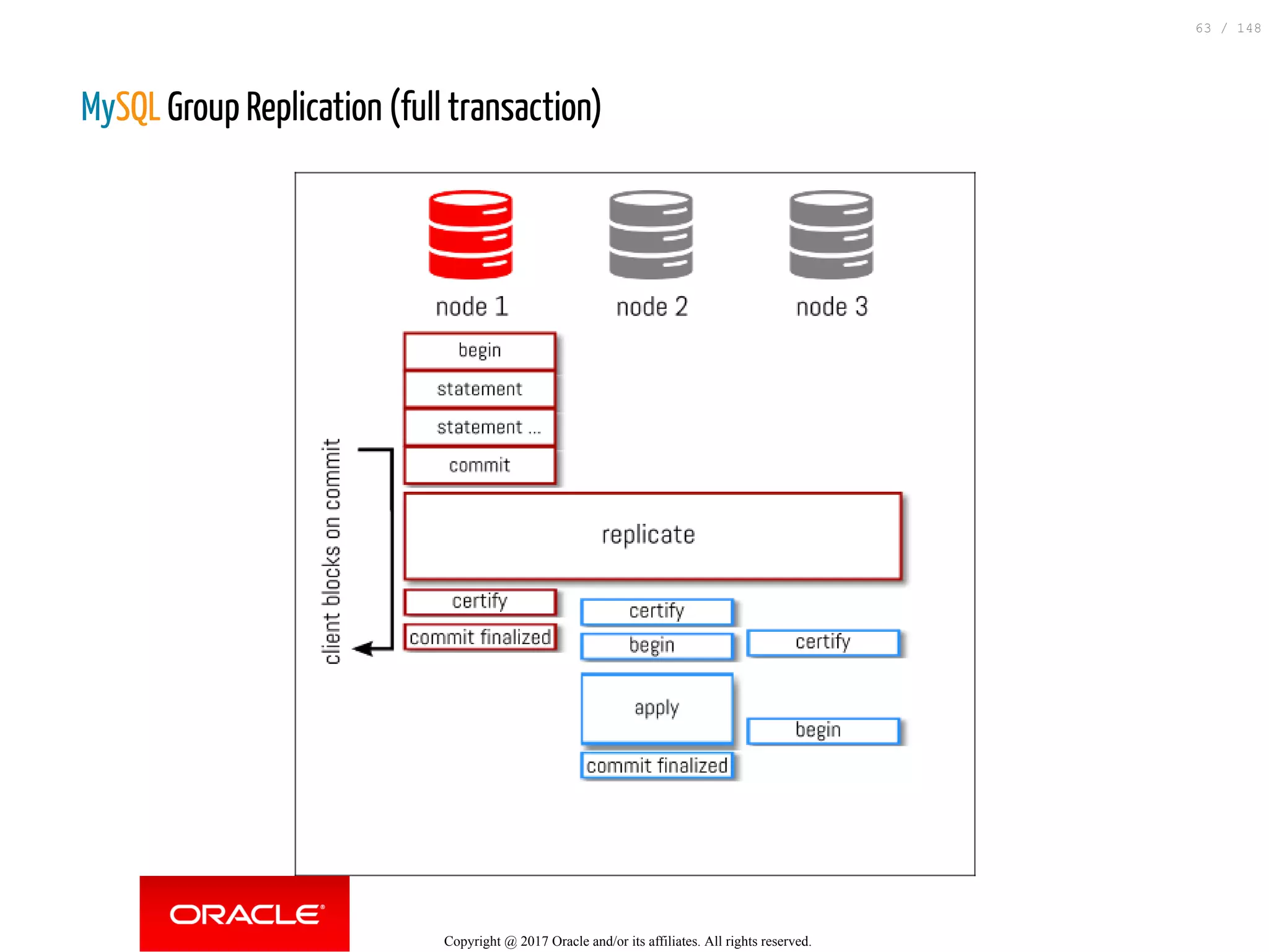

63. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
63 / 148

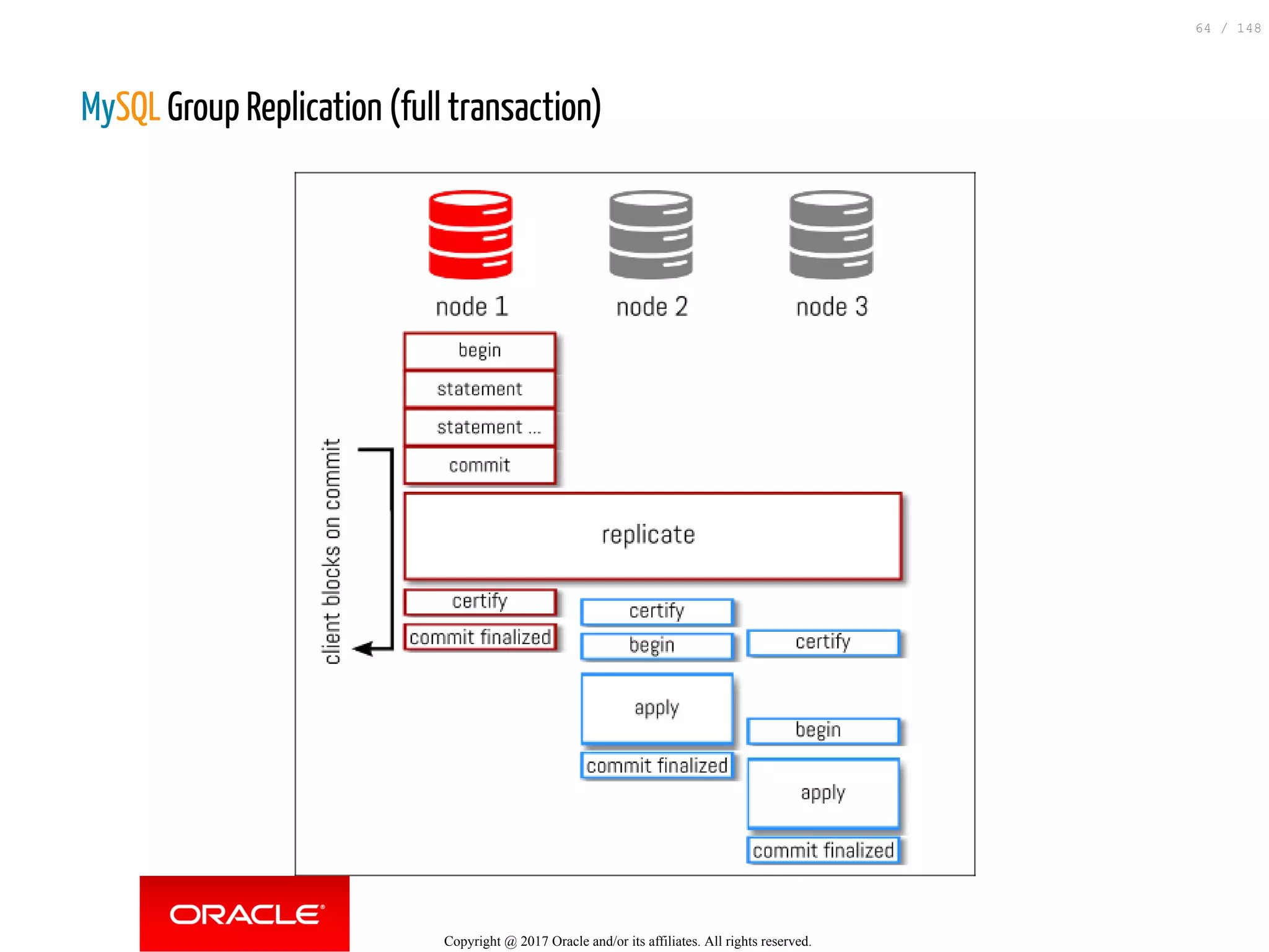

64. MySQL Group Replication (full transaction)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
64 / 148

65. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
65 / 148

66. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
66 / 148

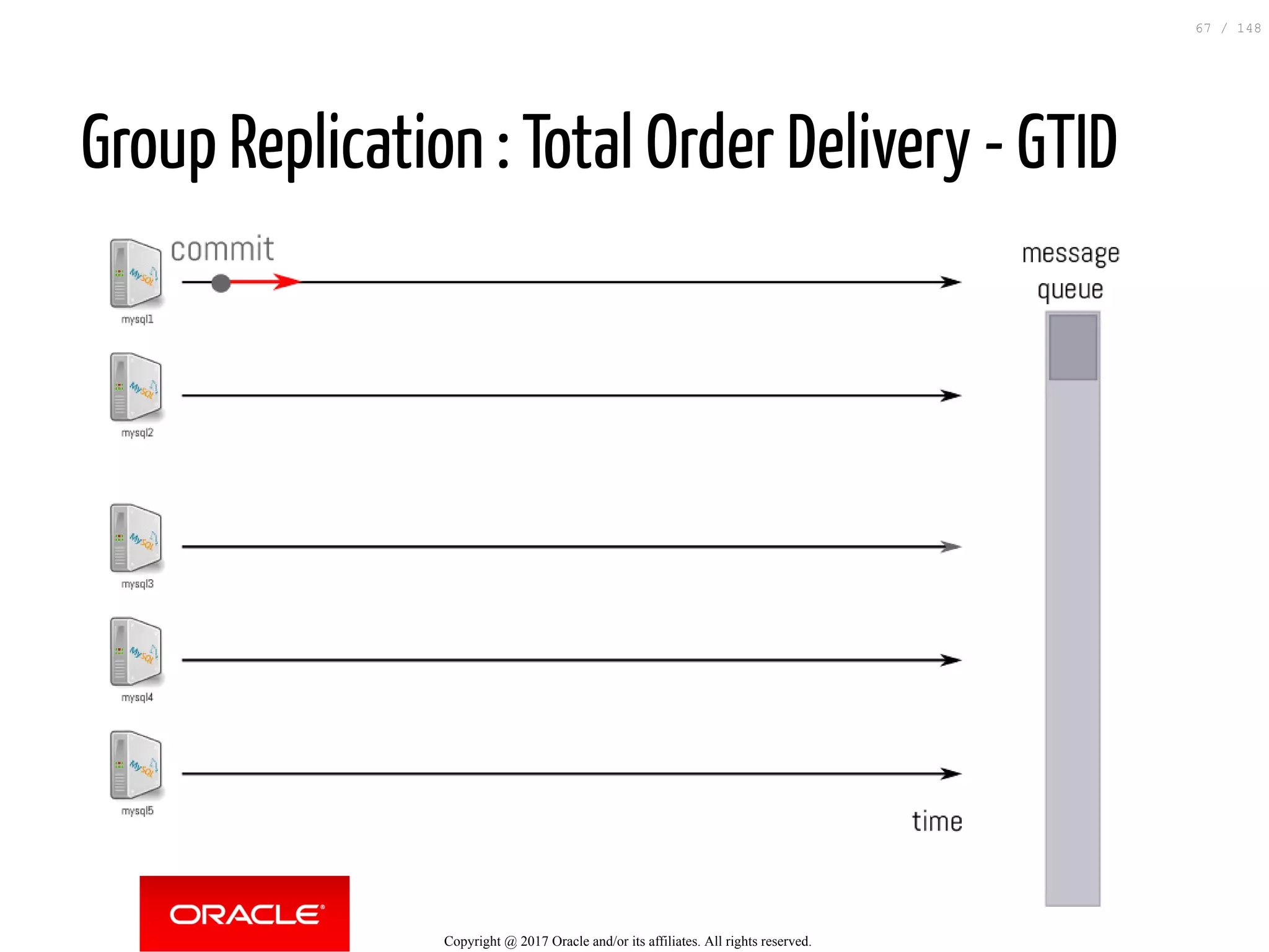

67. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
67 / 148

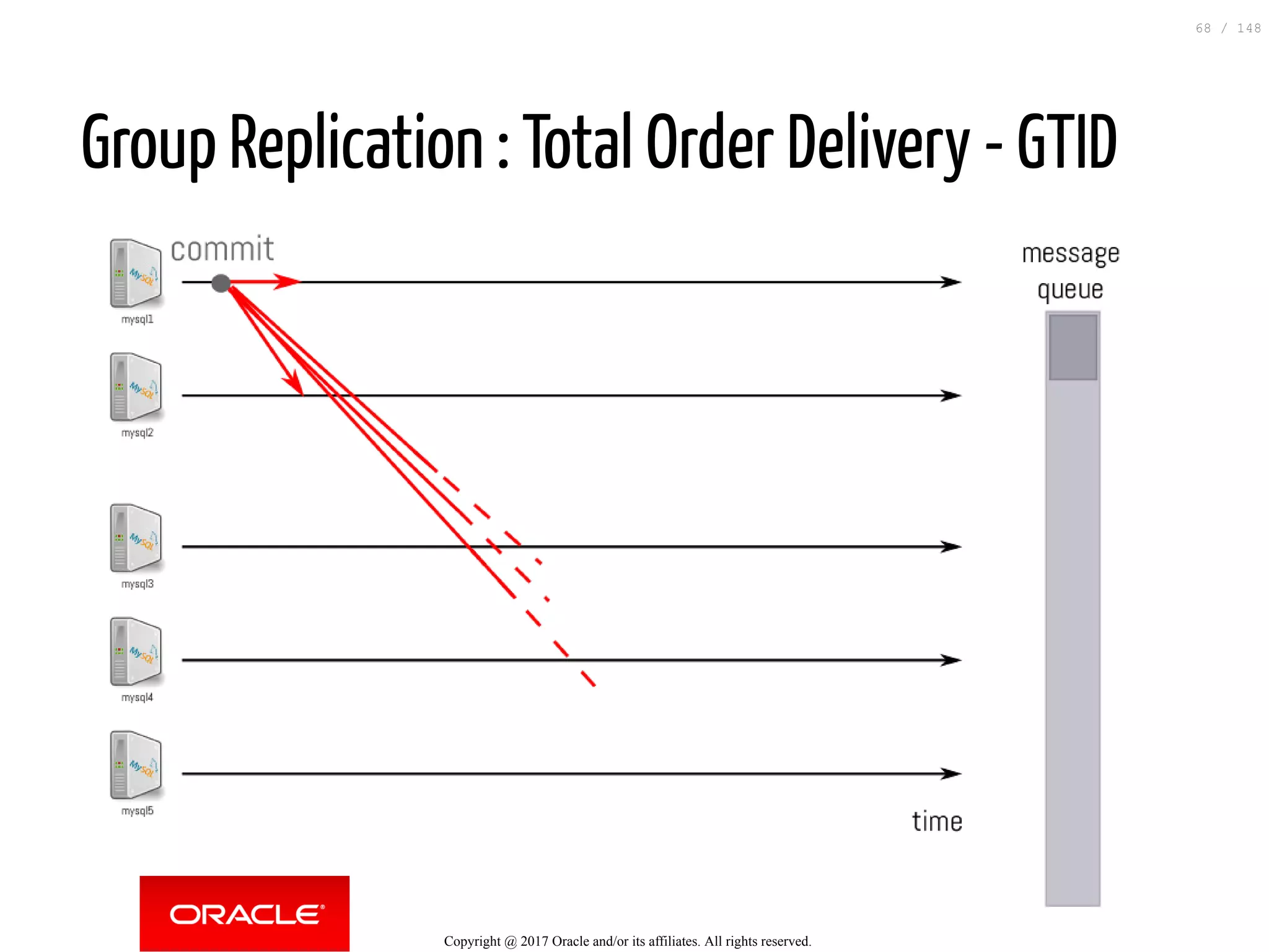

68. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
68 / 148

69. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
69 / 148

70. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
70 / 148

71. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
71 / 148

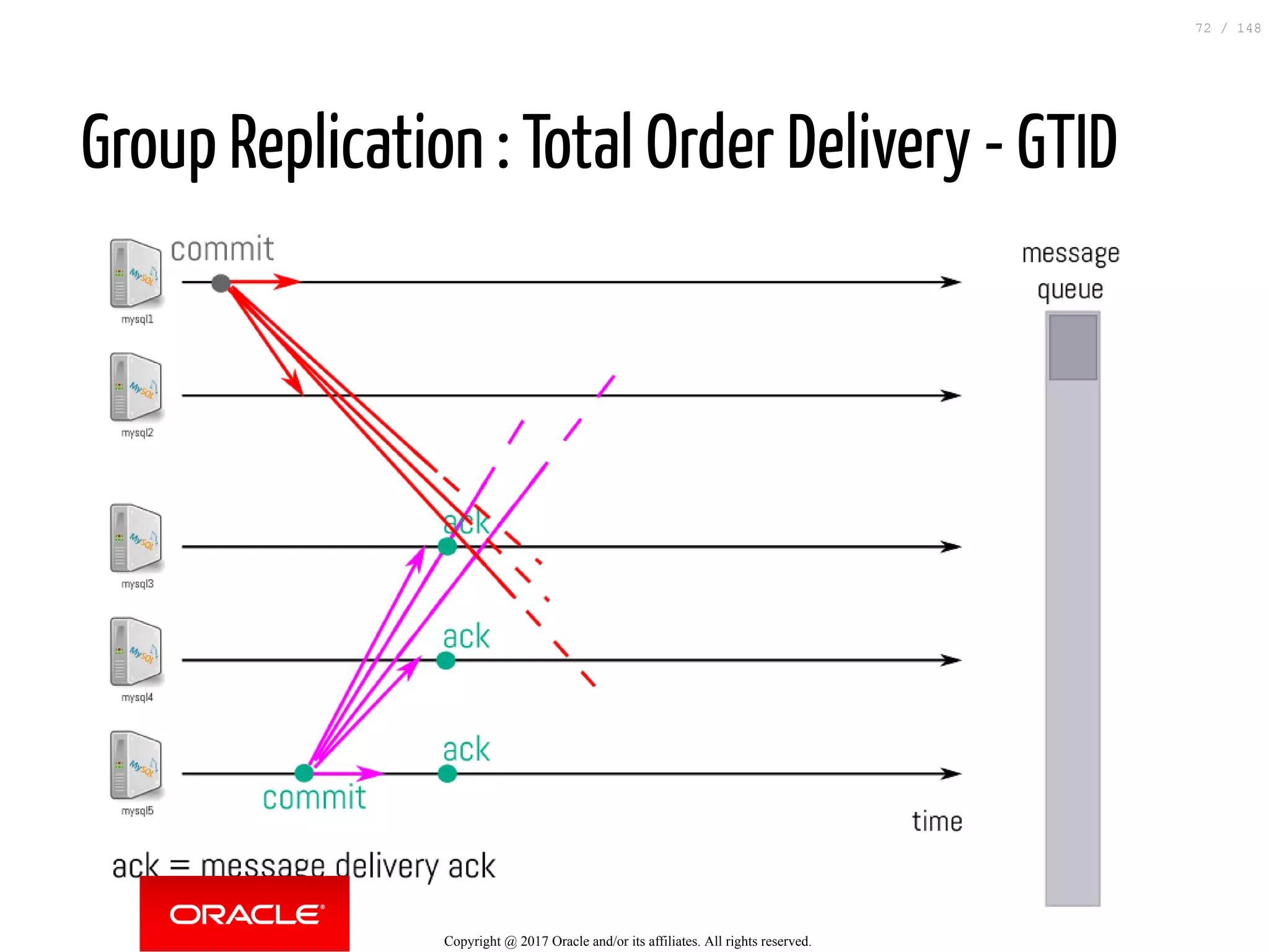

72. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
72 / 148

73. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
73 / 148

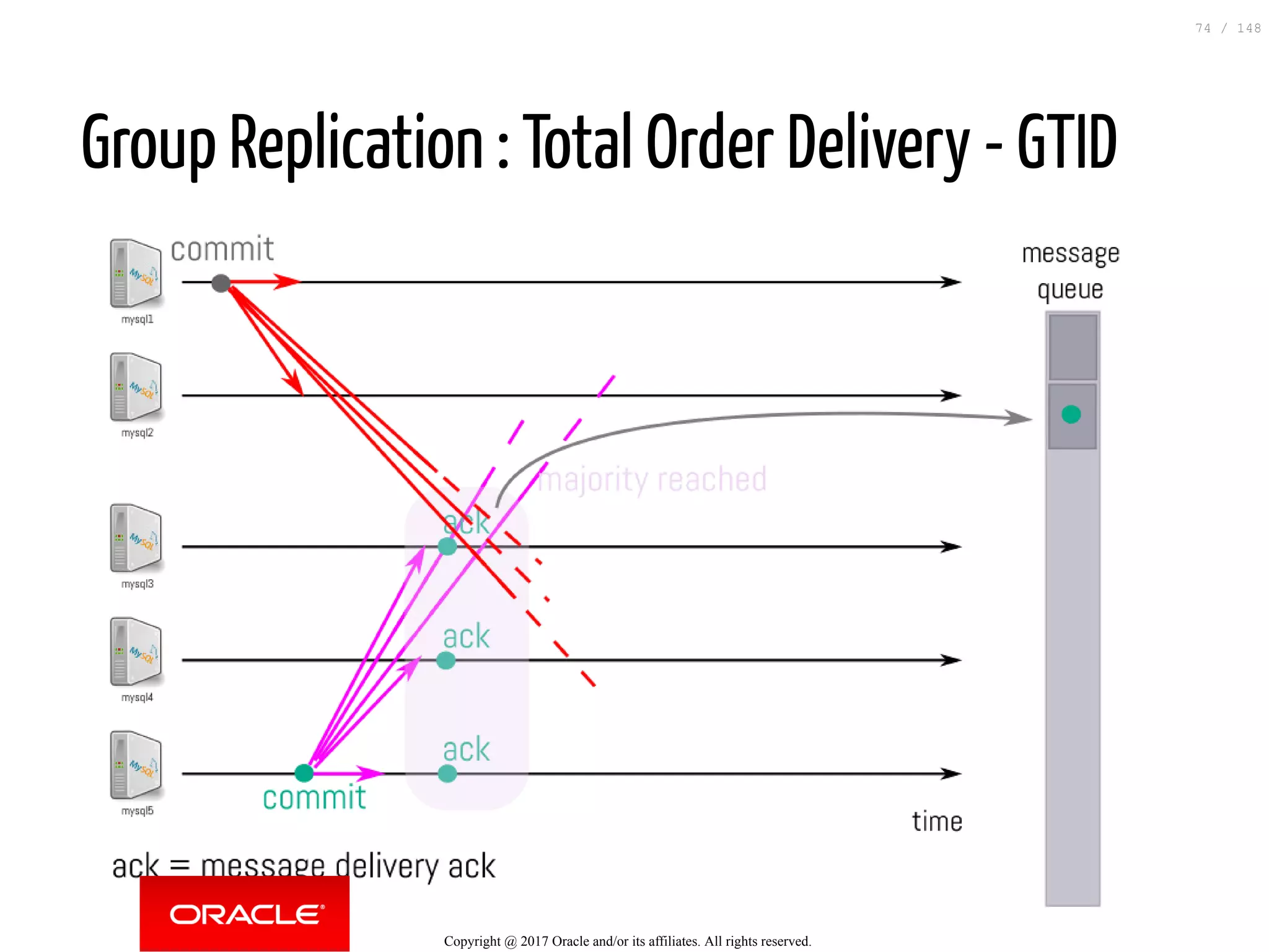

74. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
74 / 148

75. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
75 / 148

76. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
76 / 148

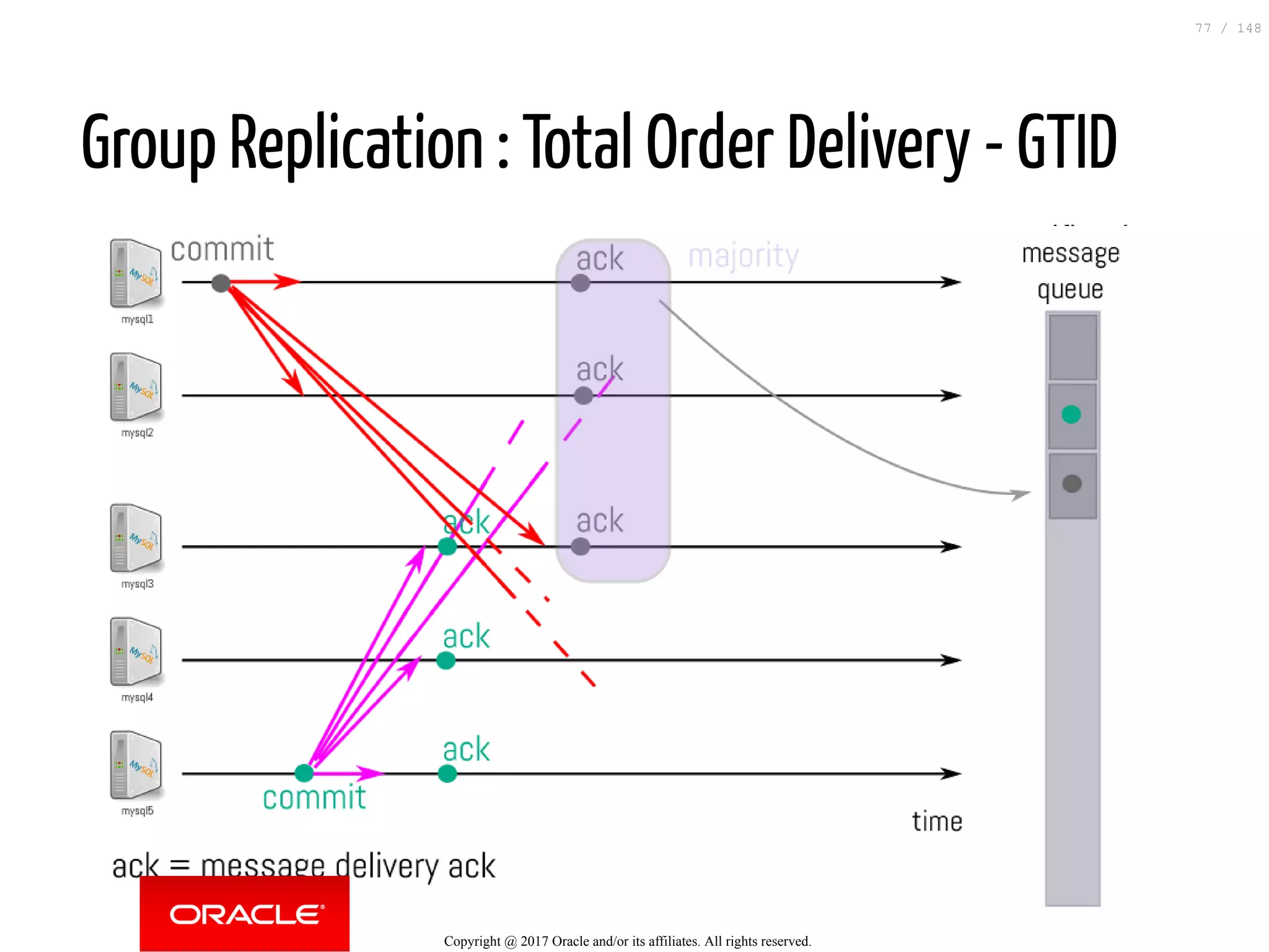

77. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
77 / 148

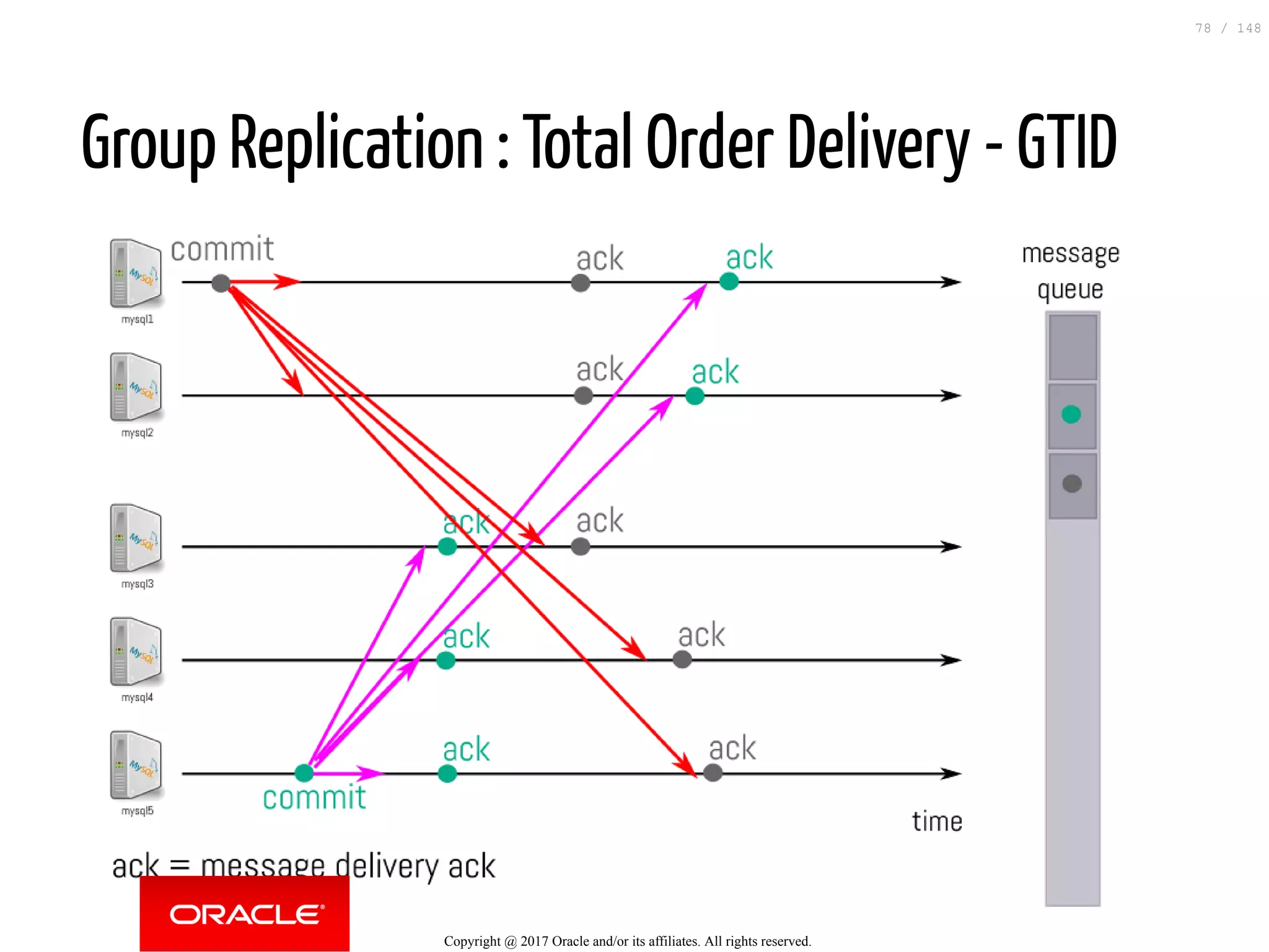

78. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
78 / 148

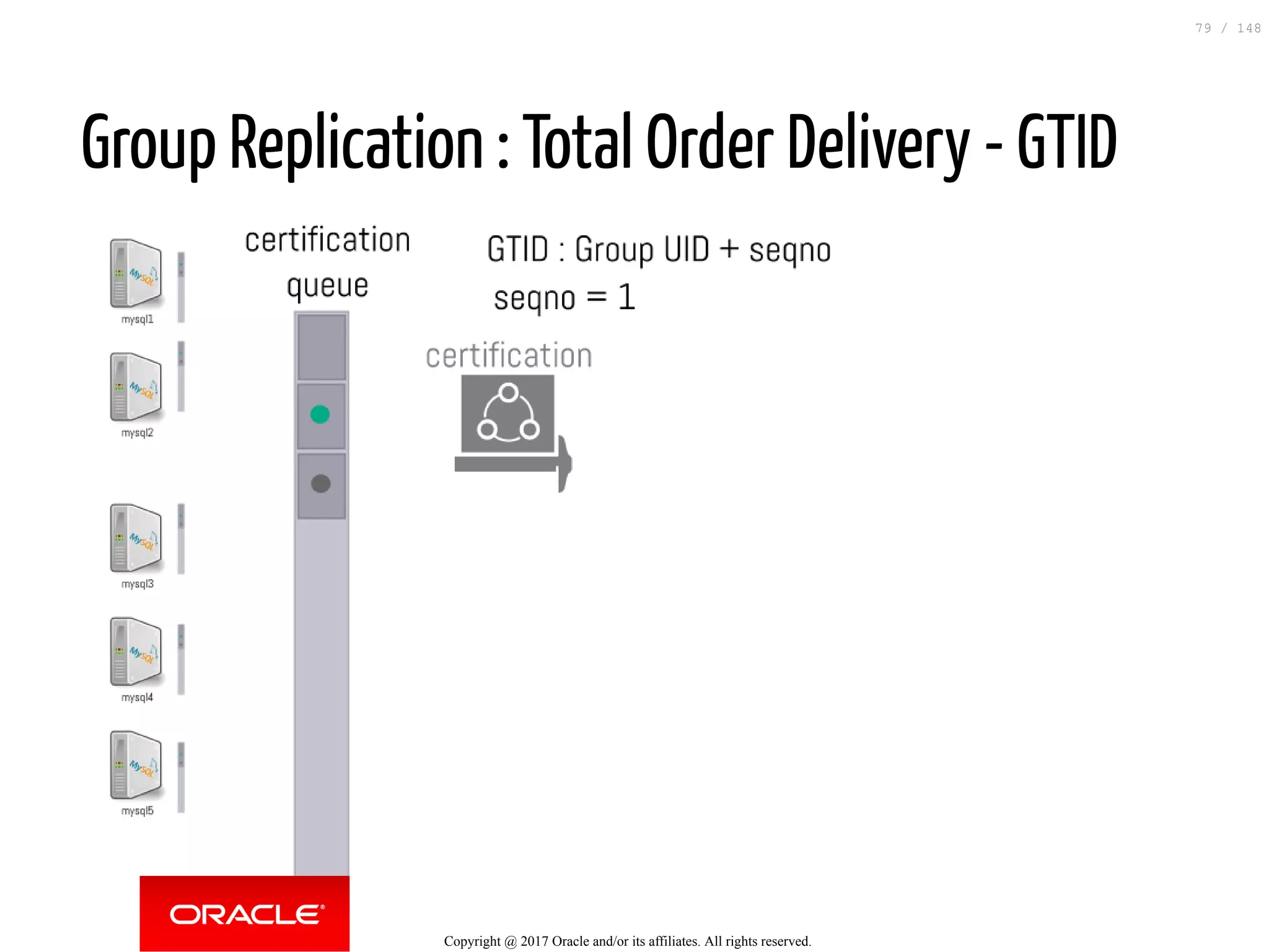

79. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
79 / 148

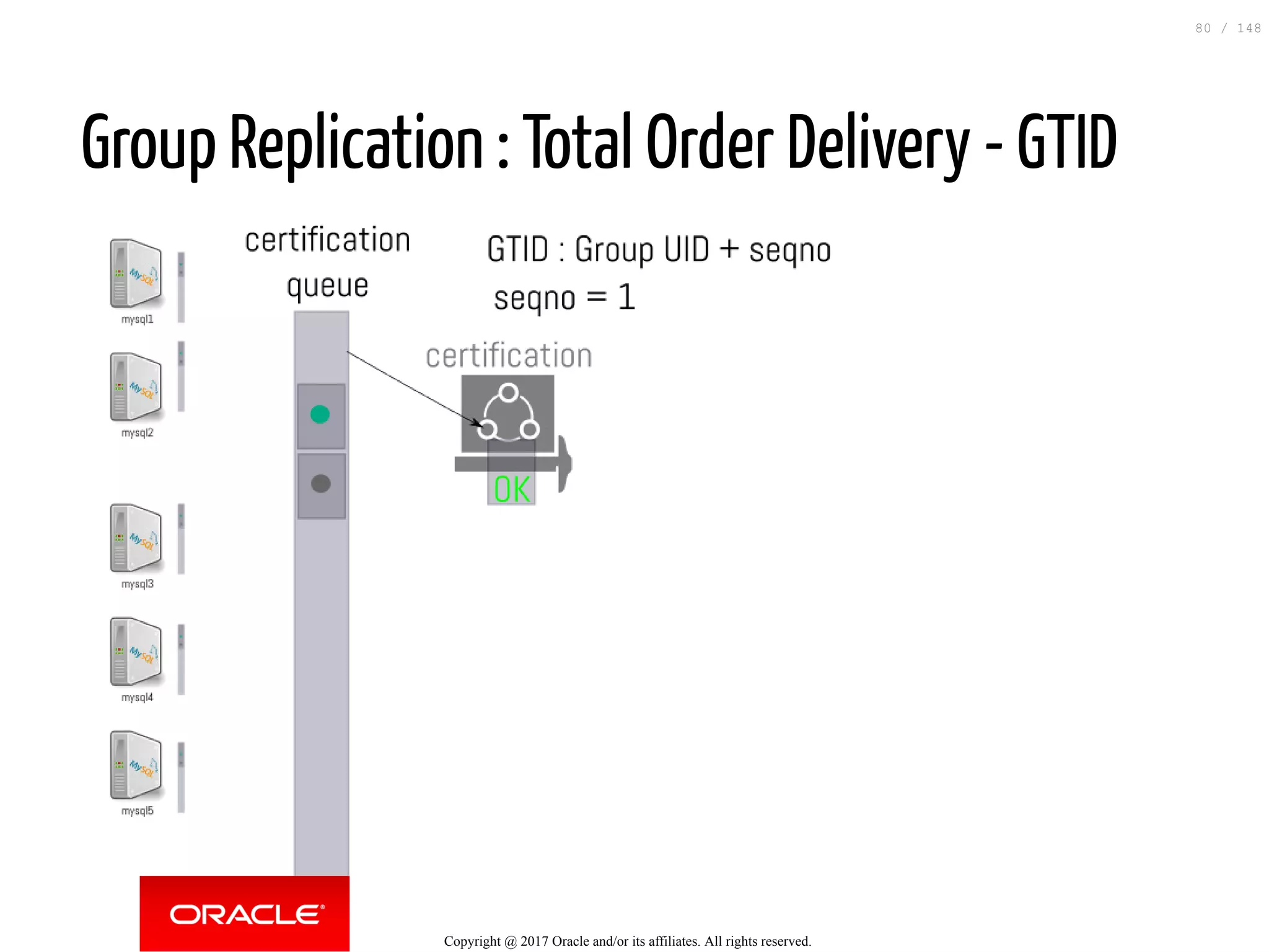

80. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
80 / 148

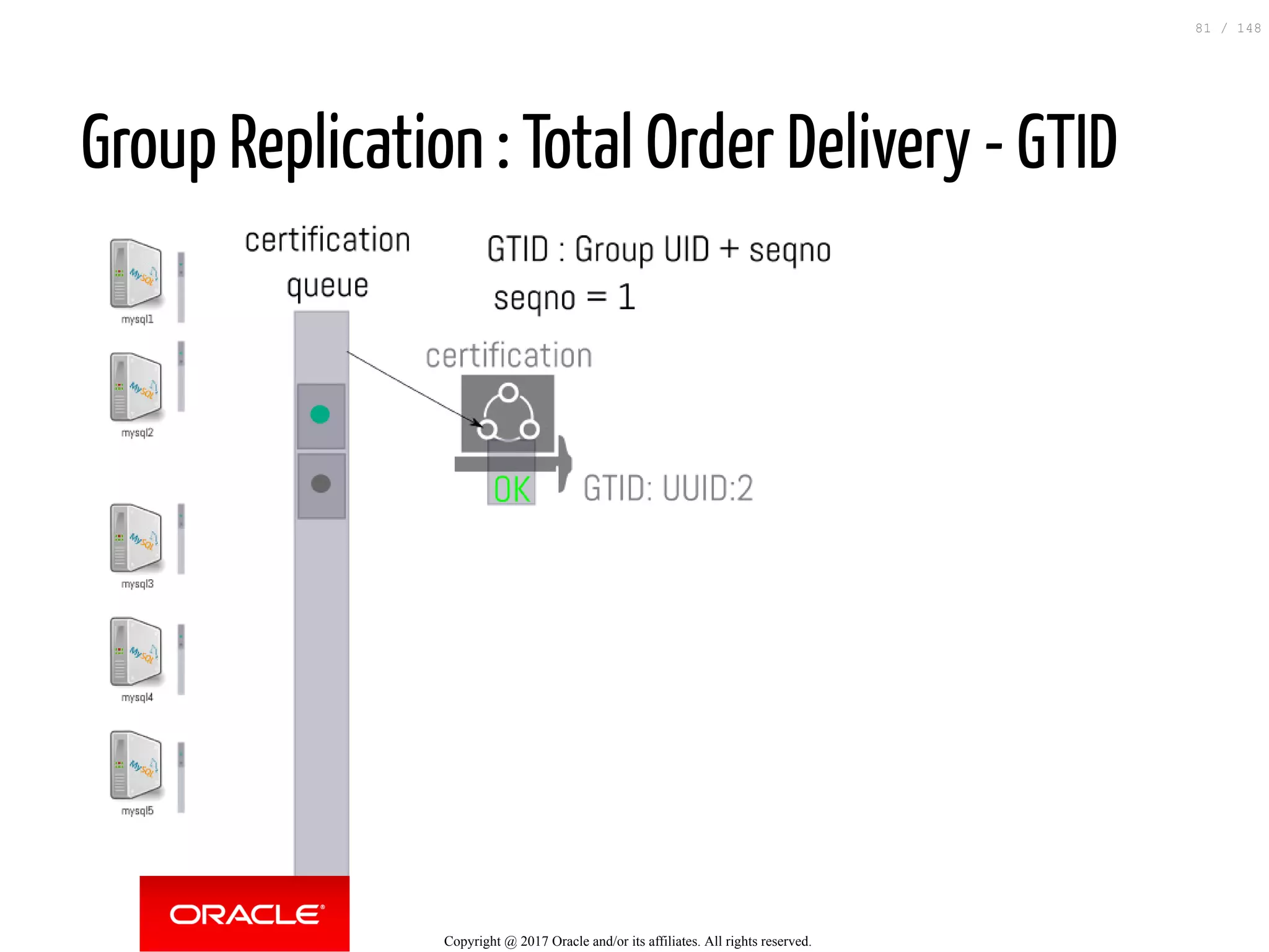

81. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
81 / 148

82. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
82 / 148

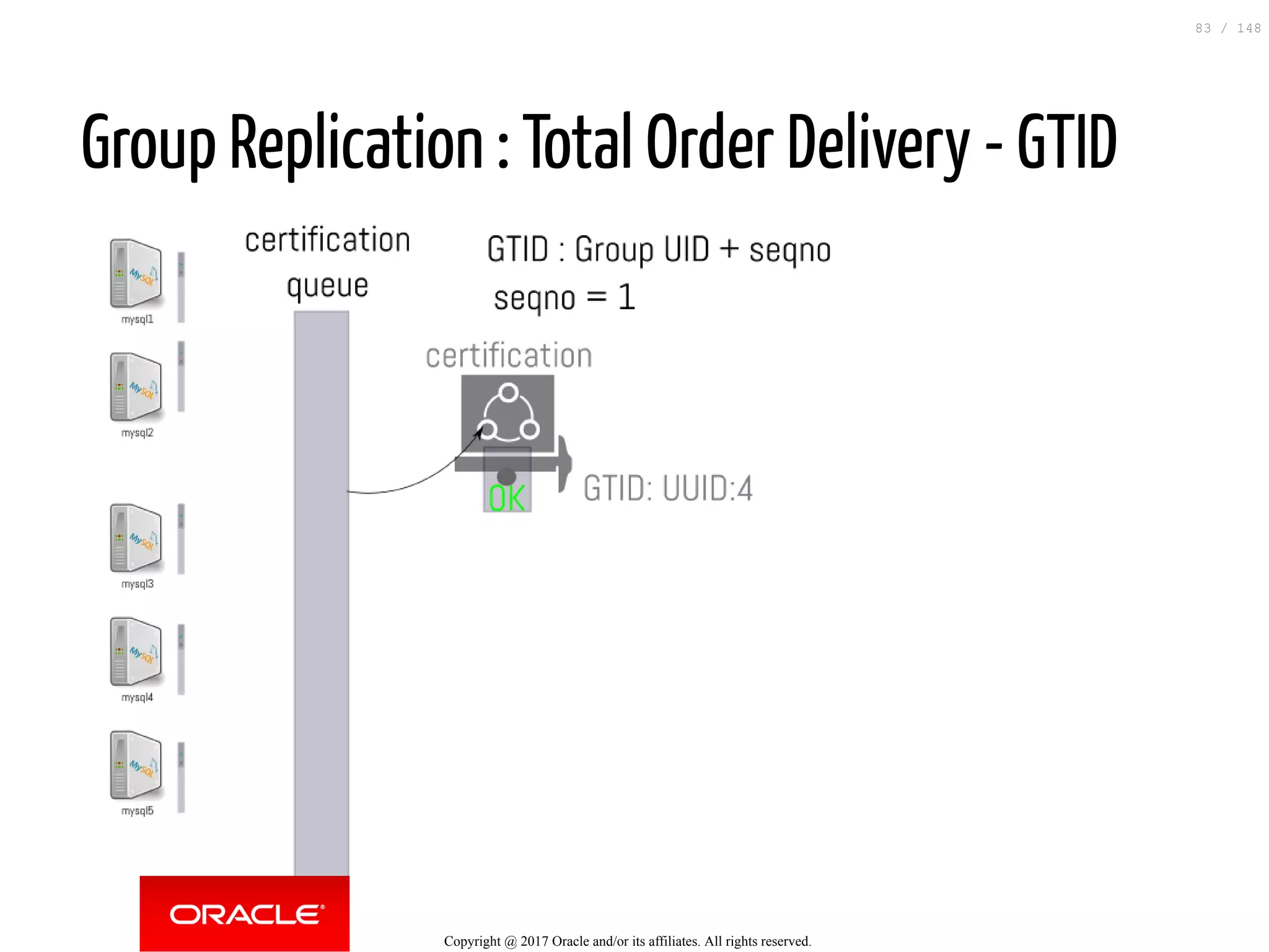

83. Group Replication : Total Order Delivery - GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
83 / 148

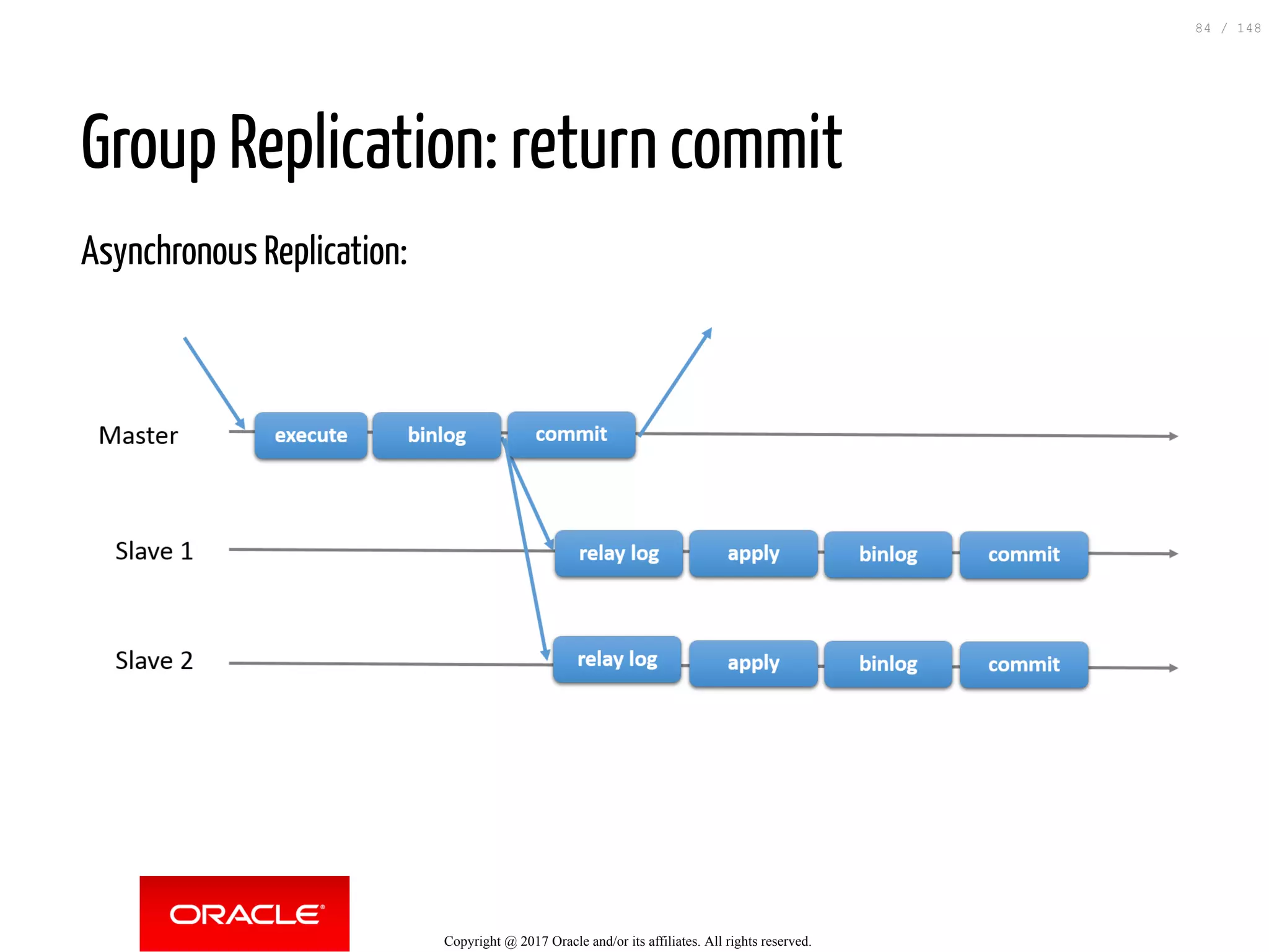

84. Group Replication: return commit
Asynchronous Replication:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
84 / 148

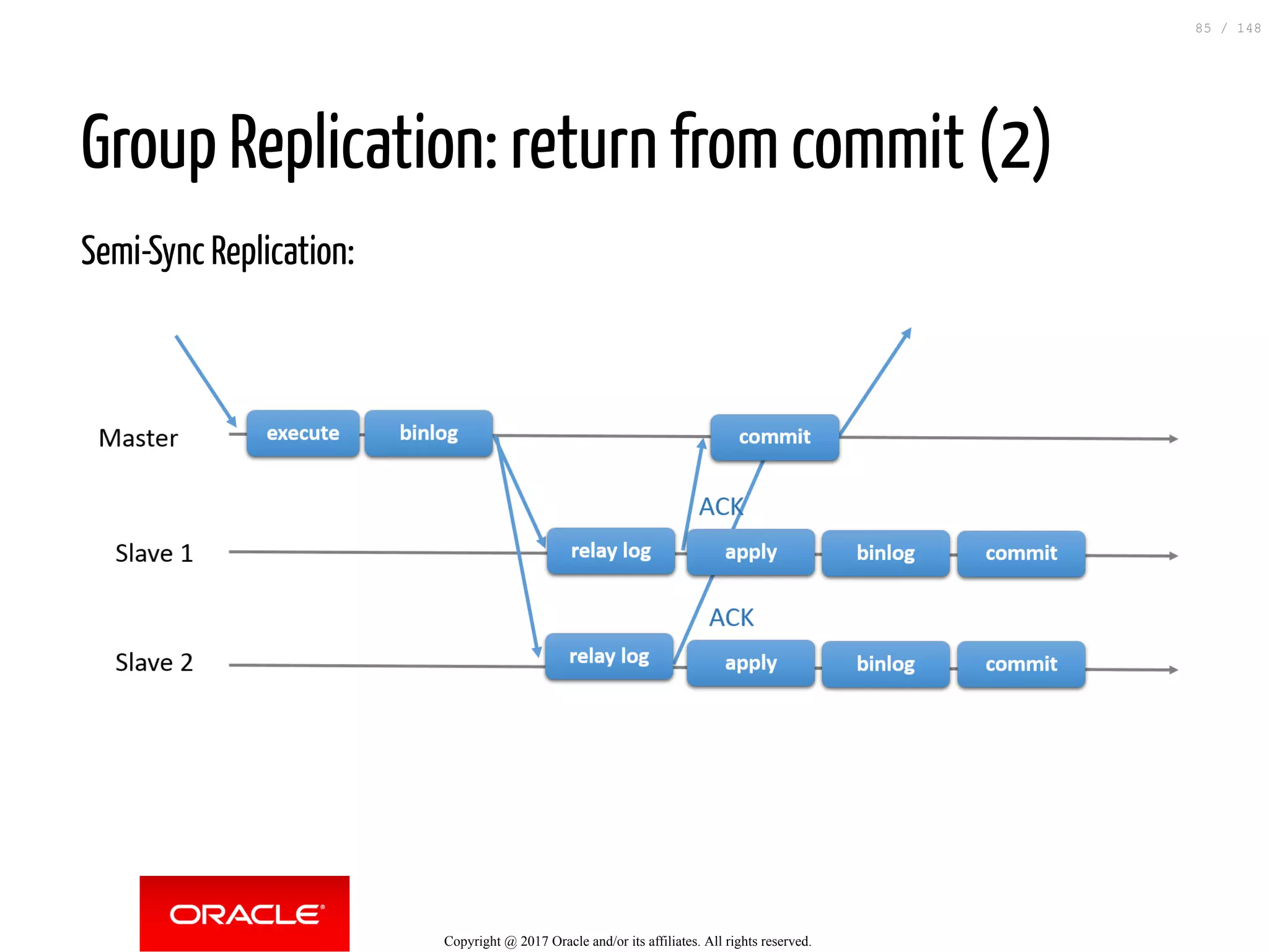

85. Group Replication: return from commit (2)
Semi-Sync Replication:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
85 / 148

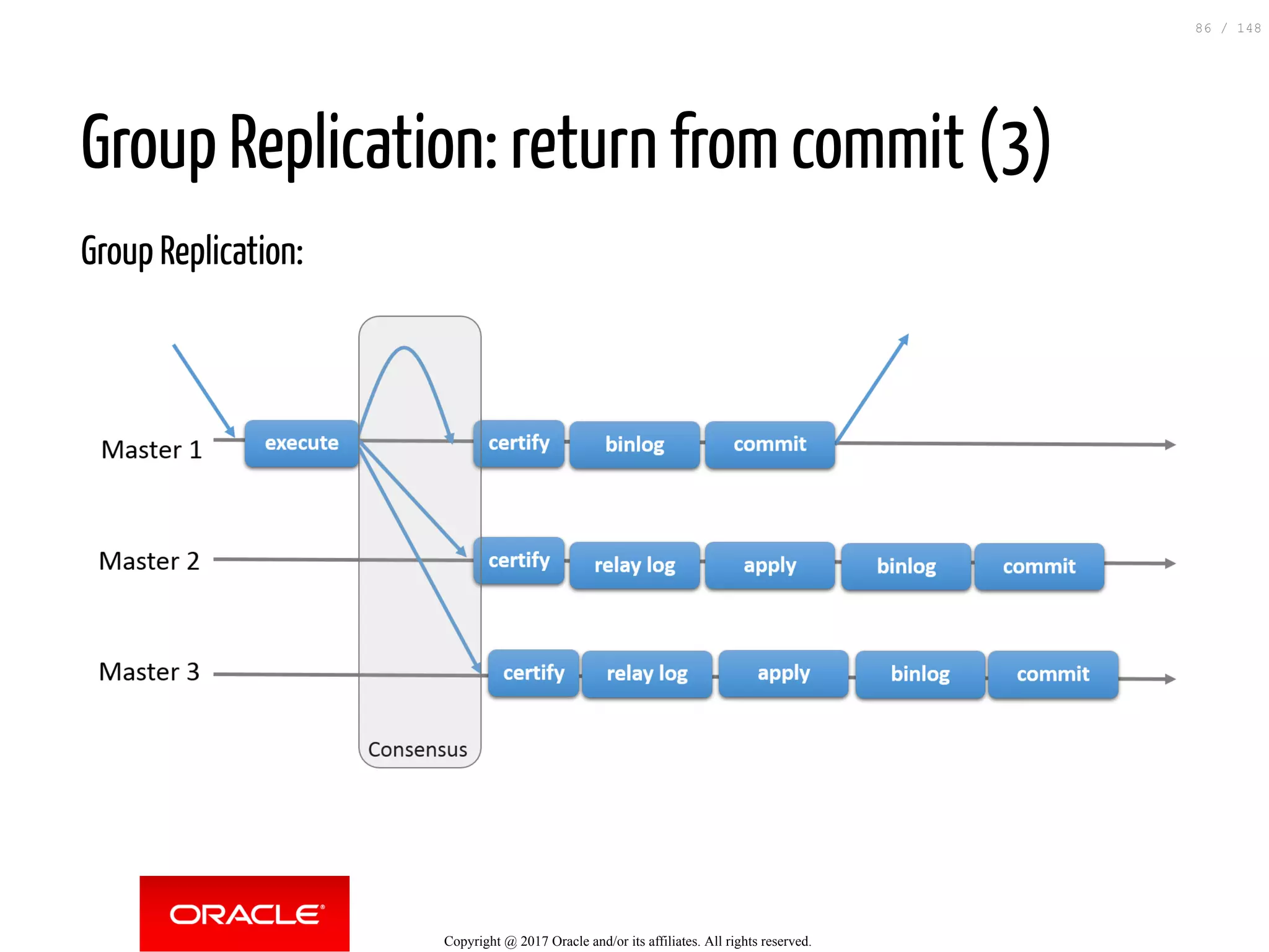

86. Group Replication: return from commit (3)
Group Replication:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
86 / 148

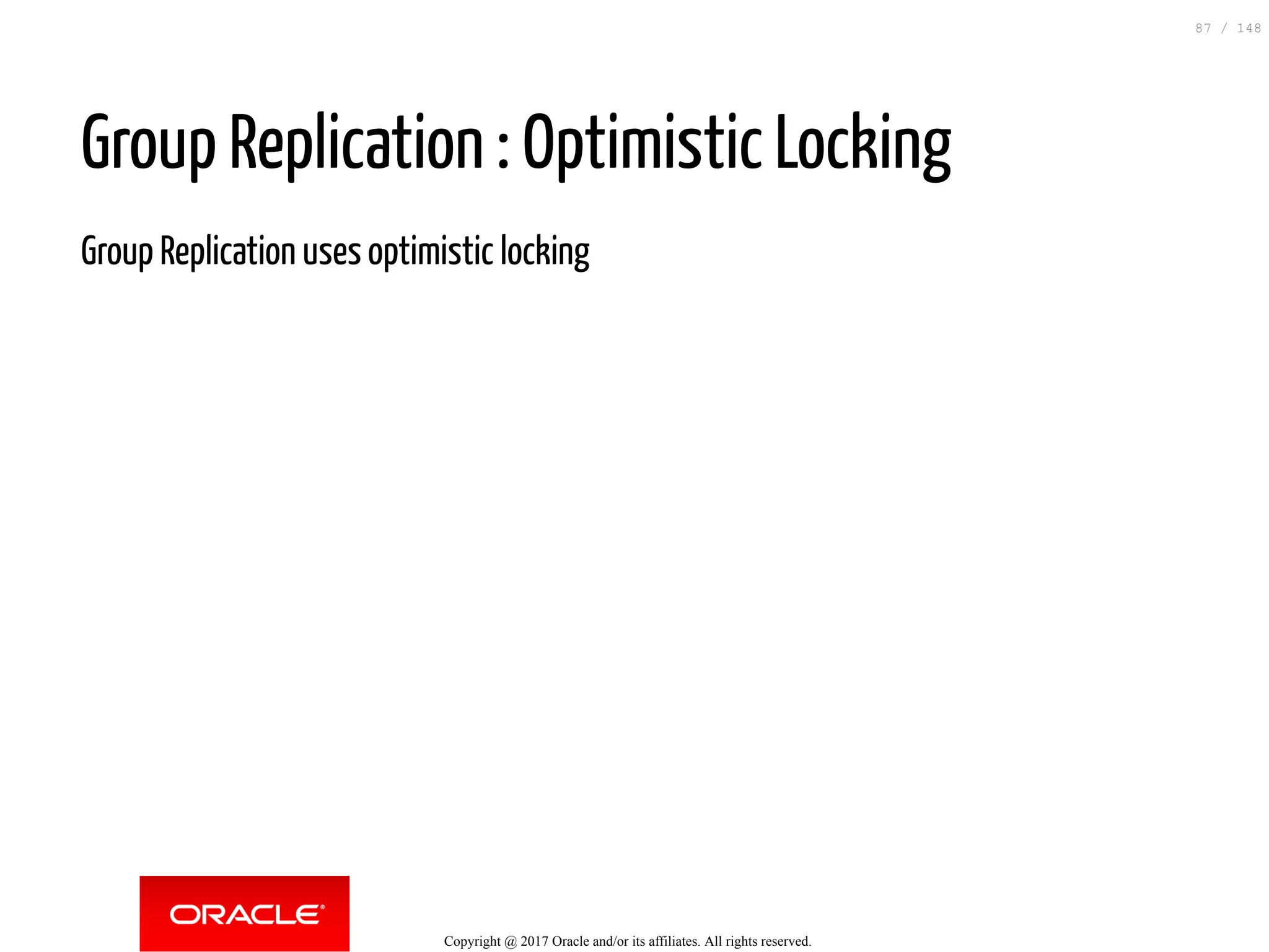

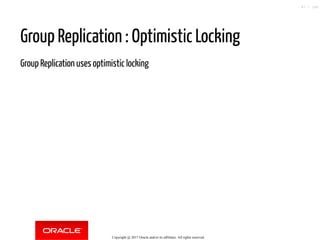

87. Group Replication : Optimistic Locking
Group Replication uses optimistic locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
87 / 148

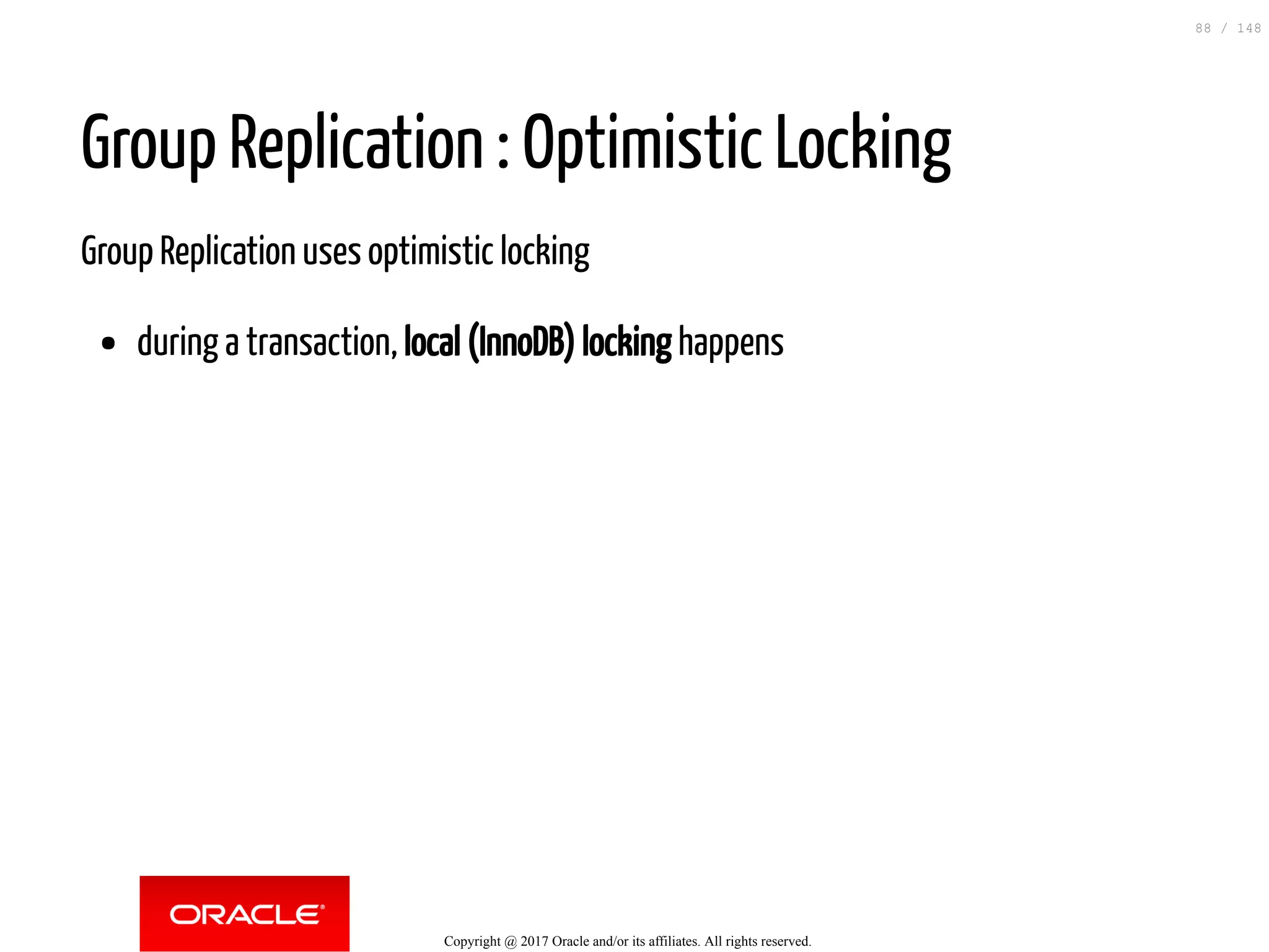

88. Group Replication : Optimistic Locking
Group Replication uses optimistic locking
during a transaction, local (InnoDB) locking happens
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
88 / 148

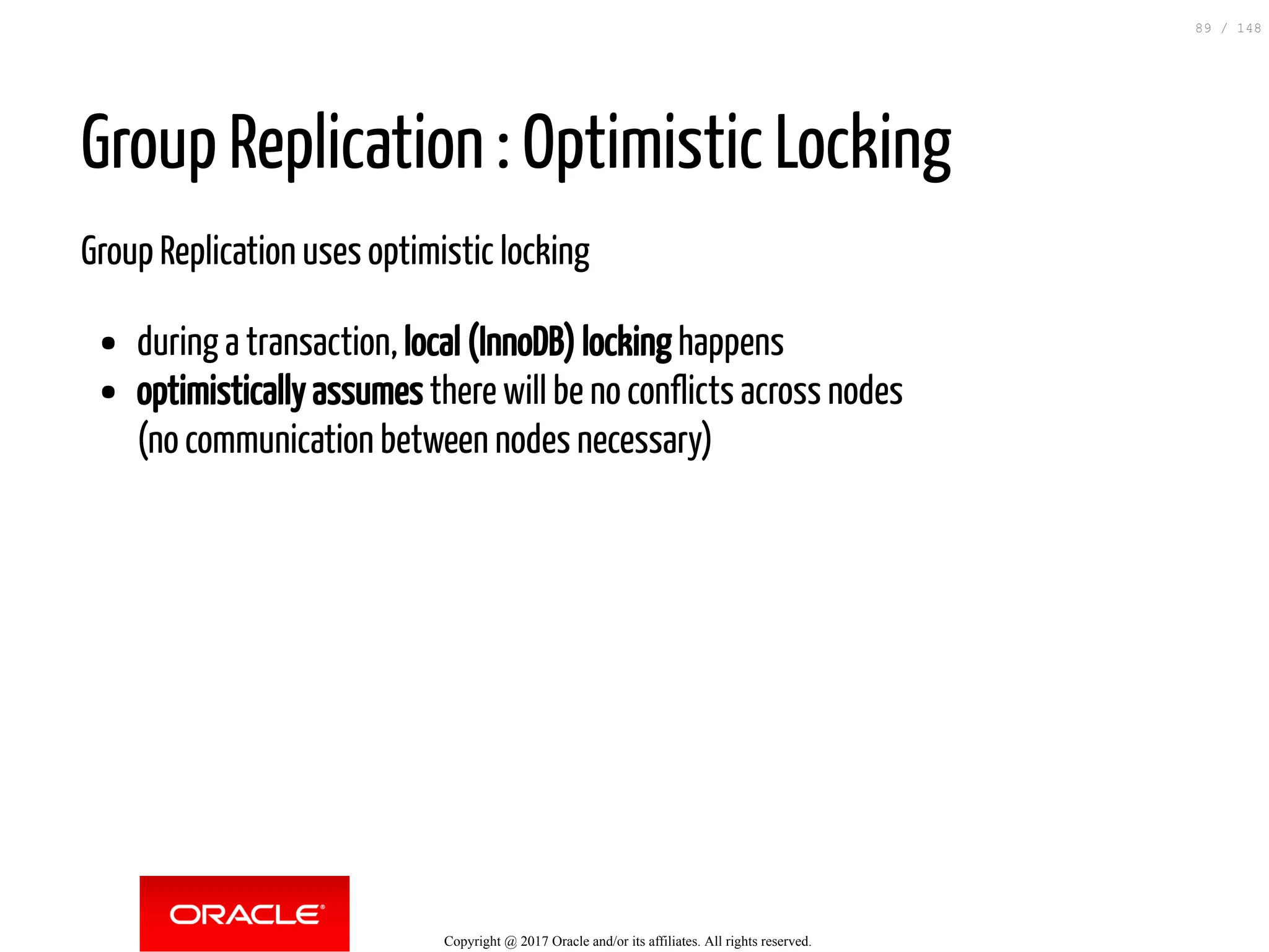

89. Group Replication : Optimistic Locking
Group Replication uses optimistic locking
during a transaction, local (InnoDB) locking happens
optimistically assumes there will be no conflicts across nodes
(no communication between nodes necessary)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
89 / 148

90. Group Replication : Optimistic Locking
Group Replication uses optimistic locking
during a transaction, local (InnoDB) locking happens
optimistically assumes there will be no conflicts across nodes
(no communication between nodes necessary)
cluster-wide conflict resolution happens only at COMMIT, during certification
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
90 / 148

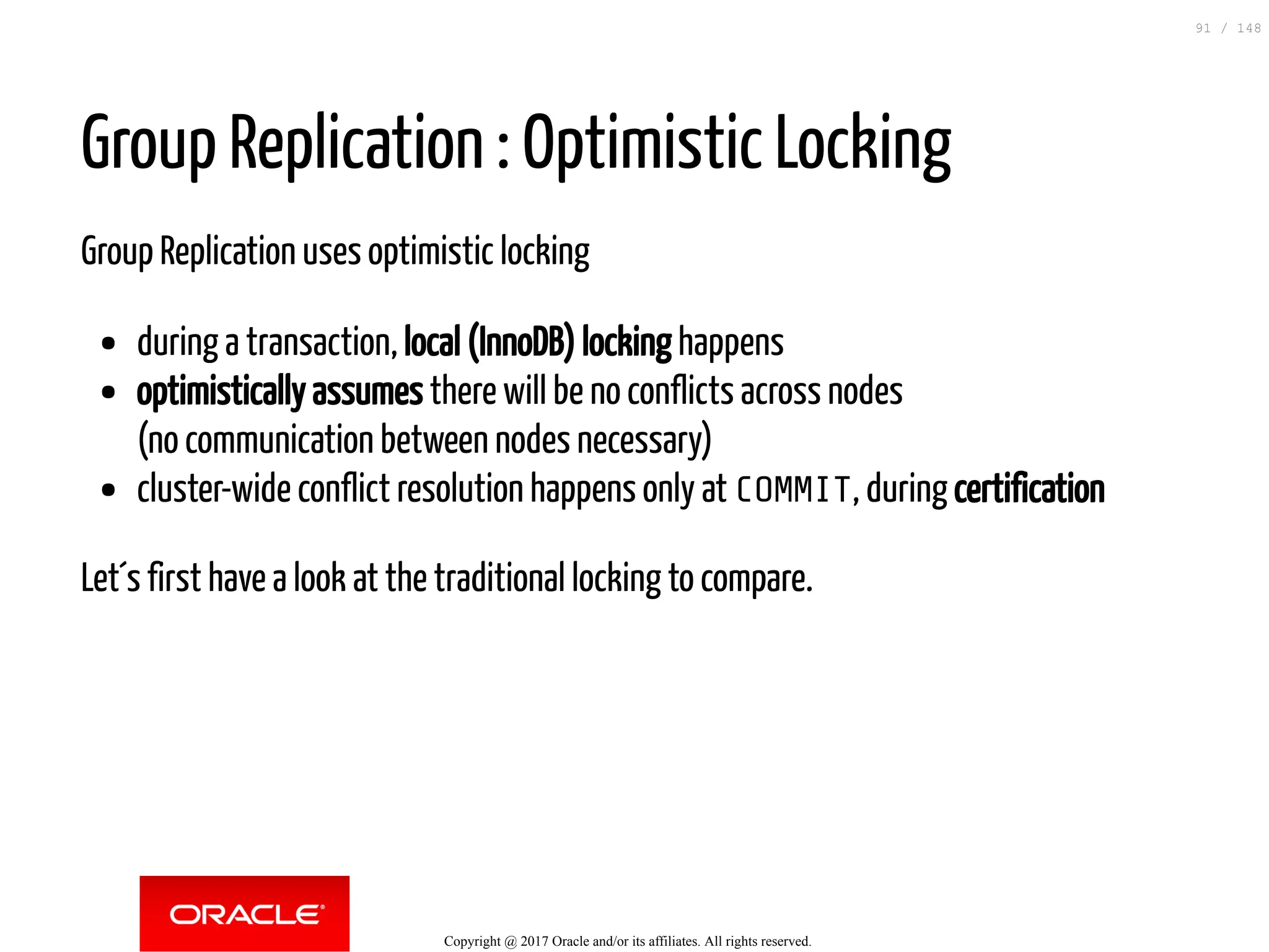

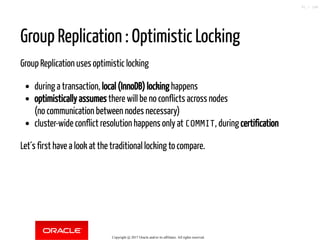

91. Group Replication : Optimistic Locking
Group Replication uses optimistic locking
during a transaction, local (InnoDB) locking happens
optimistically assumes there will be no conflicts across nodes
(no communication between nodes necessary)
cluster-wide conflict resolution happens only at COMMIT, during certification
Let´s first have a look at the traditional locking to compare.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
91 / 148

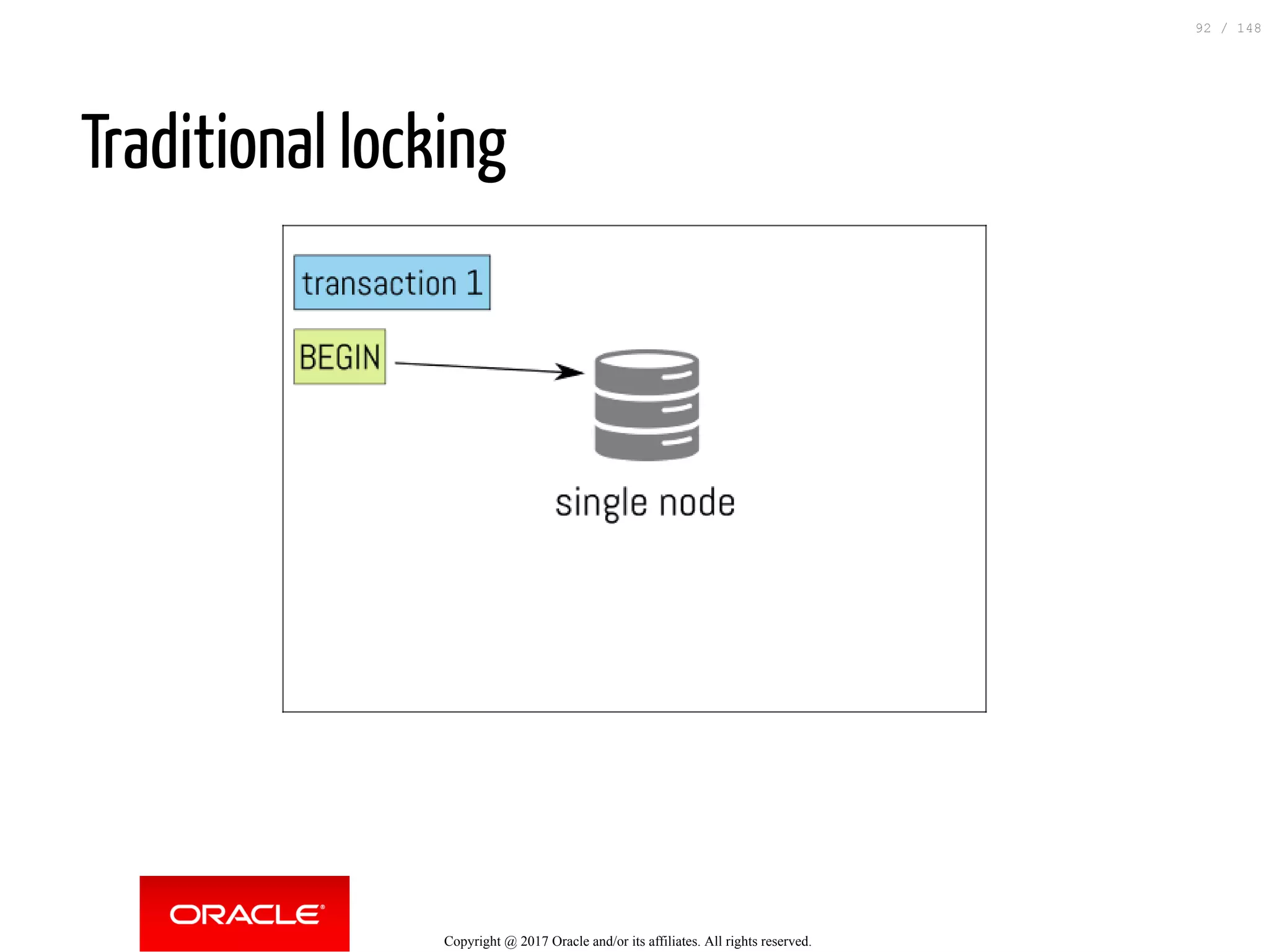

92. Traditional locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
92 / 148

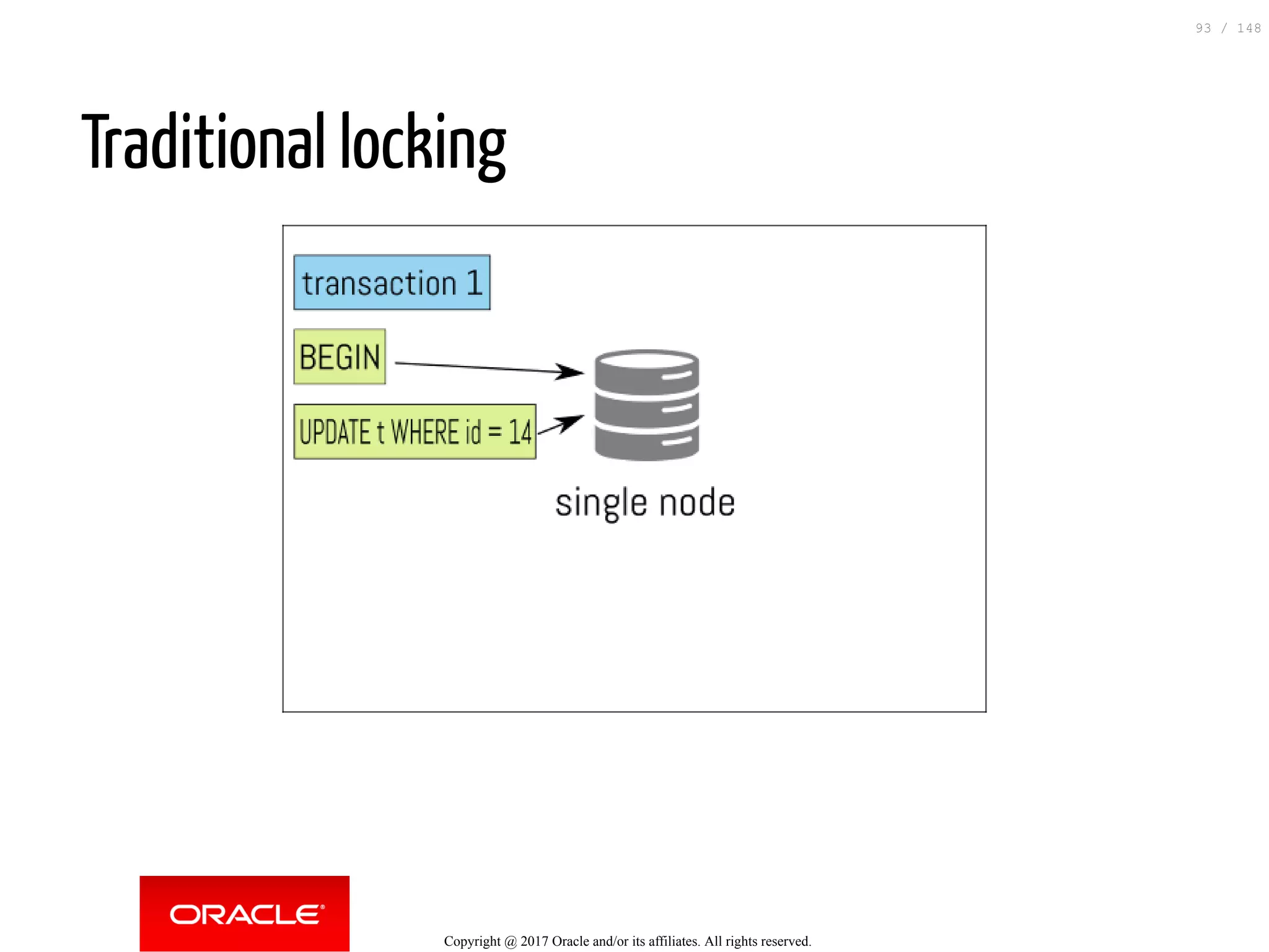

93. Traditional locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
93 / 148

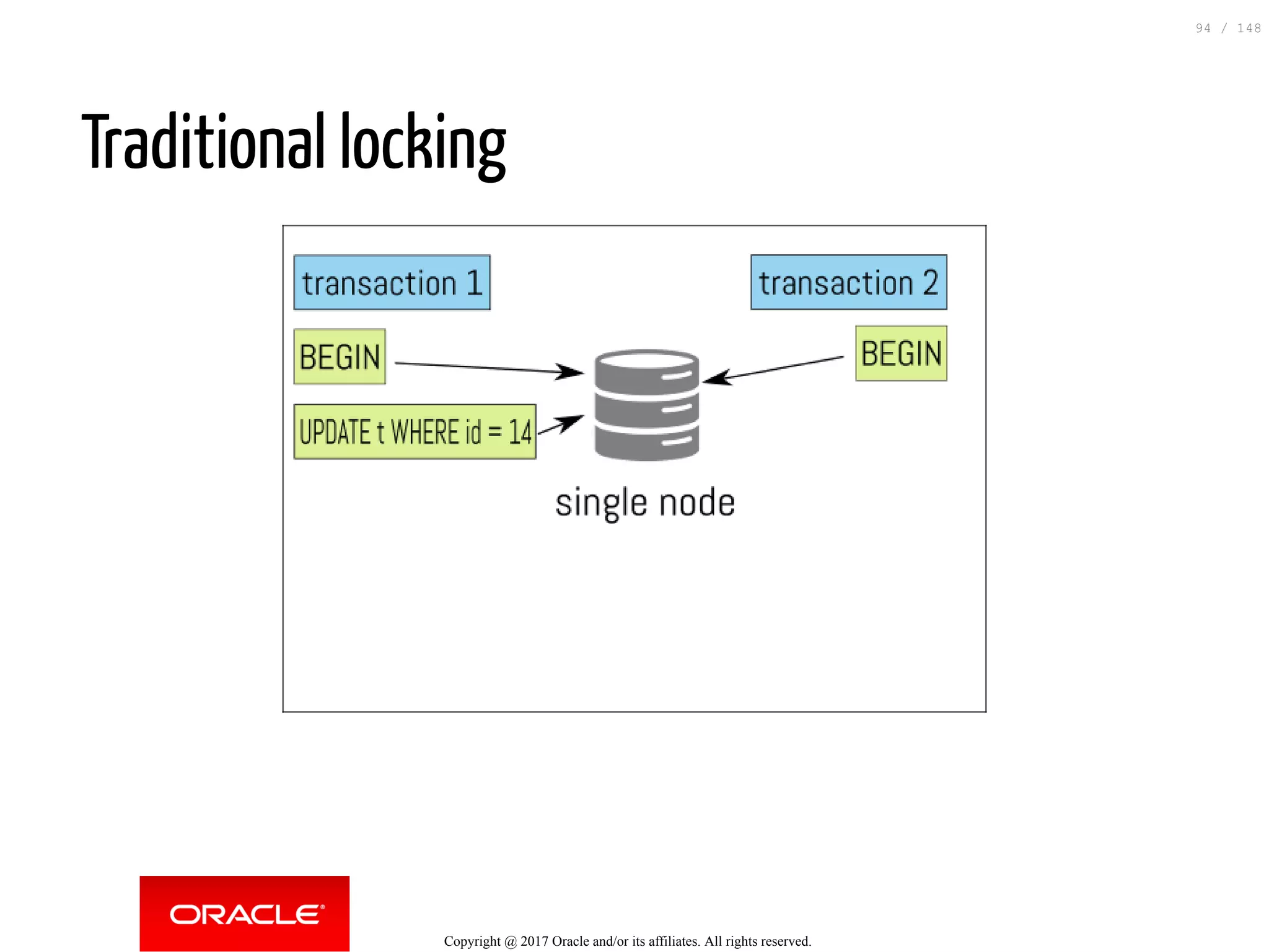

94. Traditional locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
94 / 148

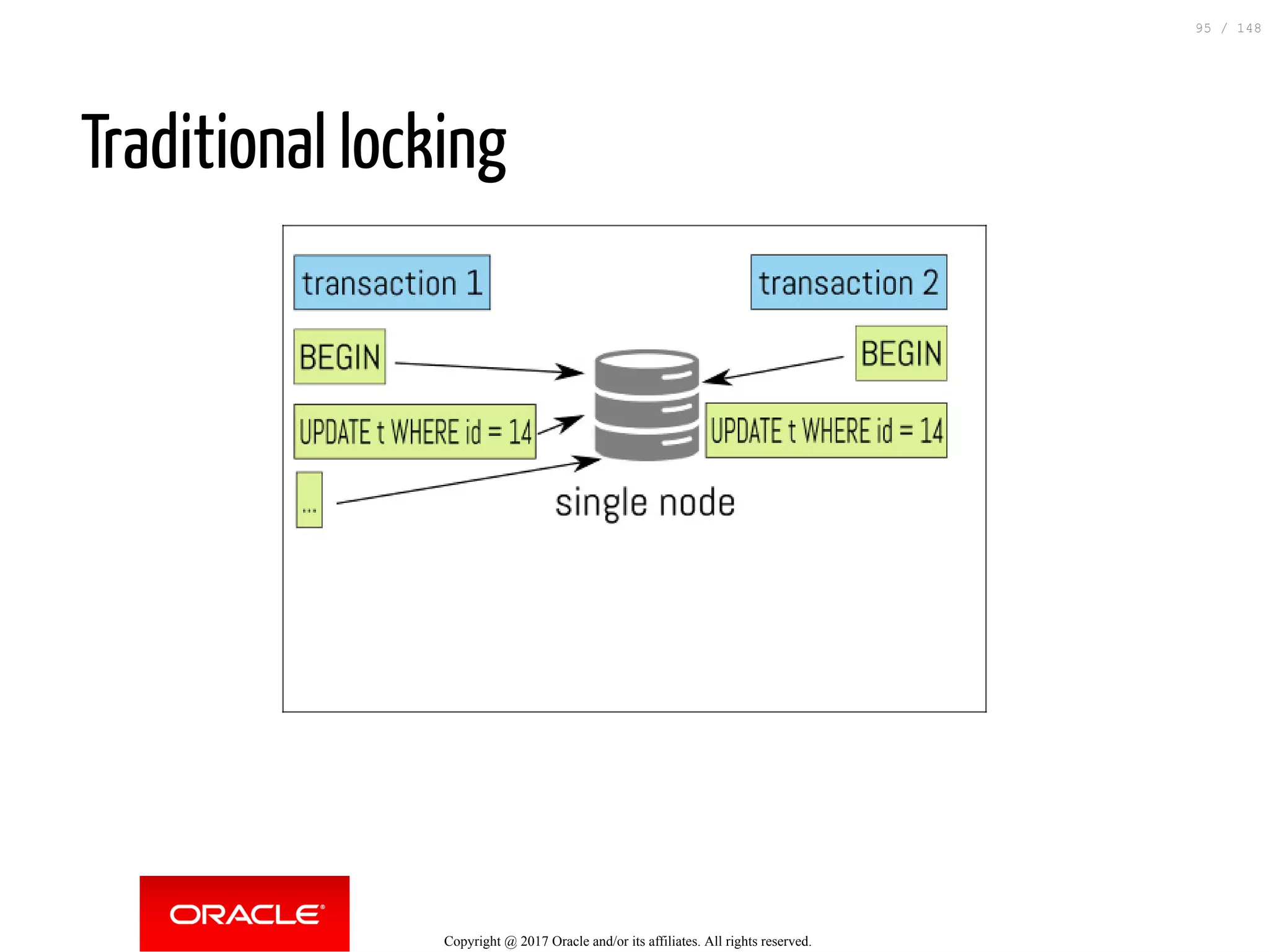

95. Traditional locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
95 / 148

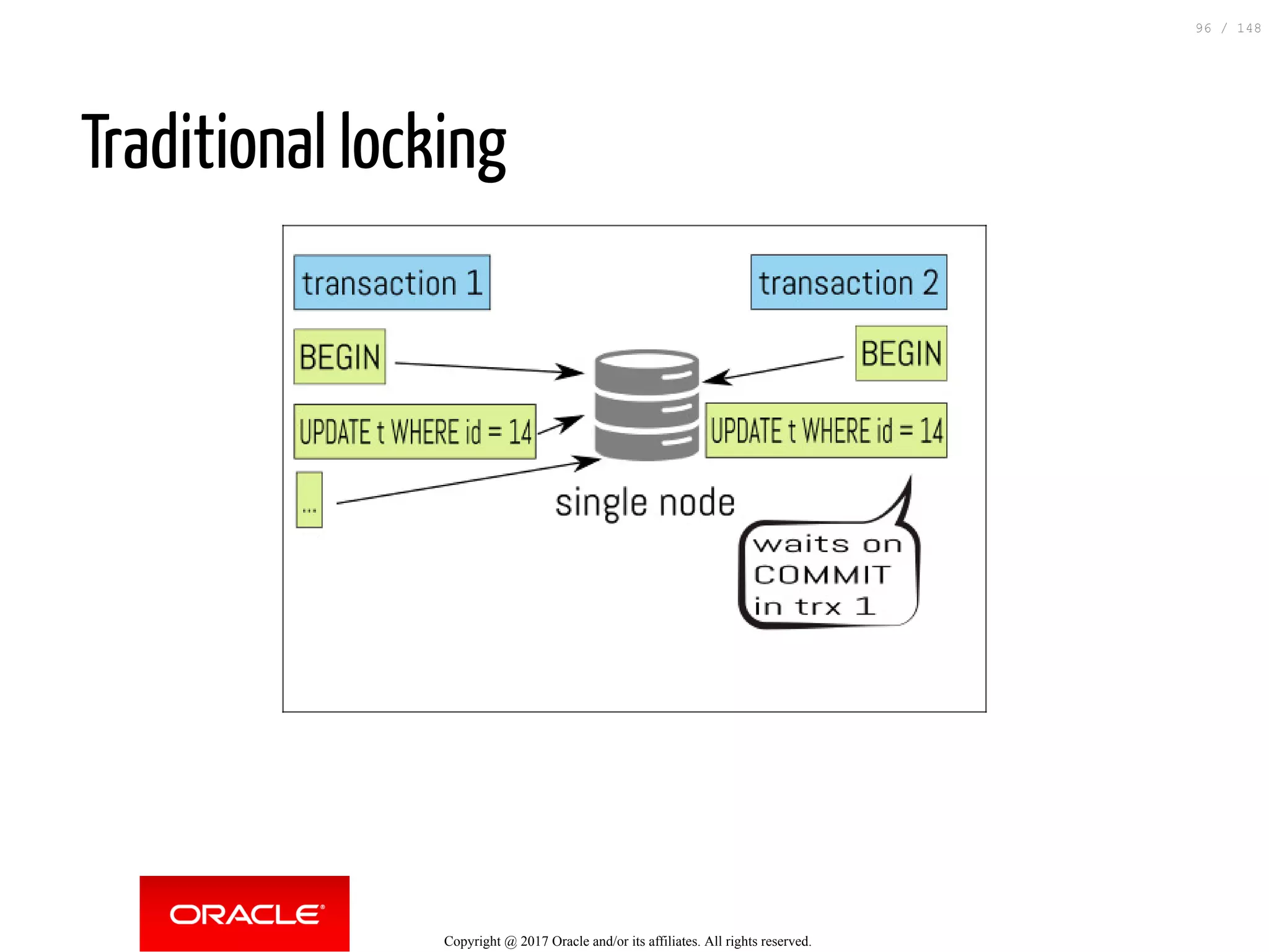

96. Traditional locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
96 / 148

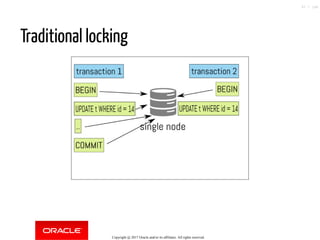

97. Traditional locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
97 / 148

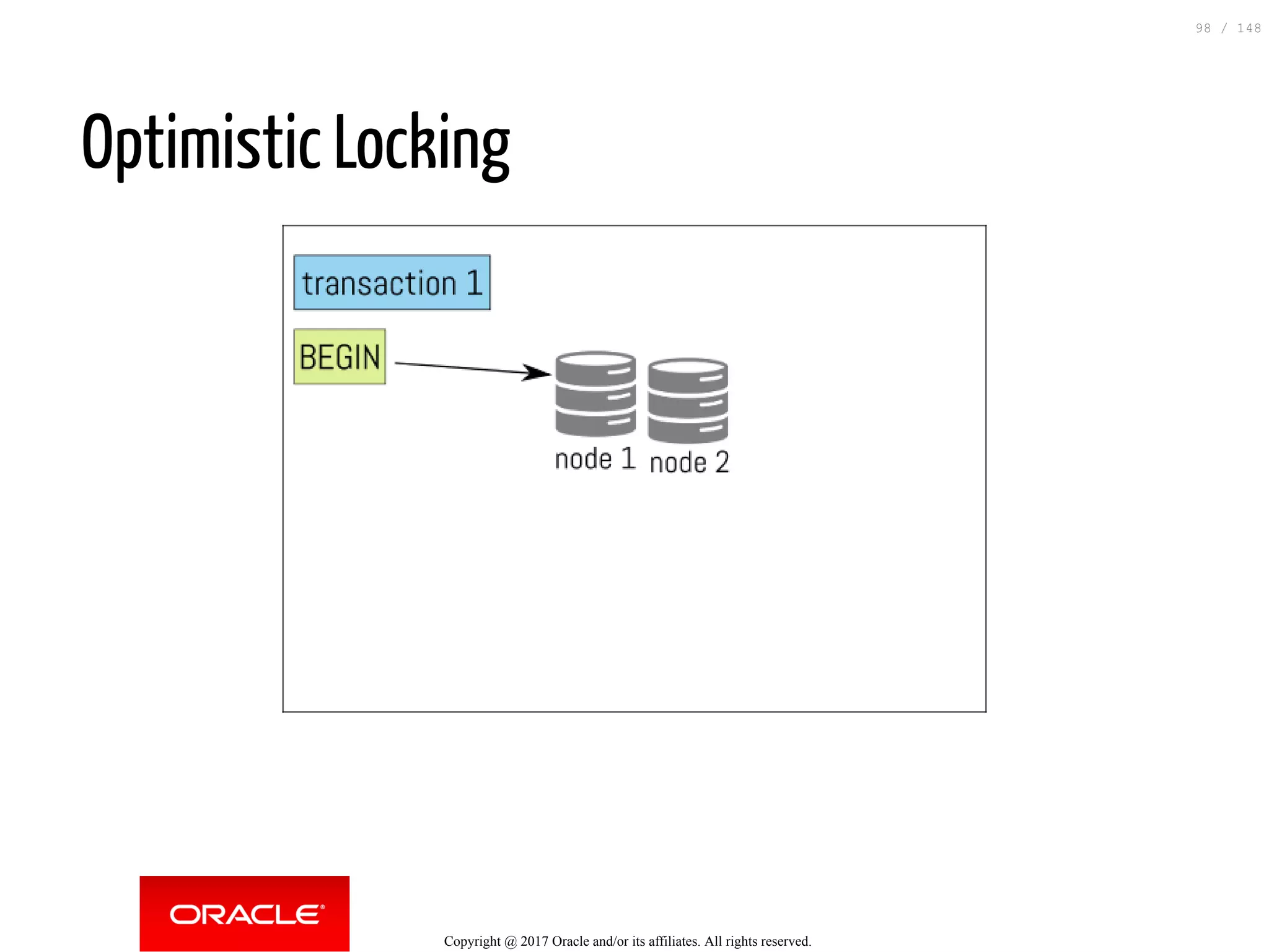

98. Optimistic Locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
98 / 148

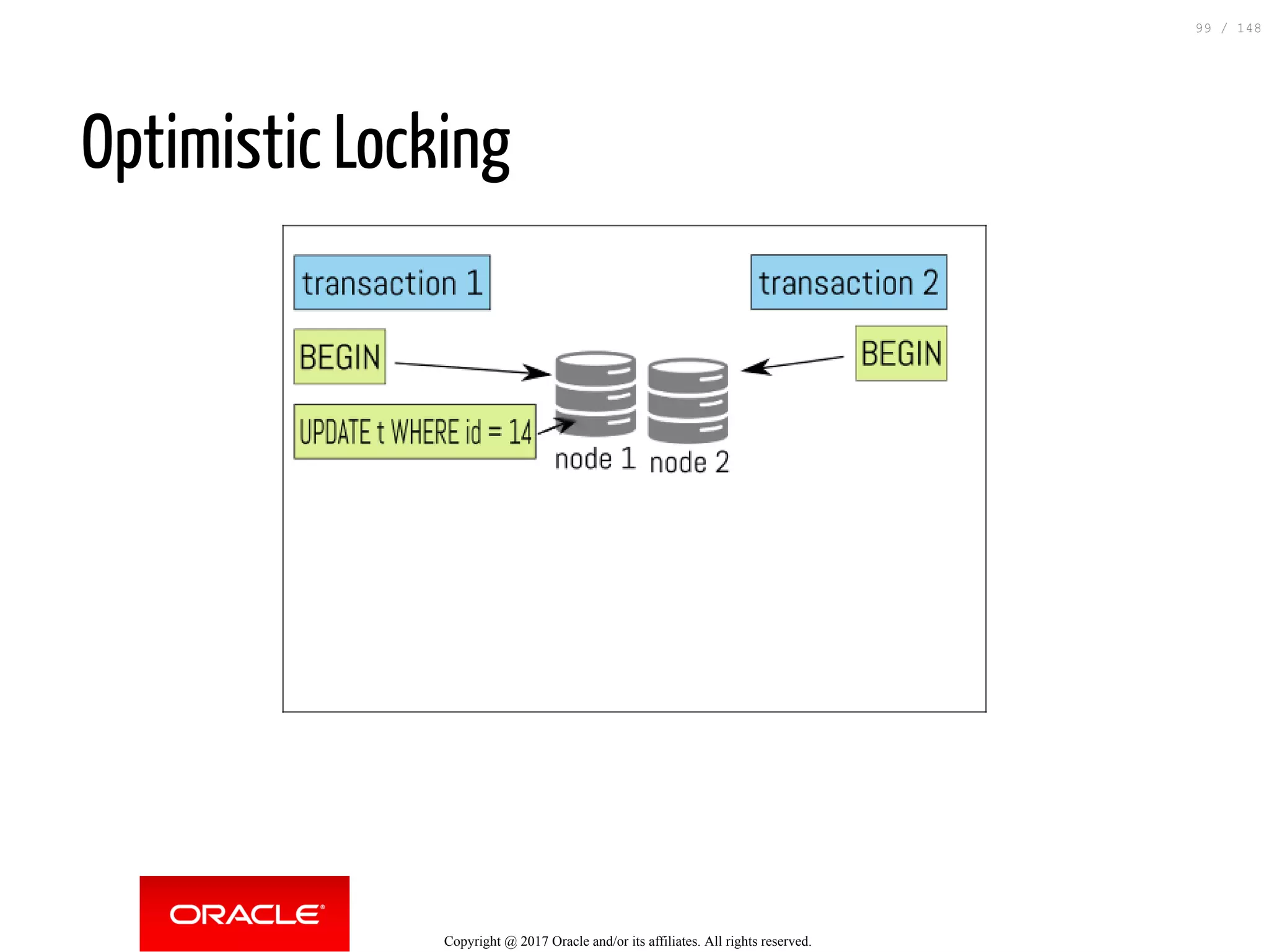

99. Optimistic Locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
99 / 148

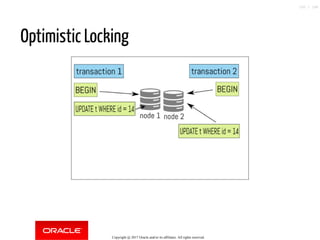

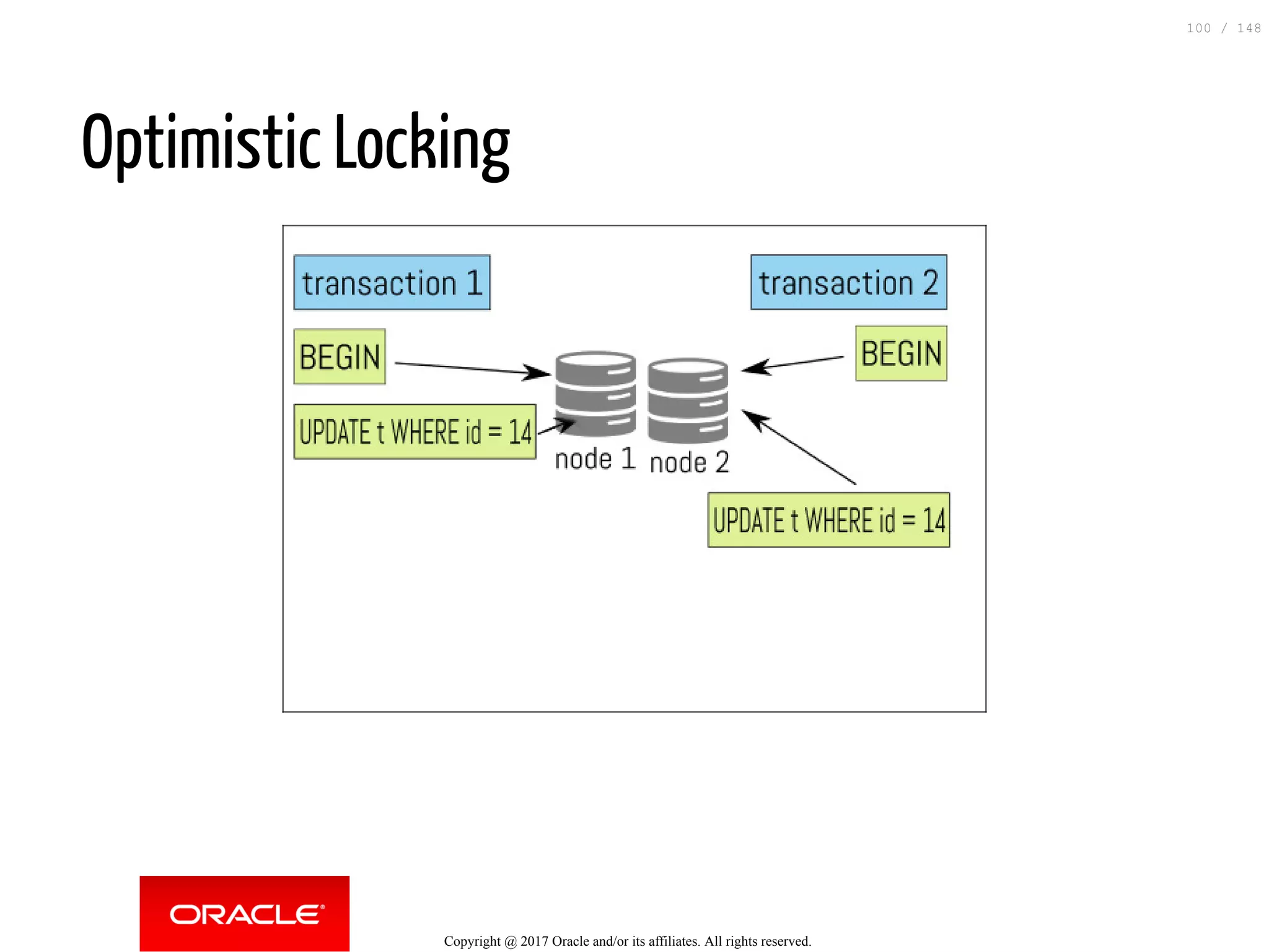

100. Optimistic Locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
100 / 148

101. Optimistic Locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
101 / 148

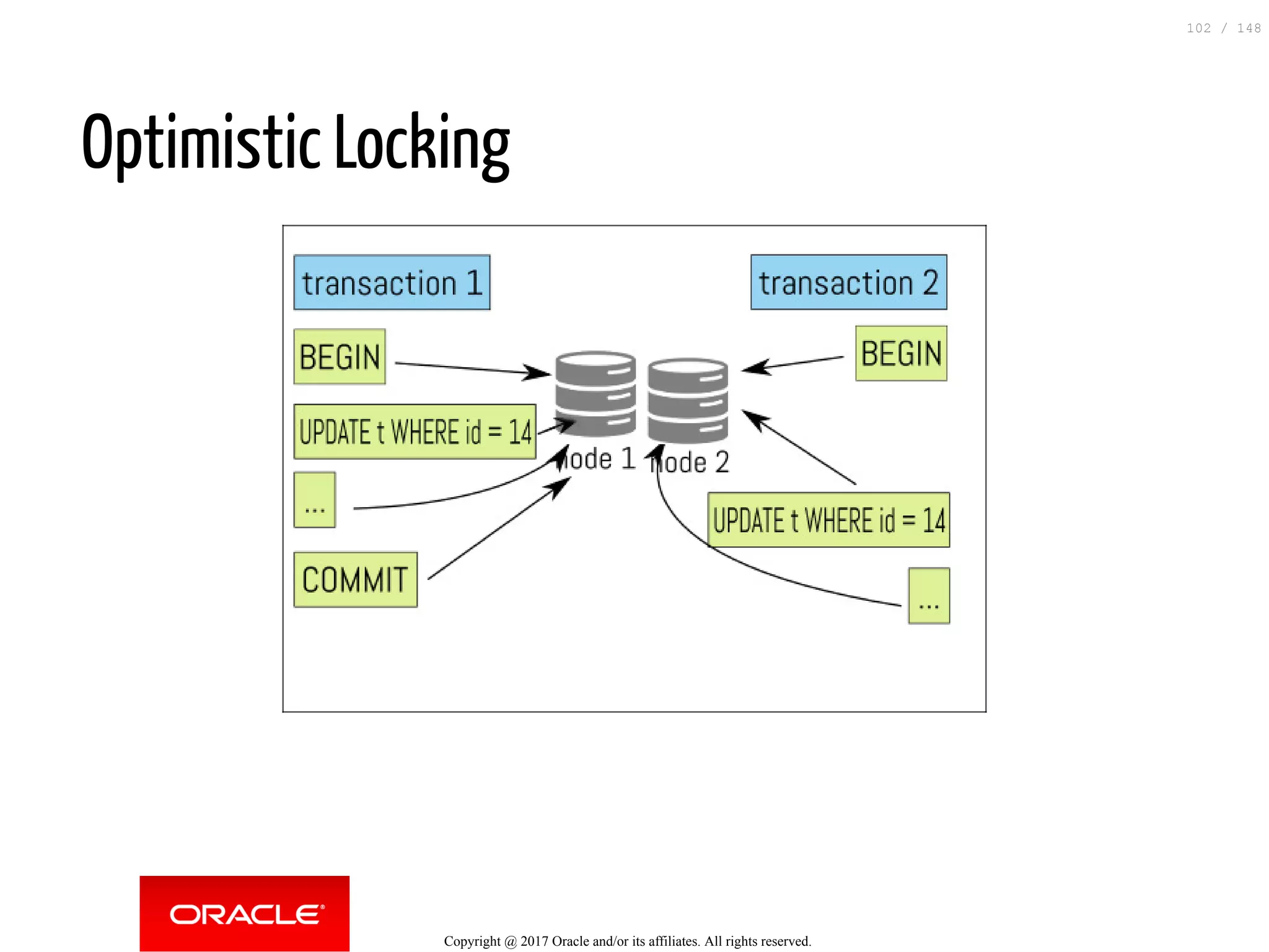

102. Optimistic Locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
102 / 148

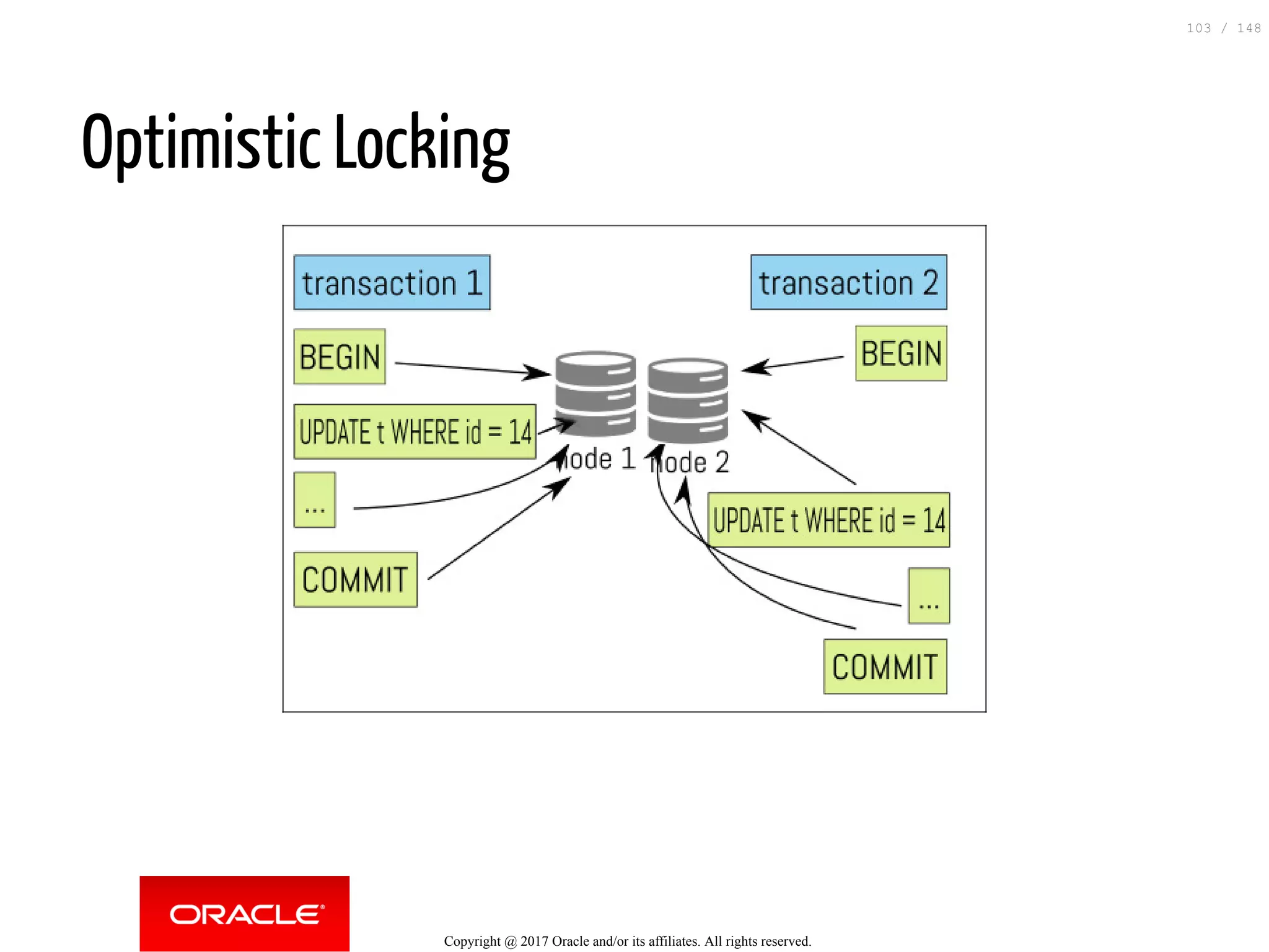

103. Optimistic Locking
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
103 / 148

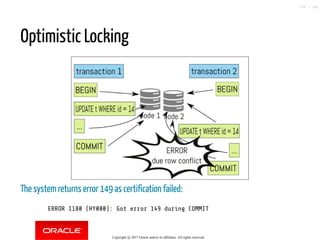

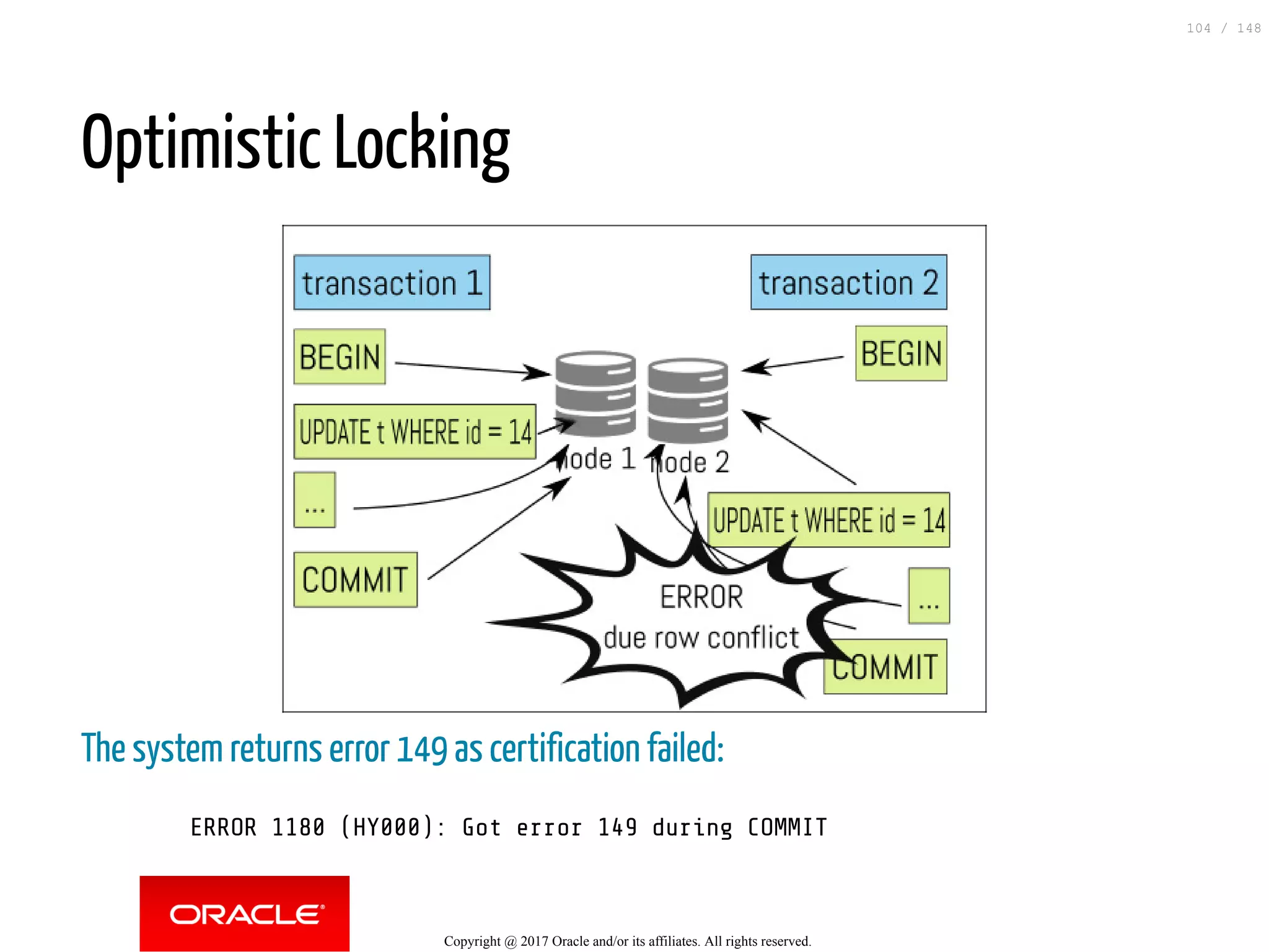

104. Optimistic Locking
The system returns error 149 as certification failed:
ERROR 1180 (HY000): Got error 149 during COMMIT
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
104 / 148

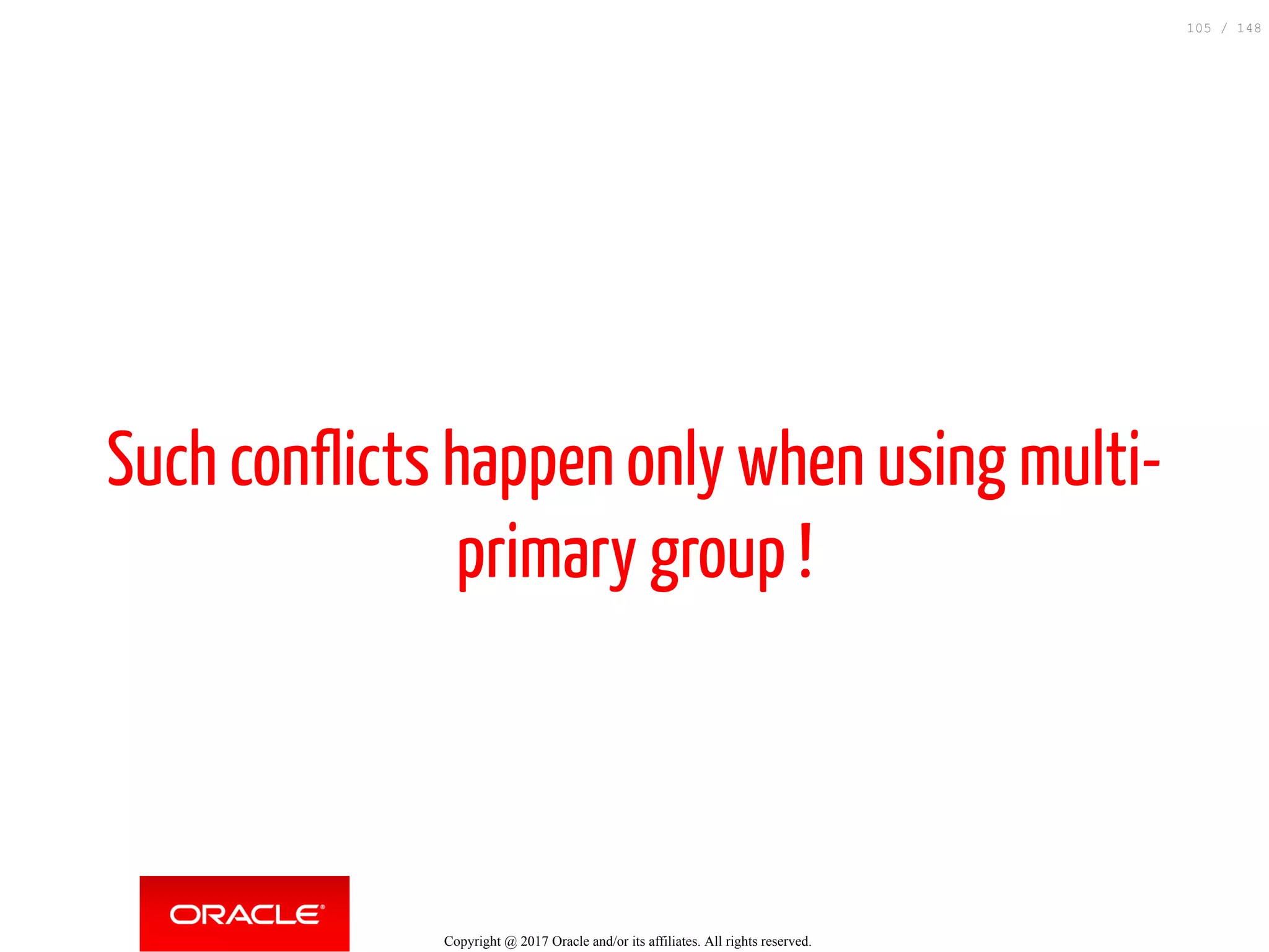

105. Such conflicts happen only when using multi-
primary group !
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
105 / 148

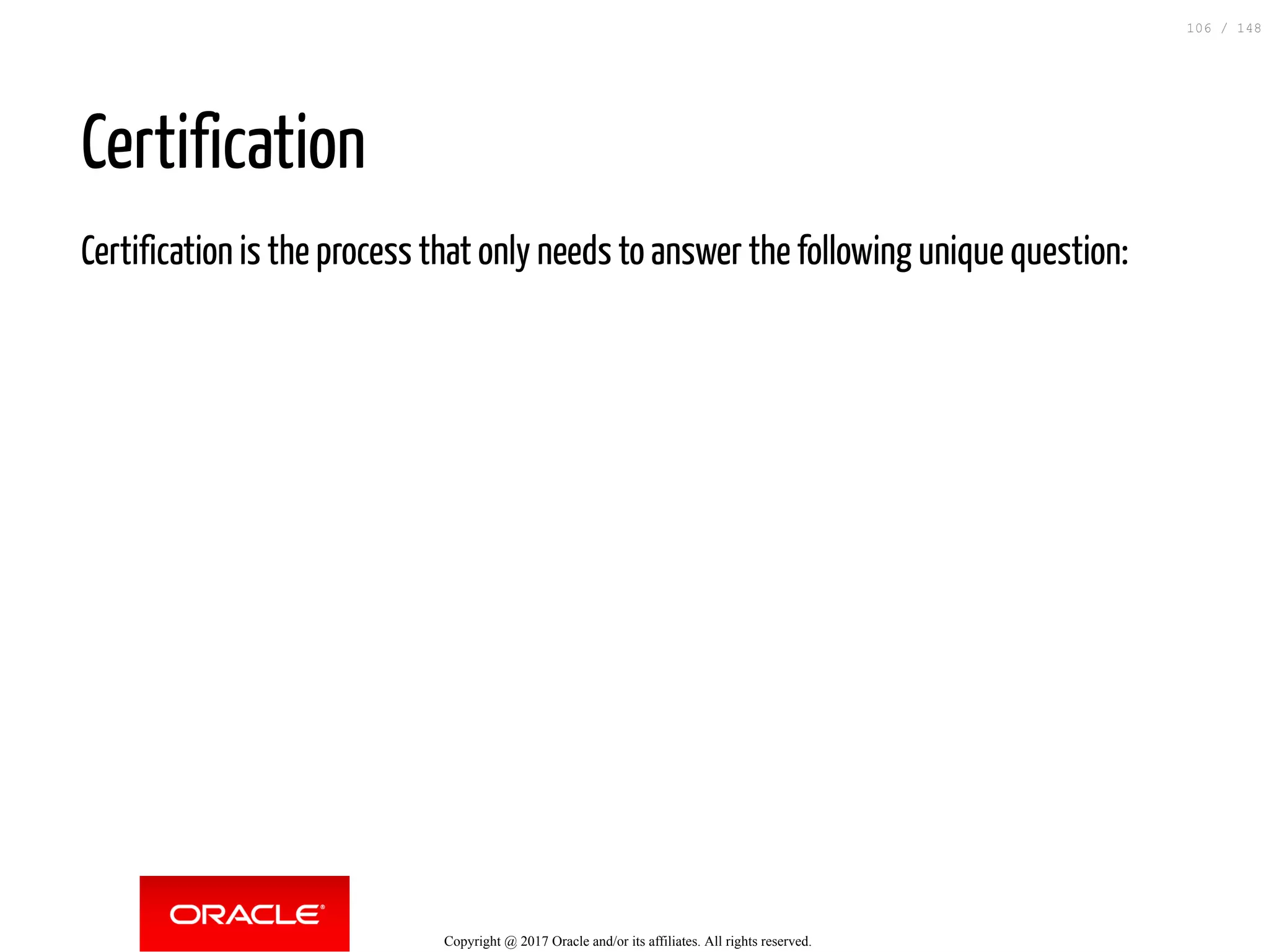

106. Certification
Certification is the process that only needs to answer the following unique question:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
106 / 148

107. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
107 / 148

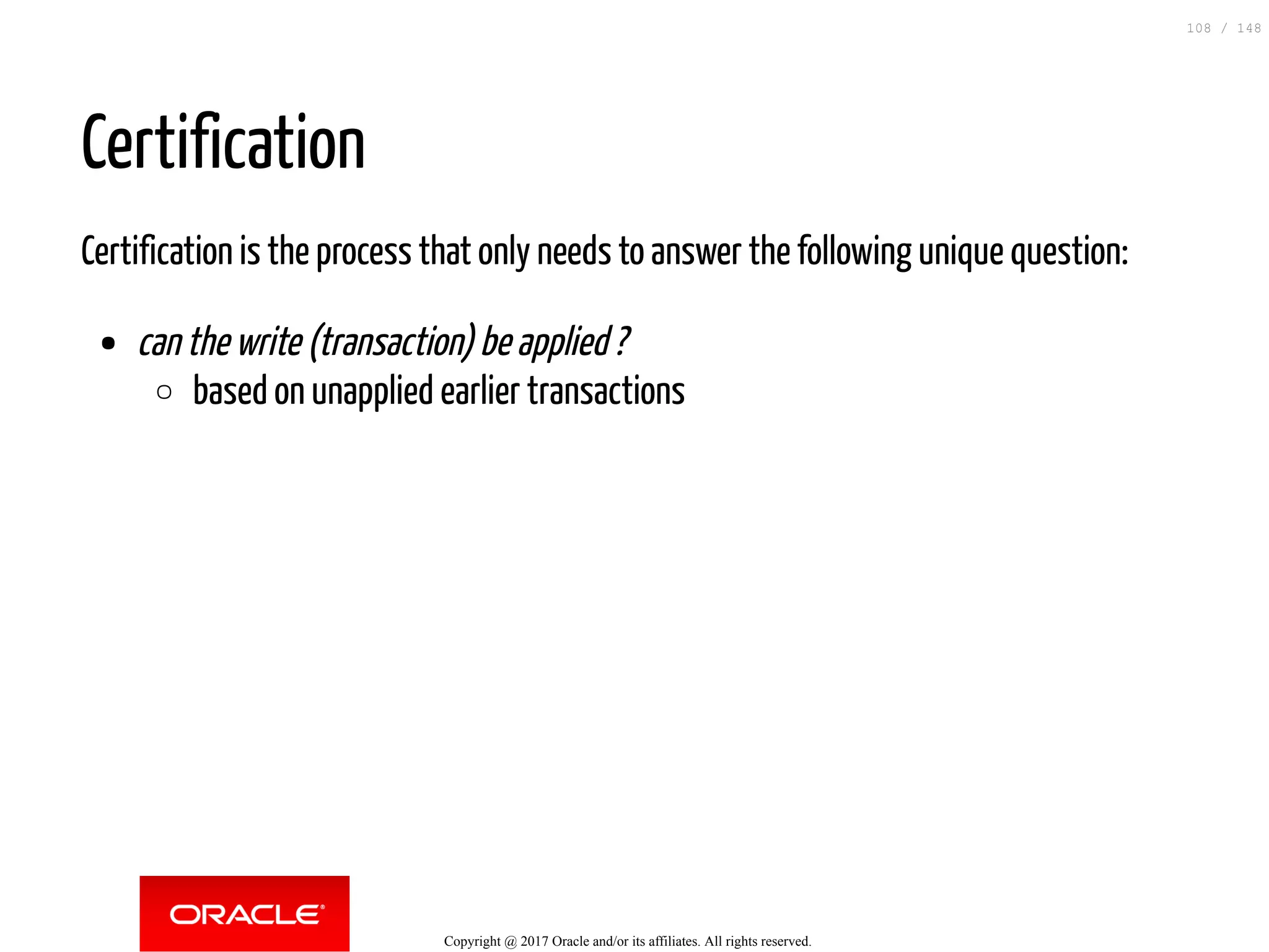

108. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
108 / 148

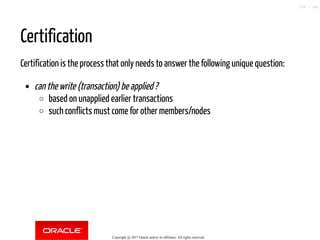

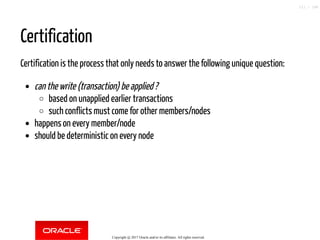

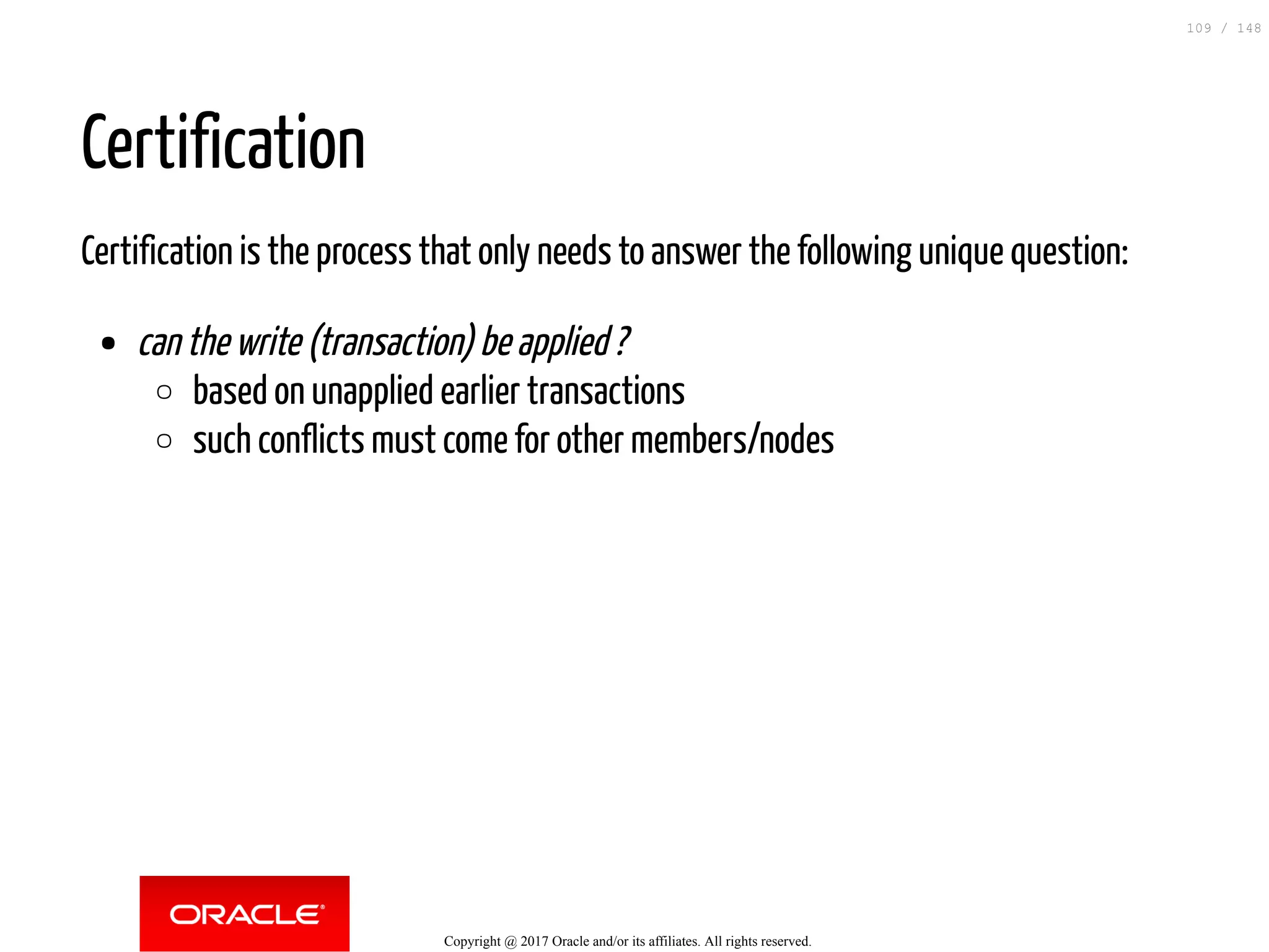

109. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
109 / 148

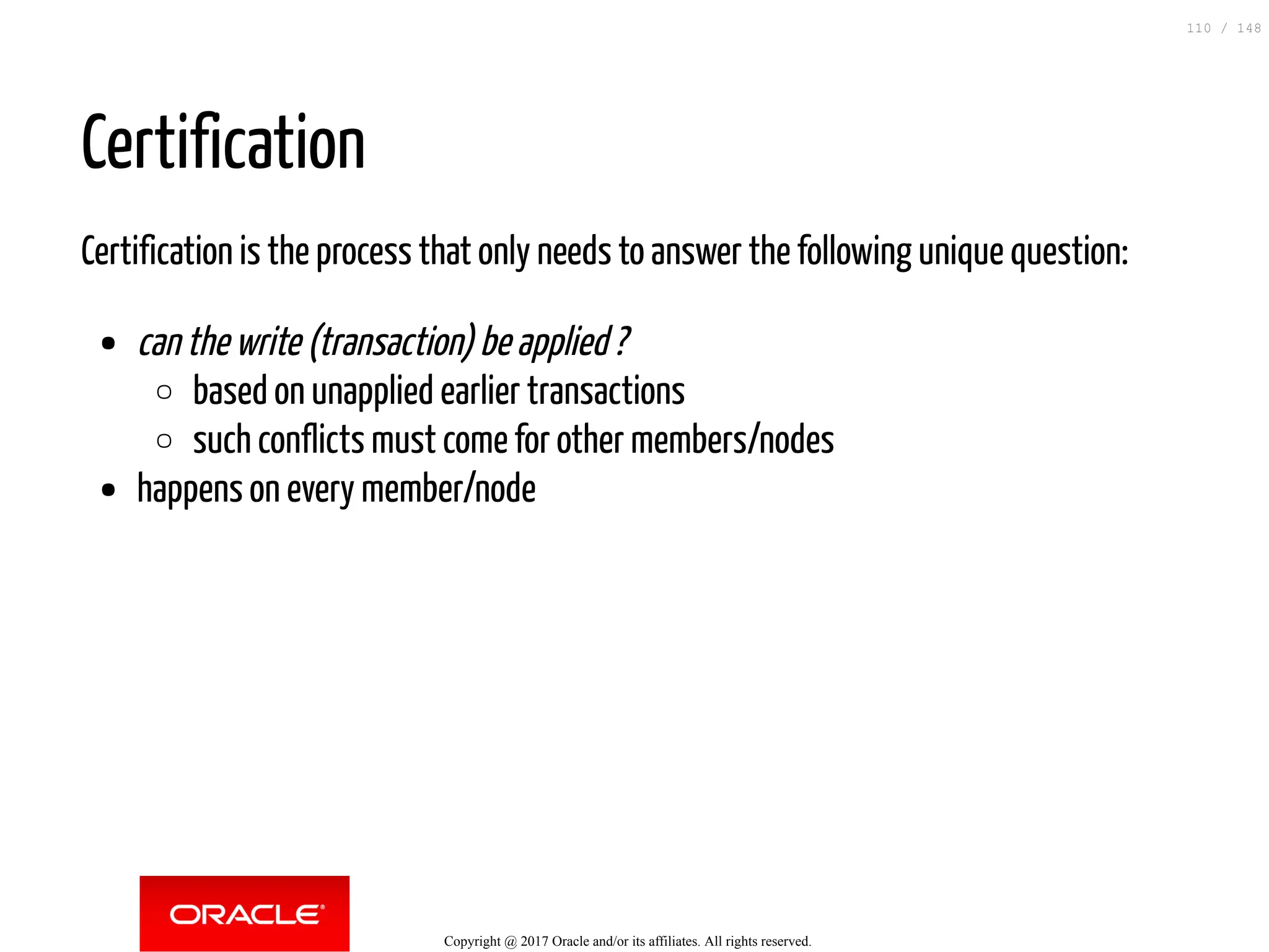

110. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
110 / 148

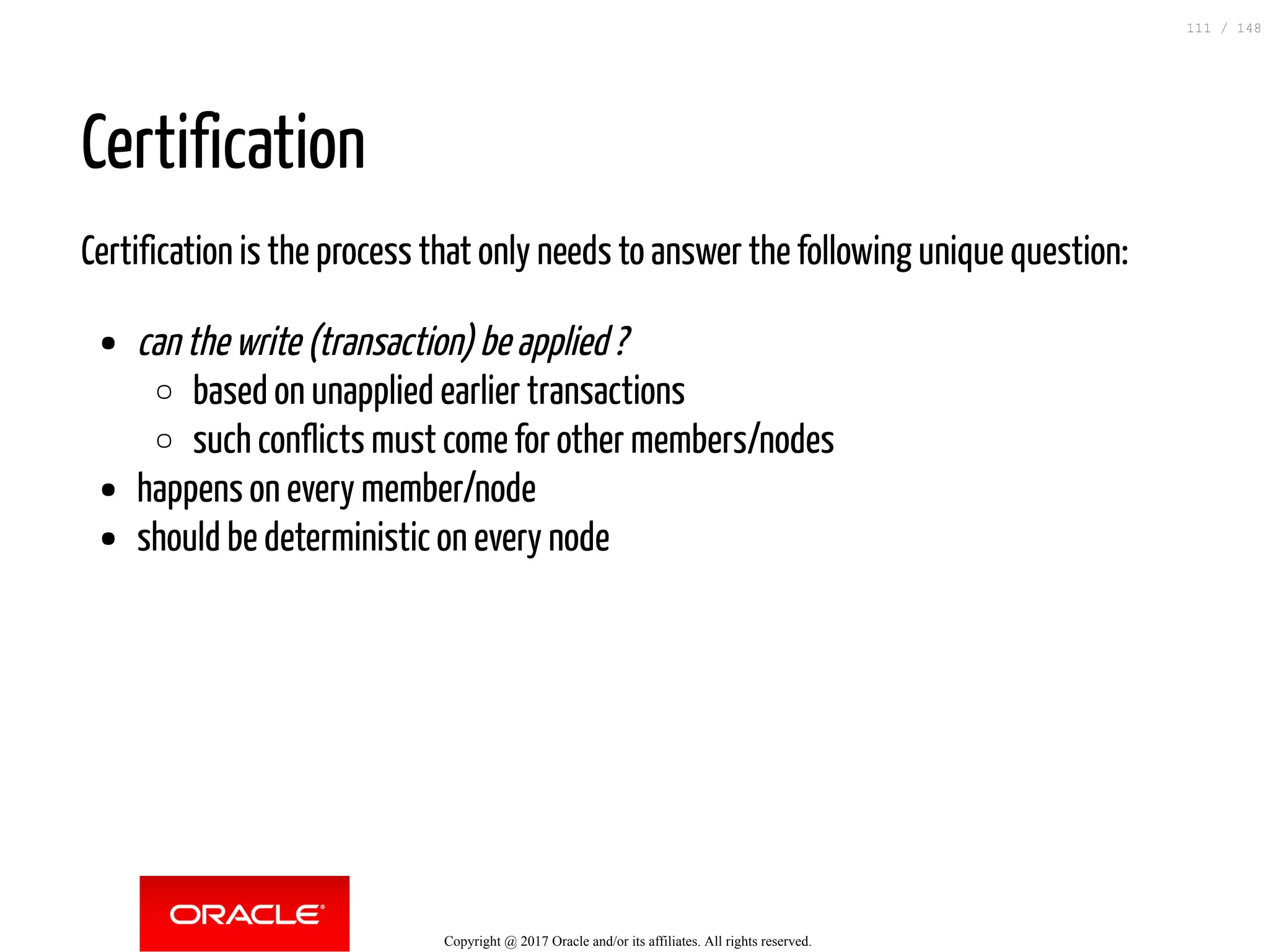

111. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
should be deterministic on every node
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
111 / 148

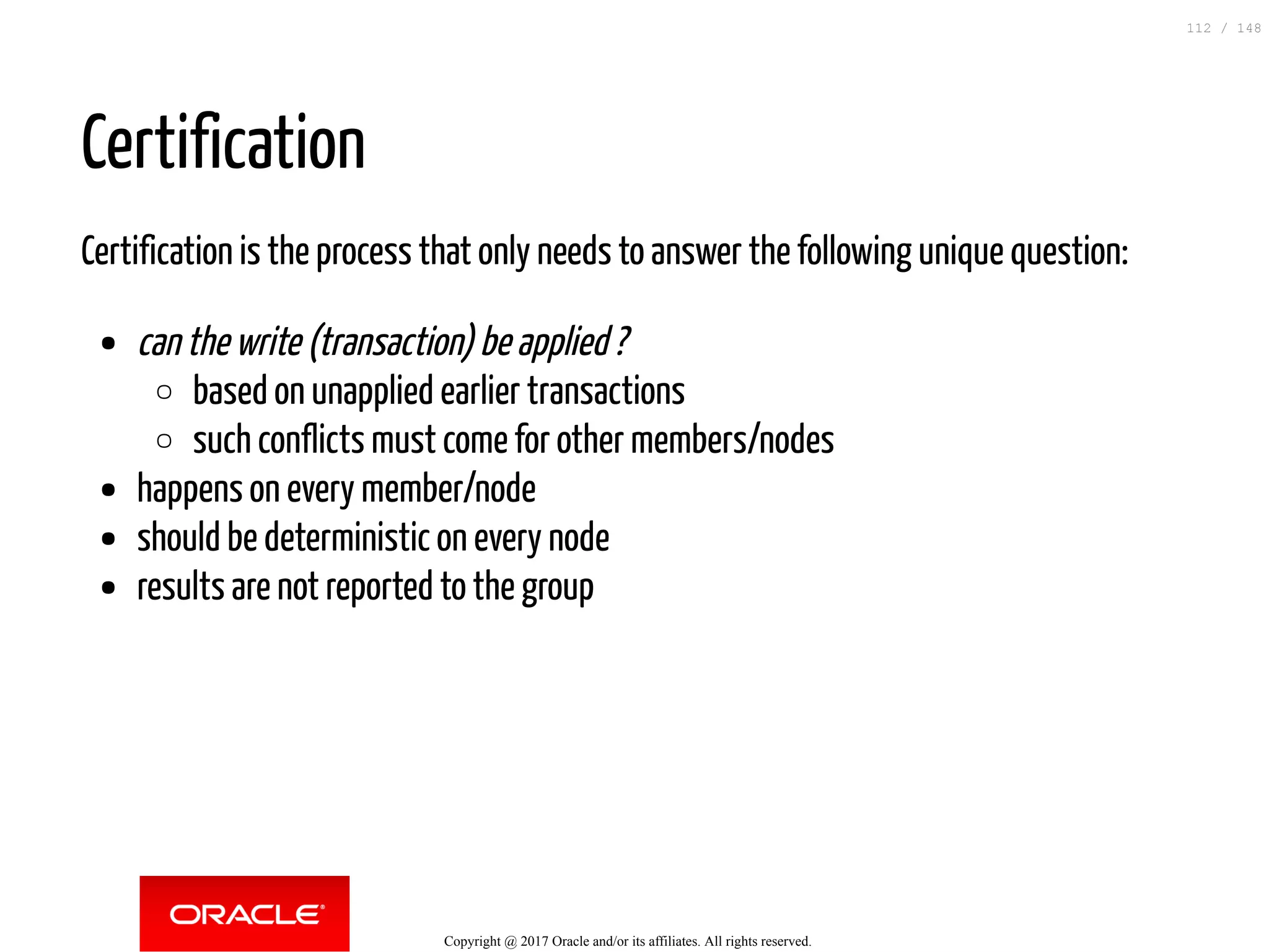

112. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to the group
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
112 / 148

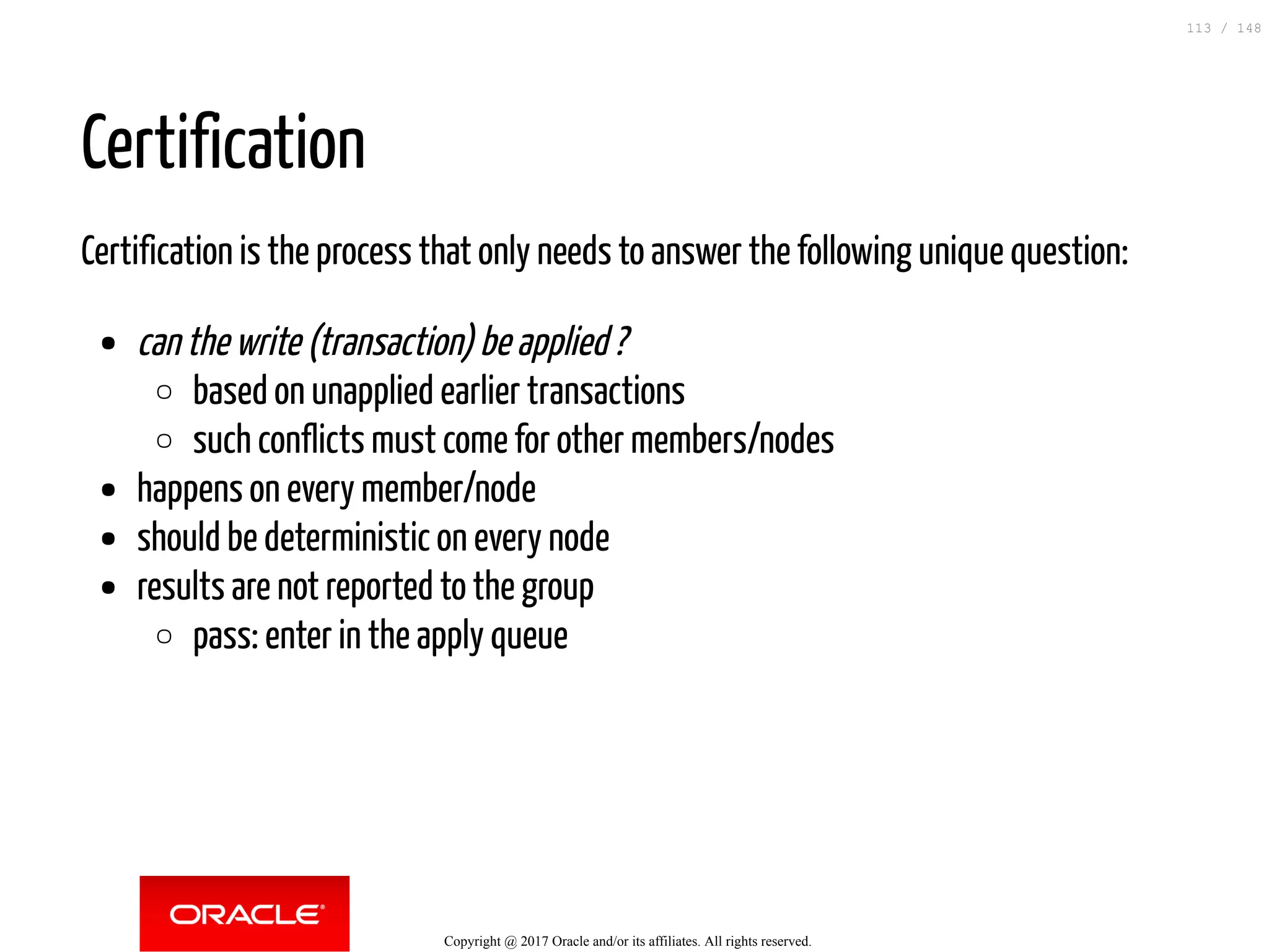

113. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to the group
pass: enter in the apply queue
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
113 / 148

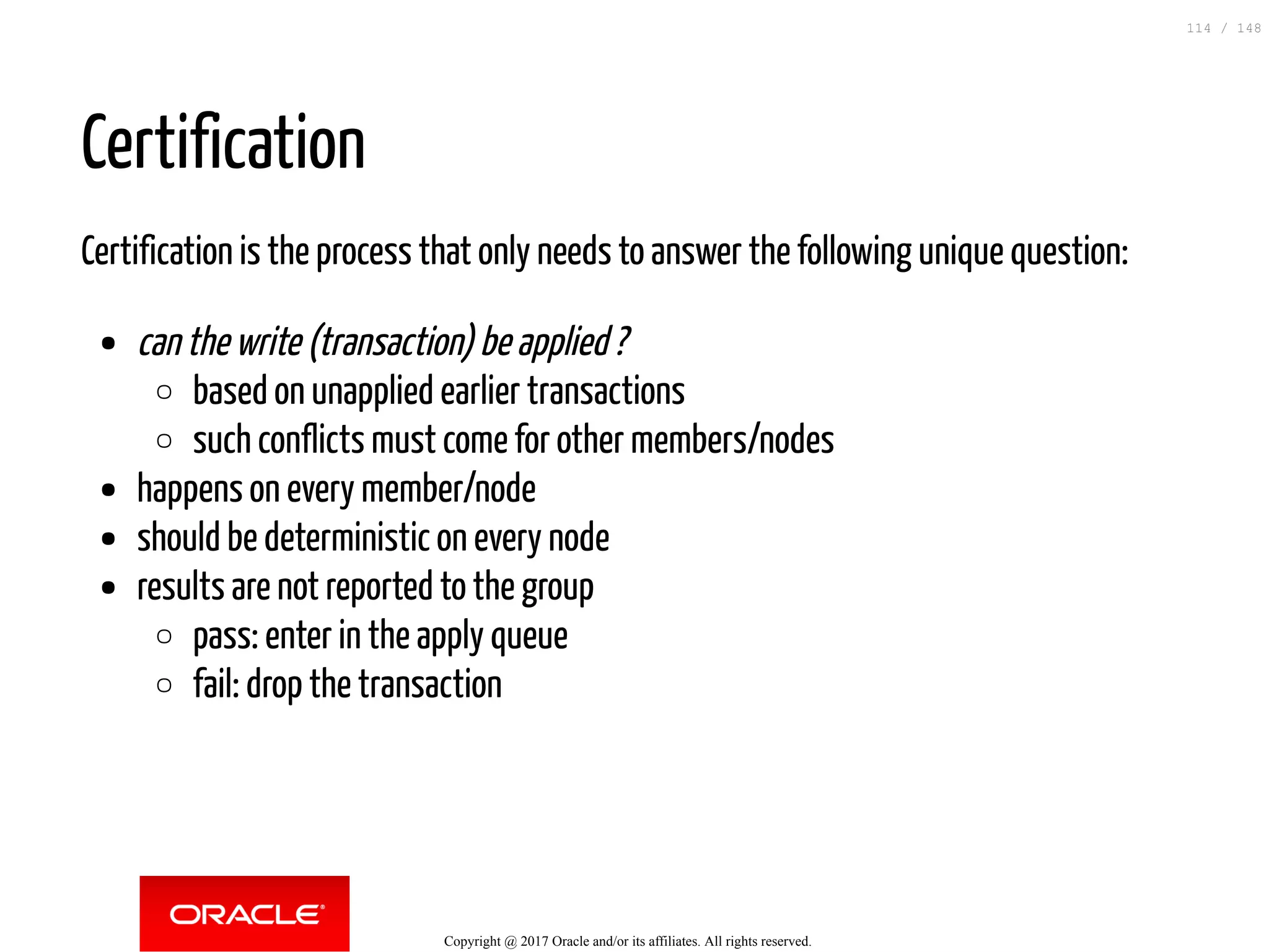

114. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to the group
pass: enter in the apply queue
fail: drop the transaction
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
114 / 148

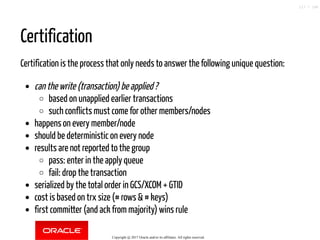

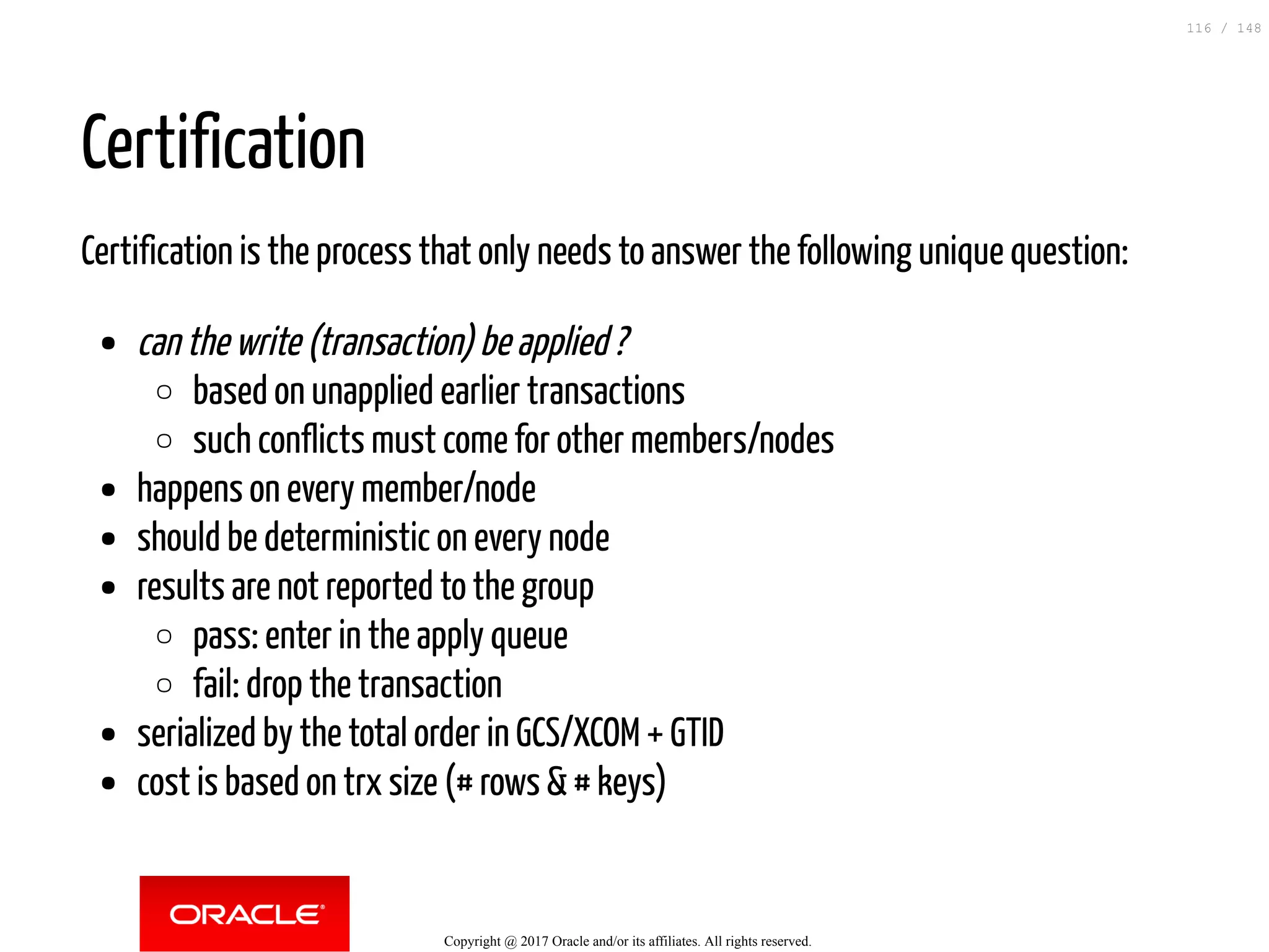

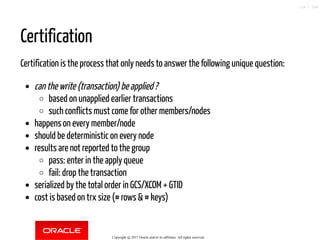

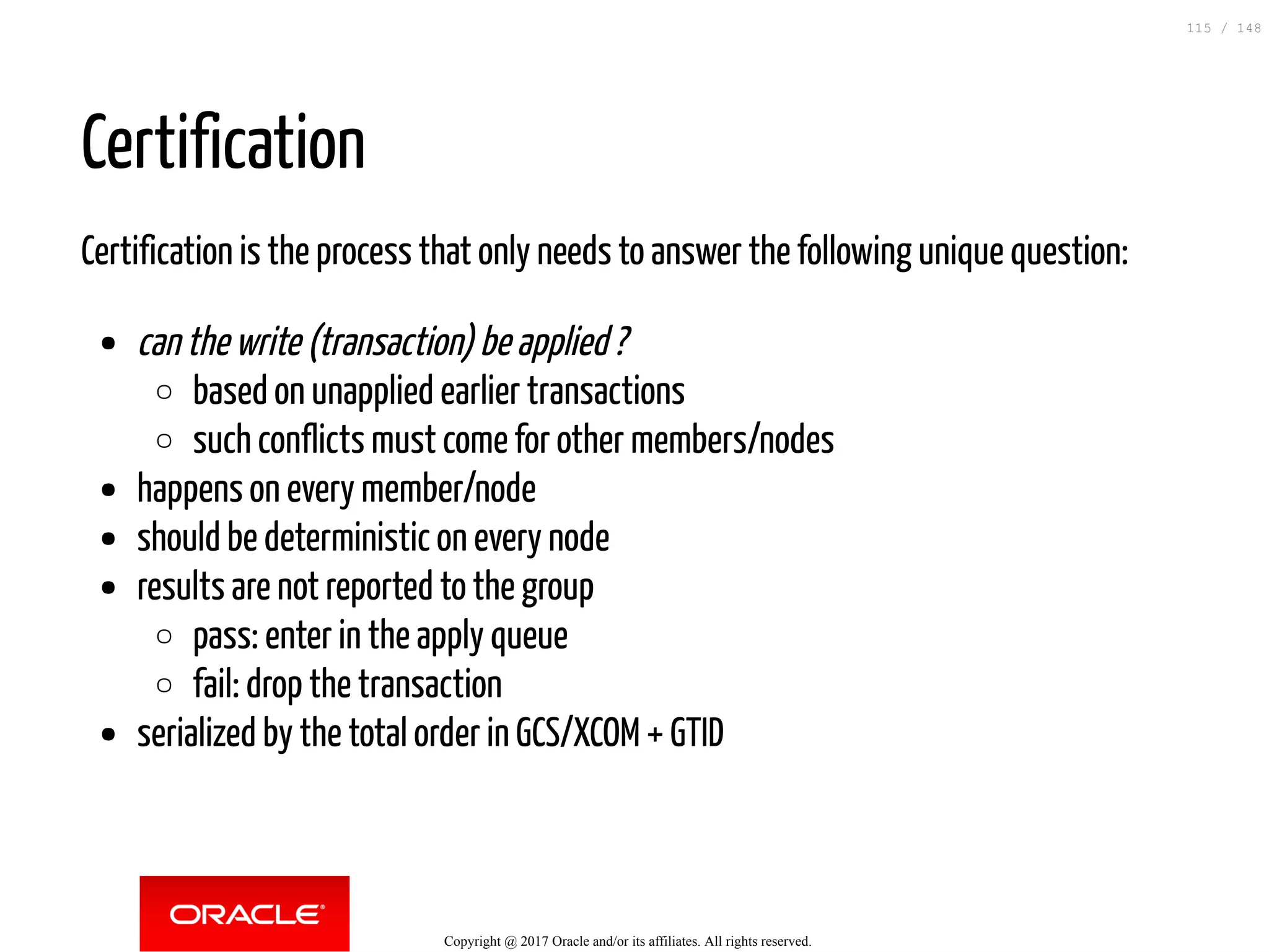

115. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to the group
pass: enter in the apply queue
fail: drop the transaction
serialized by the total order in GCS/XCOM + GTID
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
115 / 148

116. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to the group
pass: enter in the apply queue
fail: drop the transaction
serialized by the total order in GCS/XCOM + GTID
cost is based on trx size (# rows & # keys)
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
116 / 148

117. Certification
Certification is the process that only needs to answer the following unique question:
can the write (transaction) be applied ?
based on unapplied earlier transactions
such conflicts must come for other members/nodes
happens on every member/node
should be deterministic on every node
results are not reported to the group
pass: enter in the apply queue
fail: drop the transaction
serialized by the total order in GCS/XCOM + GTID
cost is based on trx size (# rows & # keys)
first committer (and ack from majority) wins rule
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
117 / 148

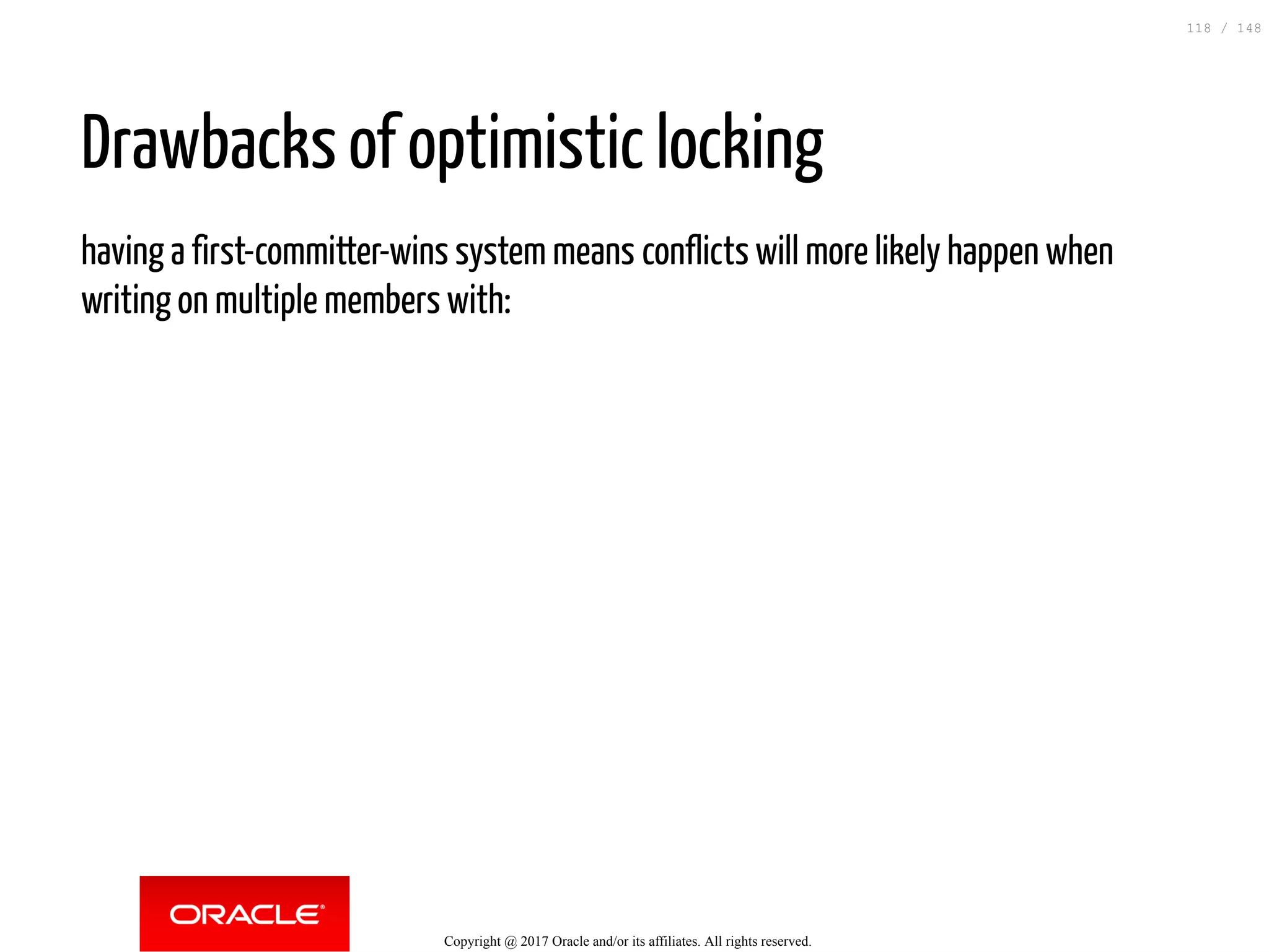

118. Drawbacks of optimistic locking
having a first-committer-wins system means conflicts will more likely happen when
writing on multiple members with:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
118 / 148

119. Drawbacks of optimistic locking
having a first-committer-wins system means conflicts will more likely happen when
writing on multiple members with:
large transactions
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
119 / 148

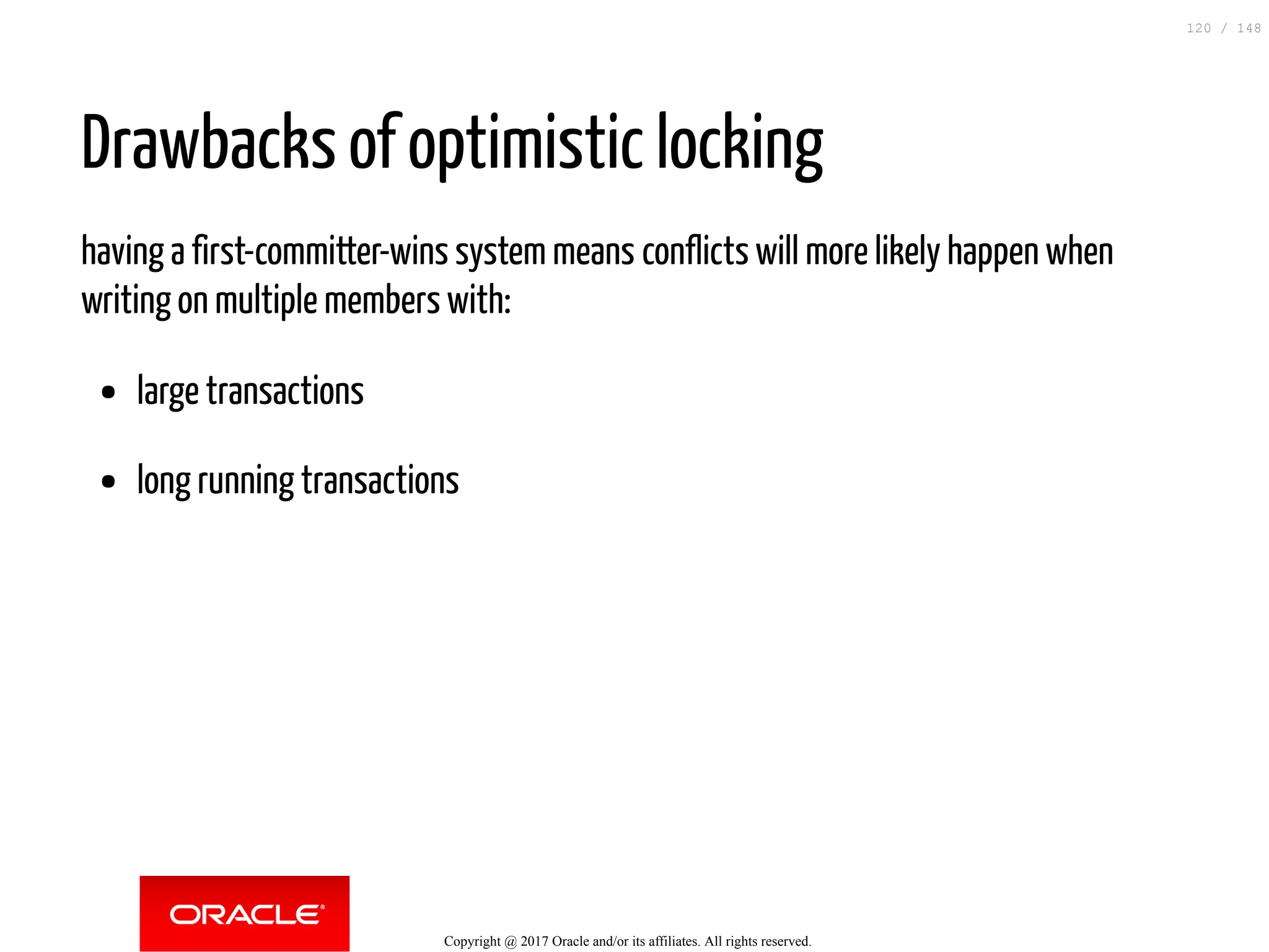

120. Drawbacks of optimistic locking
having a first-committer-wins system means conflicts will more likely happen when
writing on multiple members with:
large transactions
long running transactions
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
120 / 148

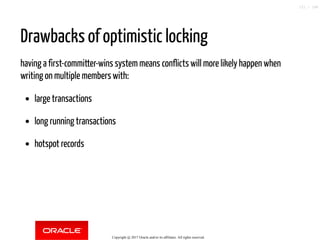

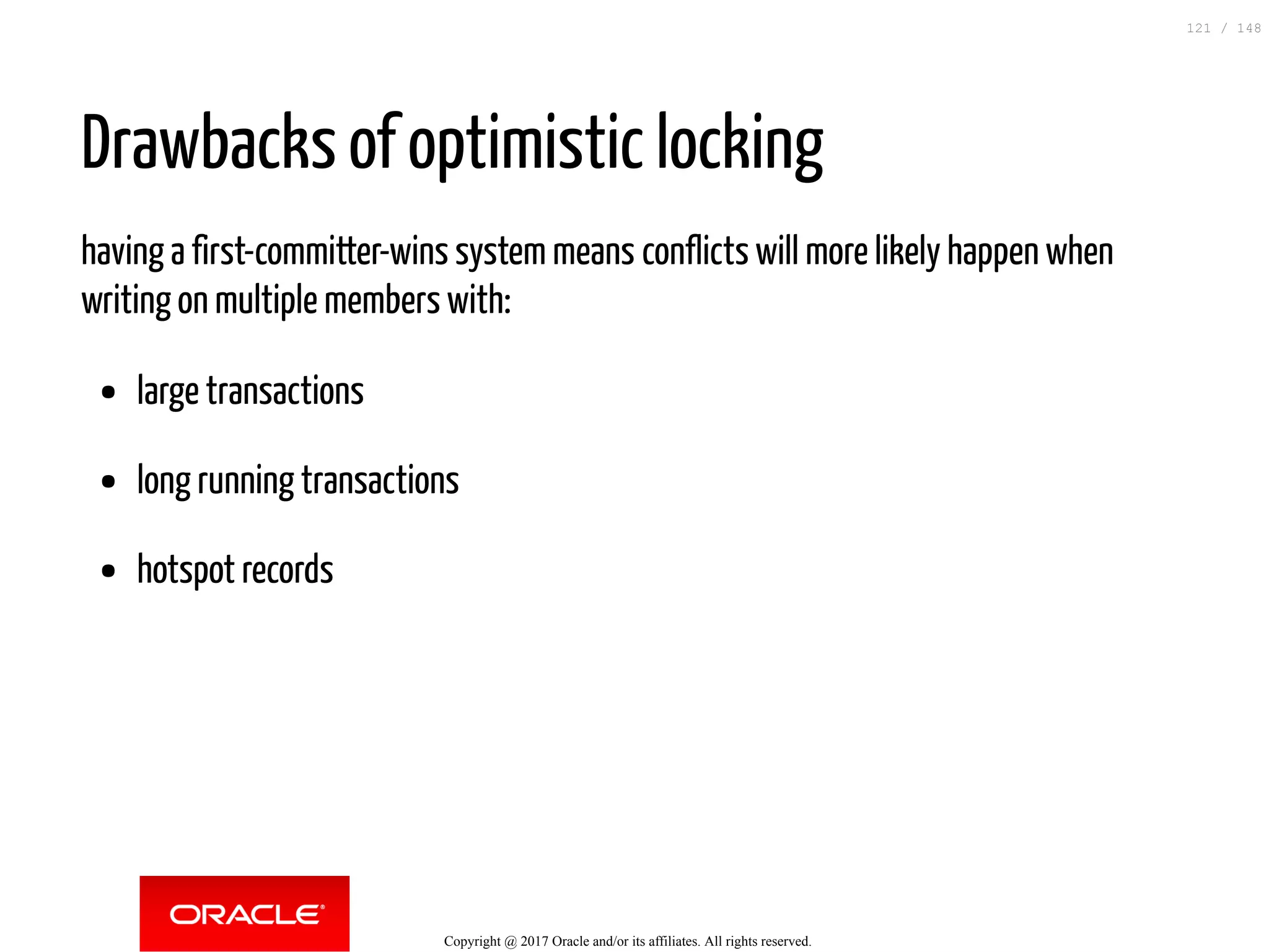

121. Drawbacks of optimistic locking
having a first-committer-wins system means conflicts will more likely happen when
writing on multiple members with:
large transactions
long running transactions
hotspot records
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
121 / 148

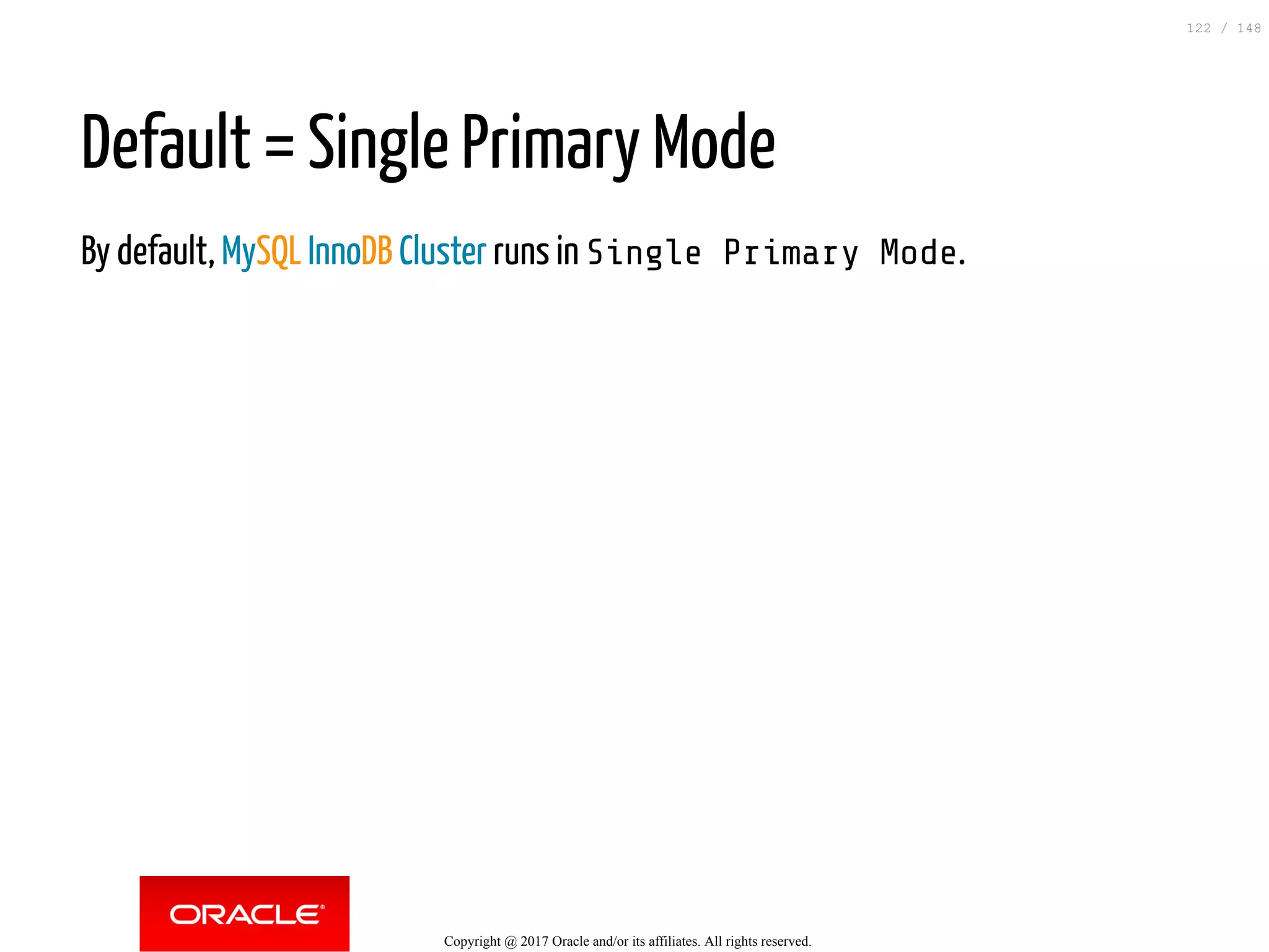

122. Default = Single Primary Mode
By default, MySQL InnoDB Cluster runs in Single Primary Mode.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
122 / 148

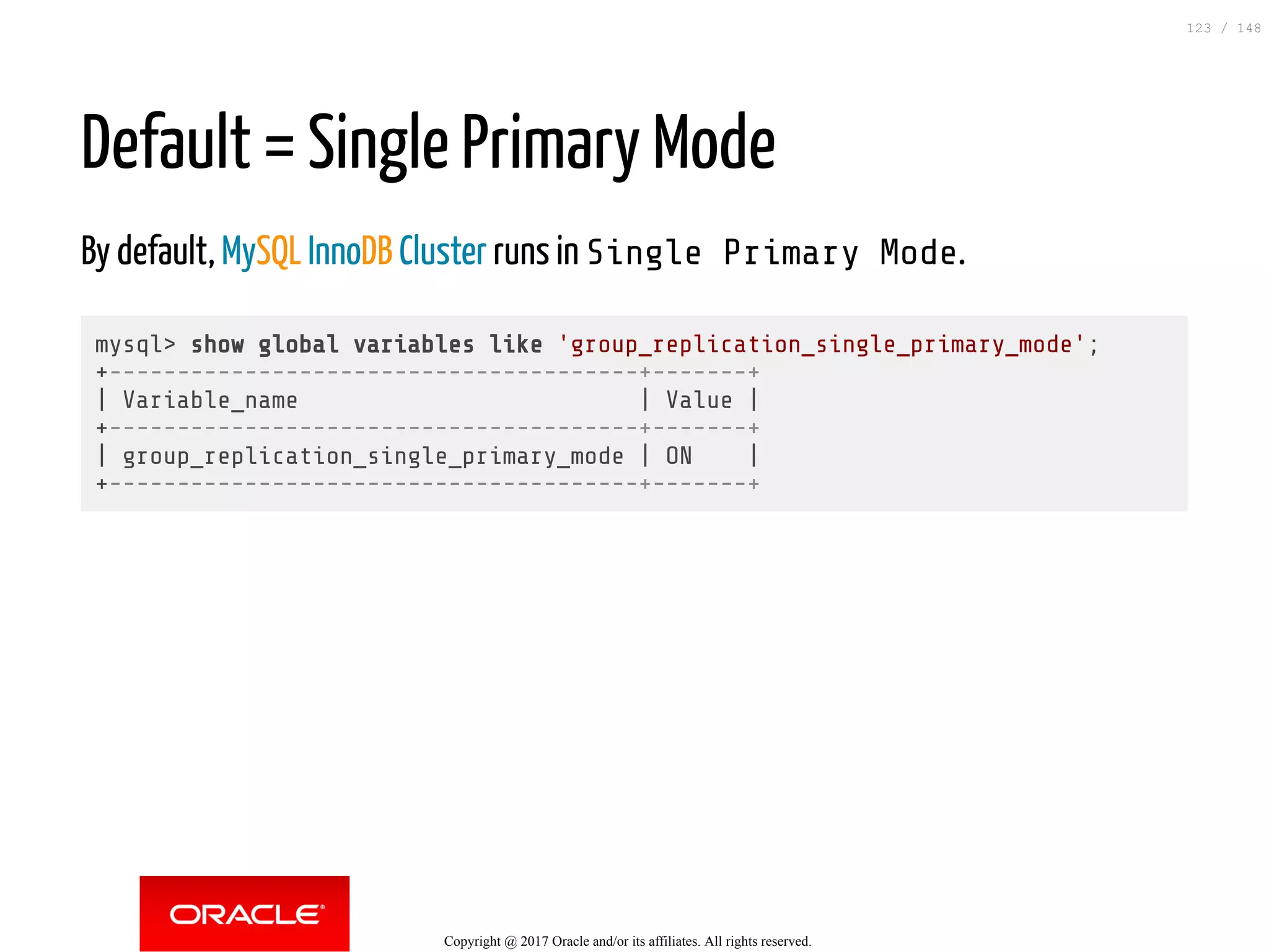

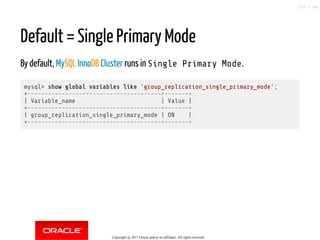

123. Default = Single Primary Mode
By default, MySQL InnoDB Cluster runs in Single Primary Mode.
mysql> show global variables like 'group_replication_single_primary_mode';
+---------------------------------------+-------+
| Variable_name | Value |
+---------------------------------------+-------+
| group_replication_single_primary_mode | ON |
+---------------------------------------+-------+
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
123 / 148

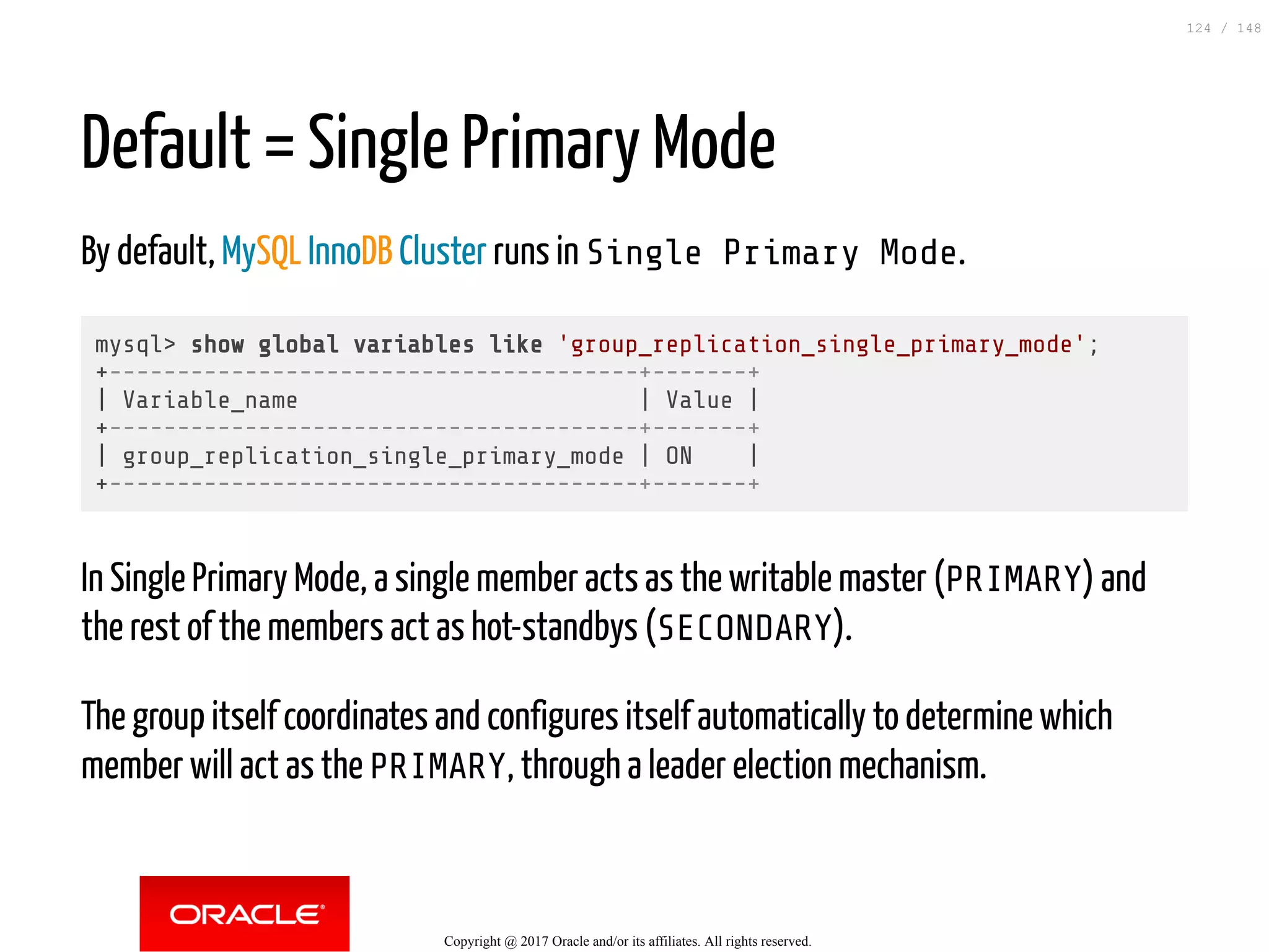

124. Default = Single Primary Mode
By default, MySQL InnoDB Cluster runs in Single Primary Mode.
mysql> show global variables like 'group_replication_single_primary_mode';
+---------------------------------------+-------+
| Variable_name | Value |
+---------------------------------------+-------+
| group_replication_single_primary_mode | ON |
+---------------------------------------+-------+
In Single Primary Mode, a single member acts as the writable master (PRIMARY) and
the rest of the members act as hot-standbys (SECONDARY).
The group itself coordinates and configures itself automatically to determine which
member will act as the PRIMARY, through a leader election mechanism.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
124 / 148

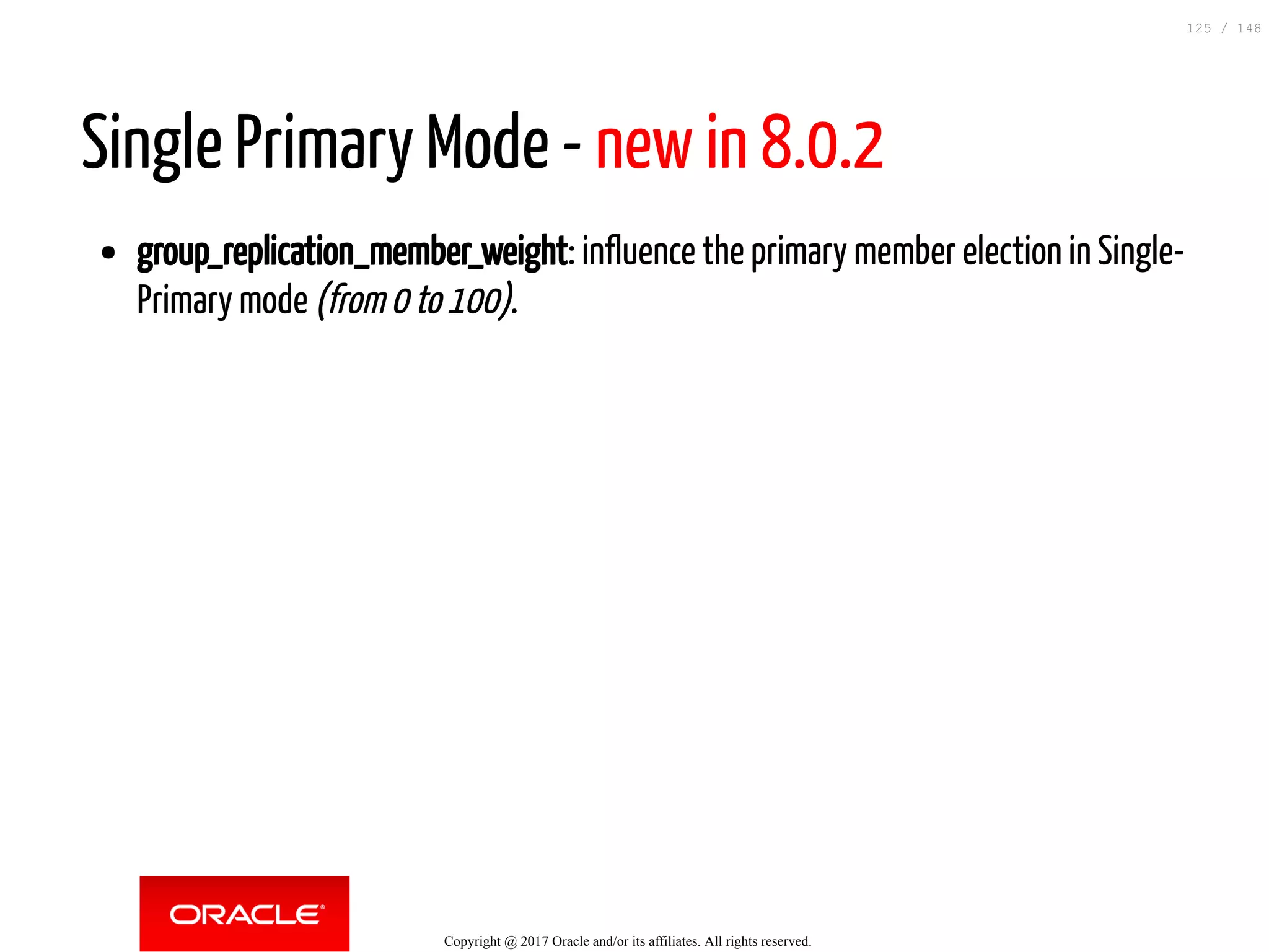

125. Single Primary Mode - new in 8.0.2
group_replication_member_weight: influence the primary member election in Single-
Primary mode (from 0 to 100).
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
125 / 148

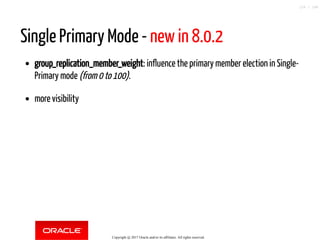

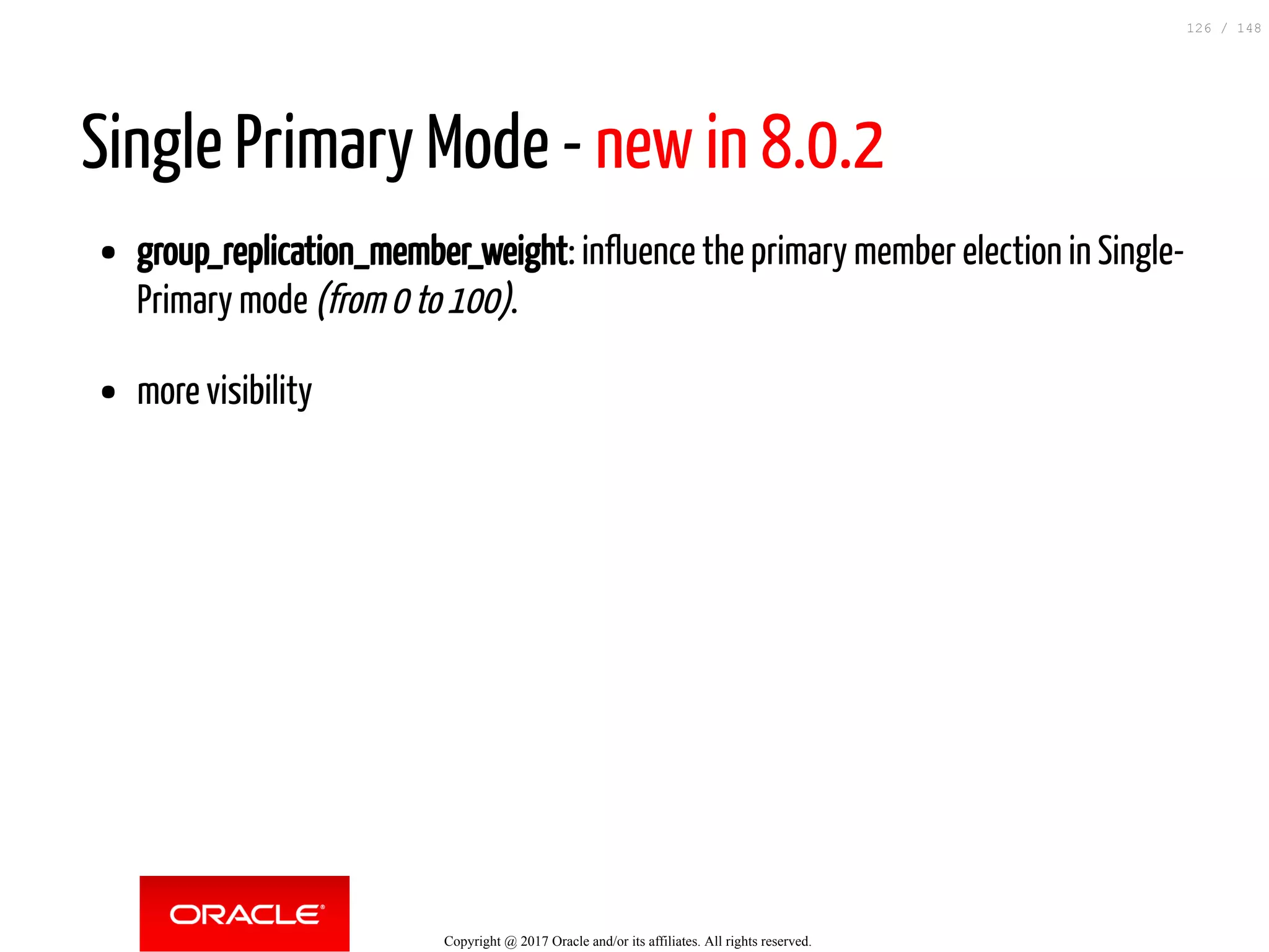

126. Single Primary Mode - new in 8.0.2
group_replication_member_weight: influence the primary member election in Single-
Primary mode (from 0 to 100).
more visibility
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
126 / 148

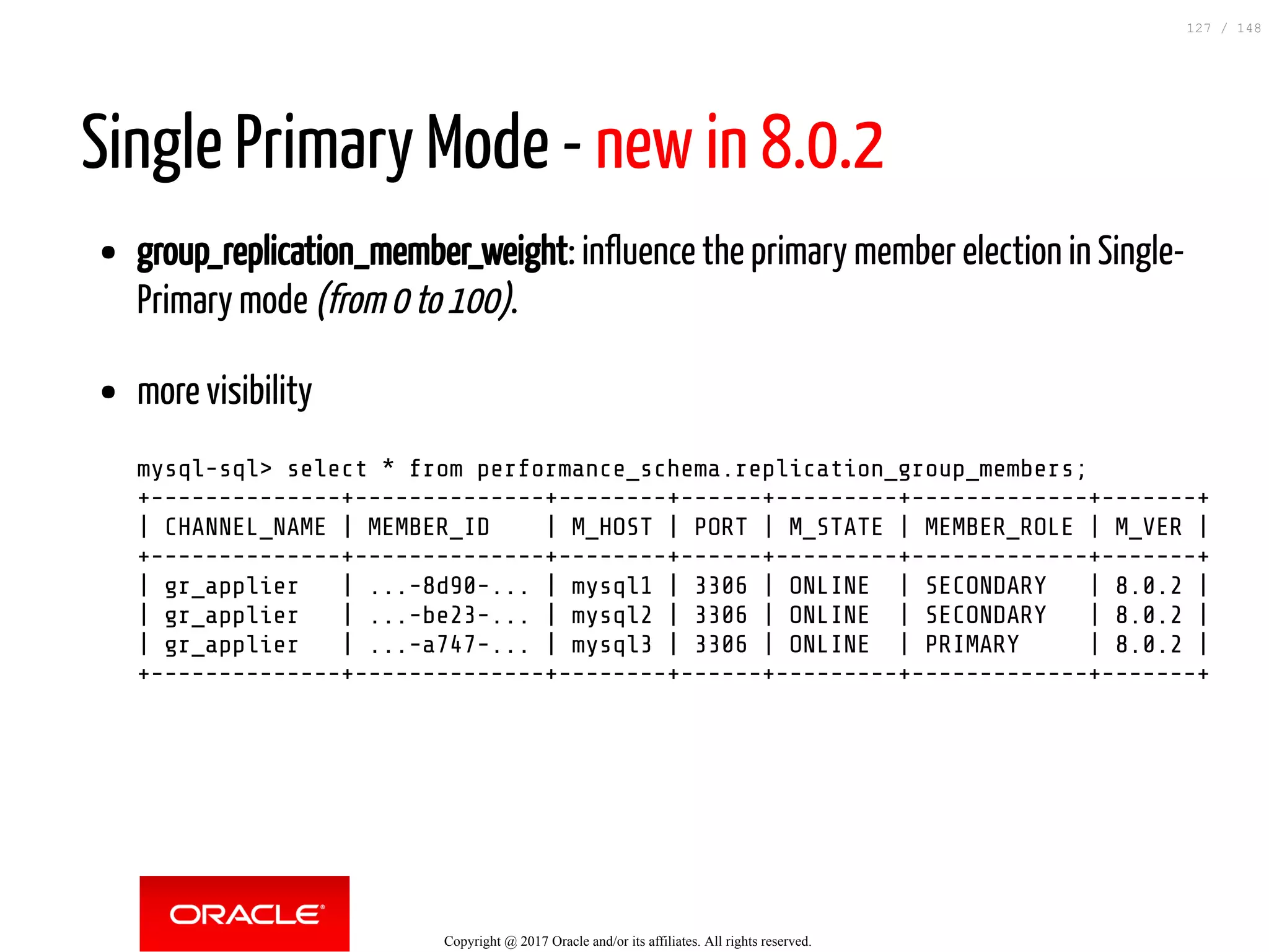

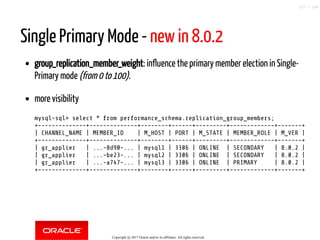

127. Single Primary Mode - new in 8.0.2
group_replication_member_weight: influence the primary member election in Single-
Primary mode (from 0 to 100).
more visibility
mysql-sql> select * from performance_schema.replication_group_members;
+--------------+--------------+--------+------+---------+-------------+-------+
| CHANNEL_NAME | MEMBER_ID | M_HOST | PORT | M_STATE | MEMBER_ROLE | M_VER |
+--------------+--------------+--------+------+---------+-------------+-------+
| gr_applier | ...-8d90-... | mysql1 | 3306 | ONLINE | SECONDARY | 8.0.2 |
| gr_applier | ...-be23-... | mysql2 | 3306 | ONLINE | SECONDARY | 8.0.2 |
| gr_applier | ...-a747-... | mysql3 | 3306 | ONLINE | PRIMARY | 8.0.2 |
+--------------+--------------+--------+------+---------+-------------+-------+
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
127 / 148

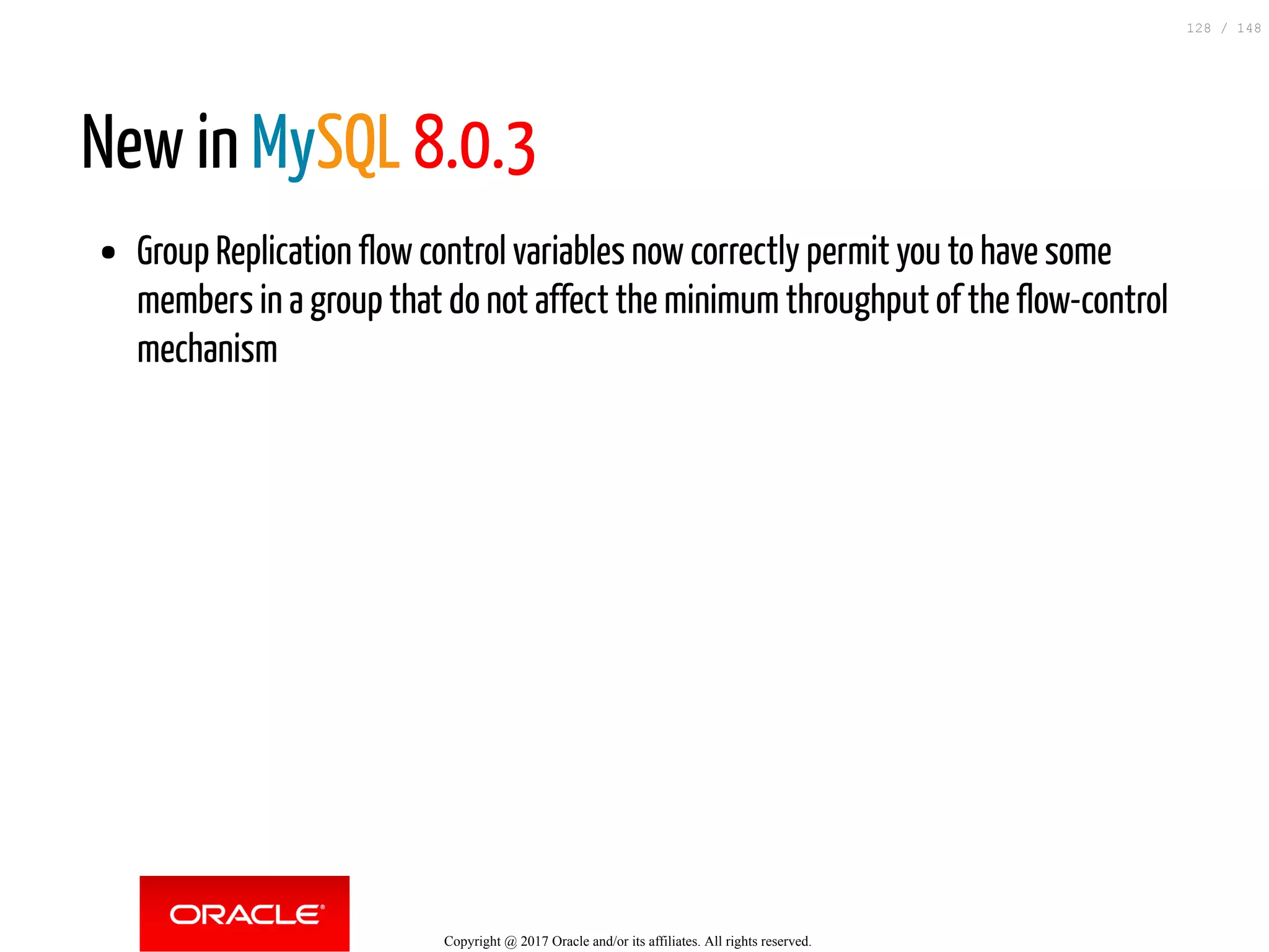

128. New in MySQL 8.0.3
Group Replication flow control variables now correctly permit you to have some
members in a group that do not affect the minimum throughput of the flow-control
mechanism
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
128 / 148

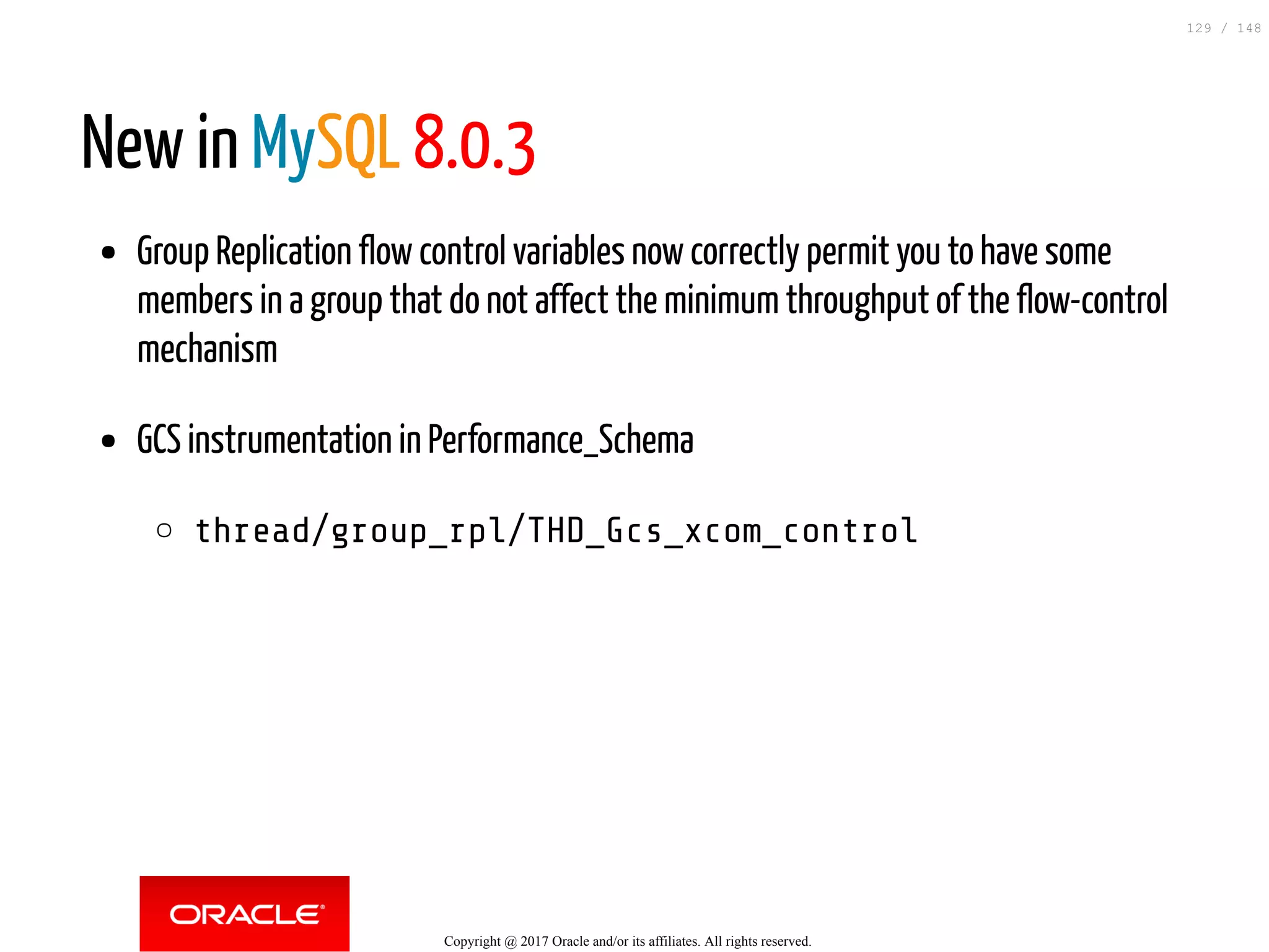

129. New in MySQL 8.0.3
Group Replication flow control variables now correctly permit you to have some
members in a group that do not affect the minimum throughput of the flow-control
mechanism
GCS instrumentation in Performance_Schema
thread/group_rpl/THD_Gcs_xcom_control
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
129 / 148

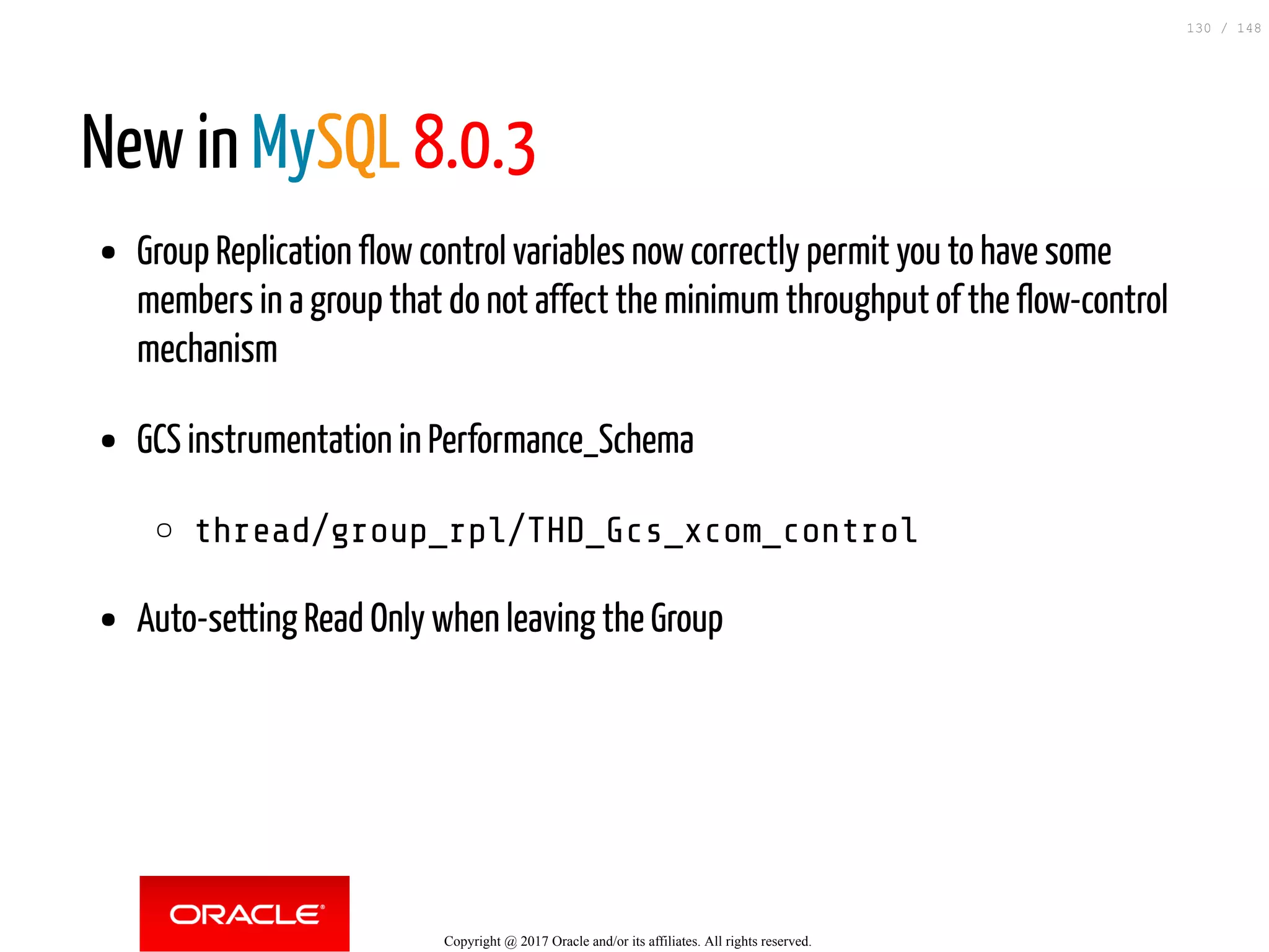

130. New in MySQL 8.0.3
Group Replication flow control variables now correctly permit you to have some
members in a group that do not affect the minimum throughput of the flow-control
mechanism
GCS instrumentation in Performance_Schema
thread/group_rpl/THD_Gcs_xcom_control
Auto-setting Read Only when leaving the Group
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
130 / 148

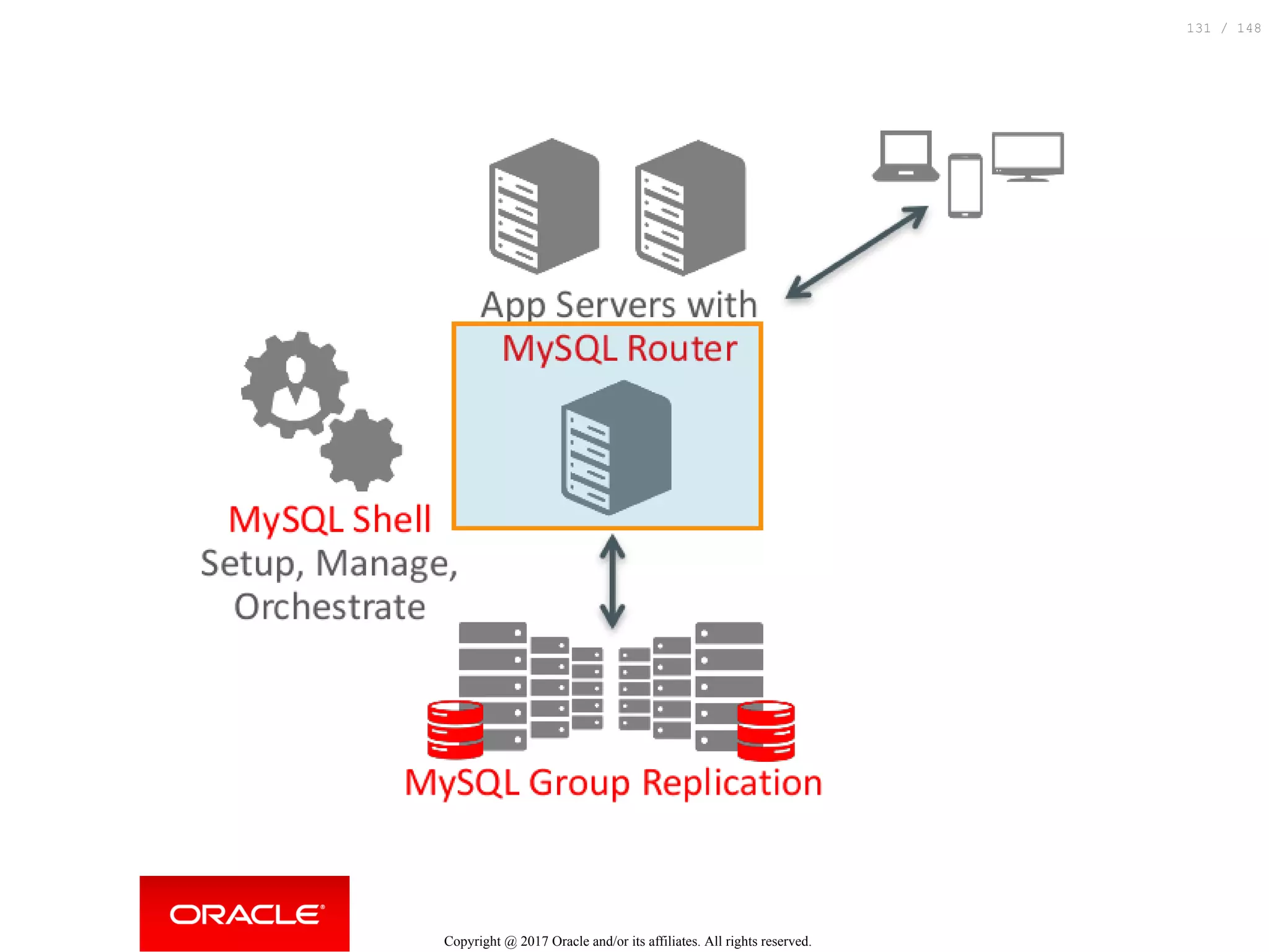

131. Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
131 / 148

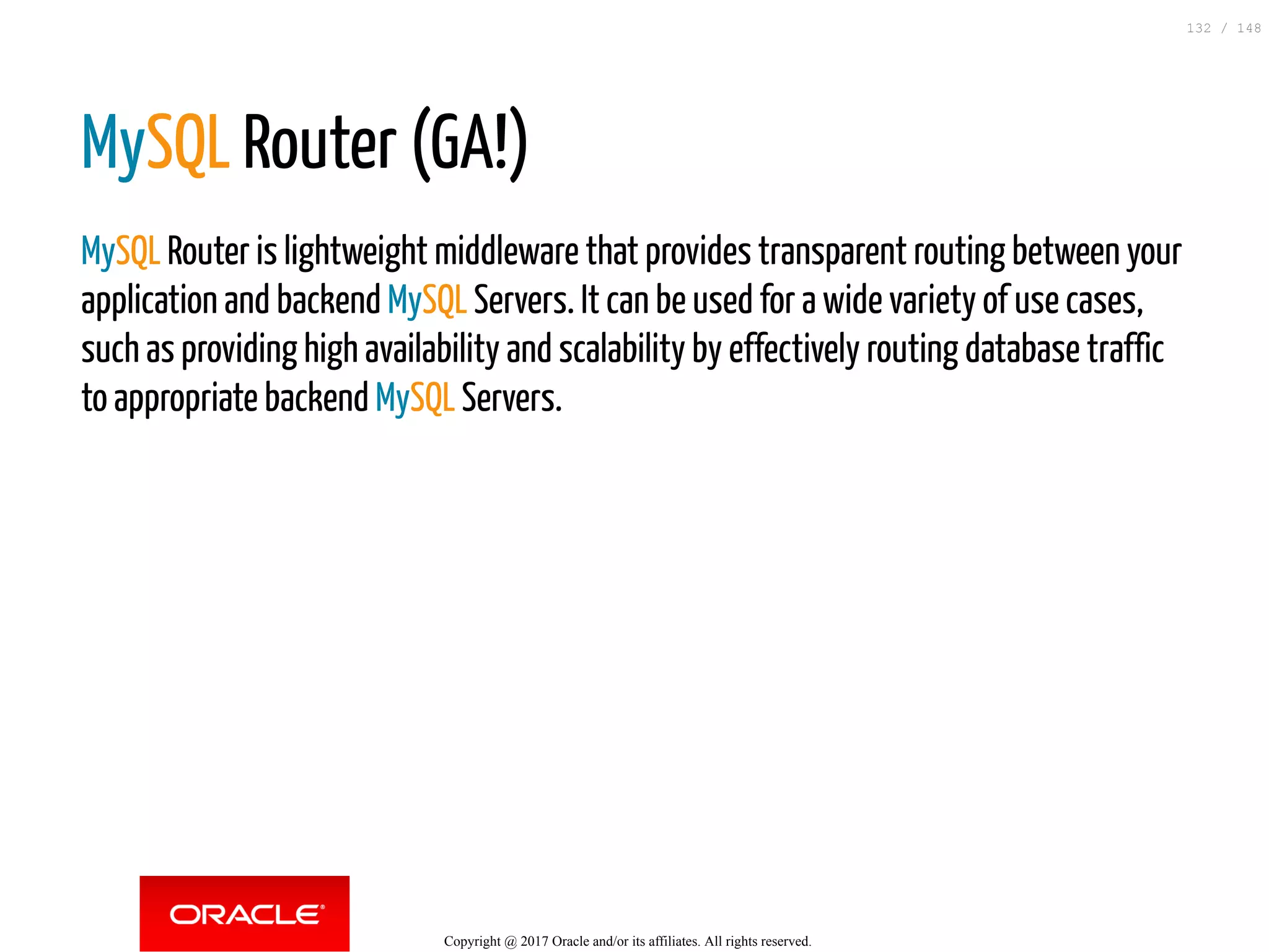

132. MySQL Router (GA!)
MySQL Router is lightweight middleware that provides transparent routing between your
application and backend MySQL Servers. It can be used for a wide variety of use cases,
such as providing high availability and scalability by effectively routing database traffic
to appropriate backend MySQL Servers.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
132 / 148

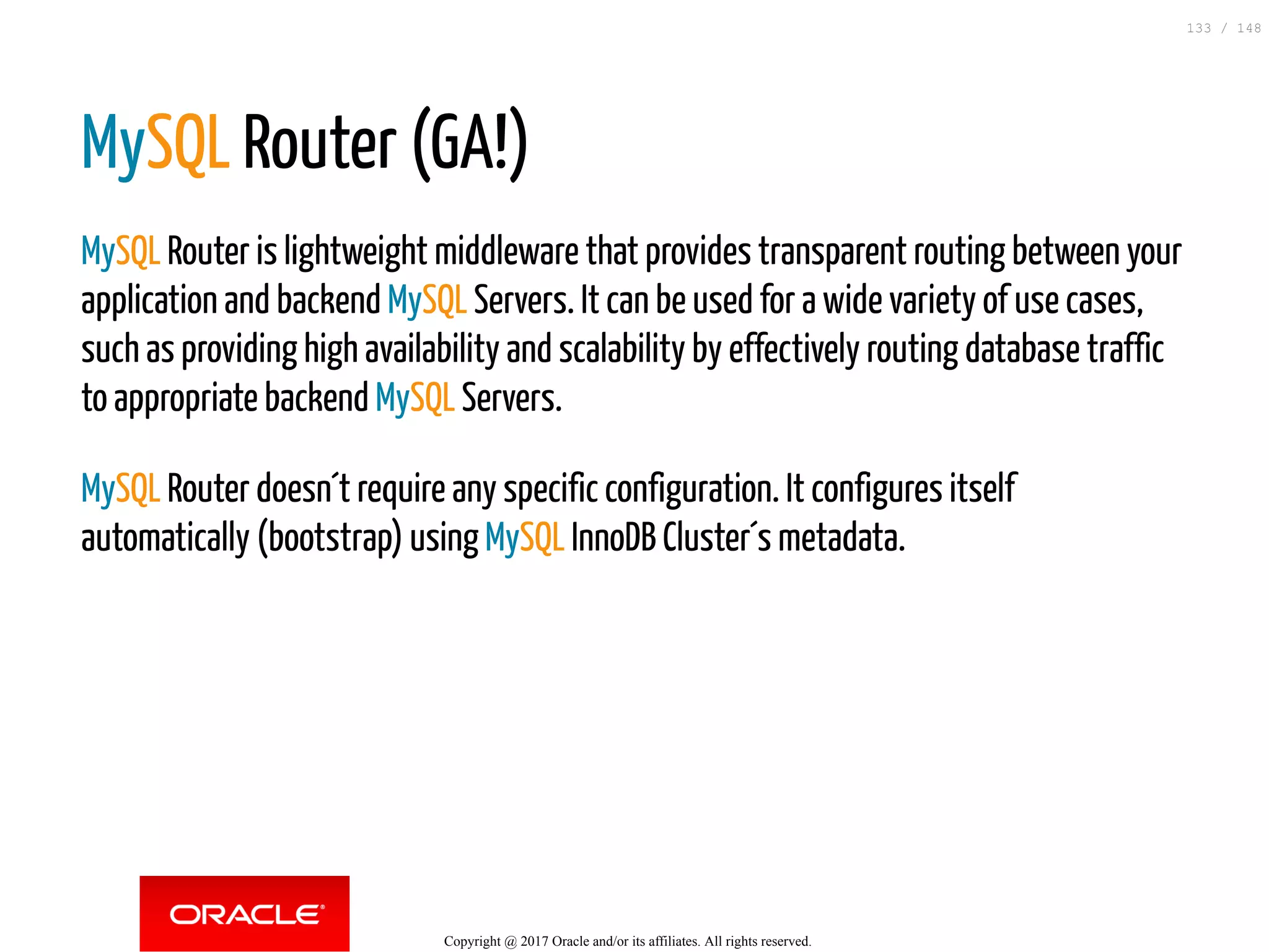

133. MySQL Router (GA!)
MySQL Router is lightweight middleware that provides transparent routing between your
application and backend MySQL Servers. It can be used for a wide variety of use cases,
such as providing high availability and scalability by effectively routing database traffic
to appropriate backend MySQL Servers.
MySQL Router doesn´t require any specific configuration. It configures itself
automatically (bootstrap) using MySQL InnoDB Cluster´s metadata.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
133 / 148

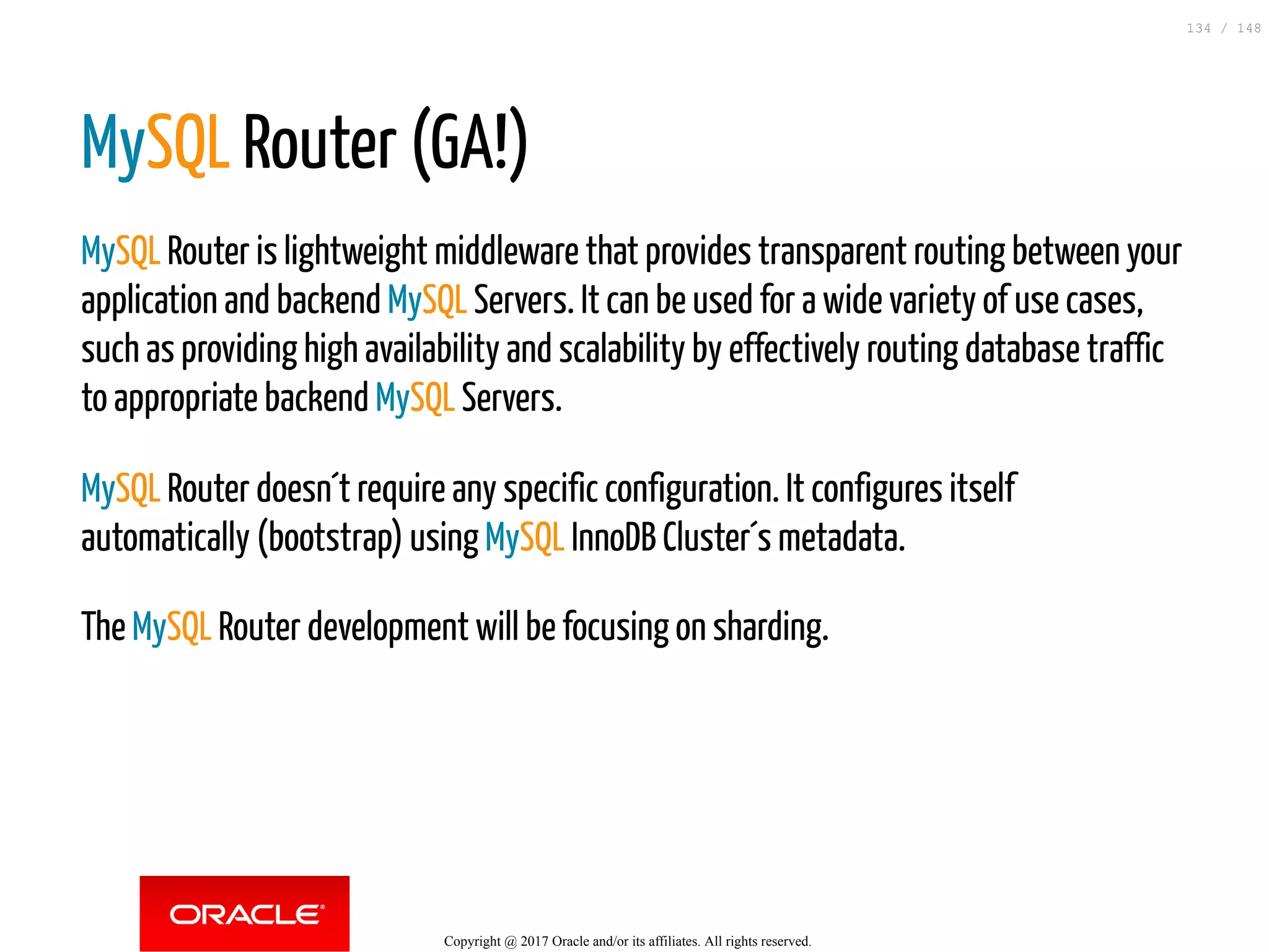

134. MySQL Router (GA!)
MySQL Router is lightweight middleware that provides transparent routing between your
application and backend MySQL Servers. It can be used for a wide variety of use cases,
such as providing high availability and scalability by effectively routing database traffic
to appropriate backend MySQL Servers.
MySQL Router doesn´t require any specific configuration. It configures itself
automatically (bootstrap) using MySQL InnoDB Cluster´s metadata.
The MySQL Router development will be focusing on sharding.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
134 / 148

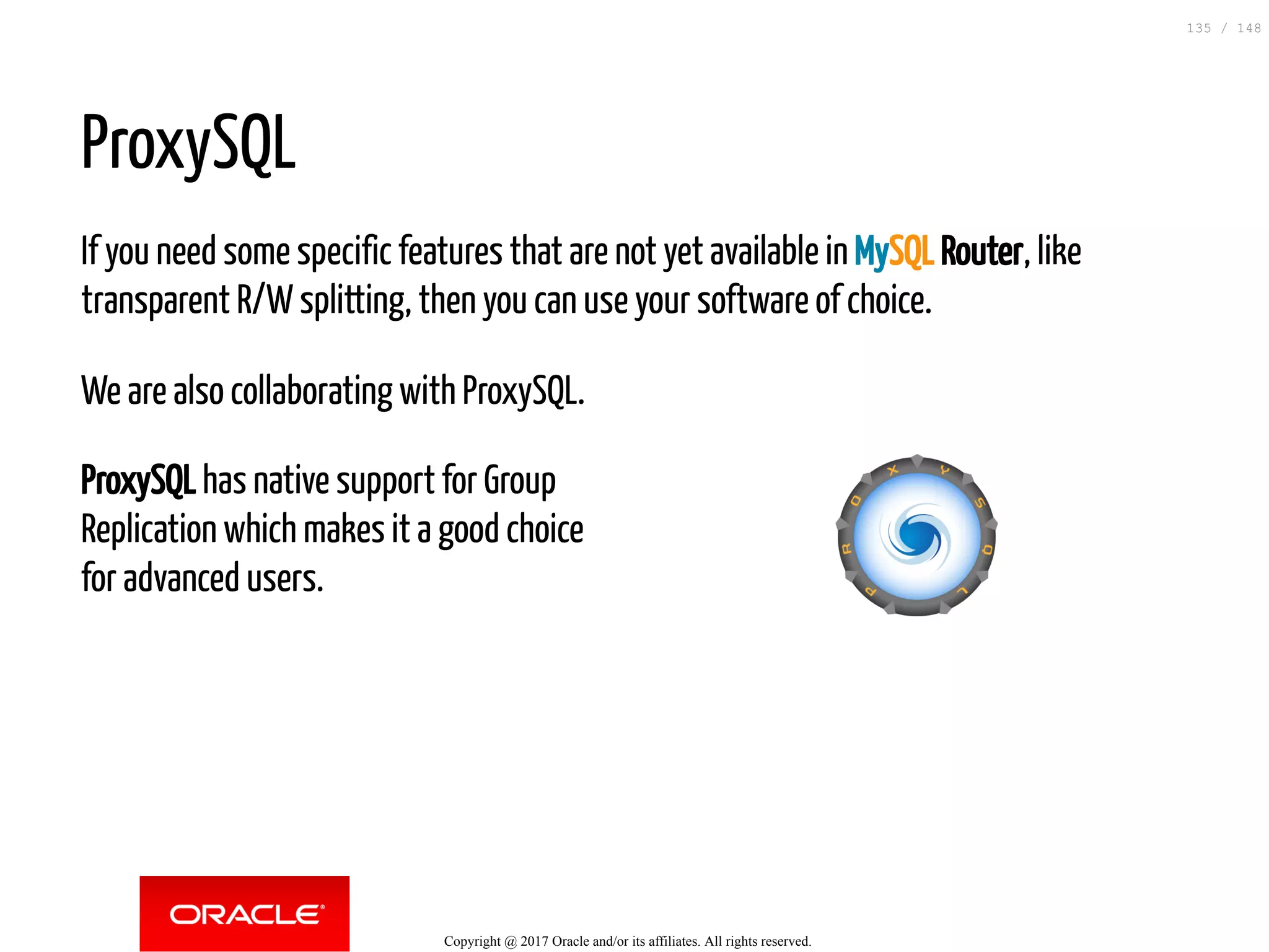

135. ProxySQL has native support for Group
Replication which makes it a good choice
for advanced users.
ProxySQL
If you need some specific features that are not yet available in MySQL Router, like
transparent R/W splitting, then you can use your software of choice.
We are also collaborating with ProxySQL.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
135 / 148

136. Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
136 / 148

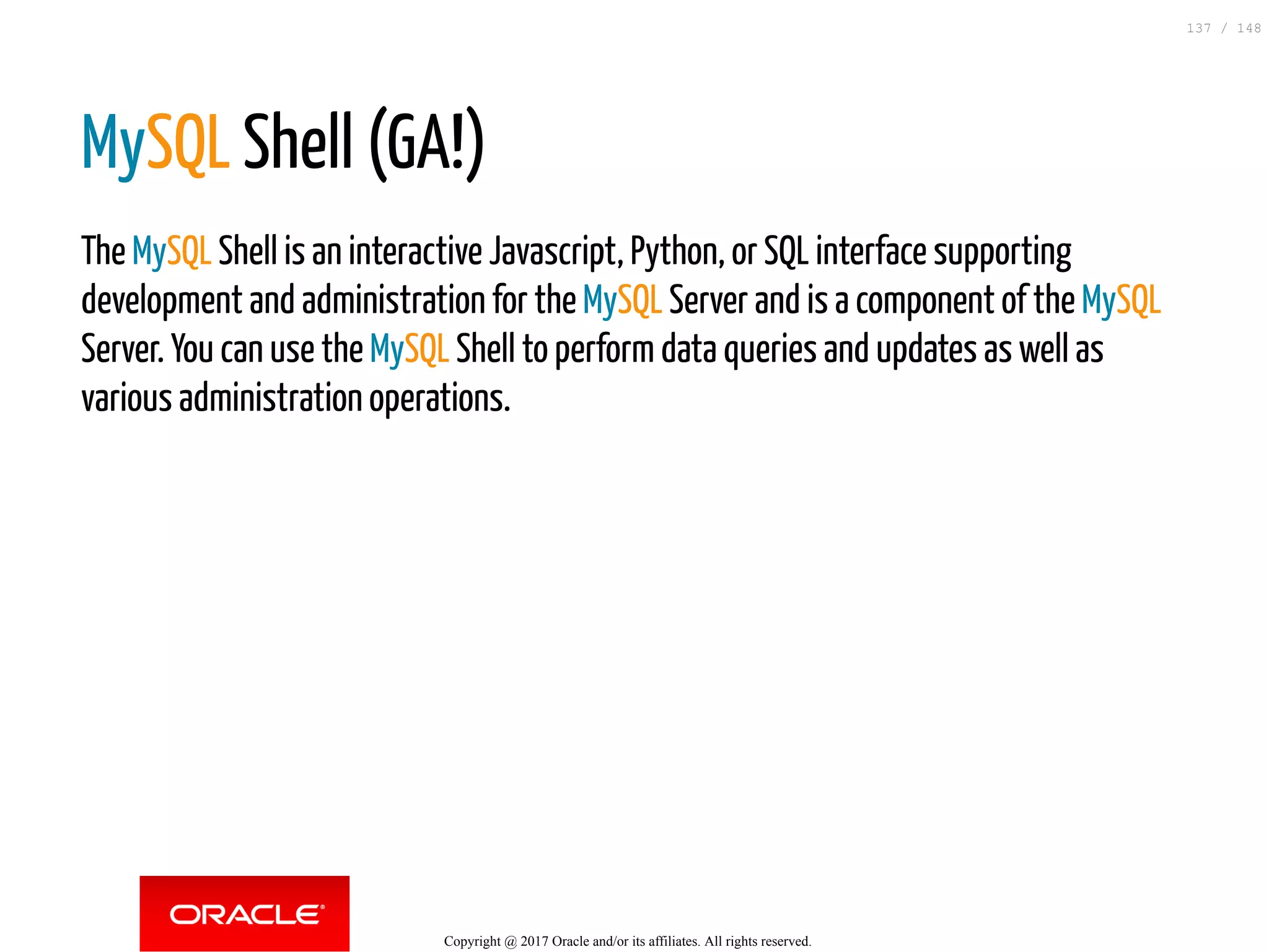

137. MySQL Shell (GA!)
The MySQL Shell is an interactive Javascript, Python, or SQL interface supporting
development and administration for the MySQL Server and is a component of the MySQL
Server. You can use the MySQL Shell to perform data queries and updates as well as
various administration operations.
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
137 / 148

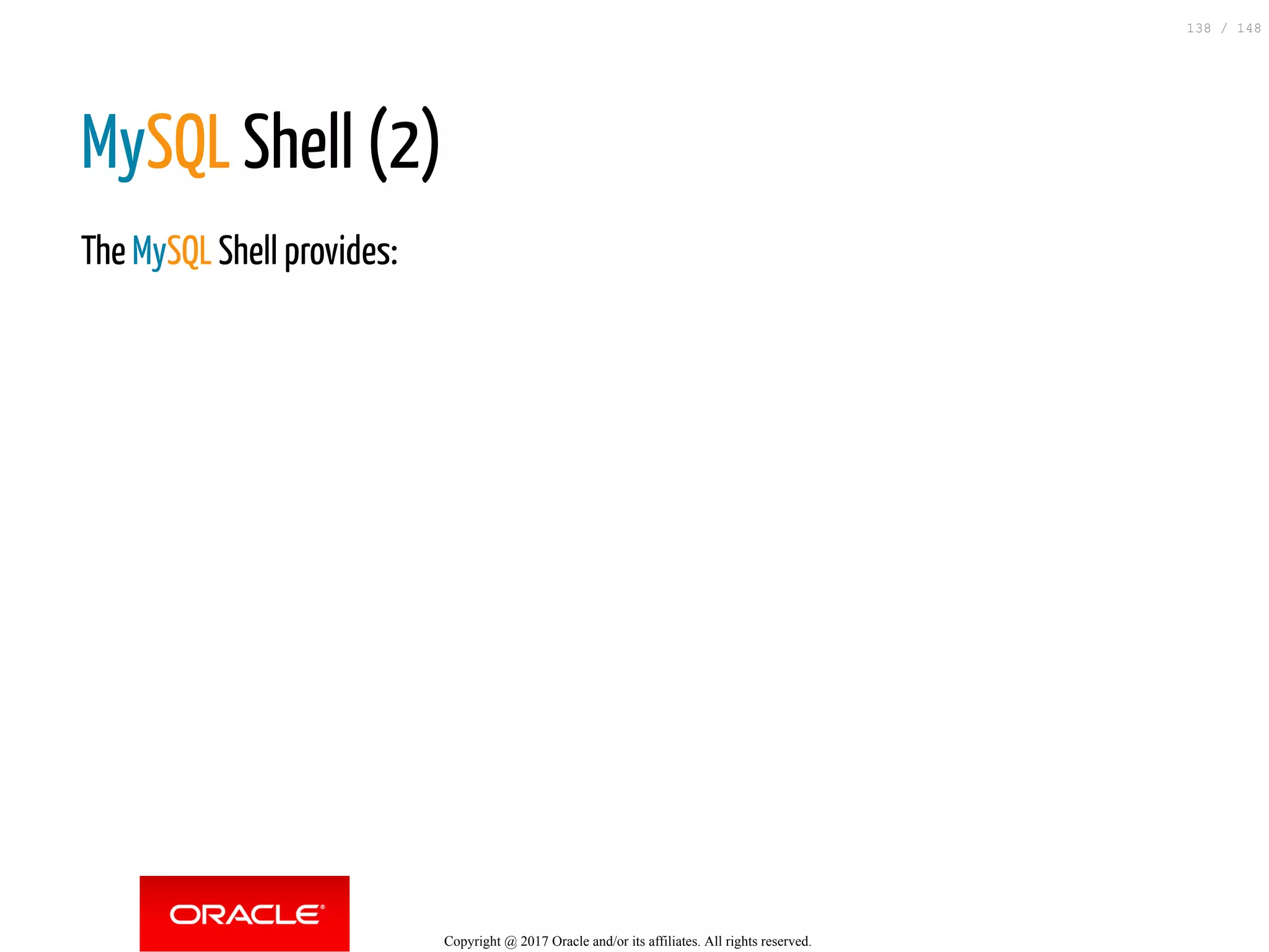

138. MySQL Shell (2)
The MySQL Shell provides:
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
138 / 148

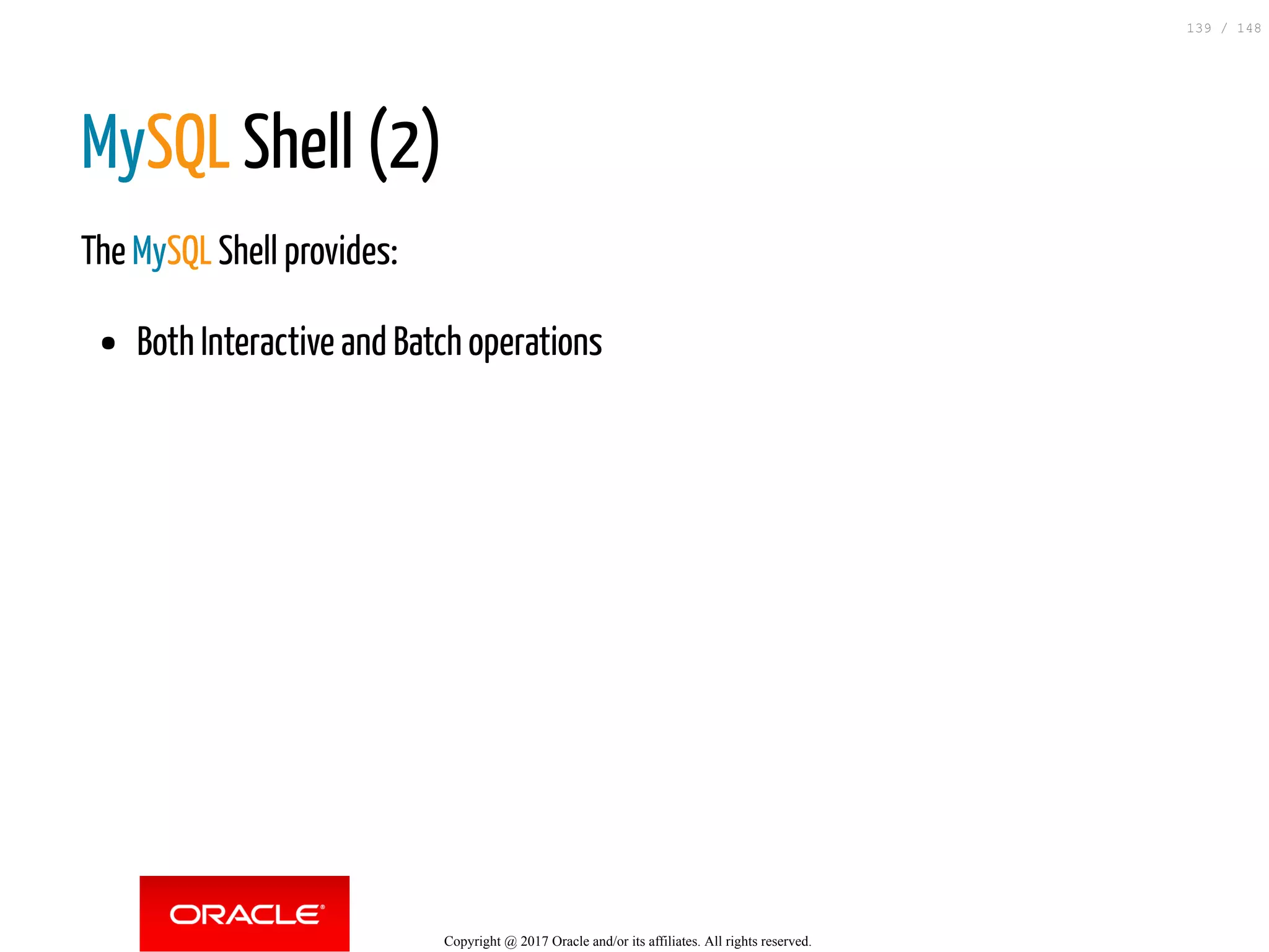

139. MySQL Shell (2)
The MySQL Shell provides:
Both Interactive and Batch operations
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
139 / 148

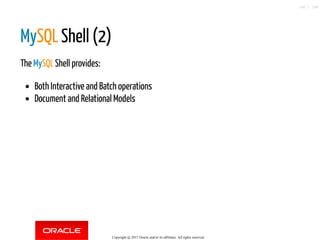

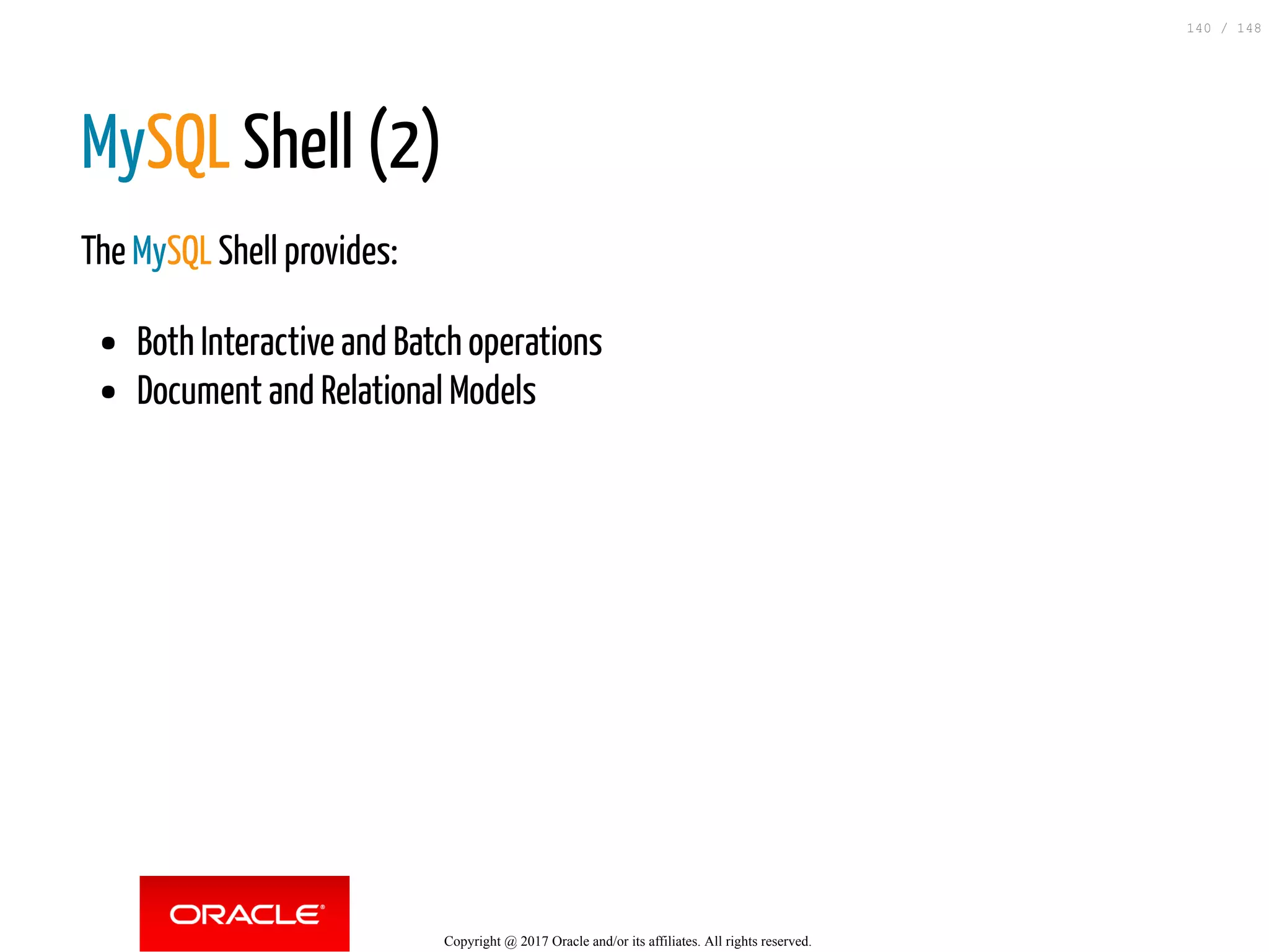

140. MySQL Shell (2)
The MySQL Shell provides:
Both Interactive and Batch operations
Document and Relational Models
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
140 / 148

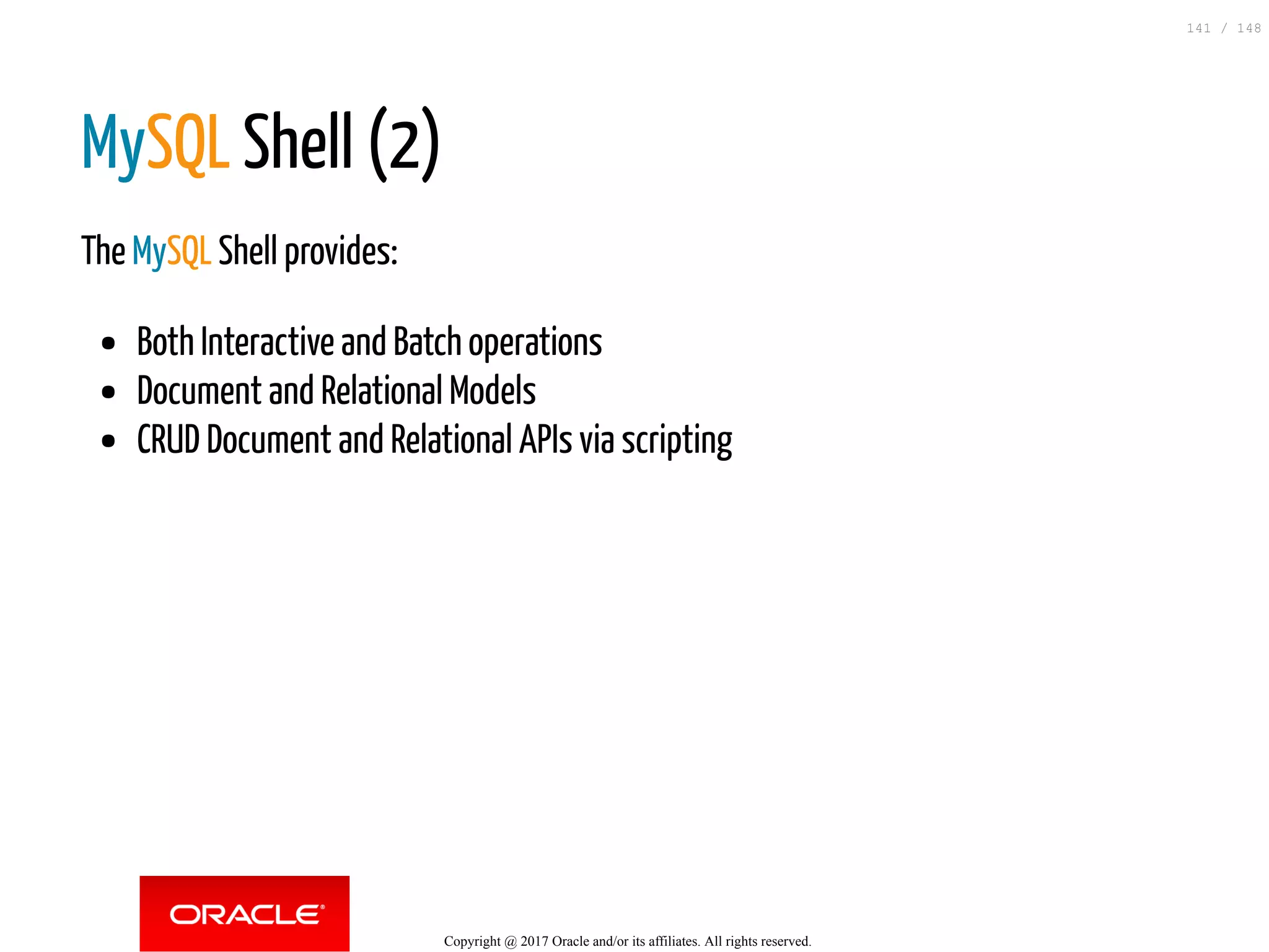

141. MySQL Shell (2)
The MySQL Shell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
141 / 148

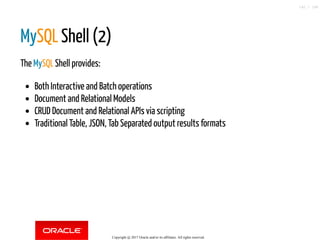

142. MySQL Shell (2)
The MySQL Shell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Traditional Table, JSON, Tab Separated output results formats
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
142 / 148

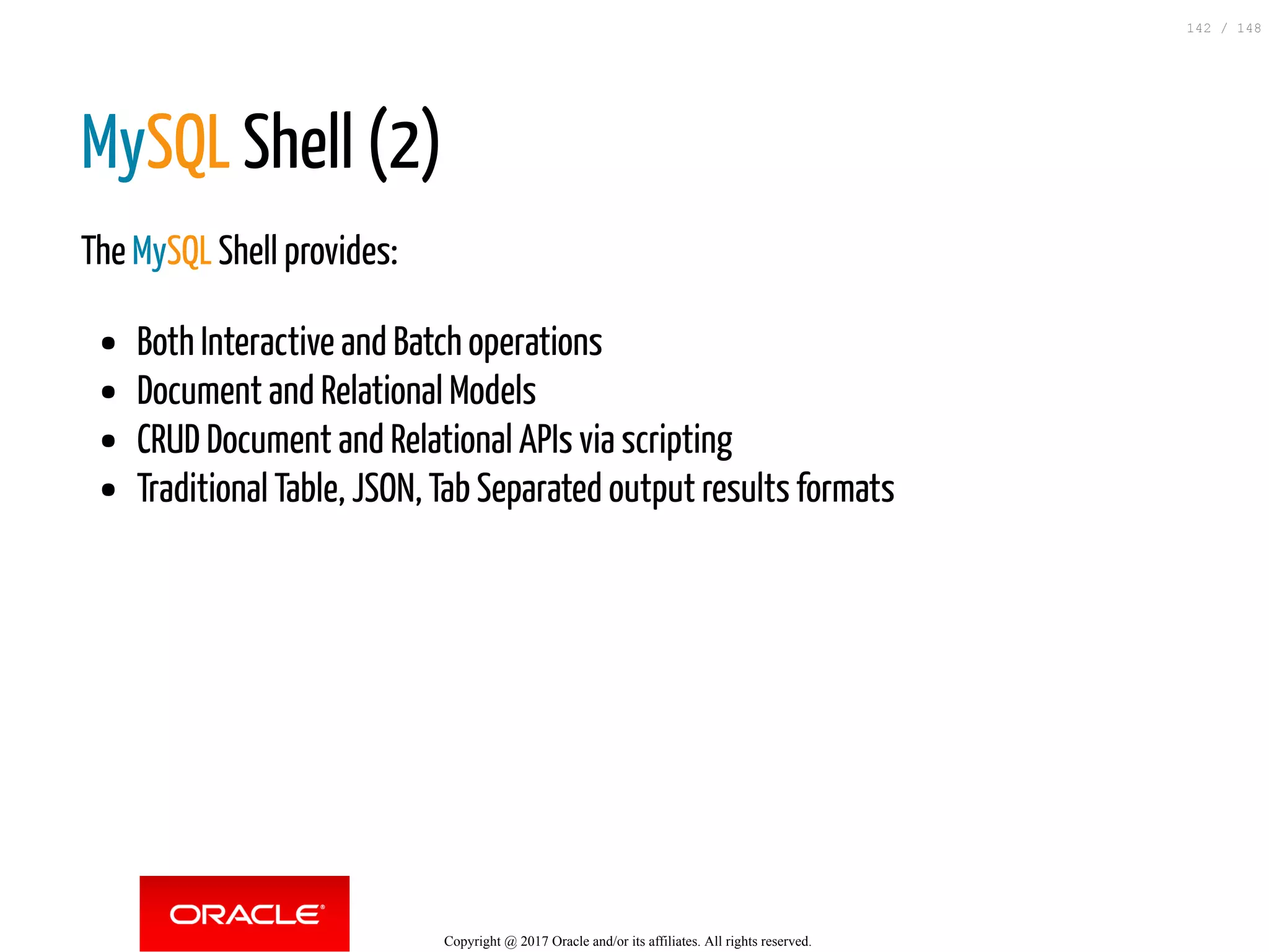

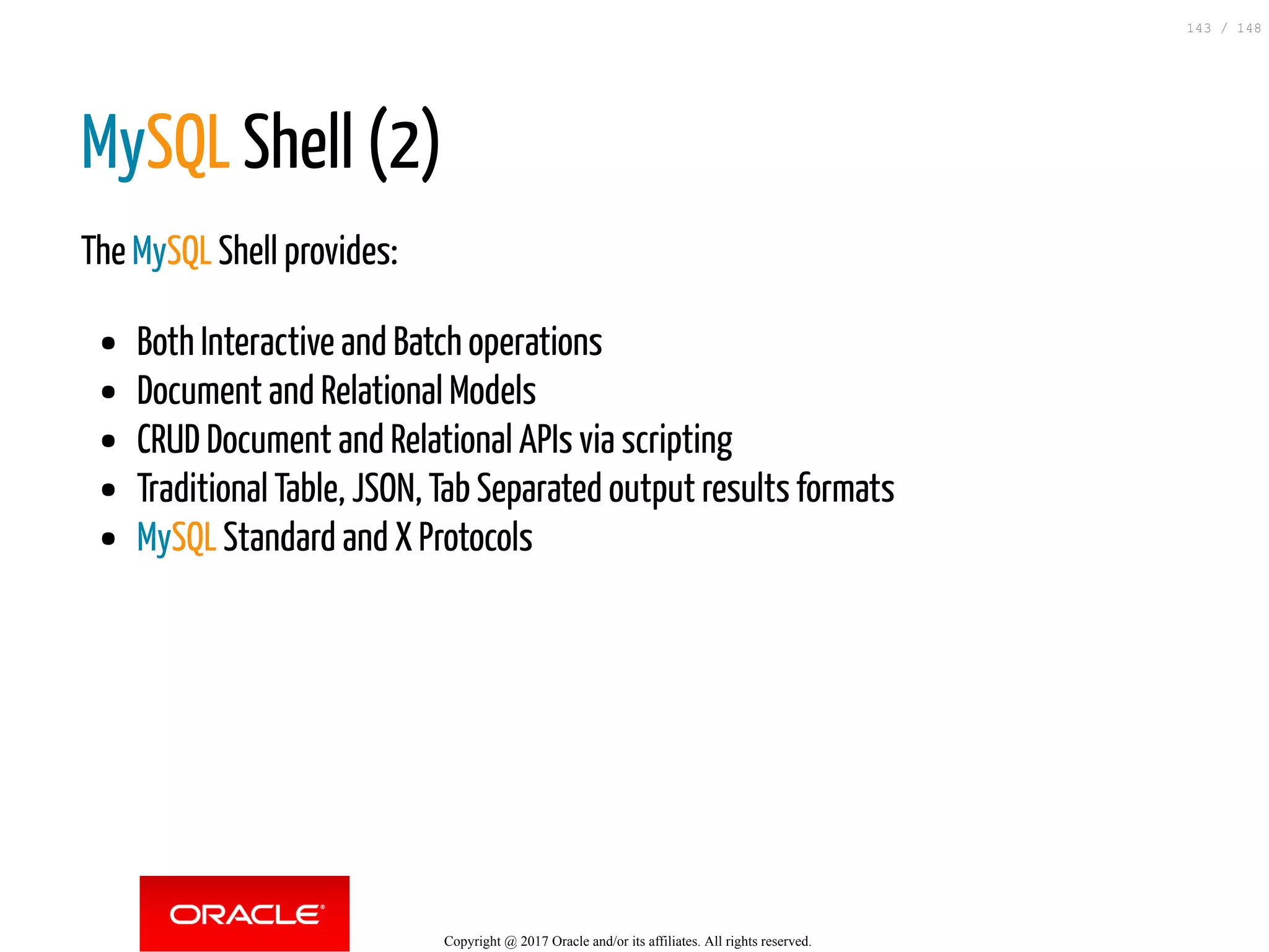

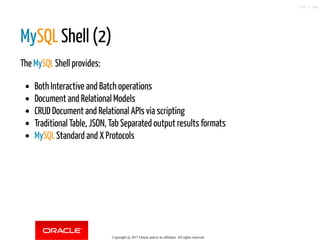

143. MySQL Shell (2)
The MySQL Shell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Traditional Table, JSON, Tab Separated output results formats
MySQL Standard and X Protocols
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
143 / 148

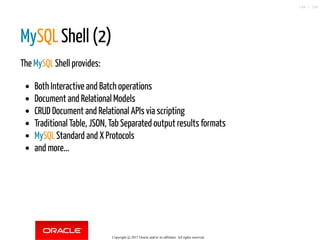

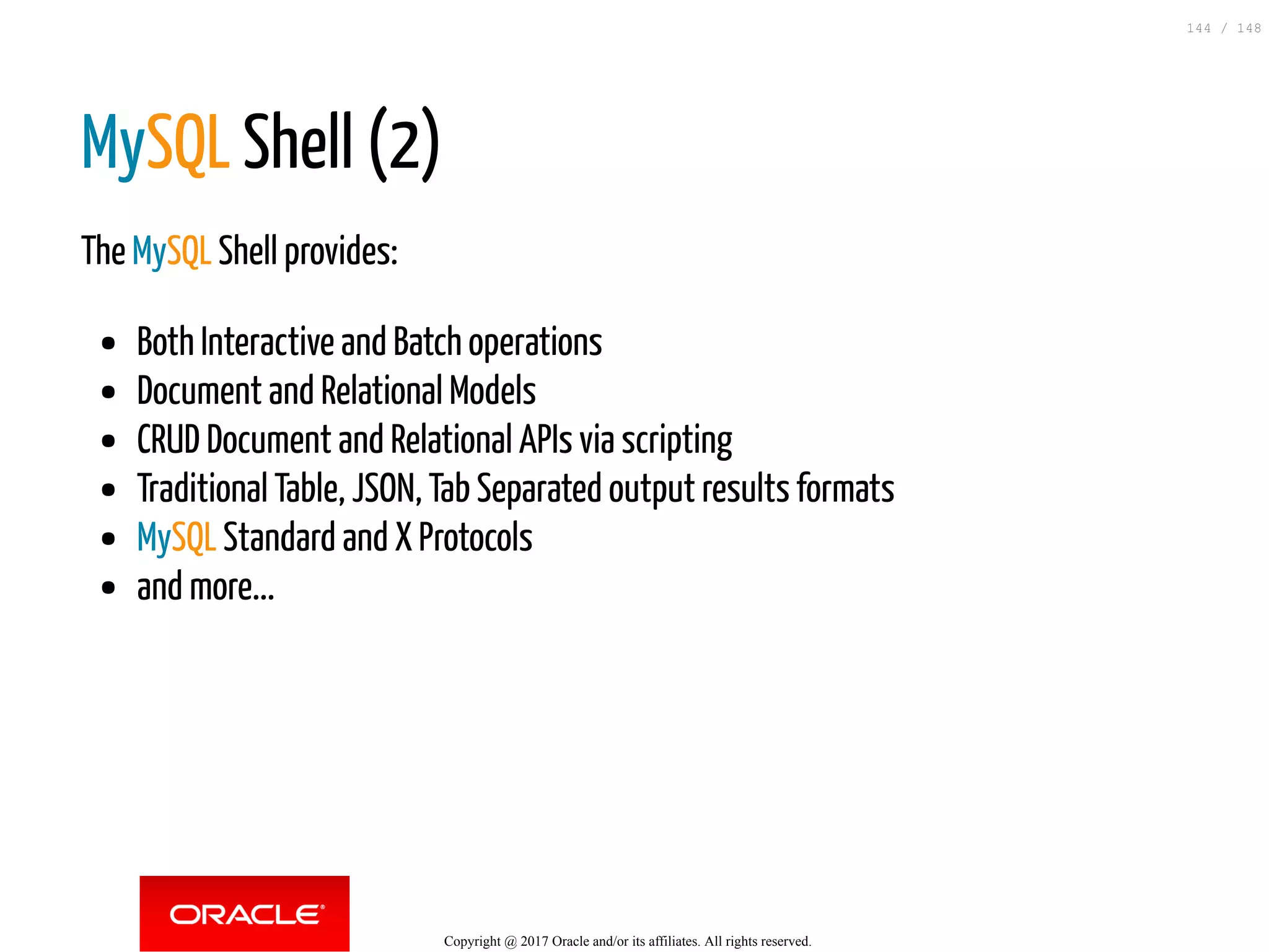

144. MySQL Shell (2)
The MySQL Shell provides:
Both Interactive and Batch operations
Document and Relational Models
CRUD Document and Relational APIs via scripting
Traditional Table, JSON, Tab Separated output results formats
MySQL Standard and X Protocols
and more...
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
144 / 148

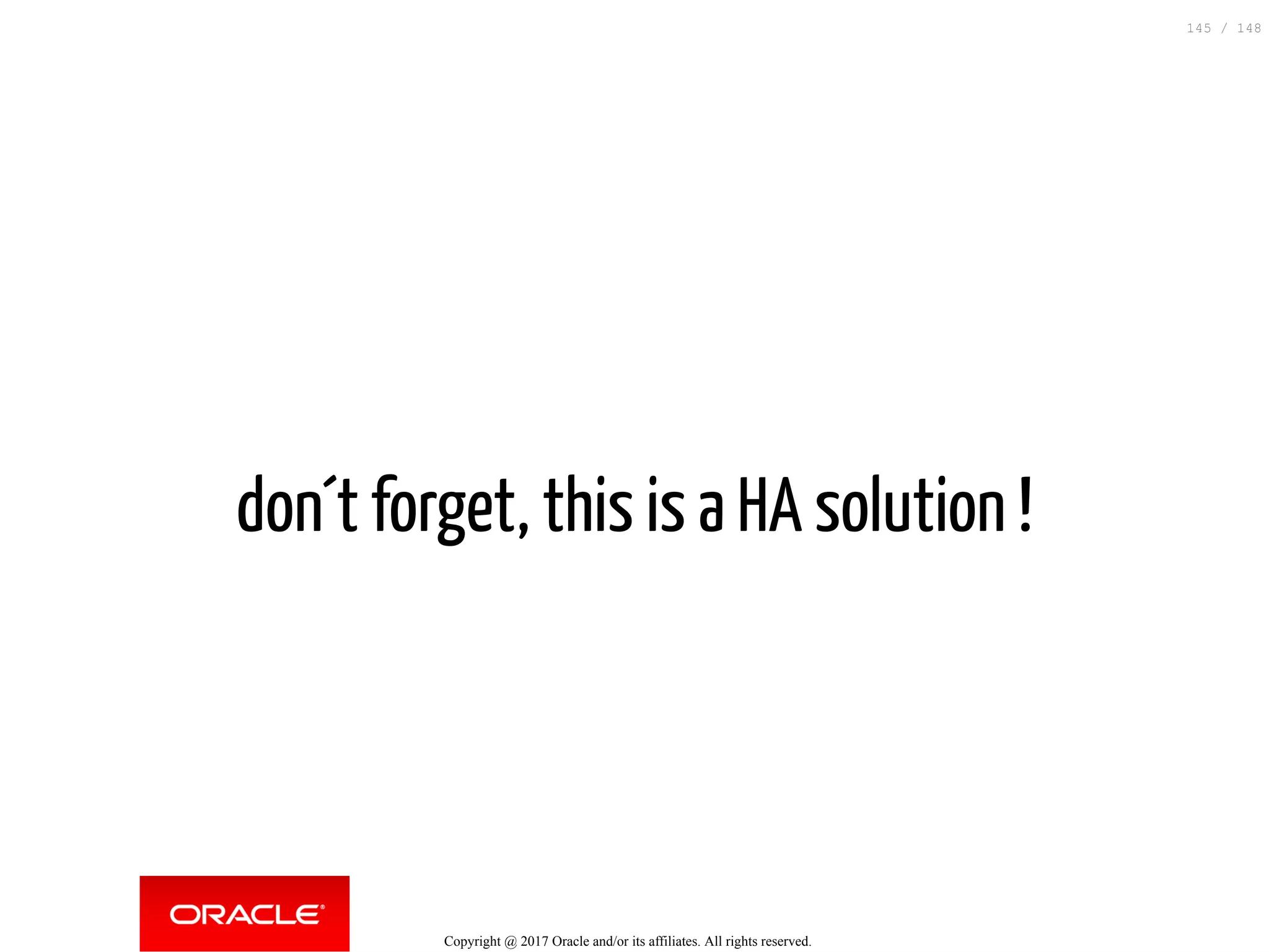

145. don´t forget, this is a HA solution !
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
145 / 148

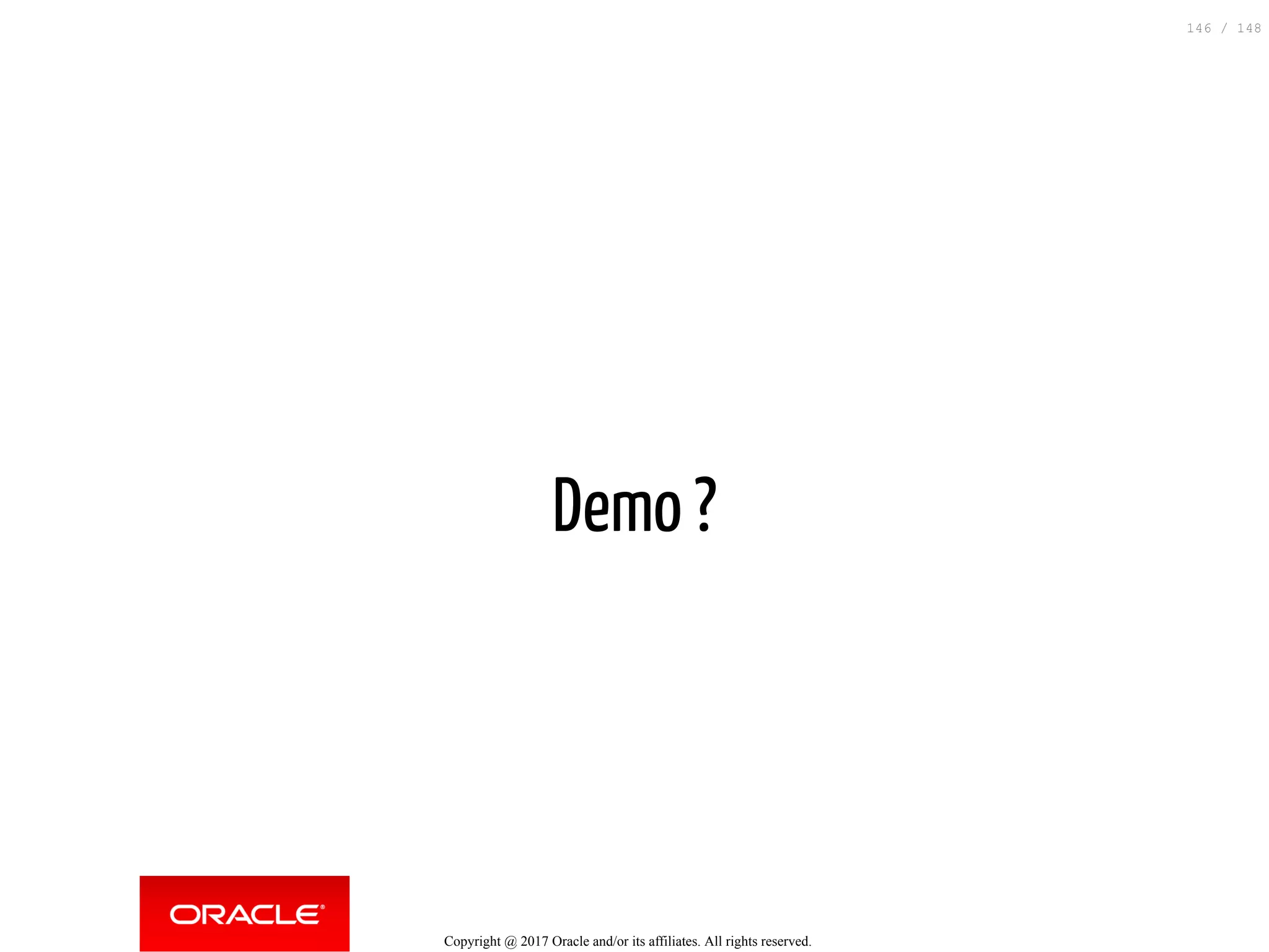

146. Demo ?
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
146 / 148

147. Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
147 / 148

148. Thank you !
Any Questions ?
more at http://lefred.be/content/category/mysql/group-replication/
http://mysqlhighavailability.com/
Copyright @ 2017 Oracle and/or its affiliates. All rights reserved.
148 / 148
