1. Hg and version control for bioinformatics
2

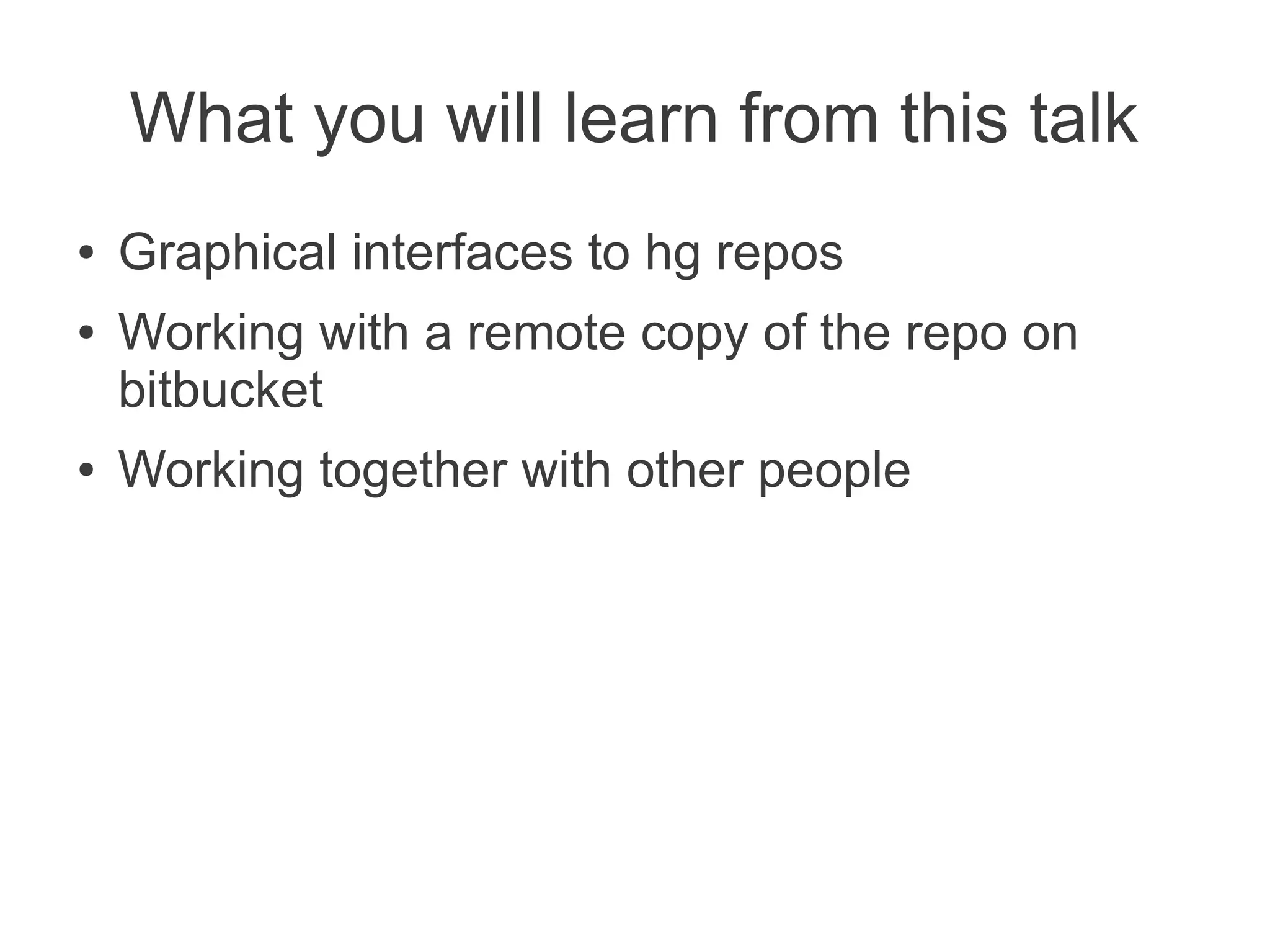

2. What you will learn from this talk
● Graphical interfaces to hg repos
● Working with a remote copy of the repo on
bitbucket
● Working together with other people

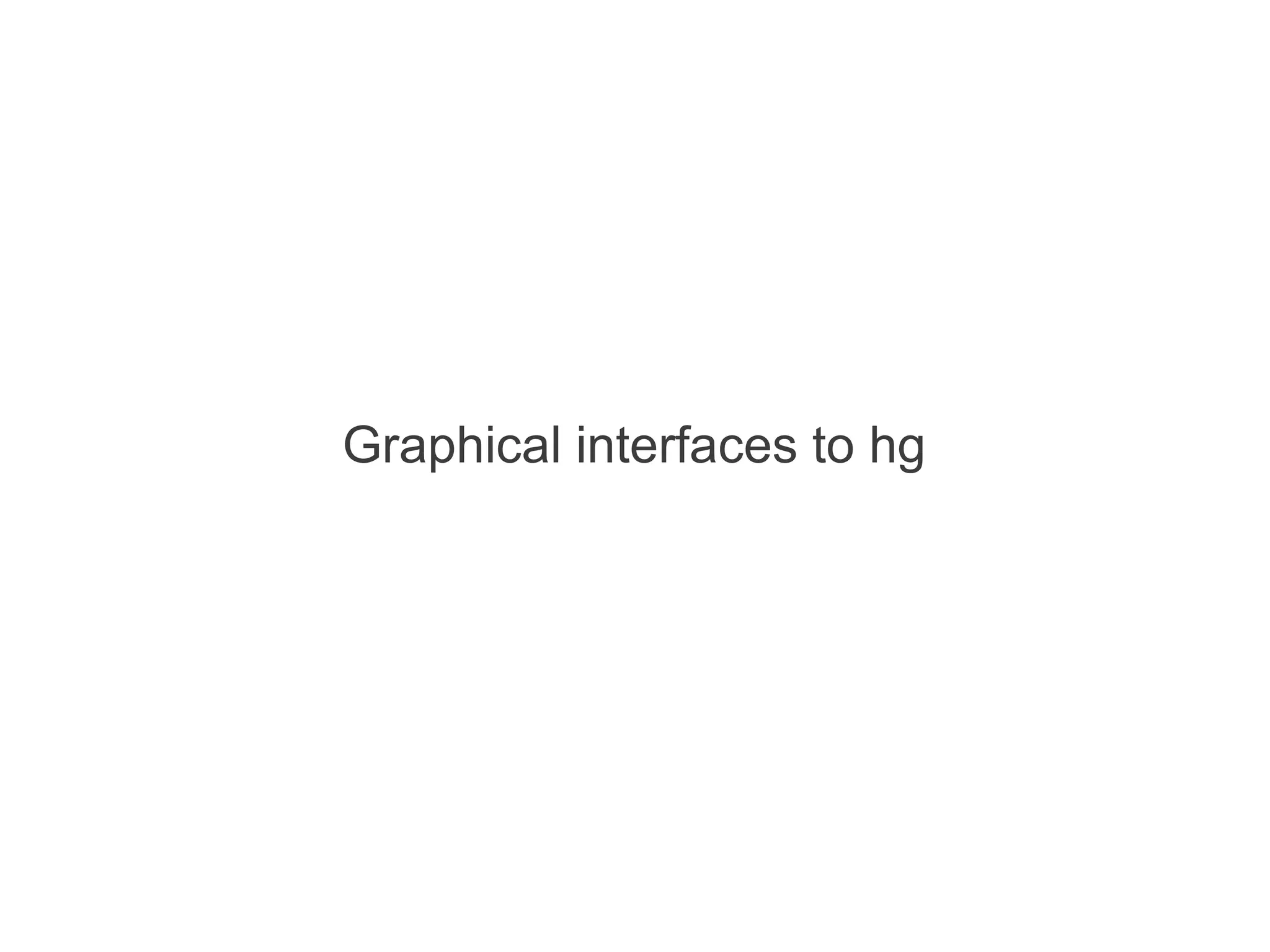

3. Graphical interfaces to hg

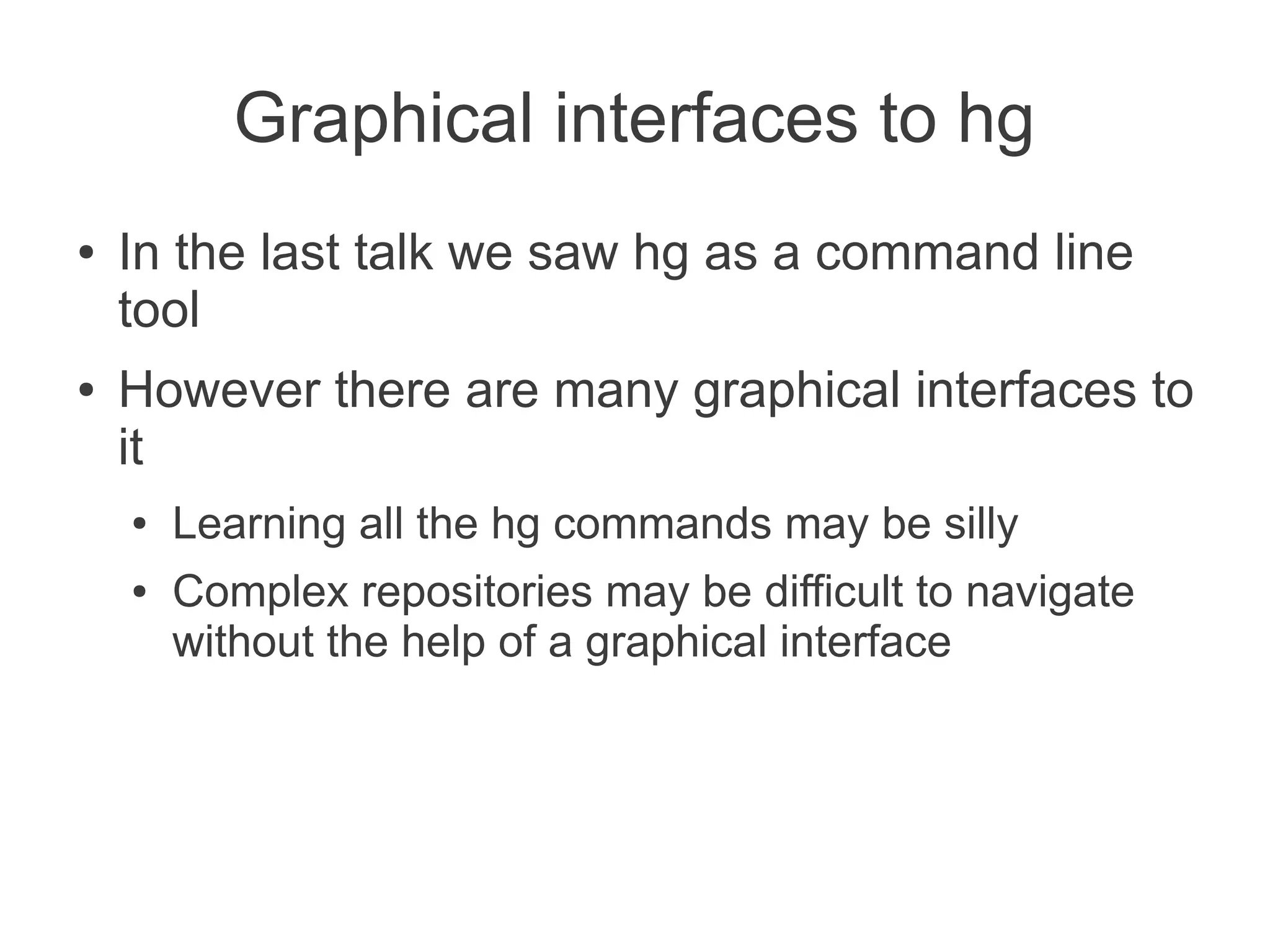

4. Graphical interfaces to hg
● In the last talk we saw hg as a command line
tool
● However there are many graphical interfaces to
it
● Learning all the hg commands may be silly
● Complex repositories may be difficult to navigate
without the help of a graphical interface

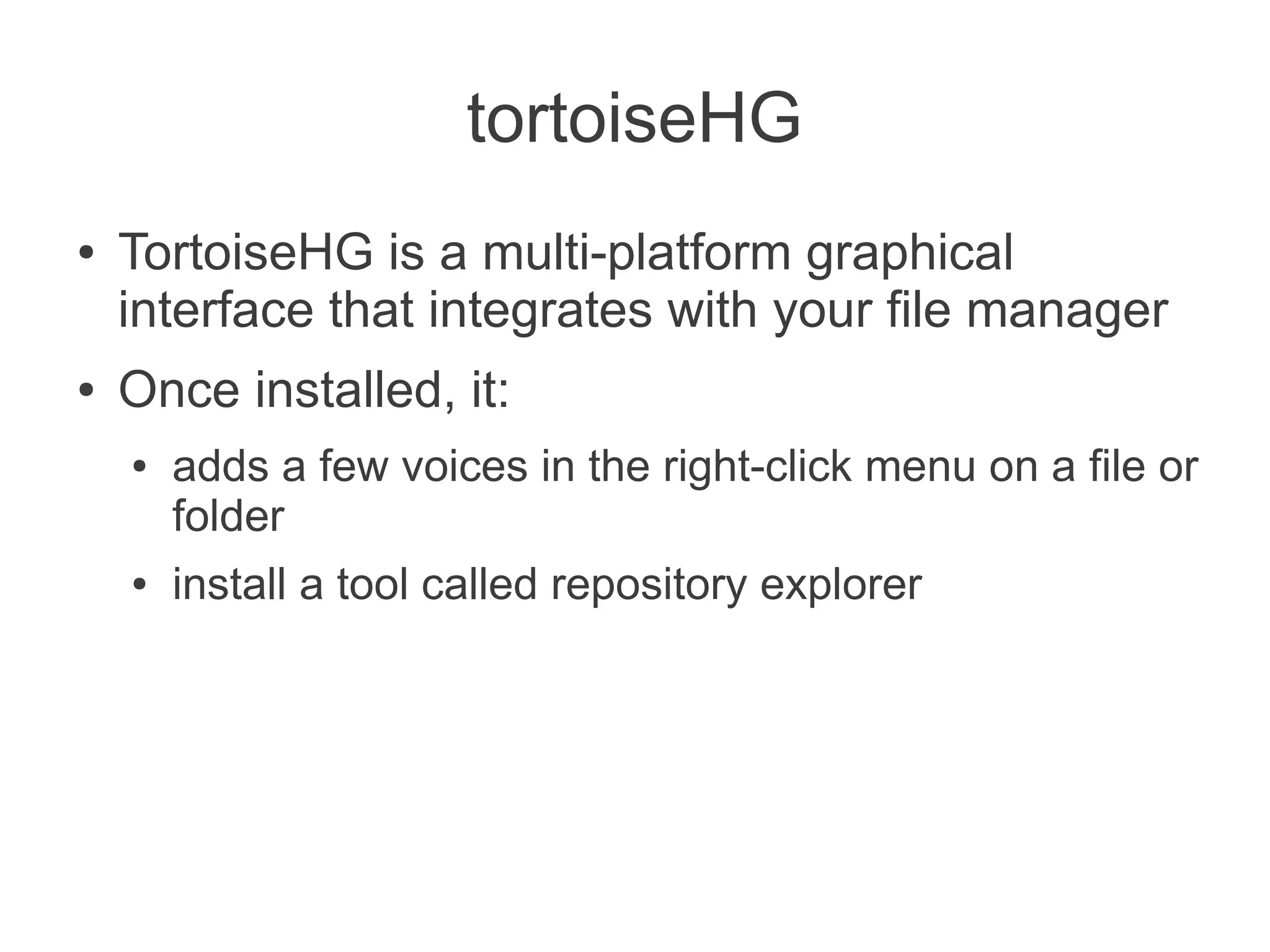

5. tortoiseHG
● TortoiseHG is a multi-platform graphical
interface that integrates with your file manager
● Once installed, it:
● adds a few voices in the right-click menu on a file or
folder
● install a tool called repository explorer

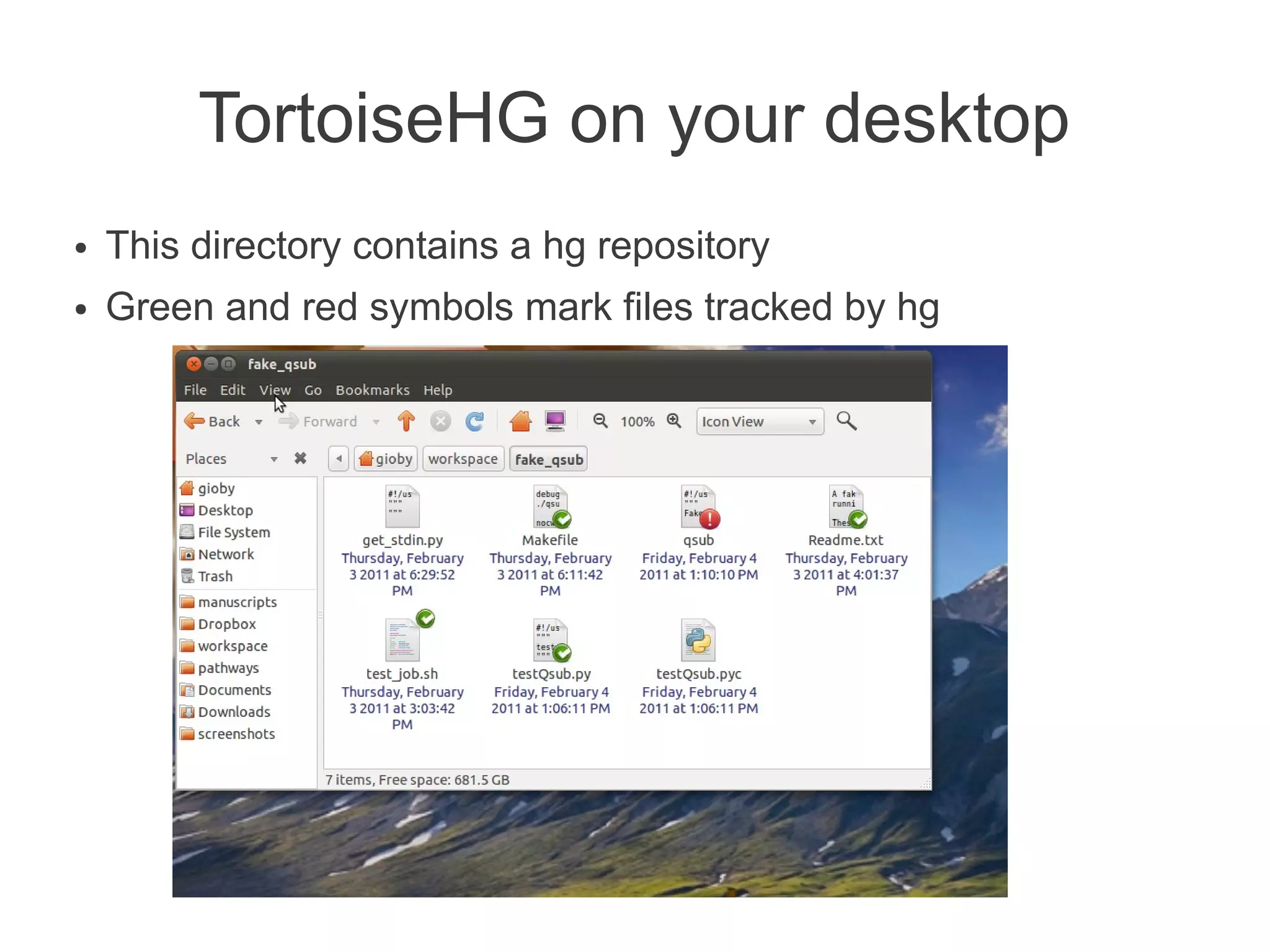

6. TortoiseHG on your desktop
● This directory contains a hg repository
● Green and red symbols mark files tracked by hg

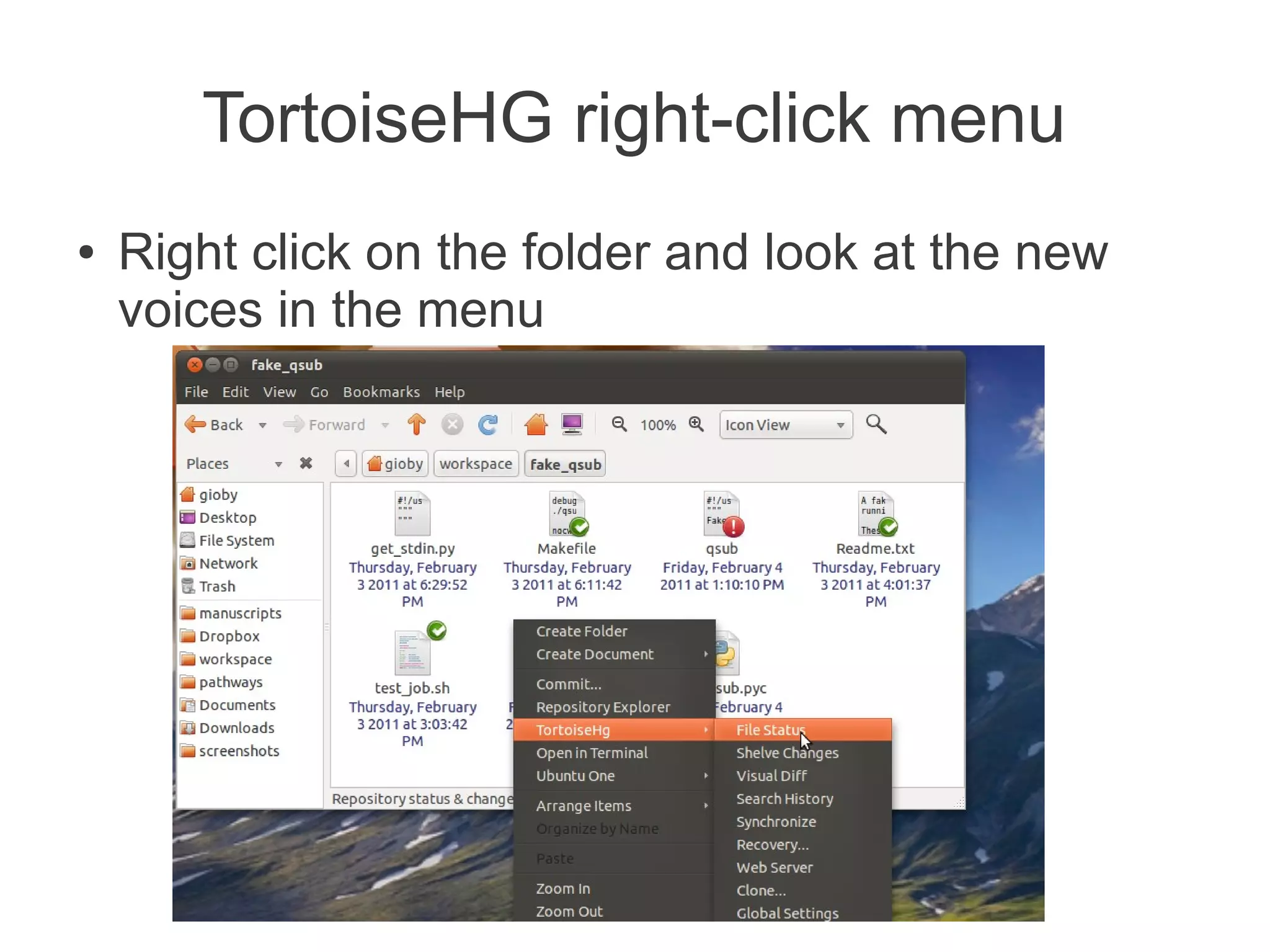

7. TortoiseHG right-click menu
● Right click on the folder and look at the new
voices in the menu

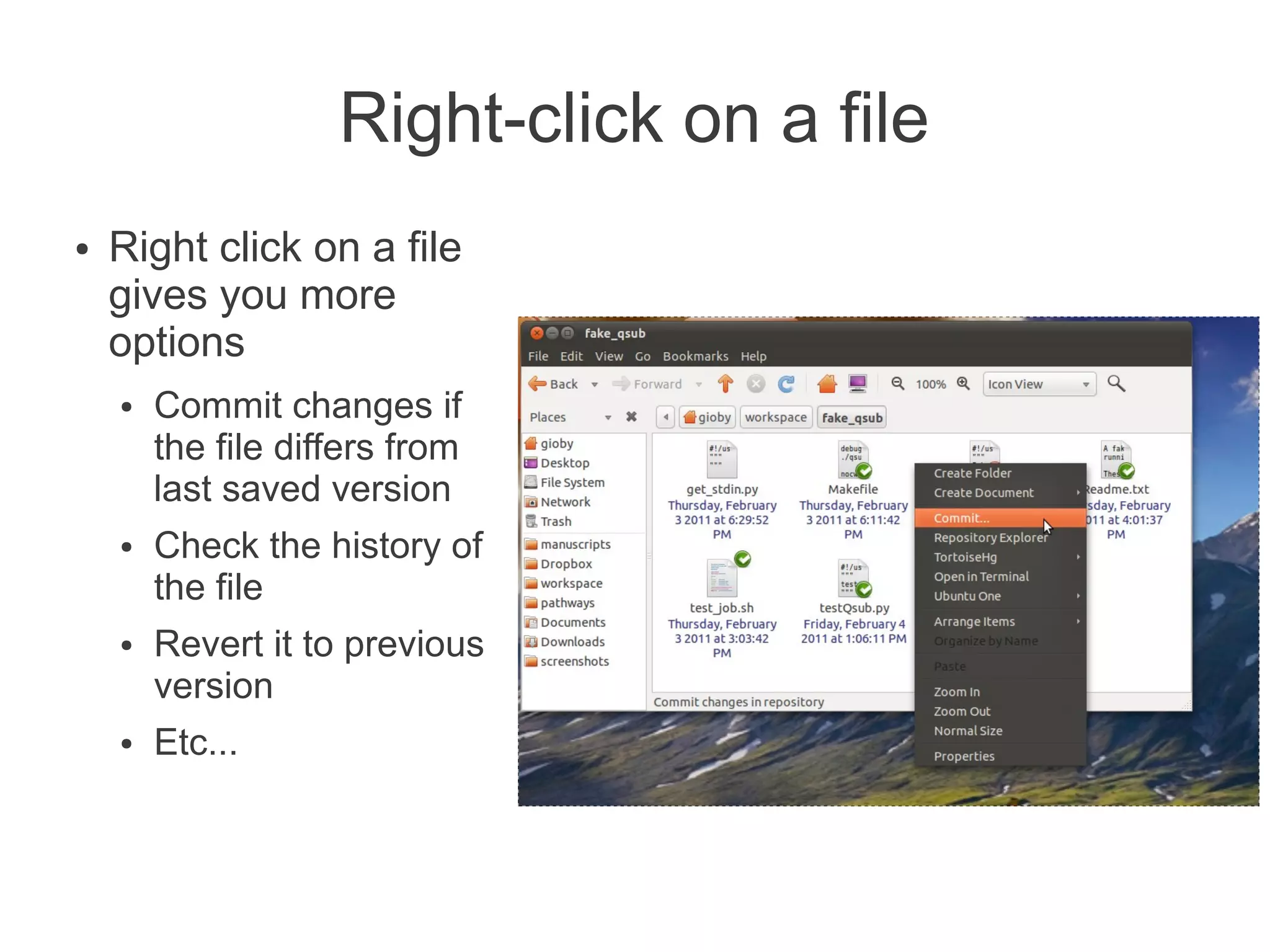

8. Right-click on a file
● Right click on a file
gives you more
options
● Commit changes if
the file differs from
last saved version
● Check the history of
the file
● Revert it to previous
version
● Etc...

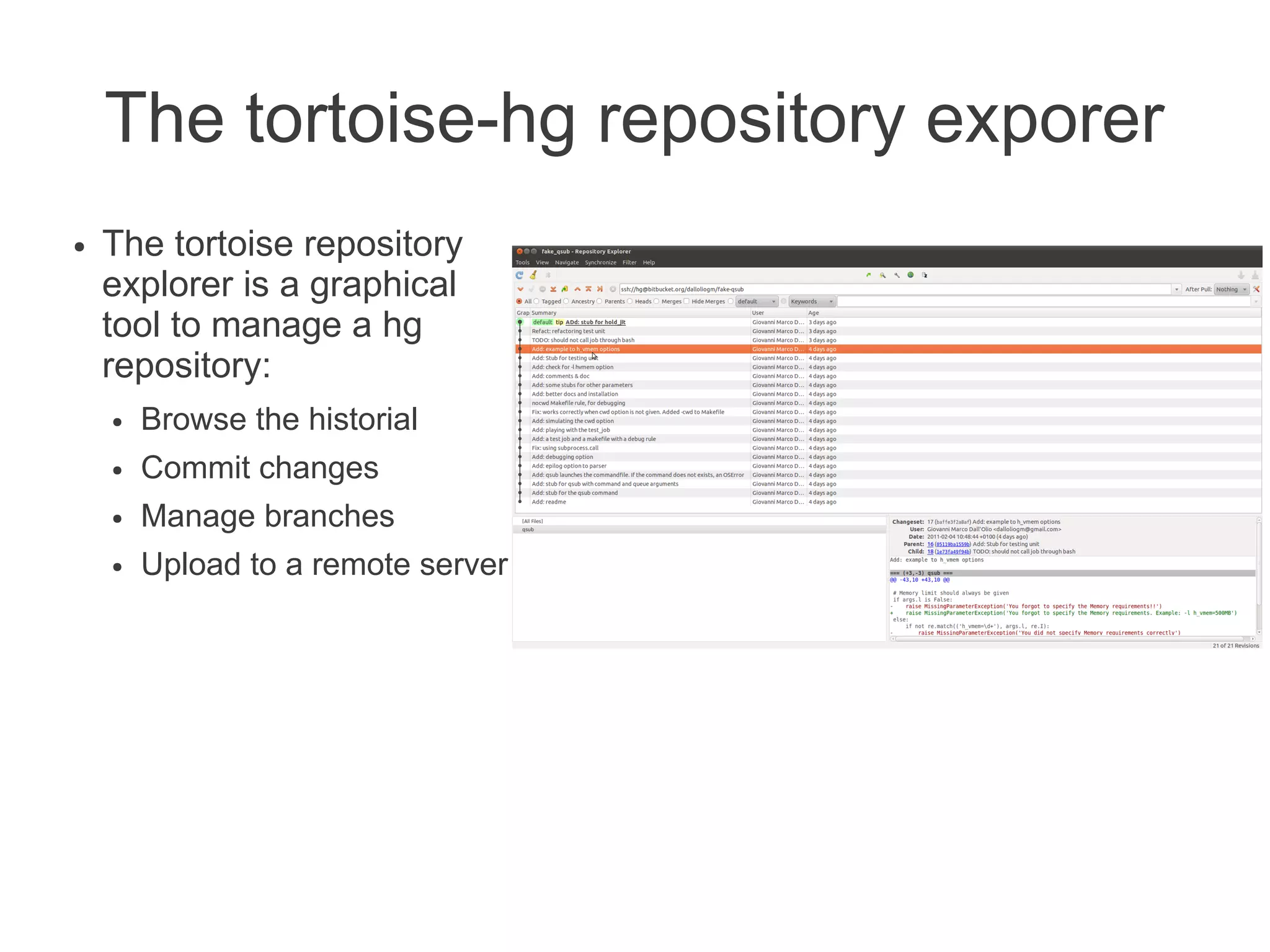

9. The tortoise-hg repository exporer
● The tortoise repository
explorer is a graphical
tool to manage a hg
repository:
● Browse the historial
● Commit changes
● Manage branches
● Upload to a remote server

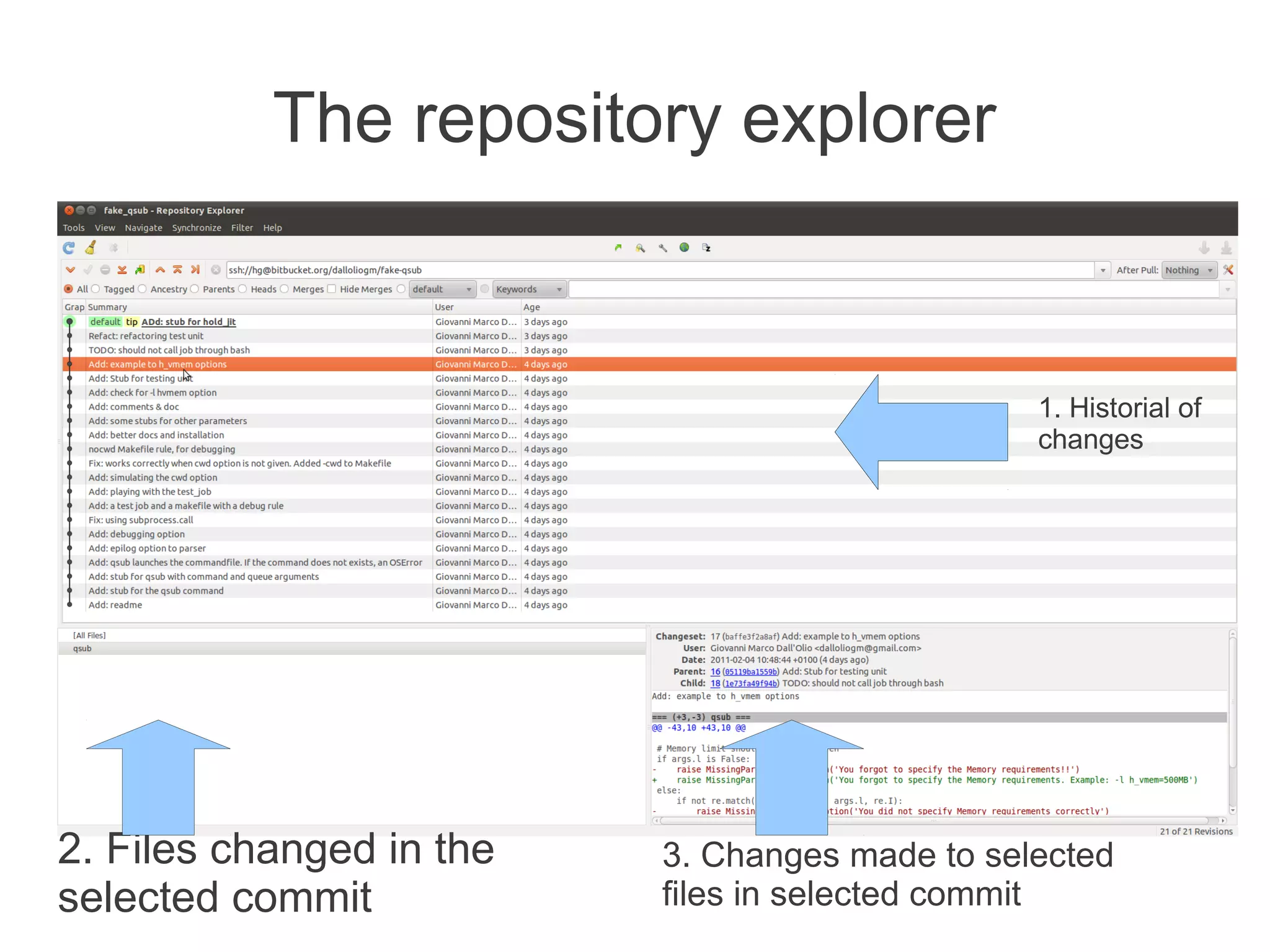

10. The repository explorer
1. Historial of
changes
2. Files changed in the 3. Changes made to selected
selected commit files in selected commit

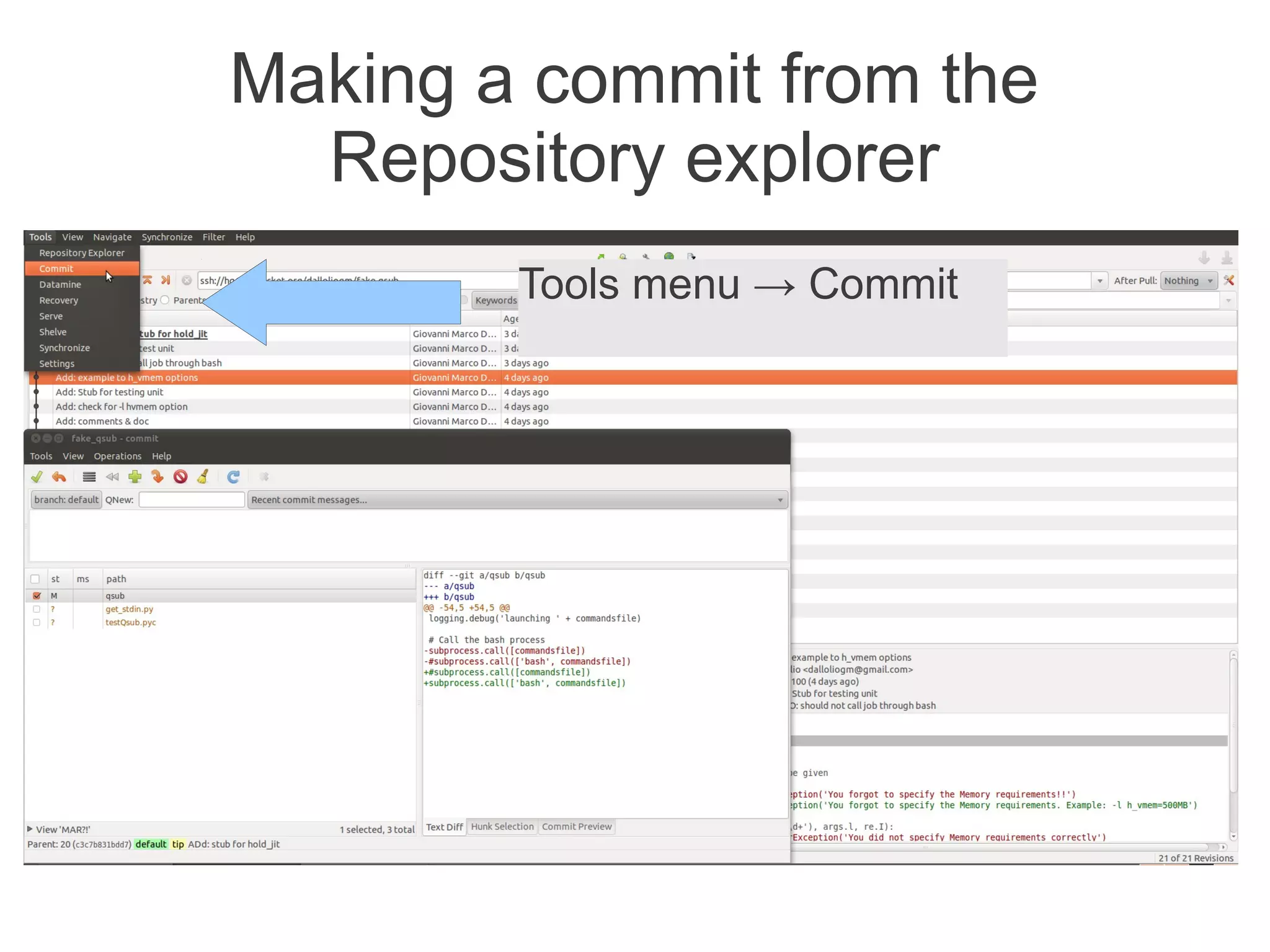

11. Making a commit from the
Repository explorer
Tools menu → Commit

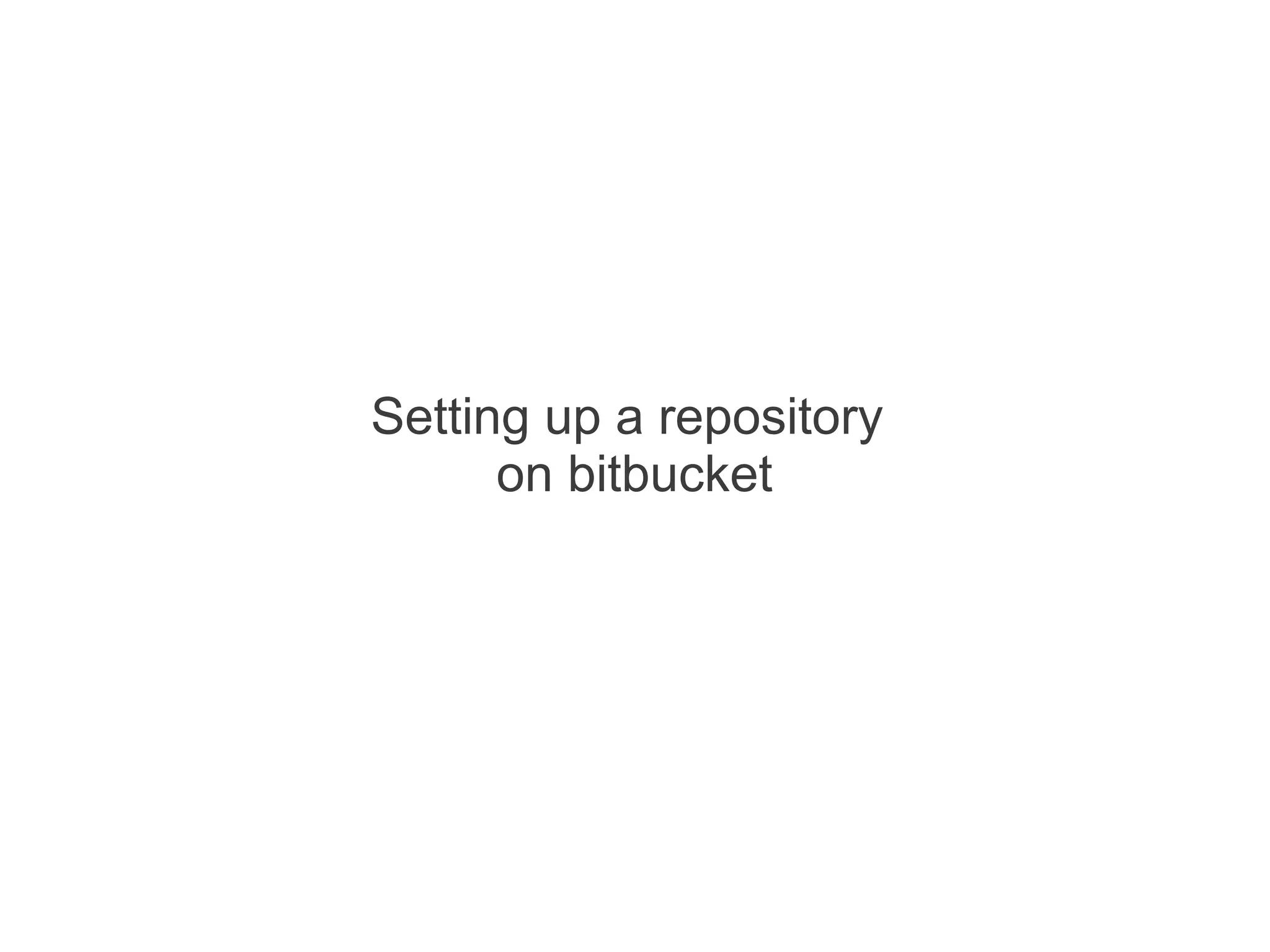

12. Setting up a repository
on bitbucket

13. Having a copy of your repository on

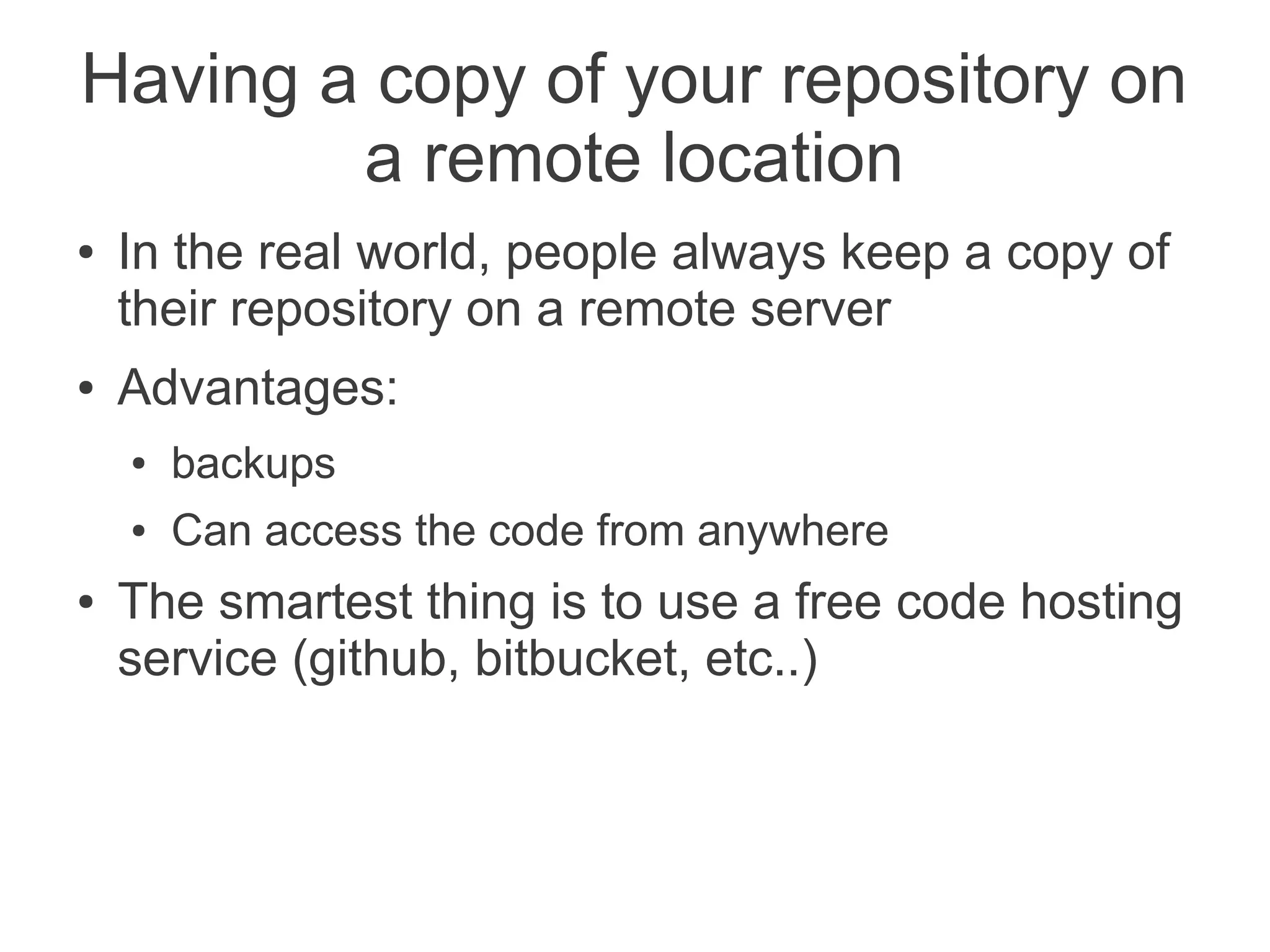

a remote location
● In the real world, people always keep a copy of
their repository on a remote server
● Advantages:
● backups
● Can access the code from anywhere
● The smartest thing is to use a free code hosting
service (github, bitbucket, etc..)

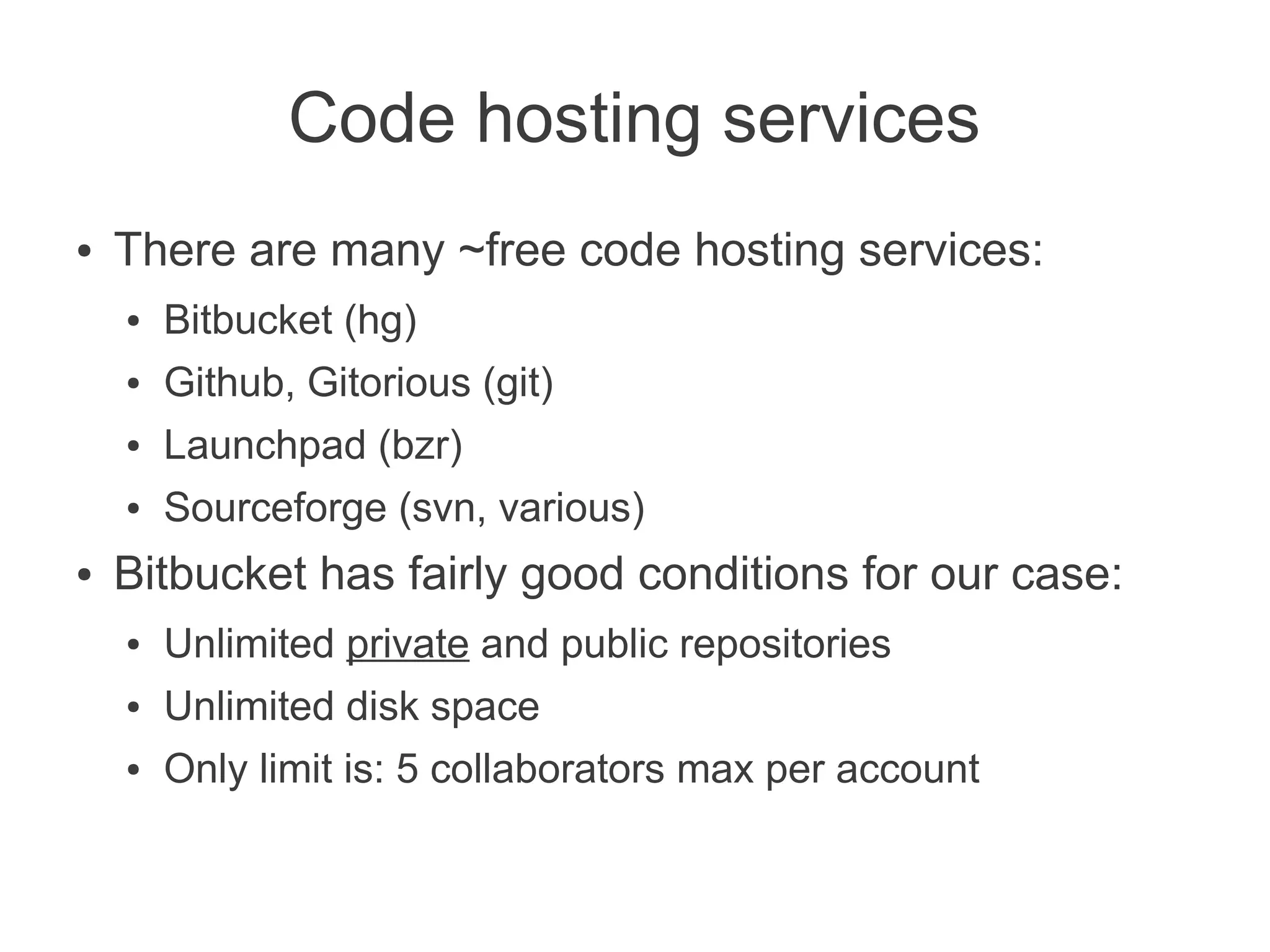

14. Code hosting services
● There are many ~free code hosting services:
● Bitbucket (hg)
● Github, Gitorious (git)
● Launchpad (bzr)
● Sourceforge (svn, various)
● Bitbucket has fairly good conditions for our case:
● Unlimited private and public repositories
● Unlimited disk space
● Only limit is: 5 collaborators max per account

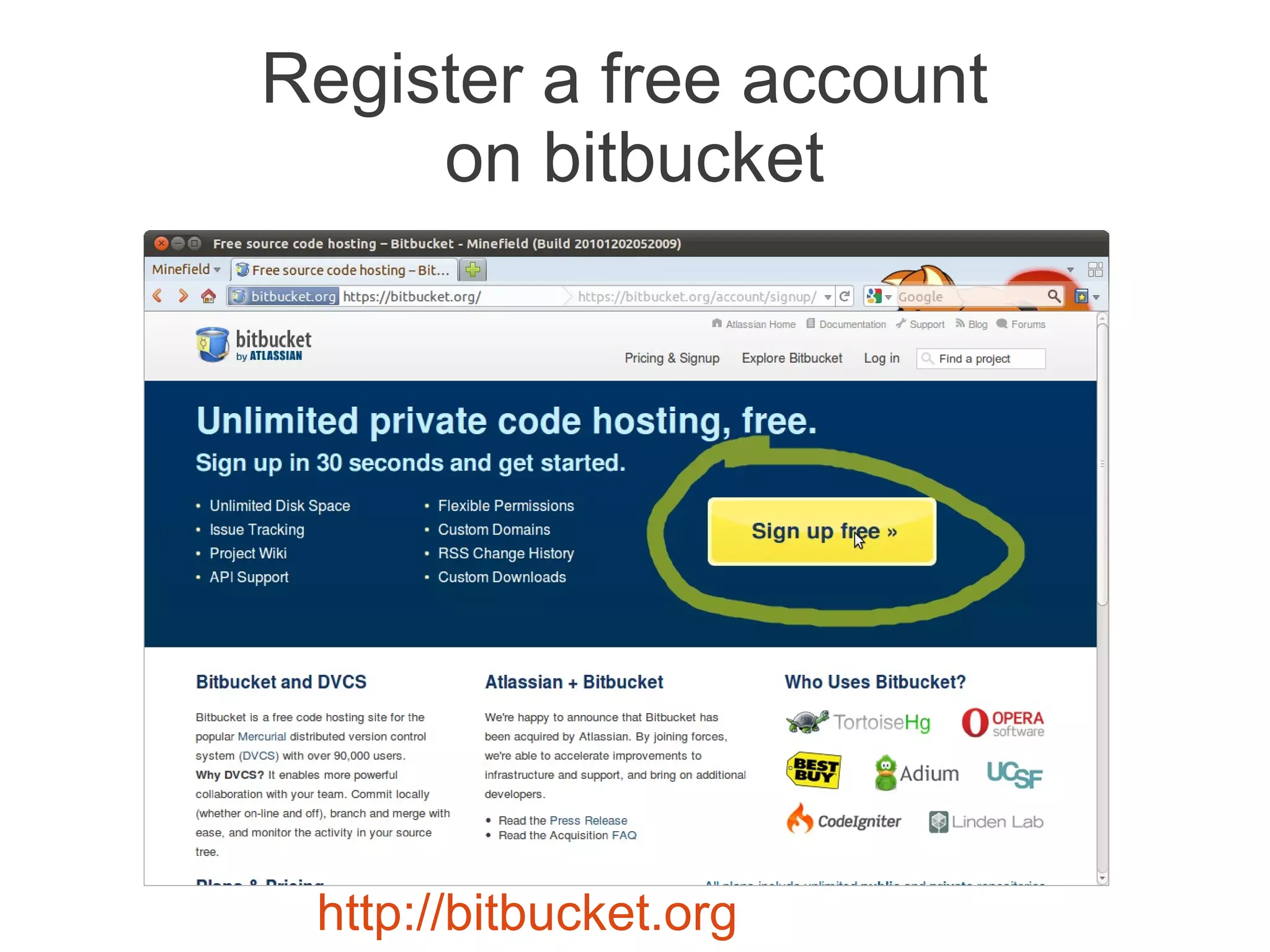

15. Register a free account
on bitbucket
http://bitbucket.org

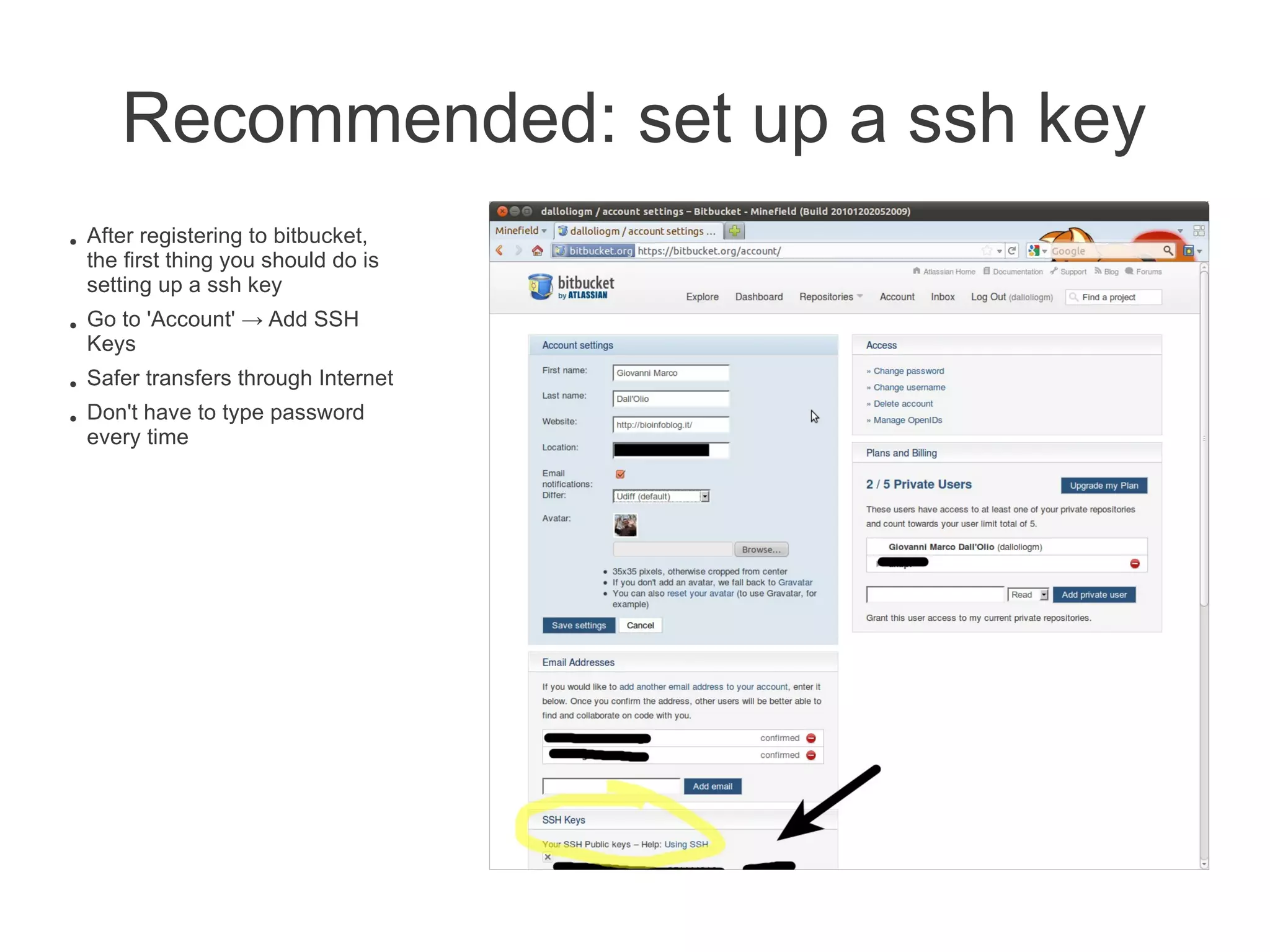

16. Recommended: set up a ssh key
● After registering to bitbucket,
the first thing you should do is
setting up a ssh key
● Go to 'Account' → Add SSH
Keys
● Safer transfers through Internet
● Don't have to type password
every time

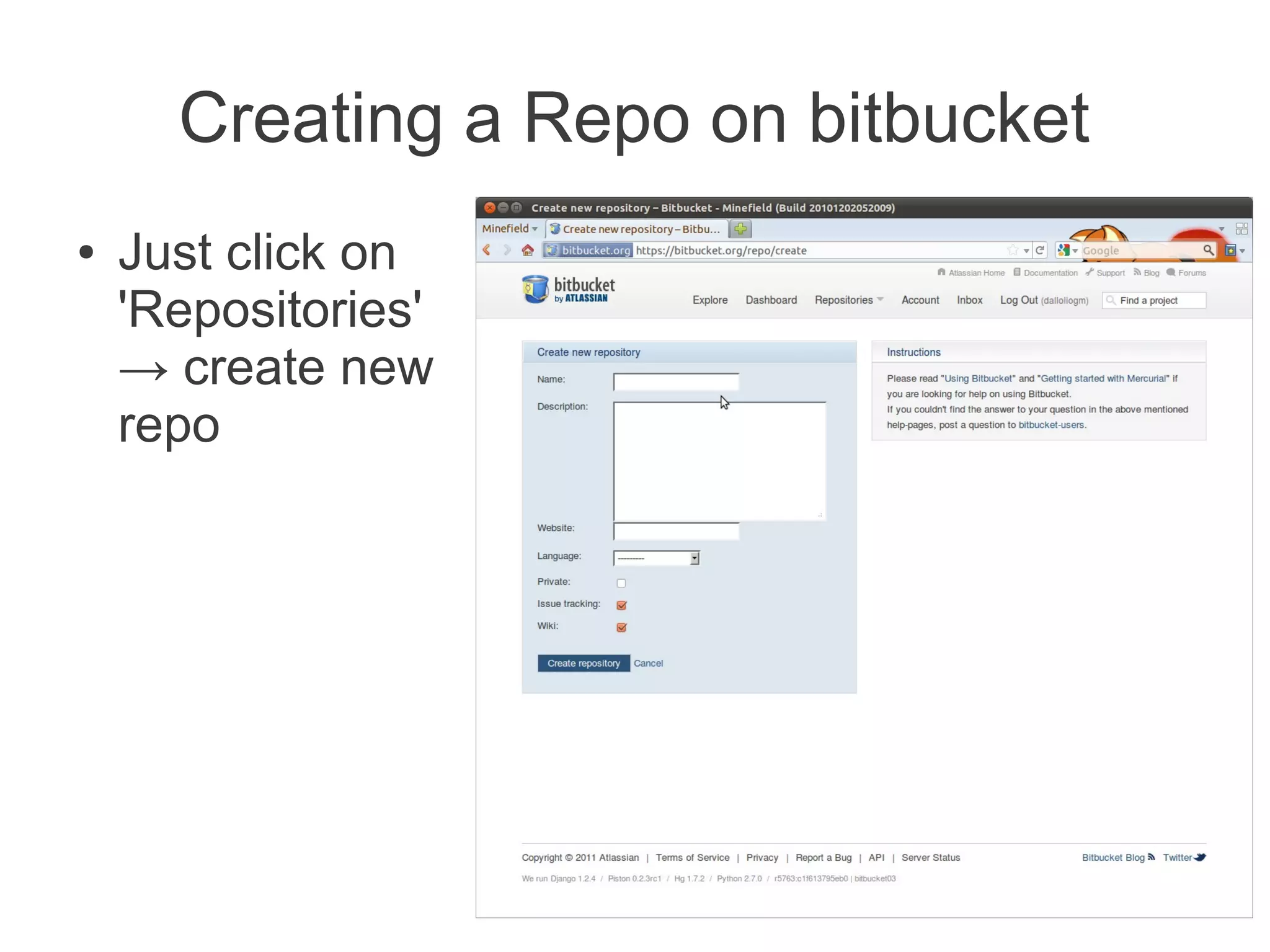

17. Creating a Repo on bitbucket
● Just click on
'Repositories'
→ create new
repo

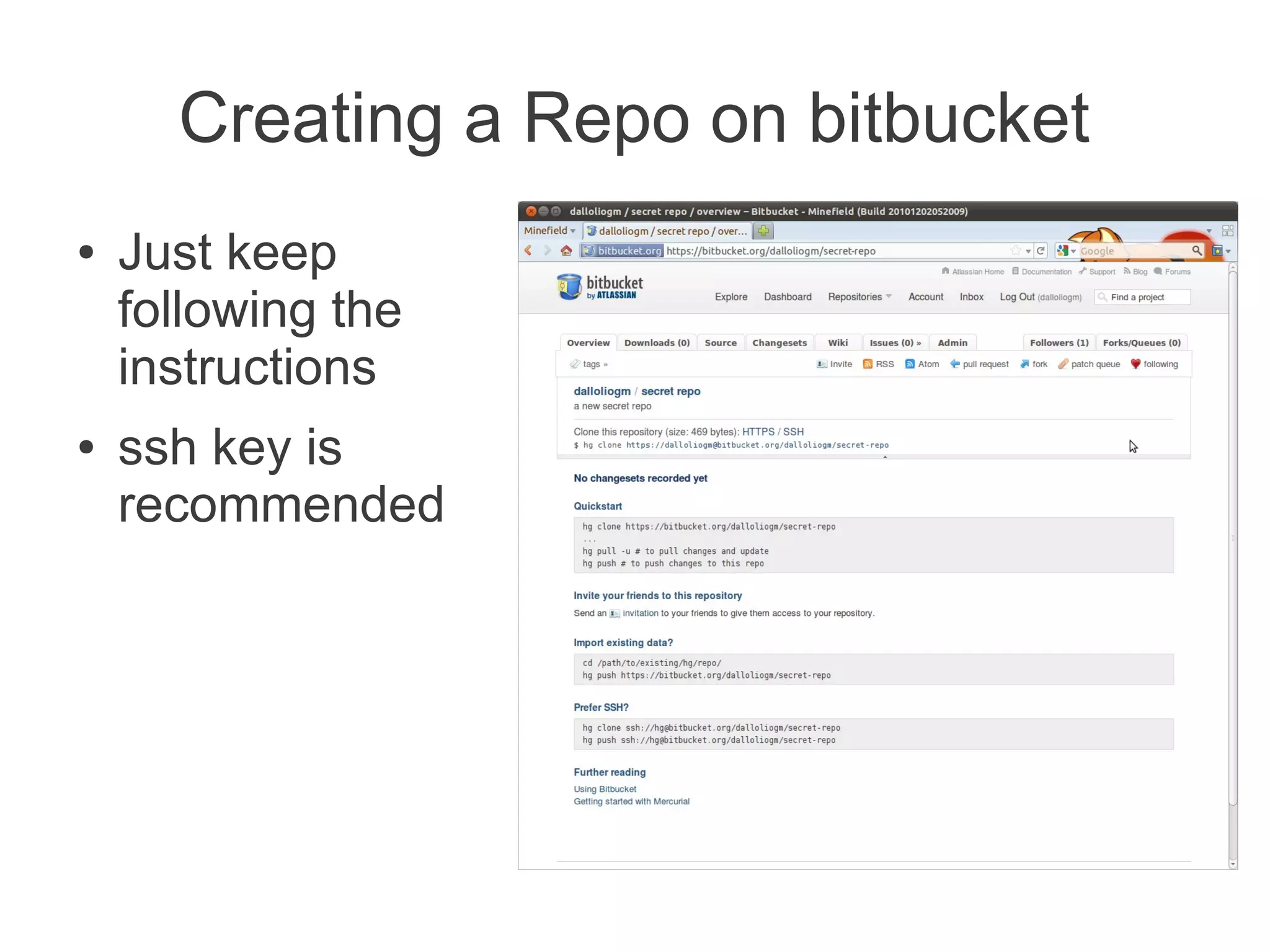

18. Creating a Repo on bitbucket
● Just keep
following the
instructions
● ssh key is
recommended

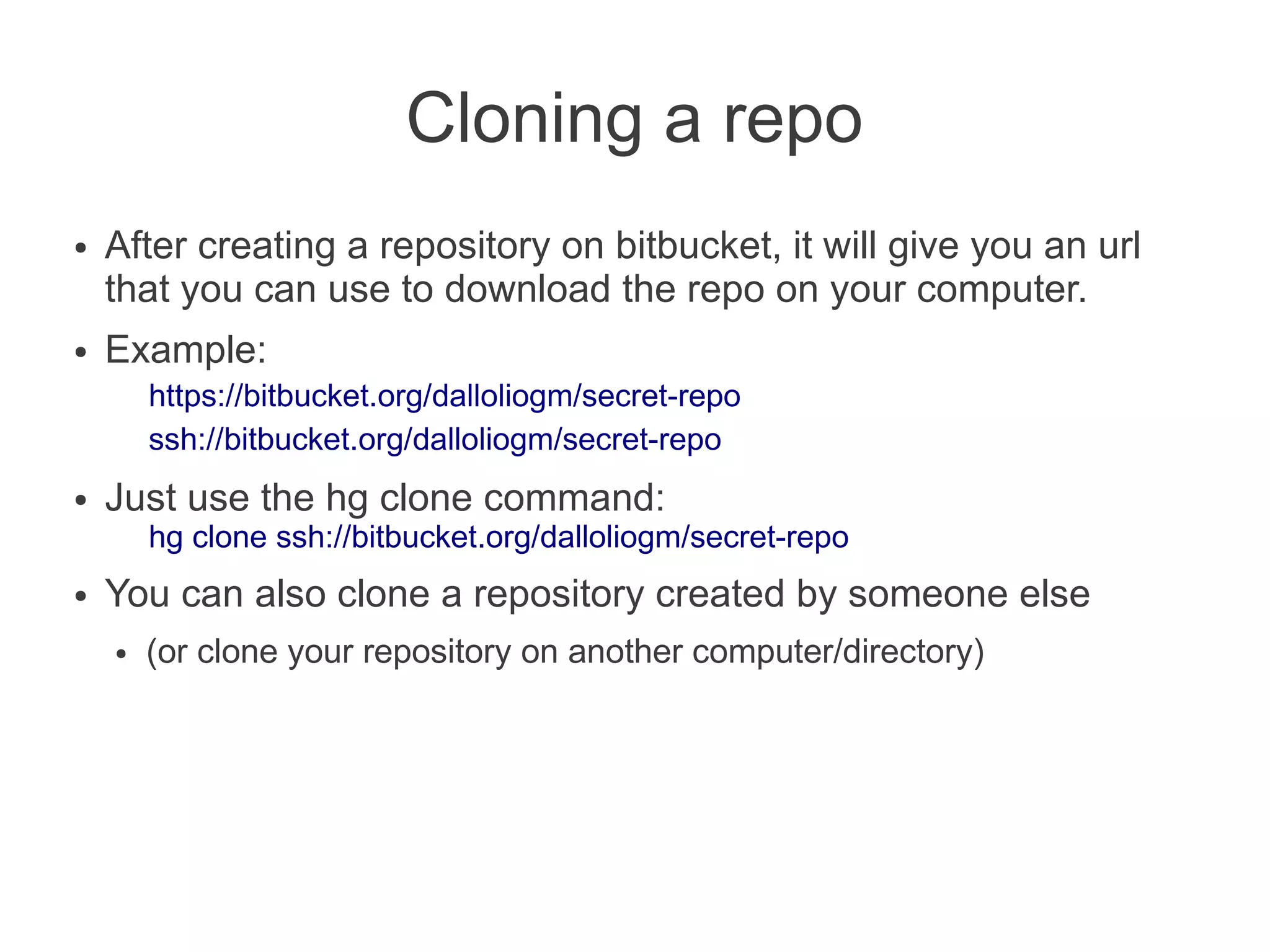

19. Cloning a repo
● After creating a repository on bitbucket, it will give you an url
that you can use to download the repo on your computer.
● Example:
https://bitbucket.org/dalloliogm/secret-repo
ssh://bitbucket.org/dalloliogm/secret-repo
● Just use the hg clone command:
hg clone ssh://bitbucket.org/dalloliogm/secret-repo
● You can also clone a repository created by someone else
● (or clone your repository on another computer/directory)

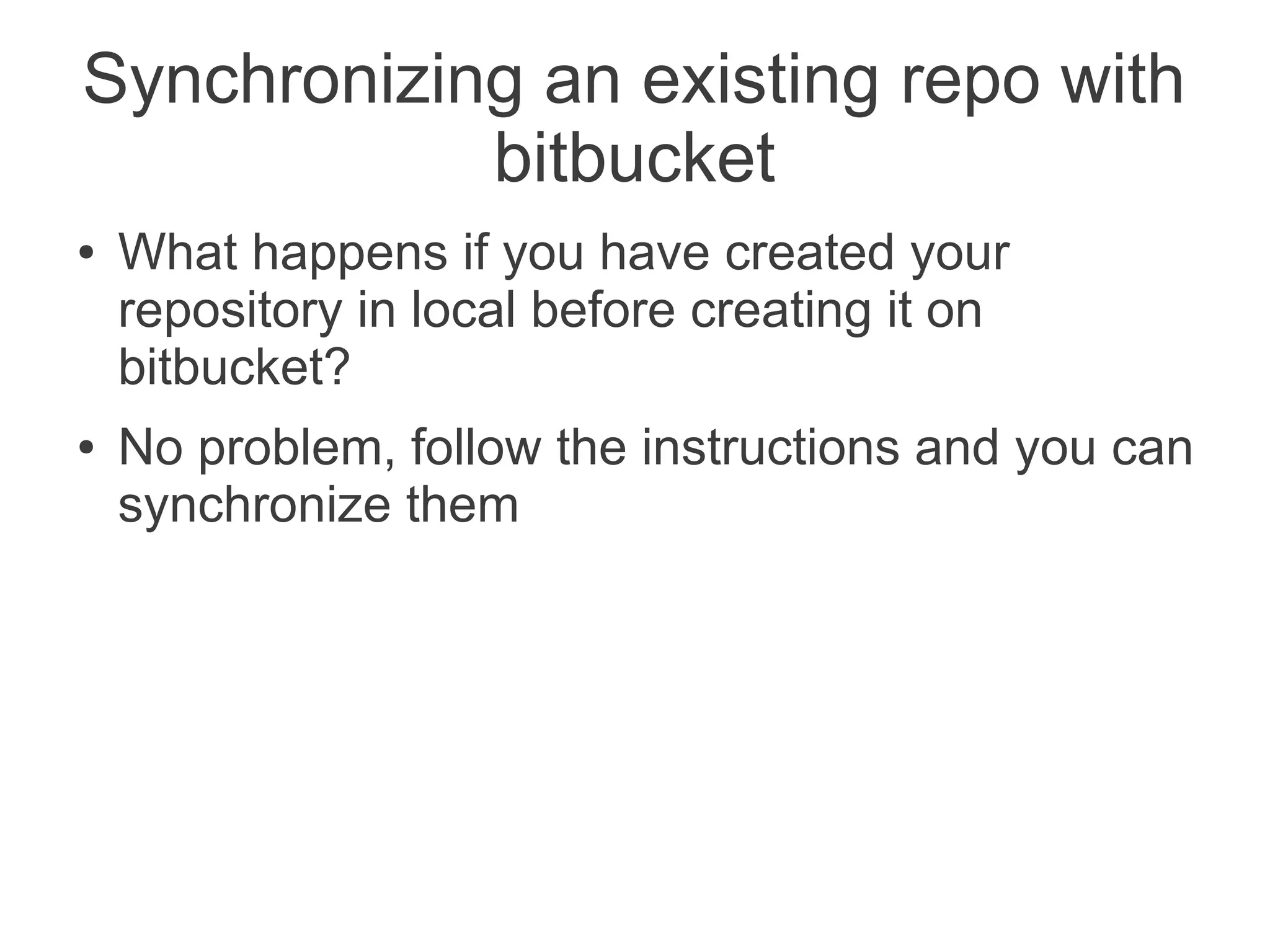

20. Synchronizing an existing repo with
bitbucket
● What happens if you have created your
repository in local before creating it on
bitbucket?
● No problem, follow the instructions and you can
synchronize them

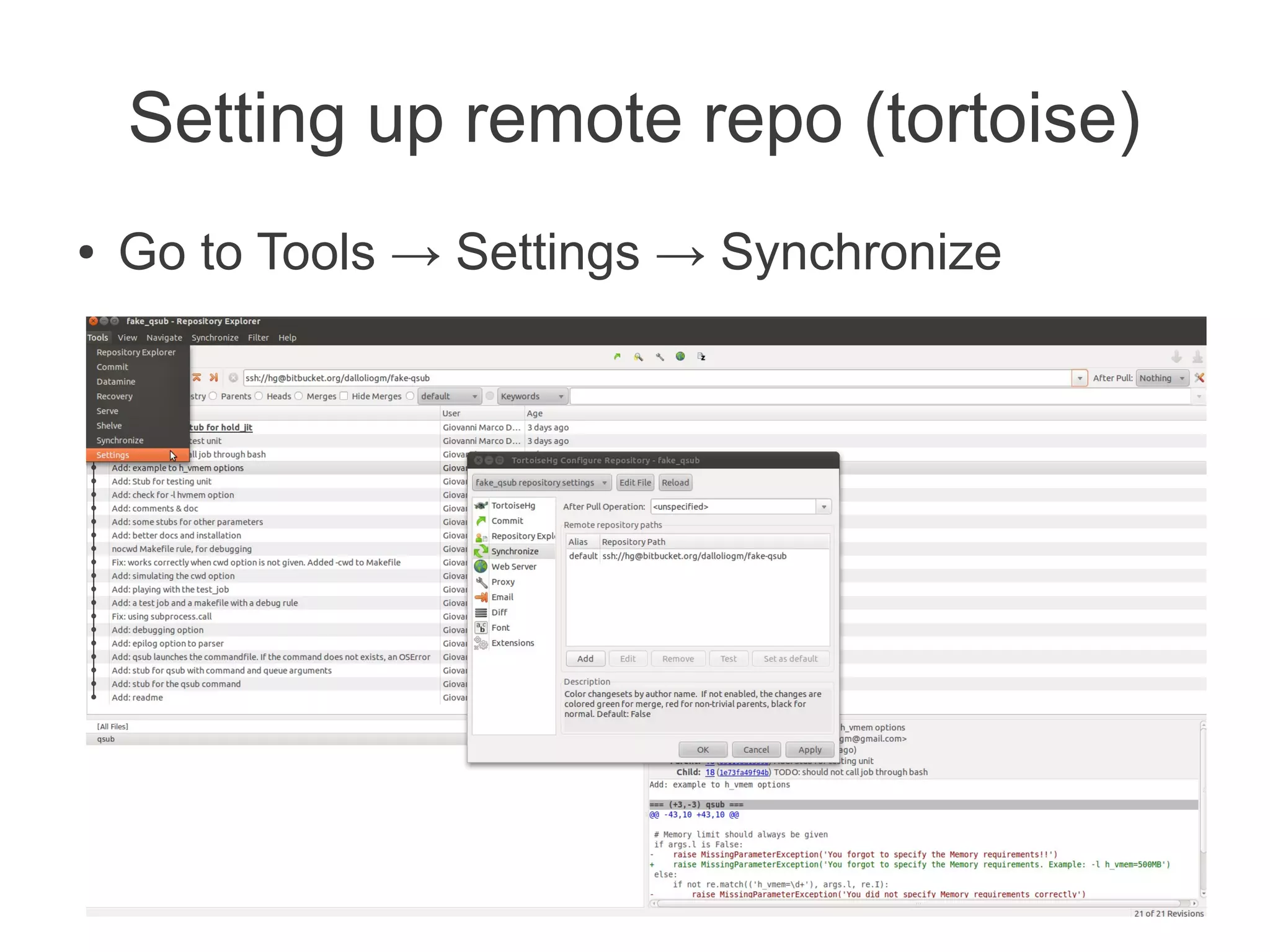

21. Setting up remote repo (tortoise)
● Go to Tools → Settings → Synchronize

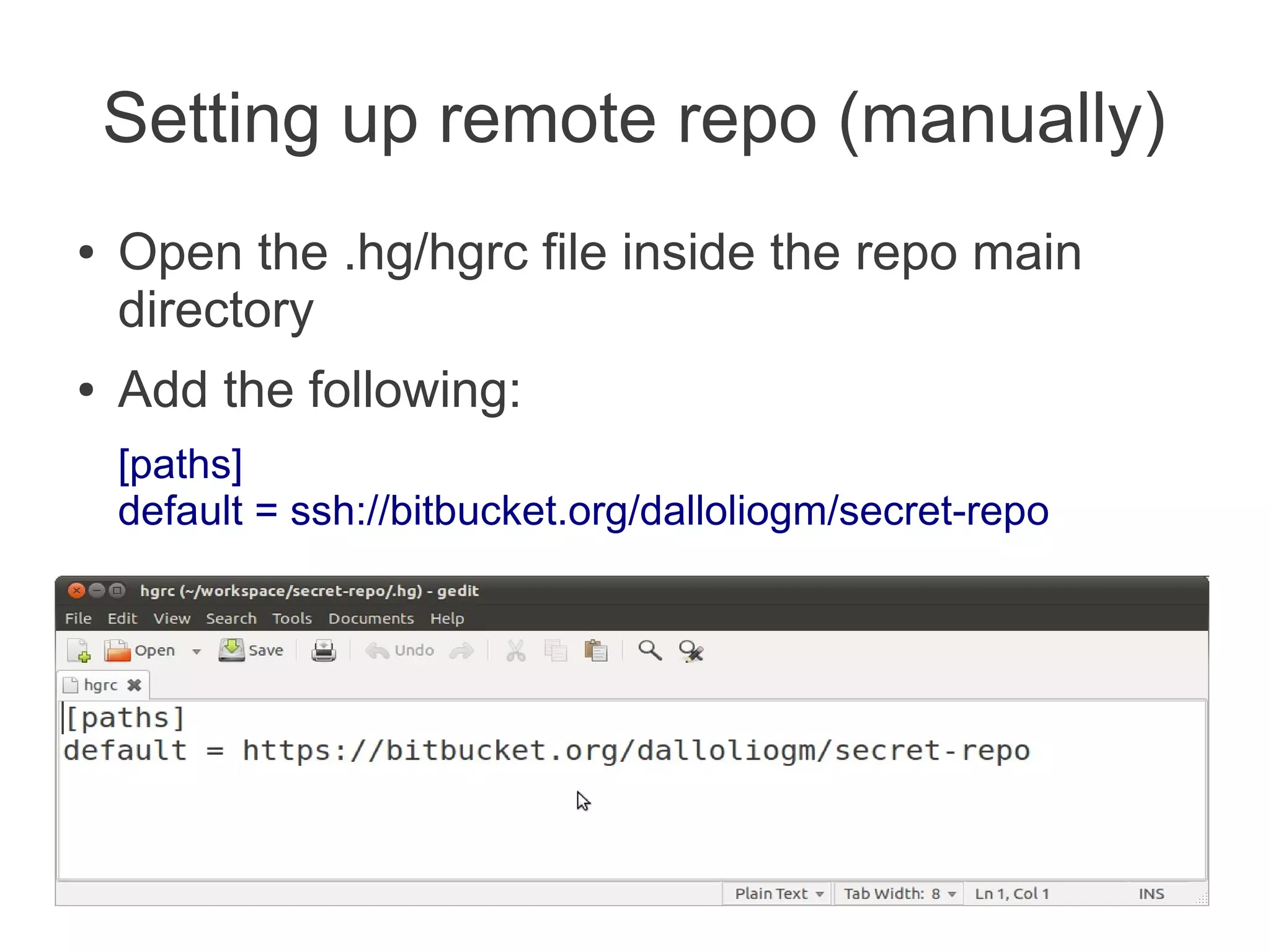

22. Setting up remote repo (manually)
● Open the .hg/hgrc file inside the repo main
directory
● Add the following:
[paths]
default = ssh://bitbucket.org/dalloliogm/secret-repo

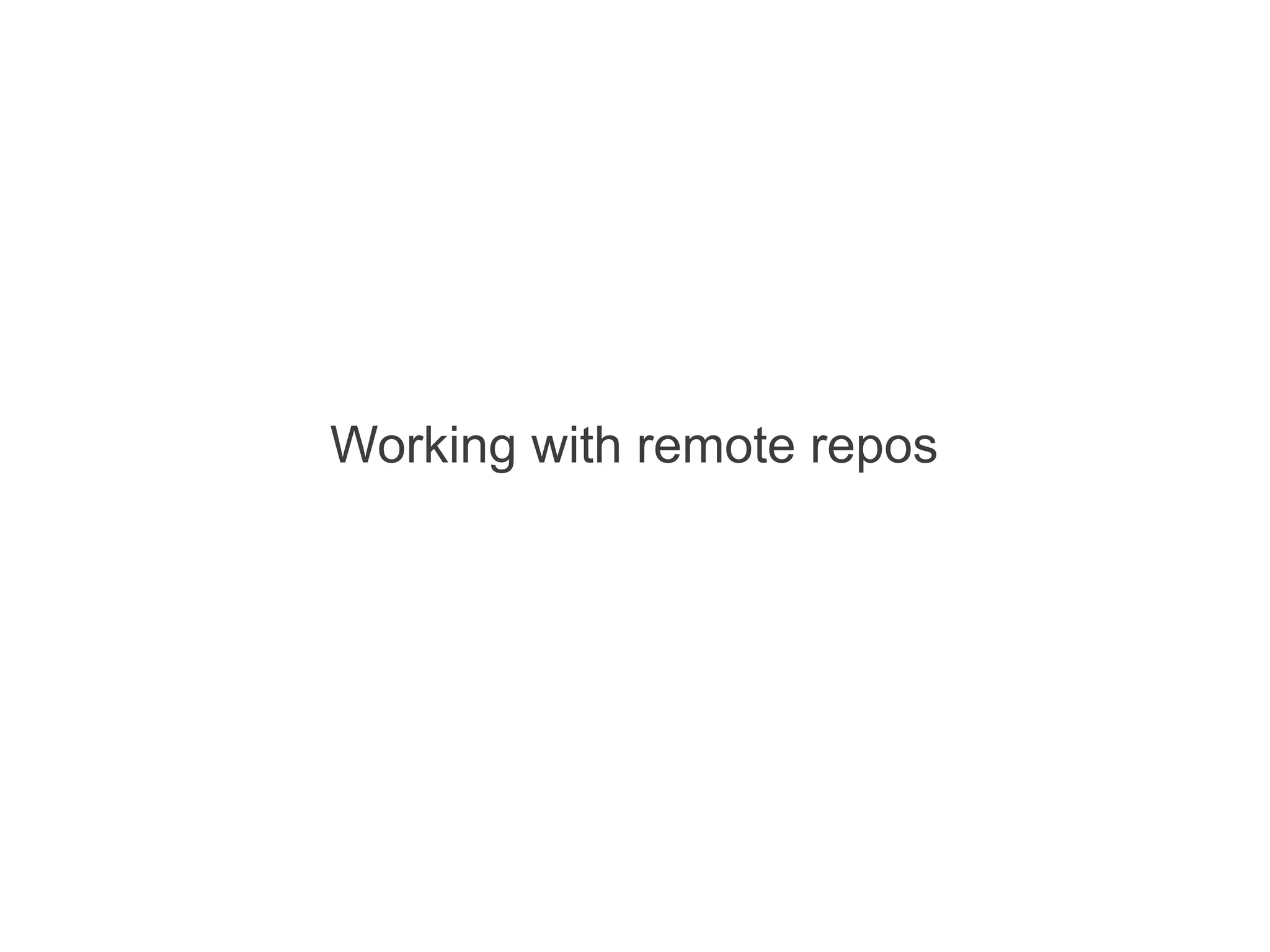

23. Working with remote repos

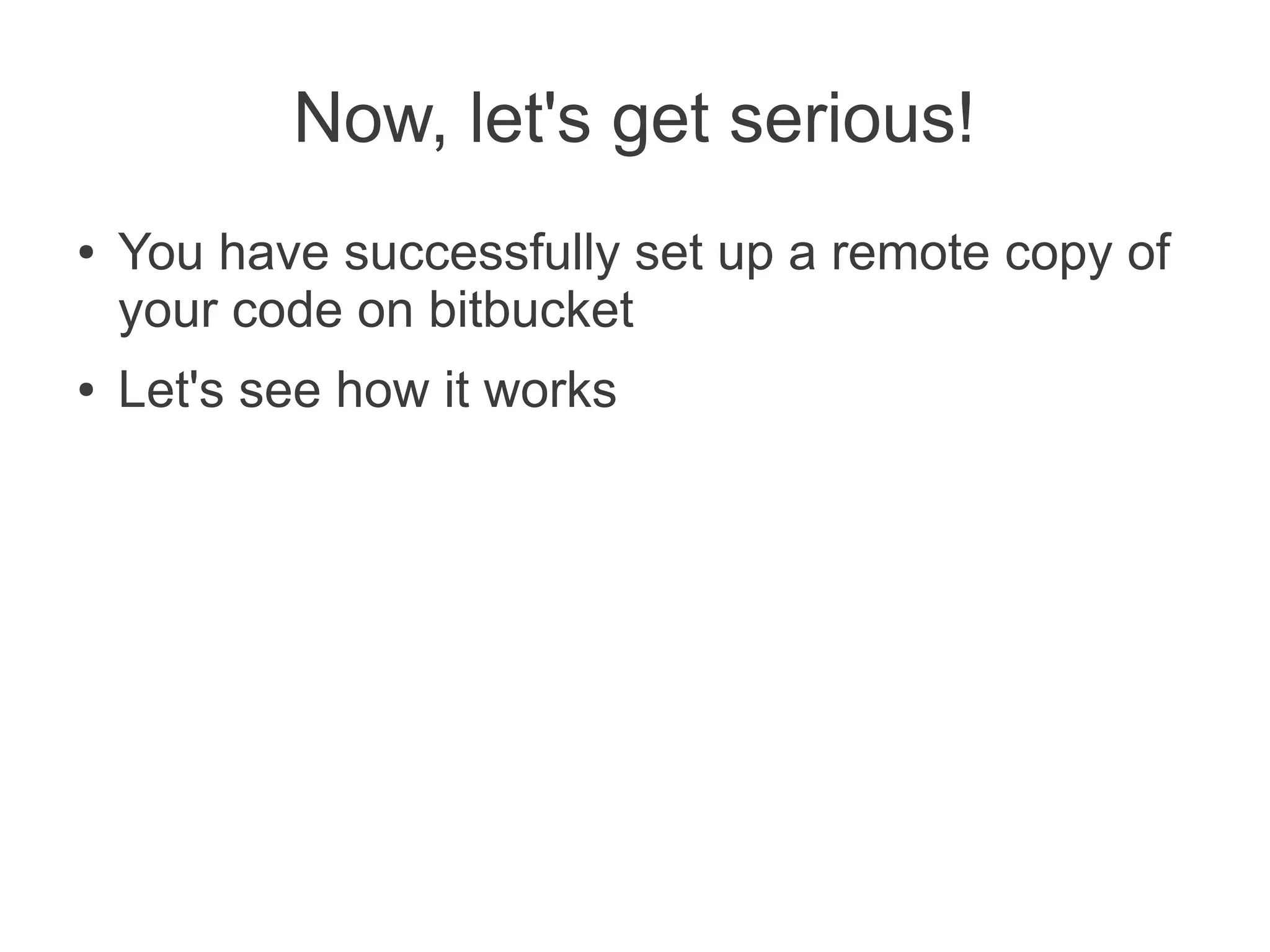

24. Now, let's get serious!
● You have successfully set up a remote copy of
your code on bitbucket
● Let's see how it works

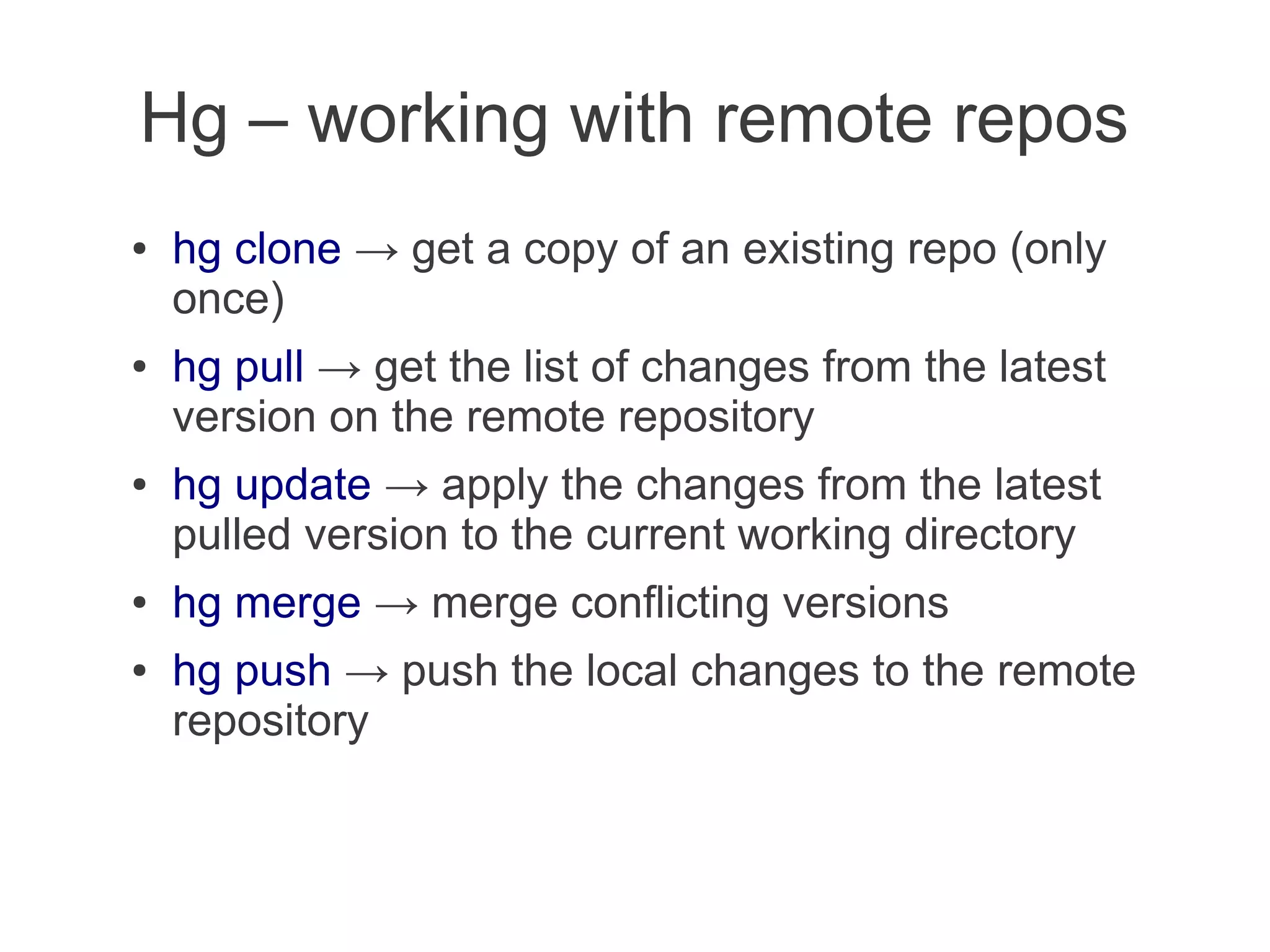

25. Hg – working with remote repos
● hg clone → get a copy of an existing repo (only
once)
● hg pull → get the list of changes from the latest
version on the remote repository
● hg update → apply the changes from the latest
pulled version to the current working directory
● hg merge → merge conflicting versions
● hg push → push the local changes to the remote
repository

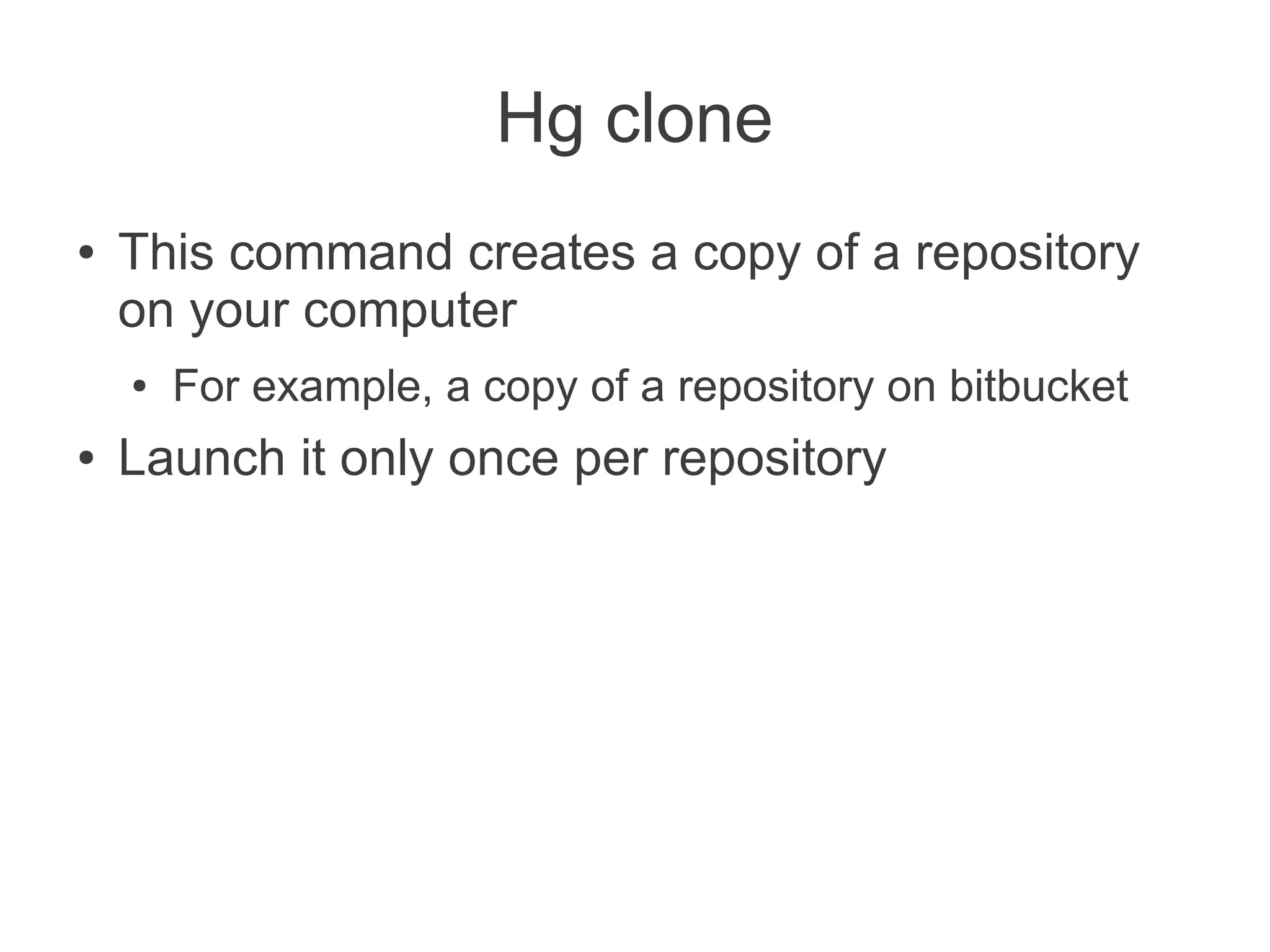

26. Hg clone
● This command creates a copy of a repository
on your computer
● For example, a copy of a repository on bitbucket
● Launch it only once per repository

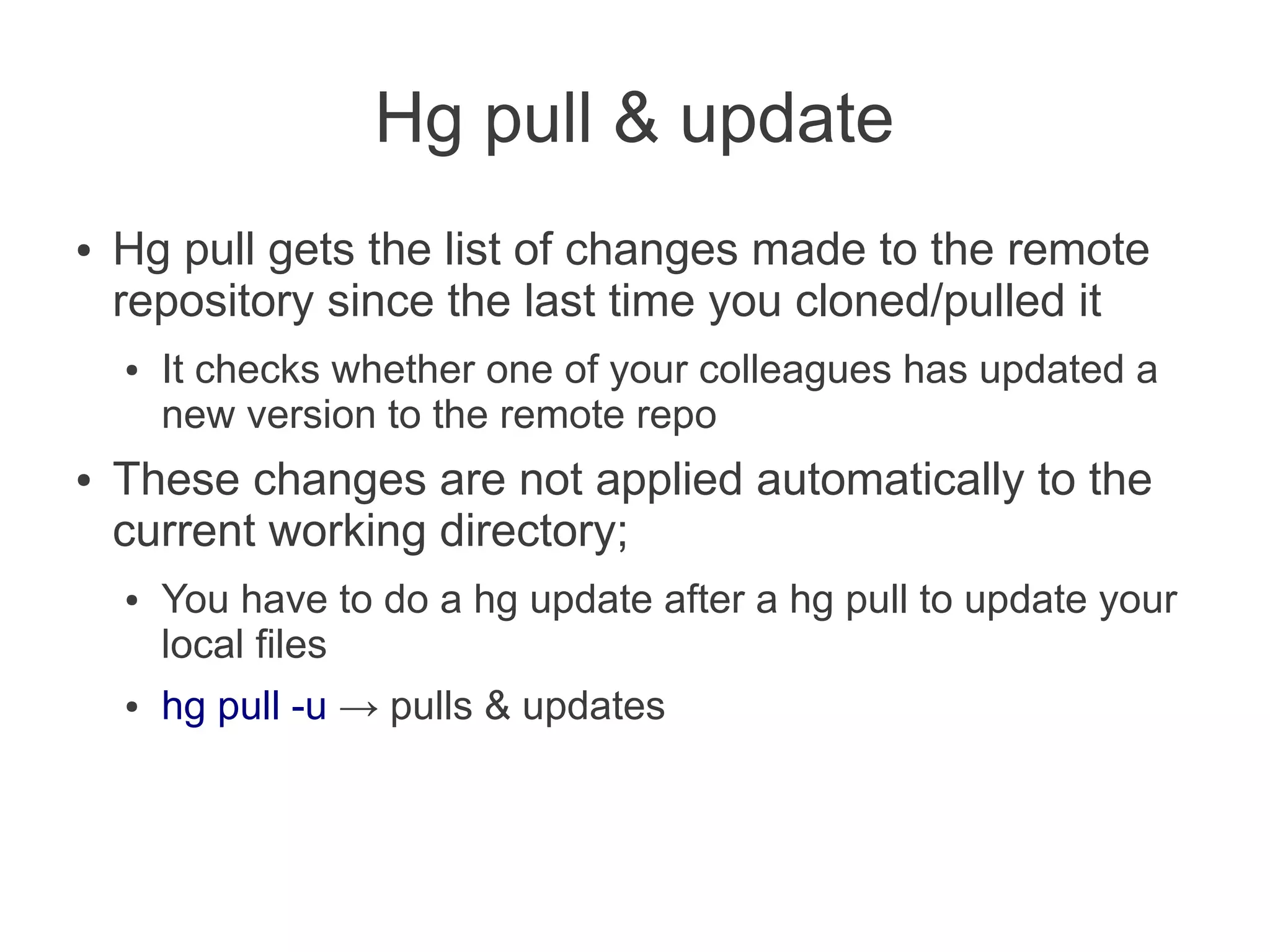

27. Hg pull & update
● Hg pull gets the list of changes made to the remote
repository since the last time you cloned/pulled it
● It checks whether one of your colleagues has updated a
new version to the remote repo
● These changes are not applied automatically to the
current working directory;
● You have to do a hg update after a hg pull to update your
local files
● hg pull -u → pulls & updates

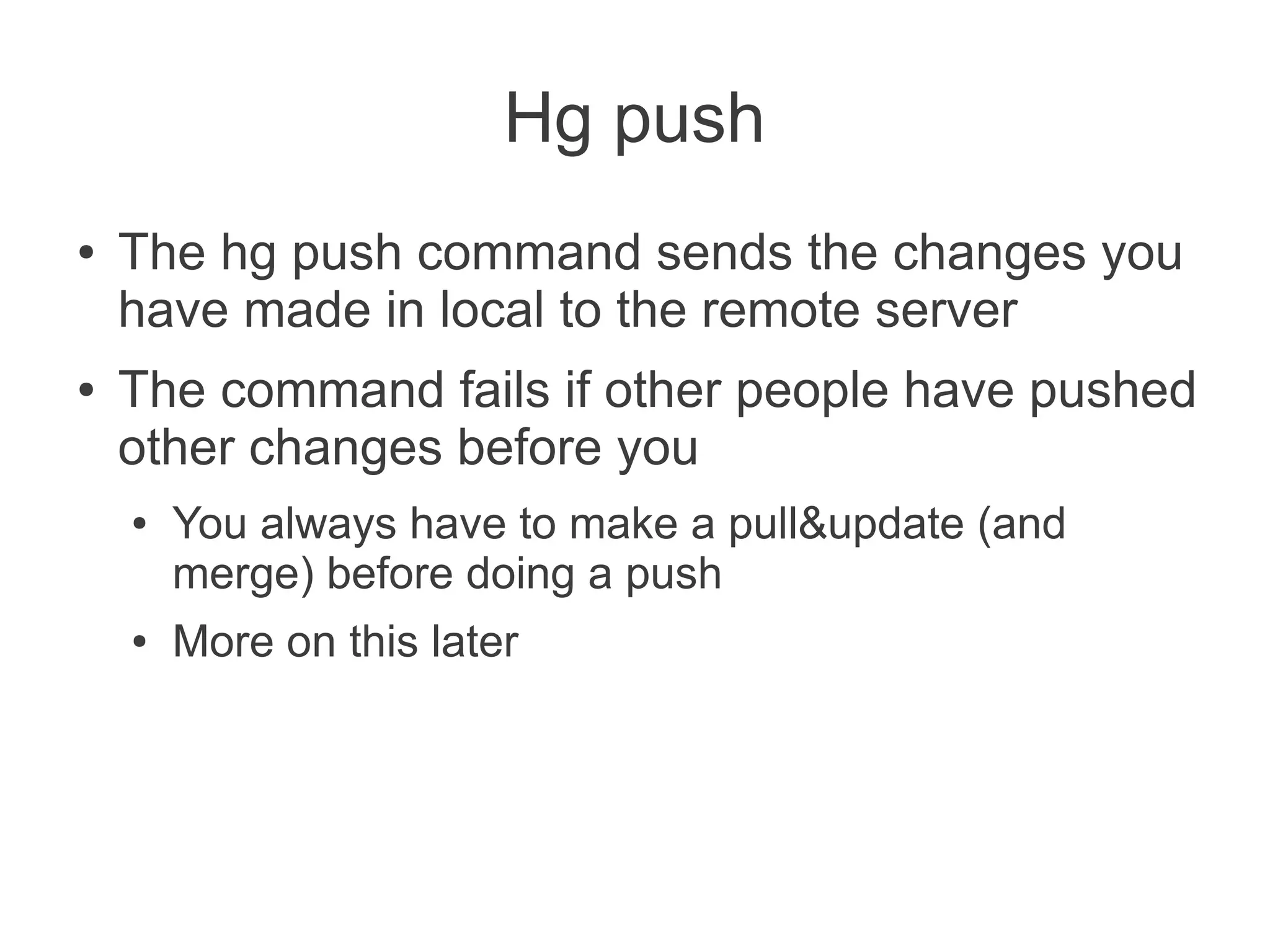

28. Hg push
● The hg push command sends the changes you
have made in local to the remote server
● The command fails if other people have pushed
other changes before you
● You always have to make a pull&update (and
merge) before doing a push
● More on this later

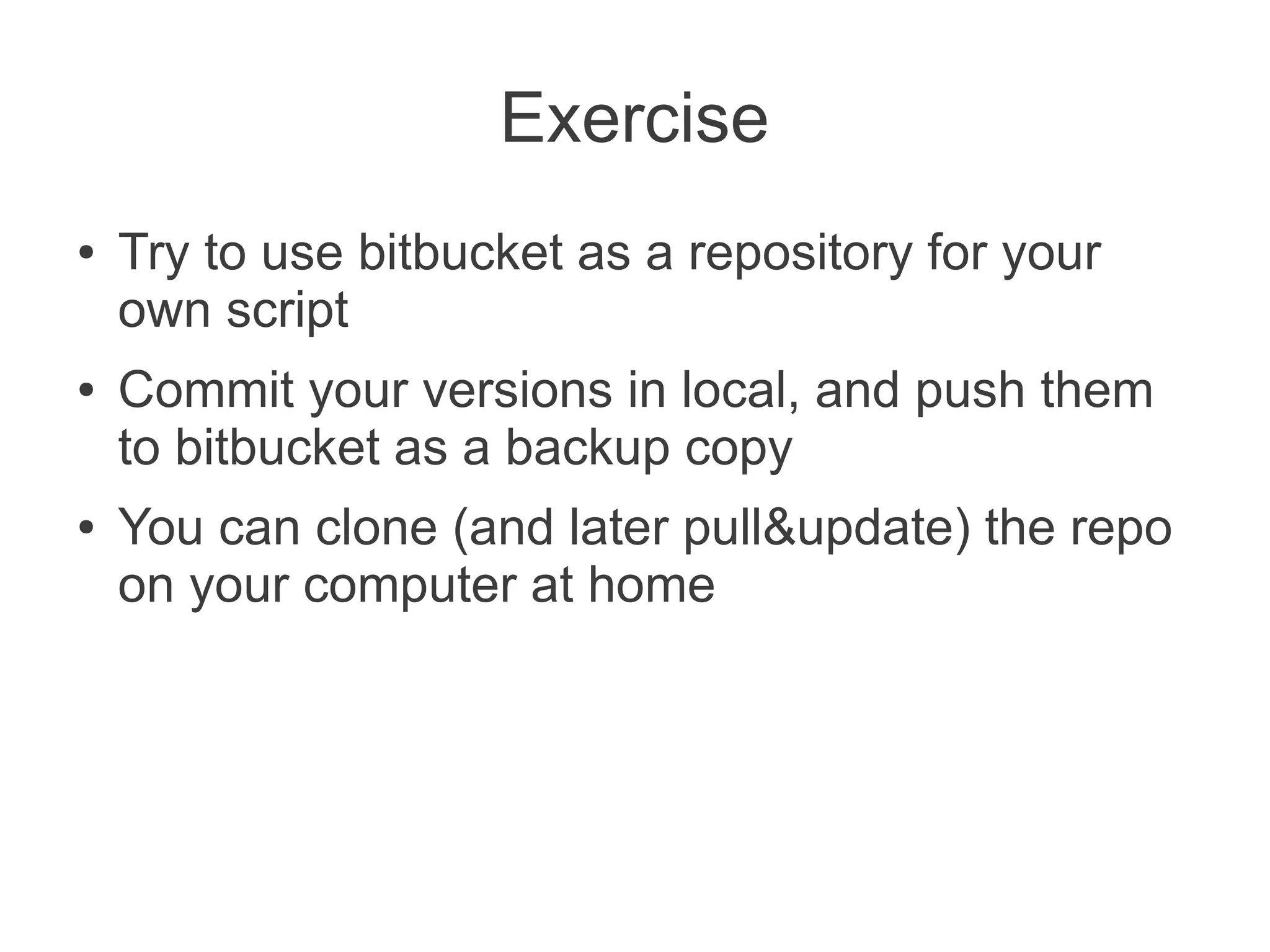

29. Exercise
● Try to use bitbucket as a repository for your
own script
● Commit your versions in local, and push them
to bitbucket as a backup copy
● You can clone (and later pull&update) the repo
on your computer at home

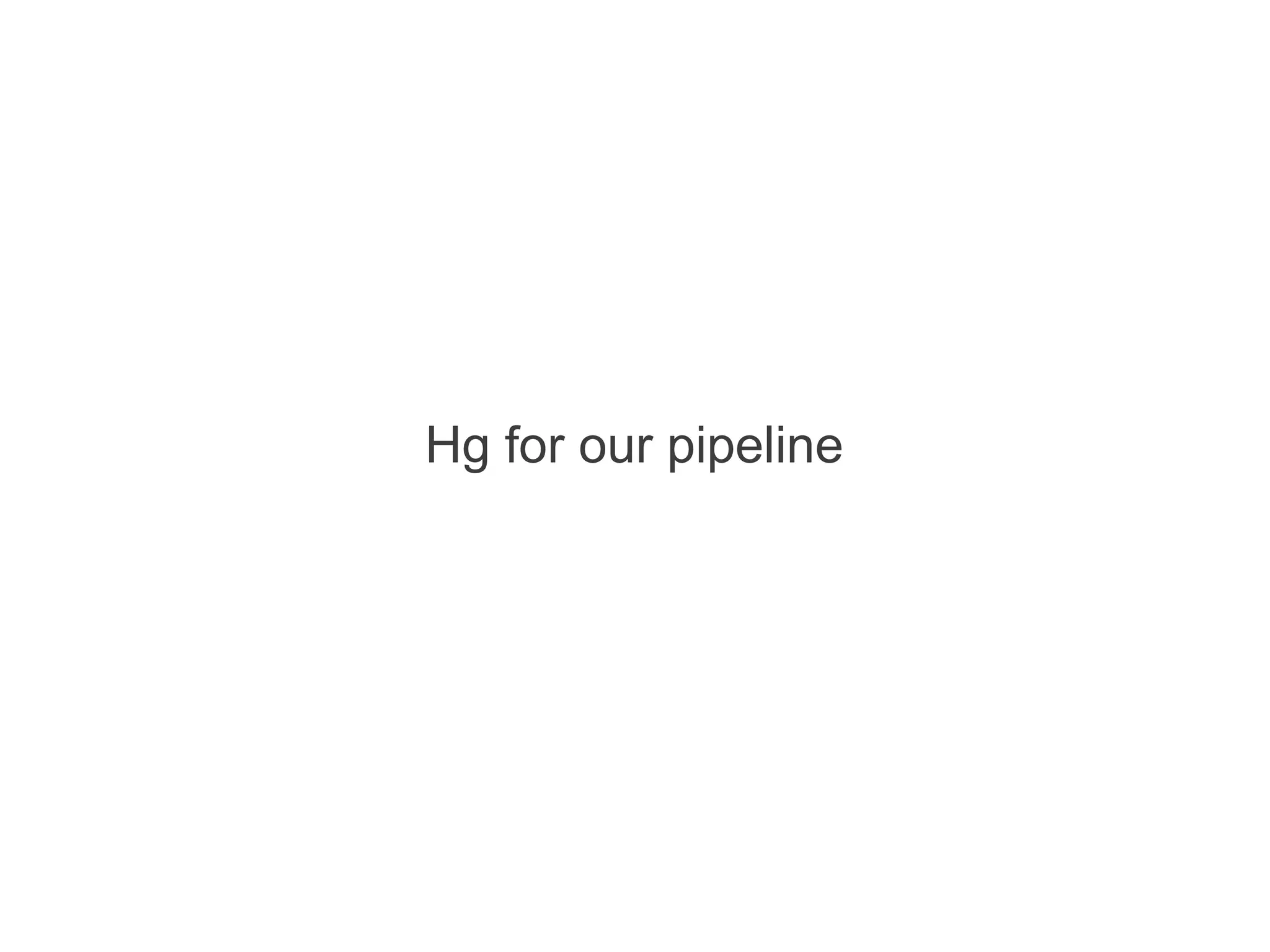

30. Hg for our pipeline

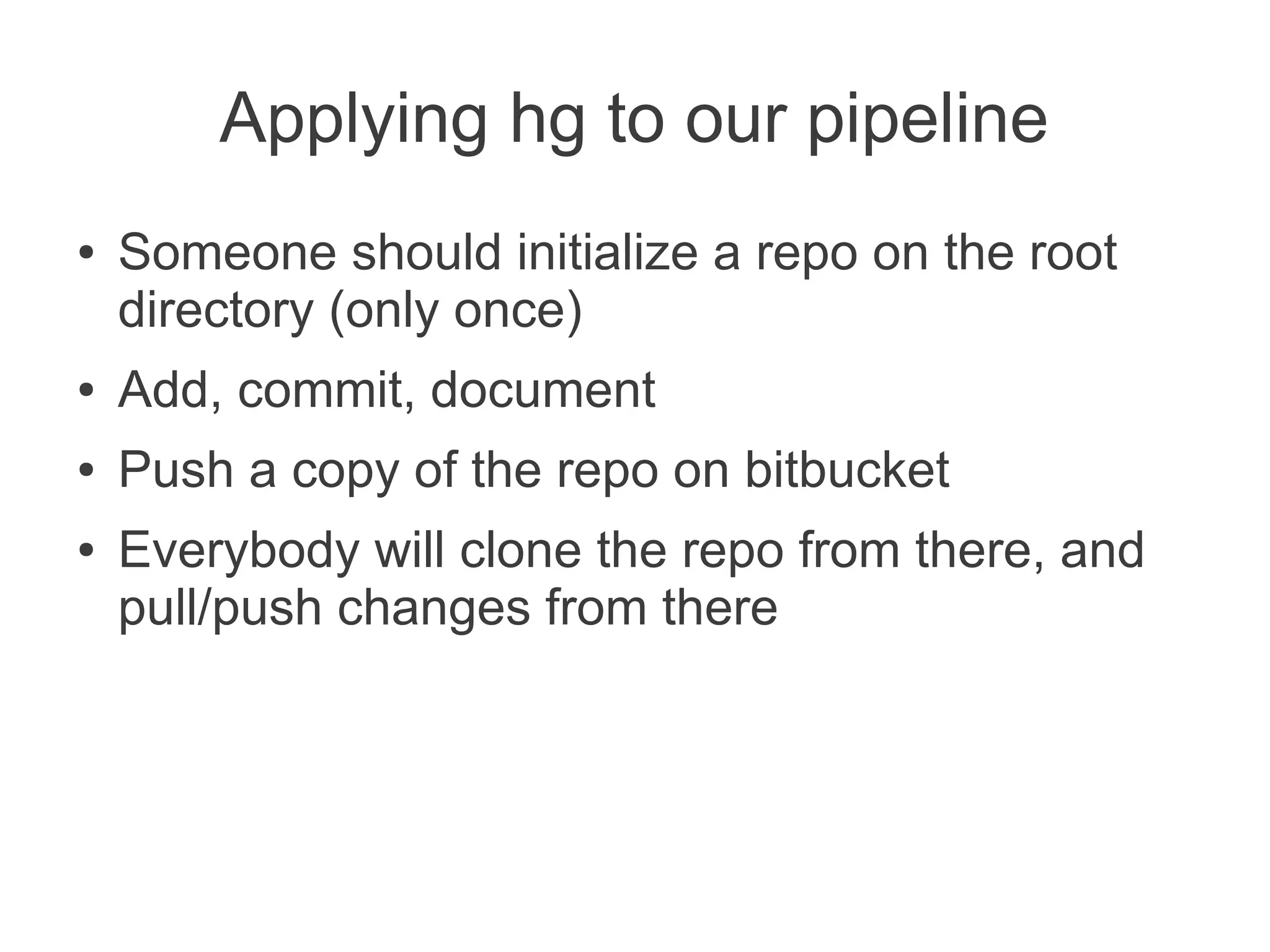

31. Applying hg to our pipeline
● Someone should initialize a repo on the root
directory (only once)
● Add, commit, document
● Push a copy of the repo on bitbucket
● Everybody will clone the repo from there, and
pull/push changes from there

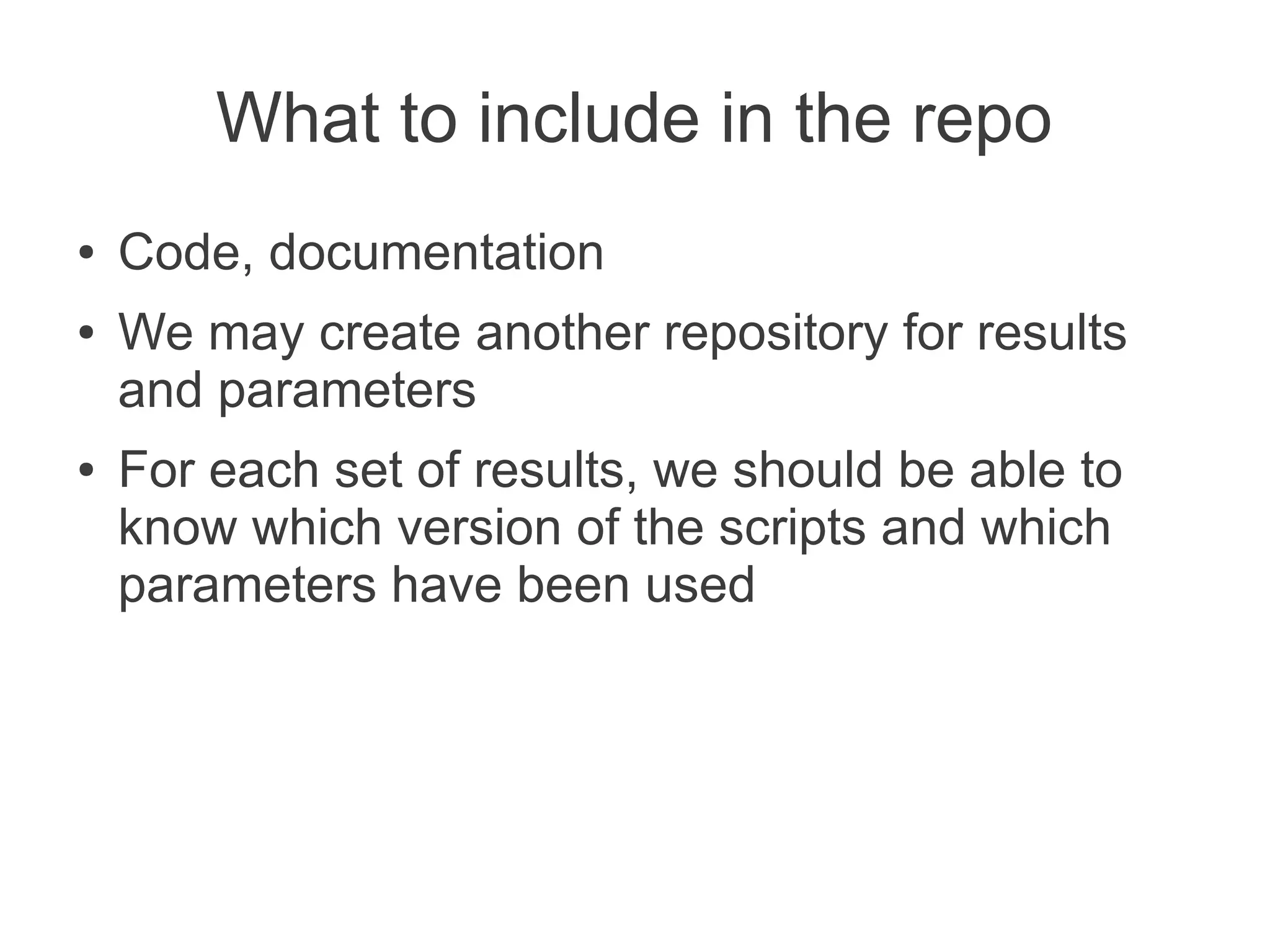

32. What to include in the repo
● Code, documentation
● We may create another repository for results
and parameters
● For each set of results, we should be able to
know which version of the scripts and which
parameters have been used

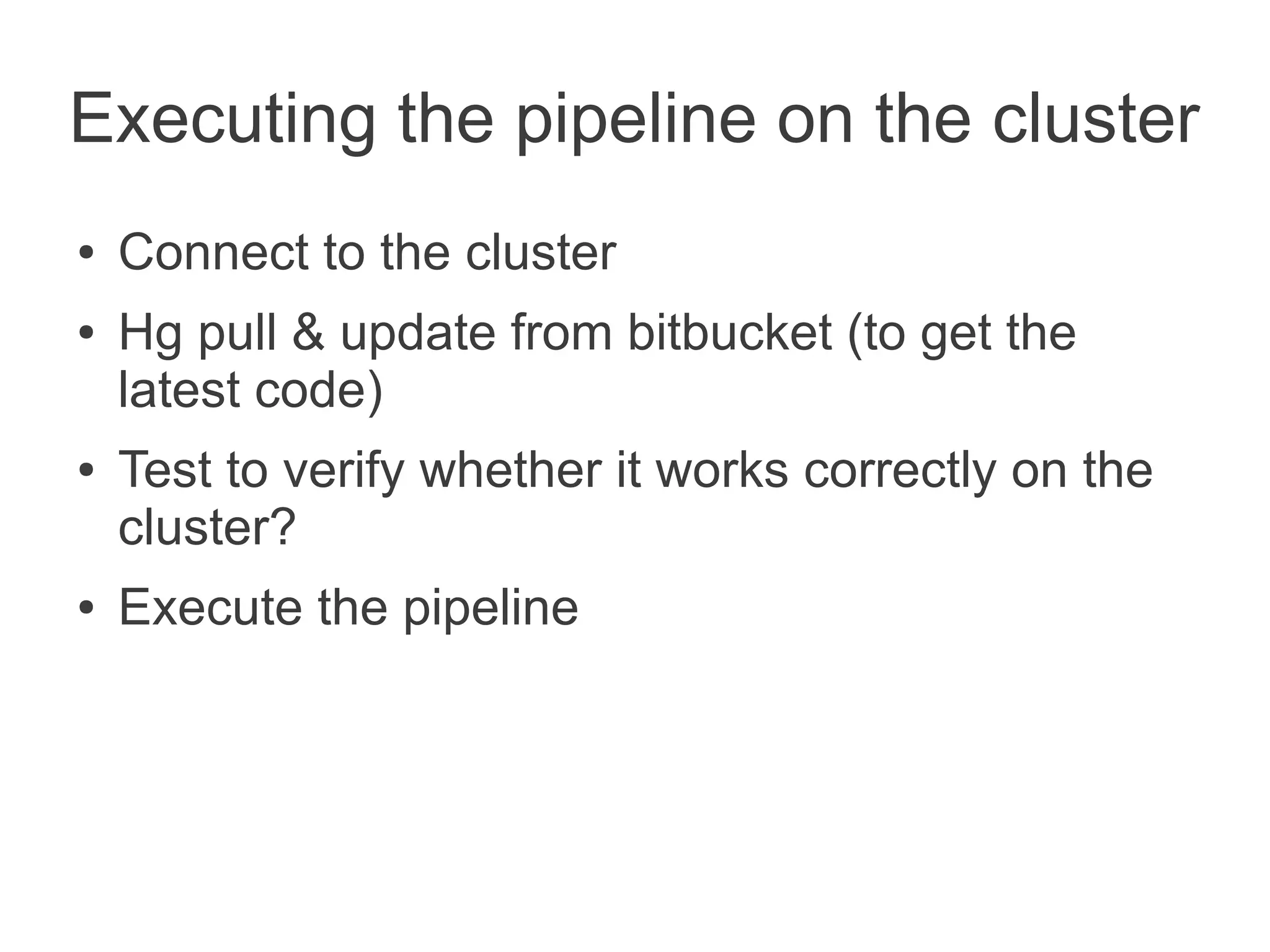

33. Executing the pipeline on the cluster
● Connect to the cluster
● Hg pull & update from bitbucket (to get the
latest code)
● Test to verify whether it works correctly on the
cluster?
● Execute the pipeline

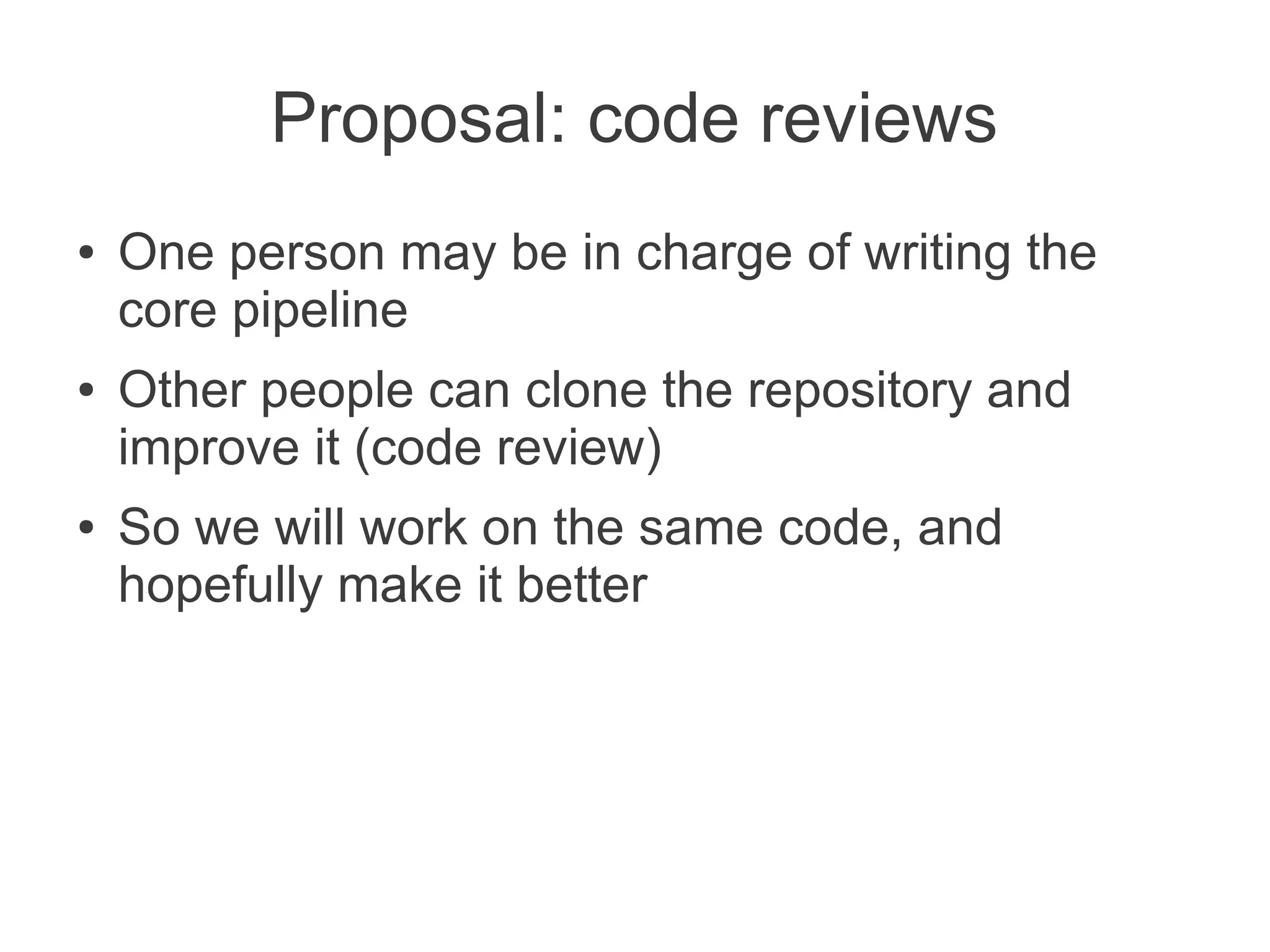

34. Proposal: code reviews
● One person may be in charge of writing the
core pipeline
● Other people can clone the repository and
improve it (code review)
● So we will work on the same code, and
hopefully make it better

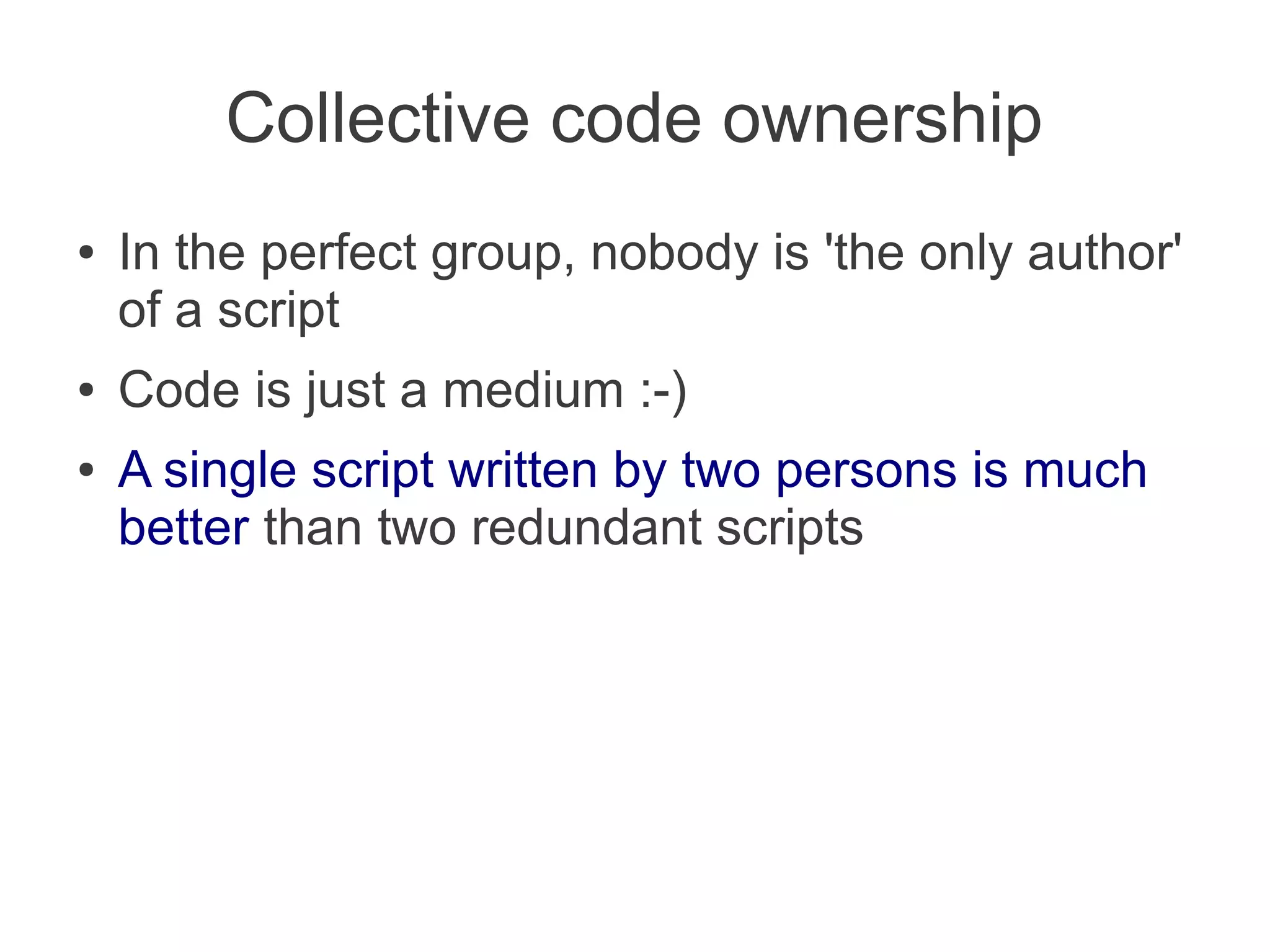

35. Collective code ownership
● In the perfect group, nobody is 'the only author'
of a script
● Code is just a medium :-)
● A single script written by two persons is much
better than two redundant scripts

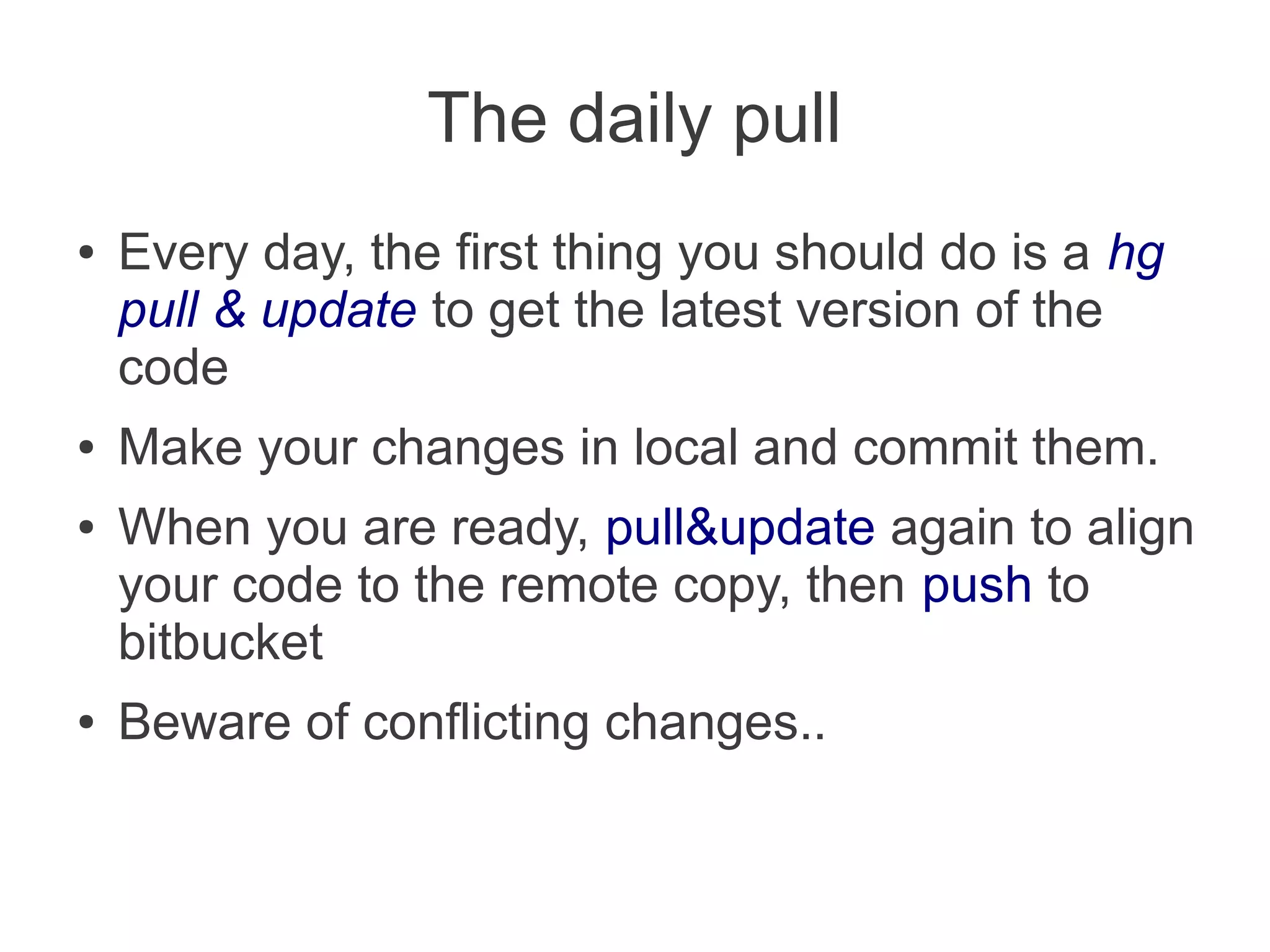

36. The daily pull
● Every day, the first thing you should do is a hg
pull & update to get the latest version of the
code
● Make your changes in local and commit them.
● When you are ready, pull&update again to align
your code to the remote copy, then push to
bitbucket
● Beware of conflicting changes..

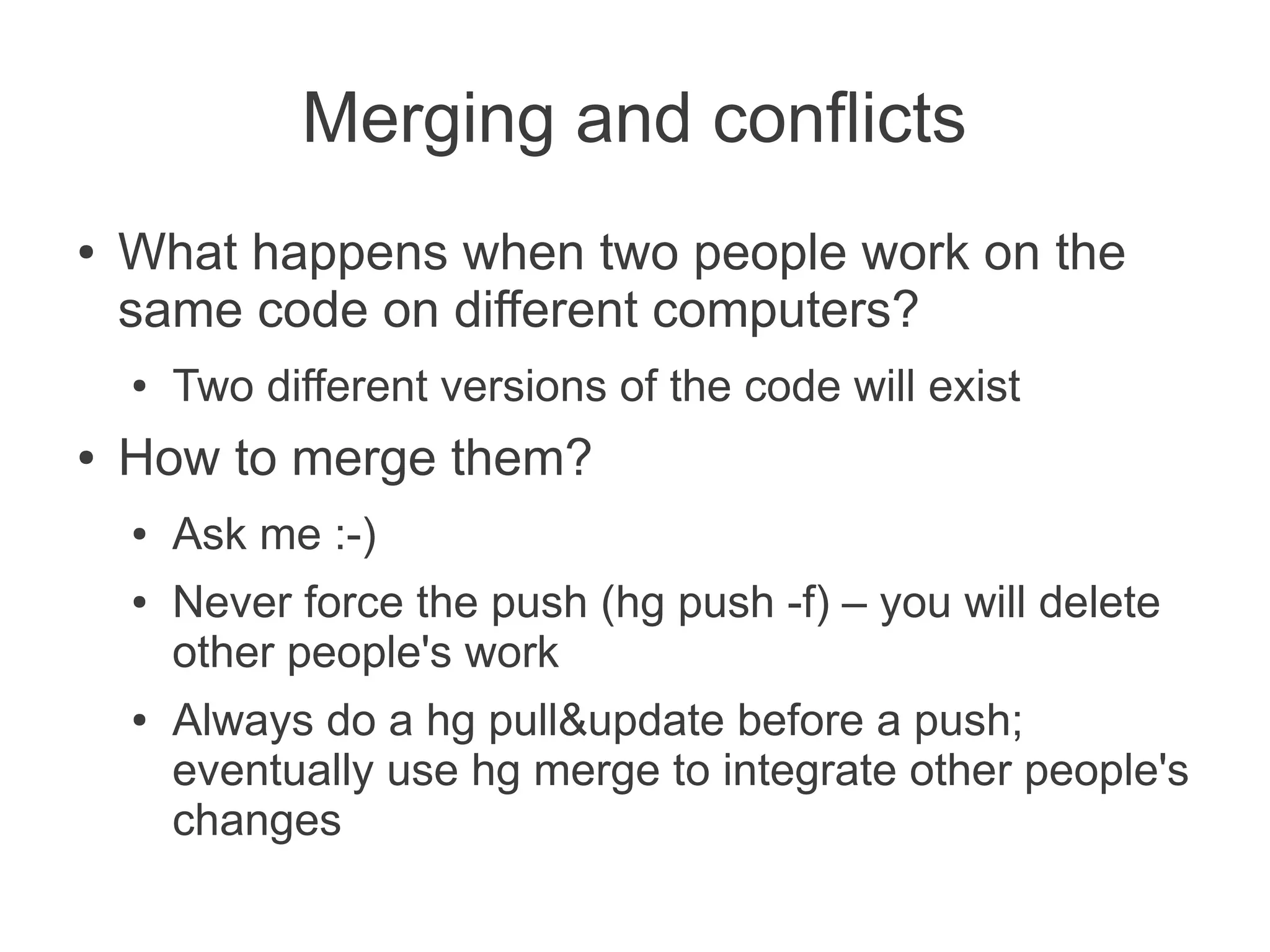

37. Merging and conflicts
● What happens when two people work on the
same code on different computers?
● Two different versions of the code will exist
● How to merge them?
● Ask me :-)
● Never force the push (hg push -f) – you will delete
other people's work
● Always do a hg pull&update before a push;
eventually use hg merge to integrate other people's
changes

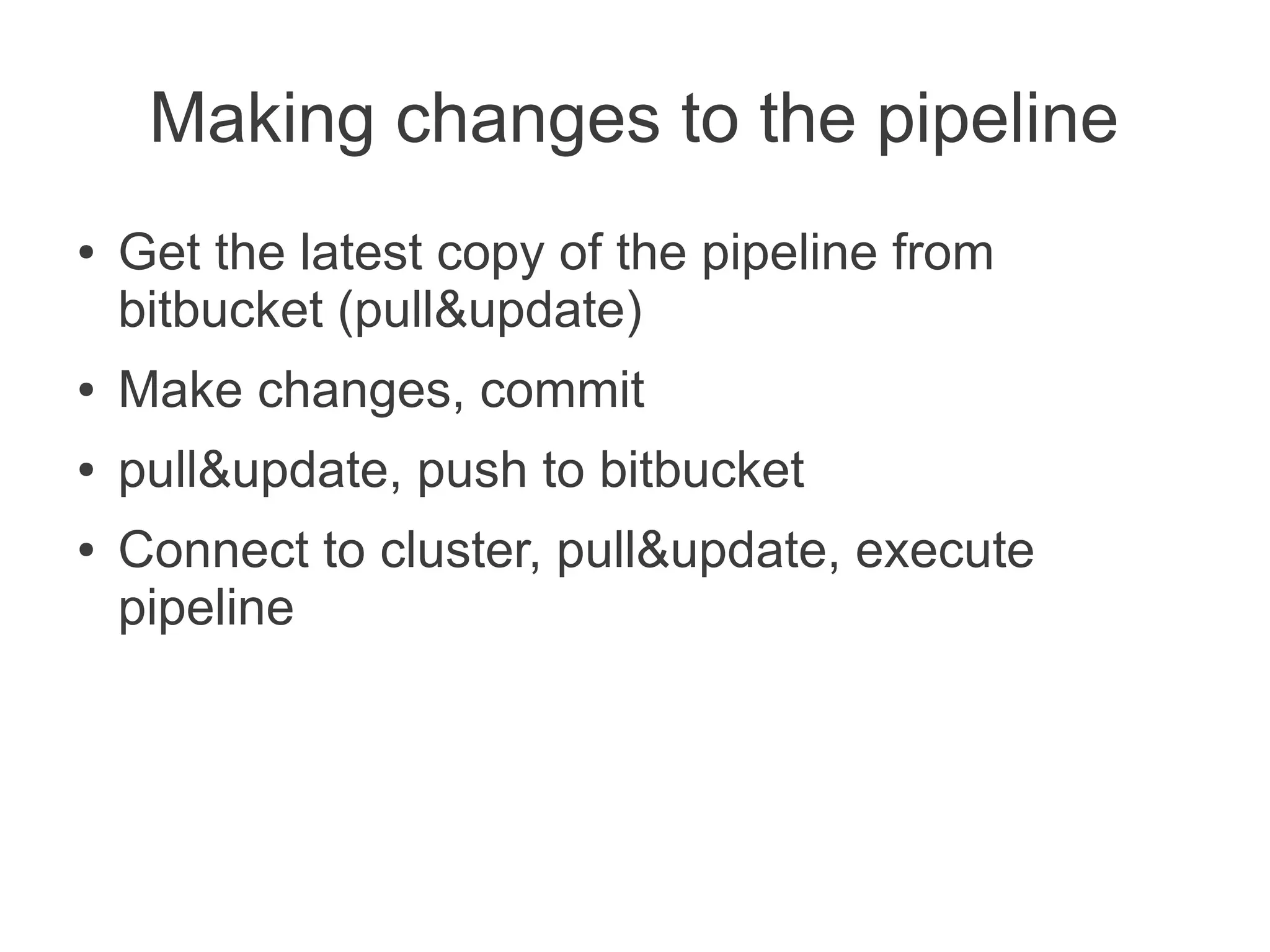

38. Making changes to the pipeline
● Get the latest copy of the pipeline from
bitbucket (pull&update)
● Make changes, commit
● pull&update, push to bitbucket
● Connect to cluster, pull&update, execute
pipeline
