Hcx intro preso v2

HCX-NE component that handles TCP flow conditioning • Flow: A stream of packets between a source IP/port and destination IP/port • Flow Conditioning: Modifying TCP parameters like window size, MSS, etc. to optimize flows • Flow Table: Table maintained by Assistant to track active flows • Flow Entry: Each flow is represented as an entry in the flow table • Flow State: Current state of the flow - SYN_SENT, ESTABLISHED etc. defined by TCP state machine • Flow Lifecycle: Time from flow initiation to termination - involves transition through various states • Flow Metadata:

Embed presentation

Download as PDF, PPTX
Confidential │ ©2020 VMware, Inc. VMware HCX Virtual Workload Migration to SDDC
Confidential │ ©2020 VMware, Inc. 2 Workload Migration and Mobility Challenges Barriers customers face when trying to move workloads to the cloud Incompatible non-interoperable stacks Cross-site networking and security issues Application dependency mapping delays Business disruption

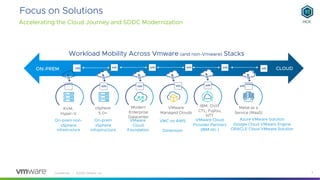

Confidential │ ©2020 VMware, Inc. 3 Accelerating the Cloud Journey and SDDC Modernization VMware Cloud Foundation On-prem vSphere infrastructure ON-PREM CLOUD VMware Cloud Provider Partners (IBM etc.) VMC on AWS Dimension Azure VMware Solution Google Cloud VMware Engine ORACLE Cloud VMware Solution vSphere 5.0+ Modern Enterprise Datacenter IBM, OVH CTL, Fujitsu, NTT VMware Managed Clouds Metal as a Service (MaaS) Workload Mobility Across Vmware (and non-Vmware) Stacks On-prem non- vSphere infrastructure KVM, Hyper-V Focus on Solutions
4 Confidential │ ©2020 VMware, Inc. HCX Use Cases and Features

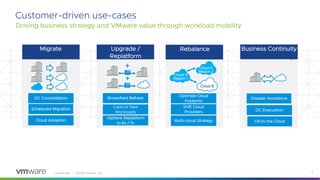

Confidential │ ©2020 VMware, Inc. 5 Customer-driven use-cases Driving business strategy and VMware value through workload mobility Rebalance Optimize Cloud Footprint Shift Cloud Providers Multi-cloud Strategy Cloud A Region 1 Cloud B Business Continuity Disaster Avoidance DR to the Cloud Scheduled Migration Cloud A Region 2 Brownfield Refresh vSphere Replatform to 6x / 7x Capture New Workloads + + DC Consolidation Cloud Adoption Migrate Rebalance Business Continuity Upgrade / Replatform DC Evacuation

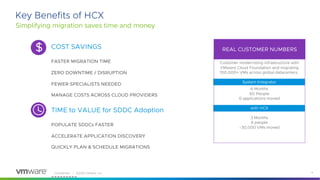

Confidential │ ©2020 VMware, Inc. 6 COST SAVINGS FASTER MIGRATION TIME ZERO DOWNTIME / DISRUPTION FEWER SPECIALISTS NEEDED MANAGE COSTS ACROSS CLOUD PROVIDERS TIME to VALUE for SDDC Adoption POPULATE SDDCs FASTER ACCELERATE APPLICATION DISCOVERY QUICKLY PLAN & SCHEDULE MIGRATIONS --------- Simplifying migration saves time and money Key Benefits of HCX Customer modernizing infrastructure with VMware Cloud Foundation and migrating 100,000+ VMs across global datacenters. System Integrator 6 Months 60 People 0 applications moved with HCX 3 Months 6 people ~30,000 VMs moved REAL CUSTOMER NUMBERS $

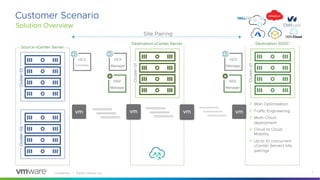

Confidential │ ©2020 VMware, Inc. 7 Cluster-01 Destination vCenter Server NSX Manager Solution Overview Customer Scenario Cluster-01 Cluster-02 Source vCenter Server vm vm vm vm Cluster-01 Destination SDDC ü Wan Optimization ü Traffic Engineering ü Multi-Cloud deployment ü Cloud to Cloud Mobility ü Up to 10 concurrent vCenter Servers site pairings NSX Manager HCX Connector HCX Manager HCX Manager Site Pairing
Confidential │ ©2020 VMware, Inc. 8 HCX Site Pairing vCenter Server HCX Connector vSphere Network Storage Source Data Center § 5.X § 6.X § 7.X § NSX-T § NSX-V § VDS § VSS § N1KV § vSAN § FC § NFS § iSCSI vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm HCX Cloud Manager vCenter Server vSphere NSX-T vSAN Destination Data Center vm vm vm vm vm vm vm vm vm vm vm vm HCX Site Pairing § Establishes the connection needed for management, authentication, and orchestration of HCX services between source and destination § Initiated from source to destination § Cloud to Cloud site pairing can be unidirectional or bidirectional § Communication between HCX managers over port 443 TCP

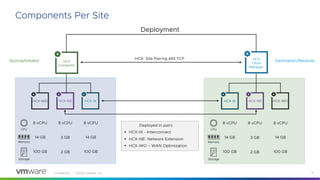

Confidential │ ©2020 VMware, Inc. 9 Components Per Site Deployment HCX Connector HCX-WO HCX-IX 8 vCPU 8 vCPU 8 vCPU 14 GB 100 GB CPU Memory Storage 14 GB 100 GB 2 GB 3 GB HCX-IX HCX-NE HCX-WO 8 vCPU 8 vCPU 8 vCPU 14 GB 100 GB CPU Memory Storage 14 GB 100 GB 2 GB 3 GB HCX-NE § HCX-IX - Interconnect § HCX-NE: Network Extension § HCX-WO – WAN Optimization Deployed in pairs HCX Site Pairing 443 TCP HCX Cloud Manager Source/Initiator Destination/Receiver

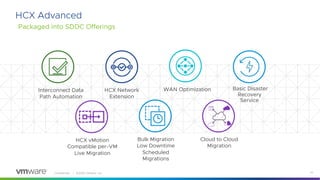

Confidential │ ©2020 VMware, Inc. 10 HCX Advanced HCX vMotion Compatible per-VM Live Migration Bulk Migration Low Downtime Scheduled Migrations Interconnect Data Path Automation WAN Optimization HCX Network Extension Cloud to Cloud Migration NEW Packaged into SDDC Offerings Basic Disaster Recovery Service

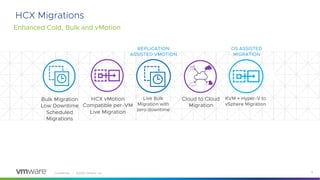

Confidential │ ©2020 VMware, Inc. 11 HCX Migrations HCX vMotion Compatible per-VM Live Migration Bulk Migration Low Downtime Scheduled Migrations Cloud to Cloud Migration NEW Enhanced Cold, Bulk and vMotion Live Bulk Migration with zero downtime REPLICATION ASSISTED VMOTION KVM + Hyper-V to vSphere Migration OS ASSISTED MIGRATION
Confidential │ ©2020 VMware, Inc. 12 VMware HCX vMotion & Cold Migration § Integrates with ESXi to perform vMotion migrations for powered on VMs & NFC to cold migrate powered off VMs § Bi-directional vMotion § Forward - ESXi 5.5 to 6.7 § Reverse – vSphere 6.0 or higher § Forward Migration without EVC baseline downgrade. § HCX vMotion supports overlapping VMkernel IPs. § VMs with RDMs in virtual compatibility mode can be migrated. vCenter Server HCX Connector vSphere Network Storage Customer Datacenter § 5.X § 6.X § 7.X § NSX-T § NSX-V § VDS § VSS § vSAN § FC § NFS § iSCSI vm vm vm vm vm vm Source vm vm vm vm vm vm vm vm vm HCX Cloud Manager vCenter Server vSphere NSX-T vSAN Destination vm vm vm vm vm vm HCX Site Pairing Customer Datacenter / Cloud vm vm vm vm vm vm vm vm vm HCX vMotion Hybrid Interconnect vm vm vm 5.1+ ©2020 VMware, Inc. Serialized Migration

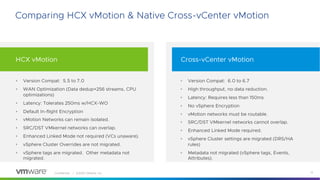

Confidential │ ©2020 VMware, Inc. 13 § Version Compat: 5.5 to 7.0 § WAN Optimization (Data dedup+256 streams, CPU optimizations) § Latency: Tolerates 250ms w/HCX-WO § Default In-flight Encryption § vMotion Networks can remain isolated. § SRC/DST VMkernel networks can overlap. § Enhanced Linked Mode not required (VCs unaware). § vSphere Cluster Overrides are not migrated. § vSphere tags are migrated. Other metadata not migrated. § Version Compat: 6.0 to 6.7 § High throughput, no data reduction. § Latency: Requires less than 150ms § No vSphere Encryption § vMotion networks must be routable. § SRC/DST VMkernel networks cannot overlap. § Enhanced Linked Mode required. § vSphere Cluster settings are migrated (DRS/HA rules) § Metadata not migrated (vSphere tags, Events, Attributes). HCX vMotion Cross-vCenter vMotion Comparing HCX vMotion & Native Cross-vCenter vMotion

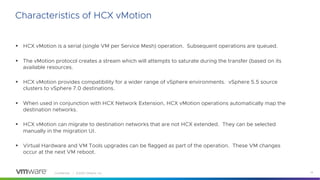

Confidential │ ©2020 VMware, Inc. 14 Characteristics of HCX vMotion § HCX vMotion is a serial (single VM per Service Mesh) operation. Subsequent operations are queued. § The vMotion protocol creates a stream which will attempts to saturate during the transfer (based on its available resources. § HCX vMotion provides compatibility for a wider range of vSphere environments. vSphere 5.5 source clusters to vSphere 7.0 destinations. § When used in conjunction with HCX Network Extension, HCX vMotion operations automatically map the destination networks. § HCX vMotion can migrate to destination networks that are not HCX extended. They can be selected manually in the migration UI. § Virtual Hardware and VM Tools upgrades can be flagged as part of the operation. These VM changes occur at the next VM reboot.

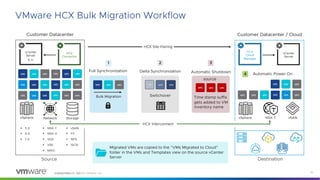

Confidential │ ©2020 VMware, Inc. 15 VMware HCX Bulk Migration Workflow vCenter Server HCX Connector vSphere Network Storage Customer Datacenter § 5.X § 6.X § 7.X § NSX-T § NSX-V § VDS § VSS § N1KV § vSAN § FC § NFS § iSCSI vm vm vm vm vm vm Source vm vm vm vm vm vm vm vm vm vm vm vm HCX Cloud Manager vCenter Server vSphere NSX-T vSAN Destination HCX Site Pairing HCX Interconnect Customer Datacenter / Cloud vm vm vm vm vm vm vm vm vm Delta Synchronization 2 Switchover vm vm vm Automatic Power On 4 5.1+ Migrated VMs are copied to the ”VMs Migrated to Cloud” folder in the VMs and Templates view on the source vCenter Server 1 Full Synchronization vm vm vm Bulk Migration vm vm vm 3 Automatic Shutdown Time stamp suffix gets added to VM inventory name source ©2020 VMware, Inc.

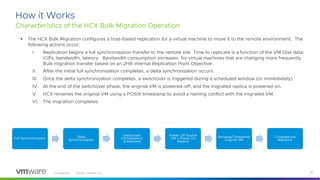

Confidential │ ©2020 VMware, Inc. 16 Characteristics of the HCX Bulk Migration Operation How it Works § The HCX Bulk Migration configures a host-based replication for a virtual machine to move it to the remote environment. The following actions occur: I. Replication begins a full synchronization transfer to the remote site. Time to replicate is a function of the VM Disk data. IOPs, bandwidth, latency. Bandwidth consumption increases for virtual machines that are changing more frequently. Bulk migration transfer based on an 2HR internal Replication Point Objective. II. After the initial full synchronization completes, a delta synchronization occurs. III. Once the delta synchronization completes, a switchover is triggered during a scheduled window (or immediately). IV. At the end of the switchover phase, the original VM is powered-off, and the migrated replica is powered-on. V. HCX renames the original VM using a POSIX timestamp to avoid a naming conflict with the migrated VM. VI. The migration completes. Full Synchronization Delta Synchronization Switchover (Immediate or Scheduled) Power Off Source VM + Power On Replica Rename/Timestamp original VM Complete the Migration

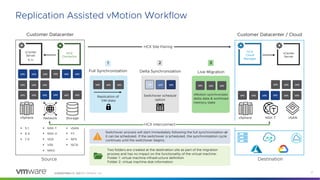

Confidential │ ©2020 VMware, Inc. 17 Replication Assisted vMotion Workflow vCenter Server HCX Connector vSphere Network Storage Customer Datacenter § 5.1 § 6.X § 7.X § NSX-T § NSX-V § VDS § VSS § N1KV § vSAN § FC § NFS § iSCSI Source HCX Cloud Manager vCenter Server vSphere NSX-T vSAN Destination HCX Site Pairing HCX Interconnect Customer Datacenter / Cloud vm vm vm Delta Synchronization 2 Switchover schedule option 5.1+ 1 Full Synchronization vm vm vm Replication of VM disks vm vm vm 3 Live Migration vMotion synchronizes delta data & workload memory state ©2020 VMware, Inc. Switchover process will start immediately following the full synchronization or it can be scheduled. If the switchover is scheduled, the synchronization cycle continues until the switchover begins. Two folders are created at the destination site as part of the migration process and has no impact on the functionality of the virtual machine: Folder 1: virtual machine infrastructure definition Folder 2: virtual machine disk information vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm

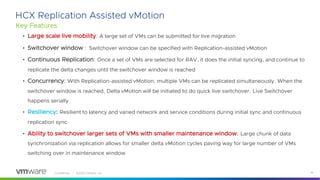

Confidential │ ©2020 VMware, Inc. 18 HCX Replication Assisted vMotion Key Features • Large scale live mobility: A large set of VMs can be submitted for live migration • Switchover window : Switchover window can be specified with Replication-assisted vMotion • Continuous Replication: Once a set of VMs are selected for RAV, it does the initial syncing, and continue to replicate the delta changes until the switchover window is reached • Concurrency: With Replication-assisted vMotion, multiple VMs can be replicated simultaneously. When the switchover window is reached, Delta vMotion will be initiated to do quick live switchover. Live Switchover happens serially • Resiliency: Resilient to latency and varied network and service conditions during initial sync and continuous replication sync • Ability to switchover larger sets of VMs with smaller maintenance window. Large chunk of data synchronization via replication allows for smaller delta vMotion cycles paving way for large number of VMs switching over in maintenance window

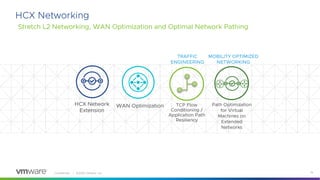

Confidential │ ©2020 VMware, Inc. 19 HCX Networking Stretch L2 Networking, WAN Optimization and Optimal Network Pathing TCP Flow Conditioning / Application Path Resiliency TRAFFIC ENGINEERING Path Optimization for Virtual Machines on Extended Networks MOBILITY OPTIMIZED NETWORKING HCX Network Extension WAN Optimization

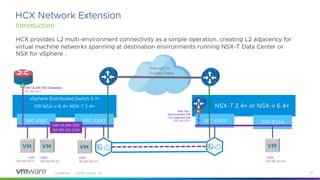

Confidential │ ©2020 VMware, Inc. 20 HCX Network Extension Introduction HCX provides L2 multi-environment connectivity as a simple operation, creating L2 adjacency for virtual machine networks spanning at destination environments running NSX-T Data Center or NSX for vSphere . vSphere Distributed Switch 5.1+ OR NSX-v 6.4+ NSX-T 2.4+ NSX-T 2.4+ or NSX-v 6.4+ SRC-ESX2 SRC-ESX1 DST-ESX4 DST-ESX3 VM VLAN 100 Gateway 192.168.100.1 VM1 192.168.100.10 VM2 192.168.100.20 VM3 192.168.100.30 VM4 192.168.100.40 Internet Or Private Paths VM VLAN 100 192.168.100.0/24 NSX Tier 1 Disconnected GW For Segment 100 192.168.100.1

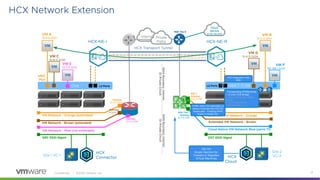

Confidential │ ©2020 VMware, Inc. 21 HCX Network Extension

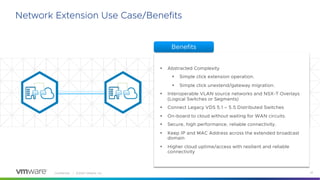

Confidential │ ©2020 VMware, Inc. 22 Network Extension Use Case/Benefits § Abstracted Complexity § Simple click extension operation. § Simple click unextend/gateway migration. § Interoperable VLAN source networks and NSX-T Overlays (Logical Switches or Segments) § Connect Legacy VDS 5.1 – 5.5 Distributed Switches § On-board to cloud without waiting for WAN circuits. § Secure, high performance, reliable connectivity. § Keep IP and MAC Address across the extended broadcast domain § Higher cloud uptime/access with resilient and reliable connectivity Benefits

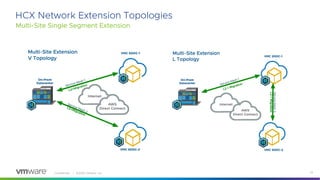

Confidential │ ©2020 VMware, Inc. 23 Multi-Site Single Segment Extension HCX Network Extension Topologies

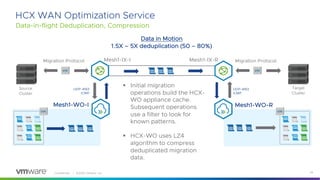

Confidential │ ©2020 VMware, Inc. 24 Data-in-flight Deduplication, Compression HCX WAN Optimization Service Migration Protocol Mesh1-WO-I Mesh1-IX-I UDP-4163 ICMP UDP-4163 ICMP Mesh1-WO-R Source Cluster Migration Protocol Target Cluster Mesh1-IX-R Data in Motion 1.5X – 5X deduplication (50 – 80%) § Initial migration operations build the HCX- WO appliance cache. Subsequent operations use a filter to look for known patterns. § HCX-WO uses LZ4 algorithm to compress deduplicated migration data.

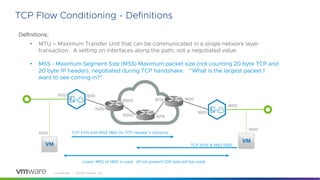

Confidential │ ©2020 VMware, Inc. TCP Flow Conditioning - Definitions Definitions: • MTU – Maximum Transfer Unit that can be communicated in a single network layer transaction. A setting on interfaces along the path; not a negotiated value • MSS - Maximum Segment Size (MSS) Maximum packet size (not counting 20 byte TCP and 20 byte IP header); negotiated during TCP handshake. “What is the largest packet I want to see coming in?” 1500 1500 1500 1500 9000 9000 9214 9214 1600 1600 1600 1600 TCP SYN with MSS 1460 (In TCP Header’s Options) TCP SYN-B MSS 1560 Lower MSS of 1460 is used. (If not present 536 byte will be used)

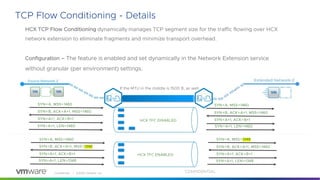

Confidential │ ©2020 VMware, Inc. TCP Flow Conditioning - Details CONFIDENTIAL HCX TCP Flow Conditioning dynamically manages TCP segment size for the traffic flowing over HCX network extension to eliminate fragments and minimize transport overhead. Configuration – The feature is enabled and set dynamically in the Network Extension service without granular (per environment) settings. SYN=A, MSS=1460 SYN=A, MSS=1348 SYN=B, ACK=A+1, MSS=1460 SYN=B, ACK=A+1, MSS=1348 SYN=A+1, ACK=B+1 SYN=A+1, ACK=B+1 SYN=A, MSS=1460 SYN=A, MSS=1460 SYN=B, ACK=A+1, MSS=1460 SYN=B, ACK=A+1, MSS=1460 SYN=A+!, ACK=B+1 SYN=A+1, ACK=B+1 HCX TFC DISABLED HCX TFC ENABLED SYN=A+1, LEN=1460 SYN=A+1, LEN=1460 SYN=A+1, LEN=1348 SYN=A+1, LEN=1348 If the MTU in the middle is 1500 B, as well.

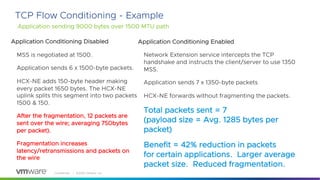

Confidential │ ©2020 VMware, Inc. Application Conditioning Disabled MSS is negotiated at 1500. Application sends 6 x 1500-byte packets. HCX-NE adds 150-byte header making every packet 1650 bytes. The HCX-NE uplink splits this segment into two packets 1500 & 150. After the fragmentation, 12 packets are sent over the wire; averaging 750bytes per packet). Fragmentation increases latency/retransmissions and packets on the wire Application Conditioning Enabled Network Extension service intercepts the TCP handshake and instructs the client/server to use 1350 MSS. Application sends 7 x 1350-byte packets HCX-NE forwards without fragmenting the packets. Total packets sent = 7 (payload size = Avg. 1285 bytes per packet) Benefit = 42% reduction in packets for certain applications. Larger average packet size. Reduced fragmentation. TCP Flow Conditioning - Example Application sending 9000 bytes over 1500 MTU path

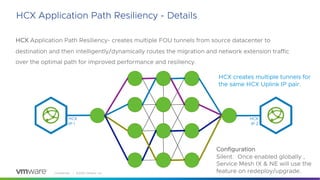

Confidential │ ©2020 VMware, Inc. HCX Application Path Resiliency- creates multiple FOU tunnels from source datacenter to destination and then intelligently/dynamically routes the migration and network extension traffic over the optimal path for improved performance and resiliency. HCX Application Path Resiliency - Details HCX creates multiple tunnels for the same HCX Uplink IP pair. HCX IP 1 HCX IP 2 Configuration Silent. Once enabled globally , Service Mesh IX & NE will use the feature on redeploy/upgrade.

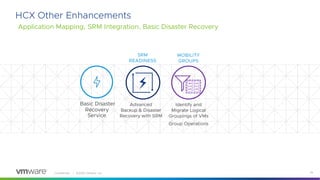

Confidential │ ©2020 VMware, Inc. 29 HCX Other Enhancements Application Mapping, SRM Integration, Basic Disaster Recovery Advanced Backup & Disaster Recovery with SRM SRM READINESS Identify and Migrate Logical Groupings of VMs Group Operations MOBILITY GROUPS Basic Disaster Recovery Service

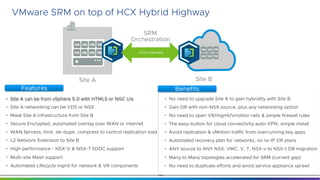

Confidential │ ©2020 VMware, Inc. VMware SRM on top of HCX Hybrid Highway • Site A can be from vSphere 5.0 with HTML5 or NGC Uis • Site A networking can be VDS or NSX • Mask Site A infrastructure from Site B • Secure Encrypted, automated overlay over WAN or Internet • WAN fairness: limit, de-dupe, compress to control replication load • L2 Network Extension to Site B • High performance - NSX-V & NSX-T SDDC support • Multi-site Mesh support • Automated Lifecycle mgmt for network & VR components Features • No need to upgrade Site A to gain hybridity with Site B • Gain DR with non-NSX source, plus any networking option • No need to open VR/mgmt/vmotion nets & simple firewall rules • The easy-button for cloud connectivity:auto-VPN, simple install • Avoid replication & vMotion traffic from overrunning key apps • Automated recovery plan for networks, no re-IP DR plans • ANY source to ANY NSX: VMC, V, T, NSX-v to NSX-t DR migration • Many to Many topologies accelerated for SRM (current gap) • No need to duplicate efforts and avoid service appliance sprawl Benefits Site A HCX Hybridity Site B SRM Orchestration

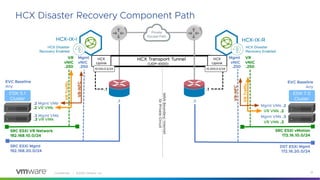

Confidential │ ©2020 VMware, Inc. 31 HCX Disaster Recovery Component Path

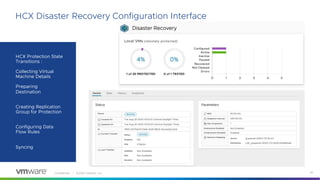

Confidential │ ©2020 VMware, Inc. 32 HCX Disaster Recovery Configuration Interface HCX Protection State Transitions : Collecting Virtual Machine Details Preparing Destination Creating Replication Group for Protection Configuring Data Flow Rules Syncing

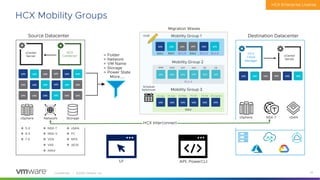

Confidential │ ©2020 VMware, Inc. 33 HCX Mobility Groups HCX Enterprise License vCenter Server HCX Connector vSphere Network Storage Source Datacenter v 5.X v 6.X v 7.X v NSX-T v NSX-V v VDS v VSS v N1KV v vSAN v FC v NFS v iSCSI vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm vm HCX Cloud Manager vCenter Server vSphere NSX-T vSAN Destination Datacenter Mobility Group 1 vm vm vm vm vm vm RAV RAV BULK BULK BULK RAV vm vm vm vm vm vm BULK Mobility Group 2 WEB WEB APP APP DB DB vm vm vm vm vm vm Draft API, PowerCLI UI Migration Waves Mobility Group 3 vm vm vm vm vm vm RAV PG App PG Web PG DB PG Custom PG App PG DB Schedule Switchover = Folder = Network = VM Name = Storage = Power State More….. HCX Interconnect

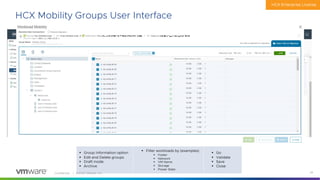

Confidential │ ©2020 VMware, Inc. 34 HCX Mobility Groups User Interface § Group Information option § Edit and Delete groups § Draft mode § Archive HCX Enterprise License § Filter workloads by (examples) § Folder § Network § VM Name § Storage § Power State § Go § Validate § Save § Close
Confidential │ ©2020 VMware, Inc. Without Mobility Groups With Mobility Groups Migration waves are manually planned per VM Migration waves are logically grouped per workload / application Individual reporting per VM Reporting per workload / application (could be spanning multiple VMs) Migration failure will lead to restarting the operation Migration can be paused and resumed Every migration wave will use a single replication technology A single logical group can be using multiple replication technologies based on business requirement Per VM Selection Grouping based on search filters and vSphere Objects (RegEX, Network, tags, … ) NA Predictive ML and AI can suggest next migration wave based on previous migrations Why Mobility Groups? Simplifying Large Scale Migrations

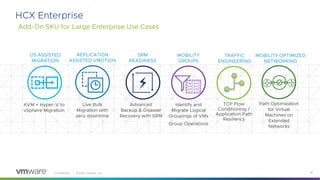

Confidential │ ©2020 VMware, Inc. 36 HCX Enterprise Add-On SKU for Large Enterprise Use Cases KVM + Hyper-V to vSphere Migration Live Bulk Migration with zero downtime Advanced Backup & Disaster Recovery with SRM OS ASSISTED MIGRATION REPLICATION ASSISTED VMOTION SRM READINESS Identify and Migrate Logical Groupings of VMs Group Operations TCP Flow Conditioning / Application Path Resiliency MOBILITY GROUPS TRAFFIC ENGINEERING Path Optimization for Virtual Machines on Extended Networks MOBILITY OPTIMIZED NETWORKING
37 Confidential │ ©2020 VMware, Inc. VRNI Flow-based Application Discovery Planning Approach

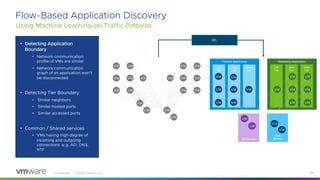

Confidential │ ©2020 VMware, Inc. 38 Flow-Based Application Discovery Using Machine Learning on Traffic Patterns VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM DNS Service AD Service Marketing Application Web Tier App Tier DB Tier Finance Application Web Tier App Tier DB Tier VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM VM • Detecting Application Boundary • Network communication profile of VMs are similar • Network communication graph of an application won’t be disconnected • Detecting Tier Boundary • Similar neighbors • Similar hosted ports • Similar accessed ports • Common / Shared services • VMs having high degree of incoming and outgoing connections e.g. AD, DNS, NTP PH Y ML

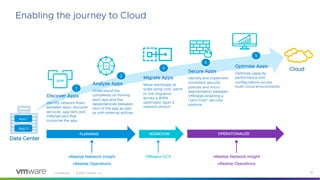

Confidential │ ©2020 VMware, Inc. 39 Enabling the journey to Cloud Data Center Discover Apps Identify network flows between apps, discover services, app tiers and VMs/servers that comprise the app. Analyze Apps Understand the complexity of moving each app and the dependencies between tiers of the app as well as with external entities Secure Apps Identify and implement consistent security policies and micro segmentation between VM/apps enabling a “zero trust” security posture. App 1 4 Optimize Apps Optimize capacity, performance and configurations across multi-cloud environments App 2 5 2 1 3 Migrate Apps Move workloads at scale using cold, warm or live migration across a WAN optimized, layer 2 network stretch. Cloud OPERATIONALIZE MIGRATION PLANNING vRealize Network Insight vRealize Operations VMware HCX vRealize Network Insight vRealize Operations

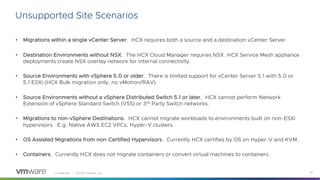

Confidential │ ©2020 VMware, Inc. 40 Unsupported Site Scenarios • Migrations within a single vCenter Server. HCX requires both a source and a destination vCenter Server. • Destination Environments without NSX. The HCX Cloud Manager requires NSX. HCX Service Mesh appliance deployments create NSX overlay network for internal connectivity. • Source Environments with vSphere 5.0 or older. There is limited support for vCenter Server 5.1 with 5.0 or 5.1 ESXi (HCX Bulk migration only, no vMotion/RAV). • Source Environments without a vSphere Distributed Switch 5.1 or later. HCX cannot perform Network Extension of vSphere Standard Switch (VSS) or 3rd Party Switch networks. • Migrations to non-vSphere Destinations. HCX cannot migrate workloads to environments built on non-ESXi hypervisors. E.g. Native AWS EC2 VPCs, Hyper-V clusters. • OS Assisted Migrations from non-Certified Hypervisors. Currently HCX certifies by OS on Hyper-V and KVM. • Containers. Currently HCX does not migrate containers or convert virtual machines to containers.
Confidential │ ©2020 VMware, Inc. Questions?
