1. Gateway Cryptography
Hacking Impossible Tunnels Through
Improbable Networks with OpenSSH
et al.
By Dan Kaminsky, CISSP
http://www.doxpara.com

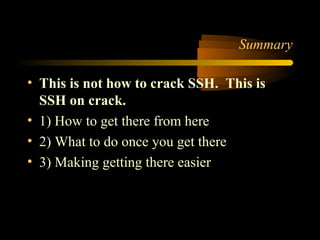

2. Summary
• This is not how to crack SSH. This is
SSH on crack.
• 1) How to get there from here
• 2) What to do once you get there
• 3) Making getting there easier

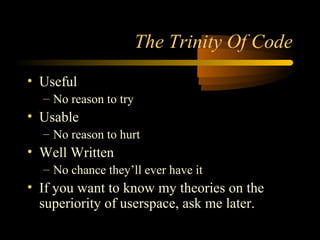

3. The Trinity Of Code
• Useful
– No reason to try
• Usable
– No reason to hurt
• Well Written
– No chance they’ll ever have it
• If you want to know my theories on the
superiority of userspace, ask me later.

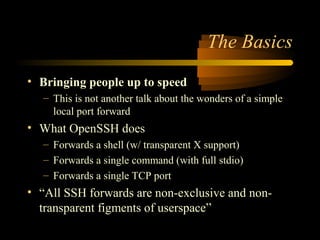

4. The Basics
• Bringing people up to speed
– This is not another talk about the wonders of a simple
local port forward
• What OpenSSH does
– Forwards a shell (w/ transparent X support)
– Forwards a single command (with full stdio)
– Forwards a single TCP port
• “All SSH forwards are non-exclusive and non-
transparent figments of userspace”

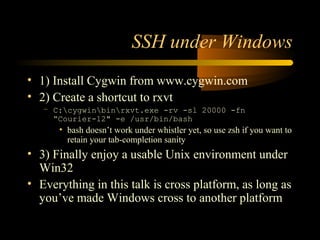

5. SSH under Windows
• 1) Install Cygwin from www.cygwin.com
• 2) Create a shortcut to rxvt
– C:cygwinbinrxvt.exe -rv -sl 20000 -fn
“Courier-12" -e /usr/bin/bash
• bash doesn’t work under whistler yet, so use zsh if you want to
retain your tab-completion sanity
• 3) Finally enjoy a usable Unix environment under
Win32
• Everything in this talk is cross platform, as long as
you’ve made Windows cross to another platform

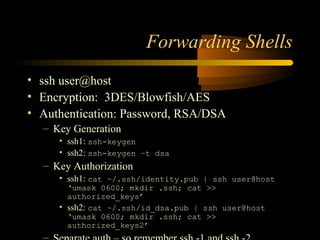

6. Forwarding Shells
• ssh user@host
• Encryption: 3DES/Blowfish/AES
• Authentication: Password, RSA/DSA
– Key Generation
• ssh1: ssh-keygen
• ssh2: ssh-keygen –t dsa
– Key Authorization
• ssh1: cat ~/.ssh/identity.pub | ssh user@host
‘umask 0600; mkdir .ssh; cat >>
authorized_keys’
• ssh2: cat ~/.ssh/id_dsa.pub | ssh user@host
‘umask 0600; mkdir .ssh; cat >>
authorized_keys2’

7. Forwarding Commands
• ssh user@host ls
ssh –t user@host top
• Fully 8 bit clean for most commands,
supports (unclean) TTYs for anything that
wants to redraw screen (like top) using –t
• Full STDIO(stdin/stdout/stderr) support
– Allows pipelines across multiple systems

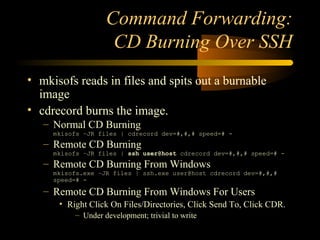

8. Command Forwarding:
CD Burning Over SSH
• mkisofs reads in files and spits out a burnable
• cdrecord burns the image.
– Normal CD Burning
mkisofs –JR files | cdrecord dev=#,#,# speed=# -
– Remote CD Burning
mkisofs –JR files | ssh user@host cdrecord dev=#,#,# speed=# -
– Remote CD Burning From Windows
mkisofs.exe –JR files | ssh.exe user@host cdrecord dev=#,#,#
speed=# -
– Remote CD Burning From Windows For Users
• Right Click On Files/Directories, Click Send To, Click CDR.
– Under development; trivial to write

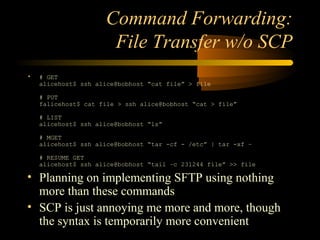

9. Command Forwarding:
File Transfer w/o SCP
• # GET
alicehost$ ssh alice@bobhost “cat file” > file
# PUT
falicehost$ cat file > ssh alice@bobhost “cat > file”
# LIST
alicehost$ ssh alice@bobhost “ls”
# MGET
alicehost$ ssh alice@bobhost “tar -cf - /etc” | tar -xf –
# RESUME GET
alicehost$ ssh alice@bobhost “tail –c 231244 file” >> file
• Planning on implementing SFTP using nothing
more than these commands
• SCP is just annoying me more and more, though
the syntax is temporarily more convenient

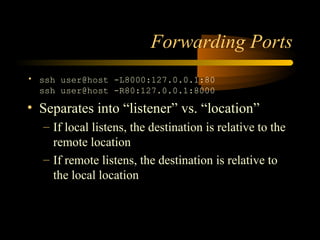

10. Forwarding Ports
• ssh user@host -L8000:127.0.0.1:80
ssh user@host -R80:127.0.0.1:8000
• Separates into “listener” vs. “location”
– If local listens, the destination is relative to the
remote location
– If remote listens, the destination is relative to
the local location

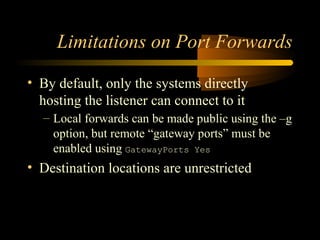

11. Limitations on Port Forwards
• By default, only the systems directly
hosting the listener can connect to it
– Local forwards can be made public using the –g
option, but remote “gateway ports” must be
enabled using GatewayPorts Yes
• Destination locations are unrestricted

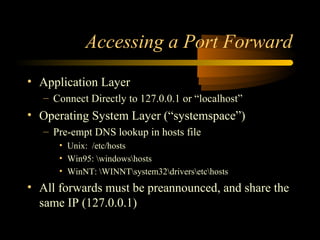

12. Accessing a Port Forward
• Application Layer
– Connect Directly to 127.0.0.1 or “localhost”
• Operating System Layer (“systemspace”)
– Pre-empt DNS lookup in hosts file
• Unix: /etc/hosts
• Win95: windowshosts
• WinNT: WINNTsystem32driversetchosts
• All forwards must be preannounced, and share the
same IP (127.0.0.1)

13. Problem:
Static Forwards Are Inflexible
• Work decently only when:
– Each port is only used once
• Passes:
– Mail(smtp, pop3, imap)
– Simple Web(HTTP)
• Fails:
– Web Surfing Multiple Sites (HTTP)
– P2P File Transfer(Napster, Gnutella),
– Ports are predictable in advance
• Fails miserably
– FTP, both Active and Passive

14. Solution:
Dynamic Forwarding w/ SOCKS
• ssh user@host -D1080
• SOCKS4/5: An in-band protocol header,
nothing more, that allows the client to very
quickly tell a proxy server where its actual
destination was
• SOCKS4 is extraordinarily simple
– ~9 bytes from Client, 8 byte response, and the client
has informed the “proxy” where it actually wants to go!
– “Library Preloads” are excessive
• The idea: Run a trivial SOCKS daemon in the ssh
client; use it to redirect the destination of each
channel.

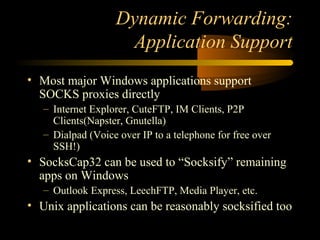

15. Dynamic Forwarding:
Application Support
• Most major Windows applications support
SOCKS proxies directly
– Internet Explorer, CuteFTP, IM Clients, P2P
Clients(Napster, Gnutella)
– Dialpad (Voice over IP to a telephone for free over
SSH!)
• SocksCap32 can be used to “Socksify” remaining
apps on Windows
– Outlook Express, LeechFTP, Media Player, etc.
• Unix applications can be reasonably socksified too

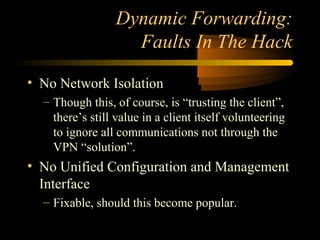

16. Dynamic Forwarding:
Faults In The Hack
• No Network Isolation
– Though this, of course, is “trusting the client”,
there’s still value in a client itself volunteering
to ignore all communications not through the
VPN “solution”.
• No Unified Configuration and Management
Interface
– Fixable, should this become popular.

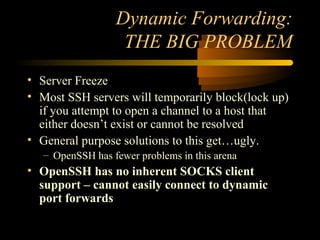

17. Dynamic Forwarding:
THE BIG PROBLEM
• Server Freeze
• Most SSH servers will temporarily block(lock up)
if you attempt to open a channel to a host that
either doesn’t exist or cannot be resolved
• General purpose solutions to this get…ugly.
– OpenSSH has fewer problems in this arena
• OpenSSH has no inherent SOCKS client
support – cannot easily connect to dynamic
port forwards

18. ProxyCommand:
Blind Proxying w/ SSH
• ssh -o 'ProxyCommand arbitrary_tool proxy %u %h
%p' user@10.1.0.1
• A ProxyCommand is an arbitrary tool that,
after it finishes executing, leads to an 8 bit
clean path to an SSH daemon
– OpenSSH's excuse for SOCKS support :-)
• Allows end-to-end crypto through any 8bit
clean link
– Like SSL over HTTP Connect

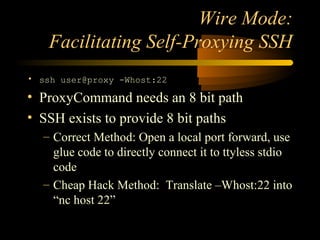

19. Wire Mode:
Facilitating Self-Proxying SSH
• ssh user@proxy -Whost:22
• ProxyCommand needs an 8 bit path
• SSH exists to provide 8 bit paths
– Correct Method: Open a local port forward, use
glue code to directly connect it to ttyless stdio
code
– Cheap Hack Method: Translate –Whost:22 into
“nc host 22”

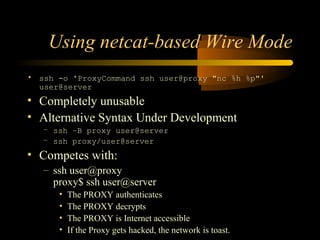

20. Using netcat-based Wire Mode
• ssh -o 'ProxyCommand ssh user@proxy "nc %h %p"'
user@server
• Completely unusable
• Alternative Syntax Under Development
– ssh –B proxy user@server
– ssh proxy/user@server
• Competes with:
– ssh user@proxy
proxy$ ssh user@server
• The PROXY authenticates
• The PROXY decrypts
• The PROXY is Internet accessible
• If the Proxy gets hacked, the network is toast.

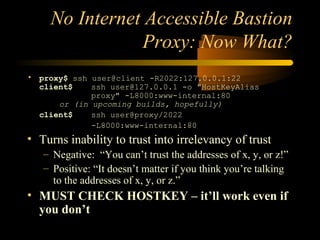

21. No Internet Accessible Bastion
Proxy: Now What?
• proxy$ ssh user@client -R2022:127.0.0.1:22
client$ ssh user@127.0.0.1 -o "HostKeyAlias
proxy" -L8000:www-internal:80
or (in upcoming builds, hopefully)
client$ ssh user@proxy/2022
-L8000:www-internal:80
• Turns inability to trust into irrelevancy of trust
– Negative: “You can’t trust the addresses of x, y, or z!”
– Positive: “It doesn’t matter if you think you’re talking
to the addresses of x, y, or z.”
• MUST CHECK HOSTKEY – it’ll work even if
you don’t

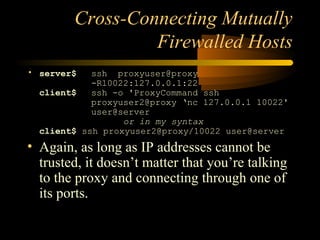

22. Cross-Connecting Mutually
Firewalled Hosts
• server$ ssh proxyuser@proxy
-R10022:127.0.0.1:22
client$ ssh -o 'ProxyCommand ssh
proxyuser2@proxy ‘nc 127.0.0.1 10022'
user@server
or in my syntax
client$ ssh proxyuser2@proxy/10022 user@server
• Again, as long as IP addresses cannot be
trusted, it doesn’t matter that you’re talking
to the proxy and connecting through one of
its ports.

23. Fixing Port Forwards:
Defaults
• ssh -L143 -> ssh -L143:127.0.0.1:143
ssh -Lfoo -> ssh -L22:foo:22
ssh -R2022: -> ssh -R2022:127.0.0.1:22
• Begin with a default of 22:127.0.0.1:22, do
some moderately painful string parsing in
C, and actually end up with a decently
compressed syntax
• Would forwarding ranges be useful, i.e. ssh
-L7000-7020 ?

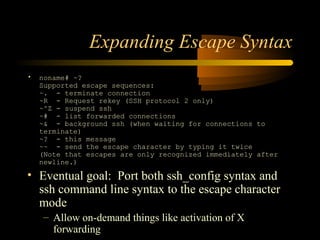

24. Expanding Escape Syntax
• noname# ~?
Supported escape sequences:
~. - terminate connection
~R - Request rekey (SSH protocol 2 only)
~^Z - suspend ssh
~# - list forwarded connections
~& - background ssh (when waiting for connections to
terminate)
~? - this message
~~ - send the escape character by typing it twice
(Note that escapes are only recognized immediately after
newline.)
• Eventual goal: Port both ssh_config syntax and
ssh command line syntax to the escape character
mode
– Allow on-demand things like activation of X
forwarding

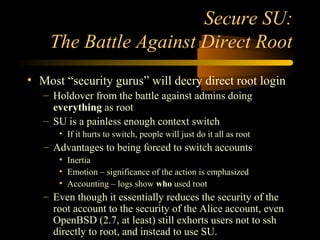

25. Secure SU:
The Battle Against Direct Root
• Most “security gurus” will decry direct root login
– Holdover from the battle against admins doing
everything as root
– SU is a painless enough context switch
• If it hurts to switch, people will just do it all as root
– Advantages to being forced to switch accounts
• Inertia
• Emotion – significance of the action is emphasized
• Accounting – logs show who used root
– Even though it essentially reduces the security of the
root account to the security of the Alice account, even
OpenBSD (2.7, at least) still exhorts users not to ssh
directly to root, and instead to use SU.

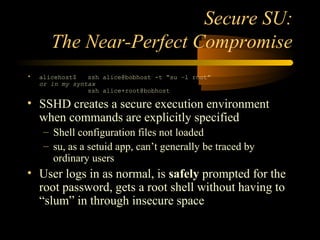

26. Secure SU:
The Near-Perfect Compromise
• alicehost$ ssh alice@bobhost -t “su –l root”
or in my syntax
ssh alice+root@bobhost
• SSHD creates a secure execution environment
when commands are explicitly specified
– Shell configuration files not loaded
– su, as a setuid app, can’t generally be traced by
ordinary users
• User logs in as normal, is safely prompted for the
root password, gets a root shell without having to
“slum” in through insecure space

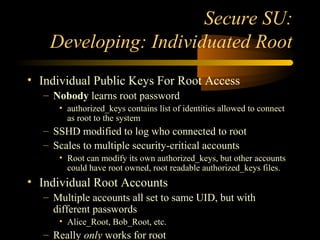

27. Secure SU:
Developing: Individuated Root
• Individual Public Keys For Root Access
– Nobody learns root password
• authorized_keys contains list of identities allowed to connect
as root to the system
– SSHD modified to log who connected to root
– Scales to multiple security-critical accounts
• Root can modify its own authorized_keys, but other accounts
could have root owned, root readable authorized_keys files.
• Individual Root Accounts
– Multiple accounts all set to same UID, but with
different passwords
• Alice_Root, Bob_Root, etc.
– Really only works for root

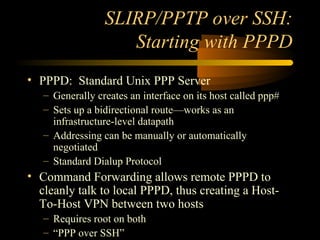

28. SLIRP/PPTP over SSH:
Starting with PPPD
• PPPD: Standard Unix PPP Server
– Generally creates an interface on its host called ppp#
– Sets up a bidirectional route—works as an
infrastructure-level datapath
– Addressing can be manually or automatically
negotiated
– Standard Dialup Protocol
• Command Forwarding allows remote PPPD to
cleanly talk to local PPPD, thus creating a Host-
To-Host VPN between two hosts
– Requires root on both
– “PPP over SSH”

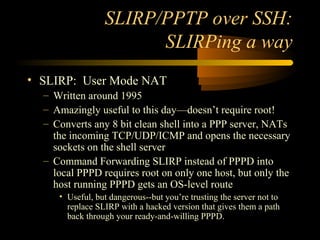

29. SLIRP/PPTP over SSH:
SLIRPing a way
• SLIRP: User Mode NAT
– Written around 1995
– Amazingly useful to this day—doesn’t require root!
– Converts any 8 bit clean shell into a PPP server, NATs
the incoming TCP/UDP/ICMP and opens the necessary
sockets on the shell server
– Command Forwarding SLIRP instead of PPPD into
local PPPD requires root on only one host, but only the
host running PPPD gets an OS-level route
• Useful, but dangerous--but you’re trusting the server not to
replace SLIRP with a hacked version that gives them a path
back through your ready-and-willing PPPD.

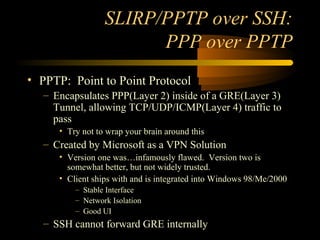

30. SLIRP/PPTP over SSH:
PPP over PPTP
• PPTP: Point to Point Protocol
– Encapsulates PPP(Layer 2) inside of a GRE(Layer 3)
Tunnel, allowing TCP/UDP/ICMP(Layer 4) traffic to
pass
• Try not to wrap your brain around this
– Created by Microsoft as a VPN Solution
• Version one was…infamously flawed. Version two is
somewhat better, but not widely trusted.
• Client ships with and is integrated into Windows 98/Me/2000
– Stable Interface
– Network Isolation
– Good UI
– SSH cannot forward GRE internally

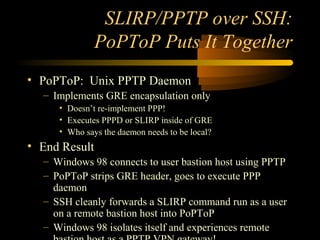

31. SLIRP/PPTP over SSH:
PoPToP Puts It Together
• PoPToP: Unix PPTP Daemon
– Implements GRE encapsulation only
• Doesn’t re-implement PPP!
• Executes PPPD or SLIRP inside of GRE
• Who says the daemon needs to be local?
• End Result
– Windows 98 connects to user bastion host using PPTP
– PoPToP strips GRE header, goes to execute PPP
daemon
– SSH cleanly forwards a SLIRP command run as a user
on a remote bastion host into PoPToP
– Windows 98 isolates itself and experiences remote

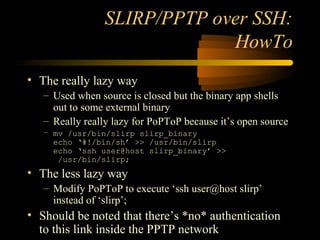

32. SLIRP/PPTP over SSH:
HowTo
• The really lazy way
– Used when source is closed but the binary app shells
out to some external binary
– Really really lazy for PoPToP because it’s open source
– mv /usr/bin/slirp slirp_binary
echo ‘#!/bin/sh’ >> /usr/bin/slirp
echo ‘ssh user@host slirp_binary’ >>
/usr/bin/slirp;
• The less lazy way
– Modify PoPToP to execute ‘ssh user@host slirp’
instead of ‘slirp’;
• Should be noted that there’s *no* authentication
to this link inside the PPTP network

33. Conclusion
• ssh is powerful
• ssh is flexible
• ssh is fun.
• any questions? any requests?
