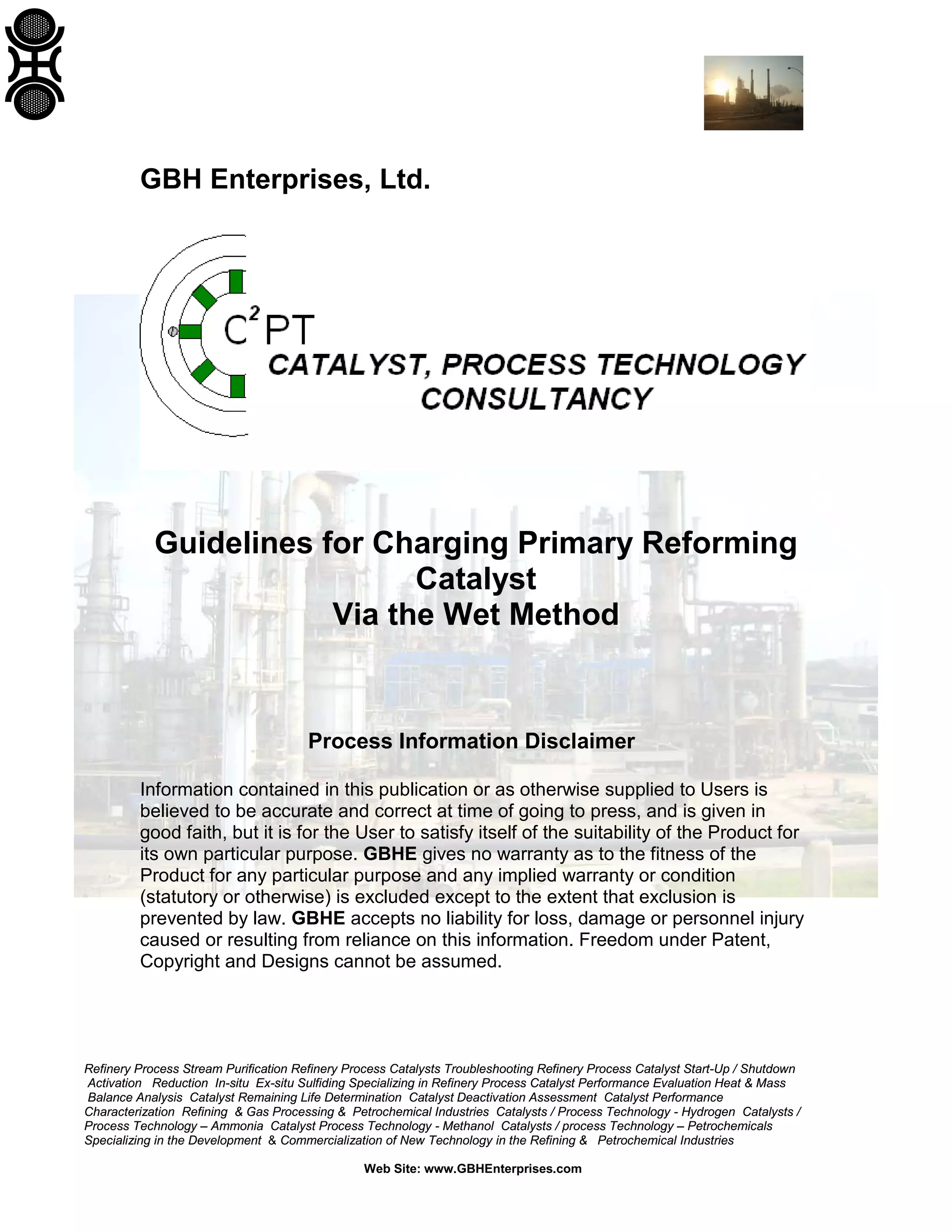

Guidelines for Charging Primary Reforming
Catalyst
Via the Wet Method
Process Information Disclaimer
Information contained in this publication or as otherwise supplied to Users is
believed to be accurate and correct at time of going to press, and is given in
good faith, but it is for the User to satisfy itself of the suitability of the Product for
its own particular purpose. GBHE gives no warranty as to the fitness of the
Product for any particular purpose and any implied warranty or condition
(statutory or otherwise) is excluded except to the extent that exclusion is
prevented by law. GBHE accepts no liability for loss, damage or personnel injury
caused or resulting from reliance on this information. Freedom under Patent,
Copyright and Designs cannot be assumed.

2. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
VULCAN Series VSG-Z101 Primary Reforming
VSG-Z101 reforming catalysts are manufactured to be robust during both
charging and actual operation. Given this, they are indeed suitable for charging
via a wet method.
Following are some guidelines for how this should be accomplished.
During Charging:
- Fill the reformer tubes approximately 2/3 full of water to begin. As the
catalyst is charged into the tube, water should slowly be drained so that it
does not overflow and wet the furnace refractory.
- After charging the tubes, allow the water to drain for an extended period of
time.
- Pressure drop measurements across the tubes should be within +-5% of
the average for all tubes.
- Putting the Catalyst in Service:
- If possible, pass air or gas over the catalyst for a while to remove
excessive water.
- Slowly dry the catalyst with a flowing system (typically nitrogen), and
maintain the temperature at 80-90C for a period of 10 to 12 hours.
- Raise the temperature to 120C for four hours to complete the drying
phase. It is intended that temperatures listed here and above be lower
than the dewpoint to avoid breakage of the catalyst.
- The temperature in the tubes should not exceed 100C in the first drying
steps. Therefore, the carrier gas should be heated by an external source,
instead of using the burner flames.
- After completing the drying steps, proceed with normal furnace start-up
procedures.
These guidelines are meant to be used as aids to accepted and documented
plant procedures.
