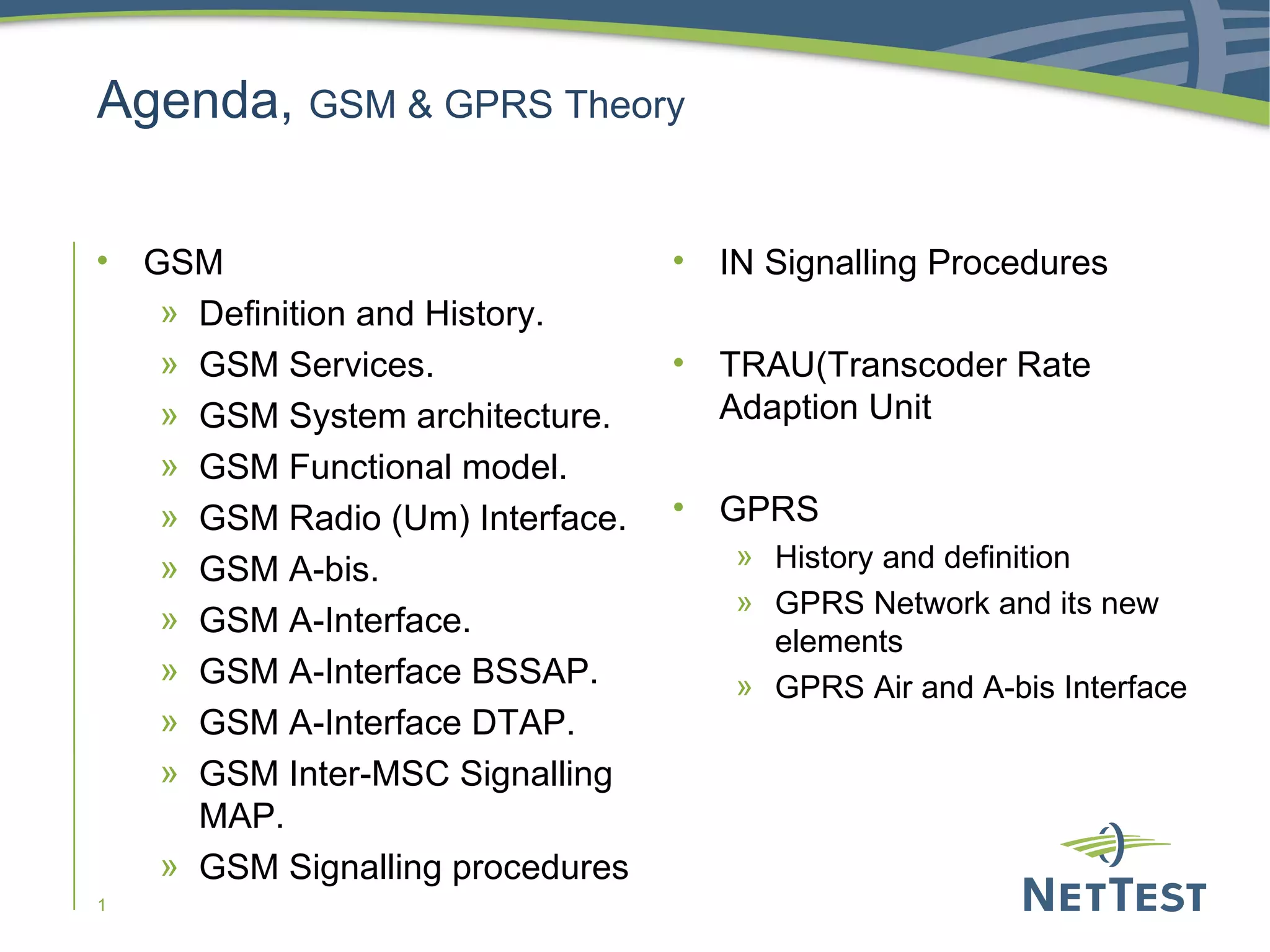

The document provides an agenda on GSM and GPRS theory that includes:
- An overview of GSM definition, history, services, system architecture, functional model, and interfaces
- Descriptions of the radio interface, A-bis, A-interface, signaling protocols, and inter-MSC signaling
- A brief history of GPRS and definitions of its new network elements and air and A-bis interfaces
• -How the channel concept is used on the radio interface
• -Different burst formats in the radio interface
• -The hierarchical frame structure
• -The content sent in different logical channels
• -The mapping of the logical channels
• -Superframe and Hyperframe
• -MOBILE STATIONS ISDN NUMBER (MSISDN)
• INTERNATIONAL MOBILE SUBSCRIBER IDENTITY (IMSI)
• TEMPORARY MOBILE SUBSCRIBER IDENTITY (TMSI)
• LOCATION AREA IDENTITY (LAI)
• CELL GLOBAL IDENTITY (CGI)
• BASE STATION IDENTITY CODE (BSIC)
• PIN management
• -How the channel concept is used on the radio interface
• -Different burst formats in the radio interface
• -The hierarchical frame structure
• -The content sent in different logical channels
• -The mapping of the logical channels
• -Superframe and Hyperframe
• -MOBILE STATIONS ISDN NUMBER (MSISDN)
• INTERNATIONAL MOBILE SUBSCRIBER IDENTITY (IMSI)
• TEMPORARY MOBILE SUBSCRIBER IDENTITY (TMSI)
• LOCATION AREA IDENTITY (LAI)
• CELL GLOBAL IDENTITY (CGI)
• BASE STATION IDENTITY CODE (BSIC)
• PIN management
GPRS Architecture and its components are covered extensively.
The slides give a little information about gprs and also gets into deeper explanation of its architecture.
GSM-architecture-Location tracking and call setup- Mobility management- Handover-
Security-GSM SMS –International roaming for GSM- call recording functions-subscriber and
service data mgt –-Mobile Number portability -VoIP service for Mobile Networks – GPRS –
Architecture-GPRS procedures-attach and detach procedures-PDP context procedure-
combined RA/LA update procedures-Billing
Abis Over IP/Abis Optimization on-site Workshopetkisizcom
Recognize new system architecture
Understand the dimensioning rules using the Abis planning tools
Activate the Abis over IP
Activate the Abis Optimization
Use the Performance Monitoring
GPRS Architecture and its components are covered extensively.
The slides give a little information about gprs and also gets into deeper explanation of its architecture.
GSM-architecture-Location tracking and call setup- Mobility management- Handover-
Security-GSM SMS –International roaming for GSM- call recording functions-subscriber and
service data mgt –-Mobile Number portability -VoIP service for Mobile Networks – GPRS –
Architecture-GPRS procedures-attach and detach procedures-PDP context procedure-
combined RA/LA update procedures-Billing
Abis Over IP/Abis Optimization on-site Workshopetkisizcom
Recognize new system architecture
Understand the dimensioning rules using the Abis planning tools
Activate the Abis over IP
Activate the Abis Optimization
Use the Performance Monitoring
