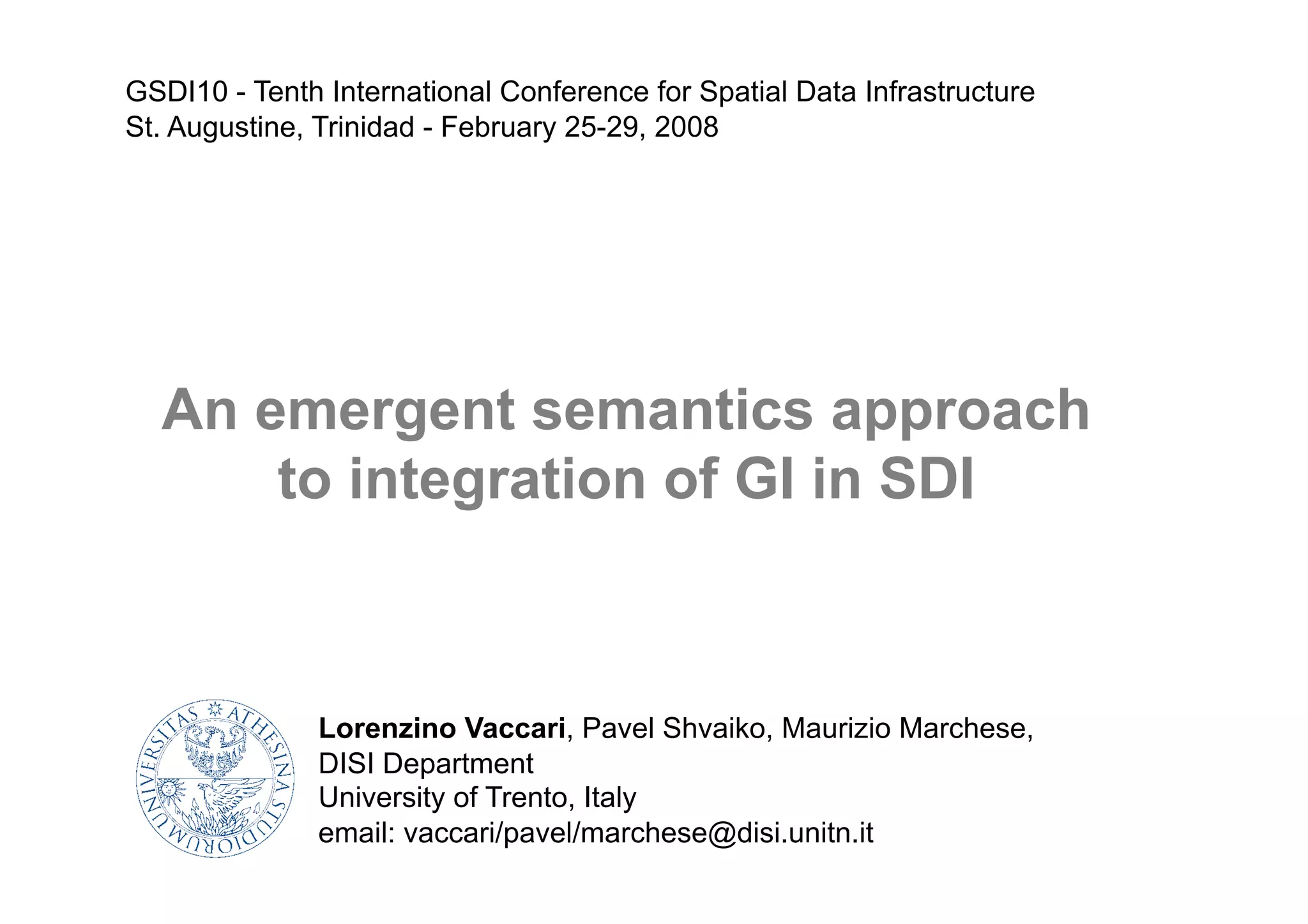

1. Lorenzino Vaccari, Pavel Shvaiko, Maurizio Marchese,
DISI Department
University of Trento, Italy
email: vaccari/pavel/marchese@disi.unitn.it
An emergent semantics approach
to integration of GI in SDI
GSDI10 - Tenth International Conference for Spatial Data Infrastructure
St. Augustine, Trinidad - February 25-29, 2008

2. Overview
• Context
• GI Interoperability Issues
• Emergent GI Semantics
• Structure Preserving Semantic
Matching
– Geo-Services Example
– Preliminary Results
• Conclusion and Future Work

3. Context
• Sharing GI between different stakeholders
• International, National and Local
initiatives. E.g.:
– INSPIRE
– The Italian “Intesa Stato-Regioni”
• Spatial Data Infrastructure adoption
– Geo-Data Integration
– Geo-Services Discovery and Coordination

4. GI Interoperability Issues
• Geo-Data Integration
– Physical Format
– Production process
– Different Resolution
– Different Schemas/
Ontologies
• Geo-services
interoperability
– Geo-services discovery and
coordination
– Technological solutions: SOA
and OGC specifications.
– Semantic heterogeneity of
geo-services

5. Emergent GI Semantics
• Our approach to improve GI
interoperability is based on:
– The Structure Preserving Semantic
Matching (SPSM) algorithm
• Emergent GI semantics
– We store the matching results to use them
for the following interactions

6. ?
Semantic heterogeneity of Geo-
Services
getMap(
– Dimension(Width,
Height),
– MapFile,
– Edition,
– Layers,
– DataFormat,
– Xmin, Ymin,
Xmax, Ymax)
getMap(
– MapFile,
– Version,
– Layers,
– Width,
– Height,
– Format,
– XMin_BB, YMin_BB,
XMax_BB, YMax_BB)
SPSM
?

7. Information sources (e.g., schemas, ontologies, web
service descriptions) can be viewed as graph-like
structures containing terms and their inter-
relationships
Matching takes two graph-like structures and
produces a set of correspondences between the
semantically related nodes of those graphs
Structure preserving semantic matching finds
correspondences between semantically related nodes
of the graphs, still preserving a set of structural
properties (e.g., vertical ordering of nodes)
Structure Preserving Semantic
Matching

8. getMap(MapFile, Version, Layers, Width, Height, Format, XMin_BB,
YMin_BB, XMax_BB, YMax_BB)
getMap(Dimension(Width, Height), MapFile, Edition, Layers, DataFormat,
Request, Xmin, Ymin, Xmax, Ymax)
SPSM(T1,T2) = 0.38+ set of correspondences
Example from Geo-Services
getMap
MapFile
Version
Layers
Width
Height
T1
Format
Xmin_BB
Ymin_BB
Xmax_BB
Ymax_BB
DataFormat
getMap
Dimension
Width
Edition
MapFile
Height
Layers
T2
Request
Xmin
Ymin
Xmax
Ymax

9. Characteristics of matching
• Returns:
– global similarity between two trees in [0 1]
– a set of correspondences
• Approximation is on two levels:
– Node (S-Match)
– Structure
• Provides one-to-one node
correspondences
– Functions are matched to functions
– Variables are matched to variables

10. Predicate (Pd):
― Two or more predicates are merged, typically to the least
general generalization in the predicate type hierarchy
― Height(X) + Dimension(X) → Dimension (X)
Domain (D):
― Two or more terms are merged, typically by moving the
functions or constants to the least general generalization
in the domain type hierarchy
― Xmin_BB + Xmin → Xmin
Propositional (P):
― One or more arguments are dropped
― Layers (L1) → Layers
Composition example:
― Height (X) ⊑P Height ⊑D Dimension
Abstraction operations (AO)

11. Node matching: two nodes n1 and n2 in trees T1 and T2
approximately match if and only if:
c@n1 R c@n2 holds (based on S-Match), where:
― c@n1 and c@n2 are the concepts at nodes n1 and
n2
― R ∈ {=, ⊑, ⊒, idk}
― Version = Edition, Xmin_BB ⊑ Xmin
Tree matching: two trees T1 and T2 approximately match if
and only if there is at least one node n1 in T1 and one node n2
in T2 such that:
― n1 approximately matches n2
― All ancestors of n1 are approximately matched to the
ancestors of n2
― Horizontal order of siblings is not preserved (in most
of the cases)
Approximate SPSM

12. Key idea: use abstractions/refinements (standing for
relations of a correspondence) as tree edit distance
operations in order to estimate the similarity of two given trees
Tree edit distance (TED): the minimum number of tree edit
operations (node insertion, deletion, replacement) required
to transform one tree to another. We want to:
― Minimize the editing cost, i.e., computation of the
minimal cost composition of abstraction/refinement
operations
― Allow only those tree edit operations that have their
abstraction theoretic counterparts
Tree edit distance

13. AO TED operation Preconditions Cost= Cost⊑ Cost⊒
n1⊒Pd n2 replace(a, b)
a ⊒ b; a and b correspond to
predicates
1 ∞ 1
n1⊒D n2 replace(a, b)
a ⊒ b; a and b correspond to
functions, …
1 ∞ 1
n1⊒P n2 insert(a)
a corresponds to predicate,
function, …
1 ∞ 1
n1⊑Pd n2 replace(a, b)
a ⊑ b; a and b correspond to
predicates
1 1 ∞
n1⊑D n2 replace(a, b)
a ⊑ b; a and b correspond to
functions, …
1 1 ∞
n1⊑P n2 delete(a)
a corresponds to predicate,
function, …
1 1 ∞
n1= n2 replace(a, b)
a = b; corresponds to
predicate, …
0 0 0
TED operations and costs

14. Example from Geo-Services (cont’d)
getMap
MapFile
Version
Layers
Width
Height
T1
Format
Xmin_BB
Ymin_BB
Xmax_BB
Ymax_BB
DataFormat
getMap
Dimension
Width
Edition
MapFile
Height
Layers
T2
Request
Xmin
Ymin
Xmax
Ymax
1
2
3
4
5
6
7
8
10
9
11
1
2
3
4
5
6
7
8
10
9
11
12
13

15. Preliminary evaluation
Synthesized datasets (hundreds of trees) from various
versions of SUMO and AKT ontologies and Brown Corpus
lexicon. E.g.:
journal(periodical_publication) vs. magazine(periodical-publication)
flowers_Michigan(northern, Whisky) vs. flowers_Michigan(Whisky, bourbon)
Measures
Precision, Recall, F-measure, Time
Results on a standard laptop (Core Duo CPU - 2Hz,
2GB RAM, Windows Vista):
 average F-measure = 0.78
 average execution time = 93ms

16. SPSM for Geo-services
― Geo-Services and Geo-data heterogeneity
― Geo-Service use case (GetMap)
― Node matching of S-Match
― Structure preserving matching based on theory of
abstraction and tree edit distance
― Preliminary evaluation with encouraging results
Future work
― Conducting an extensive evaluation
― Extending the matching approach for dealing with
fully fledged SDI/GIS geo-data ontologies
Conclusions and future work

17. Acknowledgements
We are grateful to:
Fausto Giunchiglia, Mikalai Yatskevitch, Juan
Pane and Fiona McNeill for many fruitful
discussions on the structure preserving semantic
matching
This work has been supported by the
FP6 OpenKnowledge project (http://www.openk.org)

18. Thank you for your attention
and...
Questions ?
Lorenzino Vaccari: vaccari@disi.unitn.it
[1] University of Trento – DISI department: www.disi.unitn.it
[2] OpenKnowledge project (SPSM, WP3): www.openk.org
[3] Knowdive group (S-match): http://dit.unitn.it/~knowdive/
“MANAGING KNOWLEDGE DIVERSITY
BUILDING A BRIDGE FOR INTEGRATING THE
DIVERSE KNOWLEDGE IN DIFFERENT
RESEARCH FIELDS, SPANNING ACROSS
PEOPLE OF DIFFERENT NATIONS AND
CULTURES”
Knowdive Group

19. Geo-Services Example (LCC)
a(map_requestor,R)::
requestMap(MapFile, Version, Layers, Width, Height, Format, SRS, XMin_BB, YMin_BB,
XMax_BB, YMax_BB) => a(ga_sp,P) <- selectLayers(AvailableLayers,Layers)
and needMap(Width, Height)
and selectBoundingBox(XMin_ME, YMin_ME, XMax_ME, YMax_ME, XMin_BB, YMin_BB, XMax_BB, YMax_BB)
and selectFormat(AvailableFormats, Format)
then
returnMap(Map) <= a(ga_sp,P) then
null <- showMap(Map)
a(map_provider,P) ::
requestMap(MapFile, Version, Layers, Width, Height, Format, SRS, XMin_BB, YMin_BB, XMax_BB, YMax_BB) <= a(ga_sr,R)
then
returnMap(Map) => a(ga_sr,R)
<- getMap(MapFile, Version, Layers, Width, Height, Format, SRS, XMin_BB, YMin_BB, XMax_BB, YMax_BB, Map)

21. Assign the same unit cost to all operations that have their
abstraction theoretic counterparts
TED operations not allowed by definition of abstractions/
refinements are assigned an infinite cost
AO
TED
operation
Preconditions Cost= Cost⊑ Cost⊒
n1⊒Pd n2 replace(a, b) a ⊒ b; a and b correspond to predicates 1 ∞ 1
n1⊒D n2 replace(a, b)
a ⊒ b; a and b correspond to functions,
…
1 ∞ 1
n1⊒P n2 insert(a) a corresponds to predicate, function, … 1 ∞ 1
n1⊑Pd n2 replace(a, b) a ⊑ b; a and b correspond to predicates 1 1 ∞
n1⊑D n2 replace(a, b)
a ⊑ b; a and b correspond to functions,
…
1 1 ∞
n1⊑P n2 delete(a) a corresponds to predicate, function, … 1 1 ∞
n1= n2 replace(a, b) a = b; corresponds to predicate, … 0 0 0
TED operations and costs

22. Geo-Services Example (LCC)
a(map_requestor,R)::
requestMap(MapFile, Version, Layers, Width, Height, Format, SRS, XMin_BB, YMin_BB,
XMax_BB, YMax_BB) => a(ga_sp,P) <- selectLayers(AvailableLayers,Layers)
and needMap(Width, Height)
and selectBoundingBox(XMin_ME, YMin_ME, XMax_ME, YMax_ME, XMin_BB, YMin_BB, XMax_BB, YMax_BB)
and selectFormat(AvailableFormats, Format)
then
returnMap(Map) <= a(ga_sp,P) then
null <- showMap(Map)
a(map_provider,P) ::
requestMap(MapFile, Version, Layers, Width, Height, Format, SRS, XMin_BB, YMin_BB, XMax_BB, YMax_BB) <= a(ga_sr,R)
then
returnMap(Map) => a(ga_sr,R)
<- getMap(MapFile, Version, Layers, Width, Height, Format, SRS, XMin_BB, YMin_BB, XMax_BB, YMax_BB, Map)

23. P2P Infrastructure
• Workflows are formalized by Interaction
Models (IMs) between peers
• We use the Lightweight Coordination
Calculus (LCC), an executable
specification language (like BPEL)
– Uses roles for peers and constraints on
message sending to enforce social norms
and behaviours

24. Related works
• Geo-data integration
– Alignment efforts [Chen et al.]
– Semantic heterogeneity [Lutz et al.], [GEON
project]
– Ontology matcher [G-Match]
• Geo-services interoperability
– OGC cataloguing services
– Geospatial Semantic Interoperability
Experiment
– Chaining Geo-services [Lemmens et al.]

25. P2P infrastructure
• Peer-to-peer network for distributed
application sharing and execution.
– Peers can search/download applications from
other peers.
– Developers can publish applications and their
interaction specifications.
• Provides a framework to execute and
coordinate the programs in each peer.
• Anyone with a computer and internet
access may join the system.
• No central organization.
• Lightweight Coordination Language.

26. Example of IM
a(inquirer, I)::
ask(W) => a(oracle,O)←toknow(W)‫‏‬
then
definition(W,D) <= a(oracle,O)‫‏‬
then
null←show(W,D)
a(oracle, O)::
ask(W) <= a(inquirer,I)
then
definition(W,D)=> a(inquirer,I)←define(W,D)
Roles Constraints

27. Interaction Run
Inquirer Oracle
a(oracle, O)::
ask(W)<= a(inquirer,I)
then
definition(W,D)=>a(inquirer,I)←define(W,D)
toknow(W)‫‏‬
a(inquirer, I)::
ask(W)=>a(oracle,O)←toknow(W)‫‏‬
then
definition(W,D)<=a(oracle,O)‫‏‬
then
null←show(W,D)

28. Interaction Run
Inquirer Oracle
a(inquirer, I)::
ask(W)⇒a(oracle,O)←toknow(W)‫‏‬
then
definition(W,D)⇐a(oracle,O)‫‏‬
then
null←show(W,D)
a(oracle, O)::
ask(W)⇐a(inquirer,I)
then
definition(W,D)⇒a(inquirer,I)←define(W,D)
toknow(W)‫‏‬
ask(W)‫‏‬

29. Interaction Run
Inquirer Oracle
a(inquirer, I)::
ask(W)⇒a(oracle,O)←toknow(W)‫‏‬
then
definition(W,D)⇐a(oracle,O)‫‏‬
then
null←show(W,D)
a(oracle, O)::
ask(W)⇐a(inquirer,I)
then
definition(W,D)⇒a(inquirer,I)←define(W,D)
toknow(W)‫‏‬
ask(W)‫‏‬
define(W)‫‏‬

30. Interaction Run
Inquirer Oracle
a(inquirer, I)::
ask(W)⇒a(oracle,O)←toknow(W)‫‏‬
then
definition(W,D)⇐a(oracle,O)‫‏‬
then
null←show(W,D)
a(oracle, O)::
ask(W)⇐a(inquirer,I)
then
definition(W,D)⇒a(inquirer,I)←define(W,D)
ask(W)‫‏‬
define(W)‫‏‬
def(W,D)‫‏‬
toknow(W‫‏‬toknow(W)‫‏‬

31. Interaction Run
Inquirer Oracle
a(inquirer, I)::
ask(W)⇒a(oracle,O)←toknow(W)‫‏‬
then
definition(W,D)⇐a(oracle,O)‫‏‬
then
null←show(W,D)
a(oracle, O)::
ask(W)⇐a(inquirer,I)
then
definition(W,D)⇒a(inquirer,I)←define(W,D)
ask(W)‫‏‬
define(W)‫‏‬
def(W,D)‫‏‬
toknow(W)toknow(W)‫‏‬
show(W,D)‫‏‬
toknow(W)‫‏‬
