This document provides specifications for a PM 6015 motor with a 184:1 gearbox. The motor runs on 115V, has a no load speed of 1300 RPM, and can output up to 7.2 RPM and 124.4 lb-in of torque under continuous duty. Performance metrics include a gearbox efficiency of 42.4%, motor efficiency of 54.3%, and system efficiency of 23.0%. Charts show torque and speed output as well as efficiency at varying speeds.

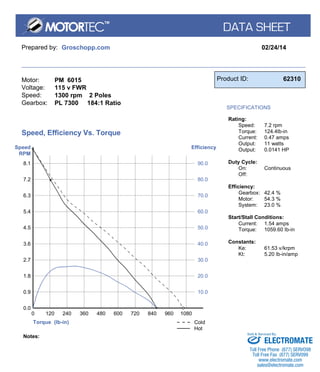

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
115 v FWR
1300 rpm 2 Poles
PL 7300 184:1 Ratio
Product ID: 62310
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
7.2 rpm
124.4lb-in
0.47 amps
11 watts
0.0141 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
42.4 %
54.3 %
23.0 %
Start/Stall Conditions:
Current:
Torque:
1.54 amps
1059.60 lb-in
Constants:
Ke: 61.53 v/krpm
Kt: 5.20 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
0.0
0
0.9
120
1.8
240
2.7
360
3.6
480
4.5
600
5.4
720
6.3
840
7.2
960
8.1
1080
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
