This document provides specifications for a PM 6015 motor with a 10:1 gearbox that operates at 115V. Key specifications include a rated speed of 131.8 rpm, torque of 6.8 lb-in, current of 0.47 amps, and power output of 11 watts. The motor has an efficiency of 54.3% while the gearbox is 42.6% efficient, resulting in an overall system efficiency of 23.1%. Charts show torque, speed, rpm, and efficiency levels at varying loads.

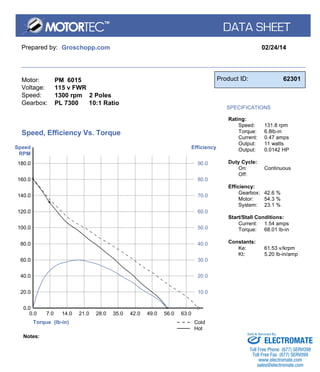

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
115 v FWR
1300 rpm 2 Poles
PL 7300 10:1 Ratio
Product ID: 62301
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
131.8 rpm
6.8lb-in
0.47 amps
11 watts
0.0142 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
42.6 %
54.3 %
23.1 %
Start/Stall Conditions:
Current:
Torque:
1.54 amps
68.01 lb-in
Constants:
Ke: 61.53 v/krpm
Kt: 5.20 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
20.0
0.0
0.0
7.0
40.0
14.0
60.0
21.0
80.0
28.0
100.0
35.0
120.0
42.0
140.0
49.0
160.0
56.0
180.0
63.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
