CGM LIFE is a personal health record system developed by CompuGroup Medical that allows patients to store and manage their medical information. The CGM LIFE Client SDK provides developers access to medical data and services through a client API. It includes services for authentication, medical records, catalogs of medical codes, directories of healthcare providers, and ordering medications from pharmacies. The SDK encrypts medical data on the client side and stores an encrypted version on the server to protect patients' privacy.

1. CGM LIFE – a New Dimension in Consumer Healthcare
Introduction to CGM LIFE Client SDK for Android
Holger Oestreich – Senior Software Developer Android

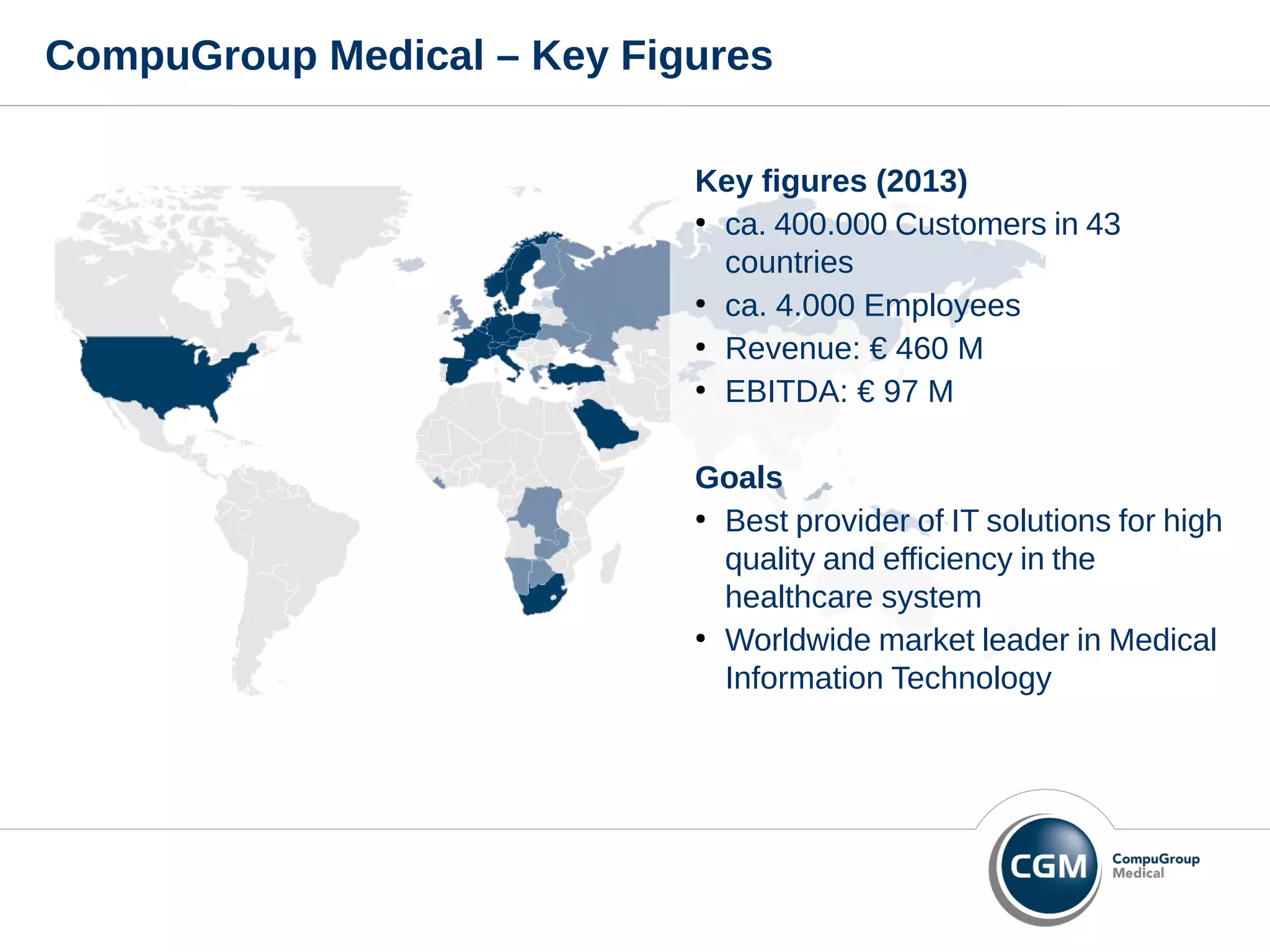

2. CompuGroup Medical – Key Figures
Key figures (2013)
●
ca. 400.000 Customers in 43
countries
●
ca. 4.000 Employees
●
Revenue: € 460 M
●
EBITDA: € 97 M
Goals
●
Best provider of IT solutions for high
quality and efficiency in the
healthcare system
●
Worldwide market leader in Medical
Information Technology

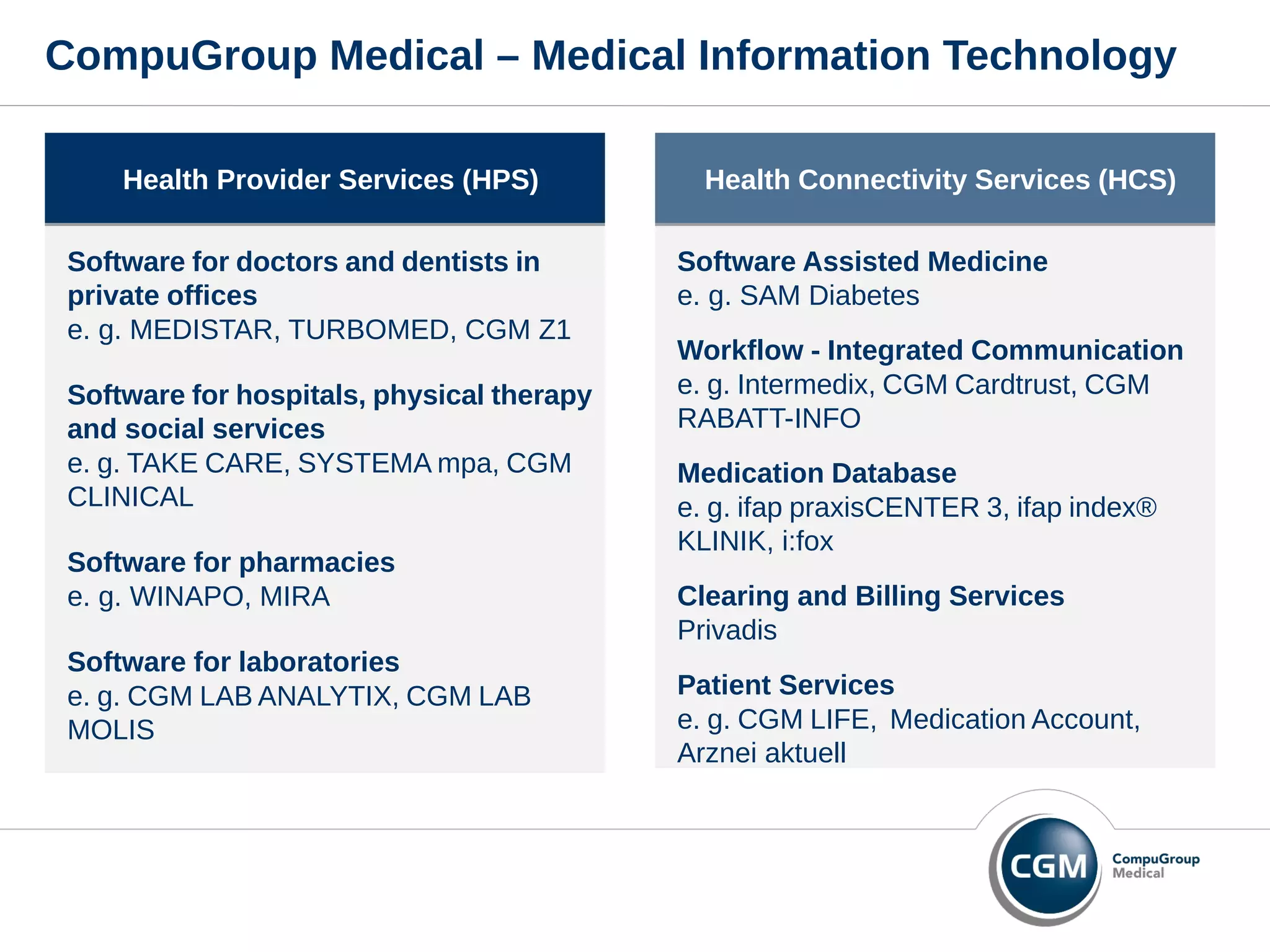

3. CompuGroup Medical – Medical Information Technology
Software for doctors and dentists in
private offices
e. g. MEDISTAR, TURBOMED, CGM Z1
Software for hospitals, physical therapy
and social services
e. g. TAKE CARE, SYSTEMA mpa, CGM
CLINICAL
Software for pharmacies
e. g. WINAPO, MIRA
Software for laboratories
e. g. CGM LAB ANALYTIX, CGM LAB
MOLIS
Health Provider Services (HPS)Health Provider Services (HPS)
Software Assisted Medicine
e. g. SAM Diabetes
Workflow - Integrated Communication
e. g. Intermedix, CGM Cardtrust, CGM
RABATT-INFO
Medication Database
e. g. ifap praxisCENTER 3, ifap index®
KLINIK, i:fox
Clearing and Billing Services
Privadis
Patient Services
e. g. CGM LIFE, Medication Account,
Arznei aktuell
Health Connectivity Services (HCS)Health Connectivity Services (HCS)

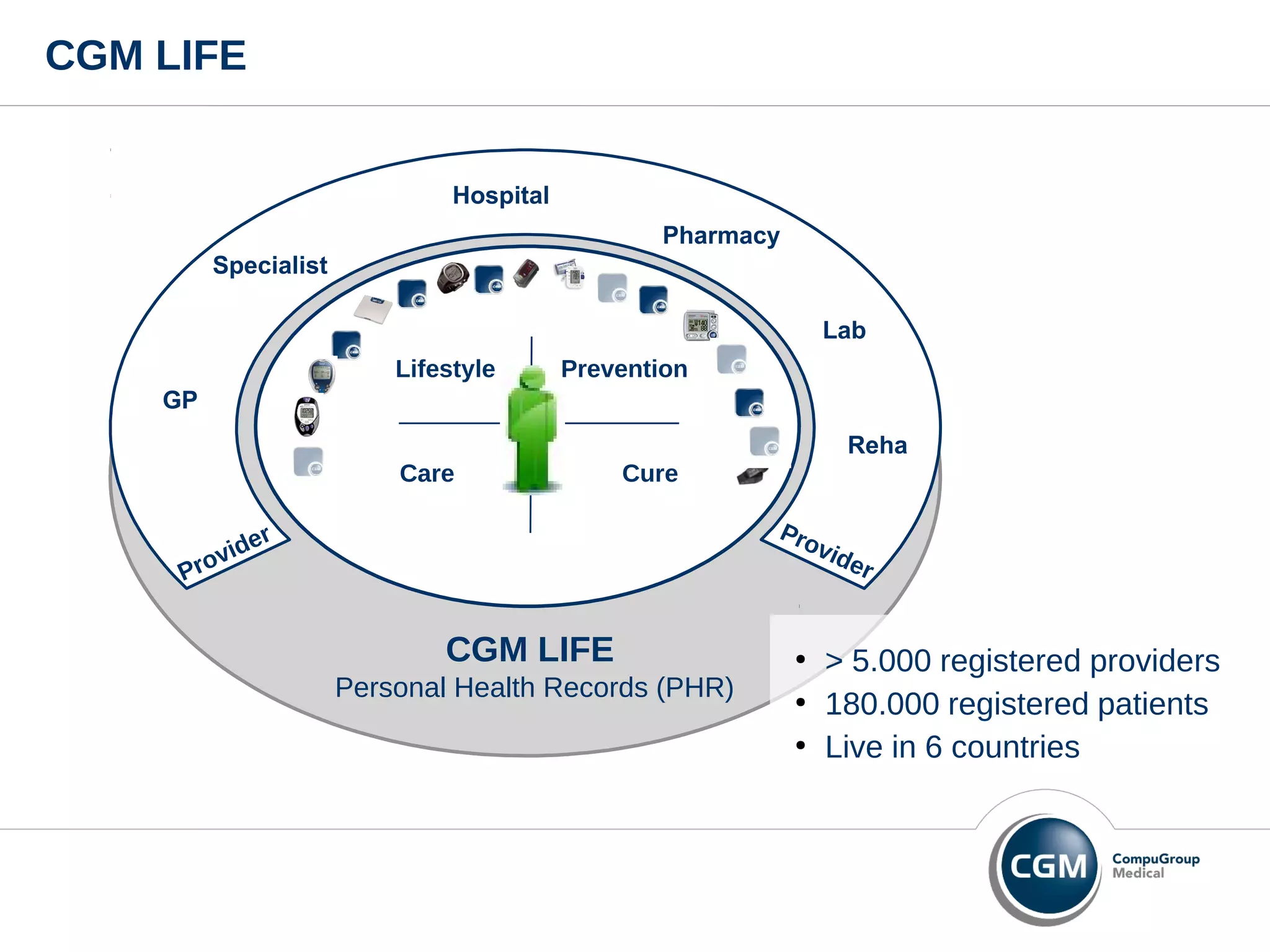

4. CGM LIFE
CGM LIFE
Personal Health Records (PHR)
Provider Provider
Lifestyle Prevention
CureCare
Specialist
GP
Hospital
Pharmacy
Lab
Reha
●
> 5.000 registered providers
●
180.000 registered patients
●
Live in 6 countries

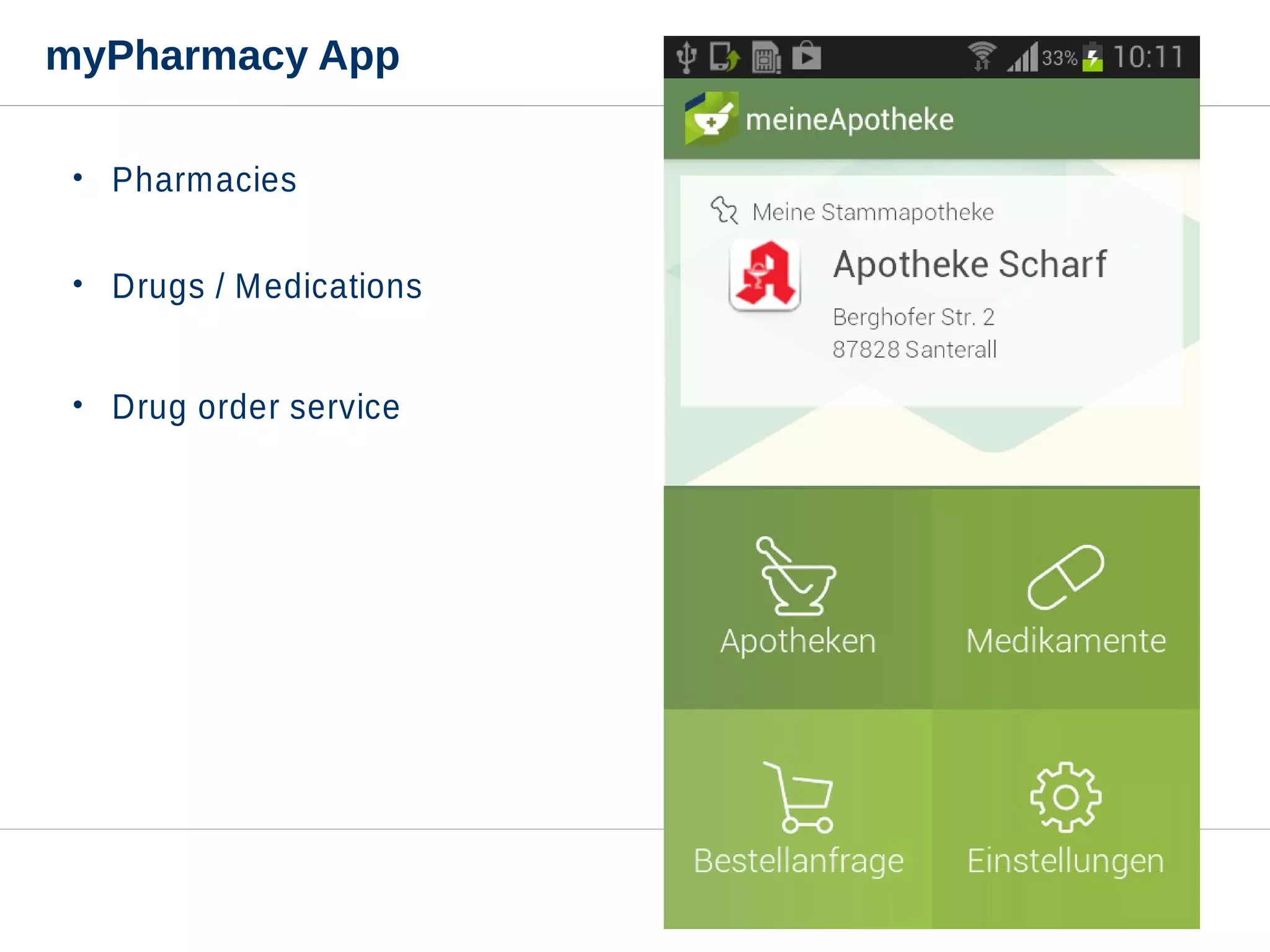

5. myPharmacy App
• Pharmacies
• Drugs / Medications
• Drug order service

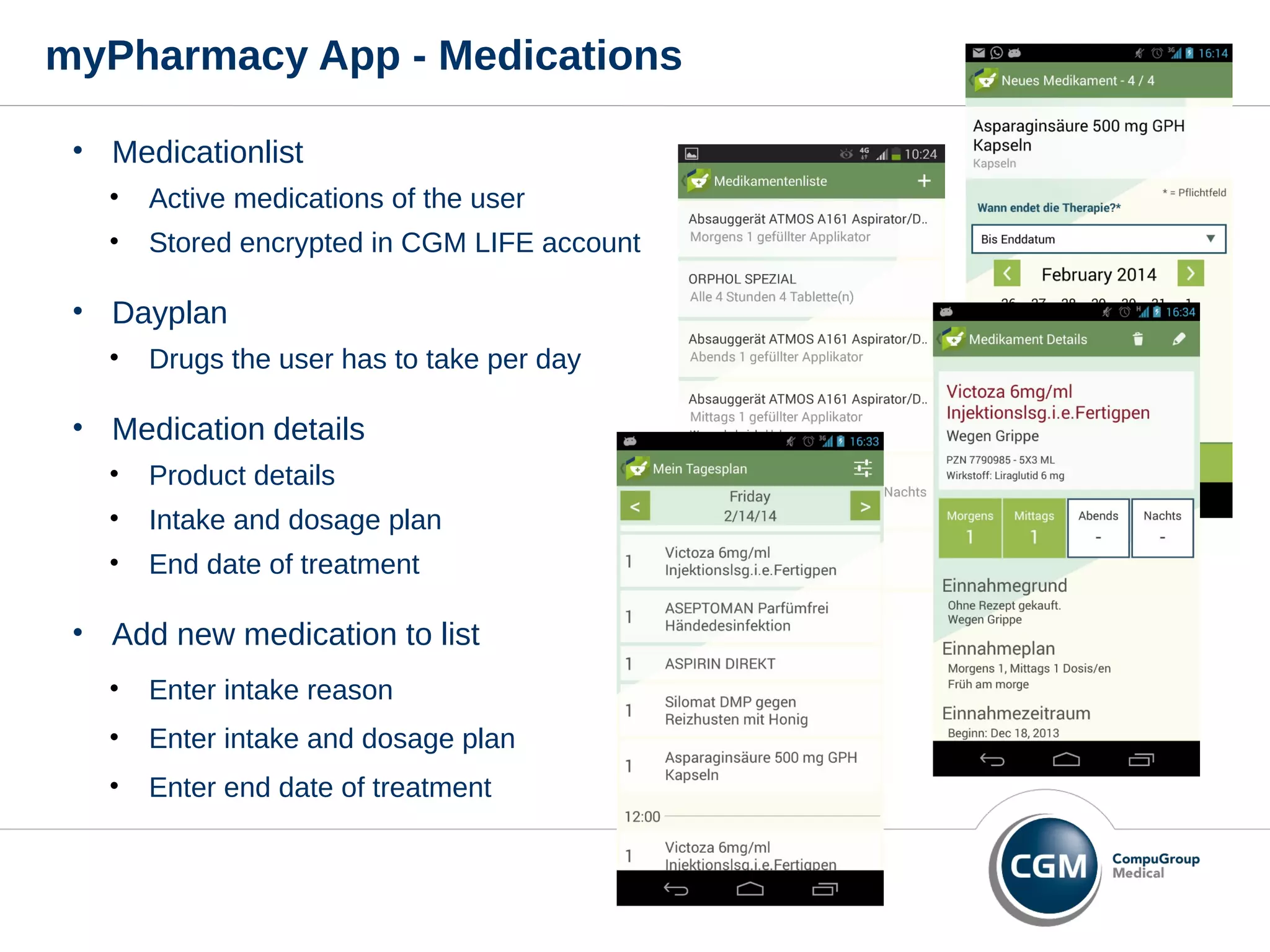

6. myPharmacy App - Medications
• Medicationlist
• Active medications of the user
• Stored encrypted in CGM LIFE account
• Dayplan
• Drugs the user has to take per day
• Medication details
• Product details
• Intake and dosage plan
• End date of treatment
• Add new medication to list
• Enter intake reason
• Enter intake and dosage plan
• Enter end date of treatment

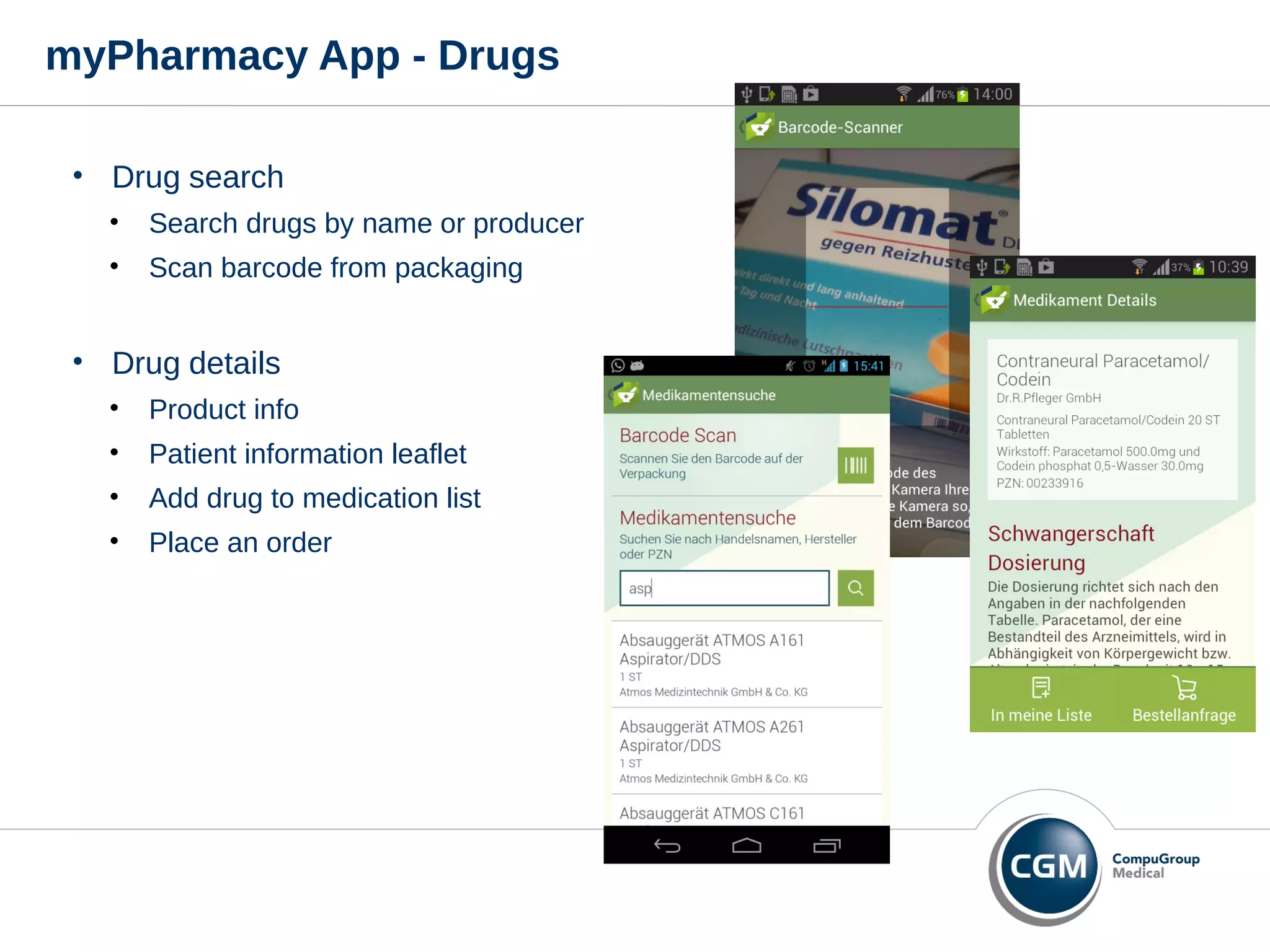

7. myPharmacy App - Drugs
• Drug search
• Search drugs by name or producer
• Scan barcode from packaging
• Drug details
• Product info
• Patient information leaflet
• Add drug to medication list
• Place an order

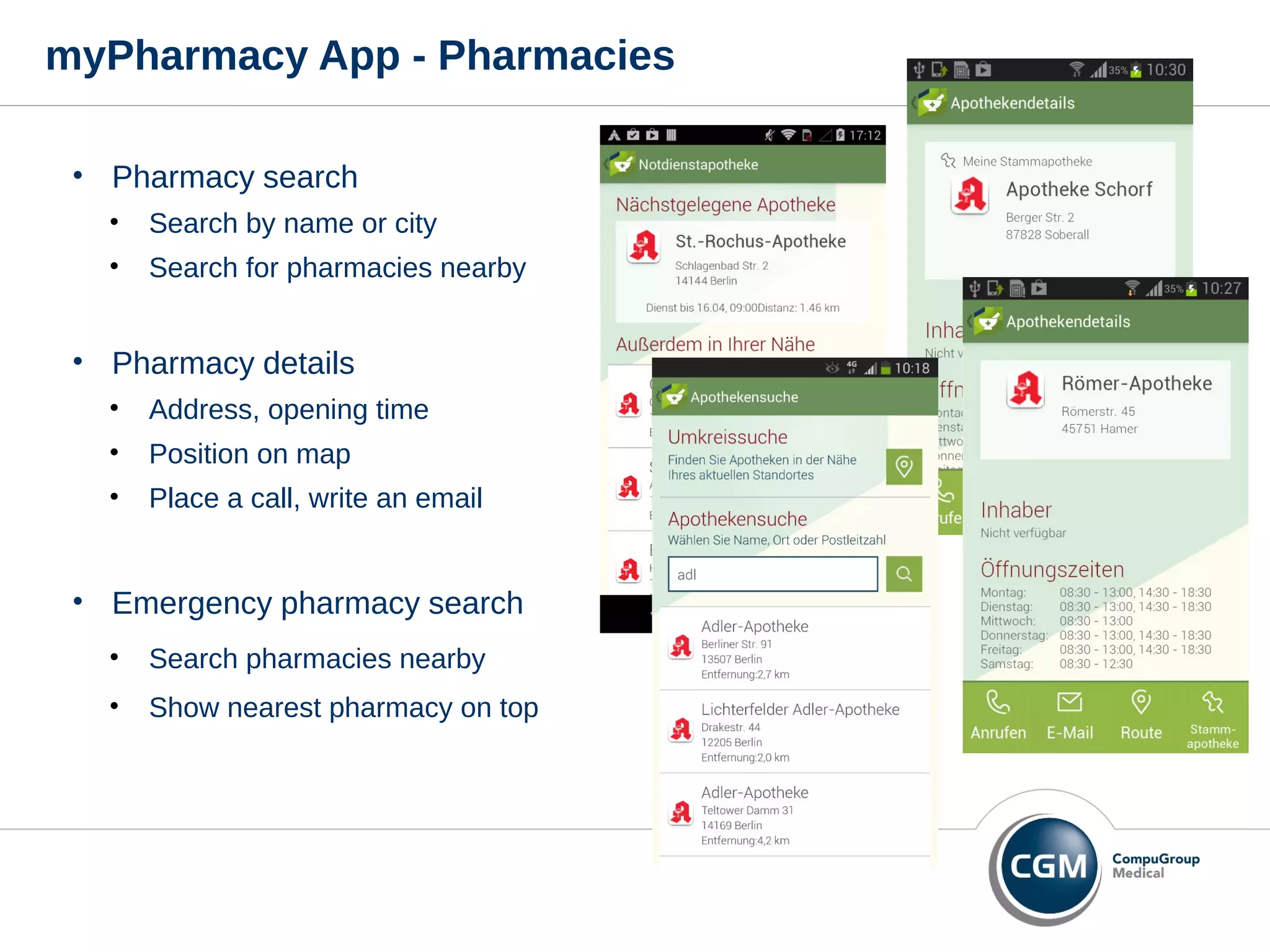

8. myPharmacy App - Pharmacies
• Pharmacy search
• Search by name or city
• Search for pharmacies nearby
• Pharmacy details
• Address, opening time
• Position on map
• Place a call, write an email
• Emergency pharmacy search
• Search pharmacies nearby
• Show nearest pharmacy on top

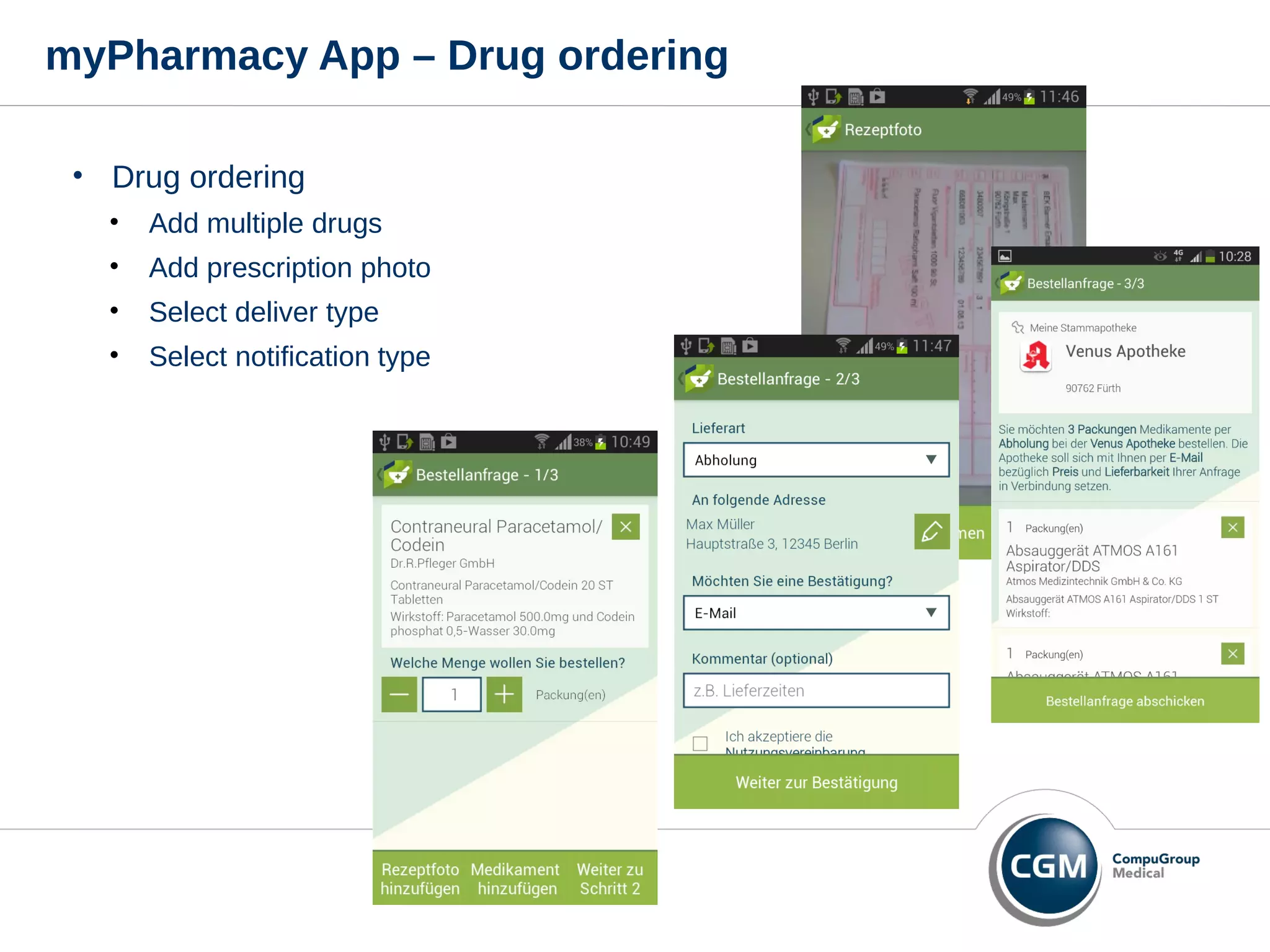

9. myPharmacy App – Drug ordering
• Drug ordering
• Add multiple drugs
• Add prescription photo
• Select deliver type
• Select notification type

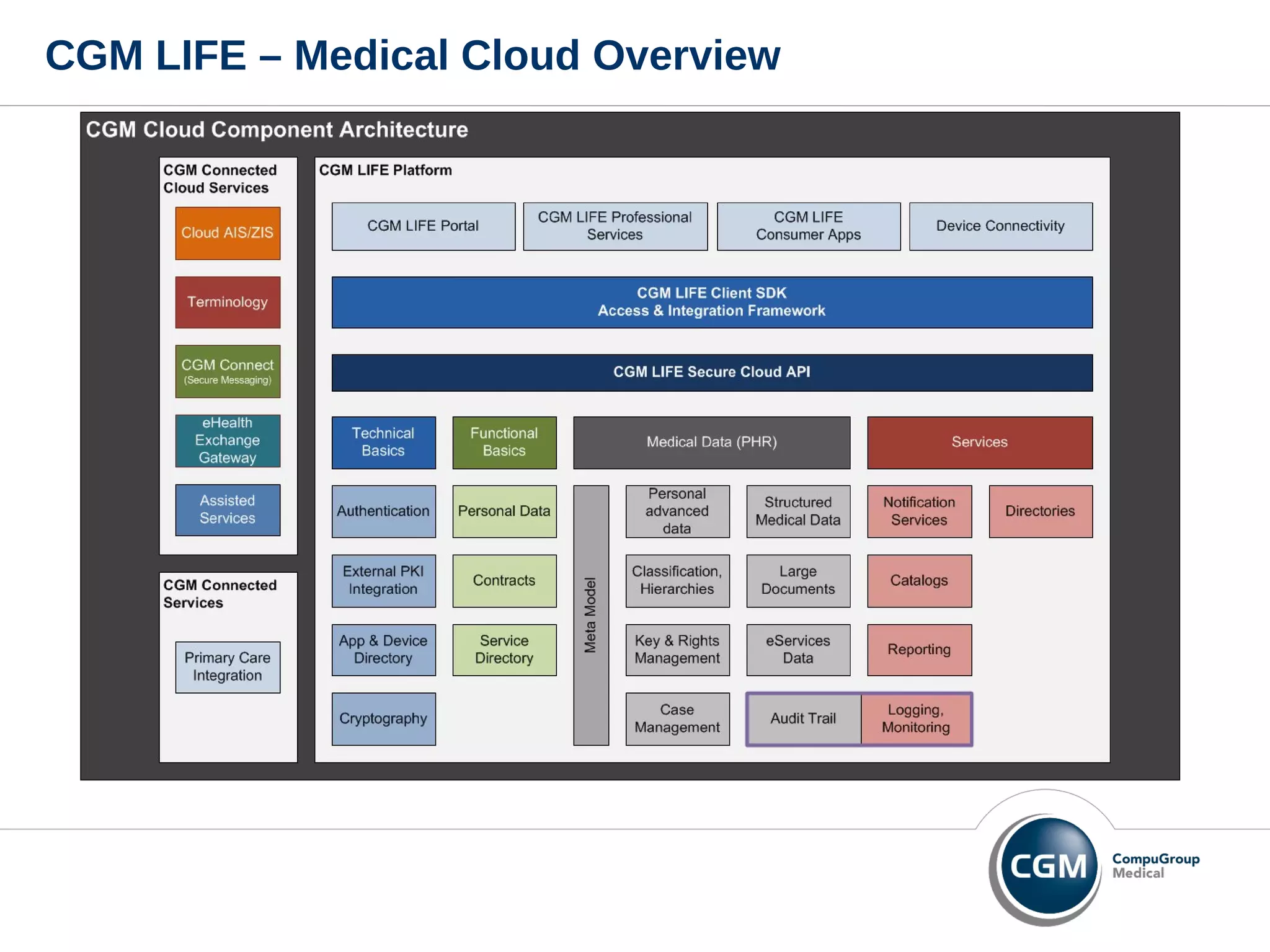

10. CGM LIFE – Medical Cloud Overview

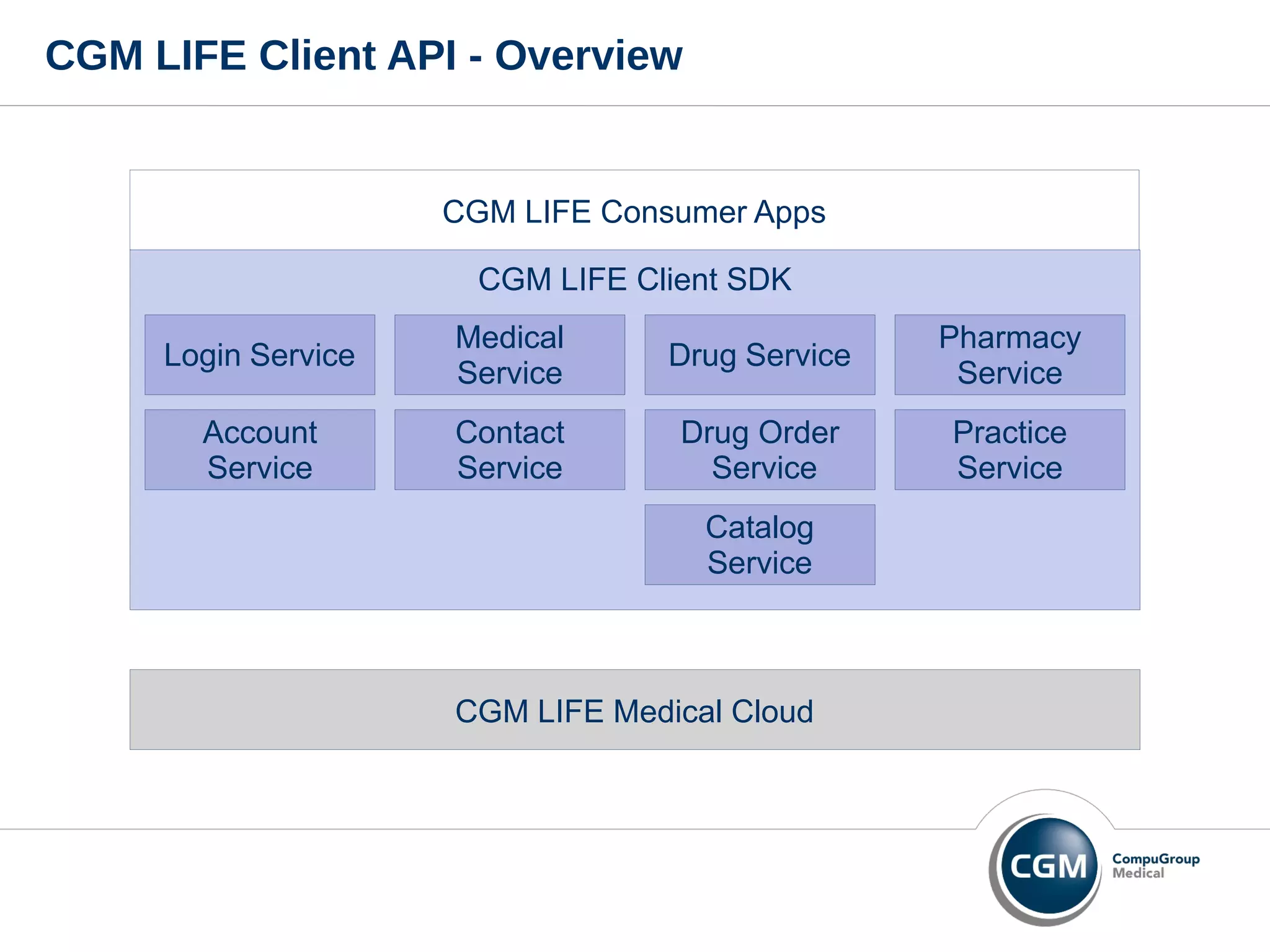

11. CGM LIFE Consumer Apps
CGM LIFE Client SDK
CGM LIFE Medical Cloud
CGM LIFE Client API - Overview
Account
Service
Login Service
Medical
Service
Contact
Service
Drug Service
Drug Order
Service
Catalog
Service
Pharmacy
Service
Practice
Service

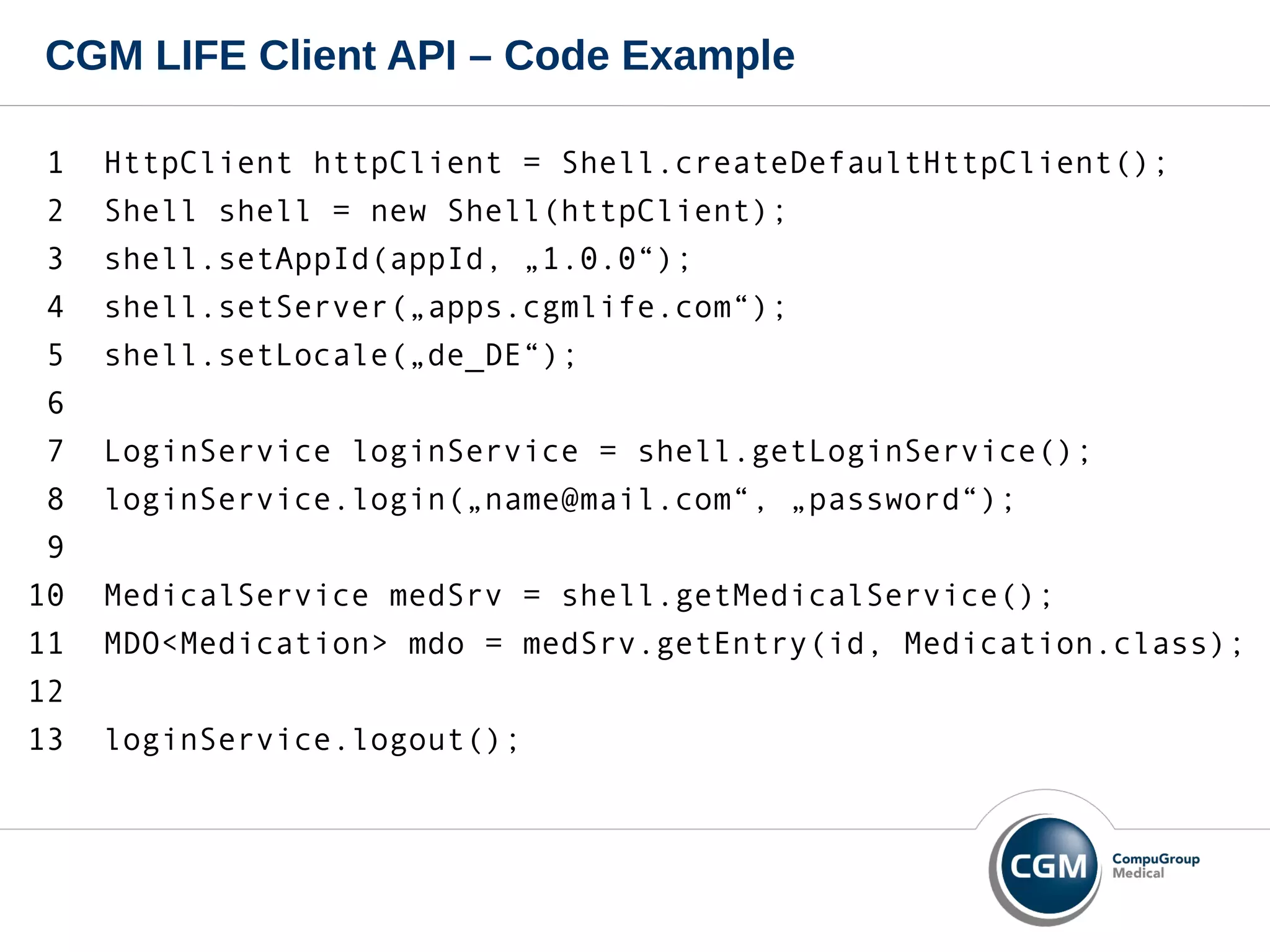

12. CGM LIFE Client API – Code Example
1 HttpClient httpClient = Shell.createDefaultHttpClient();
2 Shell shell = new Shell(httpClient);
3 shell.setAppId(appId, „1.0.0“);
4 shell.setServer(„apps.cgmlife.com“);
5 shell.setLocale(„de_DE“);
6
7 LoginService loginService = shell.getLoginService();
8 loginService.login(„name@mail.com“, „password“);
9
10 MedicalService medSrv = shell.getMedicalService();
11 MDO<Medication> mdo = medSrv.getEntry(id, Medication.class);
12
13 loginService.logout();

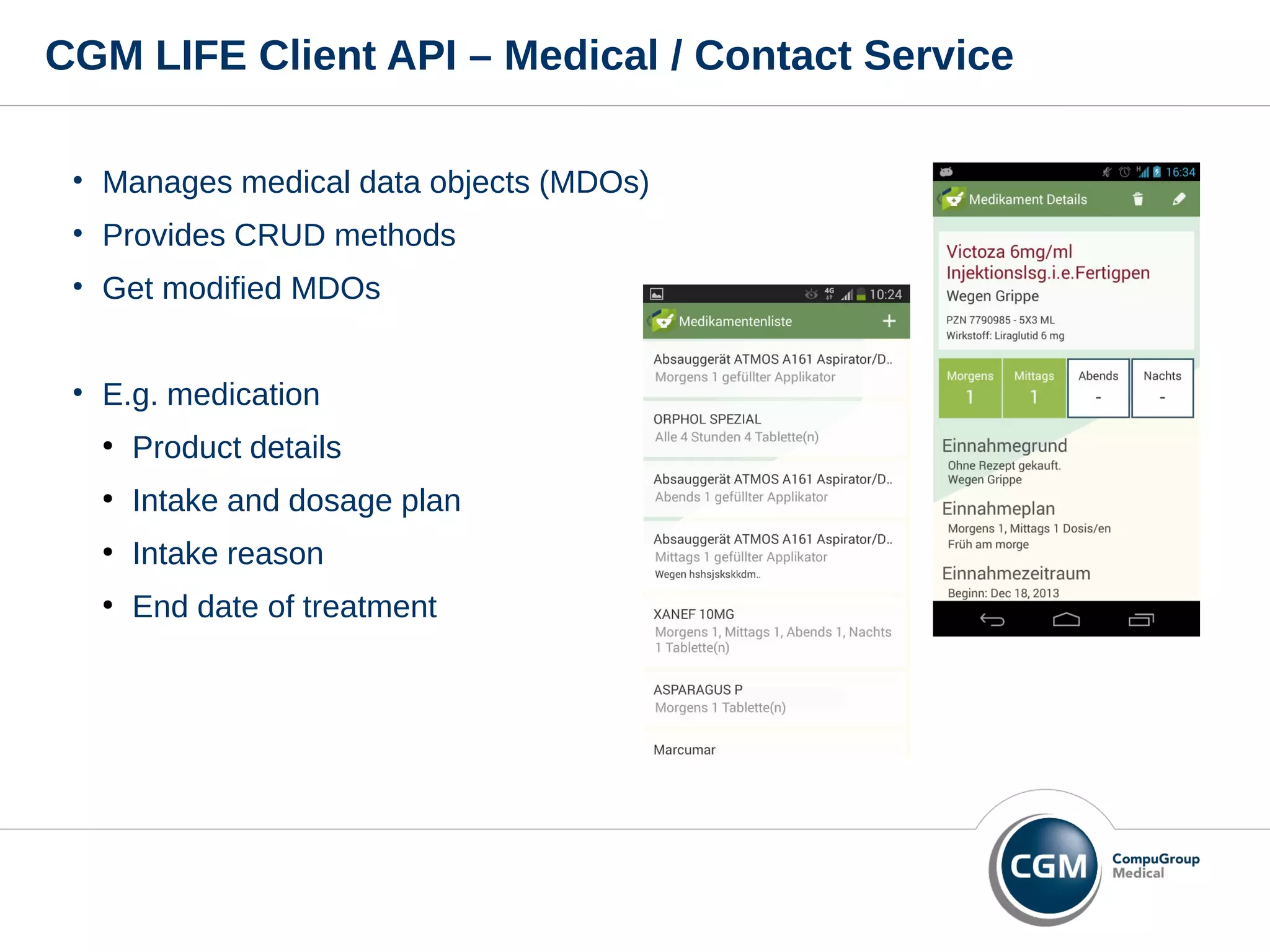

13. CGM LIFE Client API – Medical / Contact Service
• Manages medical data objects (MDOs)
• Provides CRUD methods
• Get modified MDOs
• E.g. medication
●
Product details
●
Intake and dosage plan
●
Intake reason
●
End date of treatment

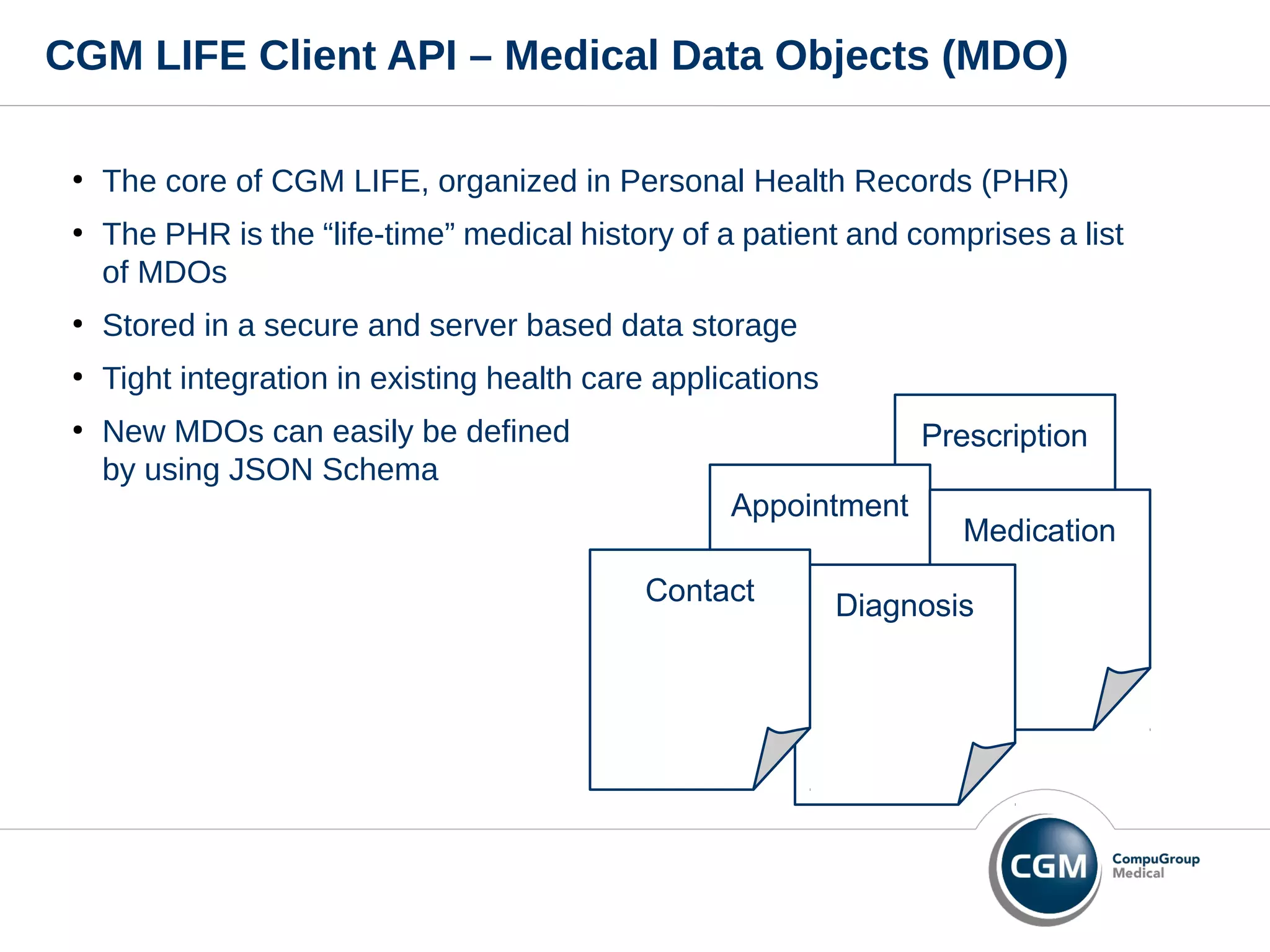

14. CGM LIFE Client API – Medical Data Objects (MDO)
●
The core of CGM LIFE, organized in Personal Health Records (PHR)
●
The PHR is the “life-time” medical history of a patient and comprises a list
of MDOs
●
Stored in a secure and server based data storage
●
Tight integration in existing health care applications
●
New MDOs can easily be defined
by using JSON Schema
Prescription
Appointment
Medication
DiagnosisContact

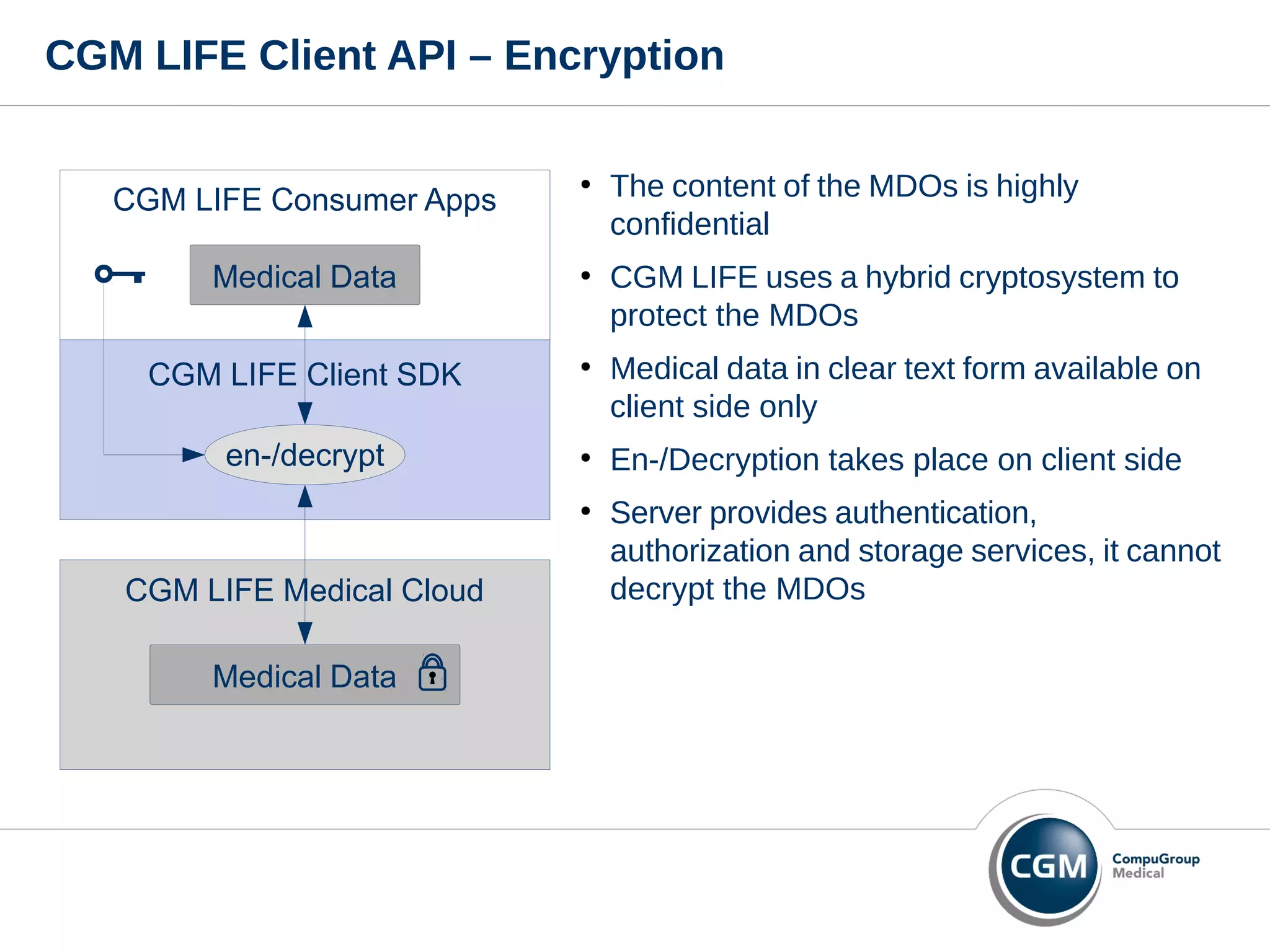

15. CGM LIFE Consumer Apps
CGM LIFE Client SDK
CGM LIFE Medical Cloud
Medical Data
CGM LIFE Client API – Encryption
●
The content of the MDOs is highly
confidential
●
CGM LIFE uses a hybrid cryptosystem to
protect the MDOs
●
Medical data in clear text form available on
client side only
●
En-/Decryption takes place on client side
●
Server provides authentication,
authorization and storage services, it cannot
decrypt the MDOs
en-/decrypt
Medical Data

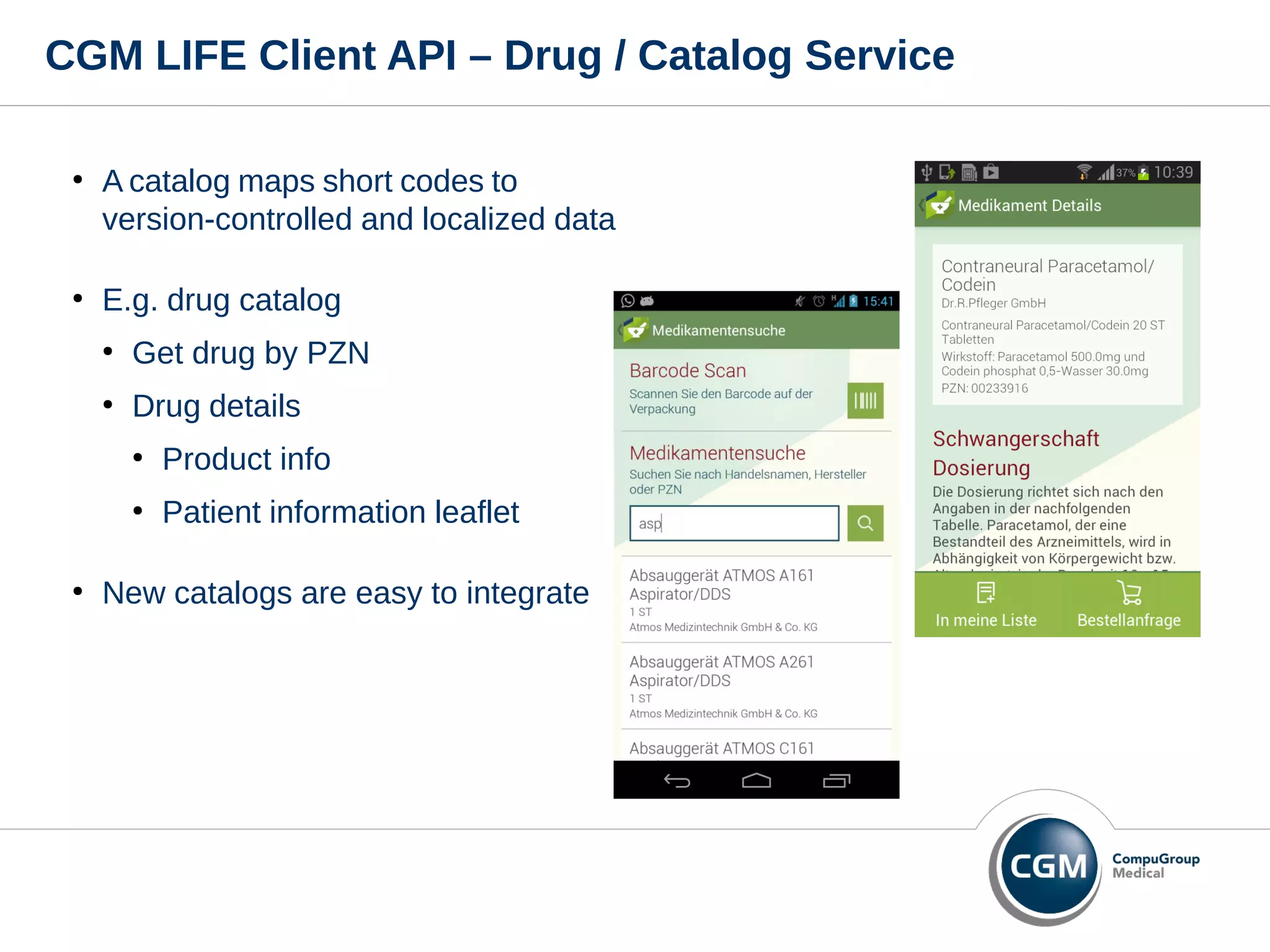

16. CGM LIFE Client API – Drug / Catalog Service
●
A catalog maps short codes to
version-controlled and localized data
●
E.g. drug catalog
●
Get drug by PZN
●
Drug details
●
Product info
●
Patient information leaflet
●
New catalogs are easy to integrate

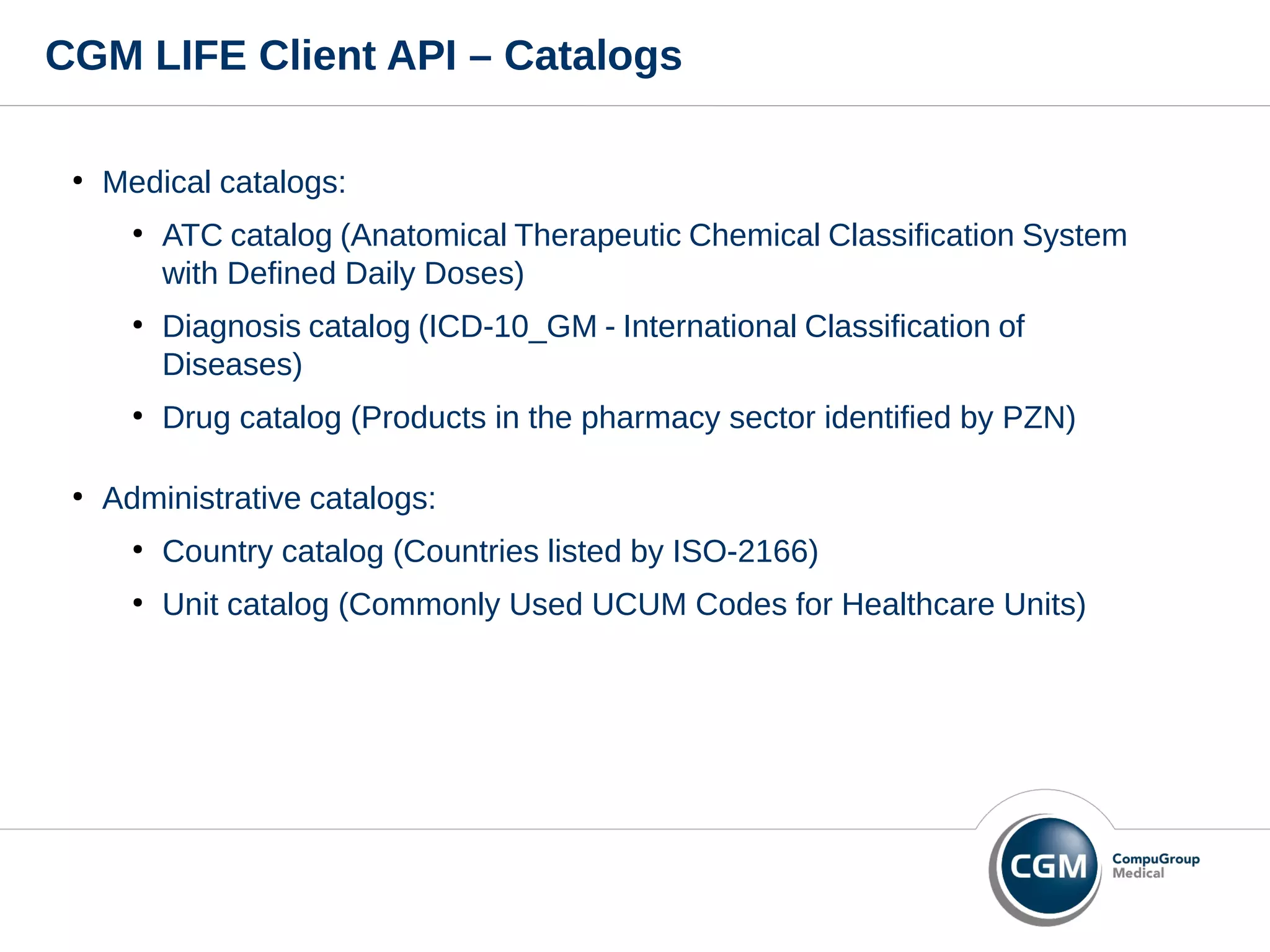

17. CGM LIFE Client API – Catalogs
●
Medical catalogs:
●
ATC catalog (Anatomical Therapeutic Chemical Classification System
with Defined Daily Doses)
●
Diagnosis catalog (ICD-10_GM - International Classification of
Diseases)
●
Drug catalog (Products in the pharmacy sector identified by PZN)
●
Administrative catalogs:
●
Country catalog (Countries listed by ISO-2166)
●
Unit catalog (Commonly Used UCUM Codes for Healthcare Units)

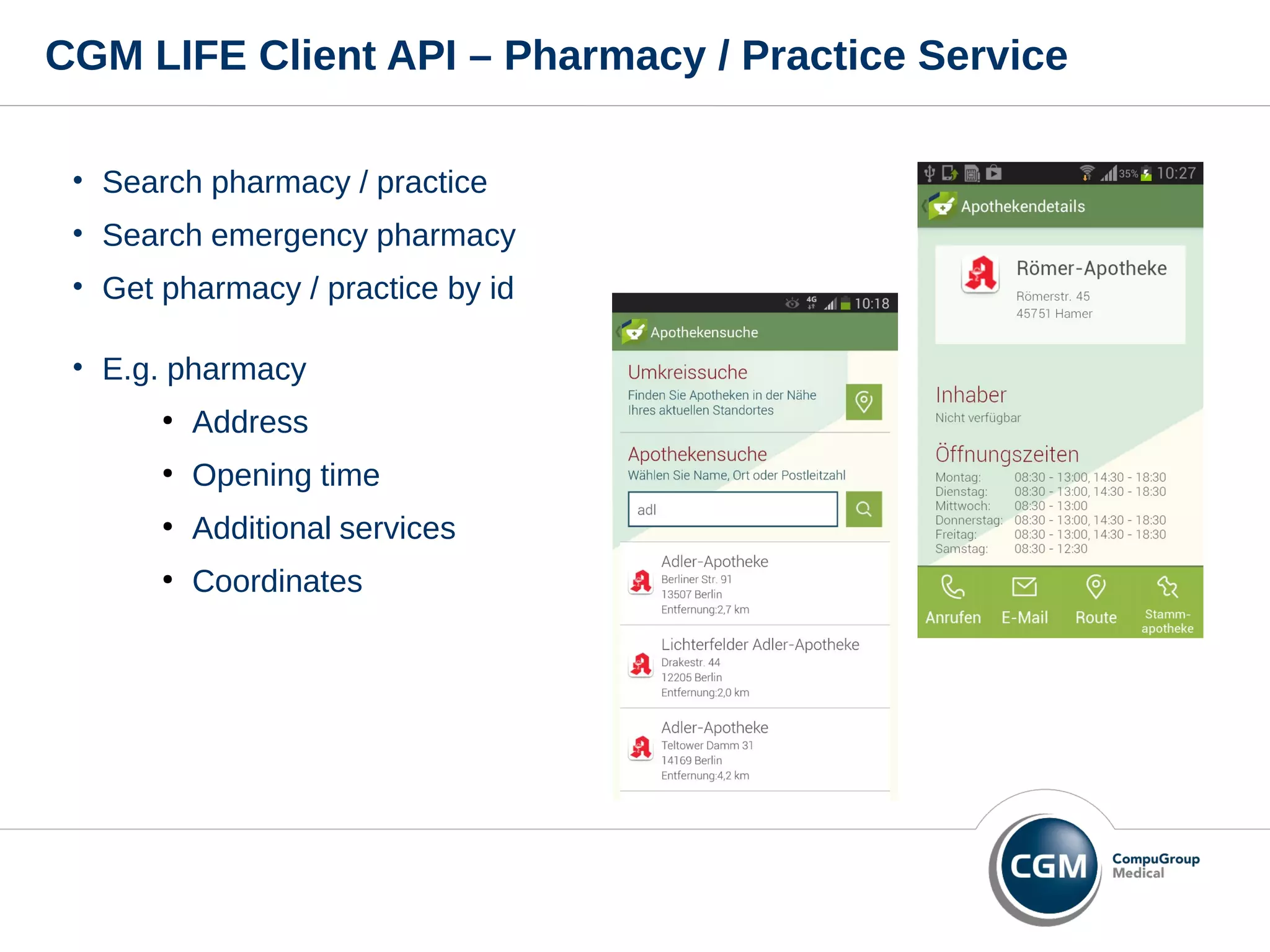

18. CGM LIFE Client API – Pharmacy / Practice Service
• Search pharmacy / practice
• Search emergency pharmacy
• Get pharmacy / practice by id
• E.g. pharmacy
●
Address
●
Opening time
●
Additional services
●
Coordinates

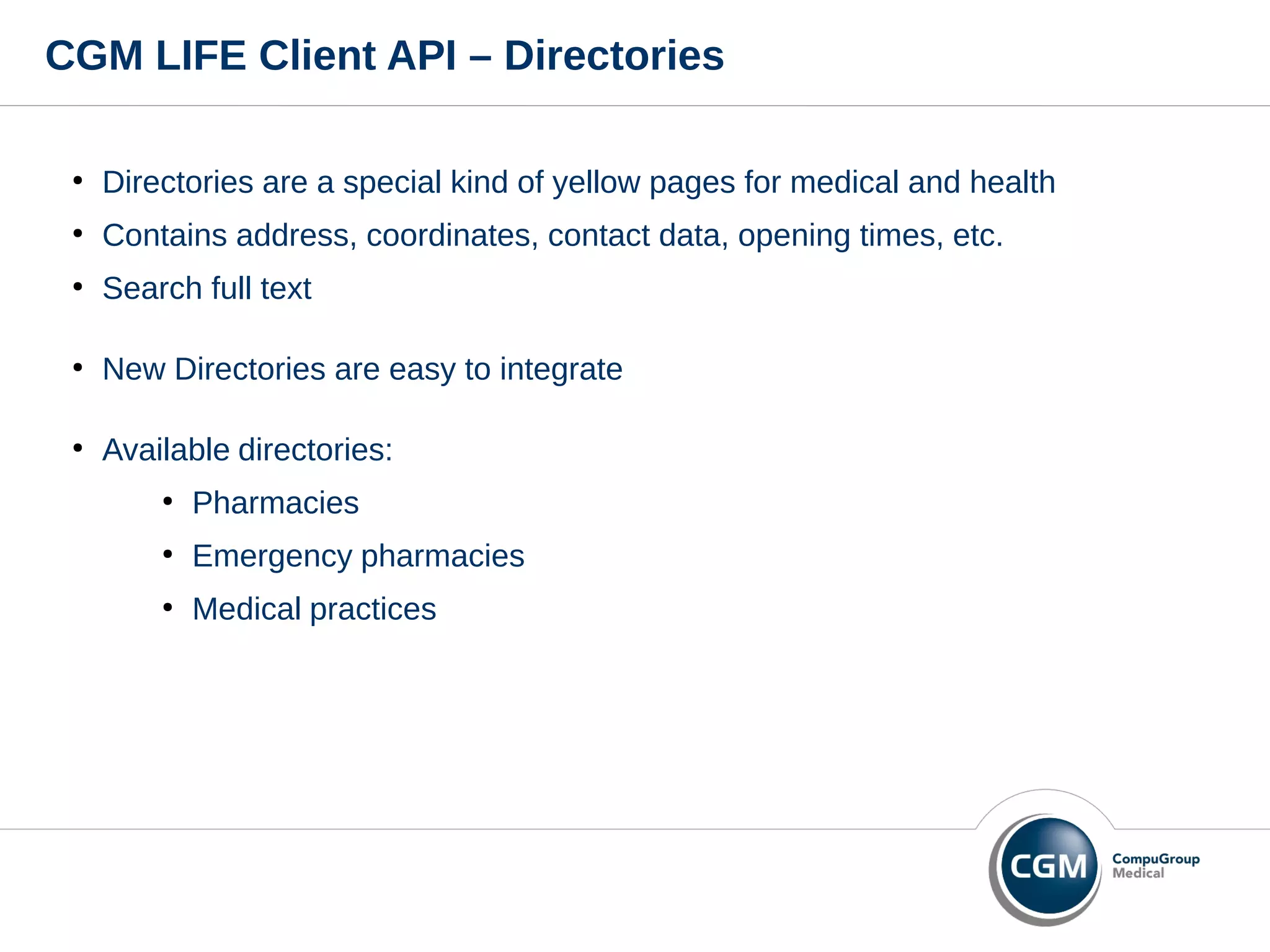

19. CGM LIFE Client API – Directories
●
Directories are a special kind of yellow pages for medical and health
●
Contains address, coordinates, contact data, opening times, etc.
●
Search full text
●
New Directories are easy to integrate
●
Available directories:
●
Pharmacies
●
Emergency pharmacies
●
Medical practices

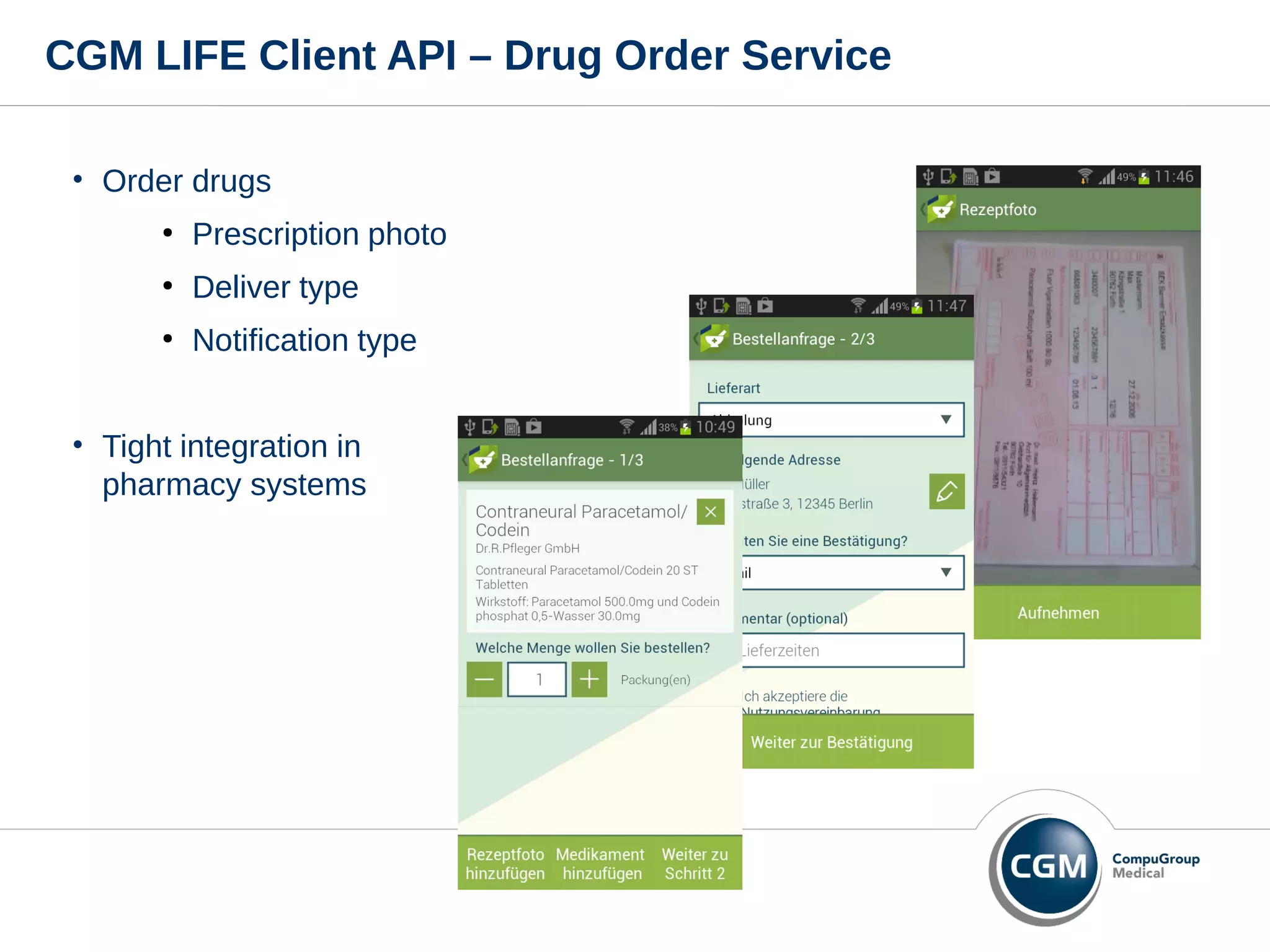

20. CGM LIFE Client API – Drug Order Service
• Order drugs
●
Prescription photo
●
Deliver type
●
Notification type
• Tight integration in
pharmacy systems

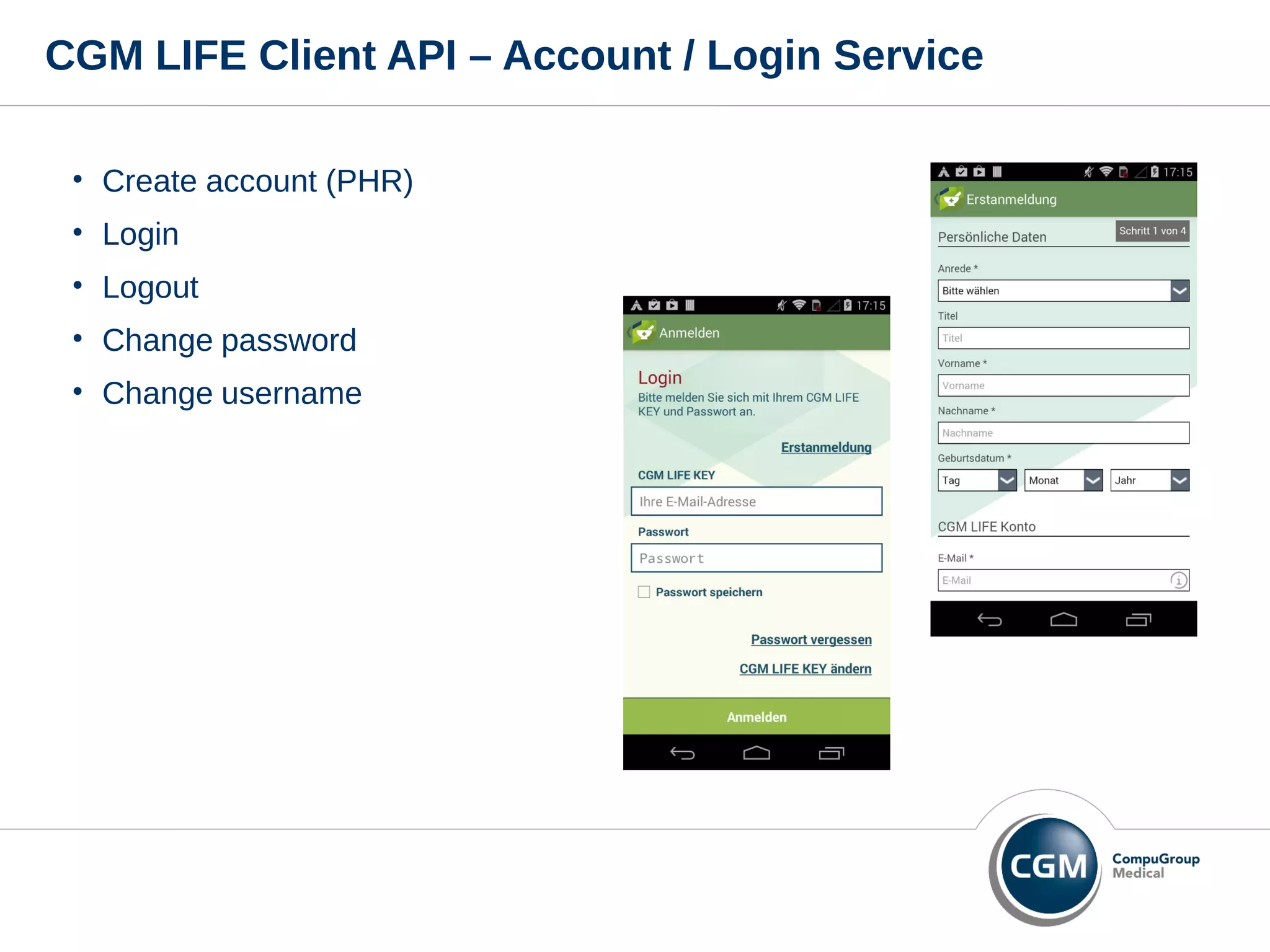

21. CGM LIFE Client API – Account / Login Service
• Create account (PHR)
• Login
• Logout
• Change password
• Change username

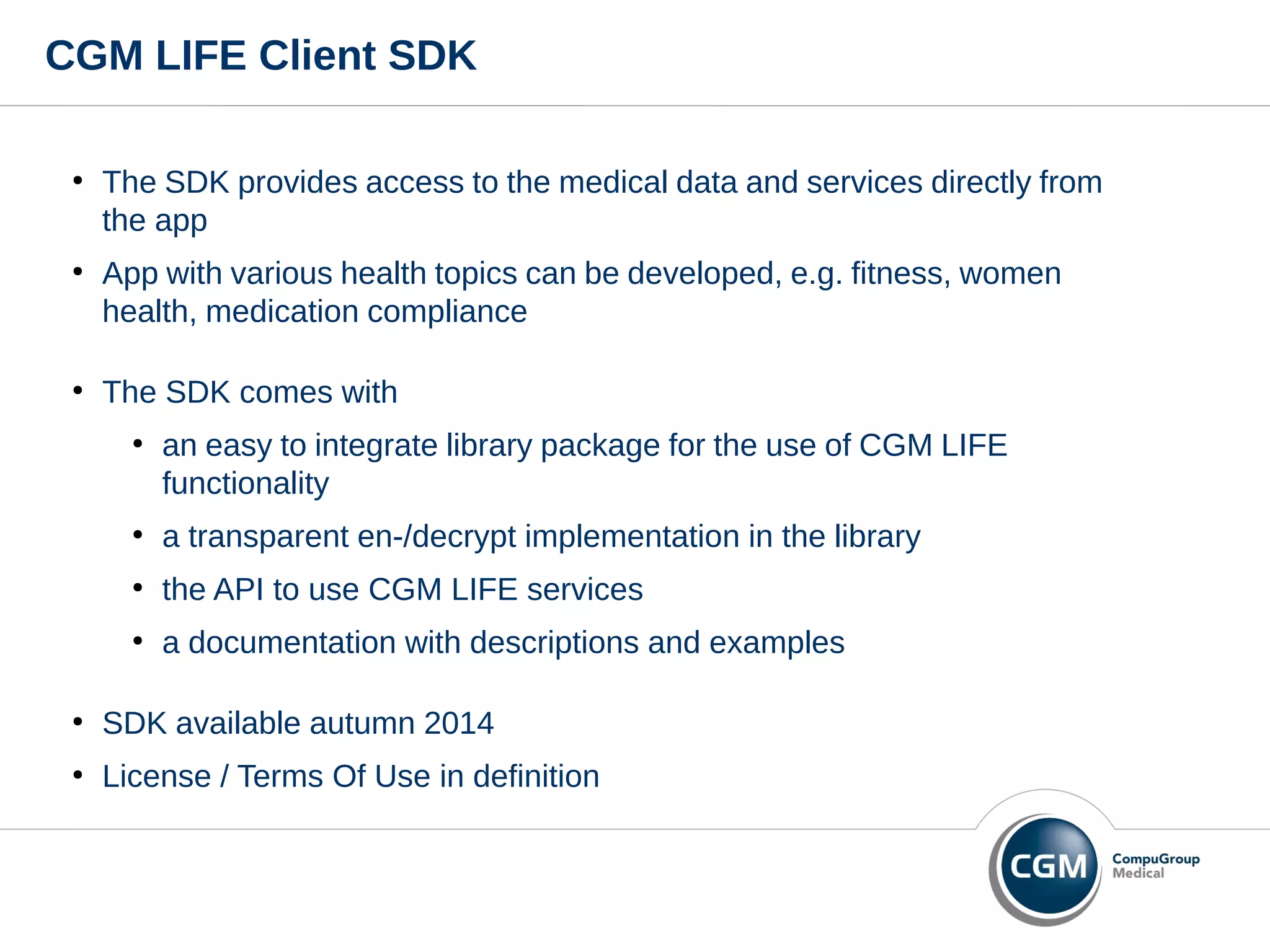

22. CGM LIFE Client SDK
●
The SDK provides access to the medical data and services directly from
the app
●
App with various health topics can be developed, e.g. fitness, women
health, medication compliance
●
The SDK comes with
●
an easy to integrate library package for the use of CGM LIFE
functionality
●
a transparent en-/decrypt implementation in the library
●
the API to use CGM LIFE services
●
a documentation with descriptions and examples
●
SDK available autumn 2014
●
License / Terms Of Use in definition

23. Thank you for your attention.
holger.oestreich@cgm.com
