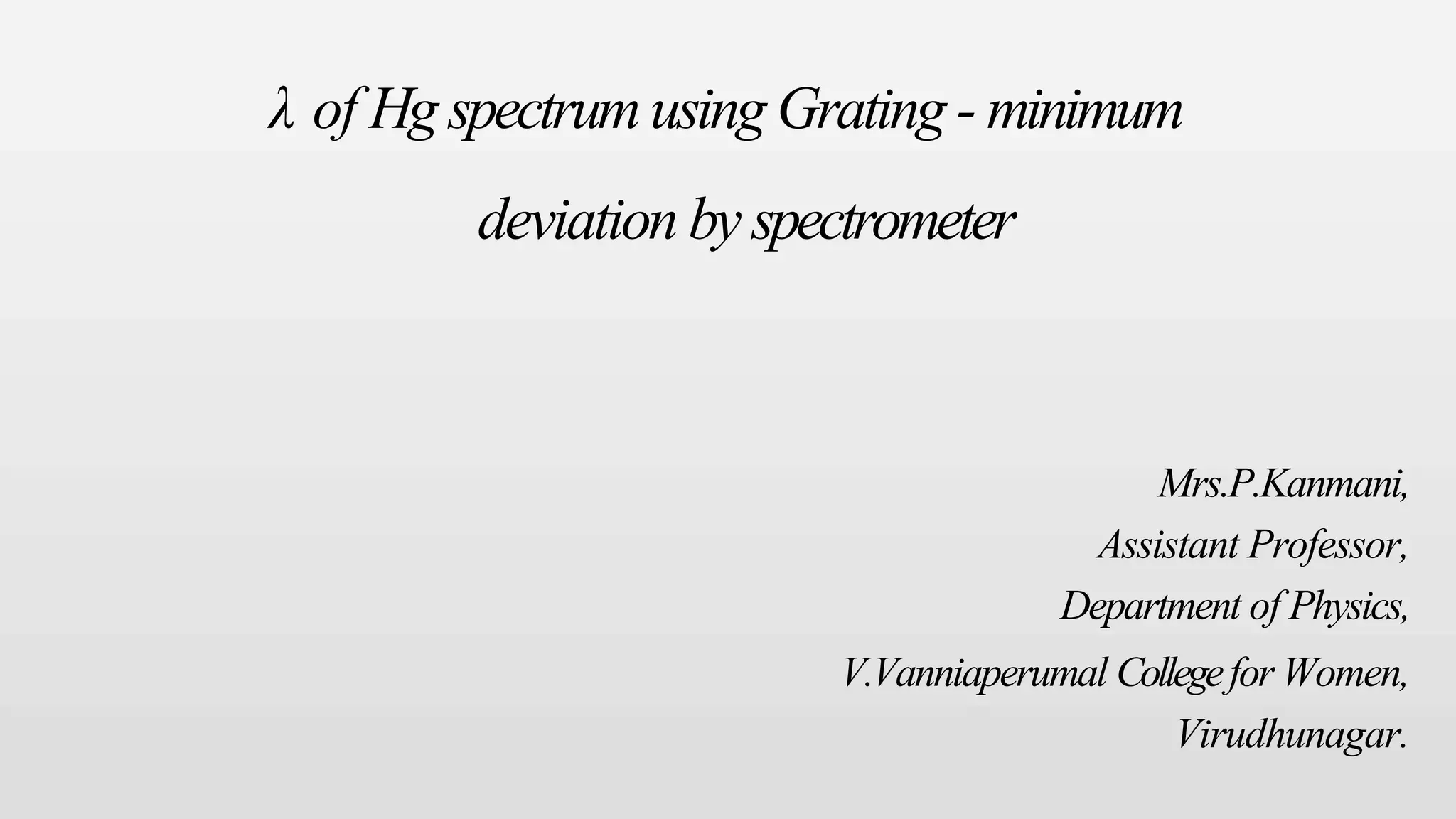

λ of Hg spectrumusing Grating - minimum
deviation by spectrometer
Mrs.P.Kanmani,
Assistant Professor,
Department of Physics,
V.Vanniaperumal Collegefor Women,
Virudhunagar.
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer
Principle:
The phenomenon of spreading out of light waves into the geometrical (dark)
shadow when light passes through a small aperture (or about an obstacle) is
known asdiffraction.
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer
Diffraction Grating:
A diffraction grating consists of a periodic array of a large number of
equidistant slits of width ’b’ which are separated by a distance ’a’ . The period a is
known asthe grating constant.
The diffraction pattern due to a grating is essentially the same as the
diffraction pattern due to M slits, where M is a large number and is obtained by
the superposition of waves emanating from all the slits on the observation plane
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer

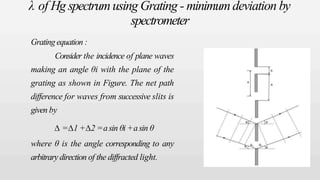

Grating equation :
Consider the incidence of plane waves
making an angle θi with the plane of the
grating as shown in Figure. The net path
difference for waves from successive slits is
given by
∆ =∆1 +∆2 =asin θi +asin θ
where θ is the angle corresponding to any
arbitrary direction of the diffracted light.
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer
Grating equation :
For normal incidence θi =0 and therefore
∆ =a sin θ. When ∆ =nλ, where n is an integer,
all diffracted waves in the corresponding direction
θn are in phase, and their amplitudes add up to
give maximum intensity. Thus, we have the
grating equation, which gives the positions of the
intensity maximaas
asin θn =nλ , n =0, ±1, ±2,. .
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer
Diffraction Grating:
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer
Aim :
Todetermine the wavelengths of light emitted by amercuryvapour lampby using
adiffraction grating
Apparatus :
Spectrometer, grating and holder, mercuryvapour lamp, magnifying lens,
Spirit level
λ of Hg spectrumusing Grating - minimumdeviation by
spectrometer

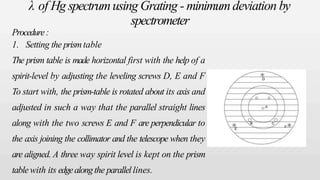

Procedure:
1. Setting the prismtable
The prism table is made horizontal first with the help of a
spirit-level by adjusting the leveling screws D, E and F
To start with, the prism-table is rotated about its axis and
adjusted in such a way that the parallel straight lines
along with the two screws E and F are perpendicular to
the axis joining the collimator and the telescope when they
are aligned. A three way spirit level is kept on the prism
tablewith its edgealongthe parallellines.
λ of Hg spectrumusing Grating - minimumdeviation by
spectrometer

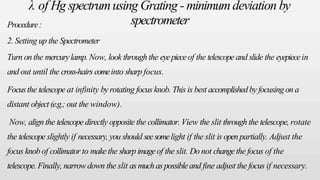

Procedure:
2. Setting up the Spectrometer
Turn on the mercurylamp. Now, look through the eyepieceof the telescope and slide the eyepiecein
and out until the cross-hairs comeinto sharp focus.
Focusthe telescope at infinity by rotating focus knob. This is best accomplishedby focusing on a
distant object(e.g.; out the window).
Now, align the telescope directly opposite the collimator. View the slit through the telescope, rotate
the telescope slightly if necessary, you should seesomelight if the slit is openpartially. Adjust the
focus knob of collimator to makethe sharpimageof the slit. Do not changethe focus of the
telescope. Finally, narrowdown the slit asmuchaspossibleand fine adjust the focus if necessary.
λ of Hg spectrumusing Grating - minimumdeviation by
spectrometer
Procedure:
3. Normal incidence:
Thetelescopeis brought in aline with the collimator and the direct imageof the slit is made
to coincidewith the vertical crosswire. Thereadings of one vernier arenoted. Thevernier
table is firmly clamped. Now, the telescope is rotated exactly through 90° and is fixed in this
position. Thegrating is mounted vertically on the prismtable with its ruled surface facing
the collimator. The vernier table is releasedand is slowly rotated till the reflected image
coincideswith the vertical crosswire. Theleveling screwsareadjusted sothat the imageis at
the centreof the field of view of the telescope.
λ of Hg spectrumusing Grating - minimumdeviation by
spectrometer
Procedure:
3. Normal incidence:
Theprism table is fixed and after making fine adjustments with the tangential screw, the
readingsof the vernier arenoted. Now, the angle of incidenceis 45°. Thevernier table is then
releasedand rotated exactly through 45° in the properdirection sothat the surface of the
grating becomesnormal to the incident light. The vernier table is firmly clamped in this
position.
Thetelescope is then releasedand is brought to observethe direct image. .
λ of Hg spectrumusing Grating - minimumdeviation by
spectrometer
Procedure:
3. Diffraction Pattern
Onthe either side of the direct image,the diffraction spectra areseen.Thetelescope is turned slowly
towards the left sothat the vertical crosswire coincideswith the violet lines of the first order.The
readingsof the vernier aretaken. Thevertical crosswire is then madeto coincide with the other lines
onthe left and the vernier readingsaretaken in eachcase. Thetelescope is then moved to the right
and the readingof different lines is similarly taken.
λ of Hg spectrumusing Grating - minimumdeviation by
spectrometer

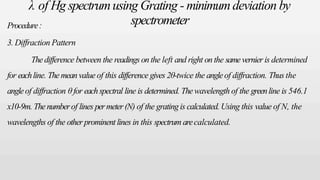

Procedure:
3. Diffraction Pattern
Thedifference between the readings on the left and right on the samevernier is determined
for eachline. Themeanvalue of this difference gives 2θ-twice the angleof diffraction. Thus the
angleof diffraction θ for eachspectral line is determined. Thewavelength of the greenline is 546.1
x10-9m. Thenumberof lines permeter(N) of the grating is calculated. Using this value of N, the
wavelengths of the other prominent lines in this spectrum arecalculated.
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer

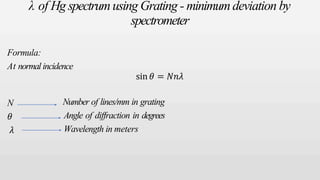

Formula:
At normal incidence
sin 𝜃 = 𝑁𝑛𝜆
N
𝜃
𝜆
Number of lines/mm in grating
Angle of diffraction in degrees
Wavelength in meters
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer
Tables:
Tofind N
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer

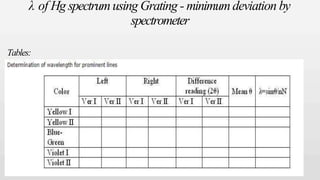

Tables:
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer
λ of Hg spectrumusing Grating - minimum deviation by
spectrometer

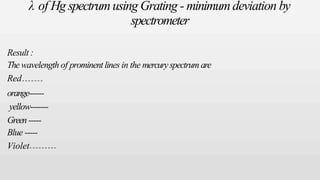

Result :
Thewavelength of prominentlines in the mercuryspectrum are
Red
orange------
yellow-------
Green-----
Blue -----
Violet

More Related Content

Similar to Grating.pptx

ANUPAMA Physics Practical.pptx
ANUPAMA Physics Practical.pptxANUPAMA Physics Practical.pptx
ANUPAMA Physics Practical.pptx
Anupama54

gradientechopulsesequence of MRI latest editiin
gradientechopulsesequence of MRI latest editiingradientechopulsesequence of MRI latest editiin
gradientechopulsesequence of MRI latest editiin
rajaarjunan74

Gradient echo pulse sequence swastik
Gradient echo pulse sequence  swastikGradient echo pulse sequence  swastik
Gradient echo pulse sequence swastik
Bipul Poudel

Chapter 5 diffraction
Chapter 5 diffractionChapter 5 diffraction
Chapter 5 diffraction
Gabriel O'Brien

ARS 01.01.pptx
ARS 01.01.pptxARS 01.01.pptx
ARS 01.01.pptx
JeeghoshAsstProfesso

OPTOMETRY –Part IV DIFFRACTION
OPTOMETRY –Part IV      DIFFRACTIONOPTOMETRY –Part IV      DIFFRACTION
OPTOMETRY –Part IV DIFFRACTION
Burdwan University

Summer 2012 Project Report
Summer 2012 Project ReportSummer 2012 Project Report
Summer 2012 Project Report
Lalit Pradhan

Diffraction-grating experiment ppt with full detail
Diffraction-grating experiment ppt with full detailDiffraction-grating experiment ppt with full detail
Diffraction-grating experiment ppt with full detail
DivyaPatel294431

Heisenbergs uncertainity princple
Heisenbergs uncertainity princpleHeisenbergs uncertainity princple
Heisenbergs uncertainity princple
Shivanand Angadi

5156 5160.output
5156 5160.output5156 5160.output
5156 5160.output
j1075017

dispersive power of prism
dispersive power of prismdispersive power of prism
dispersive power of prism
Khursheed Cheshtti

interference interference interference.pptx
interference interference interference.pptxinterference interference interference.pptx
interference interference interference.pptx
ishitabhargava124

Ch 7 physical optics final
Ch 7 physical optics finalCh 7 physical optics final
Ch 7 physical optics final
animesh samundh

294793298-Physics-PROJECT-class-12th.pdf
294793298-Physics-PROJECT-class-12th.pdf294793298-Physics-PROJECT-class-12th.pdf
294793298-Physics-PROJECT-class-12th.pdf
ShailendraGupta648297

Lecture 12 2013_
Lecture 12 2013_Lecture 12 2013_
Lecture 12 2013_
Gabriel O'Brien

Moving coil galvanometer
Moving coil galvanometerMoving coil galvanometer
Moving coil galvanometer
VASUDEV SHRIVASTAVA

Modeling Beam forming in Circular Antenna Array with Directional Emitters
Modeling Beam forming in Circular Antenna Array with Directional EmittersModeling Beam forming in Circular Antenna Array with Directional Emitters
Modeling Beam forming in Circular Antenna Array with Directional Emitters
IJRESJOURNAL

1392741020 traverse survey
1392741020 traverse survey1392741020 traverse survey
1392741020 traverse survey
anjali adabala

Answer 1 sir teehseen
Answer 1 sir teehseenAnswer 1 sir teehseen
Answer 1 sir teehseen
WAQARAHMED586

Engineering. physics lab manual 2014-15-05.03.2015(1)
Engineering. physics lab manual 2014-15-05.03.2015(1)Engineering. physics lab manual 2014-15-05.03.2015(1)
Engineering. physics lab manual 2014-15-05.03.2015(1)
kveerabhadrarao1


Similar to Grating.pptx (20)

ANUPAMA Physics Practical.pptx
ANUPAMA Physics Practical.pptxANUPAMA Physics Practical.pptx
ANUPAMA Physics Practical.pptx

gradientechopulsesequence of MRI latest editiin
gradientechopulsesequence of MRI latest editiingradientechopulsesequence of MRI latest editiin
gradientechopulsesequence of MRI latest editiin

Gradient echo pulse sequence swastik
Gradient echo pulse sequence  swastikGradient echo pulse sequence  swastik
Gradient echo pulse sequence swastik

Chapter 5 diffraction
Chapter 5 diffractionChapter 5 diffraction
Chapter 5 diffraction

ARS 01.01.pptx
ARS 01.01.pptxARS 01.01.pptx
ARS 01.01.pptx

OPTOMETRY –Part IV DIFFRACTION
OPTOMETRY –Part IV      DIFFRACTIONOPTOMETRY –Part IV      DIFFRACTION
OPTOMETRY –Part IV DIFFRACTION

Summer 2012 Project Report
Summer 2012 Project ReportSummer 2012 Project Report
Summer 2012 Project Report

Diffraction-grating experiment ppt with full detail
Diffraction-grating experiment ppt with full detailDiffraction-grating experiment ppt with full detail
Diffraction-grating experiment ppt with full detail

Heisenbergs uncertainity princple
Heisenbergs uncertainity princpleHeisenbergs uncertainity princple
Heisenbergs uncertainity princple

5156 5160.output
5156 5160.output5156 5160.output
5156 5160.output

dispersive power of prism
dispersive power of prismdispersive power of prism
dispersive power of prism

interference interference interference.pptx
interference interference interference.pptxinterference interference interference.pptx
interference interference interference.pptx

Ch 7 physical optics final
Ch 7 physical optics finalCh 7 physical optics final
Ch 7 physical optics final

294793298-Physics-PROJECT-class-12th.pdf
294793298-Physics-PROJECT-class-12th.pdf294793298-Physics-PROJECT-class-12th.pdf
294793298-Physics-PROJECT-class-12th.pdf

Lecture 12 2013_
Lecture 12 2013_Lecture 12 2013_
Lecture 12 2013_

Moving coil galvanometer
Moving coil galvanometerMoving coil galvanometer
Moving coil galvanometer

Modeling Beam forming in Circular Antenna Array with Directional Emitters
Modeling Beam forming in Circular Antenna Array with Directional EmittersModeling Beam forming in Circular Antenna Array with Directional Emitters
Modeling Beam forming in Circular Antenna Array with Directional Emitters

1392741020 traverse survey
1392741020 traverse survey1392741020 traverse survey
1392741020 traverse survey

Answer 1 sir teehseen
Answer 1 sir teehseenAnswer 1 sir teehseen
Answer 1 sir teehseen

Engineering. physics lab manual 2014-15-05.03.2015(1)
Engineering. physics lab manual 2014-15-05.03.2015(1)Engineering. physics lab manual 2014-15-05.03.2015(1)
Engineering. physics lab manual 2014-15-05.03.2015(1)


More from kanmanivarsha

Crystal Structure and Lattice types.pptx
Crystal Structure and Lattice types.pptxCrystal Structure and Lattice types.pptx
Crystal Structure and Lattice types.pptx
kanmanivarsha

Crystal Vibrations in monoatomic basis.pptx
Crystal Vibrations in monoatomic basis.pptxCrystal Vibrations in monoatomic basis.pptx
Crystal Vibrations in monoatomic basis.pptx
kanmanivarsha

Temperature co efficient of coil.pptx
Temperature co efficient of coil.pptxTemperature co efficient of coil.pptx
Temperature co efficient of coil.pptx
kanmanivarsha

conservation of electric charges.pptx
conservation of electric charges.pptxconservation of electric charges.pptx
conservation of electric charges.pptx
kanmanivarsha

Anderson's bridge.pptx
Anderson's bridge.pptxAnderson's bridge.pptx
Anderson's bridge.pptx
kanmanivarsha

Stellar evolution
Stellar evolutionStellar evolution
Stellar evolution
kanmanivarsha

Spectroscopy
SpectroscopySpectroscopy
Spectroscopy
kanmanivarsha

Elementary particles
Elementary particlesElementary particles
Elementary particles
kanmanivarsha

Laws of thermodynamics and their significance
Laws of thermodynamics and their significanceLaws of thermodynamics and their significance
Laws of thermodynamics and their significance
kanmanivarsha

Fundamental forces in nature
Fundamental forces in natureFundamental forces in nature
Fundamental forces in nature
kanmanivarsha

Interference
InterferenceInterference
Interference
kanmanivarsha


More from kanmanivarsha (11)

Crystal Structure and Lattice types.pptx
Crystal Structure and Lattice types.pptxCrystal Structure and Lattice types.pptx
Crystal Structure and Lattice types.pptx

Crystal Vibrations in monoatomic basis.pptx
Crystal Vibrations in monoatomic basis.pptxCrystal Vibrations in monoatomic basis.pptx
Crystal Vibrations in monoatomic basis.pptx

Temperature co efficient of coil.pptx
Temperature co efficient of coil.pptxTemperature co efficient of coil.pptx
Temperature co efficient of coil.pptx

conservation of electric charges.pptx
conservation of electric charges.pptxconservation of electric charges.pptx
conservation of electric charges.pptx

Anderson's bridge.pptx
Anderson's bridge.pptxAnderson's bridge.pptx
Anderson's bridge.pptx

Stellar evolution
Stellar evolutionStellar evolution
Stellar evolution

Spectroscopy
SpectroscopySpectroscopy
Spectroscopy

Elementary particles
Elementary particlesElementary particles
Elementary particles

Laws of thermodynamics and their significance
Laws of thermodynamics and their significanceLaws of thermodynamics and their significance
Laws of thermodynamics and their significance

Fundamental forces in nature
Fundamental forces in natureFundamental forces in nature
Fundamental forces in nature

Interference
InterferenceInterference
Interference


Recently uploaded

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
thanhluan21

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George

Debts of Gratitude - Esselde and Informal Letter.pptx
Debts of Gratitude - Esselde and Informal Letter.pptxDebts of Gratitude - Esselde and Informal Letter.pptx
Debts of Gratitude - Esselde and Informal Letter.pptx
AncyTEnglish

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Murugan Solaiyappan

(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening
MJDuyan

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Alvaro Barbosa

matatag curriculum education for Kindergarten
matatag curriculum education for Kindergartenmatatag curriculum education for Kindergarten
matatag curriculum education for Kindergarten
SarahAlie1

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook
Celine George

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website
Celine George

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17
Celine George

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17
Celine George

Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.docBài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
PhngThLmHnh

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides
Celine George

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx
monicaaringo1

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS
Celine George

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf
Scholarhat

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cátedra Banco Santander


Recently uploaded (20)

DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...
DANH SÁCH THÍ SINH XÉT TUYỂN SỚM ĐỦ ĐIỀU KIỆN TRÚNG TUYỂN ĐẠI HỌC CHÍNH QUY N...

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS

Debts of Gratitude - Esselde and Informal Letter.pptx
Debts of Gratitude - Esselde and Informal Letter.pptxDebts of Gratitude - Esselde and Informal Letter.pptx
Debts of Gratitude - Esselde and Informal Letter.pptx

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...

(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening

Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...
Benchmarking Sustainability: Neurosciences and AI Tech Research in Macau - Ke...

matatag curriculum education for Kindergarten
matatag curriculum education for Kindergartenmatatag curriculum education for Kindergarten
matatag curriculum education for Kindergarten

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint

How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17How to Manage Access Rights & User Types in Odoo 17
How to Manage Access Rights & User Types in Odoo 17

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17

Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.docBài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

C Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdfC Interview Questions PDF By Scholarhat.pdf
C Interview Questions PDF By Scholarhat.pdf

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)


Grating.pptx

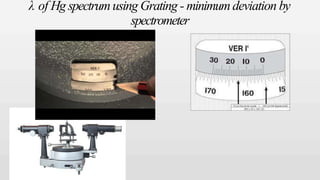

  • 1. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Mrs.P.Kanmani, Assistant Professor, Department of Physics, V.Vanniaperumal Collegefor Women, Virudhunagar.
  • 2. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Principle: The phenomenon of spreading out of light waves into the geometrical (dark) shadow when light passes through a small aperture (or about an obstacle) is known asdiffraction.
  • 3. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Diffraction Grating: A diffraction grating consists of a periodic array of a large number of equidistant slits of width ’b’ which are separated by a distance ’a’ . The period a is known asthe grating constant. The diffraction pattern due to a grating is essentially the same as the diffraction pattern due to M slits, where M is a large number and is obtained by the superposition of waves emanating from all the slits on the observation plane
  • 4. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Grating equation : Consider the incidence of plane waves making an angle θi with the plane of the grating as shown in Figure. The net path difference for waves from successive slits is given by ∆ =∆1 +∆2 =asin θi +asin θ where θ is the angle corresponding to any arbitrary direction of the diffracted light.
  • 5. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Grating equation : For normal incidence θi =0 and therefore ∆ =a sin θ. When ∆ =nλ, where n is an integer, all diffracted waves in the corresponding direction θn are in phase, and their amplitudes add up to give maximum intensity. Thus, we have the grating equation, which gives the positions of the intensity maximaas asin θn =nλ , n =0, ±1, ±2,. .
  • 6. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Diffraction Grating:
  • 7. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Aim : Todetermine the wavelengths of light emitted by amercuryvapour lampby using adiffraction grating Apparatus : Spectrometer, grating and holder, mercuryvapour lamp, magnifying lens, Spirit level
  • 8. λ of Hg spectrumusing Grating - minimumdeviation by spectrometer Procedure: 1. Setting the prismtable The prism table is made horizontal first with the help of a spirit-level by adjusting the leveling screws D, E and F To start with, the prism-table is rotated about its axis and adjusted in such a way that the parallel straight lines along with the two screws E and F are perpendicular to the axis joining the collimator and the telescope when they are aligned. A three way spirit level is kept on the prism tablewith its edgealongthe parallellines.
  • 9. λ of Hg spectrumusing Grating - minimumdeviation by spectrometer Procedure: 2. Setting up the Spectrometer Turn on the mercurylamp. Now, look through the eyepieceof the telescope and slide the eyepiecein and out until the cross-hairs comeinto sharp focus. Focusthe telescope at infinity by rotating focus knob. This is best accomplishedby focusing on a distant object(e.g.; out the window). Now, align the telescope directly opposite the collimator. View the slit through the telescope, rotate the telescope slightly if necessary, you should seesomelight if the slit is openpartially. Adjust the focus knob of collimator to makethe sharpimageof the slit. Do not changethe focus of the telescope. Finally, narrowdown the slit asmuchaspossibleand fine adjust the focus if necessary.
  • 10. λ of Hg spectrumusing Grating - minimumdeviation by spectrometer Procedure: 3. Normal incidence: Thetelescopeis brought in aline with the collimator and the direct imageof the slit is made to coincidewith the vertical crosswire. Thereadings of one vernier arenoted. Thevernier table is firmly clamped. Now, the telescope is rotated exactly through 90° and is fixed in this position. Thegrating is mounted vertically on the prismtable with its ruled surface facing the collimator. The vernier table is releasedand is slowly rotated till the reflected image coincideswith the vertical crosswire. Theleveling screwsareadjusted sothat the imageis at the centreof the field of view of the telescope.
  • 11. λ of Hg spectrumusing Grating - minimumdeviation by spectrometer Procedure: 3. Normal incidence: Theprism table is fixed and after making fine adjustments with the tangential screw, the readingsof the vernier arenoted. Now, the angle of incidenceis 45°. Thevernier table is then releasedand rotated exactly through 45° in the properdirection sothat the surface of the grating becomesnormal to the incident light. The vernier table is firmly clamped in this position. Thetelescope is then releasedand is brought to observethe direct image. .
  • 12. λ of Hg spectrumusing Grating - minimumdeviation by spectrometer Procedure: 3. Diffraction Pattern Onthe either side of the direct image,the diffraction spectra areseen.Thetelescope is turned slowly towards the left sothat the vertical crosswire coincideswith the violet lines of the first order.The readingsof the vernier aretaken. Thevertical crosswire is then madeto coincide with the other lines onthe left and the vernier readingsaretaken in eachcase. Thetelescope is then moved to the right and the readingof different lines is similarly taken.
  • 13. λ of Hg spectrumusing Grating - minimumdeviation by spectrometer Procedure: 3. Diffraction Pattern Thedifference between the readings on the left and right on the samevernier is determined for eachline. Themeanvalue of this difference gives 2θ-twice the angleof diffraction. Thus the angleof diffraction θ for eachspectral line is determined. Thewavelength of the greenline is 546.1 x10-9m. Thenumberof lines permeter(N) of the grating is calculated. Using this value of N, the wavelengths of the other prominent lines in this spectrum arecalculated.
  • 14. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Formula: At normal incidence sin 𝜃 = 𝑁𝑛𝜆 N 𝜃 𝜆 Number of lines/mm in grating Angle of diffraction in degrees Wavelength in meters
  • 15. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Tables: Tofind N
  • 16. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Tables:
  • 17. λ of Hg spectrumusing Grating - minimum deviation by spectrometer
  • 18. λ of Hg spectrumusing Grating - minimum deviation by spectrometer Result : Thewavelength of prominentlines in the mercuryspectrum are Red orange------ yellow------- Green----- Blue ----- Violet
