This project consists of a GPU processing core that provides a set of connected client applications in scientific domains. The architecture allows users to access powerful GPU computations through relatively inexpensive hardware. Key features include a scalable design to add new products and a control panel for each user to view accounts and operations. The goal is to make advanced modeling and simulation accessible to scientists at reasonable cost.

1. GPUDigitalLab
Project Manager
Gubanov Oleg Igorevich

2. GPUDigitalLab
Aim of The Project:
To provide access to parallel
computations for scientists and lab
workers at a reasonable cost.

3. GPUDigitalLab
Solution
We, the members of the Axioma Software team, would like to purpose a cluster solution
for parallel computations on the GPU. This product will consist of a GPU oriented server
that will contain NVIDIA Tesla Graphics Processor at its core. The software would be built
upon Microsoft DirectCompute engine. It will be built as a set of client applications that
use the power of the GPU core for the computtations. Each application would be oriented
to either a problem or a set of problems in modern science and computer graphics. User
starts by logging into the server and download the relevant client application. After that
the user fills in an input form and sends the data to the server through a secured
channel. This architecture allows users to use the power of modern gpu despite the fact
they have relatively cheap hardware.
Россия, гор. Екатеринбург, ул. Мира, 32

4. • This project consists of a gpu processing core engine that has a set of
connected client applications working in allocated domains
• This project has a scalable architecture that makes it easy to install
new products.
• The aim of the project is to provide the scientific community with a
powerful computational platform at a reasonable price.
• The website of the project includes a dedicated control panel for each
user where he can see the current account balance as well as the list of
the latest operations.
Project Overview
GPUDigitalLab

5. SOFTWARE ARCHITECTURE
Россия, гор. Екатеринбург, ул. Мира, 32
3D Graphics
Core Engine
DirectCompute
Core Engine
Video
Rendering
Engine
Direct2D
Graphics
Engine
Core Engine
Fluid Mechanics
Rendering
Engine
Data
Visualization
engine
FPS Scene
Rendering
Engine
Render Farm
Engine
3-rd Person
Simulations
Engine
Mathematical
Modelling
Engine
GPUDigitalLab

6. SOFTWARE CONCEPT
• At the core of the system there is module that can execute compute shader
programs and analyze results
• There are 3 types of data that we frequently need for our purposes
• Structured Buffers(used to store numerical data)
• Shader Resources(used to store texture data
• Unordered Access View(used to send the collected data to the computational
pipeline
• Compute Shader(a module that collects the data stored in buffers and performs
computations based upon a certain algorithm

7. PROGRAM STARTUP
• On startup the program open a login dialog
Login
Password

8. PROGRAM RUNTIME
• After Logging in the system creates a user session and sets it a unique id.
Using the locking mechanism of compute shaders we create a set of
writable buffers, shader resources and UAVs(unordered access views).
• The next step is to prepare our system utilities. Every single utility has a set of
modules to control its correct operation.
• Every single utility of the system requires:
• Application Manager (launches the utility)
• Application Executor (controls the operation of the utility)
• Event Processor (collects errors and records them to .log files)

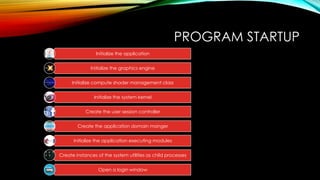

9. PROGRAM STARTUP
Initialize the application
Initialize the graphics engine
Initialize compute shader management class
Initialize the system kernel
Create the user session controller
Create the application domain manger
Initialize the application executing modules
Create instances of the system utilities as child processes
Open a login window

10. DIRECT3D INITIALIZATION
Create the Rendering
Device
Create a Render target
Create a back buffer
Create a depth stencil
Create a viewport

11. DIRECTCOMPUTE EXECUTION
PROCESS
Compile Shader into Byte Code
Read the input data for the
computation
Create Compute Shader Instance
Create constant buffers
Create Shader Resources
Create Unordered Access Views
Create Debug Buffer
Set the compute shader and its
buffers and execute the shader on a
set of gpu threads

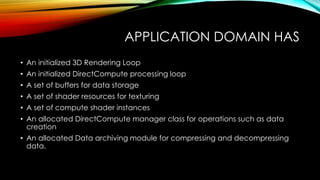

12. APPLICATION DOMAIN HAS
• An initialized 3D Rendering Loop
• An initialized DirectCompute processing loop
• A set of buffers for data storage
• A set of shader resources for texturing
• A set of compute shader instances
• An allocated DirectCompute manager class for operations such as data
creation
• An allocated Data archiving module for compressing and decompressing
data.

13. APPLICATION DOMAIN MANAGER
• Creates and destroys Domains
• Collects the data from event processors
• Keeps the diary of the operations.
• Controls the threads that are used by the domain

14. APPLICATION DOMAIN INSTANCE
• Holds the objects that are necessary for computations
• Has a collection of program objects such as buffers, resources and views.
• Provides a mechanism to edit the data stored in buffers.
• Provides a secure access to the data for client apps

15. APPLICATION DOMAIN INSTANCE
• An allocated memory pool for application execution
• Contains a set of predefined objects, buffers and resources.
• Allows to transfer data securely between different processes.
• Allows to load program utilities into its threads and control the operation

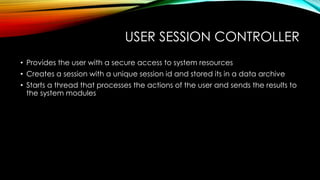

16. USER SESSION CONTROLLER
• Provides the user with a secure access to system resources
• Creates a session with a unique session id and stored its in a data archive
• Starts a thread that processes the actions of the user and sends the results to
the system modules

17. APPLICATION MANAGER
• Has an id of a running software process
• Controls the data that is produces by the process
• Responsible for starting and terminating systemic widgets
• Responsible for transferring the data between widget.

18. APPLICATION EVENT PROCESSOR
• Controls the event produced by the application through a named pipe and
an allocated reading thread
• Used the received data to determine the state of the executed
applications.
• Sends the received info about an application to application state manager

19. APPLICATION STATE MANGER
• Responsible for collecting the data from application processors about the
state of a module
• Responsible for informing the other participating modules about a state
change for a given module.
• Responsible for sending the data about the application errors to the main
processing loop.

20. PROGRAM TYPICAL EXECUTION
THREAD
Login
•User logs
into the
system
Session
•User is
allocated
a session
Domains
•System
creates a
set of
domains
Applications
Applications
are loaded
into domains
Application
Selection
User selects
an
application
from the
panel
Data
User enters
the input
parameters
into the
fields of the
dialog and
selects the
output
format
Computatio
n
Data is sent
to a
computation
al engine
through a
secured
channel and
processed
using a set of
predefined
algorithms
Output
User is
presented
with an
output that
can be
saved to a
file

21. CLUSTER PRODUCTS OF GPUDIGITALLAB
GPUDigitalLa
b Core
Engine
Industrial
Simulations
Engine
Fluid Mechanics
Engine
Video Encoding and
Analysis Engine
Physics and Chemistry
processes Simulation
Engine
Crowd
visualization
Engine
Processing
Engine
Render-
Farm
Engine
Data-
visualization
Engine
Россия, гор. Екатеринбург, ул. Мира, 32
GPUDigitalLab

22. 7 STEPS TO USE GPUDIGITALLAB
Россия, гор. Екатеринбург, ул. Мира, 32
Go to
www.omenart.ru/
gpu
Log into the
system or
register an
account
Select the
necessary
software module
from the control
panel
Input the
relevant
parameters
Calculate or
simulate a
temporary result
Pay for the
transaction
Output and save
the final result to
a file
GPUDigitalLab

23. FLUID DYNAMICS
Fluid Mechanics
Россия, гор. Екатеринбург, ул. Мира, 32
GPUDigitalLab

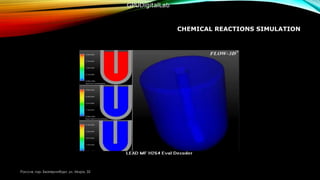

24. CHEMICAL REACTIONS SIMULATION
Россия, гор. Екатеринбург, ул. Мира, 32
GPUDigitalLab

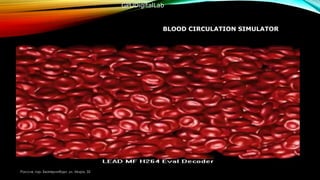

25. BLOOD CIRCULATION SIMULATOR
Россия, гор. Екатеринбург, ул. Мира, 32
GPUDigitalLab

26. CROWD RENDERING SIMULATOR
Россия, гор. Екатеринбург, ул. Мира, 32
GPUDigitalLab

27. RAY-TRACING RENDERING SYSTEM
Россия, гор. Екатеринбург, ул. Мира, 32
GPUDigitalLab

28. COMPUTATIONAL FLUID MECHANICS

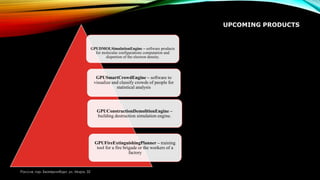

29. UPCOMING PRODUCTS
Россия, гор. Екатеринбург, ул. Мира, 32
GPUDMOLSimulationEngine – software products
for molecular configurations computation and
dispertion of the electron density.
GPUSmartCrowdEngine – software to
visualize and classify crowds of people for
statistical analysis
GPUConstructionDemolitionEngine –
building destruction simulation engine.
GPUFireExtinguishingPlanner – training
tool for a fire brigade or the workers of a
factory

30. UPCOMING PRODUCTS
GPUCrudeOilFlowSimulationEngine – oil
pipe traffic simulation engine
GPUFlueAndColdSimulationEngine – cold
and flue dispersion simulator.
GPUCavitiesSimulationEngine – dental
diseases simulation engine.
GPUChemicalReactionsSimulator – a
learning game where students have to
construct a chemical reaction equation using
an interactive periodic table.
GPUBloodSimulationEngine – blood
circulation engine.
GPUMedicalDrugSimulation – software to
simulate an effect of a chemical substance on
a human body

31. Essential Hardware
Server
Model: GPX XT10-2260-6GPU
CPU: 2 x Six-Core Intel® Xeon® Processor E5-2630 v2 2.60GHz 15MB Cache (80W)
RAM: 8 x 4GB PC3-14900 1866MHz DDR3 ECC Registered DIMM
HDD: 250GB SATA 6.0Gb/s 7200RPM - 2.5" - Seagate Constellation.2™
4 x 800GB Micron M500DC 2.5" SATA 6.0Gb/s Solid State Drive
2 x 1.6TB Intel® DC S3500 Series 2.5" SATA 6.0Gb/s Solid State Drive
2 x 800GB Intel® DC S3700 Series 2.5" SATA 6.0Gb/s Solid State Drive
GPU: NVIDIA® Tesla™ K40M GPU Computing Accelerator - 12GB GDDR5 - 2880
CUDA Cores
Network Card: Intel® 10-Gigabit Ethernet Converged Network Adapter X540-T1
(1x RJ-45)
UPS: APC Smart-UPS 1000VA LCD 120V - 2U Rackmount
Operating System: Microsoft Windows Server 2012
Россия, гор. Екатеринбург, ул. Мира, 32
Лаборатория параллельных вычислений на GPU

32. Essential Hardware
Designer’s PC 5
CPU Core i7-4790 (3.6GHz)
RAM 32 GB
HDD 3 TB
GPU NVIDIA GeForce GTX 760 (2GB)
Keyboard Genius GK 110001
Mouse Gigabyte GM-M6800
Operating System Windows 8.1
Programmer’s PC 2
CPU Core i7-4790 (3.6GHz)
RAM 16 GB
HDD 2 TB
GPU NVIDIA GeForce GTX 760 (2GB)
Keyboard Genius GK 110001
Mouse Gigabyte GM-M6800
Operating System Windows 8.1

33. Название темы презентации
Essential Hardware
Oculus Rift (Augmented reality glasses) 1
Black Magic Cinema Camera 1
Россия, гор. Екатеринбург, ул. Мира, 32

34. POTENTIAL CUSTOMERS
• Oil and Gas industries
• Medical institutions
• Educational and Research institutions
• Construction Companies
• Administration of Yekaterinburg
• Public event organizers
• Information technology companies.
