1. Gluster Containerized
Storage for Cloud
Applications
Humble Chirammal
Luis Pabón
Gluster Summit, October 7, 2016

2. Warning: Lots of information coming ahead!

3. 1. Provide my customers a platform for
their containerized applications and
storage needs

4. 2. Manage compute, network, and
storage as a single converged cluster

5. I want to easily deploy my containerized
application with persistent storage

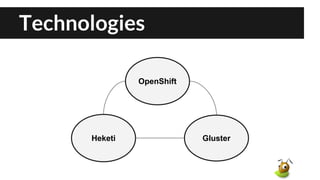

6. Technologies
OpenShift
GlusterHeketi

7. Technologies
OpenShift provides
platform as a service
infrastructure based on
Kubernetes container
management
OpenShift
GlusterHeketi

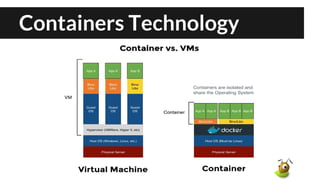

8. Containers Technology

9. Docker

10. Kubernetes
Master Node A Node B

11. Technologies
OpenShift
GlusterHeketi
Gluster deployed as a
container

12. Containerized Gluster
Pull Gluster container image :
# docker pull gluster/gluster-centos:gluster3u7_centos7
Example of how to start Gluster Container:
# docker run --name gluster -d -v /etc/glusterfs:/etc/glusterfs:z -v
/var/lib/glusterd:/var/lib/glusterd:z -v /var/log/glusterfs:/var/log/glusterfs:z -v
/sys/fs/cgroup:/sys/fs/cgroup:ro --net=host --privileged=true -v /dev:/dev
gluster/gluster-centos:gluster3u7_centos7

13. Caveats for Containerized Gluster
● Persistent storage on the host to save Gluster metadata
-v /etc/glusterfs:/etc/glusterfs:z -v /var/lib/glusterd:/var/lib/glusterd:z -v
/var/log/glusterfs:/var/log/glusterfs:z
● Host Networking (--net=host) of Docker for better performance on storage
network.
○ For Reference:
Docker Network “none”, adds a container to a container-specific network stack.
Docker Network ”bridge”, represents the bridge network (default docker0).
Docker Network ”host”, adds a container on the hosts network stack.
● Privileged container execution

14. Gluster Pods in Kubernetes
Gluster
Pod
Node A
Gluster
Pod
Node B
Gluster
Pod
Node C
Trusted
Pool
Disks on
Host

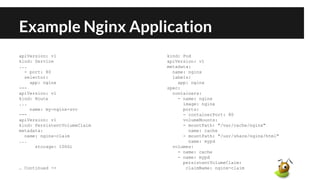

15. Example Nginx Application
apiVersion: v1
kind: Service
...
- port: 80
selector:
app: nginx
---
apiVersion: v1
kind: Route
...
name: my-nginx-svc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: nginx-claim
...
storage: 100Gi
… Continued ->
kind: Pod
apiVersion: v1
metadata:
name: nginx
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx
ports:
- containerPort: 80
volumeMounts:
- mountPath: "/var/cache/nginx"
name: cache
- mountPath: "/usr/share/nginx/html"
name: mypd
volumes:
- name: cache
- name: mypd
persistentVolumeClaim:
claimName: nginx-claim

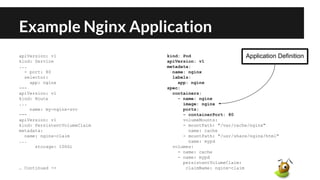

16. Example Nginx Application
apiVersion: v1
kind: Service
...
- port: 80
selector:
app: nginx
---
apiVersion: v1
kind: Route
...
name: my-nginx-svc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: nginx-claim
...
storage: 100Gi
… Continued ->
kind: Pod
apiVersion: v1
metadata:
name: nginx
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx
ports:
- containerPort: 80
volumeMounts:
- mountPath: "/var/cache/nginx"
name: cache
- mountPath: "/usr/share/nginx/html"
name: mypd
volumes:
- name: cache
- name: mypd
persistentVolumeClaim:
claimName: nginx-claim
Application Definition

17. Example Nginx Application
apiVersion: v1
kind: Service
...
- port: 80
selector:
app: nginx
---
apiVersion: v1
kind: Route
...
name: my-nginx-svc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: nginx-claim
...
storage: 100Gi
… Continued ->
kind: Pod
apiVersion: v1
metadata:
name: nginx
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx
ports:
- containerPort: 80
volumeMounts:
- mountPath: "/var/cache/nginx"
name: cache
- mountPath: "/usr/share/nginx/html"
name: mypd
volumes:
- name: cache
- name: mypd
persistentVolumeClaim:
claimName: nginx-claim
Storage Request

18. Example Nginx Application
apiVersion: v1
kind: Service
...
- port: 80
selector:
app: nginx
---
apiVersion: v1
kind: Route
...
name: my-nginx-svc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: nginx-claim
...
storage: 100Gi
… Continued ->
kind: Pod
apiVersion: v1
metadata:
name: nginx
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx
ports:
- containerPort: 80
volumeMounts:
- mountPath: "/var/cache/nginx"
name: cache
- mountPath: "/usr/share/nginx/html"
name: mypd
volumes:
- name: cache
- name: mypd
persistentVolumeClaim:
claimName: nginx-claim
Mount point in
application container

19. Kubernetes Gluster Mount Plugin
Gluster
Pod
Application Pod
Mounted Volume
Node A Node B
Bind Mount Volume

20. Architecture

21. Technologies
OpenShift
GlusterHeketi
Heketi provides dynamic
Gluster volume life cycle
management

22. Heketi
● Gluster storage and volume
manager
○ Containerized, virtualized, or bare metal
● Multi Gluster cluster aware
● Intelligent brick allocator
● REST service with authentication

23. Architecture

24. Heketi Cluster

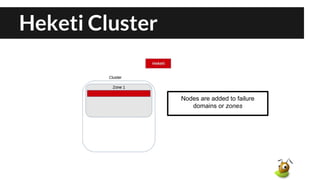

25. Heketi Cluster
Nodes are added to failure
domains or zones

26. Heketi Cluster
Peer probes automatically
when adding nodes to a cluster

27. Heketi Cluster
Raw devices are registered and
initialized

28. Heketi Device Management
Raw Block Device
Physical Volume (PV)
Volume Group (VG)
LV Thin Pool
Logical Volume
(LV)
Gluster Brick
(XFS)
. . .
Created during device
initialization
Brick created when a
volume is requested

29. Heketi Cluster

30. Heketi Cluster

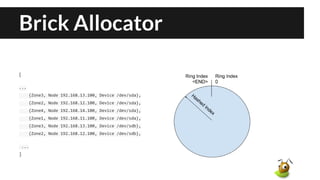

31. Brick Allocator
[
...
{Zone3, Node 192.168.13.100, Device /dev/sda},
{Zone2, Node 192.168.12.100, Device /dev/sda},
{Zone4, Node 192.168.14.100, Device /dev/sda},
{Zone1, Node 192.168.11.100, Device /dev/sda},
{Zone3, Node 192.168.13.100, Device /dev/sdb},
{Zone2, Node 192.168.12.100, Device /dev/sdb},
...
]

32. Heketi Cluster

33. Heketi Cluster

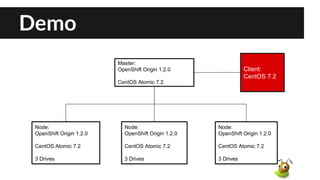

34. Demo
Node:
OpenShift Origin 1.2.0
CentOS Atomic 7.2
3 Drives
Node:
OpenShift Origin 1.2.0
CentOS Atomic 7.2
3 Drives
Node:
OpenShift Origin 1.2.0
CentOS Atomic 7.2
3 Drives
Master:
OpenShift Origin 1.2.0
CentOS Atomic 7.2
Client:
CentOS 7.2

35. Demo

36. Next ...
● Heketi
○ Failed hardware support: #161
○ Full Kubernetes support: #527
○ Block Storage API Proposal
● Kubernetes
○ Gluster Dynamic Provisioning
■ Available now! (Kubernetes 1.4)
■ Demo # https://youtu.be/uOBu7I5yg5s
○ Easier installation and deployment methods

37. More information
Heketi:
https://github.com/heketi/heketi
