1. Native Clients with GFProxy
Poornima G
Vijay Bellur

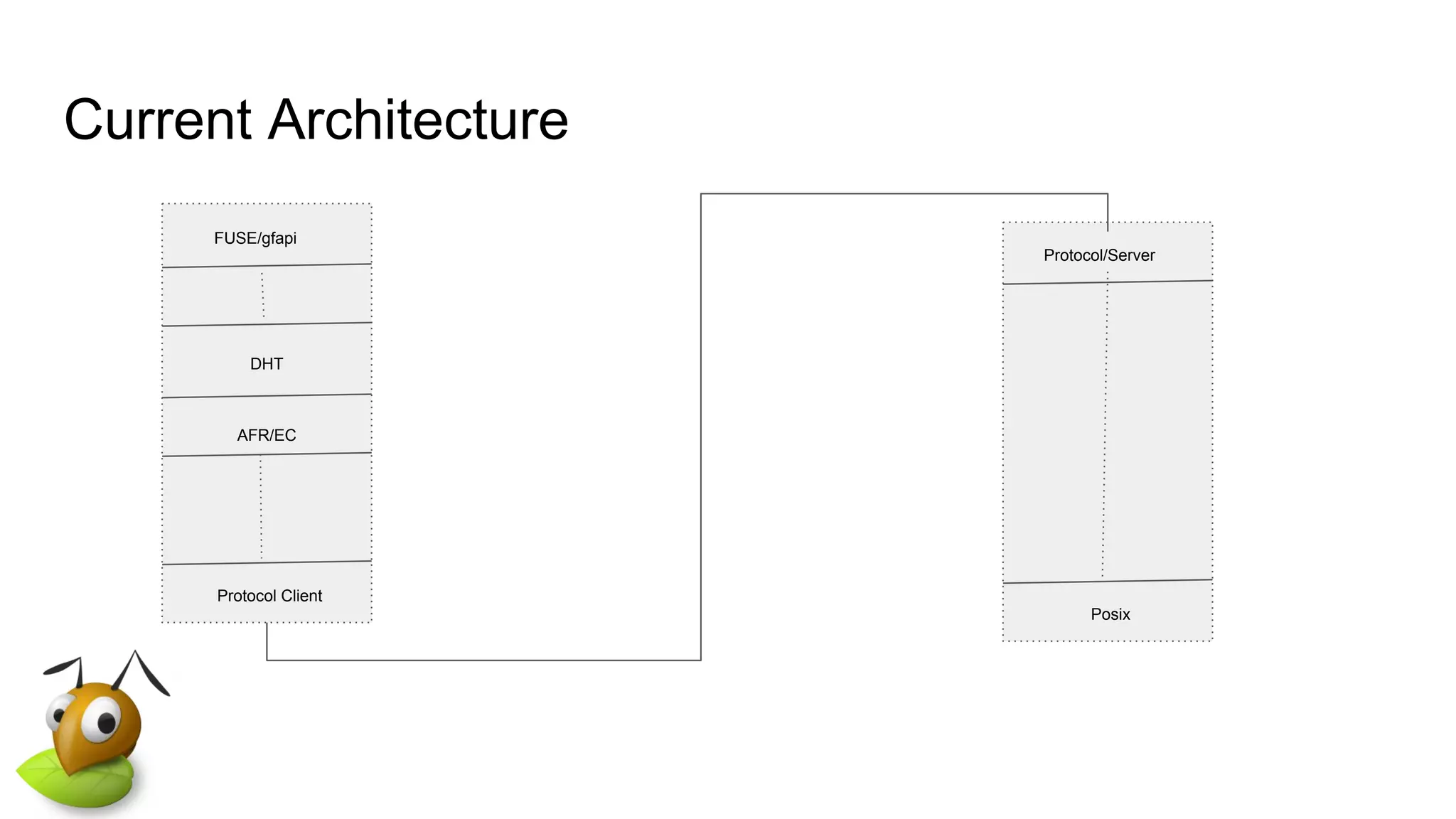

2. Current Architecture
FUSE/gfapi
AFR/EC
DHT
Protocol Client
Protocol/Server
Posix

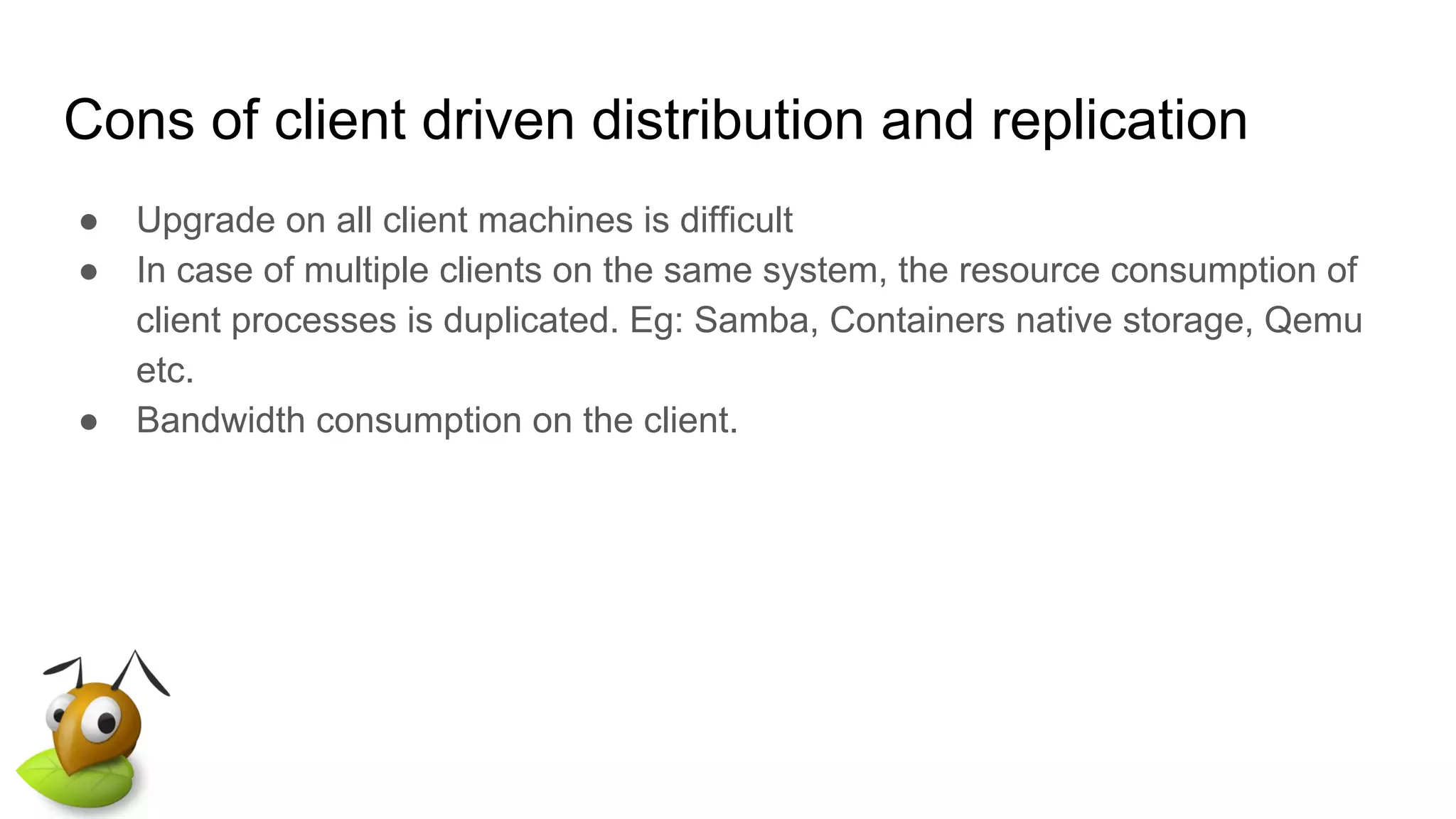

3. Cons of client driven distribution and replication
● Upgrade on all client machines is difficult
● In case of multiple clients on the same system, the resource consumption of
client processes is duplicated. Eg: Samba, Containers native storage, Qemu
etc.
● Bandwidth consumption on the client.

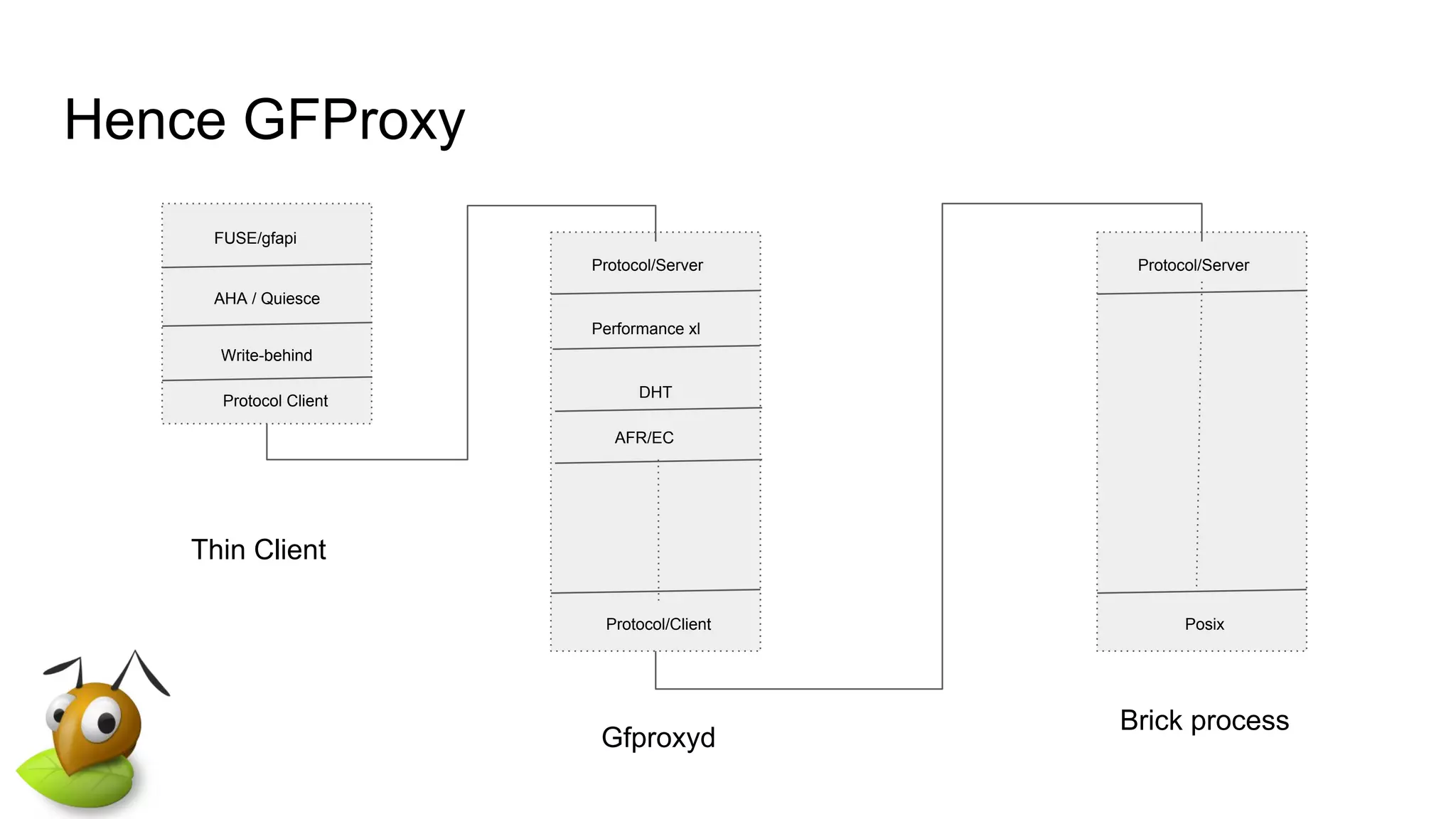

4. Hence GFProxy
FUSE/gfapi
Write-behind
Protocol Client
Protocol/Server
DHT
Protocol/Client
AHA / Quiesce
Protocol/Server
Posix
Performance xl
AFR/EC
Thin Client
Gfproxyd
Brick process

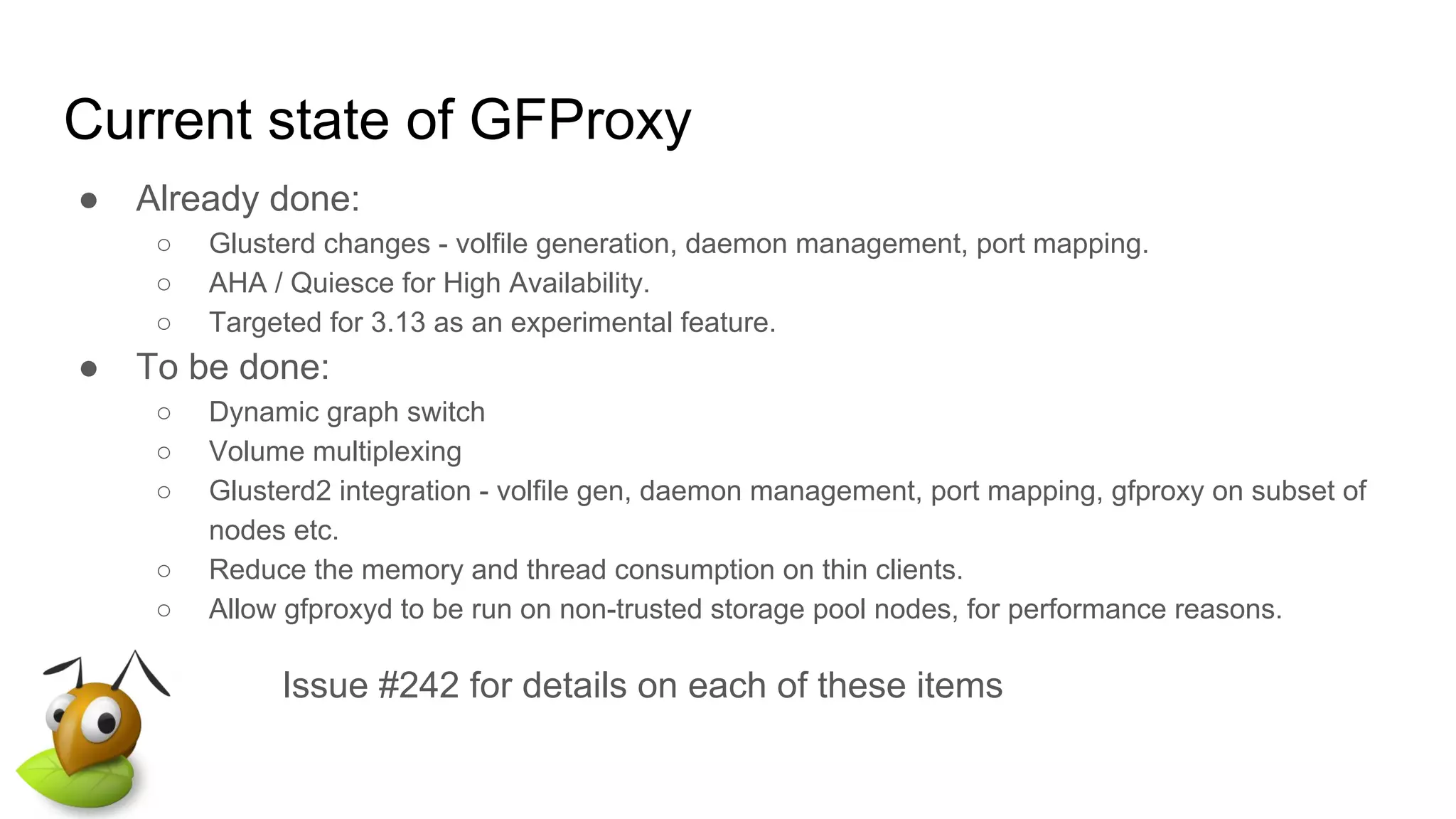

5. Current state of GFProxy
● Already done:
○ Glusterd changes - volfile generation, daemon management, port mapping.
○ AHA / Quiesce for High Availability.
○ Targeted for 3.13 as an experimental feature.
● To be done:
○ Dynamic graph switch
○ Volume multiplexing
○ Glusterd2 integration - volfile gen, daemon management, port mapping, gfproxy on subset of
nodes etc.
○ Reduce the memory and thread consumption on thin clients.
○ Allow gfproxyd to be run on non-trusted storage pool nodes, for performance reasons.
Issue #242 for details on each of these items

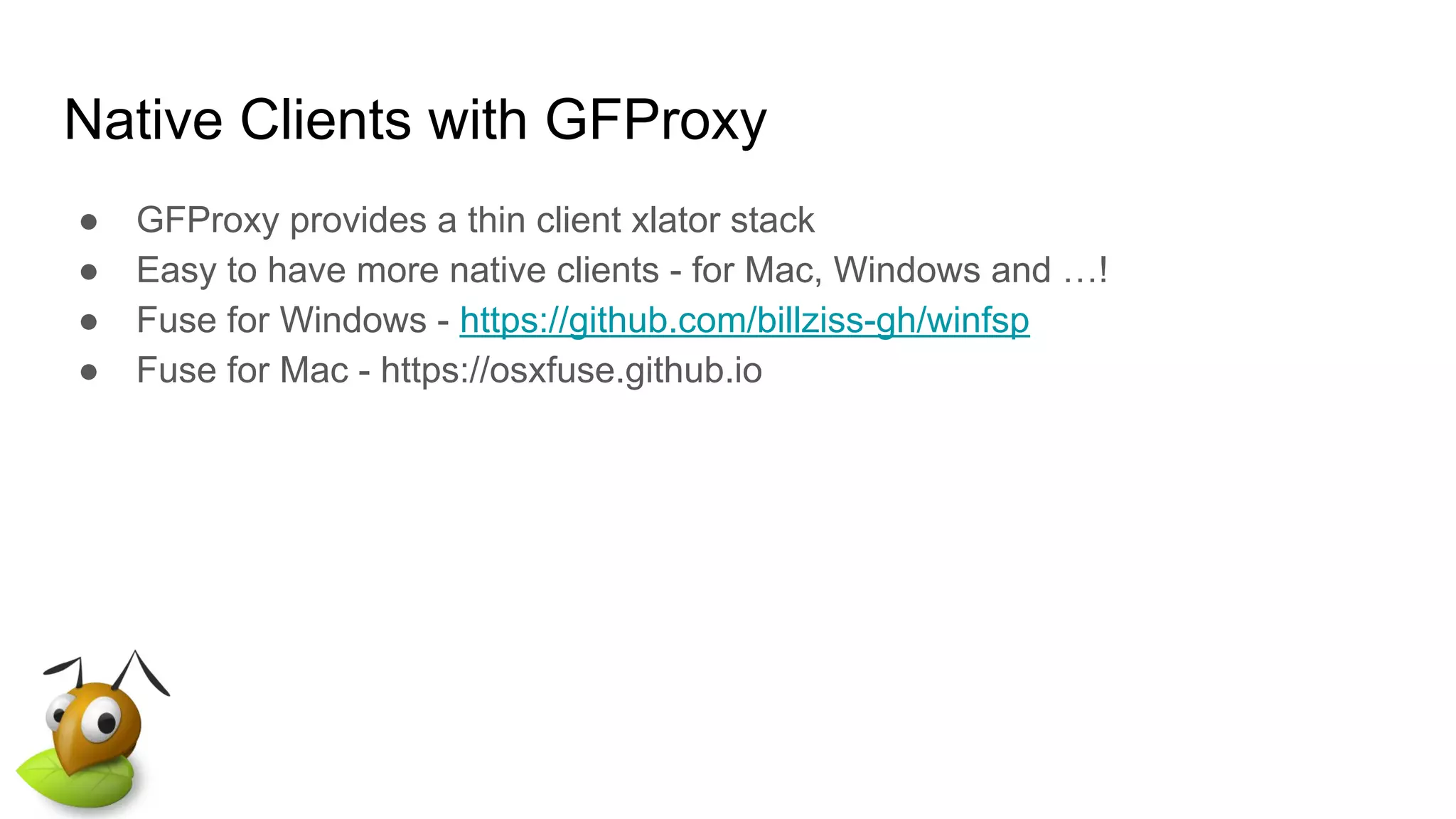

6. Native Clients with GFProxy
● GFProxy provides a thin client xlator stack
● Easy to have more native clients - for Mac, Windows and …!
● Fuse for Windows - https://github.com/billziss-gh/winfsp
● Fuse for Mac - https://osxfuse.github.io

7. Questions?
