1. USING GIT LIKE A PRO
JESÚS MIGUEL BENITO CALZADA
EDD - 27/10/2018

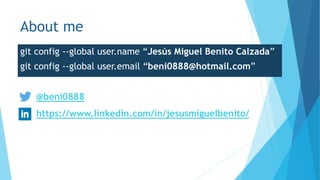

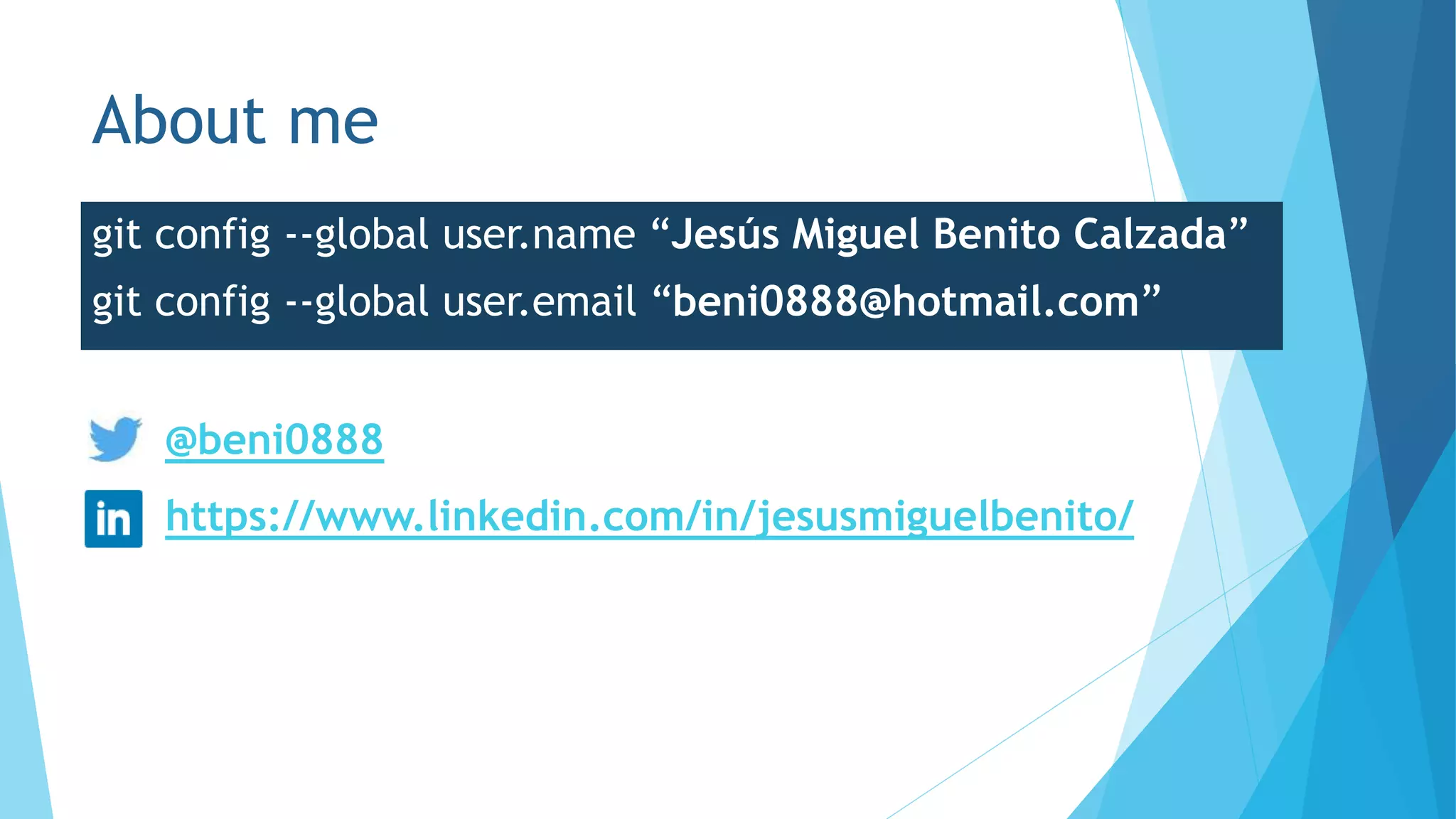

2. About me
git config --global user.name “Jesús Miguel Benito Calzada”
git config --global user.email “beni0888@hotmail.com”
@beni0888
https://www.linkedin.com/in/jesusmiguelbenito/

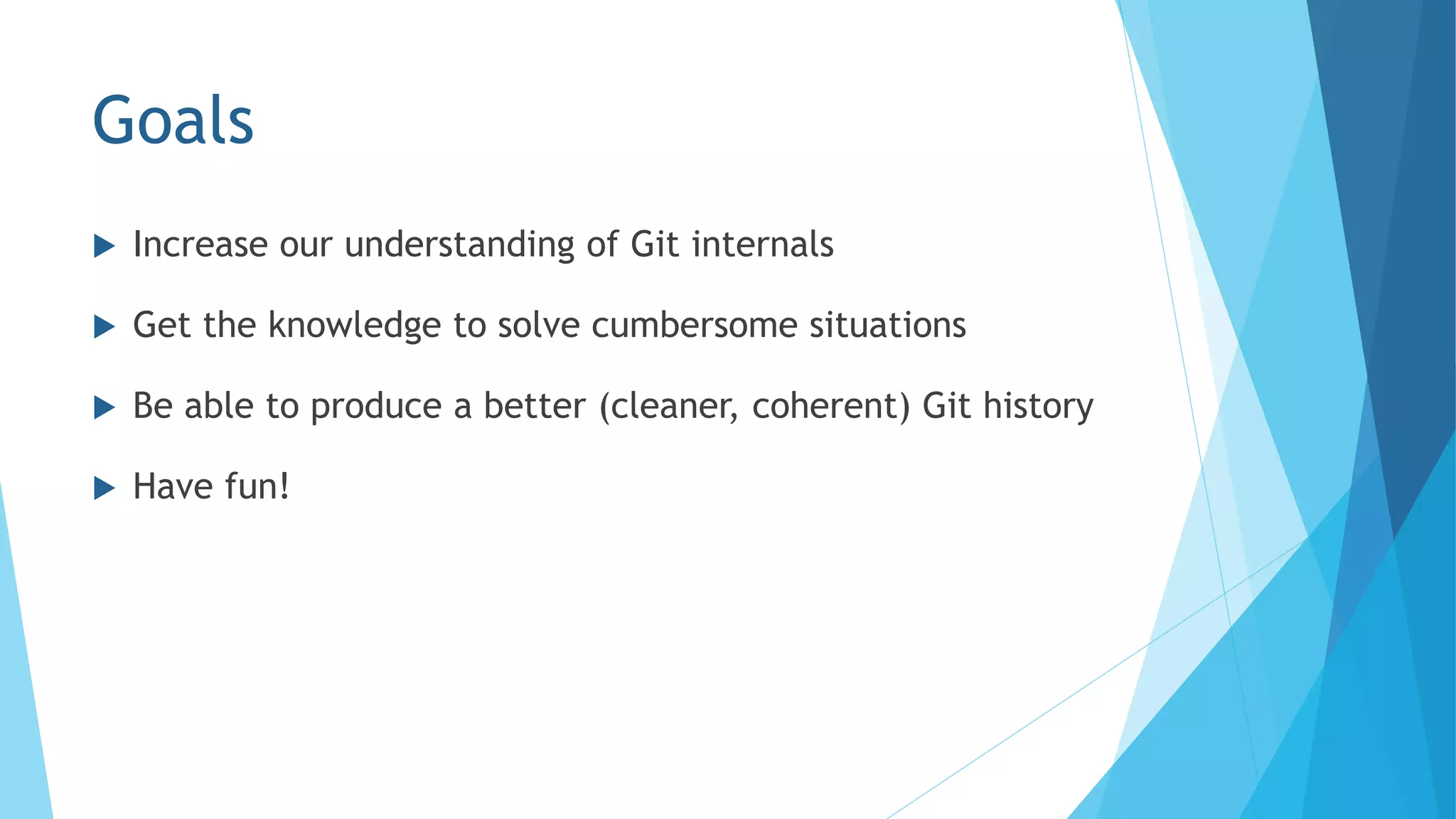

3. Goals
 Increase our understanding of Git internals
 Get the knowledge to solve cumbersome situations
 Be able to produce a better (cleaner, coherent) Git history
 Have fun!

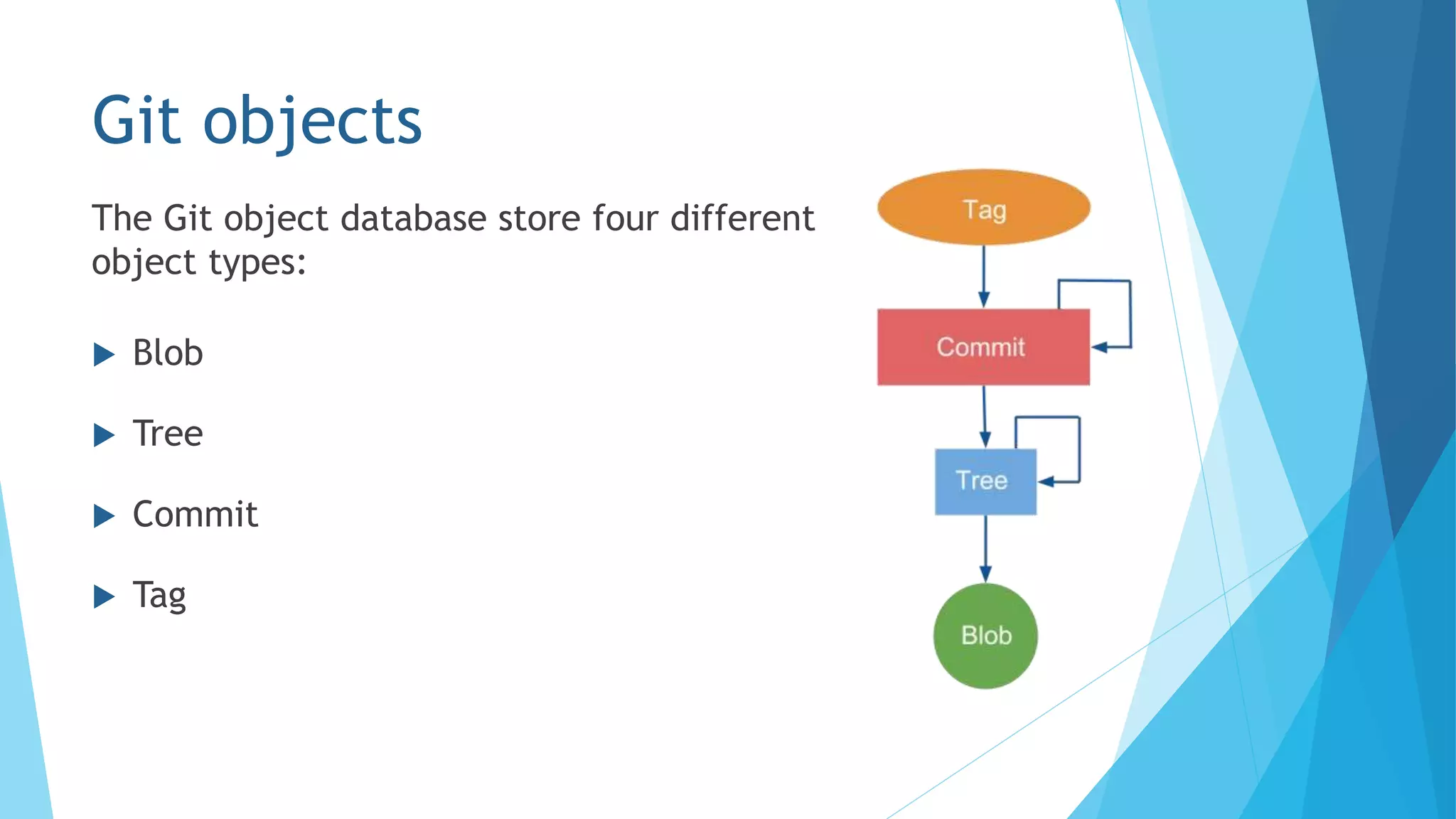

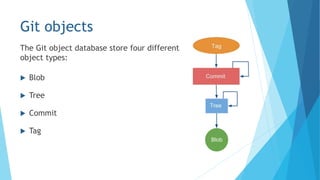

4. Git objects
The Git object database store four different
object types:
 Blob
 Tree
 Commit
 Tag

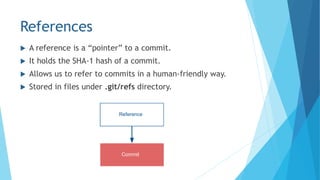

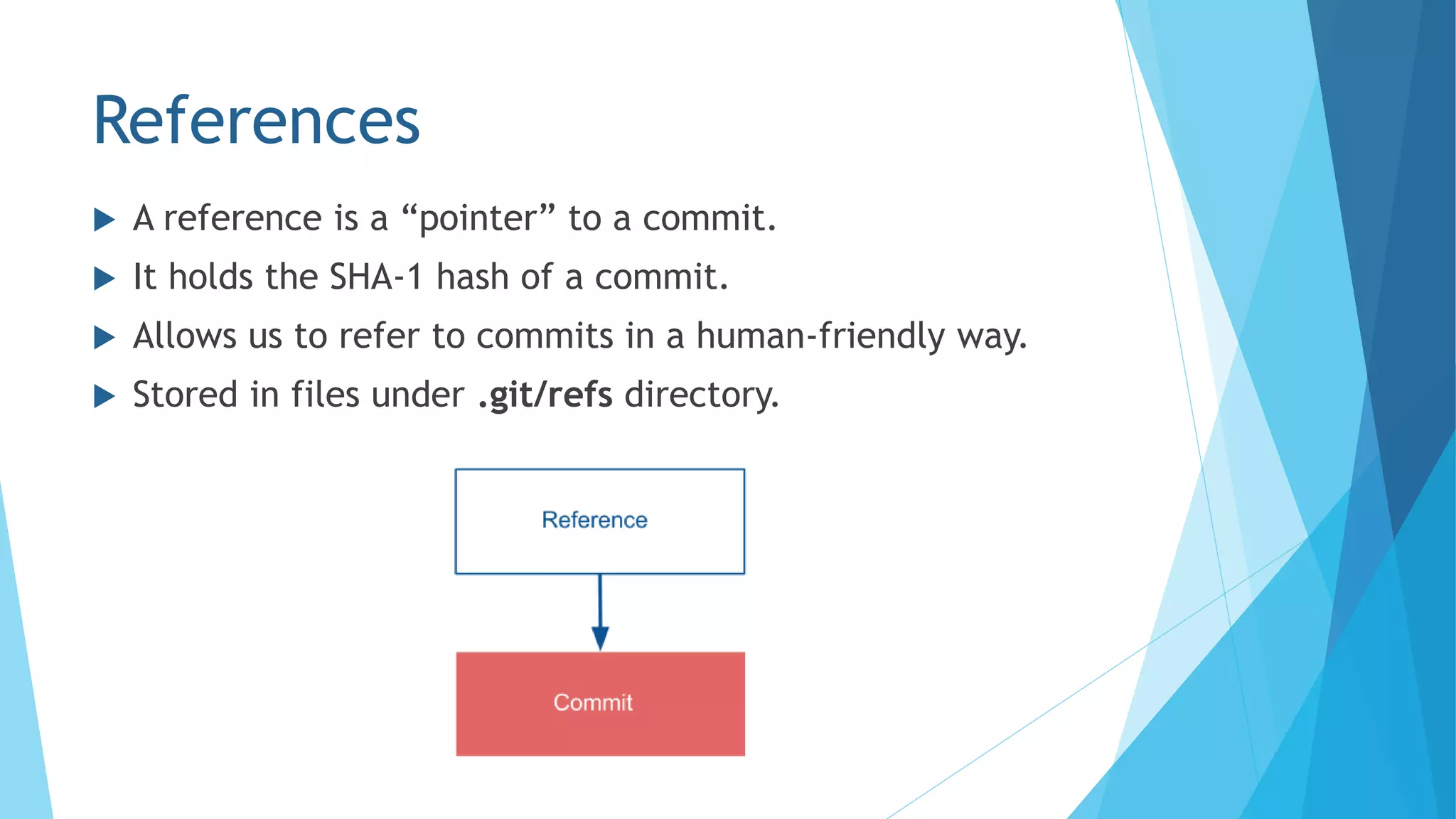

5. References
 A reference is a “pointer” to a commit.
 It holds the SHA-1 hash of a commit.
 Allows us to refer to commits in a human-friendly way.
 Stored in files under .git/refs directory.

6. What is a git branch?

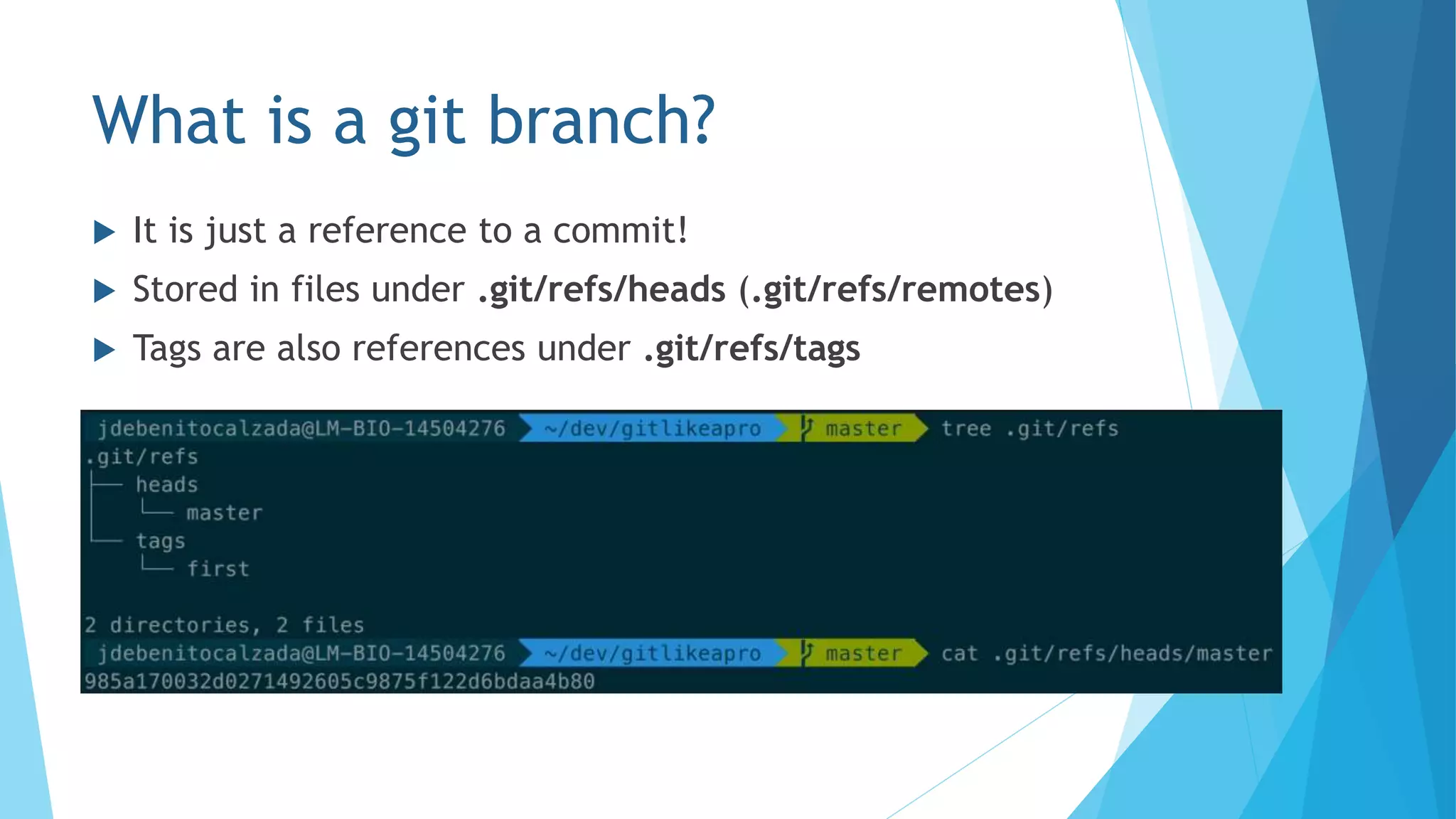

7. What is a git branch?
 It is just a reference to a commit!
 Stored in files under .git/refs/heads (.git/refs/remotes)
 Tags are also references under .git/refs/tags

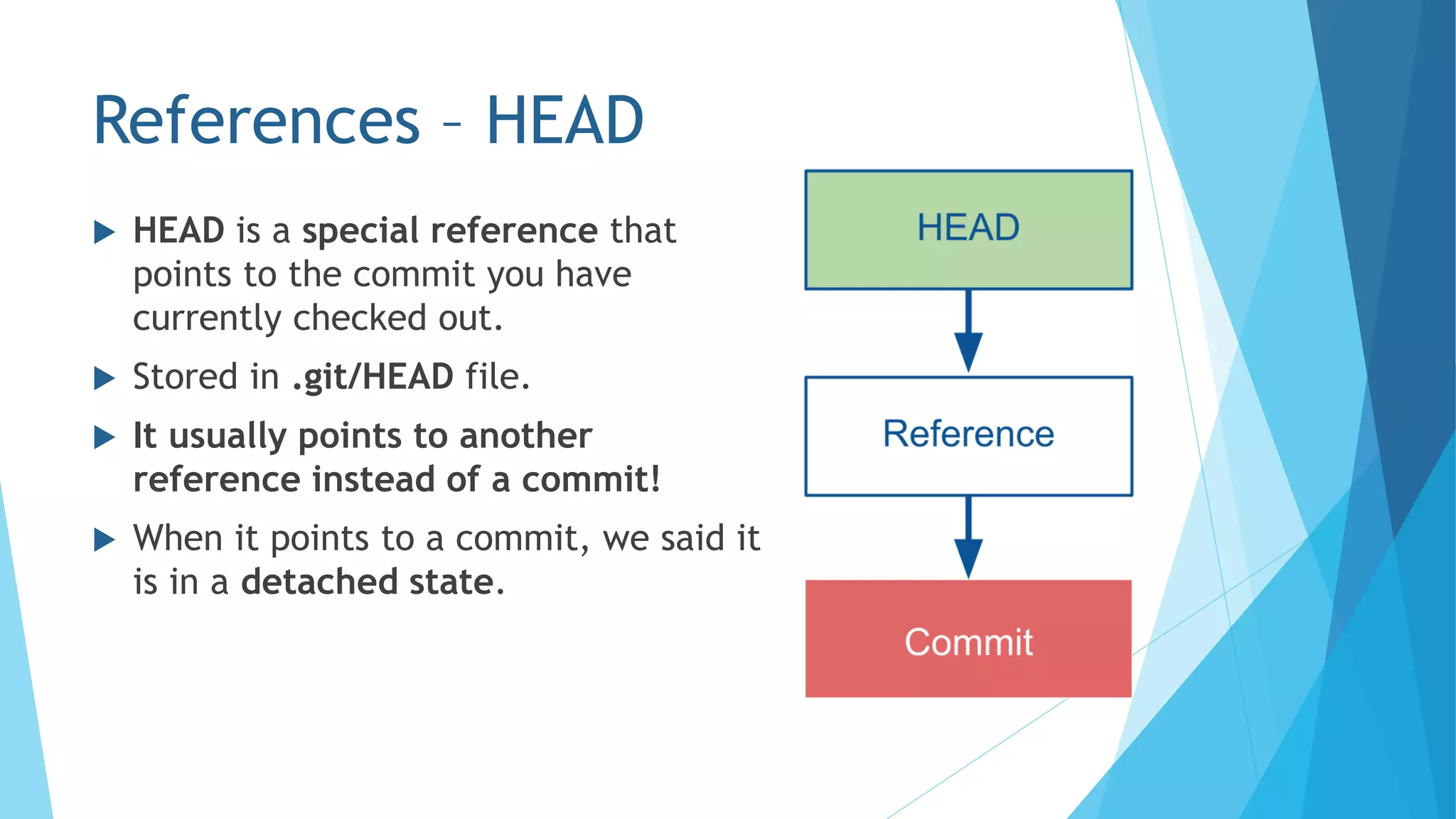

8. References – HEAD
 HEAD is a special reference that
points to the commit you have
currently checked out.
 Stored in .git/HEAD file.
 It usually points to another
reference instead of a commit!
 When it points to a commit, we said it
is in a detached state.

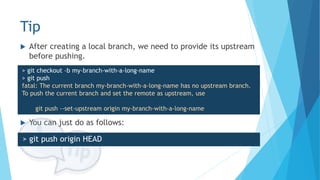

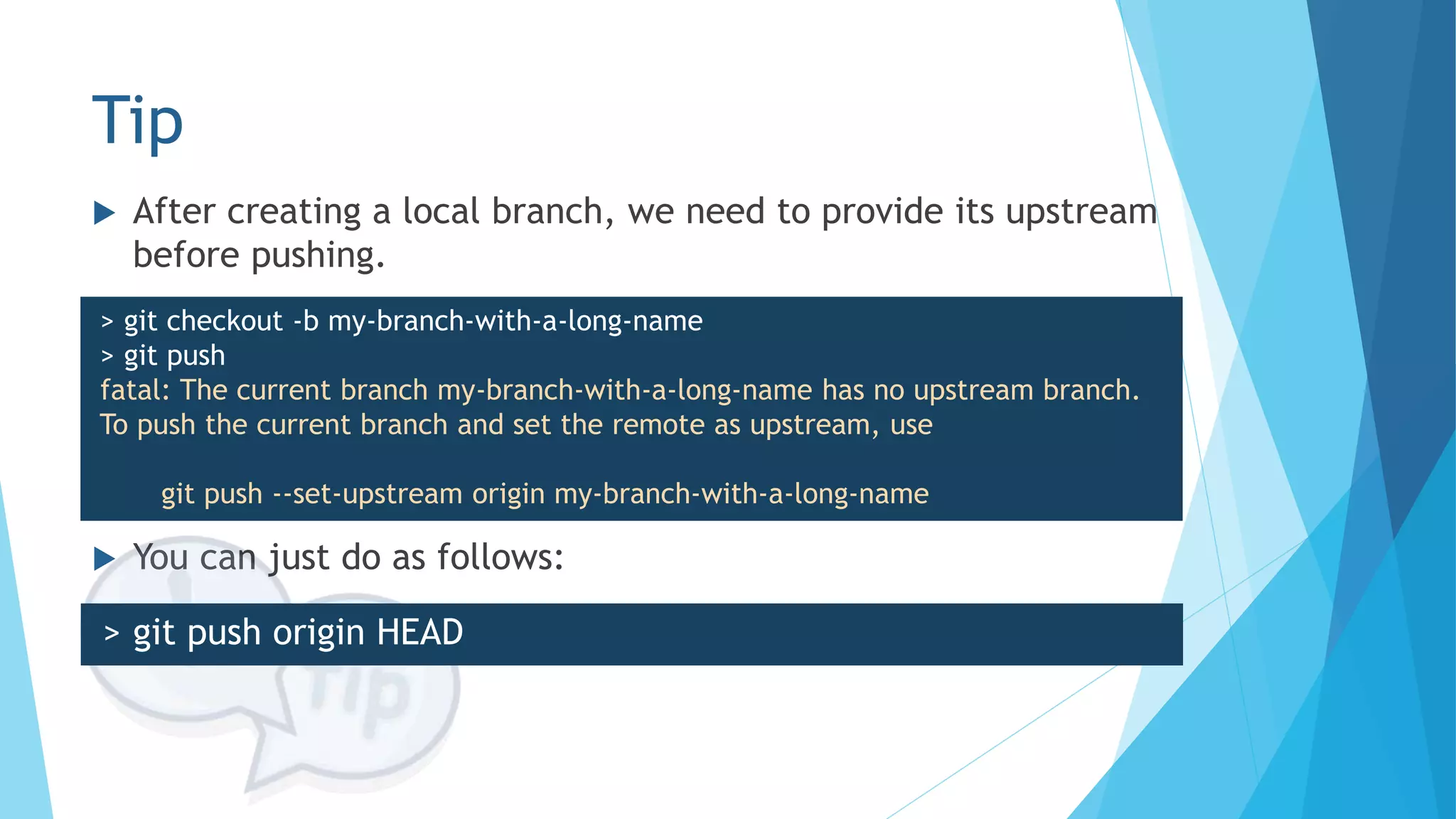

10. Tip
 You can just do as follows:
 After creating a local branch, we need to provide its upstream
before pushing.
> git checkout -b my-branch-with-a-long-name
> git push
fatal: The current branch my-branch-with-a-long-name has no upstream branch.
To push the current branch and set the remote as upstream, use
git push --set-upstream origin my-branch-with-a-long-name
> git push origin HEAD

11. Synchronizing branches

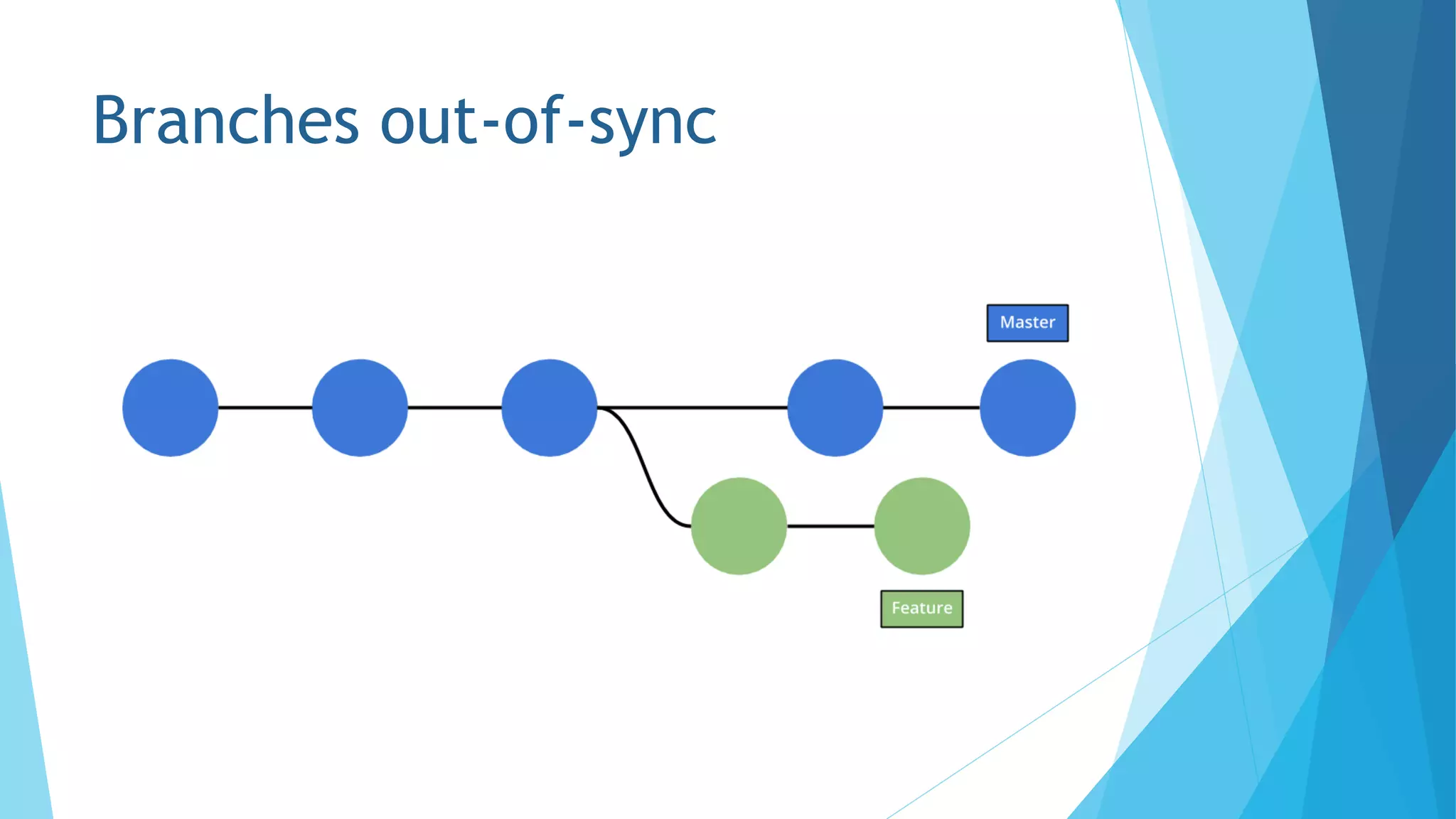

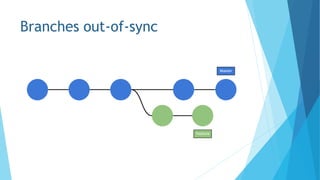

12. Branches out-of-sync

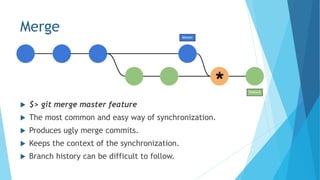

13. Merge
 $> git merge master feature
 The most common and easy way of synchronization.
 Produces ugly merge commits.
 Keeps the context of the synchronization.
 Branch history can be difficult to follow.

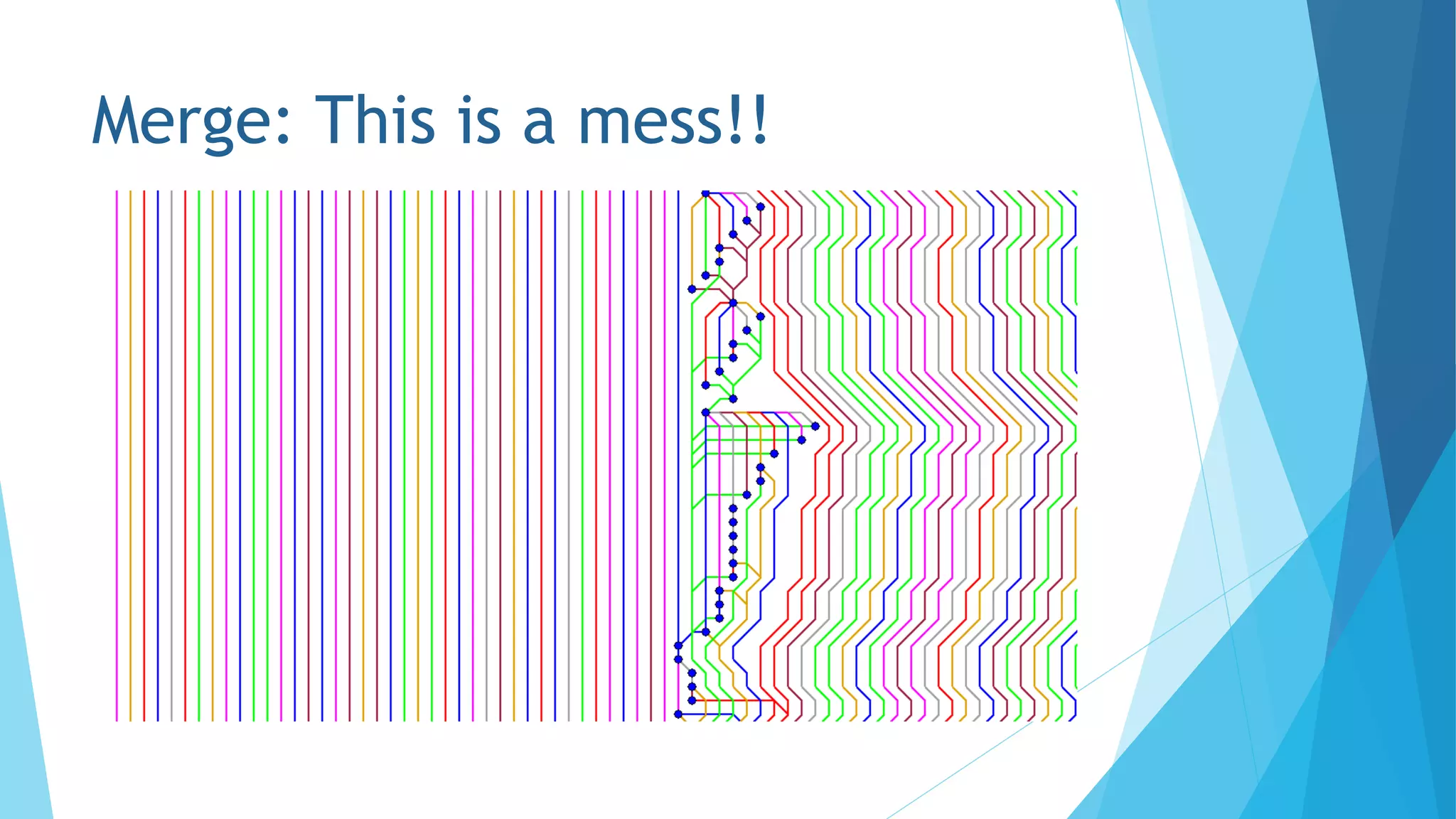

14. Merge: This is a mess!!

15. Rebase
$> git rebase master

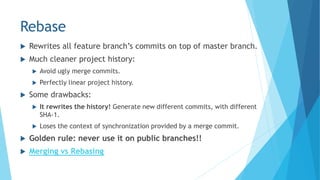

16. Rebase
 Rewrites all feature branch’s commits on top of master branch.
 Much cleaner project history:
 Avoid ugly merge commits.
 Perfectly linear project history.
 Some drawbacks:
 It rewrites the history! Generate new different commits, with different
SHA-1.
 Loses the context of synchronization provided by a merge commit.
 Golden rule: never use it on public branches!!
 Merging vs Rebasing

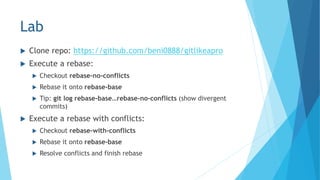

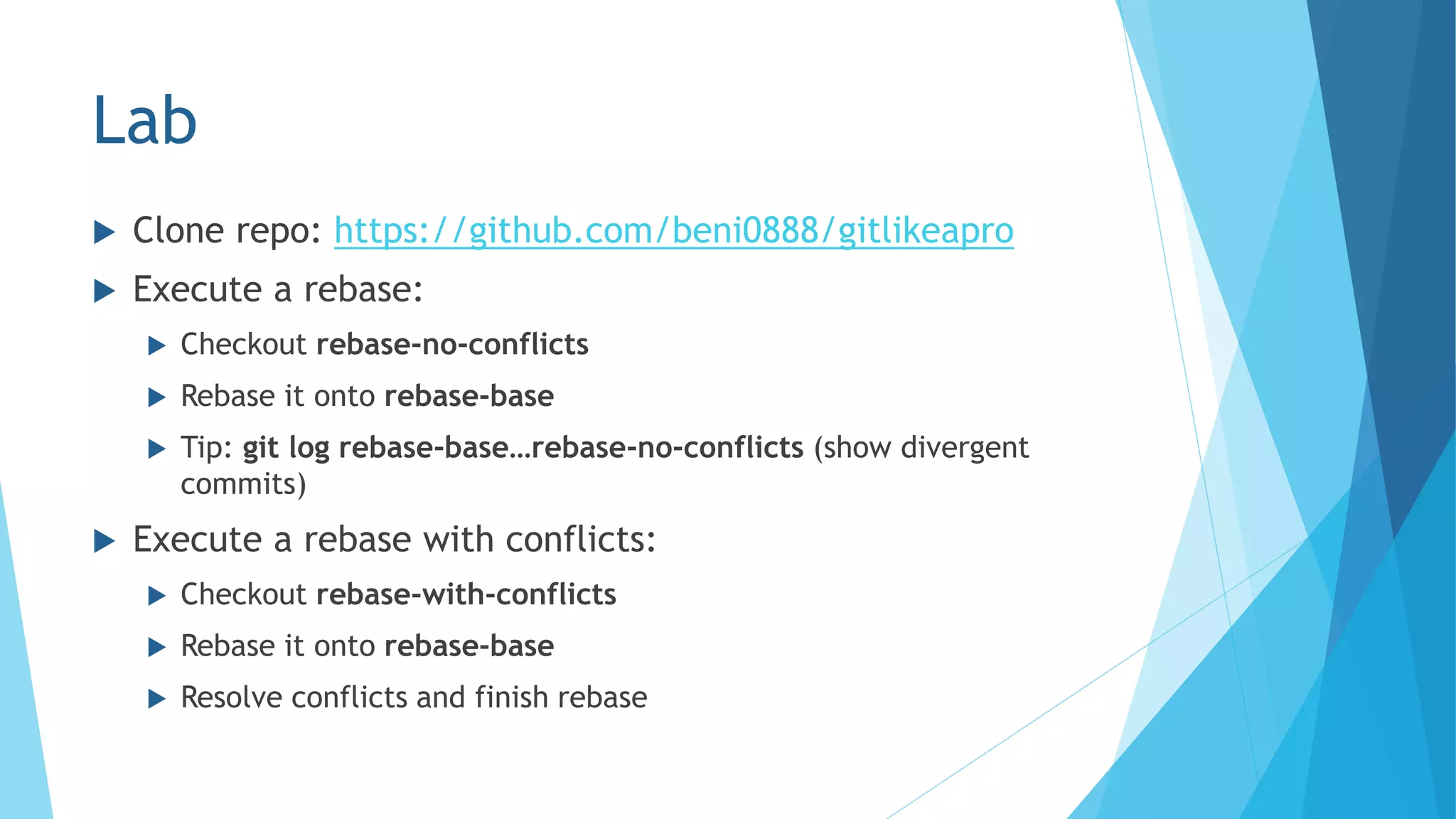

17. Lab
 Clone repo: https://github.com/beni0888/gitlikeapro
 Execute a rebase:
 Checkout rebase-no-conflicts
 Rebase it onto rebase-base
 Tip: git log rebase-base…rebase-no-conflicts (show divergent
commits)
 Execute a rebase with conflicts:
 Checkout rebase-with-conflicts
 Rebase it onto rebase-base
 Resolve conflicts and finish rebase

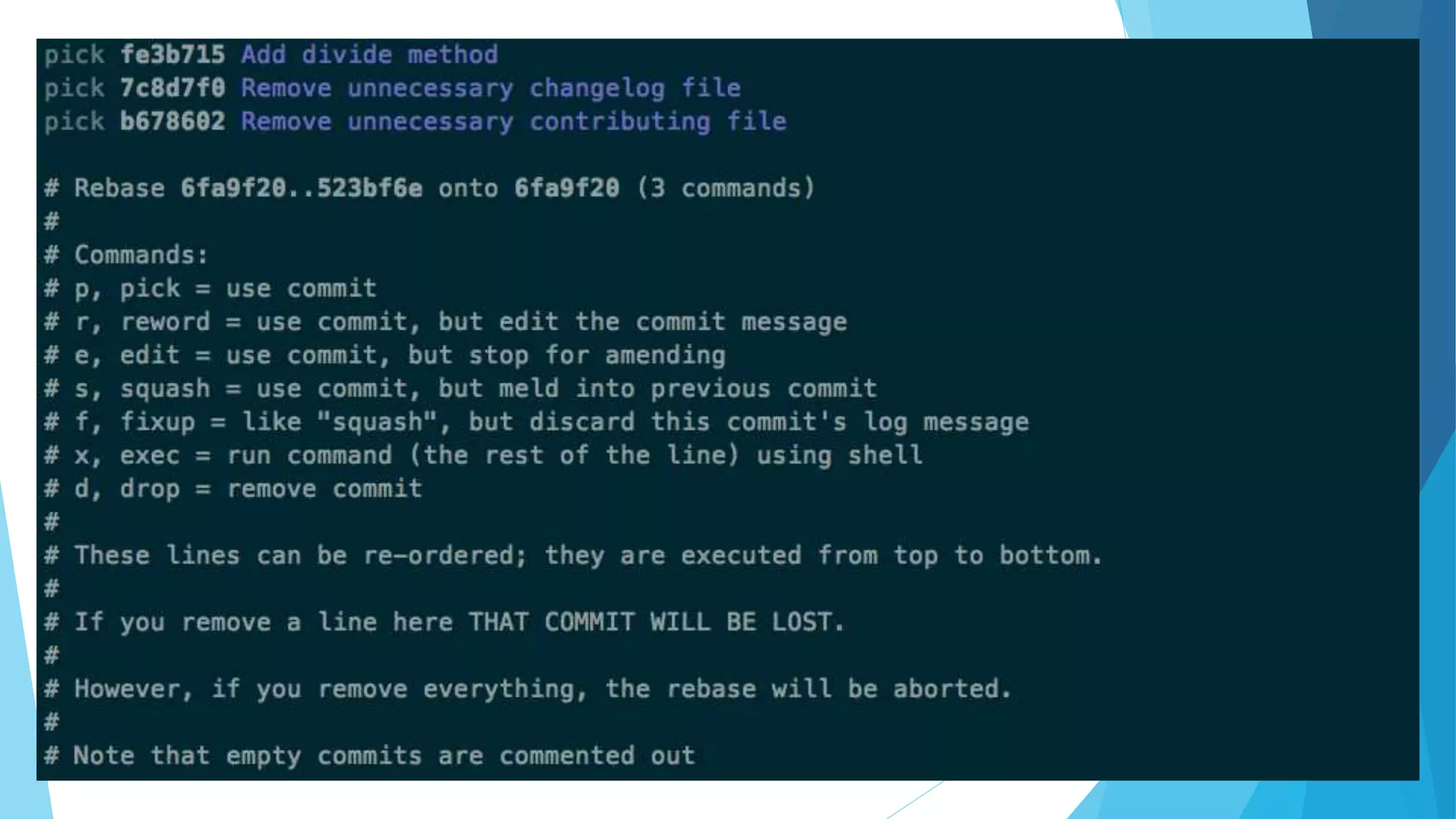

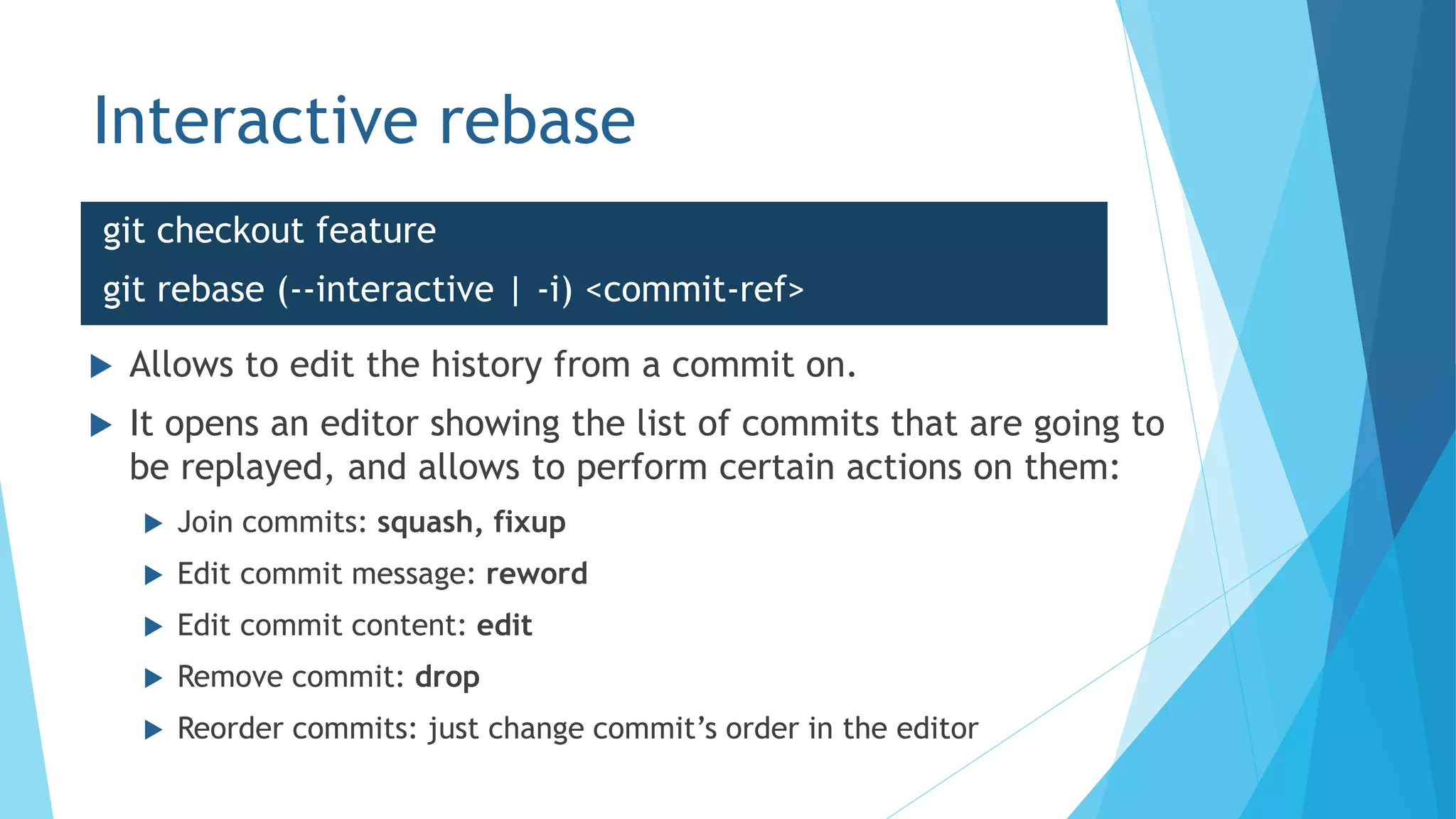

18. Interactive rebase
git checkout feature
git rebase (--interactive | -i) <commit-ref>
 Allows to edit the history from a commit on.
 It opens an editor showing the list of commits that are going to
be replayed, and allows to perform certain actions on them:
 Join commits: squash, fixup
 Edit commit message: reword
 Edit commit content: edit
 Remove commit: drop
 Reorder commits: just change commit’s order in the editor

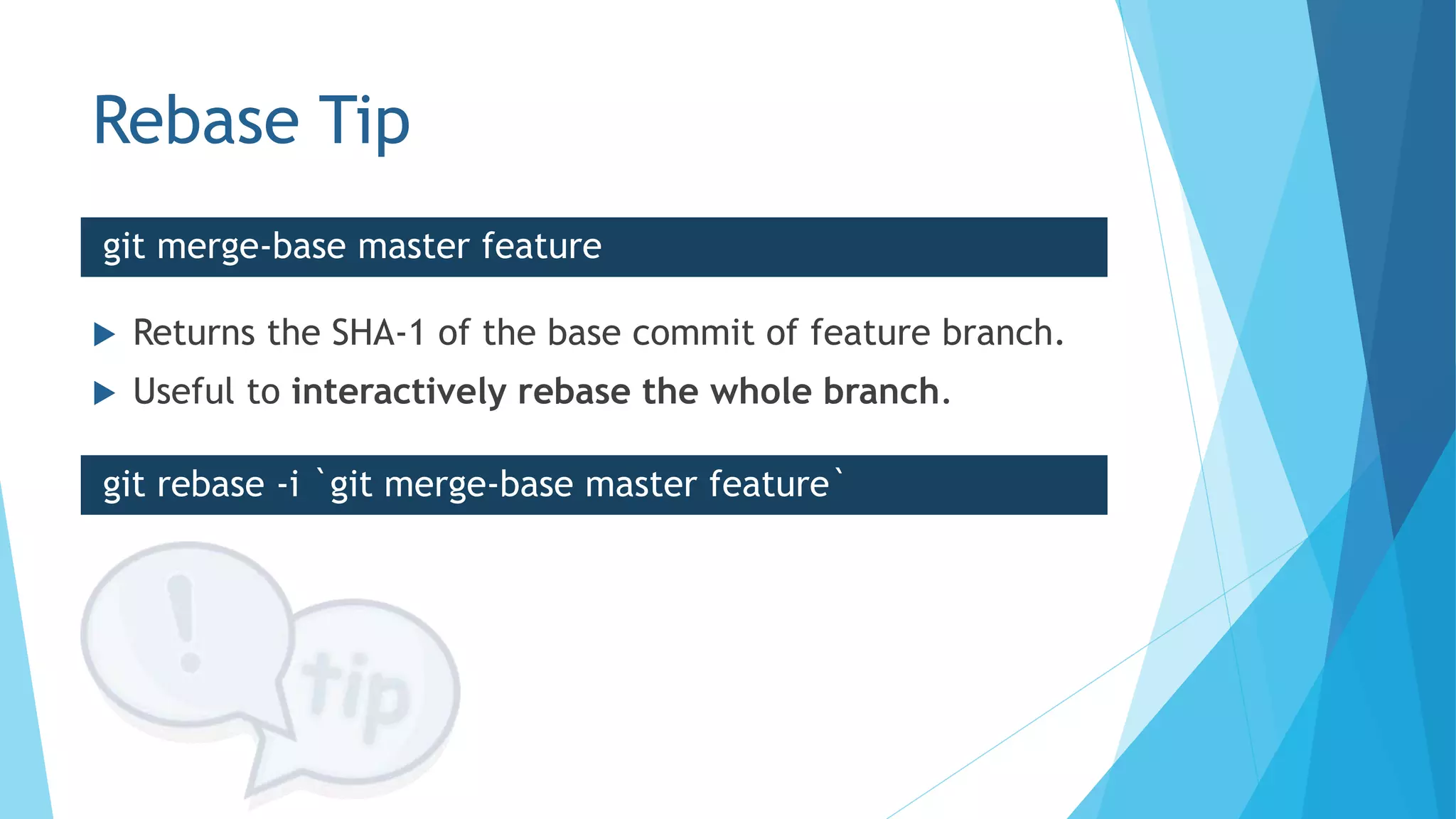

21. Rebase Tip
 Returns the SHA-1 of the base commit of feature branch.
 Useful to interactively rebase the whole branch.
git merge-base master feature
git rebase -i `git merge-base master feature`

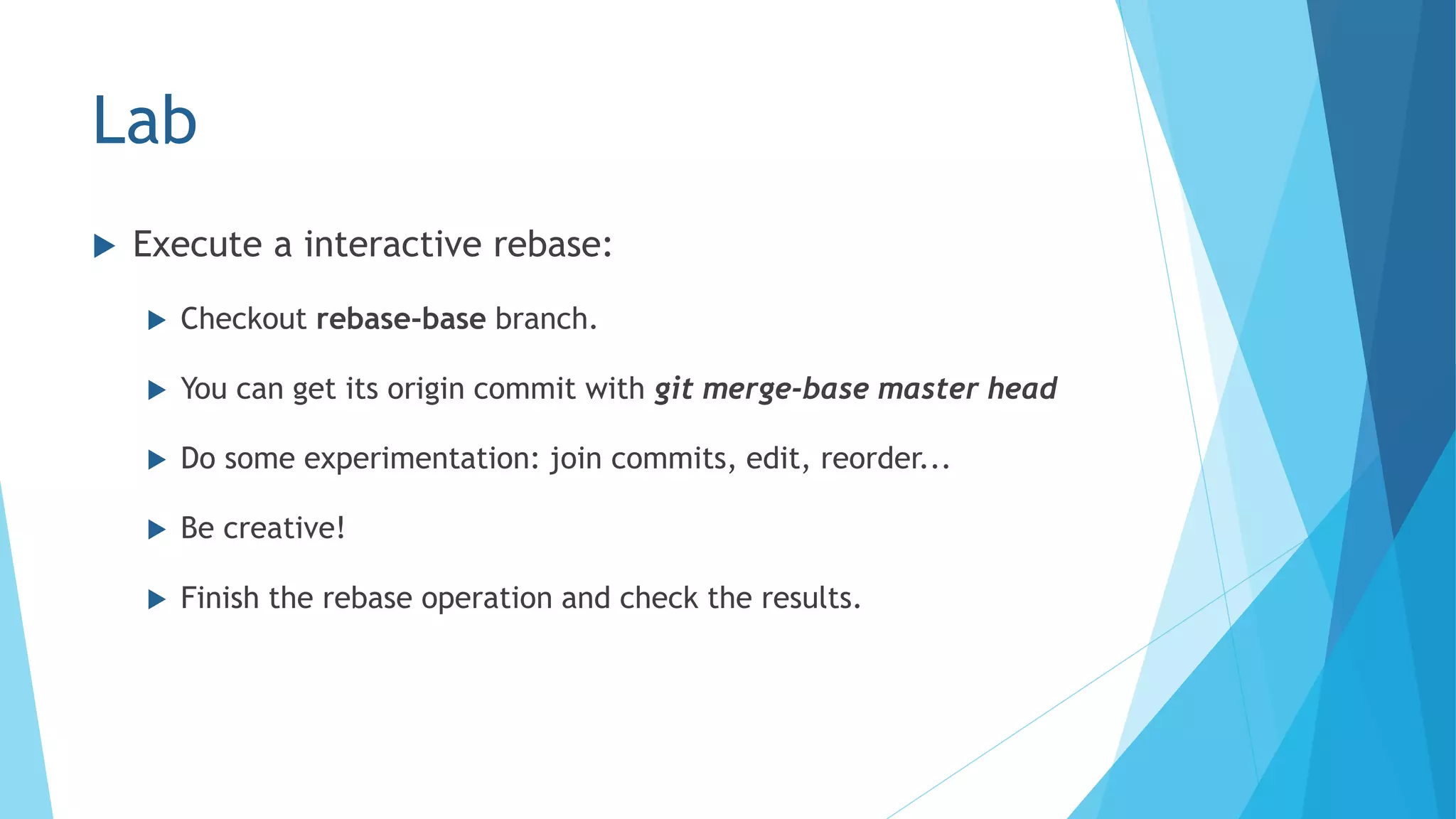

22. Lab
 Execute a interactive rebase:
 Checkout rebase-base branch.
 You can get its origin commit with git merge-base master head
 Do some experimentation: join commits, edit, reorder...
 Be creative!
 Finish the rebase operation and check the results.

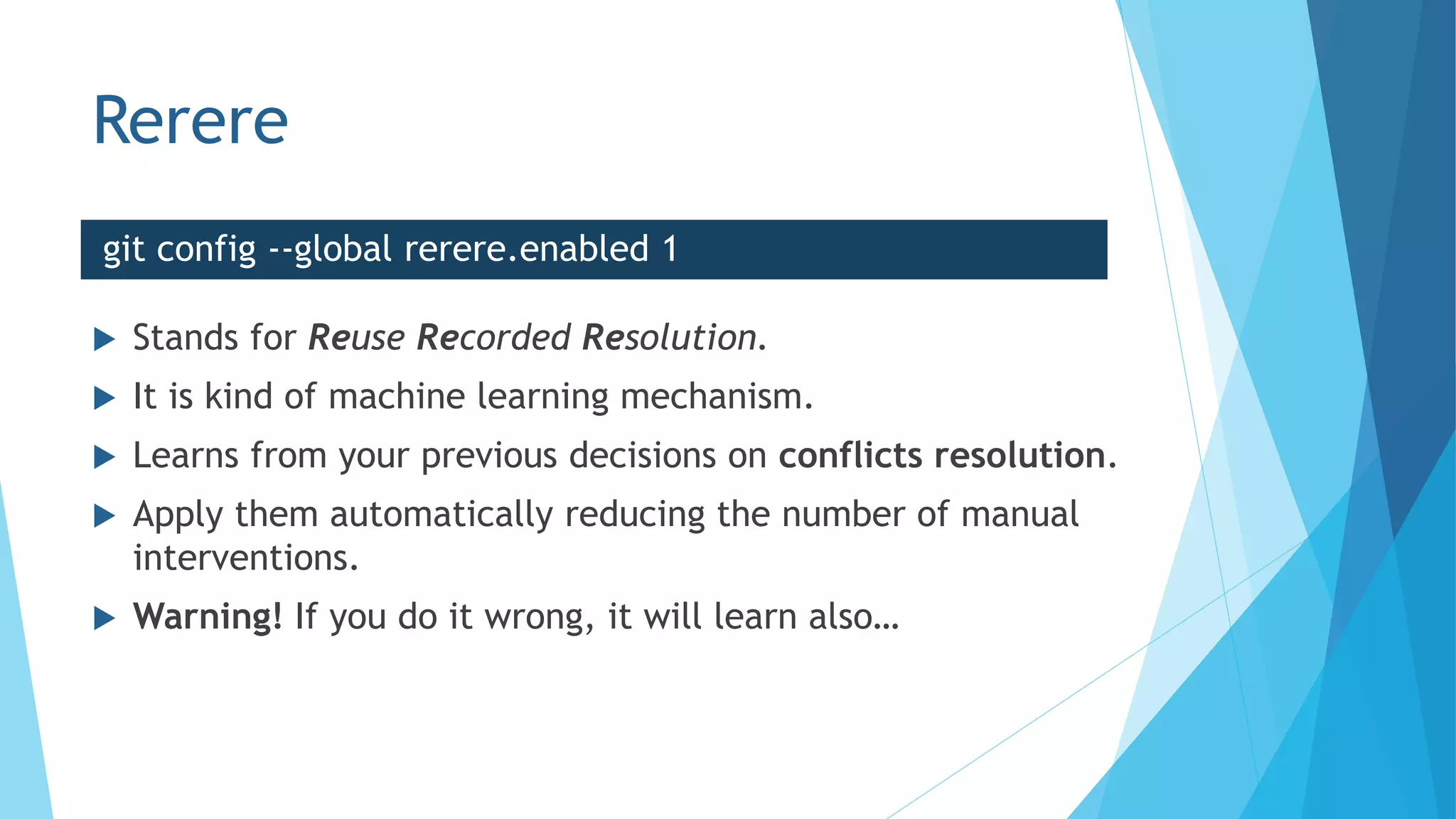

23. Rerere
 Stands for Reuse Recorded Resolution.
 It is kind of machine learning mechanism.
 Learns from your previous decisions on conflicts resolution.
 Apply them automatically reducing the number of manual
interventions.
 Warning! If you do it wrong, it will learn also…
git config --global rerere.enabled 1

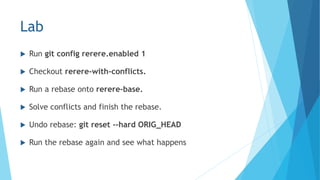

24. Lab
 Run git config rerere.enabled 1
 Checkout rerere-with-conflicts.
 Run a rebase onto rerere-base.
 Solve conflicts and finish the rebase.
 Undo rebase: git reset --hard ORIG_HEAD
 Run the rebase again and see what happens

25. Sometimes things can go wrong…

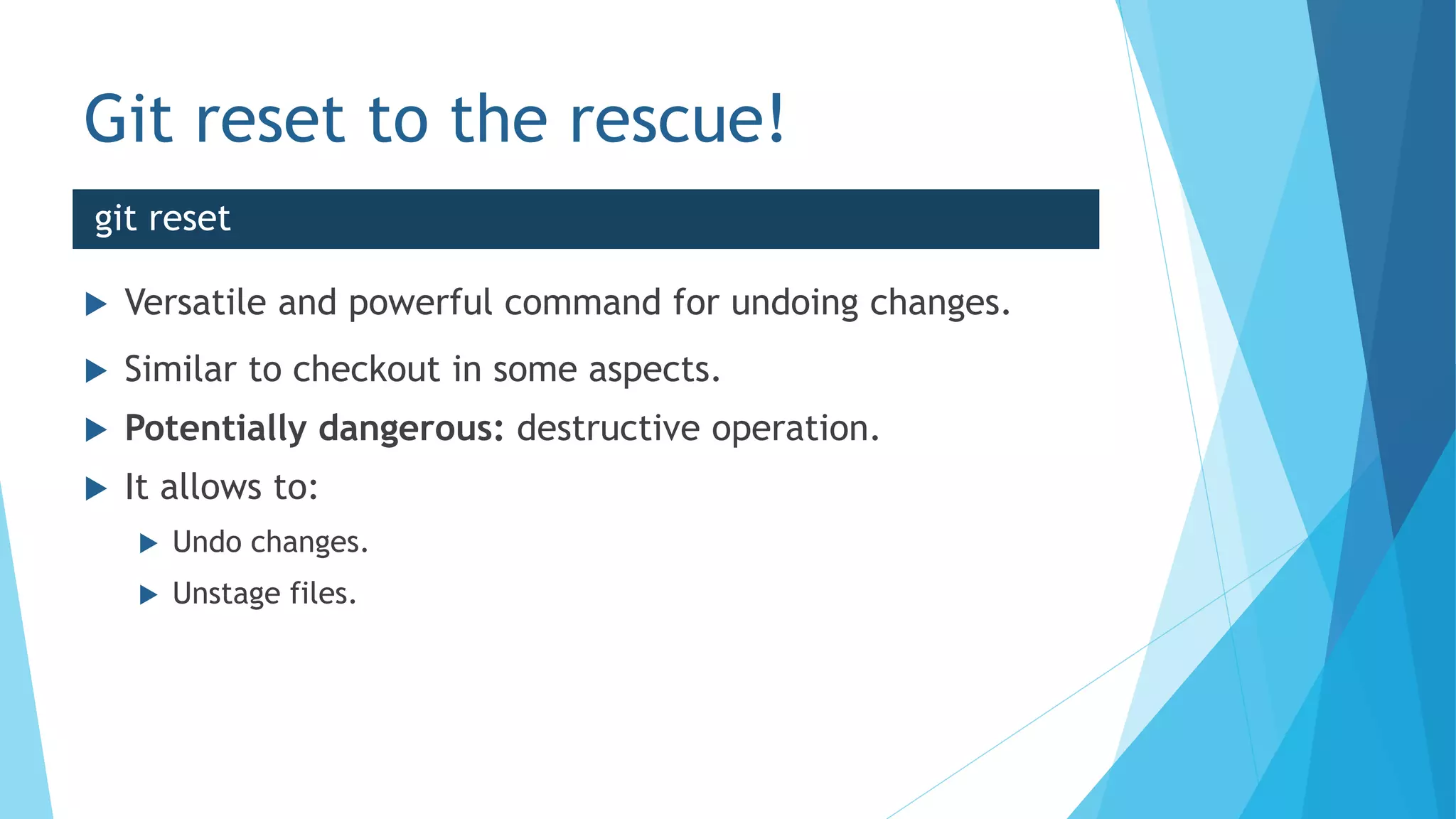

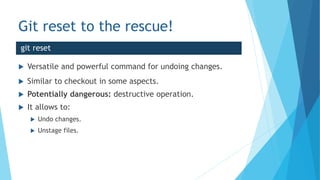

26. Git reset to the rescue!
 Versatile and powerful command for undoing changes.
 Similar to checkout in some aspects.
 Potentially dangerous: destructive operation.
 It allows to:
 Undo changes.
 Unstage files.
git reset

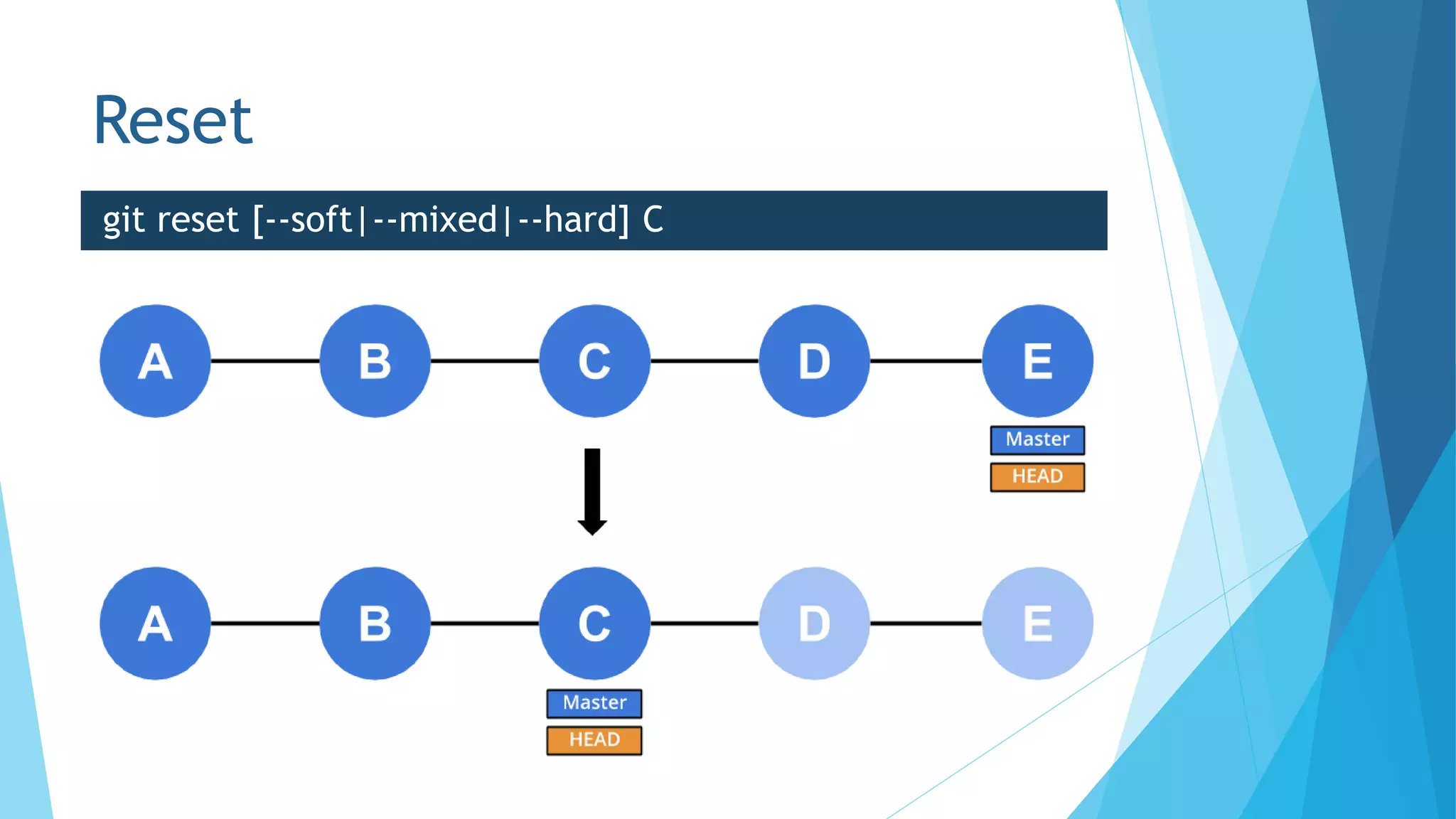

27. Reset
git reset [--soft|--mixed|--hard] C

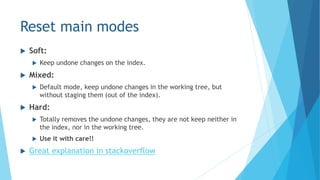

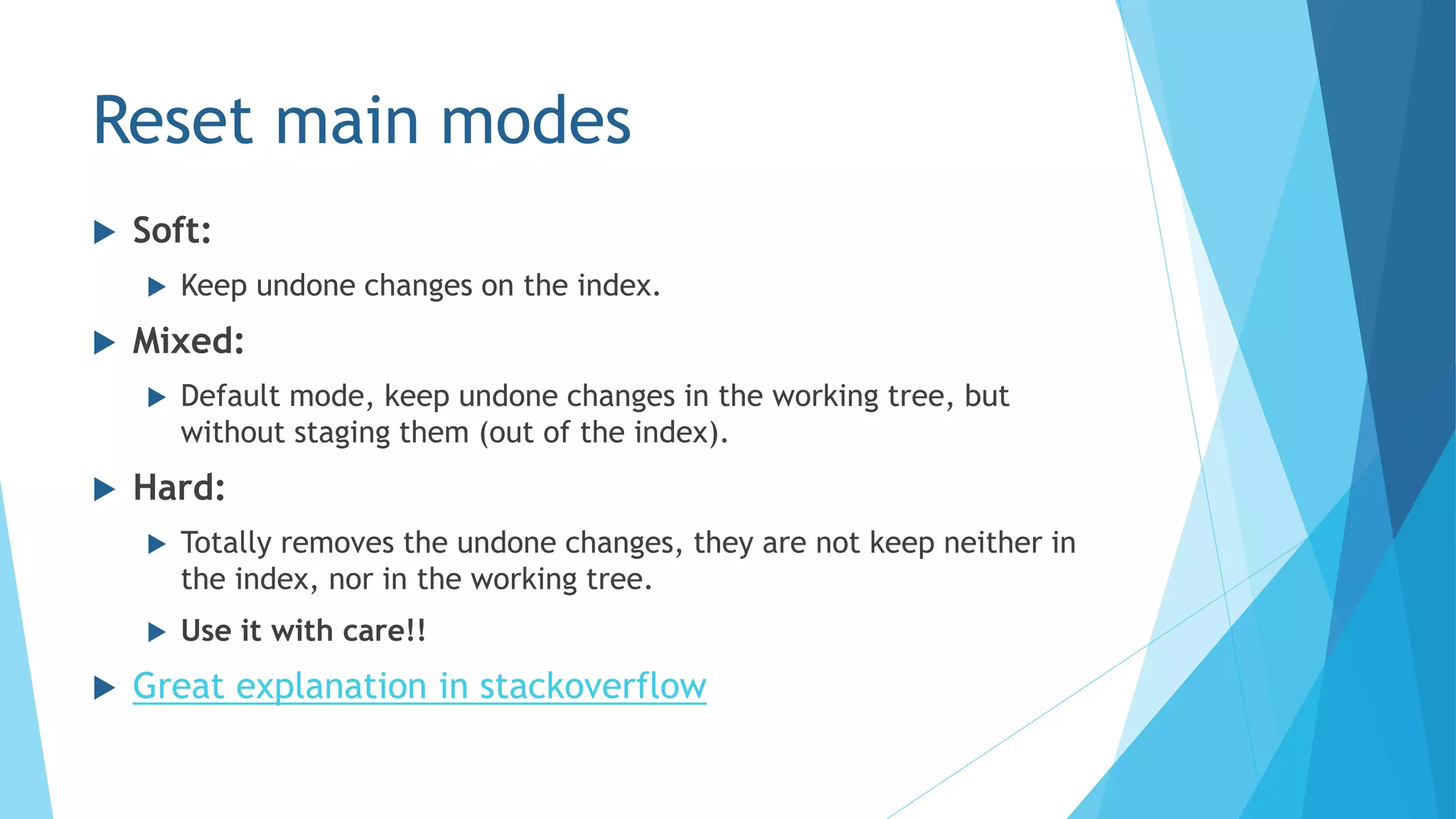

28. Reset main modes
 Soft:
 Keep undone changes on the index.
 Mixed:
 Default mode, keep undone changes in the working tree, but
without staging them (out of the index).
 Hard:
 Totally removes the undone changes, they are not keep neither in
the index, nor in the working tree.
 Use it with care!!
 Great explanation in stackoverflow

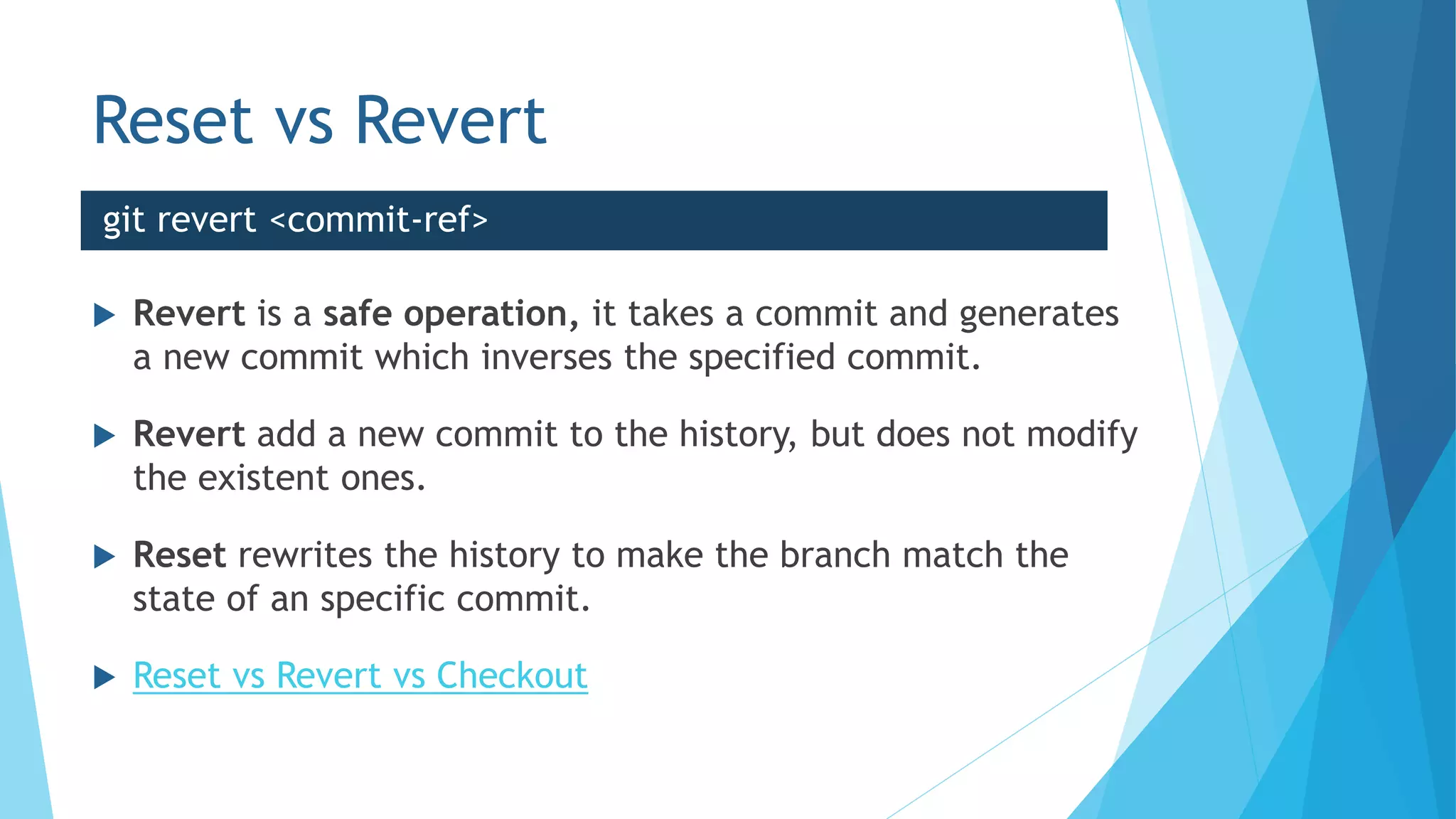

29. Reset vs Revert
 Revert is a safe operation, it takes a commit and generates
a new commit which inverses the specified commit.
 Revert add a new commit to the history, but does not modify
the existent ones.
 Reset rewrites the history to make the branch match the
state of an specific commit.
 Reset vs Revert vs Checkout
git revert <commit-ref>

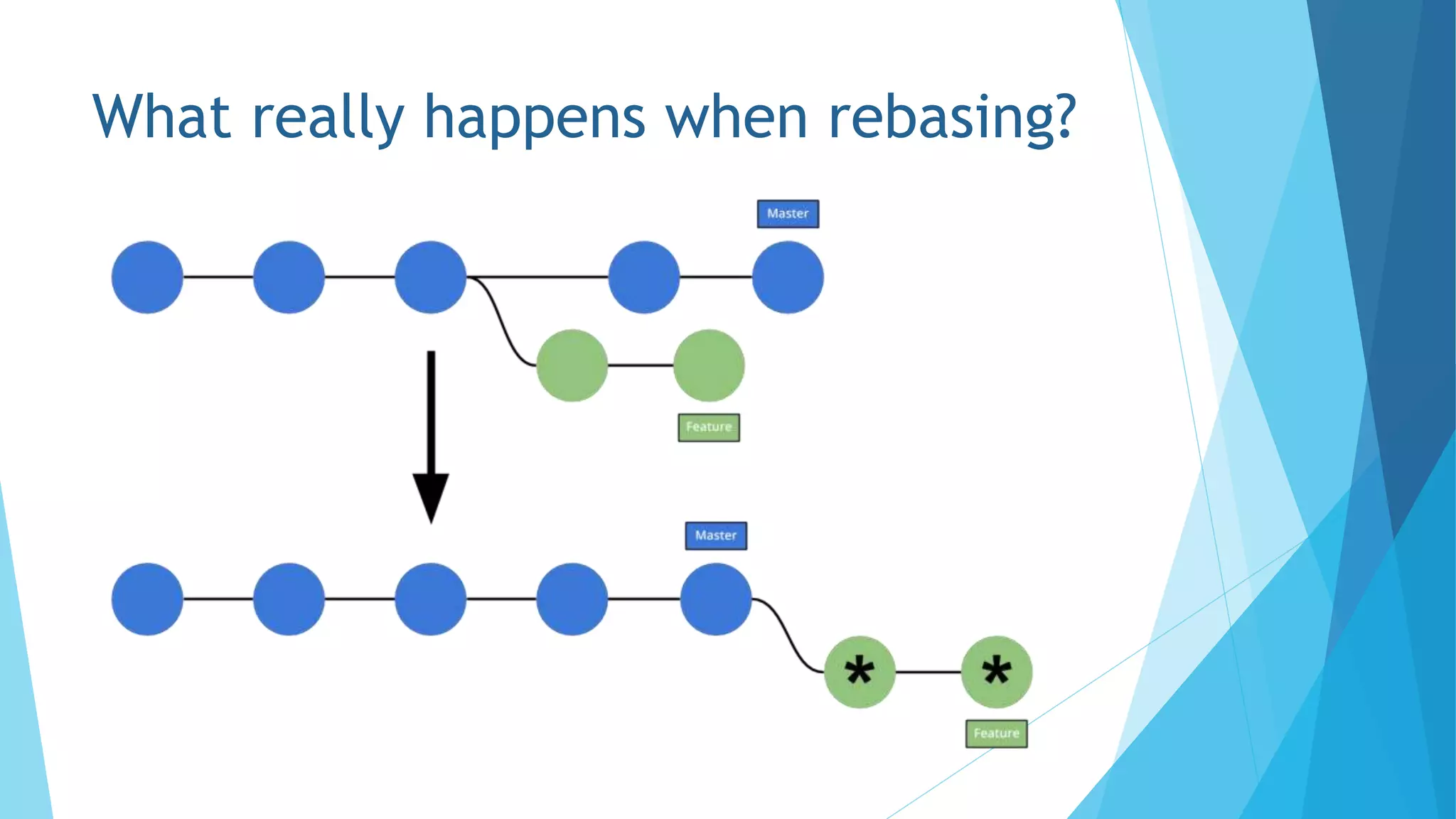

30. What really happens when rebasing?

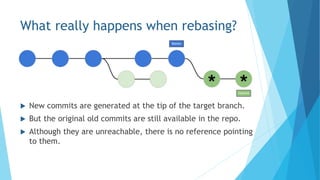

31. What really happens when rebasing?
 New commits are generated at the tip of the target branch.
 But the original old commits are still available in the repo.
 Although they are unreachable, there is no reference pointing
to them.

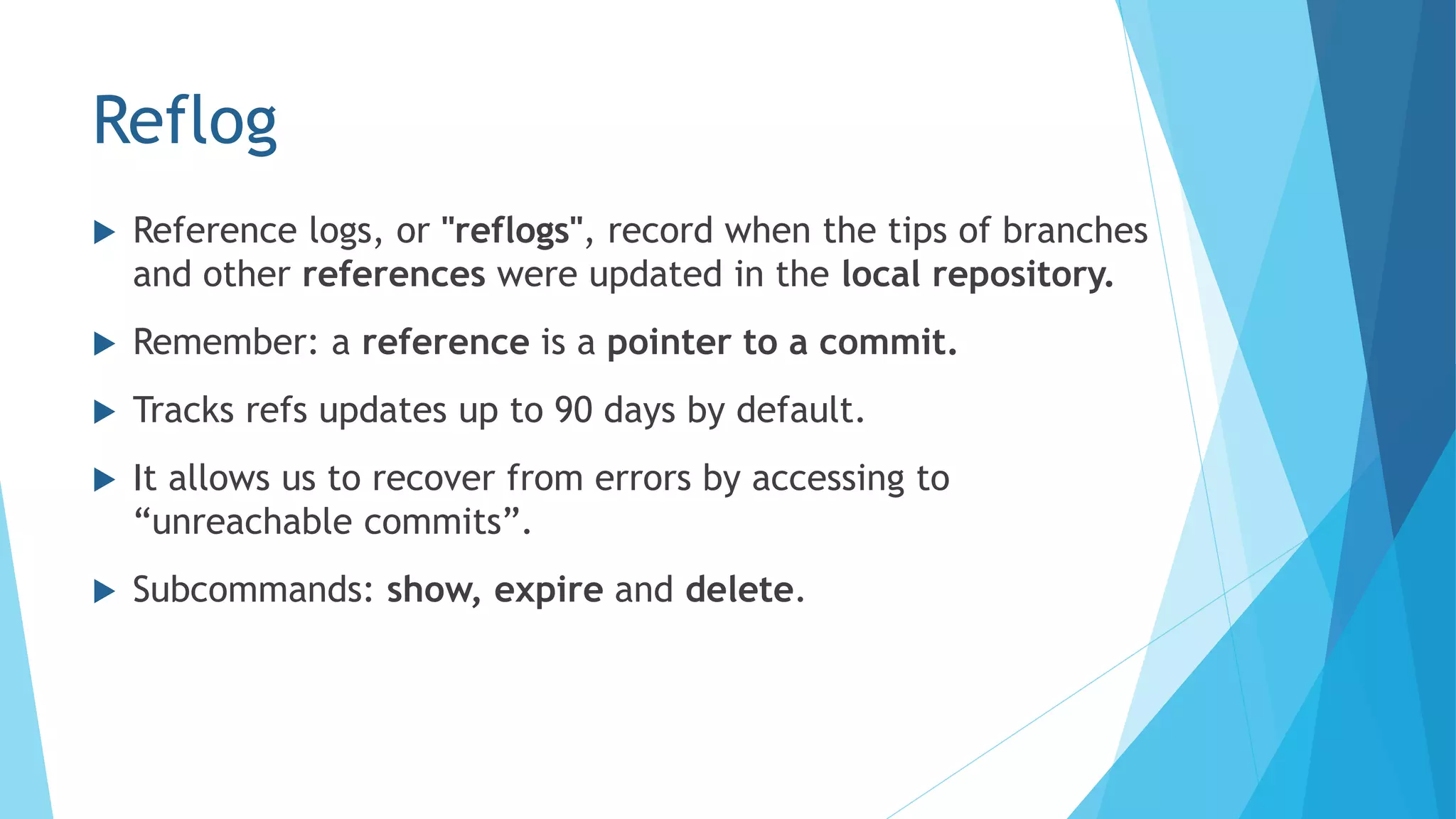

32. Reflog
 Reference logs, or "reflogs", record when the tips of branches
and other references were updated in the local repository.
 Remember: a reference is a pointer to a commit.
 Tracks refs updates up to 90 days by default.
 It allows us to recover from errors by accessing to
“unreachable commits”.
 Subcommands: show, expire and delete.

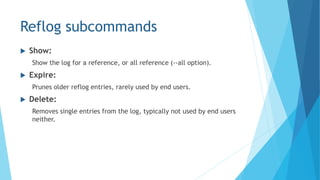

33. Reflog subcommands
 Show:
Show the log for a reference, or all reference (--all option).
 Expire:
Prunes older reflog entries, rarely used by end users.
 Delete:
Removes single entries from the log, typically not used by end users
neither.

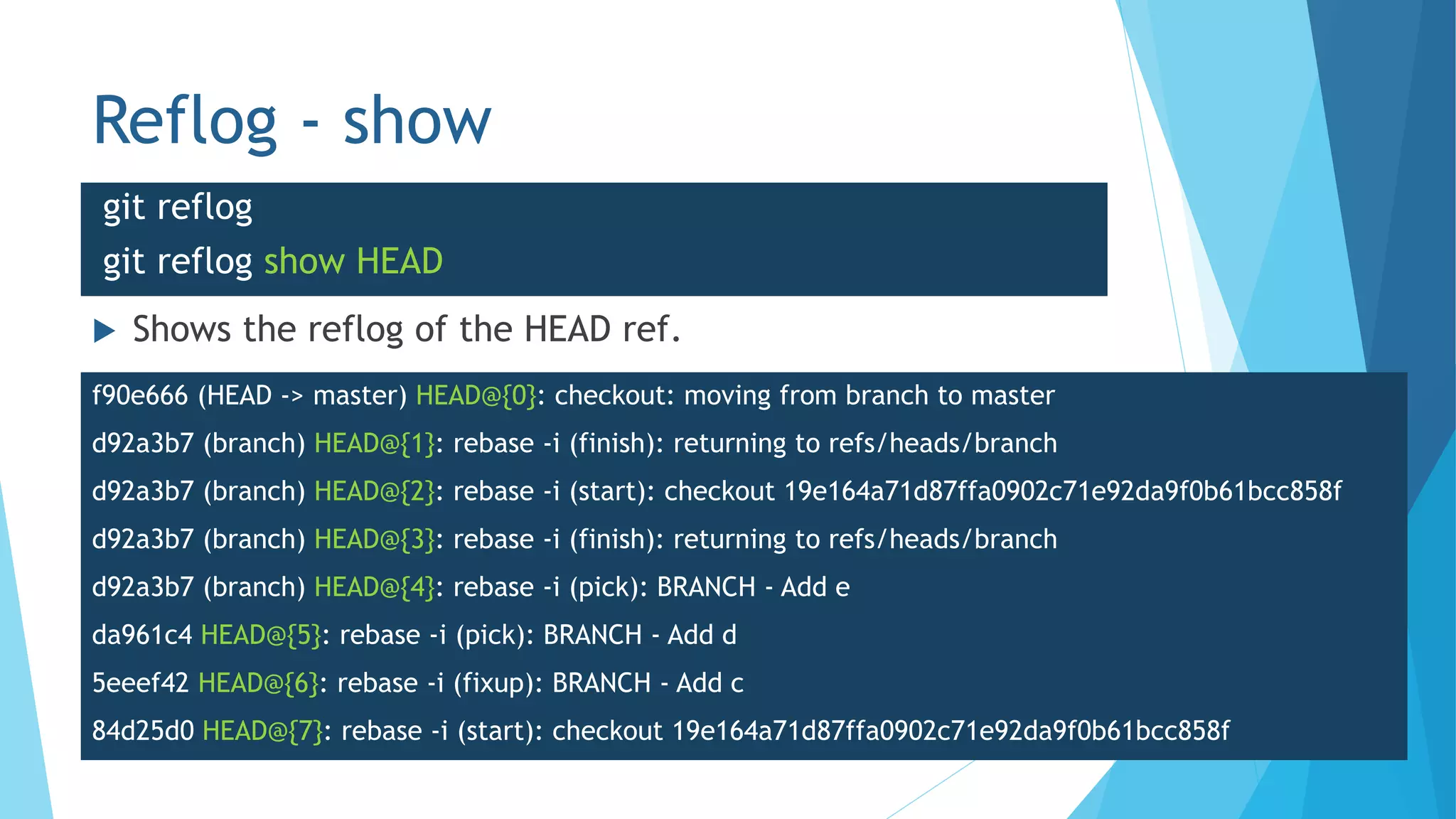

34. Reflog - show
 Shows the reflog of the HEAD ref.
git reflog
git reflog show HEAD
f90e666 (HEAD -> master) HEAD@{0}: checkout: moving from branch to master
d92a3b7 (branch) HEAD@{1}: rebase -i (finish): returning to refs/heads/branch
d92a3b7 (branch) HEAD@{2}: rebase -i (start): checkout 19e164a71d87ffa0902c71e92da9f0b61bcc858f
d92a3b7 (branch) HEAD@{3}: rebase -i (finish): returning to refs/heads/branch
d92a3b7 (branch) HEAD@{4}: rebase -i (pick): BRANCH - Add e
da961c4 HEAD@{5}: rebase -i (pick): BRANCH - Add d
5eeef42 HEAD@{6}: rebase -i (fixup): BRANCH - Add c
84d25d0 HEAD@{7}: rebase -i (start): checkout 19e164a71d87ffa0902c71e92da9f0b61bcc858f

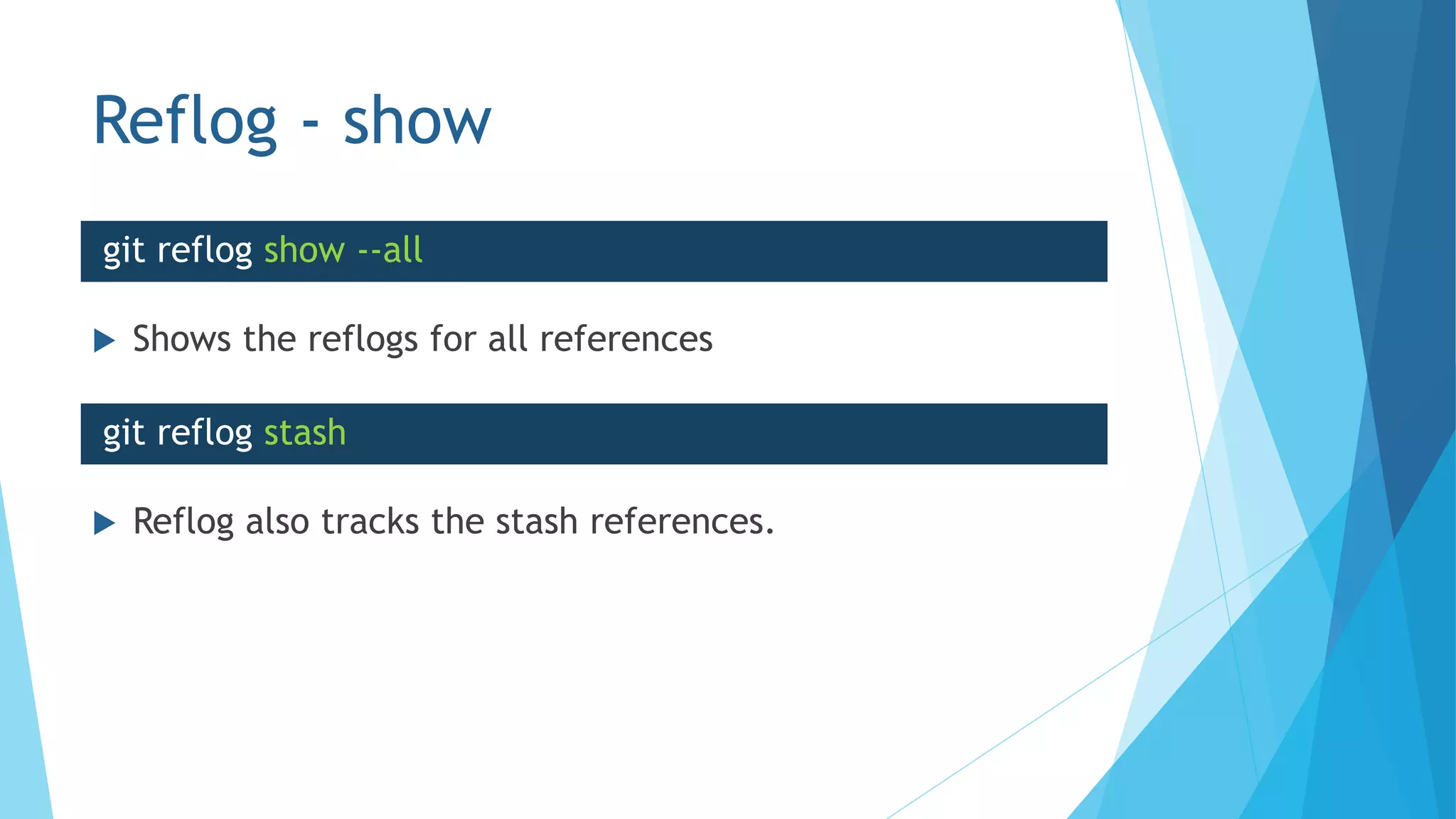

35. Reflog - show
 Shows the reflogs for all references
git reflog show --all
git reflog stash
 Reflog also tracks the stash references.

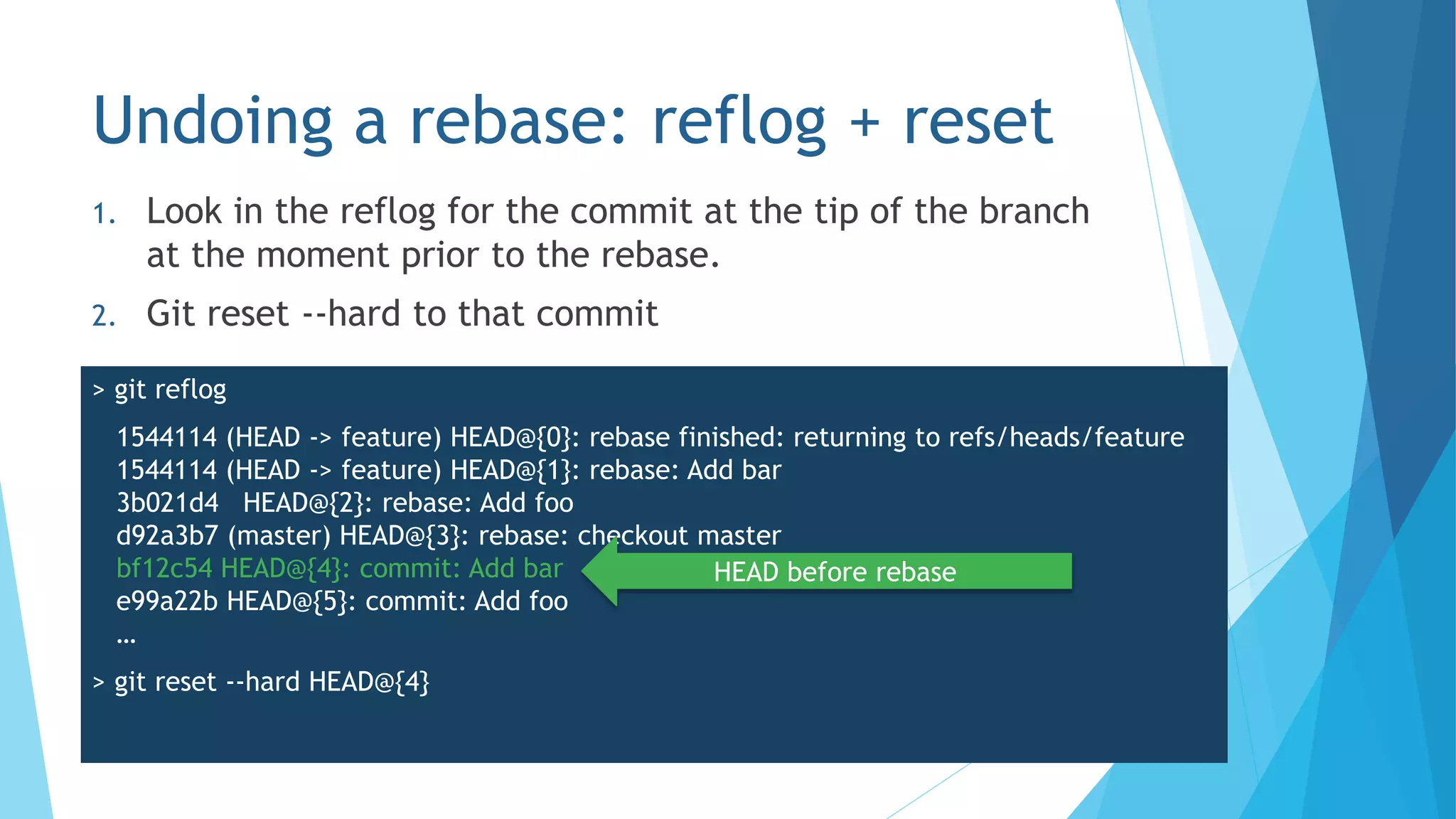

36. Undoing a rebase: reflog + reset
1. Look in the reflog for the commit at the tip of the branch
at the moment prior to the rebase.
2. Git reset --hard to that commit
> git reflog
1544114 (HEAD -> feature) HEAD@{0}: rebase finished: returning to refs/heads/feature
1544114 (HEAD -> feature) HEAD@{1}: rebase: Add bar
3b021d4 HEAD@{2}: rebase: Add foo
d92a3b7 (master) HEAD@{3}: rebase: checkout master
bf12c54 HEAD@{4}: commit: Add bar
e99a22b HEAD@{5}: commit: Add foo
…
> git reset --hard HEAD@{4}
HEAD before rebase

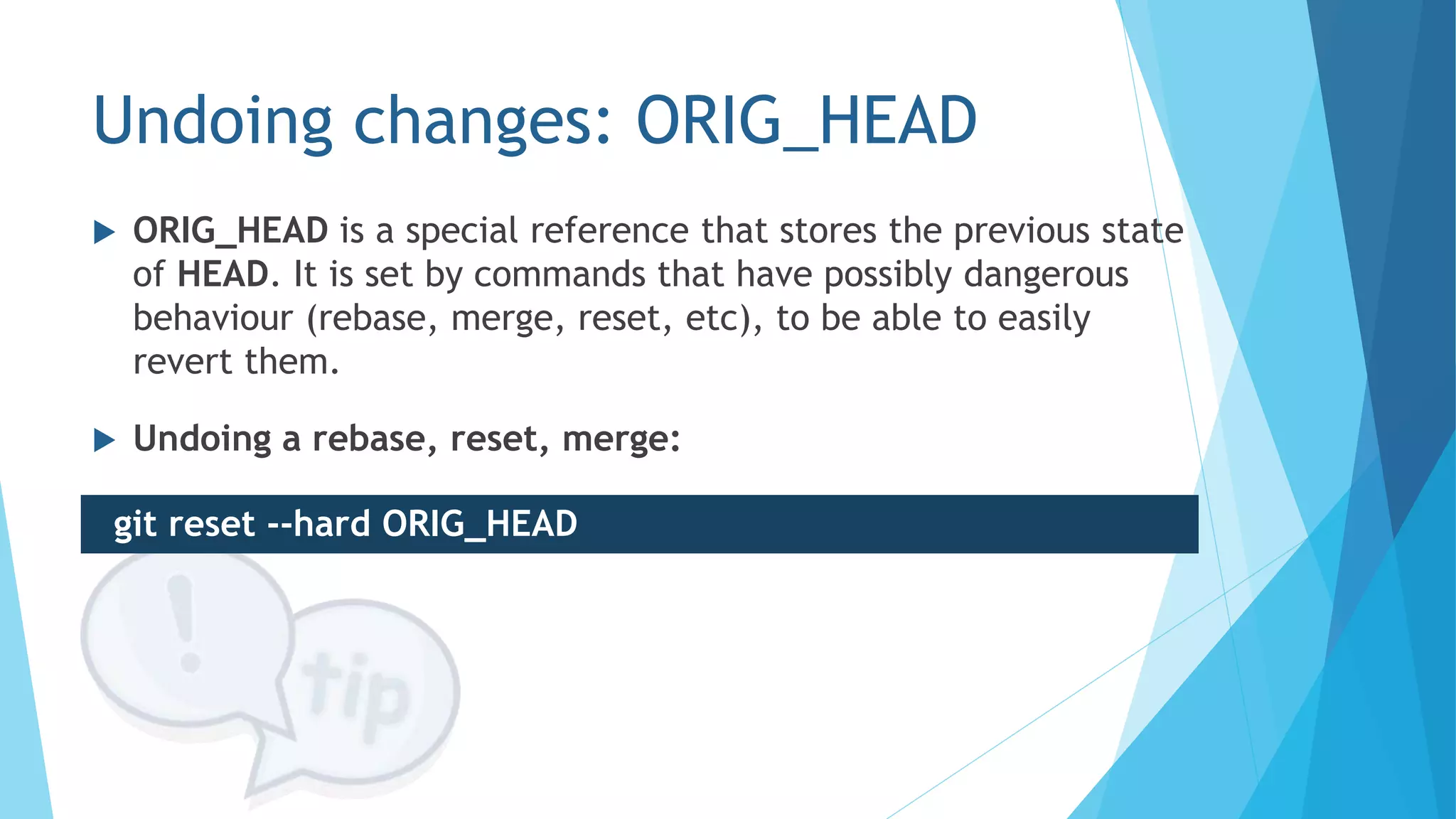

38. Undoing changes: ORIG_HEAD
 ORIG_HEAD is a special reference that stores the previous state
of HEAD. It is set by commands that have possibly dangerous
behaviour (rebase, merge, reset, etc), to be able to easily
revert them.
 Undoing a rebase, reset, merge:
git reset --hard ORIG_HEAD

39. Looking for errors

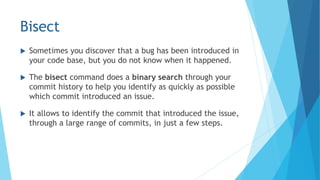

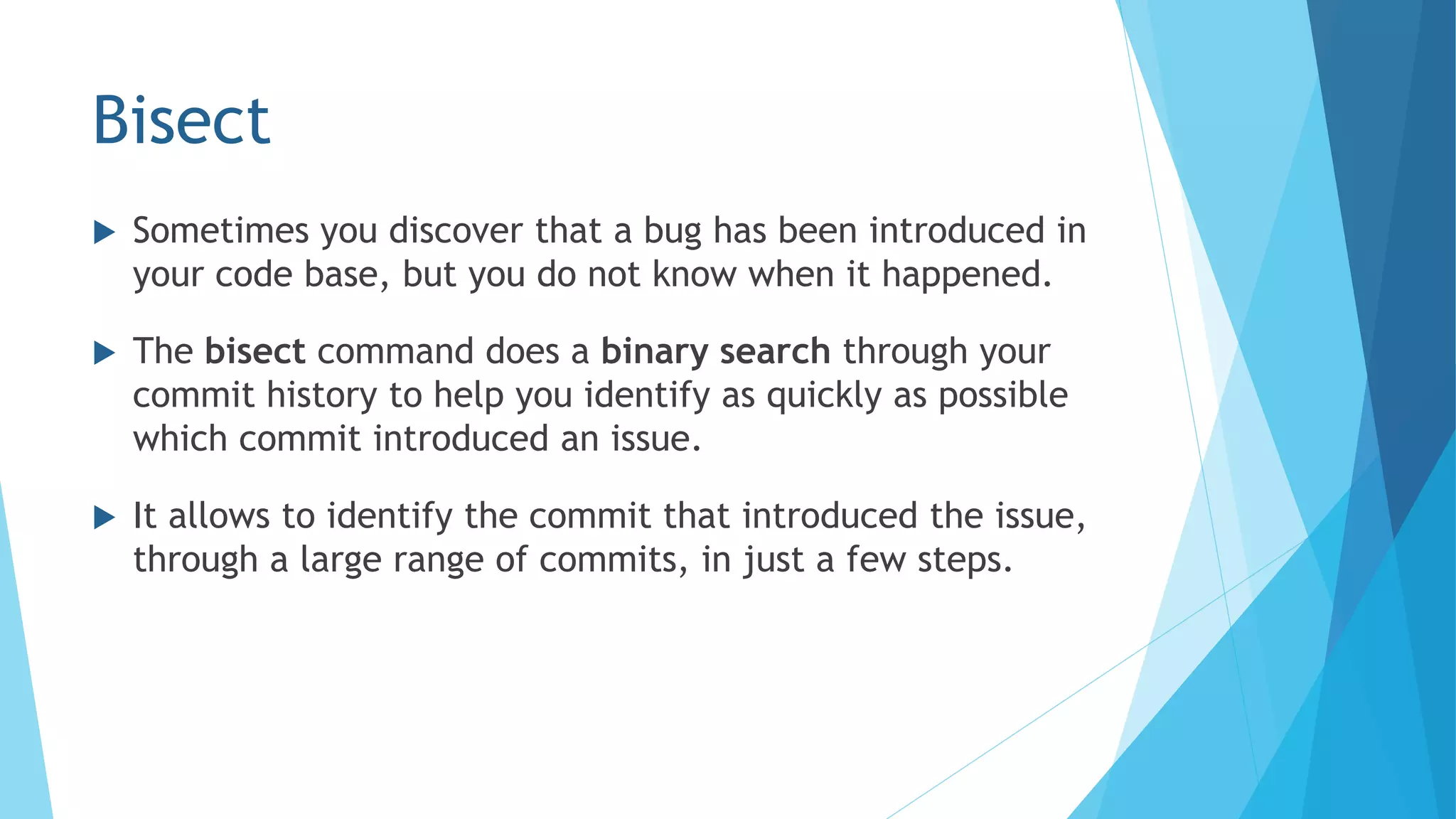

40. Bisect
 Sometimes you discover that a bug has been introduced in
your code base, but you do not know when it happened.
 The bisect command does a binary search through your
commit history to help you identify as quickly as possible
which commit introduced an issue.
 It allows to identify the commit that introduced the issue,
through a large range of commits, in just a few steps.

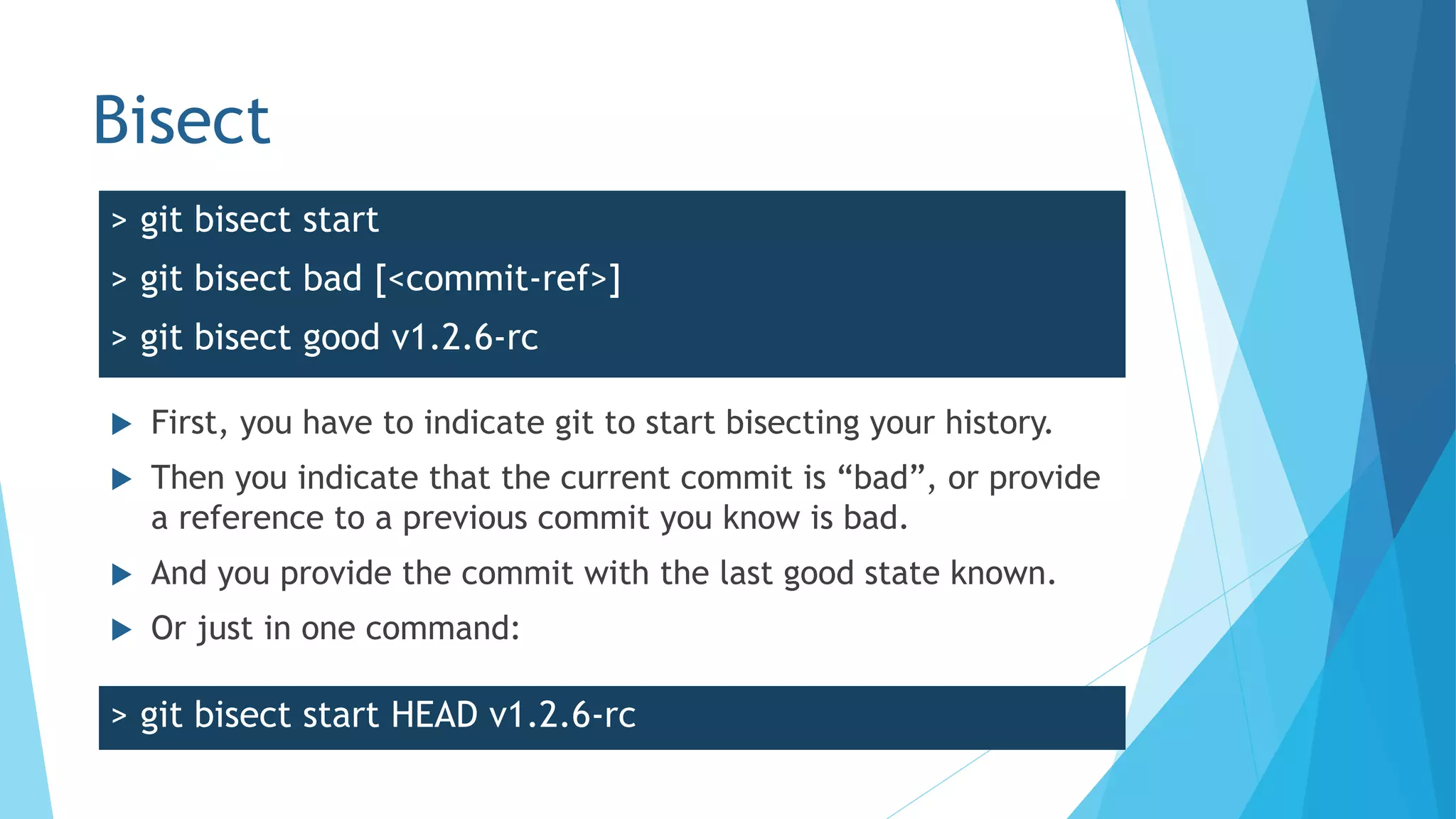

41. Bisect
 First, you have to indicate git to start bisecting your history.
 Then you indicate that the current commit is “bad”, or provide
a reference to a previous commit you know is bad.
 And you provide the commit with the last good state known.
 Or just in one command:
> git bisect start
> git bisect bad [<commit-ref>]
> git bisect good v1.2.6-rc
> git bisect start HEAD v1.2.6-rc

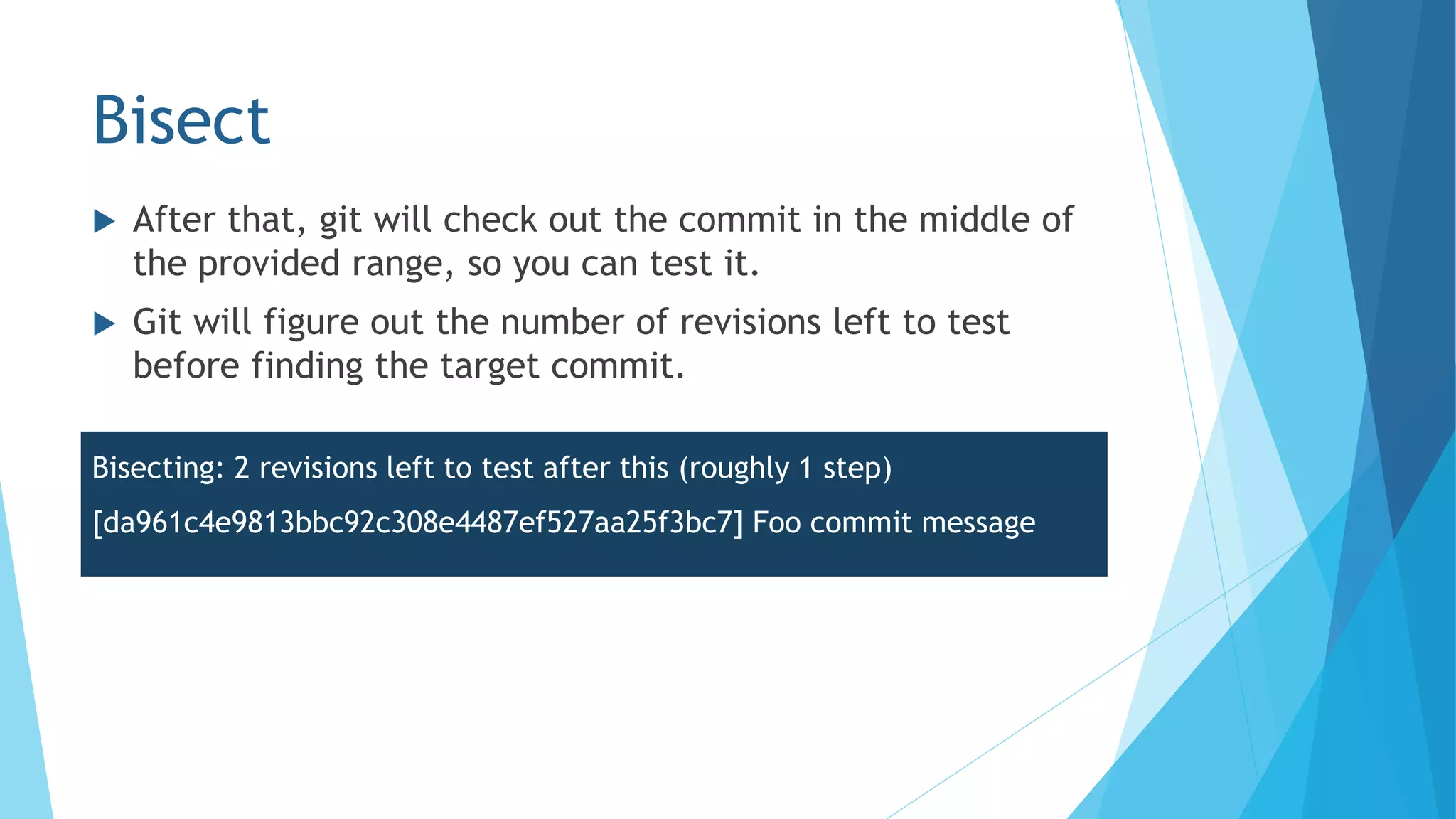

42. Bisect
 After that, git will check out the commit in the middle of
the provided range, so you can test it.
 Git will figure out the number of revisions left to test
before finding the target commit.
Bisecting: 2 revisions left to test after this (roughly 1 step)
[da961c4e9813bbc92c308e4487ef527aa25f3bc7] Foo commit message

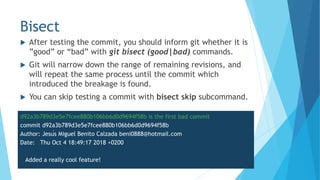

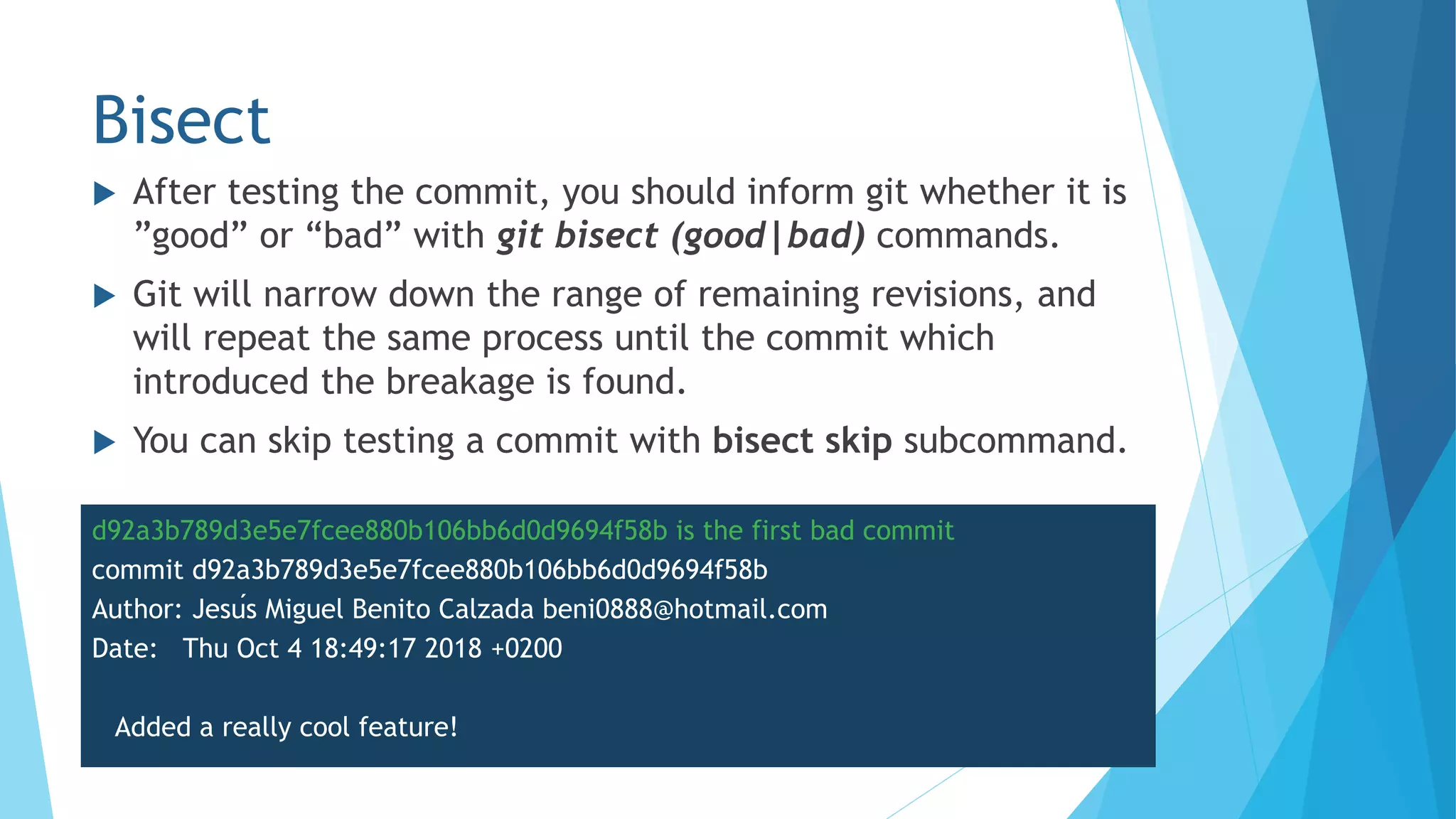

43. Bisect
 After testing the commit, you should inform git whether it is
”good” or “bad” with git bisect (good|bad) commands.
 Git will narrow down the range of remaining revisions, and
will repeat the same process until the commit which
introduced the breakage is found.
 You can skip testing a commit with bisect skip subcommand.
d92a3b789d3e5e7fcee880b106bb6d0d9694f58b is the first bad commit
commit d92a3b789d3e5e7fcee880b106bb6d0d9694f58b
Author: Jesús Miguel Benito Calzada beni0888@hotmail.com
Date: Thu Oct 4 18:49:17 2018 +0200
Added a really cool feature!

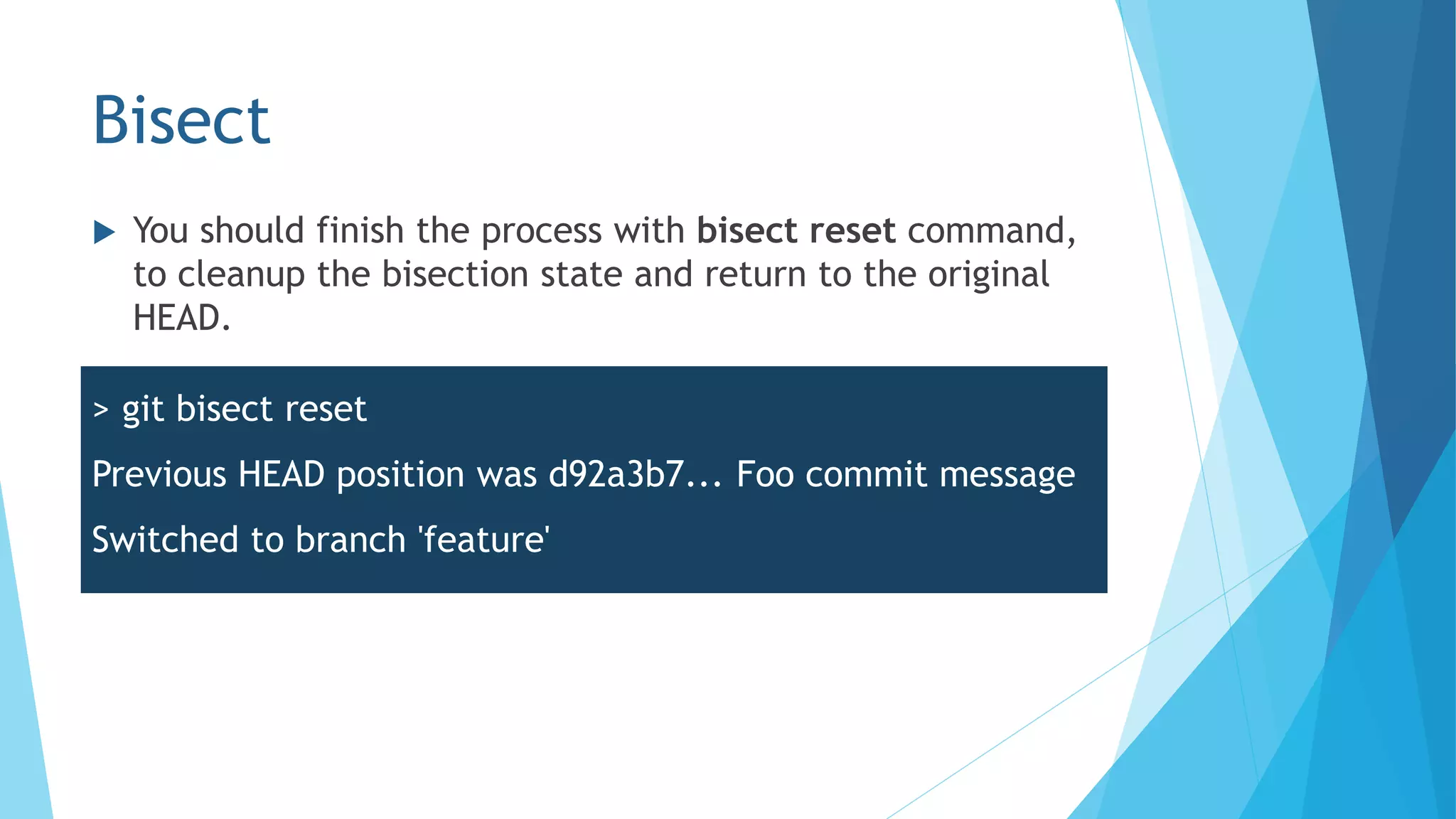

44. Bisect
 You should finish the process with bisect reset command,
to cleanup the bisection state and return to the original
HEAD.
> git bisect reset
Previous HEAD position was d92a3b7... Foo commit message
Switched to branch 'feature'

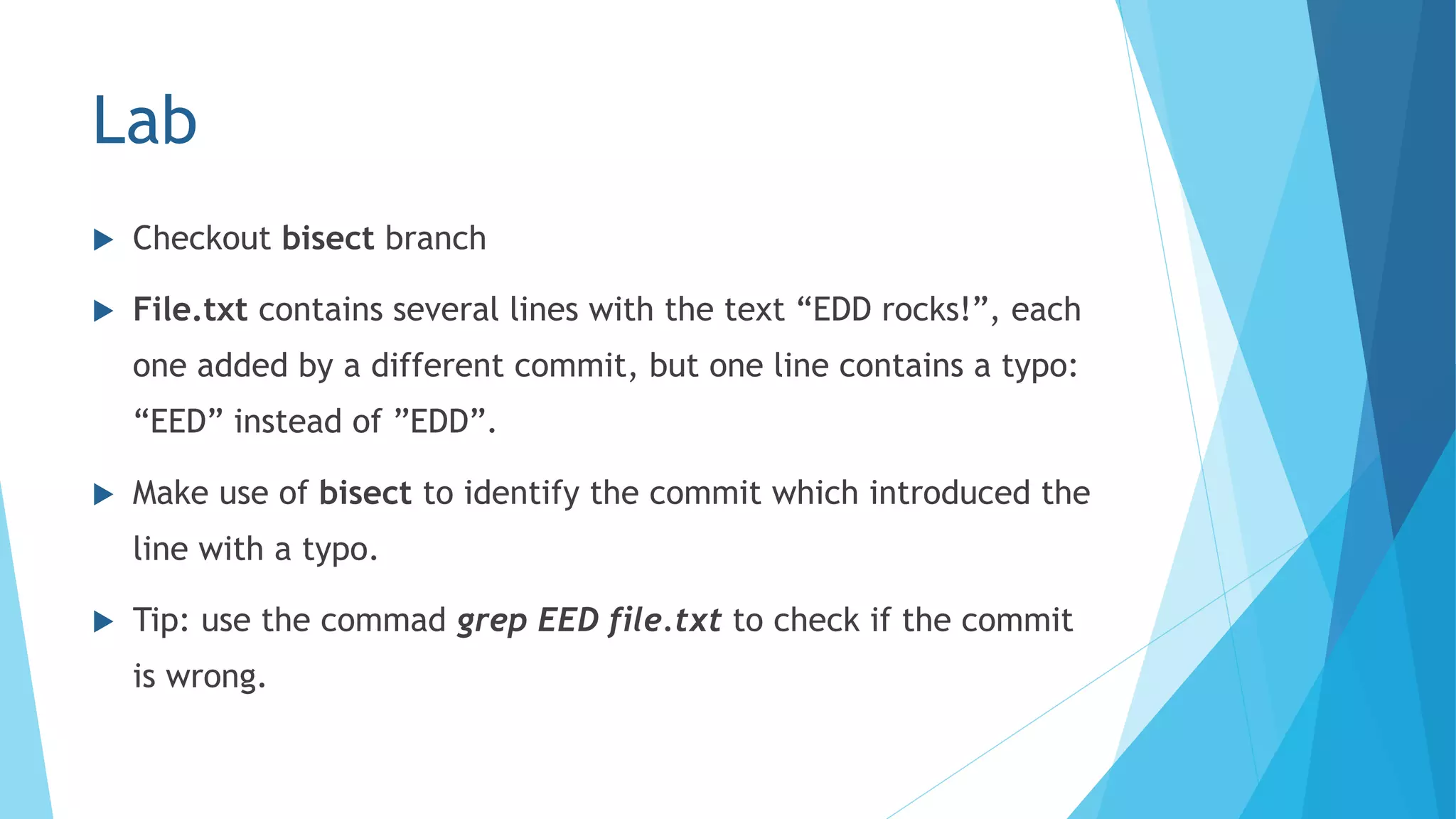

45. Lab
 Checkout bisect branch
 File.txt contains several lines with the text “EDD rocks!”, each
one added by a different commit, but one line contains a typo:
“EED” instead of ”EDD”.
 Make use of bisect to identify the commit which introduced the
line with a typo.
 Tip: use the commad grep EED file.txt to check if the commit
is wrong.

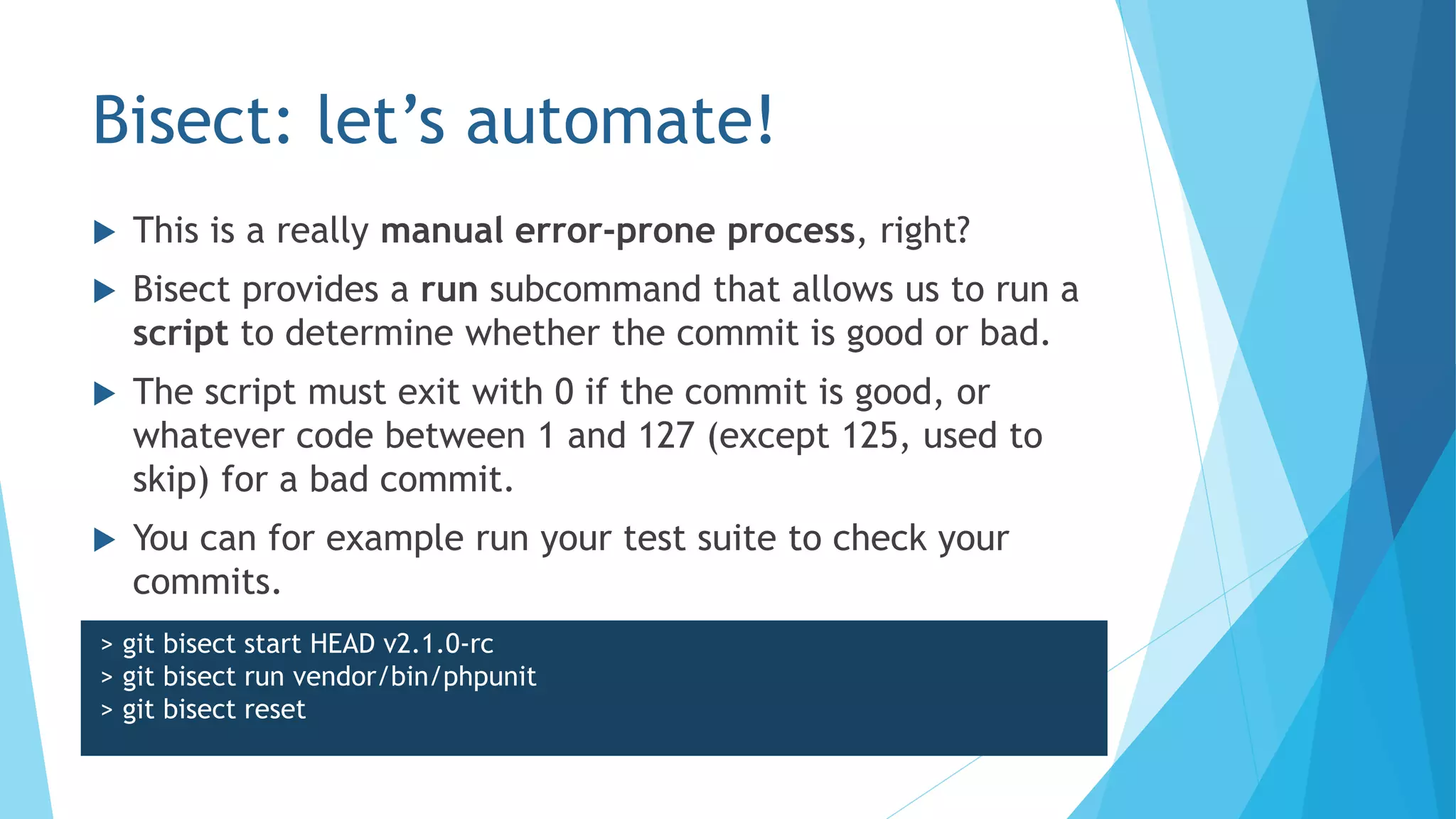

46. Bisect: let’s automate!
 This is a really manual error-prone process, right?
 Bisect provides a run subcommand that allows us to run a
script to determine whether the commit is good or bad.
 The script must exit with 0 if the commit is good, or
whatever code between 1 and 127 (except 125, used to
skip) for a bad commit.
 You can for example run your test suite to check your
commits.
> git bisect start HEAD v2.1.0-rc
> git bisect run vendor/bin/phpunit
> git bisect reset

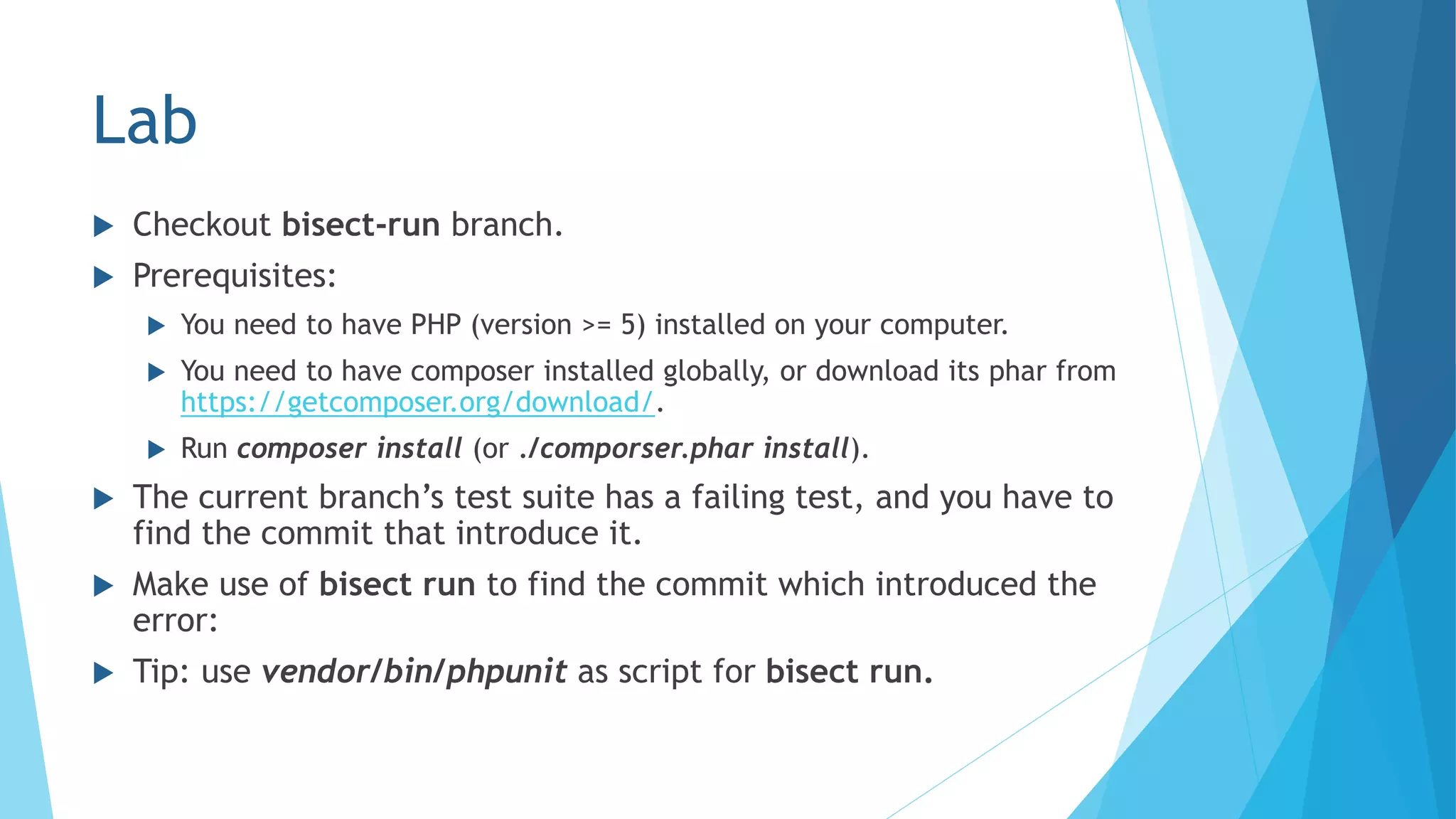

47. Lab
 Checkout bisect-run branch.
 Prerequisites:
 You need to have PHP (version >= 5) installed on your computer.
 You need to have composer installed globally, or download its phar from
https://getcomposer.org/download/.
 Run composer install (or ./comporser.phar install).
 The current branch’s test suite has a failing test, and you have to
find the commit that introduce it.
 Make use of bisect run to find the commit which introduced the
error:
 Tip: use vendor/bin/phpunit as script for bisect run.

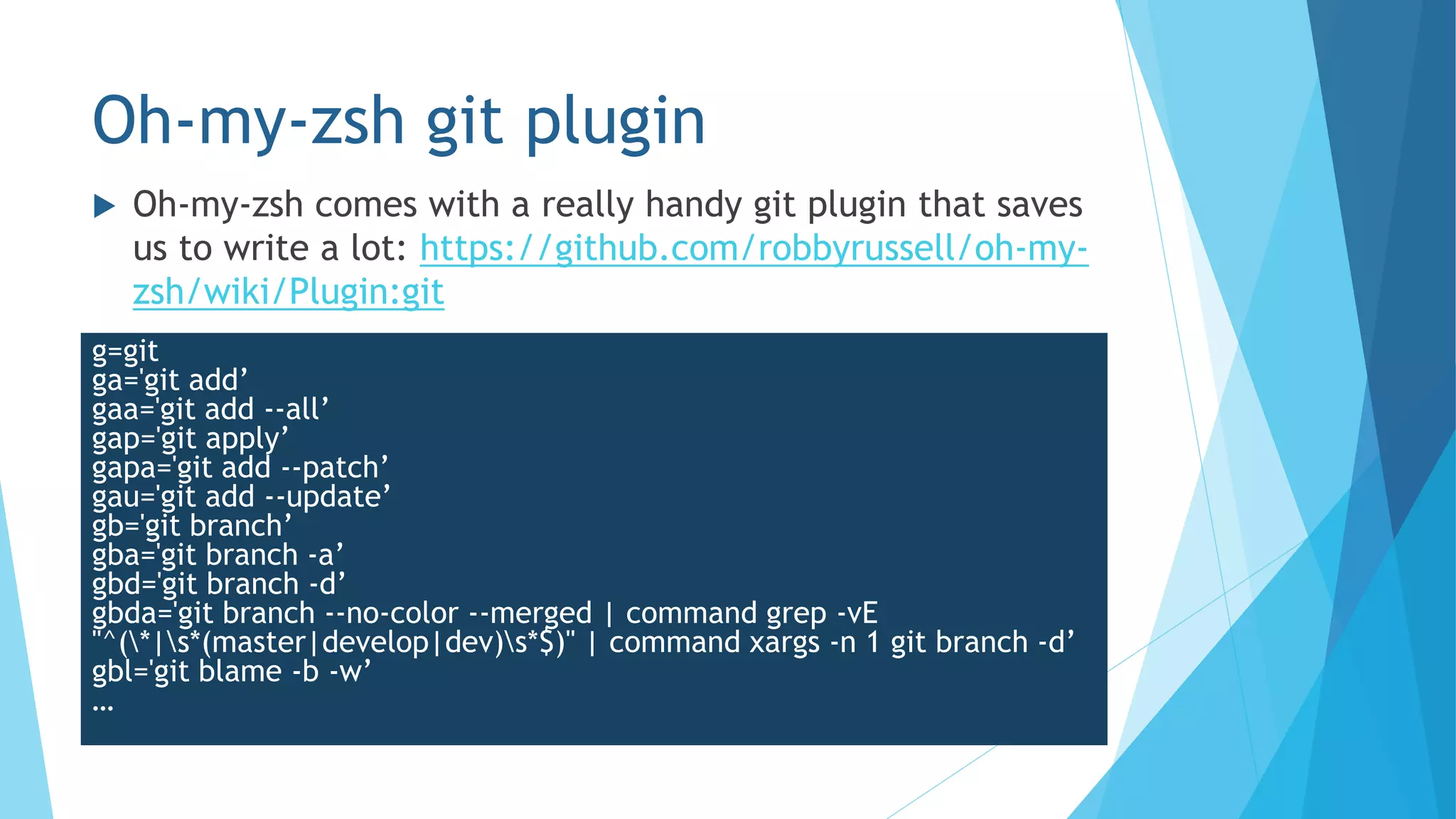

49. Oh-my-zsh git plugin
 Oh-my-zsh comes with a really handy git plugin that saves
us to write a lot: https://github.com/robbyrussell/oh-my-
zsh/wiki/Plugin:git
g=git
ga='git add’
gaa='git add --all’
gap='git apply’
gapa='git add --patch’
gau='git add --update’
gb='git branch’
gba='git branch -a’
gbd='git branch -d’
gbda='git branch --no-color --merged | command grep -vE
"^(*|s*(master|develop|dev)s*$)" | command xargs -n 1 git branch -d’
gbl='git blame -b -w’
…

51. https://goo.gl/forms/mVfvSBHRTmOMSeDG2

52. Thank you!
