Git and branching models
by Pavlo Hodysh

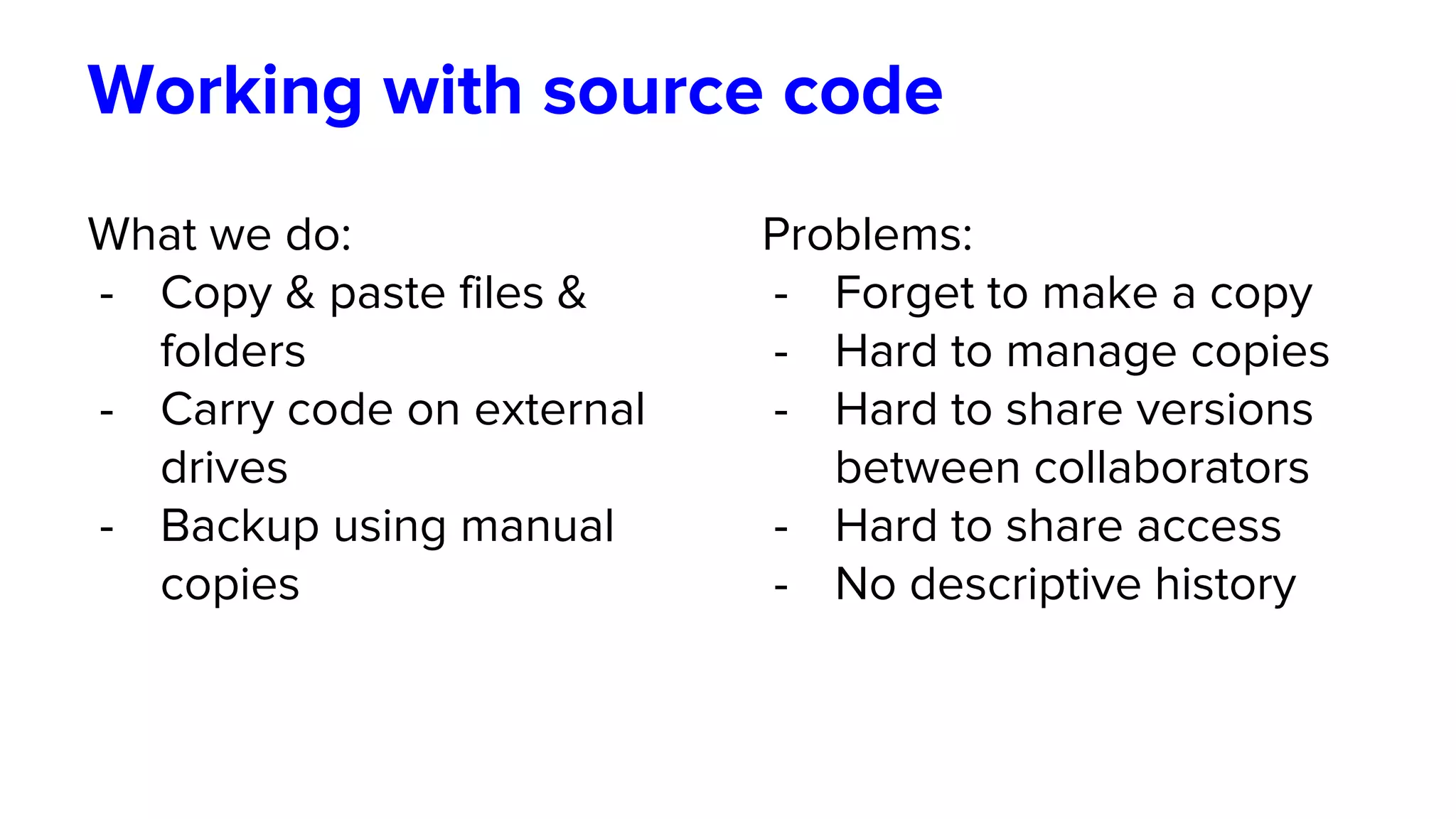

2. Working with source code
What we do:
- Copy & paste files &
folders
- Carry code on external
drives
- Backup using manual
copies
Problems:
- Forget to make a copy
- Hard to manage copies
- Hard to share versions
between collaborators
- Hard to share access
- No descriptive history

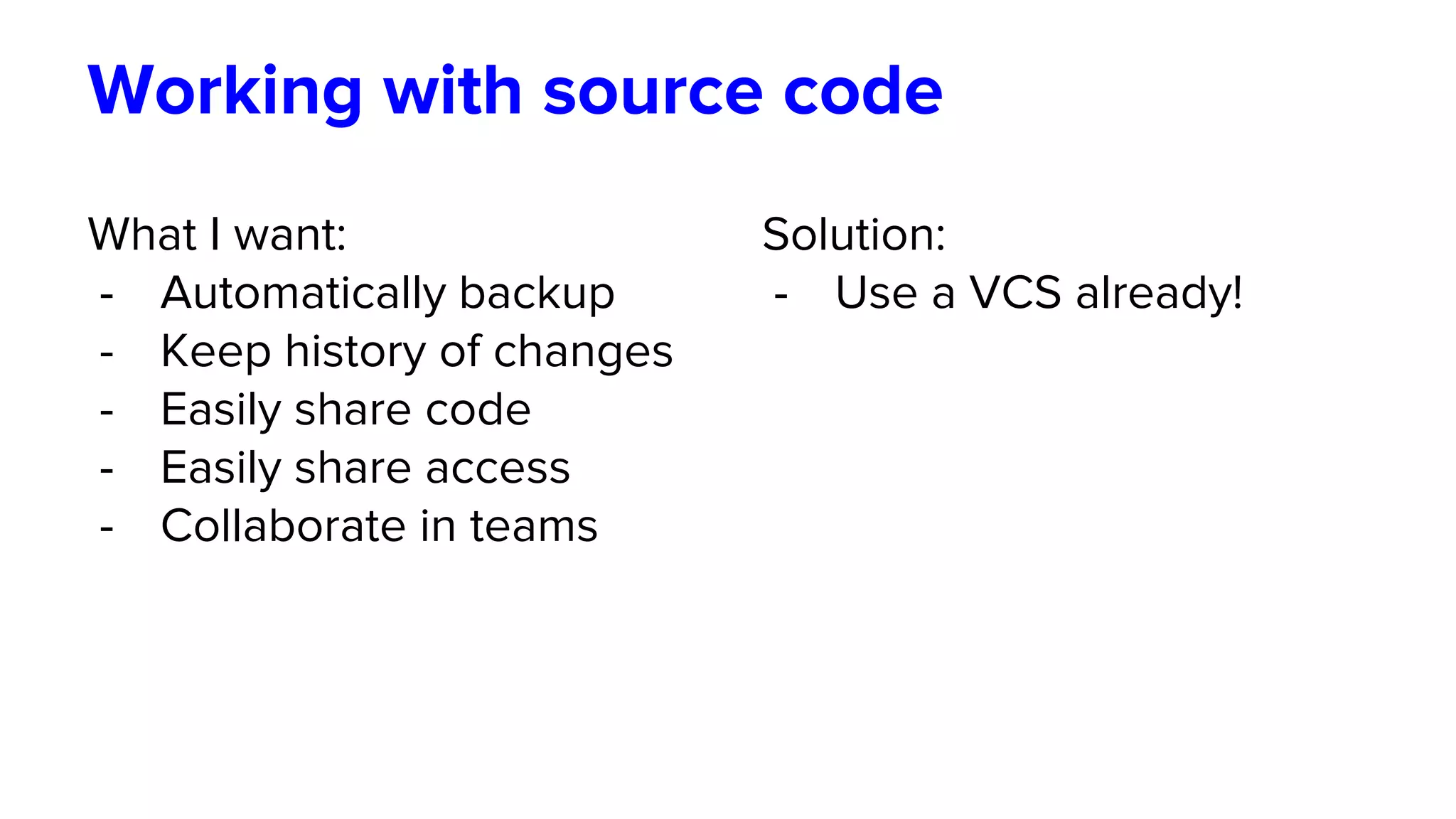

3. Working with source code
What I want:
- Automatically backup
- Keep history of changes
- Easily share code
- Easily share access
- Collaborate in teams
Solution:
- Use a VCS already!

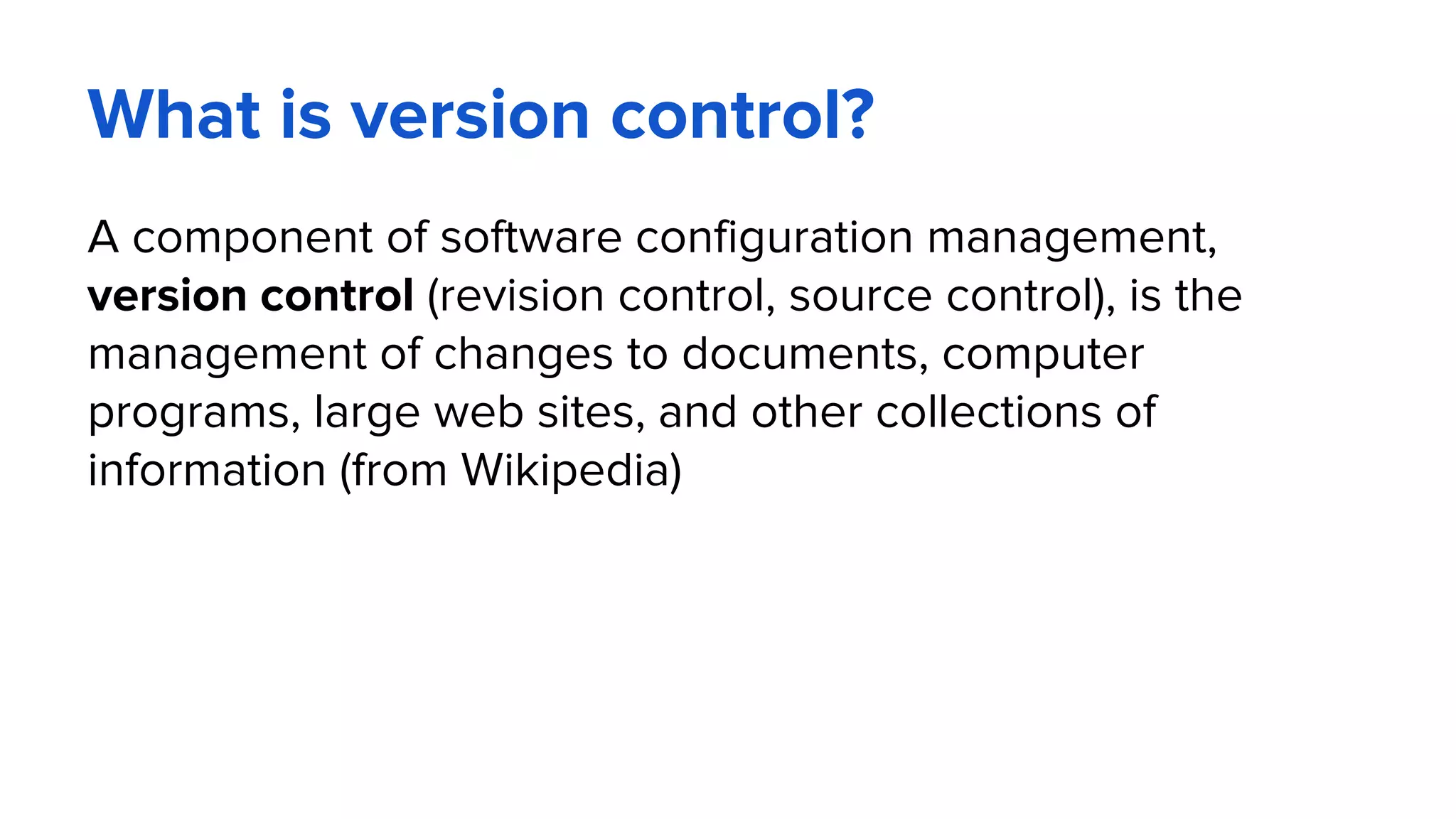

4. What is version control?
A component of software configuration management,
version control (revision control, source control), is the
management of changes to documents, computer
programs, large web sites, and other collections of
information (from Wikipedia)

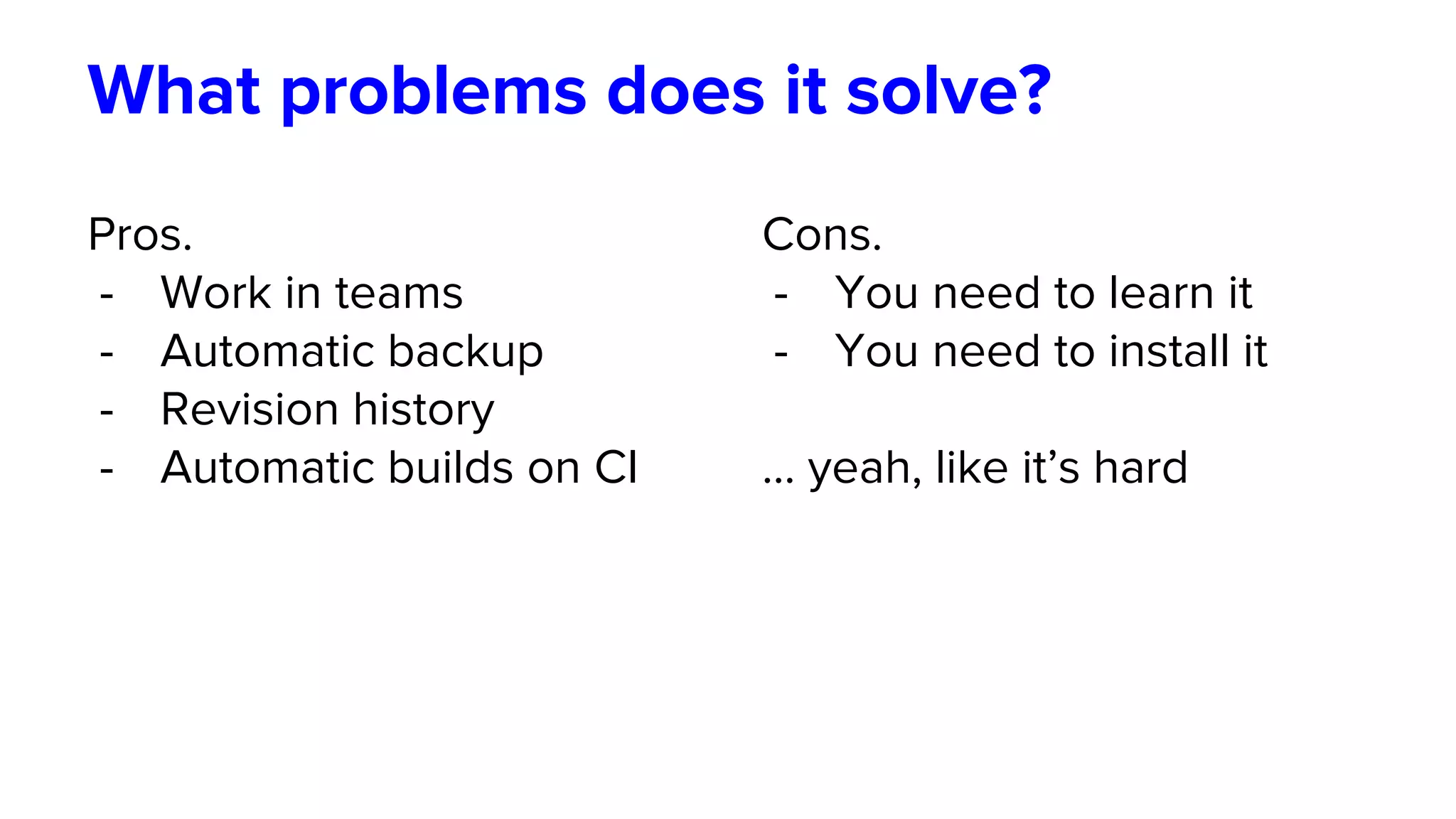

5. What problems does it solve?
Pros.
- Work in teams
- Automatic backup
- Revision history
- Automatic builds on CI
Cons.
- You need to learn it
- You need to install it
… yeah, like it’s hard

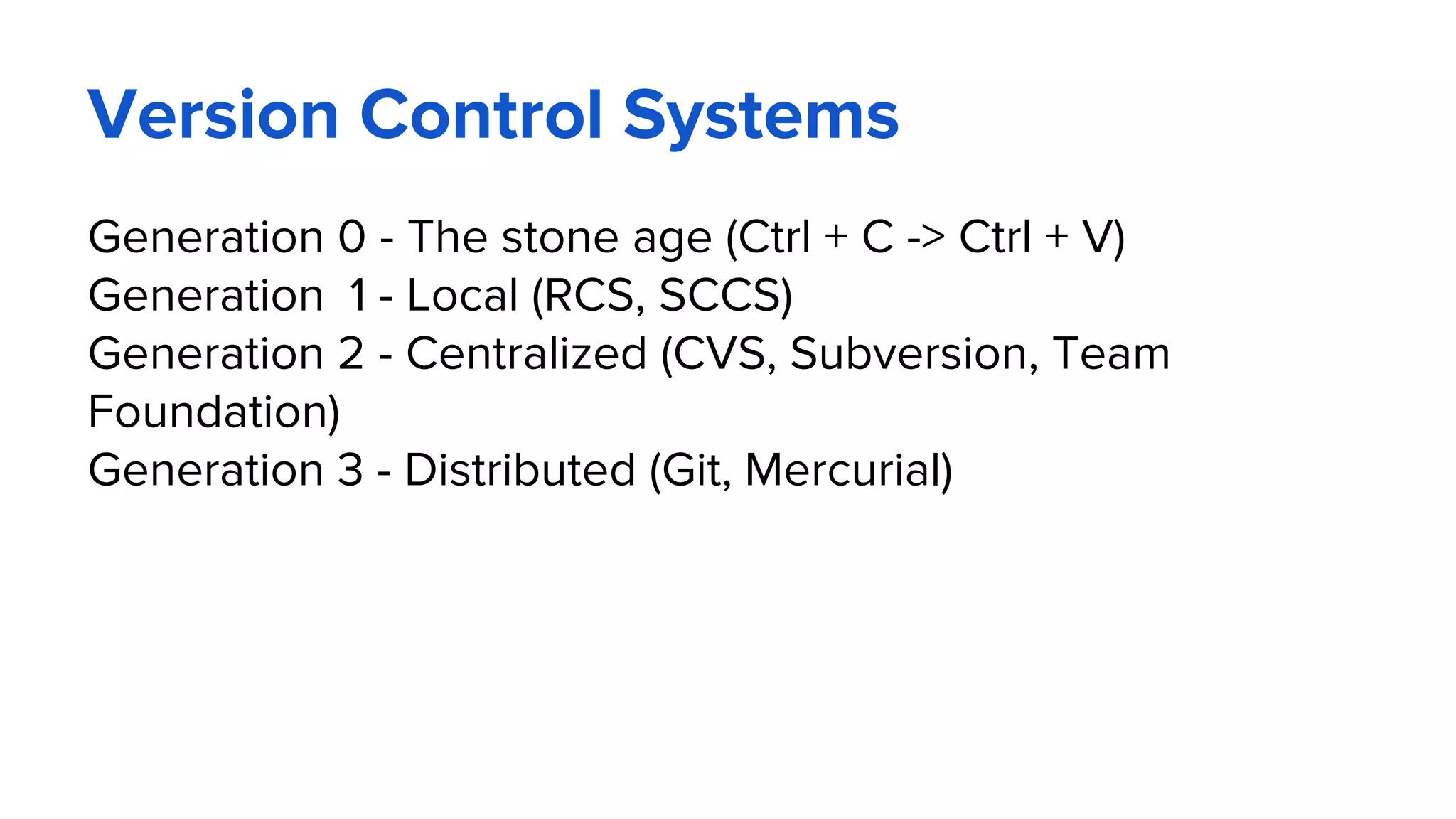

6. Version Control Systems
Generation 0 - The stone age (Ctrl + C -> Ctrl + V)
Generation 1 - Local (RCS, SCCS)
Generation 2 - Centralized (CVS, Subversion, Team
Foundation)
Generation 3 - Distributed (Git, Mercurial)

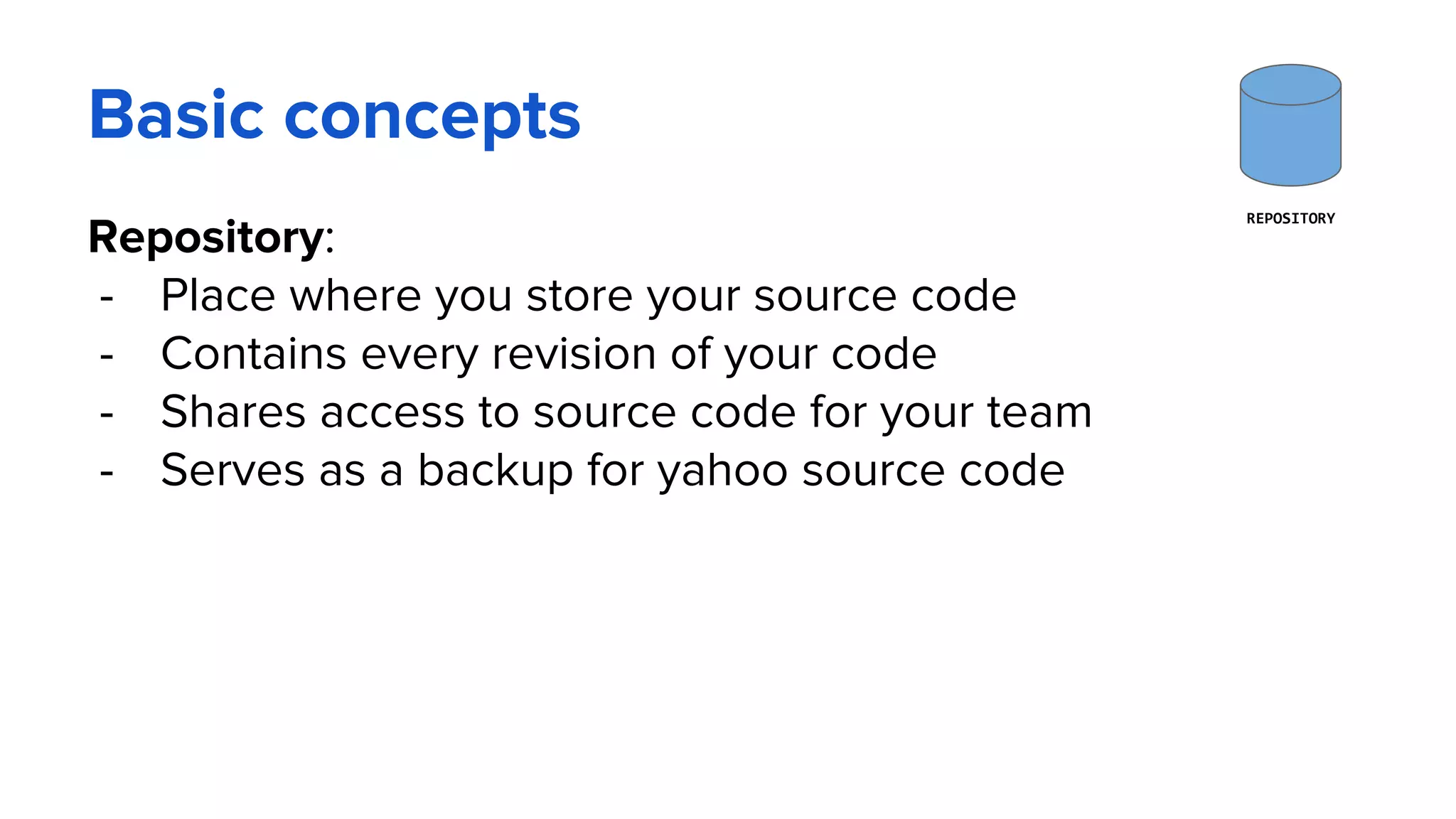

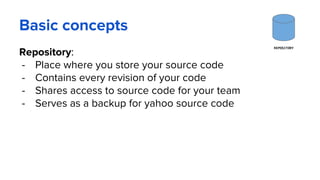

7. Basic concepts
Repository:
- Place where you store your source code
- Contains every revision of your code
- Shares access to source code for your team
- Serves as a backup for yahoo source code
REPOSITORY

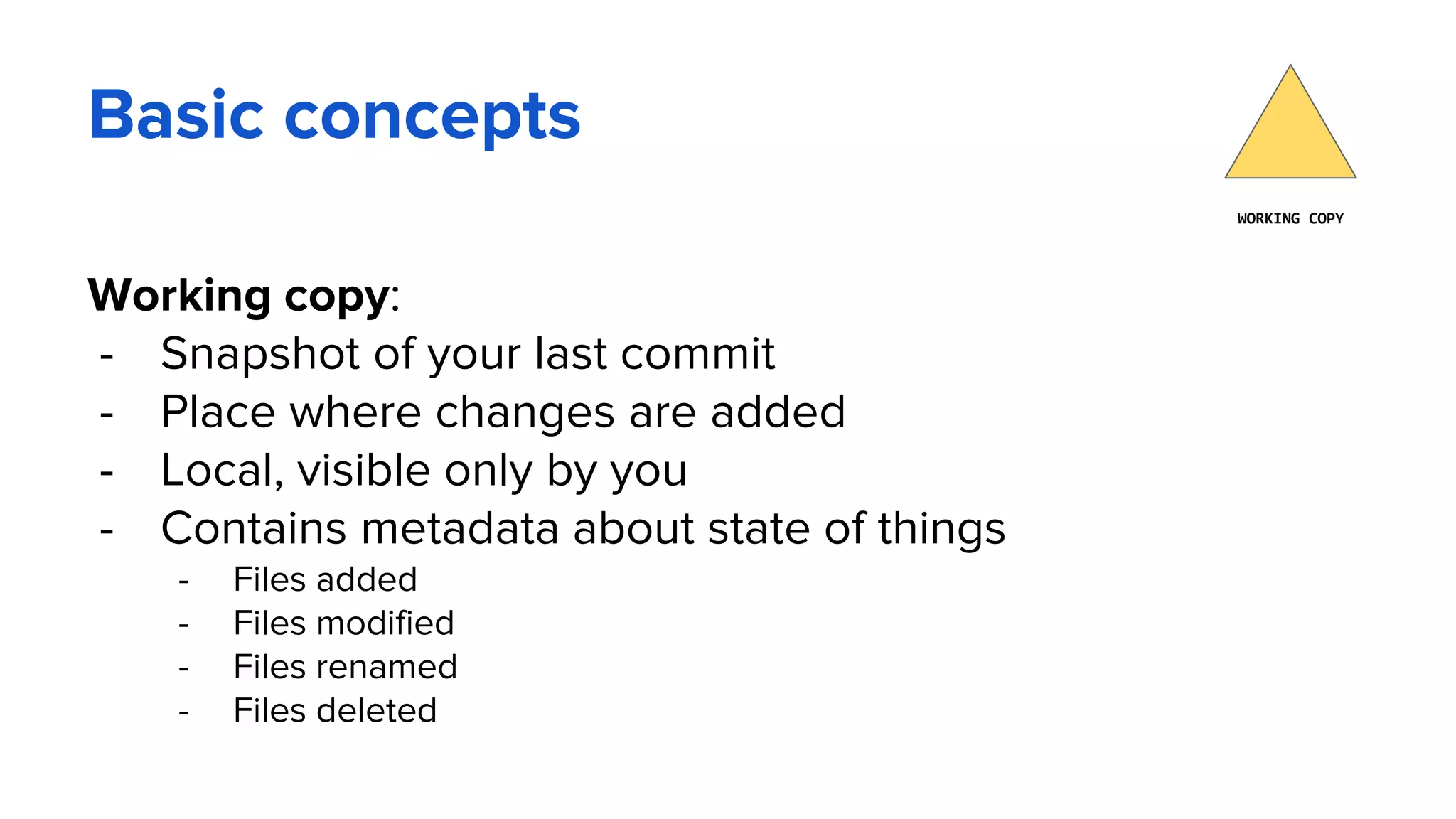

8. Basic concepts
Working copy:
- Snapshot of your last commit
- Place where changes are added
- Local, visible only by you
- Contains metadata about state of things
- Files added
- Files modified
- Files renamed
- Files deleted
WORKING COPY

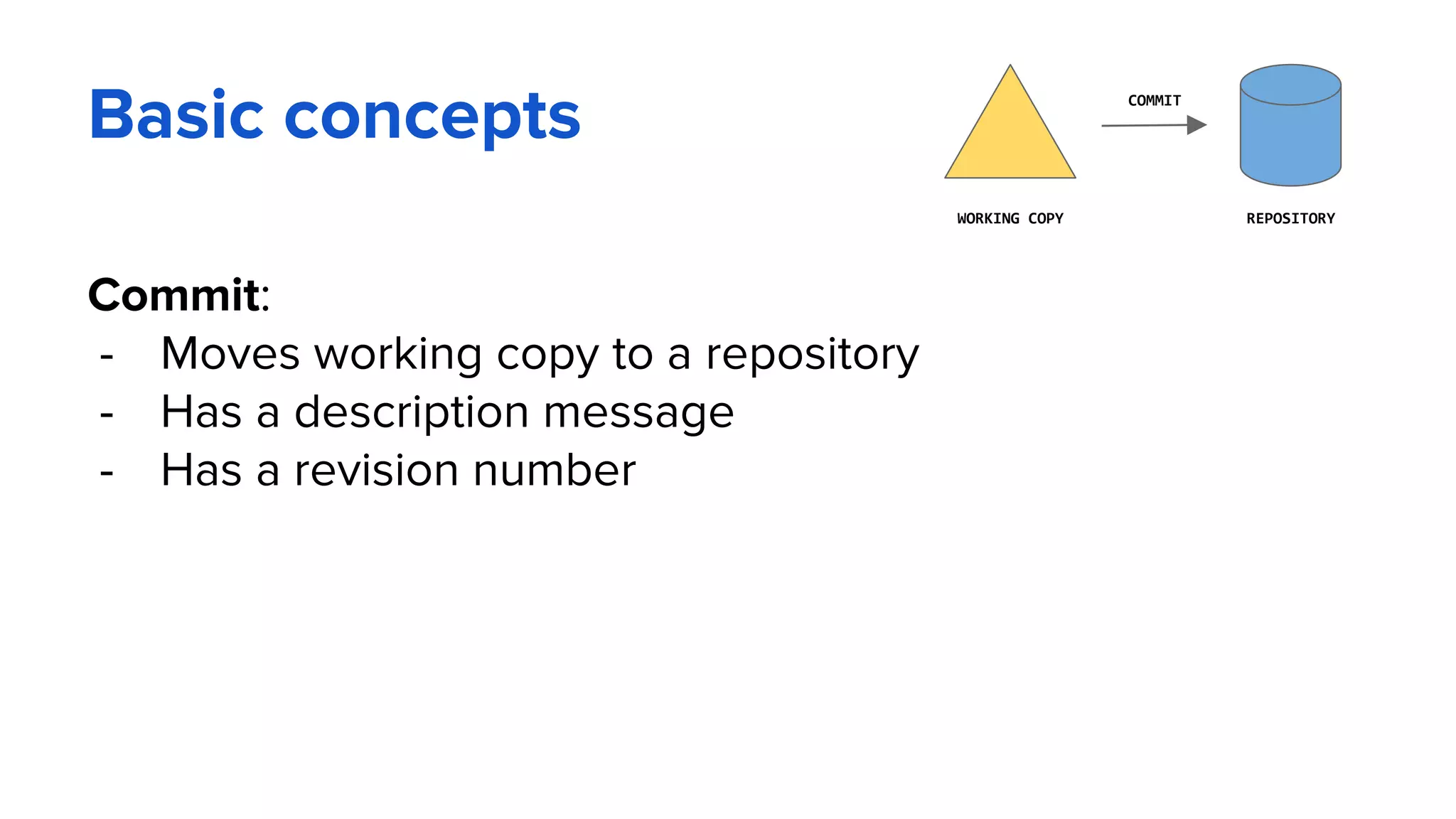

9. Basic concepts
Commit:
- Moves working copy to a repository
- Has a description message
- Has a revision number
REPOSITORYWORKING COPY
COMMIT

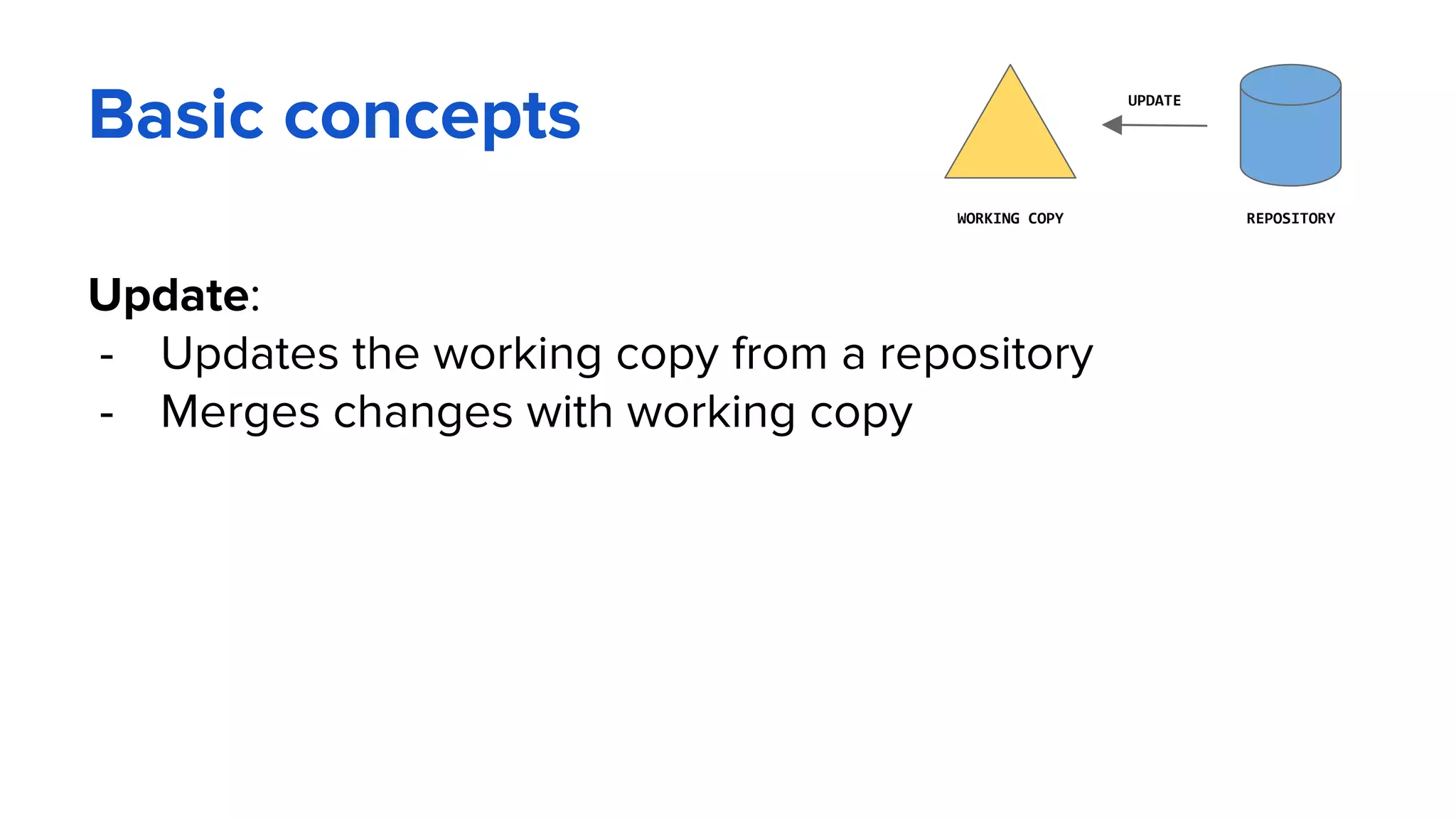

10. Basic concepts
Update:
- Updates the working copy from a repository
- Merges changes with working copy
REPOSITORYWORKING COPY
UPDATE

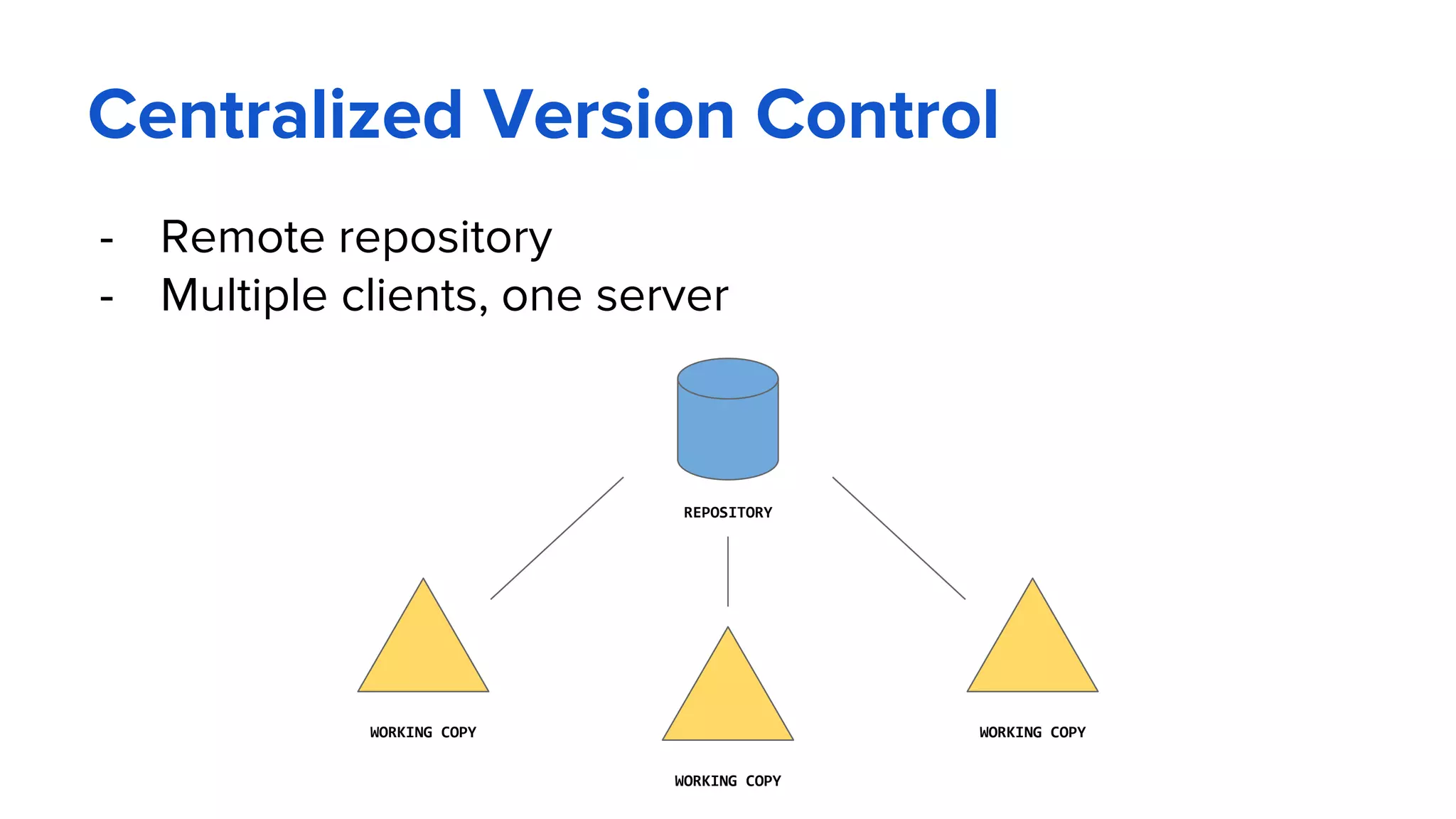

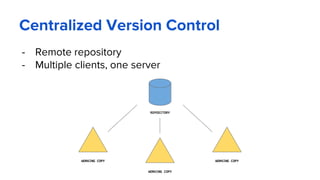

11. Centralized Version Control
- Remote repository
- Multiple clients, one server
REPOSITORY
WORKING COPY
WORKING COPY
WORKING COPY

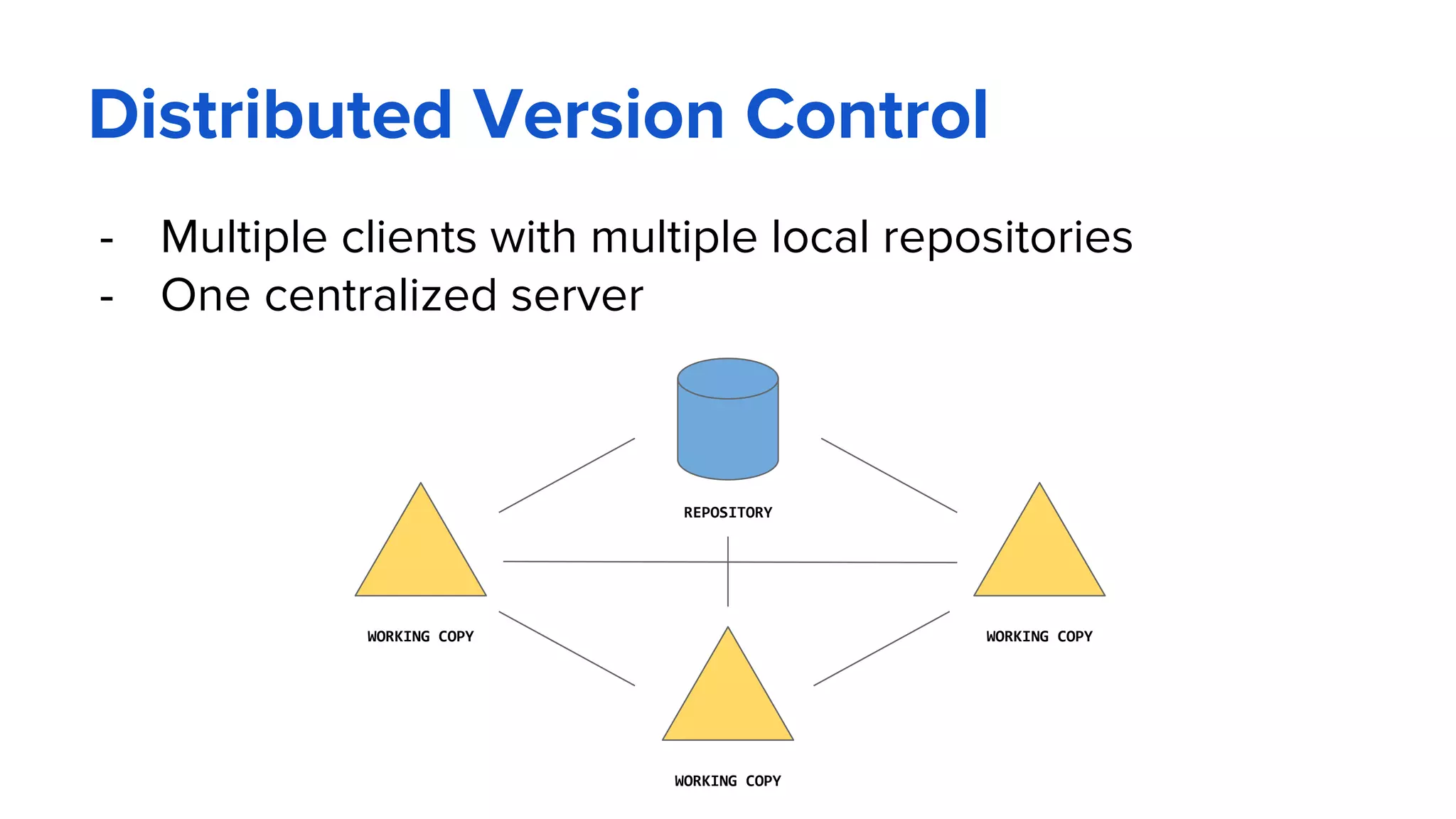

12. Distributed Version Control
- Multiple clients with multiple local repositories
- One centralized server
REPOSITORY
WORKING COPY
WORKING COPY
WORKING COPY

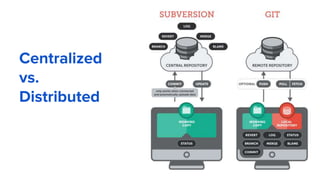

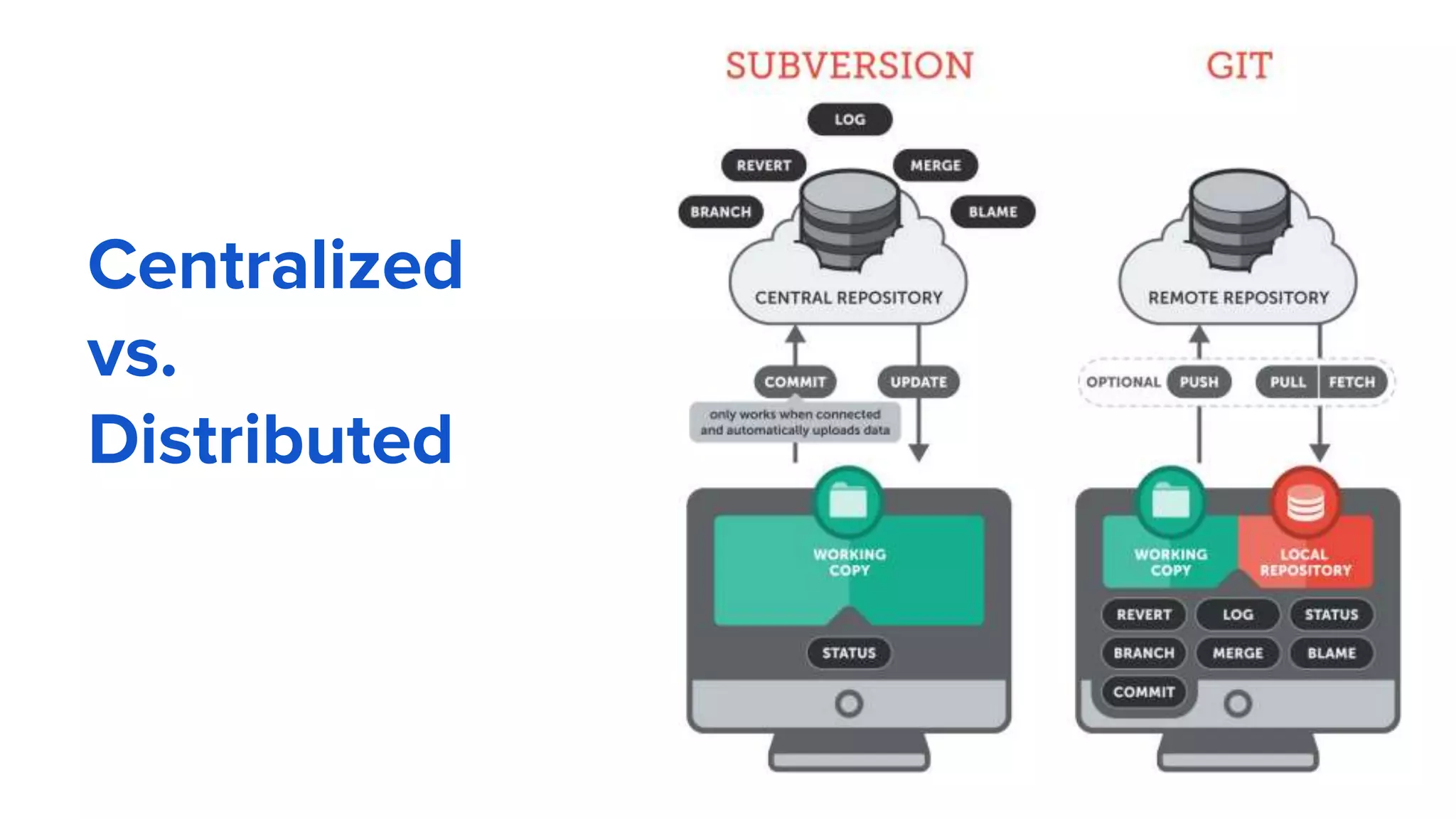

13. Centralized
vs.
Distributed

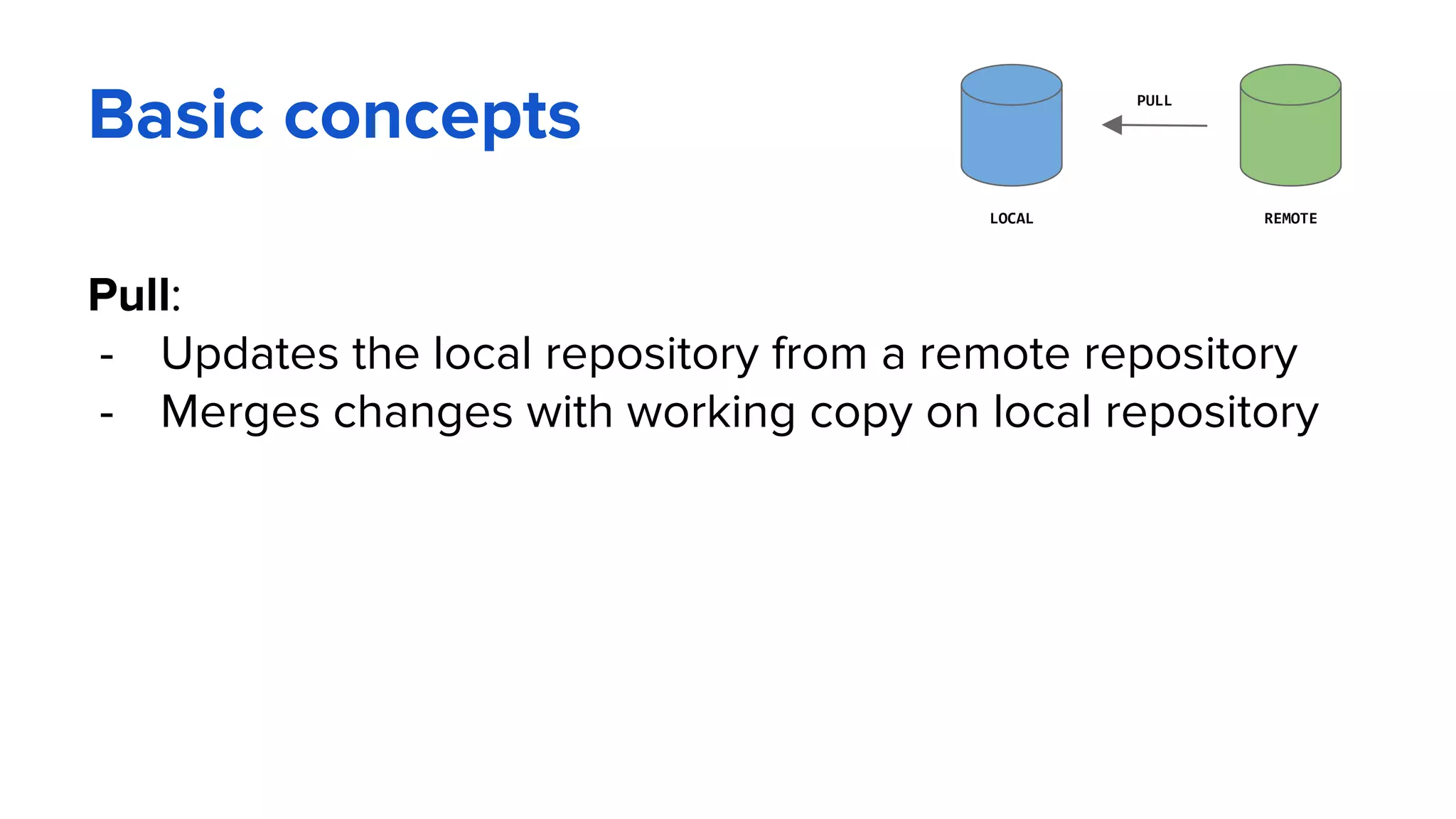

14. Basic concepts
Pull:
- Updates the local repository from a remote repository
- Merges changes with working copy on local repository
LOCAL REMOTE
PULL

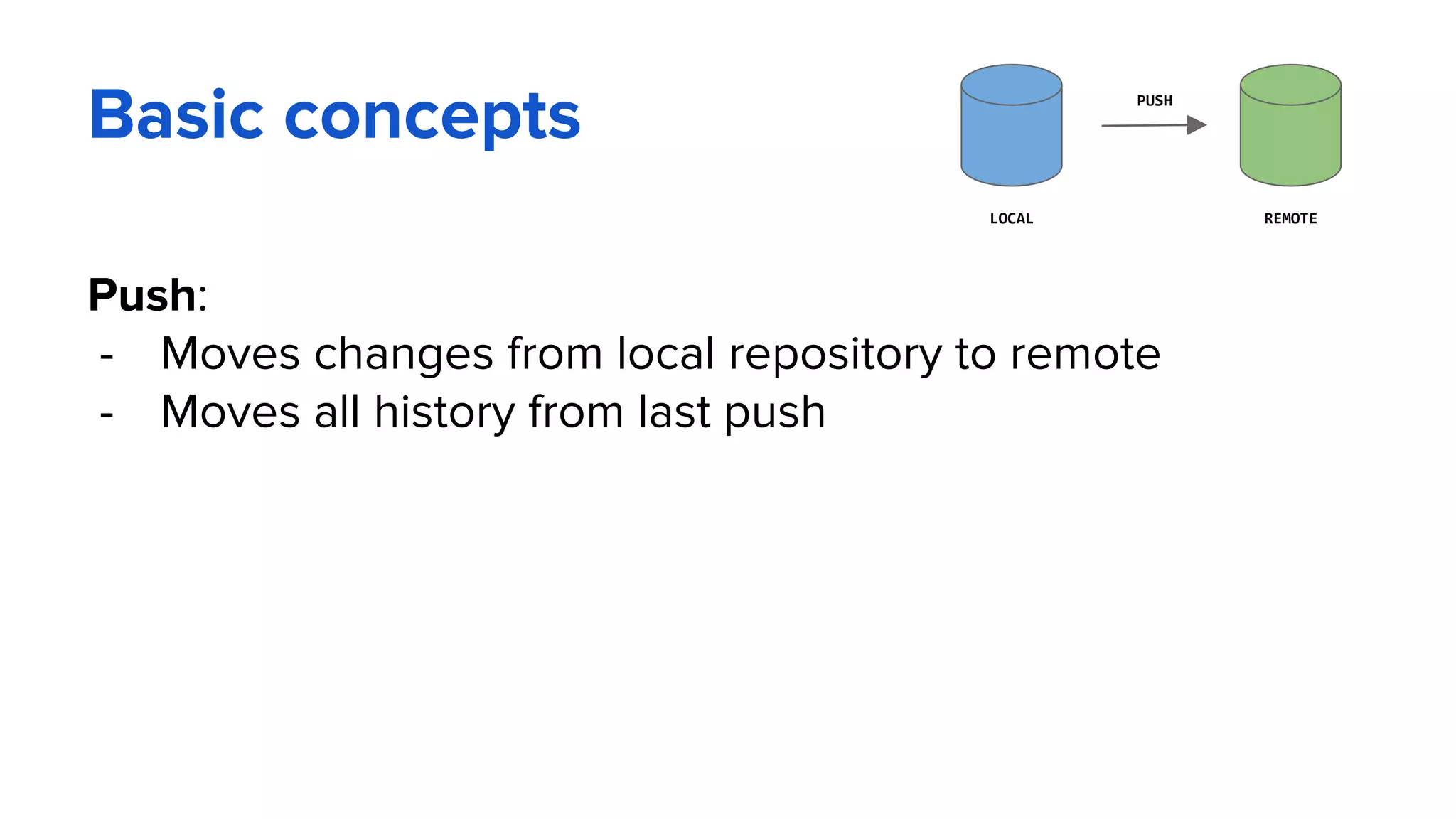

15. Basic concepts
Push:
- Moves changes from local repository to remote
- Moves all history from last push
LOCAL REMOTE
PUSH

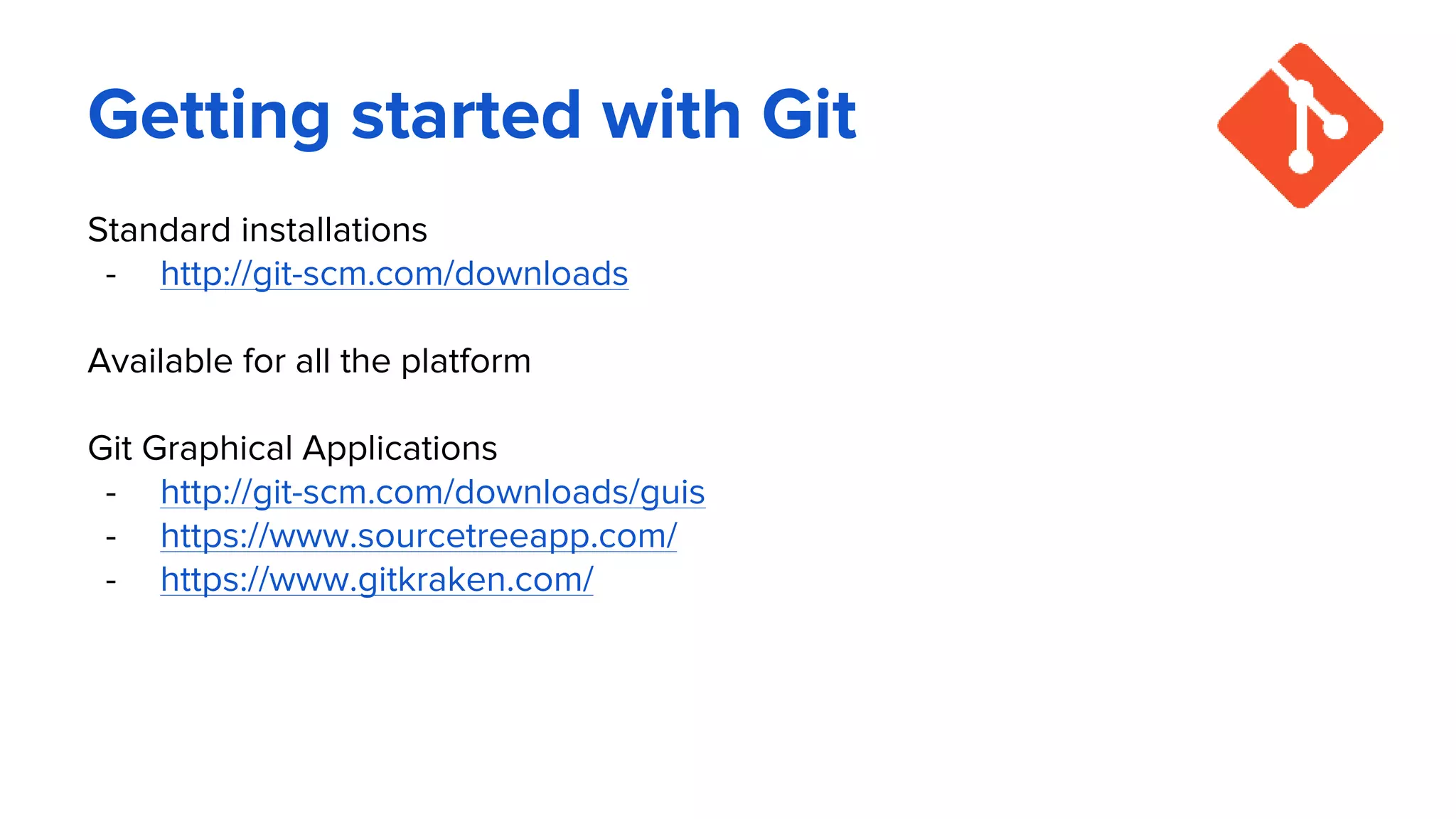

16. Getting started with Git
Standard installations
- http://git-scm.com/downloads
Available for all the platform
Git Graphical Applications
- http://git-scm.com/downloads/guis
- https://www.sourcetreeapp.com/
- https://www.gitkraken.com/

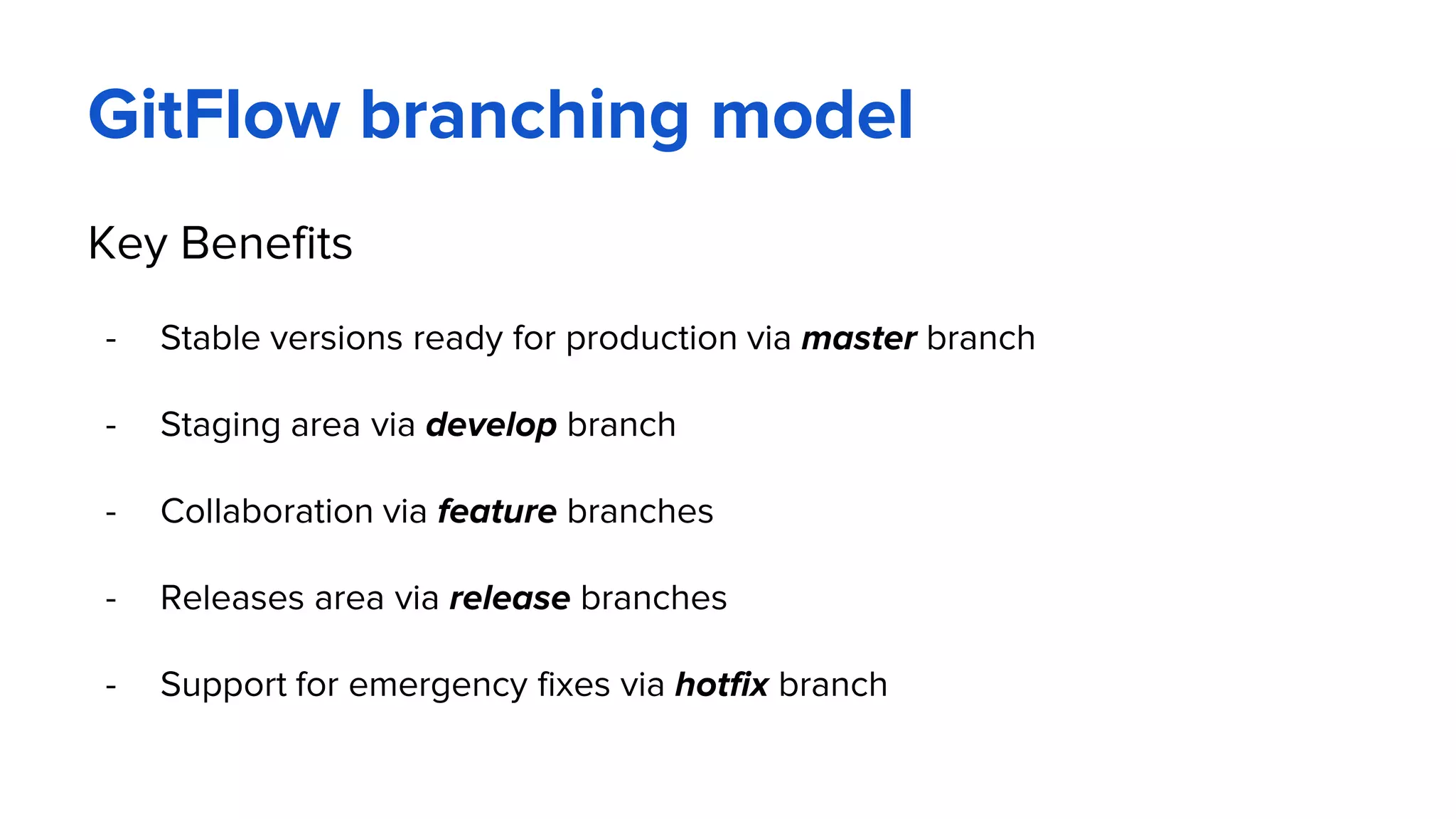

17. GitFlow branching model
Key Benefits
- Stable versions ready for production via master branch
- Staging area via develop branch
- Collaboration via feature branches
- Releases area via release branches
- Support for emergency fixes via hotfix branch

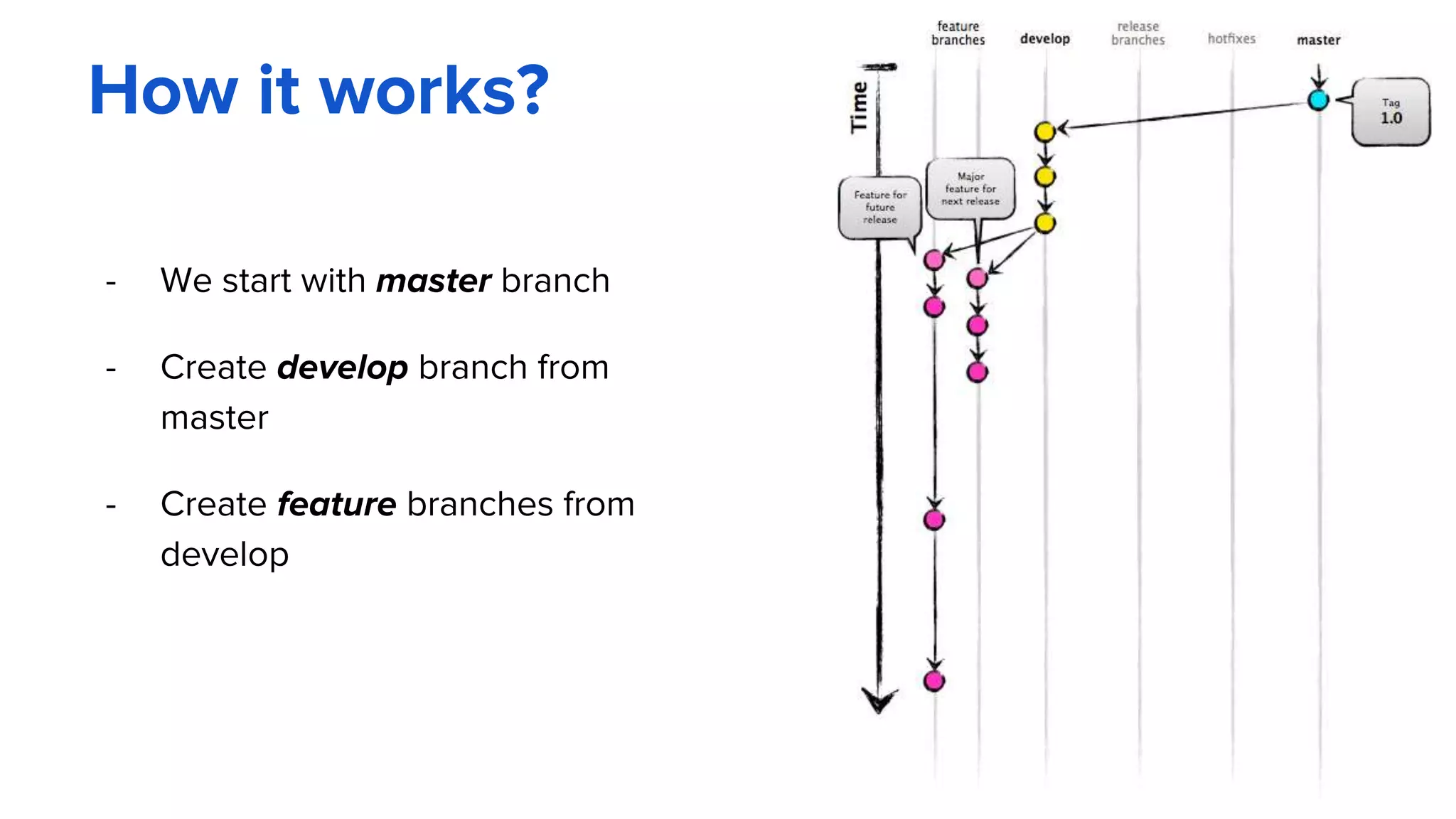

18. How it works?
- We start with master branch
- Create develop branch from
master
- Create feature branches from
develop

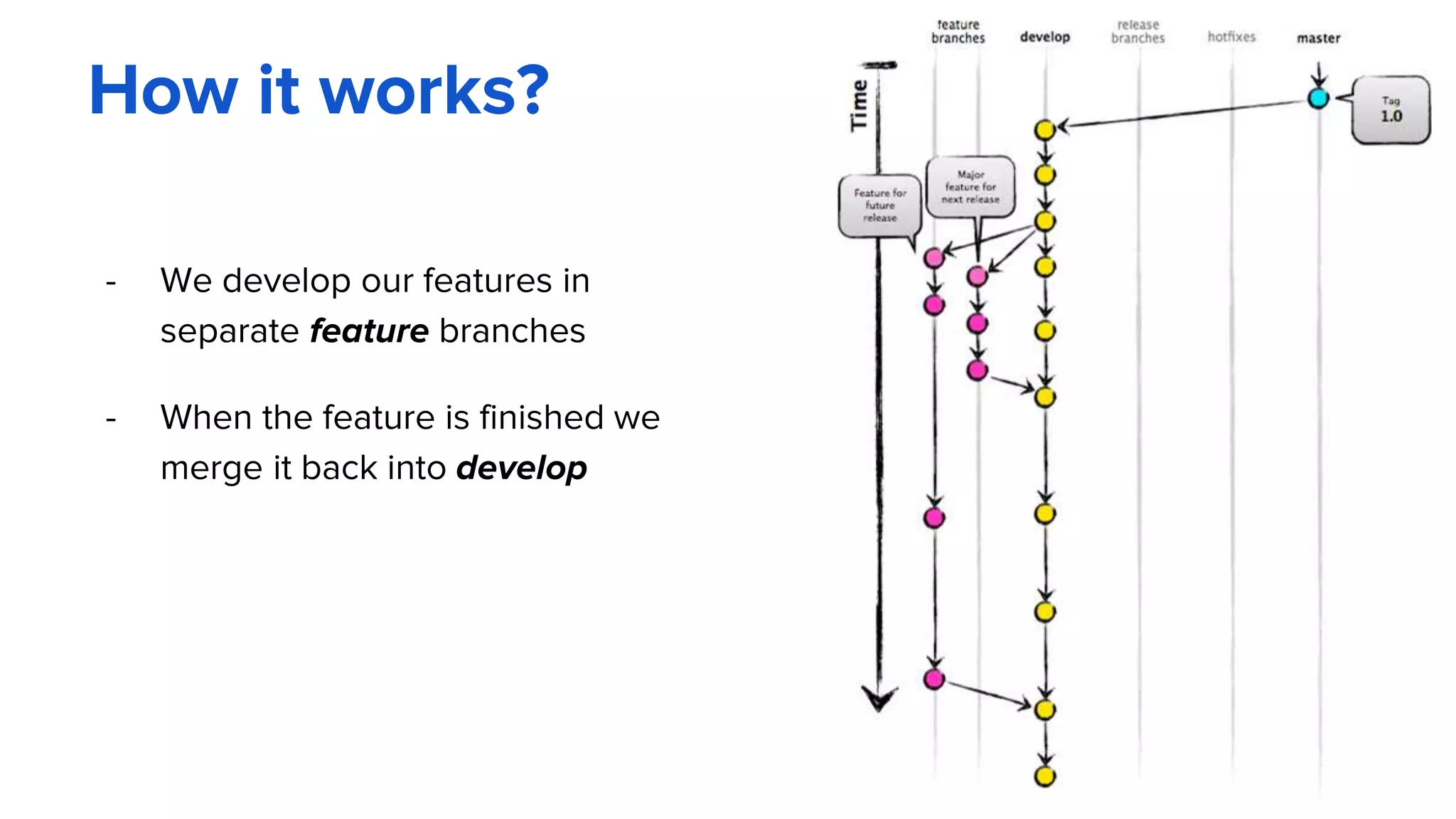

19. How it works?
- We develop our features in
separate feature branches
- When the feature is finished we
merge it back into develop

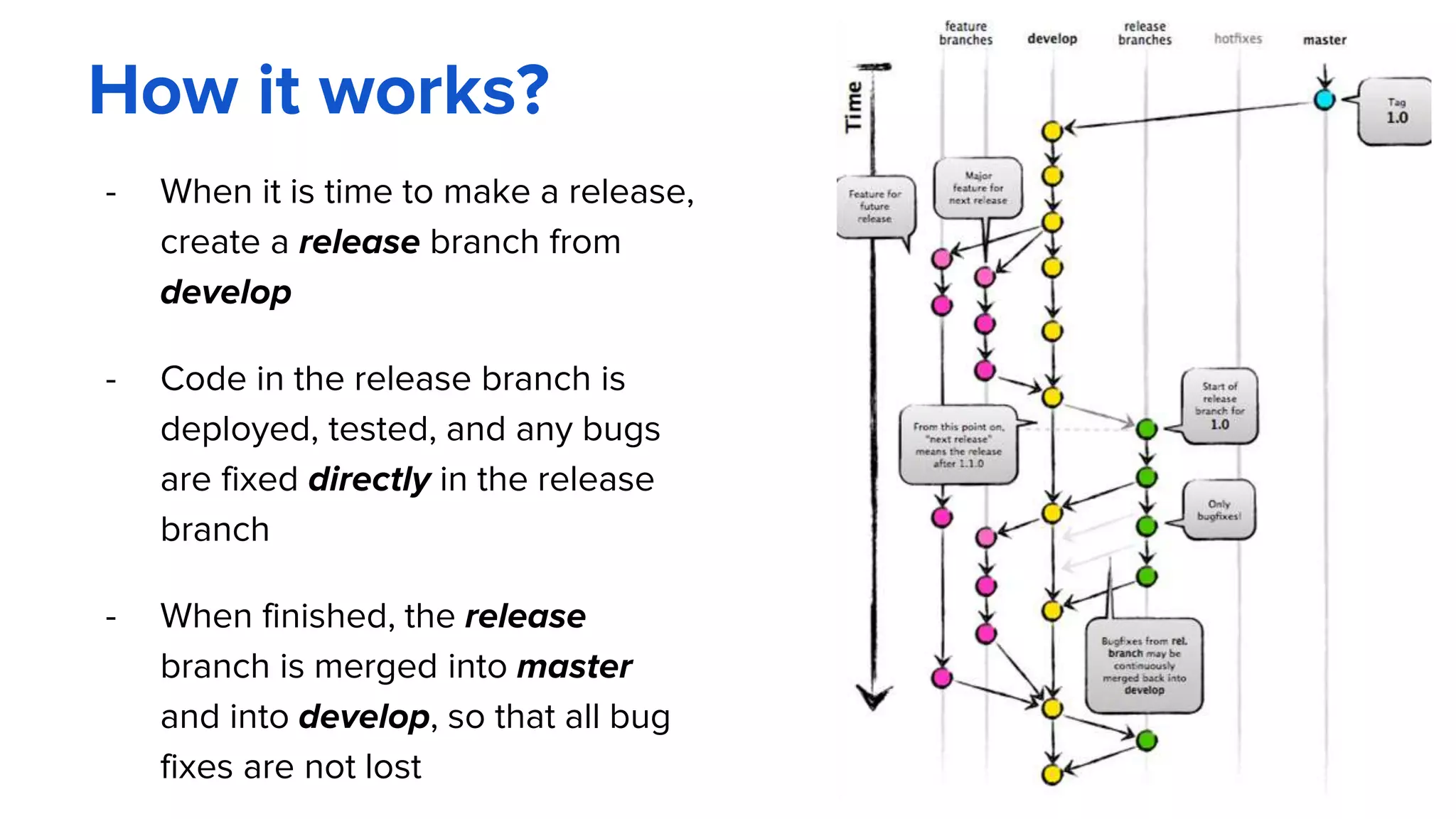

20. How it works?
- When it is time to make a release,
create a release branch from
develop
- Code in the release branch is
deployed, tested, and any bugs
are fixed directly in the release
branch
- When finished, the release
branch is merged into master
and into develop, so that all bug
fixes are not lost

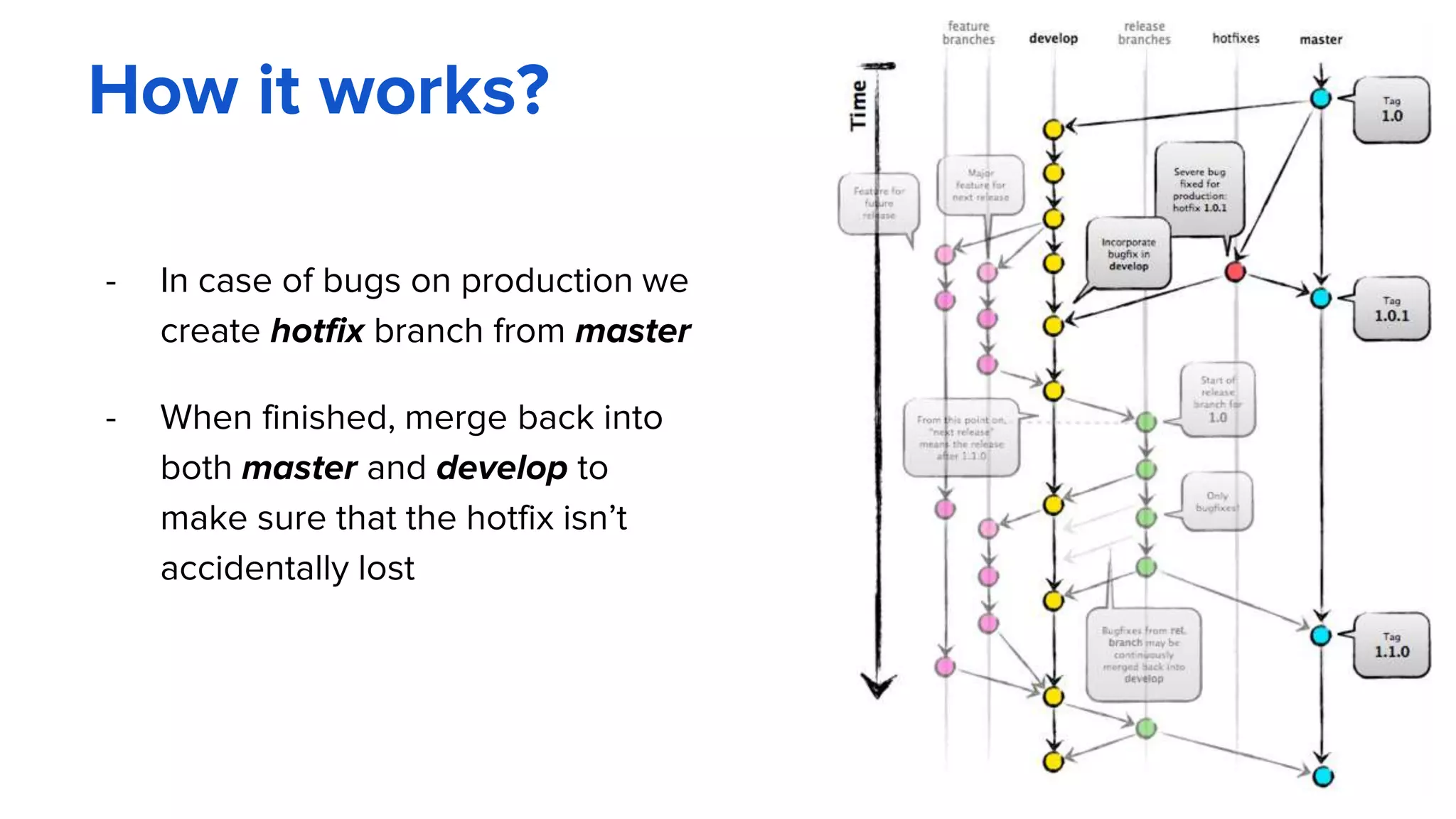

21. How it works?
- In case of bugs on production we
create hotfix branch from master
- When finished, merge back into
both master and develop to
make sure that the hotfix isn’t
accidentally lost

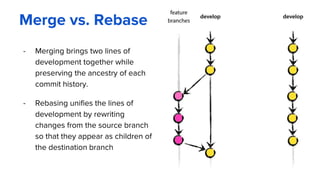

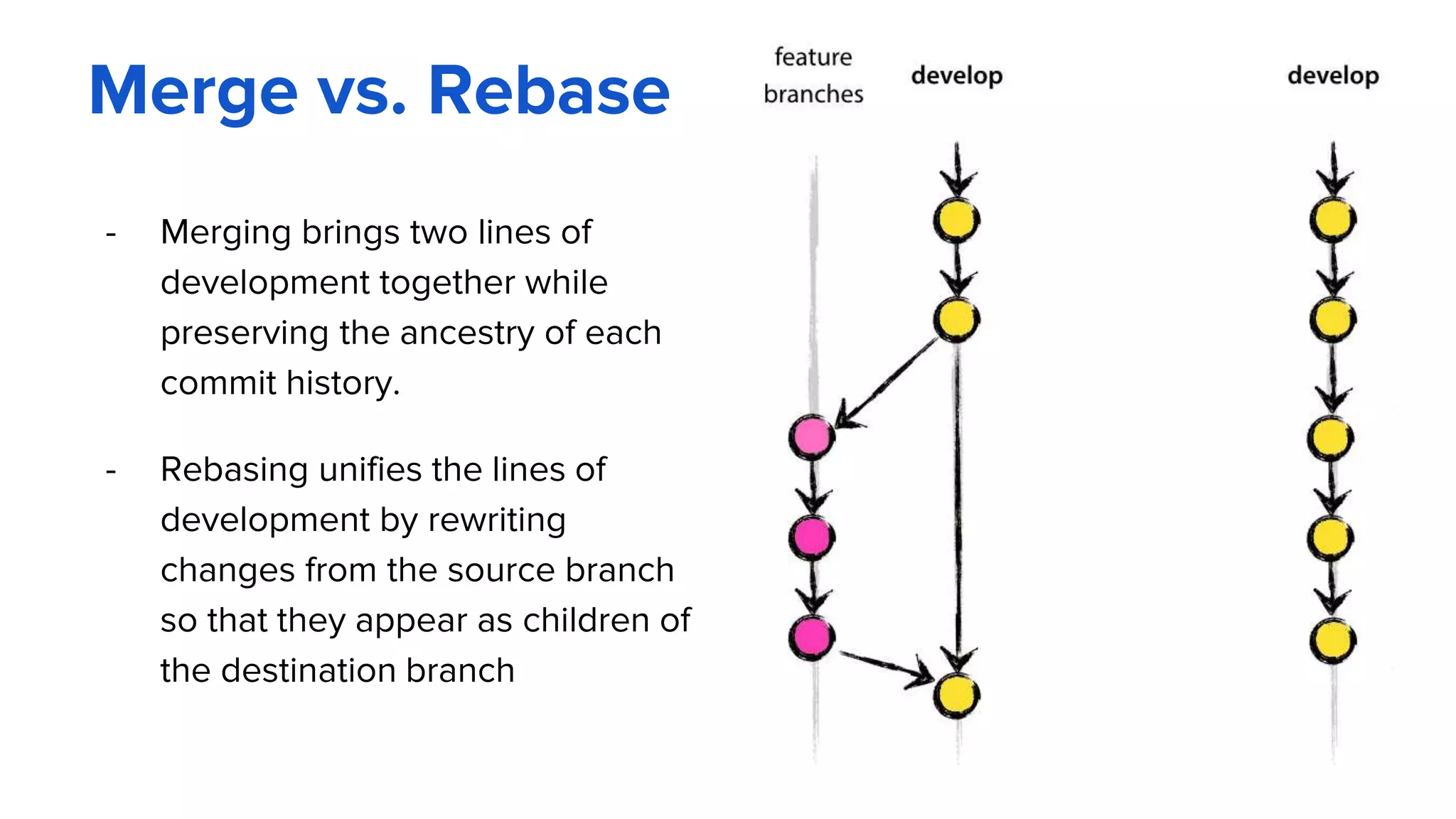

22. Merge vs. Rebase
- Merging brings two lines of
development together while
preserving the ancestry of each
commit history.
- Rebasing unifies the lines of
development by rewriting
changes from the source branch
so that they appear as children of
the destination branch

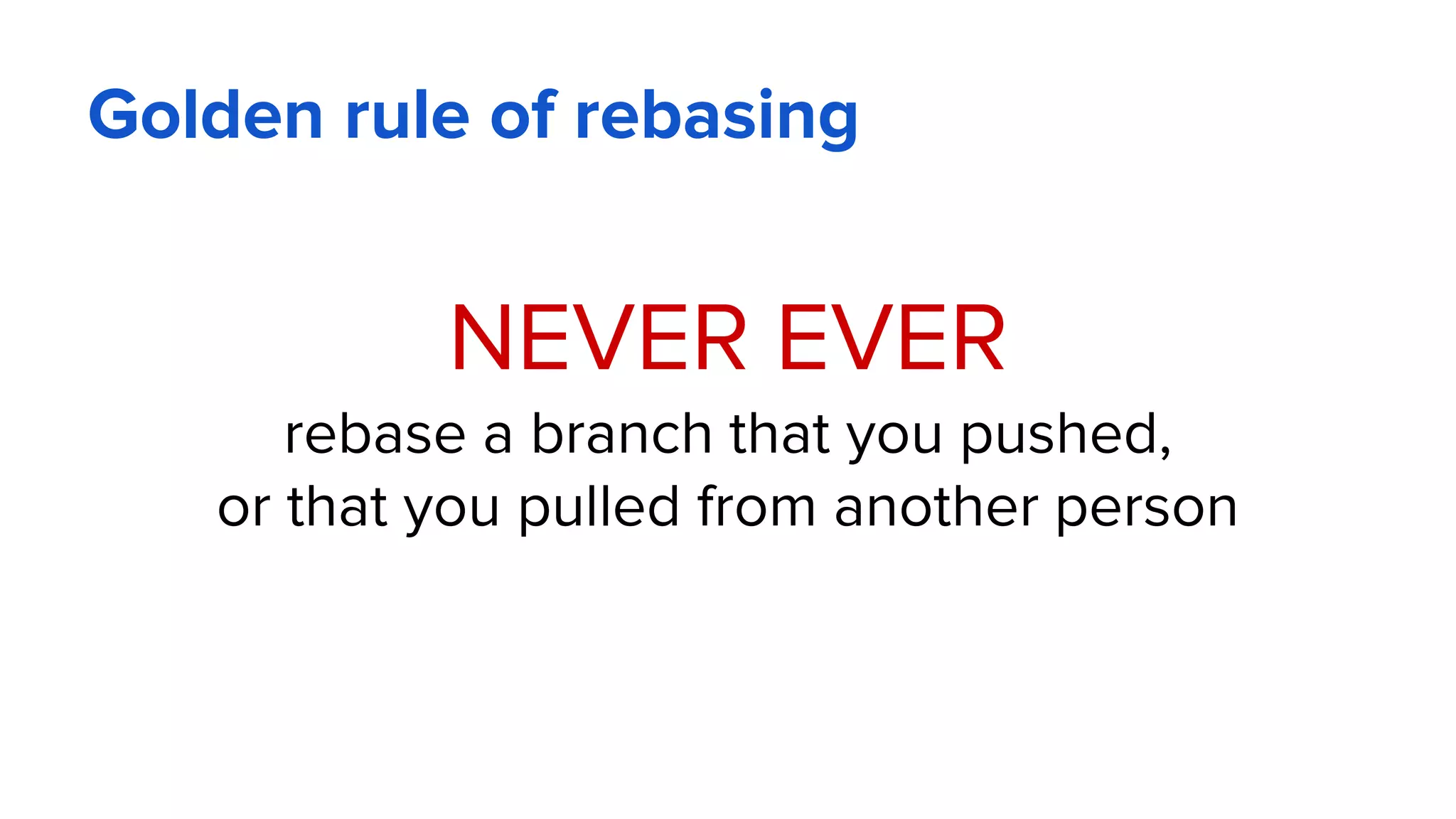

23. Golden rule of rebasing
NEVER EVER
rebase a branch that you pushed,
or that you pulled from another person

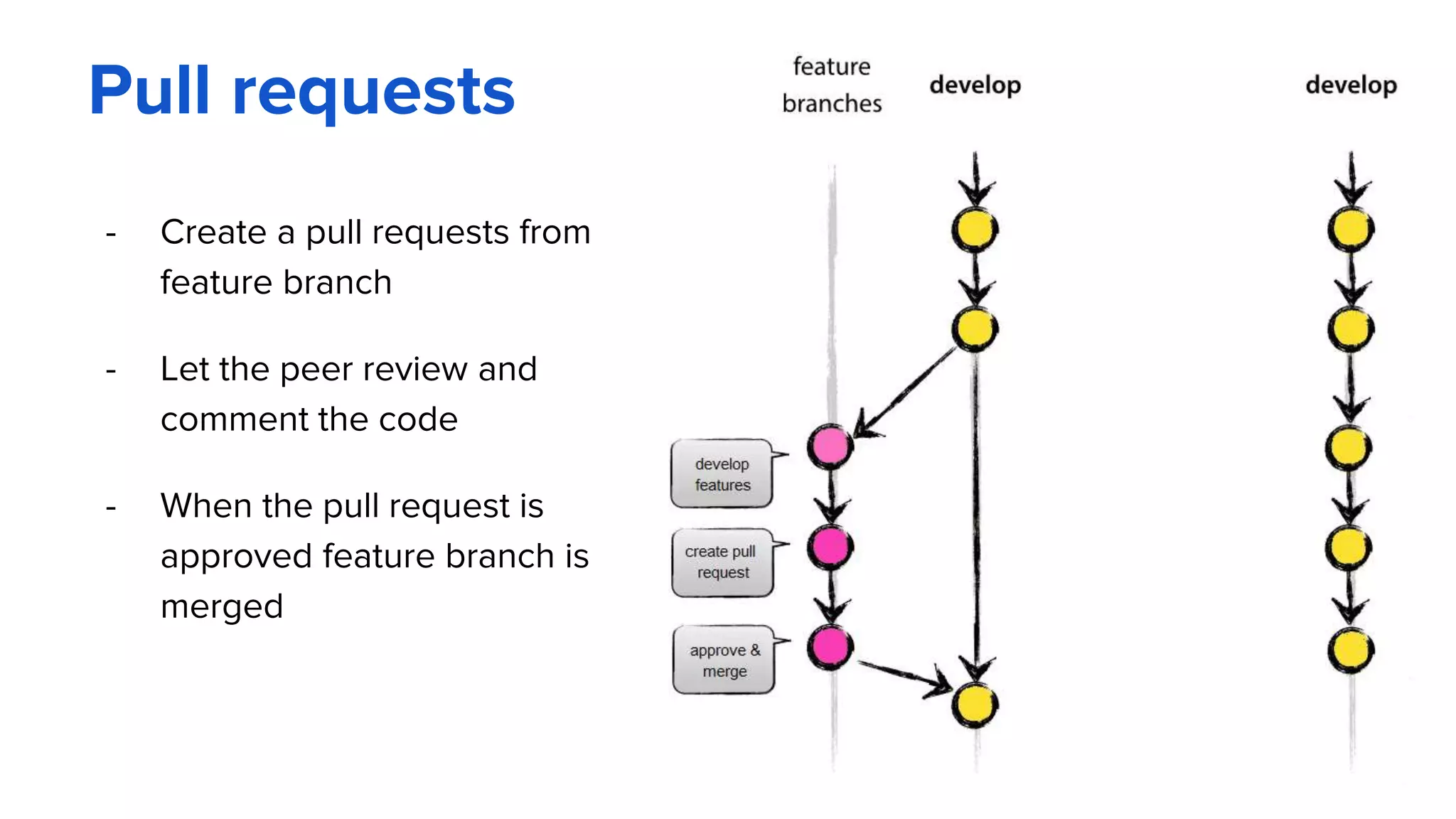

24. Pull requests
- Create a pull requests from
feature branch
- Let the peer review and
comment the code
- When the pull request is
approved feature branch is
merged

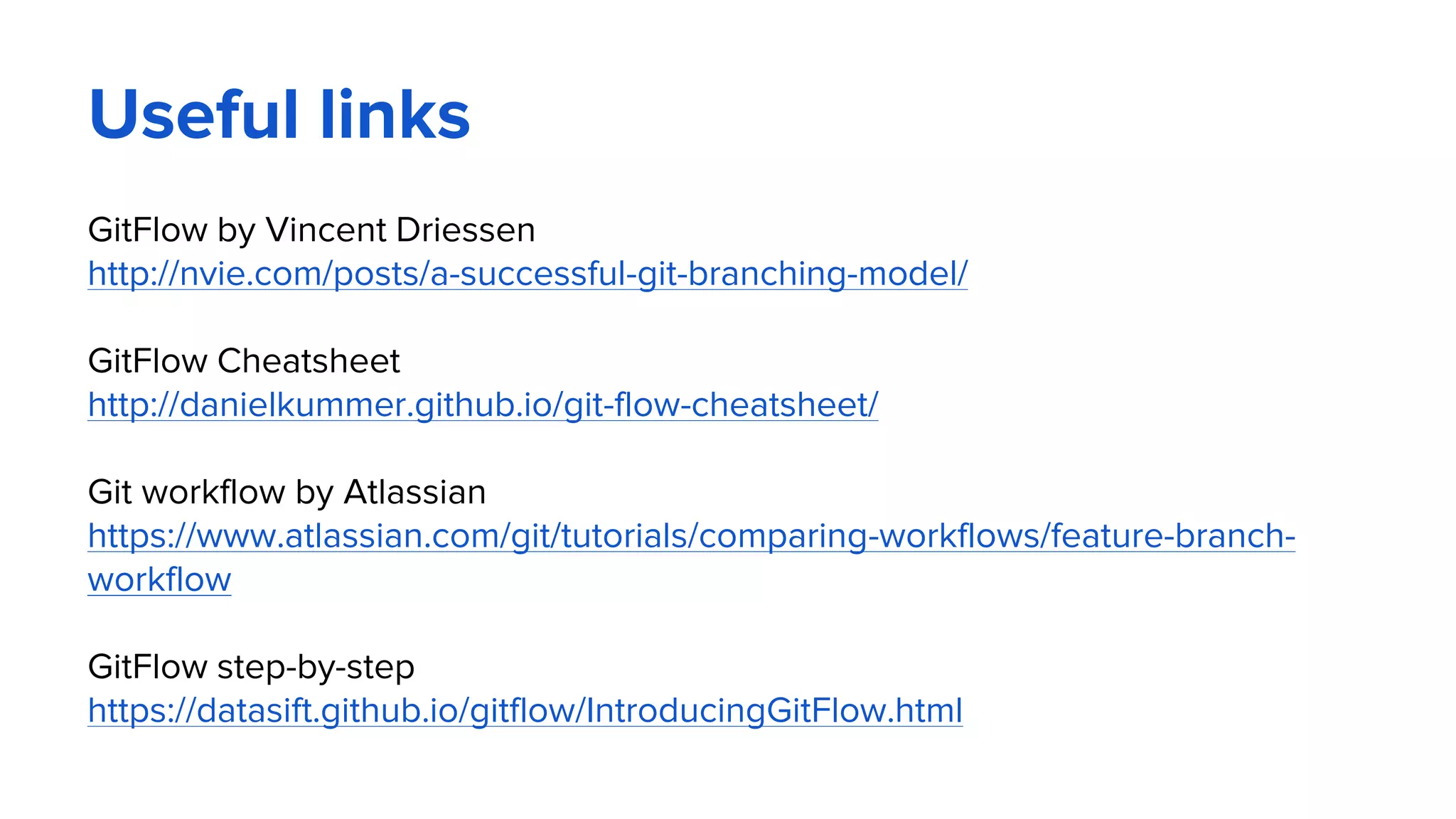

25. Useful links
GitFlow by Vincent Driessen
http://nvie.com/posts/a-successful-git-branching-model/
GitFlow Cheatsheet
http://danielkummer.github.io/git-flow-cheatsheet/
Git workflow by Atlassian
https://www.atlassian.com/git/tutorials/comparing-workflows/feature-branch-
workflow
GitFlow step-by-step
https://datasift.github.io/gitflow/IntroducingGitFlow.html
