The document discusses various methods of soil compaction. It begins by defining compaction as densifying soil through external effort. It then explains compaction curves and how maximum dry density occurs at an optimal water content when soil grains are densely packed with little air. Different compactive efforts result in varying optimal water contents and dry densities. Field compaction involves rolling soil layers with equipment like smooth drum, vibratory, or sheepsfoot rollers. Dynamic and vibroflotation techniques use heavy weights or vibrators to densify soils. Quality control testing verifies compaction meets specifications. A range of earthmoving equipment supports these compaction applications.

1. 1
Compaction
Duration = 10 minutes

2. SIVA
Copyright©2001
2
What is compaction?
A simple ground improvement technique, where the soil
is densified through external compactive effort.
+ water =
Compactive
effort

3. SIVA
Copyright©2001
3

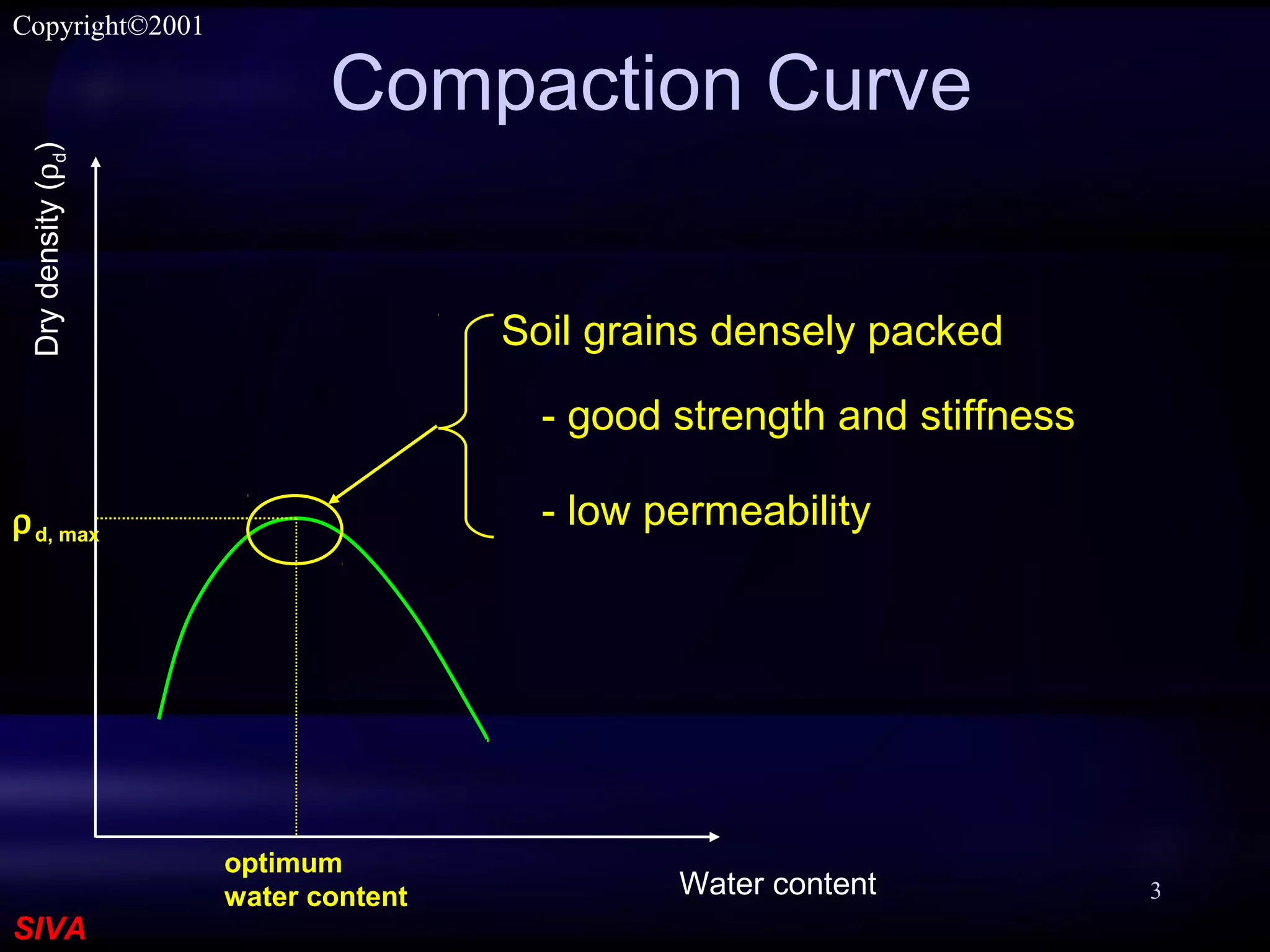

Compaction Curve
Water content
Drydensity(ρd)
optimum
water content
ρd, max
Soil grains densely packed
- good strength and stiffness
- low permeability

4. SIVA
Copyright©2001
4

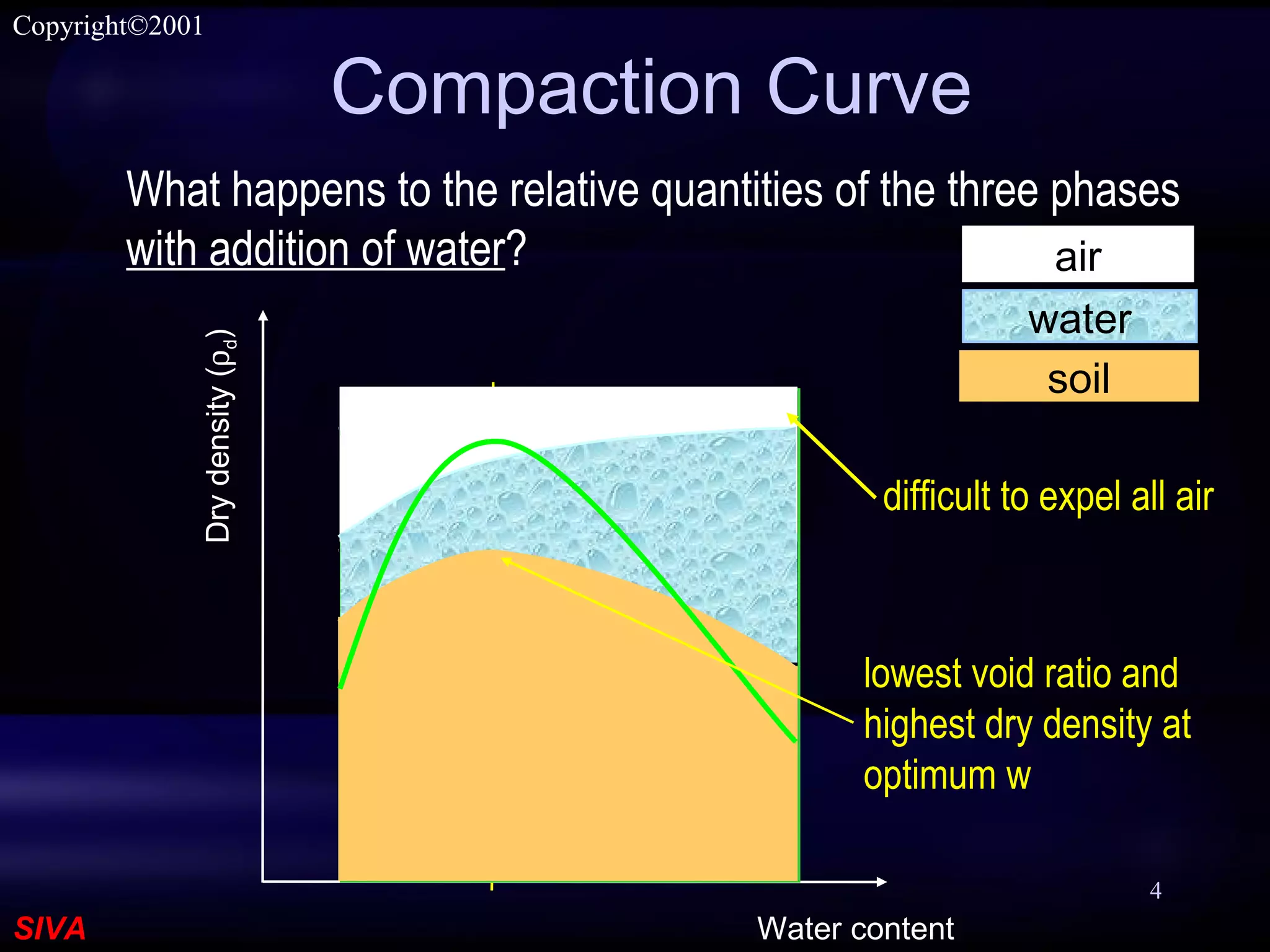

Compaction Curve
What happens to the relative quantities of the three phases
with addition of water?
Water content
Drydensity(ρd)
soil
water
air
difficult to expel all air
lowest void ratio and
highest dry density at
optimum w

5. SIVA
Copyright©2001
5

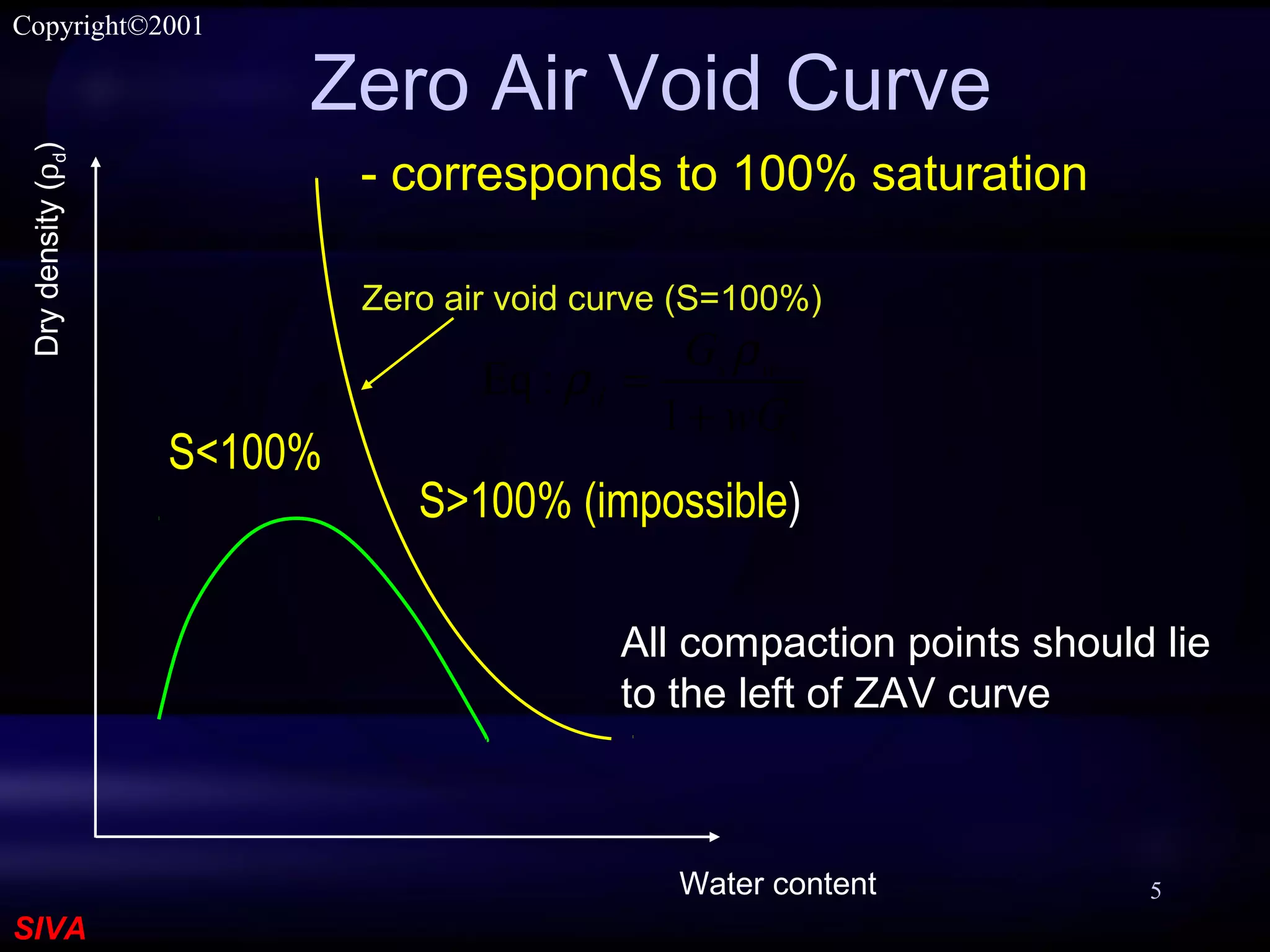

Zero Air Void Curve
All compaction points should lie
to the left of ZAV curve
- corresponds to 100% saturation
Water content
Drydensity(ρd)
Zero air void curve (S=100%)
s
ws
d
wG
G
+
=
1
:Eq
ρ
ρ
S<100%
S>100% (impossible)

6. SIVA
Copyright©2001
6

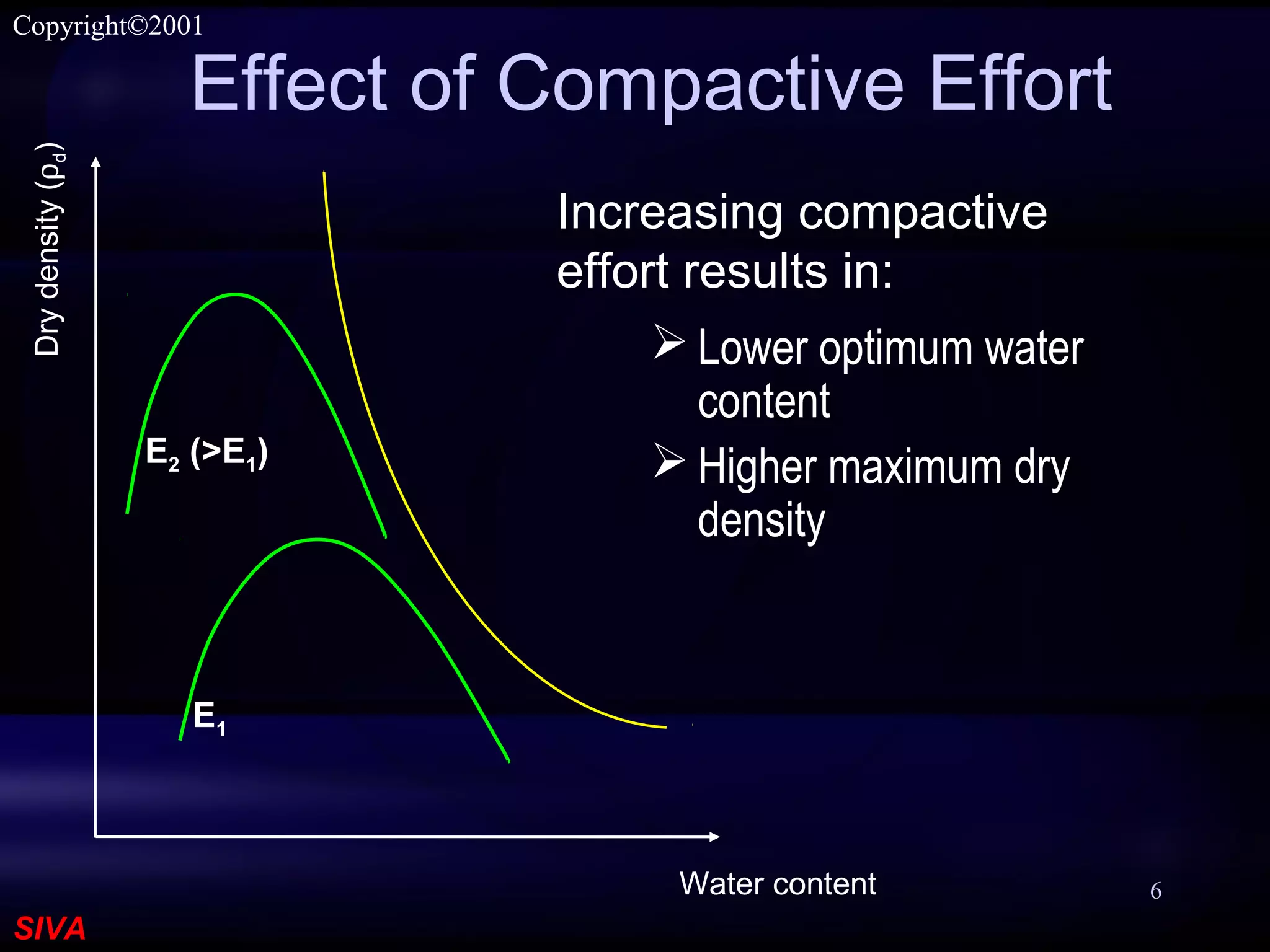

Effect of Compactive Effort
Increasing compactive
effort results in:
E1
E2 (>E1)
 Lower optimum water
content
 Higher maximum dry
density
Water content
Drydensity(ρd)

7. SIVA
Copyright©2001
7
Compaction and Clay Fabric
Higher water content or higher
compactive effort gives more
dispersed fabric.
more dispersed fabric
moredispersedfabric
Water content
Drydensity(ρd)

8. SIVA
Copyright©2001
8

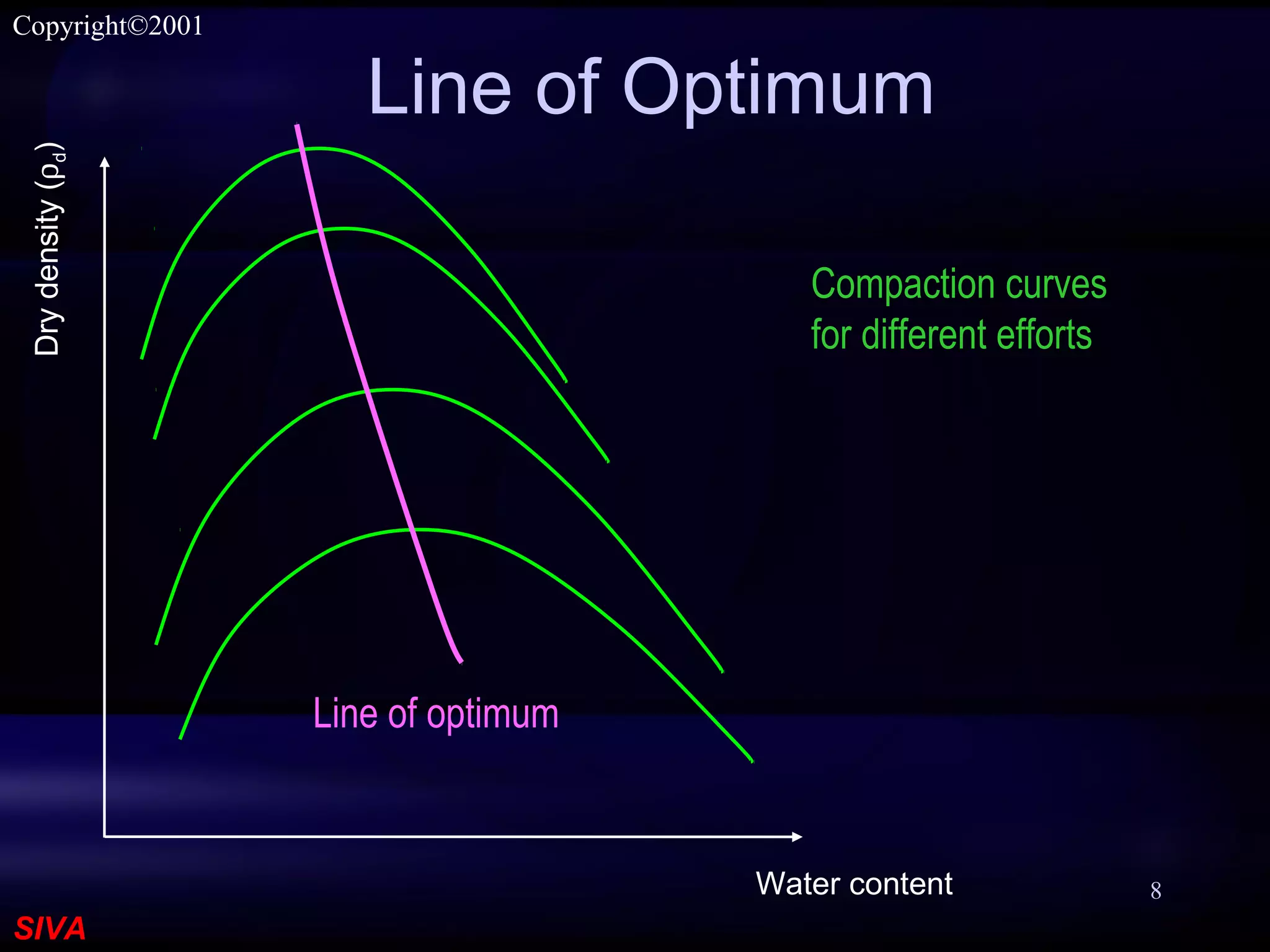

Line of Optimum
Water content
Drydensity(ρd)
Compaction curves
for different efforts
Line of optimum

9. SIVA
Copyright©2001

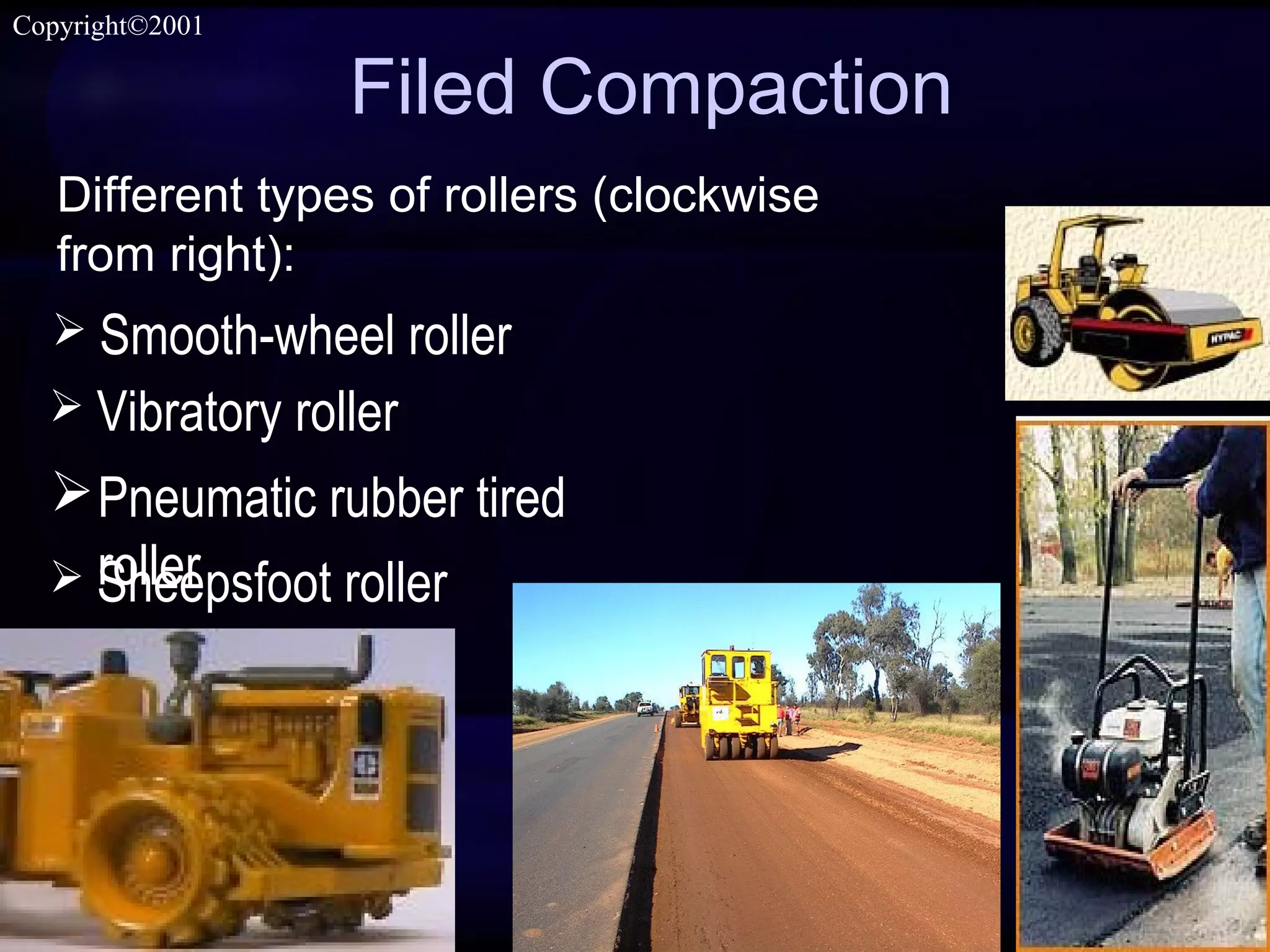

Filed Compaction
Pneumatic rubber tired
roller
Different types of rollers (clockwise
from right):
 Vibratory roller
 Smooth-wheel roller
 Sheepsfoot roller

10. SIVA
Copyright©2001
10

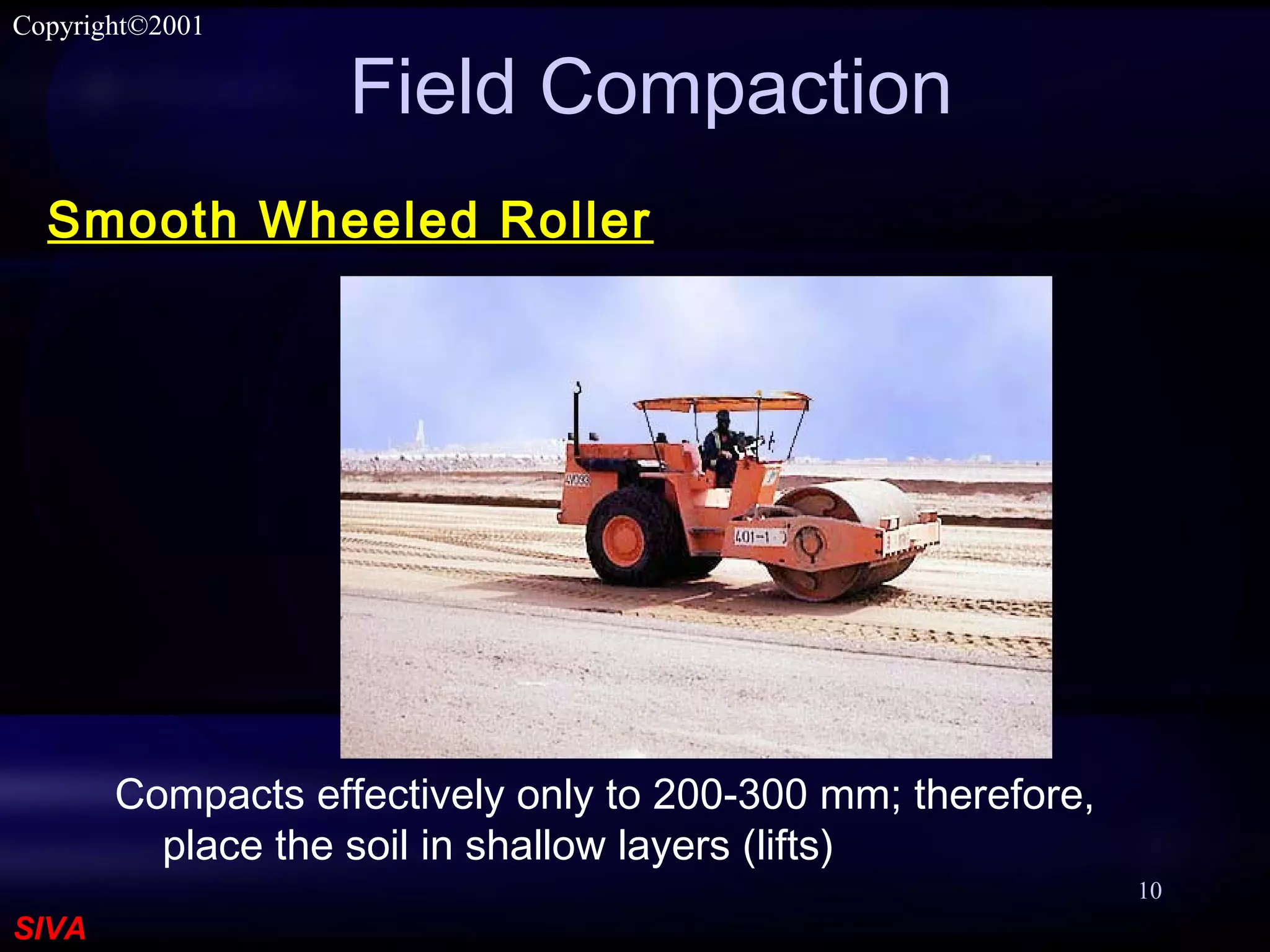

Field Compaction
Compacts effectively only to 200-300 mm; therefore,
place the soil in shallow layers (lifts)
Smooth Wheeled Roller

11. SIVA
Copyright©2001
11
Field Compaction
 for compacting very small areas

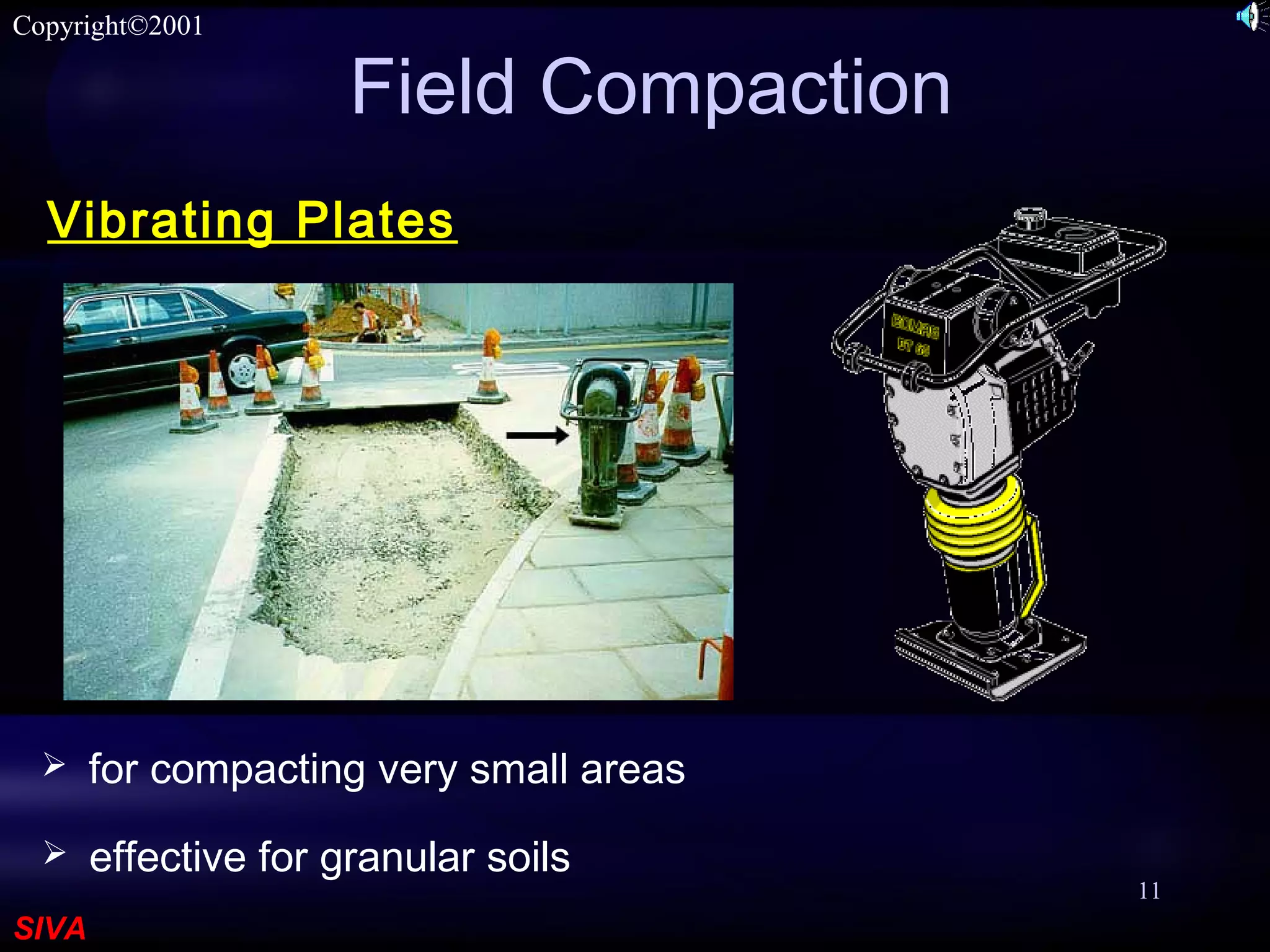

Vibrating Plates
 effective for granular soils

12. SIVA
Copyright©2001
12

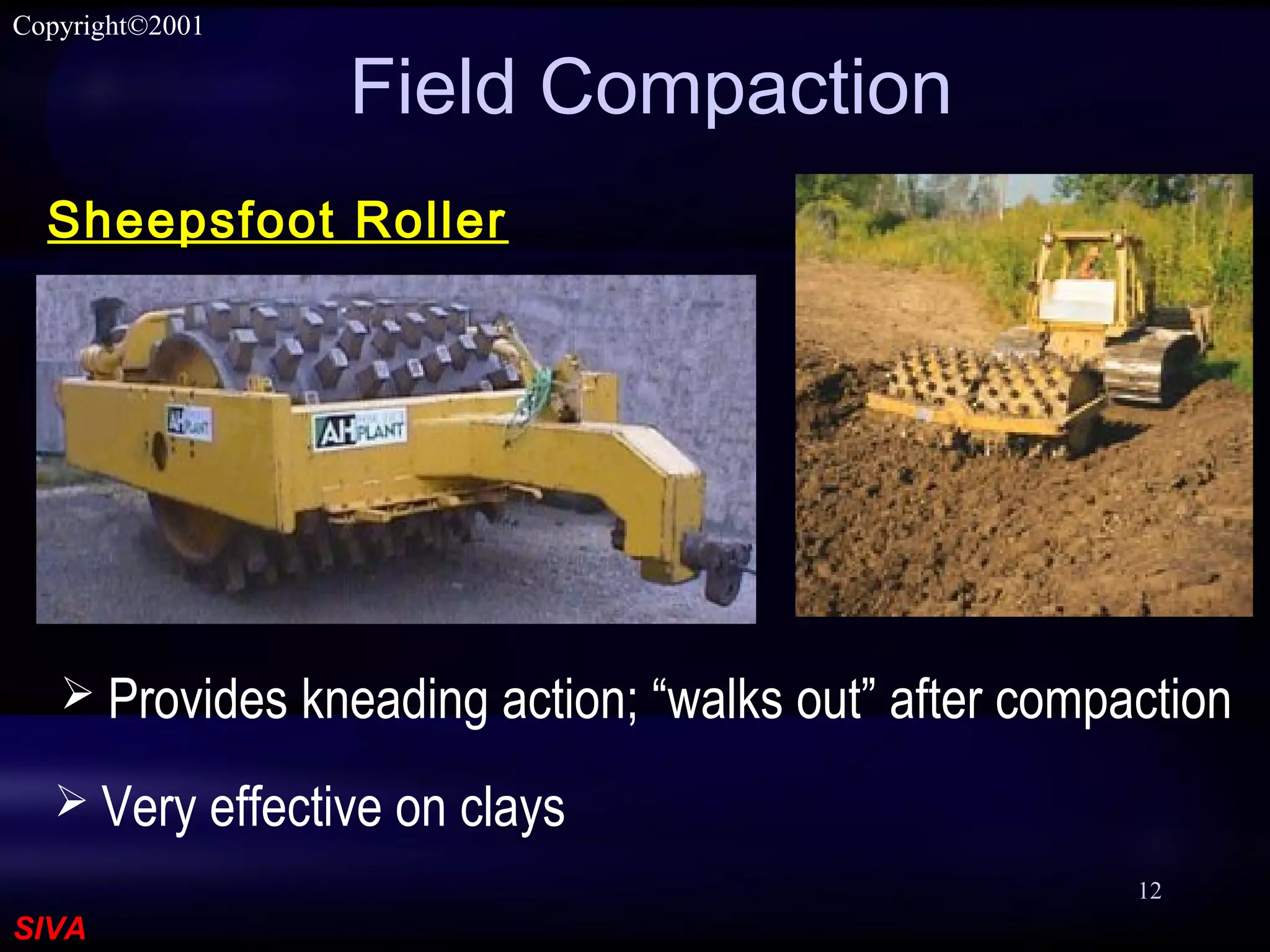

Field Compaction
 Provides kneading action; “walks out” after compaction
Sheepsfoot Roller
 Very effective on clays

13. SIVA
Copyright©2001
13

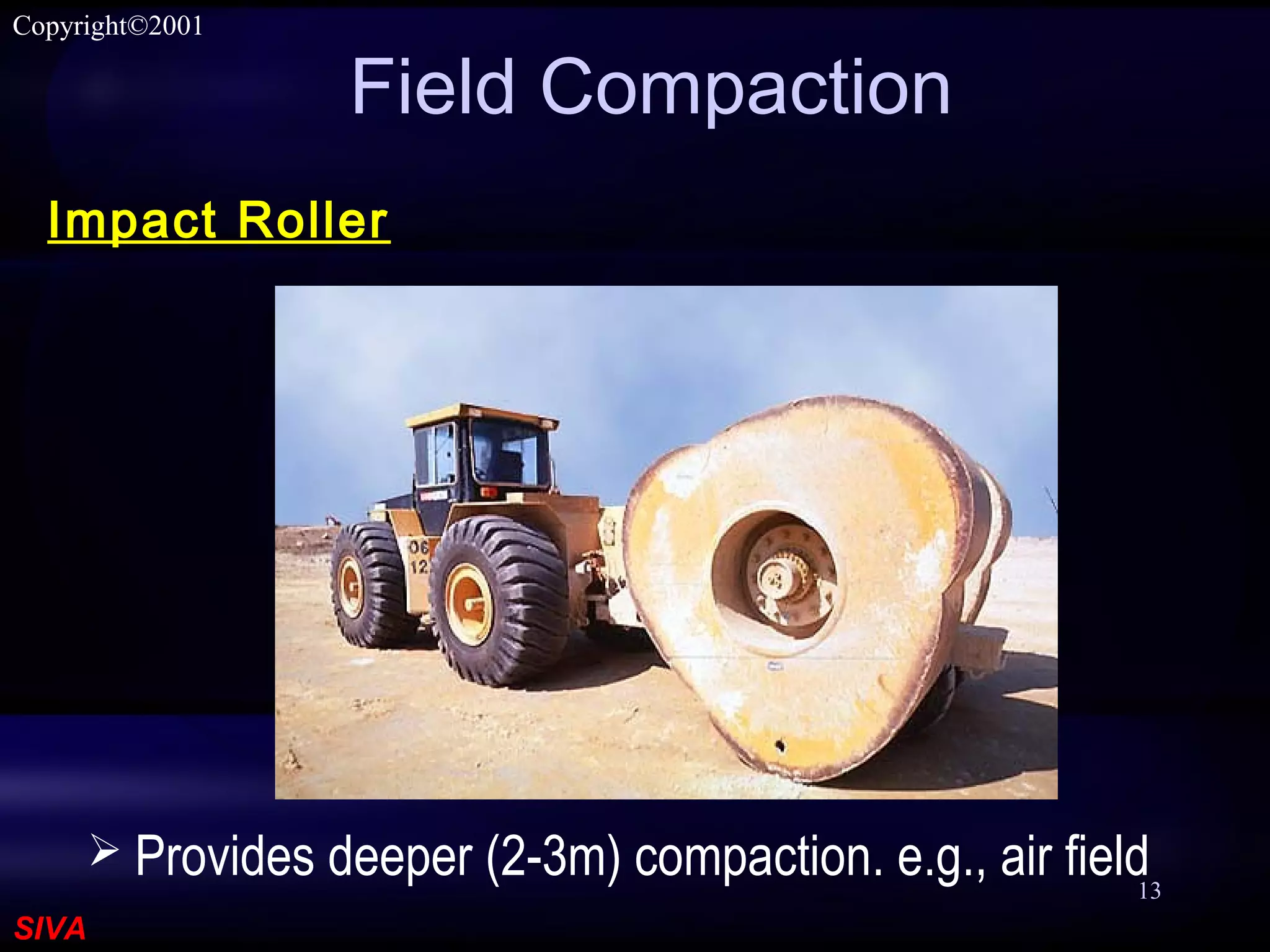

Field Compaction
 Provides deeper (2-3m) compaction. e.g., air field
Impact Roller

14. SIVA
Copyright©2001
14

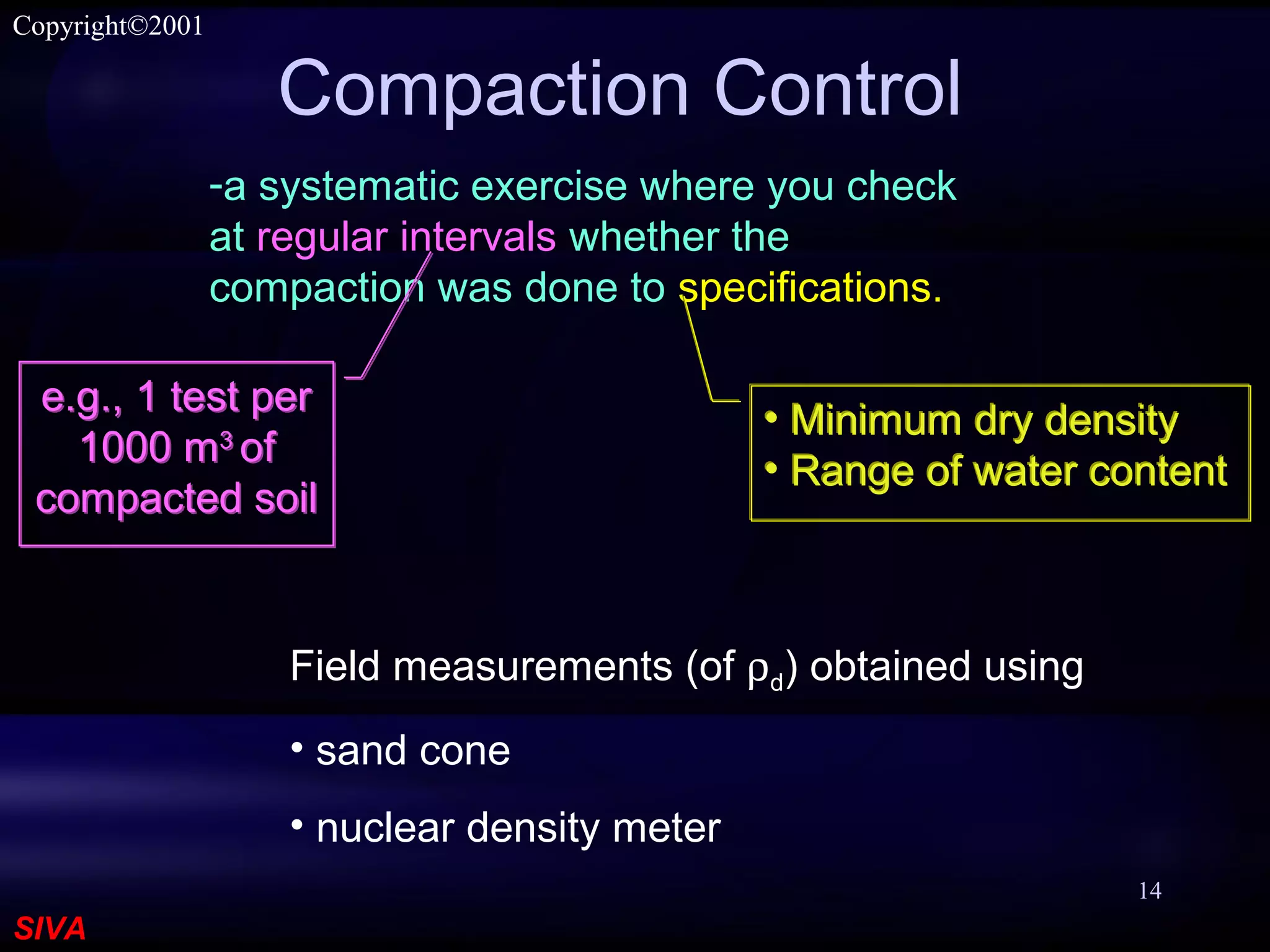

Compaction Control
-a systematic exercise where you check
at regular intervals whether the
compaction was done to specifications.
e.g., 1 test per
1000 m3
of
compacted soil
e.g., 1 test per
1000 m3
of
compacted soil
• Minimum dry density
• Range of water content
• Minimum dry density
• Range of water content
Field measurements (of ρd) obtained using
• sand cone
• nuclear density meter

15. SIVA
Copyright©2001
15

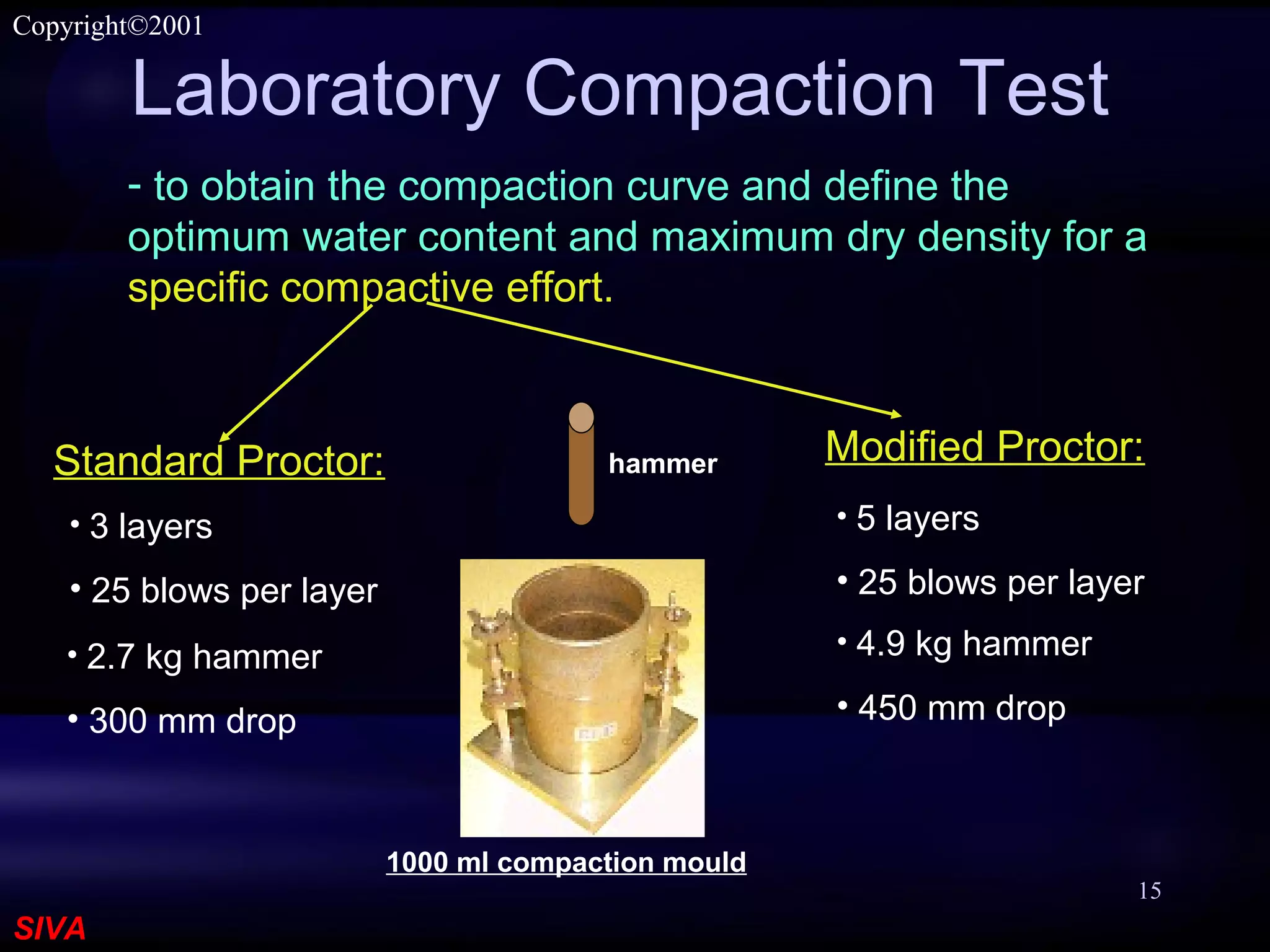

Laboratory Compaction Test
- to obtain the compaction curve and define the
optimum water content and maximum dry density for a
specific compactive effort.
hammerStandard Proctor: Modified Proctor:
• 3 layers
• 25 blows per layer
• 5 layers
• 25 blows per layer
• 2.7 kg hammer
• 300 mm drop
• 4.9 kg hammer
• 450 mm drop
1000 ml compaction mould

16. SIVA
Copyright©2001
16

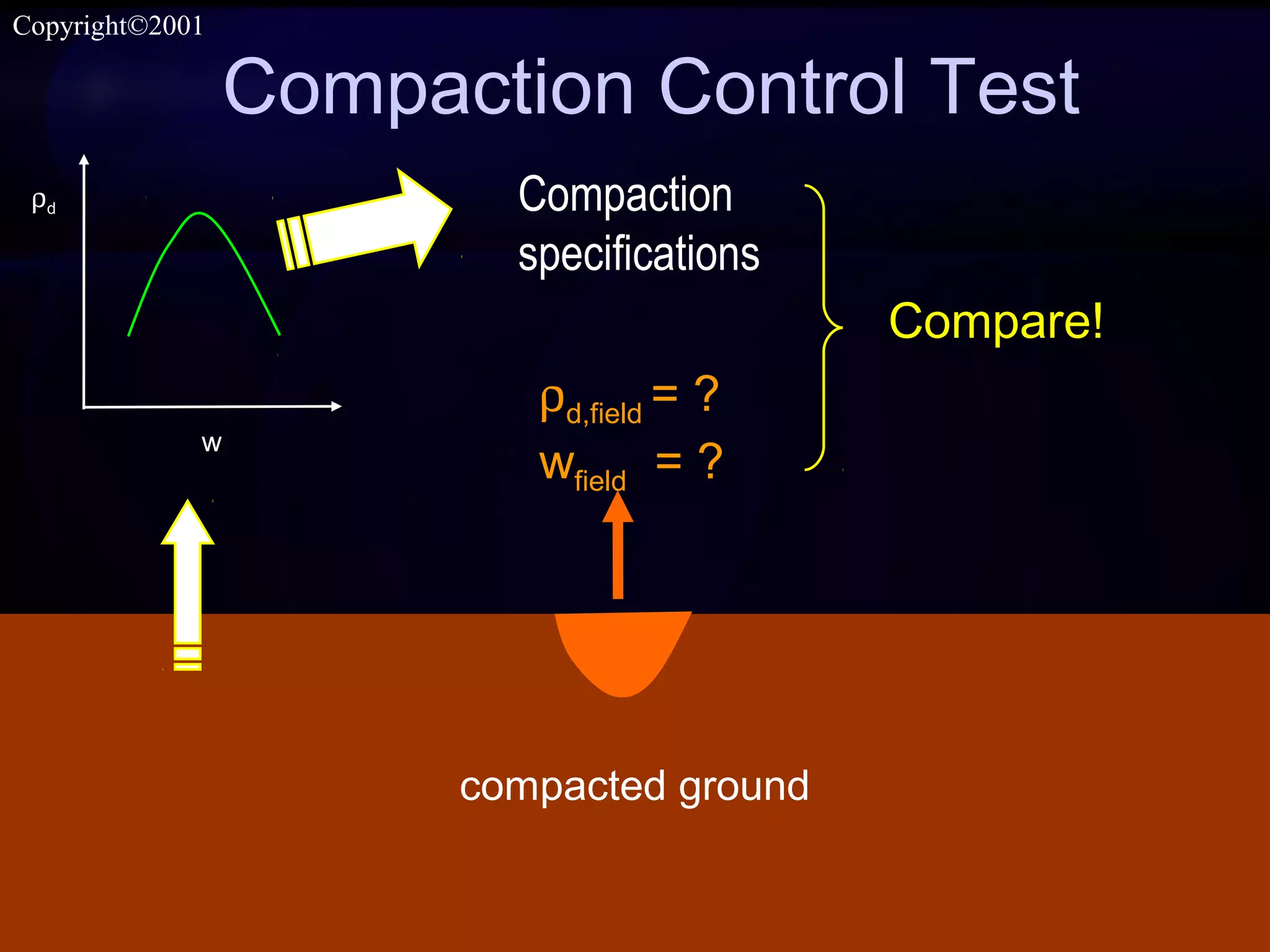

Compaction Control Test
compacted ground
ρd,field = ?
wfield = ?
Compaction
specifications
Compare!
w
ρd

17. SIVA
Copyright©2001

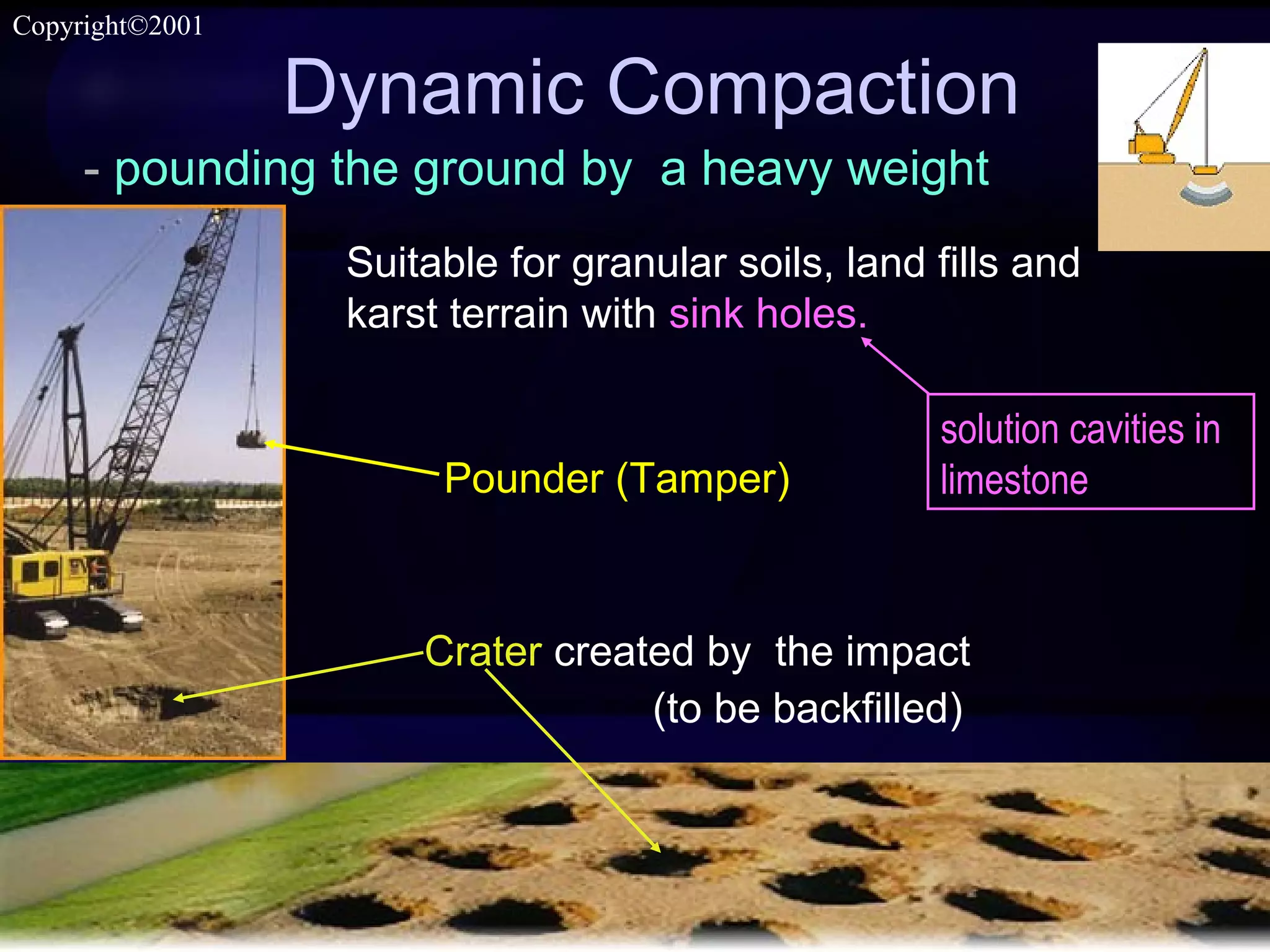

Dynamic Compaction
- pounding the ground by a heavy weight
Suitable for granular soils, land fills and
karst terrain with sink holes.
Crater created by the impact
Pounder (Tamper)
solution cavities in
limestone
(to be backfilled)

18. SIVA
Copyright©2001

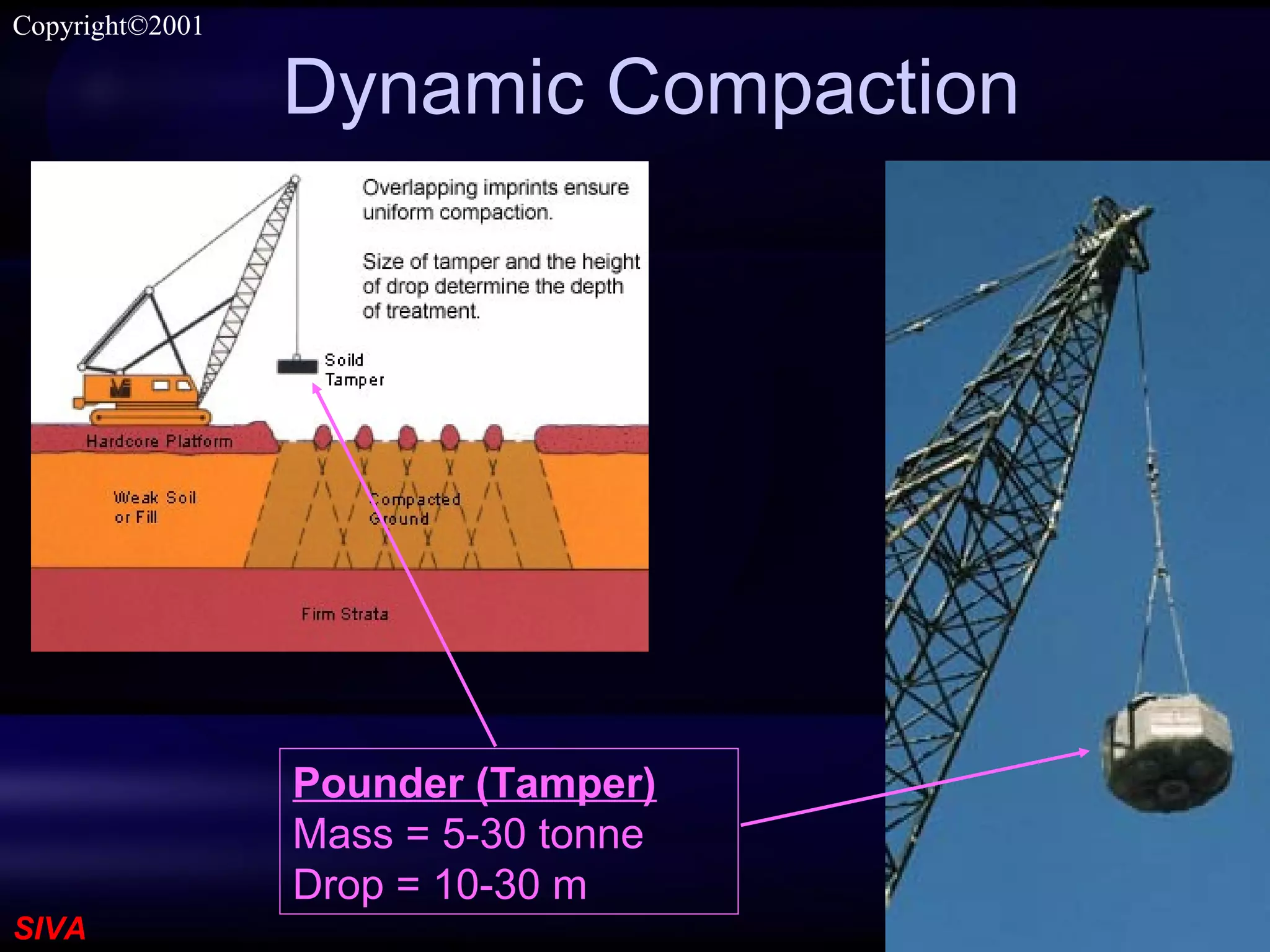

Dynamic Compaction
Pounder (Tamper)
Mass = 5-30 tonne
Drop = 10-30 m

19. SIVA
Copyright©2001

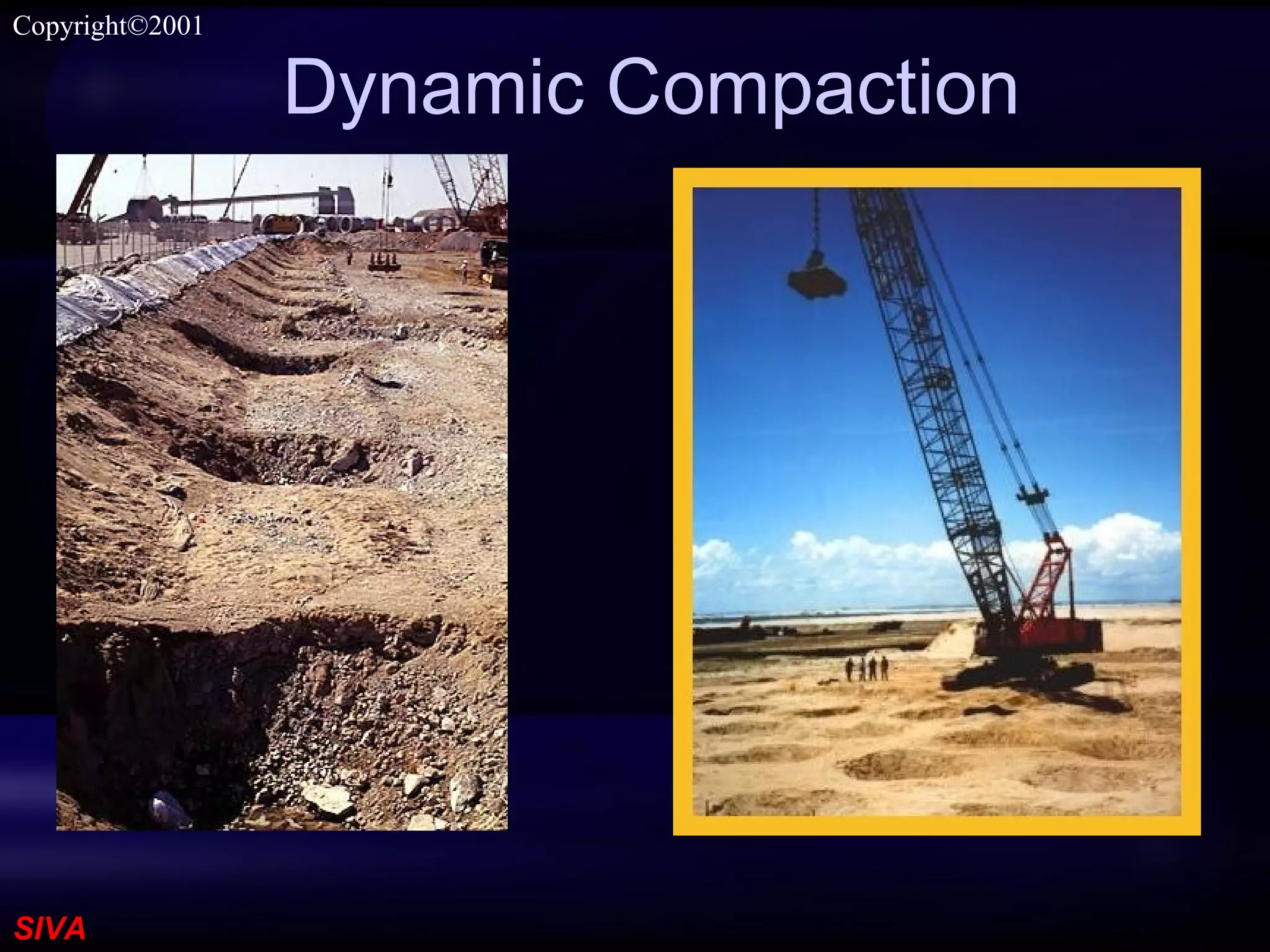

Dynamic Compaction

20. SIVA
Copyright©2001

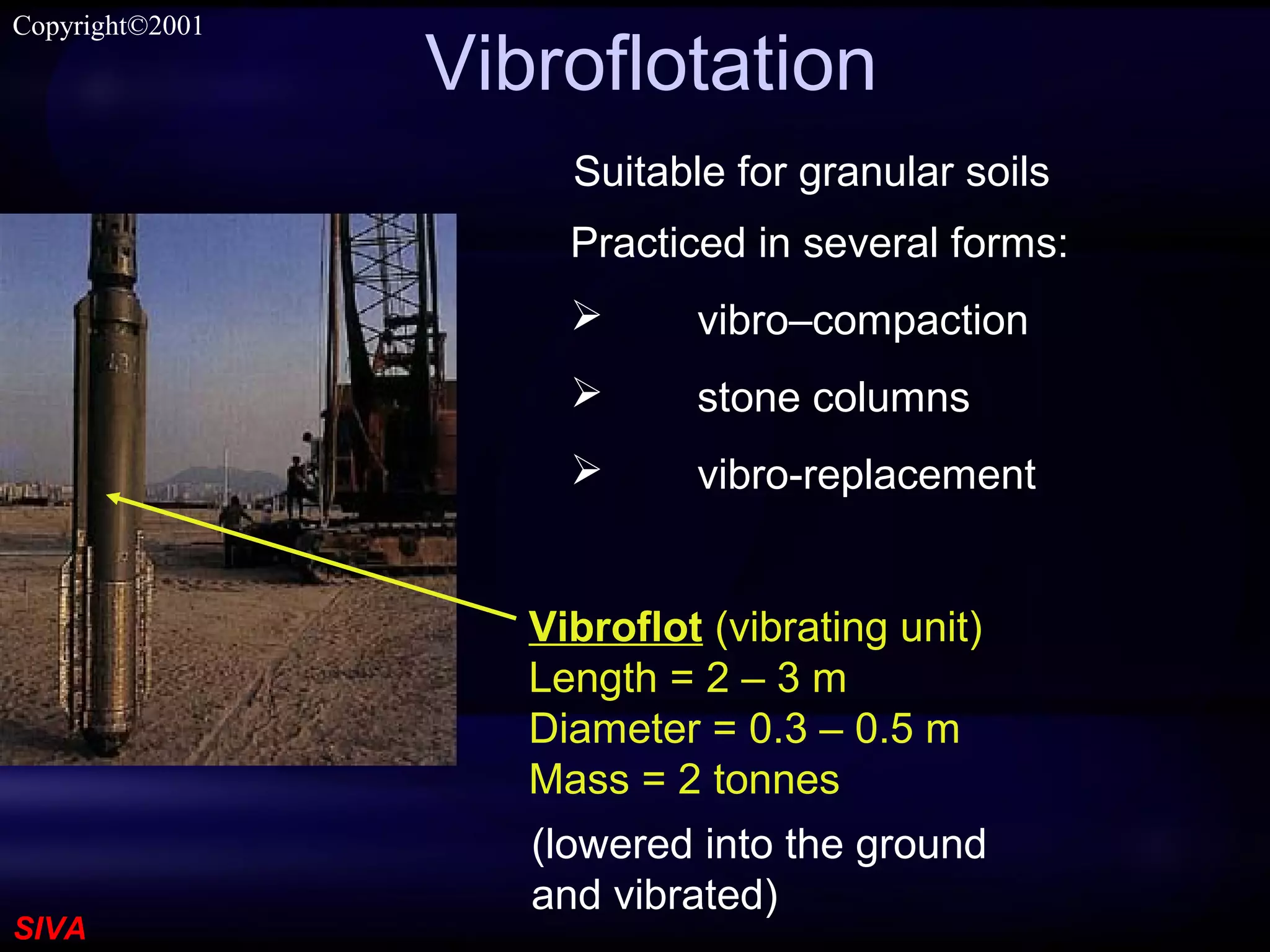

Vibroflotation
Vibroflot (vibrating unit)
Length = 2 – 3 m
Diameter = 0.3 – 0.5 m
Mass = 2 tonnes
Practiced in several forms:
 vibro–compaction
 stone columns
 vibro-replacement
Suitable for granular soils
(lowered into the ground
and vibrated)

21. SIVA
Copyright©2001

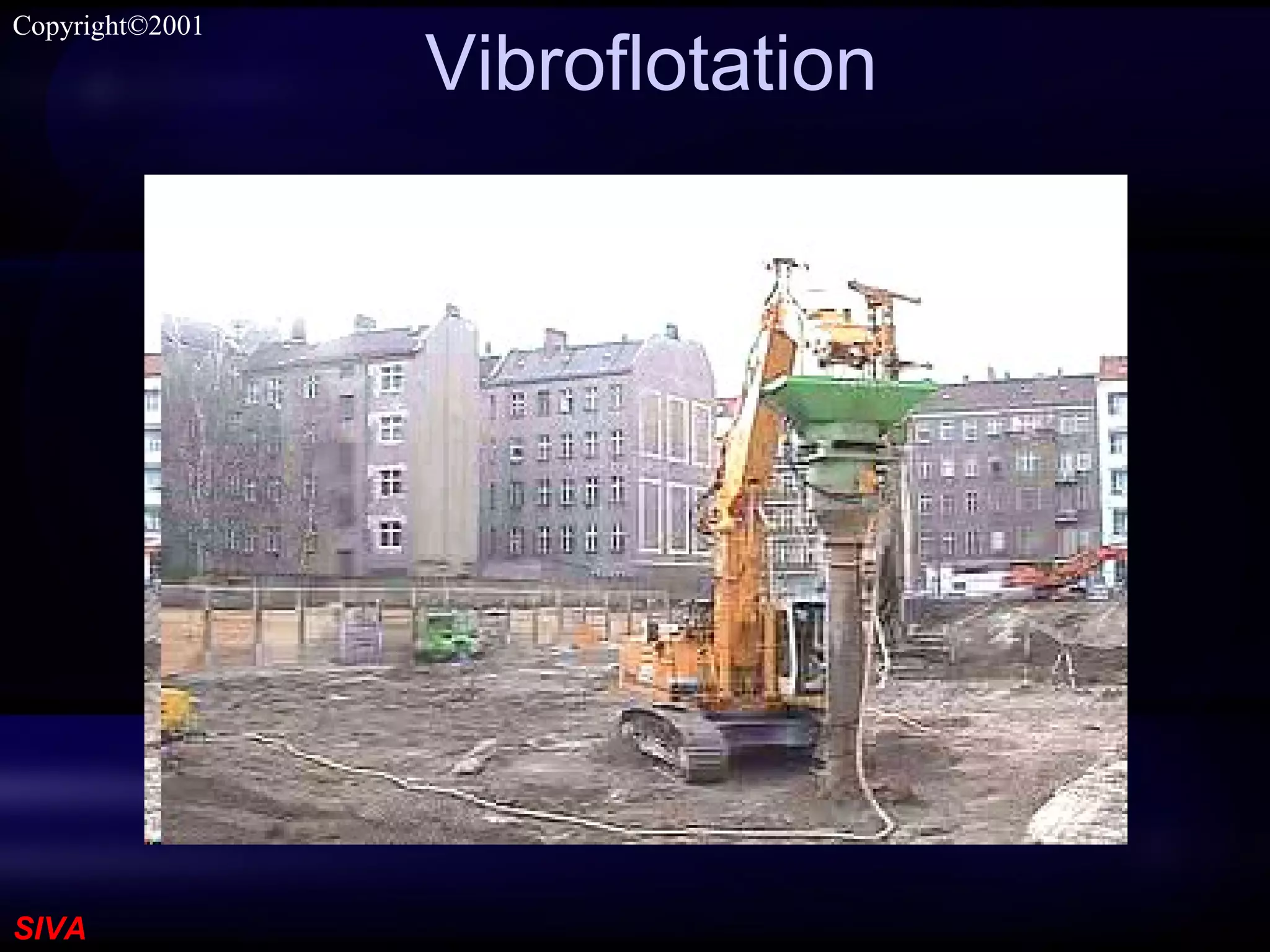

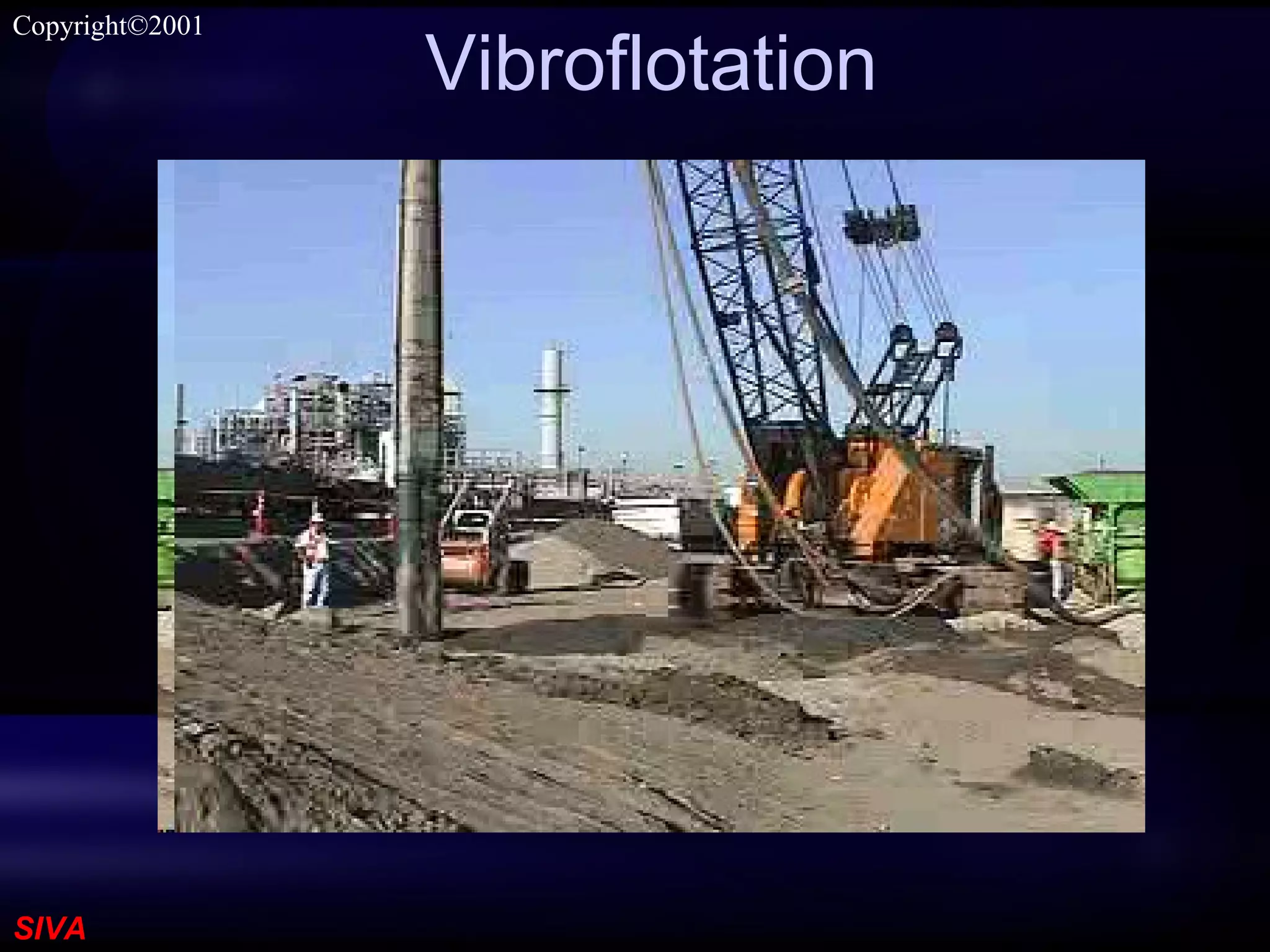

Vibroflotation

22. SIVA
Copyright©2001

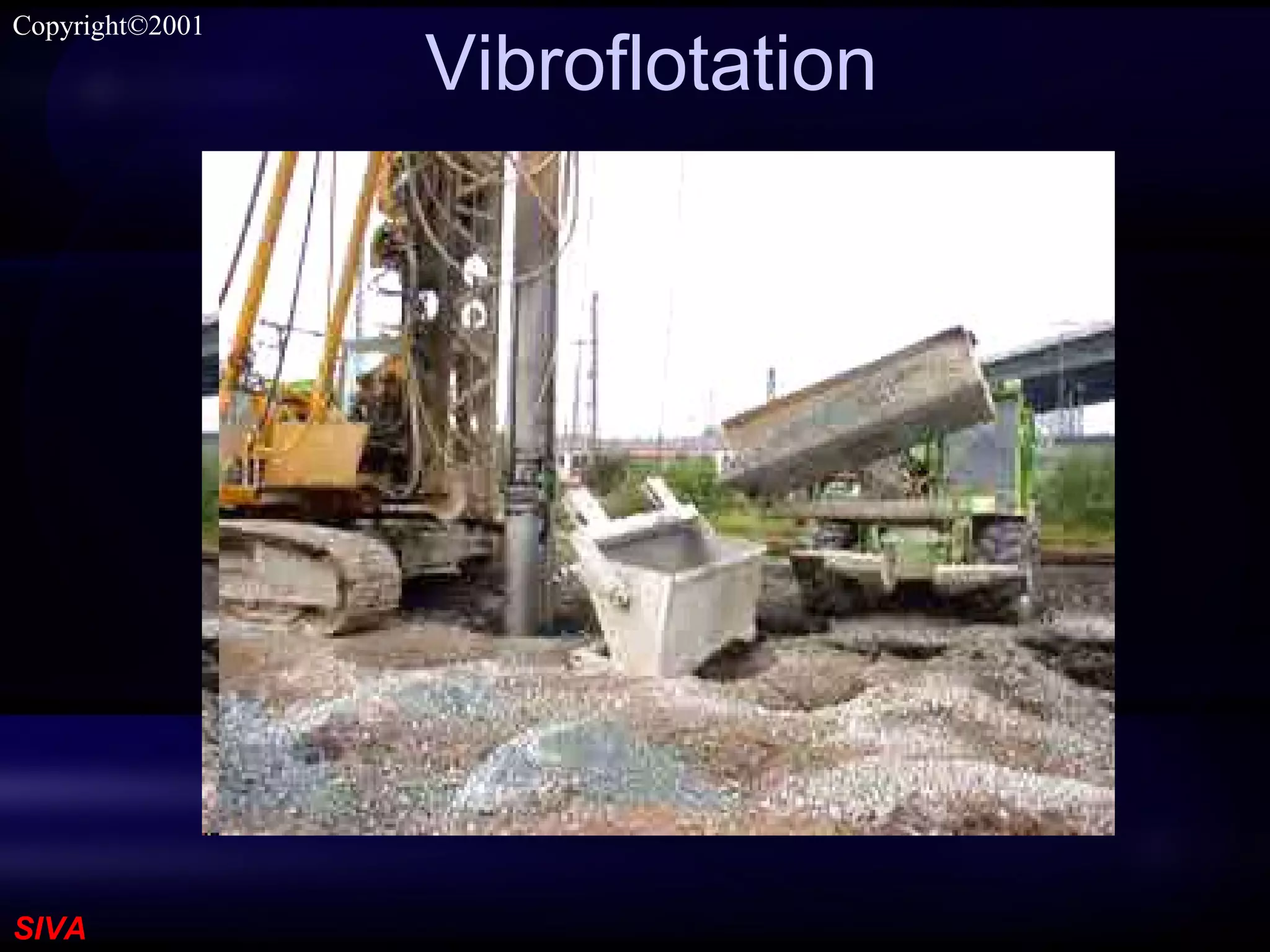

Vibroflotation

23. SIVA
Copyright©2001

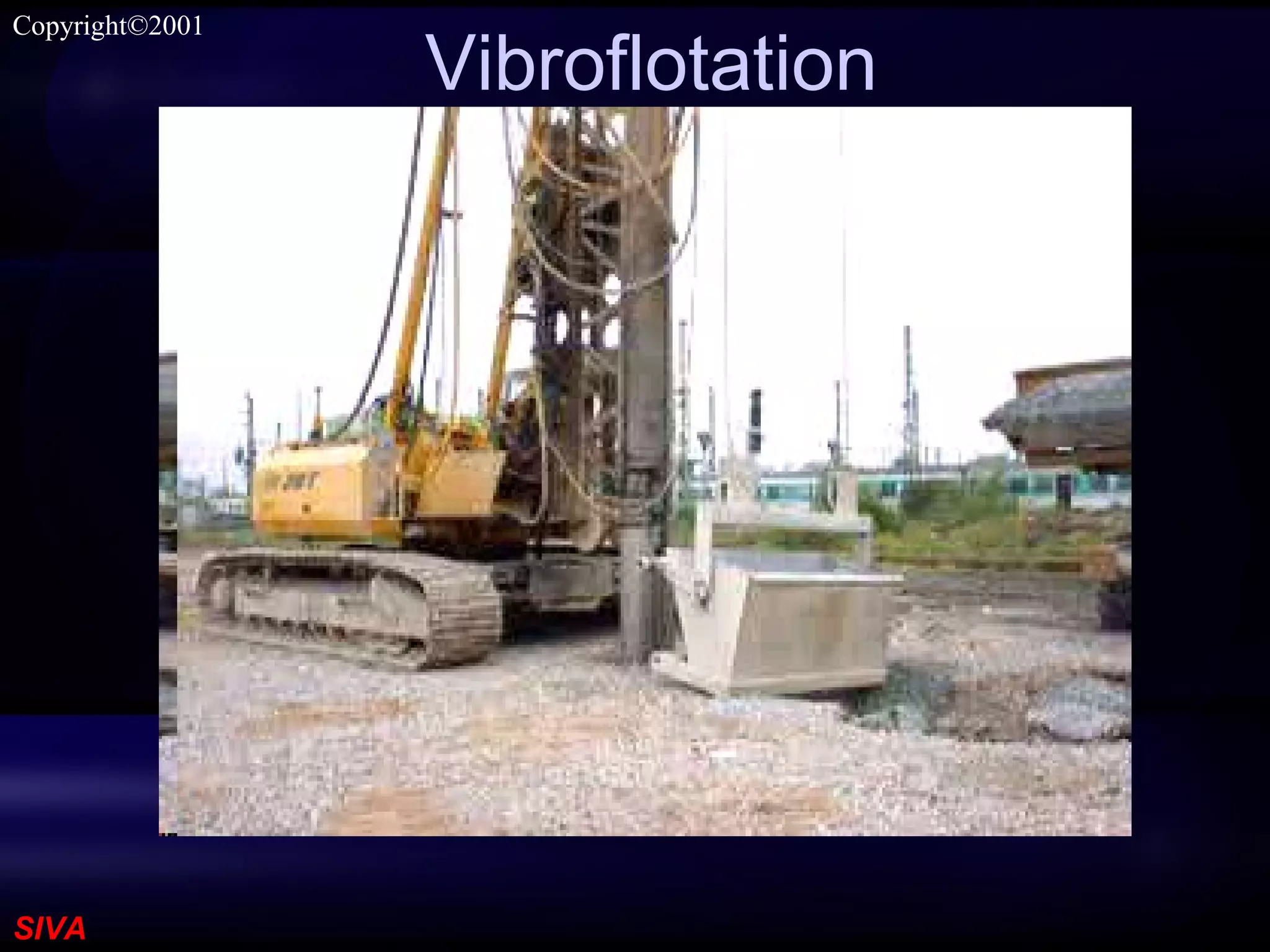

Vibroflotation

24. SIVA
Copyright©2001

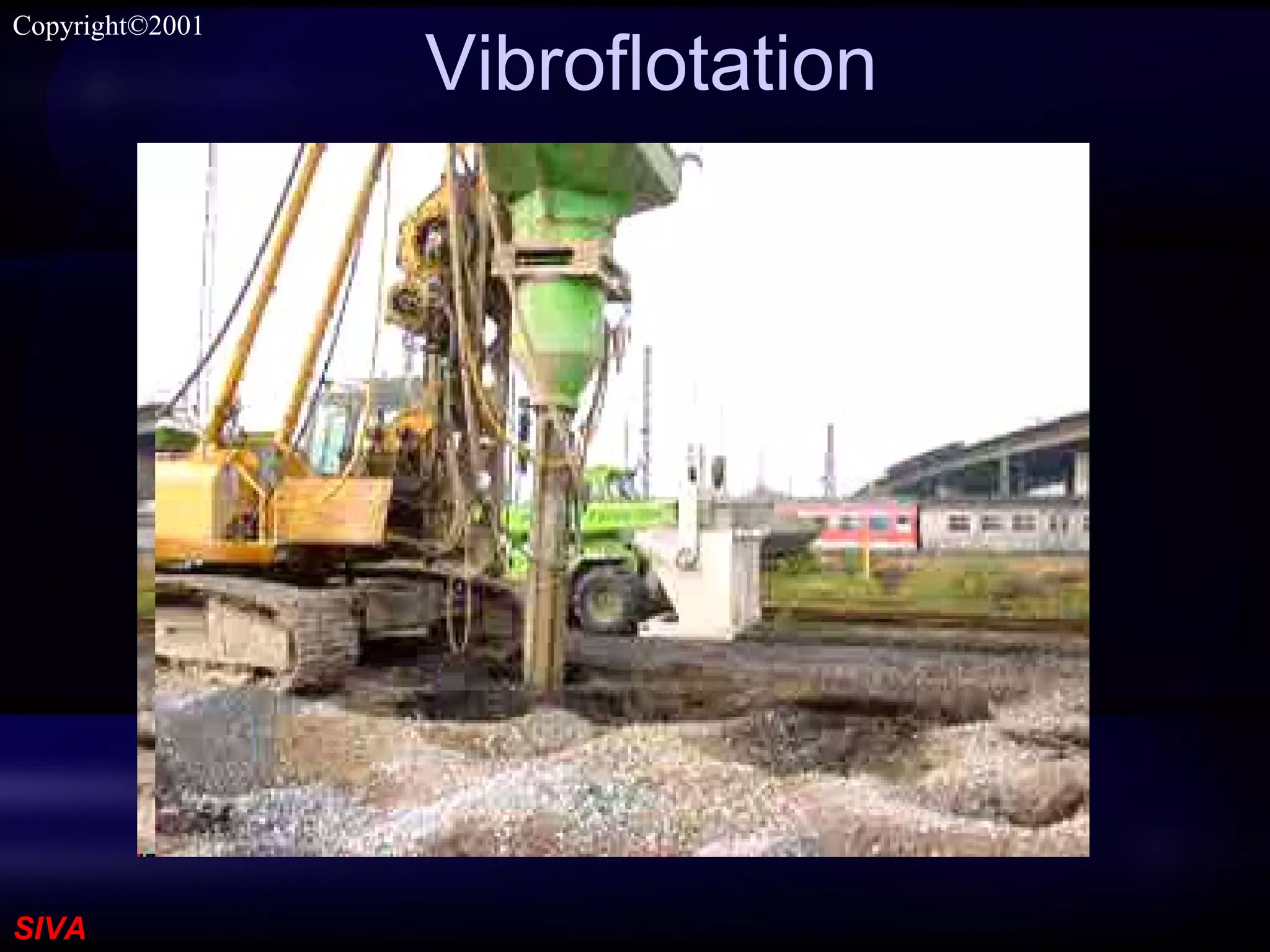

Vibroflotation

25. SIVA
Copyright©2001

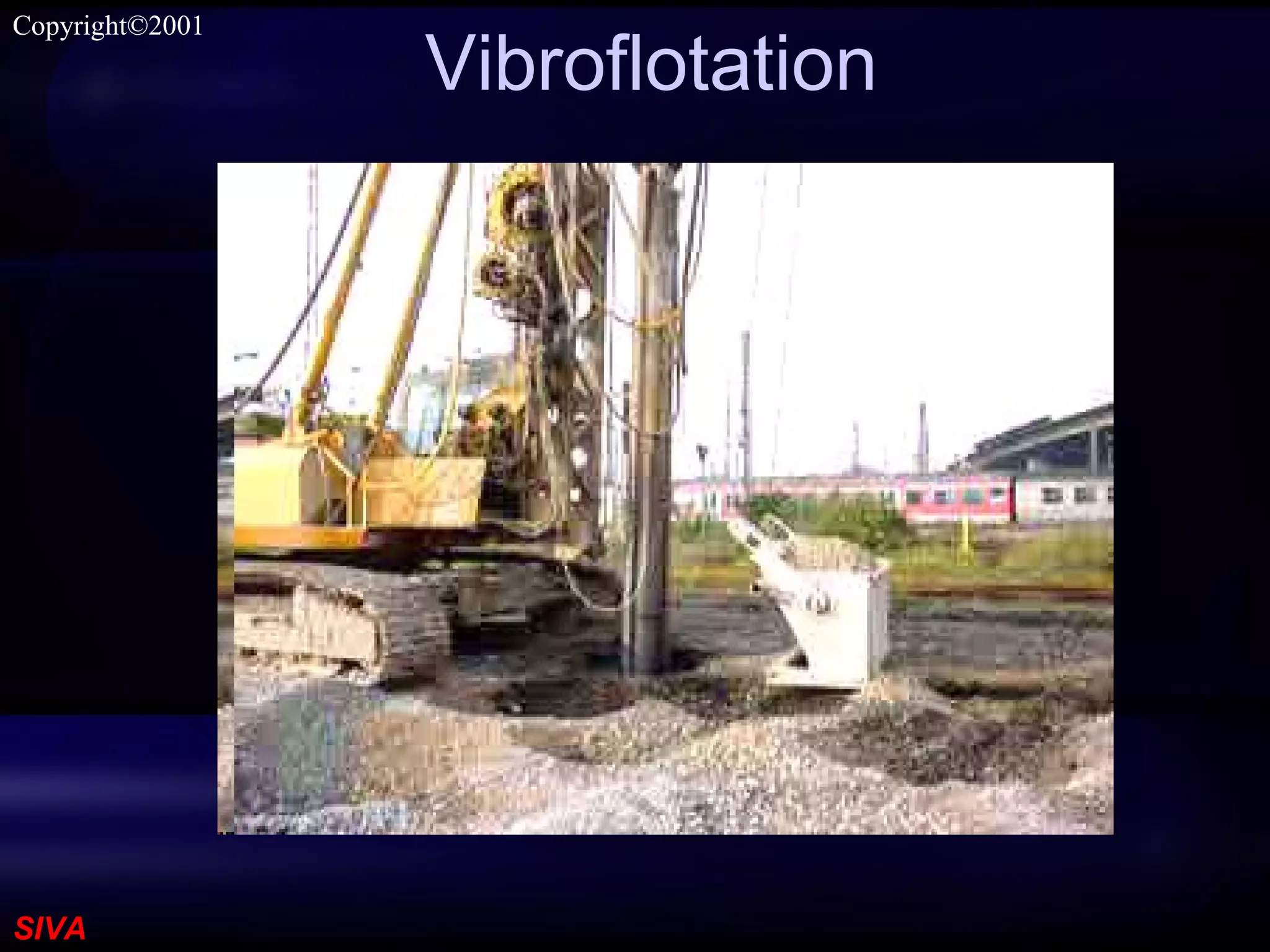

Vibroflotation

26. SIVA
Copyright©2001
Vibroflotation

27. SIVA
Copyright©2001
27
Stone Columns
vibrator makes a
hole in the weak
ground
hole backfilled ..and compacted Densely compacted
stone column

28. SIVA
Copyright©2001
28

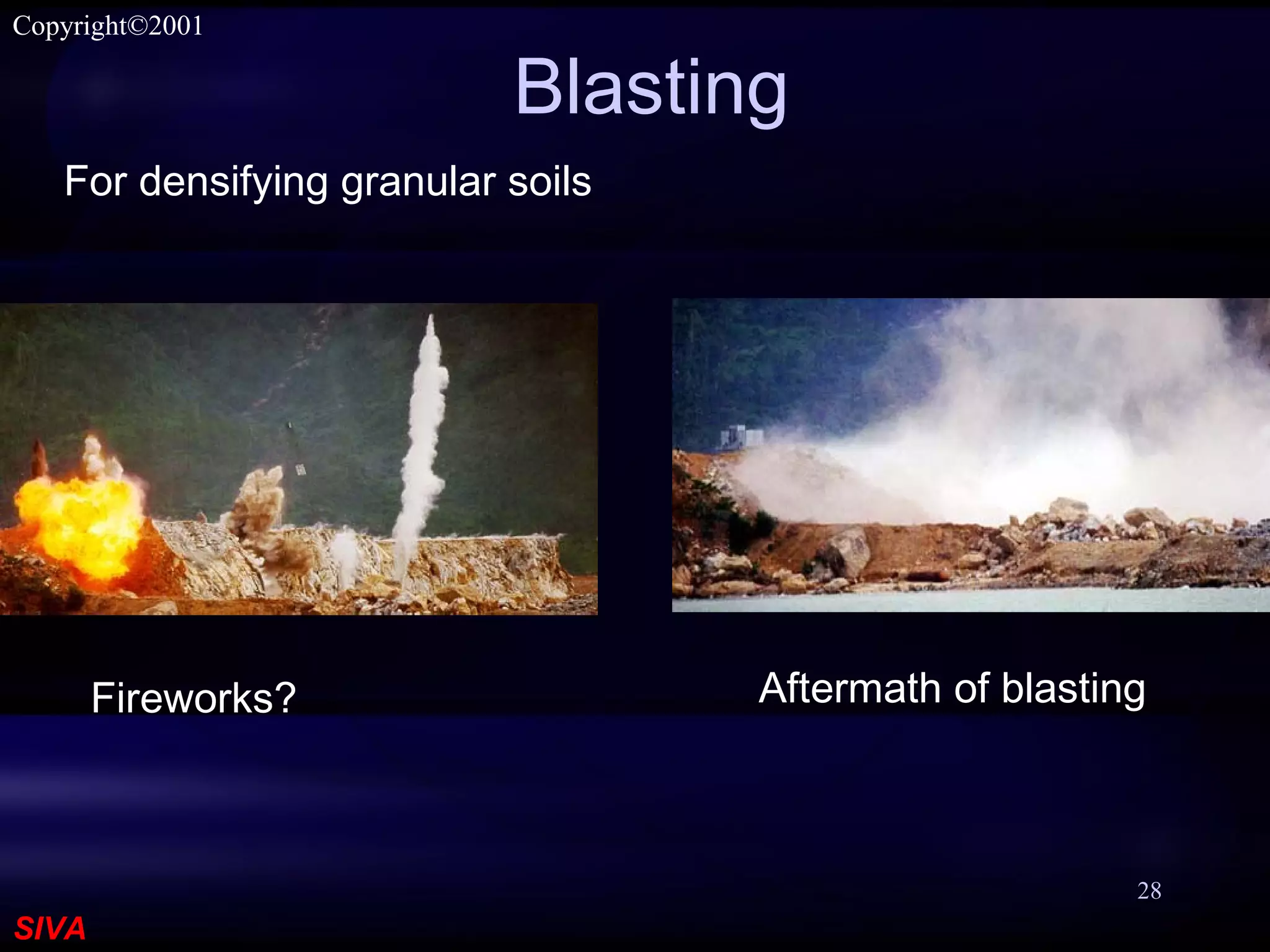

Blasting
Aftermath of blastingFireworks?
For densifying granular soils

29. SIVA
Copyright©2001
29

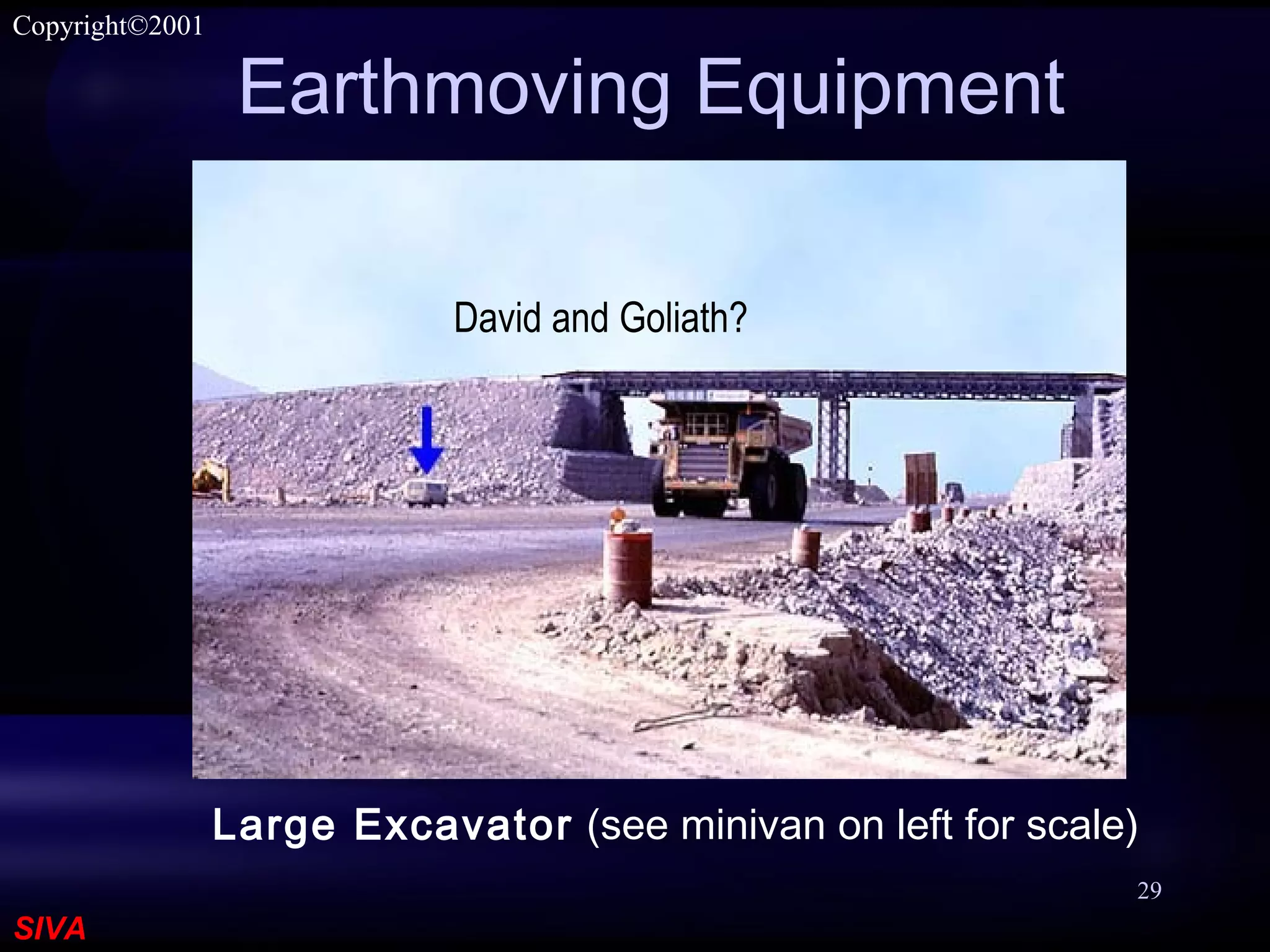

Earthmoving Equipment
Large Excavator (see minivan on left for scale)
David and Goliath?

30. SIVA
Copyright©2001
30
Earthmoving Equipment

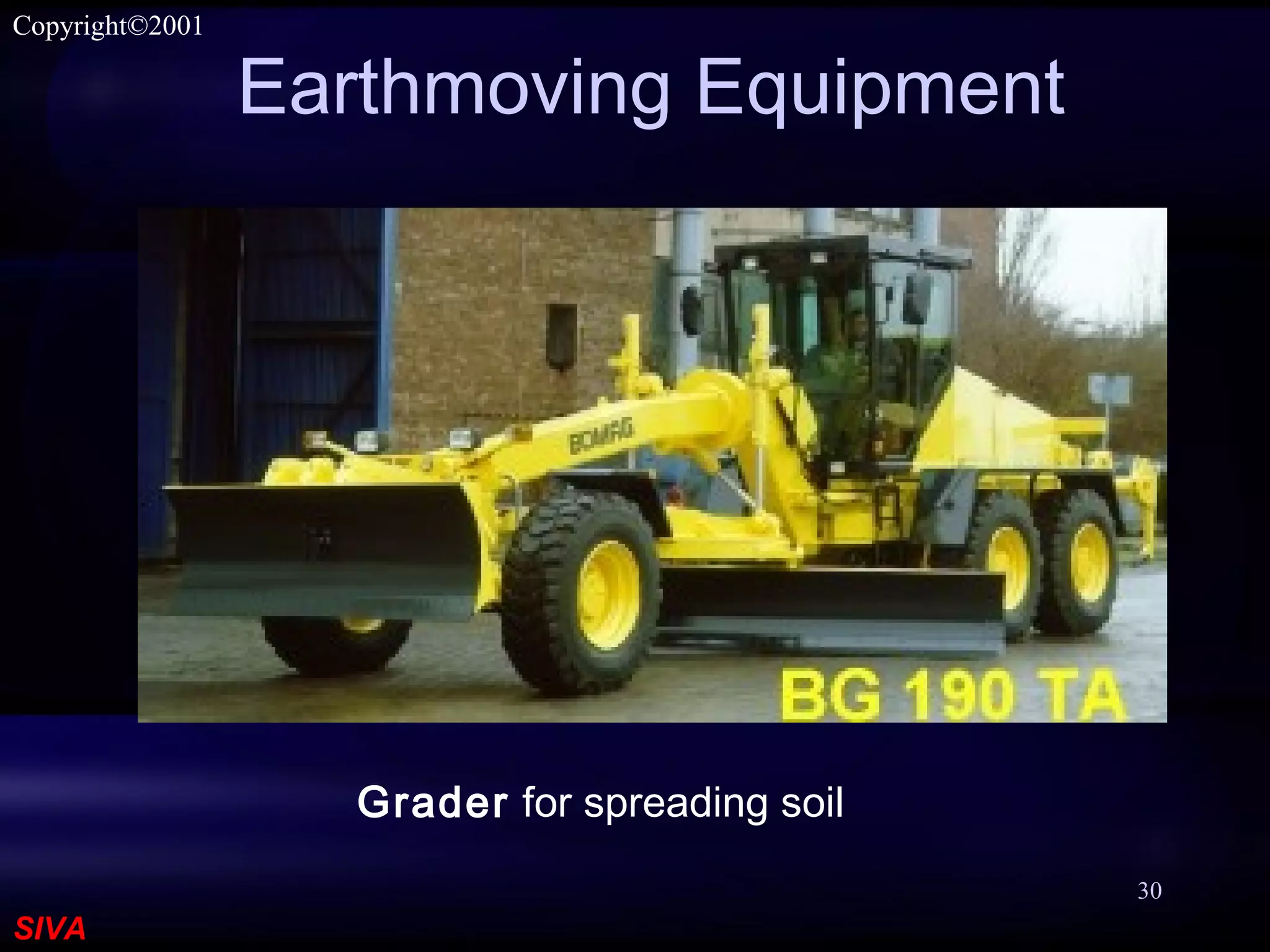

Grader for spreading soil

31. SIVA
Copyright©2001
31
Earthmoving Equipment

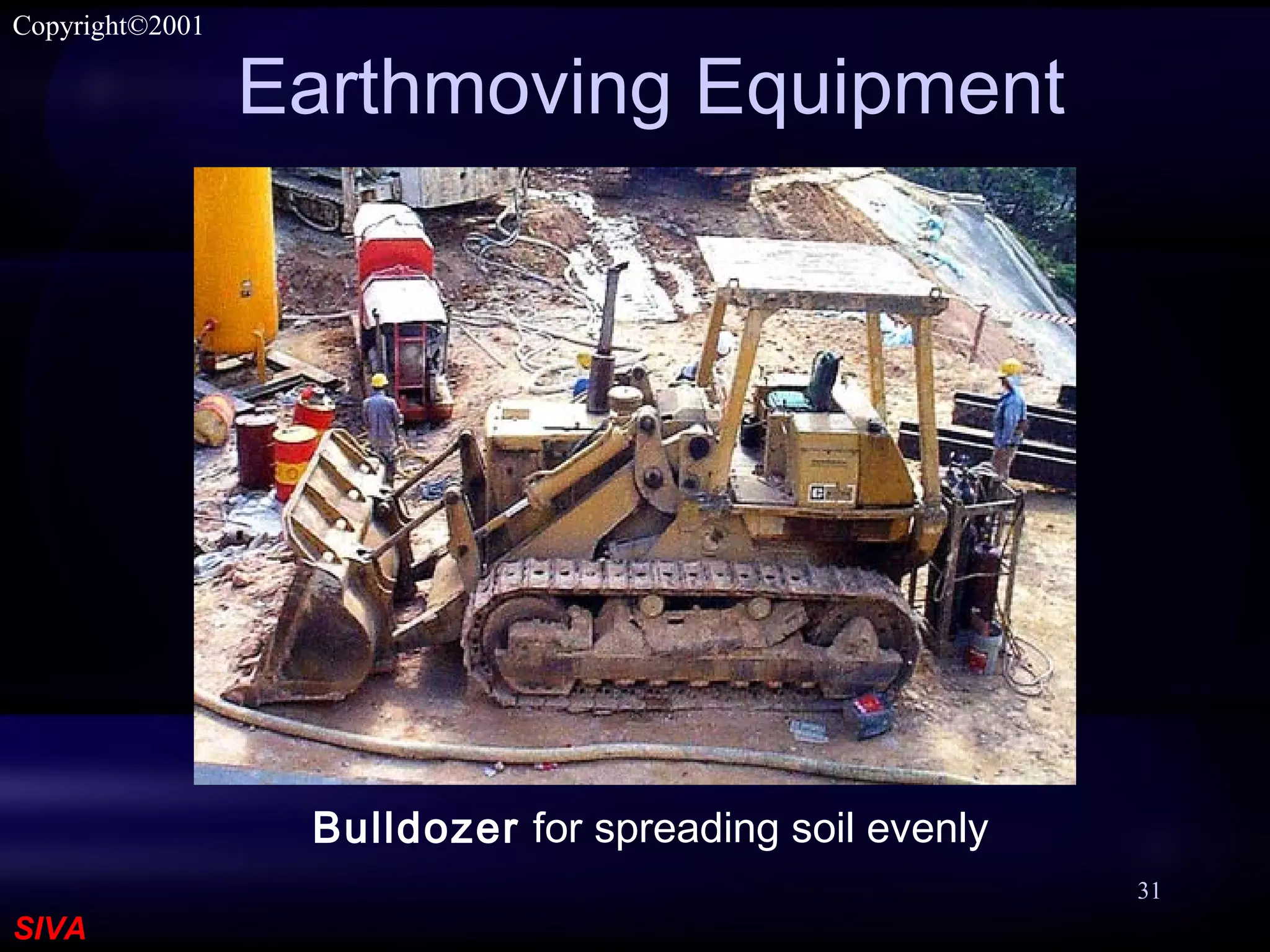

Bulldozer for spreading soil evenly

32. SIVA
Copyright©2001
32
Earthmoving Equipment
Loader

33. SIVA
Copyright©2001
33

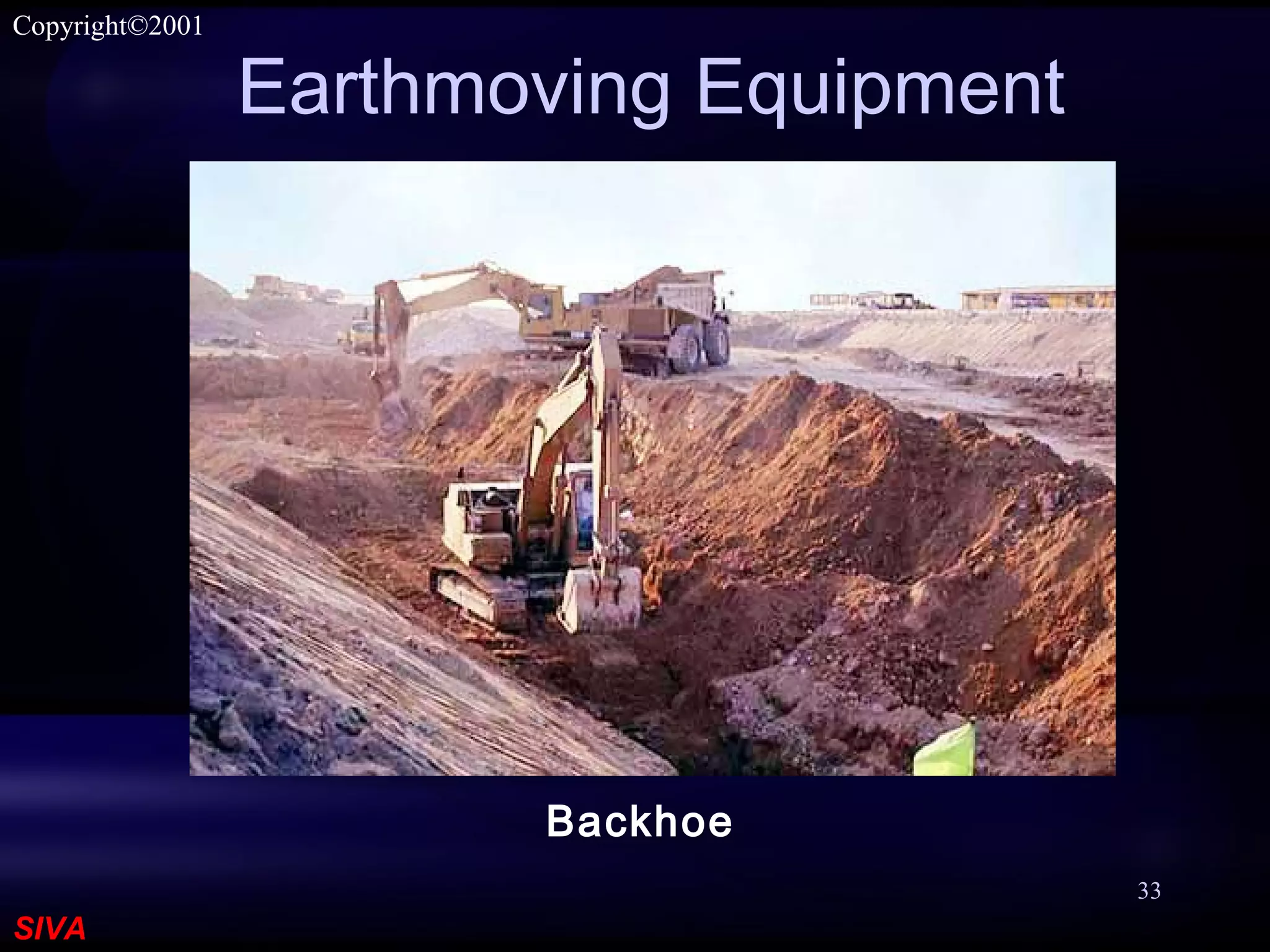

Earthmoving Equipment
Backhoe

34. SIVA
Copyright©2001
34

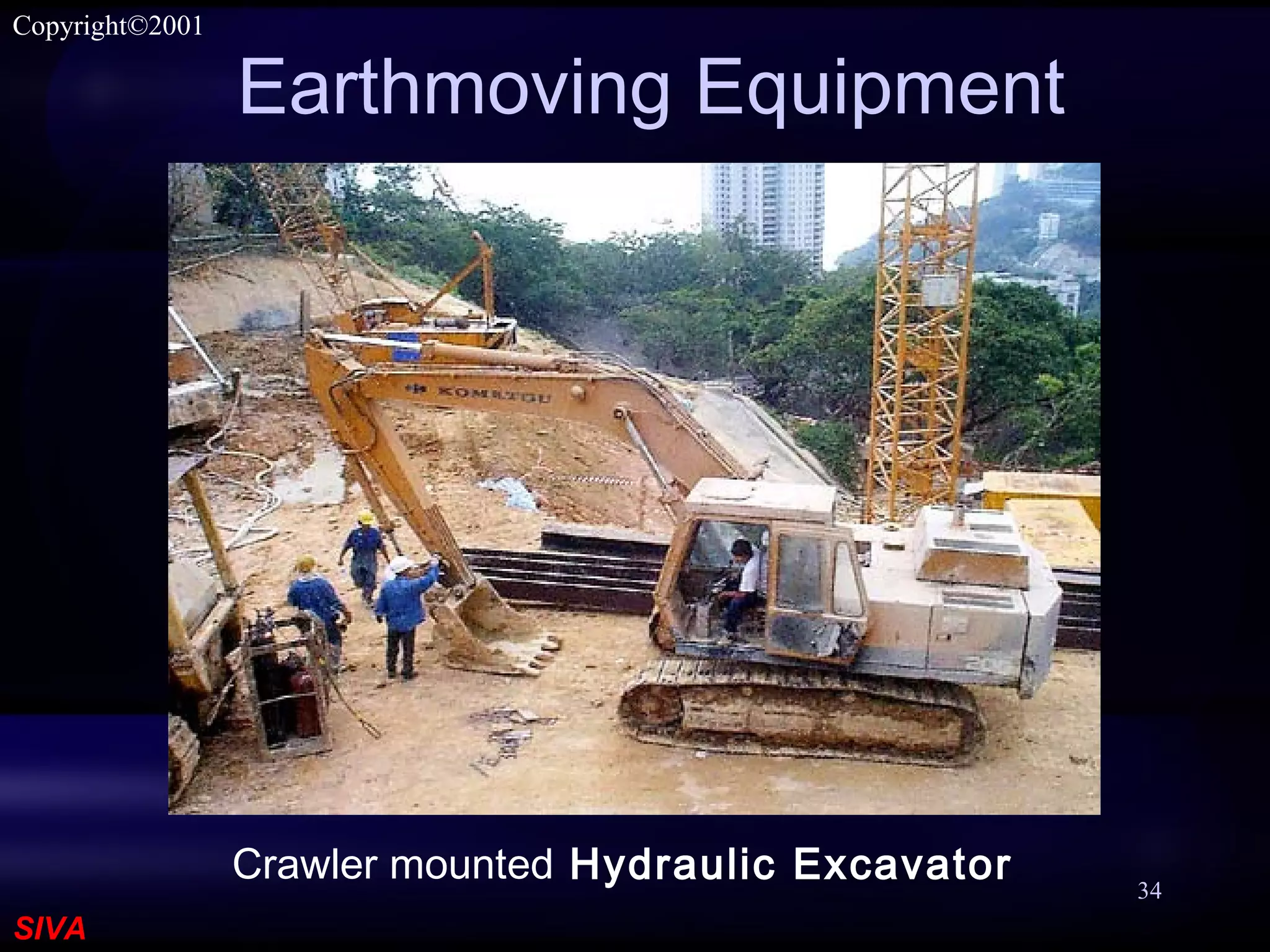

Earthmoving Equipment
Crawler mounted Hydraulic Excavator

35. SIVA
Copyright©2001
35

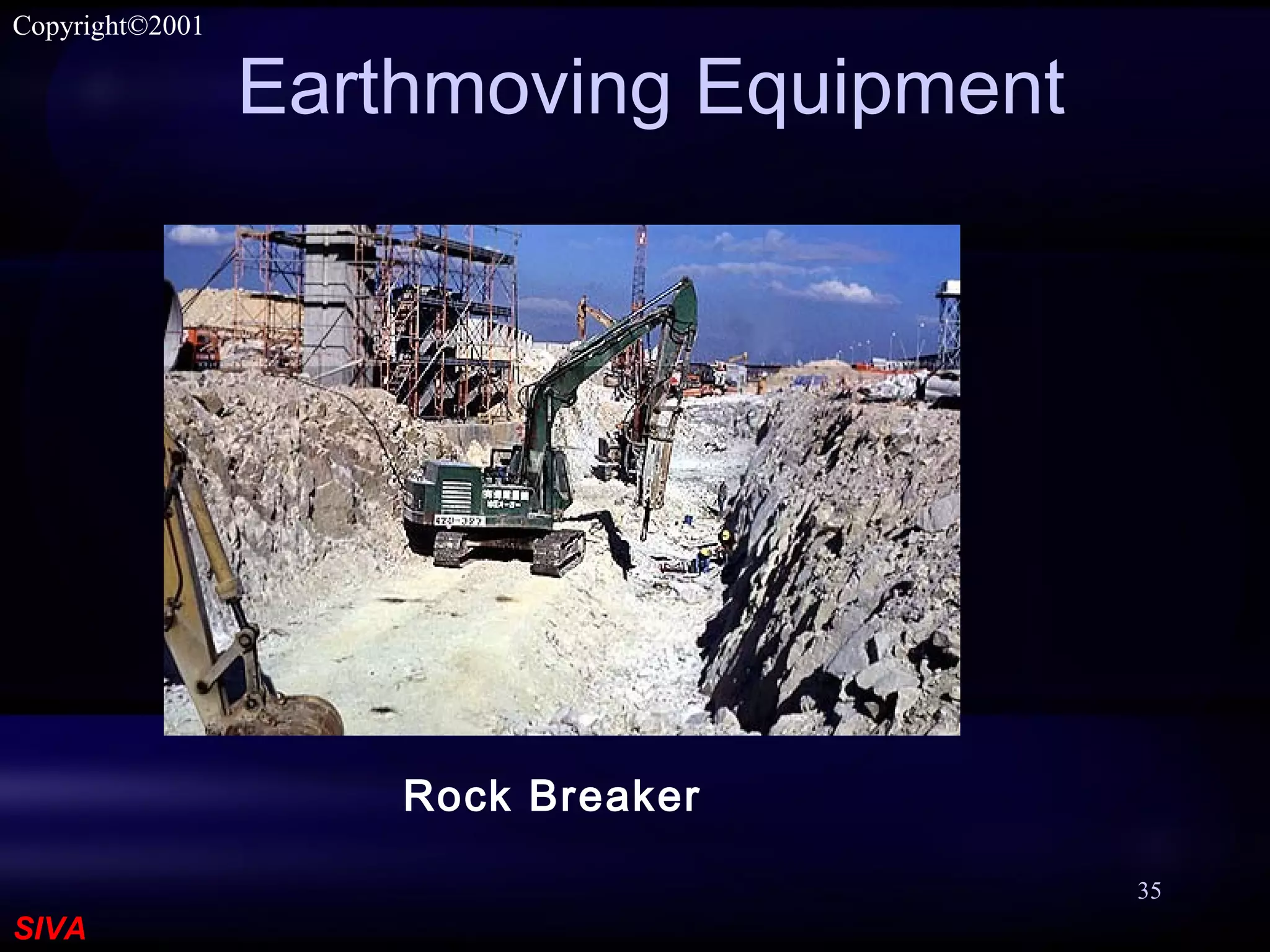

Earthmoving Equipment
Rock Breaker
