ERpul is an agricultural machinery and spare parts producer/exporter located in Turkey that provides products like disc ploughs, moldboard ploughs, chisels, cultivators, and hoeing machines to customers around the world. The document provides product catalogs listing the technical specifications of ERpul's line of agricultural equipment, including dimensions, operation details, and power requirements. ERpul aims to offer high quality agriculture products at appropriate prices to help customers with their farming needs.

1. AGRİMİR FOREIGN TRADE CO. LTD.
( ERPUL CORPORATİON )
www.erpul.com info@erpul.com erpulco@gmail.com
For English ( Ms. Filiz) : 0090 332 3503708 - For Russian (Mr. Shirinov) 0090 5387961545
Fax: 0090 332 2482685 Address: Selcuk San. Ehad Cadddesi No:26-9 Konya- Turkey

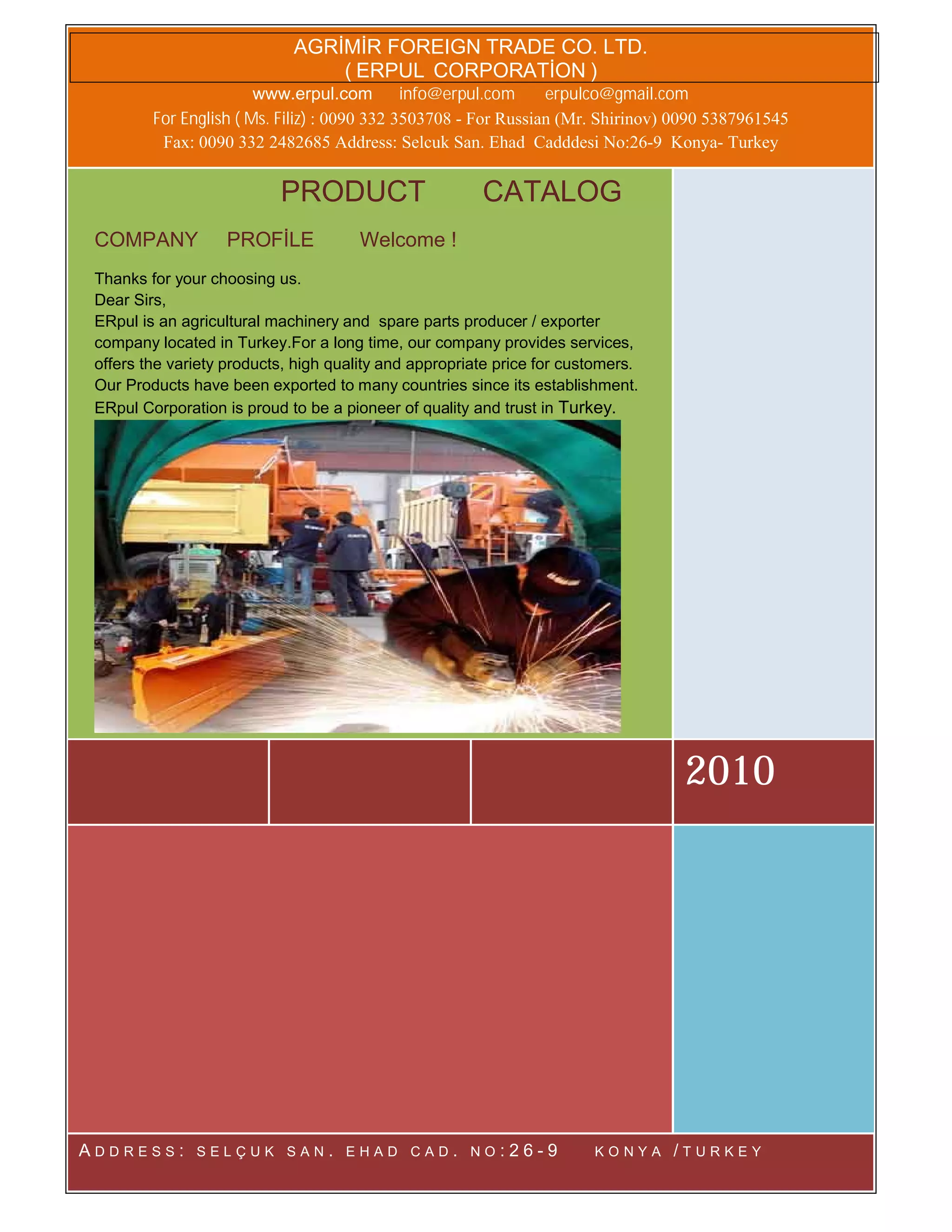

PRODUCT CATALOG
COMPANY PROFİLE Welcome !
Thanks for your choosing us.
Dear Sirs,
ERpul is an agricultural machinery and spare parts producer / exporter
company located in Turkey.For a long time, our company provides services,
offers the variety products, high quality and appropriate price for customers.
Our Products have been exported to many countries since its establishment.
ERpul Corporation is proud to be a pioneer of quality and trust in Turkey.
2010
ADDRESS: SELÇUK SAN . EHAD CAD . NO :26-9 KONYA /TURKEY

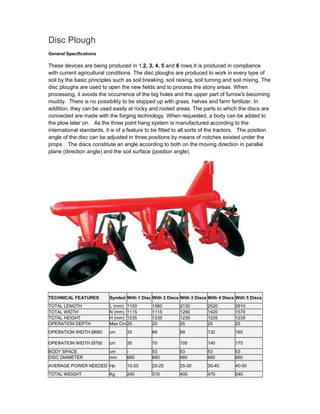

2. Disc Plough
General Specifications
These devices are being produced in 1,2, 3, 4, 5 and 6 rows.It is produced in compliance
with current agricultural conditions. The disc ploughs are produced to work in every type of
soil by the basic principles such as soil breaking, soil raising, soil turning and soil mixing. The
disc ploughs are used to open the new fields and to process the stony areas. When
processing, it avoids the occurrence of the big holes and the upper part of furrow's becoming
muddy. There is no possibility to be stopped up with grass, helves and farm fertilizer. In
addition, they can be used easily at rocky and rooted areas. The parts to which the discs are
connected are made with the forging technology. When requested, a body can be added to
the plow later on. As the three point hang system is manufactured according to the
international standards, it is of a feature to be fitted to all sorts of the tractors. The position
angle of the disc can be adjusted in three positions by means of notches existed under the
props. The discs constitute an angle according to both on the moving direction in parallel
plane (direction angle) and the soil surface (position angle).
TECHNICAL FEATURES Symbol With 1 Disc With 2 Discs With 3 Discs With 4 Discs With 5 Discs
TOTAL LENGTH L (mm) 1100 1560 2130 2520 2910
TOTAL WIDTH N (mm) 1115 1115 1265 1420 1570
TOTAL HEIGHT H (mm) 1235 1235 1235 1235 1235
OPERATION DEPTH Max Cm 25 25 25 25 25
OPERATION WIDTH Ø660 cm 33 66 99 132 165
OPERATION WIDTH Ø700 cm 35 70 105 140 175
BODY SPACE cm - 53 53 53 53
DISC DIAMETER mm 660 660 660 660 660
AVERAGE POWER NEEDED Hp 10-20 20-25 25-30 30-40 40-50
TOTAL WEIGHT Kg 240 310 400 470 540

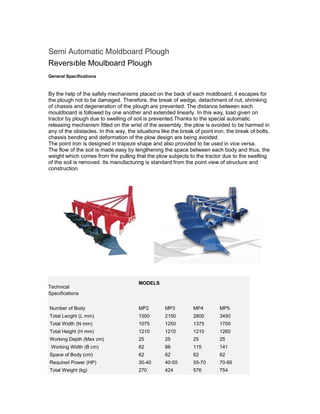

3. Semi Automatic Moldboard Plough
Reversıble Moulboard Plough
General Specifications
By the help of the safety mechanisms placed on the back of each moldboard, it escapes for
the plough not to be damaged. Therefore, the break of wedge, detachment of nut, shrinking
of chassis and degeneration of the plough are prevented. The distance between each
mouldboard is followed by one another and extended linearly. In this way, load given on
tractor by plough due to swelling of soil is prevented.Thanks to the special automatic
releasing mechanism fitted on the wrist of the assembly, the plow is avoided to be harmed in
any of the obstacles. In this way, the situations like the break of point iron, the break of bolts,
chassis bending and deformation of the plow design are being avoided.
The point iron is designed in trapeze shape and also provided to be used in vice versa.
The flow of the soil is made easy by lengthening the space between each body and thus, the
weight which comes from the pulling that the plow subjects to the tractor due to the swelling
of the soil is removed. Its manufacturing is standard from the point view of structure and
construction.
MODELS
Technical
Specifications
.Number of Body MP2 MP3 MP4 MP5
.Total Lenght (L mm) 1500 2150 2800 3450
.Total Width (N mm) 1075 1250 1375 1700
.Total Height (H mm) 1210 1210 1210 1260
.Working Depth (Max cm) 25 25 25 25
. Working Width (B cm) 62 88 115 141
.Space of Body (cm) 62 62 62 62
.Required Power (HP) 30-40 40-55 55-70 70-85
.Total Weight (kg) 270 424 576 754

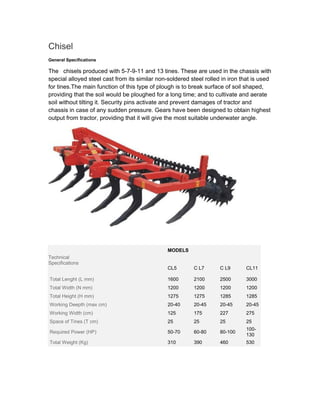

4. Chisel
General Specifications
The chisels produced with 5-7-9-11 and 13 tines. These are used in the chassis with
special alloyed steel cast from its similar non-soldered steel rolled in iron that is used
for tines.The main function of this type of plough is to break surface of soil shaped,
providing that the soil would be ploughed for a long time; and to cultivate and aerate
soil without tilting it. Security pins activate and prevent damages of tractor and
chassis in case of any sudden pressure. Gears have been designed to obtain highest
output from tractor, providing that it will give the most suitable underwater angle.
MODELS
Technical
Specifications
CL5 C L7 C L9 CL11
.Total Lenght (L mm) 1600 2100 2500 3000
.Total Width (N mm) 1200 1200 1200 1200
.Total Height (H mm) 1275 1275 1285 1285
.Working Deepth (max cm) 20-40 20-45 20-45 20-45
.Working Width (cm) 125 175 227 275
.Space of Tines (T cm) 25 25 25 25
100-
.Required Power (HP) 50-70 60-80 80-100
130
.Total Weight (Kg) 310 390 460 530

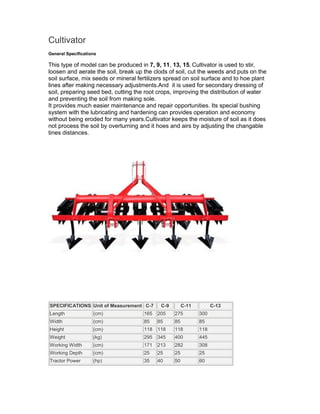

5. Cultivator
General Specifications
This type of model can be produced in 7, 9, 11, 13, 15. Cultivator is used to stir,
loosen and aerate the soil, break up the clods of soil, cut the weeds and puts on the
soil surface, mix seeds or mineral fertilizers spread on soil surface and to hoe plant
lines after making necessary adjustments.And it is used for secondary dressing of
soil, preparing seed bed, cutting the root crops, improving the distribution of water
and preventing the soil from making sole.
It provides much easier maintenance and repair opportunities. Its special bushing
system with the lubricating and hardening can provides operation and economy
without being eroded for many years.Cultivator keeps the moisture of soil as it does
not process the soil by overturning and it hoes and airs by adjusting the changable
tines distances.
SPECIFICATIONS Unit of Measurement C-7 C-9 C-11 C-13
Length (cm) 165 205 275 300
Width (cm) 85 85 85 85
Height (cm) 118 118 118 118
Weight (kg) 295 345 400 445
Working Width (cm) 171 213 282 308
Working Depth (cm) 25 25 25 25
Tractor Power (hp) 35 40 50 60

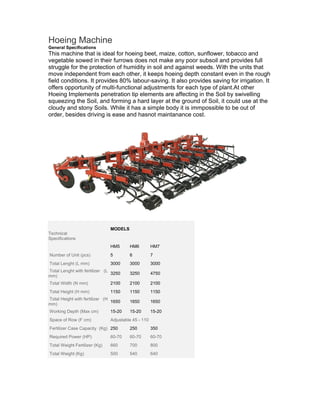

6. Hoeing Machine
General Specifications
This machine that is ideal for hoeing beet, maize, cotton, sunflower, tobacco and
vegetable sowed in their furrows does not make any poor subsoil and provides full
struggle for the protection of humidity in soil and against weeds. With the units that
move independent from each other, it keeps hoeing depth constant even in the rough
field conditions. It provides 80% labour-saving. It also provides saving for irrigation. It
offers opportunity of multi-functional adjustments for each type of plant.At other
Hoeing Implements penetration tip elements are affecting in the Soil by swivelling
squeezing the Soil, and forming a hard layer at the ground of Soil, it could use at the
cloudy and stony Soils. While it has a simple body it is immpossible to be out of
order, besides driving is ease and hasnot maintanance cost.
MODELS
Technical
Specifications
HM5 HM6 HM7
.Number of Unit (pcs) 5 6 7
.Total Lenght (L mm) 3000 3000 3000
.Total Lenght with fertilizer (L
3250 3250 4750
mm)
.Total Width (N mm) 2100 2100 2100
.Total Height (H mm) 1150 1150 1150
.Total Height with fertilizer . (H
1650 1650 1650
mm)
.Working Depth (Max cm) 15-20 15-20 15-20
.Space of Row (F cm) Adjustable 45 - 110
.Fertilizer Case Capacity .(Kg) 250 250 350
.Required Power (HP) 60-70 60-70 60-70
.Total Weight Fertilizer (Kg) 660 700 800
Total Weight (Kg) 500 540 640

7. Tiller
General Specifications
It is used for suitable mixing instead of plough. It can deeply work on even very hard soils. It
splits, separates and mixes soil. It prevents evaporation of soil humidity; because it does not
circulate soil like a plough. It does not cause foot stones in the soil and becomes ready for
seed preparation in a short period of time. It increases productivity of crop. It doesn't cause
bottom stone in the earthand provides the earth to get ready for the seeds in shortertime
period. Becouse it vibrates it stores the oxygen and minerals within the soil. It increases the
crop productivity it doesn't requires maintenance as musc as other cultivators do. Operational
costs are very low. It is very easy tı install whether with rotating harrow or plain Becouse it
feet can flex to 600 mm, very difficult to break. Becouse it is 700 mm high from the ground,
there isn't any possibility so as to plant remains accumulate around the feet. In hoeing it can
be easily used un till the plants grew into a certain height.
SPECIFICATIONS Unit of Measurement T5 T7 T9 T11
Length (mm) 1600 2100 2500 3000
Width (mm) 1350 1350 1350 1350
Height (mm) 1250 1250 1250 1250
Working Depth (cm) 20-45 20-45 20-45 20-45
Working Width (cm) 125 175 225 275
Wheel Distance (cm) 25 25 25 25
Requiered Power (hp) 60-80 70-90 90-110 110-140
Total Weight (kg) 400 480 550 620

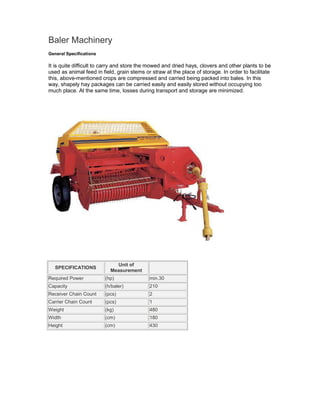

8. Baler Machinery
General Specifications
It is quite difficult to carry and store the mowed and dried hays, clovers and other plants to be
used as animal feed in field, grain stems or straw at the place of storage. In order to facilitate
this, above-mentioned crops are compressed and carried being packed into bales. In this
way, shapely hay packages can be carried easily and easily stored without occupying too
much place. At the same time, losses during transport and storage are minimized.
Unit of
SPECIFICATIONS
Measurement
Required Power (hp) min.30
Capacity (h/baler) 210
Receiver Chain Count (pcs) 2
Carrier Chain Count (pcs) 1
Weight (kg) 480
Width (cm) 180
Height (cm) 430

9. Hydraulic Automatic Side-Shifting Rotary Tillers
General Specifications
Automatic side-shifting rotary tillers is a secondary tillage tool that is driven by the tractor pto shaft. It
can be easily mounted on the three-point hitch of the tractor. This machine is designed especially for
to be used in vineyard and orchards. The side shifting system consist of an arm and hydraulic system.
This system allows the body to avoid the obstacle (tree..etc.) automatically and then return into their
original position. So, tillage operations under trees without any damage can be performed.
This machine could also be used for field operations by removing the side-shifting mechanism. The
shaft used for driving the machine has a safety mechanism so that any damage to the machine is
avoided.
The hood in rear provides safety for surrondings and additional pulverization of the soil. Since the rotor
develops a forward soil reaction and this causes a negative pull on the tractor. This means a reduction
in pulling forces.
MODELS
Technical
Specifications
RT RT RT RT RT
130 160 185 210 240
.Number of Disc 30 36 42 48 54
Total Lenght (L mm) 1400 1700 2000 2200 2500
Total Width (N mm) 7000 7000 7000 7000 7000
Total Height (H mm) 1200 1200 1200 1200 1200
.Working Depth (Max cm) 220 220 220 220 220
.Working Width (L1 mm) 1200 1500 1700 2000 2200
.Space of Discs (M mm) 45-50 50-55 60-65 70-75 80-85
.Disc Diameter (mm) 380 454 514 580 590

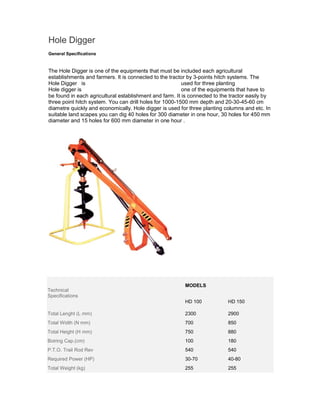

10. Hole Digger
General Specifications
The Hole Digger is one of the equipments that must be included each agricultural
establishments and farmers. It is connected to the tractor by 3-points hitch systems. The
Hole Digger is used for three planting
Hole digger is one of the equipments that have to
be found in each agricultural establishment and farm. It is connected to the tractor easily by
three point hitch system. You can drill holes for 1000-1500 mm depth and 20-30-45-60 cm
diametre quickly and economically. Hole digger is used for three planting columns and etc. In
suitable land scapes you can dig 40 holes for 300 diameter in one hour, 30 holes for 450 mm
diameter and 15 holes for 600 mm diameter in one hour .
MODELS
Technical
Specifications
HD 100 HD 150
Total Lenght (L mm) 2300 2900
Total Width (N mm) 700 850
Total Height (H mm) 750 880
Boiring Cap.(cm) 100 180
P.T.O. Trail Rod Rev 540 540
Required Power (HP) 30-70 40-80
Total Weight (kg) 255 255

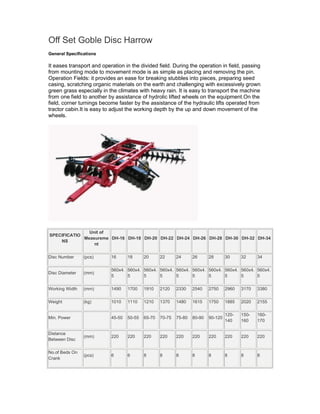

11. Off Set Goble Disc Harrow
General Specifications
It eases transport and operation in the divided field. During the operation in field, passing
from mounting mode to movement mode is as simple as placing and removing the pin.
Operation Fields: it provides an ease for breaking stubbles into pieces, preparing seed
casing, scratching organic materials on the earth and challenging with excessively grown
green grass especially in the climates with heavy rain. It is easy to transport the machine
from one field to another by assistance of hydrolic lifted wheels on the equipment.On the
field, corner turnings become faster by the assistance of the hydraulic lifts operated from
tractor cabin.It is easy to adjust the working depth by the up and down movement of the
wheels.
Unit of
SPECIFICATIO
Measureme DH-16 DH-18 DH-20 DH-22 DH-24 DH-26 DH-28 DH-30 DH-32 DH-34
NS
nt
Disc Number (pcs) 16 18 20 22 24 26 28 30 32 34
560x4. 560x4. 560x4. 560x4. 560x4. 560x4. 560x4. 560x4. 560x4. 560x4.
Disc Diameter (mm)
5 5 5 5 5 5 5 5 5 5
Working Width (mm) 1490 1700 1910 2120 2330 2540 2750 2960 3170 3380
Weight (kg) 1010 1110 1210 1370 1480 1615 1750 1885 2020 2155
120- 150- 160-
Min. Power 45-50 50-55 65-70 70-75 75-80 80-90 90-120
140 160 170
Distance
(mm) 220 220 220 220 220 220 220 220 220 220
Between Disc
No.of Beds On
(pcs) 6 6 8 8 8 8 8 8 8 8
Crank

12. Seed Drill Machine
General Specifications
Seed Drill Machine that provides changeover from sowing to destination position are
manufactured as 12, 14, 16, 18, 20, 22 and 24-geared. The automatic levers that provide
changeover from making ways/rows to sowing position is in the front and middle of the drill.
Sowing will star providing the levers would be drawn backward; if it is drawn backward again,
then destination position shall take place. There is four-step depth setup degree that adjusts
the penetration depth of sowing feet.automatic levers that provide our drills to either way or
swoing position are in the front middle side of the drill. swowing is started by with drawing the
lever, when it is with drawn again the way position is taken. there is afour step depth
regulation degree on the drills that regulate the sinking depth of sowing feet.
Unit of
SDM- SDM- SDM- SDM- SDM- SDM- SDM- SDM- SDM-
SPECIFICATION Measure
12 14 16 18 20 22 24 26 28
ment
Number of Rows (pcs) 12 14 16 18 20 22 24 26 28
Total Width (mm) 2270 2530 2790 3050 3310 3570 3830 4090 4350
Grain Capacity (kg) 247 285 323 361 399 437 475 513 551
Distance of Rows (mm) 130 130 130 130 130 130 130 130 130
Working Width (mm) 1430 1690 1950 2210 2470 2730 2990 3250 3510
Wheel 6.00x1 6.00x1 6.00x1 6.00x1 6.00x1 6.00x1 6.00x1 6.00x1 6.00x1
(inch)
Dimensions 6 6 6 6 6 6 6 6 6
Weight (kg) 800 850 900 950 1000 1100 1200 1300 1400
Fertilizer Capacity (kg) 177,5 205 232,5 260 287,5 315 342,5 370 397,5

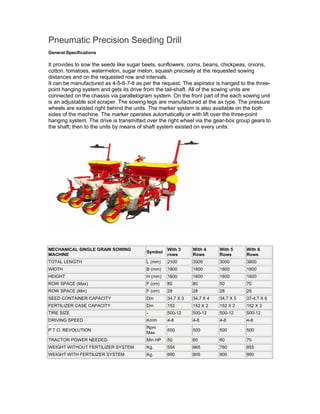

13. Pneumatic Precision Seeding Drill
General Specifications
It provides to sow the seeds like sugar beets, sunflowers, corns, beans, chickpeas, onions,
cotton, tomatoes, watermelon, sugar melon, squash precisely at the requested sowing
distances and on the requested row and intervals.
It can be manufactured as 4-5-6-7-8 as per the request. The aspirator is hanged to the three-
point hanging system and gets its drive from the tail-shaft. All of the sowing units are
connected on the chassis via parallelogram system. On the front part of the each sowing unit
is an adjustable soil scraper. The sowing legs are manufactured at the ax type. The pressure
wheels are existed right behind the units. The marker system is also available on the both
sides of the machine. The marker operates automatically or with lift over the three-point
hanging system. The drive is transmitted over the right wheel via the gear-box group gears to
the shaft; then to the units by means of shaft system existed on every units.
MECHANICAL SINGLE GRAIN SOWING With 3 With 4 With 5 With 6
Symbol
MACHINE rows Rows Rows Rows
TOTAL LENGTH L (mm) 2100 3000 3000 3800
WIDTH B (mm) 1800 1800 1800 1800
HEIGHT H (mm) 1600 1600 1600 1600
ROW SPACE (Max) F (cm) 80 80 50 70
ROW SPACE (Min) F (cm) 28 28 28 28
SEED CONTAINER CAPACITY Dm 34,7 X 3 34,7 X 4 34,7 X 5 37-4,7 X 6
FERTILIZER CASE CAPACITY Dm 152 152 X 2 152 X 2 152 X 2
TIRE SIZE - 500-12 500-12 500-12 500-12
DRIVING SPEED Kmh 4-8 4-8 4-8 4-8
Rpm
P.T.O. REVOLUTION 500 500 500 500
Max
TRACTOR POWER NEEDED Min HP 50 60 60 70
WEIGHT WITHOUT FERTILIZER SYSTEM Kg. 554 665 760 855
WEIGHT WITH FERTILIZER SYSTEM Kg. 690 805 900 990

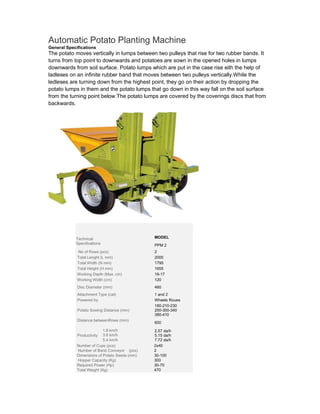

14. Automatic Potato Planting Machine
General Specifications
The potato moves vertically in lumps between two pulleys that rise for two rubber bands. It
turns from top point to downwards and potatoes are sown in the opened holes in lumps
downwards from soil surface. Potato lumps which are put in the case rise eith the help of
ladleses on an infinite rubber band that moves between two pulleys vertically.While the
ledleses are turning down from the highest point, they go on their action by dropping the
potato lumps in them and the potato lumps that go down in this way fall on the soil surface
from the turning point below.The potato lumps are covered by the coverings discs that from
backwards.
Technical MODEL
Specifications PPM 2
. No of Rows (pcs) 2
.Total Lenght (L mm) 2000
.Total Width (N mm) 1795
.Total Height (H mm) 1655
.Working Depth (Max. cm) 16-17
.Working Width (cm) 120
Disc Diameter (mm) 460
.Attachment Type (cat) 1 and 2
.Powered by Wheels Roues
180-210-230
.Potato Sowing Distance (mm) 250-300-340
380-410
.Distance betweenRows (mm)
600
.
1.8 km/h 2.57 da/h
.Productivity 3.6 km/h 5.15 da/h
5.4 km/h 7.72 da/h
.Number of Cups (pcs) 2x40
. Number of Band Conveyor .. (pcs) 2
.Dimensions of Potato Seeds (mm) 30-100
. Hopper Capacity (Kg) 300
.Required Power (Hp) 30-70
.Total Weight (Kg) 470

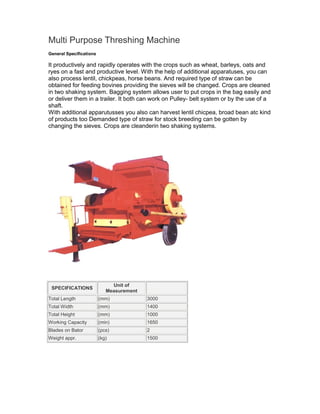

15. Multi Purpose Threshing Machine
General Specifications
It productively and rapidly operates with the crops such as wheat, barleys, oats and
ryes on a fast and productive level. With the help of additional apparatuses, you can
also process lentil, chickpeas, horse beans. And required type of straw can be
obtained for feeding bovines providing the sieves will be changed. Crops are cleaned
in two shaking system. Bagging system allows user to put crops in the bag easily and
or deliver them in a trailer. It both can work on Pulley- belt system or by the use of a
shaft.
With additional apparutusses you also can harvest lentil chicpea, broad bean atc kind
of products too Demanded type of straw for stock breeding can be gotten by
changing the sieves. Crops are cleanderin two shaking systems.
Unit of
SPECIFICATIONS
Measurement
Total Length (mm) 3000
Total Width (mm) 1400
Total Height (mm) 1000
Working Capacity (min) 1650
Blades on Bator (pcs) 2
Weight appr. (kg) 1500

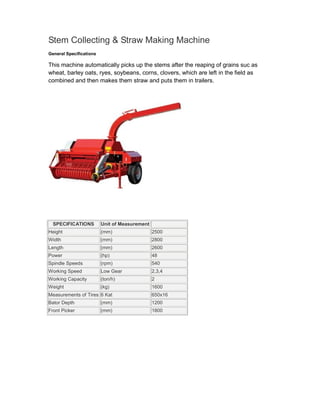

16. Stem Collecting & Straw Making Machine
General Specifications
This machine automatically picks up the stems after the reaping of grains suc as
wheat, barley oats, ryes, soybeans, corns, clovers, which are left in the field as
combined and then makes them straw and puts them in trailers.
SPECIFICATIONS Unit of Measurement
Height (mm) 2500
Width (mm) 2800
Length (mm) 2600
Power (hp) 48
Spindle Speeds (rpm) 540
Working Speed Low Gear 2,3,4
Working Capacity (ton/h) 2
Weight (kg) 1600
Measurements of Tires 6 Kat 650x16
Bator Depth (mm) 1200
Front Picker (mm) 1800

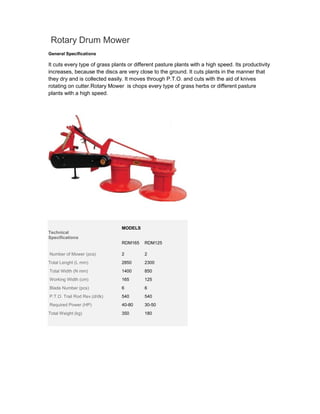

17. Rotary Drum Mower
General Specifications
It cuts every type of grass plants or different pasture plants with a high speed. Its productivity
increases, because the discs are very close to the ground. It cuts plants in the manner that
they dry and is collected easily. It moves through P.T.O. and cuts with the aid of knives
rotating on cutter.Rotary Mower is chops every type of grass herbs or different pasture
plants with a high speed.
MODELS
Technical
Specifications
RDM165 RDM125
.Number of Mower (pcs) 2 2
Total Lenght (L mm) 2850 2300
.Total Width (N mm) 1400 850
.Working Width (cm) 165 125
Blade Number (pcs) 6 6
P.T.O. Trail Rod Rev.(d/dk) 540 540
.Required Power (HP) 40-80 30-50
Total Weight (kg) 350 180

18. Sickle Bar Mower
General Specifications
This equipment has a structure in accordance with technical specifications for
processing crops and for green plants and grains. It can be operated with all kinds of
tractors. In case of a crash with a block, it has got an automatic security apparatus
that protects the cutting
mechanism. It can also be mounted and easily removed from the tractor and is
economical. It highly provides time saving and effort saving.
Unit of
SPECIFICATIONS
Measurement
Length while using (cm) 300
Length on Standby Mode (cm) 137
Width on Standby Mode (cm) 83
Height on Standby Mode (cm) 184
Chasis Height (cm) 50
Working Length (cm) 170
Weight (kg) 195

19. Forage Harvester
General Specifications
This equipment has a structure in accordance with technical specifications for
processing crops and for green plants and grains. It can be operated with all kinds of
tractors. In case of a crash with a block, it has got an automatic security apparatus
that protects the cutting
mechanism. It can also be mounted and easily removed from the tractor and is
economical. It highly provides time saving and effort saving.
Unit of
SPECIFICATIONS
Measurement
Weight (kg) 450
Power (hp) 55
Slaj Length (mm) 5
Dia of Disc (Ø) 700
Number of Knife (pcs) 12
Speed (km/h) 10
Slaj Capacity (ton/h) 35

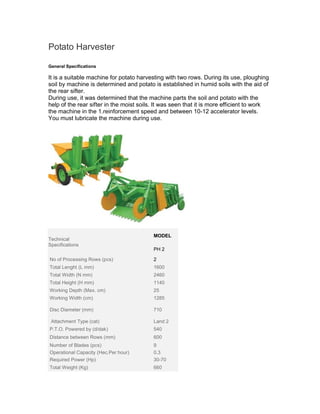

20. Potato Harvester
General Specifications
It is a suitable machine for potato harvesting with two rows. During its use, ploughing
soil by machine is determined and potato is established in humid soils with the aid of
the rear sifter.
During use, it was determined that the machine parts the soil and potato with the
help of the rear sifter in the moist soils. It was seen that it is more efficient to work
the machine in the 1.reinforcement speed and between 10-12 accelerator levels.
You must lubricate the machine during use.
MODEL
Technical
Specifications
PH 2
.No of Processing Rows (pcs) 2
.Total Lenght (L mm) 1600
.Total Width (N mm) 2460
.Total Height (H mm) 1140
Working Depth (Max. cm) 25
.Working Width (cm) 1285
.Disc Diameter (mm) 710
. Attachment Type (cat) Land 2
.P.T.O. Powered by (d/dak) 540
.Distance between Rows (mm) 600
.Number of Blades (pcs) . 9
.Operational Capacity (Hec.Per hour) 0.3
.Required Power (Hp) 30-70
.Total Weight (Kg) 660

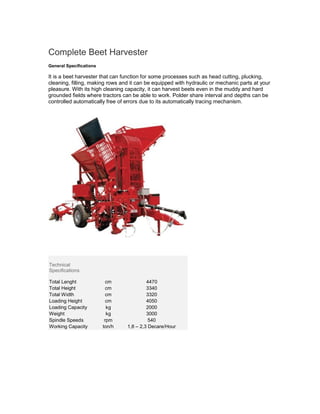

21. Complete Beet Harvester
General Specifications
It is a beet harvester that can function for some processes such as head cutting, plucking,
cleaning, filling, making rows and it can be equipped with hydraulic or mechanic parts at your
pleasure. With its high cleaning capacity, it can harvest beets even in the muddy and hard
grounded fields where tractors can be able to work. Polder share interval and depths can be
controlled automatically free of errors due to its automatically tracing mechanism.
Technical
Specifications
Total Lenght cm 4470
Total Height cm 3340
Total Width cm 3320
Loading Height cm 4050
Loading Capacity kg 2000
Weight kg 3000
Spindle Speeds rpm 540
Working Capacity ton/h 1,8 – 2,3 Decare/Hour

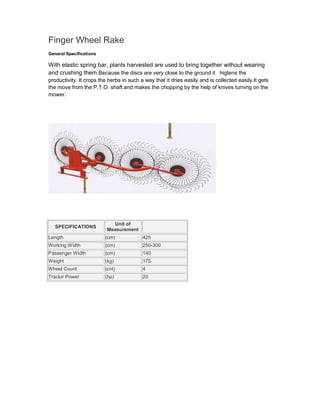

22. Finger Wheel Rake
General Specifications
With elastic spring bar, plants harvested are used to bring together without wearing
and crushing them.Because the discs are very close to the ground it higtens the
productivity. It crops the herbs in such a way that it dries easily and is collected easily.It gets
the move from the P.T.O. shaft and makes the chopping by the help of knives turning on the
mower.
Unit of
SPECIFICATIONS
Measurement
Length (cm) 425
Working Width (cm) 250-300
Passenger Width (cm) 140
Weight (kg) 175
Wheel Count (cnt) 4
Tractor Power (hp) 20

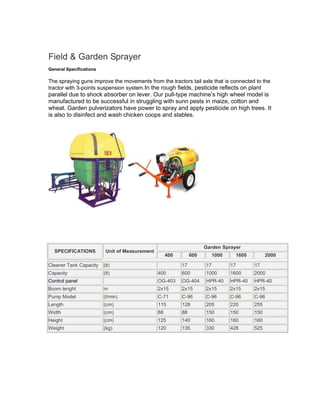

23. Field & Garden Sprayer
General Specifications
The spraying guns improve the movements from the tractors tail axle that is connected to the
tractor with 3-points suspension system.In the rough fields, pesticide reflects on plant
parallel due to shock absorber on lever. Our pull-type machine’s high wheel model is
manufactured to be successful in struggling with sunn pests in maize, cotton and
wheat. Garden pulverizators have power to spray and apply pesticide on high trees. It
is also to disinfect and wash chicken coops and stables.
Garden Sprayer
SPECIFICATIONS Unit of Measurement
400 600 1000 1600 2000
Cleaner Tank Capacity (lt) 17 17 17 17
Capacity (lt) 400 600 1000 1600 2000
Control panel OG-403 OG-404 HPR-40 HPR-40 HPR-40
Boom lenght m 2x15 2x15 2x15 2x15 2x15
Pump Model (l/min) C-71 C-96 C-96 C-96 C-96
Length (cm) 115 128 205 220 255
Width (cm) 88 88 150 150 150
Height (cm) 125 140 160 160 160
Weight (kg) 120 135 330 428 525

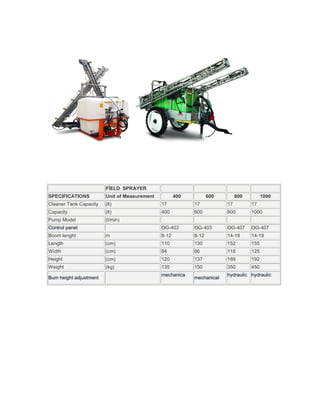

24. FİELD SPRAYER
SPECIFICATIONS Unit of Measurement 400 600 800 1000
Cleaner Tank Capacity (lt) 17 17 17 17
Capacity (lt) 400 600 800 1000
Pump Model (l/min)
Control panel OG-403 OG-403 OG-407 OG-407
Boom lenght m 8-12 8-12 14-18 14-18
Length (cm) 110 130 152 155
Width (cm) 84 86 118 125
Height (cm) 120 137 189 192
Weight (kg) 135 150 350 450
mechanica hydraulic hydraulic
Bum height adjustment mechanical

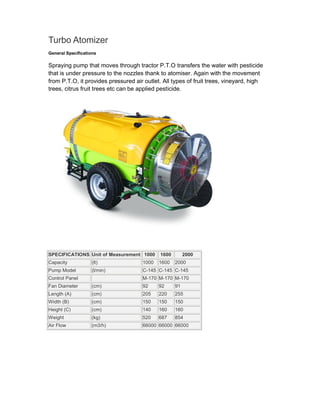

25. Turbo Atomizer
General Specifications
Spraying pump that moves through tractor P.T.O transfers the water with pesticide
that is under pressure to the nozzles thank to atomiser. Again with the movement
from P.T.O, it provides pressured air outlet. All types of fruit trees, vineyard, high
trees, citrus fruit trees etc can be applied pesticide.
SPECIFICATIONS Unit of Measurement 1000 1600 2000
Capacity (lt) 1000 1600 2000
Pump Model (l/min) C-145 C-145 C-145
Control Panel M-170 M-170 M-170
Fan Diameter (cm) 92 92 91
Length (A) (cm) 205 220 255
Width (B) (cm) 150 150 150
Height (C) (cm) 140 160 160
Weight (kg) 520 687 854
Air Flow (m3/h) 66000 66000 66000

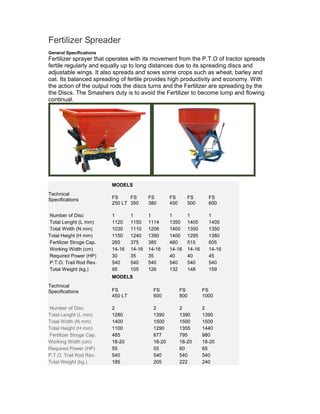

26. Fertilizer Spreader
General Specifications
Fertilizer sprayer that operates with its movement from the P.T.O of tractor spreads
fertile regularly and equally up to long distances due to its spreading discs and
adjustable wings. It also spreads and sows some crops such as wheat, barley and
oat. Its balanced spreading of fertile provides high productivity and economy. With
the action of the output rods the discs turns and the Fertilizer are spreading by the
the Discs. The Smashers duty is to avoid the Fertilizer to become lump and flowing
continual.
MODELS
Technical
Specifications FS FS FS FS FS FS
250 LT 350 380 450 500 600
.Number of Disc 1 1 1 1 1 1
.Total Lenght (L mm) 1120 1150 1114 1350 1405 1405
.Total Width (N mm) 1030 1110 1206 1400 1350 1350
Total Height (H mm) 1150 1240 1390 1400 1295 1380
.Fertilizer Stroge Cap. 265 375 385 460 515 605
Working Width (cm) 14-16 14-16 14-16 14-16 14-16 14-16
.Required Power (HP) 30 35 35 40 40 45
.P.T.O. Trail Rod Rev. 540 540 540 540 540 540
.Total Weight (kg.) 95 105 126 132 148 159
MODELS
Technical
Specifications FS FS FS FS
450 LT 600 800 1000
.Number of Disc 2 2 2 2
Total Lenght (L mm) 1280 1390 1390 1390
Total Width (N mm) 1400 1500 1500 1500
Total Height (H mm) 1100 1290 1355 1440
.Fertilizer Stroge Cap. 485 677 795 980
Working Width (cm) 18-20 18-20 18-20 18-20
Required Power (HP) 55 55 60 65
P.T.O. Trail Rod Rev. 540 540 540 540
Total Weight (kg.) 185 205 222 240

27. Trailers
General Specifications
Trailers are manufactured as standard and with 3, 4, 5, 6 ton capacity dumps.
There are also side tipping trailers available in dumpered types. Special
usage models of 8 and 10 tons have been developed.
Technical MODELS
Specifications
. Loading Capacity (ton) 3.5 4
Total Lenght (L mm) 4200 4400
Total Width (N mm) 2000 2000
Total Height (H mm) 1650 1750
.Carrier inside width (mm) 1820 1920
.Carrier inside Lenght (mm) 2920 3120
Wall height (mm) 400 500
.Supplement wall height (mm) 270 270
7.50x16 7.50x16
.Tyre size
9.00x16 9.00x16
Mechanical Mechanical
Brake system
Hydraulic Hydraulic
Required Power 30-70 30-70
Total Weight (kg) 1100 1200
MODELS
Technical
Specifications
.Loading Capacity
5 6 7
(ton)
Total Lenght (L mm) 6300 6800 6800
Total Width (N mm) 2130 2130 2130
.Total Height (H
2030 2180 2280
mm)
Carrier Width (mm) 1900 1900 1900
Carrier Inside
4500 5000 5000
Length (mm)
Wall Height (mm) 500 600 700
Additional Wall
300 350 350
Height (mm)
7.50x16 9.00x16
Tyre Size (mm) 9.00x16
9.00x16 8.25x20
.Brake System Mechanical Hydraulic
Required power
50-60 70-80 80-90
(HP)
otal Weight (kg) 1550 1750 1800

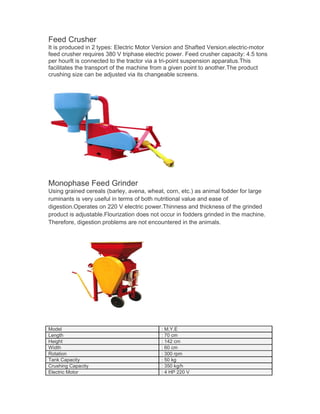

28. Feed Crusher
It is produced in 2 types: Electric Motor Version and Shafted Version.electric-motor
feed crusher requires 380 V triphase electric power. Feed crusher capacity: 4.5 tons
per hourIt is connected to the tractor via a tri-point suspension apparatus.This
facilitates the transport of the machine from a given point to another.The product
crushing size can be adjusted via its changeable screens.
Monophase Feed Grinder
Using grained cereals (barley, avena, wheat, corn, etc.) as animal fodder for large
ruminants is very useful in terms of both nutritional value and ease of
digestion.Operates on 220 V electric power.Thinness and thickness of the grinded
product is adjustable.Flourization does not occur in fodders grinded in the machine.
Therefore, digestion problems are not encountered in the animals.
Model : M.Y.E
Length : 70 cm
Height : 142 cm
Width : 60 cm
Rotation : 300 rpm
Tank Capacity : 50 kg
Crushing Capacity : 350 kg/h
Electric Motor : 4 HP 220 V

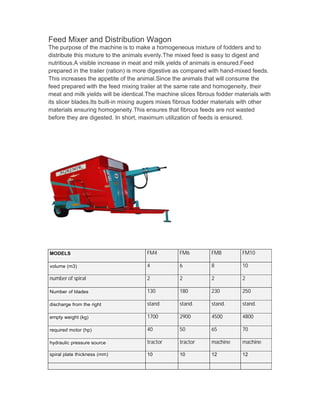

29. Feed Mixer and Distribution Wagon
The purpose of the machine is to make a homogeneous mixture of fodders and to
distribute this mixture to the animals evenly.The mixed feed is easy to digest and
nutritious.A visible increase in meat and milk yields of animals is ensured.Feed
prepared in the trailer (ration) is more digestive as compared with hand-mixed feeds.
This increases the appetite of the animal.Since the animals that will consume the
feed prepared with the feed mixing trailer at the same rate and homogeneity, their
meat and milk yields will be identical.The machine slices fibrous fodder materials with
its slicer blades.Its built-in mixing augers mixes fibrous fodder materials with other
materials ensuring homogeneity.This ensures that fibrous feeds are not wasted
before they are digested. In short, maximum utilization of feeds is ensured.
MODELS FM4 FM6 FM8 FM10
volume (m3) 4 6 8 10
number of spiral 2 2 2 2
Number of blades 130 180 230 250
discharge from the right stand stand. stand. stand.
empty weight (kg) 1700 2900 4500 4800
required motor (hp) 40 50 65 70
hydraulic pressure source tractor tractor machine machine
spiral plate thickness (mm) 10 10 12 12

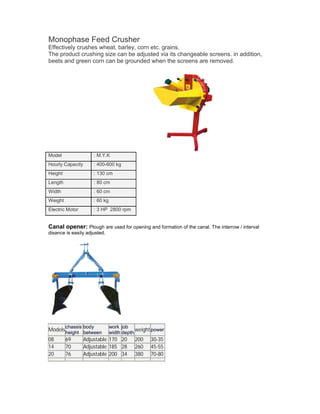

30. Monophase Feed Crusher
Effectively crushes wheat, barley, corn etc. grains.
The product crushing size can be adjusted via its changeable screens. in addition,
beets and green corn can be grounded when the screens are removed.
Model : M.Y.K
Hourly Capacity : 400-600 kg
Height : 130 cm
Length : 80 cm
Width : 60 cm
Weight : 60 kg
Electric Motor : 3 HP 2800 rpm
Canal opener: Plough are used for opening and formation of the canal. The interrow / interval
disance is easily adjusted.
chassis body work job
Models height between width depth
weight power
08 69 Adjustable 170 20 200 30-35
14 70 Adjustable 185 28 260 45-55
20 76 Adjustable 200 34 380 70-80

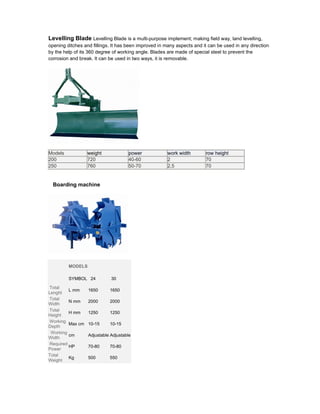

31. Levelling Blade Levelling Blade is a multi-purpose implement; making field way, land levelling,
opening ditches and fillings. It has been improved in many aspects and it can be used in any direction
by the help of its 360 degree of working angle. Blades are made of special steel to prevent the
corrosion and break. It can be used in two ways, it is removable.
Models weight power work width row height
200 720 40-60 2 70
250 760 50-70 2,5 70
Boarding machine
MODELS
SYMBOL 24 30
Total
L mm 1650 1650
Lenght
Total
N mm 2000 2000
Width
Total
H mm 1250 1250
Height
Working
Max cm 10-15 10-15
Depth
Working
cm Adjustable Adjustable
Width
Required
HP 70-80 70-80
Power
Total
Kg 500 550
Weight

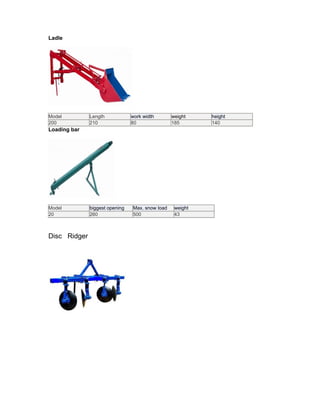

32. Ladle
Model Length work width weight height
200 210 80 185 140
Loading bar
Model biggest opening Max. snow load weight
20 260 500 43
Disc Ridger
