The Bacharach Fyrite Insight Plus is an advanced combustion analyzer featuring a full-color display, high range sensors, and 5 tools in one. It allows one-handed operation and accurate measurement of flue gas and air parameters. Field-replaceable B-Smart sensors eliminate downtime for calibration or sensor replacement.

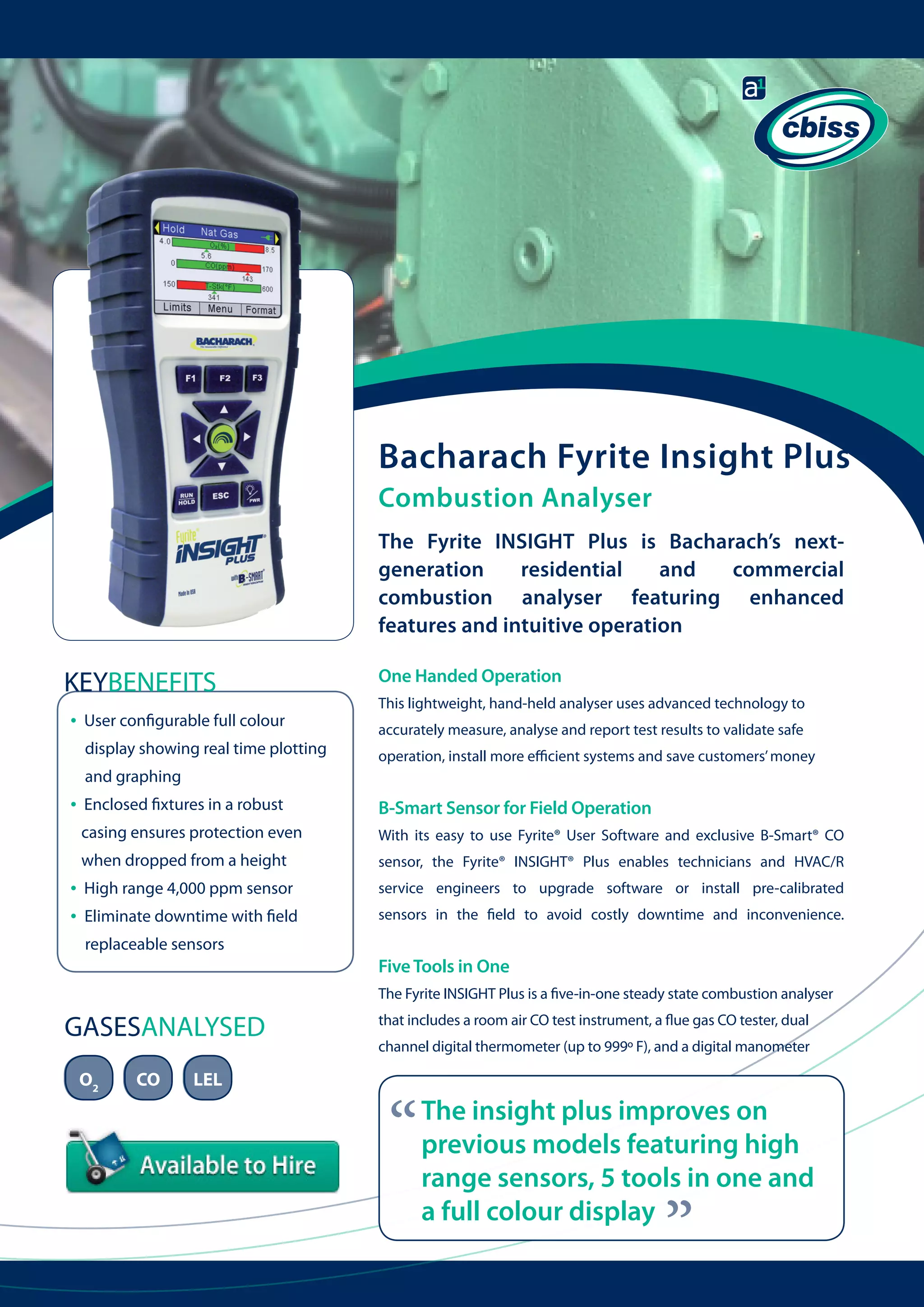

1. Bacharach Fyrite Insight Plus
Combustion Analyser
The Fyrite INSIGHT Plus is Bacharach’s nextgeneration
residential
and
commercial
combustion analyser featuring enhanced
features and intuitive operation
KEYBENEFITS
•
User configurable full colour
display showing real time plotting
One Handed Operation
This lightweight, hand-held analyser uses advanced technology to
accurately measure, analyse and report test results to validate safe
operation, install more efficient systems and save customers’ money
and graphing
•
B-Smart Sensor for Field Operation
casing ensures protection even
With its easy to use Fyrite® User Software and exclusive B-Smart® CO
when dropped from a height
•
•
Enclosed fixtures in a robust
sensor, the Fyrite® INSIGHT® Plus enables technicians and HVAC/R
High range 4,000 ppm sensor
service engineers to upgrade software or install pre-calibrated
Eliminate downtime with field
sensors in the field to avoid costly downtime and inconvenience.
replaceable sensors
Five Tools in One
The Fyrite INSIGHT Plus is a five-in-one steady state combustion analyser
O2
CO
LEL
that includes a room air CO test instrument, a flue gas CO tester, dual
channel digital thermometer (up to 999º F), and a digital manometer
“
The insight plus improves on
previous models featuring high
range sensors, 5 tools in one and
a full colour display
“
GASESANALYSED

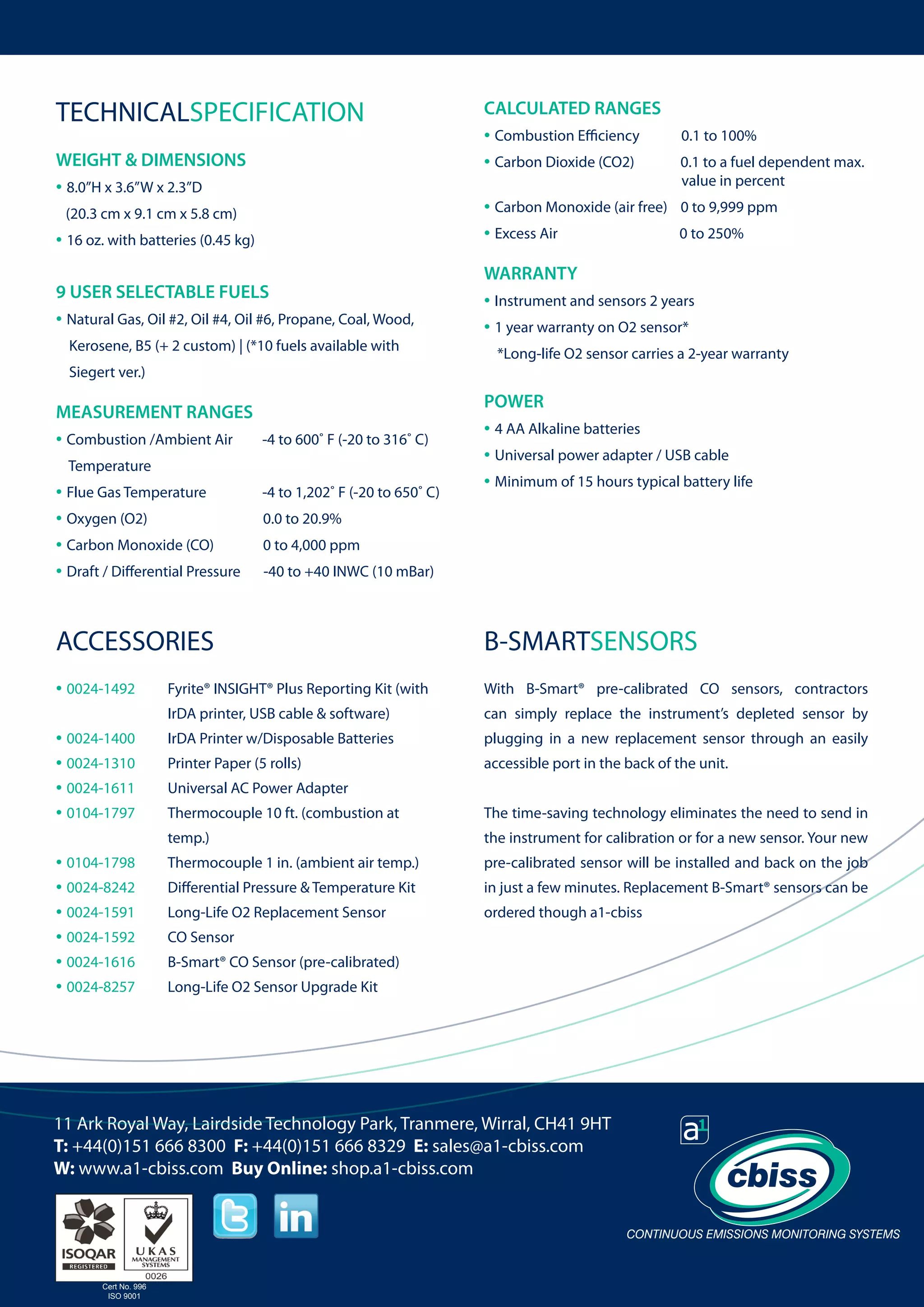

2. TECHNICALSPECIFICATION
WEIGHT & DIMENSIONS
• 8.0”H x 3.6”W x 2.3”D
• 16 oz. with batteries (0.45 kg)
9 USER SELECTABLE FUELS
• Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood,
Kerosene, B5 (+ 2 custom) | (*10 fuels available with
Siegert ver.)
0.1 to 100%
0.1 to a fuel dependent max.
value in percent
0 to 9,999 ppm
0 to 250%
WARRANTY
• Instrument and sensors 2 years
• 1 year warranty on O2 sensor*
*Long-life O2 sensor carries a 2-year warranty
POWER
MEASUREMENT RANGES
-4 to 600˚ F (-20 to 316˚ C)
Temperature
• Flue Gas Temperature
• Oxygen (O2)
• Carbon Monoxide (CO)
• Draft / Differential Pressure
• Combustion Efficiency
• Carbon Dioxide (CO2)
• Carbon Monoxide (air free)
• Excess Air
(20.3 cm x 9.1 cm x 5.8 cm)
• Combustion /Ambient Air
CALCULATED RANGES
-4 to 1,202˚ F (-20 to 650˚ C)
• 4 AA Alkaline batteries
• Universal power adapter / USB cable
• Minimum of 15 hours typical battery life
0.0 to 20.9%
0 to 4,000 ppm
-40 to +40 INWC (10 mBar)
ACCESSORIES
B-SMARTSENSORS
• 0024-1492
Fyrite® INSIGHT® Plus Reporting Kit (with
With B-Smart® pre-calibrated CO sensors, contractors
IrDA printer, USB cable & software)
can simply replace the instrument’s depleted sensor by
• 0024-1400
• 0024-1310
• 0024-1611
• 0104-1797
IrDA Printer w/Disposable Batteries
plugging in a new replacement sensor through an easily
Printer Paper (5 rolls)
accessible port in the back of the unit.
Universal AC Power Adapter
Thermocouple 10 ft. (combustion at
The time-saving technology eliminates the need to send in
temp.)
the instrument for calibration or for a new sensor. Your new
• 0104-1798
• 0024-8242
• 0024-1591
• 0024-1592
• 0024-1616
• 0024-8257
Thermocouple 1 in. (ambient air temp.)
pre-calibrated sensor will be installed and back on the job
Differential Pressure & Temperature Kit
in just a few minutes. Replacement B-Smart® sensors can be
Long-Life O2 Replacement Sensor
ordered though a1-cbiss
CO Sensor
B-Smart® CO Sensor (pre-calibrated)
Long-Life O2 Sensor Upgrade Kit
