The OdaLog Logger L2 is designed for wastewater applications to monitor hydrogen sulfide and other gases. It is splash-proof and can be left in-situ for up to two weeks without battery or sensor issues. It has enhanced features over previous models like double O-rings to prevent moisture damage. The lithium battery provides over 8 months of battery life and it can store up to 42,000 data points.

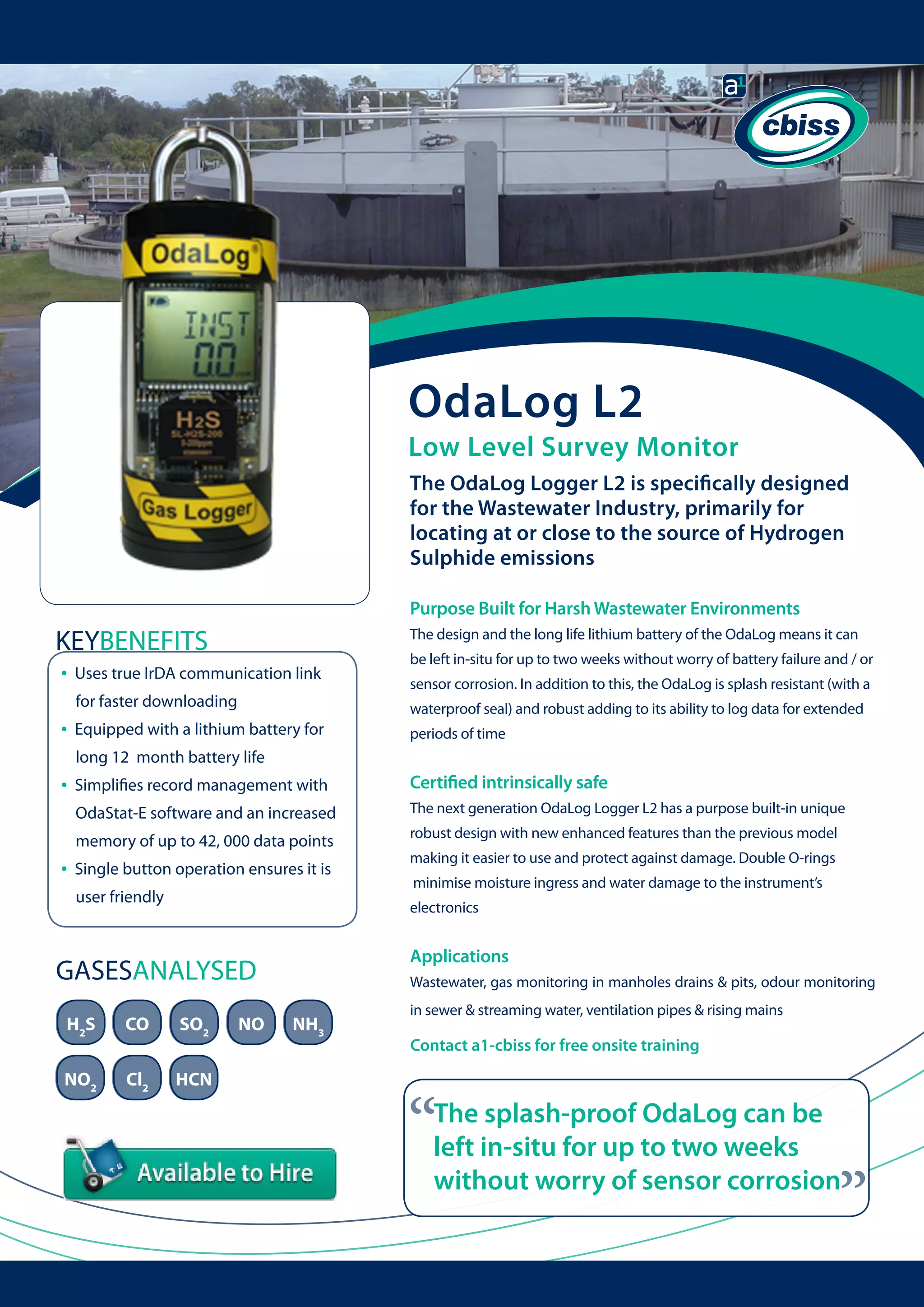

1. OdaLog L2
Low Level Survey Monitor
The OdaLog Logger L2 is specifically designed
for the Wastewater Industry, primarily for
locating at or close to the source of Hydrogen
Sulphide emissions
Purpose Built for Harsh Wastewater Environments
KEYBENEFITS
•
The design and the long life lithium battery of the OdaLog means it can
Uses true IrDA communication link
for faster downloading
•
be left in-situ for up to two weeks without worry of battery failure and / or
sensor corrosion. In addition to this, the OdaLog is splash resistant (with a
waterproof seal) and robust adding to its ability to log data for extended
Equipped with a lithium battery for
periods of time
long 12 month battery life
•
Certified intrinsically safe
OdaStat-E software and an increased
The next generation OdaLog Logger L2 has a purpose built-in unique
memory of up to 42, 000 data points
robust design with new enhanced features than the previous model
Single button operation ensures it is
user friendly
making it easier to use and protect against damage. Double O-rings
minimise moisture ingress and water damage to the instrument’s
electronics
Applications
GASESANALYSED
H2S
CO
SO2
NO2
Cl2
HCN
NO
Wastewater, gas monitoring in manholes drains & pits, odour monitoring
NH3
in sewer & streaming water, ventilation pipes & rising mains
Contact a1-cbiss for free onsite training
“
The splash-proof OdaLog can be
left in-situ for up to two weeks
without worry of sensor corrosion
“
•
Simplifies record management with

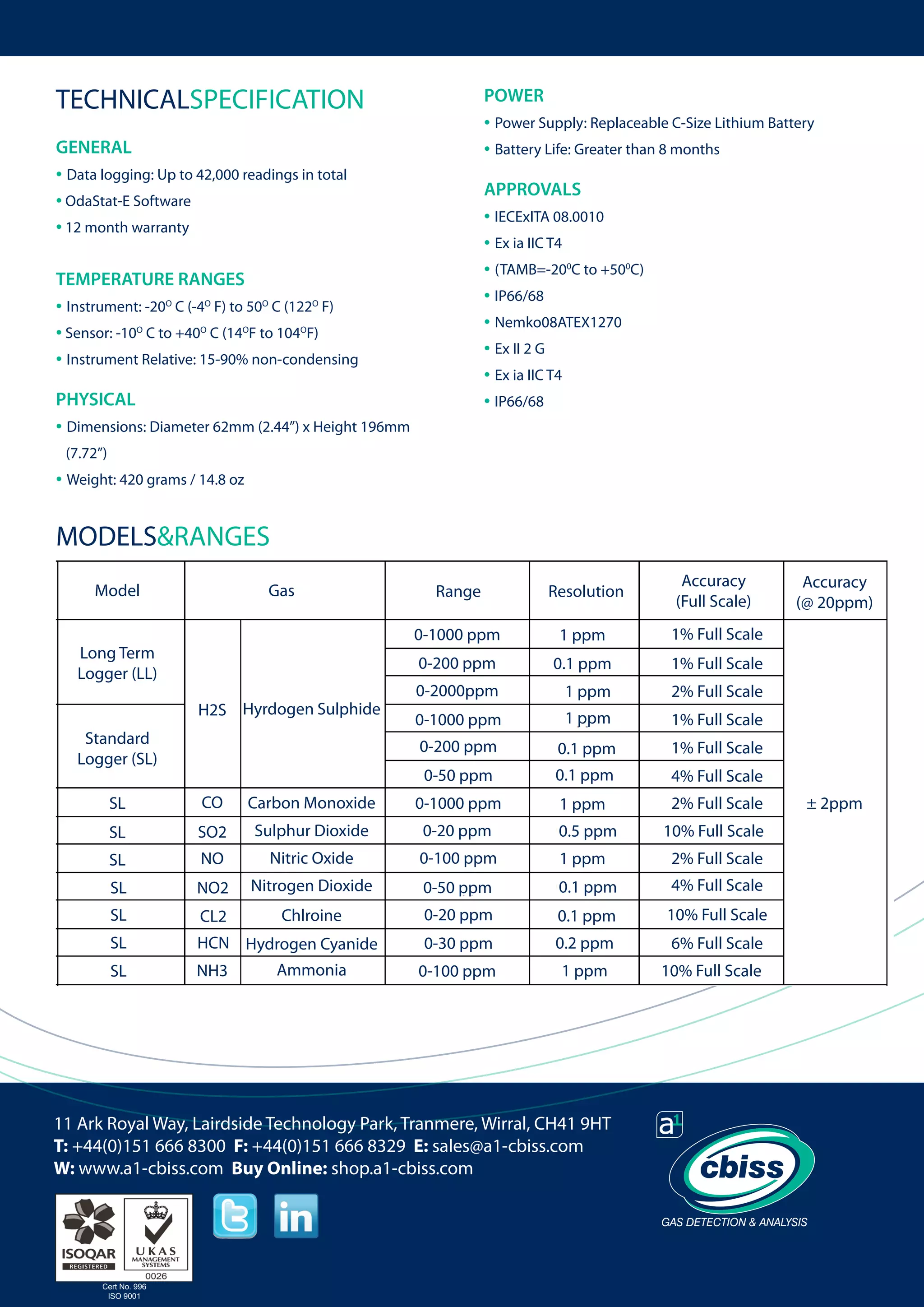

2. TECHNICALSPECIFICATION
POWER
• Power Supply: Replaceable C-Size Lithium Battery
• Battery Life: Greater than 8 months
GENERAL
• Data logging: Up to 42,000 readings in total
• OdaStat-E Software
• 12 month warranty
APPROVALS
• IECExITA 08.0010
• Ex ia IIC T4
• (TAMB=-200C to +500C)
• IP66/68
• Nemko08ATEX1270
• Ex II 2 G
• Ex ia IIC T4
• IP66/68
TEMPERATURE RANGES
• Instrument: -20O C (-4O F) to 50O C (122O F)
• Sensor: -10O C to +40O C (14OF to 104OF)
• Instrument Relative: 15-90% non-condensing
PHYSICAL
• Dimensions: Diameter 62mm (2.44”) x Height 196mm
(7.72”)
• Weight: 420 grams / 14.8 oz
MODELS&RANGES
Standard
Logger (SL)
1 ppm
1% Full Scale
0.1 ppm
1% Full Scale
0-2000ppm
1 ppm
2% Full Scale
0-1000 ppm
1 ppm
1% Full Scale
0.1 ppm
1% Full Scale
0-50 ppm
H2S Hyrdogen Sulphide
Accuracy
(Full Scale)
0-200 ppm
Long Term
Logger (LL)
Resolution
0-200 ppm
Gas
Range
0-1000 ppm
Model
0.1 ppm
4% Full Scale
1 ppm
2% Full Scale
SL
CO
Carbon Monoxide
0-1000 ppm
SL
SO2
Sulphur Dioxide
0-20 ppm
0.5 ppm
SL
NO
Nitric Oxide
0-100 ppm
1 ppm
2% Full Scale
SL
NO2
Nitrogen Dioxide
0-50 ppm
0.1 ppm
4% Full Scale
SL
CL2
Chlroine
0-20 ppm
0.1 ppm
10% Full Scale
SL
HCN Hydrogen Cyanide
0-30 ppm
0.2 ppm
6% Full Scale
SL
NH3
0-100 ppm
1 ppm
Ammonia
11 Ark Royal Way, Lairdside Technology Park, Tranmere, Wirral, CH41 9HT
T: +44(0)151 666 8300 F: +44(0)151 666 8329 E: sales@a1-cbiss.com
W: www.a1-cbiss.com Buy Online: shop.a1-cbiss.com
Cert No. 996
ISO 9001
10% Full Scale
10% Full Scale
Accuracy
(@ 20ppm)
± 2ppm
