The Fyrite InTech is a combustion analyzer designed to measure stack temperature, oxygen levels, and calculate efficiency in residential furnaces. It features an easy-to-read LCD display, internal data storage, and field-replaceable sensors to minimize downtime. The compact, portable device provides accurate efficiency readings and diagnostics with intuitive push-button operation for reduced service times.

1. Bacharach Fyrite InTech
Combustion Analyser
KEYBENEFITS
•
Internal data storage of 10
complete records
•
Easy-to-read, high-contrast LCD
The Fyrite InTech is Designed to calculate the
efficiency of residential furnaces and combustion
appliances by measuring the stack temperature
and the percent oxygen level in the flue-gas
stream
Low-cost combustion analyser
The Fyrite InTech helps to reduce costs and service call times by
providing accurate test results instantly via intuitive, push-button
operation and a menu of selectable fuel types.
display with backlighting
•
LCD display provides user diagnostics
sensor life and calibration
A new, high-contrast LCD graphic display, with backlighting, makes your
reminders
•
User diagnostics indicate O2
results easy to see in any environment and can be output via an optional
Eliminate downtime with field
wireless printer and reporting kit.
replaceable sensors
“Plug-n-play” B-Smart® pre-calibrated sensors
The plug and play B-Smart sensor technology allows for simple in-field
O2
CO
replacement, which in turn, reduces instrument downtime and the need
for instrument replacement.
“
Rugged, reliable, long-running
performance in a light, handheld
unit
“
GASESANALYSED

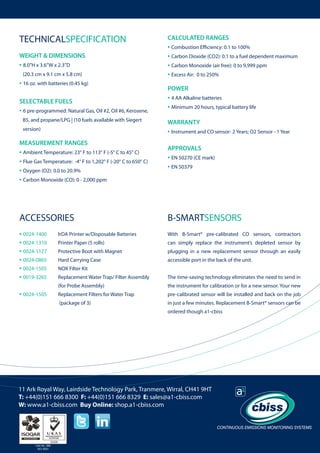

2. TECHNICALSPECIFICATION
CALCULATED RANGES
• Combustion Efficiency: 0.1 to 100%
• Carbon Dioxide (CO2): 0.1 to a fuel dependent maximum
• Carbon Monoxide (air free): 0 to 9,999 ppm
• Excess Air: 0 to 250%
WEIGHT & DIMENSIONS
• 8.0”H x 3.6”W x 2.3”D
(20.3 cm x 9.1 cm x 5.8 cm)
• 16 oz. with batteries (0.45 kg)
POWER
SELECTABLE FUELS
• 6 pre-programmed: Natural Gas, Oil #2, Oil #6, Kerosene,
B5, and propane/LPG | (10 fuels available with Siegert
version)
• 4 AA Alkaline batteries
• Minimum 20 hours, typical battery life
WARRANTY
• Instrument and CO sensor- 2 Years; O2 Sensor - 1 Year
MEASUREMENT RANGES
• Ambient Temperature: 23° F to 113° F (-5° C to 45° C)
• Flue Gas Temperature: -4° F to 1,202° F (-20° C to 650° C)
• Oxygen (O2): 0.0 to 20.9%
• Carbon Monoxide (CO): 0 - 2,000 ppm
APPROVALS
ACCESSORIES
B-SMARTSENSORS
• 0024-1400
• 0024-1310
• 0024-1127
• 0024-0865
• 0024-1505
• 0019-3265
IrDA Printer w/Disposable Batteries
With B-Smart® pre-calibrated CO sensors, contractors
Printer Paper (5 rolls)
can simply replace the instrument’s depleted sensor by
Protective Boot with Magnet
plugging in a new replacement sensor through an easily
Hard Carrying Case
accessible port in the back of the unit.
Replacement Water Trap/ Filter Assembly
The time-saving technology eliminates the need to send in
(for Probe Assembly)
the instrument for calibration or for a new sensor. Your new
• 0024-1505
Replacement Filters for Water Trap
pre-calibrated sensor will be installed and back on the job
(package of 3)
in just a few minutes. Replacement B-Smart® sensors can be
• EN 50270 (CE mark)
• EN 50379
NOX Filter Kit
ordered though a1-cbiss
