1. Future-Proofing
Embedded Device
Capabilities with the
Qt 6 Plugin Mechanism
1
Chris Probst
January 23, 2025

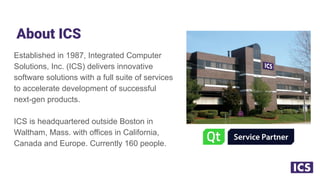

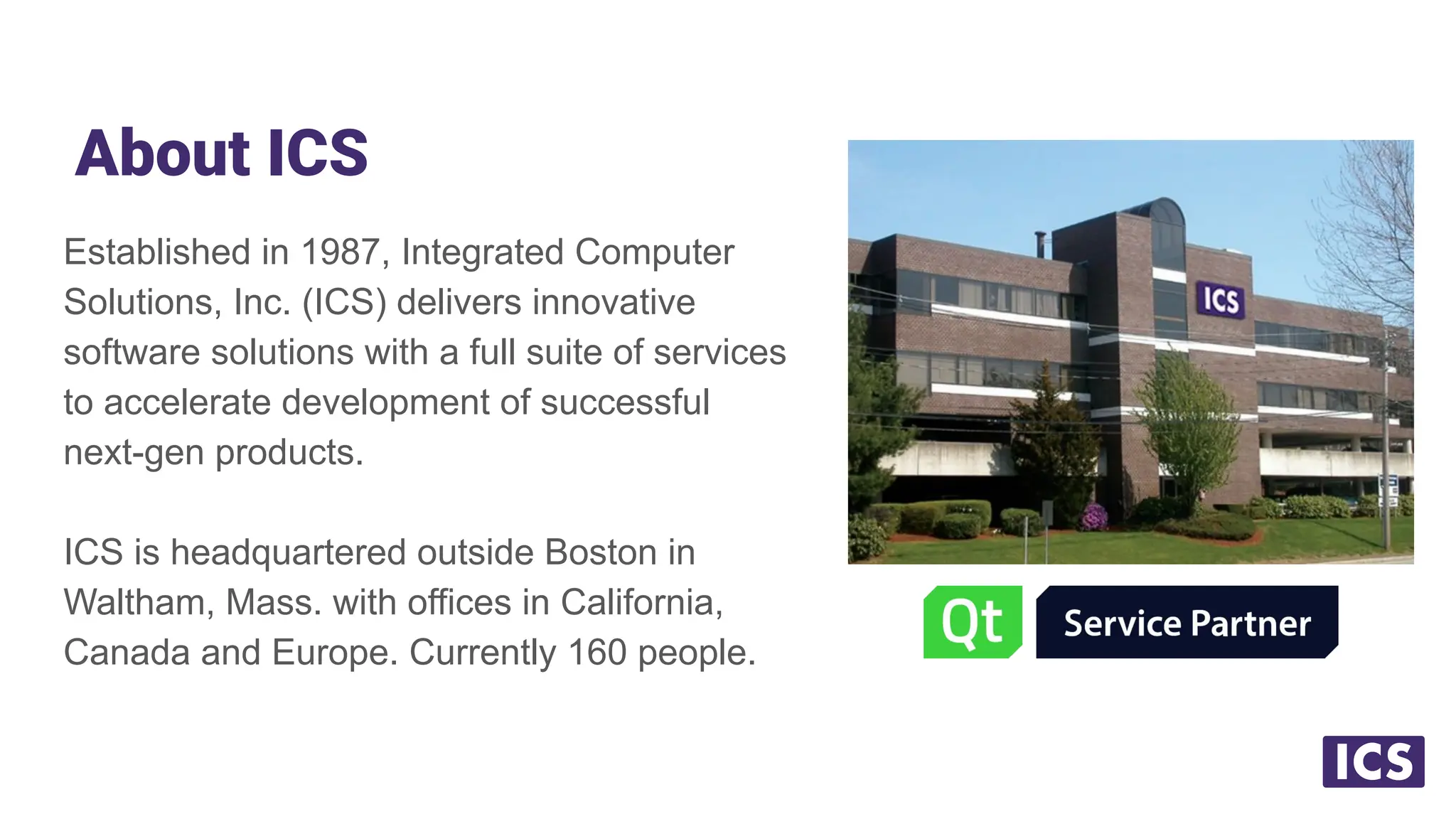

2. About ICS
Established in 1987, Integrated Computer
Solutions, Inc. (ICS) delivers innovative
software solutions with a full suite of services
to accelerate development of successful
next-gen products.
ICS is headquartered outside Boston in
Waltham, Mass. with offices in California,
Canada and Europe. Currently 160 people.

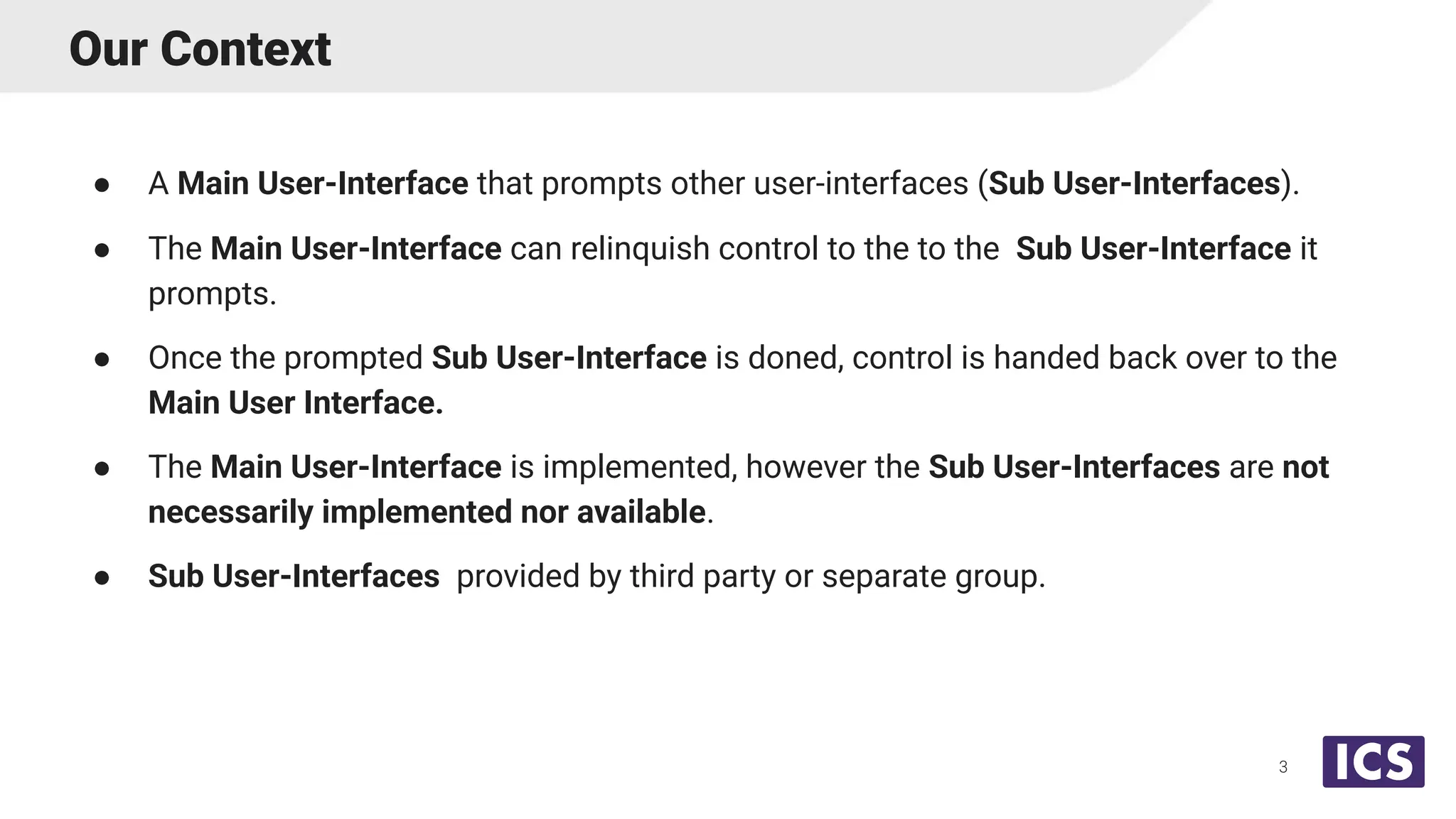

3. Our Context
● A Main User-Interface that prompts other user-interfaces (Sub User-Interfaces).
● The Main User-Interface can relinquish control to the to the Sub User-Interface it
prompts.
● Once the prompted Sub User-Interface is doned, control is handed back over to the
Main User Interface.
● The Main User-Interface is implemented, however the Sub User-Interfaces are not
necessarily implemented nor available.
● Sub User-Interfaces provided by third party or separate group.
3

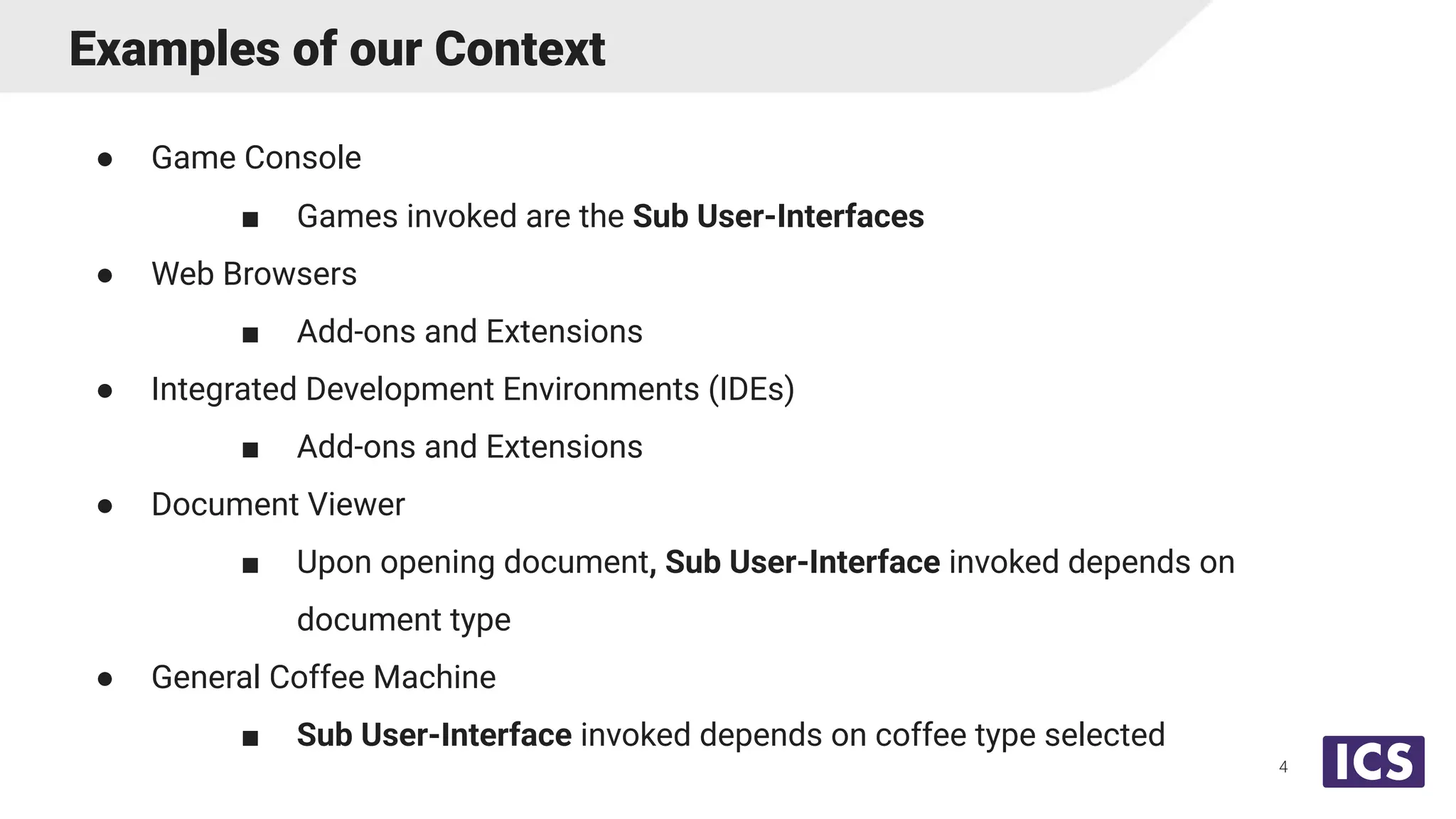

4. Examples of our Context
4
● Game Console
■ Games invoked are the Sub User-Interfaces
● Web Browsers
■ Add-ons and Extensions
● Integrated Development Environments (IDEs)
■ Add-ons and Extensions
● Document Viewer
■ Upon opening document, Sub User-Interface invoked depends on
document type
● General Coffee Machine
■ Sub User-Interface invoked depends on coffee type selected

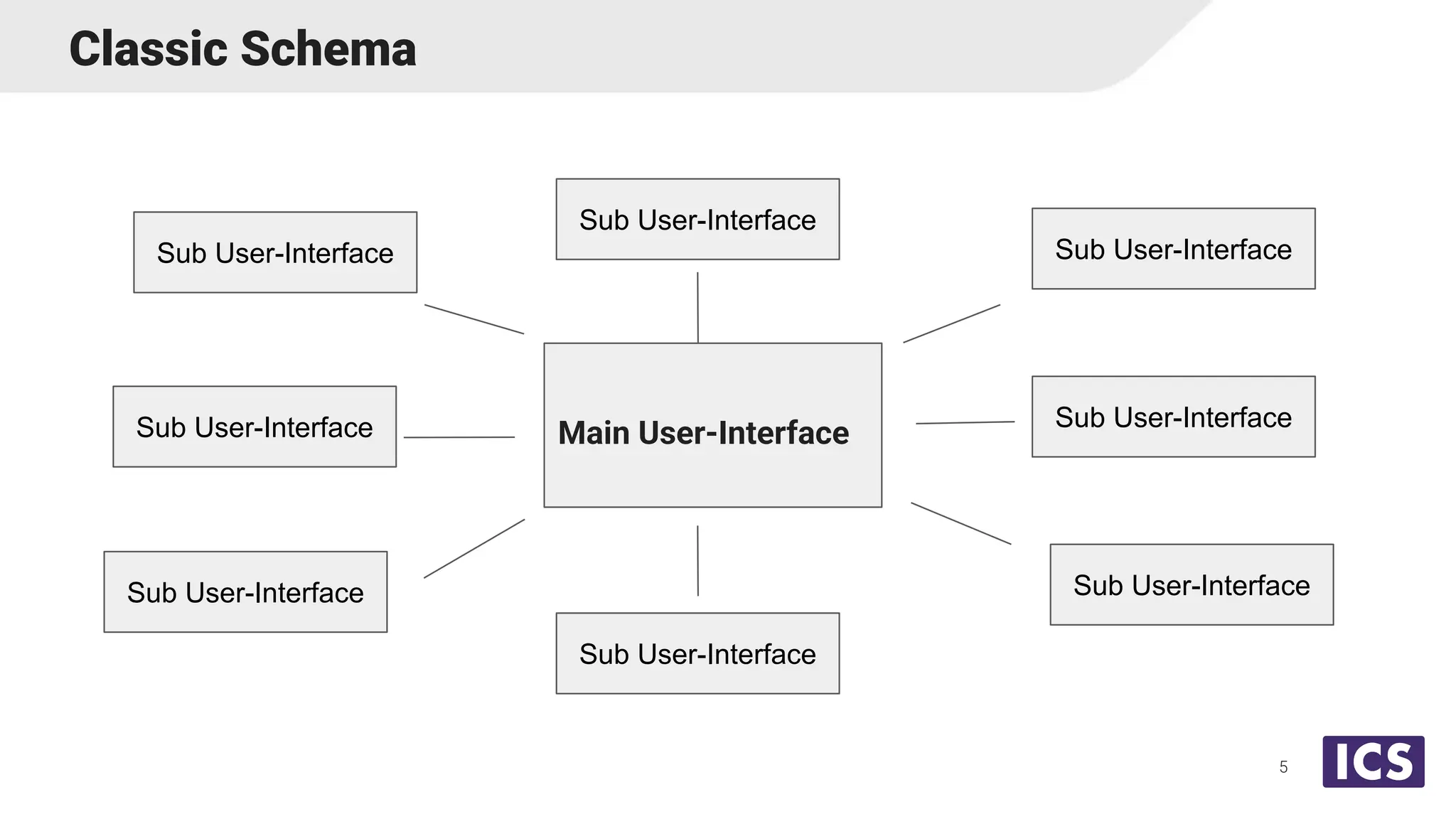

5. Classic Schema
5
Main User-Interface
Sub User-Interface
Sub User-Interface
Sub User-Interface
Sub User-Interface
Sub User-Interface
Sub User-Interface
Sub User-Interface
Sub User-Interface

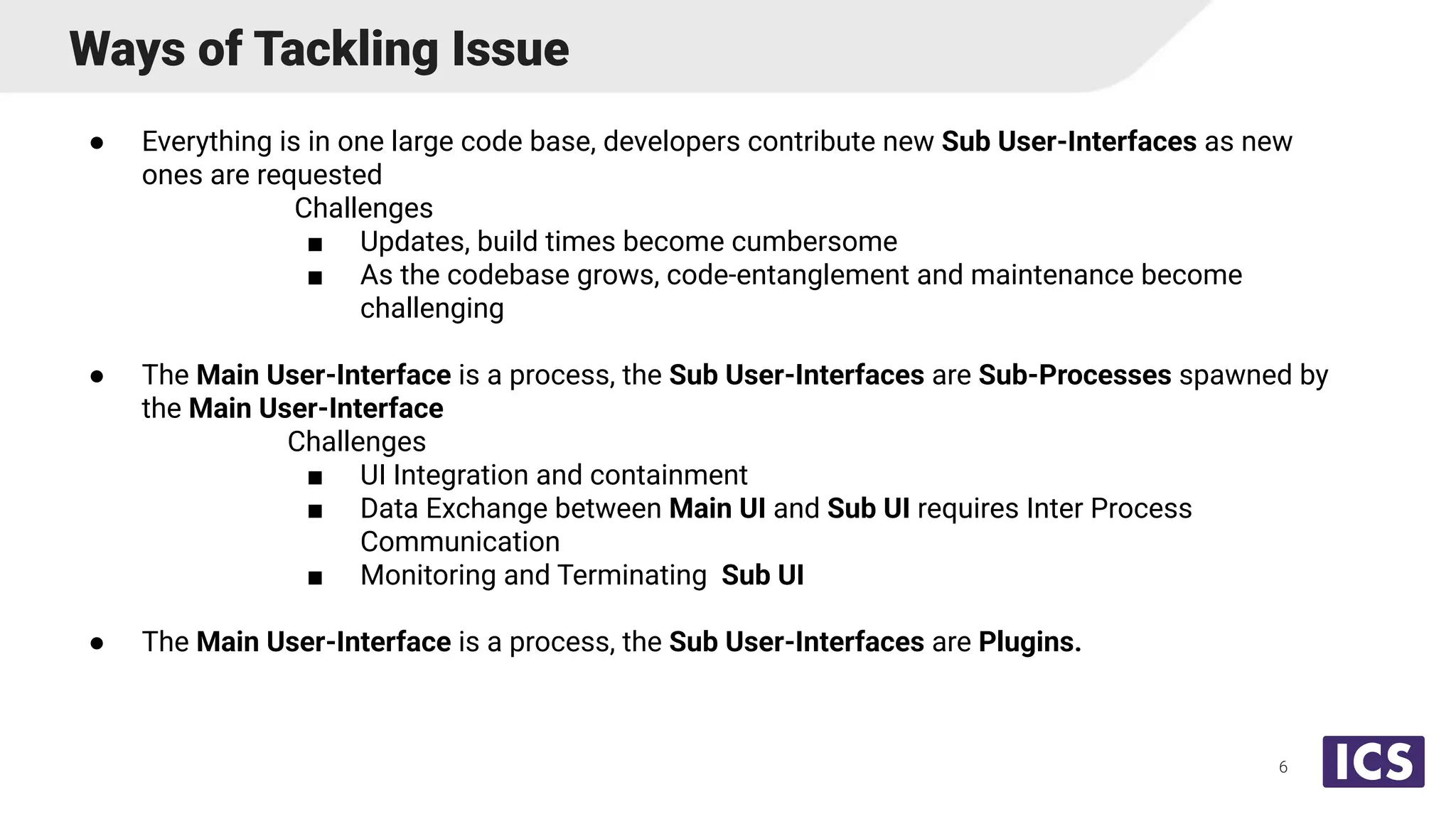

6. Ways of Tackling Issue
● Everything is in one large code base, developers contribute new Sub User-Interfaces as new
ones are requested
Challenges
■ Updates, build times become cumbersome
■ As the codebase grows, code-entanglement and maintenance become
challenging
● The Main User-Interface is a process, the Sub User-Interfaces are Sub-Processes spawned by
the Main User-Interface
Challenges
■ UI Integration and containment
■ Data Exchange between Main UI and Sub UI requires Inter Process
Communication
■ Monitoring and Terminating Sub UI
● The Main User-Interface is a process, the Sub User-Interfaces are Plugins.
6

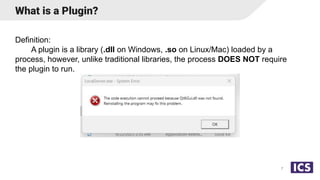

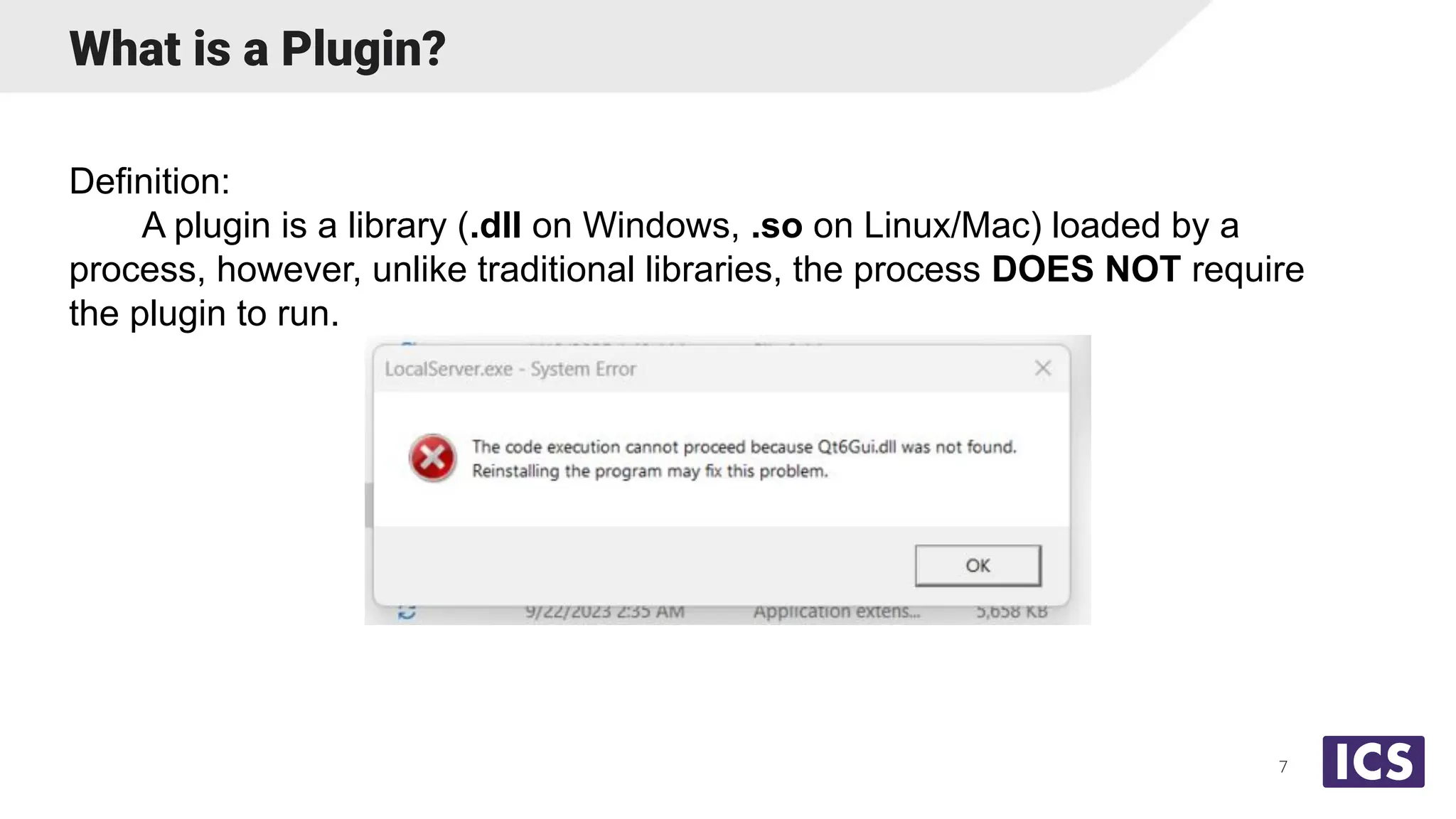

7. What is a Plugin?
Definition:
A plugin is a library (.dll on Windows, .so on Linux/Mac) loaded by a
process, however, unlike traditional libraries, the process DOES NOT require
the plugin to run.
7

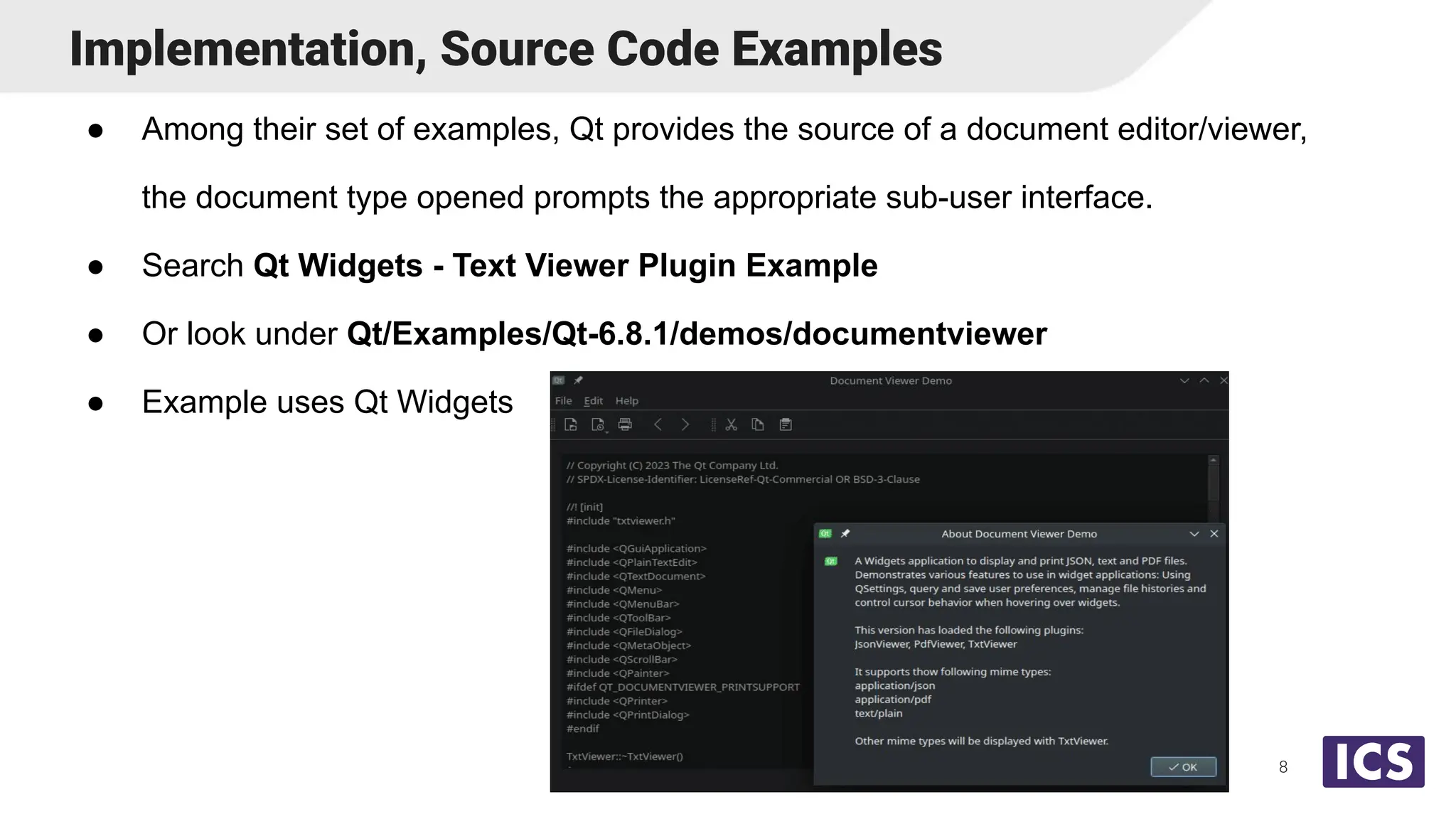

8. ● Among their set of examples, Qt provides the source of a document editor/viewer,
the document type opened prompts the appropriate sub-user interface.
● Search Qt Widgets - Text Viewer Plugin Example
● Or look under Qt/Examples/Qt-6.8.1/demos/documentviewer
● Example uses Qt Widgets
Implementation, Source Code Examples
8

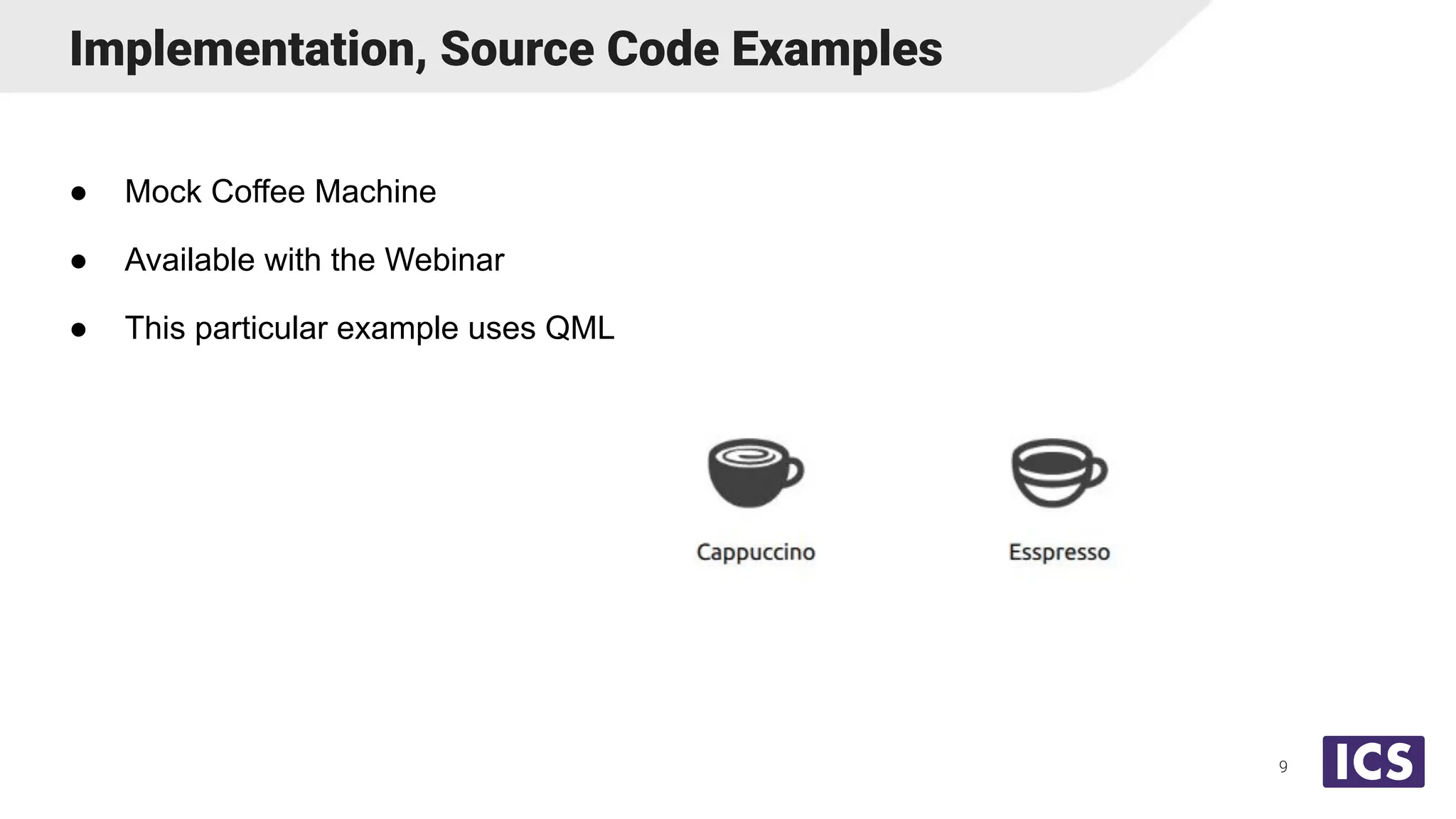

9. ● Mock Coffee Machine
● Available with the Webinar
● This particular example uses QML
Implementation, Source Code Examples
9

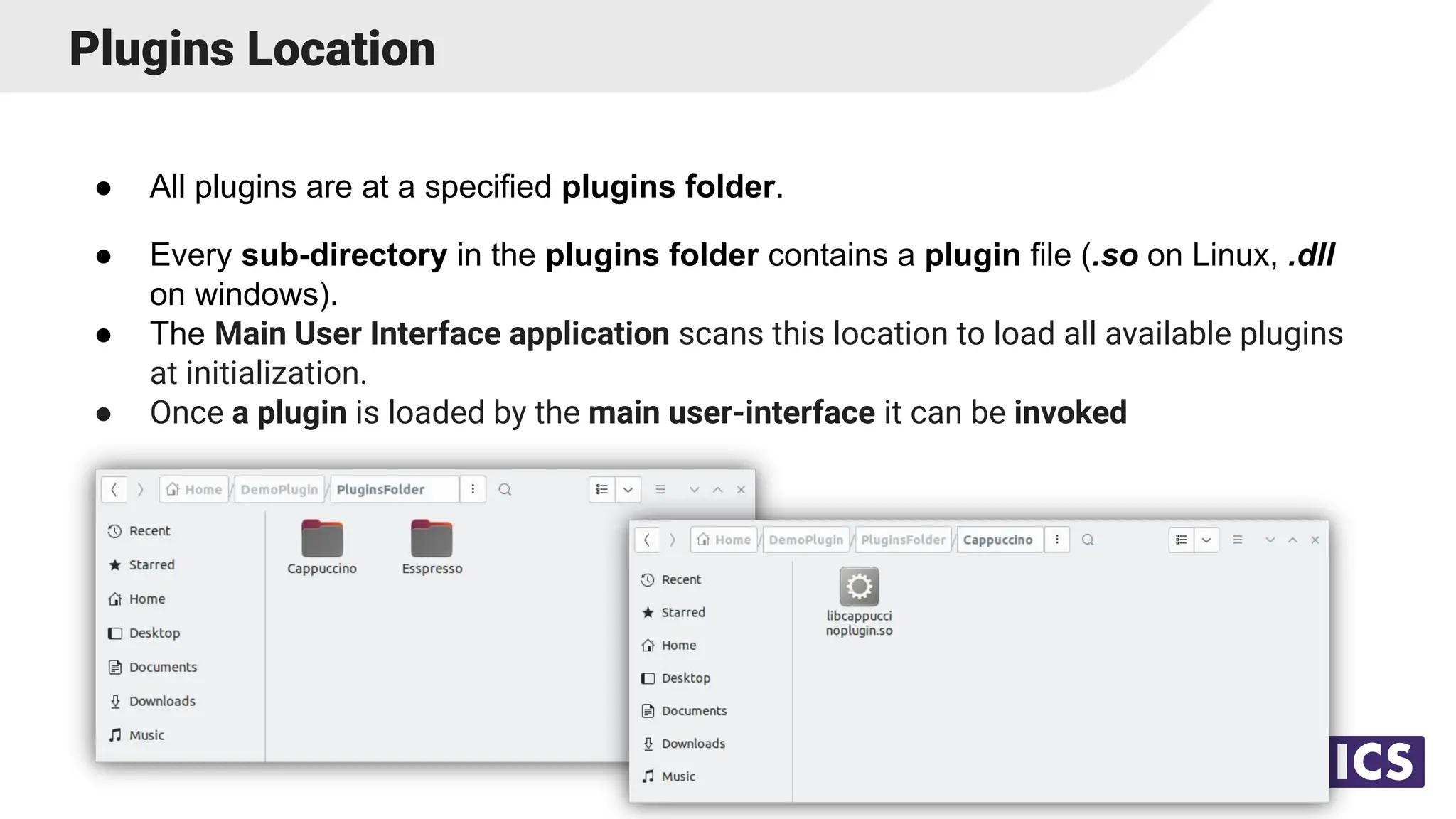

10. Plugins Location
● All plugins are at a specified plugins folder.
● Every sub-directory in the plugins folder contains a plugin file (.so on Linux, .dll
on windows).
● The Main User Interface application scans this location to load all available plugins
at initialization.
● Once a plugin is loaded by the main user-interface it can be invoked
10

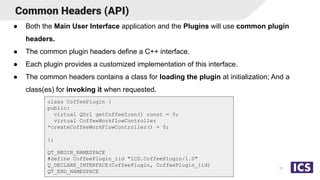

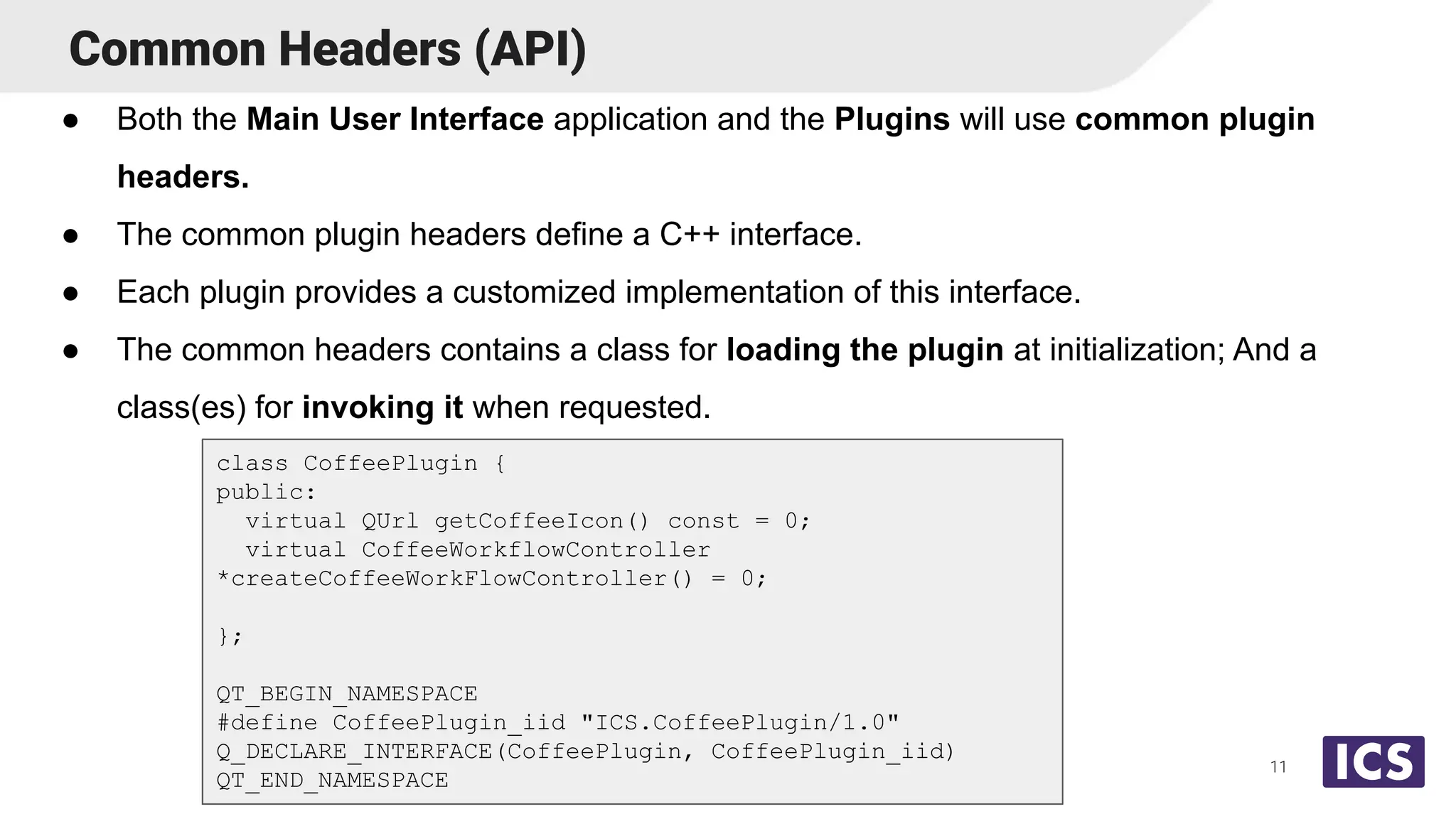

11. Common Headers (API)
● Both the Main User Interface application and the Plugins will use common plugin
headers.
● The common plugin headers define a C++ interface.
● Each plugin provides a customized implementation of this interface.
● The common headers contains a class for loading the plugin at initialization; And a
class(es) for invoking it when requested.
11
class CoffeePlugin {
public:
virtual QUrl getCoffeeIcon() const = 0;
virtual CoffeeWorkflowController
*createCoffeeWorkFlowController() = 0;
};
QT_BEGIN_NAMESPACE
#define CoffeePlugin_iid "ICS.CoffeePlugin/1.0"
Q_DECLARE_INTERFACE(CoffeePlugin, CoffeePlugin_iid)
QT_END_NAMESPACE

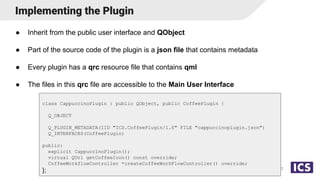

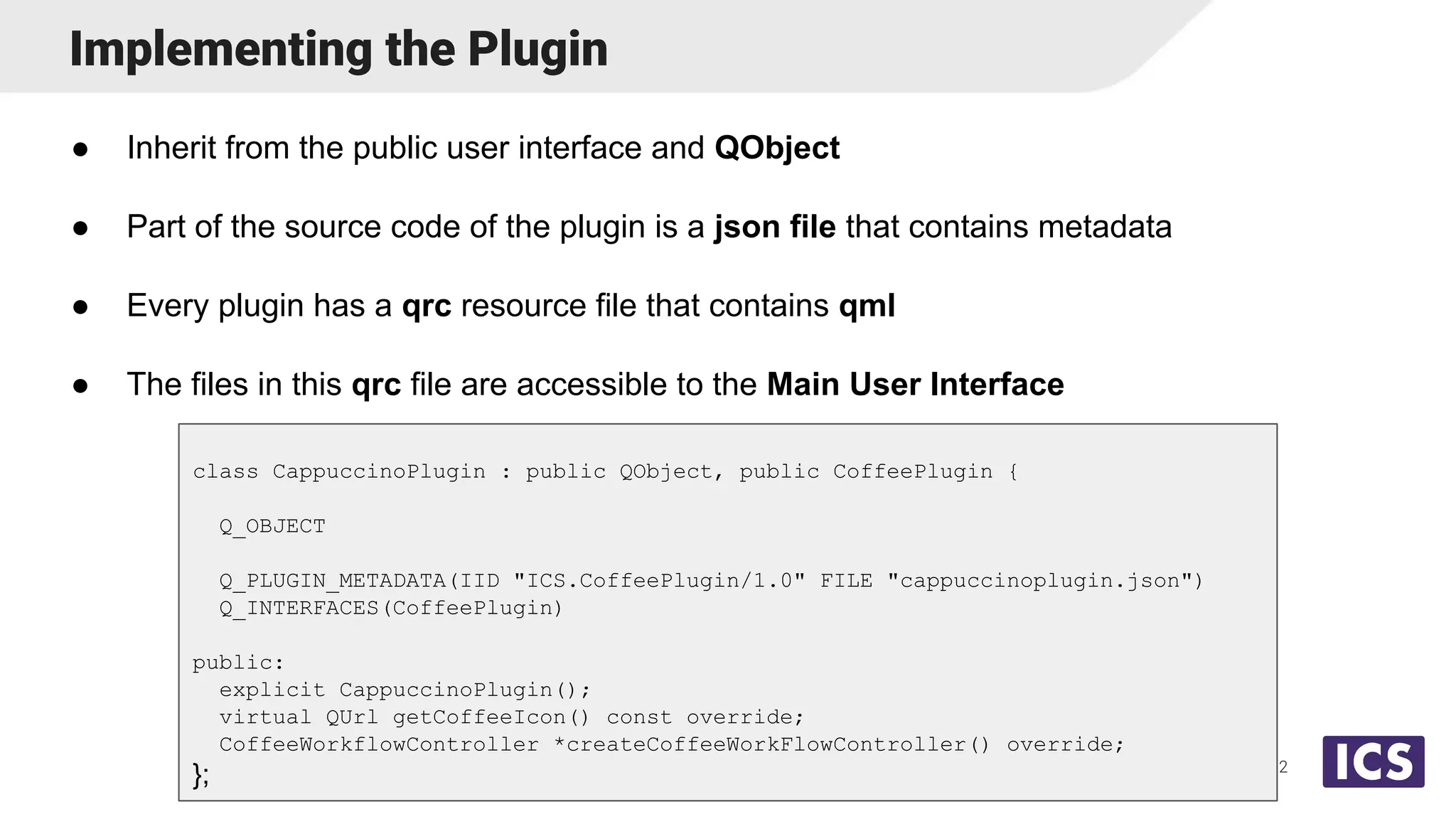

12. Implementing the Plugin
● Inherit from the public user interface and QObject
● Part of the source code of the plugin is a json file that contains metadata
● Every plugin has a qrc resource file that contains qml
● The files in this qrc file are accessible to the Main User Interface
12
class CappuccinoPlugin : public QObject, public CoffeePlugin {
Q_OBJECT
Q_PLUGIN_METADATA(IID "ICS.CoffeePlugin/1.0" FILE "cappuccinoplugin.json")
Q_INTERFACES(CoffeePlugin)
public:
explicit CappuccinoPlugin();
virtual QUrl getCoffeeIcon() const override;
CoffeeWorkflowController *createCoffeeWorkFlowController() override;
};

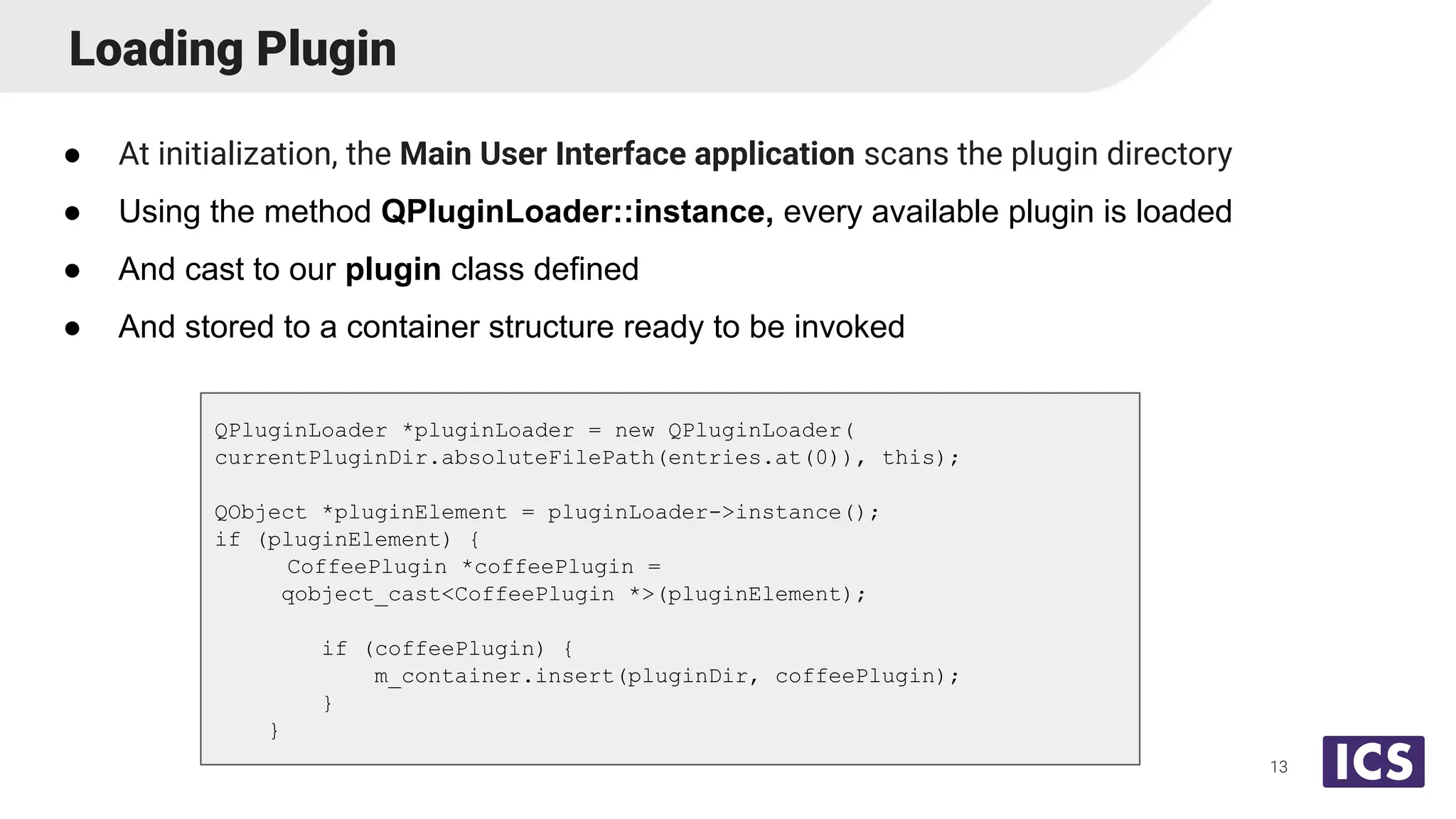

13. Loading Plugin
● At initialization, the Main User Interface application scans the plugin directory
● Using the method QPluginLoader::instance, every available plugin is loaded
● And cast to our plugin class defined
● And stored to a container structure ready to be invoked
13
QPluginLoader *pluginLoader = new QPluginLoader(
currentPluginDir.absoluteFilePath(entries.at(0)), this);
QObject *pluginElement = pluginLoader->instance();
if (pluginElement) {
CoffeePlugin *coffeePlugin =
qobject_cast<CoffeePlugin *>(pluginElement);
if (coffeePlugin) {
m_container.insert(pluginDir, coffeePlugin);
}
}

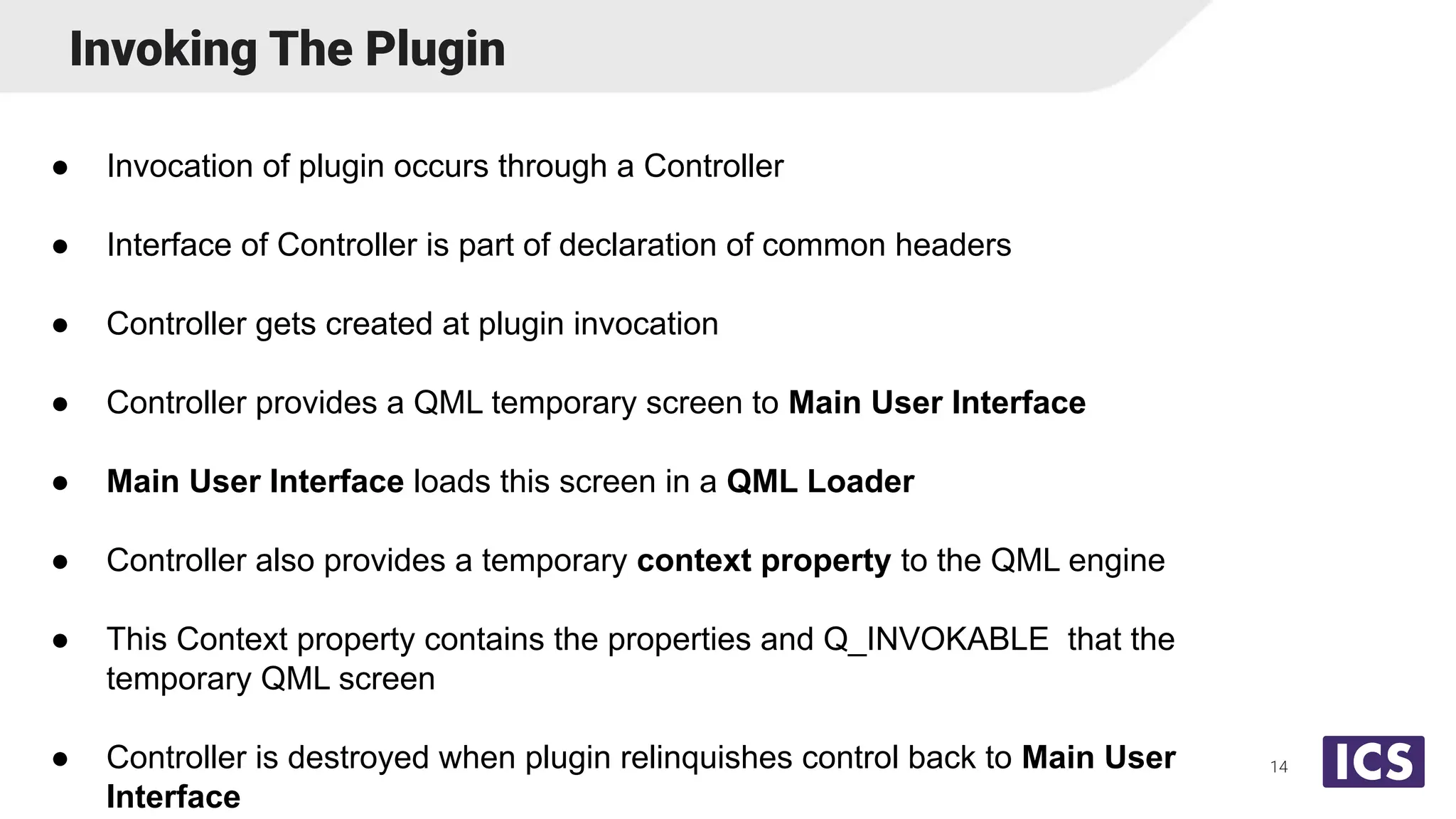

14. Invoking The Plugin
● Invocation of plugin occurs through a Controller
● Interface of Controller is part of declaration of common headers
● Controller gets created at plugin invocation
● Controller provides a QML temporary screen to Main User Interface
● Main User Interface loads this screen in a QML Loader
● Controller also provides a temporary context property to the QML engine
● This Context property contains the properties and Q_INVOKABLE that the
temporary QML screen
● Controller is destroyed when plugin relinquishes control back to Main User
Interface
14

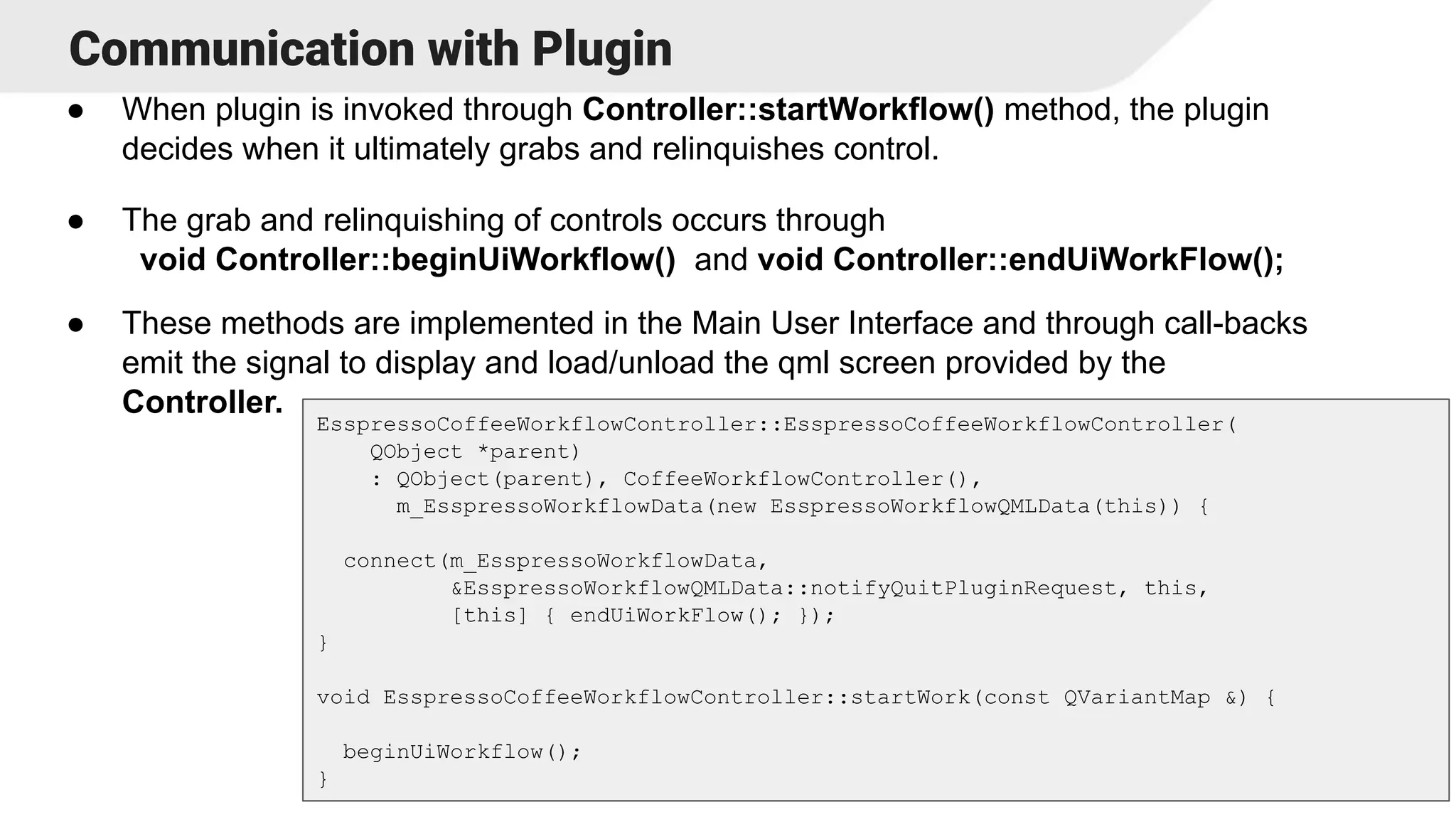

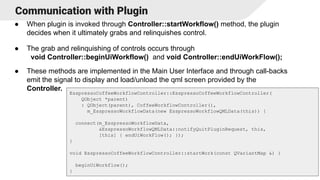

15. Communication with Plugin
● When plugin is invoked through Controller::startWorkflow() method, the plugin
decides when it ultimately grabs and relinquishes control.
● The grab and relinquishing of controls occurs through
void Controller::beginUiWorkflow() and void Controller::endUiWorkFlow();
● These methods are implemented in the Main User Interface and through call-backs
emit the signal to display and load/unload the qml screen provided by the
Controller.
15
EsspressoCoffeeWorkflowController::EsspressoCoffeeWorkflowController(
QObject *parent)
: QObject(parent), CoffeeWorkflowController(),
m_EsspressoWorkflowData(new EsspressoWorkflowQMLData(this)) {
connect(m_EsspressoWorkflowData,
&EsspressoWorkflowQMLData::notifyQuitPluginRequest, this,
[this] { endUiWorkFlow(); });
}
void EsspressoCoffeeWorkflowController::startWork(const QVariantMap &) {
beginUiWorkflow();
}

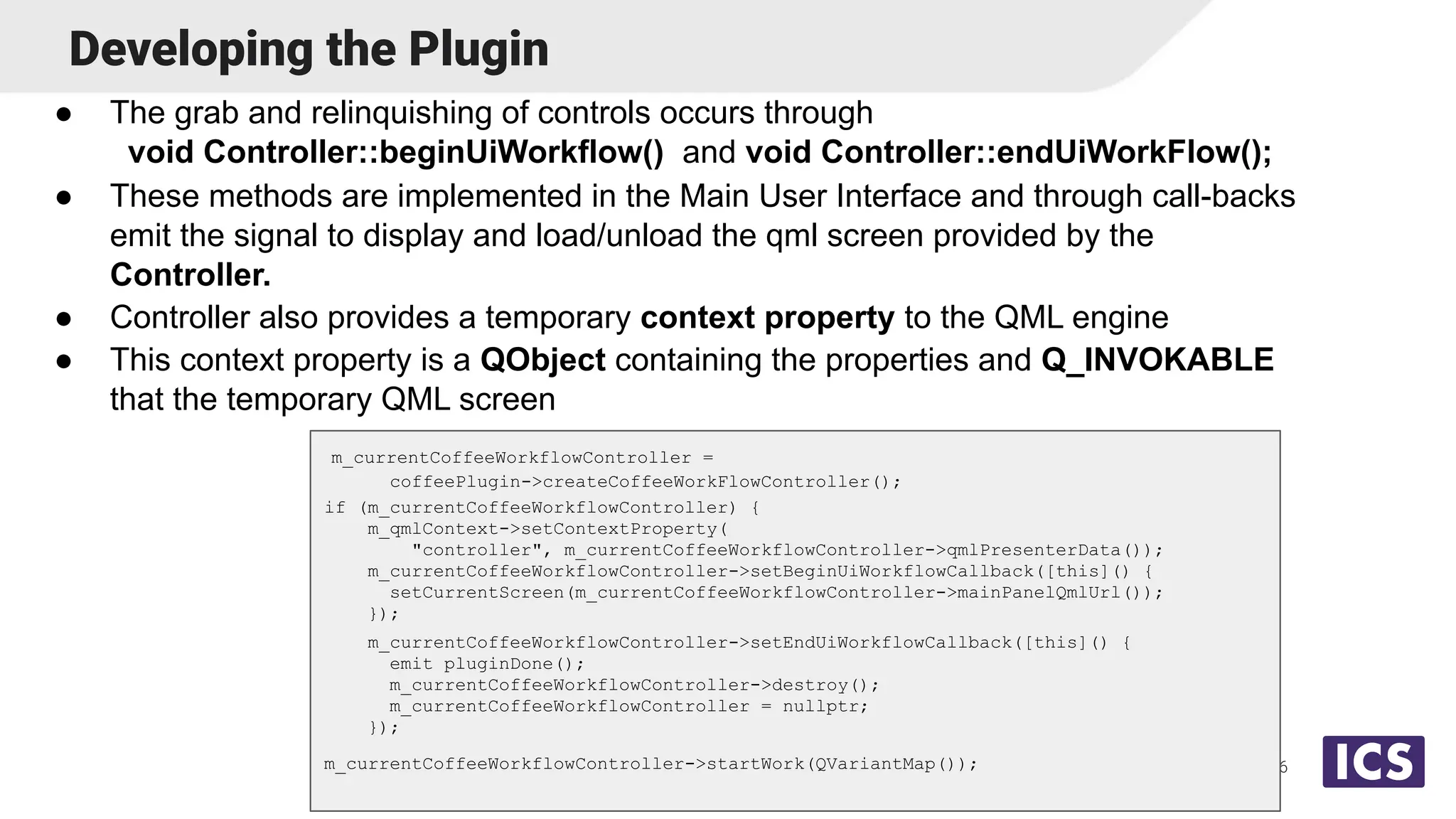

16. Developing the Plugin
● The grab and relinquishing of controls occurs through
void Controller::beginUiWorkflow() and void Controller::endUiWorkFlow();
● These methods are implemented in the Main User Interface and through call-backs
emit the signal to display and load/unload the qml screen provided by the
Controller.
● Controller also provides a temporary context property to the QML engine
● This context property is a QObject containing the properties and Q_INVOKABLE
that the temporary QML screen
16
m_currentCoffeeWorkflowController =
coffeePlugin->createCoffeeWorkFlowController();
if (m_currentCoffeeWorkflowController) {
m_qmlContext->setContextProperty(
"controller", m_currentCoffeeWorkflowController->qmlPresenterData());
m_currentCoffeeWorkflowController->setBeginUiWorkflowCallback([this]() {
setCurrentScreen(m_currentCoffeeWorkflowController->mainPanelQmlUrl());
});
m_currentCoffeeWorkflowController->setEndUiWorkflowCallback([this]() {
emit pluginDone();
m_currentCoffeeWorkflowController->destroy();
m_currentCoffeeWorkflowController = nullptr;
});
m_currentCoffeeWorkflowController->startWork(QVariantMap());

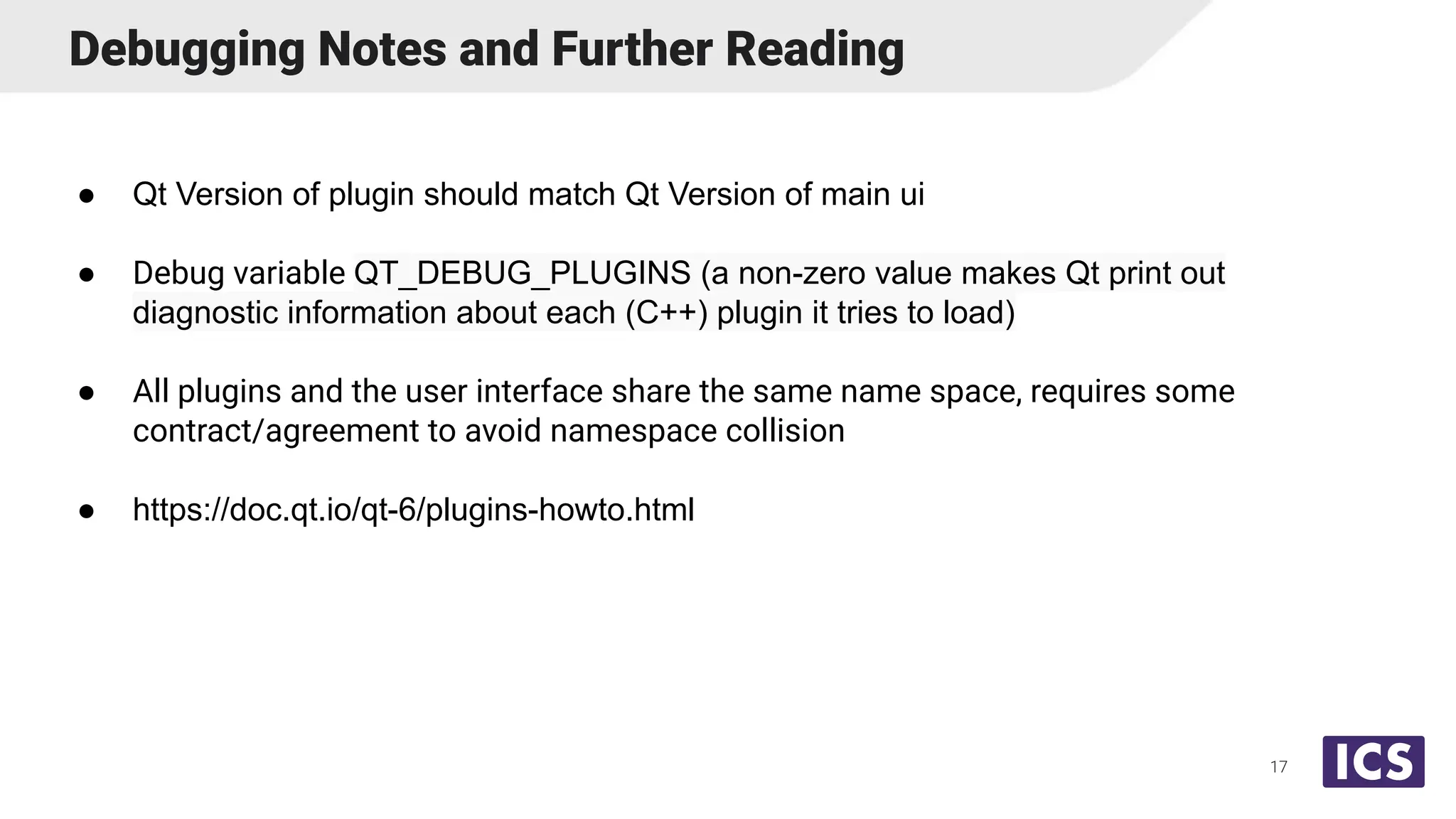

17. Debugging Notes and Further Reading
● Qt Version of plugin should match Qt Version of main ui
● Debug variable QT_DEBUG_PLUGINS (a non-zero value makes Qt print out
diagnostic information about each (C++) plugin it tries to load)
● All plugins and the user interface share the same name space, requires some
contract/agreement to avoid namespace collision
● https://doc.qt.io/qt-6/plugins-howto.html
17
