Loop of Henle with its complex anatomy and even more complicated physiology has long remained an enigma to researchers all around the world. Here we discuss about the functional anatomy and the transport characteristics of Loop of Henle.

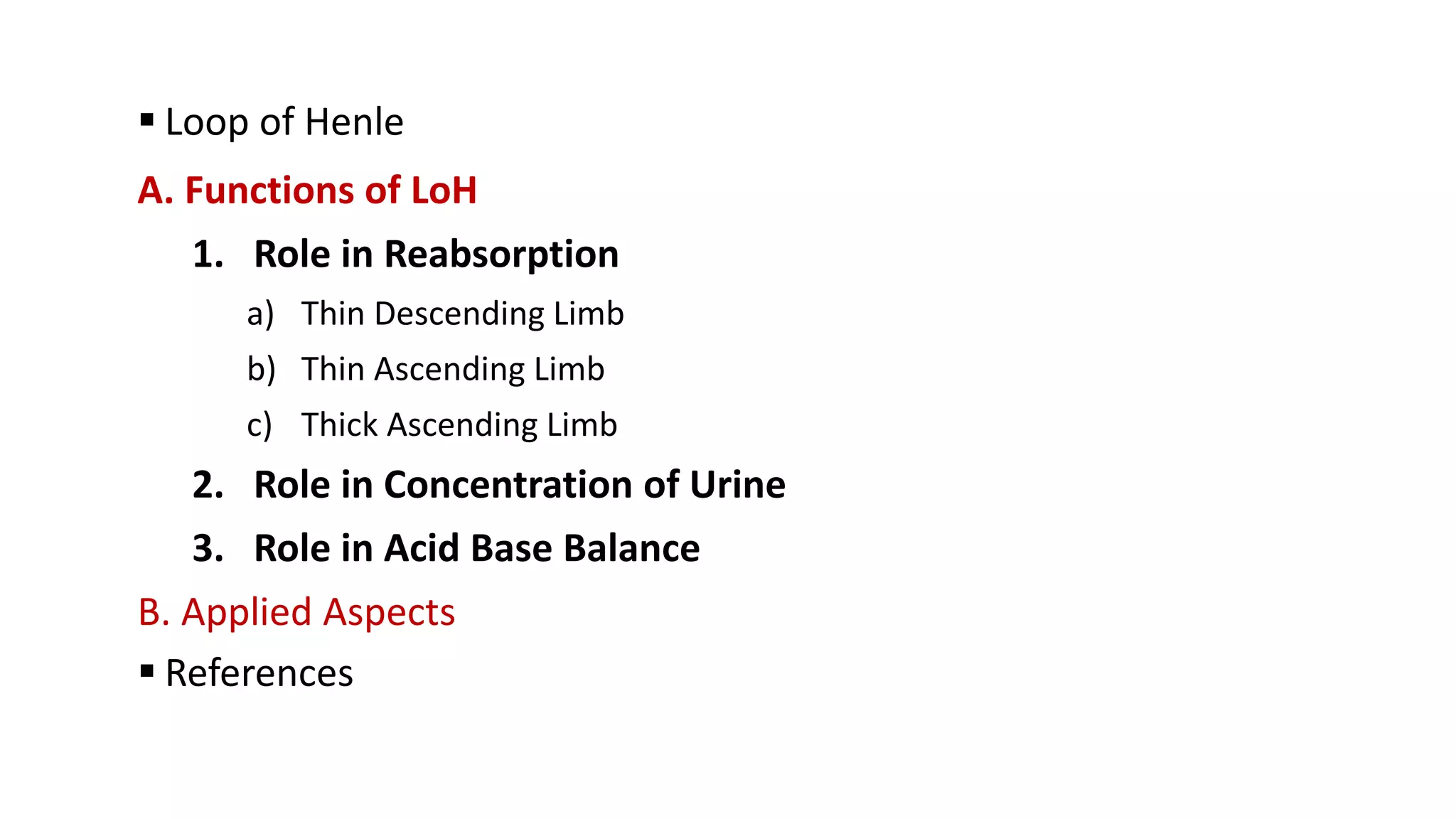

2. ď§ Loop of Henle
A. Functions of LoH
1. Role in Reabsorption
a) Thin Descending Limb
b) Thin Ascending Limb
c) Thick Ascending Limb
2. Role in Concentration of Urine
3. Role in Acid Base Balance
B. Applied Aspects
ď§ References
3. ⢠Continuation of Pars Recta of
Proximal Tubule
⢠Fredrich Gustav Jacob Henle
⢠U shaped segment
⢠Functionally distinct segments
⢠Thin Descending Segment
⢠Thin Ascending Segment
⢠Thick Ascending Segment
⢠Highly specialized nephron site
⢠extreme heterogeneity
⢠anatomic configuration
Organization of Human Nephron
Fig 33.2 Berne & Levy Physiology 7th Edition
4. Cortical Nephrons (85%) JG Nephrons (15%)
⢠Glomeruli lies in the outer
cortex
⢠Glomeruli juxtamedullary
cortex / inner part of cortex
⢠LoH has 2 parts ( tDL, TAL ) ⢠3 parts ( tDL, tAL, TAL )
⢠Thin segment is very short
barely penetrating the inner
medulla
⢠Long thin limb extending
into the medullary pyramids
⢠Drains into the peritubular
capillaries
⢠Drains into peritubular
capillaries and vasa recta
⢠Excretion of waste products ⢠Concentration of urine by
creating a hyper osmotic
medulla

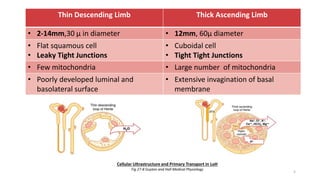

5. Thin Descending Limb Thick Ascending Limb
⢠2-14mm,30 ¾ in diameter ⢠12mm, 60¾ diameter
⢠Flat squamous cell
⢠Leaky Tight Junctions
⢠Cuboidal cell
⢠Tight Tight Junctions
⢠Few mitochondria ⢠Large number of mitochondria
⢠Poorly developed luminal and
basolateral surface
⢠Extensive invagination of basal
membrane
5
Cellular Ultrastructure and Primary Transport in LoH
Fig 27-8 Guyton and Hall Medical Physiology
6. A. Functions of Loop of Henle
1. Role in Reabsorption
a) Thin Descending Limb (tDL)
ď§ Absorption of H2O
1. 15% of the filtered water is
reabsorbed
2. Thin descending limb is
permeable to water, AQP 1
3. Owing to the high osmolality of
the medullary interstitium
(because of the activity of TAL)
Changes in the % of filtered substances along nephron
Fig 38-1 Ganongâs Review of Medical Physiology 26th Edition
7. ⢠3/4th of H2O entering tDL of Long Looped Nephrons
is rreabsorbed here
⢠1/2th of H2O entering tDL of Short Looped Nephrons
is reabsorbed here
4. Tubular Fluid Osmolality
⢠Osmolality increases due to reabsorption of
water
⢠300 to 1200 in Long looped nephrons
x4 times
⢠300 to 600 in Short looped nephrons
x2 times
Osmolality changes as filtrate flows through nephron
Fig 20-4 Silverthorne Human Physiology
ď§Absorption of H2O : Continued
8. Long
Looped
Tubular
Fluid
Peritubular
Fluid
⢠Electrolyte 1120 600
⢠Urea 80 600
1200 1200
Short
Looped
Tubular
Fluid
Peritubular
Fluid
⢠Electrolyte 560 400
⢠Urea 40 200
600 600
⢠Both in long and short looped nephrons,
⢠the predominant solutes in the tubular fluid are Na+ and Cl-,
⢠but substantial fraction of the peritubular fluid is Urea.
5. Composition of Tubular and Peritubular Fluid (at the tip of LoH)
ď§Absorption of H2O : Continued

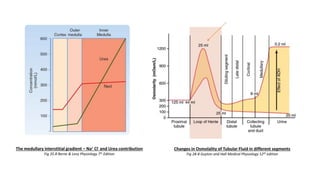

9. The medullary interstitial gradient â Na+ Cl- and Urea contribution
Fig 35.8 Berne & Levy Physiology 7th Edition
Changes in Osmolality of Tubular Fluid in different segments
Fig 28-8 Guyton and Hall Medical Physiology 12th edition

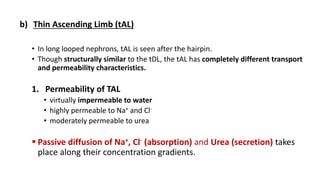

10. b) Thin Ascending Limb (tAL)
⢠In long looped nephrons, tAL is seen after the hairpin.
⢠Though structurally similar to the tDL, the tAL has completely different transport
and permeability characteristics.
1. Permeability of TAL
⢠virtually impermeable to water
⢠highly permeable to Na+ and Cl-
⢠moderately permeable to urea
ď§ Passive diffusion of Na+, Cl- (absorption) and Urea (secretion) takes
place along their concentration gradients.

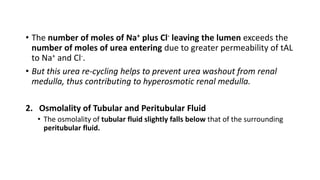

11. ⢠The number of moles of Na+ plus Cl- leaving the lumen exceeds the
number of moles of urea entering due to greater permeability of tAL
to Na+ and Cl-.
⢠But this urea re-cycling helps to prevent urea washout from renal
medulla, thus contributing to hyperosmotic renal medulla.
2. Osmolality of Tubular and Peritubular Fluid
⢠The osmolality of tubular fluid slightly falls below that of the surrounding
peritubular fluid.

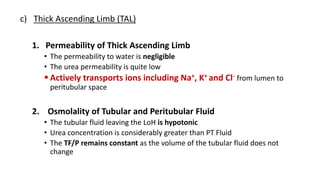

12. c) Thick Ascending Limb (TAL)
1. Permeability of Thick Ascending Limb
⢠The permeability to water is negligible
⢠The urea permeability is quite low
ď§ Actively transports ions including Na+, K+ and Cl- from lumen to
peritubular space
2. Osmolality of Tubular and Peritubular Fluid
⢠The tubular fluid leaving the LoH is hypotonic
⢠Urea concentration is considerably greater than PT Fluid
⢠The TF/P remains constant as the volume of the tubular fluid does not
change

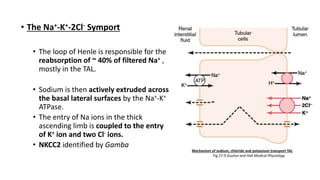

13. ⢠The Na+-K+-2Cl- Symport
⢠The loop of Henle is responsible for the
reabsorption of ~ 40% of filtered Na+ ,
mostly in the TAL.
⢠Sodium is then actively extruded across
the basal lateral surfaces by the Na+-K+
ATPase.
⢠The entry of Na ions in the thick
ascending limb is coupled to the entry
of K+ ion and two Cl- ions.
⢠NKCC2 identified by Gamba
Mechanism of sodium, chloride and potassium transport TAL
Fig 27-9 Guyton and Hall Medical Physiology

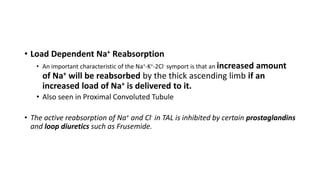

14. ⢠Load Dependent Na+ Reabsorption
⢠An important characteristic of the Na+-K+-2Cl- symport is that an increased amount
of Na+ will be reabsorbed by the thick ascending limb if an
increased load of Na+ is delivered to it.
⢠Also seen in Proximal Convoluted Tubule
⢠The active reabsorption of Na+ and Cl- in TAL is inhibited by certain prostaglandins
and loop diuretics such as Frusemide.

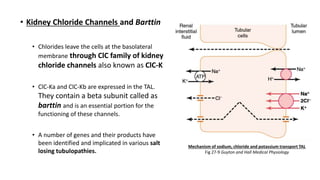

15. ⢠Kidney Chloride Channels and Barttin
⢠Chlorides leave the cells at the basolateral
membrane through ClC family of kidney
chloride channels also known as ClC-K
⢠ClC-Ka and ClC-Kb are expressed in the TAL.
They contain a beta subunit called as
barttin and is an essential portion for the
functioning of these channels.
⢠A number of genes and their products have
been identified and implicated in various salt
losing tubulopathies.
Mechanism of sodium, chloride and potassium transport TAL
Fig 27-9 Guyton and Hall Medical Physiology
16. ⢠ROMK Channels
⢠Some of the K that enters the cells through the Na+-
K+-2Cl- symport leaks back across the apical
membrane into the tubular lumen via ROMK
channel (renal outer medullary K+ channel)
⢠These channels
⢠ensure K+ recycling to the lumen,
essential for salt reabsorption
⢠set a positive trans-epithelial voltage,
that drives paracellular reabsorption of
cations
⢠Additional Na+ reabsorption
⢠Other cations namely Ca2+ and Mg2+
Mechanism of sodium, chloride and potassium transport TAL
Fig 27-9 Guyton and Hall Medical Physiology

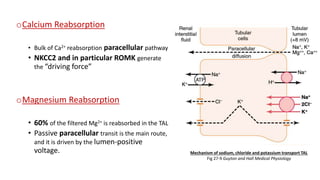

17. oCalcium Reabsorption
⢠Bulk of Ca2+ reabsorption paracellular pathway
⢠NKCC2 and in particular ROMK generate
the âdriving forceâ
oMagnesium Reabsorption
⢠60% of the filtered Mg2+ is reabsorbed in the TAL
⢠Passive paracellular transit is the main route,
and it is driven by the lumen-positive
voltage. Mechanism of sodium, chloride and potassium transport TAL
Fig 27-9 Guyton and Hall Medical Physiology

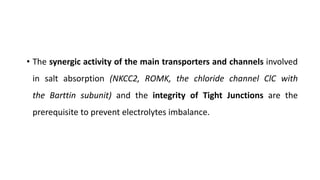

18. ⢠The synergic activity of the main transporters and channels involved
in salt absorption (NKCC2, ROMK, the chloride channel ClC with
the Barttin subunit) and the integrity of Tight Junctions are the
prerequisite to prevent electrolytes imbalance.

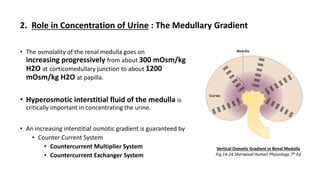

19. ⢠The osmolality of the renal medulla goes on
increasing progressively from about 300 mOsm/kg
H2O at corticomedullary junction to about 1200
mOsm/kg H2O at papilla.
⢠Hyperosmotic interstitial fluid of the medulla is
critically important in concentrating the urine.
⢠An increasing interstitial osmotic gradient is guaranteed by
⢠Counter Current System
⢠Countercurrent Multiplier System
⢠Countercurrent Exchanger System
2. Role in Concentration of Urine : The Medullary Gradient
Vertical Osmotic Gradient in Renal Medulla
Fig 14-24 Sherwood Human Physiology 7th Ed
20. ⢠Countercurrent System: A system where
inflow runs parallel to, counter to, and in
close proximity to the outflow for
some distance.
⢠In the kidney, the structures which form the
countercurrent system are loop of Henle and
the vasa recta
⢠Countercurrent Multiplier System formed
by the operation of U shaped loop of
Henle and is responsible for the production of
hyperosmolality and a gradient in renal medulla
⢠Countercurrent Exchanger System is a
similar arrangement of the surrounding vasa recta
prevents osmotic gradient dissipation
Origin of single effect
(main driving force)
Multiplication of the
single effect

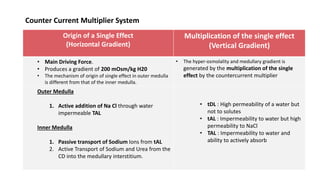

21. Counter Current Multiplier System
Origin of a Single Effect
(Horizontal Gradient)
Multiplication of the single effect
(Vertical Gradient)
⢠Main Driving Force.
⢠Produces a gradient of 200 mOsm/kg H20
⢠The mechanism of origin of single effect in outer medulla
is different from that of the inner medulla.
⢠The hyper-osmolality and medullary gradient is
generated by the multiplication of the single
effect by the countercurrent multiplier
Outer Medulla
1. Active addition of Na Cl through water
impermeable TAL
Inner Medulla
1. Passive transport of Sodium Ions from tAL
2. Active Transport of Sodium and Urea from the
CD into the medullary interstitium.
⢠tDL : High permeability of a water but
not to solutes
⢠tAL : Impermeability to water but high
permeability to NaCl
⢠TAL : Impermeability to water and
ability to actively absorb
22. ⢠Reabsorbs a significant fraction (15%) of the
filtered bicarbonate
⢠Bicarbonate concentration increases significantly
resulting from due to water reabsorption along the
descending limb
⢠In the TAL, bicarbonate is reabsorbed via the
transcellular pathway
⢠resembles bicarbonate reabsorption in the PT
through Na+ /H+ exchanger (NHE3)
activity
⢠Bicarbonate exit from the cells is mediated
by the Clâ/HCO3â exchanger 2 (AE2) Transport mechanisms in TAL LoH
Fig 24.7 Berne & Levy Physiology 7th Edition
3. Role in Acid Base Balance

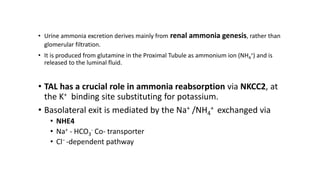

23. ⢠Urine ammonia excretion derives mainly from renal ammonia genesis, rather than
glomerular filtration.
⢠It is produced from glutamine in the Proximal Tubule as ammonium ion (NH4
+) and is
released to the luminal fluid.
⢠TAL has a crucial role in ammonia reabsorption via NKCC2, at
the K+ binding site substituting for potassium.
⢠Basolateral exit is mediated by the Na+ /NH4
+ exchanged via
⢠NHE4
⢠Na+ - HCO3
- Co- transporter
⢠Clâ -dependent pathway
24. B. Applied Aspects
1. Loop Diuretics
⢠Furosemide, Torsemide, and Bumetanide
bind NKCC2 in a reversible fashion.
⢠reduction in Na+ , K+ , and Clâ absorption
⢠overrules that the cortico-medullar osmotic
gradient
⢠increases urine output
⢠impairs paracellular cations reabsorption.
⢠This property has predictable beneficial effects in
several conditions, and loop diuretics are the
main therapy in fluid retentive states and
hypercalcemic conditions.

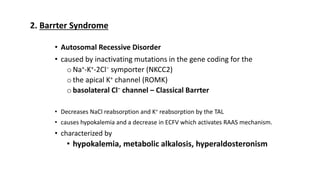

25. ⢠Autosomal Recessive Disorder
⢠caused by inactivating mutations in the gene coding for the
oNa+-K+-2Clâ symporter (NKCC2)
othe apical K+ channel (ROMK)
obasolateral Clâ channel â Classical Barrter
⢠Decreases NaCl reabsorption and K+ reabsorption by the TAL
⢠causes hypokalemia and a decrease in ECFV which activates RAAS mechanism.
⢠characterized by
⢠hypokalemia, metabolic alkalosis, hyperaldosteronism
2. Barrter Syndrome

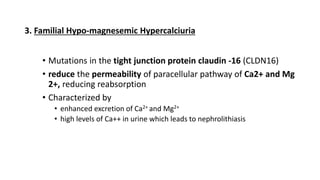

26. ⢠Mutations in the tight junction protein claudin -16 (CLDN16)
⢠reduce the permeability of paracellular pathway of Ca2+ and Mg
2+, reducing reabsorption
⢠Characterized by
⢠enhanced excretion of Ca2+ and Mg2+
⢠high levels of Ca++ in urine which leads to nephrolithiasis
3. Familial Hypo-magnesemic Hypercalciuria
27. References
1. Ganong. Review of Medical Physiology 22nd Edition McGraw Hill
2. Best and Taylorâs Physiological Basis of Medical Practice 12th Edition Williams &
Wilkins
3. Guyton & Hall. Textbook of Medical Physiology 11th Edition Saunders Elsevier
4. Walter F Boron. Medical Physiology 2nd Edition Saunders Elsevier
5. Berne & Levy Physiology 7th Edition Elsevier
6. Ganong. Review of Medical Physiology 26th Edition McGraw Hill
Editor's Notes
Loop of Henle, as you know is the continuation of the terminal part of the proximal tubule known as the pars recta.
It was named after the German anatomist Fredrich Gustav Jacob HenleÂ
It is a U shaped segment with two limbs divided into functionally distinct segments namely the thin descending limb and thin and thick ascending limb.
The descending limb is thin throughout in all the nephrons. The ascending limb has thin and thick portions in a typical juxtamedullary nephron.
This part of the renal tubule is a highly specialized site because of its extreme heterogeneity among the different component parts (in terms of histology ) and its special anatomical configuration.
Before going to the rest of the details, we will now see the two types of nephron that we see in the human kidney.
First one is the cortical nephron which comprises of almost 85% of the total nephrons.
These nephrons are placed higher up in the cortex and their glomeruli lies in the outer cortex and their LoH has two parts, the thin descending limb and the thick ascending limb. Here the thin descending limbis short and barely penetrates the inner medulla.Â
On the other hand the JG nephrons which is 15% of the total has their glomeruli more deep in the inner part of the cortex/ juxta- medullary cortex. Â
They have an additional part in their LoH known as the thin ascending limb and their long thin limb extends upto the renal pyramids.Â
The vascular structures supplying the nephrons also differ. The cortical nephrons are drained by the peritubular capillaries alone while the JG Nephrons are drained by both peritubular capillaries and vasa recta.
Functionally, the cortical nephrons are for the excretion of waste products and although they are less in number, the JG Nephrons play a significant role in creating an hyper osmotic medulla inturn facilitating the concentration of urine.
Now, coming to the parts of the LoH, we broadly divide it under two headings. The thin descending limb and the Thick ascending Limb.
The thin descending limb varies in length between 2-14mm while the thick ascending limb measures 12mmÂ
The lining epithelium is flat squamous cell with leaky tight junctions in TDL while cuboidal cells line with tight tight junctions in the walls of TAL. This makes the thin descending limb permeable to water and thick ascending limb virtually impermeable. Â
The increased number of mitochondria and the extensive invaginations in the basal membrane can be used to explain the various active processes in the TALÂ
These histological features can be directly correlated with their absorptive functions and with the key role these cells play in making the medullary interstitium hyperosmotic.Â
We now move to the topic proper, the functions of Loop of Henle. We will first see the absorptive functions of the first part, the descending limb.Â
Thin Descending Limb is the major site of absorption of water in the Loop of Henle amounting to 15% of the total water absorption.Â
This is made possible by specialized channels AQP 1 aided by the high osmolality of medullary interstitium because of activity of thick ascending Limb.Â
As you can see here, the major portion of the water reabsorption occurs in the PCT followed by the LoH
Almost 3/4 of the water entering the tDL of Long Looped and 1/2th entering Short Looped Nephron is absorbed here.
This pumps up the osmolality of the tubular fluid 4 times in case of Long Looped and 2 times in case of Short Looped
Hence, the increase in osmolality of tubular fluid can be attributed entirely to water absorption.
Coming to the composition of the tubular fluid and the peritubular fluid
As you know, along the descending Thin Limb , the osmolality of the surrounding medium increases.
At any given point along the course of the thin descending limb the osmolality of the tubular and the peritubular fluid is the same, thanks to the freely permeable nature of the thin descending limb.Â
But if we see the cause for this osmolality in both cases we can see the predominant solutes contributing to the high osmolality in the tubular fluid is Na and Cl, while in the peri-tubular fluid it is Urea.
Now, if we compare the long and the short looped nephrons, was we move from the cortex to the medulla, this contribution of urea towards the medullary interstitial gradient also increases.
The second figure shows the changes in the osmolality of the tubular fluid as it passes through the different segments and it clearly shows an increase in the osmolality towards the middle region denoting the tip of the Loop of Henle.Â
Now, we will see the absorptive functions of the thin ascending limb. As mentioned earlier, it is only seen in the long looped nephrons.Â
Through the tAL is structurally similar to the tDL, it has completely different transport and permeability characteristics in a way thatÂ
It is virtually impermeable to waterÂ
And highly permeable to Na and ClÂ
And only moderately permeable to urea.
Therefore passive absorption of Na and Cl and secretion of Urea takes place which is along their concentration gradients.Â
Here, the number of moles of Na plus Cl leaving the lumen exceeds the number of moles of Urea entering due to the greater permeability of tAL to Na and Cl
Hence when we consider the osmolality of the Tubular Fluid , it falls slightly below that of the surrounding peri-tubular fluid due to this dissimilar ion permeablity.Â
But this urea re-cycling helps to prevent urea washout from renal medulla, thus contributing to hyperosmotic renal medulla.
The thick Ascending Limb is peculiar in a way that the permeability to water is negligible while it actively transports Na and Cl from lumen into peritubular space. The urea permeability of TAL is quite low.Â
Urea concentration is considerably greater than that of the plasma and surrounding peritubular fluid.Â
The TF/P remains constant throughout the thick ascending limb in both long and short looped nephrons as the volume of the tubular fluid does not change significantly due to the low water permeability
We will now see the various active process that take place in the TAL.
The first of which and the most important is the Na-K-2Cl which was discovered baby Gamba
The Na K ATPase pump plays a crucial role in pumping out Na thus creating a favorable concentration gradient for the Na-K-2Cl co transporter to act.
Na is also absorbed into the cell by means of NHE
A characteristic feature of this absorption is that it is load dependent, meaning the amount of Na reabsorbed will be directly proportional to the Na delievered to it.
The active absorption is inhibited by certain prostaglandins and loop diuretics such as frusemide.
Another type of channels that are active in the basolateral membrane of TAL are the Kidney Chloride Channels. These contain a beta subunit down as the barttin which is essential for the functioning of these channelsÂ
The chloride entering the cell through the NCCK channels exit the cells through these basolateral channels.
Any defect in the genes coding for these proteins or their products as such can lead to various salt losing tubulopathies.
The potassium entered exits the cell basolaterally but also some amount of Potassium leaks back into the tubular lumen via ROMK Channels
This is an important mechanism as it ensures the recycling of K back to the lumen which is essential for salt reabsorption
Adding to that they also set a positive trans- epithelial voltage that drives the paracellular reabsorption of 1. Additional Na 2. Other cations such as Ca and MgÂ
As pointed out earlier, the absorption of Ca and Mg takes place paracellularly through the tight junctions in the TAL for which activity of channels such as NKCC2 and ROMK act as driving force.Â
So to summarize the absorptive functions, the synergistic activity of the main transporters and channels involved in the salt reabsorption together with the integrity of the tight junctions determined by claudins are essential and a prerequisite to prevent electrolyte imbalance.
We will now move on to the second function of LoH which is the creation of medullary gradient essential for the concentration mechanisms in kidney.
The osmolality of the renal medulla goes on increasing progressively from about 300 mOsm/kg H2O at corticomedullary junction to about 1200 mOsm/kg H2O at papilla.
An increasing interstitial osmotic gradient is guaranteed by
Counter Current System
Countercurrent Multiplier System
Countercurrent Exchanger SystemÂ
Countercurrent System:  A system where inflow runs parallel to, counter to, and in close proximity to the outflow for some distance.
Countercurrent Multiplier System is formed due to the different transport mechanisms that take place in the U shaped LoH as well as it selective permeability of various segments of LoH. It is responsible for the production of hyperosmolality and gradient in renal medulla.
Whereas, Countercurrent Exchanger System is a similar arrangement of the surrounding vasa recta prevents osmotic gradient dissipation.
In order to understand the counter current multiplier system, we would breakdown to into its component parts ie, the origin of a single effect or the main driving force and the multiplication of that single effect to produce the  actual hyperosmotic medulla.
The main driving force is the active addition of Na Cl through water impermeable TAL due to the activity of Na K 2 Cl pump in the outer medulla
While in the inner medulla, the passive transport of Sodium ions from tAL along with the active transport of the Sodium and Urea from the Collecting Duct into the medullary interstitium produces the single effect
The single effect can alone produce a medullary gradient of about 200 osmoles and this effect is multiplied further by the Countercurrent multiplier.
This is made possible by the various permeability characteristics of the different limbs of loop of Henle.
The role of PT in bicarbonate reabsorption is well established
Other downstream segments contribute to bicarbonate reabsorption.
We will now go on to the role of Loop of Henle in the Acid Base balance.Â
The LoH reabsorbs a significant fraction of the filtered bicarbonate.
As the fluid comes down the descending limb, the concentration of bicarbonate increases due to water reabsorption.Â
In the thick ascending limb, the bicarbonate is absorbed through the transcellular pathwayÂ
It resembles bicarbonate reabsorption in the proximal tubule through NHE3 activityÂ
Bicarbonate exit from the cell is mediated by the Cl/ HCO3 exchanger 2 (AE2)
Urine ammonia excretion derives from renal ammonia genesis rather than glomerular filtration.
It is produced from glutamine in the PT as ammonium ion (NH4+) and is released to the luminal fluid.
TAL has a crucial role in the reabsorption of amonia via the NKCC2 channels were the ammonia binds at the site for potassium
Basolateral exit is mediated by Na NH4 exchange via NHE4, Na -HCO3 Co transporter and a Cl dependent pathwayÂ
Moving on to the applied aspects, we will first see the effect of certain diuretics that act on the Loop of HenleÂ
Furosemide, Torasemide, and Bumetanide bind NKCC2 in the TAL in a reversible fashion.
The resulting NKCC2 inhibition leads to the reduction in Na+ , K+ , and Clâ absorption
This effect overrules the cortico medullar osmotic gradient which in turn increases urine output and also impairs paracellular cations absorptionÂ
This property has predictable beneficial effects in several conditions, and loop diuretics are the main therapy in fluid retentive states and hypercalcemic conditions
Bartter's syndrome is an autosomal recessive disorderÂ
This is caused by inactivating mutations in the genes coding for theÂ
1Na+/1K+/2Clâ symporter (NKCC2)
the apical K+ channel (ROMK)
basolateral Clâ channel (ClCNKB) â Classical Barrter
This causes the decrease in Na Cl reabsorption and K+ reabsorption by the TAL
which in turn causes hypokalemia (i.e., low plasma [K+]) and a decrease in ECFV which activates RAAS mechansim.
characterized by hypokalemia, metabolic alkalosis and hyperaldosteronism
Now coming to the last applied aspect,
As we have seen earlier the integrity of the tight junctions is a prerequisite in the reabsorption of Ca and Mg paracellularly.Â
Mutations in the tight junction protein Claudin reduces the permeability of paracellular pathway decreasing their absorption
This condition is known as Familial Hypomagnesemic Hypercalciuria and is characterized by enhanced excretion of Ca and Mg and high levels of Ca in urine can lead to nephrolithiasisÂ
